B 2 B Web Services Application Team 3

B 2 B Web Services Application Team 3 Muhammad Nadeem Julian Tsisin Pat Zamorski Larry Perrone

Project Vision… Tom App http: //malikans. net/B 2 BWeb. Services/Tom. App/public/Search. Books. aspx John App http: //malikans. net/B 2 BWeb. Services/John. App/Home. Page. aspx

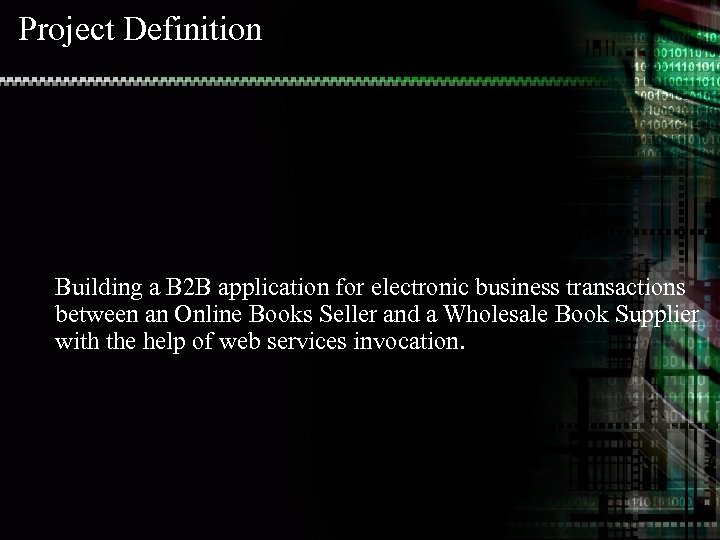

Project Definition Building a B 2 B application for electronic business transactions between an Online Books Seller and a Wholesale Book Supplier with the help of web services invocation.

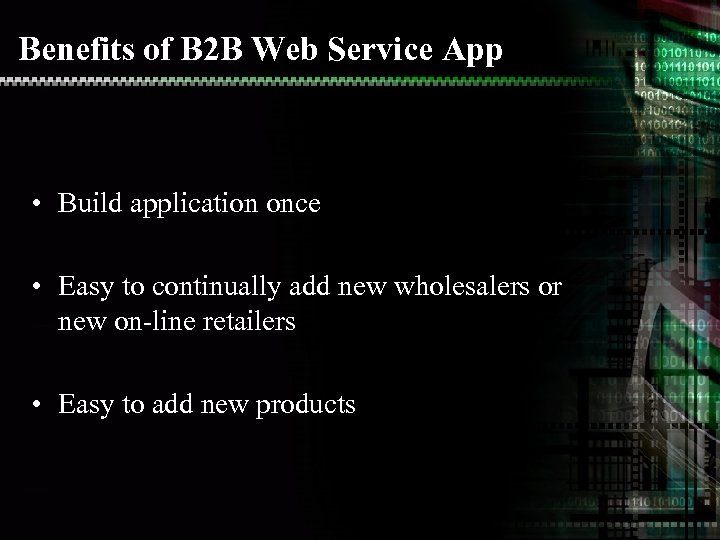

Benefits of B 2 B Web Service App • Build application once • Easy to continually add new wholesalers or new on-line retailers • Easy to add new products

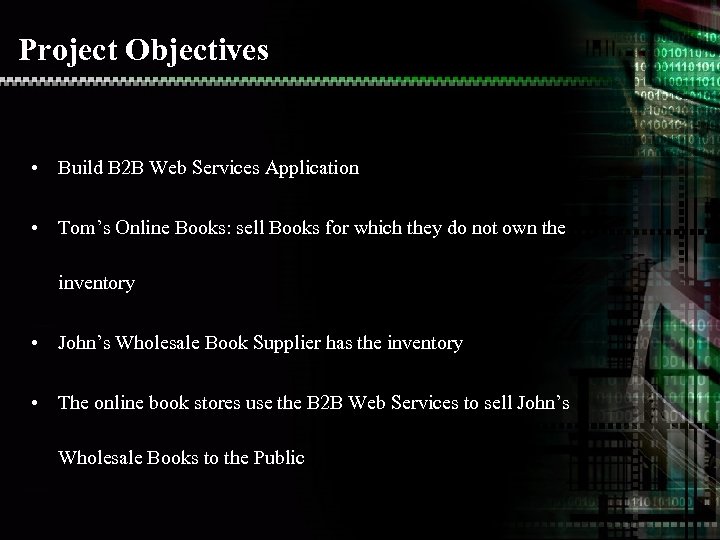

Project Objectives • Build B 2 B Web Services Application • Tom’s Online Books: sell Books for which they do not own the inventory • John’s Wholesale Book Supplier has the inventory • The online book stores use the B 2 B Web Services to sell John’s Wholesale Books to the Public

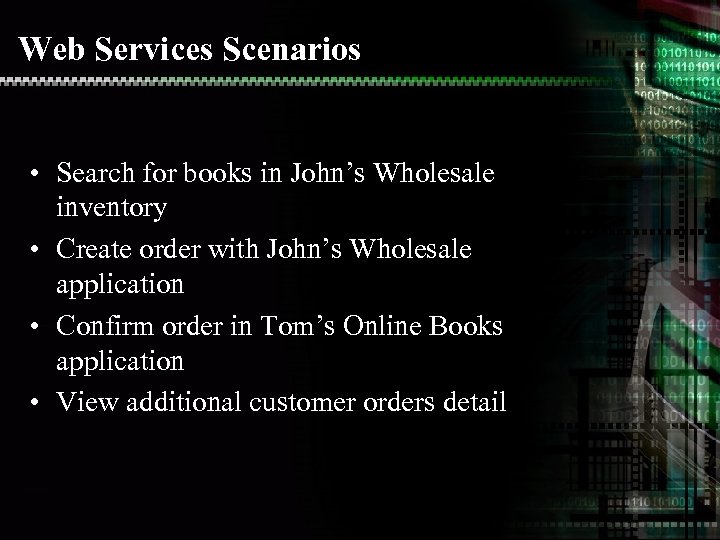

Web Services Scenarios • Search for books in John’s Wholesale inventory • Create order with John’s Wholesale application • Confirm order in Tom’s Online Books application • View additional customer orders detail

Application Architecture Outline: • Use case Modeling • Domain Model • Implementation Model – Database Design – Database Tier – Business Tier – Exceptions and Logging – Web Services • Data Model

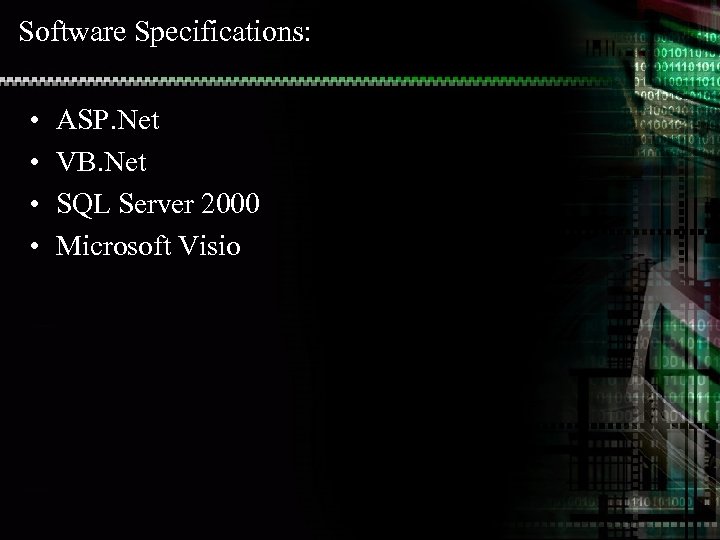

Software Specifications: • • ASP. Net VB. Net SQL Server 2000 Microsoft Visio

Domain Model…

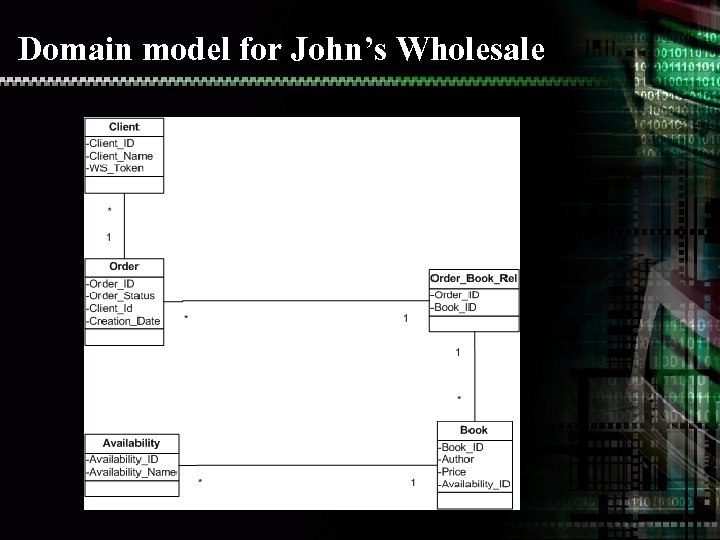

Domain model for John’s Wholesale

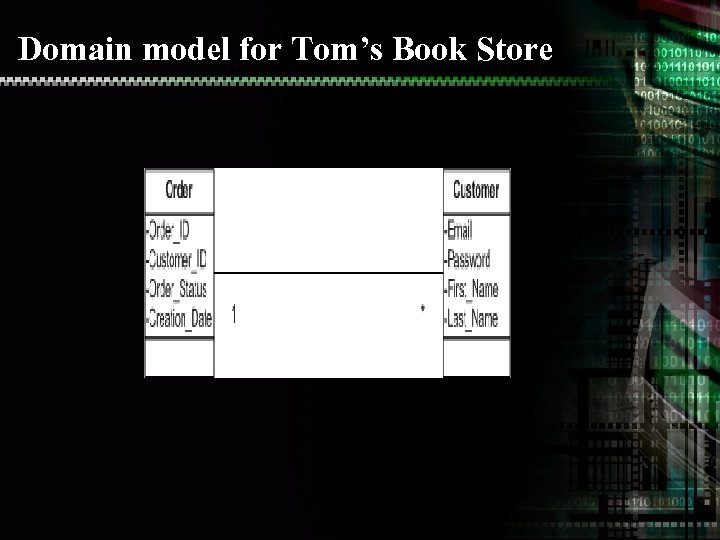

Domain model for Tom’s Book Store

Use Case Model…

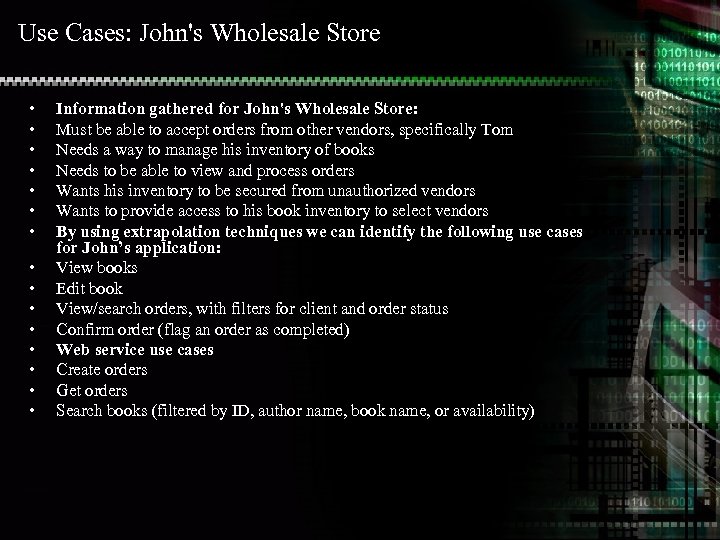

Use Cases: John's Wholesale Store • • • • Information gathered for John's Wholesale Store: Must be able to accept orders from other vendors, specifically Tom Needs a way to manage his inventory of books Needs to be able to view and process orders Wants his inventory to be secured from unauthorized vendors Wants to provide access to his book inventory to select vendors By using extrapolation techniques we can identify the following use cases for John’s application: View books Edit book View/search orders, with filters for client and order status Confirm order (flag an order as completed) Web service use cases Create orders Get orders Search books (filtered by ID, author name, book name, or availability)

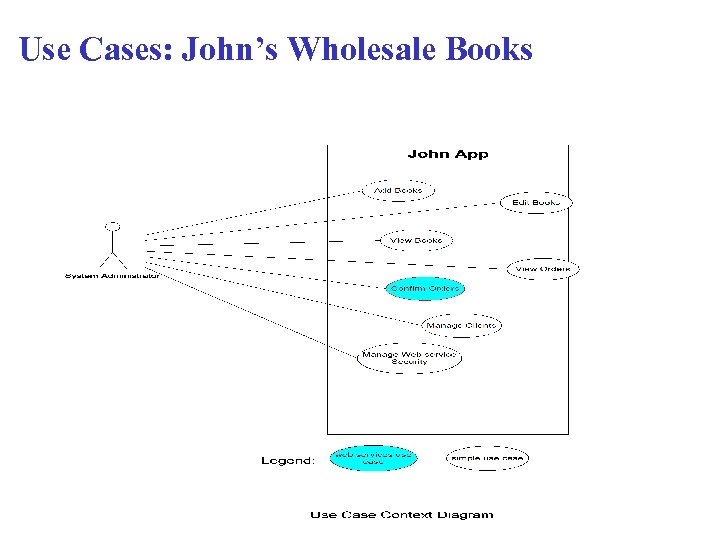

Use Cases: John’s Wholesale Books

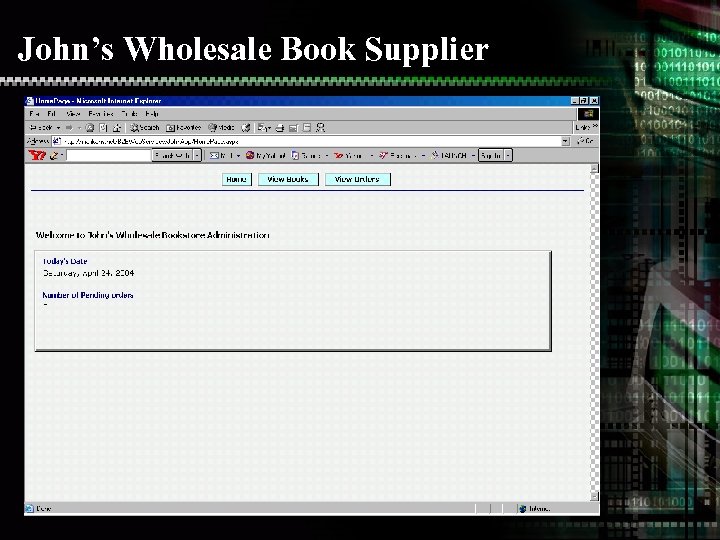

John’s Wholesale Book Supplier

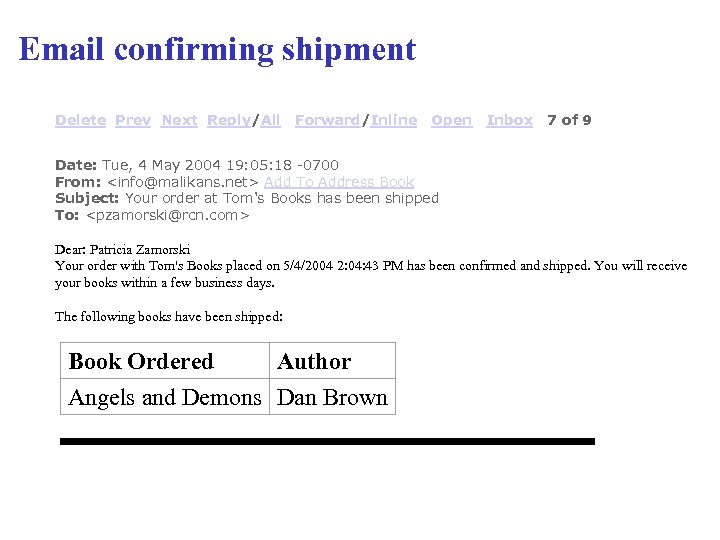

Email confirming shipment Delete Prev Next Reply/All Forward/Inline Open Inbox 7 of 9 Date: Tue, 4 May 2004 19: 05: 18 -0700 From: <info@malikans. net> Add To Address Book Subject: Your order at Tom's Books has been shipped To: <pzamorski@rcn. com> Dear: Patricia Zamorski Your order with Tom's Books placed on 5/4/2004 2: 04: 43 PM has been confirmed and shipped. You will receive your books within a few business days. The following books have been shipped: Book Ordered Author Angels and Demons Dan Brown

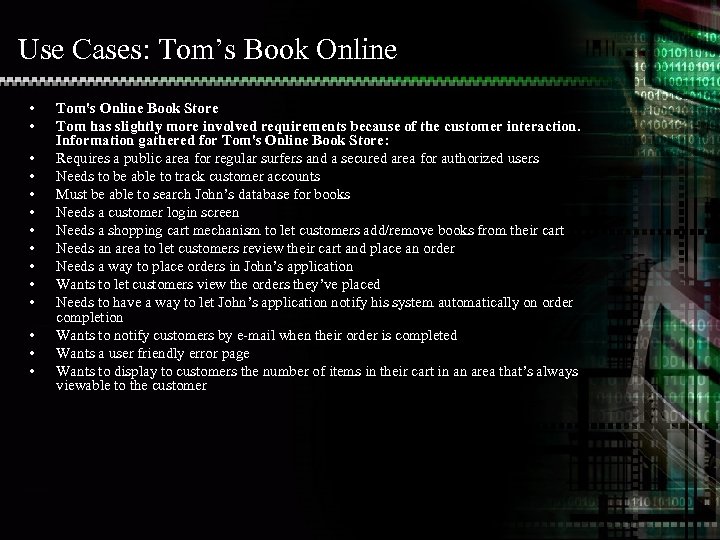

Use Cases: Tom’s Book Online • • • • Tom's Online Book Store Tom has slightly more involved requirements because of the customer interaction. Information gathered for Tom's Online Book Store: Requires a public area for regular surfers and a secured area for authorized users Needs to be able to track customer accounts Must be able to search John’s database for books Needs a customer login screen Needs a shopping cart mechanism to let customers add/remove books from their cart Needs an area to let customers review their cart and place an order Needs a way to place orders in John’s application Wants to let customers view the orders they’ve placed Needs to have a way to let John’s application notify his system automatically on order completion Wants to notify customers by e-mail when their order is completed Wants a user friendly error page Wants to display to customers the number of items in their cart in an area that’s always viewable to the customer

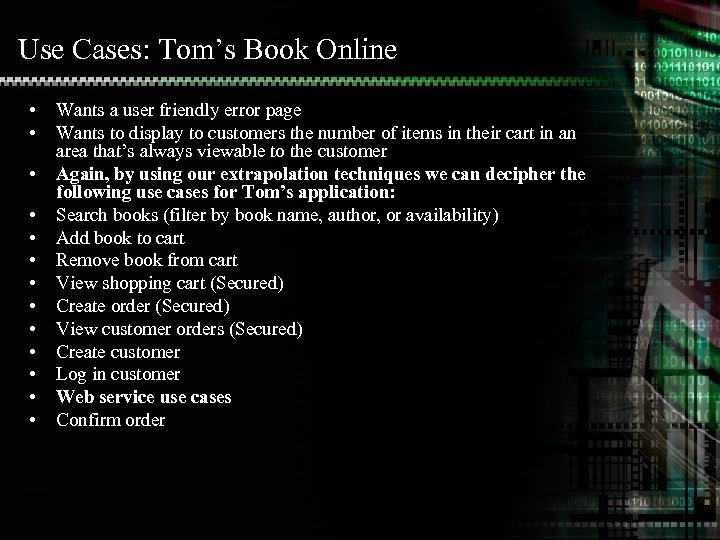

Use Cases: Tom’s Book Online • • • • Wants a user friendly error page Wants to display to customers the number of items in their cart in an area that’s always viewable to the customer Again, by using our extrapolation techniques we can decipher the following use cases for Tom’s application: Search books (filter by book name, author, or availability) Add book to cart Remove book from cart View shopping cart (Secured) Create order (Secured) View customer orders (Secured) Create customer Log in customer Web service use cases Confirm order

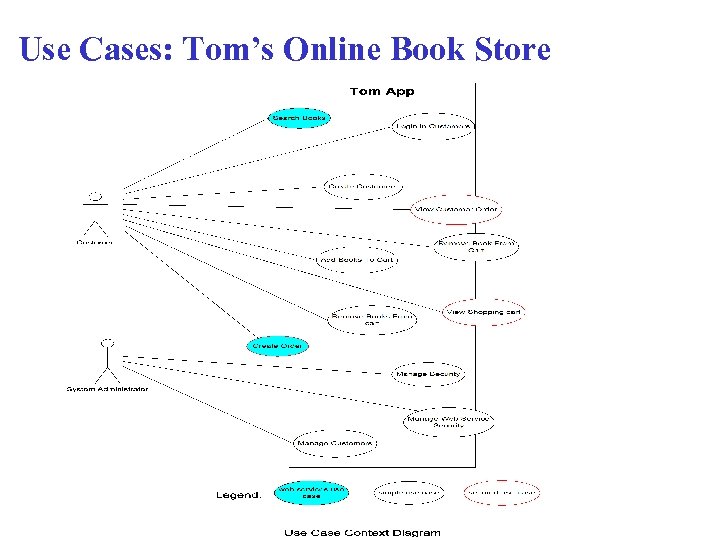

Use Cases: Tom’s Online Book Store

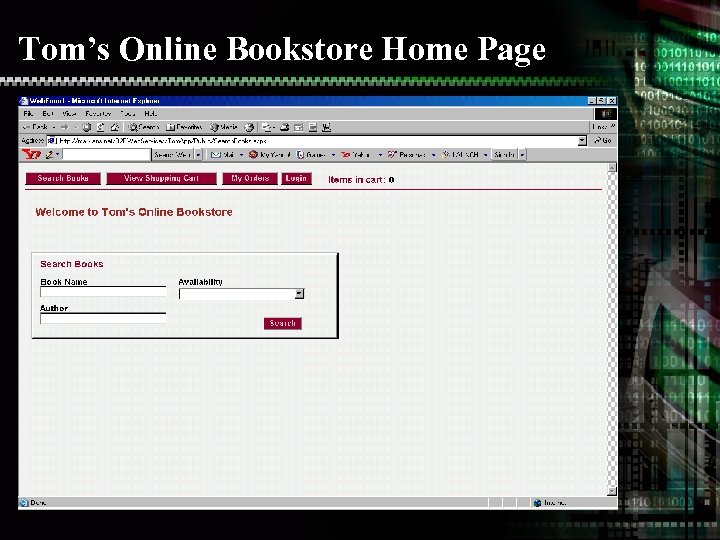

Tom’s Online Bookstore Home Page

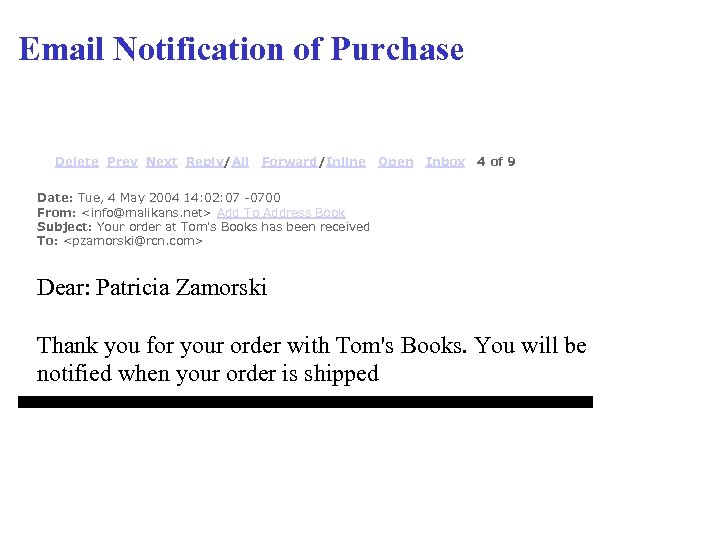

Email Notification of Purchase Delete Prev Next Reply/All Forward/Inline Open Inbox 4 of 9 Date: Tue, 4 May 2004 14: 02: 07 -0700 From: <info@malikans. net> Add To Address Book Subject: Your order at Tom's Books has been received To: <pzamorski@rcn. com> Dear: Patricia Zamorski Thank you for your order with Tom's Books. You will be notified when your order is shipped

Web Services Use Cases • • • • Use Case – Search Books A customer enters Book Name, Author name, and select Availability. ID [In Stock, Back Order]. Listing of books with Author Name and Price is shown for the customer. Use Case – Create Order Pre Condition: – A customer has successfully login. – The customer has added items in shopping cart. Customer clicks Make Order button. The system generates Order. ID. It sends asynchronous call to John. WS creates order data in John Database. The Customer receives notification about order creation. Use Case – Confirm Order John App administrator search orders by Clients Name and clicks Confirm Order button. System calls Tom. WS that updates order status in Tom Database. Tom. WS sends notification about order confirmation to John. App.

Implementation Model…

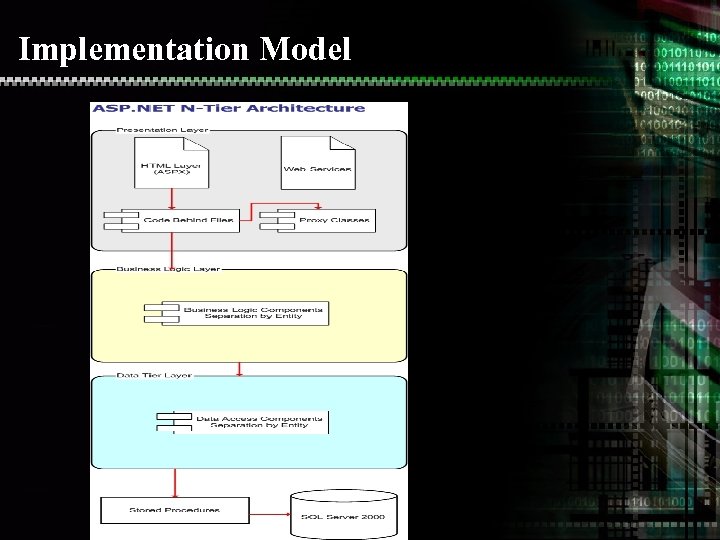

The n-tier architecture model • We used the following product technologies to build our final application: • Visual Studio. NET 2002 • SQL Server 2000. • The application framework employed an n-tier architecture model, a commonly used model in more intricate enterprise systems. A simple diagram of this model is as below in figure.

Implementation Model

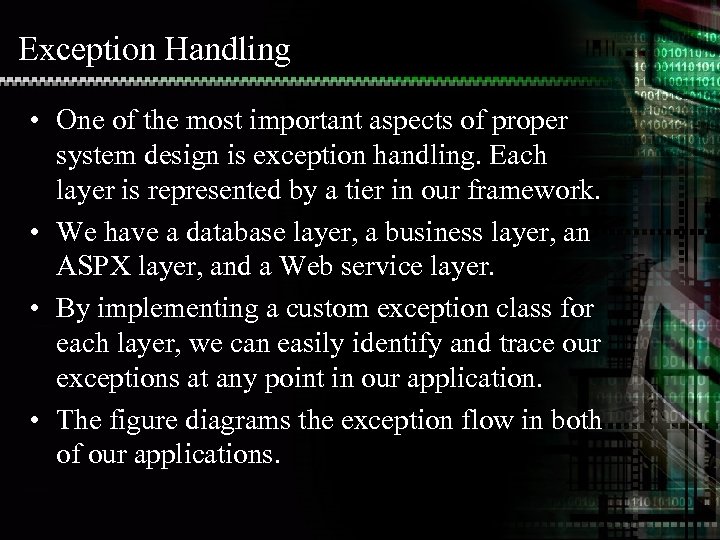

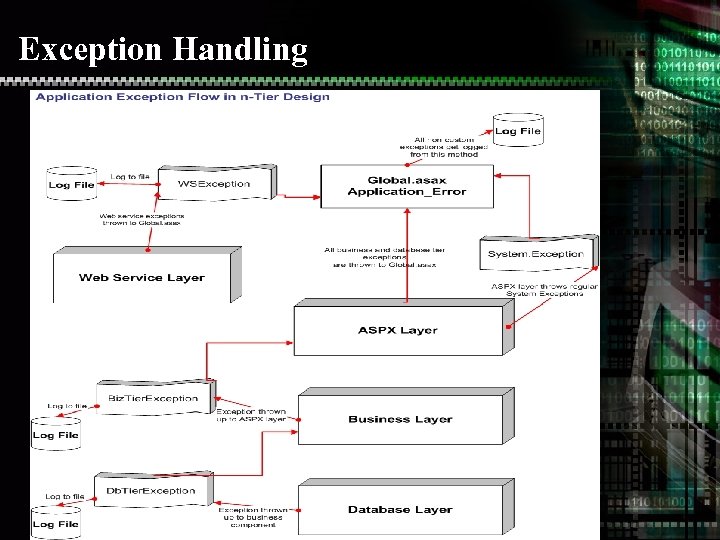

Exception Handling • One of the most important aspects of proper system design is exception handling. Each layer is represented by a tier in our framework. • We have a database layer, a business layer, an ASPX layer, and a Web service layer. • By implementing a custom exception class for each layer, we can easily identify and trace our exceptions at any point in our application. • The figure diagrams the exception flow in both of our applications.

Exception Handling

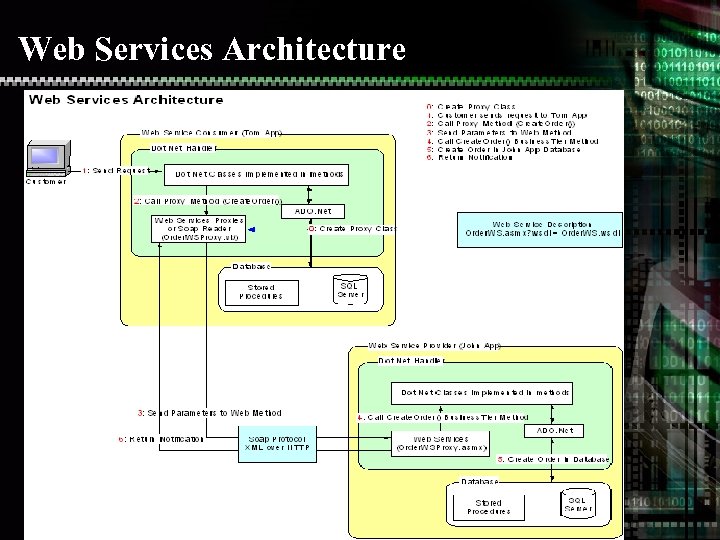

Web Services Architecture

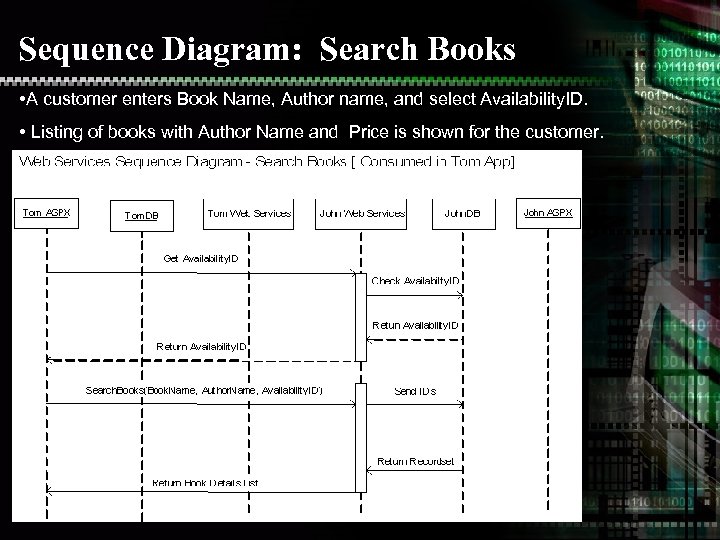

Sequence Diagram: Search Books • A customer enters Book Name, Author name, and select Availability. ID. • Listing of books with Author Name and Price is shown for the customer.

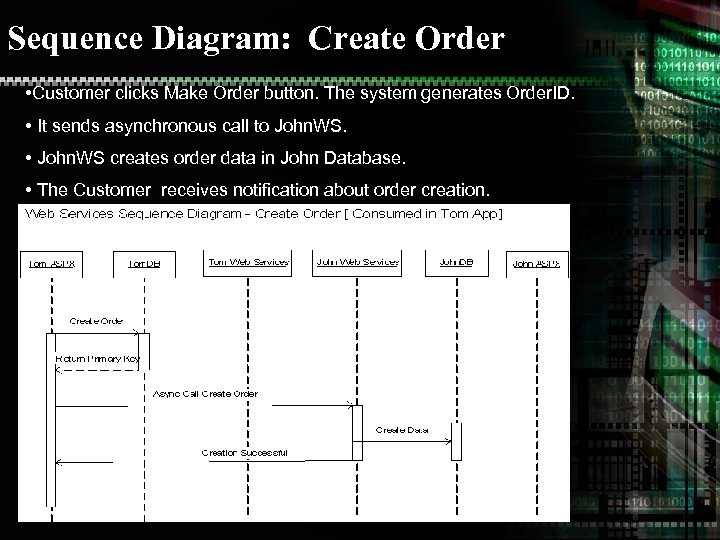

Sequence Diagram: Create Order • Customer clicks Make Order button. The system generates Order. ID. • It sends asynchronous call to John. WS. • John. WS creates order data in John Database. • The Customer receives notification about order creation.

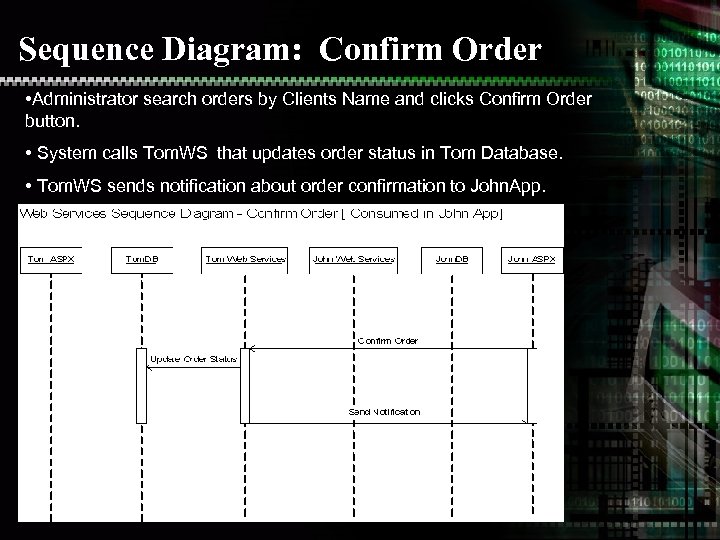

Sequence Diagram: Confirm Order • Administrator search orders by Clients Name and clicks Confirm Order button. • System calls Tom. WS that updates order status in Tom Database. • Tom. WS sends notification about order confirmation to John. App.

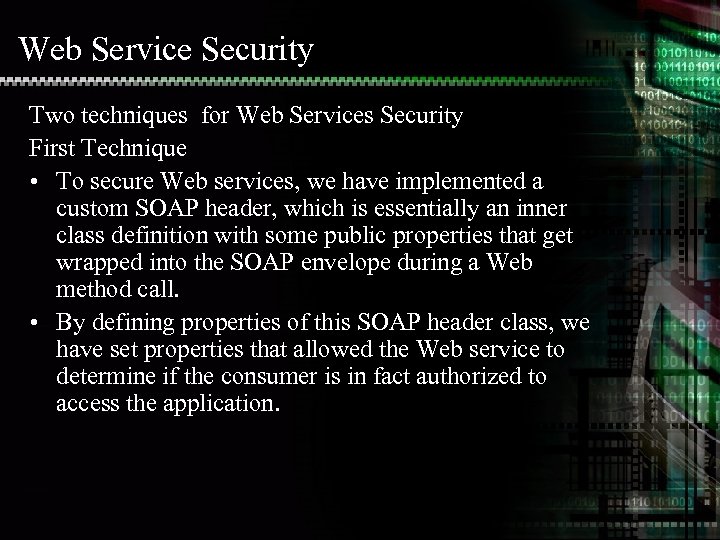

Web Service Security Two techniques for Web Services Security First Technique • To secure Web services, we have implemented a custom SOAP header, which is essentially an inner class definition with some public properties that get wrapped into the SOAP envelope during a Web method call. • By defining properties of this SOAP header class, we have set properties that allowed the Web service to determine if the consumer is in fact authorized to access the application.

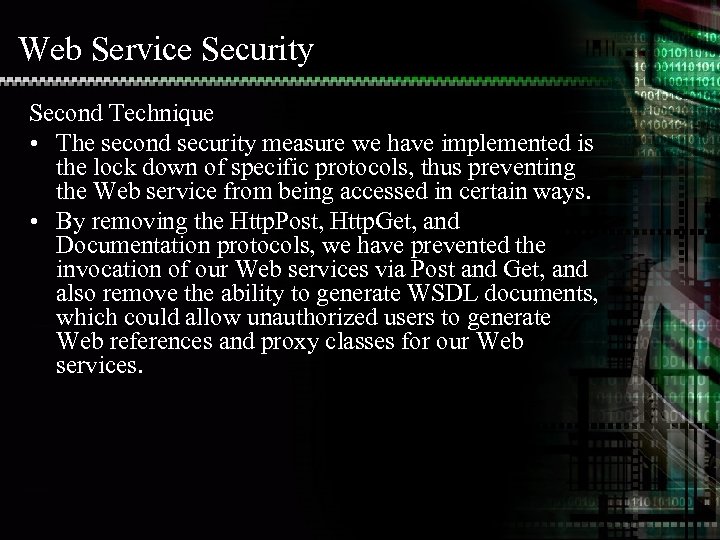

Web Service Security Second Technique • The second security measure we have implemented is the lock down of specific protocols, thus preventing the Web service from being accessed in certain ways. • By removing the Http. Post, Http. Get, and Documentation protocols, we have prevented the invocation of our Web services via Post and Get, and also remove the ability to generate WSDL documents, which could allow unauthorized users to generate Web references and proxy classes for our Web services.

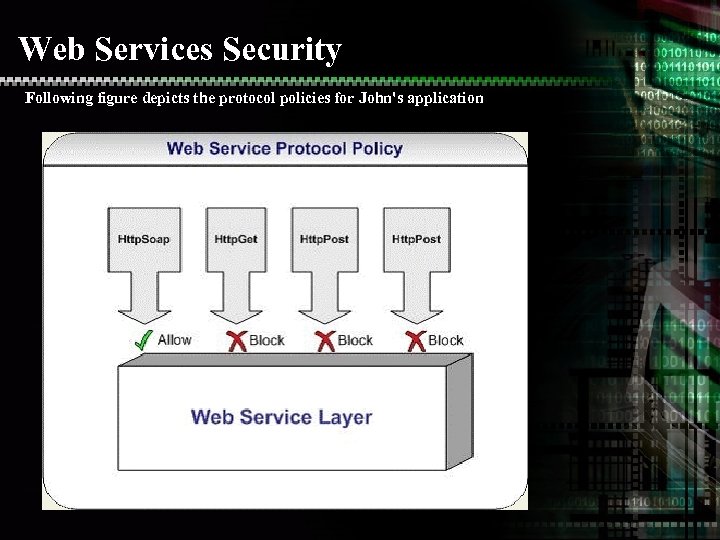

Web Services Security Following figure depicts the protocol policies for John's application.

Data Model…

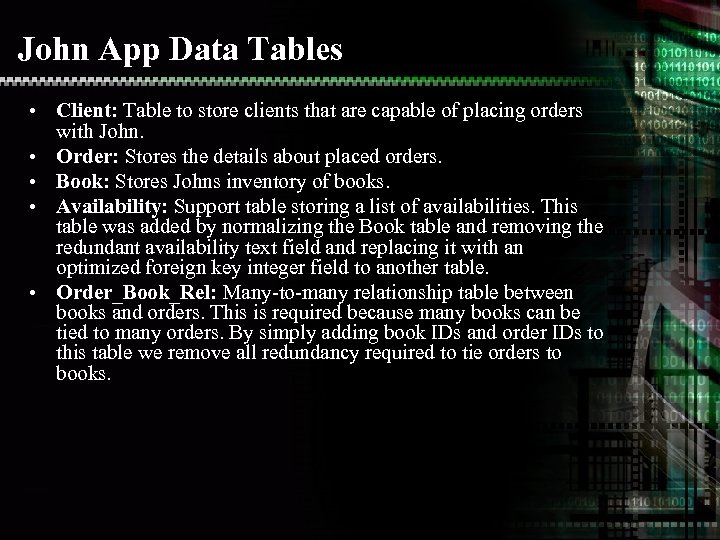

John App Data Tables • Client: Table to store clients that are capable of placing orders with John. • Order: Stores the details about placed orders. • Book: Stores Johns inventory of books. • Availability: Support table storing a list of availabilities. This table was added by normalizing the Book table and removing the redundant availability text field and replacing it with an optimized foreign key integer field to another table. • Order_Book_Rel: Many-to-many relationship table between books and orders. This is required because many books can be tied to many orders. By simply adding book IDs and order IDs to this table we remove all redundancy required to tie orders to books.

ERD for John’s Wholesale

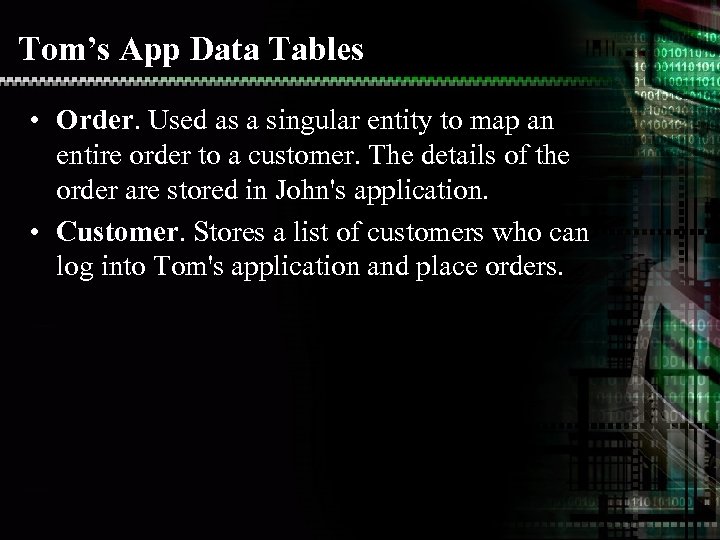

Tom’s App Data Tables • Order. Used as a singular entity to map an entire order to a customer. The details of the order are stored in John's application. • Customer. Stores a list of customers who can log into Tom's application and place orders.

ERD for Tom’s Online Books

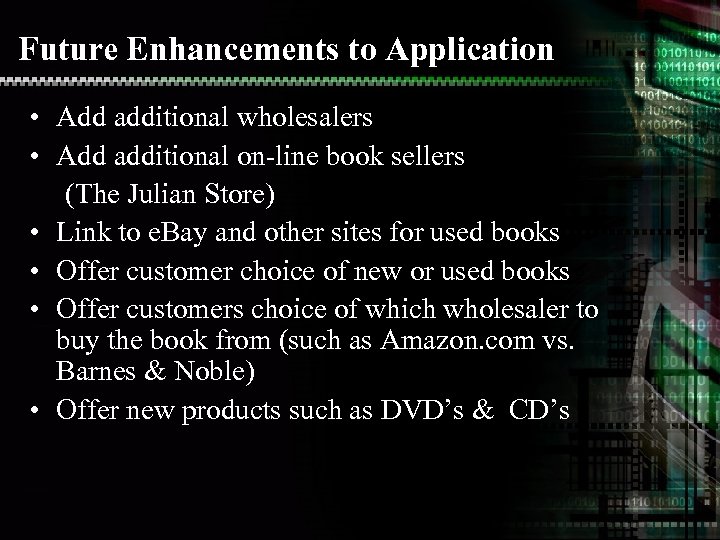

Future Enhancements to Application • Add additional wholesalers • Add additional on-line book sellers (The Julian Store) • Link to e. Bay and other sites for used books • Offer customer choice of new or used books • Offer customers choice of which wholesaler to buy the book from (such as Amazon. com vs. Barnes & Noble) • Offer new products such as DVD’s & CD’s

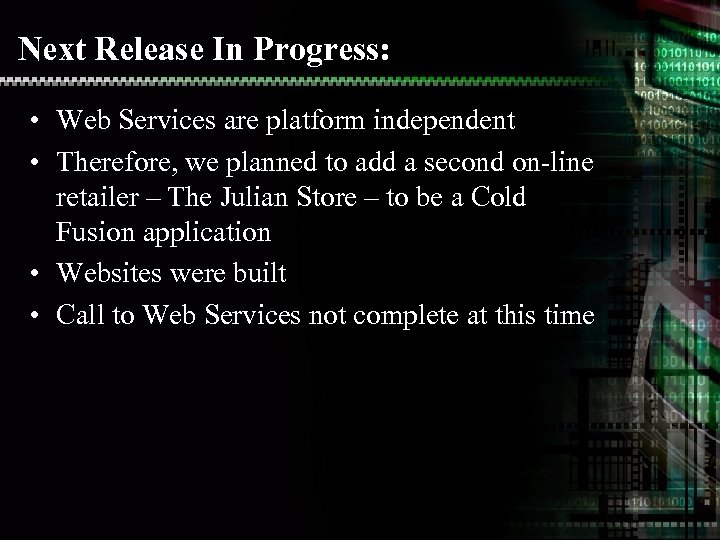

Next Release In Progress: • Web Services are platform independent • Therefore, we planned to add a second on-line retailer – The Julian Store – to be a Cold Fusion application • Websites were built • Call to Web Services not complete at this time

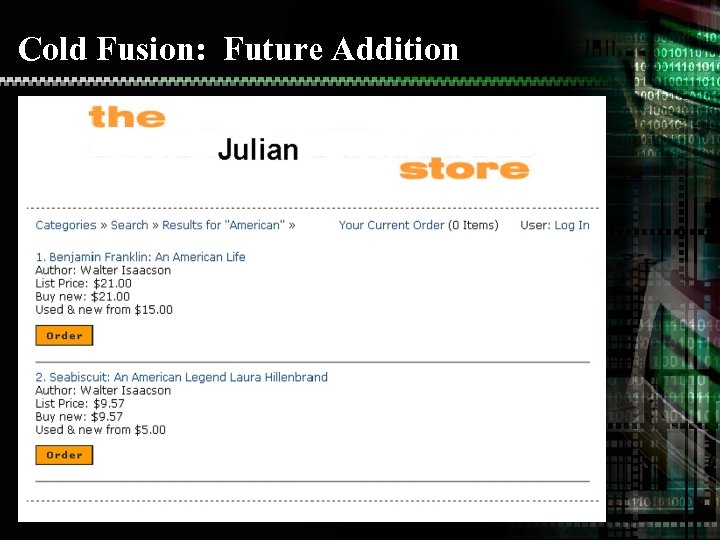

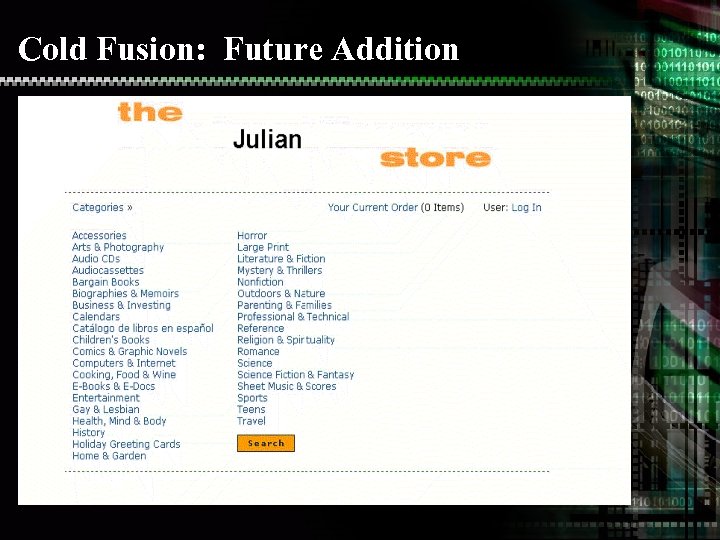

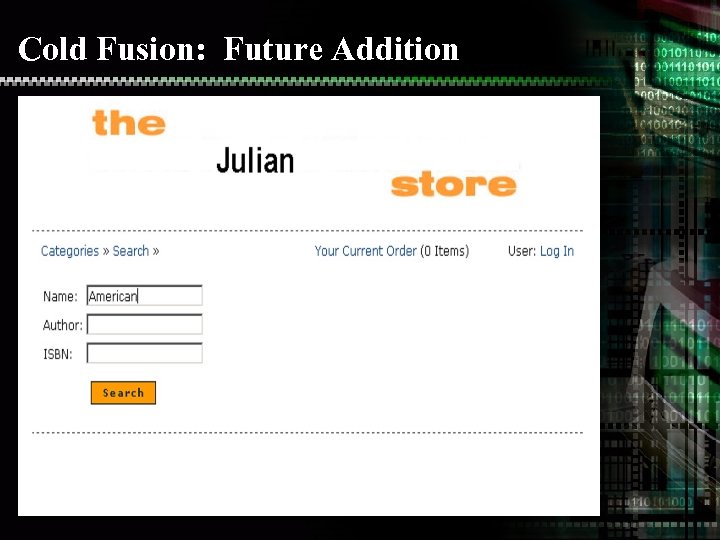

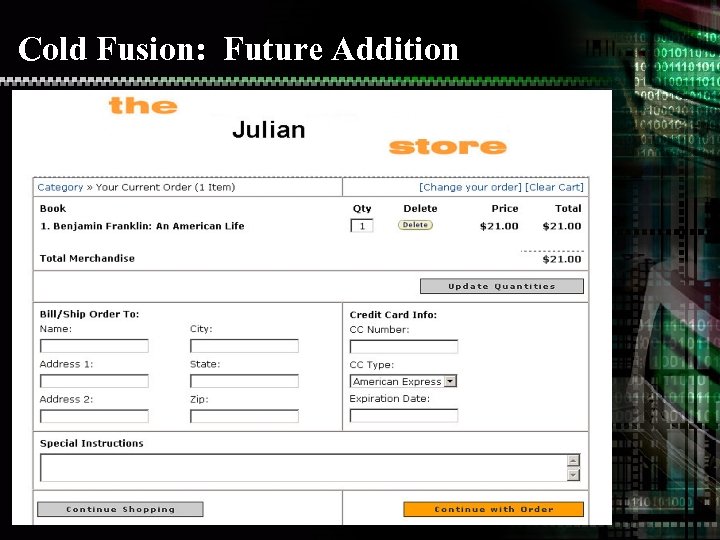

Cold Fusion: Future Addition

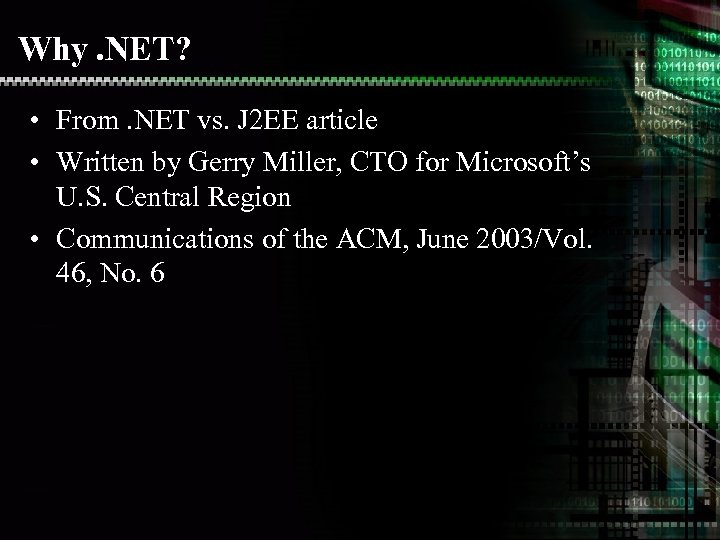

Why. NET? • From. NET vs. J 2 EE article • Written by Gerry Miller, CTO for Microsoft’s U. S. Central Region • Communications of the ACM, June 2003/Vol. 46, No. 6

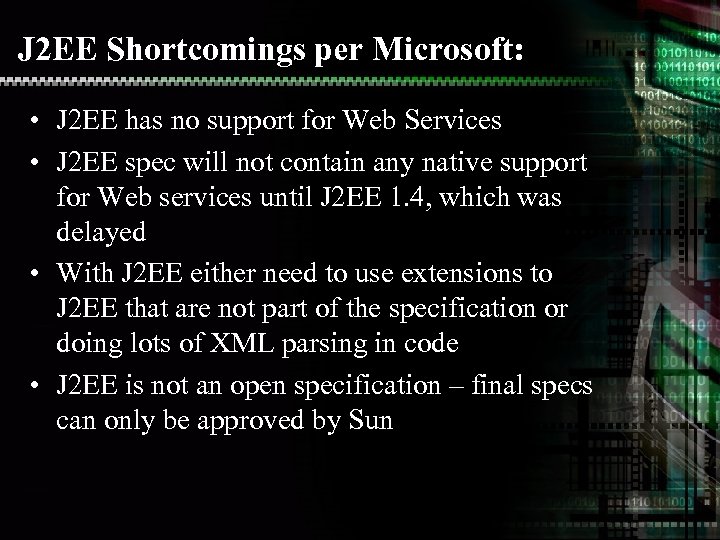

J 2 EE Shortcomings per Microsoft: • J 2 EE has no support for Web Services • J 2 EE spec will not contain any native support for Web services until J 2 EE 1. 4, which was delayed • With J 2 EE either need to use extensions to J 2 EE that are not part of the specification or doing lots of XML parsing in code • J 2 EE is not an open specification – final specs can only be approved by Sun

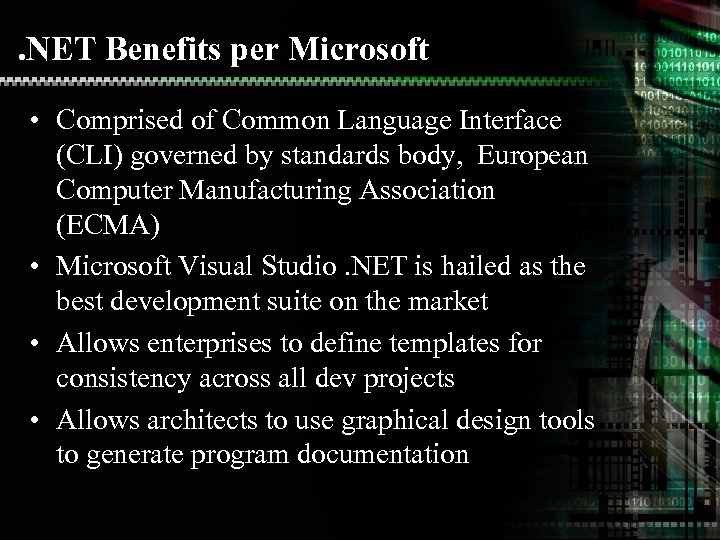

. NET Benefits per Microsoft • Comprised of Common Language Interface (CLI) governed by standards body, European Computer Manufacturing Association (ECMA) • Microsoft Visual Studio. NET is hailed as the best development suite on the market • Allows enterprises to define templates for consistency across all dev projects • Allows architects to use graphical design tools to generate program documentation

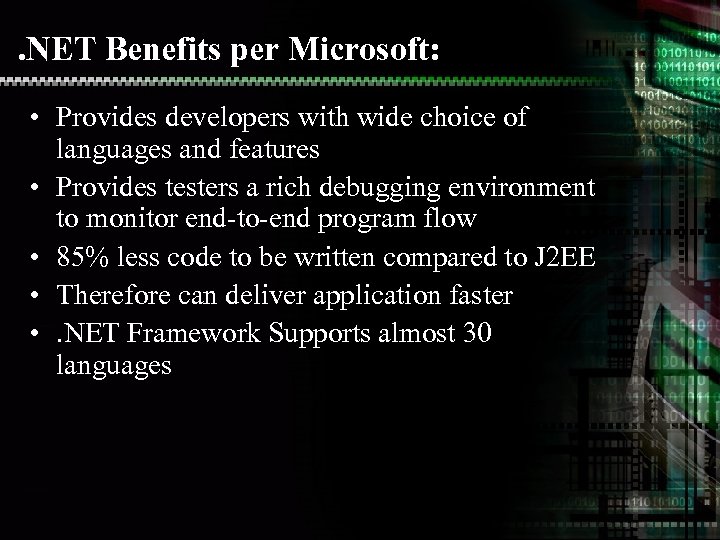

. NET Benefits per Microsoft: • Provides developers with wide choice of languages and features • Provides testers a rich debugging environment to monitor end-to-end program flow • 85% less code to be written compared to J 2 EE • Therefore can deliver application faster • . NET Framework Supports almost 30 languages

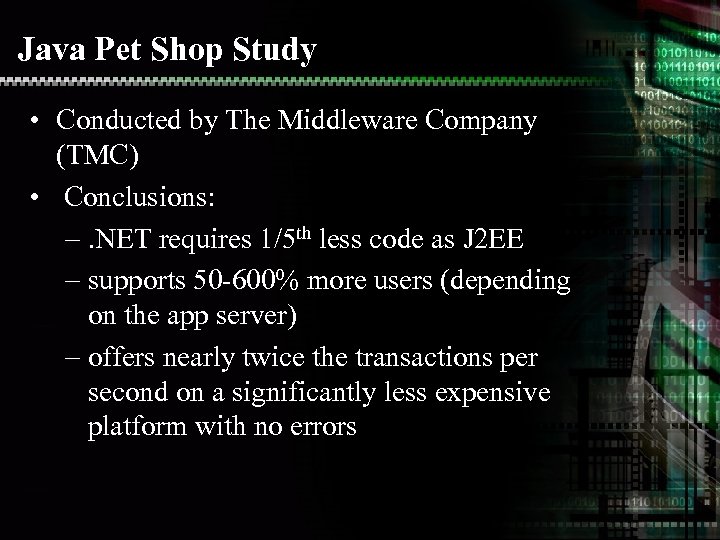

Java Pet Shop Study • Conducted by The Middleware Company (TMC) • Conclusions: –. NET requires 1/5 th less code as J 2 EE – supports 50 -600% more users (depending on the app server) – offers nearly twice the transactions per second on a significantly less expensive platform with no errors

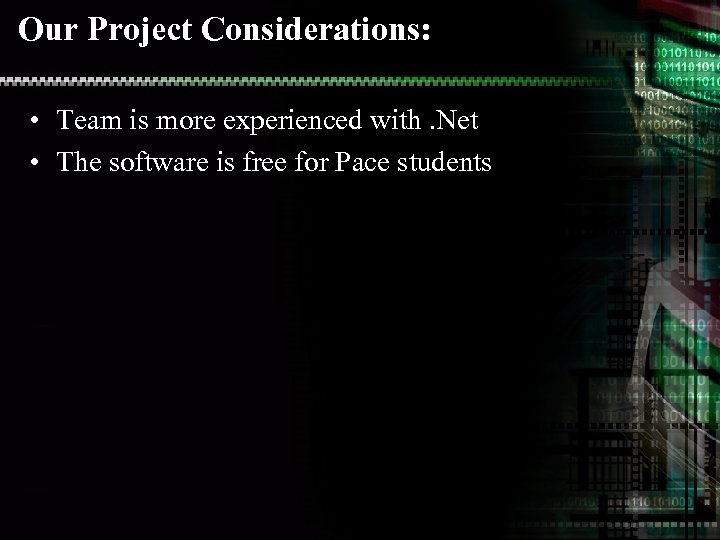

Our Project Considerations: • Team is more experienced with. Net • The software is free for Pace students
