B 2 B Back 2 BASICs An EE 296 Micro Mouse Project
Brian Kuriyama’s BACK 2 BASICS!
Brief Overview Profit!

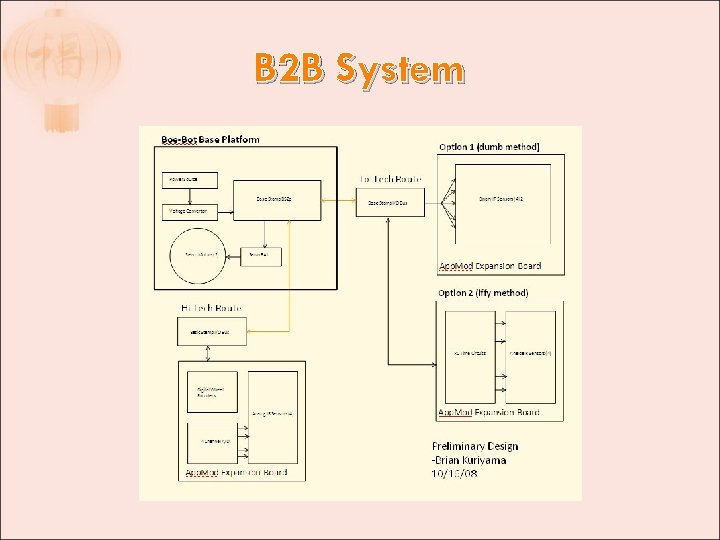

B 2 B System

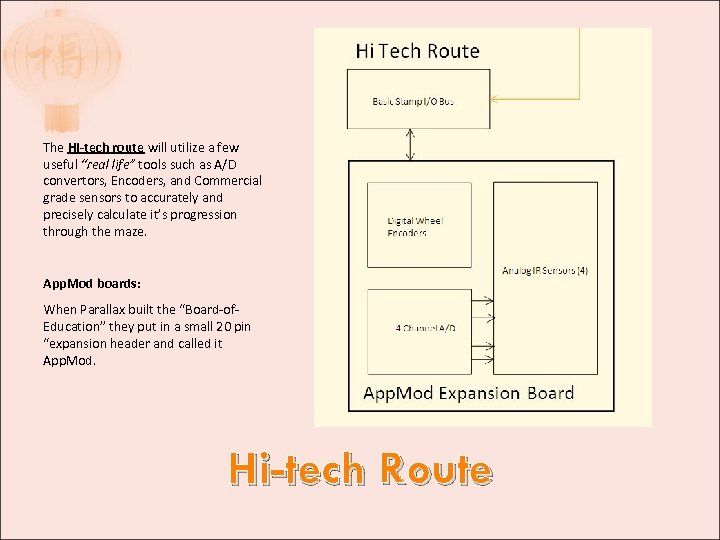

The Hi-tech route will utilize a few useful “real life” tools such as A/D convertors, Encoders, and Commercial grade sensors to accurately and precisely calculate it’s progression through the maze. App. Mod boards: When Parallax built the “Board-of. Education” they put in a small 20 pin “expansion header and called it App. Mod. Hi-tech Route
Hi-Tech Route’s COMPONENTS!

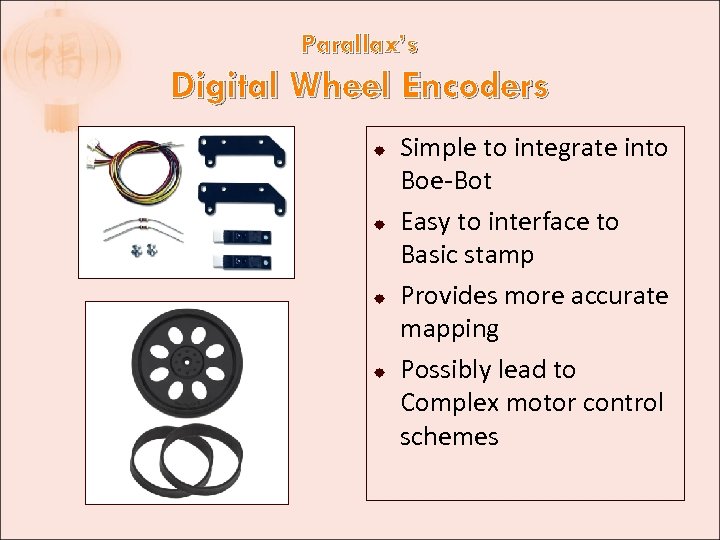

Parallax’s Digital Wheel Encoders Simple to integrate into Boe-Bot Easy to interface to Basic stamp Provides more accurate mapping Possibly lead to Complex motor control schemes

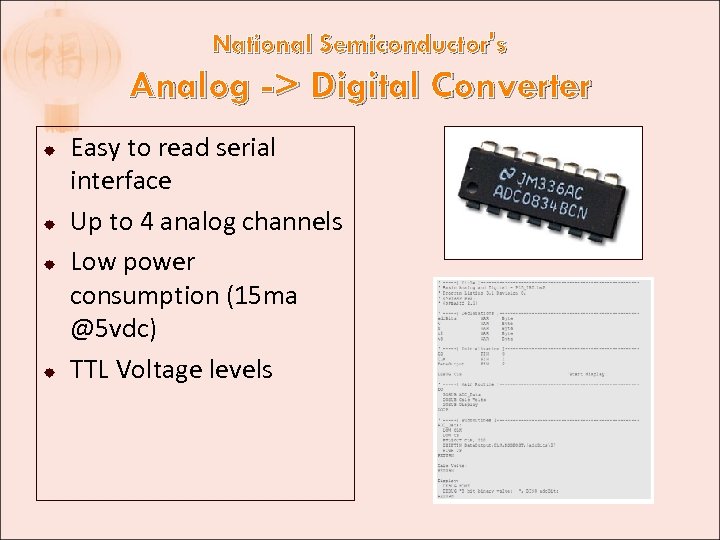

National Semiconductor's Analog -> Digital Converter Easy to read serial interface Up to 4 analog channels Low power consumption (15 ma @5 vdc) TTL Voltage levels

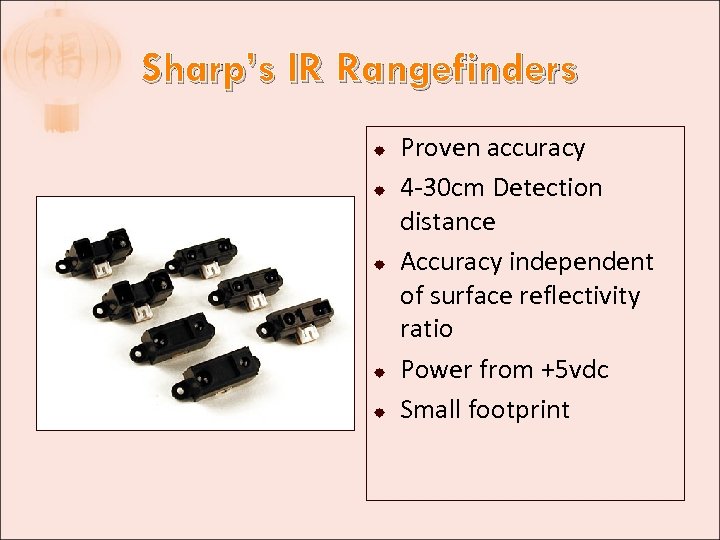

Sharp’s IR Rangefinders Proven accuracy 4 -30 cm Detection distance Accuracy independent of surface reflectivity ratio Power from +5 vdc Small footprint
WHAT’S LEFT?

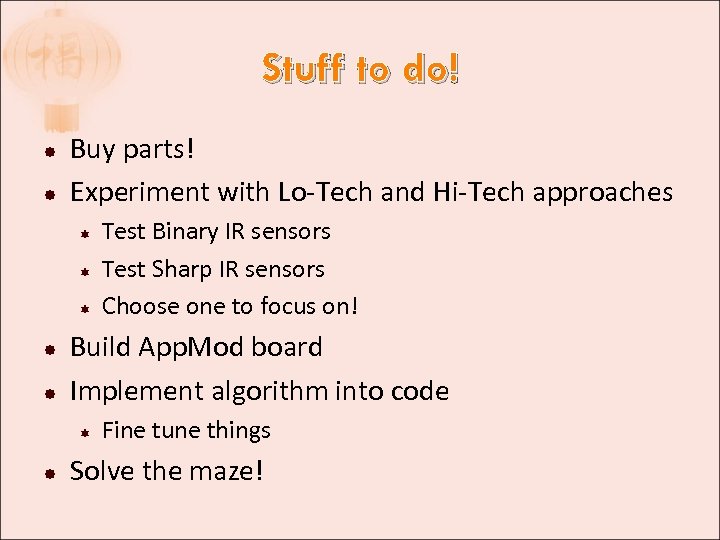

Stuff to do! Buy parts! Experiment with Lo-Tech and Hi-Tech approaches Build App. Mod board Implement algorithm into code Test Binary IR sensors Test Sharp IR sensors Choose one to focus on! Fine tune things Solve the maze!
End
