Avaya Online UPS Options 700 -2000 VA UPS Copyright© 2003 Avaya Inc. All rights Avaya Online UPS Options 700 -2000 VA UPS Copyright© 2003 Avaya Inc. All rights reserved

Bypass Distribution Module (BDM) • Replace or service UPS without shutting down connected equipment Bypass Distribution Module (BDM) • Replace or service UPS without shutting down connected equipment • Provides surge protection in absence of the UPS • Protects laser printer with surge protection (no battery backup) • SAP Code: 408427078 Copyright© 2003 Avaya Inc. All rights reserved 2

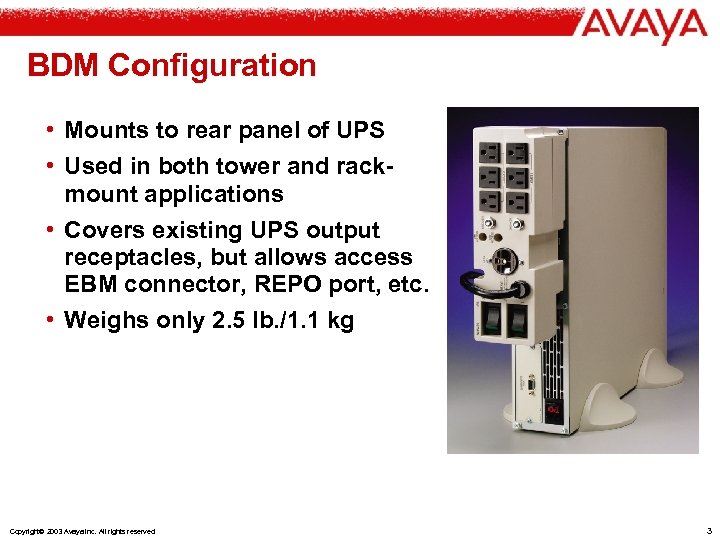

BDM Configuration • Mounts to rear panel of UPS • Used in both tower BDM Configuration • Mounts to rear panel of UPS • Used in both tower and rackmount applications • Covers existing UPS output receptacles, but allows access EBM connector, REPO port, etc. • Weighs only 2. 5 lb. /1. 1 kg Copyright© 2003 Avaya Inc. All rights reserved 3

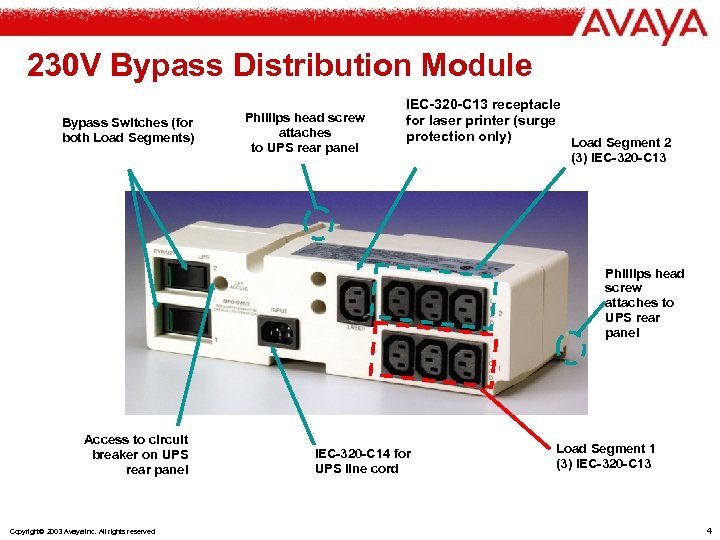

230 V Bypass Distribution Module Bypass Switches (for both Load Segments) Phillips head screw 230 V Bypass Distribution Module Bypass Switches (for both Load Segments) Phillips head screw attaches to UPS rear panel IEC-320 -C 13 receptacle for laser printer (surge protection only) Load Segment 2 (3) IEC-320 -C 13 Phillips head screw attaches to UPS rear panel Access to circuit breaker on UPS rear panel Copyright© 2003 Avaya Inc. All rights reserved IEC-320 -C 14 for UPS line cord Load Segment 1 (3) IEC-320 -C 13 4

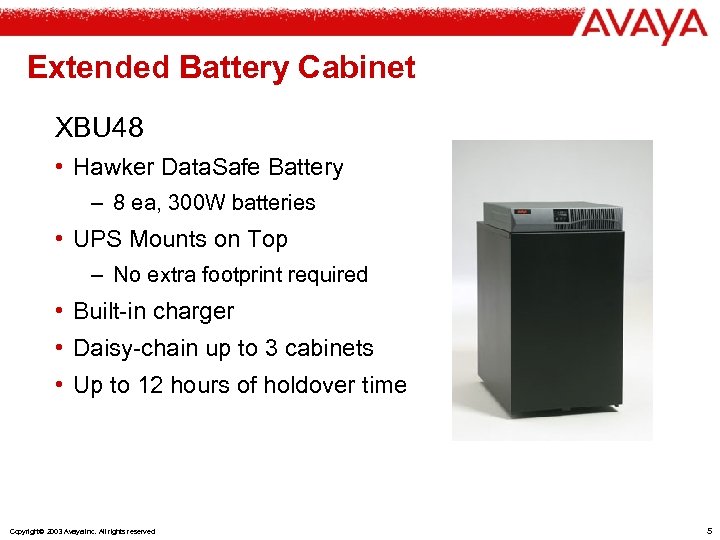

Extended Battery Cabinet XBU 48 • Hawker Data. Safe Battery – 8 ea, 300 Extended Battery Cabinet XBU 48 • Hawker Data. Safe Battery – 8 ea, 300 W batteries • UPS Mounts on Top – No extra footprint required • Built-in charger • Daisy-chain up to 3 cabinets • Up to 12 hours of holdover time Copyright© 2003 Avaya Inc. All rights reserved 5

EBC 48 Runtimes (in hours) One EBC 48 Two EBC 48 Three 650 VA/455 EBC 48 Runtimes (in hours) One EBC 48 Two EBC 48 Three 650 VA/455 W 14 >14 800 VA/560 W 11 >12 1000 VA/700 W 8. 4 >12 1250 VA/875 W* 6. 4 >12 1500 VA/1050 W* 5. 3 11. 8 >12 1600 VA/1120 W** 4. 9 11. 0 >12 1800 VA/1260 W** 4. 3 9. 6 >12 2000 VA/1400 W** 3. 7 8. 3 13. 4 EBC 48 Load *Runtimes do not apply for 1000 VA model. **Runtimes apply for 2000 VA model only. Note: runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Copyright© 2003 Avaya Inc. All rights reserved 6

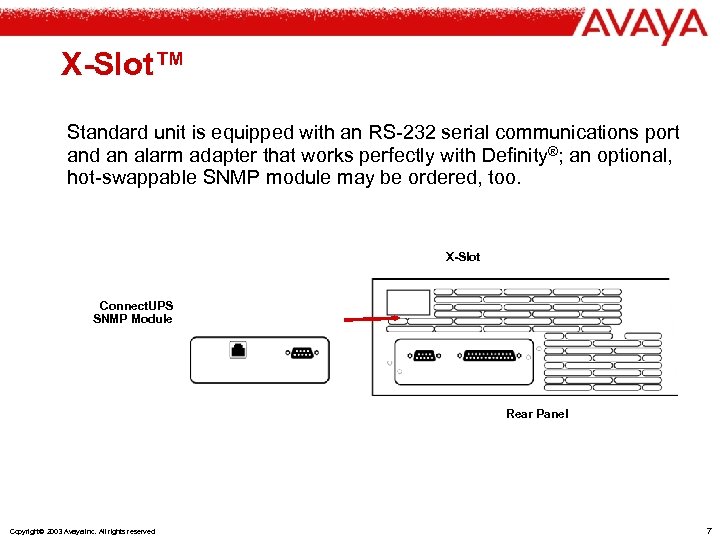

X-Slot™ Standard unit is equipped with an RS-232 serial communications port and an alarm X-Slot™ Standard unit is equipped with an RS-232 serial communications port and an alarm adapter that works perfectly with Definity®; an optional, hot-swappable SNMP module may be ordered, too. X-Slot Connect. UPS SNMP Module Rear Panel Copyright© 2003 Avaya Inc. All rights reserved 7

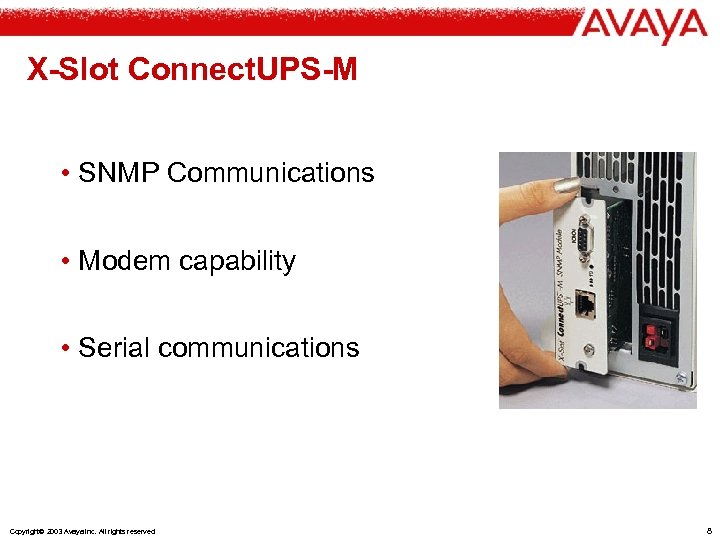

X-Slot Connect. UPS-M • SNMP Communications • Modem capability • Serial communications Copyright© 2003 X-Slot Connect. UPS-M • SNMP Communications • Modem capability • Serial communications Copyright© 2003 Avaya Inc. All rights reserved 8
