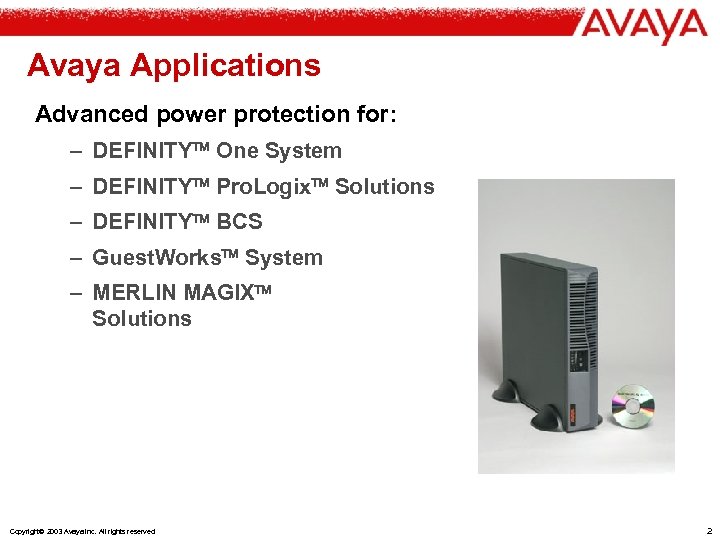

Avaya Applications Advanced power protection for: – DEFINITY One System – DEFINITY Pro. Logix Solutions – DEFINITY BCS – Guest. Works System – MERLIN MAGIX Solutions Copyright© 2003 Avaya Inc. All rights reserved 2

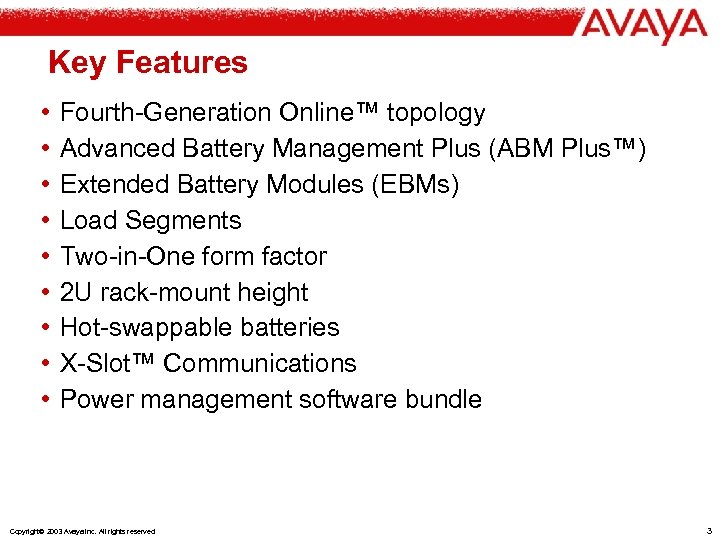

Key Features • • • Fourth-Generation Online™ topology Advanced Battery Management Plus (ABM Plus™) Extended Battery Modules (EBMs) Load Segments Two-in-One form factor 2 U rack-mount height Hot-swappable batteries X-Slot™ Communications Power management software bundle Copyright© 2003 Avaya Inc. All rights reserved 3

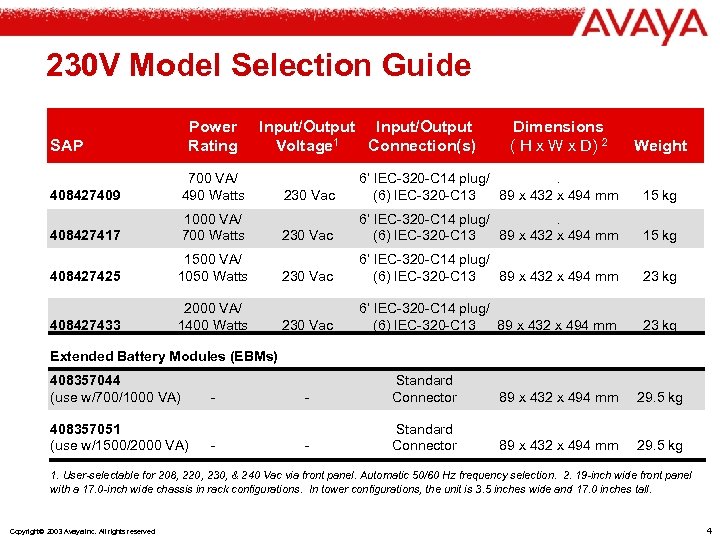

230 V Model Selection Guide Power Rating SAP 408427409 700 VA/ 490 Watts 408427417 1000 VA/ 700 Watts 408427425 1500 VA/ 1050 Watts 408427433 Input/Output Voltage 1 Connection(s) 2000 VA/ 1400 Watts Dimensions ( H x W x D) 2 Weight 230 Vac 6’ IEC-320 -C 14 plug/. (6) IEC-320 -C 13 89 x 432 x 494 mm 15 kg 230 Vac 6’ IEC-320 -C 14 plug/ (6) IEC-320 -C 13 89 x 432 x 494 mm 23 kg Extended Battery Modules (EBMs) 408357044 (use w/700/1000 VA) 408357051 (use w/1500/2000 VA) - - Standard Connector 89 x 432 x 494 mm 29. 5 kg 1. User-selectable for 208, 220, 230, & 240 Vac via front panel. Automatic 50/60 Hz frequency selection. 2. 19 -inch wide front panel with a 17. 0 -inch wide chassis in rack configurations. In tower configurations, the unit is 3. 5 inches wide and 17. 0 inches tall. Copyright© 2003 Avaya Inc. All rights reserved 4

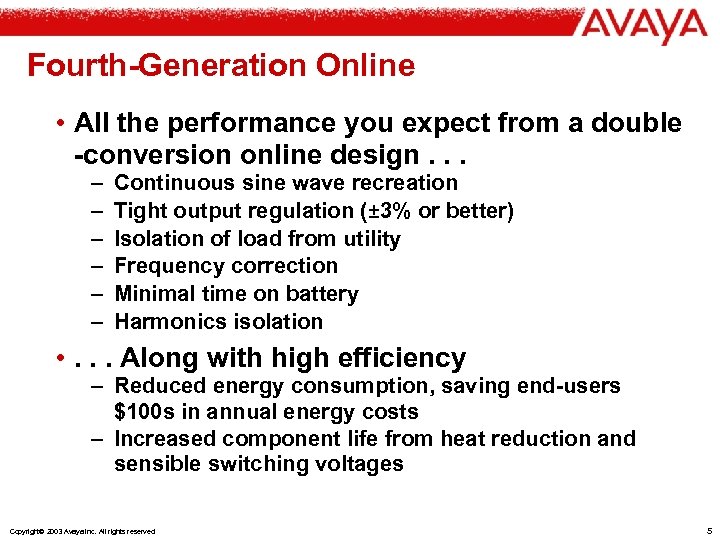

Fourth-Generation Online • All the performance you expect from a double -conversion online design. . . – – – Continuous sine wave recreation Tight output regulation (± 3% or better) Isolation of load from utility Frequency correction Minimal time on battery Harmonics isolation • . . . Along with high efficiency – Reduced energy consumption, saving end-users $100 s in annual energy costs – Increased component life from heat reduction and sensible switching voltages Copyright© 2003 Avaya Inc. All rights reserved 5

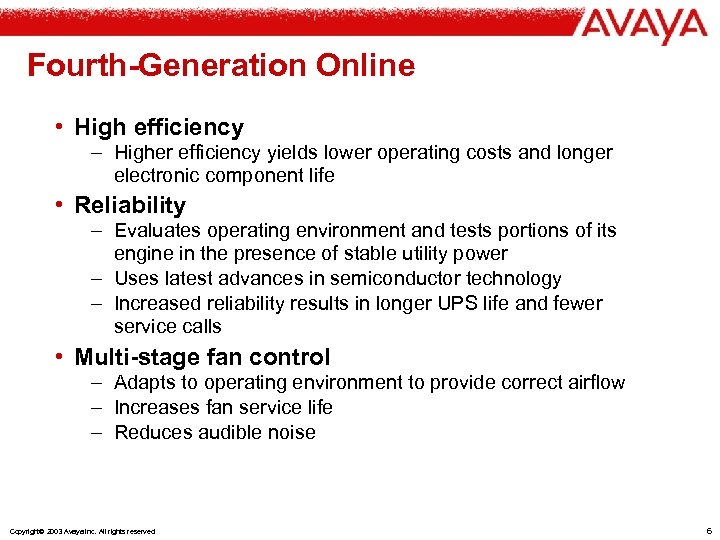

Fourth-Generation Online • High efficiency – Higher efficiency yields lower operating costs and longer electronic component life • Reliability – Evaluates operating environment and tests portions of its engine in the presence of stable utility power – Uses latest advances in semiconductor technology – Increased reliability results in longer UPS life and fewer service calls • Multi-stage fan control – Adapts to operating environment to provide correct airflow – Increases fan service life – Reduces audible noise Copyright© 2003 Avaya Inc. All rights reserved 6

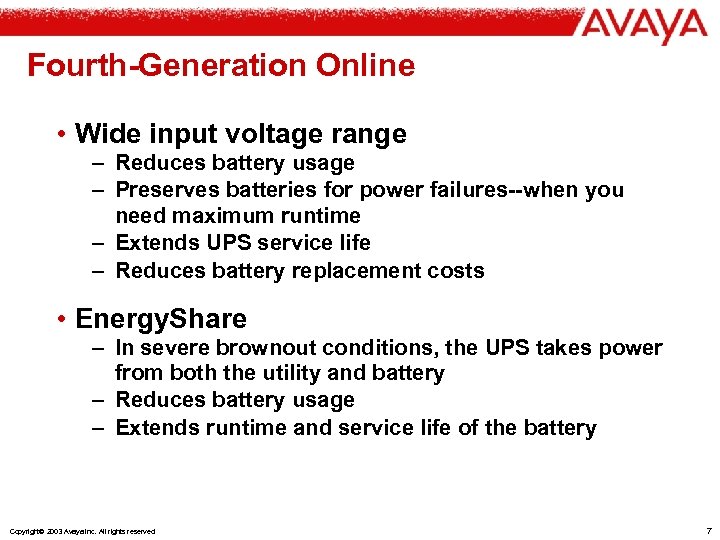

Fourth-Generation Online • Wide input voltage range – Reduces battery usage – Preserves batteries for power failures--when you need maximum runtime – Extends UPS service life – Reduces battery replacement costs • Energy. Share – In severe brownout conditions, the UPS takes power from both the utility and battery – Reduces battery usage – Extends runtime and service life of the battery Copyright© 2003 Avaya Inc. All rights reserved 7

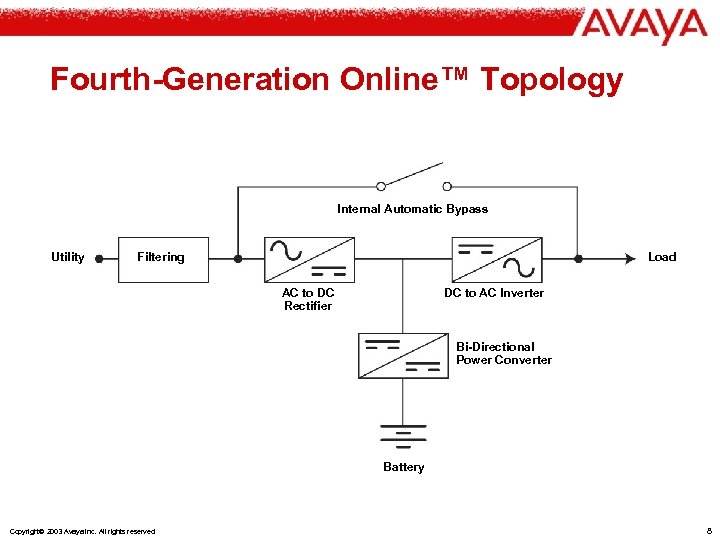

Fourth-Generation Online™ Topology Internal Automatic Bypass Utility Filtering Load AC to DC Rectifier DC to AC Inverter Bi-Directional Power Converter Battery Copyright© 2003 Avaya Inc. All rights reserved 8

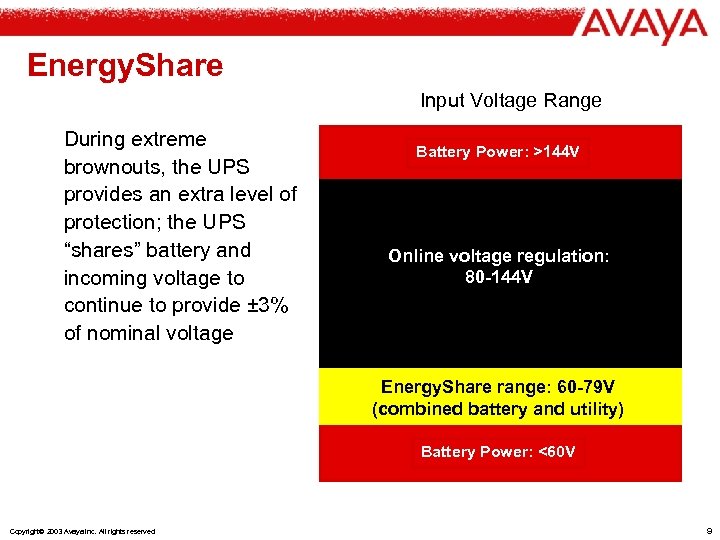

Energy. Share Input Voltage Range During extreme brownouts, the UPS provides an extra level of protection; the UPS “shares” battery and incoming voltage to continue to provide ± 3% of nominal voltage Battery Power: >144 V Online voltage regulation: 80 -144 V (no battery power needed) Energy. Share range: 60 -79 V (combined battery and utility) Battery Power: <60 V Copyright© 2003 Avaya Inc. All rights reserved 9

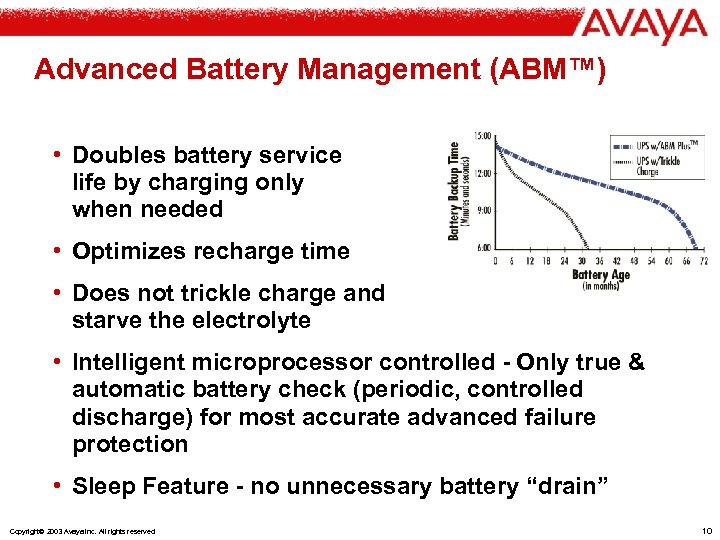

Advanced Battery Management (ABM™) • Doubles battery service life by charging only when needed • Optimizes recharge time • Does not trickle charge and starve the electrolyte • Intelligent microprocessor controlled - Only true & automatic battery check (periodic, controlled discharge) for most accurate advanced failure protection • Sleep Feature - no unnecessary battery “drain” Copyright© 2003 Avaya Inc. All rights reserved 10

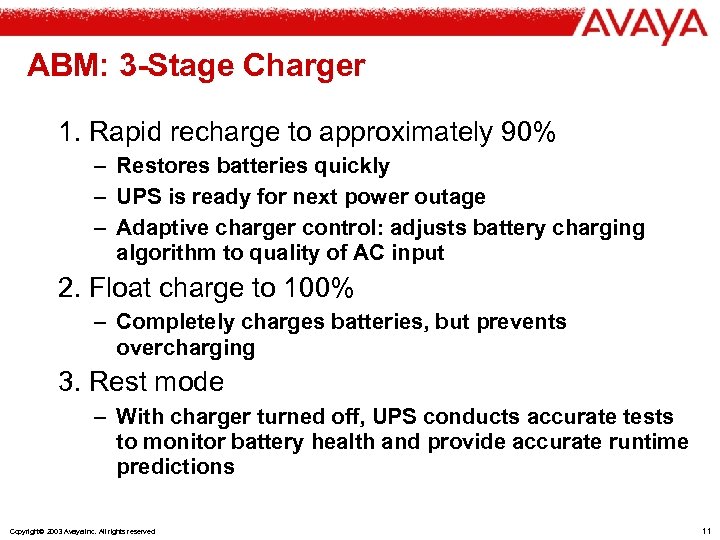

ABM: 3 -Stage Charger 1. Rapid recharge to approximately 90% – Restores batteries quickly – UPS is ready for next power outage – Adaptive charger control: adjusts battery charging algorithm to quality of AC input 2. Float charge to 100% – Completely charges batteries, but prevents overcharging 3. Rest mode – With charger turned off, UPS conducts accurate tests to monitor battery health and provide accurate runtime predictions Copyright© 2003 Avaya Inc. All rights reserved 11

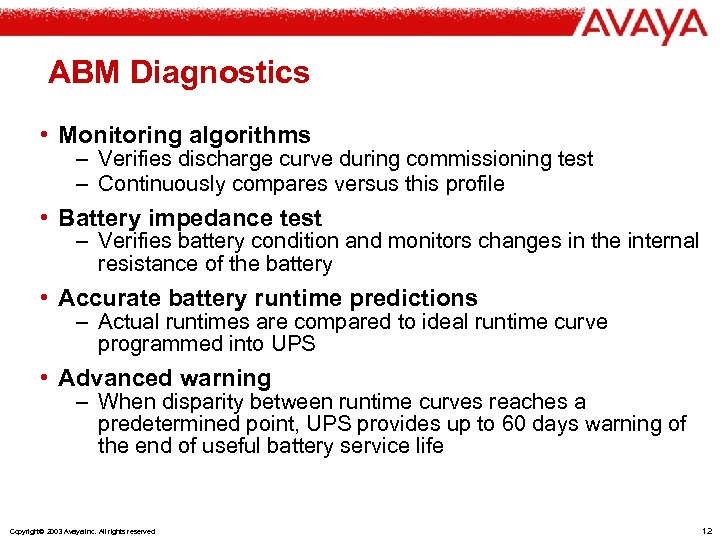

ABM Diagnostics • Monitoring algorithms – Verifies discharge curve during commissioning test – Continuously compares versus this profile • Battery impedance test – Verifies battery condition and monitors changes in the internal resistance of the battery • Accurate battery runtime predictions – Actual runtimes are compared to ideal runtime curve programmed into UPS • Advanced warning – When disparity between runtime curves reaches a predetermined point, UPS provides up to 60 days warning of the end of useful battery service life Copyright© 2003 Avaya Inc. All rights reserved 12

Informative User Interface Replace Battery (ABM) Site Wiring Fault Self-Test Overtemperature Normal Mode (UPS On) Overload Battery Mode Load Level/ Battery Level Bypass Mode Alarm Silence/Test Button Copyright© 2003 Avaya Inc. All rights reserved Off Button Note: rotate 90° for cabinet configuration On Button (Start-On-Battery) 13

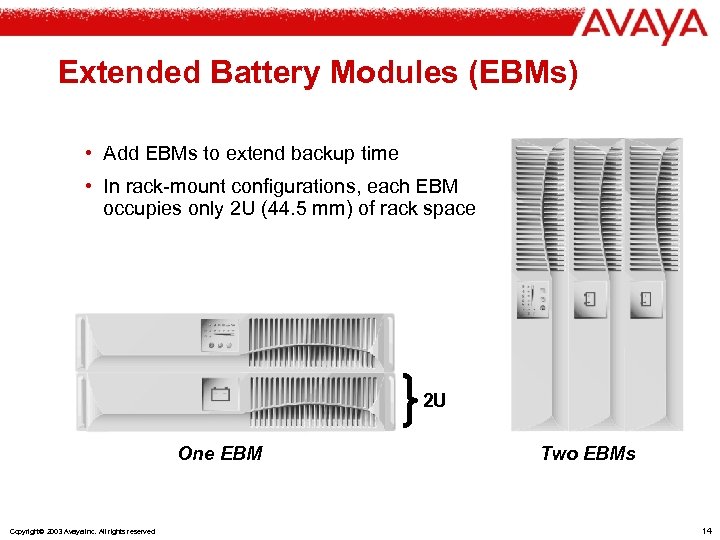

Extended Battery Modules (EBMs) • Add EBMs to extend backup time • In rack-mount configurations, each EBM occupies only 2 U (44. 5 mm) of rack space 2 U One EBM Copyright© 2003 Avaya Inc. All rights reserved Two EBMs 14

Battery Runtimes (700/1000 VA models) Standard Internal Batteries One EBM Two EBMs 200 VA/140 W 37 271 546 400 VA/280 W 19 142 278 700 VA/490 W 9 72 156 850 VA/595 W* 6 59 124 1000 VA/700 W* 5 48 104 Load *Runtimes do not apply for the 700 VA model. Note: Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Copyright© 2003 Avaya Inc. All rights reserved 16

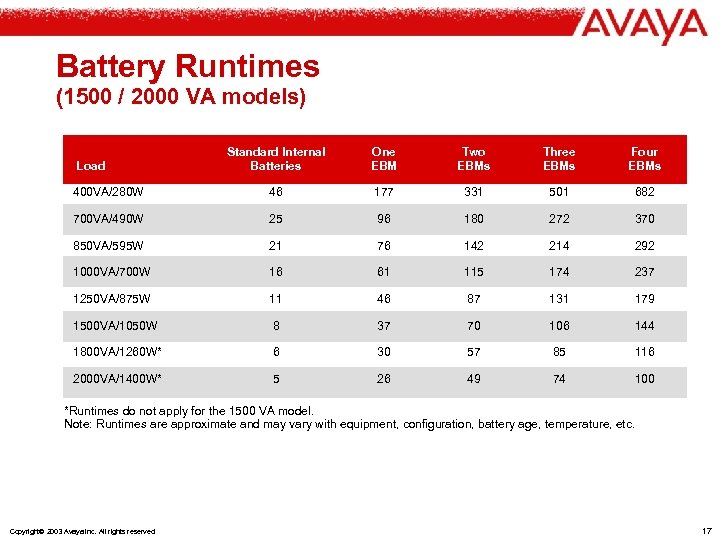

Battery Runtimes (1500 / 2000 VA models) Standard Internal Batteries One EBM Two EBMs Three EBMs Four EBMs 400 VA/280 W 46 177 331 501 682 700 VA/490 W 25 96 180 272 370 850 VA/595 W 21 76 142 214 292 1000 VA/700 W 16 61 115 174 237 1250 VA/875 W 11 46 87 131 179 1500 VA/1050 W 8 37 70 106 144 1800 VA/1260 W* 6 30 57 85 116 2000 VA/1400 W* 5 26 49 74 100 Load *Runtimes do not apply for the 1500 VA model. Note: Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Copyright© 2003 Avaya Inc. All rights reserved 17

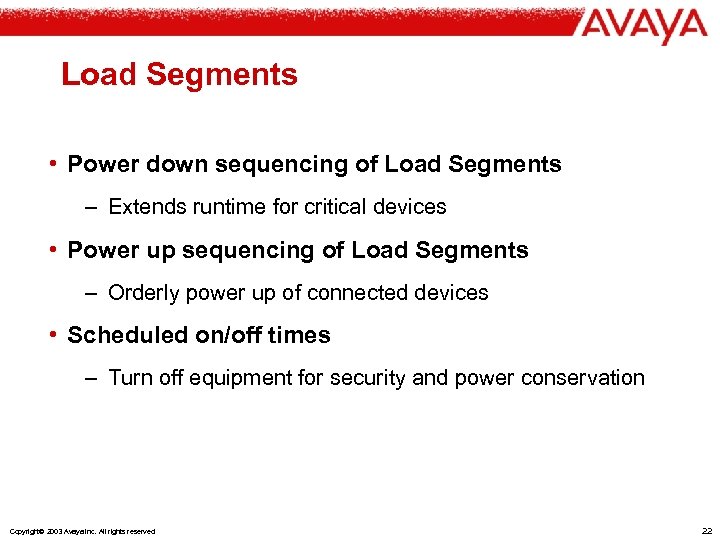

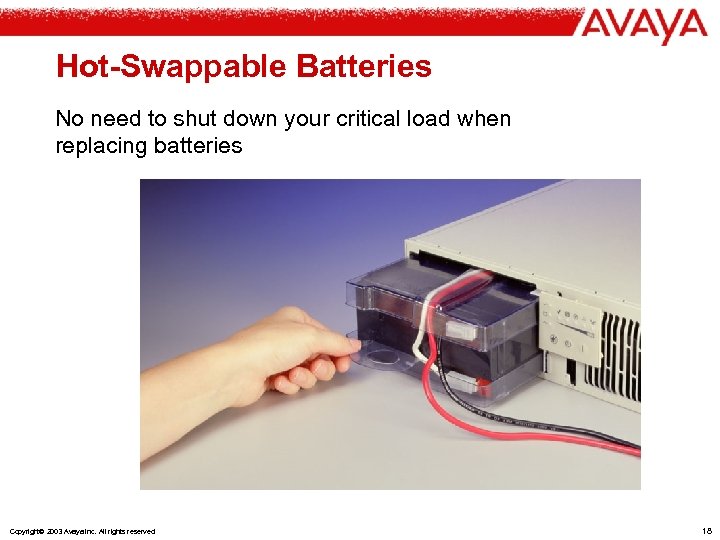

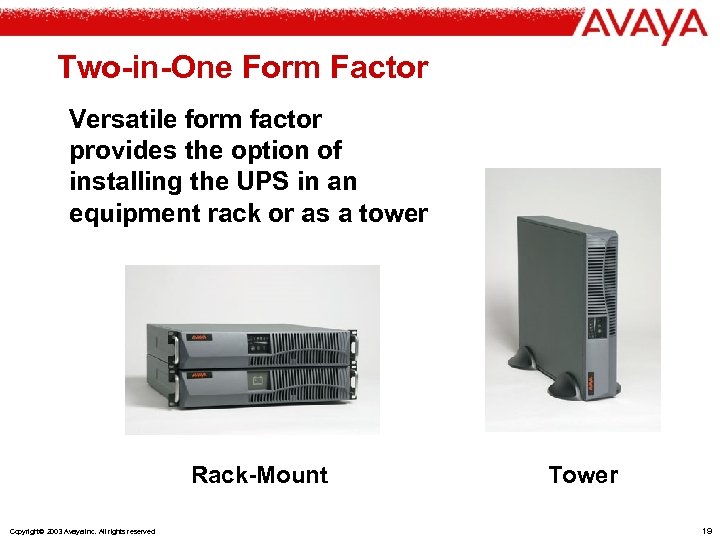

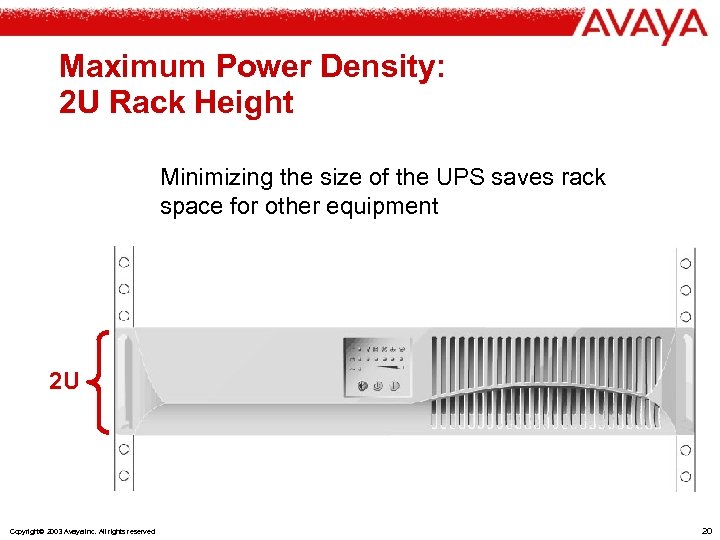

Load Segments • Power down sequencing of Load Segments – Extends runtime for critical devices • Power up sequencing of Load Segments – Orderly power up of connected devices • Scheduled on/off times – Turn off equipment for security and power conservation Copyright© 2003 Avaya Inc. All rights reserved 22

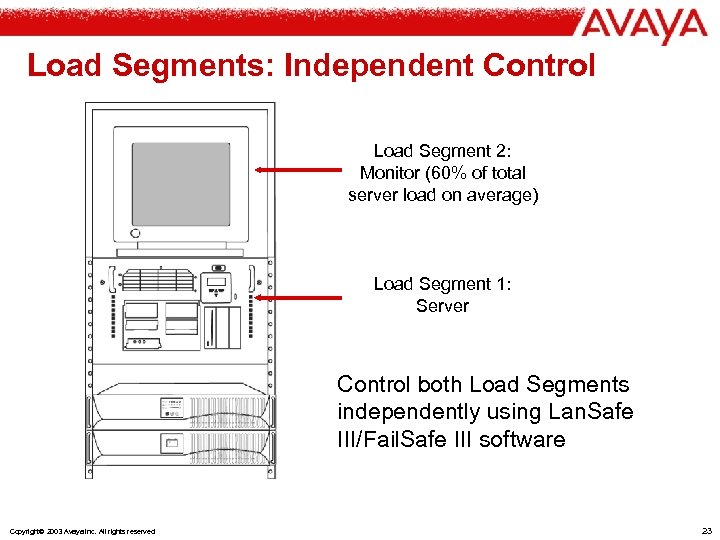

Load Segments: Independent Control Load Segment 2: Monitor (60% of total server load on average) Load Segment 1: Server Control both Load Segments independently using Lan. Safe III/Fail. Safe III software Copyright© 2003 Avaya Inc. All rights reserved 23

Load Segments: Shutdown 60% of load Copyright© 2003 Avaya Inc. All rights reserved During an extended power failure, you can extend runtime for critical devices by shutting down non-vital equipment, such as monitors 24

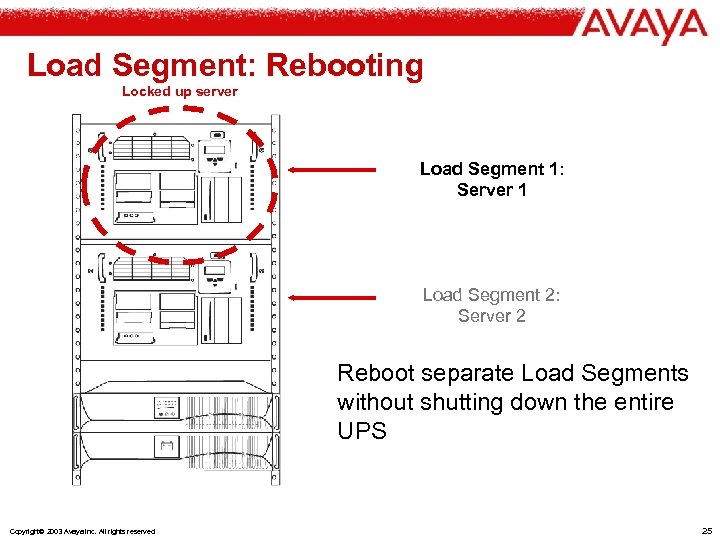

Load Segment: Rebooting Locked up server Load Segment 1: Server 1 Load Segment 2: Server 2 Reboot separate Load Segments without shutting down the entire UPS Copyright© 2003 Avaya Inc. All rights reserved 25

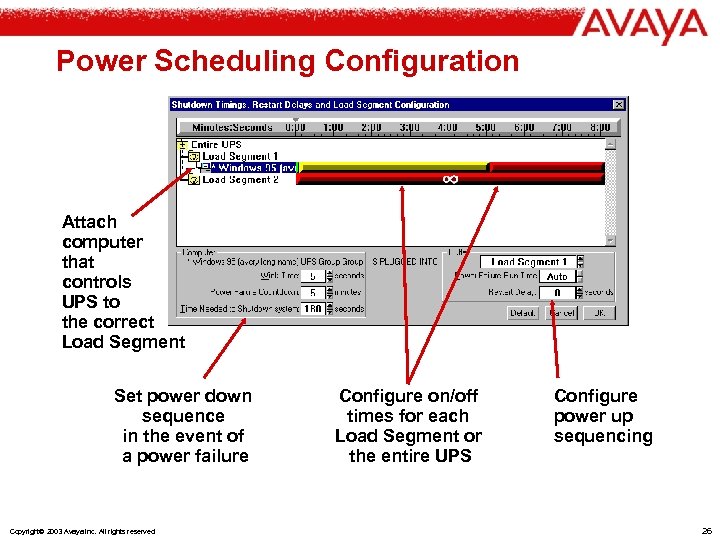

Power Scheduling Configuration Attach computer that controls UPS to the correct Load Segment Set power down sequence in the event of a power failure Copyright© 2003 Avaya Inc. All rights reserved Configure on/off times for each Load Segment or the entire UPS Configure power up sequencing 26

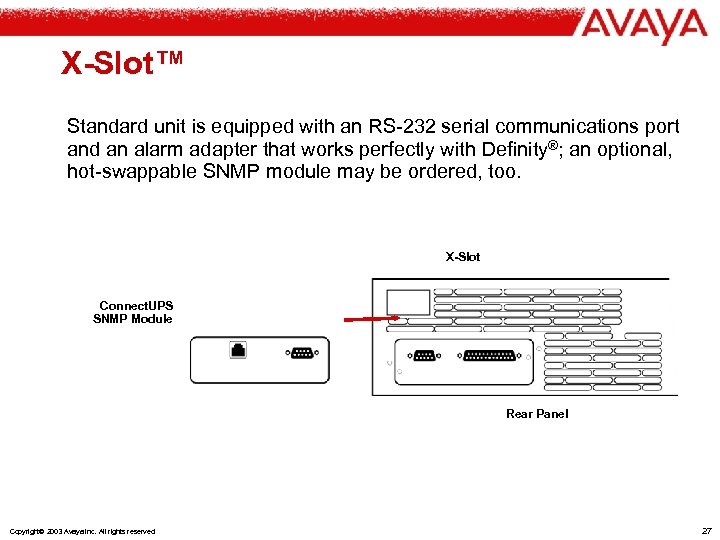

X-Slot™ Standard unit is equipped with an RS-232 serial communications port and an alarm adapter that works perfectly with Definity®; an optional, hot-swappable SNMP module may be ordered, too. X-Slot Connect. UPS SNMP Module Rear Panel Copyright© 2003 Avaya Inc. All rights reserved 27

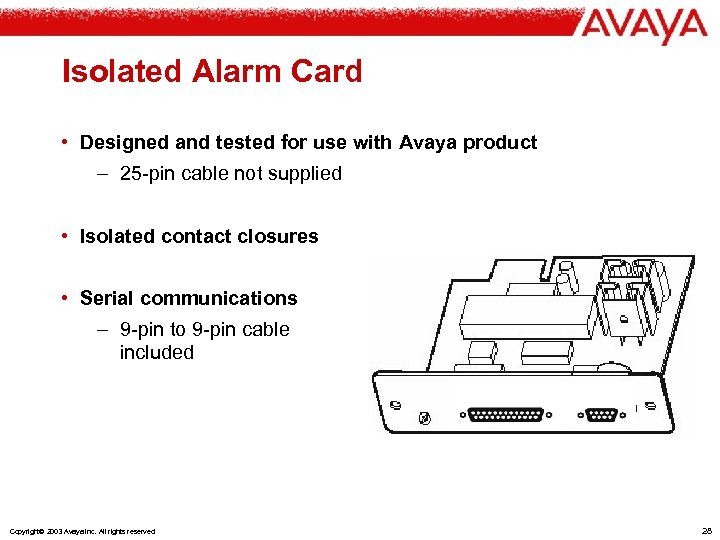

Isolated Alarm Card • Designed and tested for use with Avaya product – 25 -pin cable not supplied • Isolated contact closures • Serial communications – 9 -pin to 9 -pin cable included Copyright© 2003 Avaya Inc. All rights reserved 28

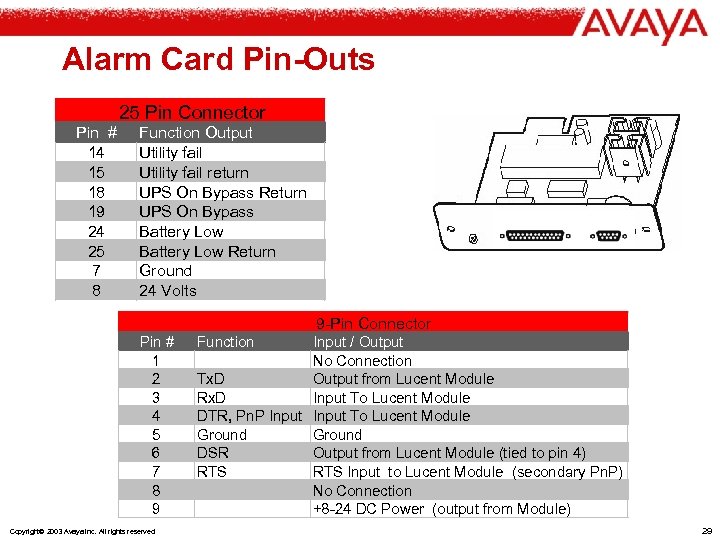

Alarm Card Pin-Outs 25 Pin Connector Pin # 14 15 18 19 24 25 7 8 Function Output Utility fail return UPS On Bypass Return UPS On Bypass Battery Low Return Ground 24 Volts 9 -Pin Connector Pin # 1 2 3 4 5 6 7 8 9 Copyright© 2003 Avaya Inc. All rights reserved Function Input / Output No Connection Tx. D Output from Lucent Module Rx. D Input To Lucent Module DTR, Pn. P Input To Lucent Module Ground DSR Output from Lucent Module (tied to pin 4) RTS Input to Lucent Module (secondary Pn. P) No Connection +8 -24 DC Power (output from Module) 29

Free Software Bundle • Lan. Safe III for networks Windows 95/98 & Windows 3. x, MS DOS, Windows NT (Alpha & Intel), Novell Net. Ware, IBM OS/2 Warp with IBM LANServer or MS LAN Manager, SCO Open. Server, Interactive UNIX, DG-UX, Solaris, Sun. OS, HP-UX, IBM AIX, Unix. Ware, AT&T SVR 4, Digital Unix, Linux, Macintosh, and others Copyright© 2003 Avaya Inc. All rights reserved 30

Power Management Software Capabilities • Safety. Net -- prioritized, sequential shutdown of all network devices – Power loss and low battery warnings – Work-in-progress is saved throughout network • Network-wide monitoring, control, and testing • Support multiple network devices with a single UPS • Compatible with other manufacturers’ UPSs • Customizable Alerts – Paging and e-mail capabilities Copyright© 2003 Avaya Inc. All rights reserved 31

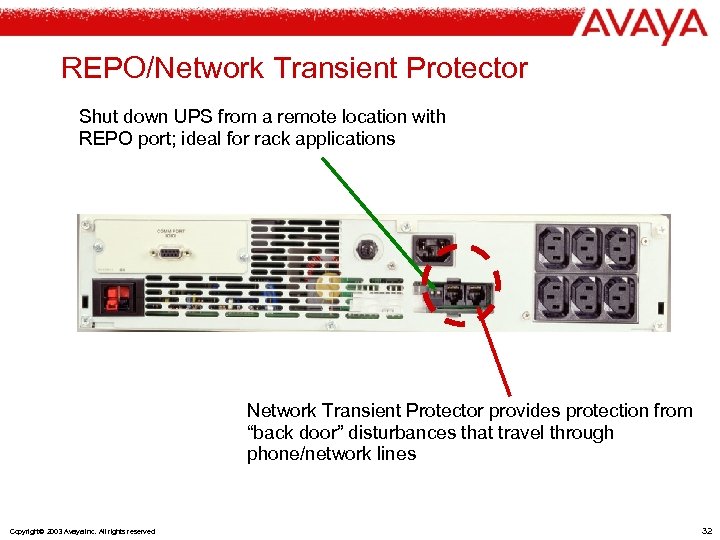

REPO/Network Transient Protector Shut down UPS from a remote location with REPO port; ideal for rack applications Network Transient Protector provides protection from “back door” disturbances that travel through phone/network lines Copyright© 2003 Avaya Inc. All rights reserved 32

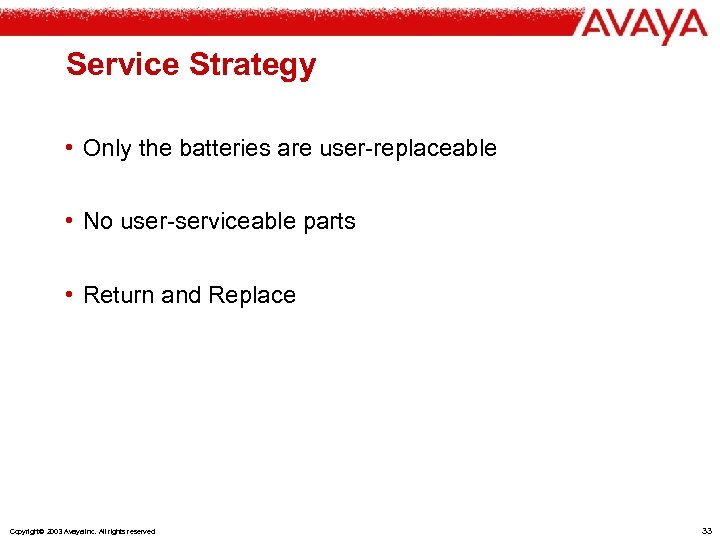

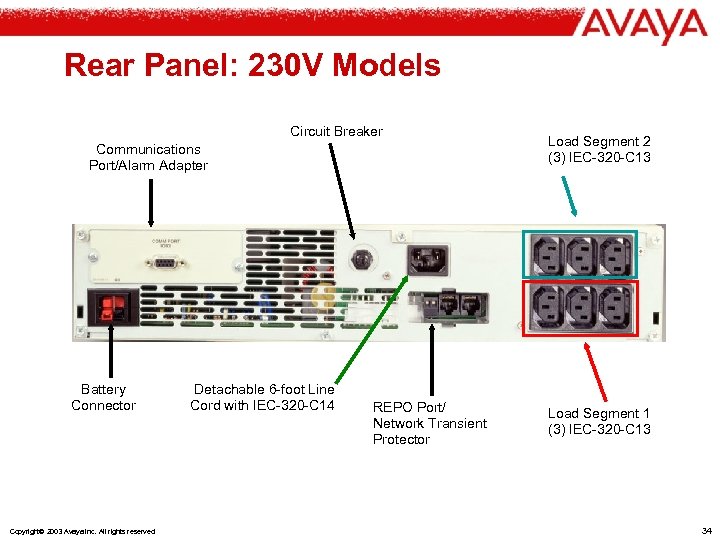

Rear Panel: 230 V Models Circuit Breaker Communications Port/Alarm Adapter Battery Connector Copyright© 2003 Avaya Inc. All rights reserved Detachable 6 -foot Line Cord with IEC-320 -C 14 REPO Port/ Network Transient Protector Load Segment 2 (3) IEC-320 -C 13 Load Segment 1 (3) IEC-320 -C 13 34

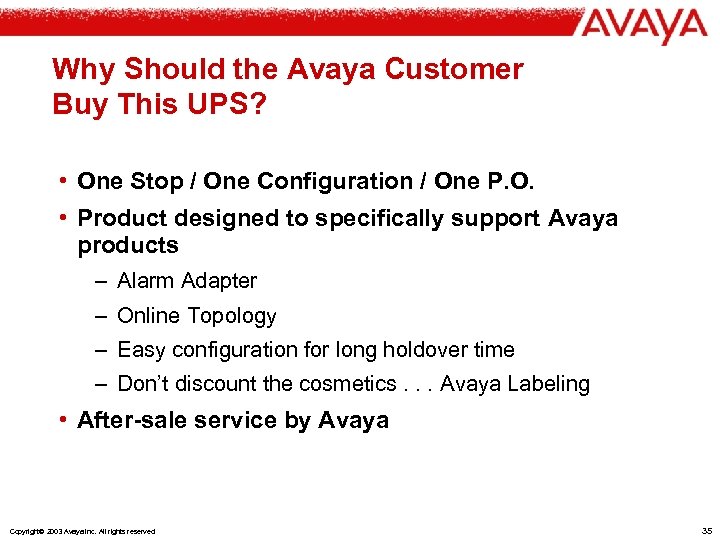

Why Should the Avaya Customer Buy This UPS? • One Stop / One Configuration / One P. O. • Product designed to specifically support Avaya products – Alarm Adapter – Online Topology – Easy configuration for long holdover time – Don’t discount the cosmetics. . . Avaya Labeling • After-sale service by Avaya Copyright© 2003 Avaya Inc. All rights reserved 35
