Using a computer with Autostar § Since the Autostar hand-controller is a computer why would you want to use your computer with Autostar? § § Upgrade the software to newer releases Add your own tours Record your observations Search catalogs for things to look for

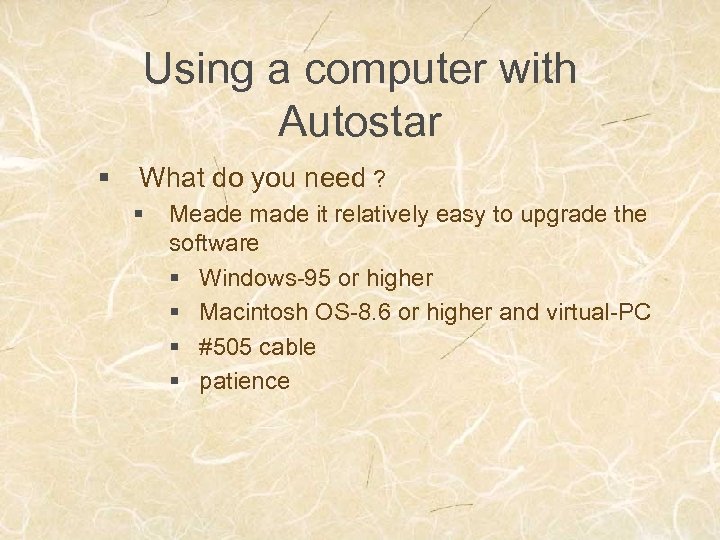

Using a computer with Autostar § What do you need ? § Meade made it relatively easy to upgrade the software § Windows-95 or higher § Macintosh OS-8. 6 or higher and virtual-PC § #505 cable § patience

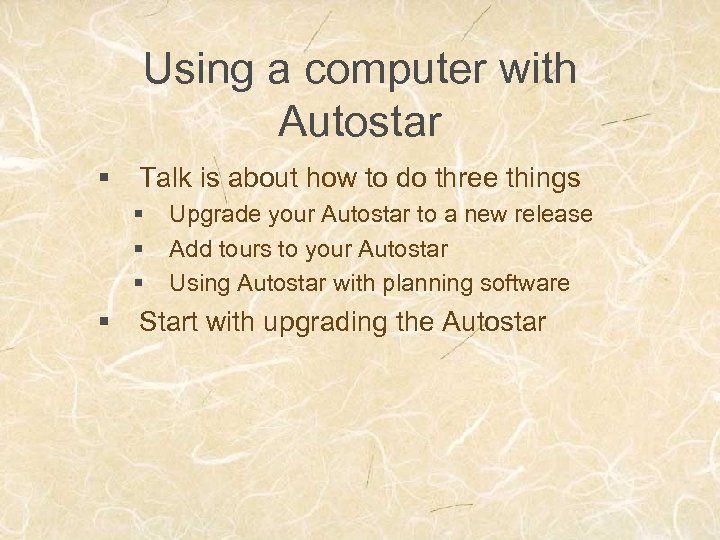

Using a computer with Autostar § Talk is about how to do three things § § Upgrade your Autostar to a new release Add tours to your Autostar Using Autostar with planning software Start with upgrading the Autostar

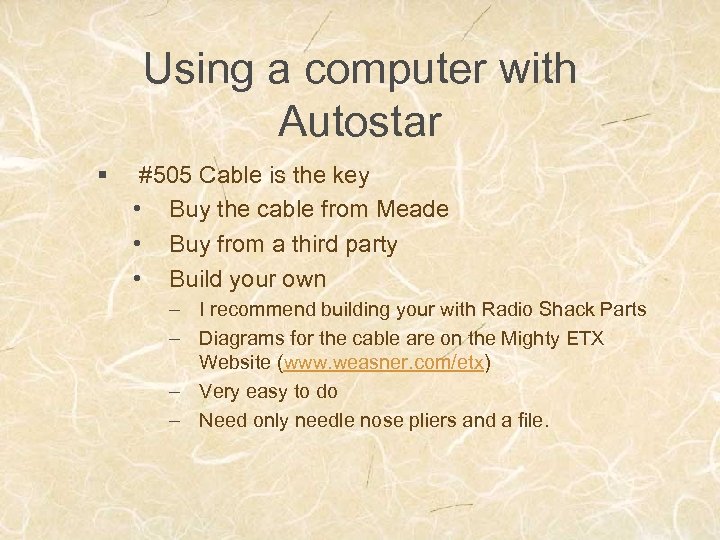

Using a computer with Autostar § #505 Cable is the key • Buy the cable from Meade • Buy from a third party • Build your own – I recommend building your with Radio Shack Parts – Diagrams for the cable are on the Mighty ETX Website (www. weasner. com/etx) – Very easy to do – Need only needle nose pliers and a file.

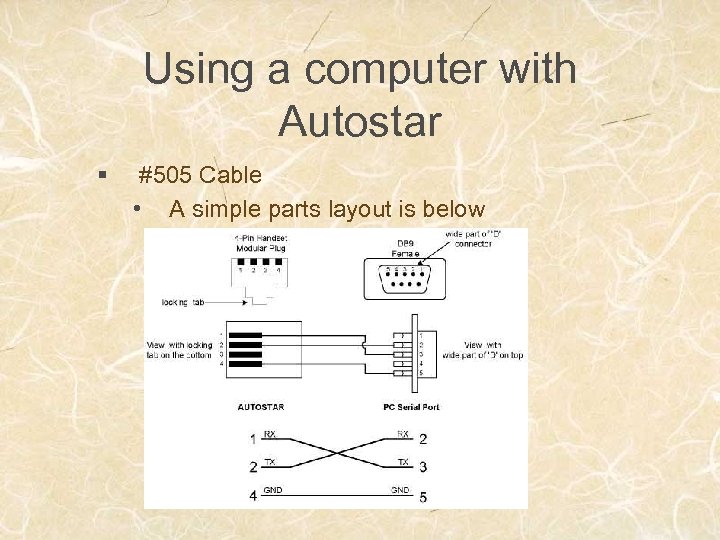

Using a computer with Autostar § #505 Cable • A simple parts layout is below

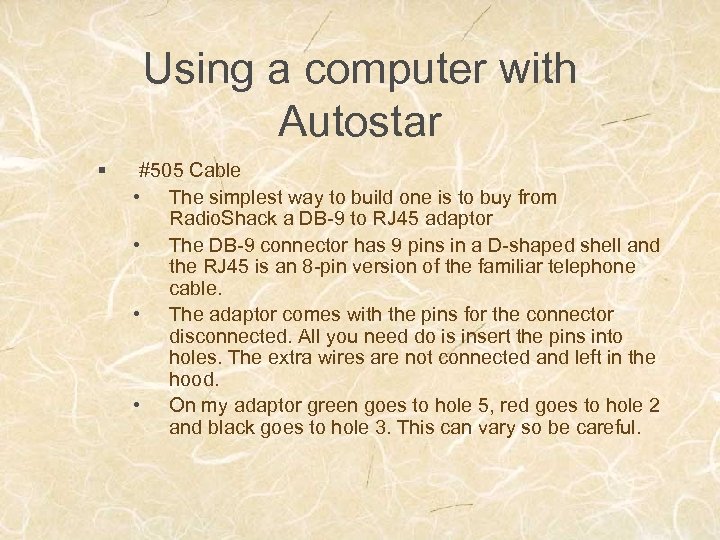

Using a computer with Autostar § #505 Cable • The simplest way to build one is to buy from Radio. Shack a DB-9 to RJ 45 adaptor • The DB-9 connector has 9 pins in a D-shaped shell and the RJ 45 is an 8 -pin version of the familiar telephone cable. • The adaptor comes with the pins for the connector disconnected. All you need do is insert the pins into holes. The extra wires are not connected and left in the hood. • On my adaptor green goes to hole 5, red goes to hole 2 and black goes to hole 3. This can vary so be careful.

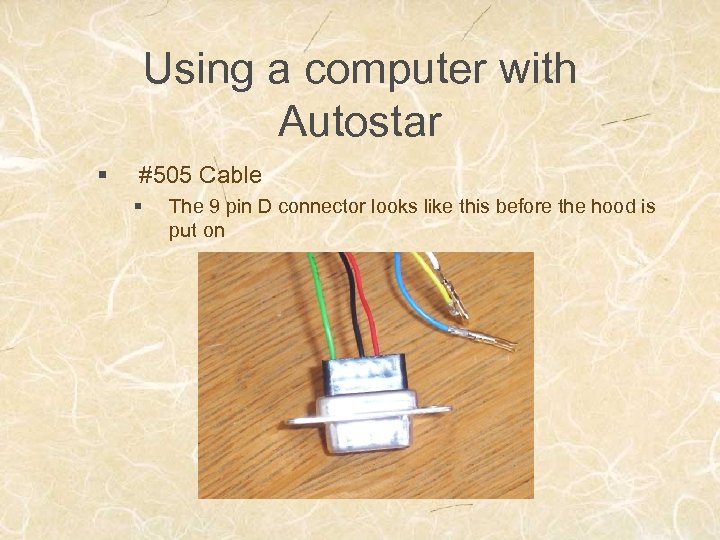

Using a computer with Autostar § #505 Cable § The 9 pin D connector looks like this before the hood is put on

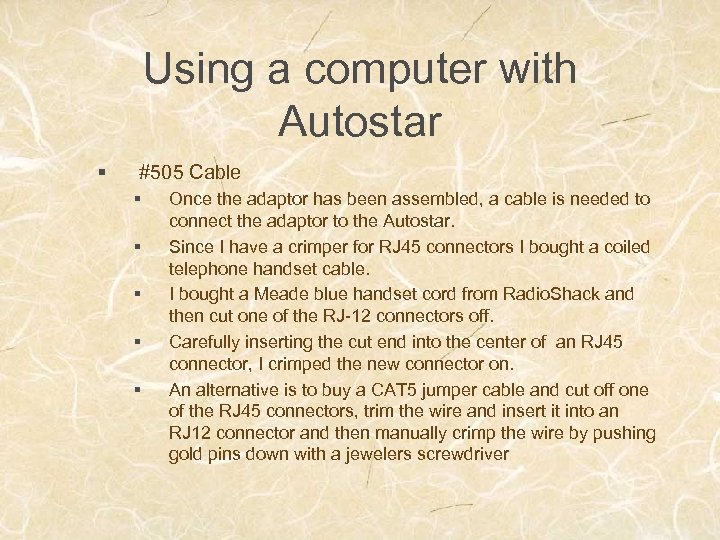

Using a computer with Autostar § #505 Cable § § § Once the adaptor has been assembled, a cable is needed to connect the adaptor to the Autostar. Since I have a crimper for RJ 45 connectors I bought a coiled telephone handset cable. I bought a Meade blue handset cord from Radio. Shack and then cut one of the RJ-12 connectors off. Carefully inserting the cut end into the center of an RJ 45 connector, I crimped the new connector on. An alternative is to buy a CAT 5 jumper cable and cut off one of the RJ 45 connectors, trim the wire and insert it into an RJ 12 connector and then manually crimp the wire by pushing gold pins down with a jewelers screwdriver

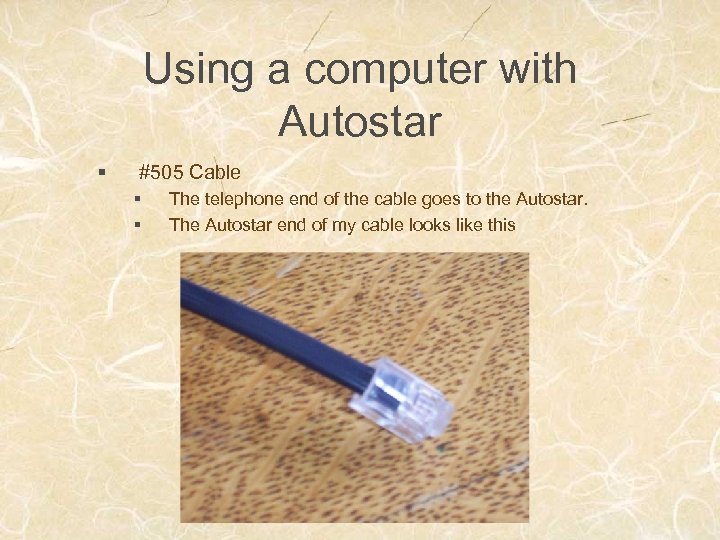

Using a computer with Autostar § #505 Cable § § The telephone end of the cable goes to the Autostar. The Autostar end of my cable looks like this

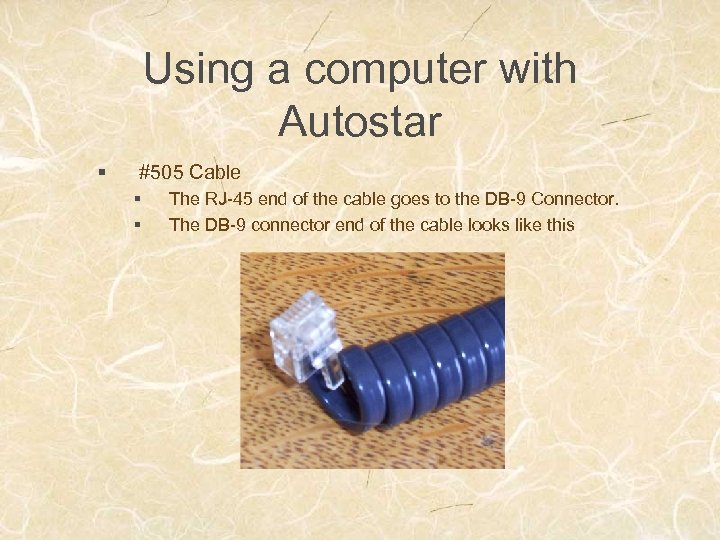

Using a computer with Autostar § #505 Cable § § The RJ-45 end of the cable goes to the DB-9 Connector. The DB-9 connector end of the cable looks like this

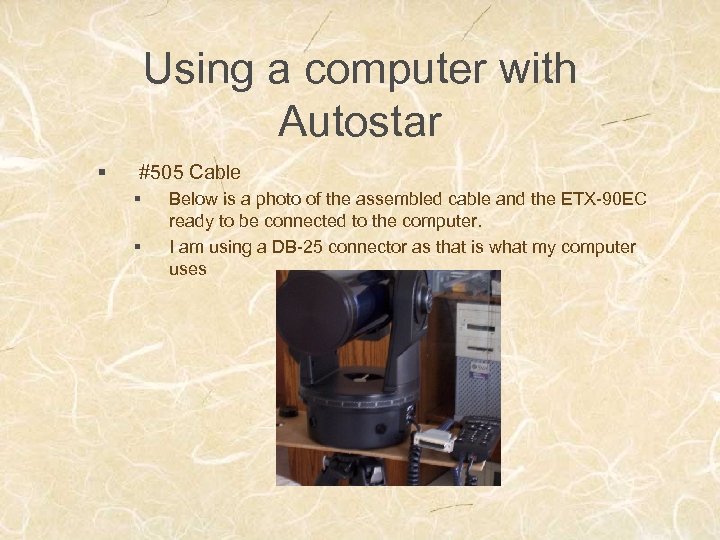

Using a computer with Autostar § #505 Cable § § Below is a photo of the assembled cable and the ETX-90 EC ready to be connected to the computer. I am using a DB-25 connector as that is what my computer uses

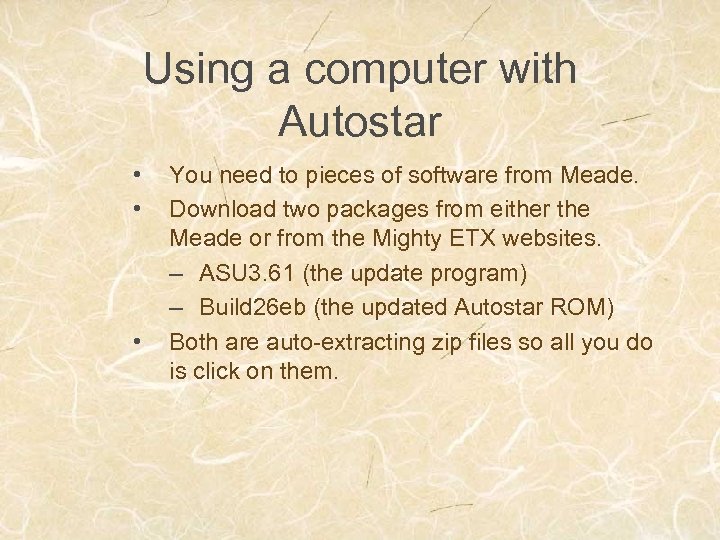

Using a computer with Autostar • • • You need to pieces of software from Meade. Download two packages from either the Meade or from the Mighty ETX websites. – ASU 3. 61 (the update program) – Build 26 eb (the updated Autostar ROM) Both are auto-extracting zip files so all you do is click on them.

Using a computer with Autostar § Desktop after Download

Using a computer with Autostar § Starting the Install of ASU

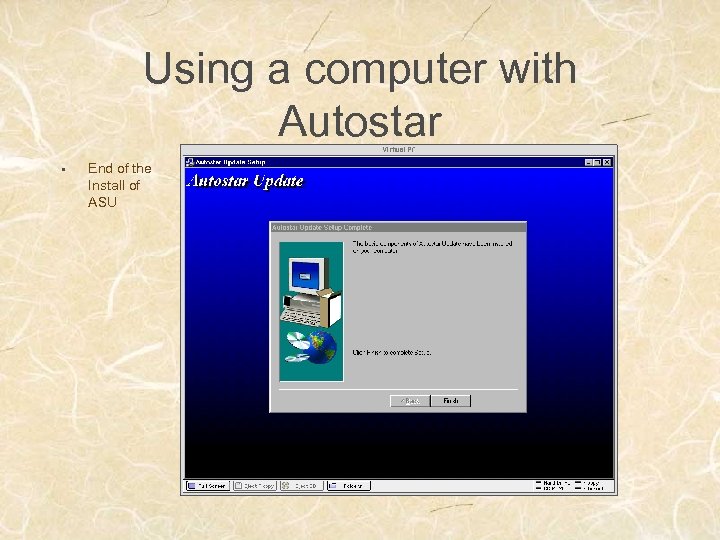

Using a computer with Autostar § End of the Install of ASU

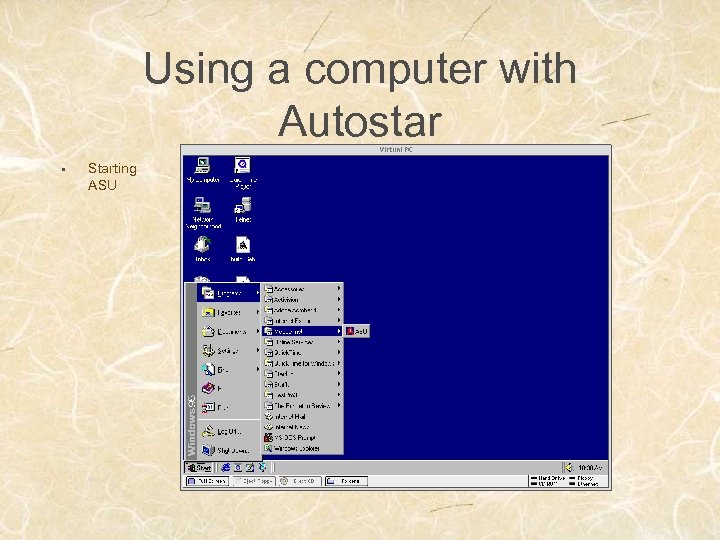

Using a computer with Autostar § Starting ASU

Using a computer with Autostar § Running ASU

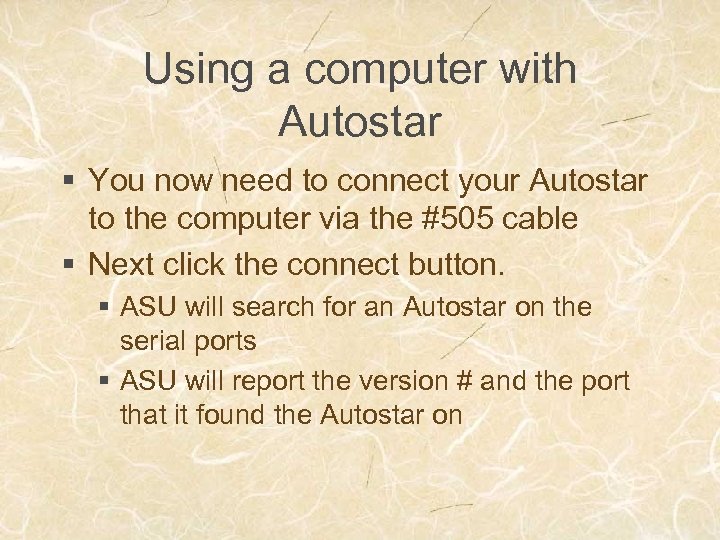

Using a computer with Autostar § You now need to connect your Autostar to the computer via the #505 cable § Next click the connect button. § ASU will search for an Autostar on the serial ports § ASU will report the version # and the port that it found the Autostar on

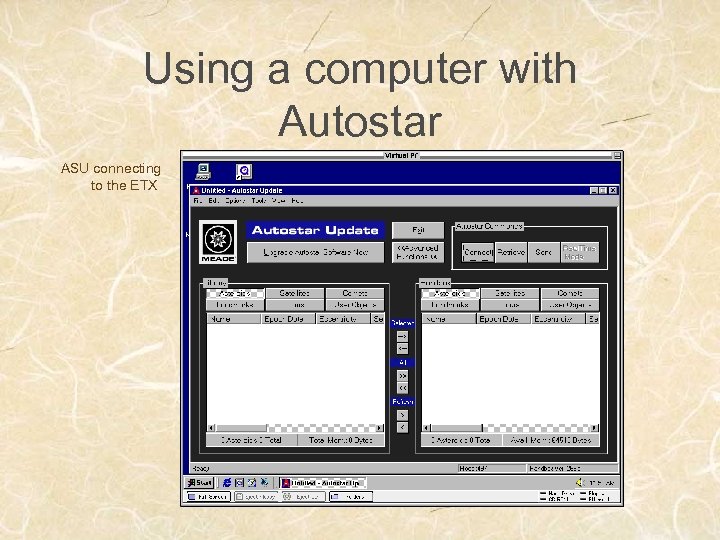

Using a computer with Autostar ASU connecting to the ETX

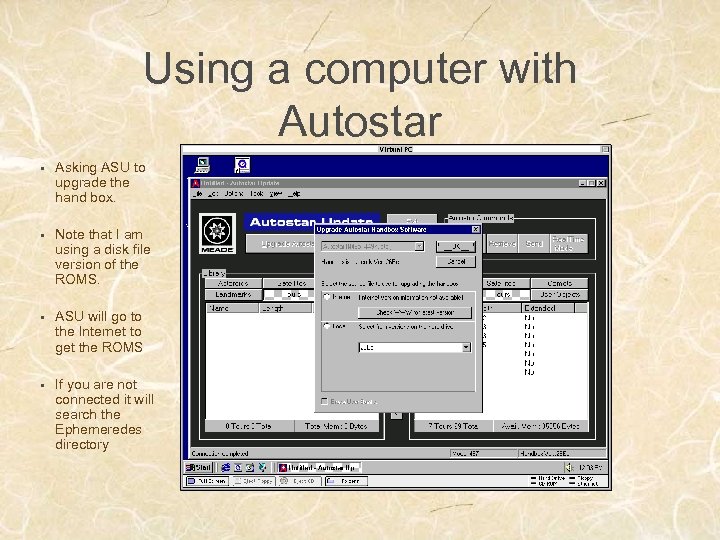

Using a computer with Autostar § § Asking ASU to upgrade the hand box. Note that I am using a disk file version of the ROMS. ASU will go to the Internet to get the ROMS If you are not connected it will search the Ephemeredes directory

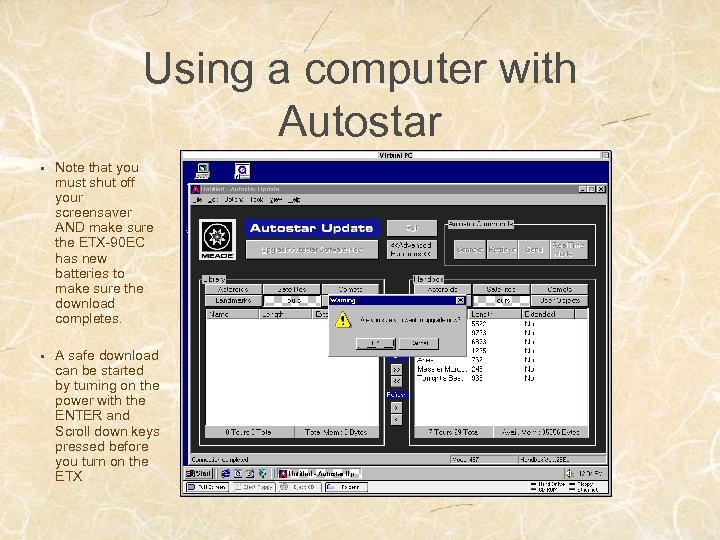

Using a computer with Autostar § § Note that you must shut off your screensaver AND make sure the ETX-90 EC has new batteries to make sure the download completes. A safe download can be started by turning on the power with the ENTER and Scroll down keys pressed before you turn on the ETX

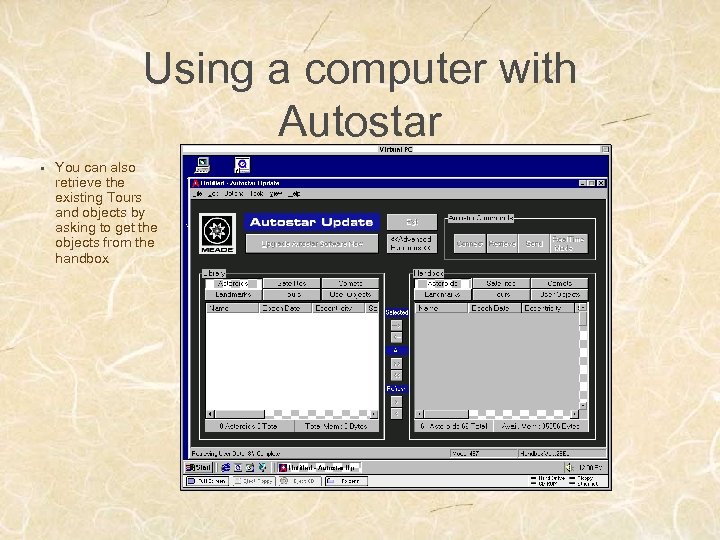

Using a computer with Autostar § You can also retrieve the existing Tours and objects by asking to get the objects from the handbox

Using a computer with Autostar § § You can download objects and Tours that you can write your self or download from the net. I have pulled down a copy of Dr. Clay Sherrod’s constellation guides and then down load a few.

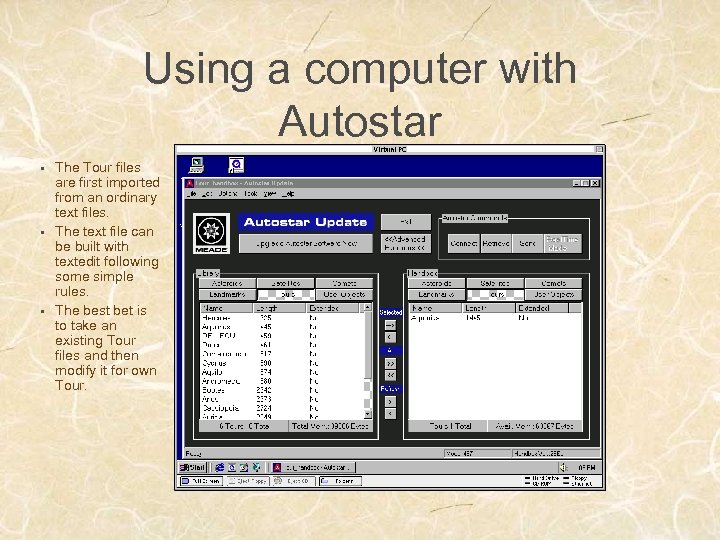

Using a computer with Autostar § § § The Tour files are first imported from an ordinary text files. The text file can be built with textedit following some simple rules. The best bet is to take an existing Tour files and then modify it for own Tour.

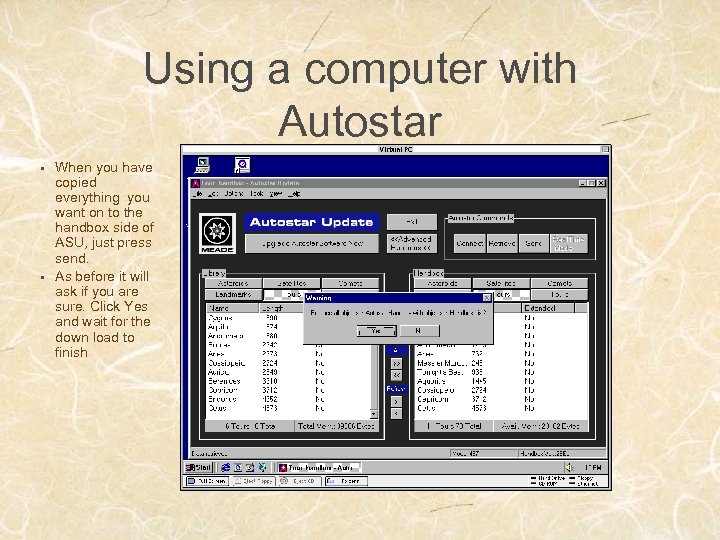

Using a computer with Autostar § § When you have copied everything you want on to the handbox side of ASU, just press send. As before it will ask if you are sure. Click Yes and wait for the down load to finish

Using a computer with Autostar § § § Although you can use a simple text editor like textedit under windows to build Tour Files, I prefer planning software There a many different kinds of planning software available I prefer to use Astro. Planner by Paul Rodman It works on Macs and PC’s, it is easy to use and understand it allows the ETX to be driven by the software

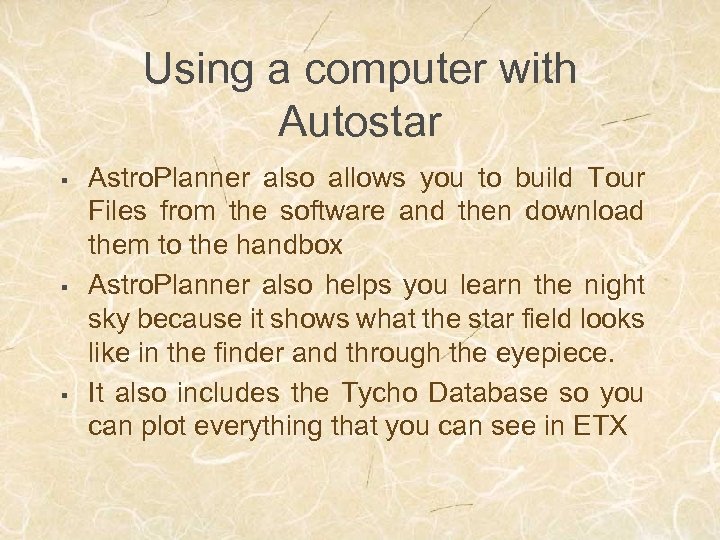

Using a computer with Autostar § § § Astro. Planner also allows you to build Tour Files from the software and then download them to the handbox Astro. Planner also helps you learn the night sky because it shows what the star field looks like in the finder and through the eyepiece. It also includes the Tycho Database so you can plot everything that you can see in ETX

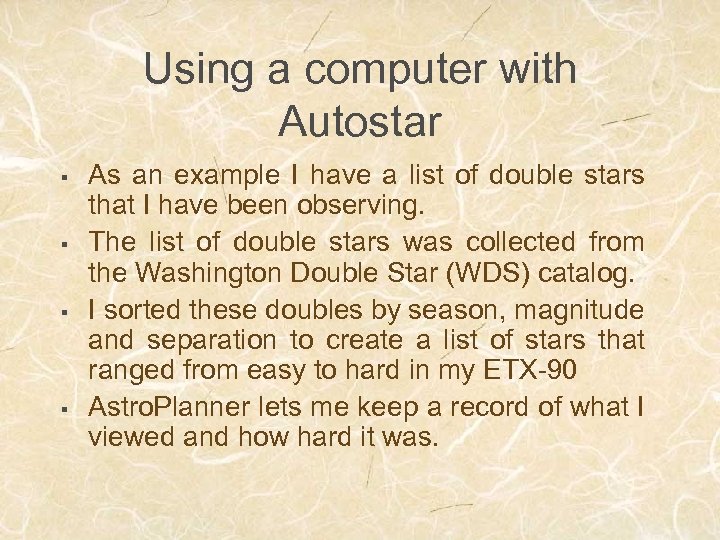

Using a computer with Autostar § § As an example I have a list of double stars that I have been observing. The list of double stars was collected from the Washington Double Star (WDS) catalog. I sorted these doubles by season, magnitude and separation to create a list of stars that ranged from easy to hard in my ETX-90 Astro. Planner lets me keep a record of what I viewed and how hard it was.

Using a computer with Autostar

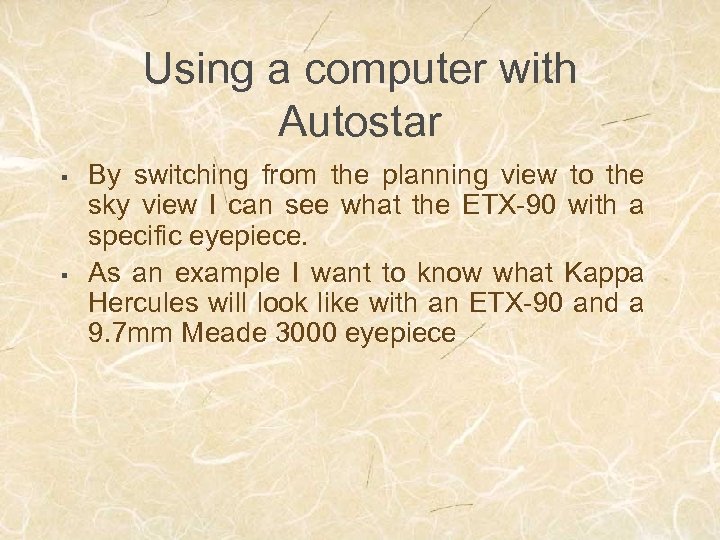

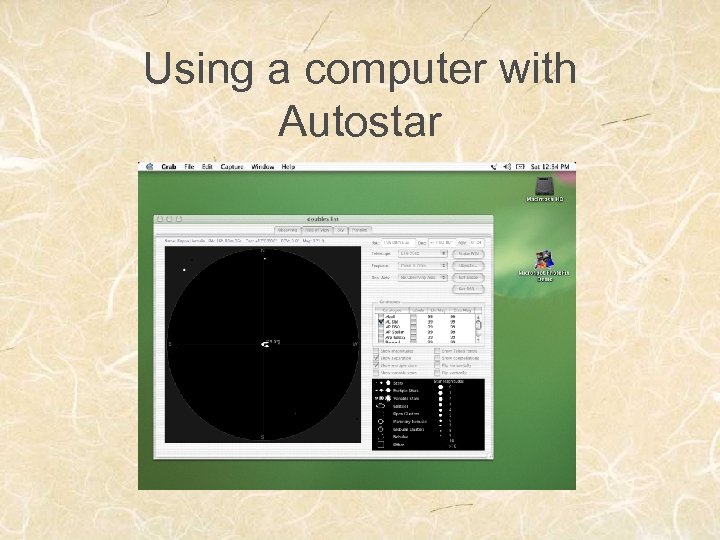

Using a computer with Autostar § § By switching from the planning view to the sky view I can see what the ETX-90 with a specific eyepiece. As an example I want to know what Kappa Hercules will look like with an ETX-90 and a 9. 7 mm Meade 3000 eyepiece

Using a computer with Autostar

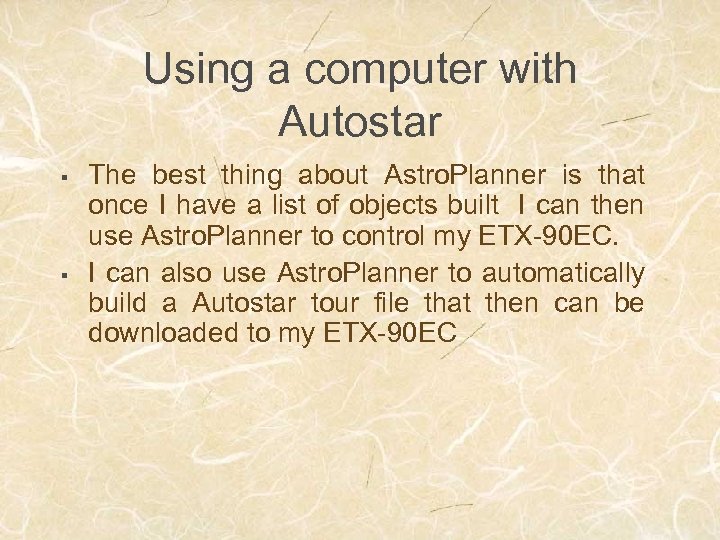

Using a computer with Autostar § § The best thing about Astro. Planner is that once I have a list of objects built I can then use Astro. Planner to control my ETX-90 EC. I can also use Astro. Planner to automatically build a Autostar tour file that then can be downloaded to my ETX-90 EC
