Automobile Real Time Smart Vehicle Plate Detection And Management System Submitted by: Zeina Salatneh Rania Samaro Supervised by : Dr. Saed Tarapiah

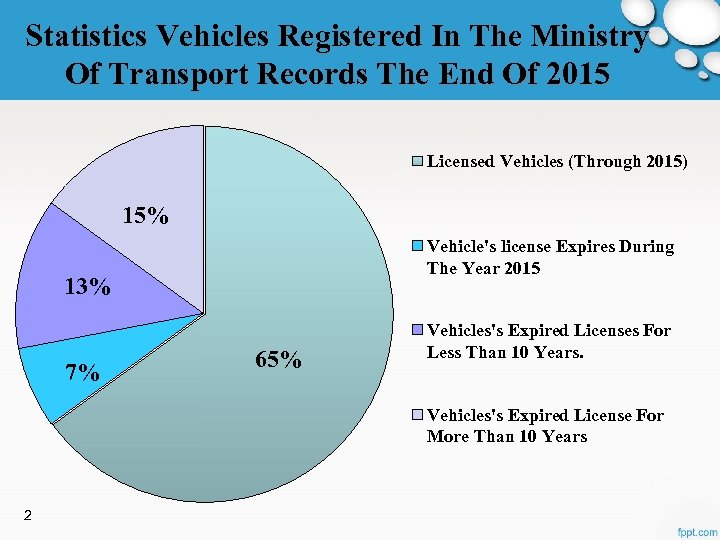

Statistics Vehicles Registered In The Ministry Of Transport Records The End Of 2015 Licensed Vehicles (Through 2015) 15% Vehicle's license Expires During The Year 2015 13% 7% 65% Vehicles's Expired Licenses For Less Than 10 Years. Vehicles's Expired License For More Than 10 Years 2
System Over View v The system depends on tag technology which is going to be used as follow : Ø Each car will carry a tag with a unique ID such as car plate number. Ø In the area , there will be a tags reader that reads this tag ID and sends it via Wi-Fi to a center server which has the full information for each one of the ID's. 3
System over view Ø This information include car plate number, registration, vehicle type and offences and legal ownership, if there is something illegal such as unpaid insurance or license bills. Ø The information of the illegal car will be sent to android application, which is installed on policeman mobile who is in the area and he will take the necessary actions. 4
Literature Review Ø Image Processing ØBarcodes Blackberry ØZigbee RF ØRFID 5

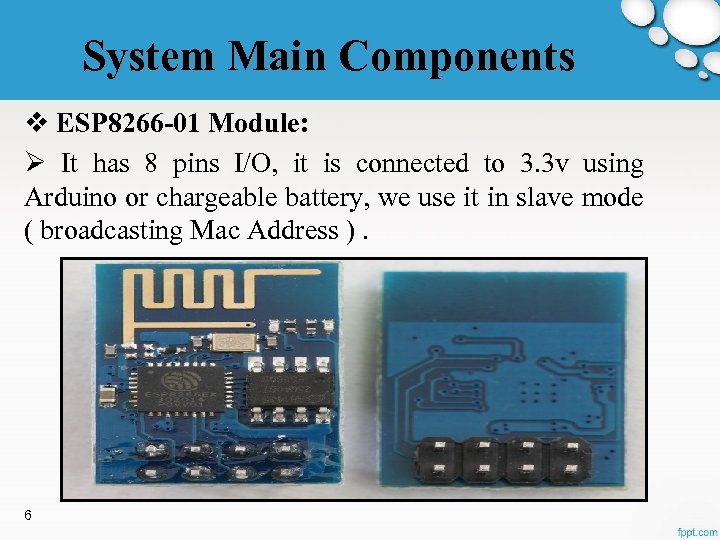

System Main Components v ESP 8266 -01 Module: Ø It has 8 pins I/O, it is connected to 3. 3 v using Arduino or chargeable battery, we use it in slave mode ( broadcasting Mac Address ). 6
System Main Components v Node MCU ESP-12 EWi-Fi Module : Ø It works on Wi-Fi at freq. 2. 4 GHz , also it supports the Wi-Fi categories 802. 11 b/g/n at, it supports clock speed 80 MHz, 160 MHz. Each module comes pre-programmed with an AT command or by Arduino. 7
System Main Components Ø It has 22 pins I/O, it has can be connected to 5 using USB connector connect it with PC , it can broadcasts up to 155 meters outdoor. 8

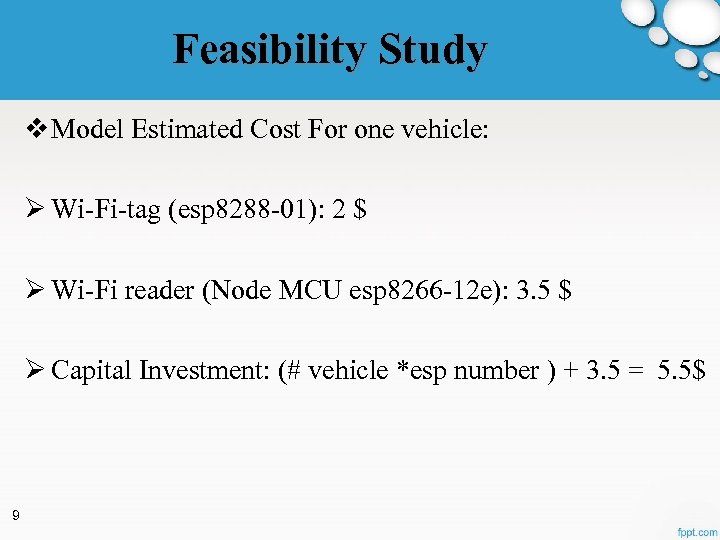

Feasibility Study v Model Estimated Cost For one vehicle: Ø Wi-Fi-tag (esp 8288 -01): 2 $ Ø Wi-Fi reader (Node MCU esp 8266 -12 e): 3. 5 $ Ø Capital Investment: (# vehicle *esp number ) + 3. 5 = 5. 5$ 9
Software Programs Ø Arduino Ø Matlab Ø PHP Ø Android 10
Sequence of system functionalities v Matlab – Based : Ø vehicle’s side 11

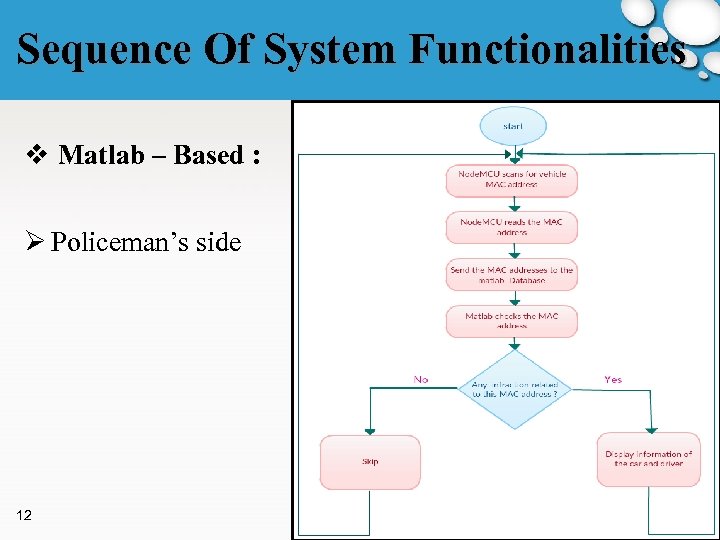

Sequence Of System Functionalities v Matlab – Based : Ø Policeman’s side 12

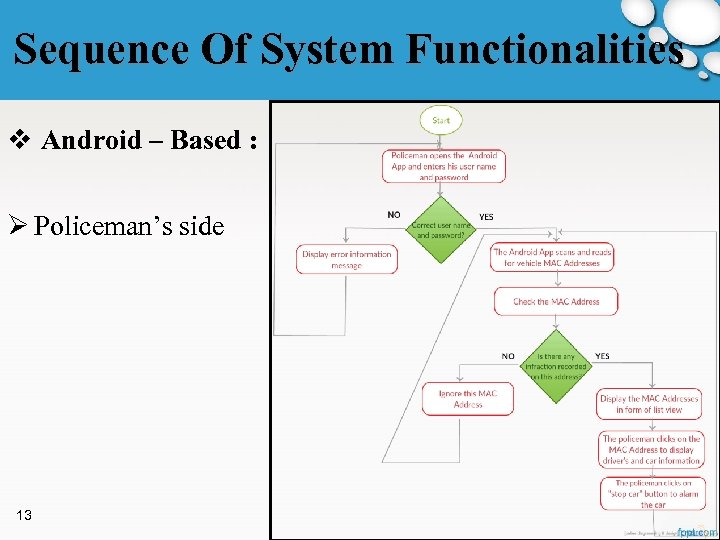

Sequence Of System Functionalities v Android – Based : Ø Policeman’s side 13

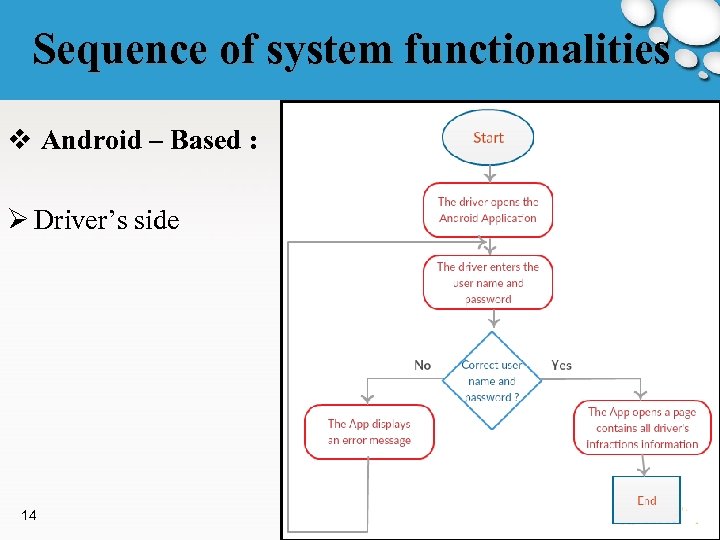

Sequence of system functionalities v Android – Based : Ø Driver’s side 14

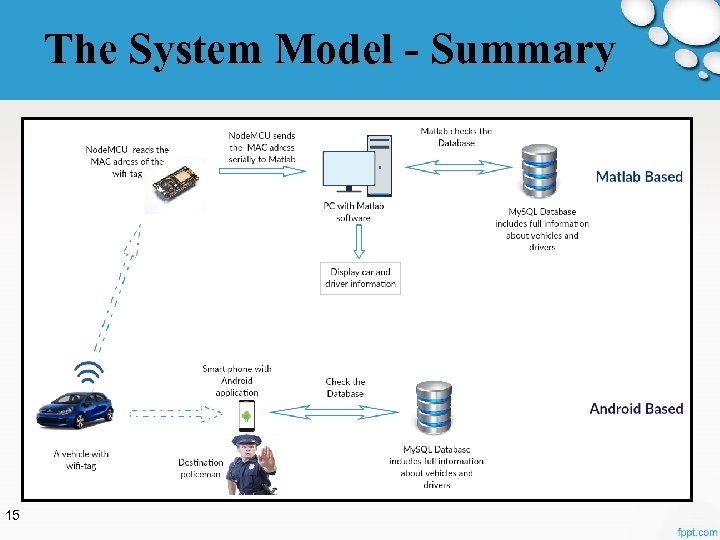

The System Model - Summary 15
From Government Point Of View Economically 16 Automated

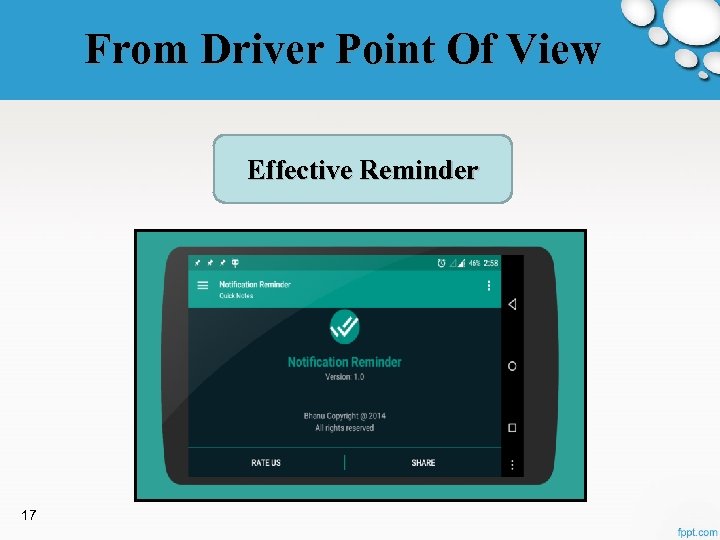

From Driver Point Of View Effective Reminder 17
Conclusion This project was very useful , We learn from this system many language programs, how to deal and connect them with each other , how to handle with electronic devices and how to build full system based on scientific basics. We will purplish our project in a paper. 18
19
