Automation of the Radio Regulations (RR) Centre of Excellence Workshop Kiev - 2003 Principles and techniques for spectrum planning and utilization DATABASE AND SOFTWARE FOR AUTOMATION OF THE RADIO REGULATIONS Bontcho Balabanov NBU-Sofia Com. Bal. Sat Co. E SM Workshop Kiev- 2003 1

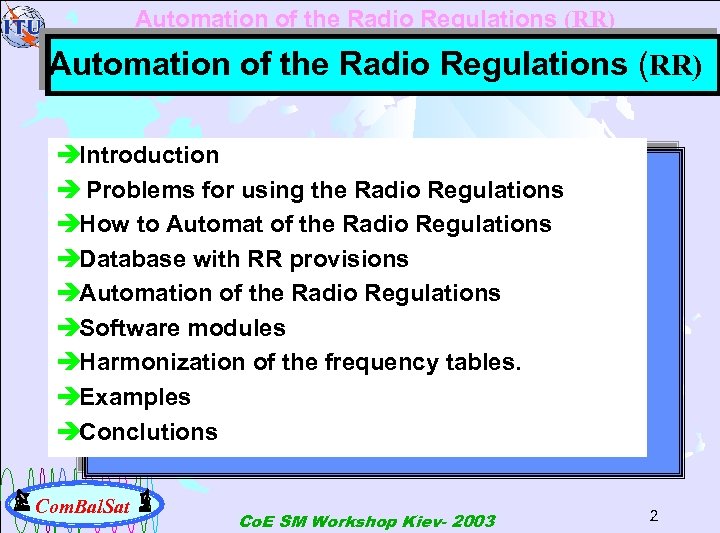

Automation of the Radio Regulations (RR) èIntroduction Автоматизиране на Радио регламента (RR) è Problems for using the Radio Regulations èHow to Automat of the Radio Regulations èDatabase with RR provisions èAutomation of the Radio Regulations èSoftware modules èHarmonization of the frequency tables. èExamples èConclutions Com. Bal. Sat Co. E SM Workshop Kiev- 2003 2

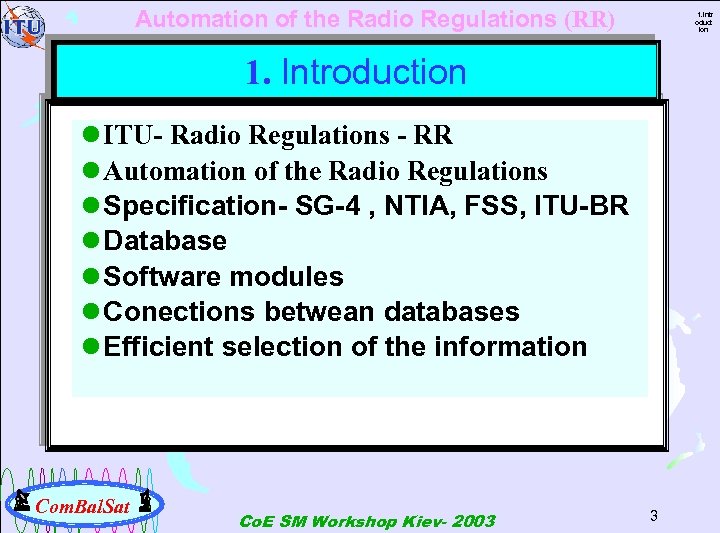

Automation of the Radio Regulations (RR) 1. Intr oduct ion 1. Introduction l ITU- Radio Regulations - RR l Automation of the Radio Regulations l Specification- SG-4 , NTIA, FSS, ITU-BR l Database l Software modules l Conections betwean databases l Efficient selection of the information Com. Bal. Sat Co. E SM Workshop Kiev- 2003 3

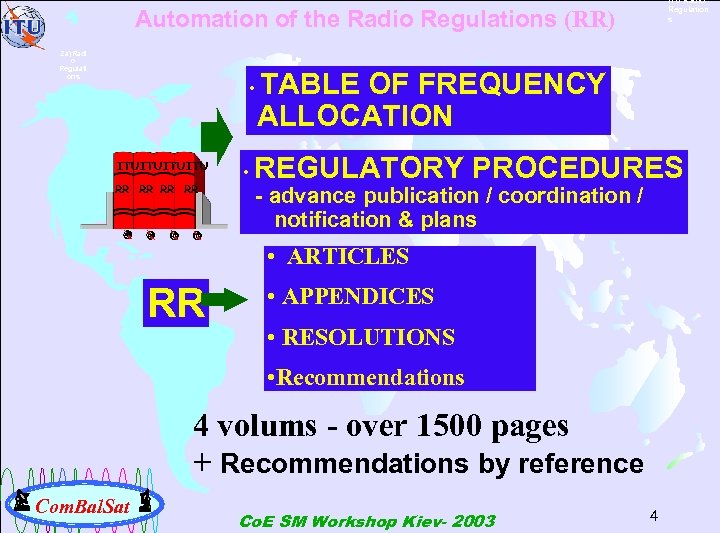

ITU Radio Regulation s Automation of the Radio Regulations (RR) 2. a)Radi o Regulati ons • ITU ITU RR RR • TABLE OF FREQUENCY ALLOCATION REGULATORY PROCEDURES - advance publication / coordination / notification & plans • ARTICLES RR • APPENDICES • RESOLUTIONS • Recommendations 4 volums - over 1500 pages + Recommendations by reference Com. Bal. Sat Co. E SM Workshop Kiev- 2003 4

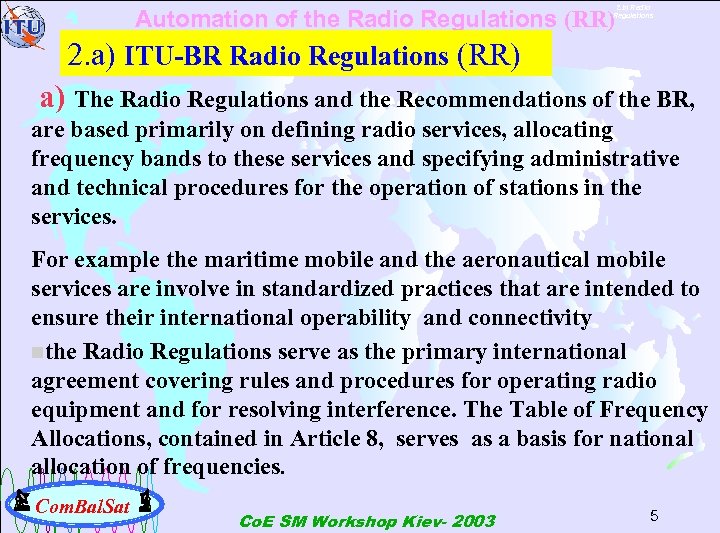

2. b) Radio Regulations Automation of the Radio Regulations (RR) 2. a) ITU-BR Radio Regulations (RR) a) The Radio Regulations and the Recommendations of the BR, are based primarily on defining radio services, allocating frequency bands to these services and specifying administrative and technical procedures for the operation of stations in the services. For example the maritime mobile and the aeronautical mobile services are involve in standardized practices that are intended to ensure their international operability and connectivity nthe Radio Regulations serve as the primary international agreement covering rules and procedures for operating radio equipment and for resolving interference. The Table of Frequency Allocations, contained in Article 8, serves as a basis for national allocation of frequencies. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 5

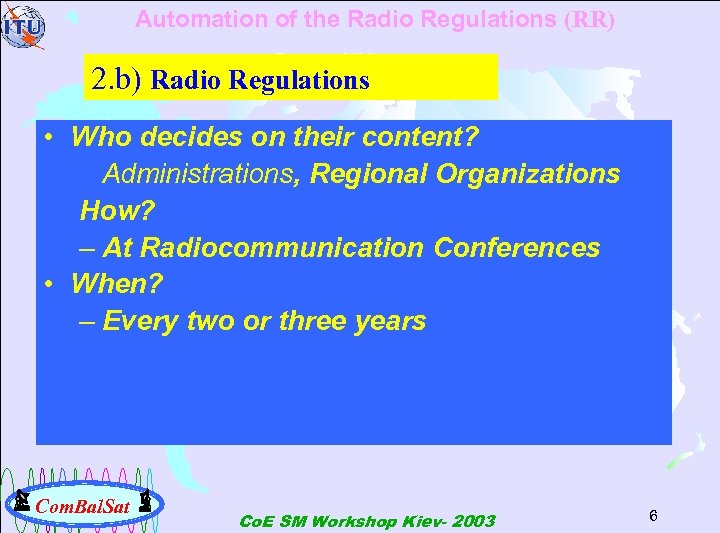

Automation of the Radio Regulations (RR) 2. b) Radio Regulations • Who decides on their content? Administrations, Regional Organizations How? – At Radiocommunication Conferences • When? – Every two or three years Com. Bal. Sat Co. E SM Workshop Kiev- 2003 6

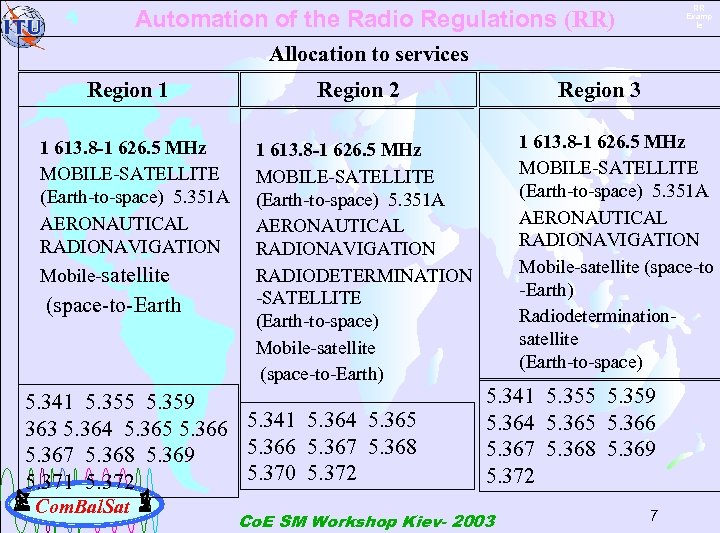

RR Examp le Automation of the Radio Regulations (RR) Allocation to services Region 1 1 613. 8 -1 626. 5 MHz MOBILE-SATELLITE (Earth-to-space) 5. 351 A AERONAUTICAL RADIONAVIGATION Mobile-satellite (space-to-Earth 1 613. 8 -1 626. 5 MHz MOBILE-SATELLITE (Earth-to-space) 5. 351 A AERONAUTICAL RADIONAVIGATION RADIODETERMINATION -SATELLITE (Earth-to-space) Mobile-satellite (space-to-Earth) 5. 341 5. 355 5. 359 363 5. 364 5. 365 5. 366 5. 341 5. 364 5. 365 5. 366 5. 367 5. 368 5. 369 5. 370 5. 372 5. 371 5. 372 Com. Bal. Sat Region 3 Region 2 1 613. 8 -1 626. 5 MHz MOBILE-SATELLITE (Earth-to-space) 5. 351 A AERONAUTICAL RADIONAVIGATION Mobile-satellite (space-to -Earth) Radiodeterminationsatellite (Earth-to-space) 5. 341 5. 355 5. 359 5. 364 5. 365 5. 366 5. 367 5. 368 5. 369 5. 372 Co. E SM Workshop Kiev- 2003 7

FTN 1 Automation of the Radio Regulations (RR) Example Footnotes 1 5. 364 The use of the band 1 610 -1 626. 5 MHz by the mobile-satellite service (Earth-to-space) and by the radiodetermination-satellite service (Earth‑to‑space) is subject to coordination under No. 9. 11 A. A mobile earth station operating in either of the services in this band shall not produce a peak e. i. r. p. density in excess of in the part of the band used by systems operating in accordance with the provisions of No. 5. 366 (to which No. 4. 10 applies), unless otherwise agreed by the affected administrations. In the part of the band where such systems are not operating, the mean e. i. r. p. density of a mobile earth station shall not exceed – 3 d. B(W/4 k. Hz). Stations of the mobile-satellite service shall not claim protection from stations in the aeronautical radionavigation service, stations operating in accordance with the provisions of No. 5. 366 and stations in the fixed service operating in accordance with the provisions of No. 5. 359. Administrations responsible for the coordination of mobile-satellite networks shall make all practicable efforts to ensure protection of stations operating in accordance with the provisions of No. 5. 366. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 8

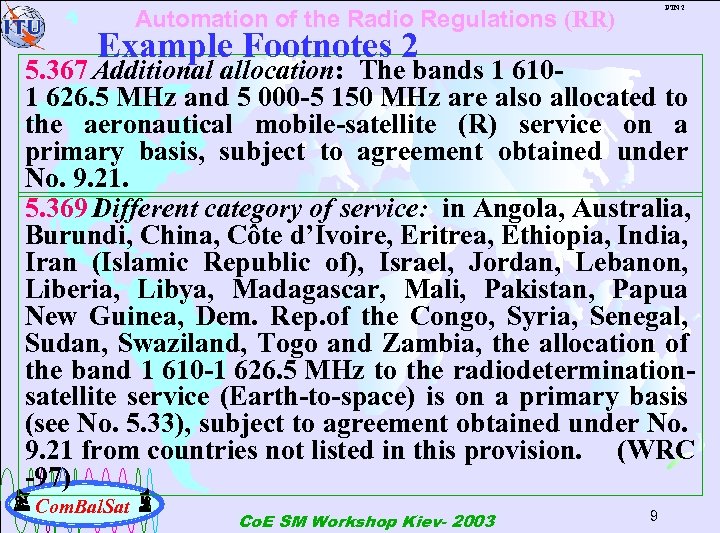

FTN 2 Automation of the Radio Regulations (RR) Example Footnotes 2 5. 367 Additional allocation: The bands 1 6101 626. 5 MHz and 5 000 -5 150 MHz are also allocated to the aeronautical mobile-satellite (R) service on a primary basis, subject to agreement obtained under No. 9. 21. 5. 369 Different category of service: in Angola, Australia, Burundi, China, Côte d’Ivoire, Eritrea, Ethiopia, India, Iran (Islamic Republic of), Israel, Jordan, Lebanon, Liberia, Libya, Madagascar, Mali, Pakistan, Papua New Guinea, Dem. Rep. of the Congo, Syria, Senegal, Sudan, Swaziland, Togo and Zambia, the allocation of the band 1 610 -1 626. 5 MHz to the radiodeterminationsatellite service (Earth-to-space) is on a primary basis (see No. 5. 33), subject to agreement obtained under No. 9. 21 from countries not listed in this provision. (WRC -97) Com. Bal. Sat Co. E SM Workshop Kiev- 2003 9

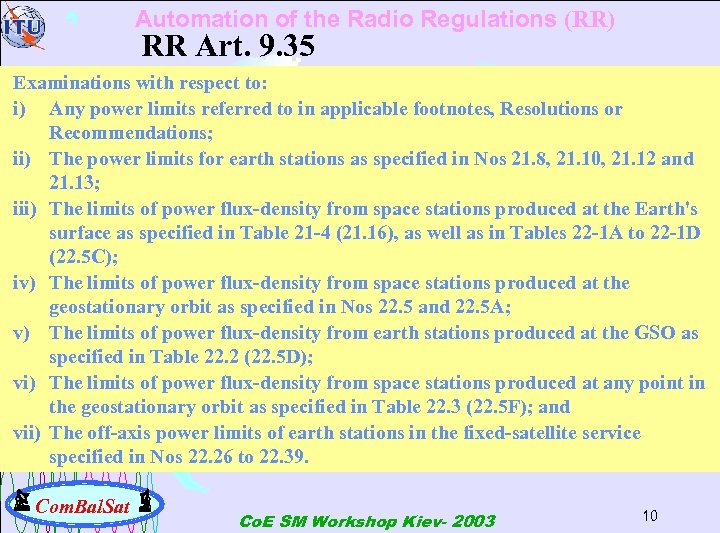

Automation of the Radio Regulations (RR) RR Art. 9. 35 Examinations with respect to: i) Any power limits referred to in applicable footnotes, Resolutions or Recommendations; ii) The power limits for earth stations as specified in Nos 21. 8, 21. 10, 21. 12 and 21. 13; iii) The limits of power flux-density from space stations produced at the Earth's surface as specified in Table 21 -4 (21. 16), as well as in Tables 22 -1 A to 22 -1 D (22. 5 C); iv) The limits of power flux-density from space stations produced at the geostationary orbit as specified in Nos 22. 5 and 22. 5 A; v) The limits of power flux‑density from earth stations produced at the GSO as specified in Table 22. 2 (22. 5 D); vi) The limits of power flux‑density from space stations produced at any point in the geostationary orbit as specified in Table 22. 3 (22. 5 F); and vii) The off-axis power limits of earth stations in the fixed‑satellite service specified in Nos 22. 26 to 22. 39. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 10

3. а)RR Problems Automation of the Radio Regulations (RR) Problems for using the Radio Regulations 4 volums - over 1500 pages 1 e 2 e 3 e I t u a lot of manual operations are implemented for network coordinations in BR Com. Bal. Sat Co. E SM Workshop Kiev- 2003 11

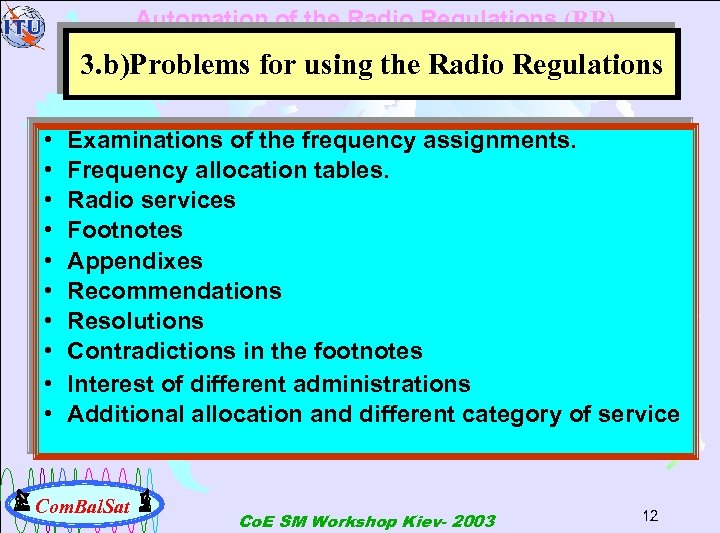

Automation of the Radio Regulations (RR) 3. b)Problems for using the Radio Regulations • • • Examinations of the frequency assignments. Frequency allocation tables. Radio services Footnotes Appendixes Recommendations Resolutions Contradictions in the footnotes Interest of different administrations Additional allocation and different category of service Com. Bal. Sat Co. E SM Workshop Kiev- 2003 12

Automation of the Radio Regulations (RR) Attempt for automation of the RR Specification - Expert group NTIA, FSS, ITU-BR, SG-4 RR database- MSACCESS RR Connections between Tables Connections to other databases Software modules Com. Bal. Sat Co. E SM Workshop Kiev- 2003 13 3. Auto

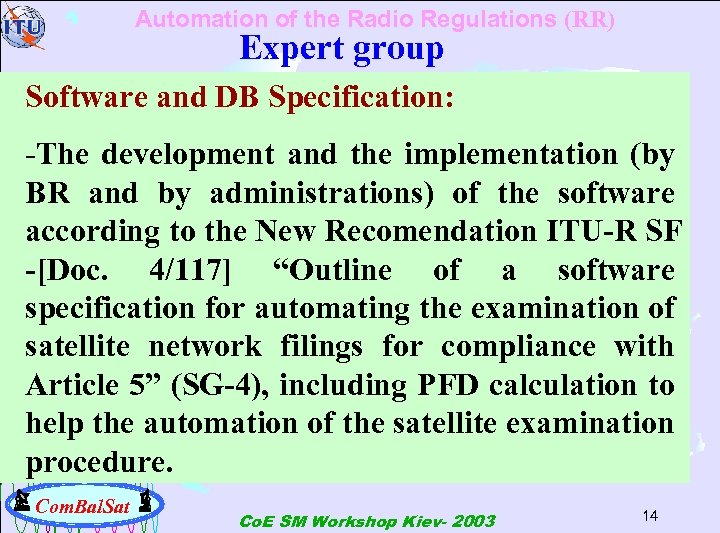

Automation of the Radio Regulations (RR) Expert group Software and DB Specification: -The development and the implementation (by BR and by administrations) of the software according to the New Recomendation ITU-R SF -[Doc. 4/117] “Outline of a software specification for automating the examination of satellite network filings for compliance with Article 5” (SG-4), including PFD calculation to help the automation of the satellite examination procedure. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 14

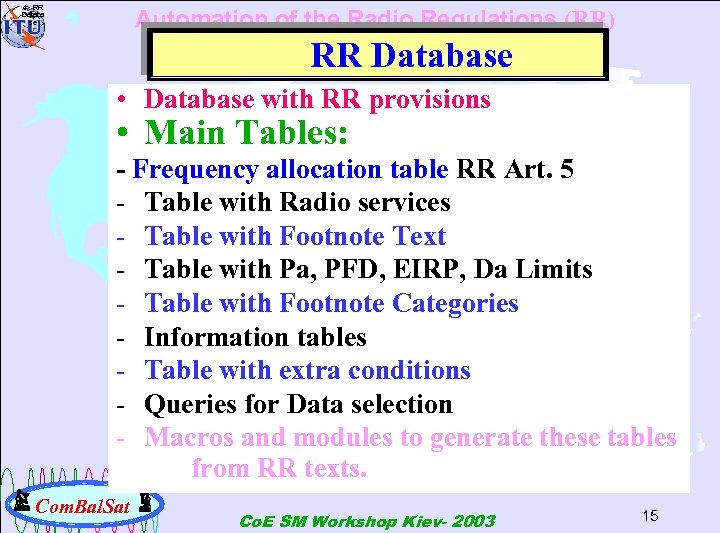

4. RR Databa se Automation of the Radio Regulations (RR) RR Database • Database with RR provisions • Main Tables: - Frequency allocation table RR Art. 5 - Table with Radio services - Table with Footnote Text - Table with Pa, PFD, EIRP, Da Limits - Table with Footnote Categories - Information tables - Table with extra conditions - Queries for Data selection - Macros and modules to generate these tables from RR texts. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 15

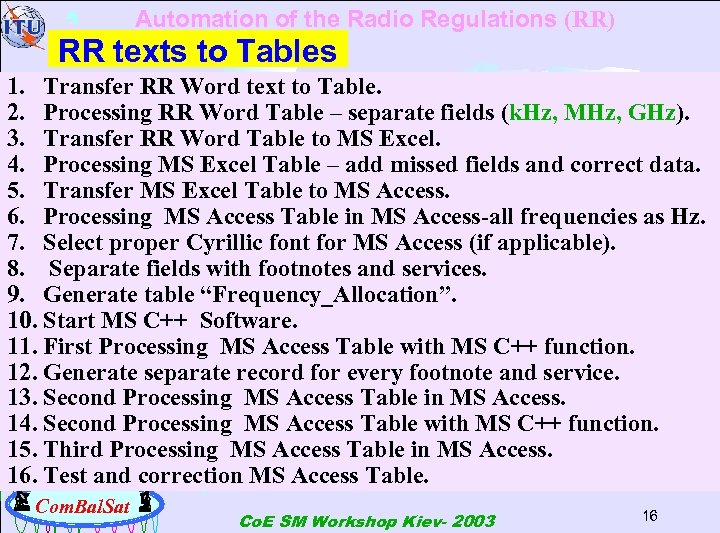

Automation of the Radio Regulations (RR) RR texts to Tables 1. Transfer RR Word text to Table. 2. Processing RR Word Table – separate fields (k. Hz, MHz, GHz). 3. Transfer RR Word Table to MS Excel. 4. Processing MS Excel Table – add missed fields and correct data. 5. Transfer MS Excel Table to MS Access. 6. Processing MS Access Table in MS Access-all frequencies as Hz. 7. Select proper Cyrillic font for MS Access (if applicable). 8. Separate fields with footnotes and services. 9. Generate table “Frequency_Allocation”. 10. Start MS C++ Software. 11. First Processing MS Access Table with MS C++ function. 12. Generate separate record for every footnote and service. 13. Second Processing MS Access Table in MS Access. 14. Second Processing MS Access Table with MS C++ function. 15. Third Processing MS Access Table in MS Access. 16. Test and correction MS Access Table. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 16

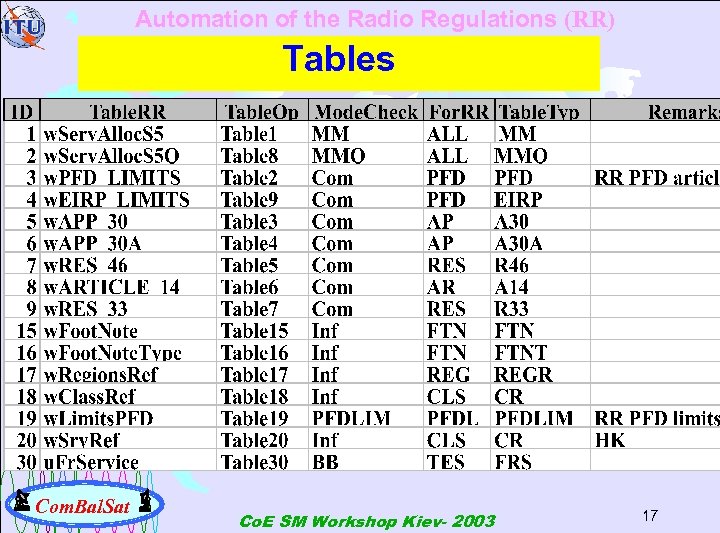

Automation of the Radio Regulations (RR) Tables Com. Bal. Sat Co. E SM Workshop Kiev- 2003 17

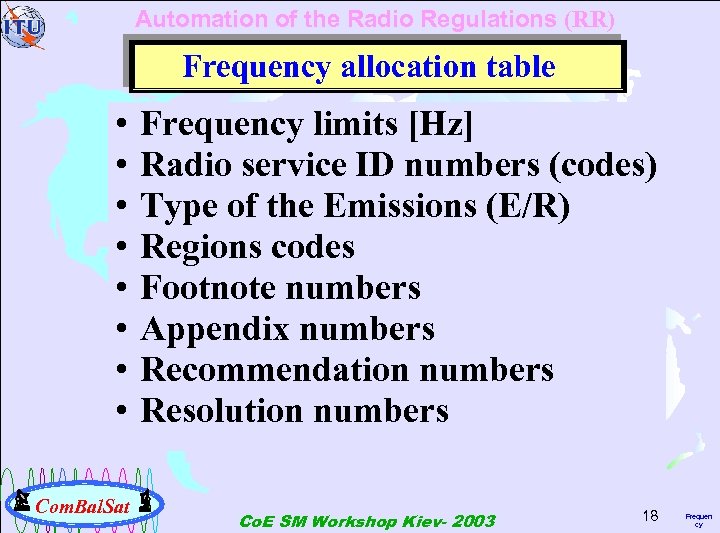

Automation of the Radio Regulations (RR) Frequency allocation table • • Com. Bal. Sat Frequency limits [Hz] Radio service ID numbers (codes) Type of the Emissions (E/R) Regions codes Footnote numbers Appendix numbers Recommendation numbers Resolution numbers Co. E SM Workshop Kiev- 2003 18 Frequen cy

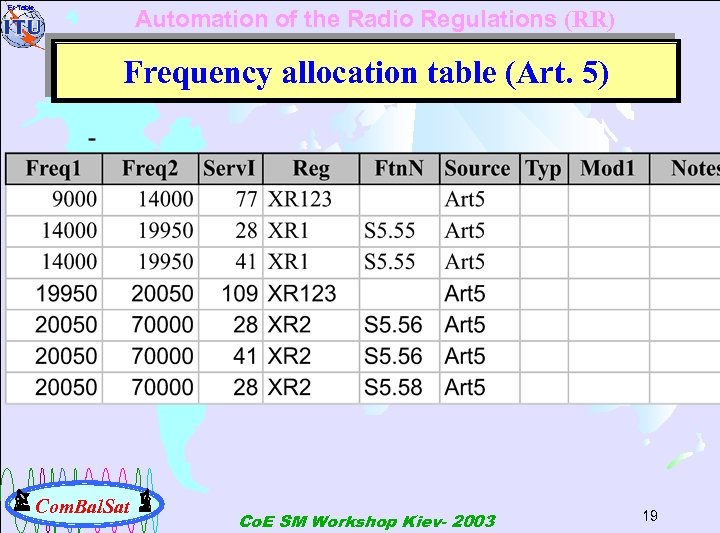

Fr Table Automation of the Radio Regulations (RR) Frequency allocation table (Art. 5) Com. Bal. Sat Co. E SM Workshop Kiev- 2003 19

Automation of the Radio Regulations (RR) Table with Radio services Com. Bal. Sat Co. E SM Workshop Kiev- 2003 20

Automation of the Radio Regulations (RR) Table with Footnote Texts Com. Bal. Sat Co. E SM Workshop Kiev- 2003 21

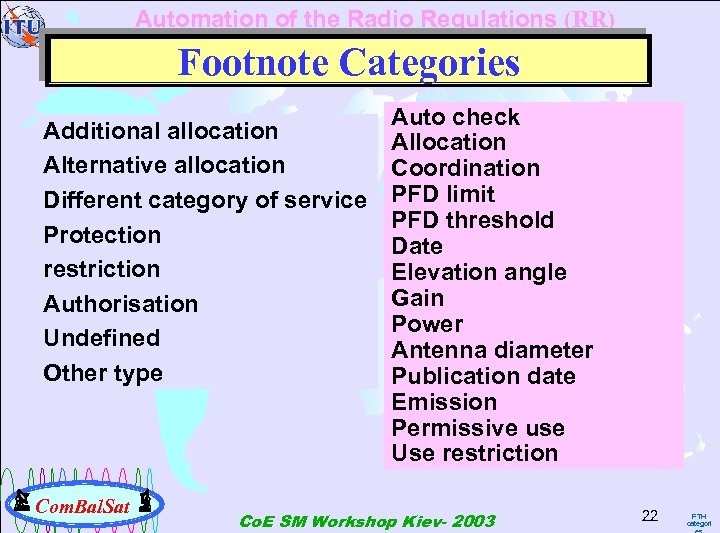

Automation of the Radio Regulations (RR) Footnote Categories Additional allocation Alternative allocation Different category of service Protection restriction Authorisation Undefined Other type Com. Bal. Sat Auto check Allocation Coordination PFD limit PFD threshold Date Elevation angle Gain Power Antenna diameter Publication date Emission Permissive use Use restriction Co. E SM Workshop Kiev- 2003 22 FTH categori

Automation of the Radio Regulations (RR) Table with Footnote Categories Com. Bal. Sat Categ ory Co. E SM Workshop Kiev- 2003 23

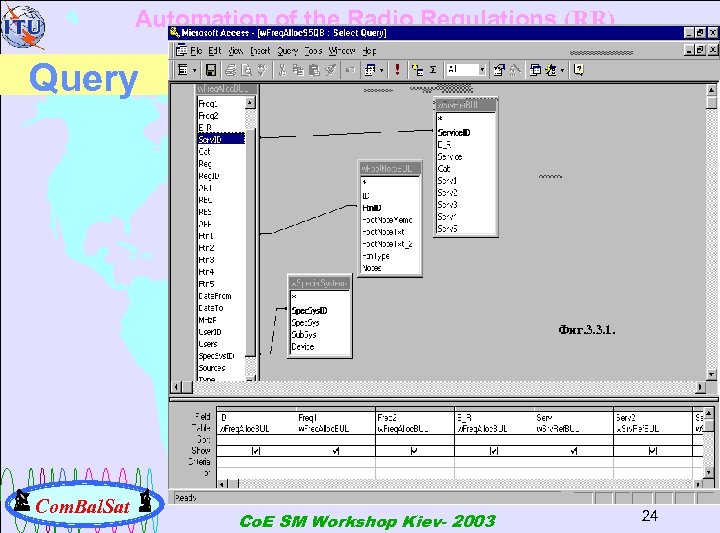

Automation of the Radio Regulations (RR) Query Фиг. 3. 3. 1. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 24

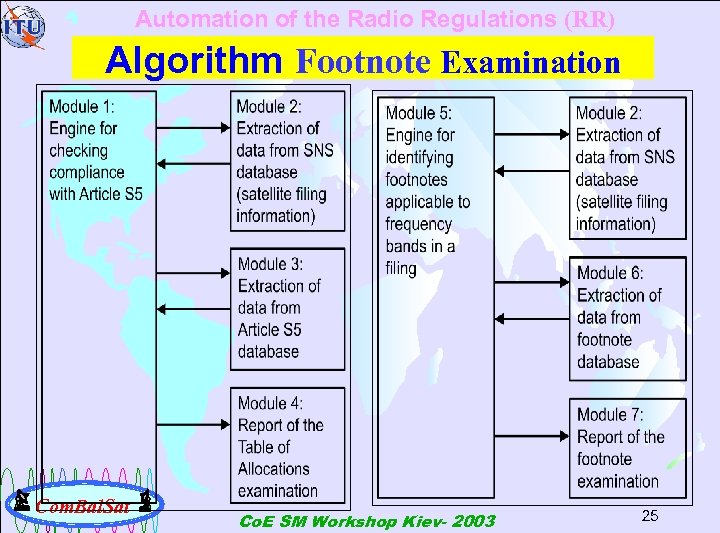

Automation of the Radio Regulations (RR) Algorithm Footnote Examination Com. Bal. Sat Co. E SM Workshop Kiev- 2003 25

Automation of the Radio Regulations (RR) Algorithm FTN Com. Bal. Sat Co. E SM Workshop Kiev- 2003 26

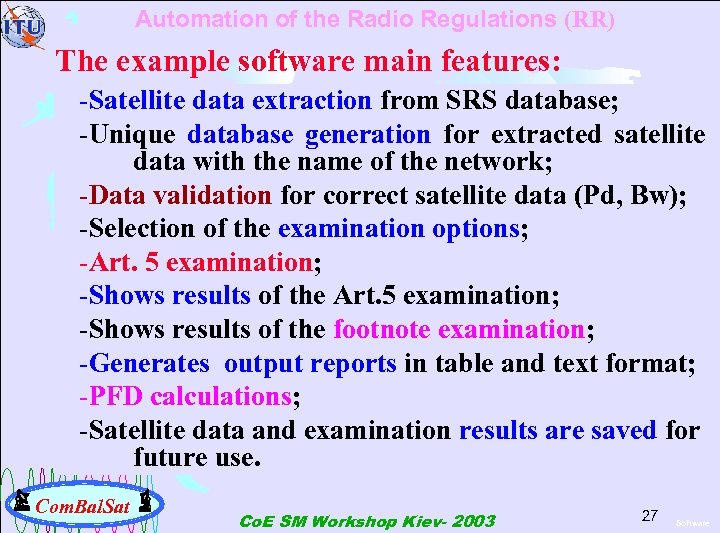

Automation of the Radio Regulations (RR) The example software main features: -Satellite data extraction from SRS database; -Unique database generation for extracted satellite data with the name of the network; -Data validation for correct satellite data (Pd, Bw); -Selection of the examination options; -Art. 5 examination; -Shows results of the footnote examination; -Generates output reports in table and text format; -PFD calculations; -Satellite data and examination results are saved for future use. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 27 Software

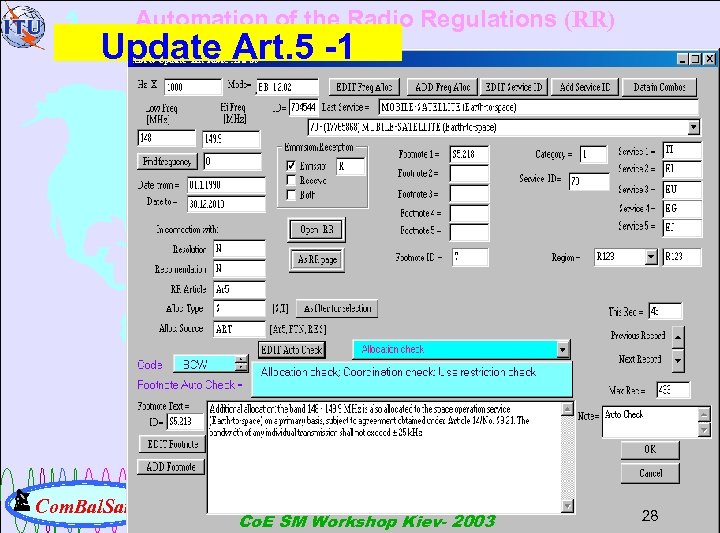

Automation of the Radio Regulations (RR) Update Art. 5 -1 Com. Bal. Sat Co. E SM Workshop Kiev- 2003 28

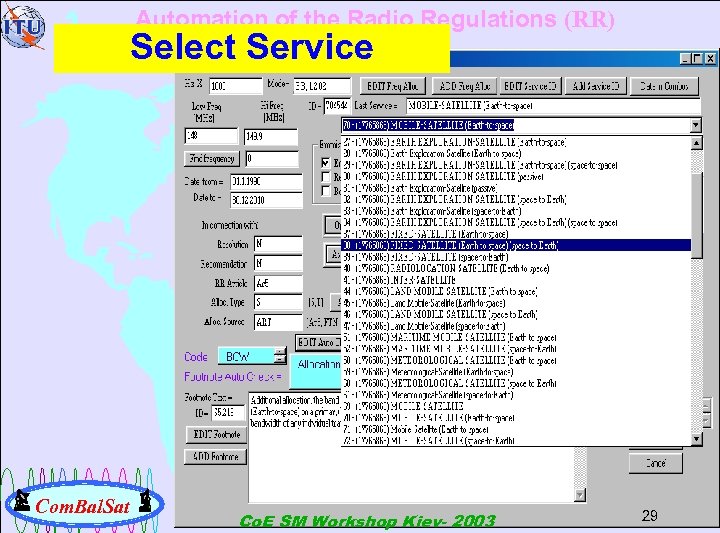

Automation of the Radio Regulations (RR) Select Service Com. Bal. Sat Co. E SM Workshop Kiev- 2003 29

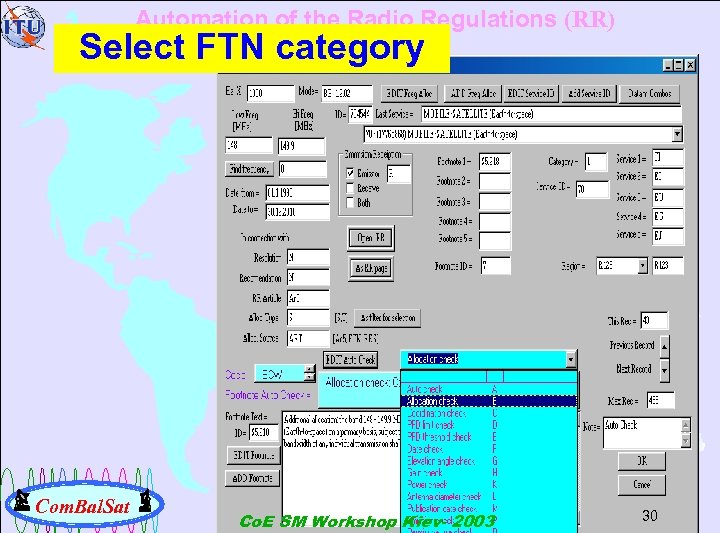

Automation of the Radio Regulations (RR) Select FTN category Com. Bal. Sat Co. E SM Workshop Kiev- 2003 30

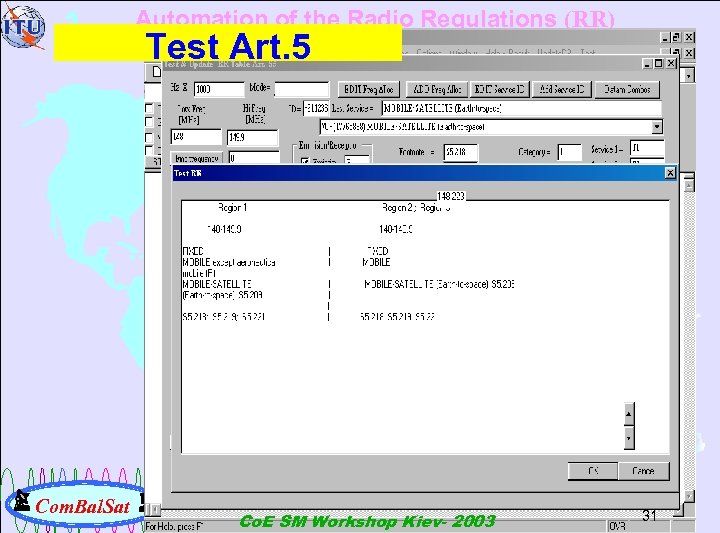

Automation of the Radio Regulations (RR) Test Art. 5 Com. Bal. Sat Co. E SM Workshop Kiev- 2003 31

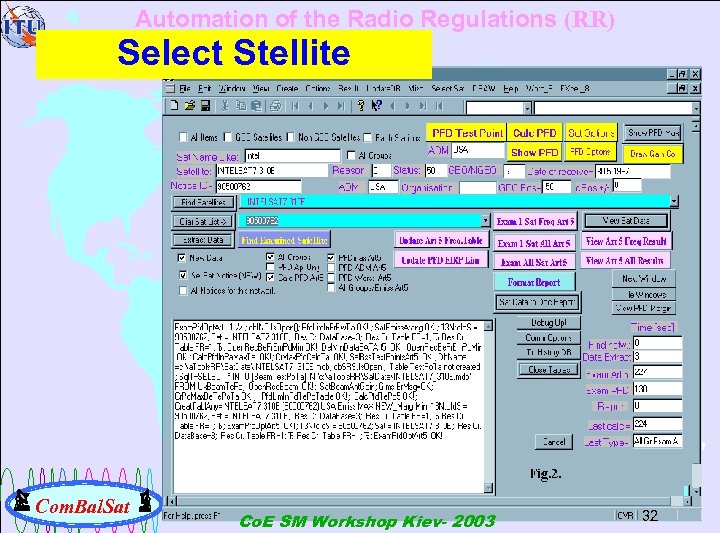

Automation of the Radio Regulations (RR) Select Stellite Com. Bal. Sat Co. E SM Workshop Kiev- 2003 32

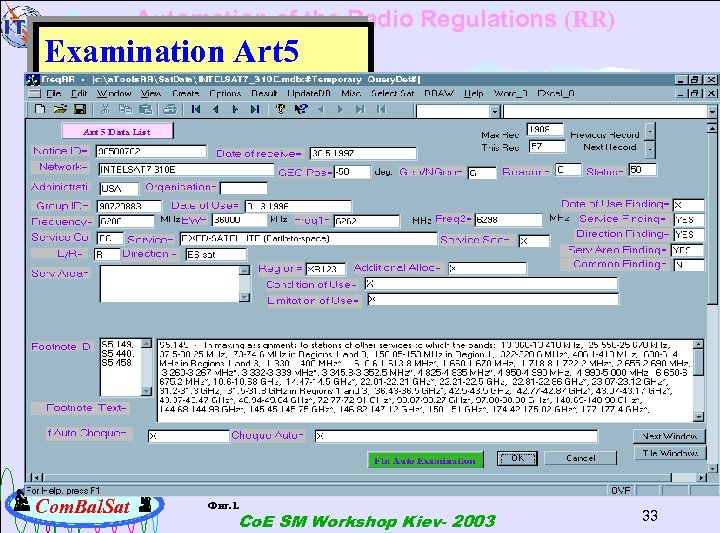

Automation of the Radio Regulations (RR) Examination Art 5 Com. Bal. Sat Фиг. 1. Co. E SM Workshop Kiev- 2003 33

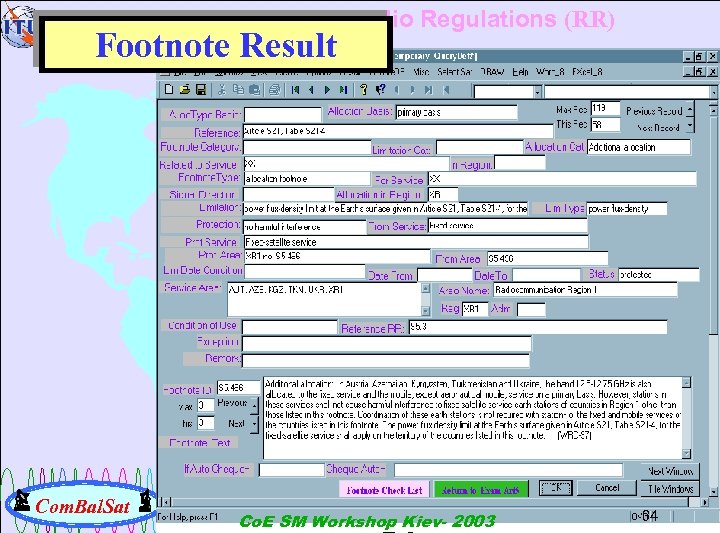

Automation of the Radio Regulations (RR) Footnote Result Com. Bal. Sat Co. E SM Workshop Kiev- 2003 34

Automation of the Radio Regulations (RR) Results (short) Com. Bal. Sat Co. E SM Workshop Kiev- 2003 35

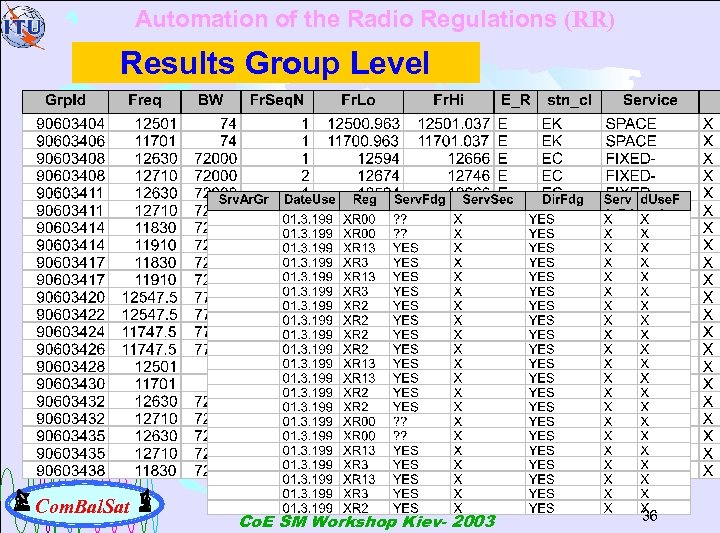

Automation of the Radio Regulations (RR) Results Group Level Com. Bal. Sat Co. E SM Workshop Kiev- 2003 36

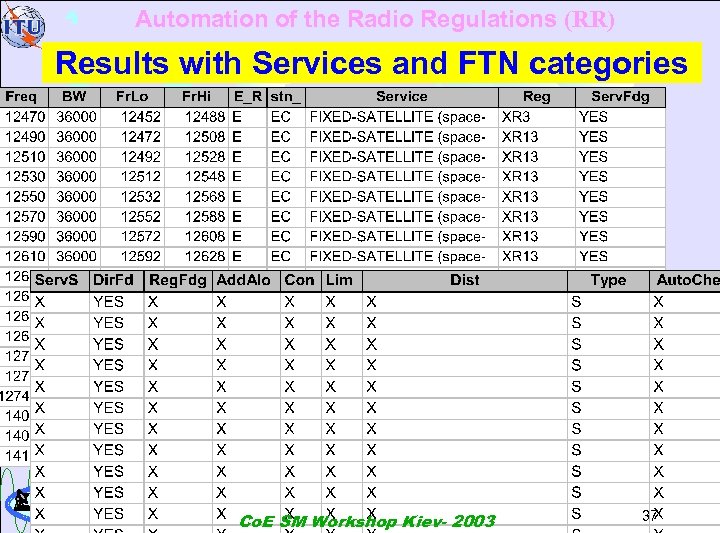

Automation of the Radio Regulations (RR) Results with Services and FTN categories Com. Bal. Sat Co. E SM Workshop Kiev- 2003 37

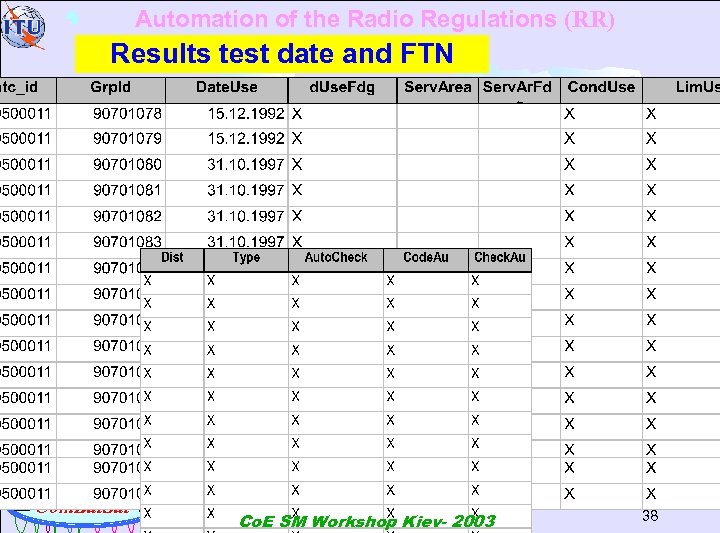

Automation of the Radio Regulations (RR) Results test date and FTN Com. Bal. Sat Co. E SM Workshop Kiev- 2003 38

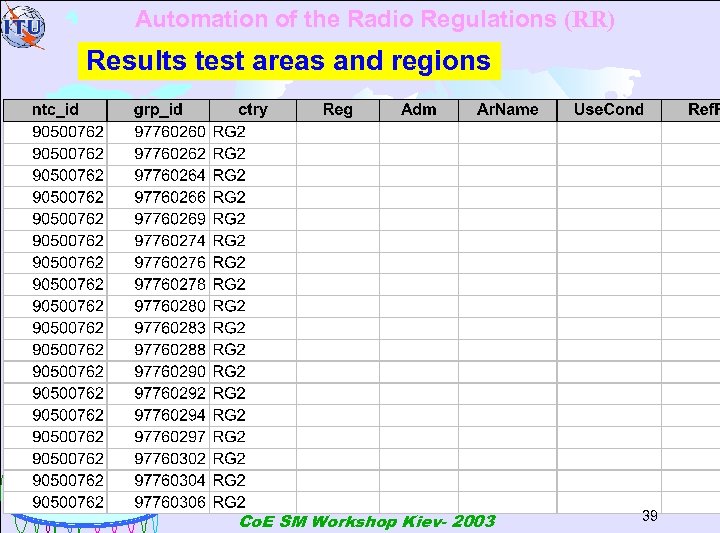

Automation of the Radio Regulations (RR) Results test areas and regions Com. Bal. Sat Co. E SM Workshop Kiev- 2003 39

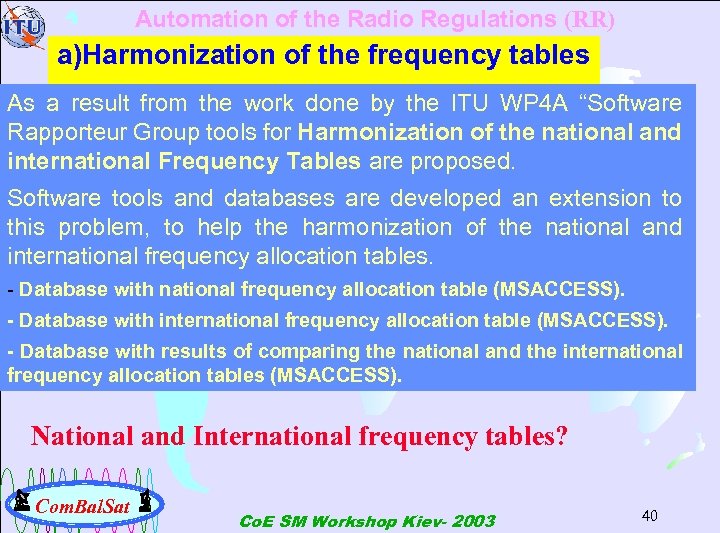

Automation of the Radio Regulations (RR) a)Harmonization of the frequency tables As a result from the work done by the ITU WP 4 A “Software Rapporteur Group tools for Harmonization of the national and international Frequency Tables are proposed. Software tools and databases are developed an extension to this problem, to help the harmonization of the national and international frequency allocation tables. - Database with national frequency allocation table (MSACCESS). - Database with international frequency allocation table (MSACCESS). - Database with results of comparing the national and the international frequency allocation tables (MSACCESS). National and International frequency tables? Com. Bal. Sat Co. E SM Workshop Kiev- 2003 40

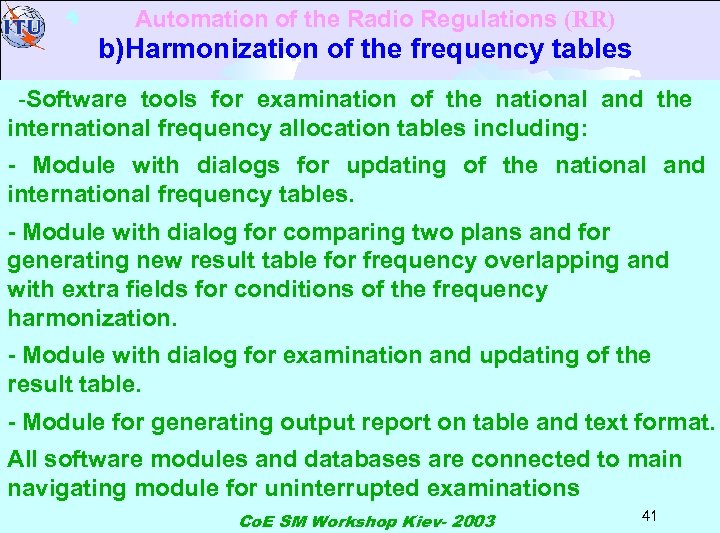

Automation of the Radio Regulations (RR) b)Harmonization of the frequency tables -Software tools for examination of the national and the international frequency allocation tables including: - Module with dialogs for updating of the national and international frequency tables. - Module with dialog for comparing two plans and for generating new result table for frequency overlapping and with extra fields for conditions of the frequency harmonization. - Module with dialog for examination and updating of the result table. - Module for generating output report on table and text format. All software modules and databases are connected to main navigating module for uninterrupted examinations Com. Bal. Sat Co. E SM Workshop Kiev- 2003 41

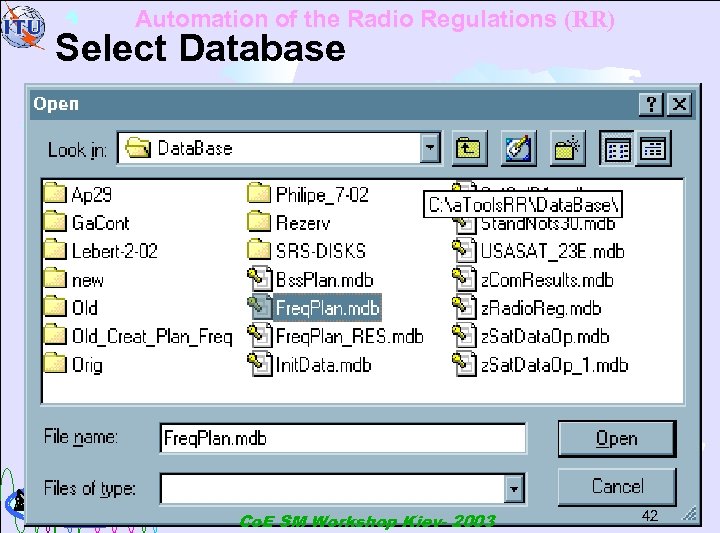

Automation of the Radio Regulations (RR) Select Database Com. Bal. Sat Co. E SM Workshop Kiev- 2003 42

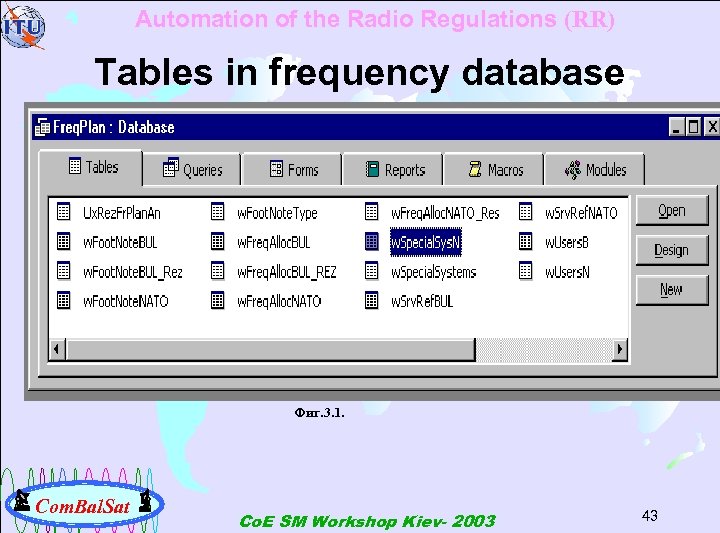

Automation of the Radio Regulations (RR) Tables in frequency database Фиг. 3. 1. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 43

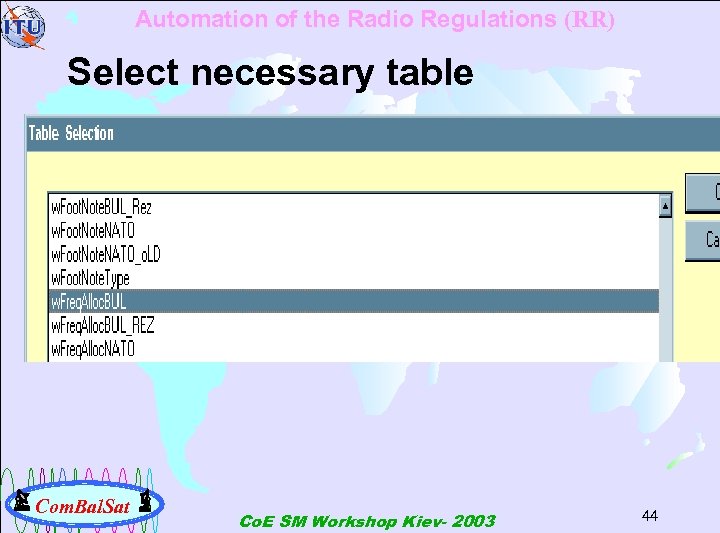

Automation of the Radio Regulations (RR) Select necessary table Фиг. 4. 5. 2. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 44

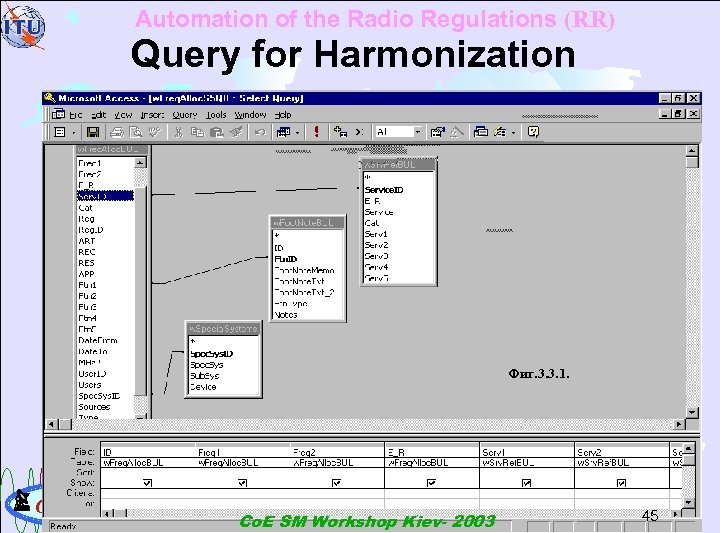

Automation of the Radio Regulations (RR) Query for Harmonization Фиг. 3. 3. 1. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 45

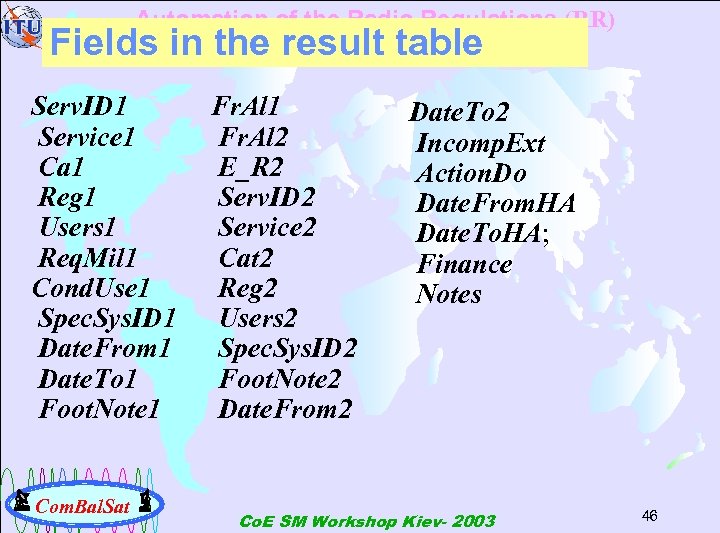

Automation of the Radio Regulations (RR) Fields in the result table Serv. ID 1 Service 1 Ca 1 Reg 1 Users 1 Req. Mil 1 Cond. Use 1 Spec. Sys. ID 1 Date. From 1 Date. To 1 Foot. Note 1 Com. Bal. Sat Fr. Al 1 Fr. Al 2 E_R 2 Serv. ID 2 Service 2 Cat 2 Reg 2 Users 2 Spec. Sys. ID 2 Foot. Note 2 Date. From 2 Date. To 2 Incomp. Ext Action. Do Date. From. HA Date. To. HA; Finance Notes Co. E SM Workshop Kiev- 2003 46

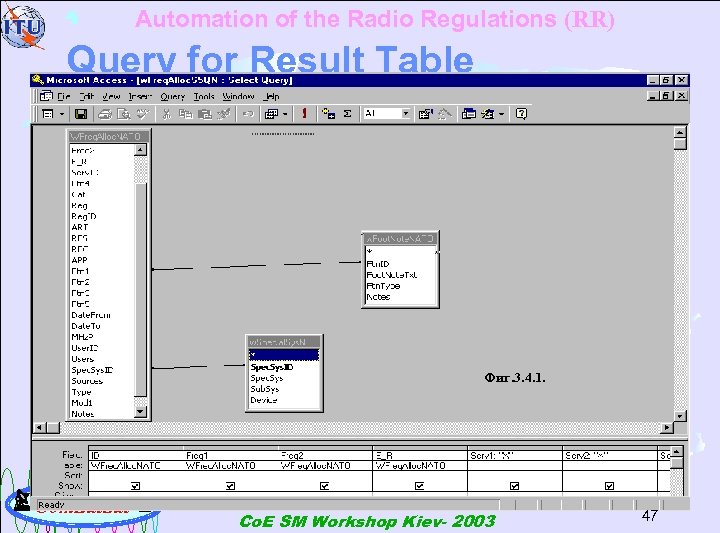

Automation of the Radio Regulations (RR) Query for Result Table Фиг. 3. 4. 1. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 47

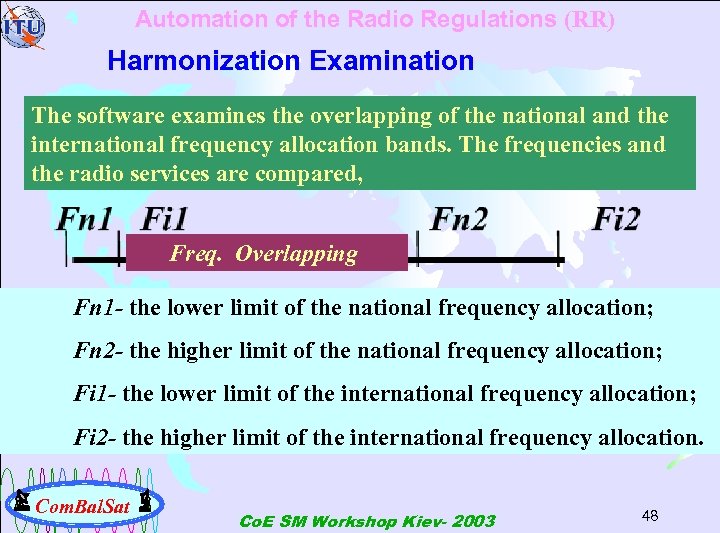

Automation of the Radio Regulations (RR) Harmonization Examination The software examines the overlapping of the national and the international frequency allocation bands. The frequencies and the radio services are compared, Freq. Overlapping Fn 1 - the lower limit of the national frequency allocation; Fn 2 - the higher limit of the national frequency allocation; Fi 1 - the lower limit of the international frequency allocation; Fi 2 - the higher limit of the international frequency allocation. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 48

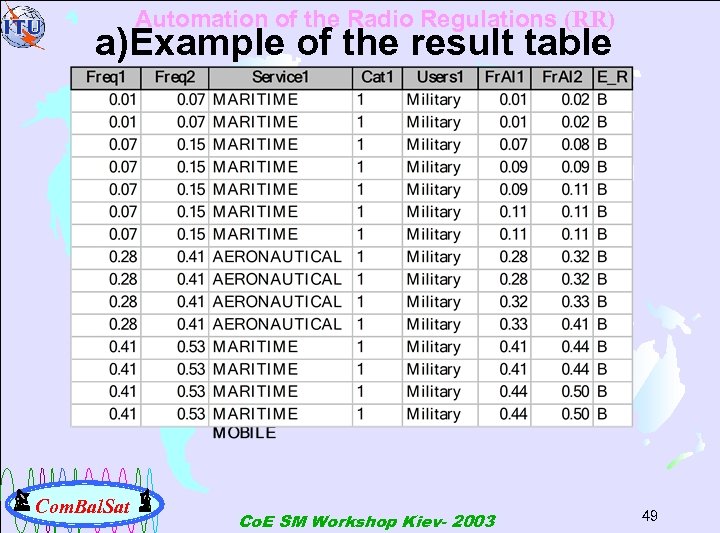

Automation of the Radio Regulations (RR) a)Example of the result table Com. Bal. Sat Co. E SM Workshop Kiev- 2003 49

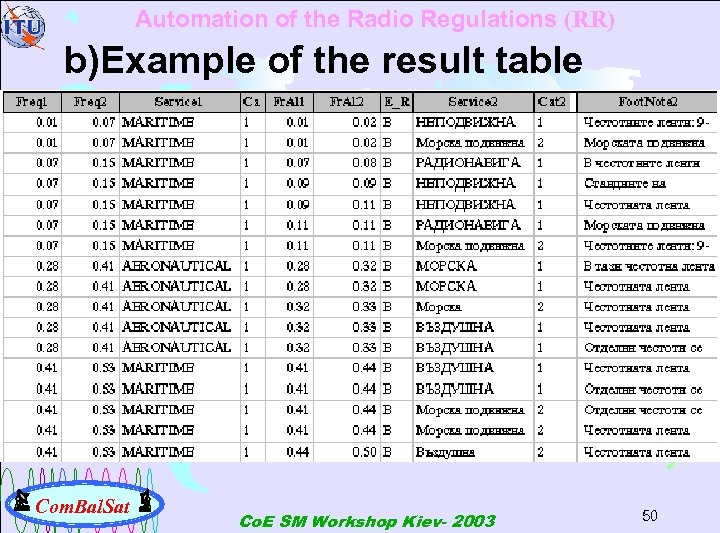

Automation of the Radio Regulations (RR) b)Example of the result table Com. Bal. Sat Co. E SM Workshop Kiev- 2003 50

Automation of the Radio Regulations (RR) Update National Table Е Com. Bal. Sat Co. E SM Workshop Kiev- 2003 51

Automation of the Radio Regulations (RR) Update National Table BUL Com. Bal. Sat Фиг. 4. 1. 3. Co. E SM Workshop Kiev- 2003 52

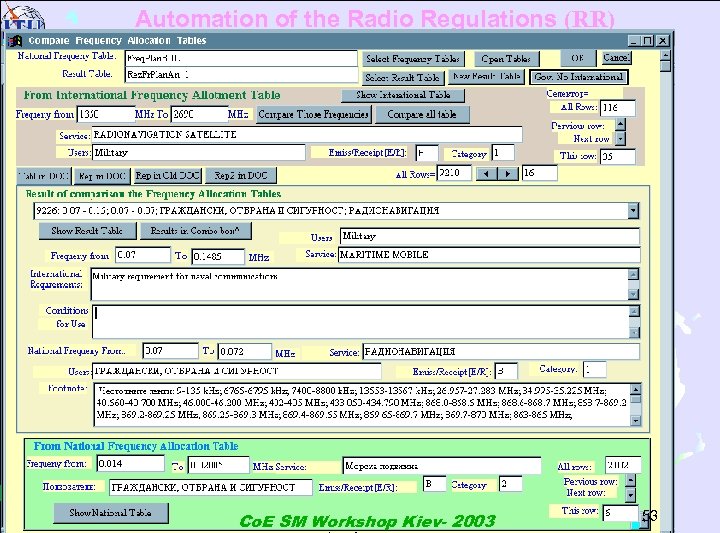

Automation of the Radio Regulations (RR) Harmonization Com. Bal. Sat Compare Е Co. E SM Workshop Kiev- 2003 53

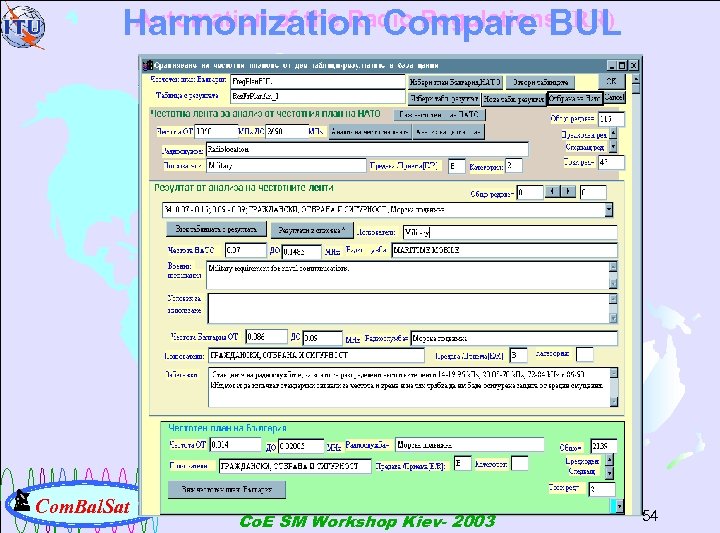

Automation of the Radio Regulations (RR) Harmonization Compare BUL Com. Bal. Sat Co. E SM Workshop Kiev- 2003 54

Automation of the Radio Regulations (RR) a) Harmonization Analyze Result Com. Bal. Sat Co. E SM Workshop Kiev- 2003 55

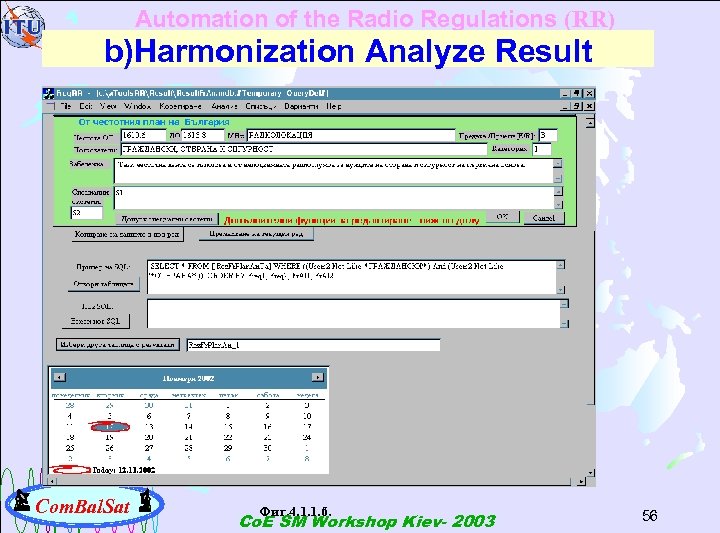

Automation of the Radio Regulations (RR) b)Harmonization Analyze Result Com. Bal. Sat Фиг. 4. 1. 1. б. Co. E SM Workshop Kiev- 2003 56

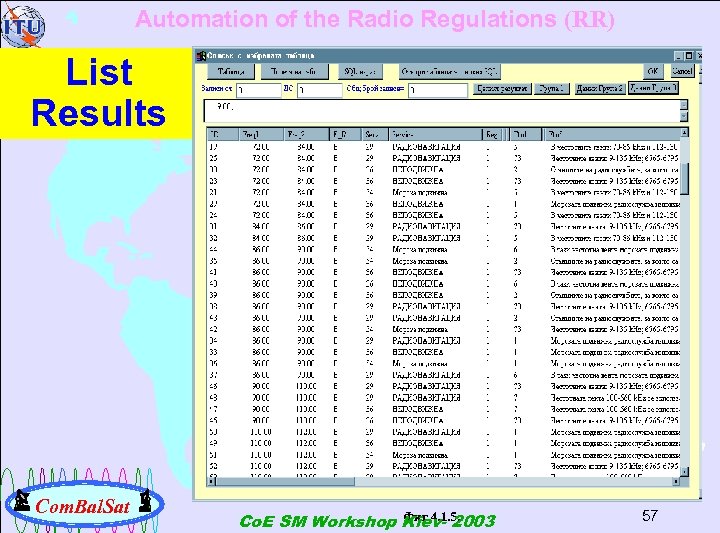

Automation of the Radio Regulations (RR) List Results Com. Bal. Sat Фиг. 4. 1. 5. Co. E SM Workshop Kiev- 2003 57

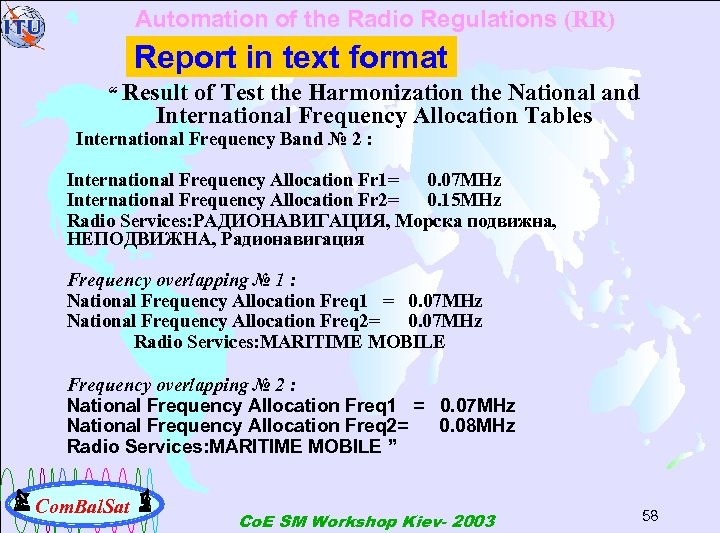

Automation of the Radio Regulations (RR) Report in text format “ Result of Test the Harmonization the National and International Frequency Allocation Tables International Frequency Band № 2 : International Frequency Allocation Fr 1= 0. 07 MHz International Frequency Allocation Fr 2= 0. 15 MHz Radio Services: РАДИОНАВИГАЦИЯ, Морска подвижна, НЕПОДВИЖНА, Радионавигация Frequency overlapping № 1 : National Frequency Allocation Freq 1 = 0. 07 MHz National Frequency Allocation Freq 2= 0. 07 MHz Radio Services: MARITIME MOBILE Frequency overlapping № 2 : National Frequency Allocation Freq 1 = 0. 07 MHz National Frequency Allocation Freq 2= 0. 08 MHz Radio Services: MARITIME MOBILE ” Com. Bal. Sat Co. E SM Workshop Kiev- 2003 58

Automation of the Radio Regulations (RR) Help Content Com. Bal. Sat Co. E SM Workshop Kiev- 2003 59

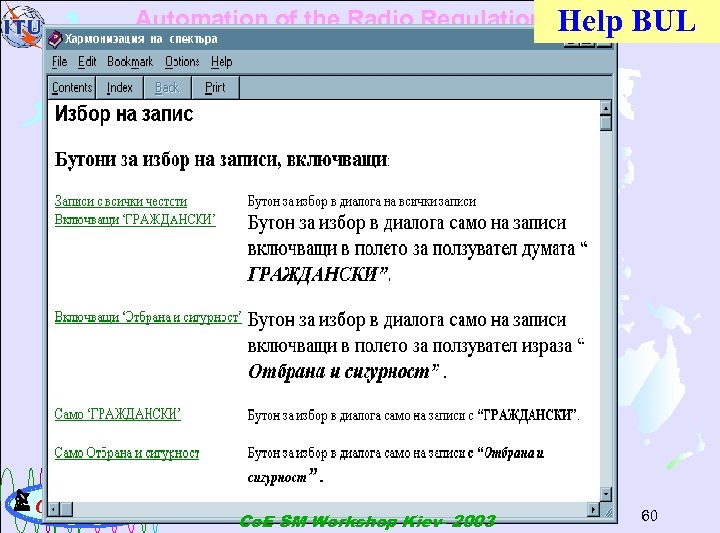

Automation of the Radio Regulations. Help BUL (RR) Com. Bal. Sat Co. E SM Workshop Kiev- 2003 60

Automation of the Radio Regulations (RR) Agenda Com. Bal. Sat Co. E SM Workshop Kiev- 2003 61

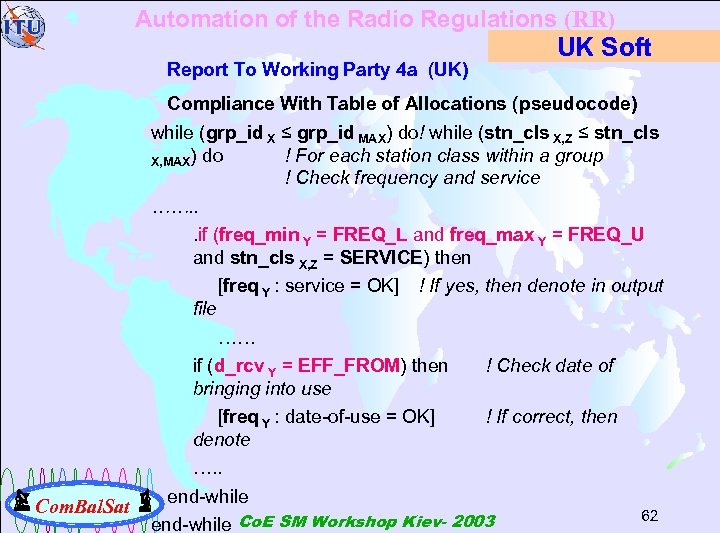

Automation of the Radio Regulations (RR) Report To Working Party 4 a (UK) Com. Bal. Sat UK Soft Compliance With Table of Allocations (pseudocode) while (grp_id X ≤ grp_id MAX) do! while (stn_cls X, Z ≤ stn_cls ! For each station class within a group X, MAX) do ! Check frequency and service ……. . . if (freq_min Y = FREQ_L and freq_max Y = FREQ_U and stn_cls X, Z = SERVICE) then [freq Y : service = OK] ! If yes, then denote in output file …… if (d_rcv Y = EFF_FROM) then ! Check date of bringing into use [freq Y : date-of-use = OK] ! If correct, then denote …. . end-while 62 end-while Co. E SM Workshop Kiev- 2003

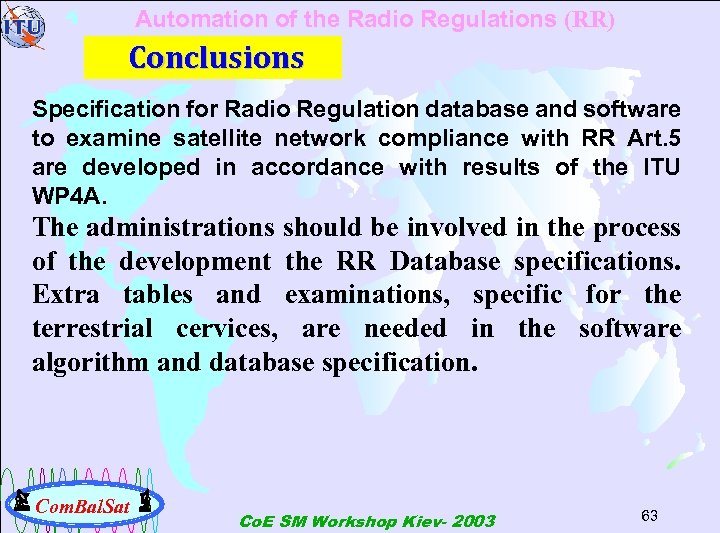

Automation of the Radio Regulations (RR) Conclusions Specification for Radio Regulation database and software to examine satellite network compliance with RR Art. 5 are developed in accordance with results of the ITU WP 4 A. The administrations should be involved in the process of the development the RR Database specifications. Extra tables and examinations, specific for the terrestrial cervices, are needed in the software algorithm and database specification. Com. Bal. Sat Co. E SM Workshop Kiev- 2003 63

Automation of the Radio Regulations (RR) Reference 1. Document 4 A/477 -E and Doc. 4 A/TEMP/200(R 1)- ITU, Feneva, SG-4, 2001. 2. “Software Rapporteur Group for Development of Software specification for automating the examination of space filings for compliance with Radio Regulations Article 5” (Question ITU-R 3. 230/4 - Document 4 A/200, ITU SG 4, 2001. 4. Document SC 02/51 -E, ITU SC. 5. Document RRB 2001/296 -E, ITU Radio Regulation Board 2001. 6. Document С 02/39 -Е, ITU Council, 2002 7. Document 4 A/232 -E, , ITU SG 4, 2001. 8. Document 1 B/76 -E, ITU SG 1, 2002. Com. Bal. Sat 9. Radio Regulations – Geneva, ITU, 2000. Co. E SM Workshop Kiev- 2003 64

Automation of the Radio Regulations (RR) More information: Bontcho Balabanov b_balabanov. niis@btc. bg or http: //www. Com. Bal. Sat. com/ Com. Bal. Sat Тел. (+3592) 9171572 Gsm: (+3592) 0889716224 Co. E SM Workshop Kiev- 2003 65

Automation of the Radio Regulations (RR) Any questions Com. Bal. Sat Co. E SM Workshop Kiev- 2003 ? ? ? 66

Automation of the Radio Regulations (RR) Com. Bal. Sat Co. E SM Workshop Kiev- 2003 67

Automation of the Radio Regulations (RR) END Com. Bal. Sat Co. E SM Workshop Kiev- 2003 68

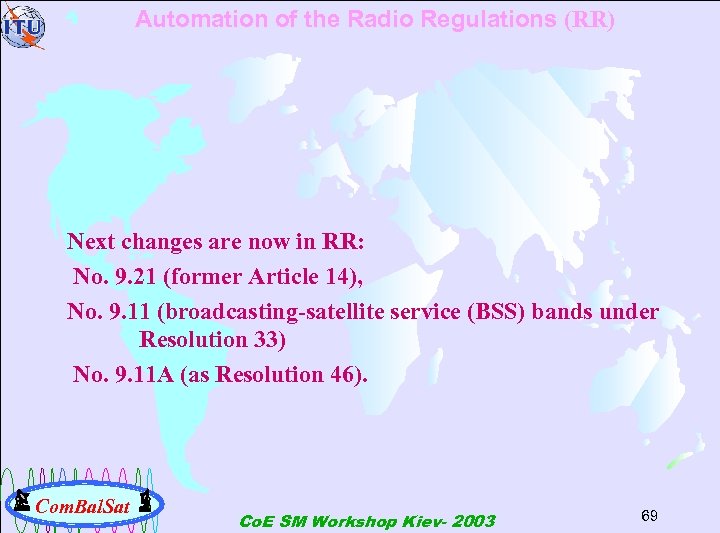

Automation of the Radio Regulations (RR) Next changes are now in RR: No. 9. 21 (former Article 14), No. 9. 11 (broadcasting-satellite service (BSS) bands under Resolution 33) No. 9. 11 A (as Resolution 46). Com. Bal. Sat Co. E SM Workshop Kiev- 2003 69

Probl ems Automation of the Radio Regulations (RR) How to use the Radio Regulations? Somebody or If the engineers propose the programmers are wizard This is better And wait for ready solutions and this RR-DB The results may be A dialog is necessary! Com. Bal. Sat Co. E SM Workshop Kiev- 2003 70

Probl ems Automation of the Radio Regulations (RR) Как да се използва Радио правилника? С документите може да се работи така Ако инженерът предполага че програмистите са вълшебници или така а най-добре така и очаква готови решения или така програм и може да се получи такъв резултат Необходим е диалог! Com. Bal. Sat Co. E SM Workshop Kiev- 2003 71
