Automating the Detection of Snapshot Isolation Anomalies Sudhir

Automating the Detection of Snapshot Isolation Anomalies Sudhir Jorwekar (IIT Bombay) Alan Fekete (Univ. Sydney) Krithi Ramamritham (IIT Bombay) S. Sudarshan (IIT Bombay) Presented By: Viraj Churi(10305072) Rupesh Bende(09305921) 1

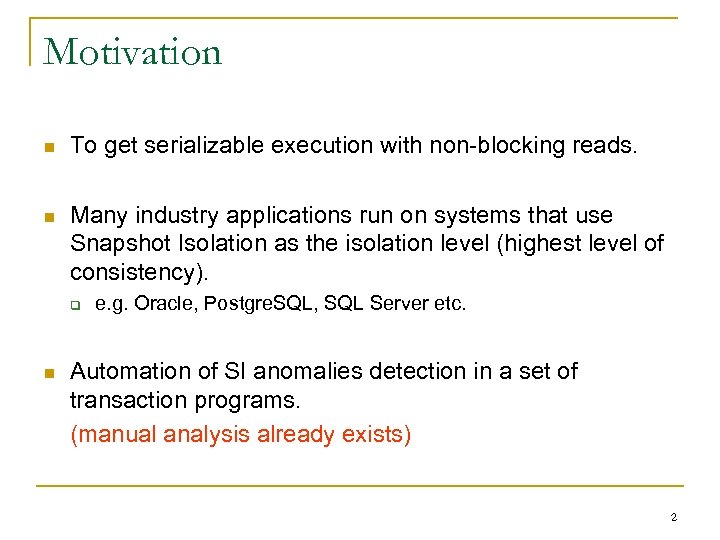

Motivation To get serializable execution with non-blocking reads. Many industry applications run on systems that use Snapshot Isolation as the isolation level (highest level of consistency). e. g. Oracle, Postgre. SQL, SQL Server etc. Automation of SI anomalies detection in a set of transaction programs. (manual analysis already exists) 2

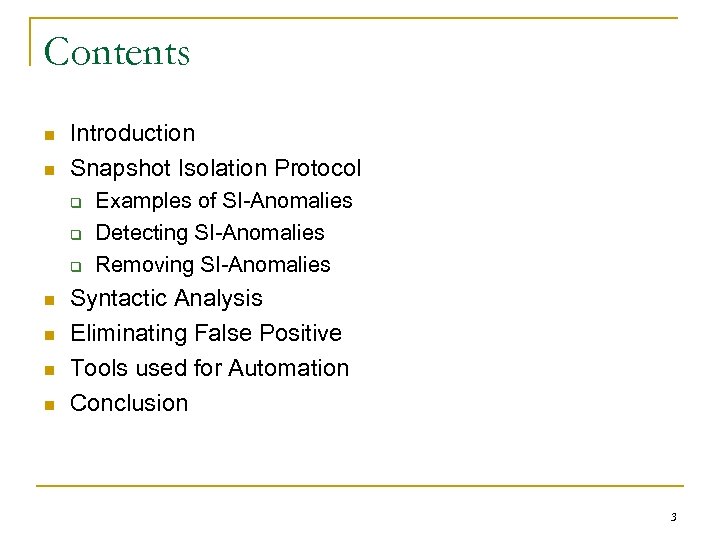

Contents Introduction Snapshot Isolation Protocol Examples of SI-Anomalies Detecting SI-Anomalies Removing SI-Anomalies Syntactic Analysis Eliminating False Positive Tools used for Automation Conclusion 3

Introduction Snapshot Isolation(SI) provides significantly improved concurrency over 2 PL, allowing reads to be non-blocking Unfortunately it can lead to non-serializable execution but it is widely used. SI Anomalies Detection/Correction: Step 1: Find set of programs possibly leading to SI anomalies Step 2: Address the problem of False positive(programs wrongly identified as possibly leading to anomalies). NOTE: - Unlike earlier work it is designed to be automated rather than manually carried out. 4

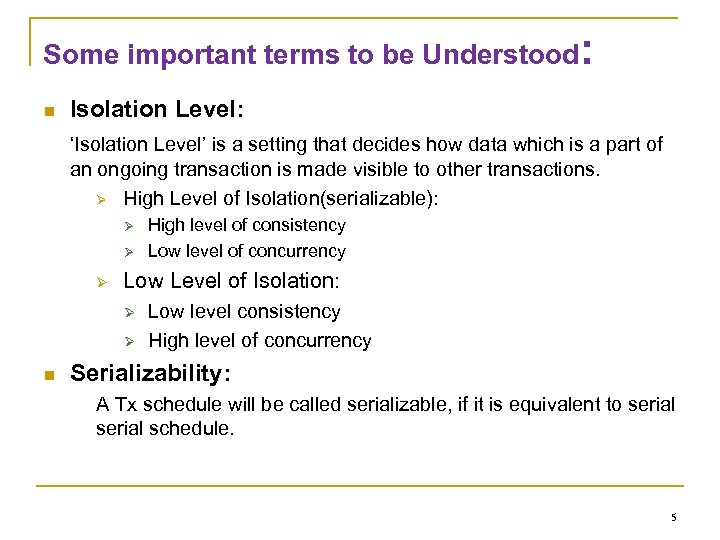

Some important terms to be Understood: Isolation Level: ‘Isolation Level’ is a setting that decides how data which is a part of an ongoing transaction is made visible to other transactions. High Level of Isolation(serializable): Low Level of Isolation: High level of consistency Low level of concurrency Low level consistency High level of concurrency Serializability: A Tx schedule will be called serializable, if it is equivalent to serial schedule. 5

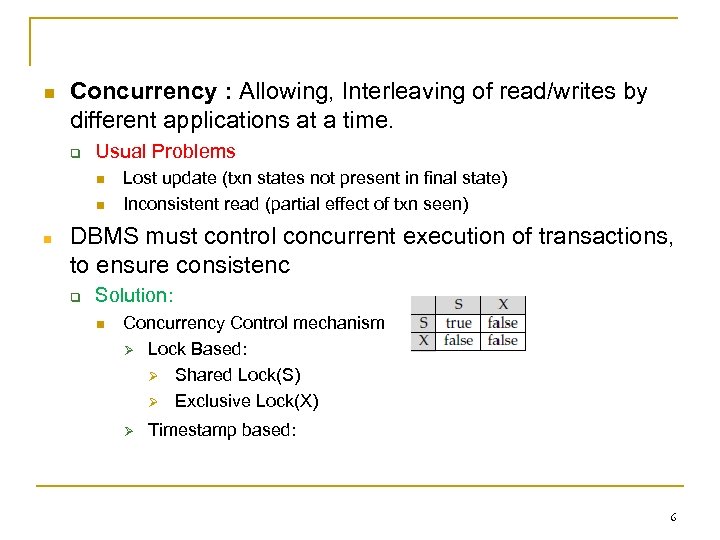

Concurrency : Allowing, Interleaving of read/writes by different applications at a time. Usual Problems Lost update (txn states not present in final state) Inconsistent read (partial effect of txn seen) DBMS must control concurrent execution of transactions, to ensure consistenc Solution: Concurrency Control mechanism Lock Based: Shared Lock(S) Exclusive Lock(X) Timestamp based: 6

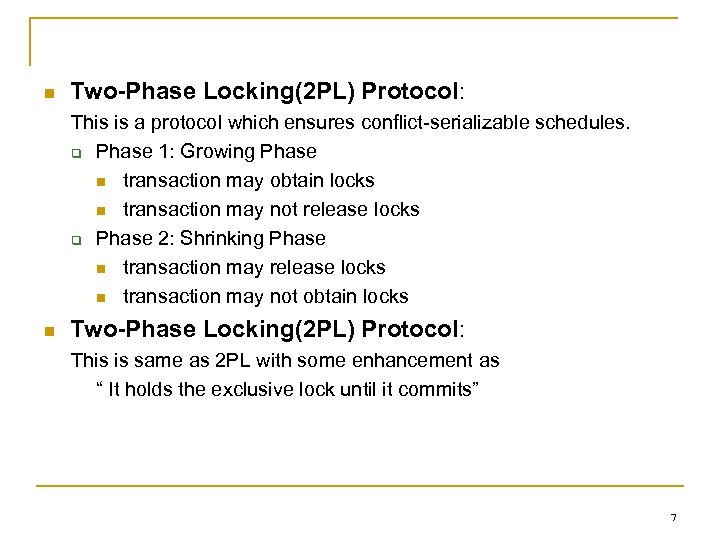

Two-Phase Locking(2 PL) Protocol: This is a protocol which ensures conflict-serializable schedules. Phase 1: Growing Phase transaction may obtain locks transaction may not release locks Phase 2: Shrinking Phase transaction may release locks transaction may not obtain locks Two-Phase Locking(2 PL) Protocol: This is same as 2 PL with some enhancement as “ It holds the exclusive lock until it commits” 7

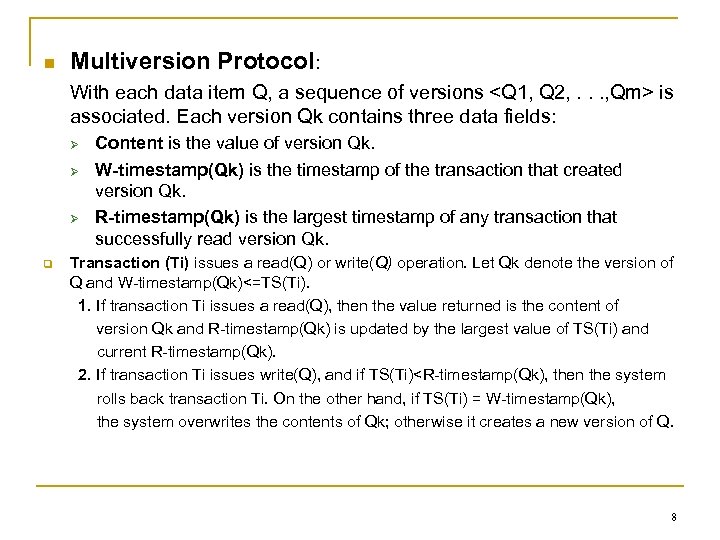

Multiversion Protocol: With each data item Q, a sequence of versions is associated. Each version Qk contains three data fields: Content is the value of version Qk. W-timestamp(Qk) is the timestamp of the transaction that created version Qk. R-timestamp(Qk) is the largest timestamp of any transaction that successfully read version Qk. Transaction (Ti) issues a read(Q) or write(Q) operation. Let Qk denote the version of Q and W-timestamp(Qk)<=TS(Ti). 1. If transaction Ti issues a read(Q), then the value returned is the content of version Qk and R-timestamp(Qk) is updated by the largest value of TS(Ti) and current R-timestamp(Qk). 2. If transaction Ti issues write(Q), and if TS(Ti)

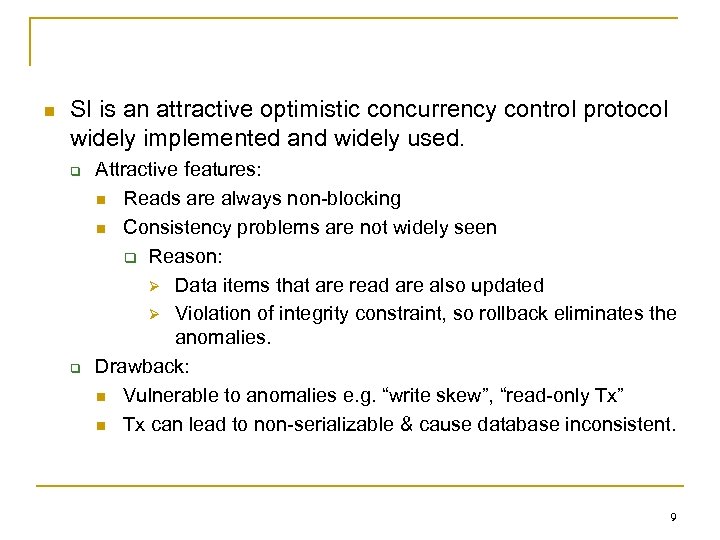

SI is an attractive optimistic concurrency control protocol widely implemented and widely used. Attractive features: Reads are always non-blocking Consistency problems are not widely seen Reason: Data items that are read are also updated Violation of integrity constraint, so rollback eliminates the anomalies. Drawback: Vulnerable to anomalies e. g. “write skew”, “read-only Tx” Tx can lead to non-serializable & cause database inconsistent. 9

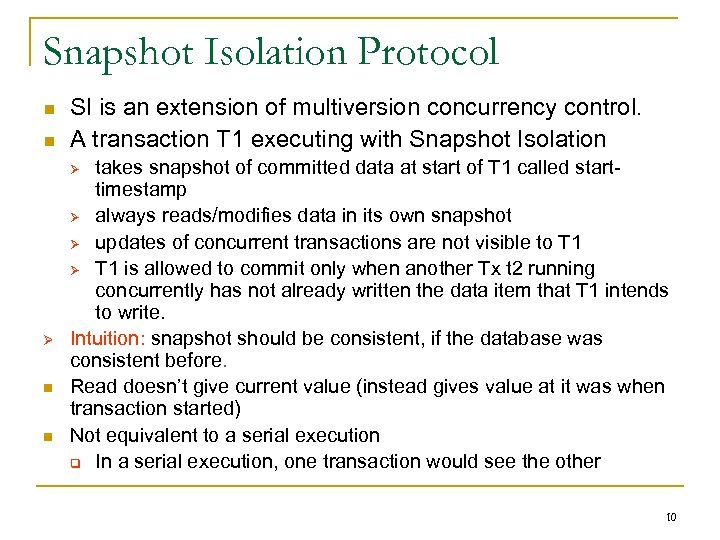

Snapshot Isolation Protocol SI is an extension of multiversion concurrency control. A transaction T 1 executing with Snapshot Isolation takes snapshot of committed data at start of T 1 called starttimestamp always reads/modifies data in its own snapshot updates of concurrent transactions are not visible to T 1 is allowed to commit only when another Tx t 2 running concurrently has not already written the data item that T 1 intends to write. Intuition: snapshot should be consistent, if the database was consistent before. Read doesn’t give current value (instead gives value at it was when transaction started) Not equivalent to a serial execution In a serial execution, one transaction would see the other 10

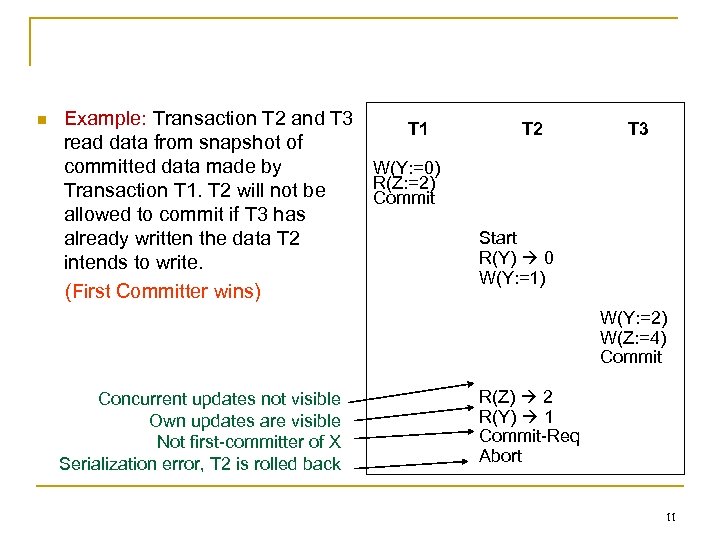

Example: Transaction T 2 and T 3 T 1 read data from snapshot of committed data made by W(Y: =0) R(Z: =2) Transaction T 1. T 2 will not be Commit allowed to commit if T 3 has already written the data T 2 intends to write. (First Committer wins) T 2 T 3 Start R(Y) 0 W(Y: =1) W(Y: =2) W(Z: =4) Commit Concurrent updates not visible Own updates are visible Not first-committer of X Serialization error, T 2 is rolled back R(Z) 2 R(Y) 1 Commit-Req Abort 11

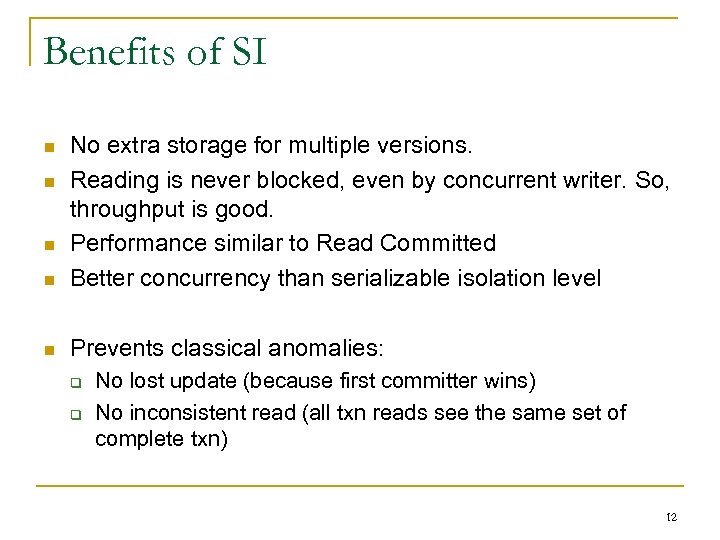

Benefits of SI No extra storage for multiple versions. Reading is never blocked, even by concurrent writer. So, throughput is good. Performance similar to Read Committed Better concurrency than serializable isolation level Prevents classical anomalies: No lost update (because first committer wins) No inconsistent read (all txn reads see the same set of complete txn) 12

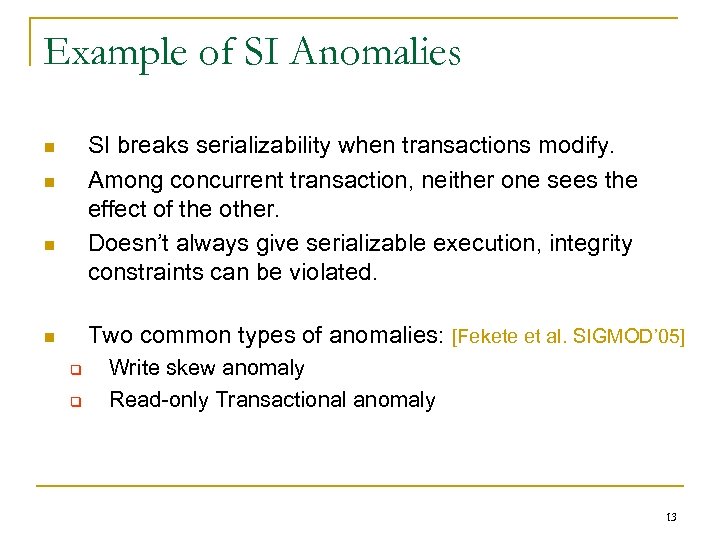

Example of SI Anomalies SI breaks serializability when transactions modify. Among concurrent transaction, neither one sees the effect of the other. Doesn’t always give serializable execution, integrity constraints can be violated. Two common types of anomalies: [Fekete et al. SIGMOD’ 05] Write skew anomaly Read-only Transactional anomaly 13

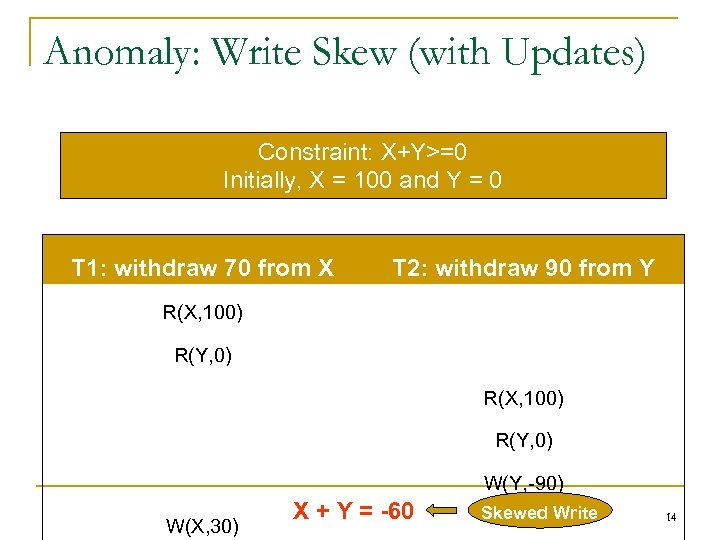

Anomaly: Write Skew (with Updates) Constraint: X+Y>=0 Initially, X = 100 and Y = 0 T 1: withdraw 70 from X T 2: withdraw 90 from Y R(X, 100) R(Y, 0) W(Y, -90) W(X, 30) X + Y = -60 Skewed Write 14

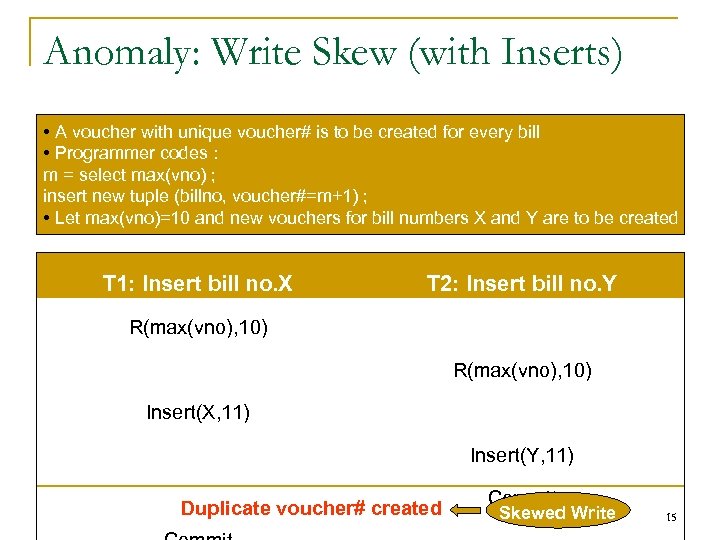

Anomaly: Write Skew (with Inserts) • A voucher with unique voucher# is to be created for every bill • Programmer codes : m = select max(vno) ; insert new tuple (billno, voucher#=m+1) ; • Let max(vno)=10 and new vouchers for bill numbers X and Y are to be created T 1: Insert bill no. X T 2: Insert bill no. Y R(max(vno), 10) Insert(X, 11) Insert(Y, 11) Duplicate voucher# created Commit Skewed Write 15

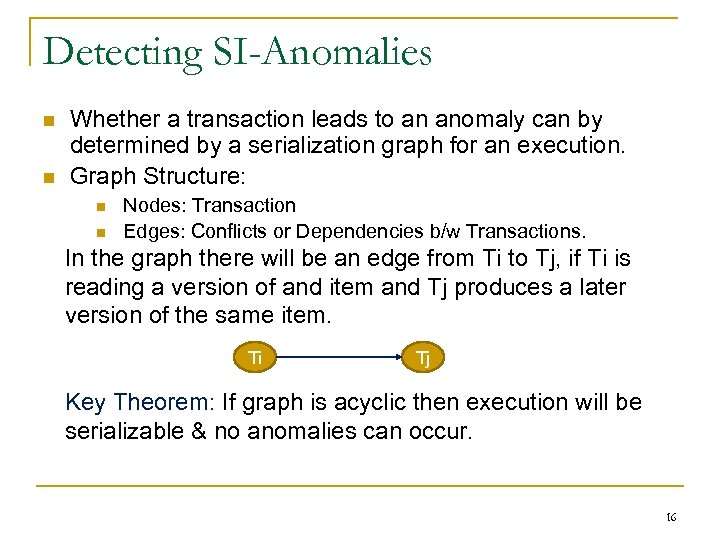

Detecting SI-Anomalies Whether a transaction leads to an anomaly can by determined by a serialization graph for an execution. Graph Structure: Nodes: Transaction Edges: Conflicts or Dependencies b/w Transactions. In the graph there will be an edge from Ti to Tj, if Ti is reading a version of and item and Tj produces a later version of the same item. Ti Tj Key Theorem: If graph is acyclic then execution will be serializable & no anomalies can occur. 16

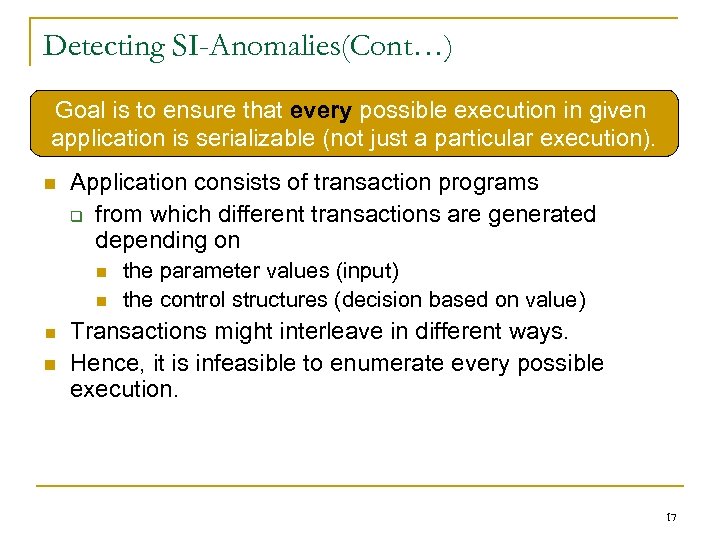

Detecting SI-Anomalies(Cont…) Goal is to ensure that every possible execution in given application is serializable (not just a particular execution). Application consists of transaction programs from which different transactions are generated depending on the parameter values (input) the control structures (decision based on value) Transactions might interleave in different ways. Hence, it is infeasible to enumerate every possible execution. 17

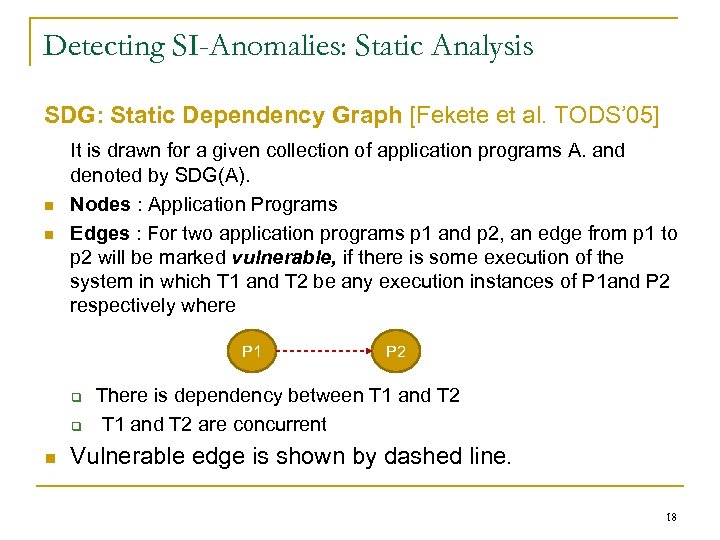

Detecting SI-Anomalies: Static Analysis SDG: Static Dependency Graph [Fekete et al. TODS’ 05] It is drawn for a given collection of application programs A. and denoted by SDG(A). Nodes : Application Programs Edges : For two application programs p 1 and p 2, an edge from p 1 to p 2 will be marked vulnerable, if there is some execution of the system in which T 1 and T 2 be any execution instances of P 1 and P 2 respectively where P 1 P 2 There is dependency between T 1 and T 2 are concurrent Vulnerable edge is shown by dashed line. 18

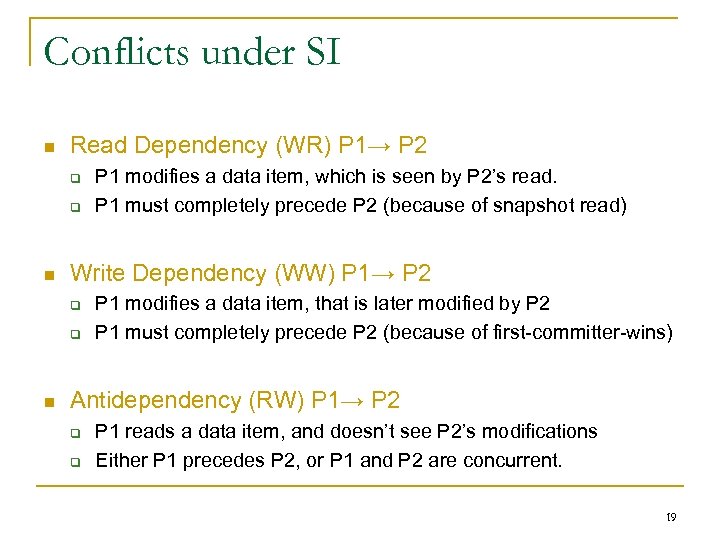

Conflicts under SI Read Dependency (WR) P 1→ P 2 Write Dependency (WW) P 1→ P 2 P 1 modifies a data item, which is seen by P 2’s read. P 1 must completely precede P 2 (because of snapshot read) P 1 modifies a data item, that is later modified by P 2 P 1 must completely precede P 2 (because of first-committer-wins) Antidependency (RW) P 1→ P 2 P 1 reads a data item, and doesn’t see P 2’s modifications Either P 1 precedes P 2, or P 1 and P 2 are concurrent. 19

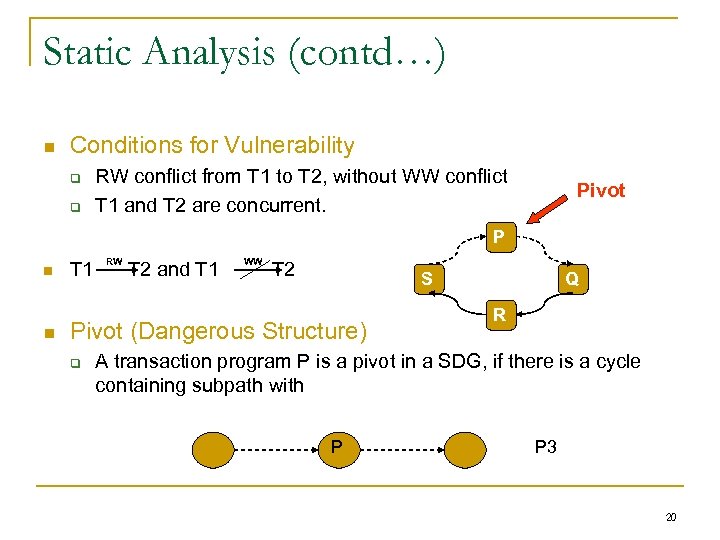

Static Analysis (contd…) Conditions for Vulnerability RW conflict from T 1 to T 2, without WW conflict T 1 and T 2 are concurrent. Pivot P T 1 RW T 2 and T 1 WW T 2 S Pivot (Dangerous Structure) Q R A transaction program P is a pivot in a SDG, if there is a cycle containing subpath with P P 3 20

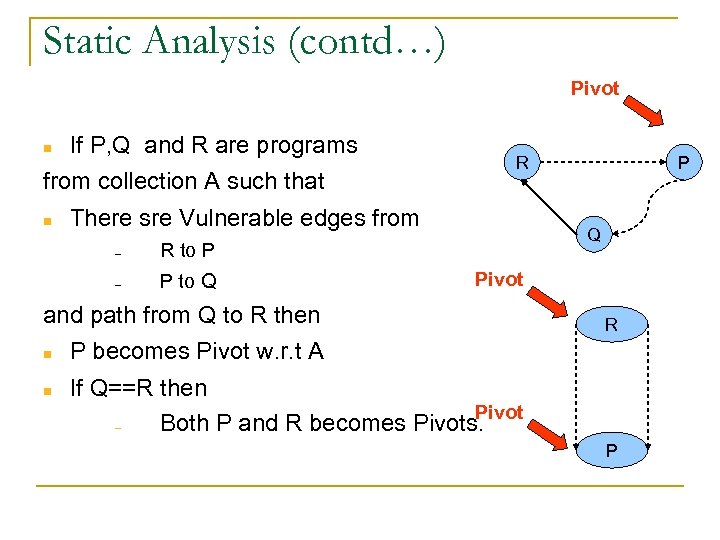

Static Analysis (contd…) Pivot If P, Q and R are programs from collection A such that R There sre Vulnerable edges from – P to Q Q R to P – Pivot and path from Q to R then P R P becomes Pivot w. r. t A If Q==R then Pivot – Both P and R becomes Pivots. P

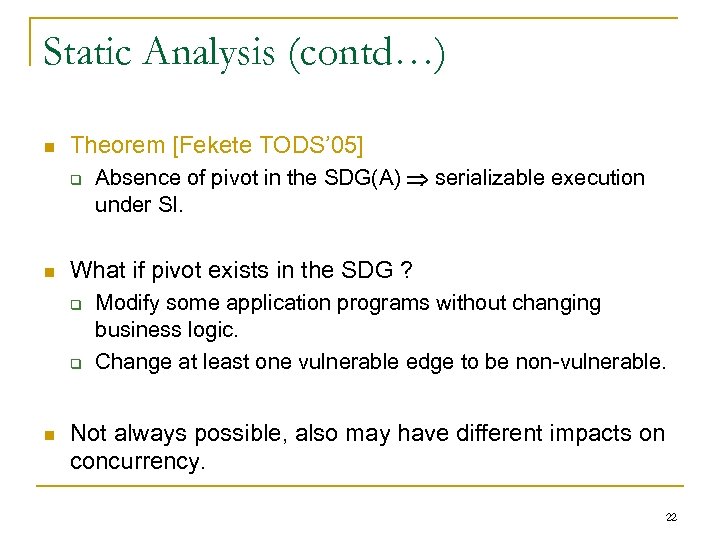

Static Analysis (contd…) Theorem [Fekete TODS’ 05] What if pivot exists in the SDG ? Absence of pivot in the SDG(A) serializable execution under SI. Modify some application programs without changing business logic. Change at least one vulnerable edge to be non-vulnerable. Not always possible, also may have different impacts on concurrency. 22

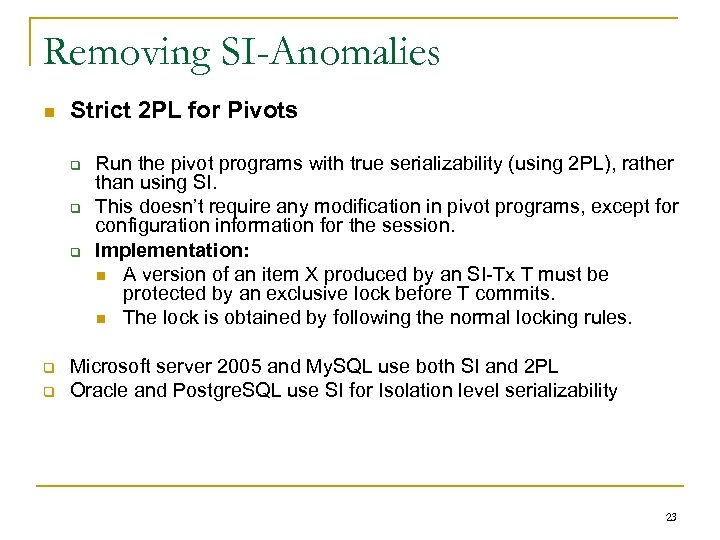

Removing SI-Anomalies Strict 2 PL for Pivots Run the pivot programs with true serializability (using 2 PL), rather than using SI. This doesn’t require any modification in pivot programs, except for configuration information for the session. Implementation: A version of an item X produced by an SI-Tx T must be protected by an exclusive lock before T commits. The lock is obtained by following the normal locking rules. Microsoft server 2005 and My. SQL use both SI and 2 PL Oracle and Postgre. SQL use SI for Isolation level serializability 23

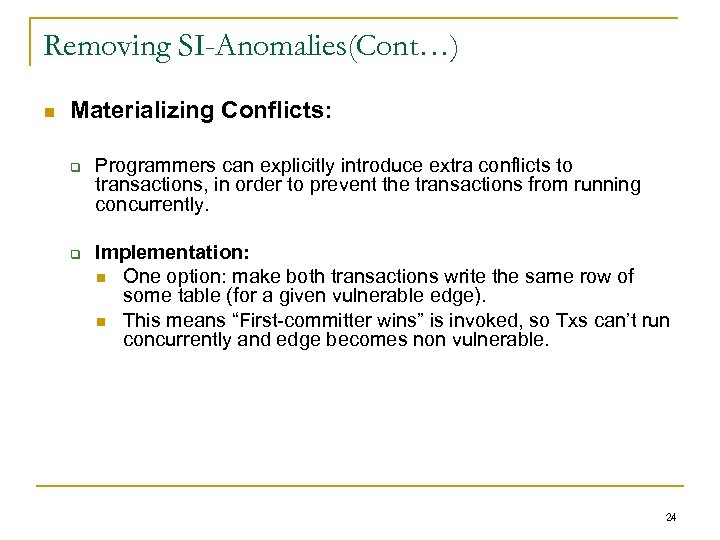

Removing SI-Anomalies(Cont…) Materializing Conflicts: Programmers can explicitly introduce extra conflicts to transactions, in order to prevent the transactions from running concurrently. Implementation: One option: make both transactions write the same row of some table (for a given vulnerable edge). This means “First-committer wins” is invoked, so Txs can’t run concurrently and edge becomes non vulnerable. 24

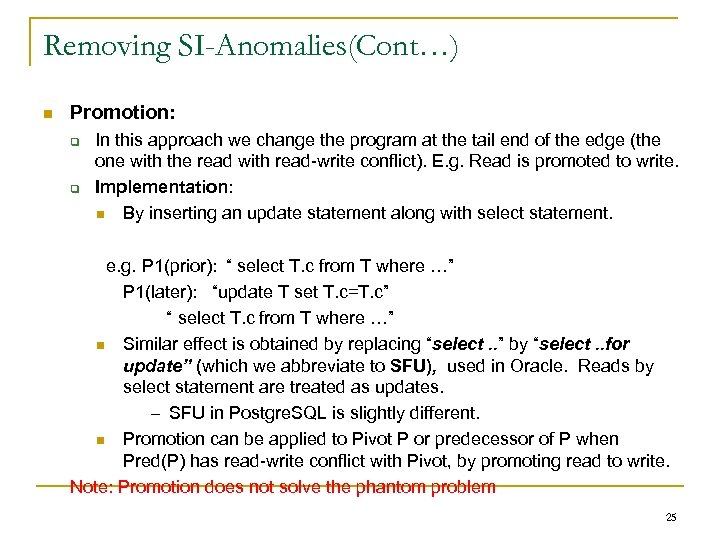

Removing SI-Anomalies(Cont…) Promotion: In this approach we change the program at the tail end of the edge (the one with the read with read-write conflict). E. g. Read is promoted to write. Implementation: By inserting an update statement along with select statement. e. g. P 1(prior): “ select T. c from T where …” P 1(later): “update T set T. c=T. c” “ select T. c from T where …” Similar effect is obtained by replacing “select. . ” by “select. . for update” (which we abbreviate to SFU), used in Oracle. Reads by select statement are treated as updates. – SFU in Postgre. SQL is slightly different. Promotion can be applied to Pivot P or predecessor of P when Pred(P) has read-write conflict with Pivot, by promoting read to write. Note: Promotion does not solve the phantom problem 25

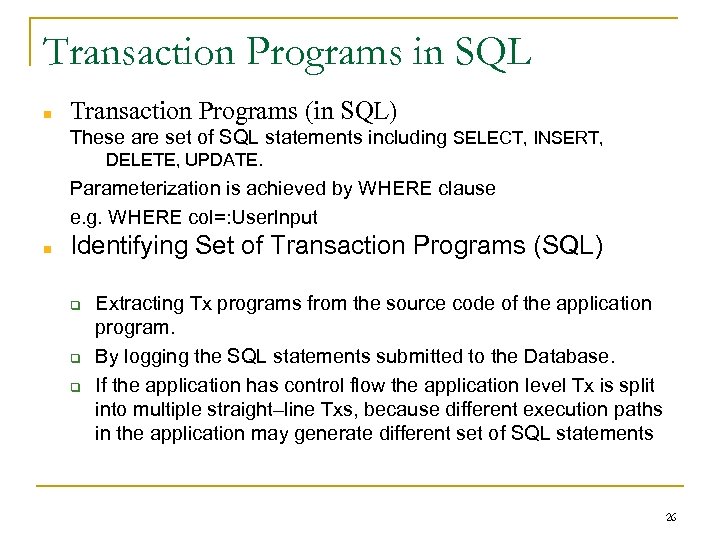

Transaction Programs in SQL Transaction Programs (in SQL) These are set of SQL statements including SELECT, INSERT, DELETE, UPDATE. Parameterization is achieved by WHERE clause e. g. WHERE col=: User. Input Identifying Set of Transaction Programs (SQL) Extracting Tx programs from the source code of the application program. By logging the SQL statements submitted to the Database. If the application has control flow the application level Tx is split into multiple straight–line Txs, because different execution paths in the application may generate different set of SQL statements 26

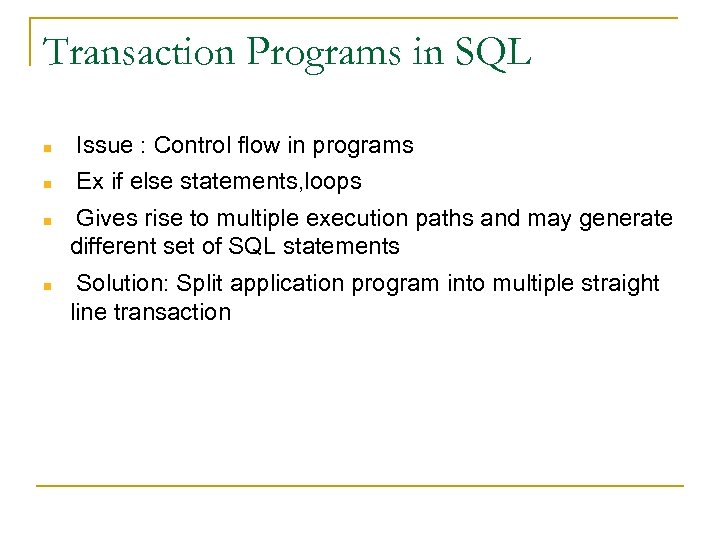

Transaction Programs in SQL Issue : Control flow in programs Ex if else statements, loops Gives rise to multiple execution paths and may generate different set of SQL statements Solution: Split application program into multiple straight line transaction

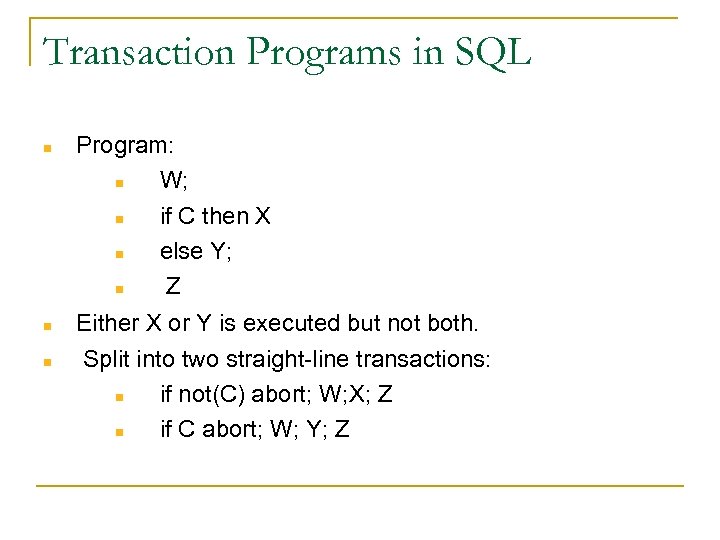

Transaction Programs in SQL Program: W; if C then X else Y; Z Either X or Y is executed but not both. Split into two straight-line transactions: if not(C) abort; W; X; Z if C abort; W; Y; Z

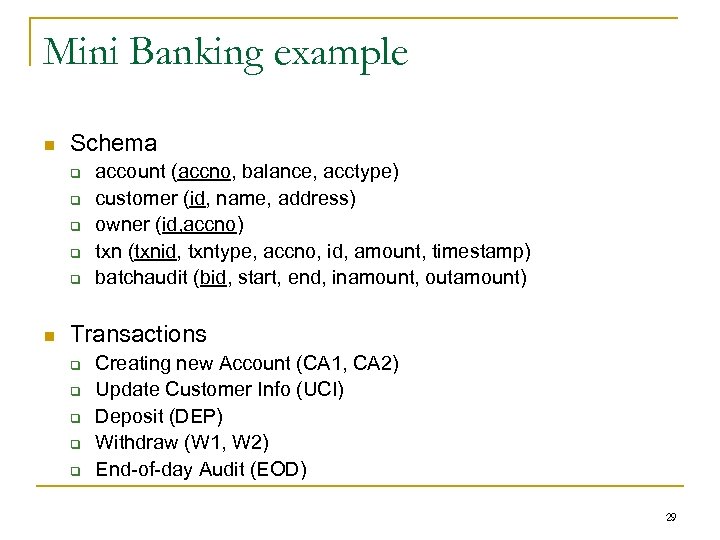

Mini Banking example Schema account (accno, balance, acctype) customer (id, name, address) owner (id, accno) txn (txnid, txntype, accno, id, amount, timestamp) batchaudit (bid, start, end, inamount, outamount) Transactions Creating new Account (CA 1, CA 2) Update Customer Info (UCI) Deposit (DEP) Withdraw (W 1, W 2) End-of-day Audit (EOD) 29

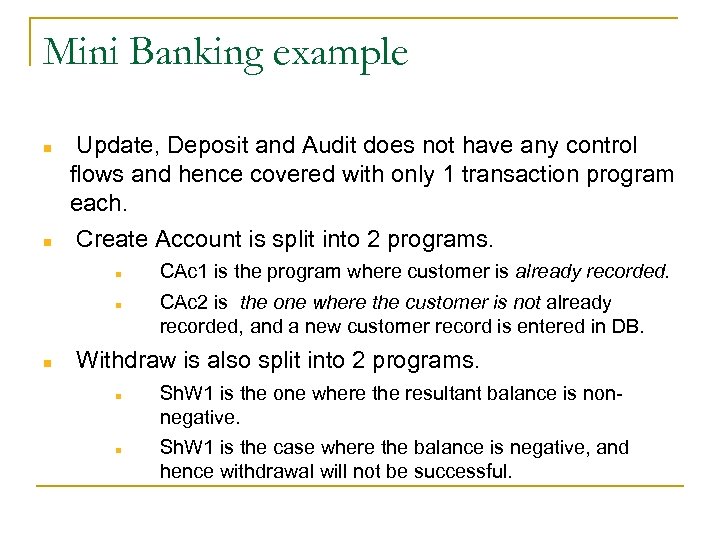

Mini Banking example Update, Deposit and Audit does not have any control flows and hence covered with only 1 transaction program each. Create Account is split into 2 programs. CAc 1 is the program where customer is already recorded. CAc 2 is the one where the customer is not already recorded, and a new customer record is entered in DB. Withdraw is also split into 2 programs. Sh. W 1 is the one where the resultant balance is nonnegative. Sh. W 1 is the case where the balance is negative, and hence withdrawal will not be successful.

Identifying Dependencies Defining Syntactic read and write sets for each Tx. rset(P) is the set of columns read by transaction program P wset(P) is the set of columns written by P. The entries in these sets are like “tablename. column” They specify upperbound on data items read or written by transaction For UCI transaction shown below: begin; select * from customer where id=: id; update customer set name=? , address=? where id=: id; commit; rset(UCI) = {customer. id, customer. name, customer. address} wset(UCI) = {customer. name, customer. address} 31

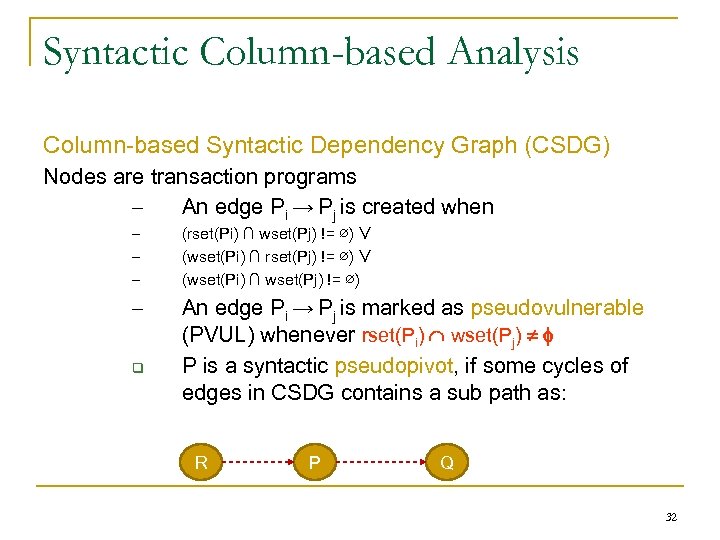

Syntactic Column-based Analysis Column-based Syntactic Dependency Graph (CSDG) Nodes are transaction programs – An edge Pi → Pj is created when – – – (rset(Pi) ∩ wset(Pj) != ∅) ∨ (wset(Pi) ∩ rset(Pj) != ∅) ∨ (wset(Pi) ∩ wset(Pj) != ∅) – An edge Pi → Pj is marked as pseudovulnerable (PVUL) whenever rset(Pi) wset(Pj) P is a syntactic pseudopivot, if some cycles of edges in CSDG contains a sub path as: R P Q 32

CSDG for banking example Syntactic Pseudopivot Pseudovulnerable CSDG for Banking Application 33

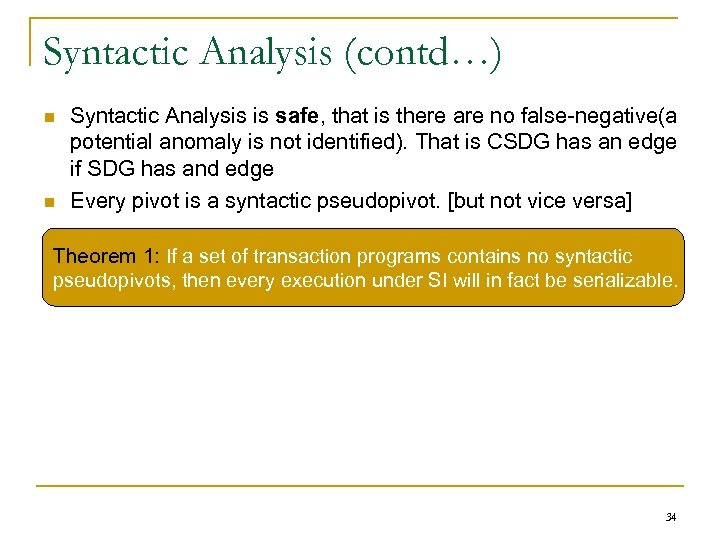

Syntactic Analysis (contd…) Syntactic Analysis is safe, that is there are no false-negative(a potential anomaly is not identified). That is CSDG has an edge if SDG has and edge Every pivot is a syntactic pseudopivot. [but not vice versa] Theorem 1: If a set of transaction programs contains no syntactic pseudopivots, then every execution under SI will in fact be serializable. 34

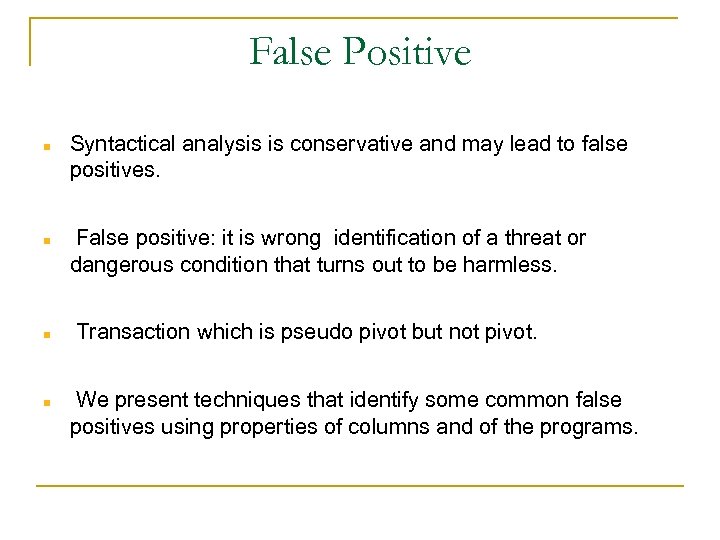

False Positive Syntactical analysis is conservative and may lead to false positives. False positive: it is wrong identification of a threat or dangerous condition that turns out to be harmless. Transaction which is pseudo pivot but not pivot. We present techniques that identify some common false positives using properties of columns and of the programs.

False Positives Syntactic Pseudopivot Many transactions which can never cause any anomaly are detected as syntactic pseudopivot. False Positives Pseudovulnerable CSDG for Banking Application 36

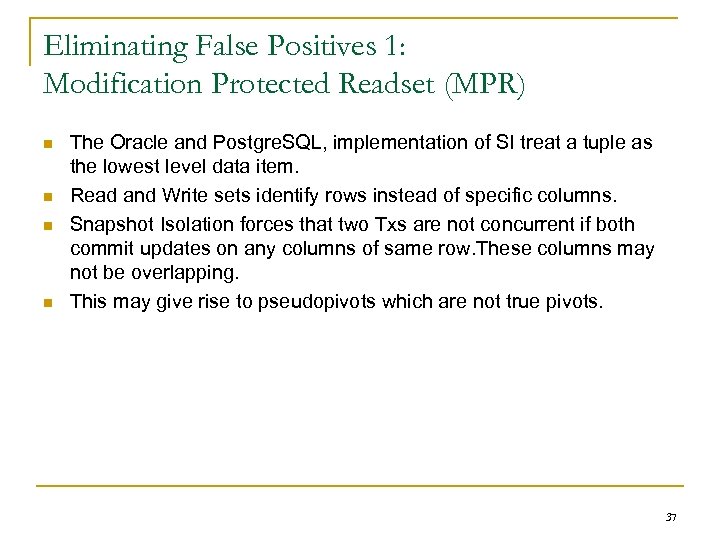

Eliminating False Positives 1: Modification Protected Readset (MPR) The Oracle and Postgre. SQL, implementation of SI treat a tuple as the lowest level data item. Read and Write sets identify rows instead of specific columns. Snapshot Isolation forces that two Txs are not concurrent if both commit updates on any columns of same row. These columns may not be overlapping. This may give rise to pseudopivots which are not true pivots. 37

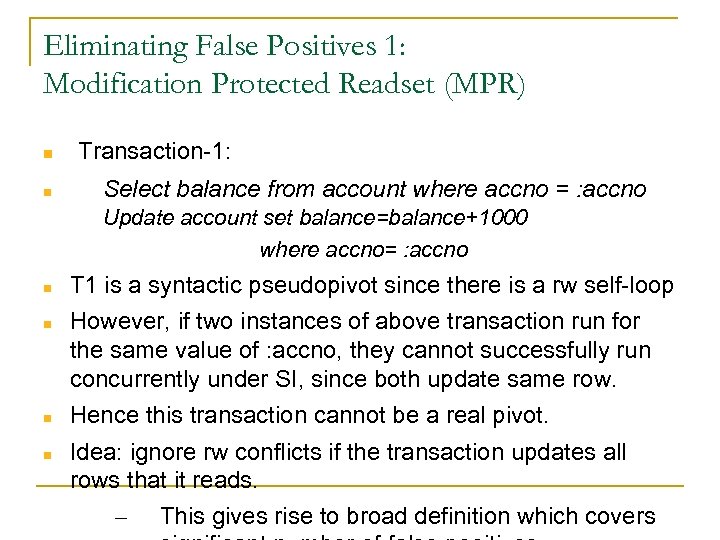

Eliminating False Positives 1: Modification Protected Readset (MPR) Transaction-1: Select balance from account where accno = : accno Update account set balance=balance+1000 where accno= : accno T 1 is a syntactic pseudopivot since there is a rw self-loop However, if two instances of above transaction run for the same value of : accno, they cannot successfully run concurrently under SI, since both update same row. Hence this transaction cannot be a real pivot. Idea: ignore rw conflicts if the transaction updates all rows that it reads. – This gives rise to broad definition which covers

Eliminating False Positives 1: Modification Protected Readset (MPR) But we have to be careful: Transaction-2: Select * from account where balance = : balval Update account set balance = balance + 1 where balance=: balval and name < “N” Update account set balance = balance - 1 where balance=: balval and name >= “N” The above transaction updates all rows that it reads. However, suppose two copies of the above transaction with : balval as 5 and 6 run concurrently. They write different rows so no ww conflict is present and both can commits.

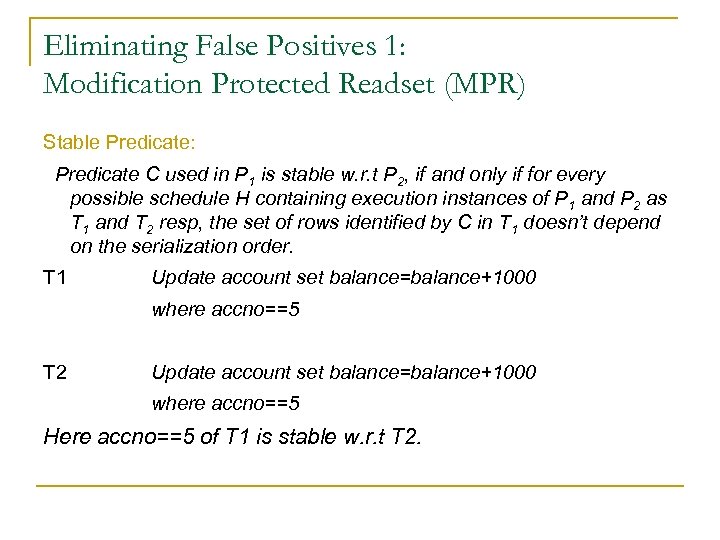

Eliminating False Positives 1: Modification Protected Readset (MPR) Stable Predicate: Predicate C used in P 1 is stable w. r. t P 2, if and only if for every possible schedule H containing execution instances of P 1 and P 2 as T 1 and T 2 resp, the set of rows identified by C in T 1 doesn’t depend on the serialization order. T 1 Update account set balance=balance+1000 where accno==5 T 2 Update account set balance=balance+1000 where accno==5 Here accno==5 of T 1 is stable w. r. t T 2.

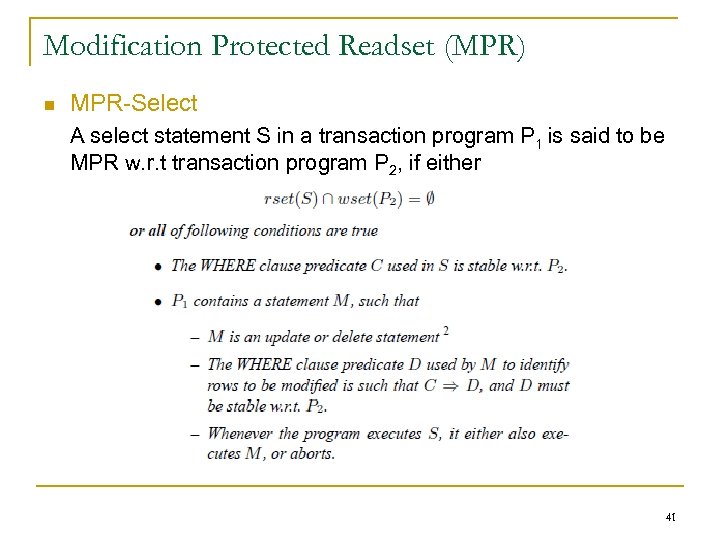

Modification Protected Readset (MPR) MPR-Select A select statement S in a transaction program P 1 is said to be MPR w. r. t transaction program P 2, if either 41

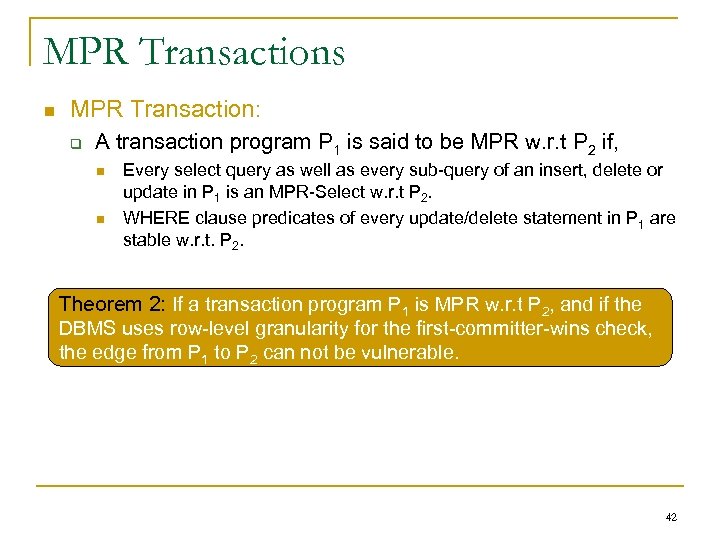

MPR Transactions MPR Transaction: A transaction program P 1 is said to be MPR w. r. t P 2 if, Every select query as well as every sub-query of an insert, delete or update in P 1 is an MPR-Select w. r. t P 2. WHERE clause predicates of every update/delete statement in P 1 are stable w. r. t. P 2. Theorem 2: If a transaction program P 1 is MPR w. r. t P 2, and if the DBMS uses row-level granularity for the first-committer-wins check, the edge from P 1 to P 2 can not be vulnerable. 42

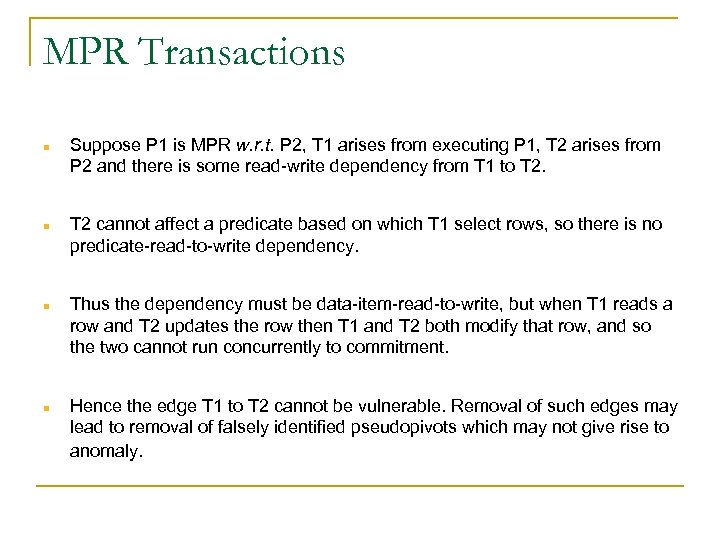

MPR Transactions Suppose P 1 is MPR w. r. t. P 2, T 1 arises from executing P 1, T 2 arises from P 2 and there is some read-write dependency from T 1 to T 2 cannot affect a predicate based on which T 1 select rows, so there is no predicate-read-to-write dependency. Thus the dependency must be data-item-read-to-write, but when T 1 reads a row and T 2 updates the row then T 1 and T 2 both modify that row, and so the two cannot run concurrently to commitment. Hence the edge T 1 to T 2 cannot be vulnerable. Removal of such edges may lead to removal of falsely identified pseudopivots which may not give rise to anomaly.

MPR Analysis MPR Analysis: We say that a transaction is found to be a false positive using MPR analysis if It is detected as a syntactic pseudopivot, and After eliminating vulnerable edges using theorem-2, the transaction is found not be a pivot MPR analysis depends on understanding predicates - Idea: create a simpler syntactic definition that does not need to understand predicates Insert-Delete Stable Table: A table t is said to be insert-delete stable w. r. t Tx program P, if P doesn’t contain any insert or delete statement which operates on table t. 44

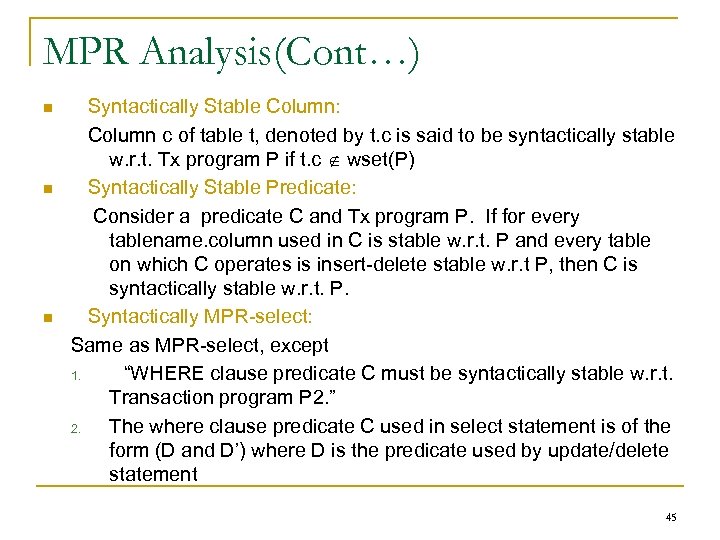

MPR Analysis(Cont…) Syntactically Stable Column: Column c of table t, denoted by t. c is said to be syntactically stable w. r. t. Tx program P if t. c wset(P) Syntactically Stable Predicate: Consider a predicate C and Tx program P. If for every tablename. column used in C is stable w. r. t. P and every table on which C operates is insert-delete stable w. r. t P, then C is syntactically stable w. r. t. P. Syntactically MPR-select: Same as MPR-select, except 1. “WHERE clause predicate C must be syntactically stable w. r. t. Transaction program P 2. ” 2. The where clause predicate C used in select statement is of the form (D and D’) where D is the predicate used by update/delete statement 45

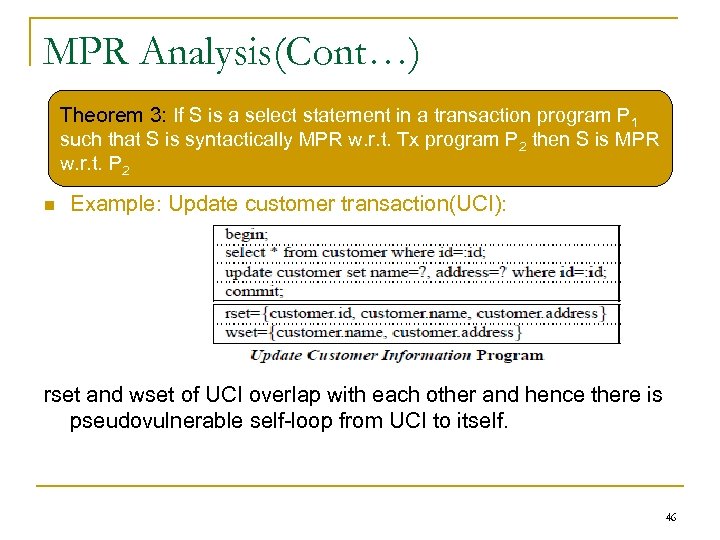

MPR Analysis(Cont…) Theorem 3: If S is a select statement in a transaction program P 1 such that S is syntactically MPR w. r. t. Tx program P 2 then S is MPR w. r. t. P 2 Example: Update customer transaction(UCI): rset and wset of UCI overlap with each other and hence there is pseudovulnerable self-loop from UCI to itself. 46

MPR Analysis(Cont…) Syntactically MPR-Select: . A select statement S in transaction program P 1 is said to be syntactically MPR w. r. t. transaction program P 2, if either rset(S) ∩ wset(P 2) = ∅ or all of following conditions are true • The WHERE clause predicate C used in S is syntactically stable w. r. t. P 2. • P 1 contains a statement M, such that – M is an update or delete statement 3 From above definition and–using WHERE clause predicate D it Theorem-2 and Theorem-3 used by is clear that there cannot be vulnerable edge frombe modified is such M to identify rows to UCI to itself. that C = (D and D′) for some D′ , and D

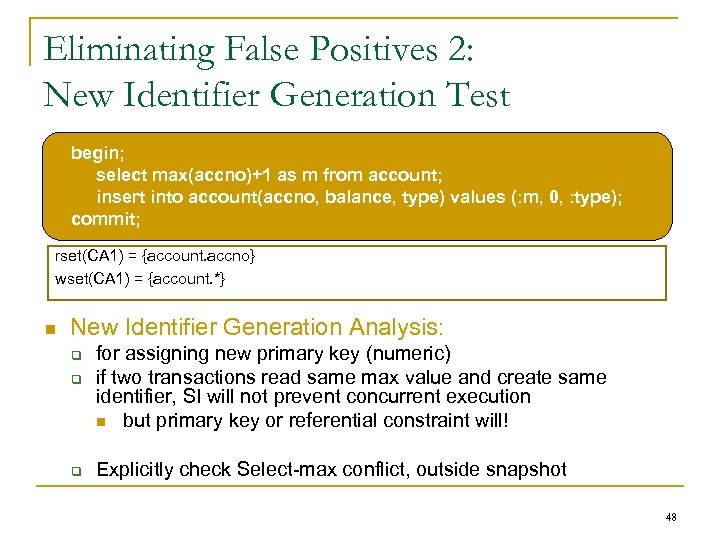

Eliminating False Positives 2: New Identifier Generation Test begin; select max(accno)+1 as m from account; insert into account(accno, balance, type) values (: m, 0, : type); commit; rset(CA 1) = {account. accno} wset(CA 1) = {account. *} New Identifier Generation Analysis: for assigning new primary key (numeric) if two transactions read same max value and create same identifier, SI will not prevent concurrent execution but primary key or referential constraint will! Explicitly check Select-max conflict, outside snapshot 48

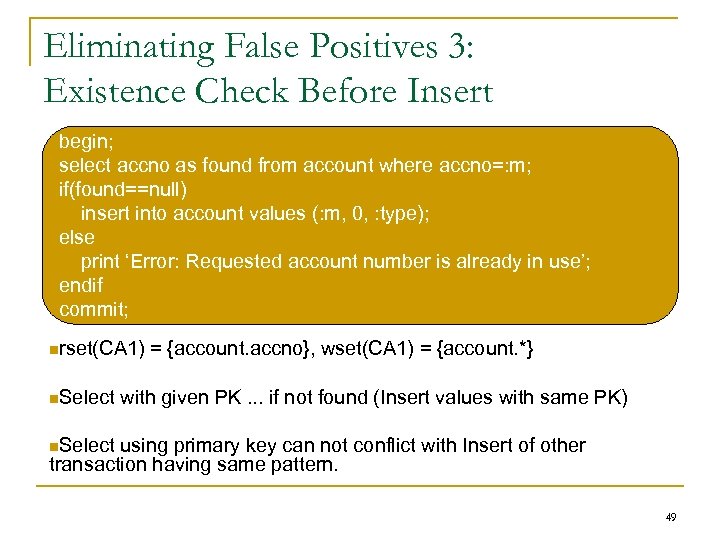

Eliminating False Positives 3: Existence Check Before Insert begin; select accno as found from account where accno=: m; if(found==null) insert into account values (: m, 0, : type); else print ‘Error: Requested account number is already in use’; endif commit; rset(CA 1) Select = {account. accno}, wset(CA 1) = {account. *} with given PK. . . if not found (Insert values with same PK) Select using primary key can not conflict with Insert of other transaction having same pattern. 49

After Eliminating False Positives Eliminated False Positives: • UCI: MPR • DEP: MPR • CA 1 & CA 2: NIGA / ECIA Remaining Syntactic Pseudopivot 50

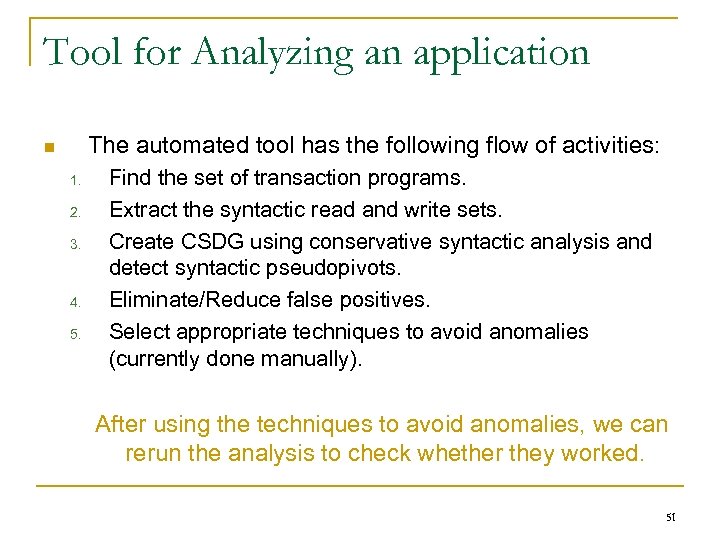

Tool for Analyzing an application The automated tool has the following flow of activities: 1. 2. 3. 4. 5. Find the set of transaction programs. Extract the syntactic read and write sets. Create CSDG using conservative syntactic analysis and detect syntactic pseudopivots. Eliminate/Reduce false positives. Select appropriate techniques to avoid anomalies (currently done manually). After using the techniques to avoid anomalies, we can rerun the analysis to check whether they worked. 51

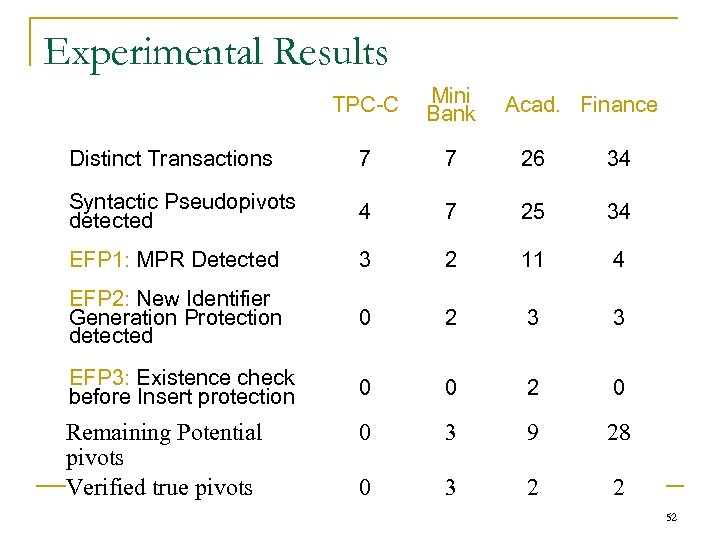

Experimental Results TPC-C Mini Bank Distinct Transactions 7 7 26 34 Syntactic Pseudopivots detected 4 7 25 34 EFP 1: MPR Detected 3 2 11 4 EFP 2: New Identifier Generation Protection detected 0 2 3 3 EFP 3: Existence check before Insert protection 0 0 2 0 Remaining Potential pivots Verified true pivots 0 3 9 28 0 3 2 2 Acad. Finance 52

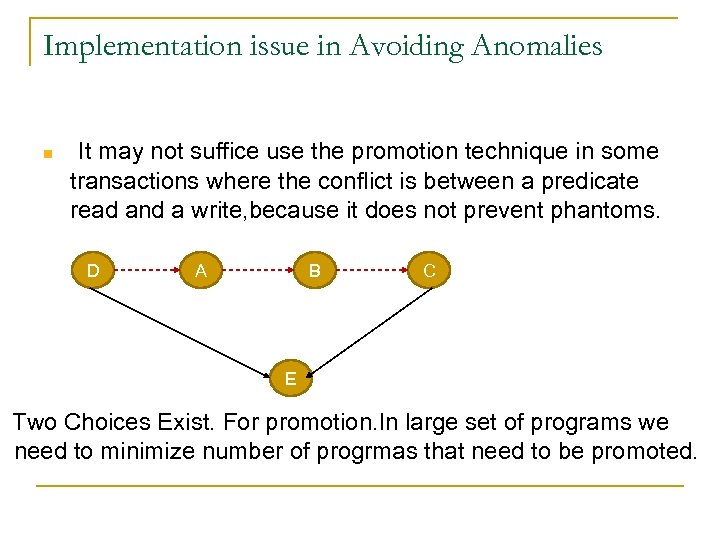

Implementation issue in Avoiding Anomalies It may not suffice use the promotion technique in some transactions where the conflict is between a predicate read and a write, because it does not prevent phantoms. D A B C E Two Choices Exist. For promotion. In large set of programs we need to minimize number of progrmas that need to be promoted.

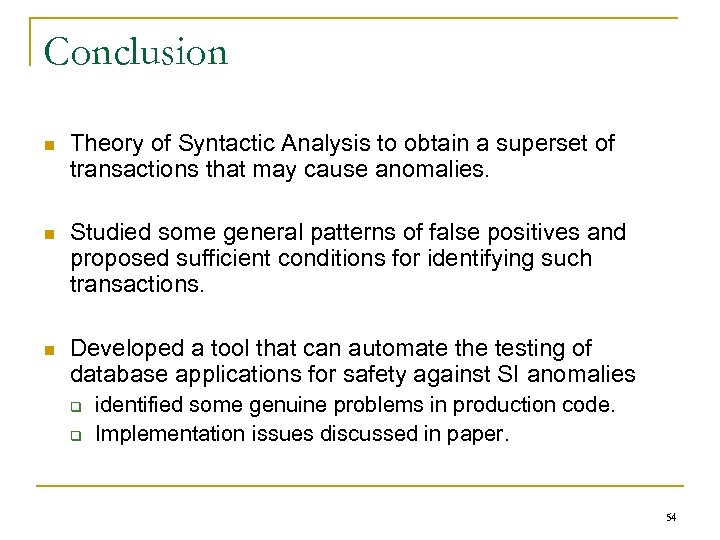

Conclusion Theory of Syntactic Analysis to obtain a superset of transactions that may cause anomalies. Studied some general patterns of false positives and proposed sufficient conditions for identifying such transactions. Developed a tool that can automate the testing of database applications for safety against SI anomalies identified some genuine problems in production code. Implementation issues discussed in paper. 54

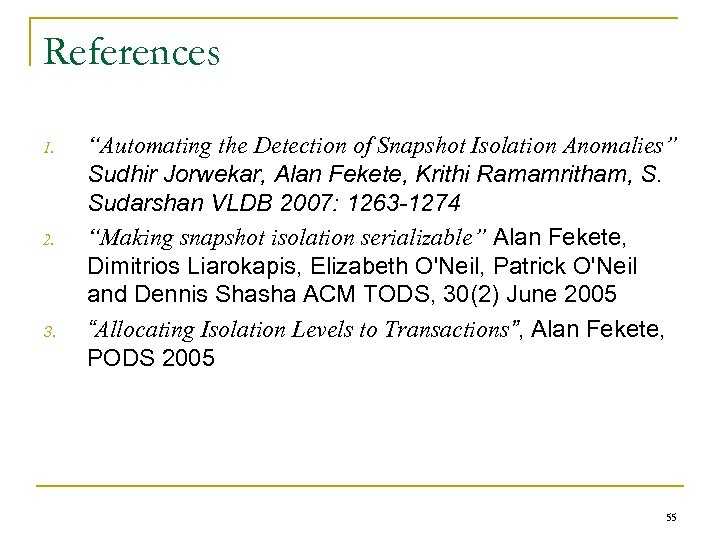

References 1. 2. 3. “Automating the Detection of Snapshot Isolation Anomalies” Sudhir Jorwekar, Alan Fekete, Krithi Ramamritham, S. Sudarshan VLDB 2007: 1263 -1274 “Making snapshot isolation serializable” Alan Fekete, Dimitrios Liarokapis, Elizabeth O'Neil, Patrick O'Neil and Dennis Shasha ACM TODS, 30(2) June 2005 “Allocating Isolation Levels to Transactions”, Alan Fekete, PODS 2005 55
