Automated Transcription of Polyphonic Piano Music A Brief Literature Review Catherine Lai MUMT-611 MIR February 17, 2005 1 /14

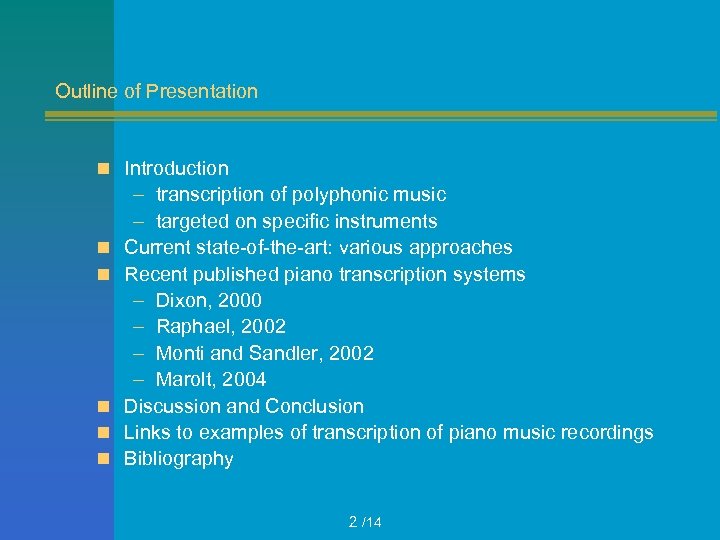

Outline of Presentation n Introduction n n – transcription of polyphonic music – targeted on specific instruments Current state-of-the-art: various approaches Recent published piano transcription systems – Dixon, 2000 – Raphael, 2002 – Monti and Sandler, 2002 – Marolt, 2004 Discussion and Conclusion Links to examples of transcription of piano music recordings Bibliography 2 /14

Introduction n Transcription of polyphonic music – acoustical waveform --> parametric representation – extract pitches, starting times, durations n First attempt by Moorer, 1975 – note range limitation – two voices constraint n Martin, 1996 – piano transcription system up to four voices – chorale style of J. S. Bach (long durations with block chords) n Future systems tackled limitations – targeted system on specific instruments n Focus of this literature review: – automated transcription of polyphonic piano music 3 /14

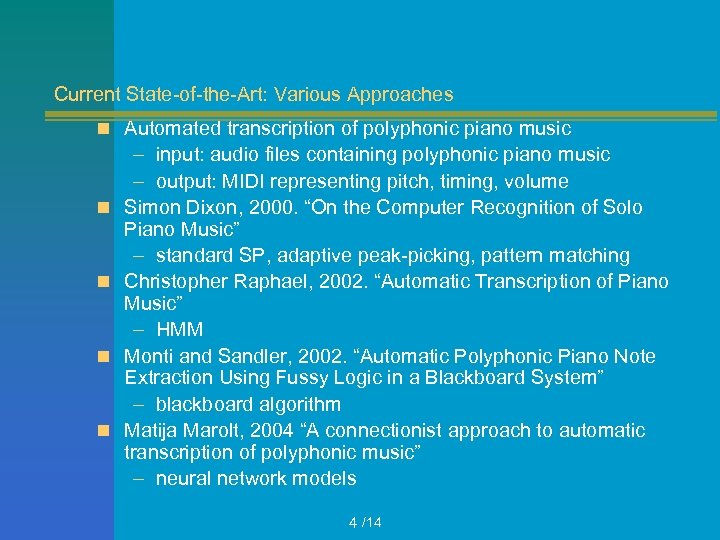

Current State-of-the-Art: Various Approaches n Automated transcription of polyphonic piano music n n – input: audio files containing polyphonic piano music – output: MIDI representing pitch, timing, volume Simon Dixon, 2000. “On the Computer Recognition of Solo Piano Music” – standard SP, adaptive peak-picking, pattern matching Christopher Raphael, 2002. “Automatic Transcription of Piano Music” – HMM Monti and Sandler, 2002. “Automatic Polyphonic Piano Note Extraction Using Fussy Logic in a Blackboard System” – blackboard algorithm Matija Marolt, 2004 “A connectionist approach to automatic transcription of polyphonic music” – neural network models 4 /14

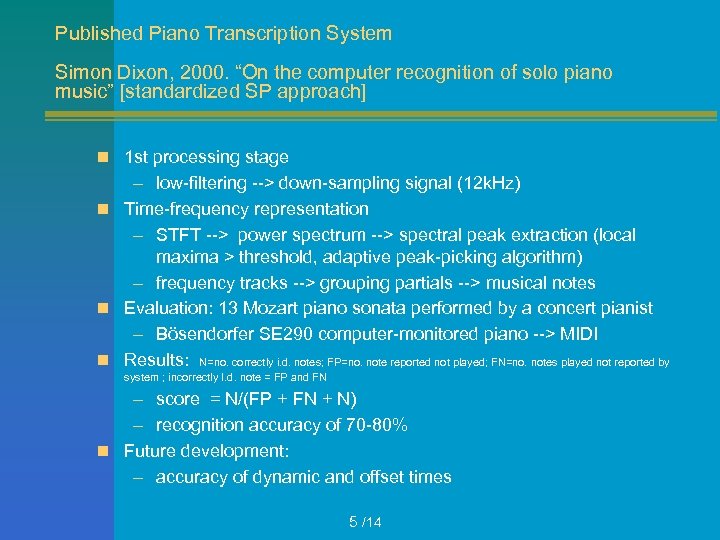

Published Piano Transcription System Simon Dixon, 2000. “On the computer recognition of solo piano music” [standardized SP approach] n 1 st processing stage – low-filtering --> down-sampling signal (12 k. Hz) n Time-frequency representation – STFT --> power spectrum --> spectral peak extraction (local maxima > threshold, adaptive peak-picking algorithm) – frequency tracks --> grouping partials --> musical notes n Evaluation: 13 Mozart piano sonata performed by a concert pianist – Bösendorfer SE 290 computer-monitored piano --> MIDI n Results: N=no. correctly i. d. notes; FP=no. note reported not played; FN=no. notes played not reported by system ; incorrectly I. d. note = FP and FN – score = N/(FP + FN + N) – recognition accuracy of 70 -80% n Future development: – accuracy of dynamic and offset times 5 /14

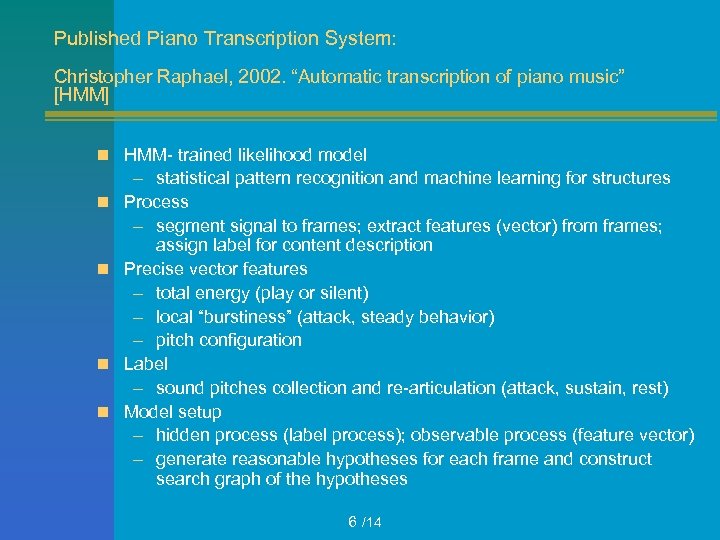

Published Piano Transcription System: Christopher Raphael, 2002. “Automatic transcription of piano music” [HMM] n HMM- trained likelihood model n n – statistical pattern recognition and machine learning for structures Process – segment signal to frames; extract features (vector) from frames; assign label for content description Precise vector features – total energy (play or silent) – local “burstiness” (attack, steady behavior) – pitch configuration Label – sound pitches collection and re-articulation (attack, sustain, rest) Model setup – hidden process (label process); observable process (feature vector) – generate reasonable hypotheses for each frame and construct search graph of the hypotheses 6 /14

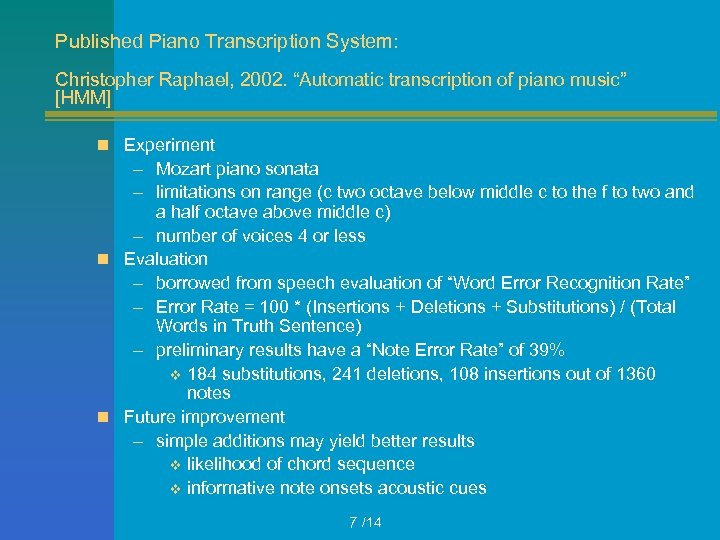

Published Piano Transcription System: Christopher Raphael, 2002. “Automatic transcription of piano music” [HMM] n Experiment – Mozart piano sonata – limitations on range (c two octave below middle c to the f to two and a half octave above middle c) – number of voices 4 or less n Evaluation – borrowed from speech evaluation of “Word Error Recognition Rate” – Error Rate = 100 * (Insertions + Deletions + Substitutions) / (Total Words in Truth Sentence) – preliminary results have a “Note Error Rate” of 39% v 184 substitutions, 241 deletions, 108 insertions out of 1360 notes n Future improvement – simple additions may yield better results v likelihood of chord sequence v informative note onsets acoustic cues 7 /14

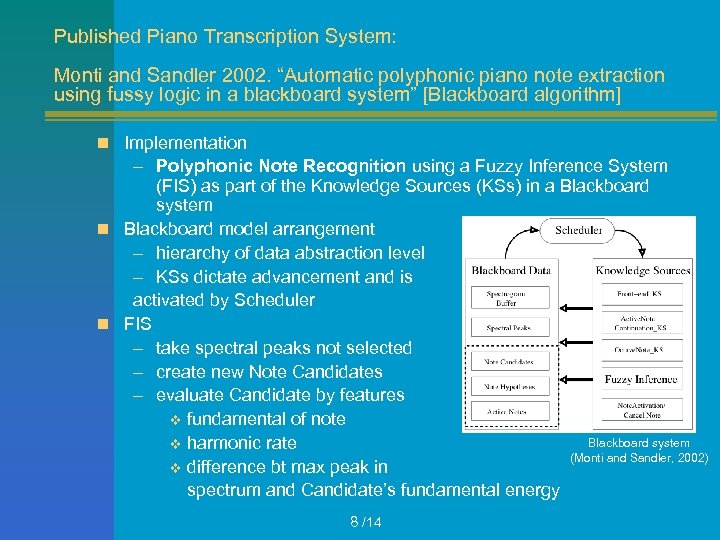

Published Piano Transcription System: Monti and Sandler 2002. “Automatic polyphonic piano note extraction using fussy logic in a blackboard system” [Blackboard algorithm] n Implementation – Polyphonic Note Recognition using a Fuzzy Inference System (FIS) as part of the Knowledge Sources (KSs) in a Blackboard system n Blackboard model arrangement – hierarchy of data abstraction level – KSs dictate advancement and is activated by Scheduler n FIS – take spectral peaks not selected – create new Note Candidates – evaluate Candidate by features v fundamental of note Blackboard system v harmonic rate (Monti and Sandler, 2002) v difference bt max peak in spectrum and Candidate’s fundamental energy 8 /14

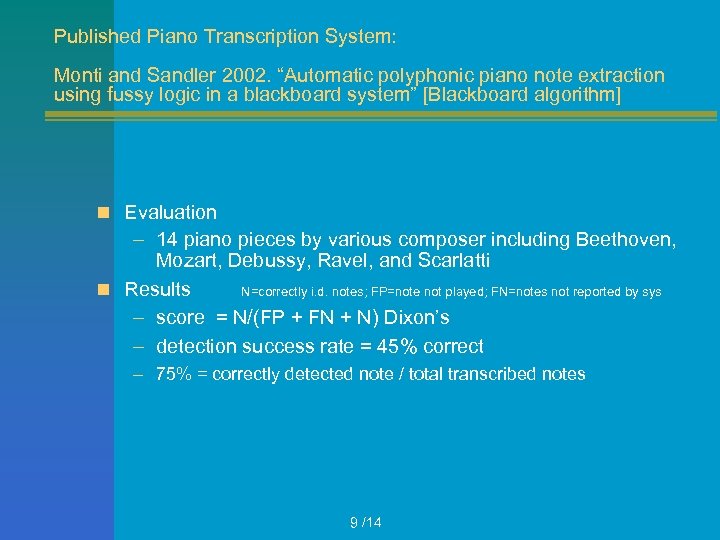

Published Piano Transcription System: Monti and Sandler 2002. “Automatic polyphonic piano note extraction using fussy logic in a blackboard system” [Blackboard algorithm] n Evaluation – 14 piano pieces by various composer including Beethoven, Mozart, Debussy, Ravel, and Scarlatti n Results N=correctly i. d. notes; FP=note not played; FN=notes not reported by sys – score = N/(FP + FN + N) Dixon’s – detection success rate = 45% correct – 75% = correctly detected note / total transcribed notes 9 /14

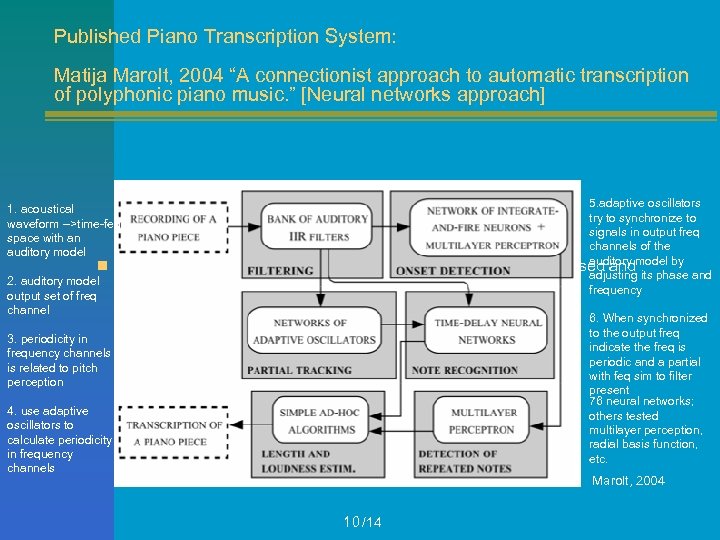

Published Piano Transcription System: Matija Marolt, 2004 “A connectionist approach to automatic transcription of polyphonic piano music. ” [Neural networks approach] 1. acoustical waveform -->time-feq space with an auditory model n 2. auditory model output set of freq channel 5. adaptive oscillators try to synchronize to signals in output freq channels of the auditory New model based on networks of adaptive oscillators was proposed andmodel by adjusting its phase and implemented in SONIC to partial tracking and note recognition frequency 6. When synchronized to the output freq indicate the freq is periodic and a partial with feq sim to filter present 76 neural networks; others tested multilayer perception, radial basis function, etc. 3. periodicity in frequency channels is related to pitch perception 4. use adaptive oscillators to calculate periodicity in frequency channels Marolt, 2004 10 /14

Published Piano Transcription System: Matija Marolt, 2004 “A connectionist approach to automatic transcription of polyphonic piano music. ” [Neural networks approach] Evaluation – tested on synthesized and real recordings of various genre n Results – synthesized recoding around 90% of all notes – real recording results not as good (not available) – most common error (> 50%) octaves and rapidly played notes (e. g. arpeggios, trills) – greatest challenge very expressive playing v Chopin’s Nocturnes v quiet and almost inaudible left hand n Further Development – detecting repeated notes n Marolt, 2004 11 /14

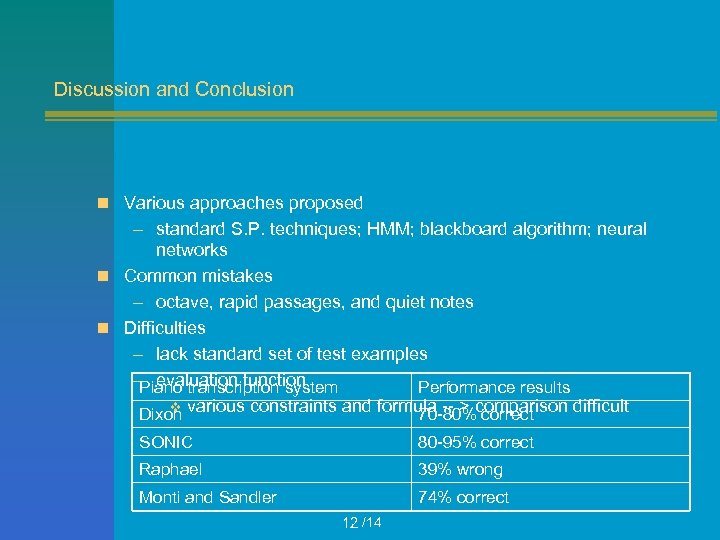

Discussion and Conclusion n Various approaches proposed – standard S. P. techniques; HMM; blackboard algorithm; neural networks n Common mistakes – octave, rapid passages, and quiet notes n Difficulties – lack standard set of test examples – evaluation function Piano transcription system Performance results v Dixon various constraints and formula -- > comparison difficult 70 -80% correct SONIC 80 -95% correct Raphael 39% wrong Monti and Sandler 74% correct 12 /14

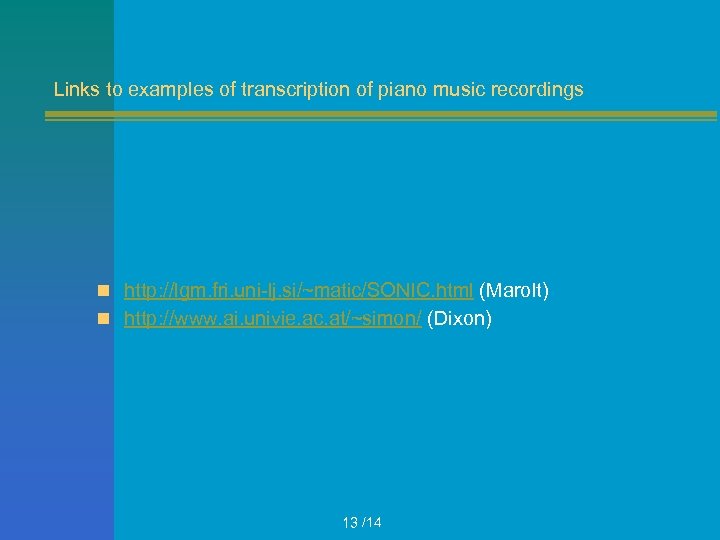

Links to examples of transcription of piano music recordings n http: //lgm. fri. uni-lj. si/~matic/SONIC. html (Marolt) n http: //www. ai. univie. ac. at/~simon/ (Dixon) 13 /14

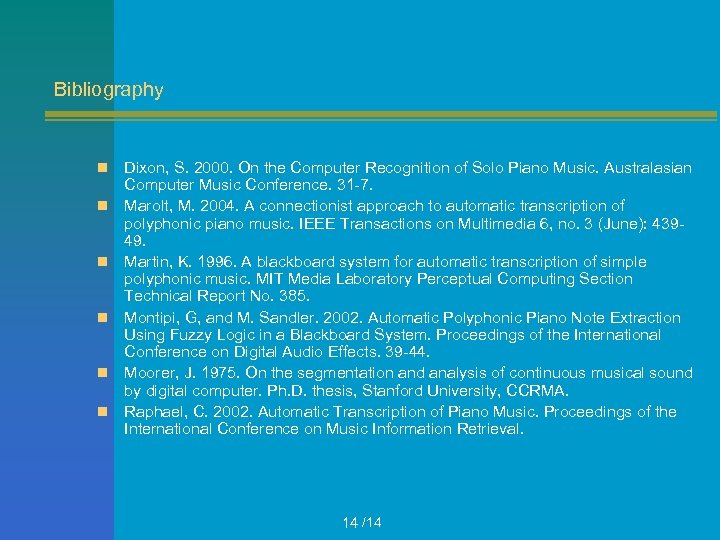

Bibliography n n n Dixon, S. 2000. On the Computer Recognition of Solo Piano Music. Australasian Computer Music Conference. 31 -7. Marolt, M. 2004. A connectionist approach to automatic transcription of polyphonic piano music. IEEE Transactions on Multimedia 6, no. 3 (June): 43949. Martin, K. 1996. A blackboard system for automatic transcription of simple polyphonic music. MIT Media Laboratory Perceptual Computing Section Technical Report No. 385. Montipi, G, and M. Sandler. 2002. Automatic Polyphonic Piano Note Extraction Using Fuzzy Logic in a Blackboard System. Proceedings of the International Conference on Digital Audio Effects. 39 -44. Moorer, J. 1975. On the segmentation and analysis of continuous musical sound by digital computer. Ph. D. thesis, Stanford University, CCRMA. Raphael, C. 2002. Automatic Transcription of Piano Music. Proceedings of the International Conference on Music Information Retrieval. 14 /14
