Automated Theory Formation: First Steps in Bioinformatics Simon Colton Computational Bioinformatics Laboratory

Machine Learning (ML) Questions Given some background information Concepts, hypotheses (axioms) Given some positive examples And some negative examples Find me an explanation Why the positives are positive And the negatives are negative

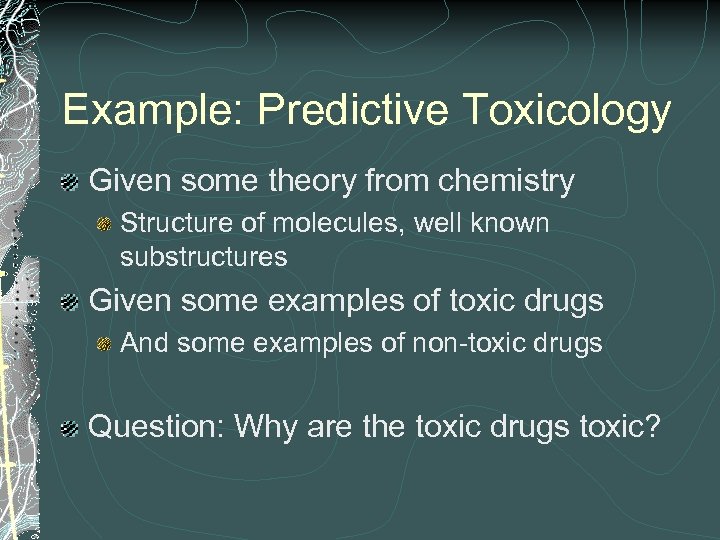

Example: Predictive Toxicology Given some theory from chemistry Structure of molecules, well known substructures Given some examples of toxic drugs And some examples of non-toxic drugs Question: Why are the toxic drugs toxic?

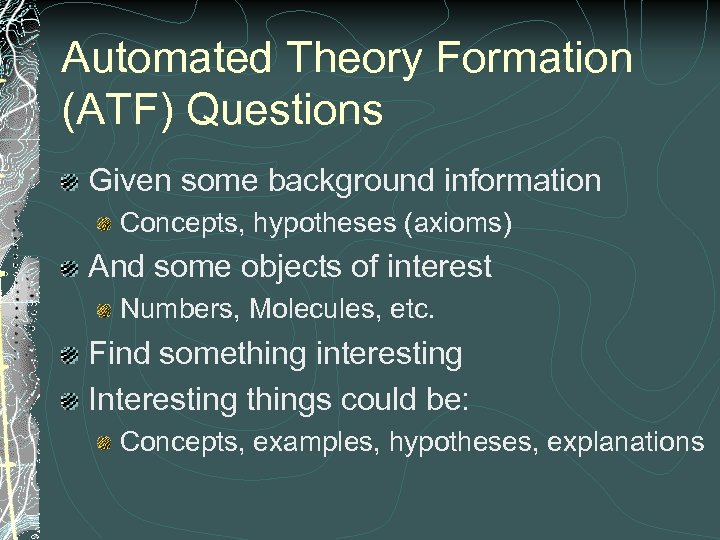

Automated Theory Formation (ATF) Questions Given some background information Concepts, hypotheses (axioms) And some objects of interest Numbers, Molecules, etc. Find something interesting Interesting things could be: Concepts, examples, hypotheses, explanations

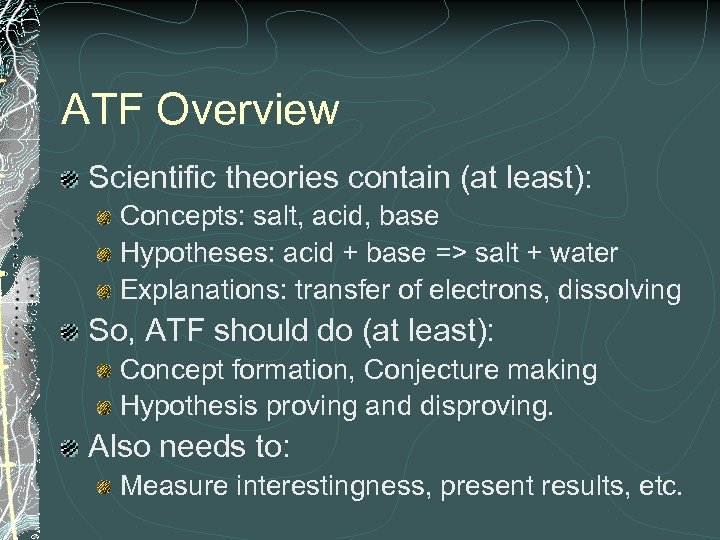

ATF Overview Scientific theories contain (at least): Concepts: salt, acid, base Hypotheses: acid + base => salt + water Explanations: transfer of electrons, dissolving So, ATF should do (at least): Concept formation, Conjecture making Hypothesis proving and disproving. Also needs to: Measure interestingness, present results, etc.

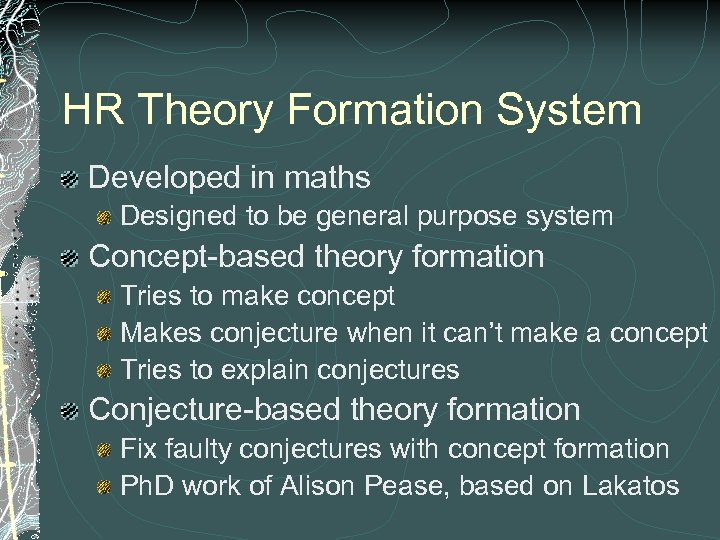

HR Theory Formation System Developed in maths Designed to be general purpose system Concept-based theory formation Tries to make concept Makes conjecture when it can’t make a concept Tries to explain conjectures Conjecture-based theory formation Fix faulty conjectures with concept formation Ph. D work of Alison Pease, based on Lakatos

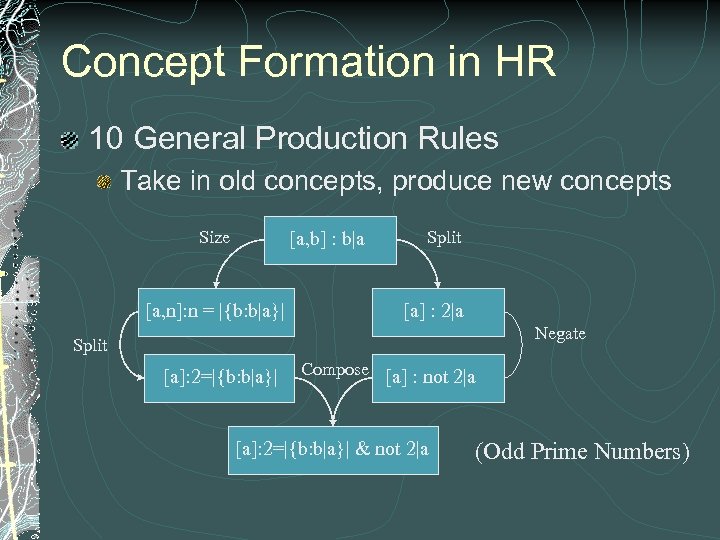

Concept Formation in HR 10 General Production Rules Take in old concepts, produce new concepts Size [a, b] : b|a [a, n]: n = |{b: b|a}| Split [a] : 2|a Negate Split [a]: 2=|{b: b|a}| Compose [a] : not 2|a [a]: 2=|{b: b|a}| & not 2|a (Odd Prime Numbers)

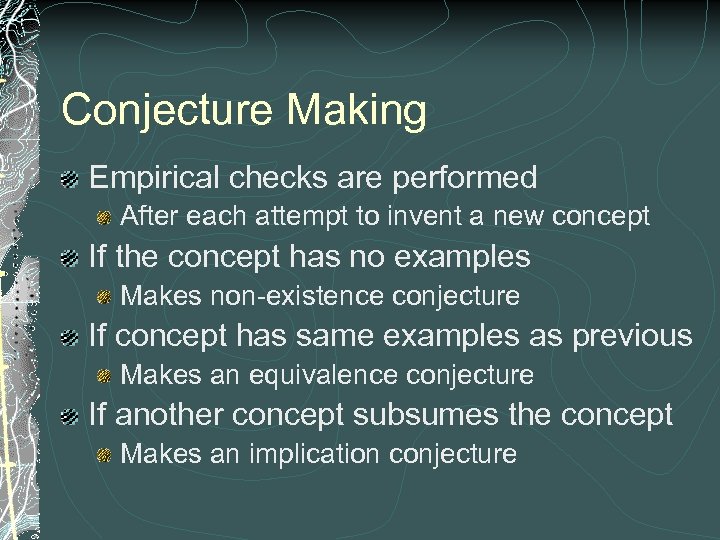

Conjecture Making Empirical checks are performed After each attempt to invent a new concept If the concept has no examples Makes non-existence conjecture If concept has same examples as previous Makes an equivalence conjecture If another concept subsumes the concept Makes an implication conjecture

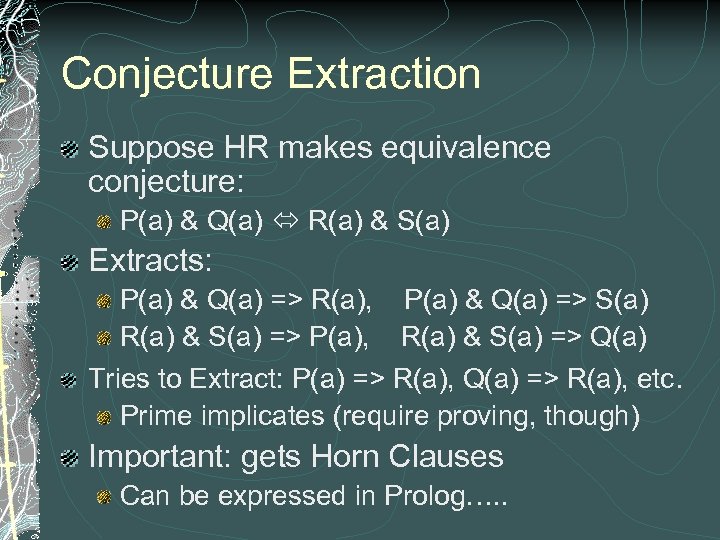

Conjecture Extraction Suppose HR makes equivalence conjecture: P(a) & Q(a) R(a) & S(a) Extracts: P(a) & Q(a) => R(a), P(a) & Q(a) => S(a) R(a) & S(a) => P(a), R(a) & S(a) => Q(a) Tries to Extract: P(a) => R(a), Q(a) => R(a), etc. Prime implicates (require proving, though) Important: gets Horn Clauses Can be expressed in Prolog…. .

Explanation Generation In mathematical domains HR relies on automated theorem provers And Model generators l To find counterexamples E. g. , group theory: a*a=a a=id (prove easily) In biological/chemistry domains Possibly: visualisation tools, reaction pathways

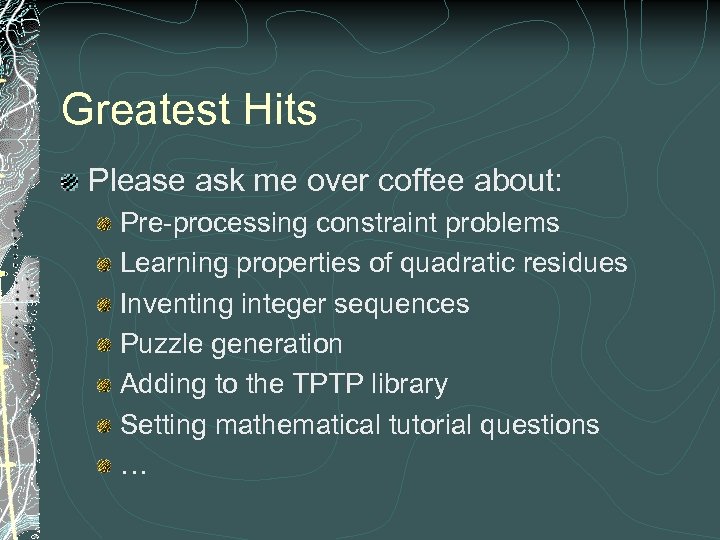

Greatest Hits Please ask me over coffee about: Pre-processing constraint problems Learning properties of quadratic residues Inventing integer sequences Puzzle generation Adding to the TPTP library Setting mathematical tutorial questions …

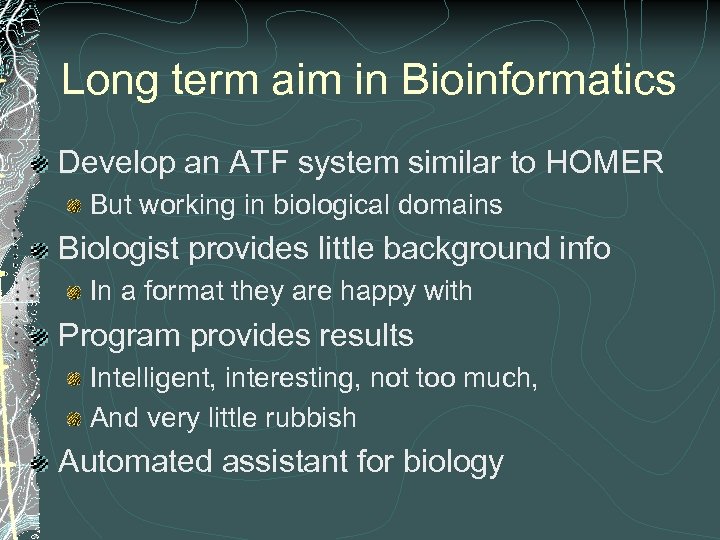

Long term aim in Bioinformatics Develop an ATF system similar to HOMER But working in biological domains Biologist provides little background info In a format they are happy with Program provides results Intelligent, interesting, not too much, And very little rubbish Automated assistant for biology

Short term aim in Bioinformatics HR can work with biological data Takes input similar to Muggleton’s Progol Use HR to solve ML problems See how bad an idea that is Use theory formation to improve ML Integrate HR and Progol somehow

Naïve Approach to ML Tasks Give HR the same input as Progol Get it to form a theory Look at theory Extract concepts which do well on the task i. e. , they look similar to target concept Not a goal-based approach Bad idea (slow)

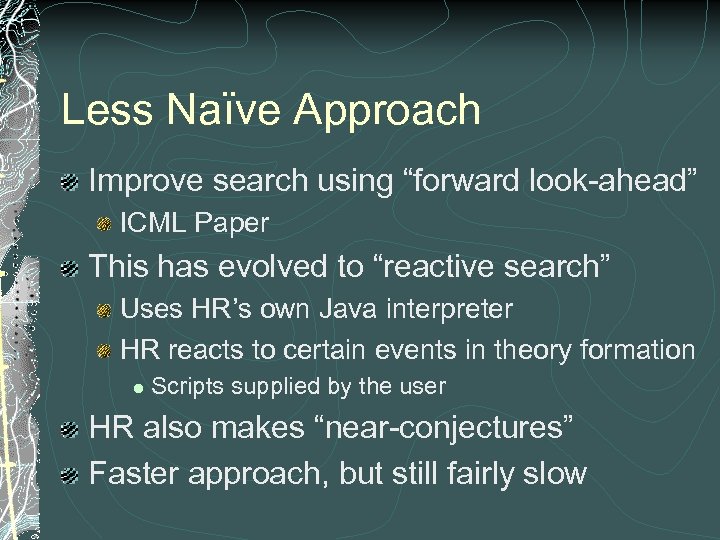

Less Naïve Approach Improve search using “forward look-ahead” ICML Paper This has evolved to “reactive search” Uses HR’s own Java interpreter HR reacts to certain events in theory formation l Scripts supplied by the user HR also makes “near-conjectures” Faster approach, but still fairly slow

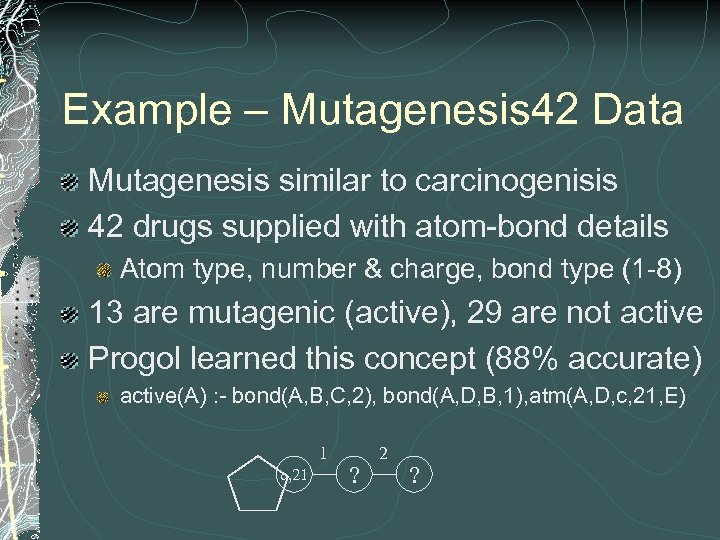

Example – Mutagenesis 42 Data Mutagenesis similar to carcinogenisis 42 drugs supplied with atom-bond details Atom type, number & charge, bond type (1 -8) 13 are mutagenic (active), 29 are not active Progol learned this concept (88% accurate) active(A) : - bond(A, B, C, 2), bond(A, D, B, 1), atm(A, D, c, 21, E) 1 c, 21 ? 2 ?

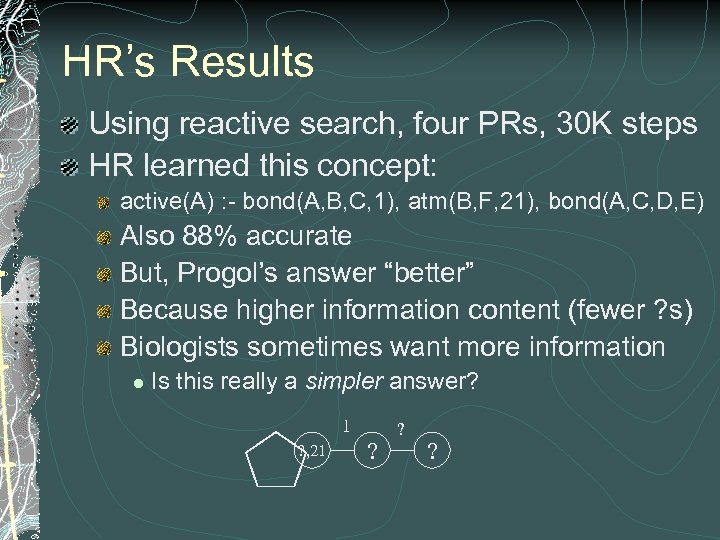

HR’s Results Using reactive search, four PRs, 30 K steps HR learned this concept: active(A) : - bond(A, B, C, 1), atm(B, F, 21), bond(A, C, D, E) Also 88% accurate But, Progol’s answer “better” Because higher information content (fewer ? s) Biologists sometimes want more information l Is this really a simpler answer? 1 ? , 21 ? ? ?

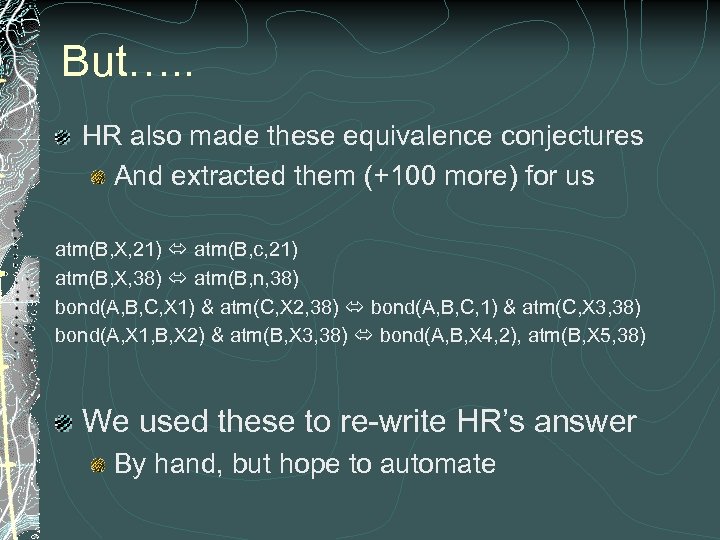

But…. . HR also made these equivalence conjectures And extracted them (+100 more) for us atm(B, X, 21) atm(B, c, 21) atm(B, X, 38) atm(B, n, 38) bond(A, B, C, X 1) & atm(C, X 2, 38) bond(A, B, C, 1) & atm(C, X 3, 38) bond(A, X 1, B, X 2) & atm(B, X 3, 38) bond(A, B, X 4, 2), atm(B, X 5, 38) We used these to re-write HR’s answer By hand, but hope to automate

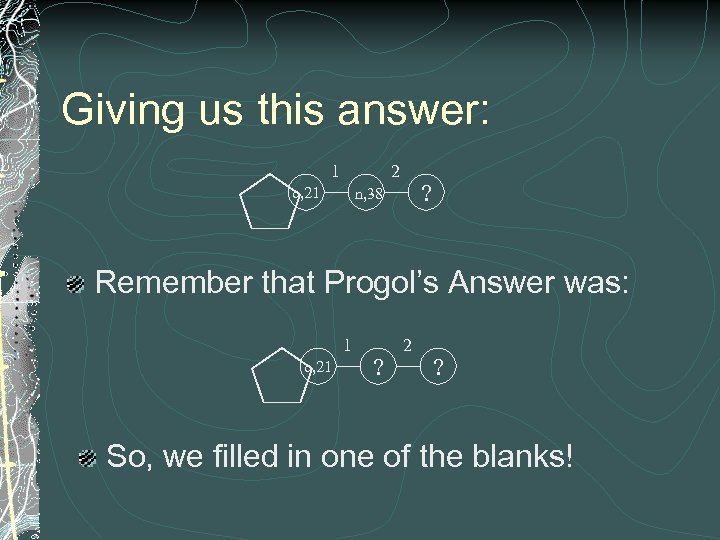

Giving us this answer: 1 2 c, 21 ? n, 38 Remember that Progol’s Answer was: 1 c, 21 ? 2 ? So, we filled in one of the blanks!

Are we making a meal of this? Yes, possibly for the mutagenesis data I was worried about the difficulty of this problem In the last week I’ve written a 200 -line Prolog program which runs quite fast And can be distributed over multiple processors And can be easily understood by biologists And gets these results….

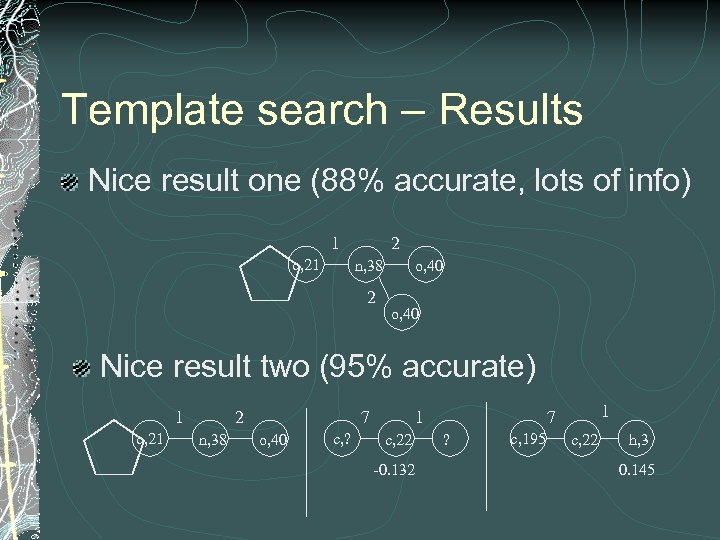

Template search – Results Nice result one (88% accurate, lots of info) 1 c, 21 2 n, 38 2 o, 40 Nice result two (95% accurate) 1 c, 21 2 n, 38 7 o, 40 c, ? 1 c, 22 -0. 132 1 7 ? c, 195 c, 22 h, 3 0. 145

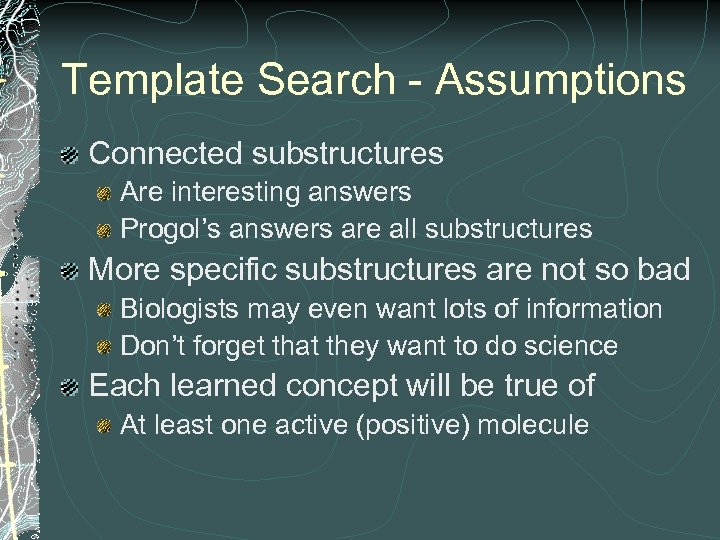

Template Search - Assumptions Connected substructures Are interesting answers Progol’s answers are all substructures More specific substructures are not so bad Biologists may even want lots of information Don’t forget that they want to do science Each learned concept will be true of At least one active (positive) molecule

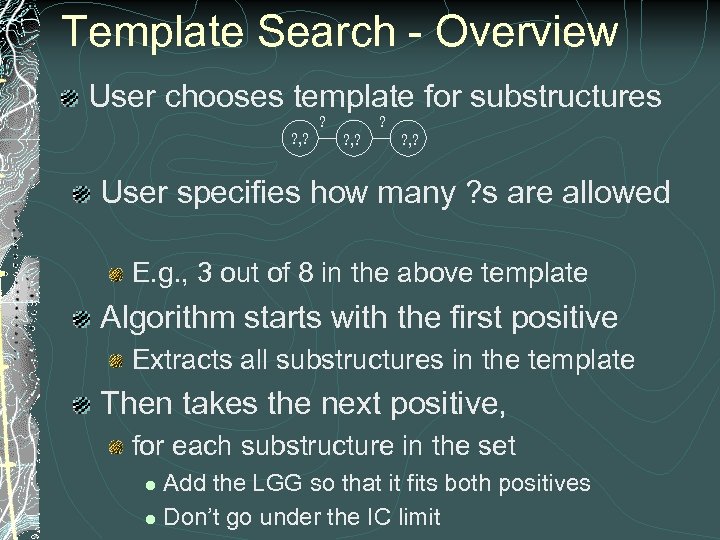

Template Search - Overview User chooses template for substructures ? , ? ? , ? User specifies how many ? s are allowed E. g. , 3 out of 8 in the above template Algorithm starts with the first positive Extracts all substructures in the template Then takes the next positive, for each substructure in the set Add the LGG so that it fits both positives l Don’t go under the IC limit l

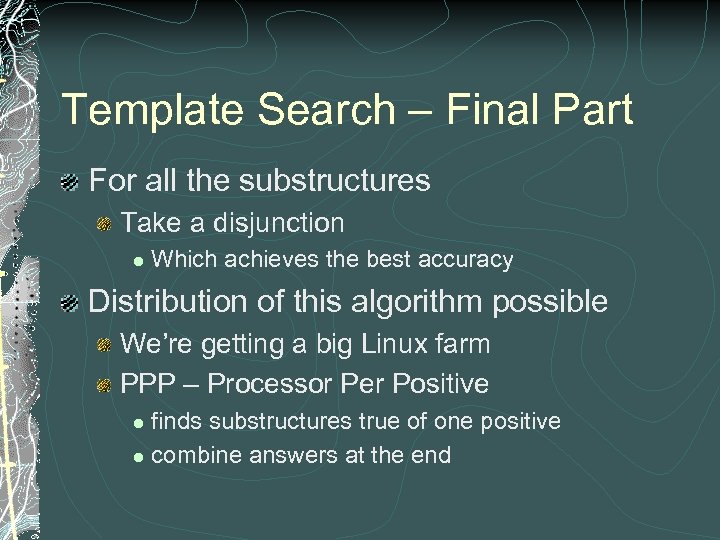

Template Search – Final Part For all the substructures Take a disjunction l Which achieves the best accuracy Distribution of this algorithm possible We’re getting a big Linux farm PPP – Processor Per Positive finds substructures true of one positive l combine answers at the end l

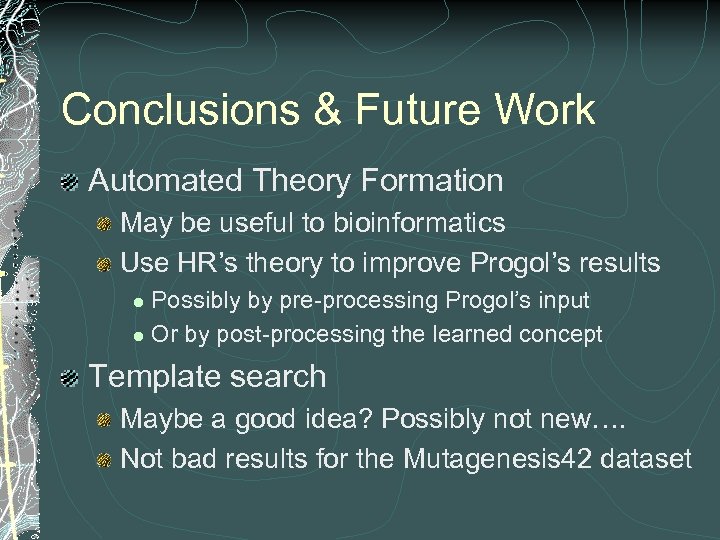

Conclusions & Future Work Automated Theory Formation May be useful to bioinformatics Use HR’s theory to improve Progol’s results Possibly by pre-processing Progol’s input l Or by post-processing the learned concept l Template search Maybe a good idea? Possibly not new…. Not bad results for the Mutagenesis 42 dataset
