Automated Temperature Monitoring for Vaccine Storage By Debbie Jo Trinidade, RN, MPH San Luis Obispo County Public Health, CA dtrinidade@co. slo. ca. us 42 nd NIC Conference March 2008 1

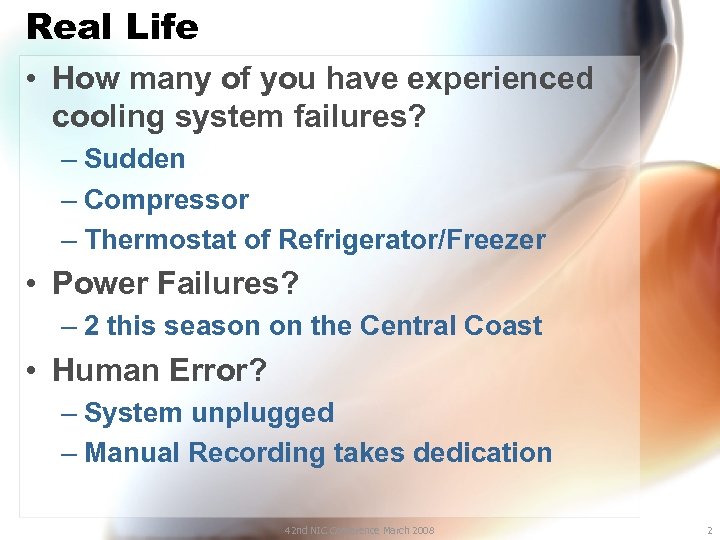

Real Life • How many of you have experienced cooling system failures? – Sudden – Compressor – Thermostat of Refrigerator/Freezer • Power Failures? – 2 this season on the Central Coast • Human Error? – System unplugged – Manual Recording takes dedication 42 nd NIC Conference March 2008 2

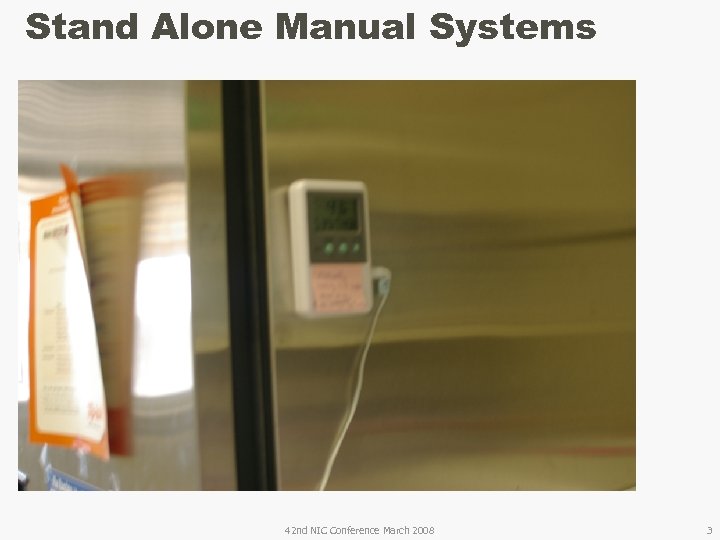

Stand Alone Manual Systems 42 nd NIC Conference March 2008 3

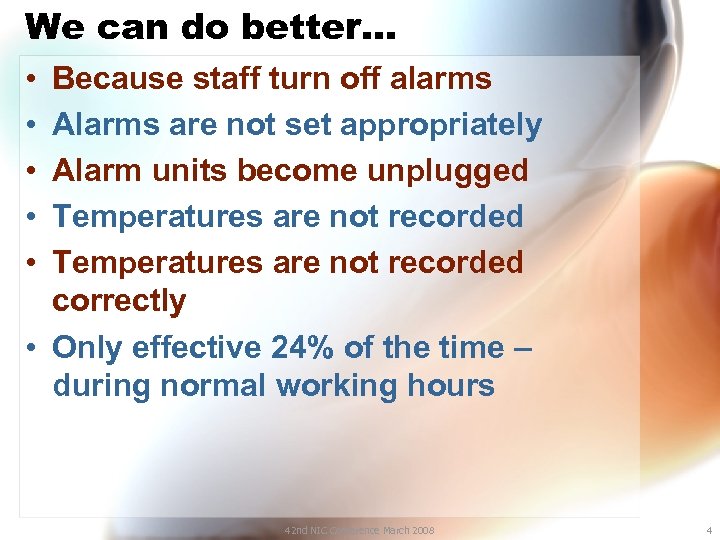

We can do better… • • • Because staff turn off alarms Alarms are not set appropriately Alarm units become unplugged Temperatures are not recorded correctly • Only effective 24% of the time – during normal working hours 42 nd NIC Conference March 2008 4

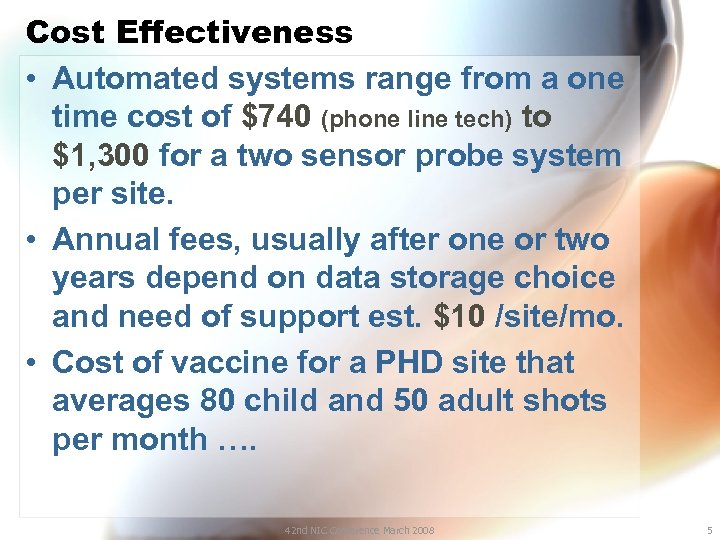

Cost Effectiveness • Automated systems range from a one time cost of $740 (phone line tech) to $1, 300 for a two sensor probe system per site. • Annual fees, usually after one or two years depend on data storage choice and need of support est. $10 /site/mo. • Cost of vaccine for a PHD site that averages 80 child and 50 adult shots per month …. 42 nd NIC Conference March 2008 5

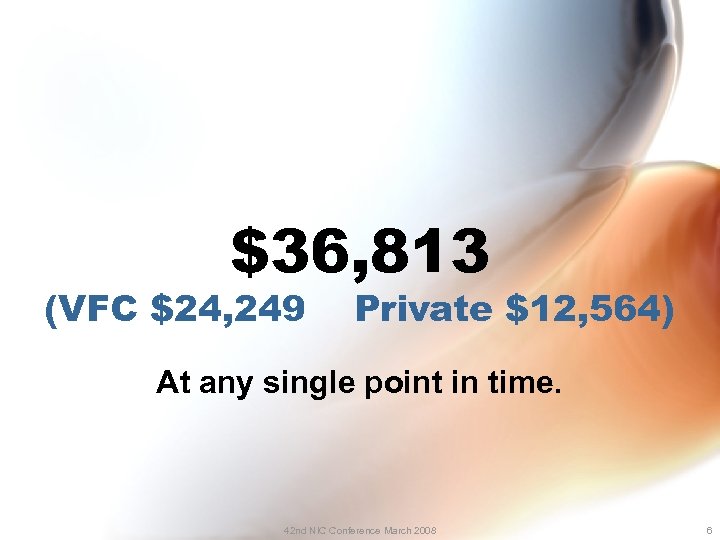

$36, 813 (VFC $24, 249 Private $12, 564) At any single point in time. 42 nd NIC Conference March 2008 6

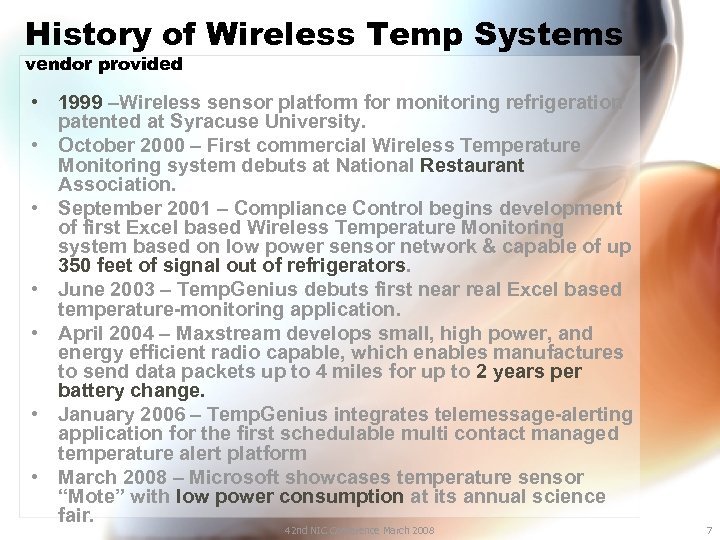

History of Wireless Temp Systems vendor provided • 1999 –Wireless sensor platform for monitoring refrigeration patented at Syracuse University. • October 2000 – First commercial Wireless Temperature Monitoring system debuts at National Restaurant Association. • September 2001 – Compliance Control begins development of first Excel based Wireless Temperature Monitoring system based on low power sensor network & capable of up 350 feet of signal out of refrigerators. • June 2003 – Temp. Genius debuts first near real Excel based temperature-monitoring application. • April 2004 – Maxstream develops small, high power, and energy efficient radio capable, which enables manufactures to send data packets up to 4 miles for up to 2 years per battery change. • January 2006 – Temp. Genius integrates telemessage-alerting application for the first schedulable multi contact managed temperature alert platform • March 2008 – Microsoft showcases temperature sensor “Mote” with low power consumption at its annual science fair. 42 nd NIC Conference March 2008 7

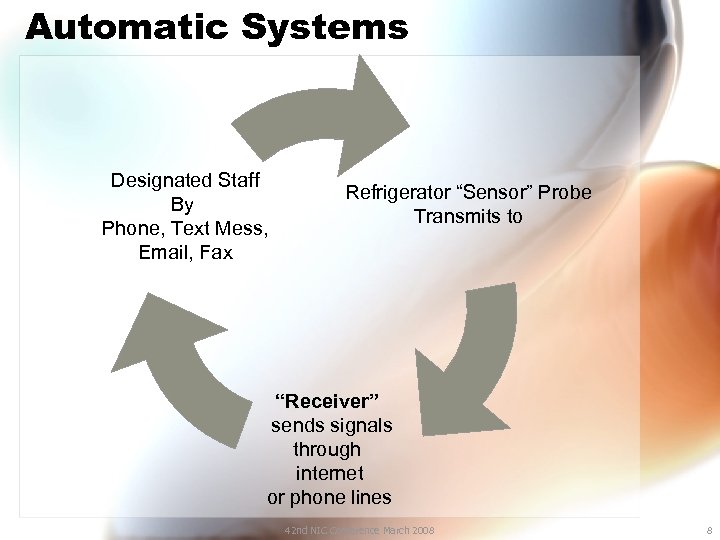

Automatic Systems Designated Staff By Phone, Text Mess, Email, Fax Refrigerator “Sensor” Probe Transmits to “Receiver” sends signals through internet or phone lines 42 nd NIC Conference March 2008 8

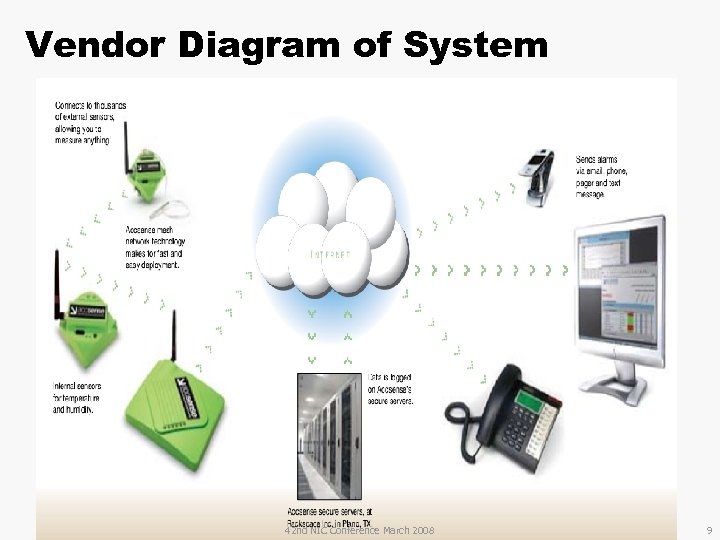

Vendor Diagram of System 42 nd NIC Conference March 2008 9

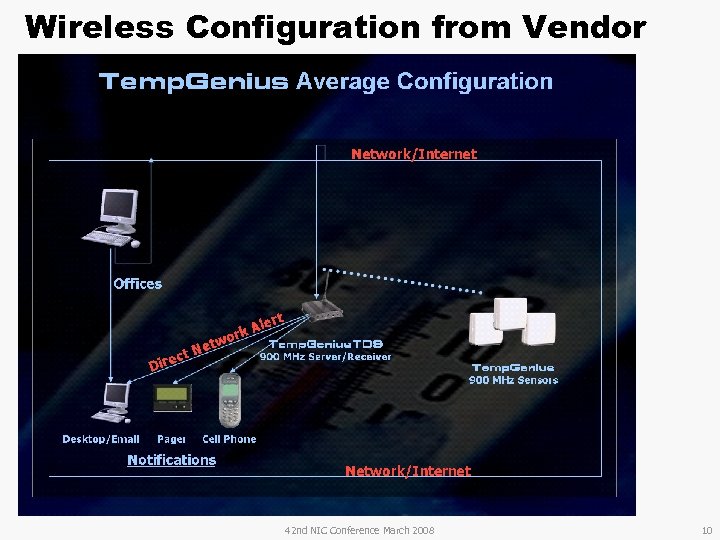

Wireless Configuration from Vendor 42 nd NIC Conference March 2008 10

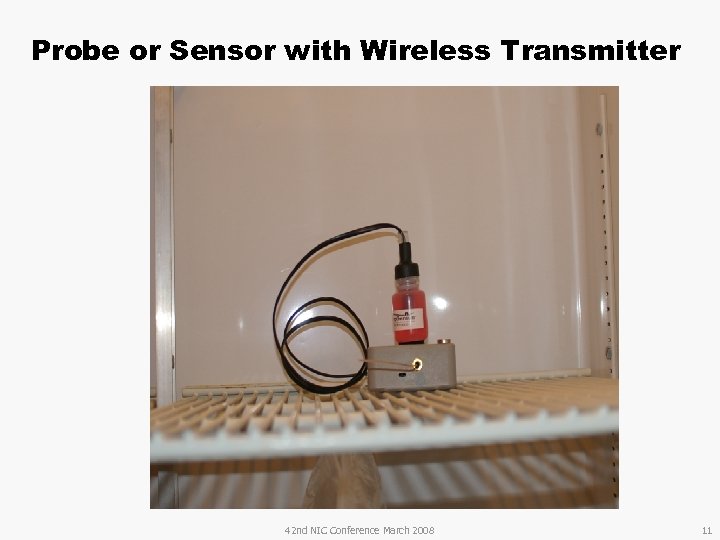

Probe or Sensor with Wireless Transmitter 42 nd NIC Conference March 2008 11

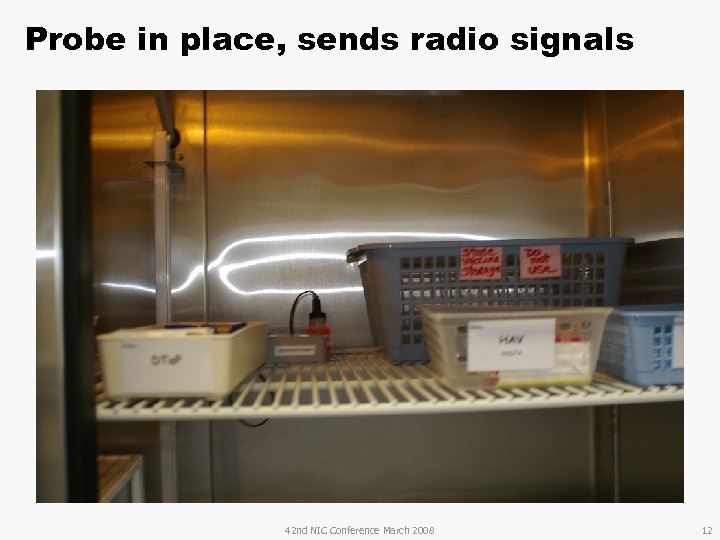

Probe in place, sends radio signals 42 nd NIC Conference March 2008 12

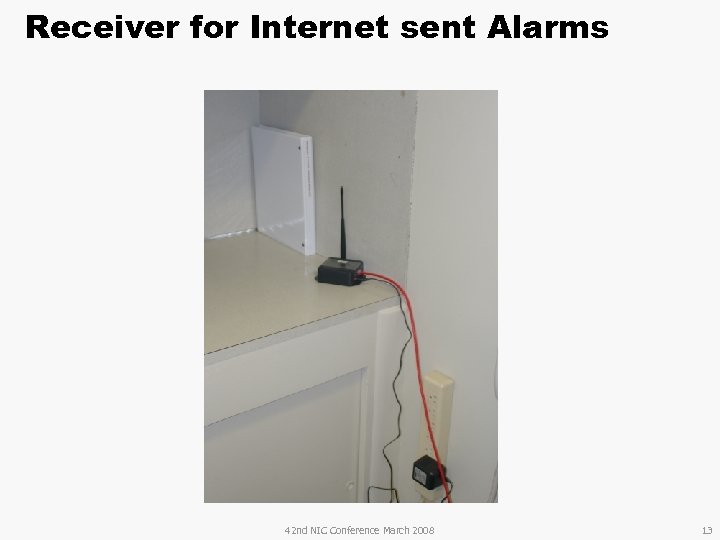

Receiver for Internet sent Alarms 42 nd NIC Conference March 2008 13

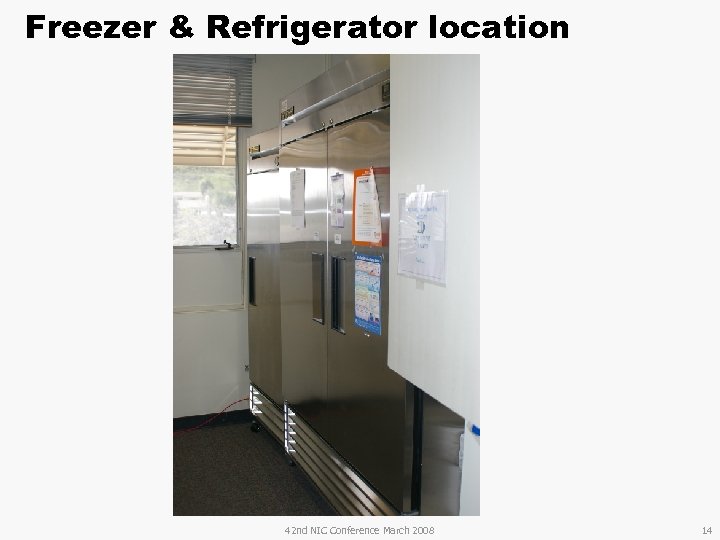

Freezer & Refrigerator location 42 nd NIC Conference March 2008 14

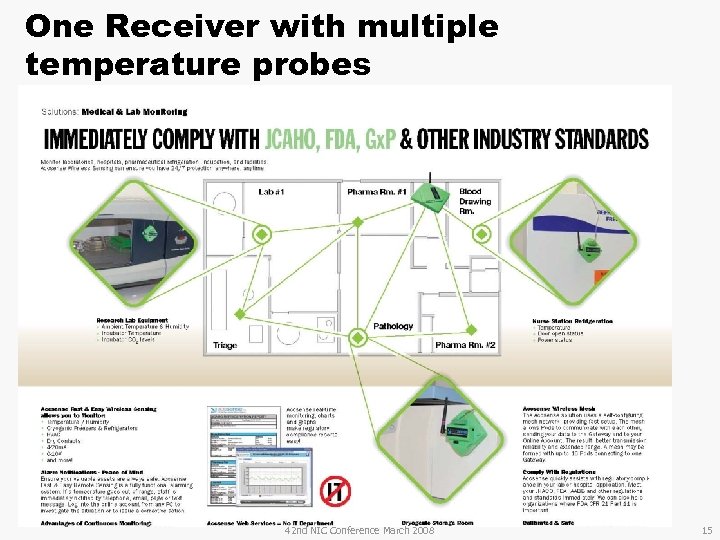

One Receiver with multiple temperature probes 42 nd NIC Conference March 2008 15

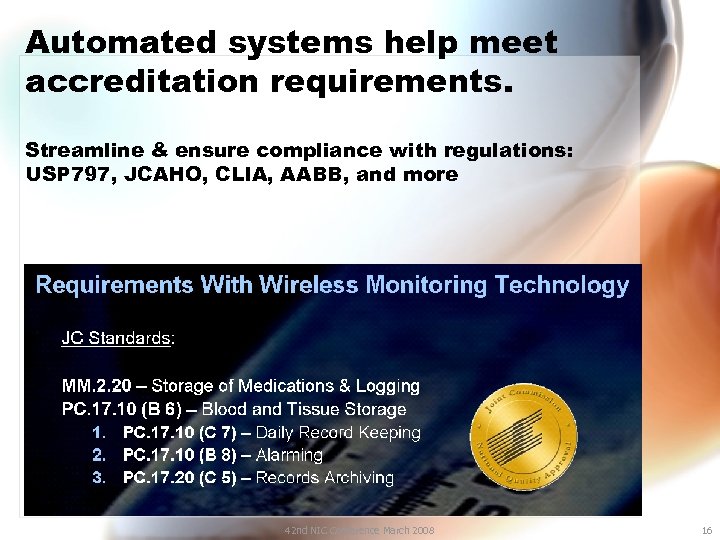

Automated systems help meet accreditation requirements. Streamline & ensure compliance with regulations: USP 797, JCAHO, CLIA, AABB, and more 42 nd NIC Conference March 2008 16

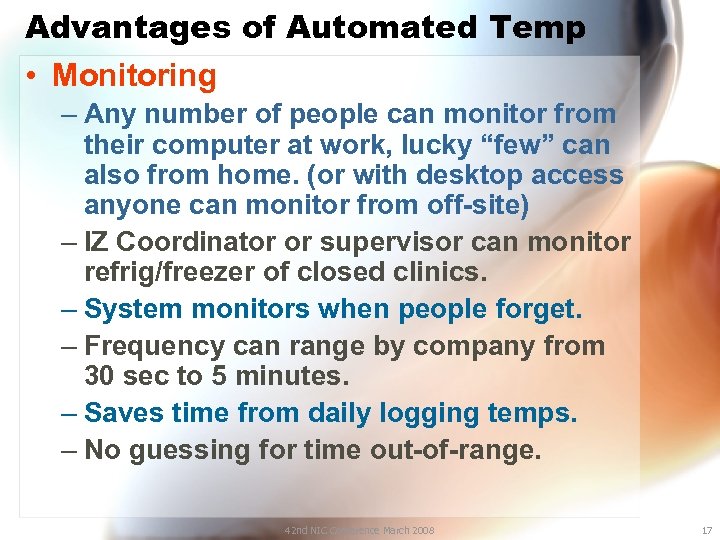

Advantages of Automated Temp • Monitoring – Any number of people can monitor from their computer at work, lucky “few” can also from home. (or with desktop access anyone can monitor from off-site) – IZ Coordinator or supervisor can monitor refrig/freezer of closed clinics. – System monitors when people forget. – Frequency can range by company from 30 sec to 5 minutes. – Saves time from daily logging temps. – No guessing for time out-of-range. 42 nd NIC Conference March 2008 17

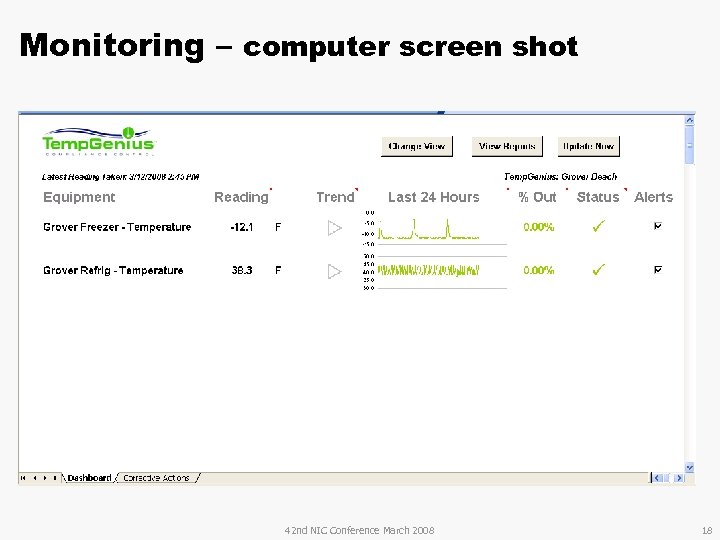

Monitoring – computer screen shot 42 nd NIC Conference March 2008 18

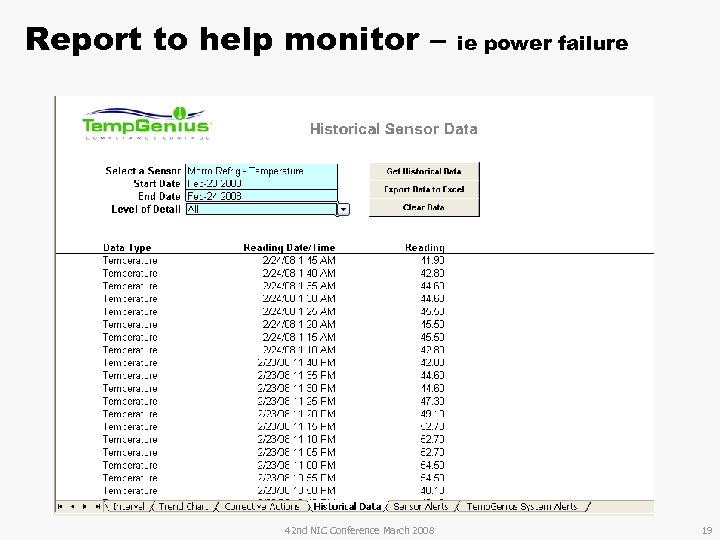

Report to help monitor – 42 nd NIC Conference March 2008 ie power failure 19

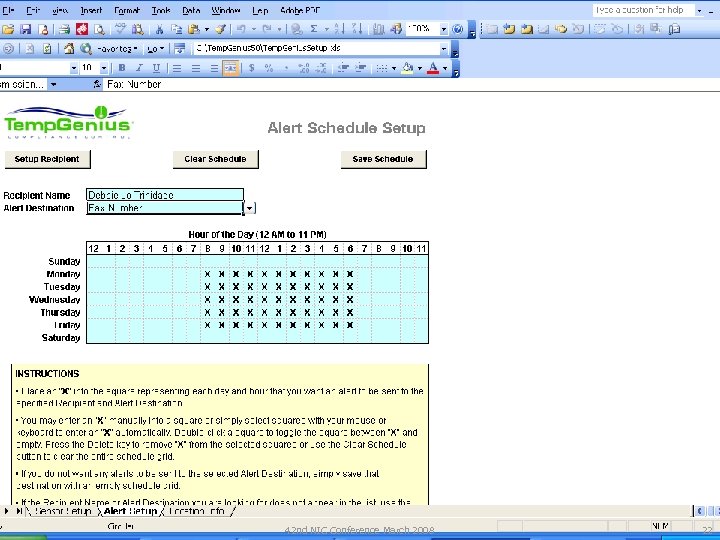

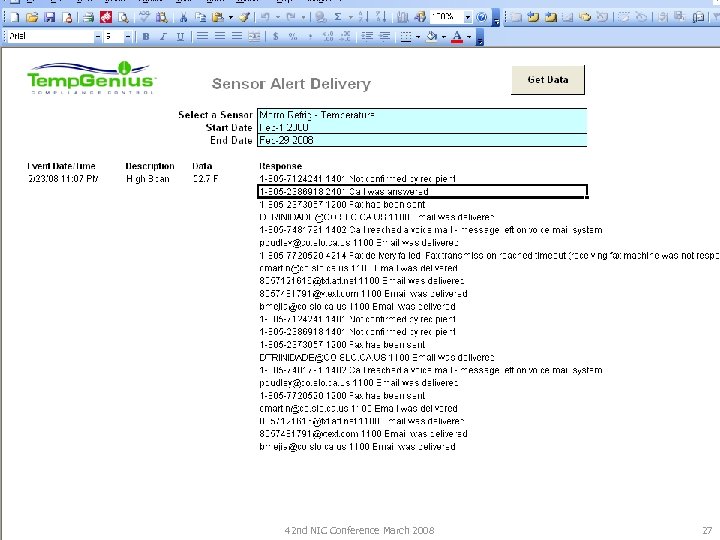

Advantages of Automated Temp • Alarms • Sent 24 hours 7 days – Can program different alert levels and times – Sent with office power / internet failures – Supervisor can designate different people, different days and times, with up to 7 points of contact person. (So Valuable) Business Phone Voice Number Text Message Pager Mobile Number Fax Email 42 nd NIC Conference March 2008 20

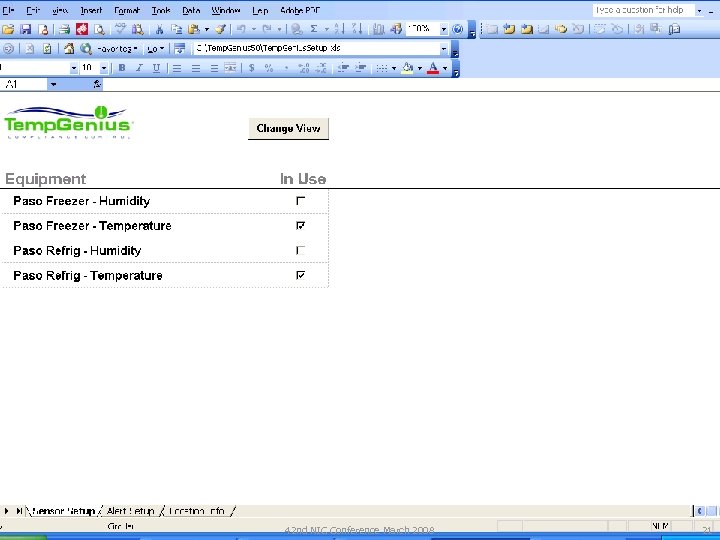

42 nd NIC Conference March 2008 21
42 nd NIC Conference March 2008 22
42 nd NIC Conference March 2008 23
42 nd NIC Conference March 2008 24

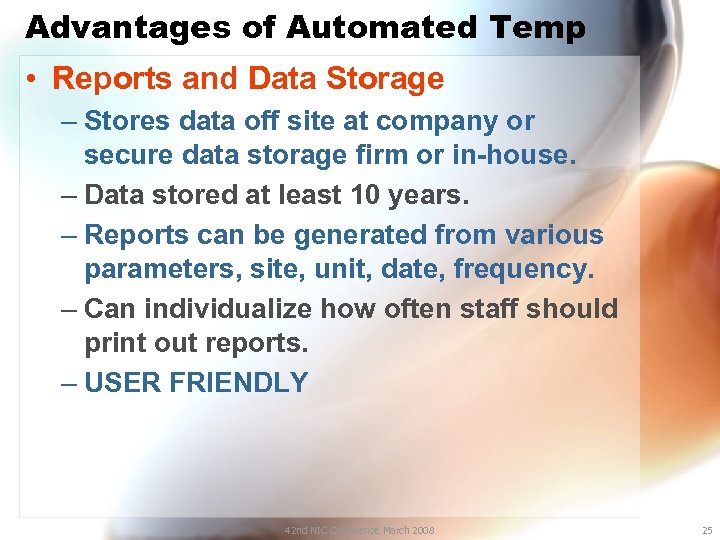

Advantages of Automated Temp • Reports and Data Storage – Stores data off site at company or secure data storage firm or in-house. – Data stored at least 10 years. – Reports can be generated from various parameters, site, unit, date, frequency. – Can individualize how often staff should print out reports. – USER FRIENDLY 42 nd NIC Conference March 2008 25
Clinic Report Staff Print Out 42 nd NIC Conference March 2008 26
42 nd NIC Conference March 2008 27
42 nd NIC Conference March 2008 28
42 nd NIC Conference March 2008 29

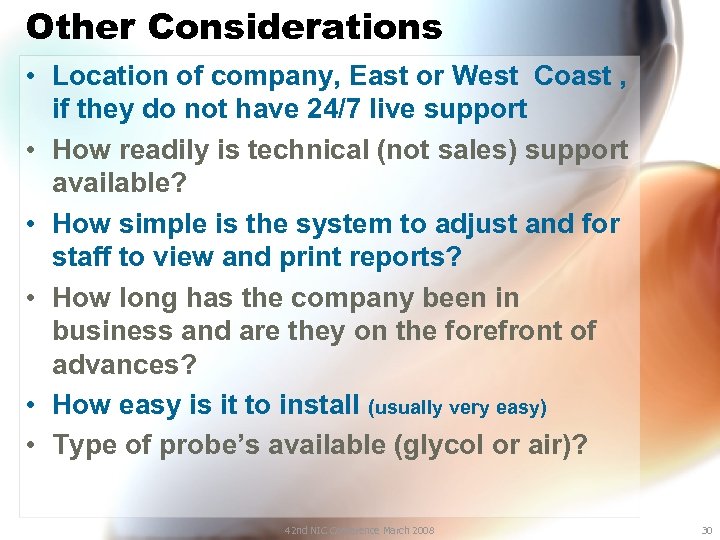

Other Considerations • Location of company, East or West Coast , if they do not have 24/7 live support • How readily is technical (not sales) support available? • How simple is the system to adjust and for staff to view and print reports? • How long has the company been in business and are they on the forefront of advances? • How easy is it to install (usually very easy) • Type of probe’s available (glycol or air)? 42 nd NIC Conference March 2008 30

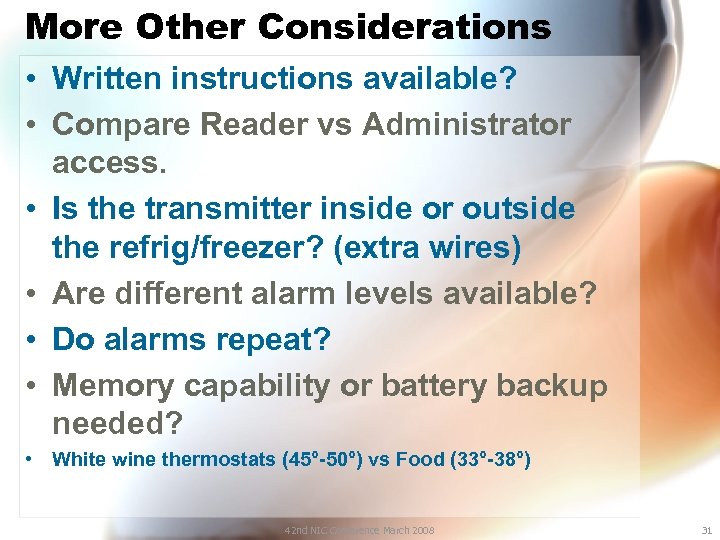

More Other Considerations • Written instructions available? • Compare Reader vs Administrator access. • Is the transmitter inside or outside the refrig/freezer? (extra wires) • Are different alarm levels available? • Do alarms repeat? • Memory capability or battery backup needed? • White wine thermostats (45°-50°) vs Food (33°-38°) 42 nd NIC Conference March 2008 31

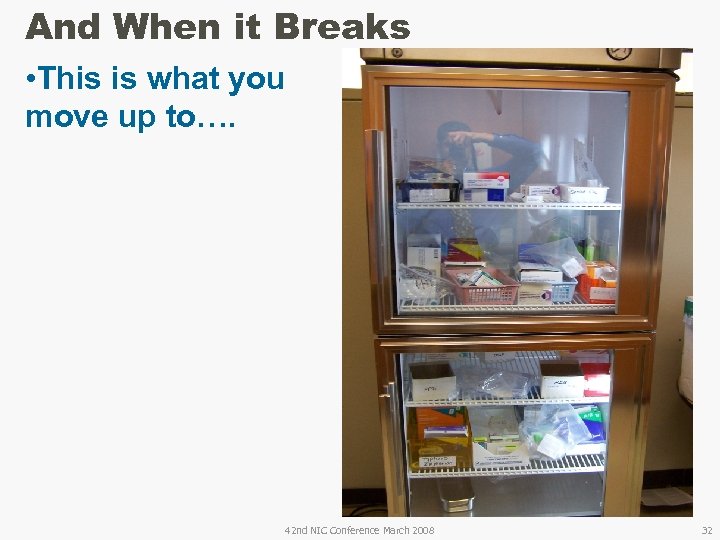

And When it Breaks • This is what you move up to…. 42 nd NIC Conference March 2008 32

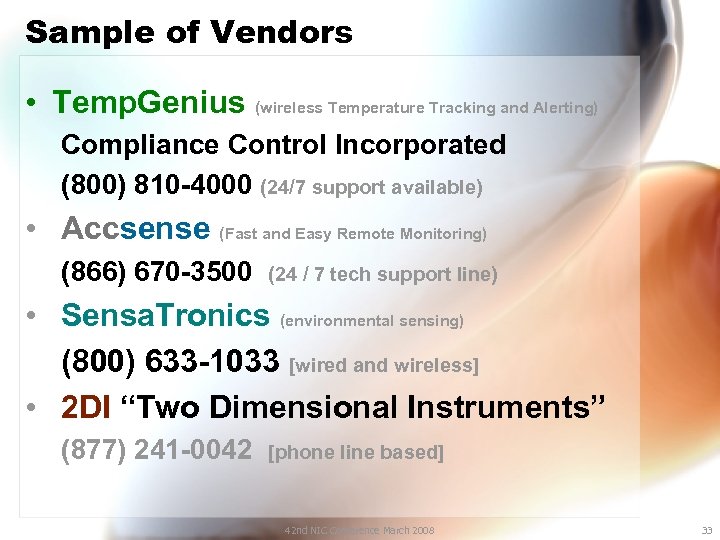

Sample of Vendors • Temp. Genius (wireless Temperature Tracking and Alerting) Compliance Control Incorporated (800) 810 -4000 (24/7 support available) • Accsense (Fast and Easy Remote Monitoring) (866) 670 -3500 (24 / 7 tech support line) • Sensa. Tronics (environmental sensing) (800) 633 -1033 [wired and wireless] • 2 DI “Two Dimensional Instruments” (877) 241 -0042 [phone line based] 42 nd NIC Conference March 2008 33
