Automated Police Reports System City of Pittsburgh Presented to March 5, 2007

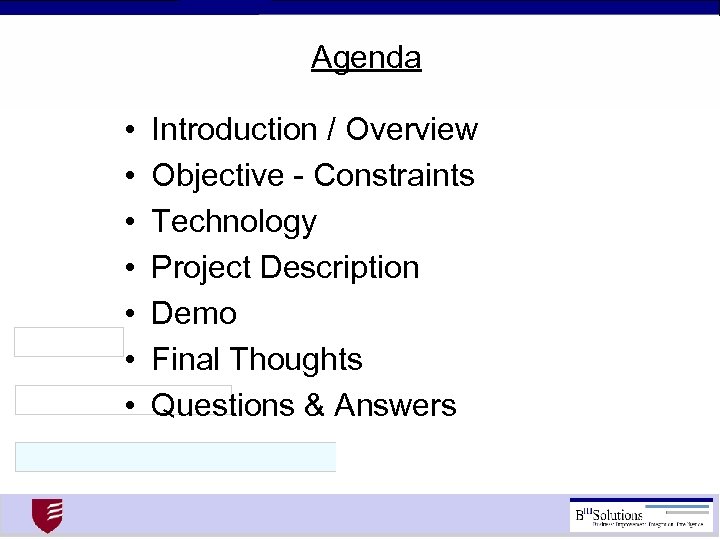

Agenda • • Introduction / Overview Objective - Constraints Technology Project Description Demo Final Thoughts Questions & Answers

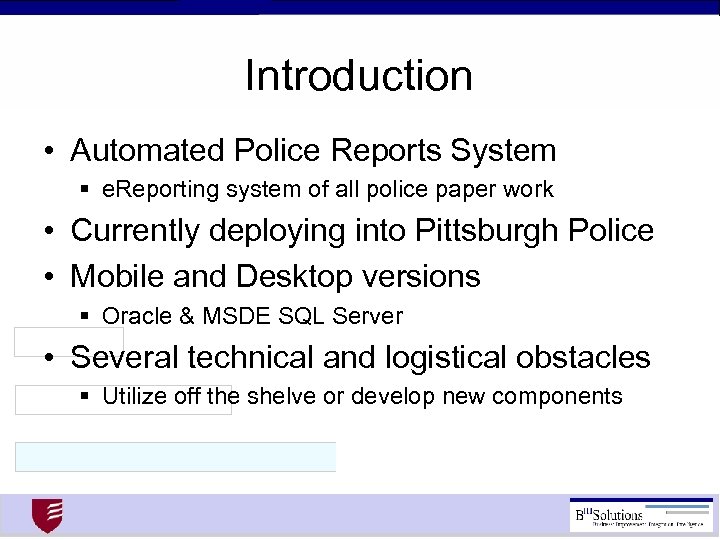

Introduction • Automated Police Reports System § e. Reporting system of all police paper work • Currently deploying into Pittsburgh Police • Mobile and Desktop versions § Oracle & MSDE SQL Server • Several technical and logistical obstacles § Utilize off the shelve or develop new components

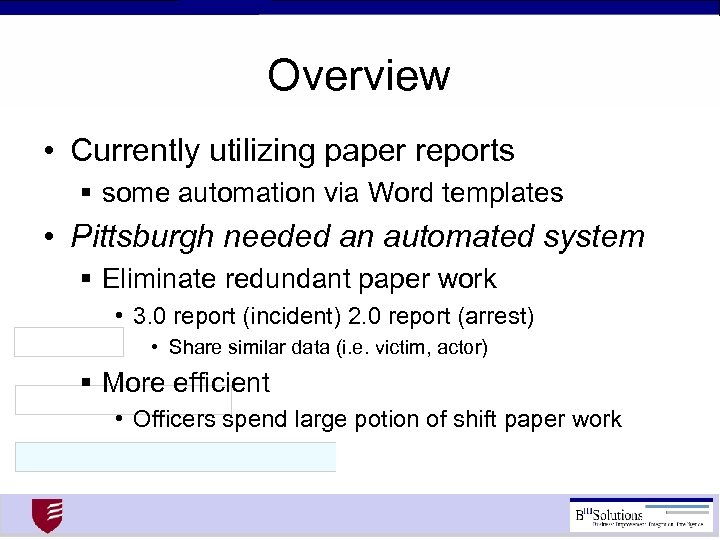

Overview • Currently utilizing paper reports § some automation via Word templates • Pittsburgh needed an automated system § Eliminate redundant paper work • 3. 0 report (incident) 2. 0 report (arrest) • Share similar data (i. e. victim, actor) § More efficient • Officers spend large potion of shift paper work

Overview • City of Pittsburgh Police § Approximately 900 officers § Approximately 300 cars • CRIMES: Record Management System § Prior to APRS; utilized paper reporting system § Scanned reports into imaging system Immediate availability for Command Staff § Records room data entry of reports

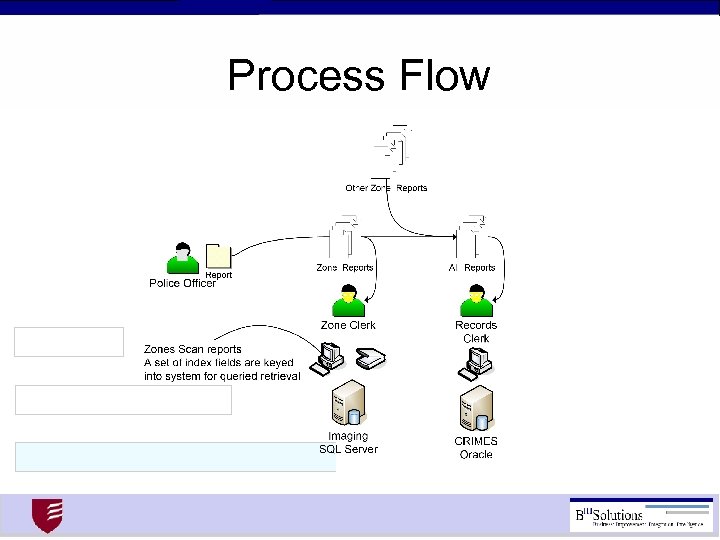

Process Flow

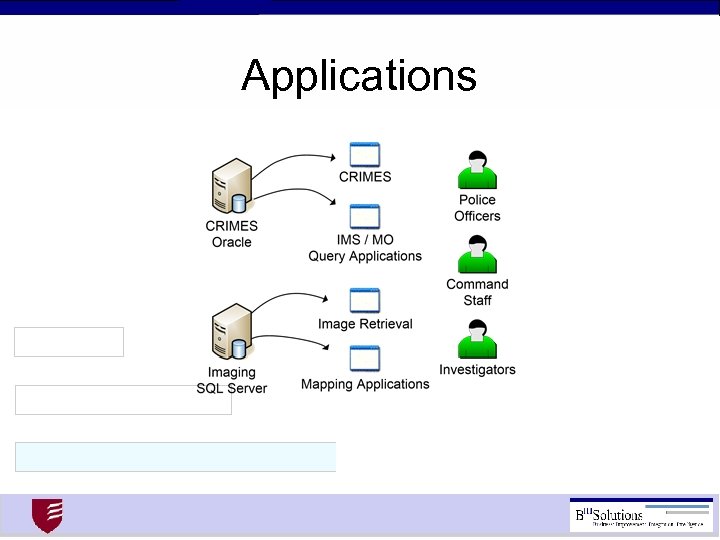

Applications

Report Forms • • • • Investigative 3. 0 Form (also called the Incident Report) Offense 2. 0 Form Supplemental Form Arrest Form Warrant Arrest Supplement Field Contact/Search/Seizure Form Subject Resistance Form Firearms Weapon Discharge Form Miranda Rights Form Juvenile Referral Form Missing Person Form Use of Canine Form

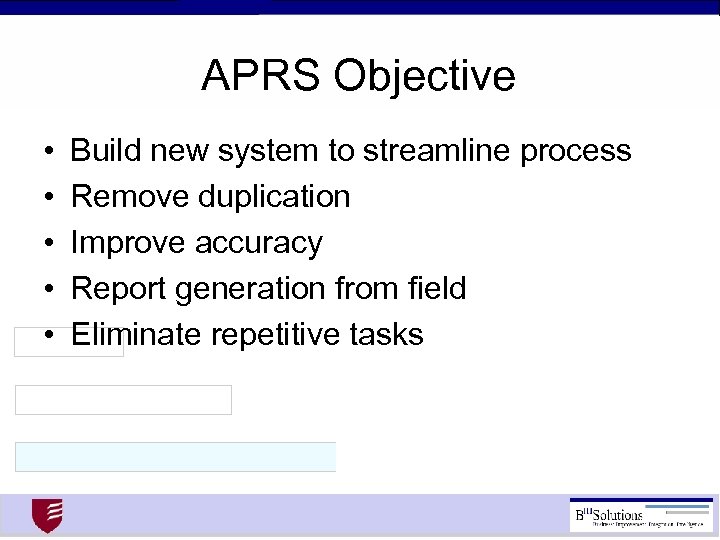

APRS Objective • • • Build new system to streamline process Remove duplication Improve accuracy Report generation from field Eliminate repetitive tasks

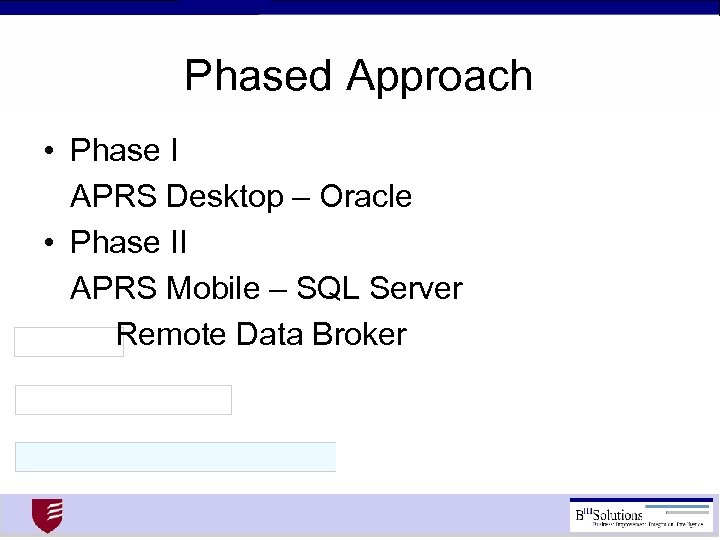

Phased Approach • Phase I APRS Desktop – Oracle • Phase II APRS Mobile – SQL Server Remote Data Broker

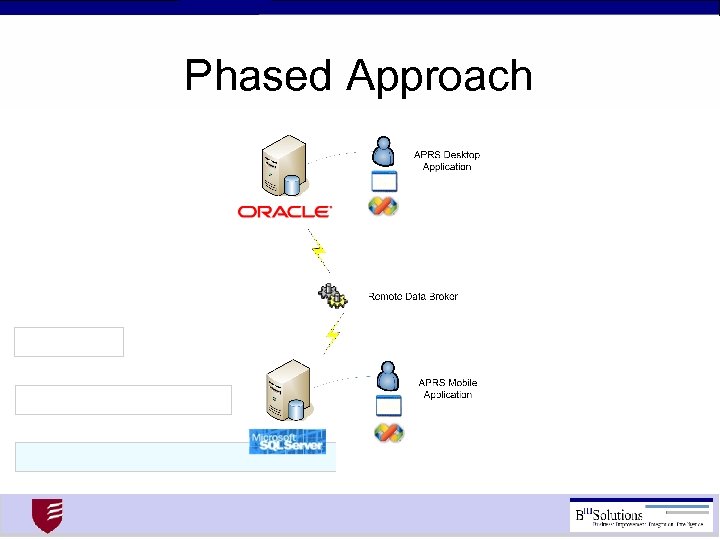

Phased Approach

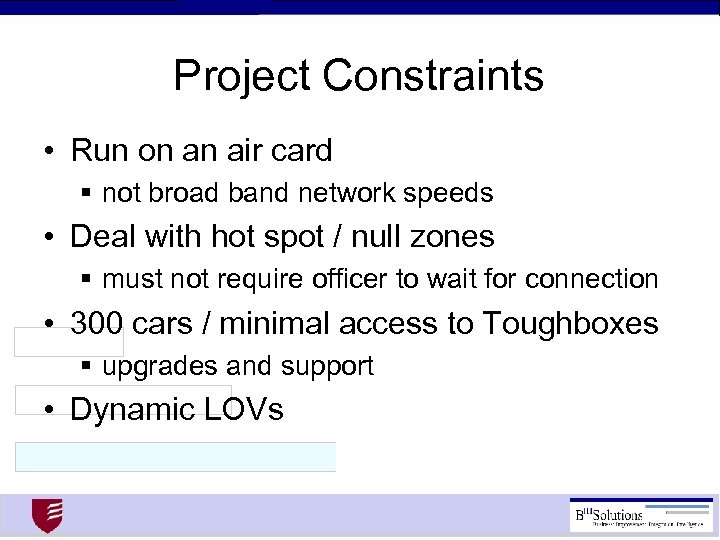

Project Constraints • Run on an air card § not broad band network speeds • Deal with hot spot / null zones § must not require officer to wait for connection • 300 cars / minimal access to Toughboxes § upgrades and support • Dynamic LOVs

Ideas?

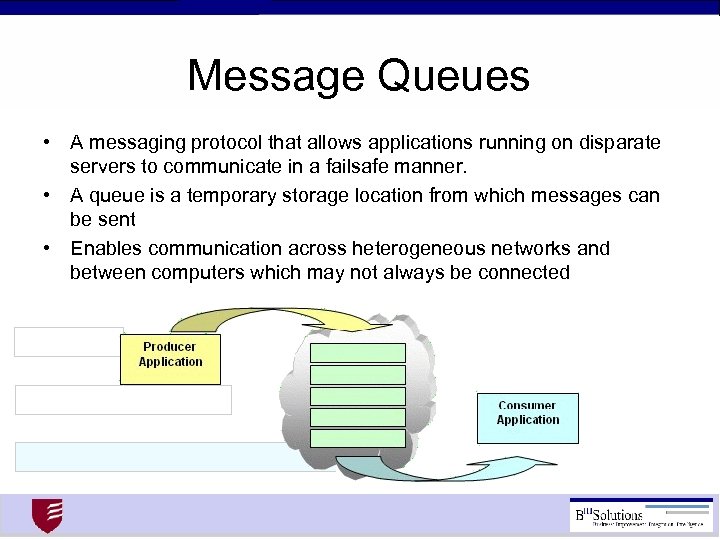

Message Queues • A messaging protocol that allows applications running on disparate servers to communicate in a failsafe manner. • A queue is a temporary storage location from which messages can be sent • Enables communication across heterogeneous networks and between computers which may not always be connected

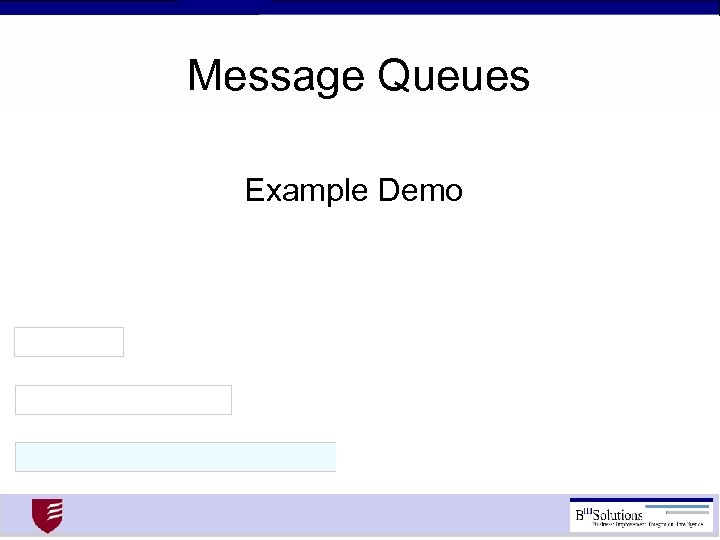

Message Queues Example Demo

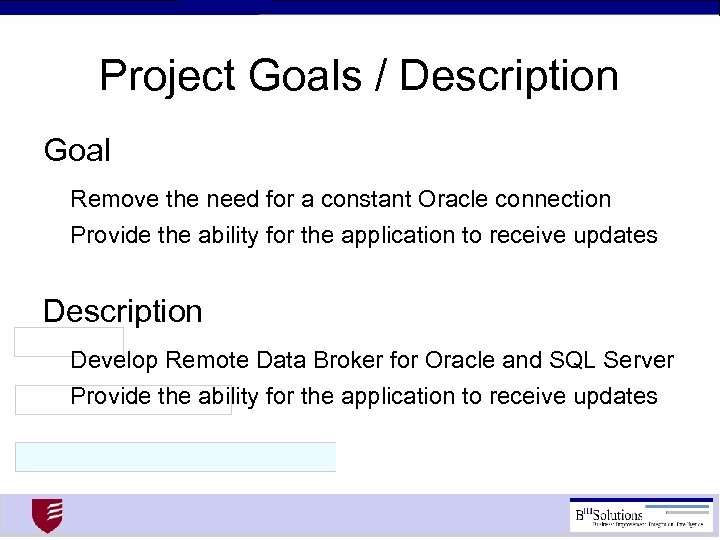

Project Goals / Description Goal Remove the need for a constant Oracle connection Provide the ability for the application to receive updates Description Develop Remote Data Broker for Oracle and SQL Server Provide the ability for the application to receive updates

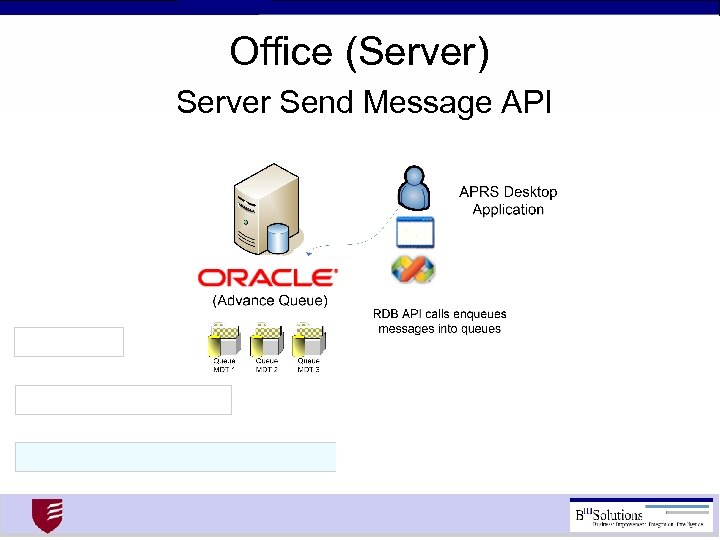

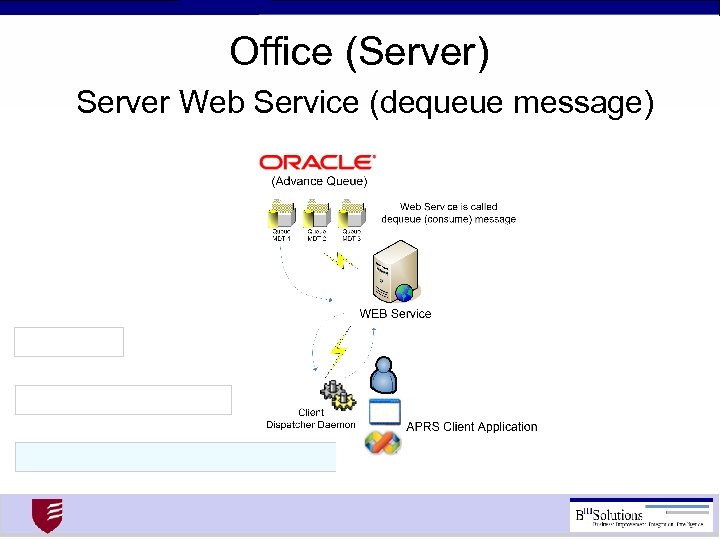

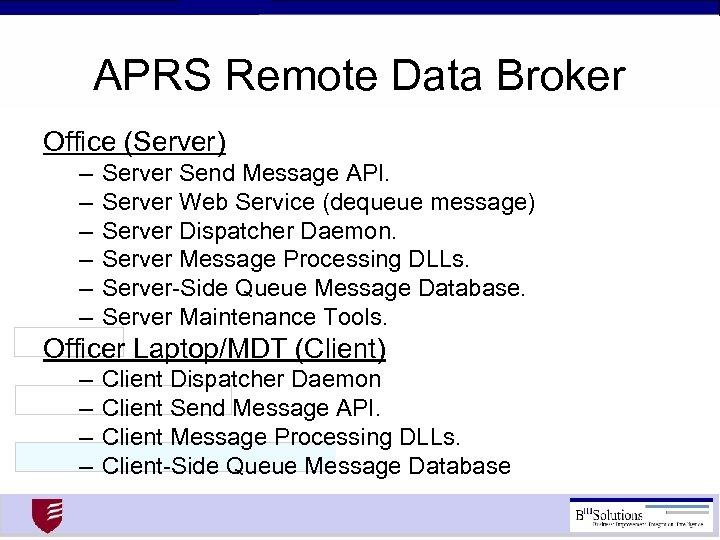

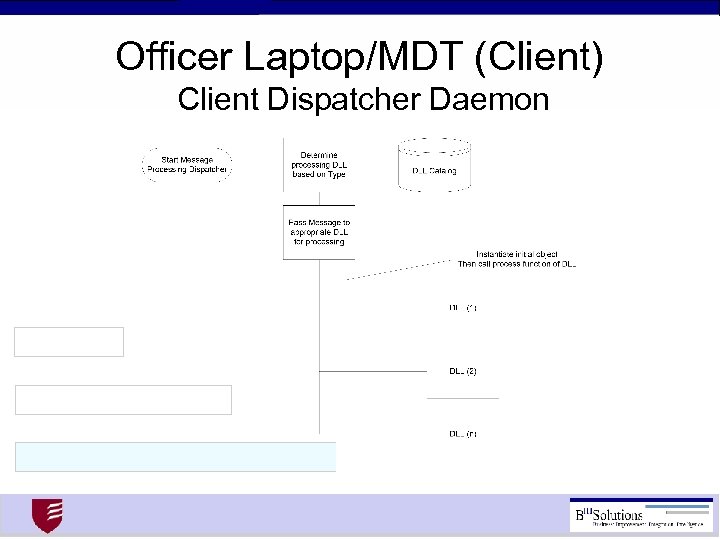

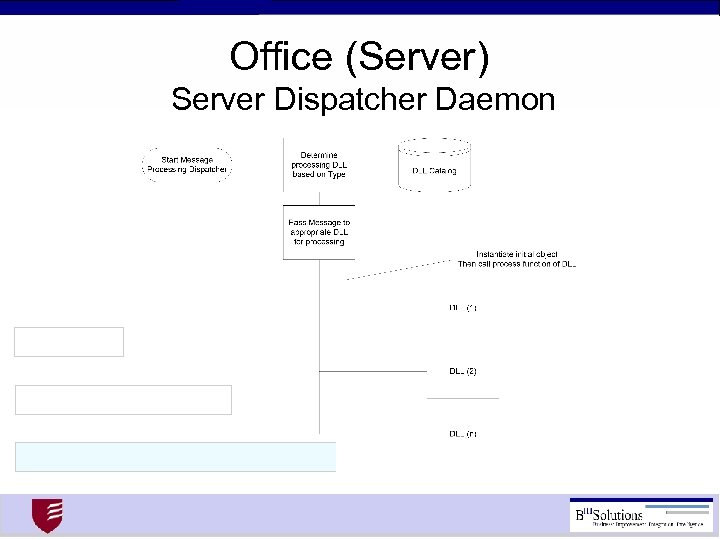

APRS Remote Data Broker Office (Server) – – – Server Send Message API. Server Web Service (dequeue message) Server Dispatcher Daemon. Server Message Processing DLLs. Server-Side Queue Message Database. Server Maintenance Tools. Officer Laptop/MDT (Client) – – Client Dispatcher Daemon Client Send Message API. Client Message Processing DLLs. Client-Side Queue Message Database
