ATLAS Trigger/DAQ Real-time use of the Grid Network Richard Hughes-Jones The University of Manchester ATLAS Trigger/DAQ Real-time use of the Grid Network Richard Hughes-Jones The University of Manchester Grid. PP Meeting Jan 2003 R. Hughes-Jones Manchester

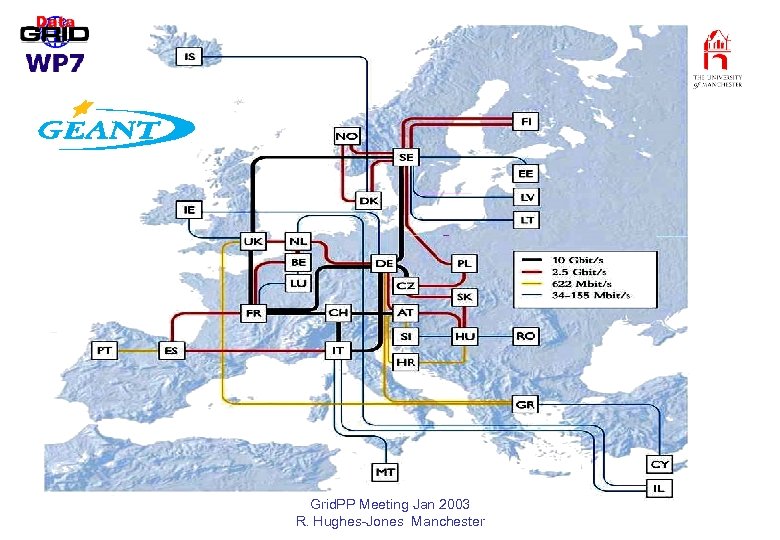

Grid. PP Meeting Jan 2003 R. Hughes-Jones Manchester Grid. PP Meeting Jan 2003 R. Hughes-Jones Manchester

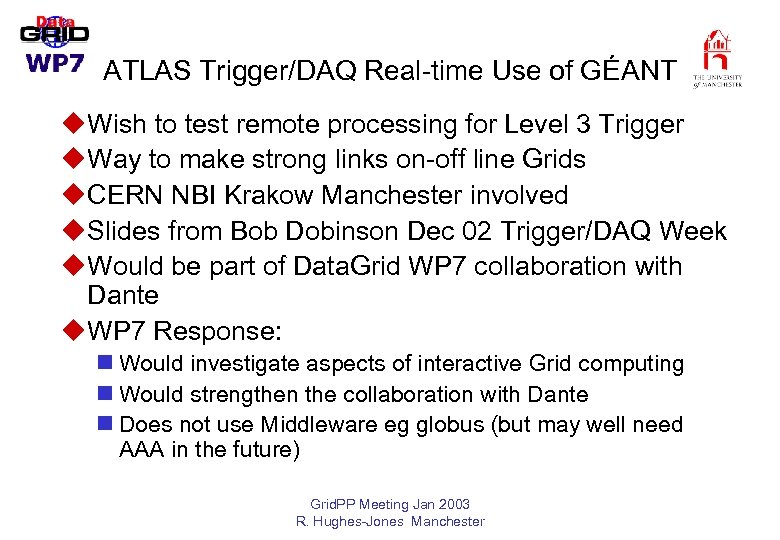

ATLAS Trigger/DAQ Real-time Use of GÉANT u. Wish to test remote processing for Level ATLAS Trigger/DAQ Real-time Use of GÉANT u. Wish to test remote processing for Level 3 Trigger u. Way to make strong links on-off line Grids u. CERN NBI Krakow Manchester involved u. Slides from Bob Dobinson Dec 02 Trigger/DAQ Week u. Would be part of Data. Grid WP 7 collaboration with Dante u. WP 7 Response: n Would investigate aspects of interactive Grid computing n Would strengthen the collaboration with Dante n Does not use Middleware eg globus (but may well need AAA in the future) Grid. PP Meeting Jan 2003 R. Hughes-Jones Manchester

An ATLAS TDAQ Candidate Architecture. u Message Flows: n L 2 PU request to An ATLAS TDAQ Candidate Architecture. u Message Flows: n L 2 PU request to ROBs. n SFI request to ROBs. n Super to L 2 PU. l Low rate ~ 230 Hz / L 2 PU n Super to DFM. l Grouped accept+reject from L 2 ~ 2 k. Hz 1 Super to 1 DMF n DMF to SFI. l Low rate ~ 20 Hz /SFI n DFM to ROB. l Mcast clears Grid. PP Meeting Jan 2003 R. Hughes-Jones Manchester

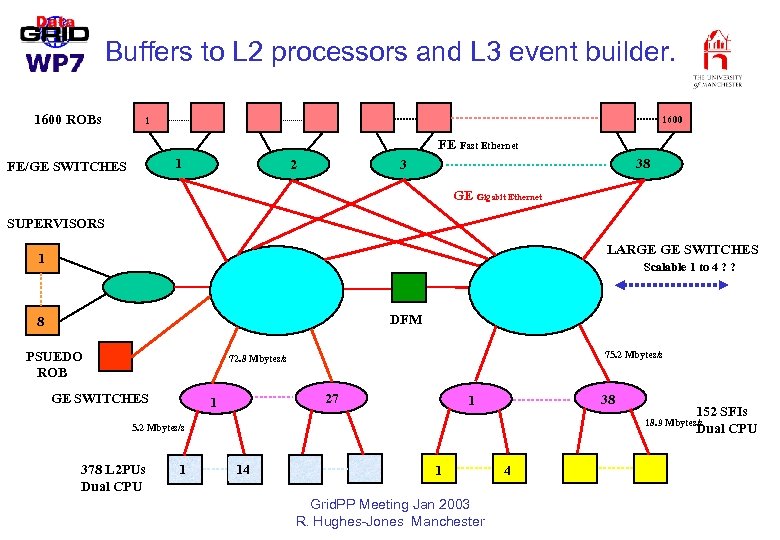

Buffers to L 2 processors and L 3 event builder. 1600 ROBs 1600 1 Buffers to L 2 processors and L 3 event builder. 1600 ROBs 1600 1 FE Fast Ethernet 1 FE/GE SWITCHES 38 3 2 GE Gigabit Ethernet SUPERVISORS LARGE GE SWITCHES 1 Scalable 1 to 4 ? ? DFM 8 PSUEDO ROB 75. 2 Mbytes/s 72. 8 Mbytes/s GE SWITCHES 27 1 38 1 5. 2 Mbytes/s 378 L 2 PUs Dual CPU 1 152 SFIs Dual CPU 18. 9 Mbytes/s 14 1 Grid. PP Meeting Jan 2003 R. Hughes-Jones Manchester 4

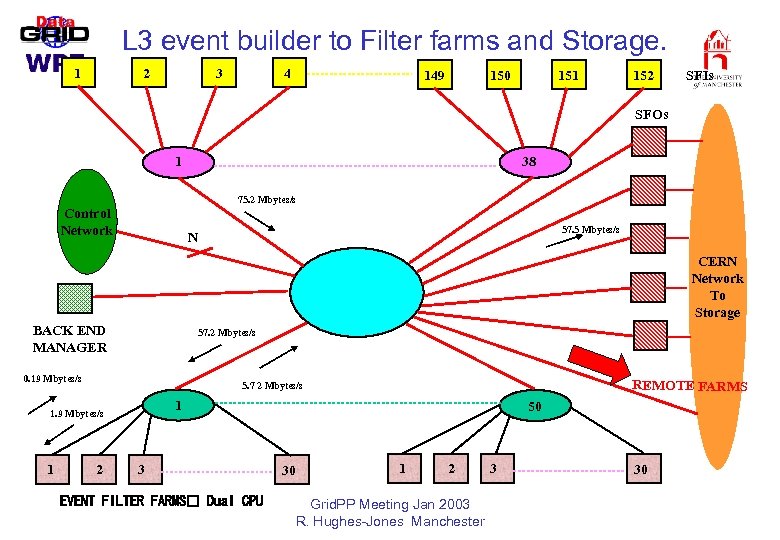

L 3 event builder to Filter farms and Storage. 1 2 3 4 149 L 3 event builder to Filter farms and Storage. 1 2 3 4 149 150 151 152 SFIs SFOs 1 38 75. 2 Mbytes/s Control Network 57. 5 Mbytes/s N CERN Network To Storage BACK END MANAGER 57. 2 Mbytes/s 0. 19 Mbytes/s 1 1. 9 Mbytes/s 1 REMOTE FARMS 5. 7 2 Mbytes/s 2 3 EVENT FILTER FARMS Dual CPU 50 30 1 2 Grid. PP Meeting Jan 2003 R. Hughes-Jones Manchester 3 30

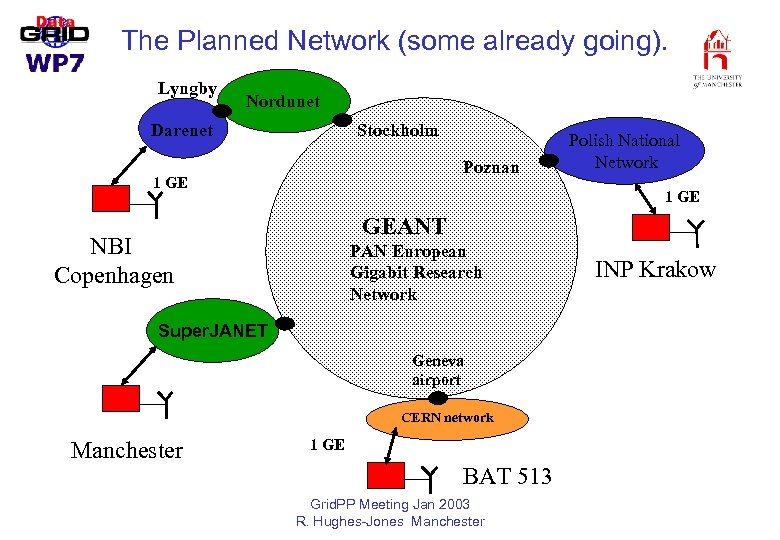

The Planned Network (some already going). Lyngby Nordunet Stockholm Darenet Poznan 1 GE GEANT The Planned Network (some already going). Lyngby Nordunet Stockholm Darenet Poznan 1 GE GEANT NBI Copenhagen PAN European Gigabit Research Network Super. JANET Geneva airport CERN network Manchester Polish National Network 1 GE BAT 513 Grid. PP Meeting Jan 2003 R. Hughes-Jones Manchester INP Krakow
