ATLAS LBNL Composites Capability August 11, 2005 ME Supervisors Meeting E. Anderssen, LBNL N. ATLAS LBNL Composites Capability August 11, 2005 ME Supervisors Meeting E. Anderssen, LBNL N. Hartman, CA Smith, LBNL August 2005 E. Anderssen LBNL

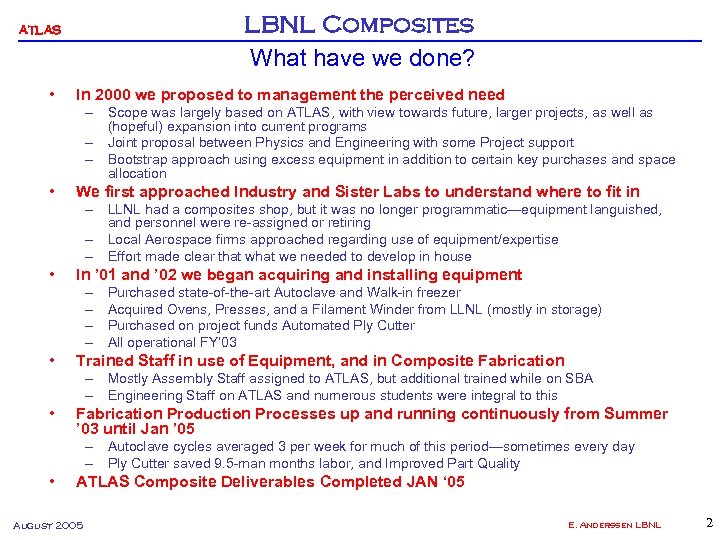

LBNL Composites What have we done? ATLAS • In 2000 we proposed to management LBNL Composites What have we done? ATLAS • In 2000 we proposed to management the perceived need – Scope was largely based on ATLAS, with view towards future, larger projects, as well as (hopeful) expansion into current programs – Joint proposal between Physics and Engineering with some Project support – Bootstrap approach using excess equipment in addition to certain key purchases and space allocation • We first approached Industry and Sister Labs to understand where to fit in – LLNL had a composites shop, but it was no longer programmatic—equipment languished, and personnel were re-assigned or retiring – Local Aerospace firms approached regarding use of equipment/expertise – Effort made clear that we needed to develop in house • In ’ 01 and ’ 02 we began acquiring and installing equipment – – • Purchased state-of-the-art Autoclave and Walk-in freezer Acquired Ovens, Presses, and a Filament Winder from LLNL (mostly in storage) Purchased on project funds Automated Ply Cutter All operational FY’ 03 Trained Staff in use of Equipment, and in Composite Fabrication – Mostly Assembly Staff assigned to ATLAS, but additional trained while on SBA – Engineering Staff on ATLAS and numerous students were integral to this • Fabrication Production Processes up and running continuously from Summer ’ 03 until Jan ’ 05 – Autoclave cycles averaged 3 per week for much of this period—sometimes every day – Ply Cutter saved 9. 5 -man months labor, and Improved Part Quality • ATLAS Composite Deliverables Completed JAN ‘ 05 August 2005 E. Anderssen LBNL 2

ATLAS • LBNL Composites Why Did we Do it? Prototyping in composite design is ATLAS • LBNL Composites Why Did we Do it? Prototyping in composite design is an integral part of design – Properties are largely determined by manufacturing process – Manufacturing bids have prototyping built into them – Companies which build your prototypes are forbidden from bidding on your production leading to double cost of prototypes • Consider usual design cycle of ‘Big Science’ project – ‘Requirements’ ill defined, and moving target—usually based on what can be done rather than what is ideal – Results of prototyping feed back into design requirements • Desire to break into above cycle – Cycle must be broken into to fit with our design model if there’s any hope to get industrial support for BIG Productions • Cycle can be broken without composite fab capability, but only with limited engineering input – Over specification of production procedures is usually a non-bid – ‘Big’ designs and capable companies usually end up with a clash of engineering—they would rather get requirements then design and manufacture the structure than be told what to build – Corollary: most capable companies will not bid on your project unless they design it in totality (bid reflects this) • August 2005 Above is True for ‘Structures’ not components, like tubes, plates, etc… E. Anderssen LBNL 3

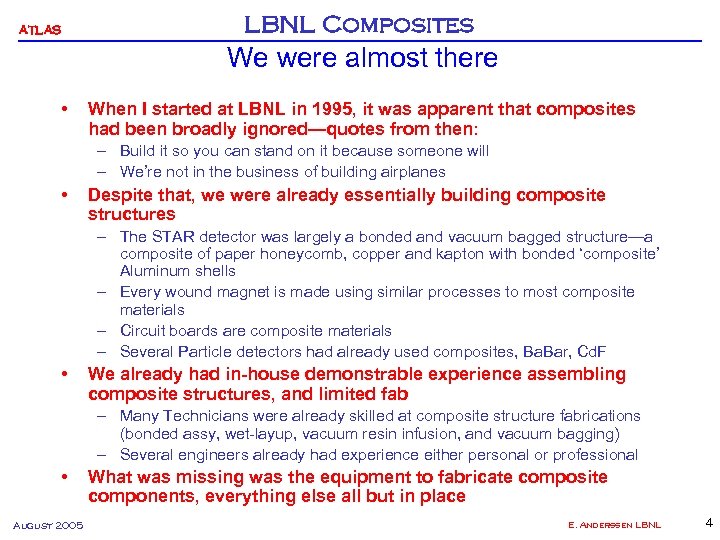

ATLAS LBNL Composites We were almost there • When I started at LBNL in ATLAS LBNL Composites We were almost there • When I started at LBNL in 1995, it was apparent that composites had been broadly ignored—quotes from then: – Build it so you can stand on it because someone will – We’re not in the business of building airplanes • Despite that, we were already essentially building composite structures – The STAR detector was largely a bonded and vacuum bagged structure—a composite of paper honeycomb, copper and kapton with bonded ‘composite’ Aluminum shells – Every wound magnet is made using similar processes to most composite materials – Circuit boards are composite materials – Several Particle detectors had already used composites, Ba. Bar, Cd. F • We already had in-house demonstrable experience assembling composite structures, and limited fab – Many Technicians were already skilled at composite structure fabrications (bonded assy, wet-layup, vacuum resin infusion, and vacuum bagging) – Several engineers already had experience either personal or professional • August 2005 What was missing was the equipment to fabricate composite components, everything else all but in place E. Anderssen LBNL 4

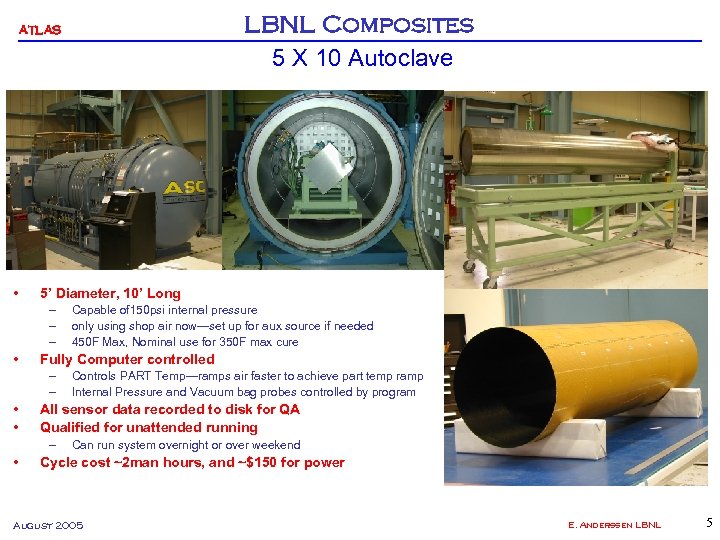

LBNL Composites 5 X 10 Autoclave ATLAS • 5’ Diameter, 10’ Long – – LBNL Composites 5 X 10 Autoclave ATLAS • 5’ Diameter, 10’ Long – – – • Fully Computer controlled – – • • Controls PART Temp—ramps air faster to achieve part temp ramp Internal Pressure and Vacuum bag probes controlled by program All sensor data recorded to disk for QA Qualified for unattended running – • Capable of 150 psi internal pressure only using shop air now—set up for aux source if needed 450 F Max, Nominal use for 350 F max cure Can run system overnight or over weekend Cycle cost ~2 man hours, and ~$150 for power August 2005 E. Anderssen LBNL 5

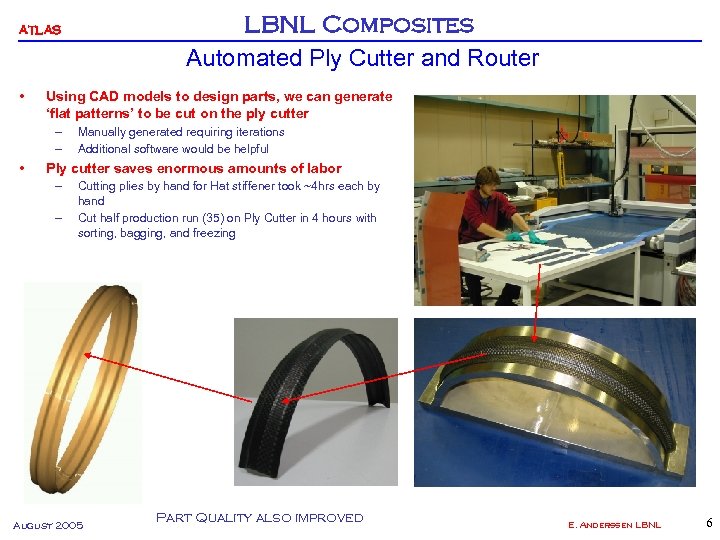

LBNL Composites Automated Ply Cutter and Router ATLAS • Using CAD models to design LBNL Composites Automated Ply Cutter and Router ATLAS • Using CAD models to design parts, we can generate ‘flat patterns’ to be cut on the ply cutter – – • Manually generated requiring iterations Additional software would be helpful Ply cutter saves enormous amounts of labor – – Cutting plies by hand for Hat stiffener took ~4 hrs each by hand Cut half production run (35) on Ply Cutter in 4 hours with sorting, bagging, and freezing August 2005 Part Quality also improved E. Anderssen LBNL 6

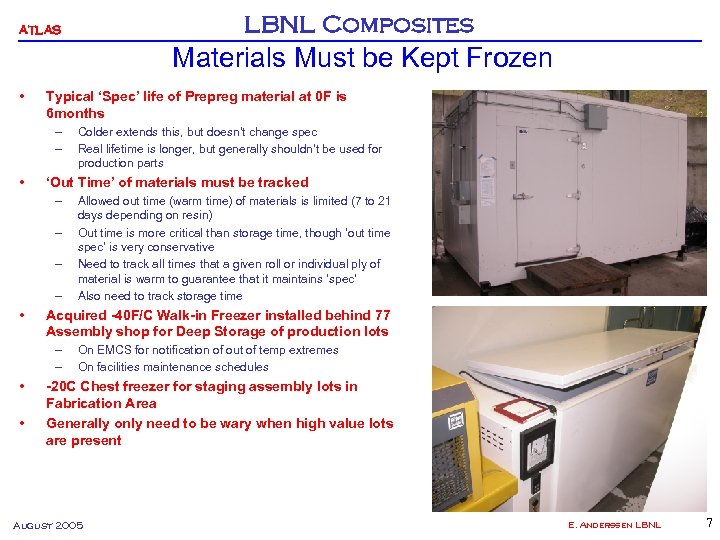

LBNL Composites ATLAS Materials Must be Kept Frozen • Typical ‘Spec’ life of Prepreg LBNL Composites ATLAS Materials Must be Kept Frozen • Typical ‘Spec’ life of Prepreg material at 0 F is 6 months – – • ‘Out Time’ of materials must be tracked – – • • Allowed out time (warm time) of materials is limited (7 to 21 days depending on resin) Out time is more critical than storage time, though ‘out time spec’ is very conservative Need to track all times that a given roll or individual ply of material is warm to guarantee that it maintains ‘spec’ Also need to track storage time Acquired -40 F/C Walk-in Freezer installed behind 77 Assembly shop for Deep Storage of production lots – – • Colder extends this, but doesn’t change spec Real lifetime is longer, but generally shouldn’t be used for production parts On EMCS for notification of out of temp extremes On facilities maintenance schedules -20 C Chest freezer for staging assembly lots in Fabrication Area Generally only need to be wary when high value lots are present August 2005 E. Anderssen LBNL 7

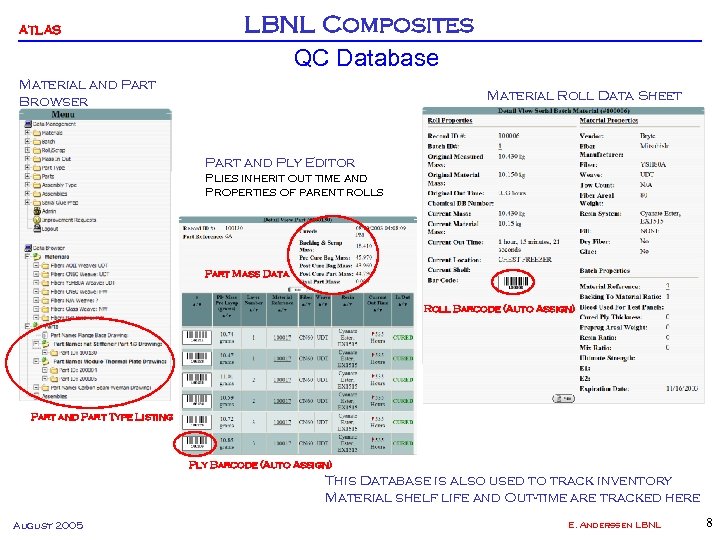

ATLAS LBNL Composites QC Database Material and Part Browser Material Roll Data Sheet Part ATLAS LBNL Composites QC Database Material and Part Browser Material Roll Data Sheet Part and Ply Editor Plies inherit out time and Properties of parent rolls Part Mass Data Roll Barcode (Auto Assign) Part and Part Type Listing Ply Barcode (Auto Assign) This Database is also used to track inventory Material shelf life and Out-time are tracked here August 2005 E. Anderssen LBNL 8

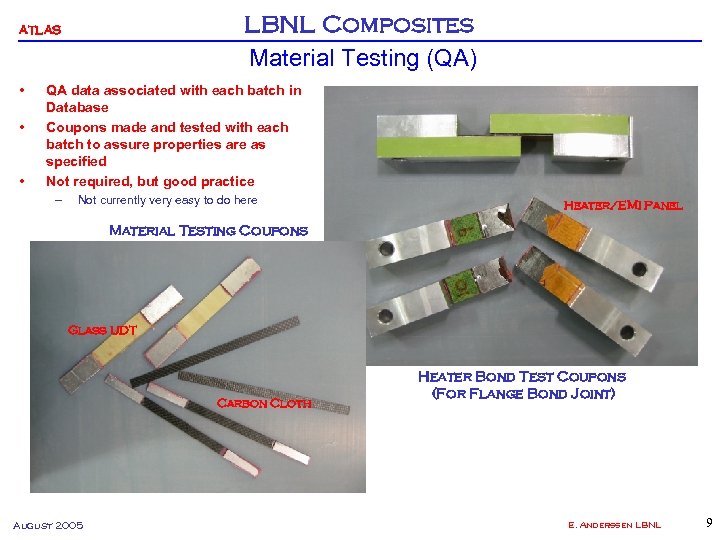

LBNL Composites Material Testing (QA) ATLAS • • • QA data associated with each LBNL Composites Material Testing (QA) ATLAS • • • QA data associated with each batch in Database Coupons made and tested with each batch to assure properties are as specified Not required, but good practice – Not currently very easy to do here Heater/EMI Panel Material Testing Coupons Glass UDT Carbon Cloth August 2005 Heater Bond Test Coupons (For Flange Bond Joint) E. Anderssen LBNL 9

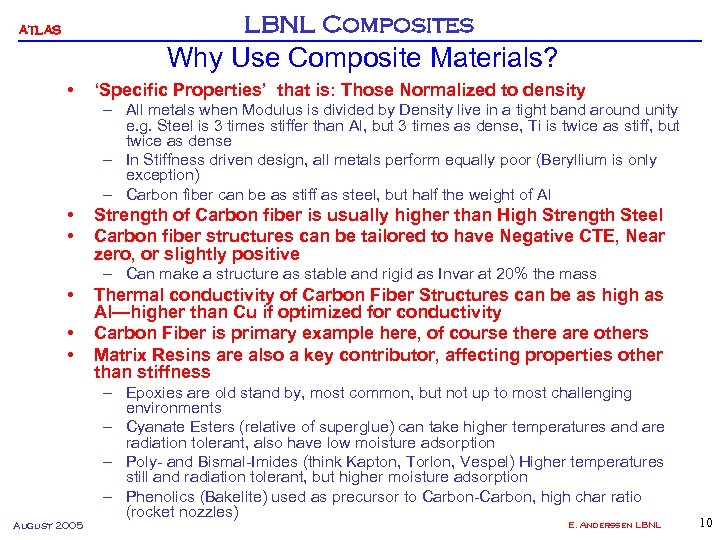

LBNL Composites ATLAS Why Use Composite Materials? • ‘Specific Properties’ that is: Those Normalized LBNL Composites ATLAS Why Use Composite Materials? • ‘Specific Properties’ that is: Those Normalized to density – All metals when Modulus is divided by Density live in a tight band around unity e. g. Steel is 3 times stiffer than Al, but 3 times as dense, Ti is twice as stiff, but twice as dense – In Stiffness driven design, all metals perform equally poor (Beryllium is only exception) – Carbon fiber can be as stiff as steel, but half the weight of Al • • Strength of Carbon fiber is usually higher than High Strength Steel Carbon fiber structures can be tailored to have Negative CTE, Near zero, or slightly positive – Can make a structure as stable and rigid as Invar at 20% the mass • • • Thermal conductivity of Carbon Fiber Structures can be as high as Al—higher than Cu if optimized for conductivity Carbon Fiber is primary example here, of course there are others Matrix Resins are also a key contributor, affecting properties other than stiffness – Epoxies are old stand by, most common, but not up to most challenging environments – Cyanate Esters (relative of superglue) can take higher temperatures and are radiation tolerant, also have low moisture adsorption – Poly- and Bismal-Imides (think Kapton, Torlon, Vespel) Higher temperatures still and radiation tolerant, but higher moisture adsorption – Phenolics (Bakelite) used as precursor to Carbon-Carbon, high char ratio (rocket nozzles) August 2005 E. Anderssen LBNL 10

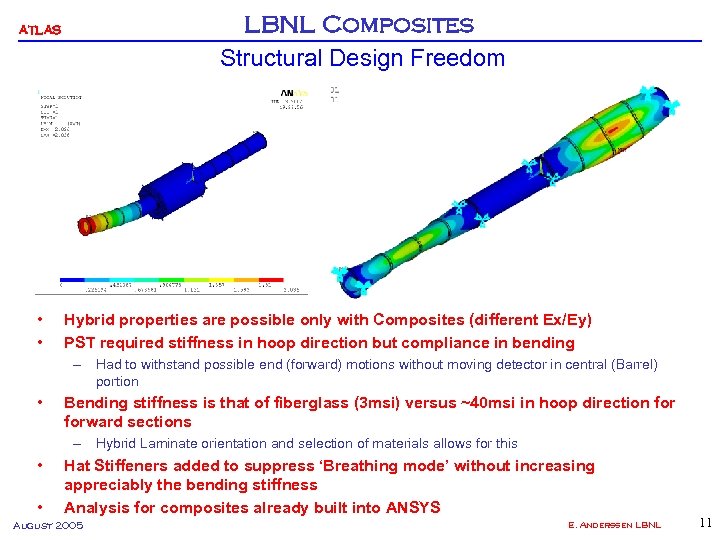

LBNL Composites Structural Design Freedom ATLAS • • Hybrid properties are possible only with LBNL Composites Structural Design Freedom ATLAS • • Hybrid properties are possible only with Composites (different Ex/Ey) PST required stiffness in hoop direction but compliance in bending – Had to withstand possible end (forward) motions without moving detector in central (Barrel) portion • Bending stiffness is that of fiberglass (3 msi) versus ~40 msi in hoop direction forward sections – Hybrid Laminate orientation and selection of materials allows for this • • Hat Stiffeners added to suppress ‘Breathing mode’ without increasing appreciably the bending stiffness Analysis for composites already built into ANSYS August 2005 E. Anderssen LBNL 11

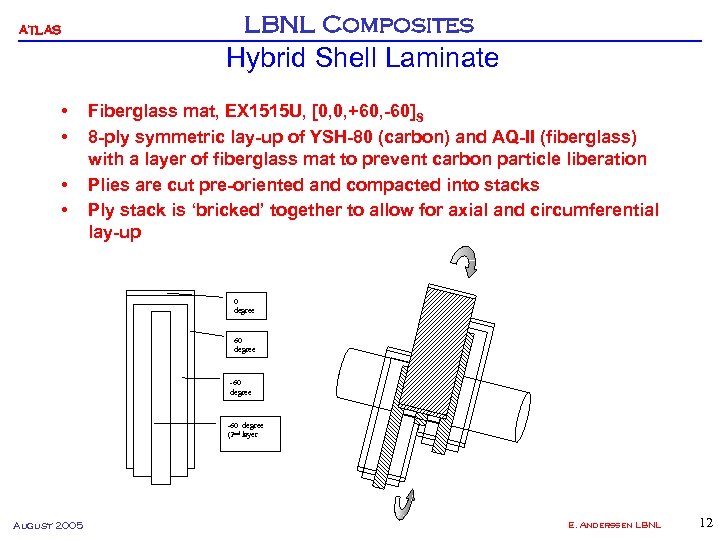

ATLAS LBNL Composites Hybrid Shell Laminate • • Fiberglass mat, EX 1515 U, [0, ATLAS LBNL Composites Hybrid Shell Laminate • • Fiberglass mat, EX 1515 U, [0, 0, +60, -60]S 8 -ply symmetric lay-up of YSH-80 (carbon) and AQ-II (fiberglass) with a layer of fiberglass mat to prevent carbon particle liberation Plies are cut pre-oriented and compacted into stacks Ply stack is ‘bricked’ together to allow for axial and circumferential lay-up 0 degree 60 degree -60 degree (2 nd layer August 2005 E. Anderssen LBNL 12

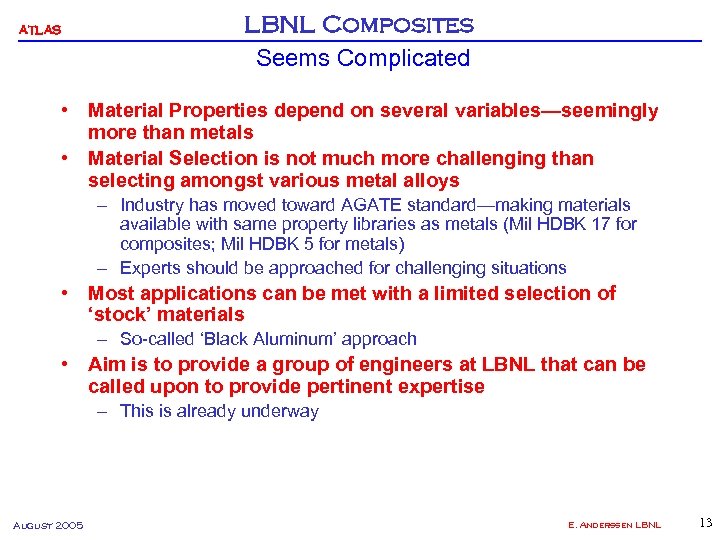

ATLAS LBNL Composites Seems Complicated • Material Properties depend on several variables—seemingly more than ATLAS LBNL Composites Seems Complicated • Material Properties depend on several variables—seemingly more than metals • Material Selection is not much more challenging than selecting amongst various metal alloys – Industry has moved toward AGATE standard—making materials available with same property libraries as metals (Mil HDBK 17 for composites; Mil HDBK 5 for metals) – Experts should be approached for challenging situations • Most applications can be met with a limited selection of ‘stock’ materials – So-called ‘Black Aluminum’ approach • Aim is to provide a group of engineers at LBNL that can be called upon to provide pertinent expertise – This is already underway August 2005 E. Anderssen LBNL 13

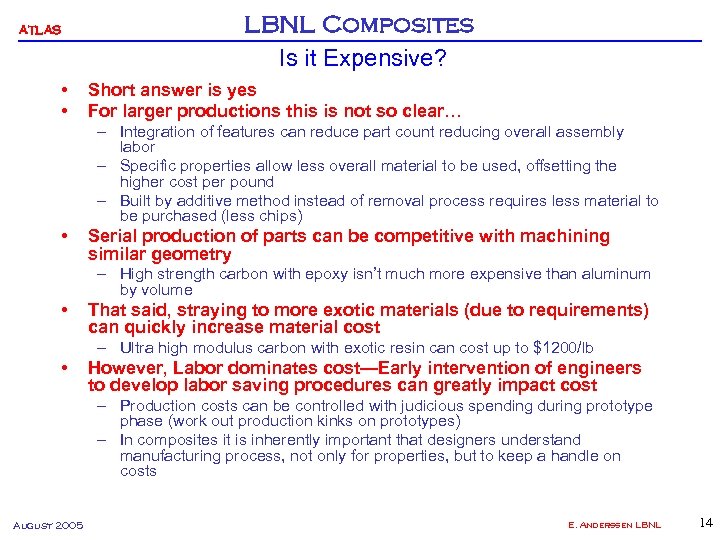

ATLAS • • LBNL Composites Is it Expensive? Short answer is yes For larger ATLAS • • LBNL Composites Is it Expensive? Short answer is yes For larger productions this is not so clear… – Integration of features can reduce part count reducing overall assembly labor – Specific properties allow less overall material to be used, offsetting the higher cost per pound – Built by additive method instead of removal process requires less material to be purchased (less chips) • Serial production of parts can be competitive with machining similar geometry – High strength carbon with epoxy isn’t much more expensive than aluminum by volume • That said, straying to more exotic materials (due to requirements) can quickly increase material cost – Ultra high modulus carbon with exotic resin can cost up to $1200/lb • However, Labor dominates cost—Early intervention of engineers to develop labor saving procedures can greatly impact cost – Production costs can be controlled with judicious spending during prototype phase (work out production kinks on prototypes) – In composites it is inherently important that designers understand manufacturing process, not only for properties, but to keep a handle on costs August 2005 E. Anderssen LBNL 14

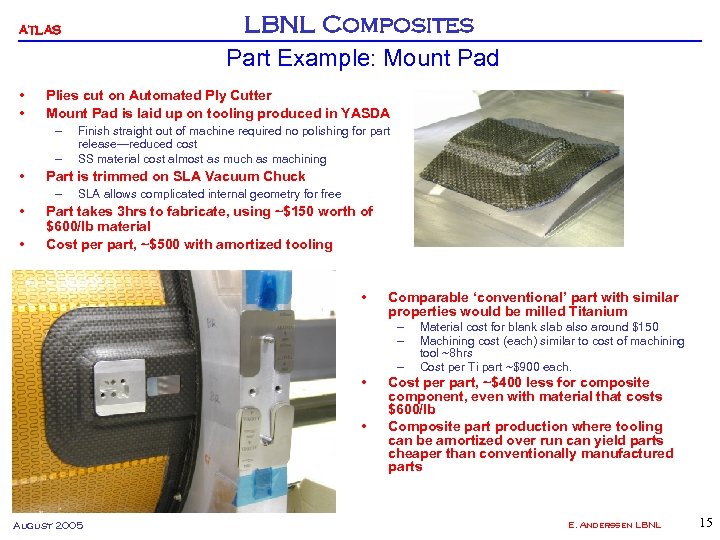

LBNL Composites Part Example: Mount Pad ATLAS • • Plies cut on Automated Ply LBNL Composites Part Example: Mount Pad ATLAS • • Plies cut on Automated Ply Cutter Mount Pad is laid up on tooling produced in YASDA – – • Part is trimmed on SLA Vacuum Chuck – • • Finish straight out of machine required no polishing for part release—reduced cost SS material cost almost as much as machining SLA allows complicated internal geometry for free Part takes 3 hrs to fabricate, using ~$150 worth of $600/lb material Cost per part, ~$500 with amortized tooling • Comparable ‘conventional’ part with similar properties would be milled Titanium – – – • • August 2005 Material cost for blank slab also around $150 Machining cost (each) similar to cost of machining tool ~8 hrs Cost per Ti part ~$900 each. Cost per part, ~$400 less for composite component, even with material that costs $600/lb Composite part production where tooling can be amortized over run can yield parts cheaper than conventionally manufactured parts E. Anderssen LBNL 15

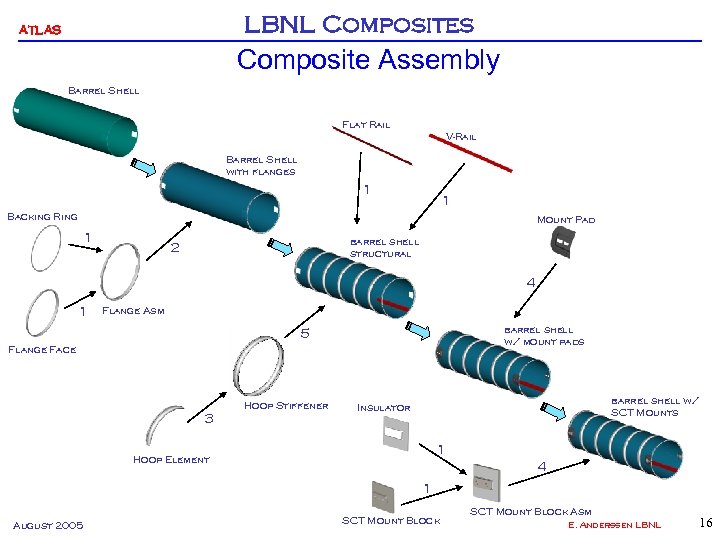

LBNL Composites ATLAS Composite Assembly Barrel Shell Flat Rail V-Rail Barrel Shell with flanges LBNL Composites ATLAS Composite Assembly Barrel Shell Flat Rail V-Rail Barrel Shell with flanges 1 1 Backing Ring Mount Pad 1 barrel shell structural 2 4 1 Flange Asm barrel shell w/ mount pads 5 Flange Face 3 Hoop Stiffener barrel shell w/ SCT Mounts Insulator 1 Hoop Element 4 1 August 2005 SCT Mount Block Asm E. Anderssen LBNL 16

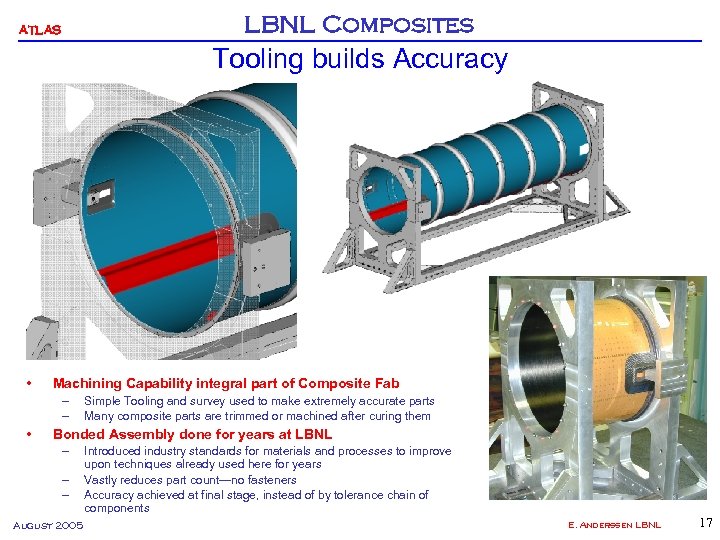

ATLAS LBNL Composites Tooling builds Accuracy • Machining Capability integral part of Composite Fab ATLAS LBNL Composites Tooling builds Accuracy • Machining Capability integral part of Composite Fab – – • Simple Tooling and survey used to make extremely accurate parts Many composite parts are trimmed or machined after curing them Bonded Assembly done for years at LBNL – – – August 2005 Introduced industry standards for materials and processes to improve upon techniques already used here for years Vastly reduces part count—no fasteners Accuracy achieved at final stage, instead of by tolerance chain of components E. Anderssen LBNL 17

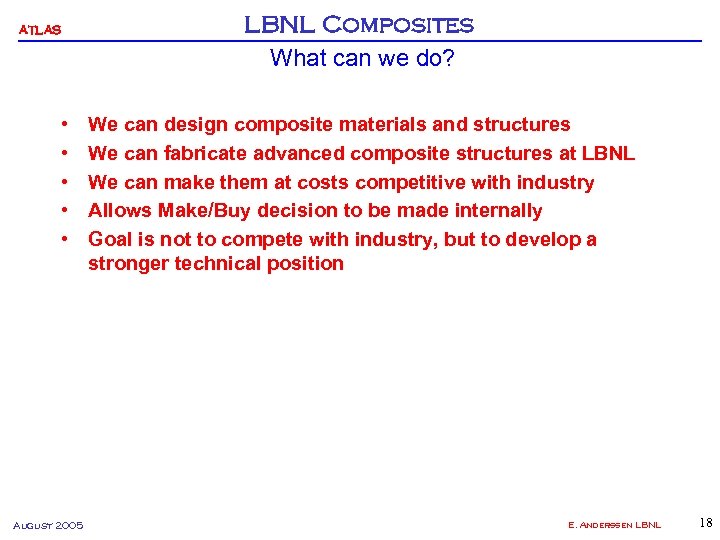

ATLAS • • • August 2005 LBNL Composites What can we do? We can ATLAS • • • August 2005 LBNL Composites What can we do? We can design composite materials and structures We can fabricate advanced composite structures at LBNL We can make them at costs competitive with industry Allows Make/Buy decision to be made internally Goal is not to compete with industry, but to develop a stronger technical position E. Anderssen LBNL 18
