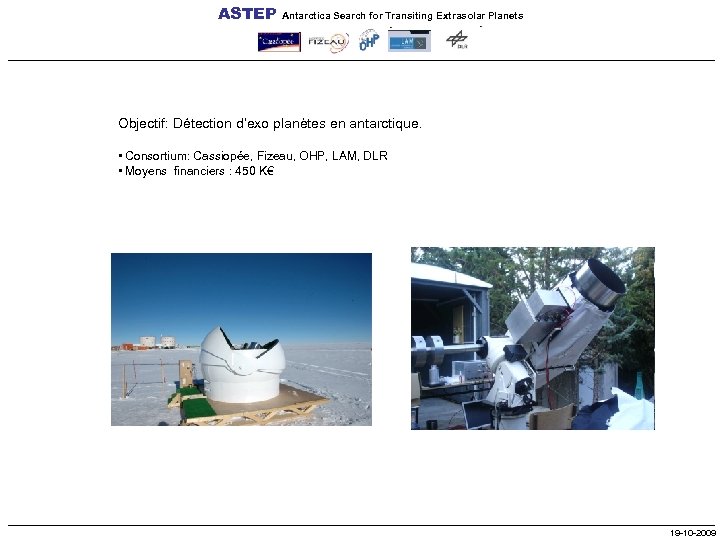

ASTEP Antarctica Search for Transiting Extrasolar Planets Objectif: Détection d’exo planètes en antarctique. • Consortium: Cassiopée, Fizeau, OHP, LAM, DLR • Moyens financiers : 450 K€ 19 -10 -2009
ASTEP Antarctica Search for Transiting Extrasolar Planets Laboratoire Cassiopée (OCA - UNS - CNRS): Tristan Guillot (PI) Scientific preparation, operation supervision, preparation of modelling tools, analysis of the results and scientific interpretation Francois Fressin (IS) Scientific preparation, modelling tools, data reduction, analysis of the results and scientific interpretation Nicolas Crouzet Scientific preparation, modelling tools, data reduction, analysis of the results and scientific interpretation Jean-Pierre Rivet Instrument design consulting Laboratoire FIZEAU (OCA - UNS - CNRS): François-Xavier Schmider Scientific specifications, analysis of the results and scientific interpretation Karim Agabi (PM) Project management, Dome C logistics, telescope control systems Jean-Baptiste Daban Telescope design responsible, mechanical design, finite element analysis Carole Gouvret Optical design, optical tolerancing Eric Fossat Relations with IPEV, analysis of the results and scientific interpretation Lyu Abe Instrument control software responsible Alain Blazit Camera tests, A STEP South design Yan Fantei Instrument control software Alain Roussel Mechanical design Sebastien Ottogalli Thermal modeling Pierre Assus Optical design consulting Michel Dugué Instrument software consulting 19 -10 -2009

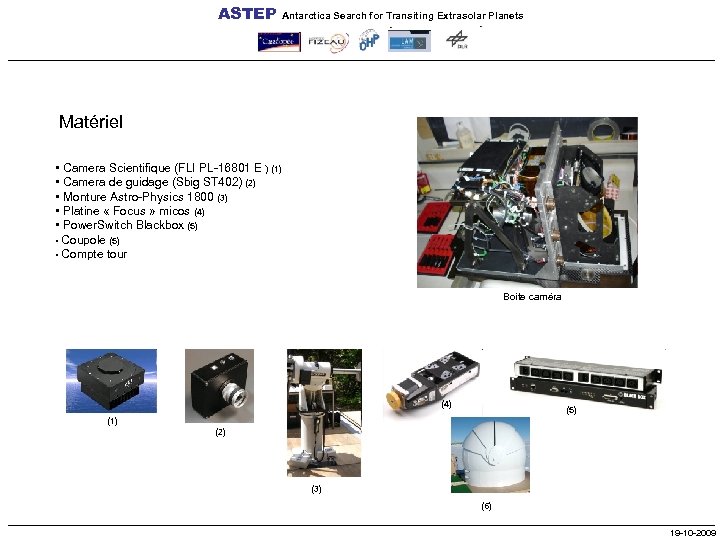

ASTEP Antarctica Search for Transiting Extrasolar Planets Matériel • Camera Scientifique (FLI PL-16801 E ) (1) • Camera de guidage (Sbig ST 402) (2) • Monture Astro-Physics 1800 (3) • Platine « Focus » micos (4) • Power. Switch Blackbox (5) • Coupole (5) • Compte tour Boite caméra (4) (5) (1) (2) (3) (6) 19 -10 -2009

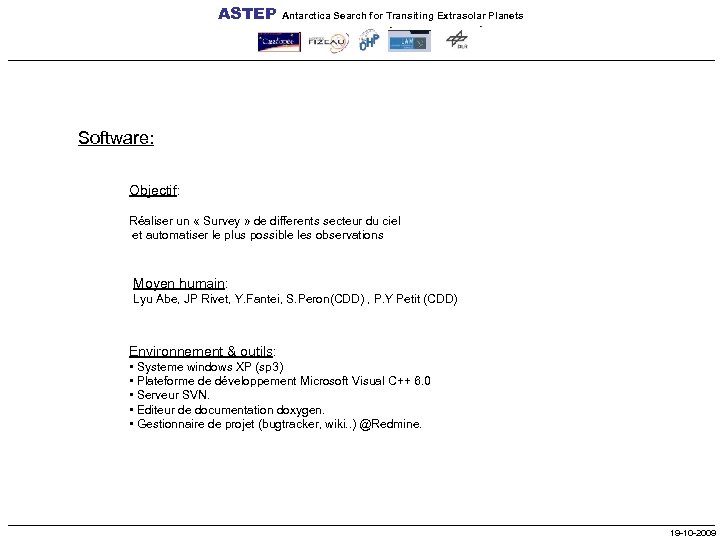

ASTEP Antarctica Search for Transiting Extrasolar Planets Software: Objectif: Réaliser un « Survey » de differents secteur du ciel et automatiser le plus possible les observations Moyen humain: Lyu Abe, JP Rivet, Y. Fantei, S. Peron(CDD) , P. Y Petit (CDD) Environnement & outils: • Systeme windows XP (sp 3) • Plateforme de développement Microsoft Visual C++ 6. 0 • Serveur SVN. • Editeur de documentation doxygen. • Gestionnaire de projet (bugtracker, wiki. . ) @Redmine. 19 -10 -2009

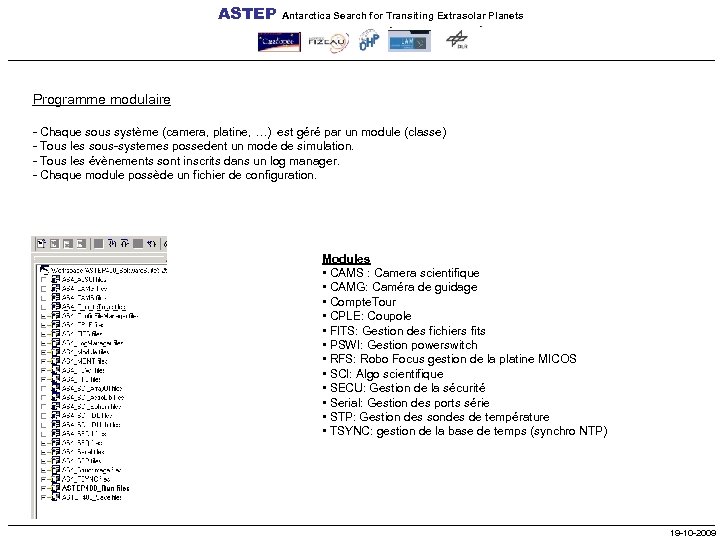

ASTEP Antarctica Search for Transiting Extrasolar Planets Programme modulaire - Chaque sous système (camera, platine, …) est géré par un module (classe) - Tous les sous-systemes possedent un mode de simulation. - Tous les évènements sont inscrits dans un log manager. - Chaque module possède un fichier de configuration. Modules • CAMS : Camera scientifique • CAMG: Caméra de guidage • Compte. Tour • CPLE: Coupole • FITS: Gestion des fichiers fits • PSWI: Gestion powerswitch • RFS: Robo Focus gestion de la platine MICOS • SCI: Algo scientifique • SECU: Gestion de la sécurité • Serial: Gestion des ports série • STP: Gestion des sondes de température • TSYNC: gestion de la base de temps (synchro NTP) 19 -10 -2009

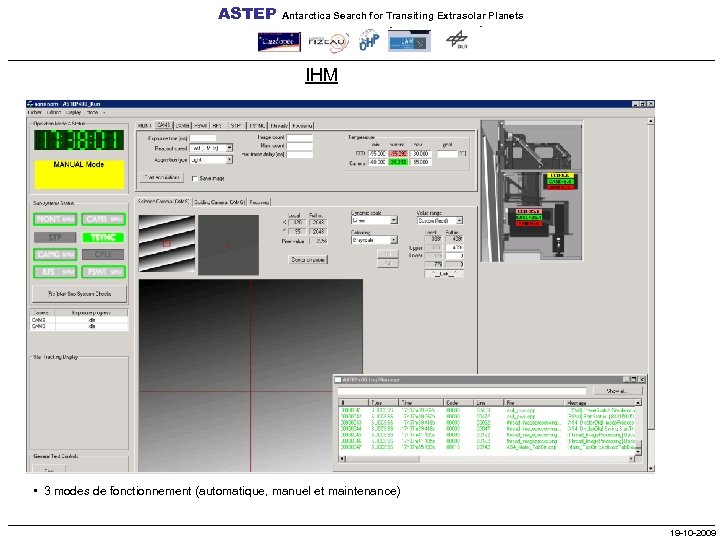

ASTEP Antarctica Search for Transiting Extrasolar Planets IHM • 3 modes de fonctionnement (automatique, manuel et maintenance) 19 -10 -2009

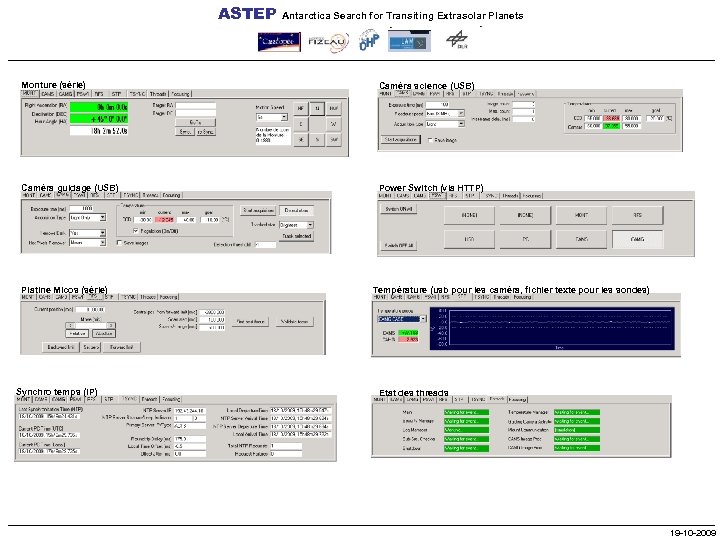

ASTEP Antarctica Search for Transiting Extrasolar Planets Monture (série) Caméra science (USB) Caméra guidage (USB) Power Switch (via HTTP) Platine Micos (série) Synchro temps (IP) Température (usb pour les caméra, fichier texte pour les sondes) Etat des threads 19 -10 -2009

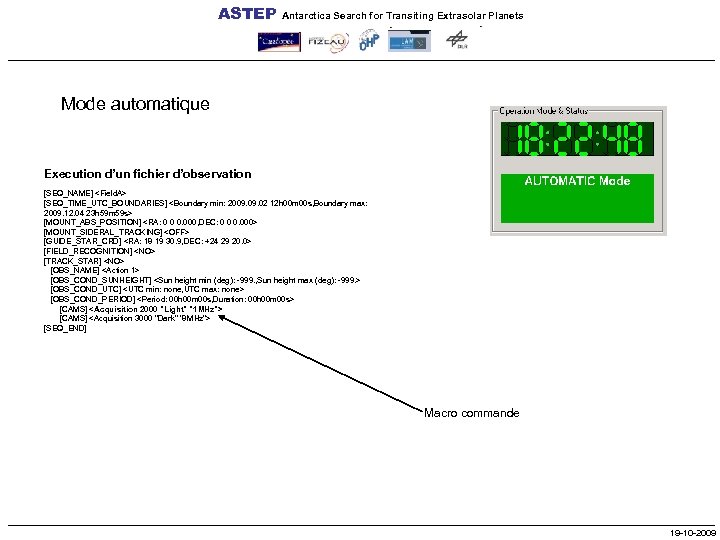

ASTEP Antarctica Search for Transiting Extrasolar Planets Mode automatique Execution d’un fichier d’observation [SEQ_NAME] <Field. A> [SEQ_TIME_UTC_BOUNDARIES] <Boundary min: 2009. 02 12 h 00 m 00 s, Boundary max: 2009. 12. 04 23 h 59 m 59 s> [MOUNT_ABS_POSITION] <RA: 0 0 0. 000, DEC: 0 0 0. 000> [MOUNT_SIDERAL_TRACKING] <OFF> [GUIDE_STAR_CRD] <RA: 18 19 30. 9, DEC: +24 29 20. 0> [FIELD_RECOGNITION] <NO> [TRACK_STAR] <NO> [OBS_NAME] <Action 1> [OBS_COND_SUNHEIGHT] <Sun height min (deg): -999. , Sun height max (deg): -999. > [OBS_COND_UTC] <UTC min: none, UTC max: none> [OBS_COND_PERIOD] <Period: 00 h 00 m 00 s, Duration: 00 h 00 m 00 s> [CAMS] <Acquisition 2000 "Light" "1 MHz"> [CAMS] <Acquisition 3000 "Dark" "8 MHz"> [SEQ_END] Macro commande 19 -10 -2009

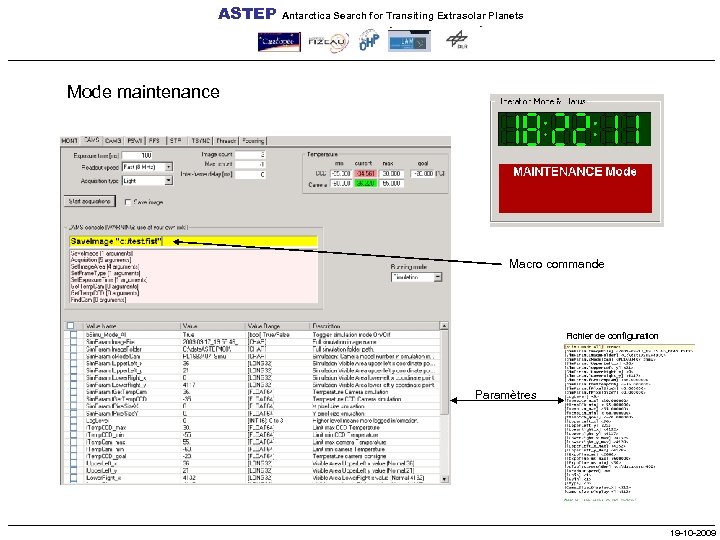

ASTEP Antarctica Search for Transiting Extrasolar Planets Mode maintenance Macro commande Fichier de configuration Paramètres 19 -10 -2009

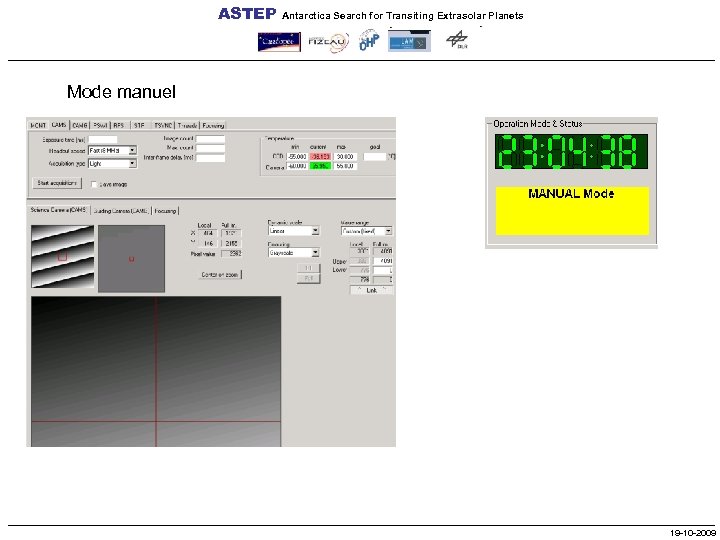

ASTEP Antarctica Search for Transiting Extrasolar Planets Mode manuel 19 -10 -2009

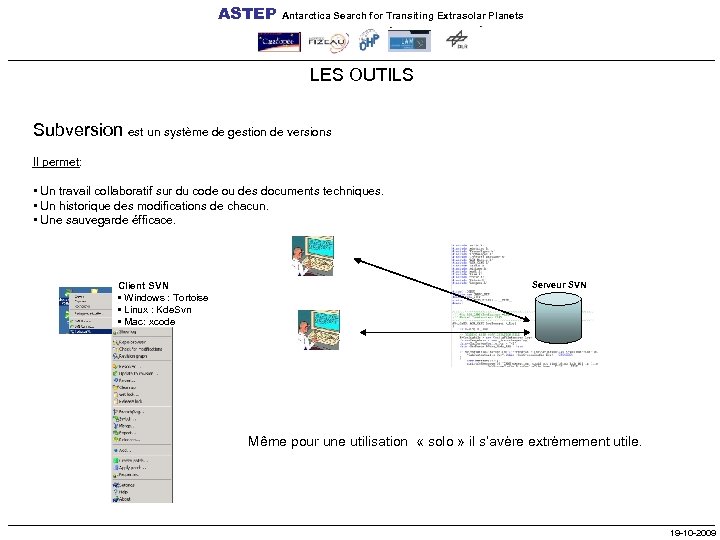

ASTEP Antarctica Search for Transiting Extrasolar Planets LES OUTILS Subversion est un système de gestion de versions Il permet: • Un travail collaboratif sur du code ou des documents techniques. • Un historique des modifications de chacun. • Une sauvegarde éfficace. Client SVN • Windows : Tortoise • Linux : Kde. Svn • Mac: xcode Serveur SVN Même pour une utilisation « solo » il s’avère extrèmement utile. 19 -10 -2009

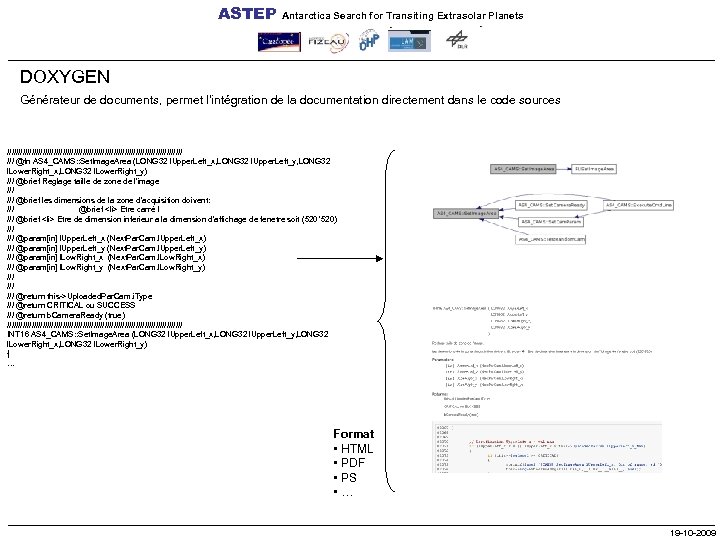

ASTEP Antarctica Search for Transiting Extrasolar Planets DOXYGEN Générateur de documents, permet l'intégration de la documentation directement dans le code sources //////////////////////////////////////// /// @fn AS 4_CAMS: : Set. Image. Area (LONG 32 l. Upper. Left_x, LONG 32 l. Upper. Left_y, LONG 32 l. Lower. Right_x, LONG 32 l. Lower. Right_y) /// @brief Reglage taille de zone de l'image /// @brief les dimensions de la zone d'acquisition doivent: /// @brief <li> Etre carré ! /// @brief <li> Etre de dimension inferieur a la dimension d'affichage de fenetre soit (520*520) /// @param[in] l. Upper. Left_x (Next. Par. Cam. l. Upper. Left_x) /// @param[in] l. Upper. Left_y (Next. Par. Cam. l. Upper. Left_y) /// @param[in] l. Low. Right_x (Next. Par. Cam. l. Low. Right_x) /// @param[in] l. Low. Right_y (Next. Par. Cam. l. Low. Right_y) /// /// @return this->Uploaded. Par. Cam. i. Type /// @return CRITICAL ou SUCCESS /// @return b. Camera. Ready (true) //////////////////////////////////////// INT 16 AS 4_CAMS: : Set. Image. Area (LONG 32 l. Upper. Left_x, LONG 32 l. Upper. Left_y, LONG 32 l. Lower. Right_x, LONG 32 l. Lower. Right_y) { … Format • HTML • PDF • PS • … 19 -10 -2009

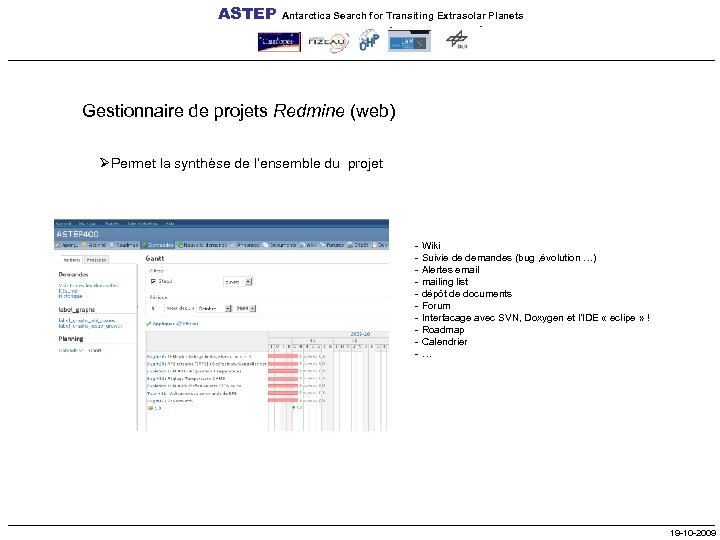

ASTEP Antarctica Search for Transiting Extrasolar Planets Gestionnaire de projets Redmine (web) ØPermet la synthèse de l’ensemble du projet - Wiki - Suivie de demandes (bug , évolution …) - Alertes email - mailing list - dépôt de documents - Forum - Interfacage avec SVN, Doxygen et l’IDE « eclipe » ! - Roadmap - Calendrier - … 19 -10 -2009

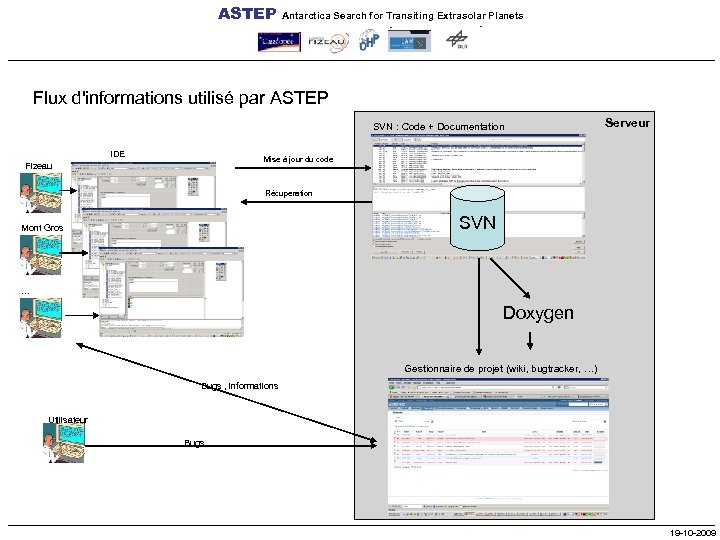

ASTEP Antarctica Search for Transiting Extrasolar Planets Flux d'informations utilisé par ASTEP SVN : Code + Documentation IDE Serveur Mise à jour du code Fizeau Récuperation SVN Mont Gros … Doxygen Gestionnaire de projet (wiki, bugtracker, …) Bugs , informations Utilisateur Bugs … 19 -10 -2009
ASTEP Antarctica Search for Transiting Extrasolar Planets 19 -10 -2009
