Assessment of Wind Borne Debris Criteria for the Florida Panhandle February 2006 ARA Progress Report CSP ARA 0157 -1

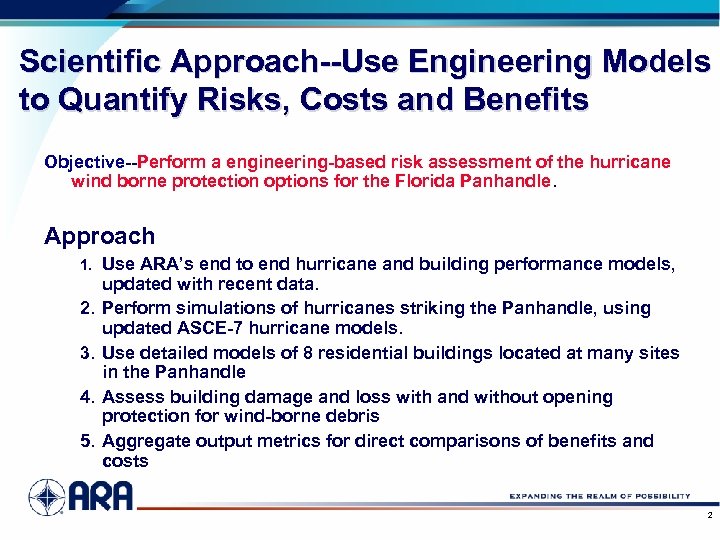

Scientific Approach--Use Engineering Models to Quantify Risks, Costs and Benefits Objective--Perform a engineering-based risk assessment of the hurricane wind borne protection options for the Florida Panhandle. Approach 1. 2. 3. 4. 5. Use ARA’s end to end hurricane and building performance models, updated with recent data. Perform simulations of hurricanes striking the Panhandle, using updated ASCE-7 hurricane models. Use detailed models of 8 residential buildings located at many sites in the Panhandle Assess building damage and loss with and without opening protection for wind-borne debris Aggregate output metrics for direct comparisons of benefits and costs 2

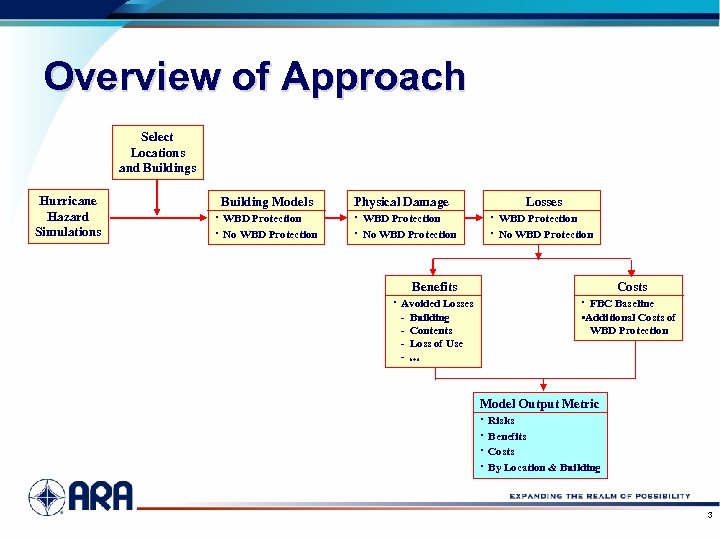

Overview of Approach Select Locations and Buildings Hurricane Hazard Simulations Building Models · WBD Protection · No WBD Protection Physical Damage · WBD Protection · No WBD Protection Losses · WBD Protection · No WBD Protection Benefits · Avoided Losses - Building Contents Loss of Use Costs · FBC Baseline • Additional Costs of WBD Protection Model Output Metric · Risks · Benefits · Costs · By Location & Building 3

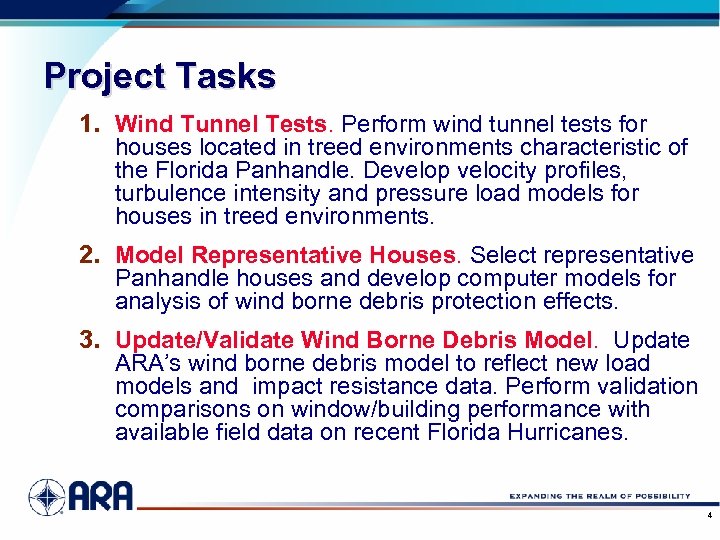

Project Tasks 1. Wind Tunnel Tests. Perform wind tunnel tests for houses located in treed environments characteristic of the Florida Panhandle. Develop velocity profiles, turbulence intensity and pressure load models for houses in treed environments. 2. Model Representative Houses. Select representative Panhandle houses and develop computer models for analysis of wind borne debris protection effects. 3. Update/Validate Wind Borne Debris Model. Update ARA’s wind borne debris model to reflect new load models and impact resistance data. Perform validation comparisons on window/building performance with available field data on recent Florida Hurricanes. 4

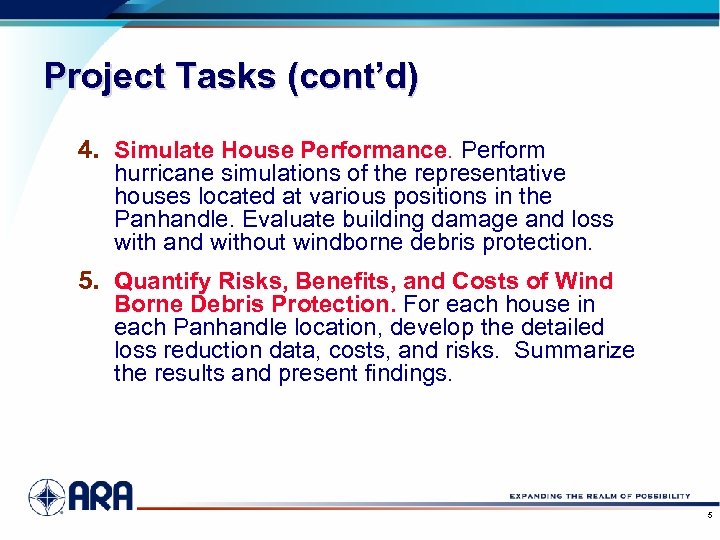

Project Tasks (cont’d) 4. Simulate House Performance. Perform hurricane simulations of the representative houses located at various positions in the Panhandle. Evaluate building damage and loss with and without windborne debris protection. 5. Quantify Risks, Benefits, and Costs of Wind Borne Debris Protection. For each house in each Panhandle location, develop the detailed loss reduction data, costs, and risks. Summarize the results and present findings. 5

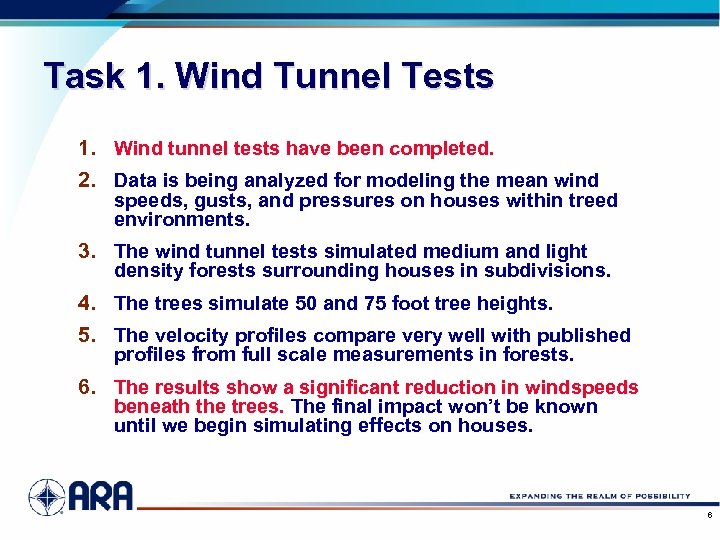

Task 1. Wind Tunnel Tests 1. Wind tunnel tests have been completed. 2. Data is being analyzed for modeling the mean wind speeds, gusts, and pressures on houses within treed environments. 3. The wind tunnel tests simulated medium and light density forests surrounding houses in subdivisions. 4. The trees simulate 50 and 75 foot tree heights. 5. The velocity profiles compare very well with published profiles from full scale measurements in forests. 6. The results show a significant reduction in windspeeds beneath the trees. The final impact won’t be known until we begin simulating effects on houses. 6

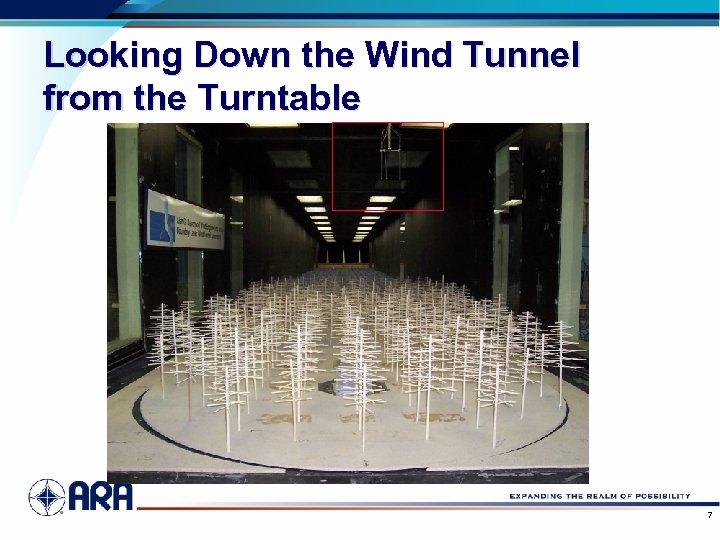

Looking Down the Wind Tunnel from the Turntable 7

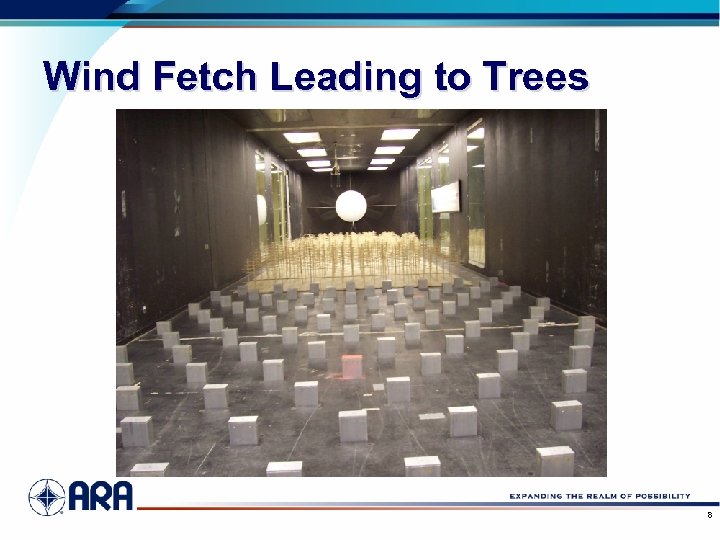

Wind Fetch Leading to Trees 8

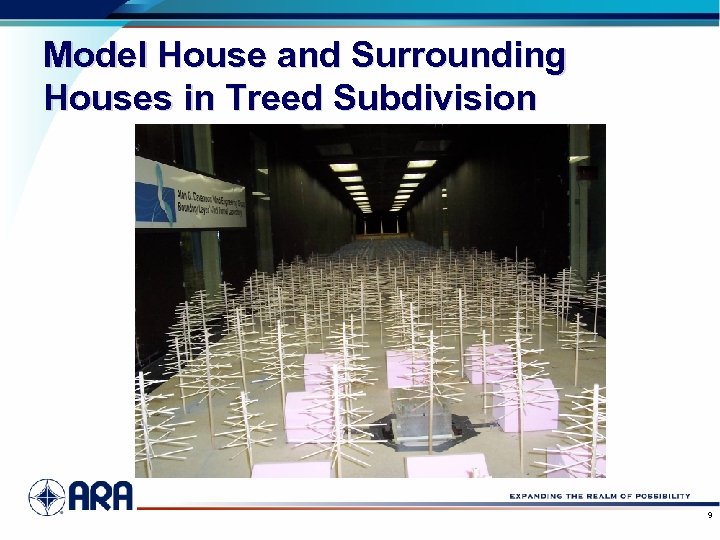

Model House and Surrounding Houses in Treed Subdivision 9

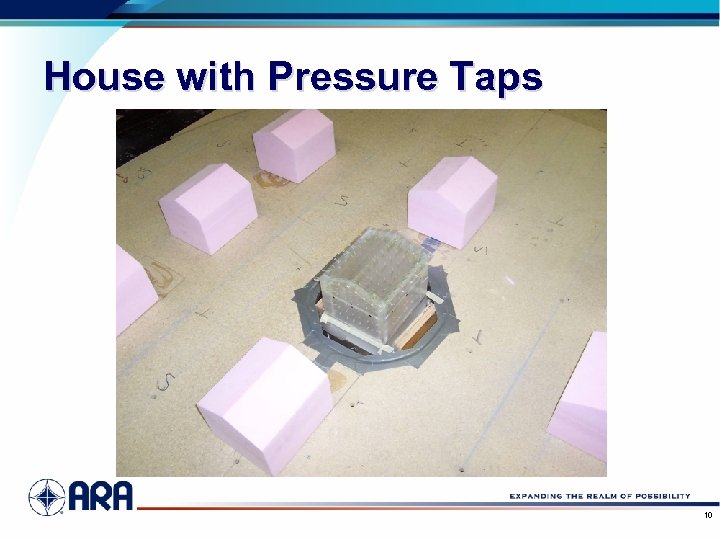

House with Pressure Taps 10

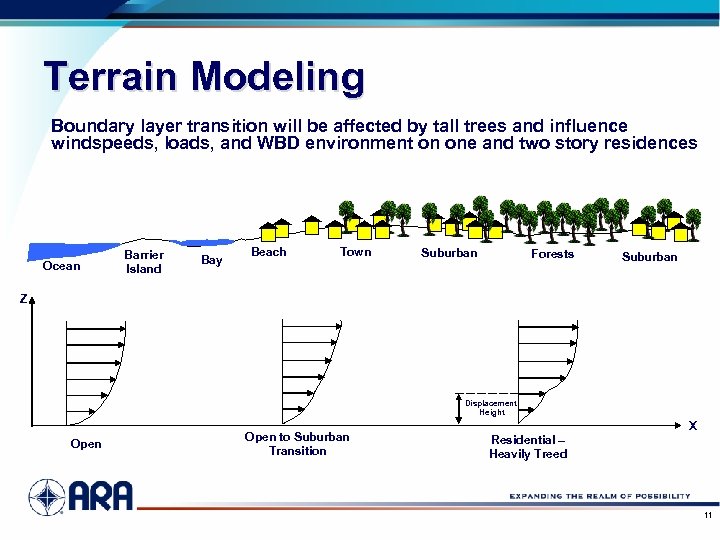

Terrain Modeling Boundary layer transition will be affected by tall trees and influence windspeeds, loads, and WBD environment on one and two story residences Ocean Barrier Island Bay Beach Town Suburban Forests Suburban Z Displacement Height Open to Suburban Transition X Residential – Heavily Treed 11

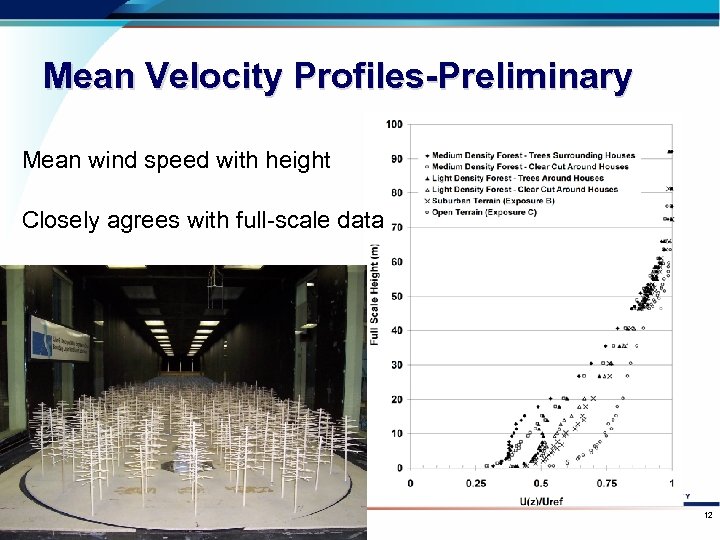

Mean Velocity Profiles-Preliminary Mean wind speed with height Closely agrees with full-scale data n Medium and light density forest n Suburban (exposure B) n Open (exposure C) 12

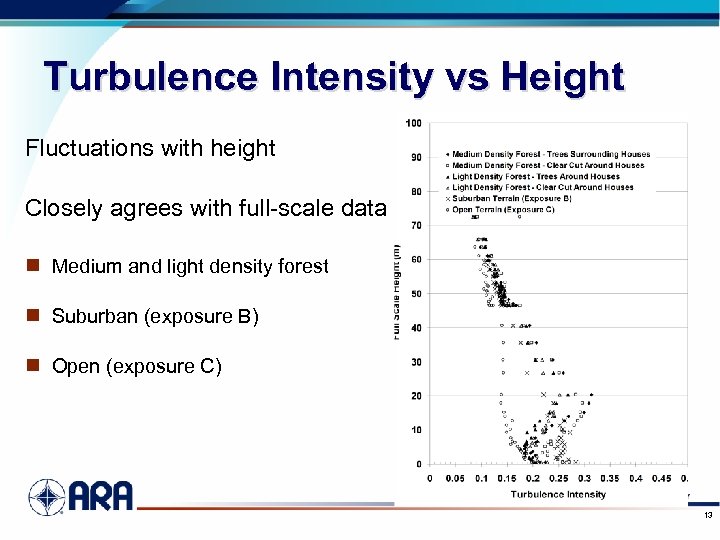

Turbulence Intensity vs Height Fluctuations with height Closely agrees with full-scale data n Medium and light density forest n Suburban (exposure B) n Open (exposure C) 13

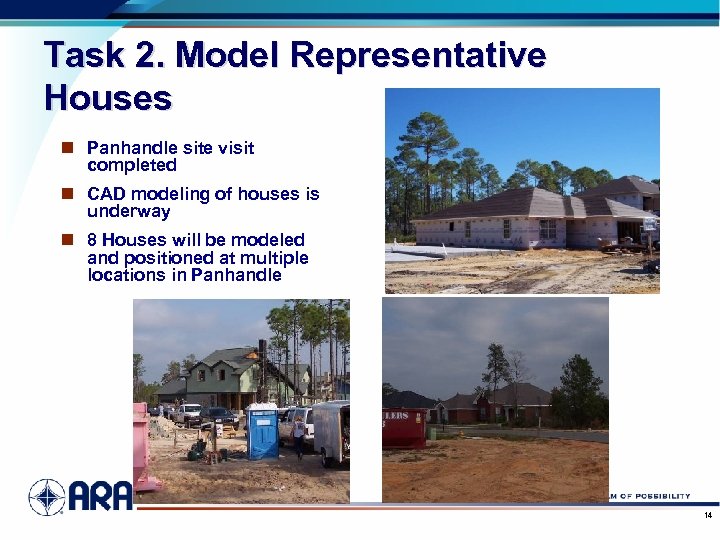

Task 2. Model Representative Houses n Panhandle site visit completed n CAD modeling of houses is underway n 8 Houses will be modeled and positioned at multiple locations in Panhandle 14

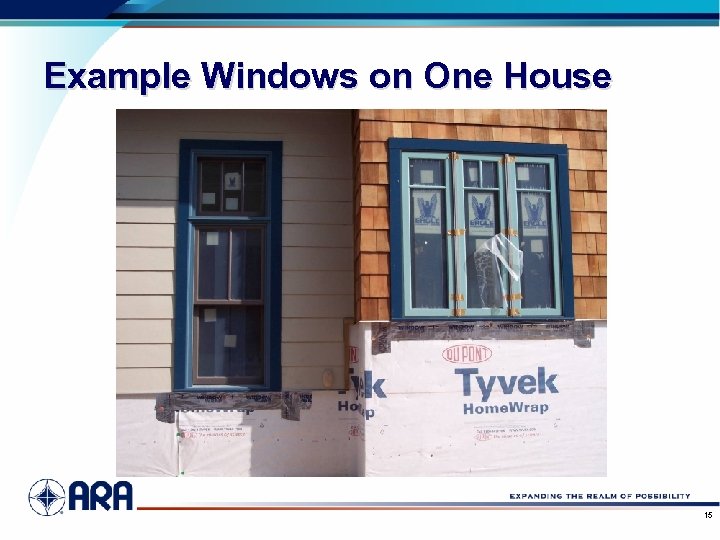

Example Windows on One House 15

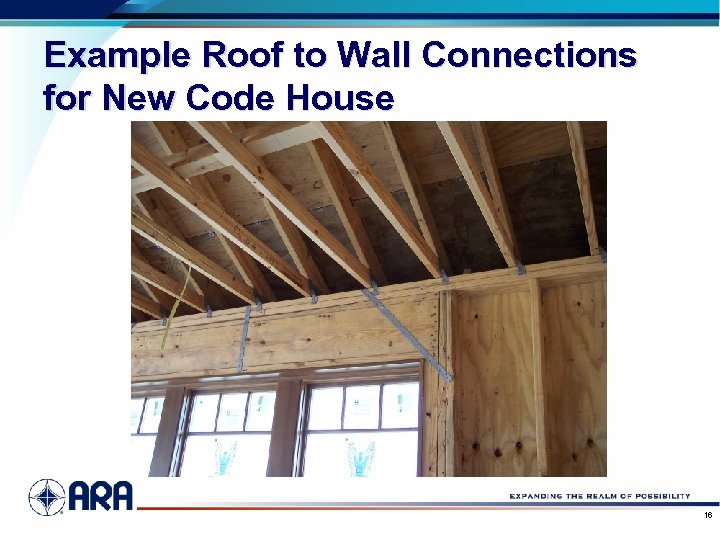

Example Roof to Wall Connections for New Code House 16

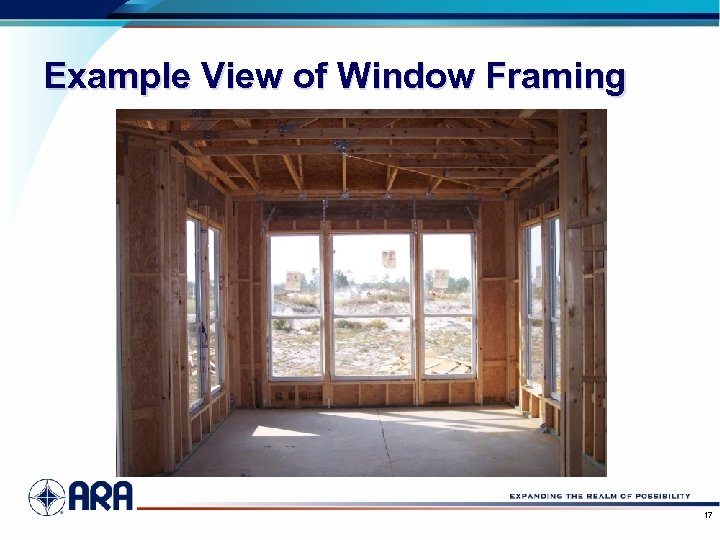

Example View of Window Framing 17

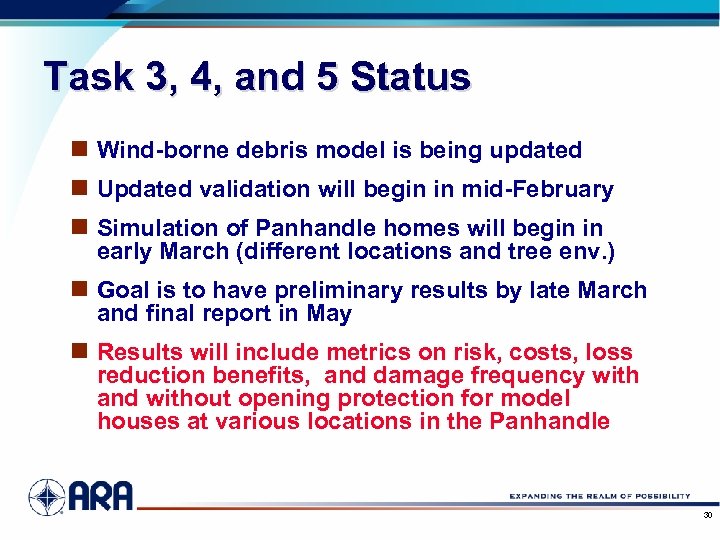

Task 3, 4, and 5 Status n Wind-borne debris model is being updated n Updated validation will begin in mid-February n Simulation of Panhandle homes will begin in early March (different locations and tree env. ) n Goal is to have preliminary results by late March and final report in May n Results will include metrics on risk, costs, loss reduction benefits, and damage frequency with and without opening protection for model houses at various locations in the Panhandle 18

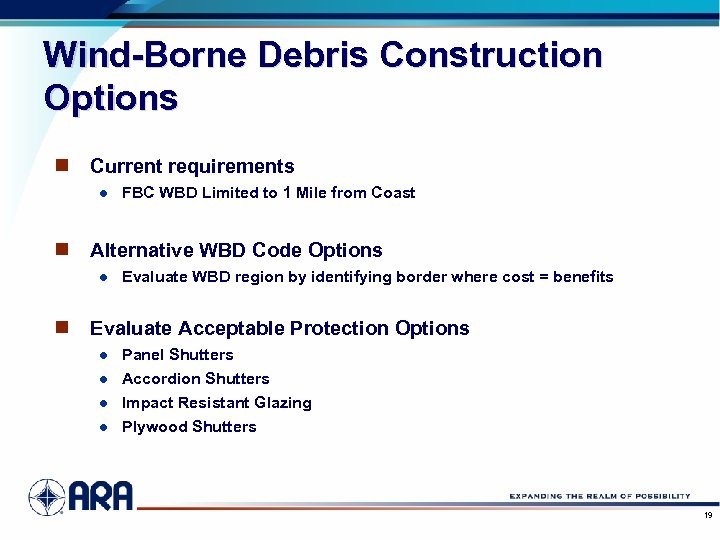

Wind-Borne Debris Construction Options n Current requirements l FBC WBD Limited to 1 Mile from Coast n Alternative WBD Code Options l Evaluate WBD region by identifying border where cost = benefits n Evaluate Acceptable Protection Options l l Panel Shutters Accordion Shutters Impact Resistant Glazing Plywood Shutters 19

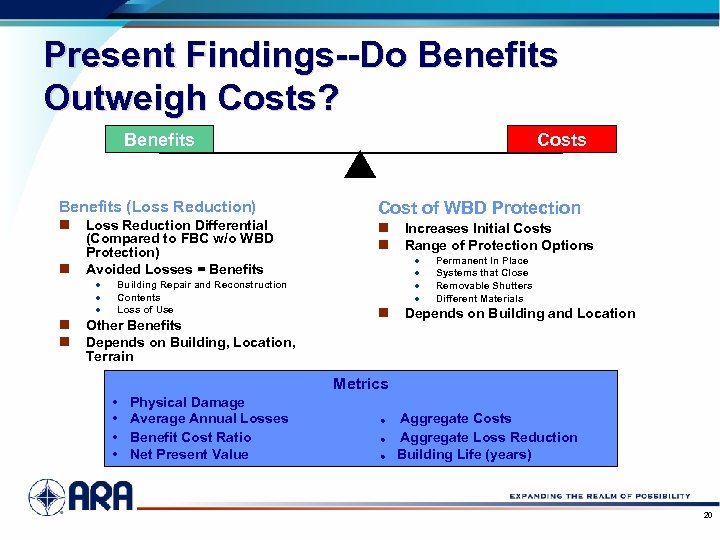

Present Findings--Do Benefits Outweigh Costs? Benefits (Loss Reduction) n n Loss Reduction Differential (Compared to FBC w/o WBD Protection) Avoided Losses = Benefits Building Repair and Reconstruction Contents Loss of Use l l l n n Other Benefits Depends on Building, Location, Terrain Costs Cost of WBD Protection n n Increases Initial Costs Range of Protection Options l l n Permanent In Place Systems that Close Removable Shutters Different Materials Depends on Building and Location Metrics • • Physical Damage Average Annual Losses Benefit Cost Ratio Net Present Value Aggregate Costs Aggregate Loss Reduction Building Life (years) 20

21

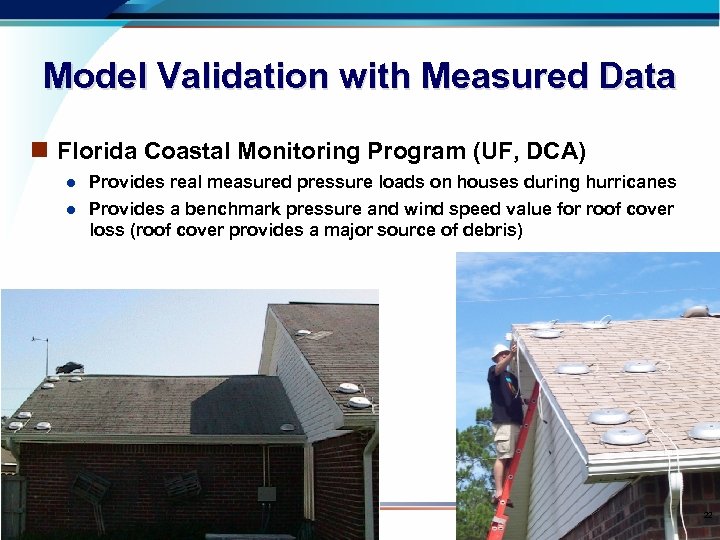

Model Validation with Measured Data n Florida Coastal Monitoring Program (UF, DCA) l l Provides real measured pressure loads on houses during hurricanes Provides a benchmark pressure and wind speed value for roof cover loss (roof cover provides a major source of debris) 22

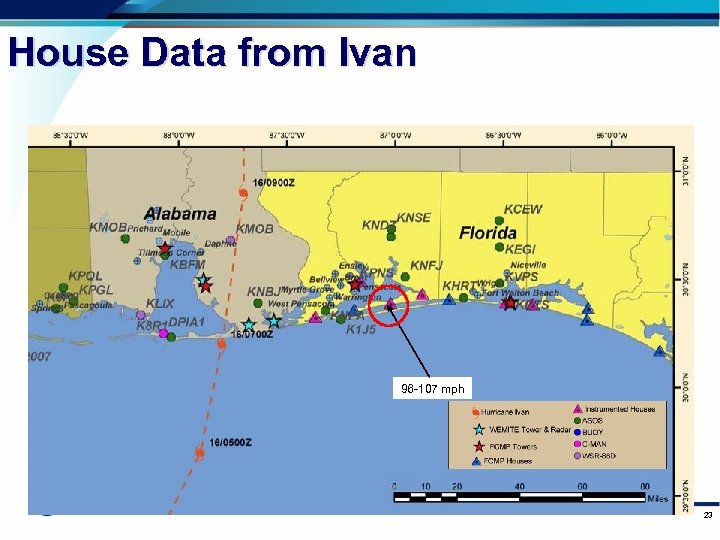

House Data from Ivan 96 -107 mph 23

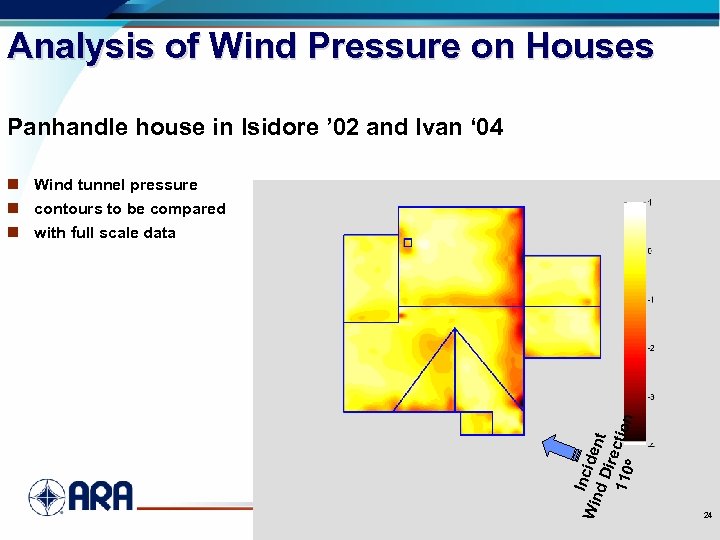

Analysis of Wind Pressure on Houses Panhandle house in Isidore ’ 02 and Ivan ‘ 04 I Win nciden d. D t irec tion 110 º n Wind tunnel pressure n contours to be compared n with full scale data 24

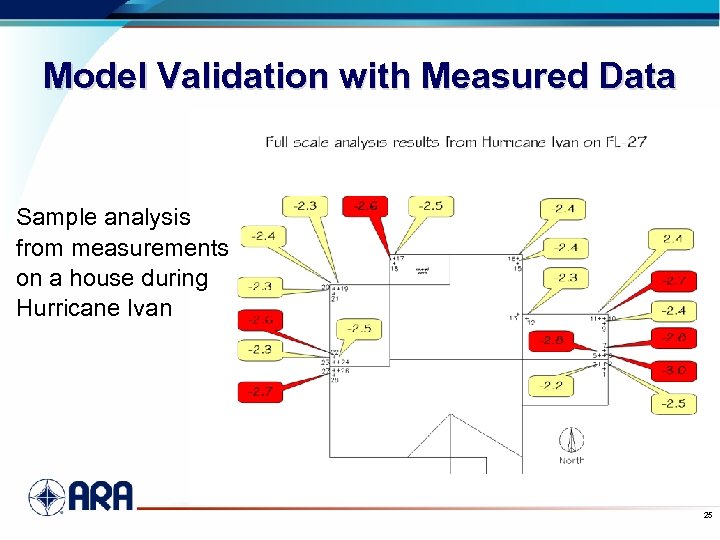

Model Validation with Measured Data Sample analysis from measurements on a house during Hurricane Ivan 25

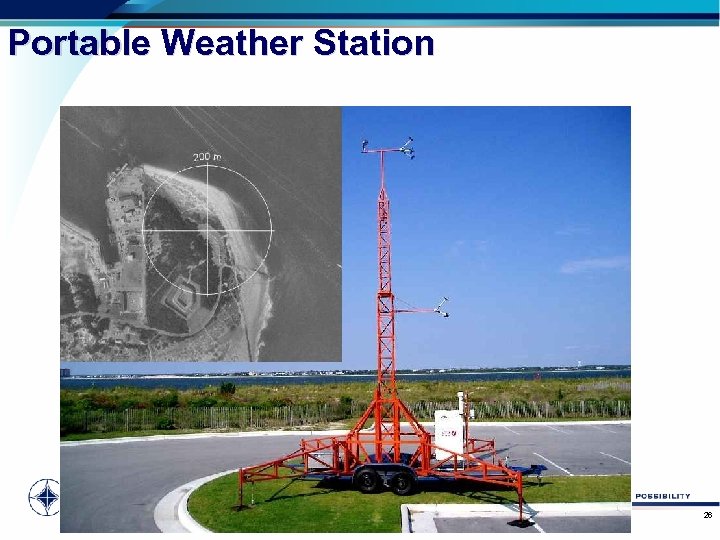

Portable Weather Station 26

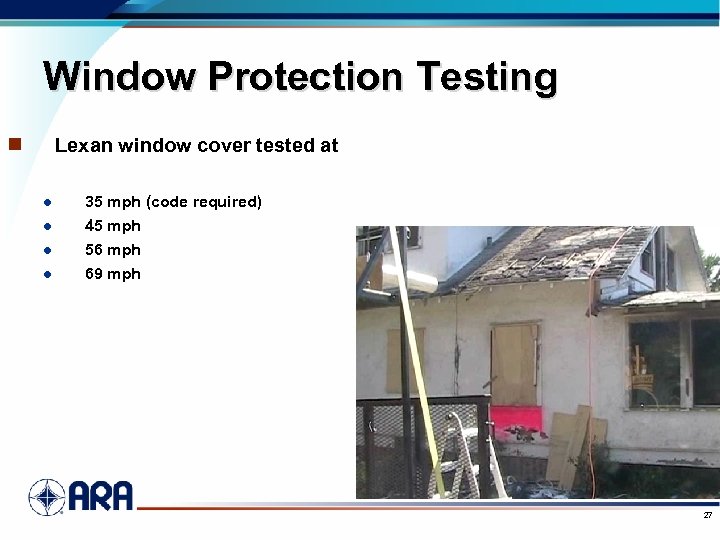

Window Protection Testing n Lexan window cover tested at l 35 mph (code required) l 45 mph l 56 mph l 69 mph 27

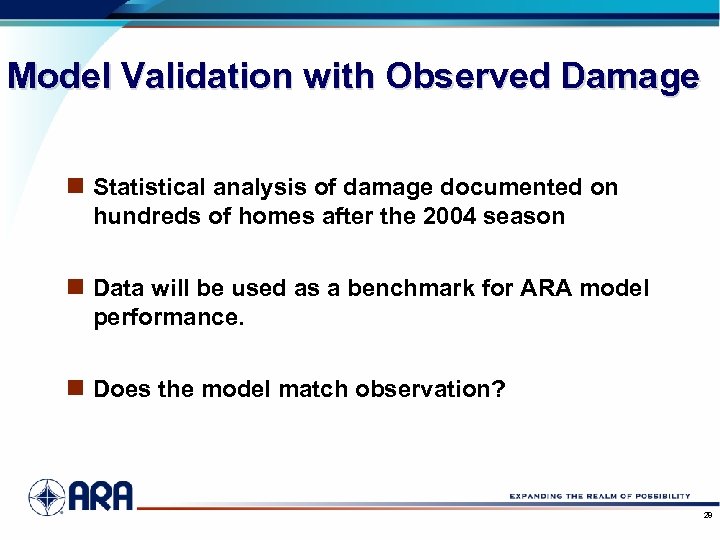

Model Validation with Observed Damage n Statistical analysis of damage documented on hundreds of homes after the 2004 season n Data will be used as a benchmark for ARA model performance. n Does the model match observation? 28

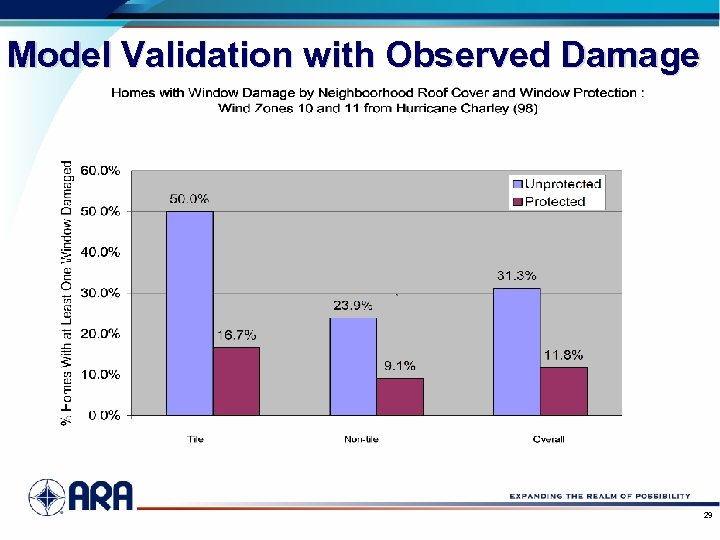

Model Validation with Observed Damage 29

Task 3, 4, and 5 Status n Wind-borne debris model is being updated n Updated validation will begin in mid-February n Simulation of Panhandle homes will begin in early March (different locations and tree env. ) n Goal is to have preliminary results by late March and final report in May n Results will include metrics on risk, costs, loss reduction benefits, and damage frequency with and without opening protection for model houses at various locations in the Panhandle 30
