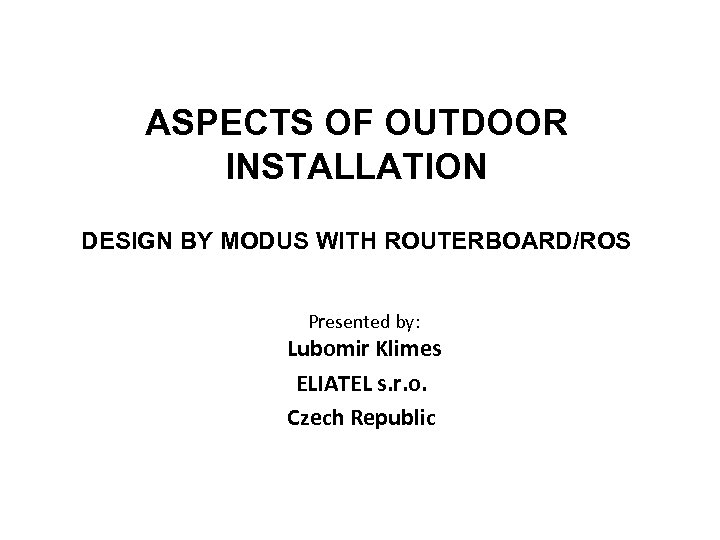

ASPECTS OF OUTDOOR INSTALLATION DESIGN BY MODUS WITH ROUTERBOARD/ROS Presented by: Lubomir Klimes ELIATEL s. r. o. Czech Republic
COMPANY PROFILE 1991 the private held company was established, started with the sale of copy machines 1994 PBX, data equipments, X. 25 networks 1995 distribution of voice/data multiplexers ACT Networks Inc. 1996 first private Frame Relay network with Vo. FR in CZ for CMZR Bank 1999 distribution of FHSS wireless system for ISPs Wave. Access Ltd. , Israel 2000 -1 several hundreds of wireless installations realized for ISPs 2003 -5 distribution of Turbo. Cell SW Karlnet Inc. , own wireless products manufacturing based on Karlnet HW/SW – Modus – S, D, R 2006 Modus – RIA, new wireless product based on Mikro. Tik HW/SW ELIATEL s. r. o. , multimedia networking

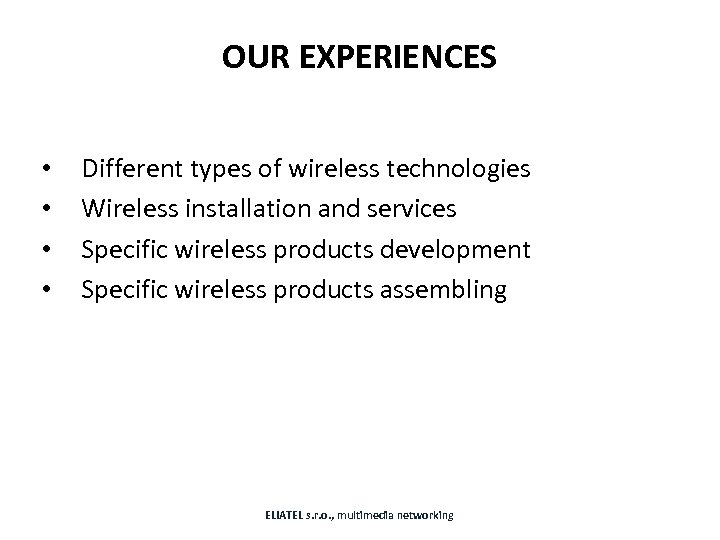

OUR EXPERIENCES • • Different types of wireless technologies Wireless installation and services Specific wireless products development Specific wireless products assembling ELIATEL s. r. o. , multimedia networking

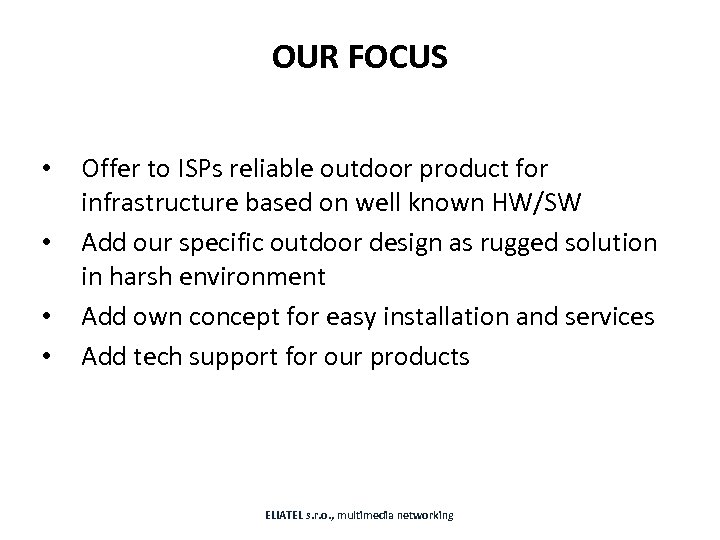

OUR FOCUS • • Offer to ISPs reliable outdoor product for infrastructure based on well known HW/SW Add our specific outdoor design as rugged solution in harsh environment Add own concept for easy installation and services Add tech support for our products ELIATEL s. r. o. , multimedia networking

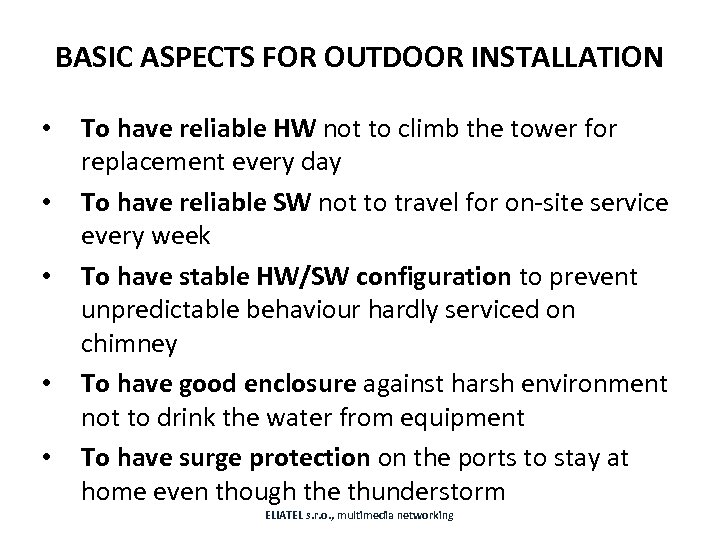

BASIC ASPECTS FOR OUTDOOR INSTALLATION • • • To have reliable HW not to climb the tower for replacement every day To have reliable SW not to travel for on-site service every week To have stable HW/SW configuration to prevent unpredictable behaviour hardly serviced on chimney To have good enclosure against harsh environment not to drink the water from equipment To have surge protection on the ports to stay at home even though the thunderstorm ELIATEL s. r. o. , multimedia networking

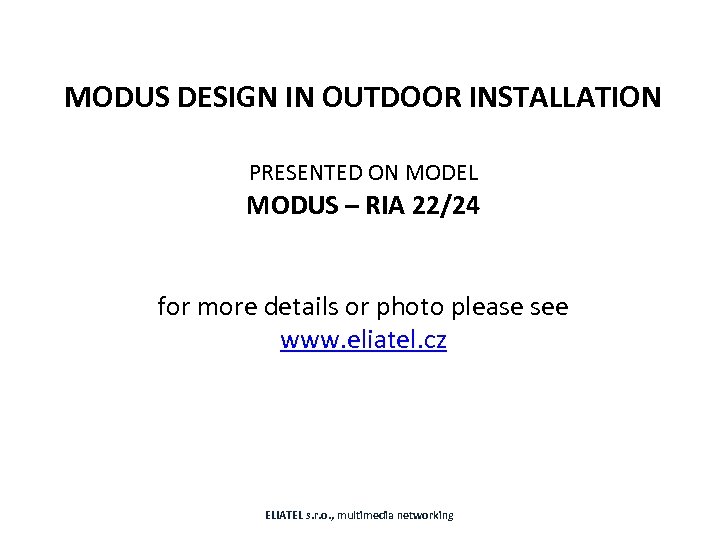

MODUS DESIGN IN OUTDOOR INSTALLATION PRESENTED ON MODEL MODUS – RIA 22/24 for more details or photo please see www. eliatel. cz ELIATEL s. r. o. , multimedia networking

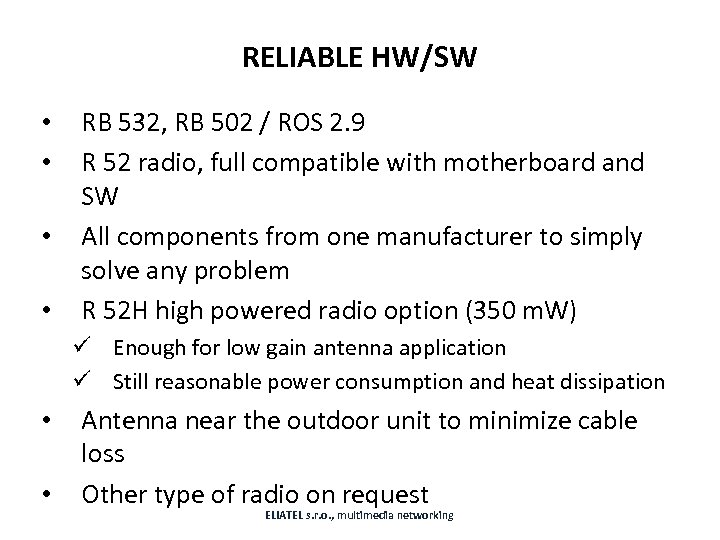

RELIABLE HW/SW • • RB 532, RB 502 / ROS 2. 9 R 52 radio, full compatible with motherboard and SW All components from one manufacturer to simply solve any problem R 52 H high powered radio option (350 m. W) ü Enough for low gain antenna application ü Still reasonable power consumption and heat dissipation • • Antenna near the outdoor unit to minimize cable loss Other type of radio on request ELIATEL s. r. o. , multimedia networking

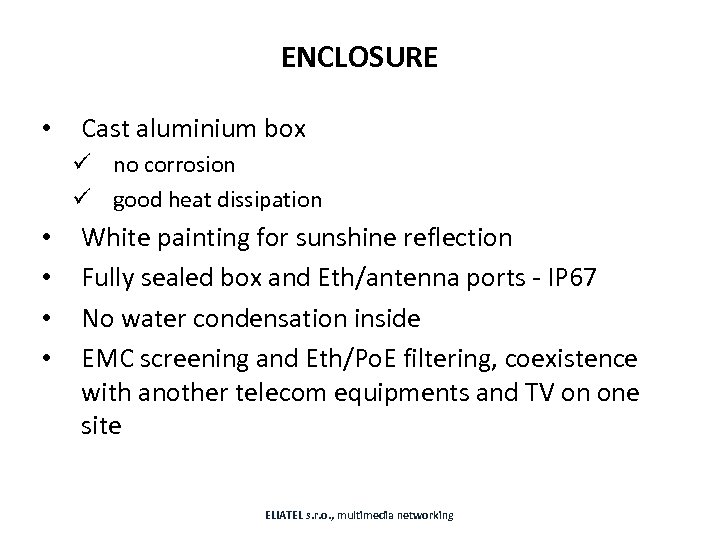

ENCLOSURE • Cast aluminium box ü no corrosion ü good heat dissipation • • White painting for sunshine reflection Fully sealed box and Eth/antenna ports - IP 67 No water condensation inside EMC screening and Eth/Po. E filtering, coexistence with another telecom equipments and TV on one site ELIATEL s. r. o. , multimedia networking
SURGE PROTECTION – WHY ? • • Cost is high compared to low cost board and radio from mass production Limited protection against direct thunderstroke NOT ABOUT HW PROTECTION ! YOU PROTECT ISP SERVICES AGAINST DROPOUTS ! ELIATEL s. r. o. , multimedia networking

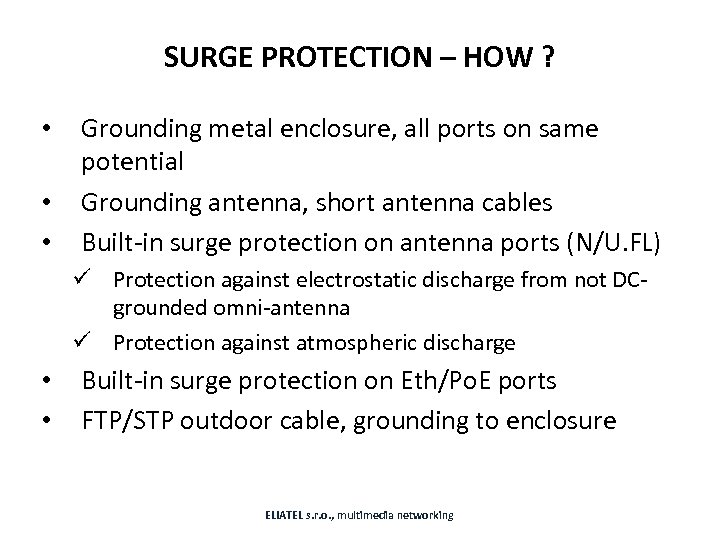

SURGE PROTECTION – HOW ? • • • Grounding metal enclosure, all ports on same potential Grounding antenna, short antenna cables Built-in surge protection on antenna ports (N/U. FL) ü Protection against electrostatic discharge from not DCgrounded omni-antenna ü Protection against atmospheric discharge • • Built-in surge protection on Eth/Po. E ports FTP/STP outdoor cable, grounding to enclosure ELIATEL s. r. o. , multimedia networking

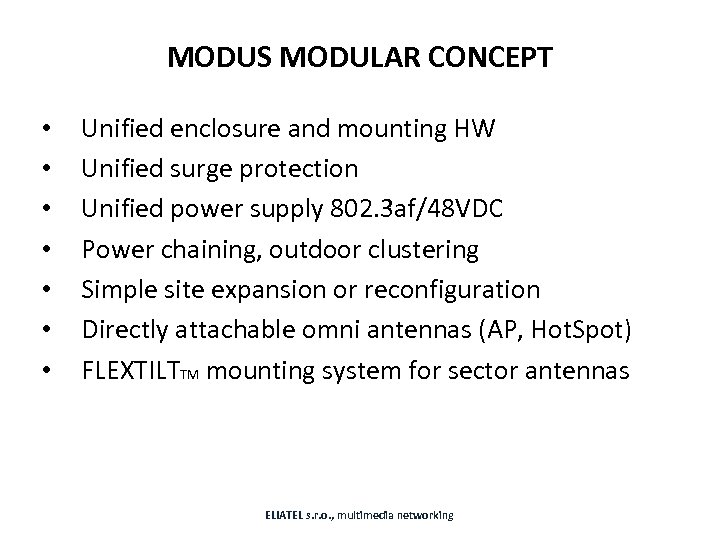

MODUS MODULAR CONCEPT • • Unified enclosure and mounting HW Unified surge protection Unified power supply 802. 3 af/48 VDC Power chaining, outdoor clustering Simple site expansion or reconfiguration Directly attachable omni antennas (AP, Hot. Spot) FLEXTILTTM mounting system for sector antennas ELIATEL s. r. o. , multimedia networking

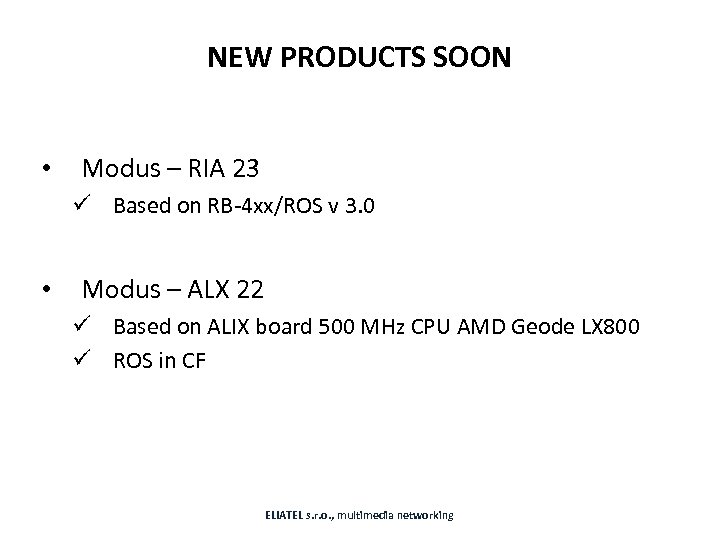

NEW PRODUCTS SOON • Modus – RIA 23 ü Based on RB-4 xx/ROS v 3. 0 • Modus – ALX 22 ü Based on ALIX board 500 MHz CPU AMD Geode LX 800 ü ROS in CF ELIATEL s. r. o. , multimedia networking

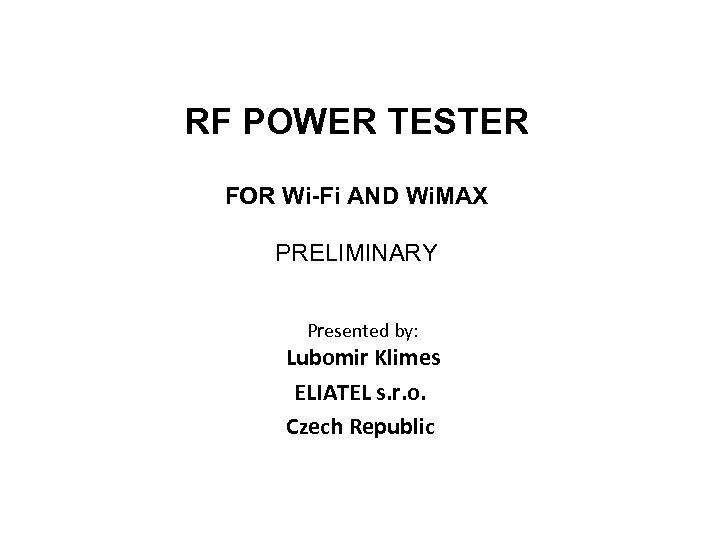

RF POWER TESTER FOR Wi-Fi AND Wi. MAX PRELIMINARY Presented by: Lubomir Klimes ELIATEL s. r. o. Czech Republic

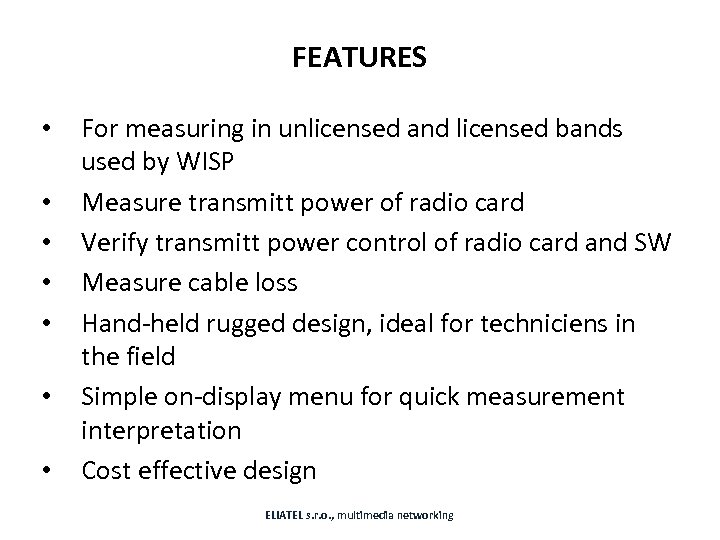

FEATURES • • For measuring in unlicensed and licensed bands used by WISP Measure transmitt power of radio card Verify transmitt power control of radio card and SW Measure cable loss Hand-held rugged design, ideal for techniciens in the field Simple on-display menu for quick measurement interpretation Cost effective design ELIATEL s. r. o. , multimedia networking

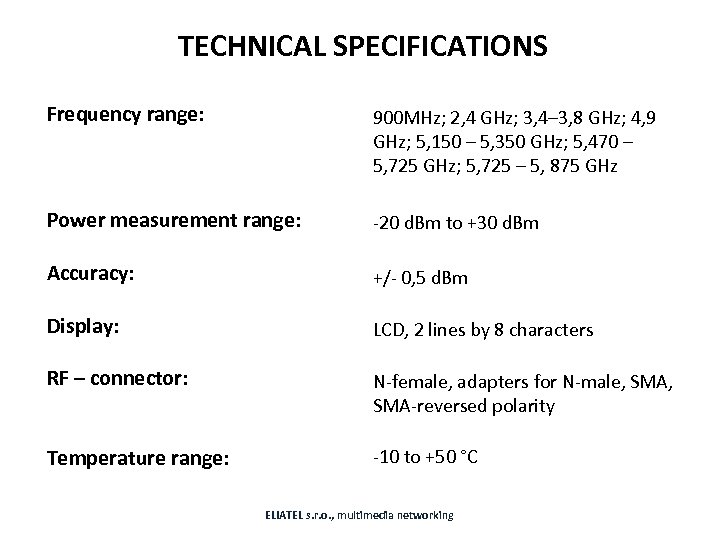

TECHNICAL SPECIFICATIONS Frequency range: 900 MHz; 2, 4 GHz; 3, 4– 3, 8 GHz; 4, 9 GHz; 5, 150 – 5, 350 GHz; 5, 470 – 5, 725 GHz; 5, 725 – 5, 875 GHz Power measurement range: -20 d. Bm to +30 d. Bm Accuracy: +/- 0, 5 d. Bm Display: LCD, 2 lines by 8 characters RF – connector: N-female, adapters for N-male, SMA-reversed polarity Temperature range: -10 to +50 °C ELIATEL s. r. o. , multimedia networking

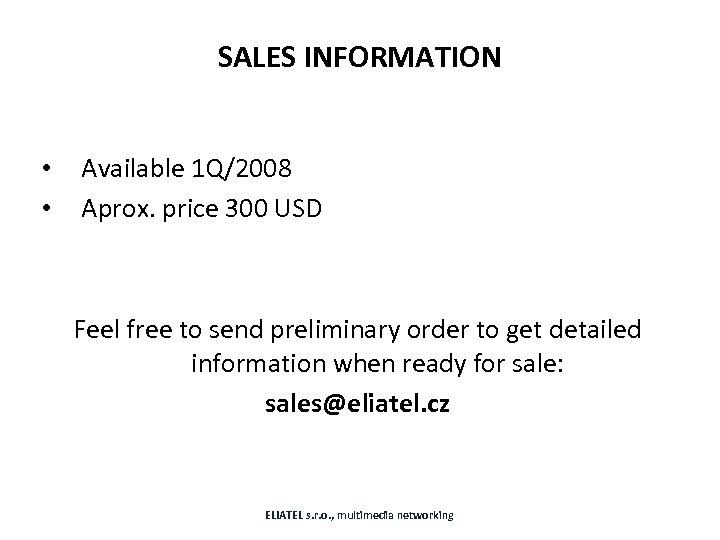

SALES INFORMATION • • Available 1 Q/2008 Aprox. price 300 USD Feel free to send preliminary order to get detailed information when ready for sale: sales@eliatel. cz ELIATEL s. r. o. , multimedia networking

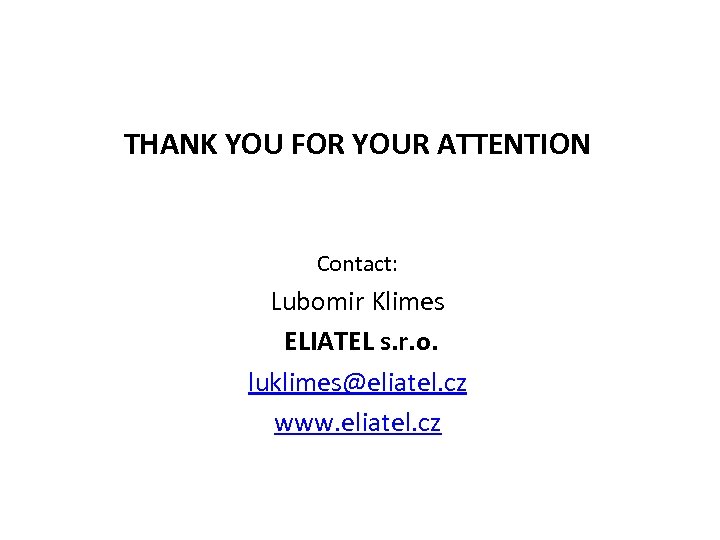

THANK YOU FOR YOUR ATTENTION Contact: Lubomir Klimes ELIATEL s. r. o. luklimes@eliatel. cz www. eliatel. cz
