ASI Controls Reliability · Performance · Value HVAC Control Building Automation Energy Management Since 1986
Digital Control Products Ø Telecommunication Ø Commercial Ø Industrial Ø Educational Ø Institutional Ø Governmental

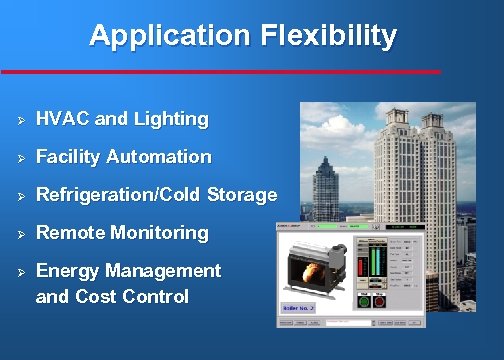

Application Flexibility Ø HVAC and Lighting Ø Facility Automation Ø Refrigeration/Cold Storage Ø Remote Monitoring Ø Energy Management and Cost Control

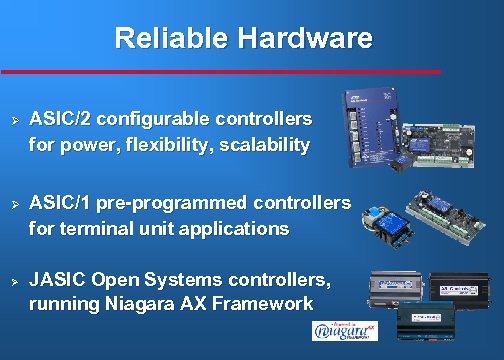

Reliable Hardware Ø Ø Ø ASIC/2 configurable controllers for power, flexibility, scalability ASIC/1 pre-programmed controllers for terminal unit applications JASIC Open Systems controllers, running Niagara AX Framework

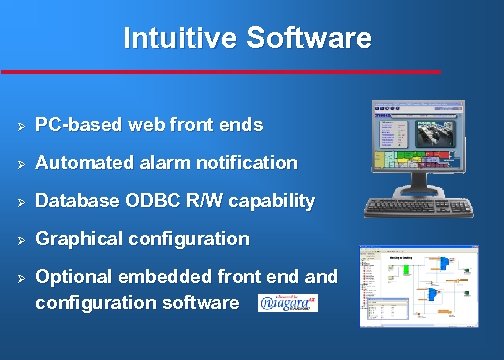

Intuitive Software Ø PC-based web front ends Ø Automated alarm notification Ø Database ODBC R/W capability Ø Graphical configuration Ø Optional embedded front end and configuration software

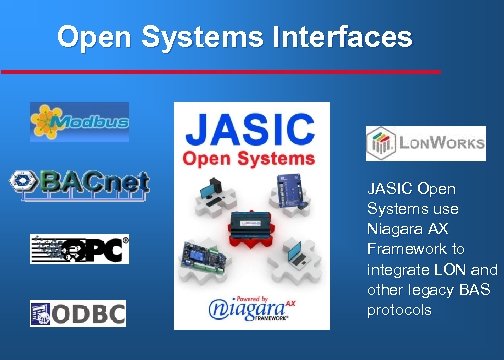

Open Systems Interfaces JASIC Open Systems use Niagara AX Framework to integrate LON and other legacy BAS protocols

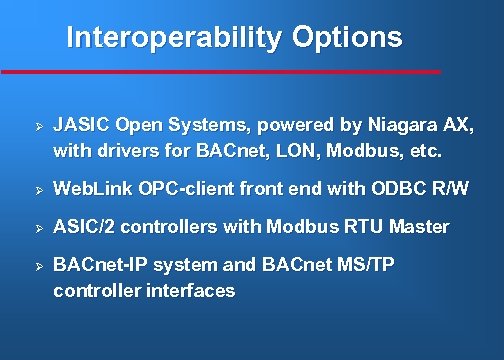

Interoperability Options Ø JASIC Open Systems, powered by Niagara AX, with drivers for BACnet, LON, Modbus, etc. Ø Web. Link OPC-client front end with ODBC R/W Ø ASIC/2 controllers with Modbus RTU Master Ø BACnet-IP system and BACnet MS/TP controller interfaces
System Architectures Ø Ø Ø Choice of Niagara AX or ASI Controls based system architectures Scalable open systems Range of choices for cost-effective Ethernet connectivity

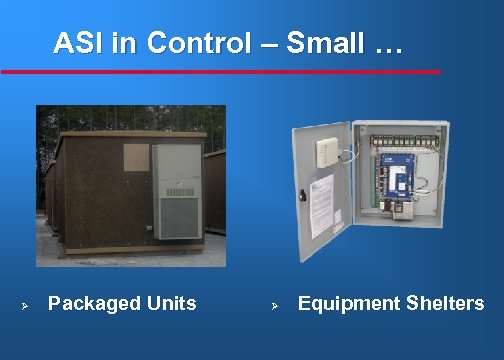

ASI in Control – Small … Ø Packaged Units Ø Equipment Shelters

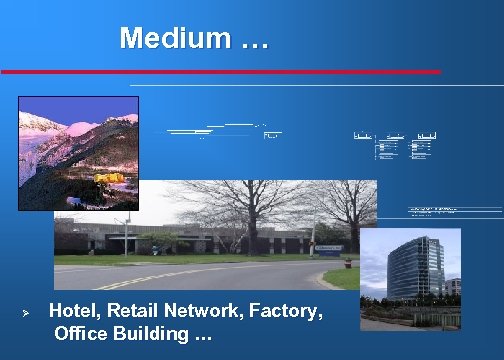

Medium … Ø Hotel, Retail Network, Factory, Office Building …

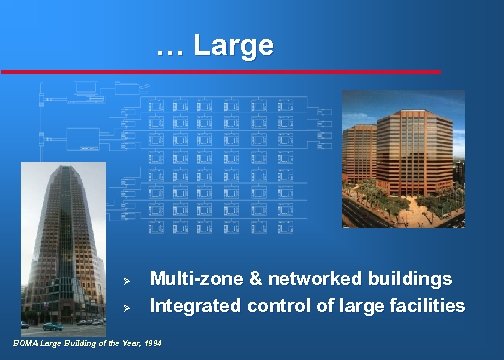

… Large Ø Ø Multi-zone & networked buildings Integrated control of large facilities BOMA Large Building of the Year, 1994

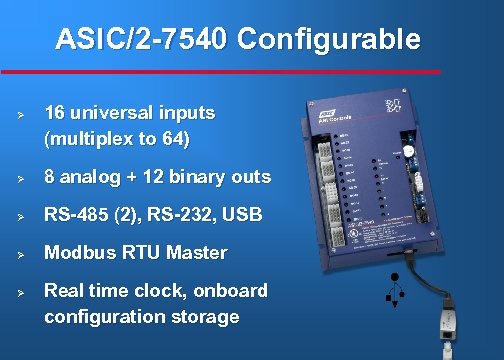

ASIC/2 -7540 Configurable Ø 16 universal inputs (multiplex to 64) Ø 8 analog + 12 binary outs Ø RS-485 (2), RS-232, USB Ø Modbus RTU Master Ø Real time clock, onboard configuration storage

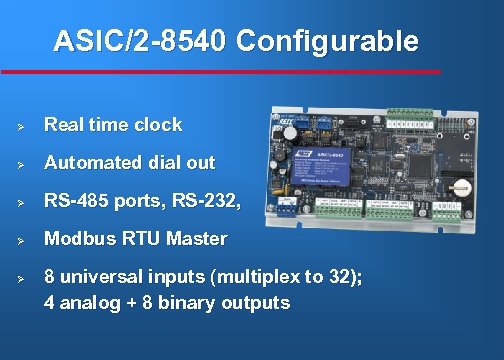

ASIC/2 -8540 Configurable Ø Real time clock Ø Automated dial out Ø RS-485 ports, RS-232, Ø Modbus RTU Master Ø 8 universal inputs (multiplex to 32); 4 analog + 8 binary outputs
ASIC/2 -8540 -BAC Ø Ø All the features of ASIC/2 -8540 plus a BACnet MS/TP bus Second RS-232 bus supports either ASI or Modbus communication

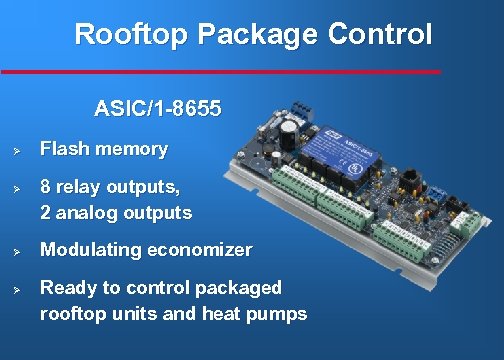

Rooftop Package Control ASIC/1 -8655 Ø Ø Flash memory 8 relay outputs, 2 analog outputs Modulating economizer Ready to control packaged rooftop units and heat pumps

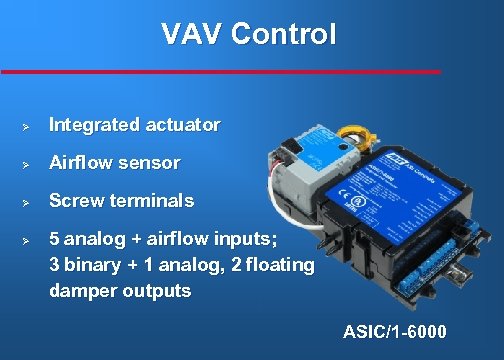

VAV Control Ø Integrated actuator Ø Airflow sensor Ø Screw terminals Ø 5 analog + airflow inputs; 3 binary + 1 analog, 2 floating damper outputs ASIC/1 -6000

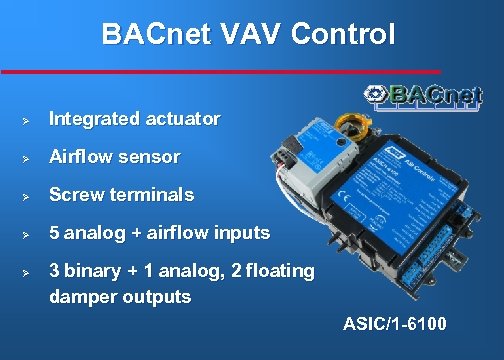

BACnet VAV Control Ø Integrated actuator Ø Airflow sensor Ø Screw terminals Ø 5 analog + airflow inputs Ø 3 binary + 1 analog, 2 floating damper outputs ASIC/1 -6100

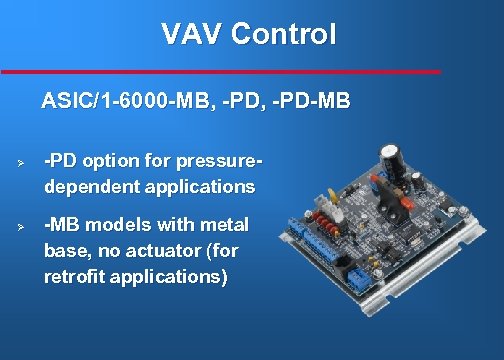

VAV Control ASIC/1 -6000 -MB, -PD-MB Ø Ø -PD option for pressuredependent applications -MB models with metal base, no actuator (for retrofit applications)

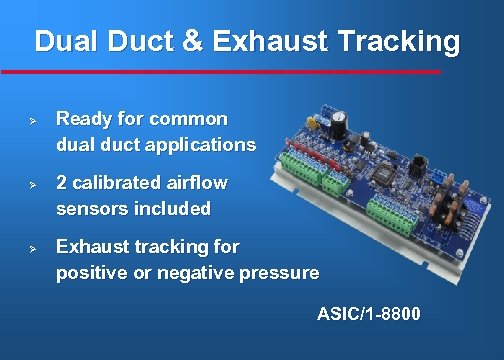

Dual Duct & Exhaust Tracking Ø Ø Ø Ready for common dual duct applications 2 calibrated airflow sensors included Exhaust tracking for positive or negative pressure ASIC/1 -8800

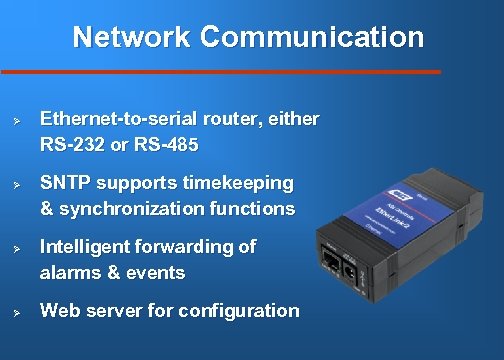

Network Communication Ø Ø Ethernet-to-serial router, either RS-232 or RS-485 SNTP supports timekeeping & synchronization functions Intelligent forwarding of alarms & events Web server for configuration

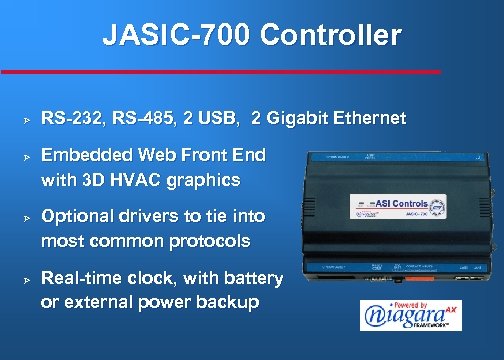

JASIC-700 Controller Ø Ø RS-232, RS-485, 2 USB, 2 Gigabit Ethernet Embedded Web Front End with 3 D HVAC graphics Optional drivers to tie into most common protocols Real-time clock, with battery or external power backup

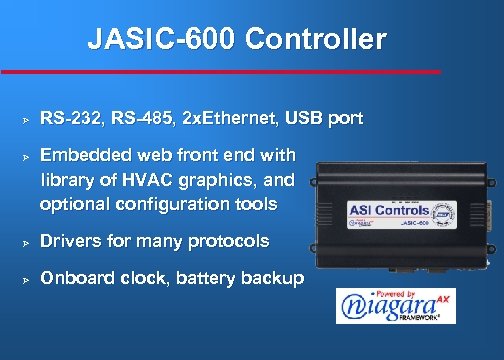

JASIC-600 Controller Ø Ø RS-232, RS-485, 2 x. Ethernet, USB port Embedded web front end with library of HVAC graphics, and optional configuration tools Ø Drivers for many protocols Ø Onboard clock, battery backup

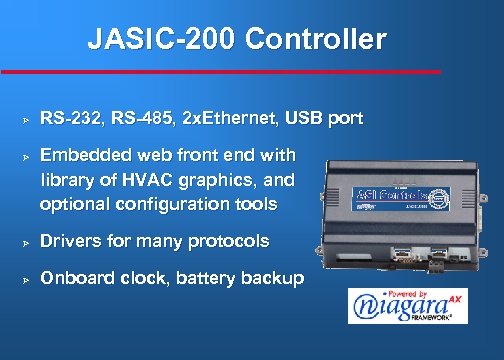

JASIC-200 Controller Ø Ø RS-232, RS-485, 2 x. Ethernet, USB port Embedded web front end with library of HVAC graphics, and optional configuration tools Ø Drivers for many protocols Ø Onboard clock, battery backup

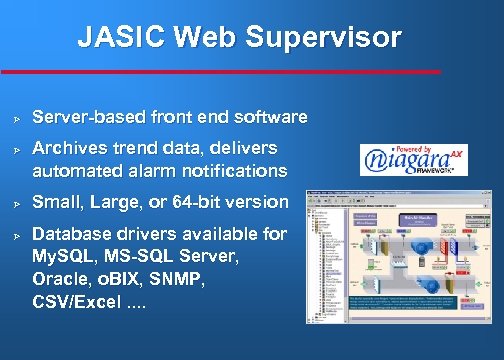

JASIC Web Supervisor Ø Ø Server-based front end software Archives trend data, delivers automated alarm notifications Small, Large, or 64 -bit version Database drivers available for My. SQL, MS-SQL Server, Oracle, o. BIX, SNMP, CSV/Excel. .

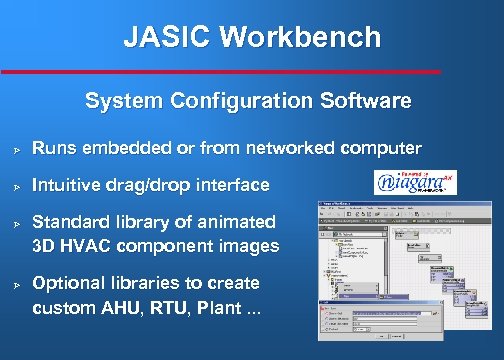

JASIC Workbench System Configuration Software Ø Runs embedded or from networked computer Ø Intuitive drag/drop interface Ø Ø Standard library of animated 3 D HVAC component images Optional libraries to create custom AHU, RTU, Plant. . .

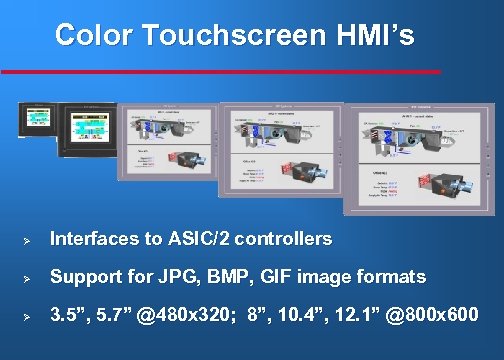

Color Touchscreen HMI’s Ø Interfaces to ASIC/2 controllers Ø Support for JPG, BMP, GIF image formats Ø 3. 5”, 5. 7” @480 x 320; 8”, 10. 4”, 12. 1” @800 x 600

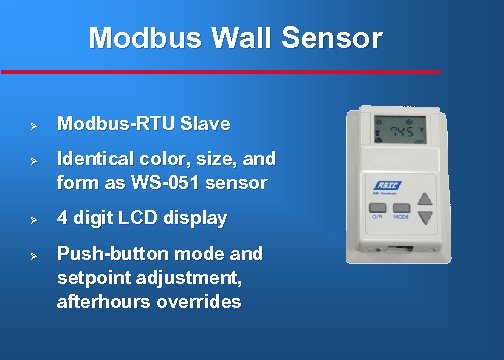

Modbus Wall Sensor Ø Ø Modbus-RTU Slave Identical color, size, and form as WS-051 sensor 4 digit LCD display Push-button mode and setpoint adjustment, afterhours overrides

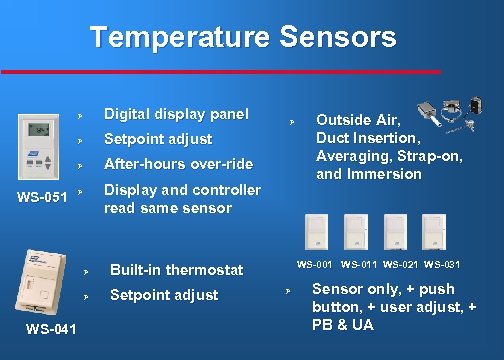

Temperature Sensors Ø Ø Setpoint adjust Ø WS-051 Digital display panel After-hours over-ride Ø Display and controller read same sensor Ø Setpoint adjust Outside Air, Duct Insertion, Averaging, Strap-on, and Immersion WS-001 WS-011 WS-021 WS-031 Built-in thermostat Ø WS-041 Ø Ø Sensor only, + push button, + user adjust, + PB & UA
Pressure, RH Sensors Ø Differential Pressure Transmitters in multiple ranges Ø Relative Humidity, RH+Temp sensors Ø Bulk polymer resistance for accuracy Ø Room, Duct, and Outside Air options
Network & System Interface Ø Ø Polling, Broadcasting & Event Notification Dual RS-232 access for PC, Modem, LAN Dual local buses RS-232 to RS-485 converter

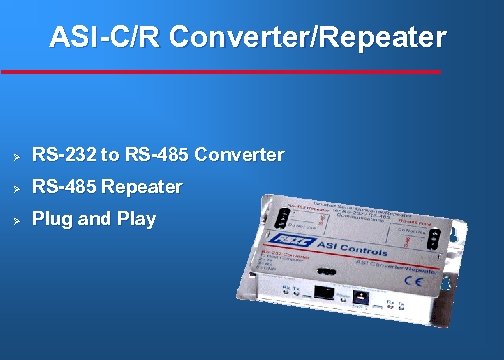

ASI-C/R Converter/Repeater Ø RS-232 to RS-485 Converter Ø RS-485 Repeater Ø Plug and Play
ASI Visual Expert Ø Graphical, drag & drop configuration without line programming Ø Real-time data display Ø Password protection Ø Re-use sequences between projects Sample configuration screen

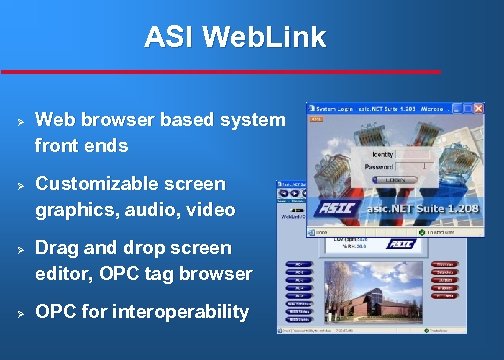

ASI Web. Link Ø Ø Web browser based system front ends Customizable screen graphics, audio, video Drag and drop screen editor, OPC tag browser OPC for interoperability

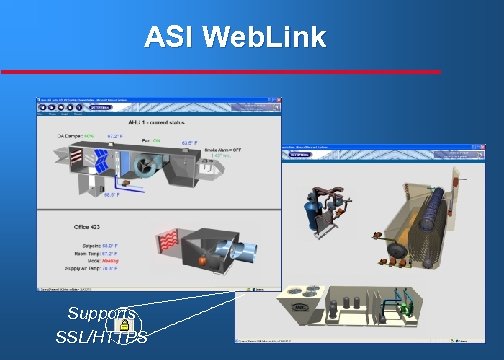

ASI Web. Link Supports SSL/HTTPS

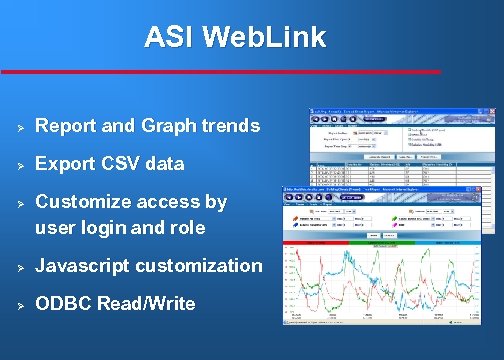

ASI Web. Link Ø Report and Graph trends Ø Export CSV data Ø Customize access by user login and role Ø Javascript customization Ø ODBC Read/Write

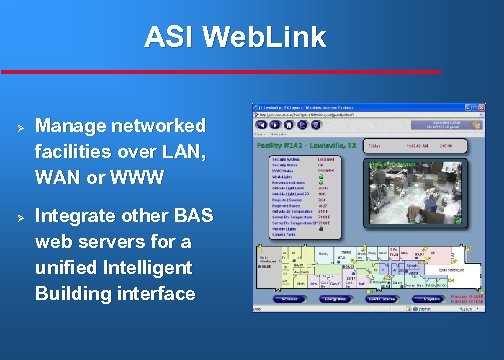

ASI Web. Link Ø Ø Manage networked facilities over LAN, WAN or WWW Integrate other BAS web servers for a unified Intelligent Building interface

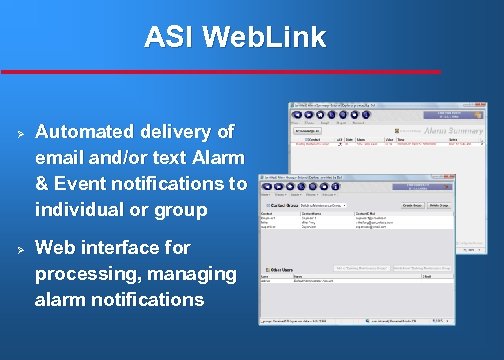

ASI Web. Link Ø Ø Automated delivery of email and/or text Alarm & Event notifications to individual or group Web interface for processing, managing alarm notifications

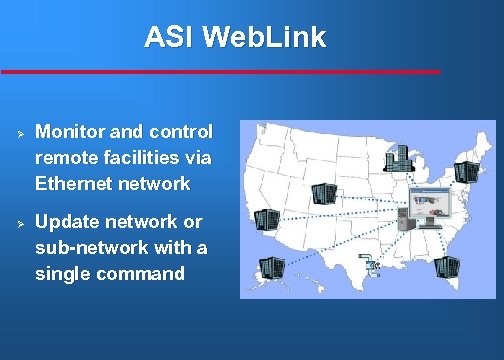

ASI Web. Link Ø Ø Monitor and control remote facilities via Ethernet network Update network or sub-network with a single command

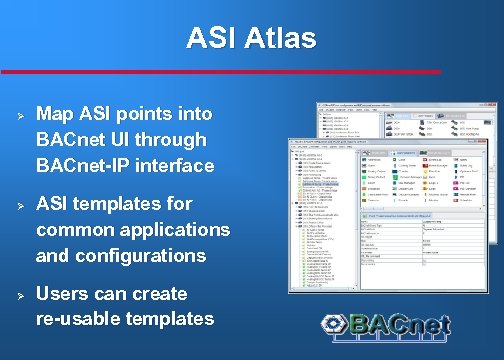

ASI Atlas Ø Ø Ø Map ASI points into BACnet UI through BACnet-IP interface ASI templates for common applications and configurations Users can create re-usable templates

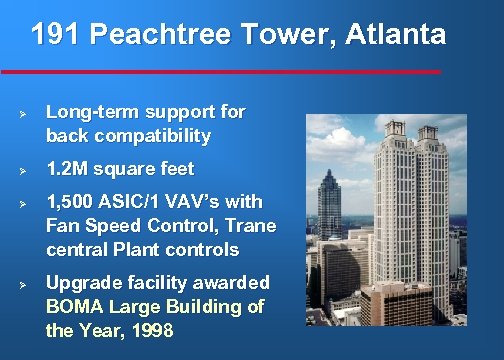

191 Peachtree Tower, Atlanta Ø Ø Long-term support for back compatibility 1. 2 M square feet 1, 500 ASIC/1 VAV’s with Fan Speed Control, Trane central Plant controls Upgrade facility awarded BOMA Large Building of the Year, 1998
Chartwell School, Seaside, CA Ø Ø USGBC LEED-NC 2. 1 Platinum rated Net-zero electricity use with onsite solar panels Provide control of HVAC Total energy use is half of comparable buildings

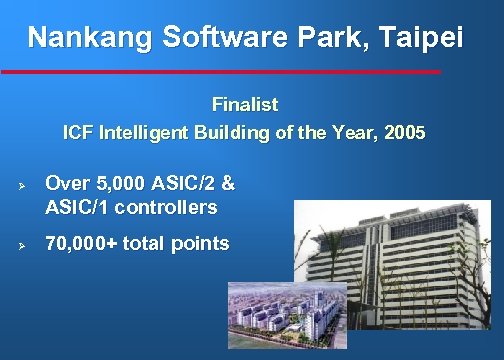

Nankang Software Park, Taipei Finalist ICF Intelligent Building of the Year, 2005 Ø Ø Over 5, 000 ASIC/2 & ASIC/1 controllers 70, 000+ total points
Other Notable Projects Ø Ø 3, 000+ telecommunications buildings Hilton hotels in Anaheim, Chicago, New York, San Francisco and other flagship locations Ø Mc. Chord AFB, WA – 45 networked buildings Ø West Virginia DEP, LEED-NC Silver rated Ø Hospitals, Retail Networks, Schools, College Campuses, Shopping Malls, Clean Rooms…
Our Goals Ø Ø Ø Supply reliable, innovative and cost-effective control system hardware and software Provide VARs with tools for complete Energy Management, Building Automation & other control solutions Comprehensive training and customer support Reliability · Performance · Value
Contacts Authorized Reseller Ak. Bin - Akıllı Bina Sistemleri ve Analizi Beyoğlu, İstanbul Tel: 554 646 8953 / 533 275 0338 Alper@akbin. com Headquarters 2202 Camino Ramon San Ramon, CA 94583 Tel: 925 -866 -8808 info@asicontrols. com
