Asahi America Electric Actuators Asahi America Electric Actuators Series

Asahi/America Electric Actuators

Asahi/America Electric Actuators Series 92

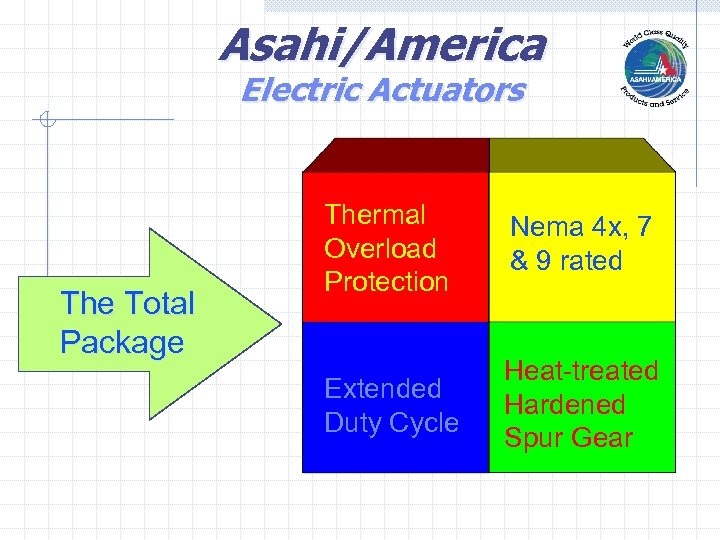

Asahi/America Electric Actuators The Total Package Thermal Overload Protection Nema 4 x, 7 & 9 rated Extended Duty Cycle Heat-treated Hardened Spur Gear

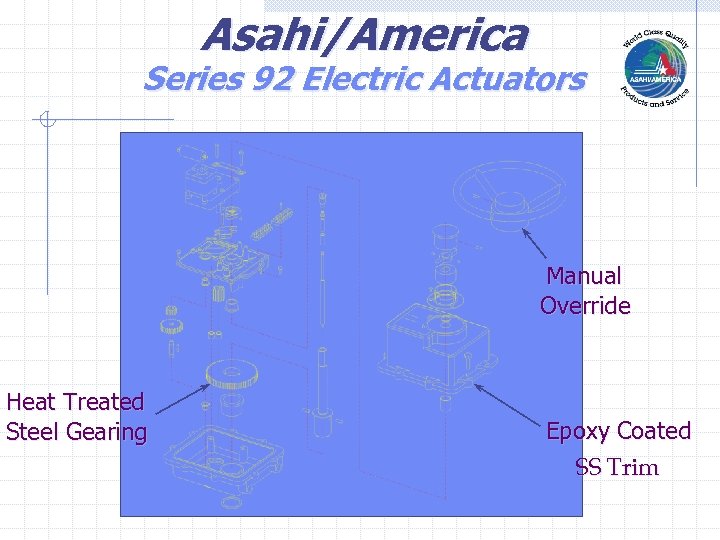

Asahi/America Series 92 Electric Actuators Manual Override Heat Treated Steel Gearing Epoxy Coated SS Trim

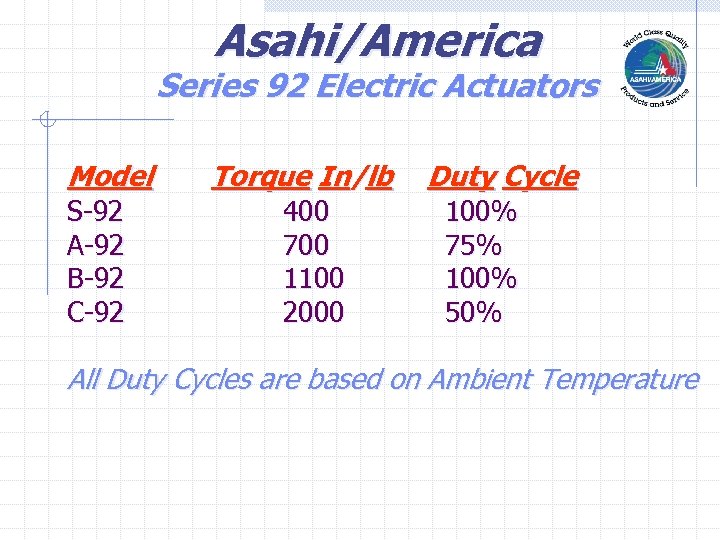

Asahi/America Series 92 Electric Actuators Model S-92 A-92 B-92 C-92 Torque In/lb 400 700 1100 2000 Duty Cycle 100% 75% 100% 50% All Duty Cycles are based on Ambient Temperature

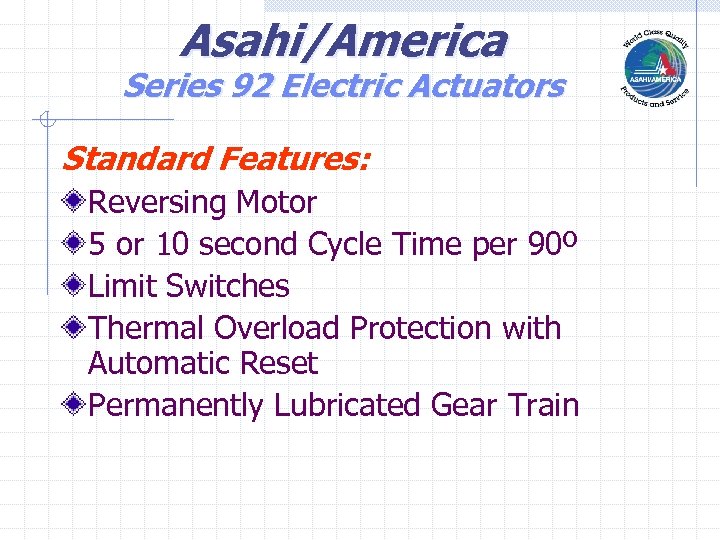

Asahi/America Series 92 Electric Actuators Standard Features: Reversing Motor 5 or 10 second Cycle Time per 90º Limit Switches Thermal Overload Protection with Automatic Reset Permanently Lubricated Gear Train

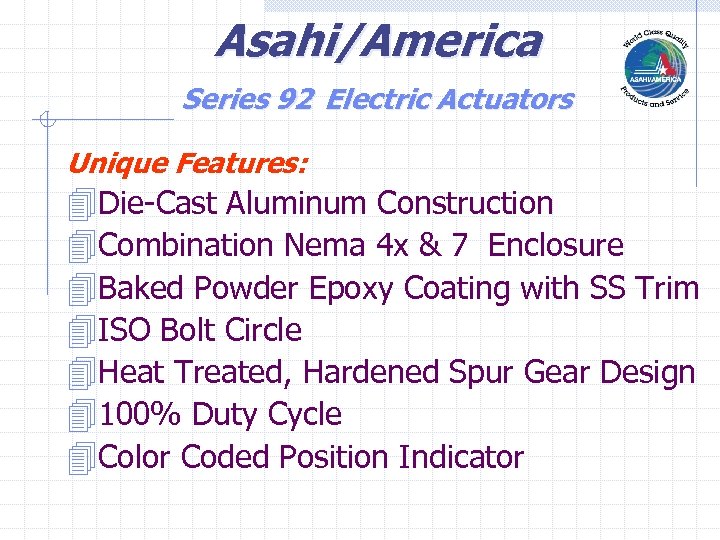

Asahi/America Series 92 Electric Actuators Unique Features: 4 Die-Cast Aluminum Construction 4 Combination Nema 4 x & 7 Enclosure 4 Baked Powder Epoxy Coating with SS Trim 4 ISO Bolt Circle 4 Heat Treated, Hardened Spur Gear Design 4100% Duty Cycle 4 Color Coded Position Indicator

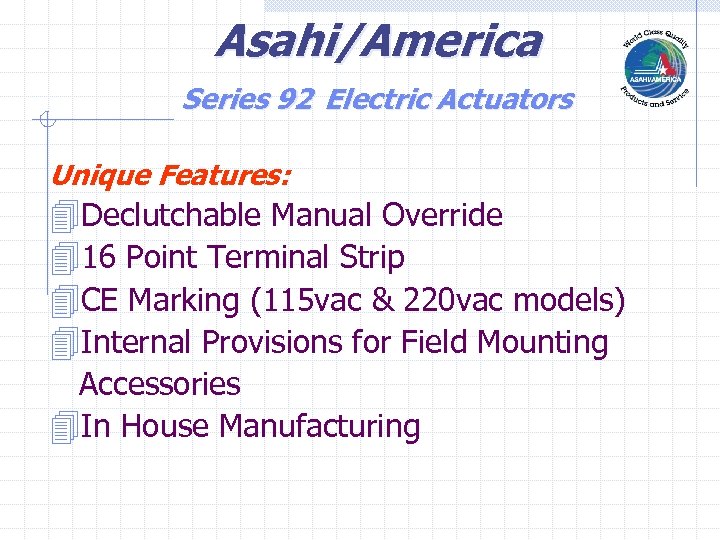

Asahi/America Series 92 Electric Actuators Unique Features: 4 Declutchable Manual Override 416 Point Terminal Strip 4 CE Marking (115 vac & 220 vac models) 4 Internal Provisions for Field Mounting Accessories 4 In House Manufacturing

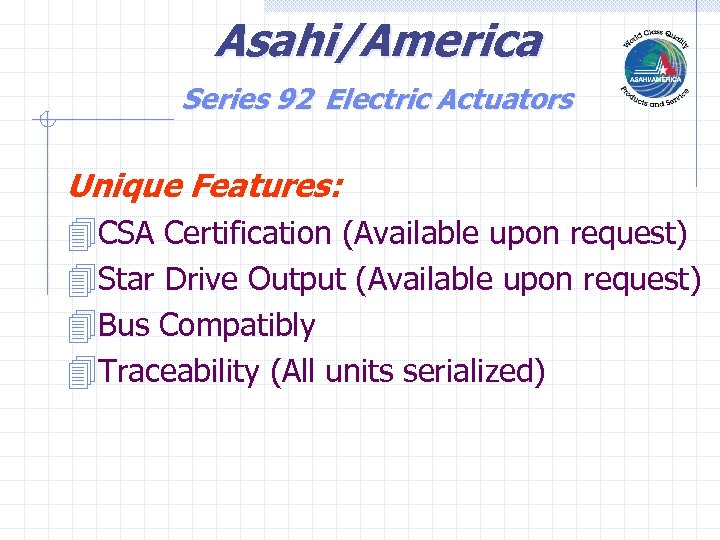

Asahi/America Series 92 Electric Actuators Unique Features: 4 CSA Certification (Available upon request) 4 Star Drive Output (Available upon request) 4 Bus Compatibly 4 Traceability (All units serialized)

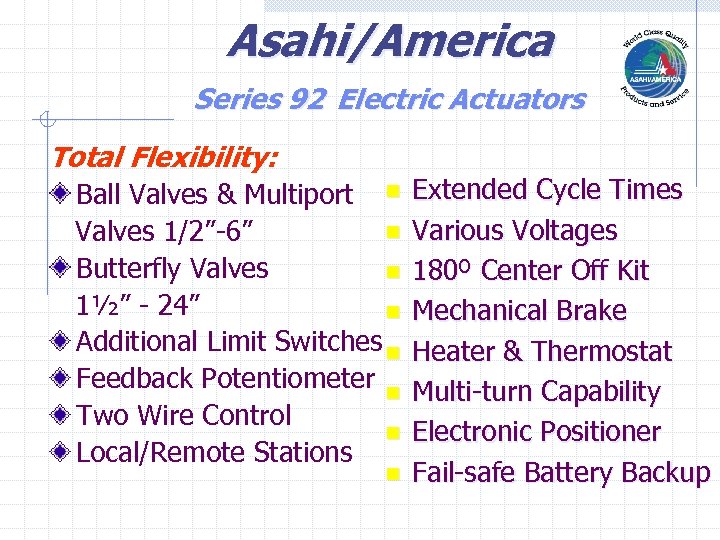

Asahi/America Series 92 Electric Actuators Total Flexibility: Ball Valves & Multiport n n Valves 1/2”-6” Butterfly Valves n 1½” - 24” n Additional Limit Switches n Feedback Potentiometer n Two Wire Control n Local/Remote Stations n Extended Cycle Times Various Voltages 180º Center Off Kit Mechanical Brake Heater & Thermostat Multi-turn Capability Electronic Positioner Fail-safe Battery Backup

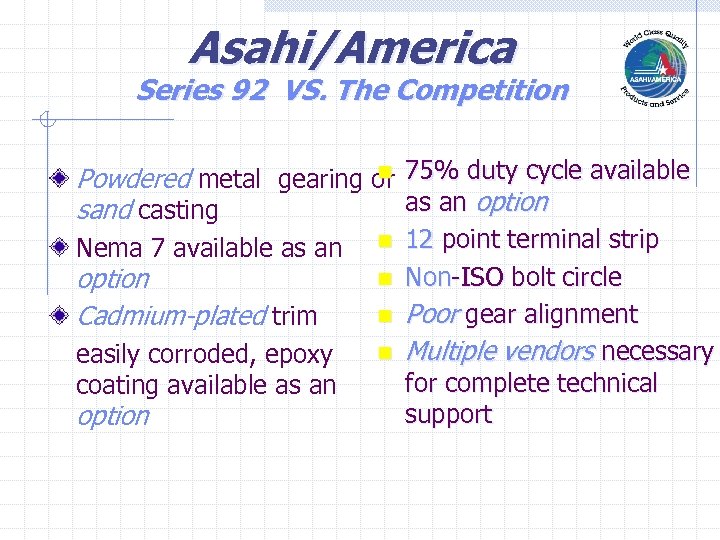

Asahi/America Series 92 VS. The Competition n Powdered metal gearing or 75% duty cycle available as an option sand casting Nema 7 available as an n option Cadmium-plated trim n easily corroded, epoxy coating available as an n option n 12 point terminal strip Non-ISO bolt circle Poor gear alignment Multiple vendors necessary for complete technical support

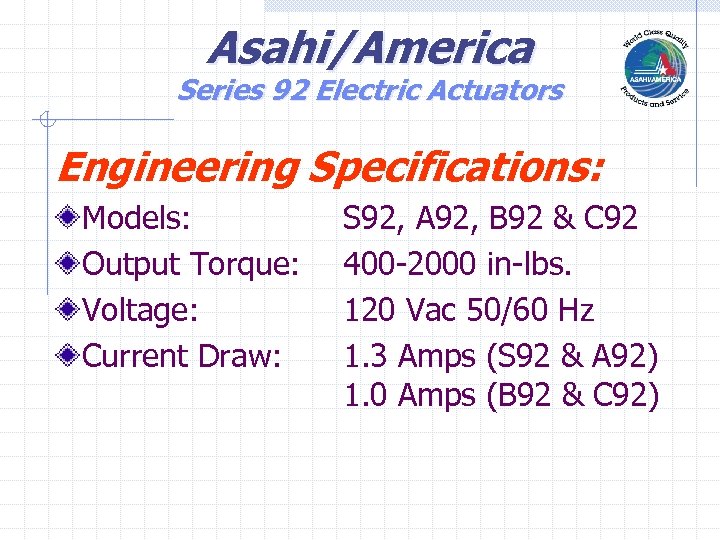

Asahi/America Series 92 Electric Actuators Engineering Specifications: Models: Output Torque: Voltage: Current Draw: S 92, A 92, B 92 & C 92 400 -2000 in-lbs. 120 Vac 50/60 Hz 1. 3 Amps (S 92 & A 92) 1. 0 Amps (B 92 & C 92)

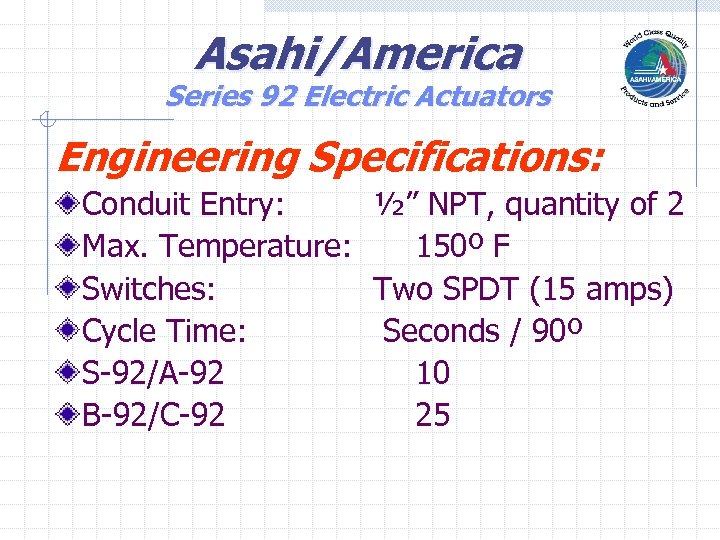

Asahi/America Series 92 Electric Actuators Engineering Specifications: Conduit Entry: ½” NPT, quantity of 2 Max. Temperature: 150º F Switches: Two SPDT (15 amps) Cycle Time: Seconds / 90º S-92/A-92 10 B-92/C-92 25

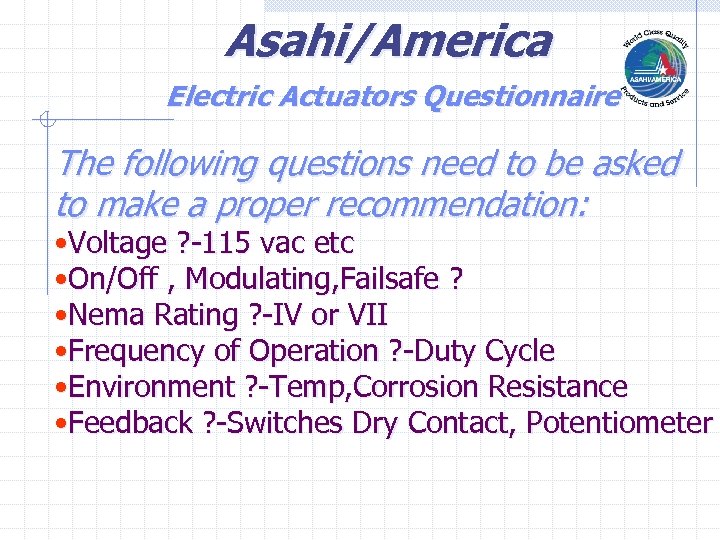

Asahi/America Electric Actuators Questionnaire The following questions need to be asked to make a proper recommendation: • Voltage ? -115 vac etc • On/Off , Modulating, Failsafe ? • Nema Rating ? -IV or VII • Frequency of Operation ? -Duty Cycle • Environment ? -Temp, Corrosion Resistance • Feedback ? -Switches Dry Contact, Potentiometer
