Asahi America Actuation-Electric Pneumatic Asahi America Actuation

Asahi/America Actuation-Electric & Pneumatic

Asahi/America Actuation • Actuator Packages • State of the Art Design • Ability to Interface • In-House Manufacturing • Specials • Over 25 Years Experience

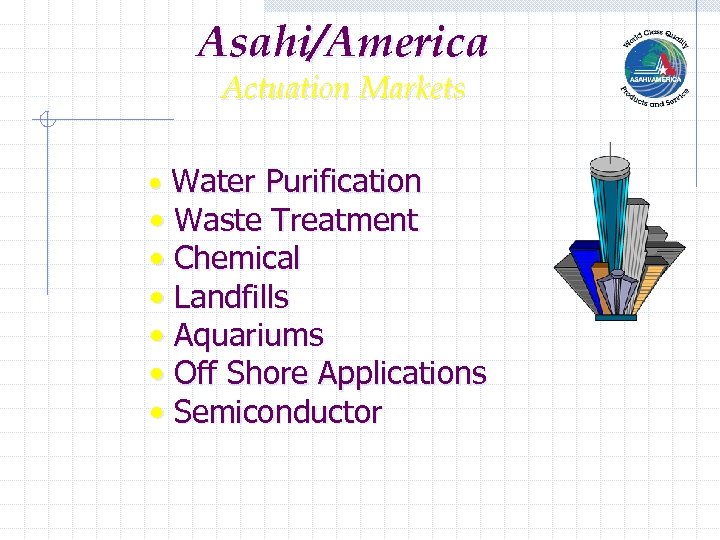

Asahi/America Actuation Markets • Water Purification • Waste Treatment • Chemical • Landfills • Aquariums • Off Shore Applications • Semiconductor

Asahi/America Electric &Pneumatic Actuators Series 83 -Electromni Series 94 -Quartermaster Series 92 -Quartermaster Chief Series 79 - Pneumatic

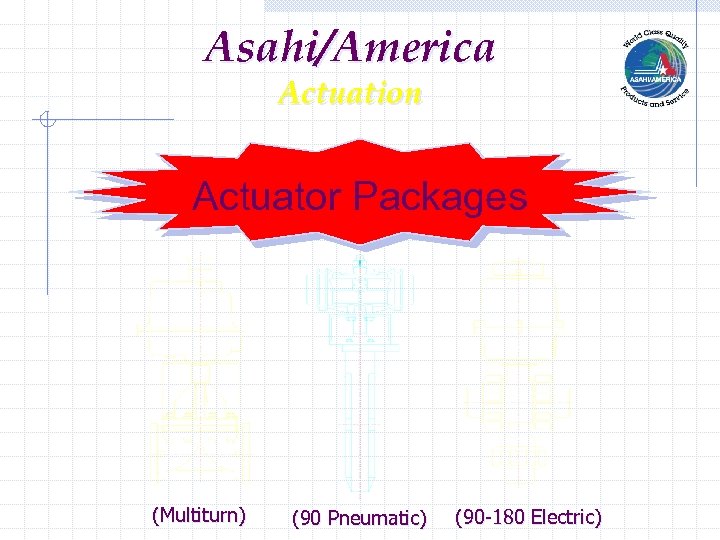

Asahi/America Actuation Actuator Packages (Multiturn) (90 Pneumatic) (90 -180 Electric)

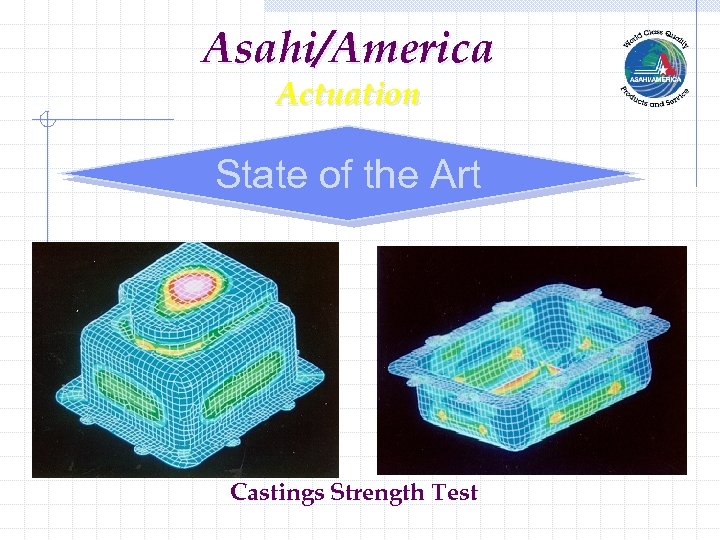

Asahi/America Actuation State of the Art Castings Strength Test

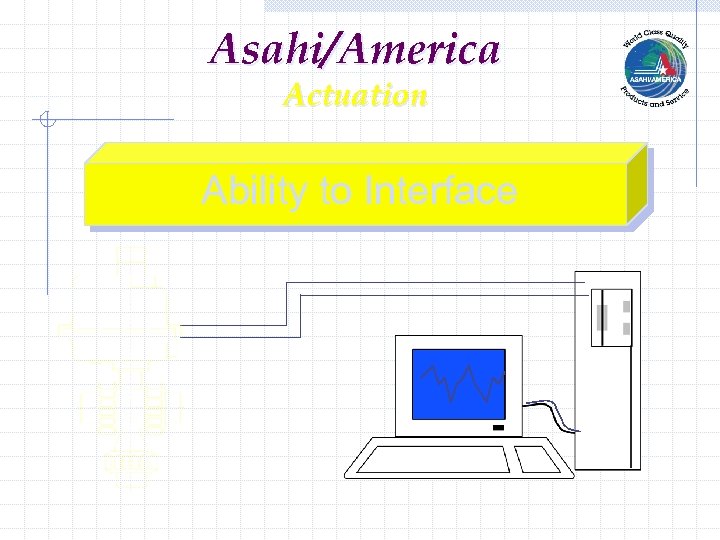

Asahi/America Actuation Ability to Interface

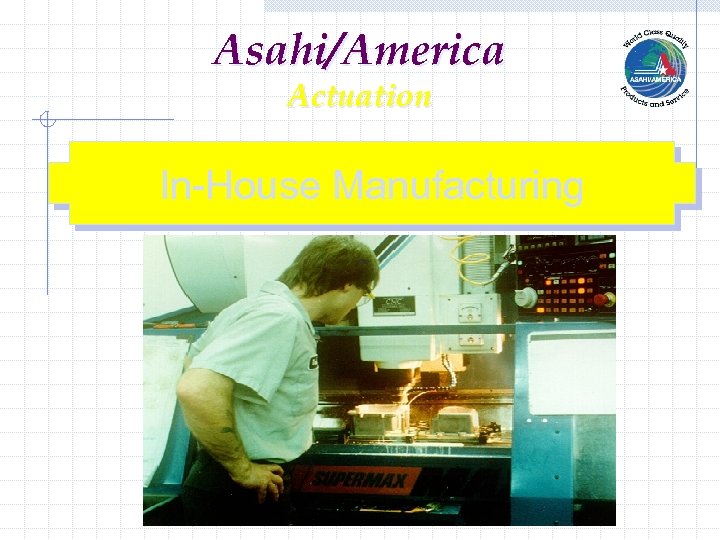

Asahi/America Actuation In-House Manufacturing

Asahi/America Quality Control 9001 ISO ed ertifi C

Asahi/America Quality Control Actuation 4 Design Life 250, 000 cycles minimum 4 Assembly Process Parts Inspection 4100% Testing 4 Serializing 4 Appearance 4

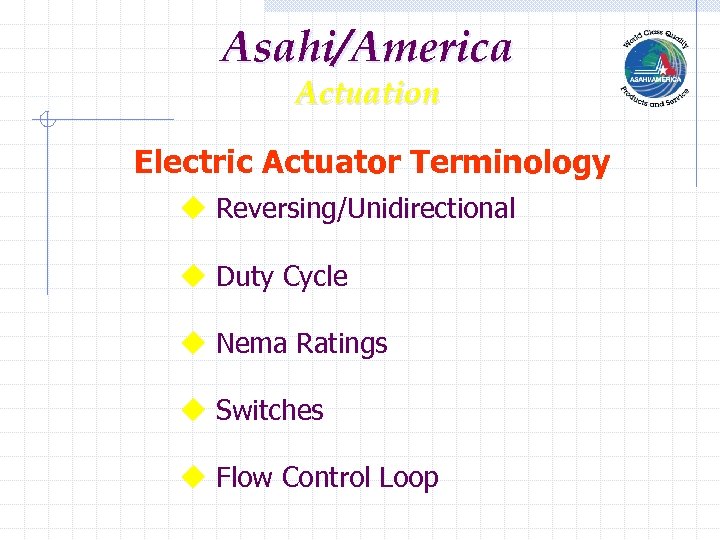

Asahi/America Actuation Electric Actuator Terminology u Reversing/Unidirectional u Duty Cycle u Nema Ratings u Switches u Flow Control Loop

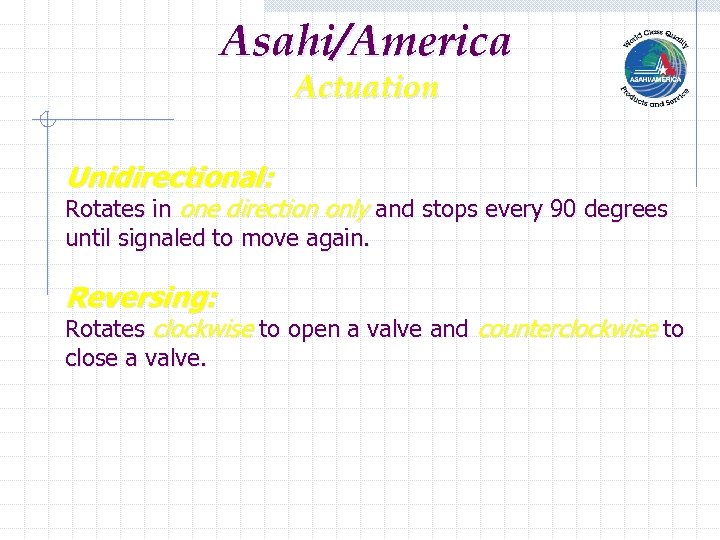

Asahi/America Actuation Unidirectional: Rotates in one direction only and stops every 90 degrees until signaled to move again. Reversing: Rotates clockwise to open a valve and counterclockwise to close a valve.

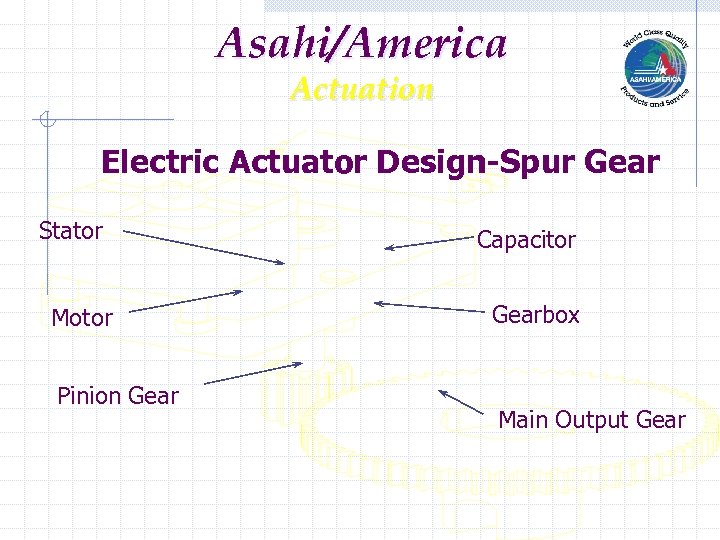

Asahi/America Actuation Electric Actuator Design-Spur Gear Stator Motor Pinion Gear Capacitor Gearbox Main Output Gear

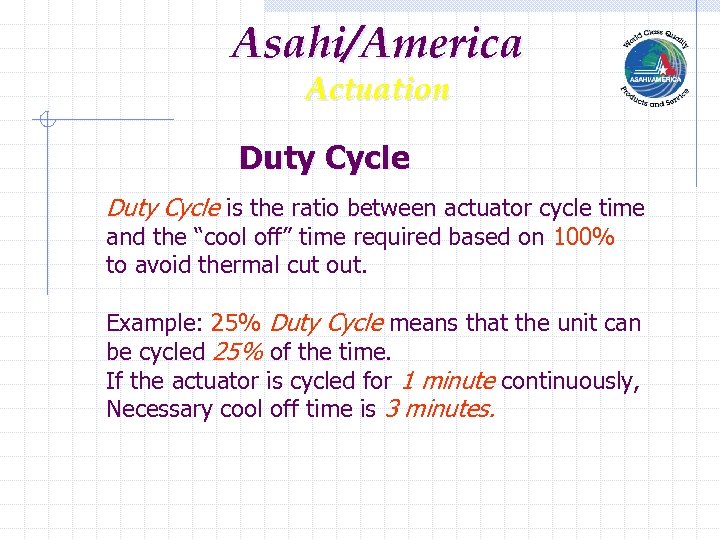

Asahi/America Actuation Duty Cycle is the ratio between actuator cycle time and the “cool off” time required based on 100% to avoid thermal cut out. Example: 25% Duty Cycle means that the unit can be cycled 25% of the time. If the actuator is cycled for 1 minute continuously, Necessary cool off time is 3 minutes.

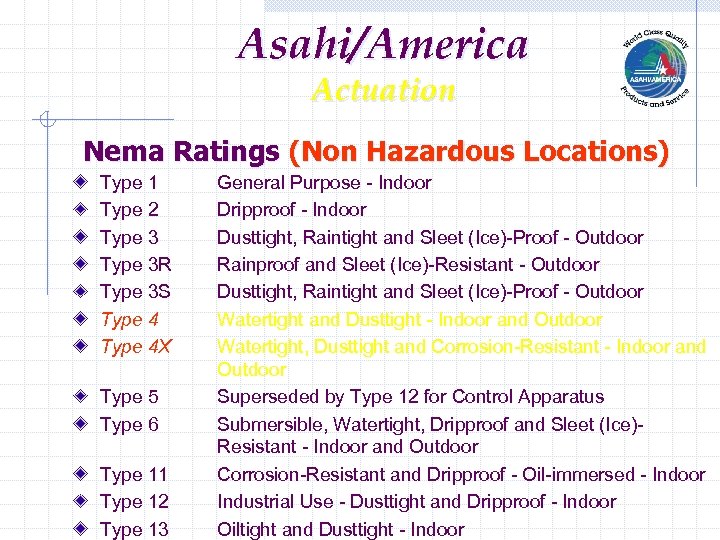

Asahi/America Actuation Nema Ratings (Non Hazardous Locations) Type 1 Type 2 Type 3 R Type 3 S Type 4 X Type 5 Type 6 Type 11 Type 12 Type 13 General Purpose - Indoor Dripproof - Indoor Dusttight, Raintight and Sleet (Ice)-Proof - Outdoor Rainproof and Sleet (Ice)-Resistant - Outdoor Dusttight, Raintight and Sleet (Ice)-Proof - Outdoor Watertight and Dusttight - Indoor and Outdoor Watertight, Dusttight and Corrosion-Resistant - Indoor and Outdoor Superseded by Type 12 for Control Apparatus Submersible, Watertight, Dripproof and Sleet (Ice)Resistant - Indoor and Outdoor Corrosion-Resistant and Dripproof - Oil-immersed - Indoor Industrial Use - Dusttight and Dripproof - Indoor Oiltight and Dusttight - Indoor

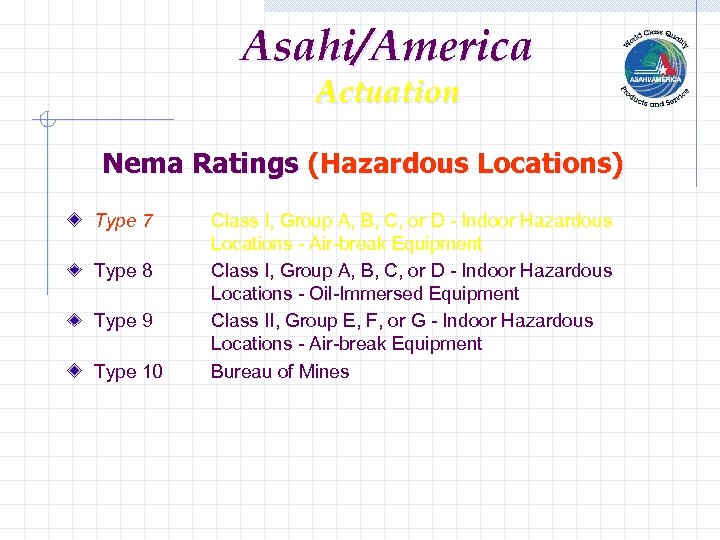

Asahi/America Actuation Nema Ratings (Hazardous Locations) Type 7 Type 8 Type 9 Type 10 Class I, Group A, B, C, or D - Indoor Hazardous Locations - Air-break Equipment Class I, Group A, B, C, or D - Indoor Hazardous Locations - Oil-Immersed Equipment Class II, Group E, F, or G - Indoor Hazardous Locations - Air-break Equipment Bureau of Mines

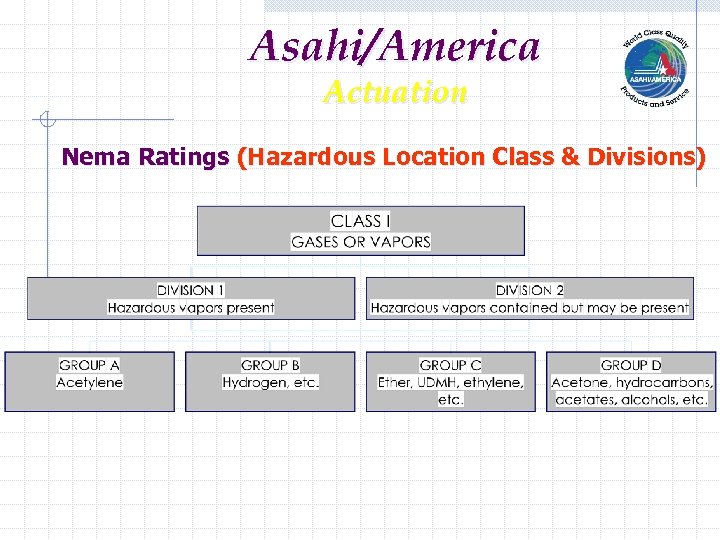

Asahi/America Actuation Nema Ratings (Hazardous Location Class & Divisions)

Asahi/America Actuation Nema Ratings (Hazardous Class & Divisions)

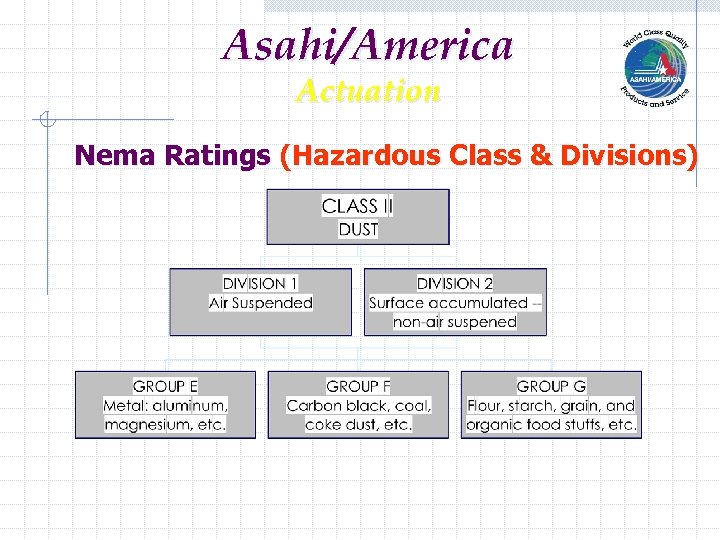

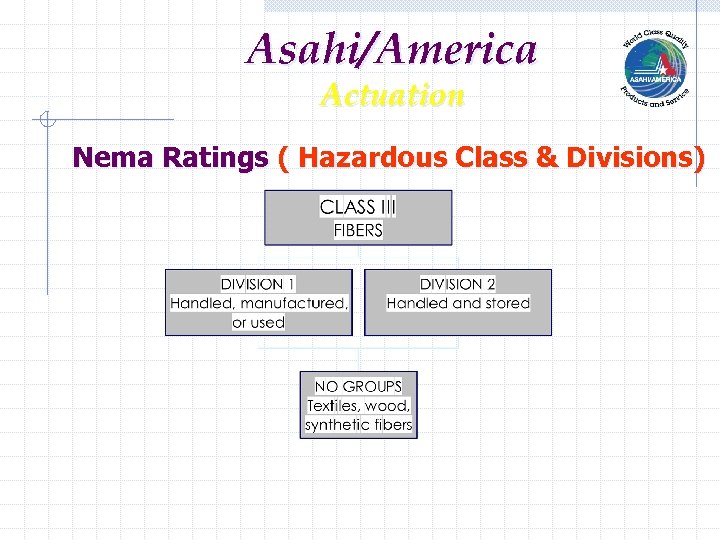

Asahi/America Actuation Nema Ratings ( Hazardous Class & Divisions)

Asahi/America Wiring Schematic Series 92

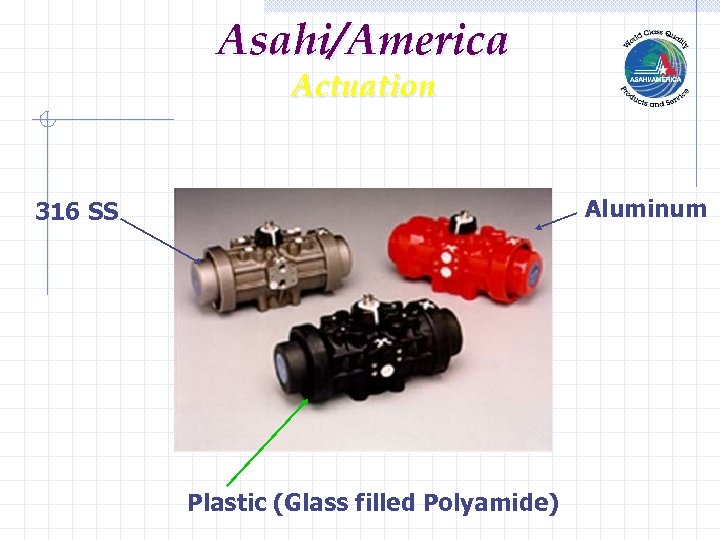

Asahi/America Actuation Aluminum 316 SS Plastic (Glass filled Polyamide)

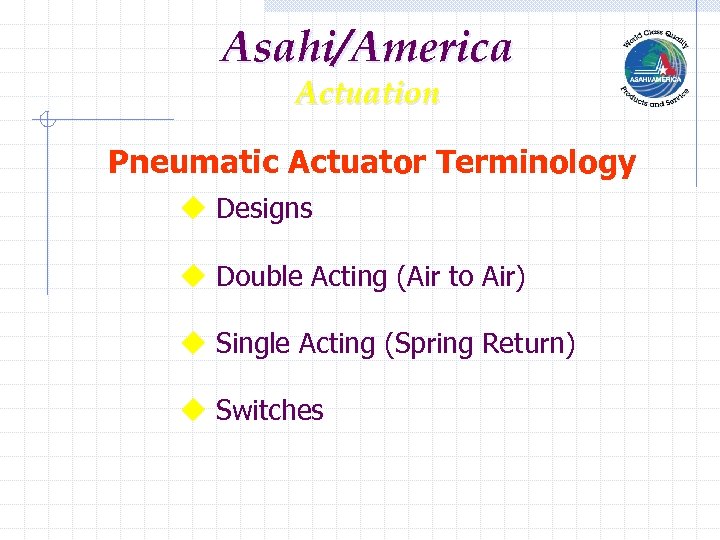

Asahi/America Actuation Pneumatic Actuator Terminology u Designs u Double Acting (Air to Air) u Single Acting (Spring Return) u Switches

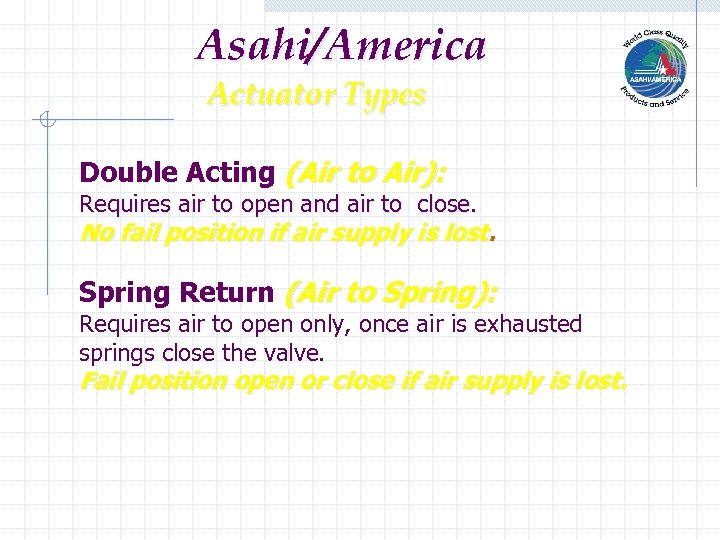

Asahi/America Actuator Types Double Acting (Air to Air): Requires air to open and air to close. No fail position if air supply is lost. Spring Return (Air to Spring): Requires air to open only, once air is exhausted springs close the valve. Fail position open or close if air supply is lost.

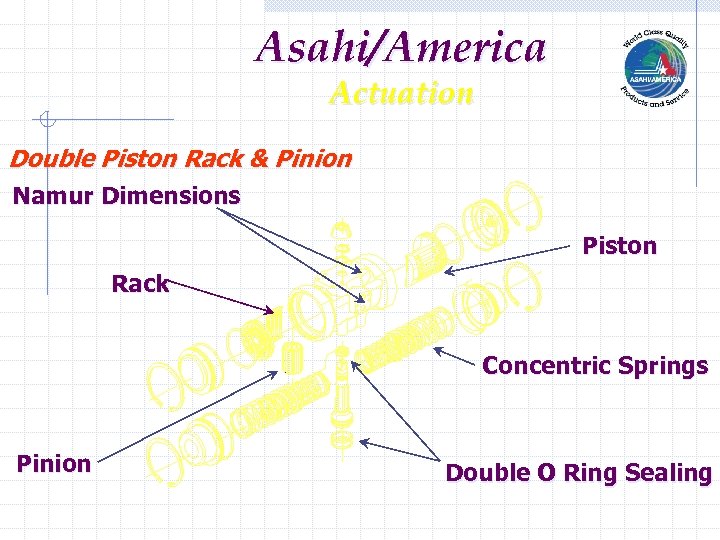

Asahi/America Actuation Double Piston Rack & Pinion Namur Dimensions Piston Rack Concentric Springs Pinion Double O Ring Sealing

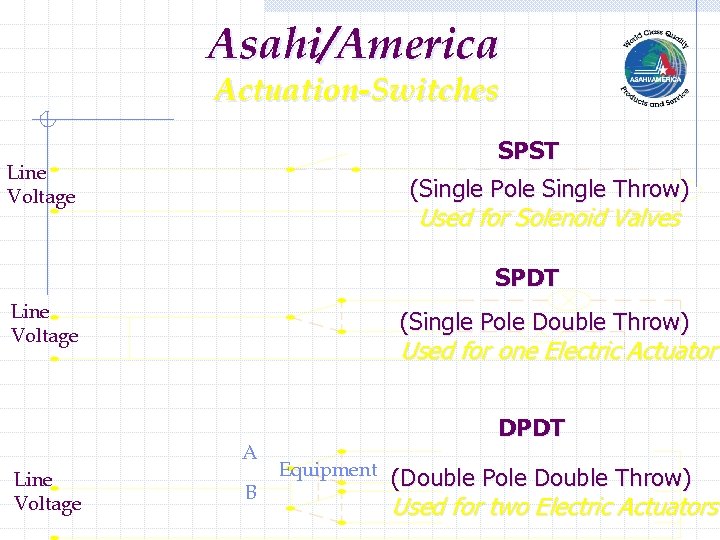

Asahi/America Actuation-Switches SPST Line Voltage (Single Pole Single Throw) Used for Solenoid Valves SPDT Line Voltage (Single Pole Double Throw) Used for one Electric Actuator A Line Voltage B DPDT Equipment (Double Pole Double Throw) Used for two Electric Actuators

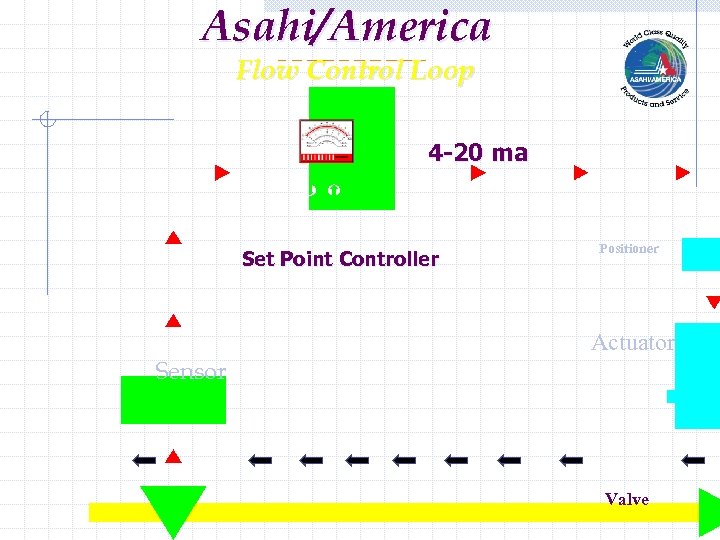

Asahi/America Flow Control Loop 4 -20 ma Þ Ý Set Point Controller Positioner Actuator Sensor Valve
