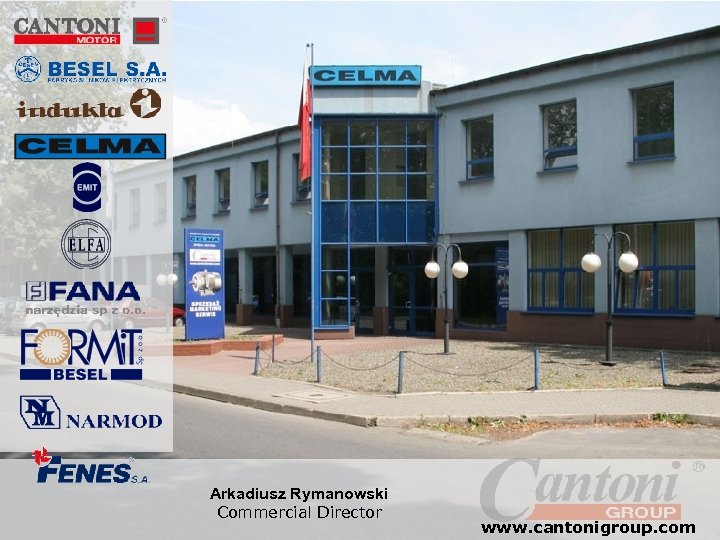

Arkadiusz Rymanowski Commercial Director www cantonigroup com

Arkadiusz Rymanowski Commercial Director www. cantonigroup. com

Our History… www. cantonigroup. com 1920 -10 -20 This date is considered as the beginning of today’s CELMA. 2000 -05 -10 Shares of Electric Machines CELMA were bought by the CANTONI. M. E. CELMA S. A. became a part of the CANTONI Group. a long way… great experience…

Our Mission www. cantonigroup. com Ø we supply high quality drives; Ø we offer standard solutions directly to original equipment manufacturers, distributors and large end users; Ø we aim at developing special purpose solutions through partnering and alliances with original equipment manufacturers and design offices; Ø in our offer we have complete range of high quality electric motors and their components; Ø we take advantage over the competitors due to production scale.

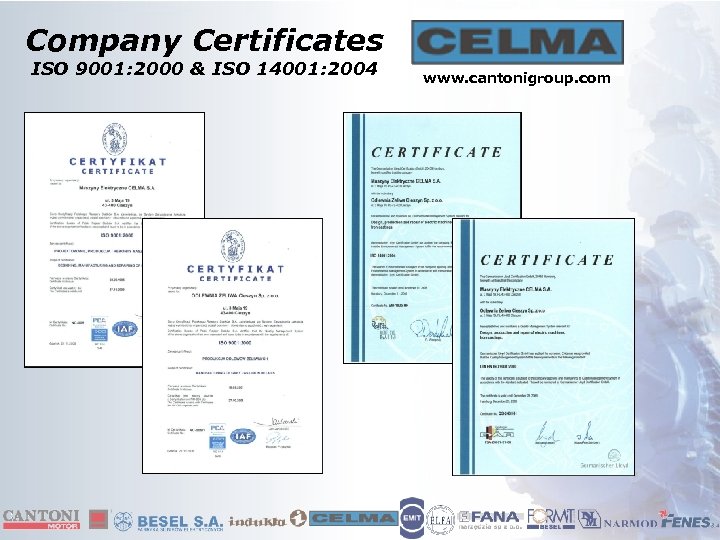

Company Certificates ISO 9001: 2000 & ISO 14001: 2004 www. cantonigroup. com

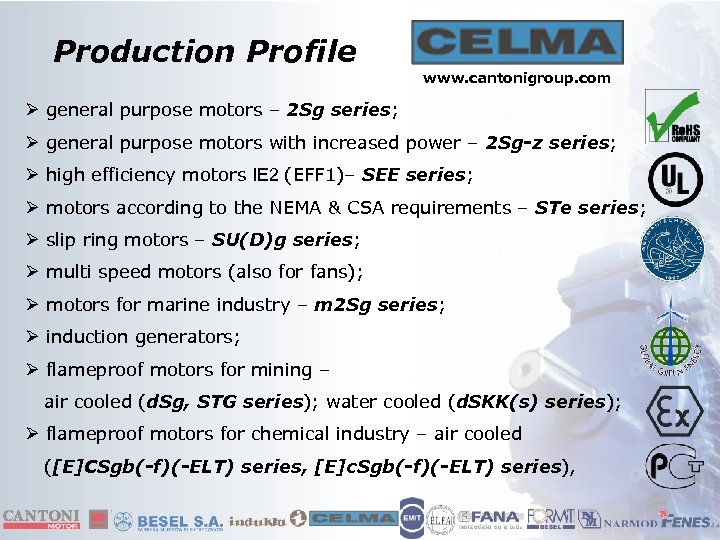

Production Profile www. cantonigroup. com Ø general purpose motors – 2 Sg series; Ø general purpose motors with increased power – 2 Sg-z series; Ø high efficiency motors IE 2 (EFF 1)– SEE series; Ø motors according to the NEMA & CSA requirements – STe series; Ø slip ring motors – SU(D)g series; Ø multi speed motors (also for fans); Ø motors for marine industry – m 2 Sg series; Ø induction generators; Ø flameproof motors for mining – air cooled (d. Sg, STG series); water cooled (d. SKK(s) series); Ø flameproof motors for chemical industry – air cooled ([E]CSgb(-f)(-ELT) series, [E]c. Sgb(-f)(-ELT) series),

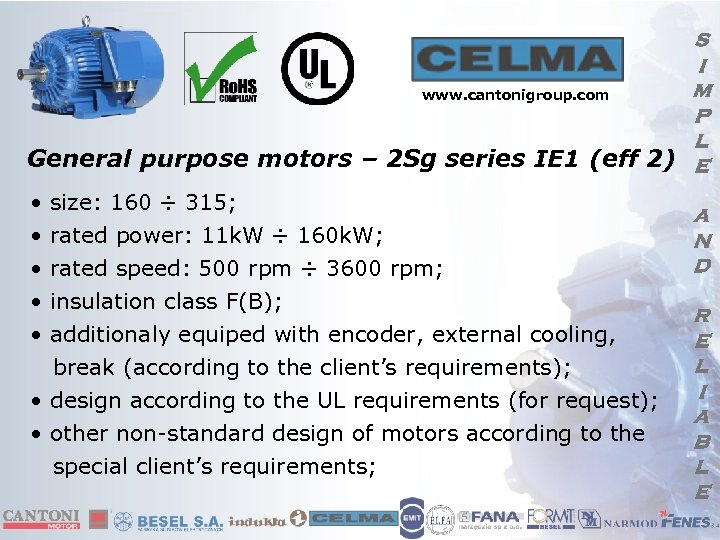

S I M www. cantonigroup. com P L General purpose motors – 2 Sg series IE 1 (eff 2) E • • • size: 160 ÷ 315; rated power: 11 k. W ÷ 160 k. W; rated speed: 500 rpm ÷ 3600 rpm; insulation class F(B); additionaly equiped with encoder, external cooling, break (according to the client’s requirements); • design according to the UL requirements (for request); • other non-standard design of motors according to the special client’s requirements; A N D R E L I A B L E

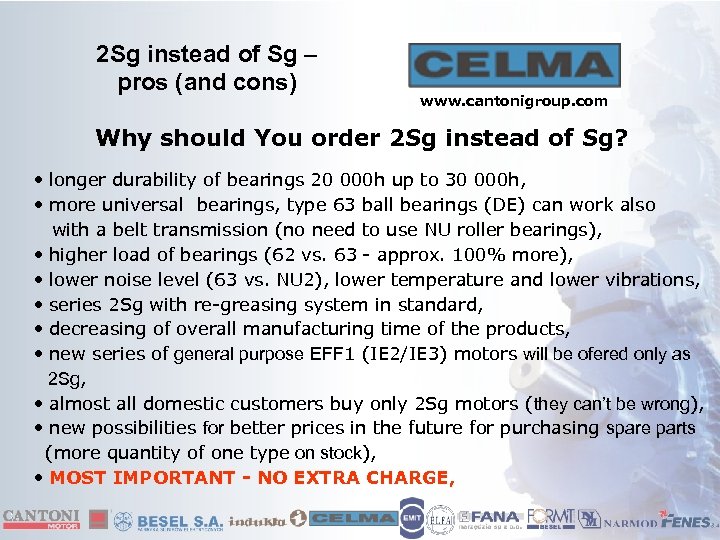

2 Sg instead of Sg – pros (and cons) www. cantonigroup. com Why should You order 2 Sg instead of Sg? • longer durability of bearings 20 000 h up to 30 000 h, • more universal bearings, type 63 ball bearings (DE) can work also with a belt transmission (no need to use NU roller bearings), • higher load of bearings (62 vs. 63 - approx. 100% more), • lower noise level (63 vs. NU 2), lower temperature and lower vibrations, • series 2 Sg with re-greasing system in standard, • decreasing of overall manufacturing time of the products, • new series of general purpose EFF 1 (IE 2/IE 3) motors will be ofered only as 2 Sg, • almost all domestic customers buy only 2 Sg motors (they can’t be wrong), • new possibilities for better prices in the future for purchasing spare parts (more quantity of one type on stock), • MOST IMPORTANT - NO EXTRA CHARGE,

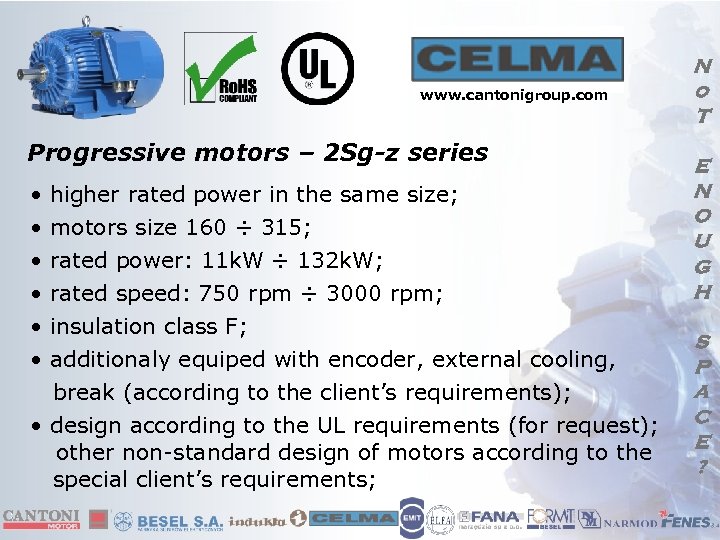

www. cantonigroup. com Progressive motors – 2 Sg-z series • • • higher rated power in the same size; motors size 160 ÷ 315; rated power: 11 k. W ÷ 132 k. W; rated speed: 750 rpm ÷ 3000 rpm; insulation class F; additionaly equiped with encoder, external cooling, break (according to the client’s requirements); • design according to the UL requirements (for request); other non-standard design of motors according to the special client’s requirements; N o T E N O U G H S P A C E ?

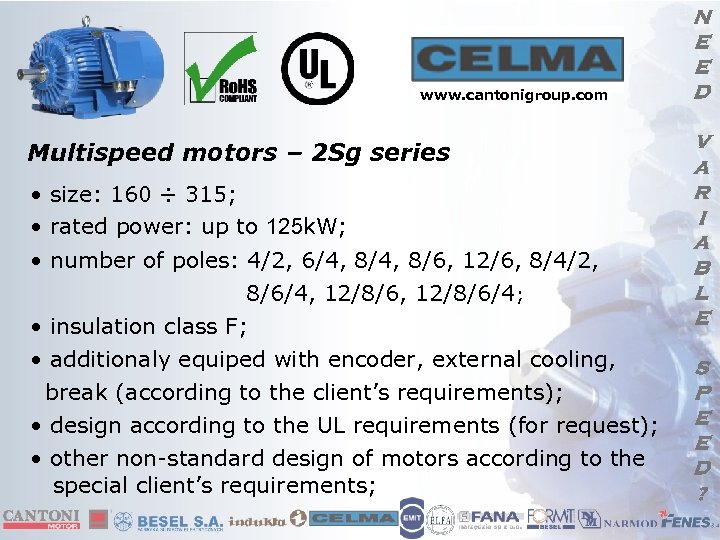

www. cantonigroup. com Multispeed motors – 2 Sg series • size: 160 ÷ 315; • rated power: up to 125 k. W; • number of poles: 4/2, 6/4, 8/6, 12/6, 8/4/2, 8/6/4, 12/8/6/4; • insulation class F; • additionaly equiped with encoder, external cooling, break (according to the client’s requirements); • design according to the UL requirements (for request); • other non-standard design of motors according to the special client’s requirements; N E E D V A R I A B L E S P E E D ?

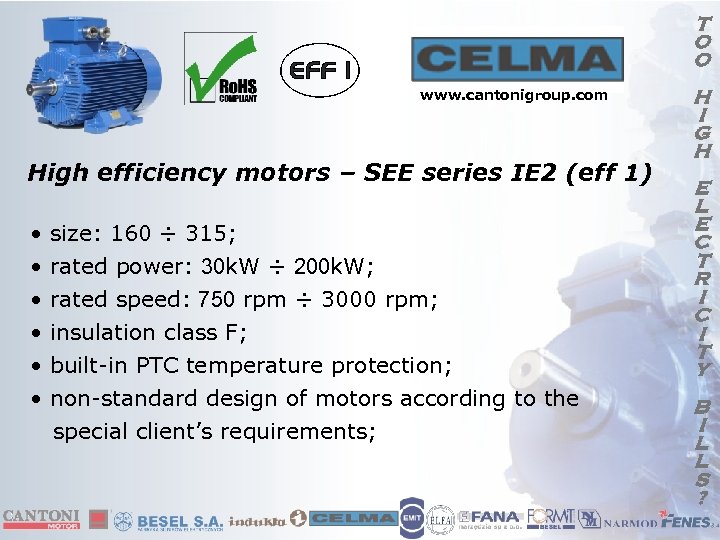

T O O www. cantonigroup. com High efficiency motors – SEE series IE 2 (eff 1) • • • size: 160 ÷ 315; rated power: 30 k. W ÷ 200 k. W; rated speed: 750 rpm ÷ 3000 rpm; insulation class F; built-in PTC temperature protection; non-standard design of motors according to the special client’s requirements; H I G H E L E C T R I C I T Y B I L L S ?

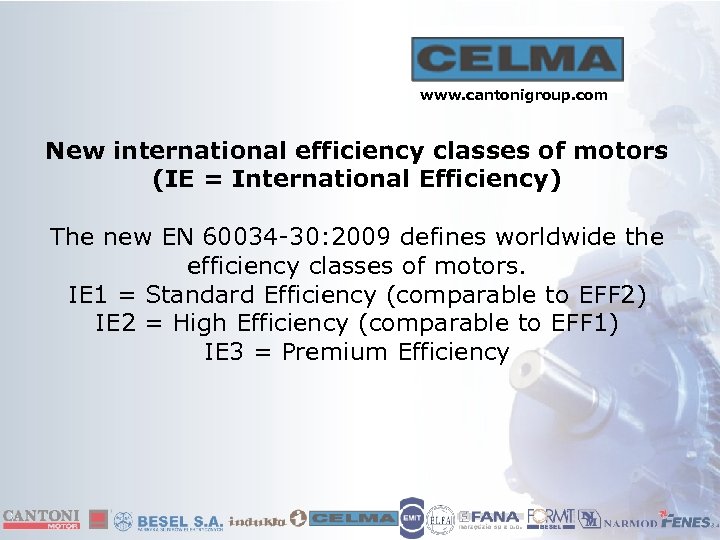

www. cantonigroup. com New international efficiency classes of motors (IE = International Efficiency) The new EN 60034 -30: 2009 defines worldwide the efficiency classes of motors. IE 1 = Standard Efficiency (comparable to EFF 2) IE 2 = High Efficiency (comparable to EFF 1) IE 3 = Premium Efficiency

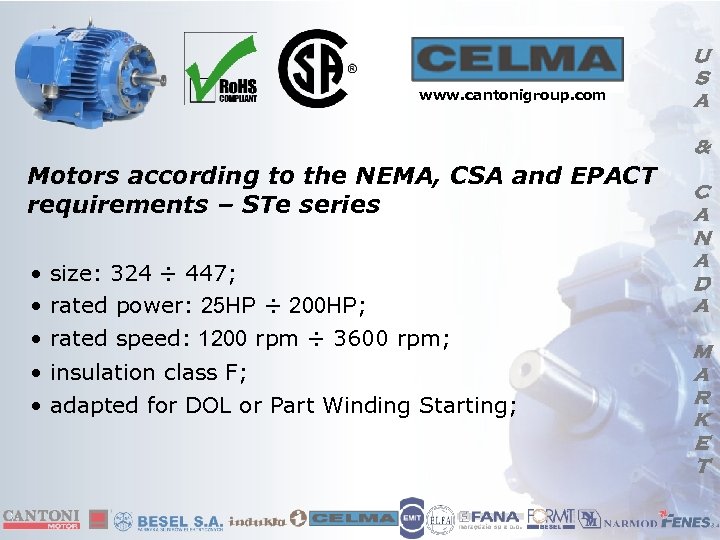

www. cantonigroup. com U S A & Motors according to the NEMA, CSA and EPACT requirements – STe series • • • size: 324 ÷ 447; rated power: 25 HP ÷ 200 HP; rated speed: 1200 rpm ÷ 3600 rpm; insulation class F; adapted for DOL or Part Winding Starting; C A N A D A M A R K E T

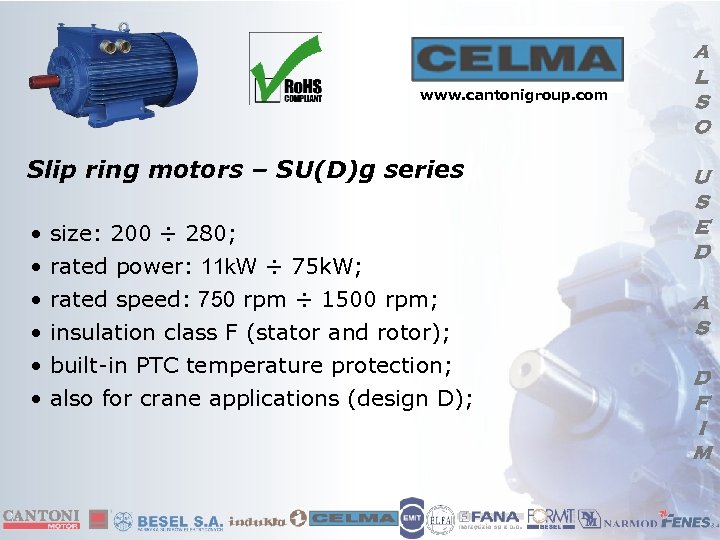

www. cantonigroup. com Slip ring motors – SU(D)g series • • • size: 200 ÷ 280; rated power: 11 k. W ÷ 75 k. W; rated speed: 750 rpm ÷ 1500 rpm; insulation class F (stator and rotor); built-in PTC temperature protection; also for crane applications (design D); A L S O U S E D A S D F I M

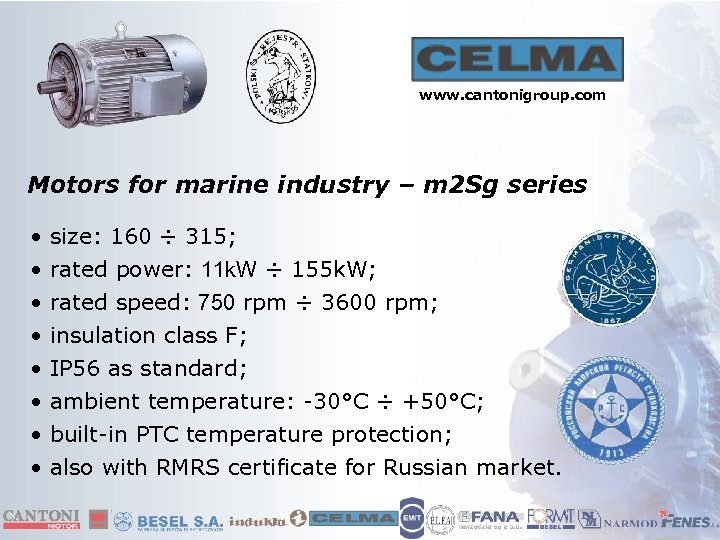

www. cantonigroup. com Motors for marine industry – m 2 Sg series • • size: 160 ÷ 315; rated power: 11 k. W ÷ 155 k. W; rated speed: 750 rpm ÷ 3600 rpm; insulation class F; IP 56 as standard; ambient temperature: -30°C ÷ +50°C; built-in PTC temperature protection; also with RMRS certificate for Russian market.

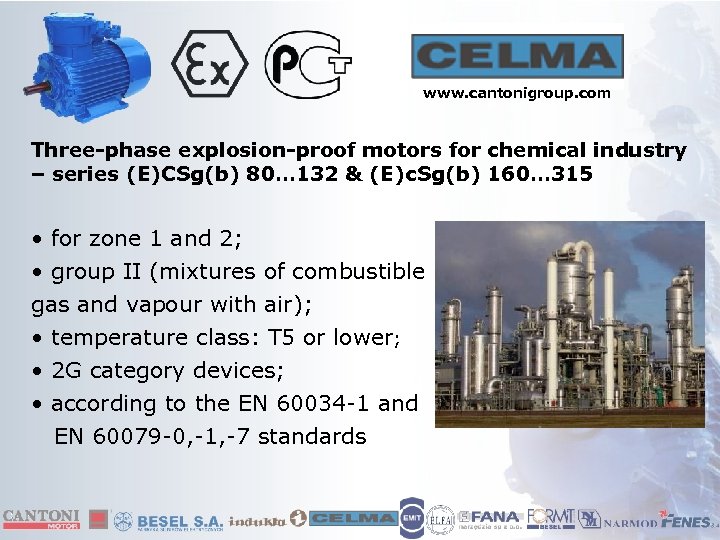

www. cantonigroup. com Three-phase explosion-proof motors for chemical industry – series (E)CSg(b) 80… 132 & (E)c. Sg(b) 160… 315 • for zone 1 and 2; • group II (mixtures of combustible gas and vapour with air); • temperature class: T 5 or lower; • 2 G category devices; • according to the EN 60034 -1 and EN 60079 -0, -1, -7 standards

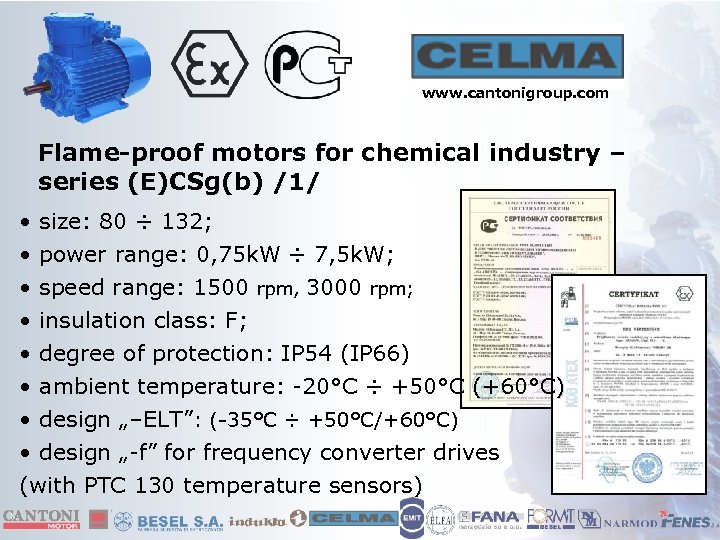

www. cantonigroup. com Flame-proof motors for chemical industry – series (E)CSg(b) /1/ • size: 80 ÷ 132; • power range: 0, 75 k. W ÷ 7, 5 k. W; • speed range: 1500 rpm, 3000 rpm; • insulation class: F; • degree of protection: IP 54 (IP 66) • ambient temperature: -20°C ÷ +50°C (+60°C) • design „–ELT”: (-35°C ÷ +50°C/+60°C) • design „-f” for frequency converter drives (with PTC 130 temperature sensors)

www. cantonigroup. com Flame-proof motors for chemical industry – series (E)CSg(b) /2/ • • size: 160 ÷ 315; power range: 11 k. W ÷ 160 k. W; speed range: 750÷ 3000 rpm; insulation class: F (H); degree of protection: IP 54 (IP 56) ambient temperature: -20°C ÷ +40°C (+60°C) design „-ELT”: (-40°C ÷ +40°C) (-30°C/-50°C ÷ +40°C/+60°C) • design „-f” for frequency converter drives • design „-v” with external cooling;

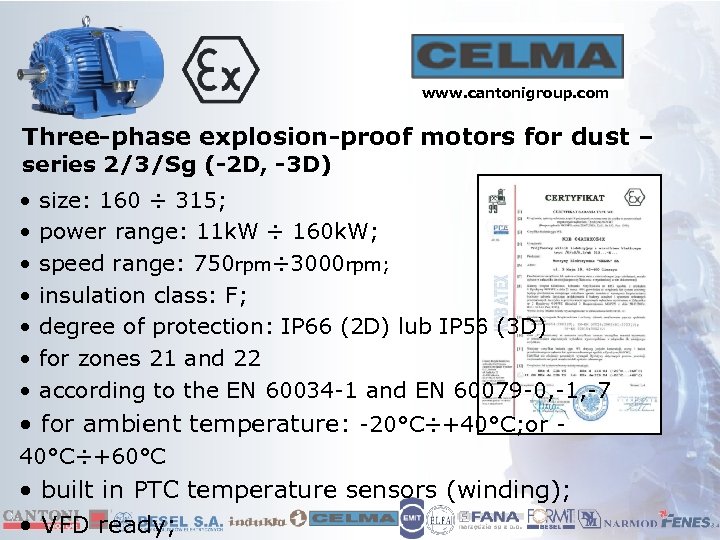

www. cantonigroup. com Three-phase explosion-proof motors for dust – series 2/3/Sg (-2 D, -3 D) • • size: 160 ÷ 315; power range: 11 k. W ÷ 160 k. W; speed range: 750 rpm÷ 3000 rpm; insulation class: F; degree of protection: IP 66 (2 D) lub IP 56 (3 D) for zones 21 and 22 according to the EN 60034 -1 and EN 60079 -0, -1, -7 • for ambient temperature: -20°C÷+40°C; or 40°C÷+60°C • built in PTC temperature sensors (winding); • VFD ready;

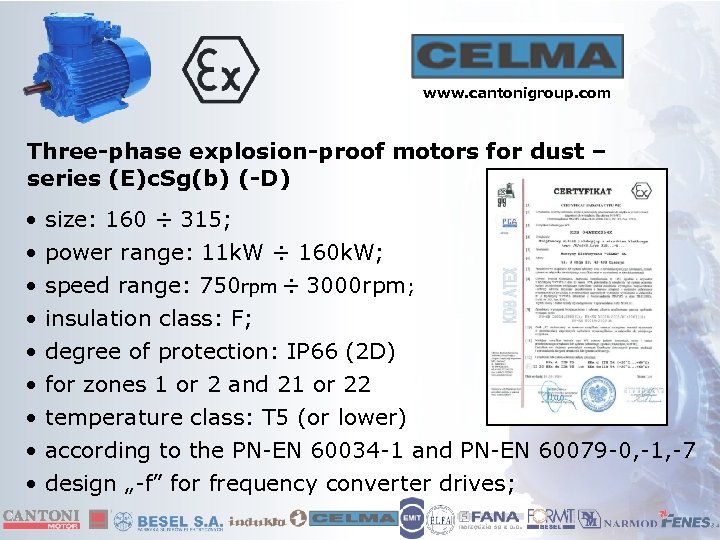

www. cantonigroup. com Three-phase explosion-proof motors for dust – series (E)c. Sg(b) (-D) • • • size: 160 ÷ 315; power range: 11 k. W ÷ 160 k. W; speed range: 750 rpm ÷ 3000 rpm; insulation class: F; degree of protection: IP 66 (2 D) for zones 1 or 2 and 21 or 22 temperature class: T 5 (or lower) according to the PN-EN 60034 -1 and PN-EN 60079 -0, -1, -7 design „-f” for frequency converter drives;

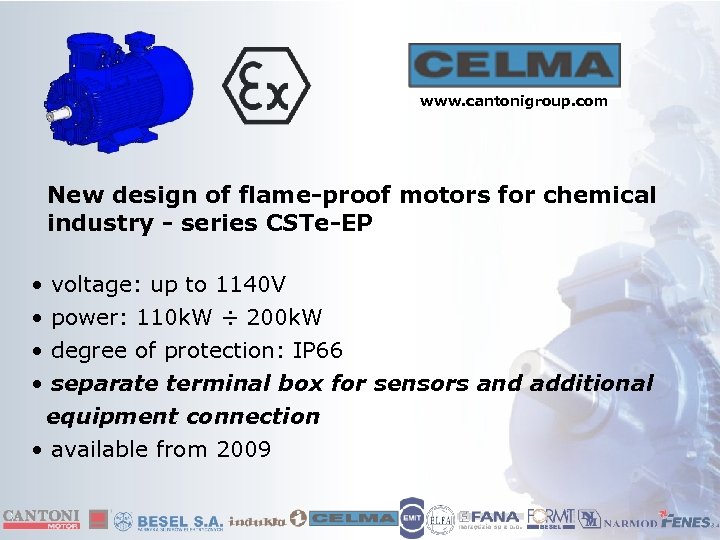

www. cantonigroup. com New design of flame-proof motors for chemical industry - series CSTe-EP • • voltage: up to 1140 V power: 110 k. W ÷ 200 k. W degree of protection: IP 66 separate terminal box for sensors and additional equipment connection • available from 2009

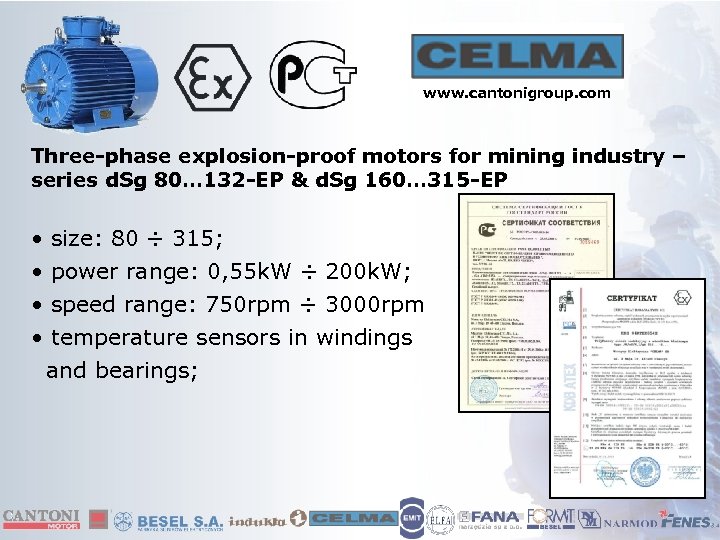

www. cantonigroup. com Three-phase explosion-proof motors for mining industry – series d. Sg 80… 132 -EP & d. Sg 160… 315 -EP • • size: 80 ÷ 315; power range: 0, 55 k. W ÷ 200 k. W; speed range: 750 rpm ÷ 3000 rpm temperature sensors in windings and bearings;

IE 2 Energy efficient motors – now & future (IEC 60034 -30 standard) www. cantonigroup. com

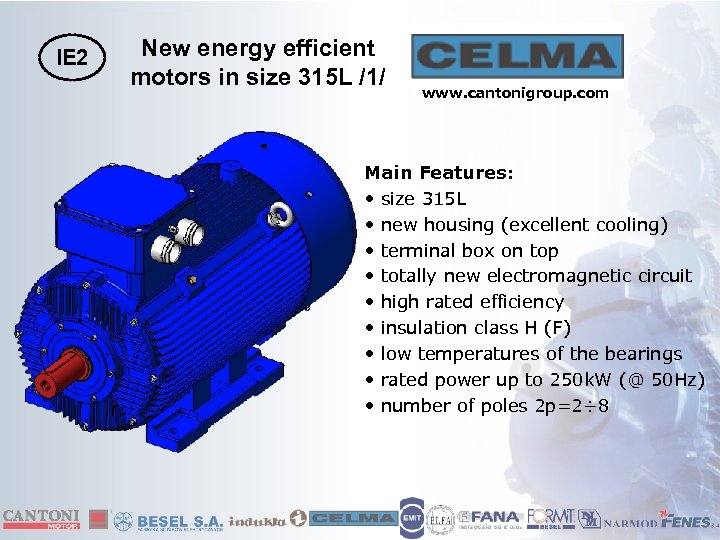

IE 2 New energy efficient motors in size 315 L /1/ www. cantonigroup. com Main Features: • size 315 L • new housing (excellent cooling) • terminal box on top • totally new electromagnetic circuit • high rated efficiency • insulation class H (F) • low temperatures of the bearings • rated power up to 250 k. W (@ 50 Hz) • number of poles 2 p=2÷ 8

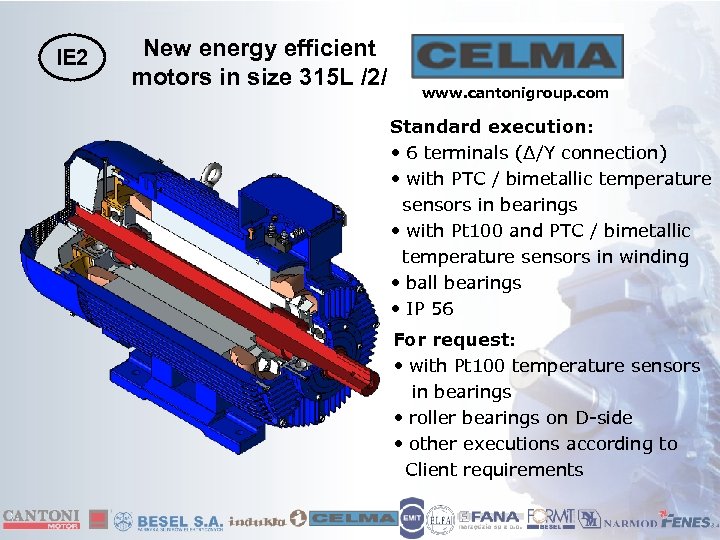

IE 2 New energy efficient motors in size 315 L /2/ www. cantonigroup. com Standard execution: • 6 terminals (Δ/Y connection) • with PTC / bimetallic temperature sensors in bearings • with Pt 100 and PTC / bimetallic temperature sensors in winding • ball bearings • IP 56 For request: • with Pt 100 temperature sensors in bearings • roller bearings on D-side • other executions according to Client requirements

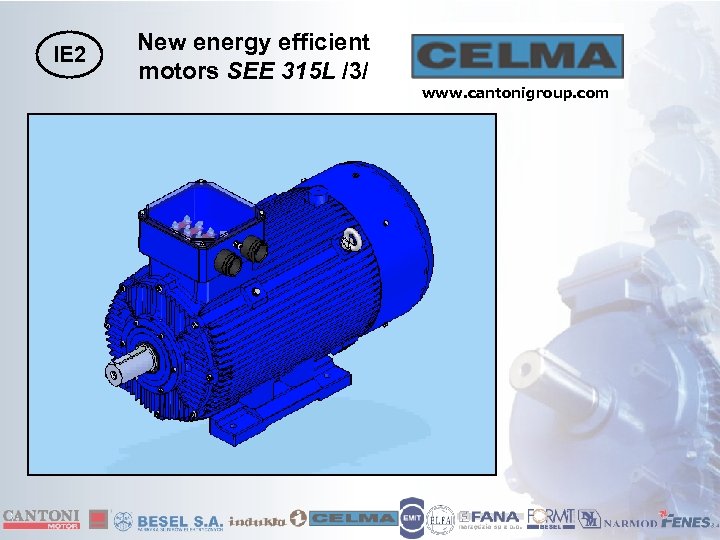

IE 2 New energy efficient motors SEE 315 L /3/ www. cantonigroup. com

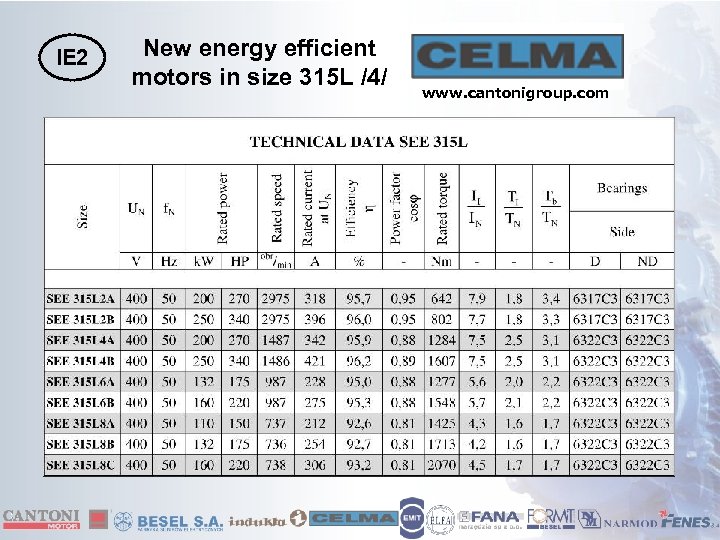

IE 2 New energy efficient motors in size 315 L /4/ www. cantonigroup. com

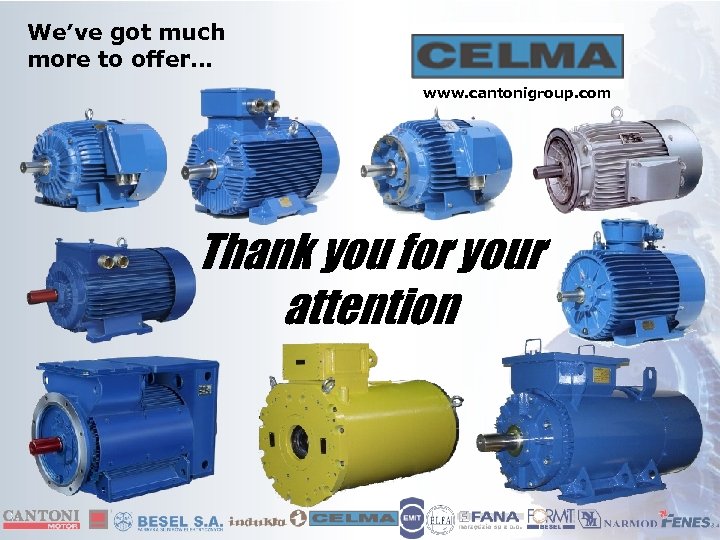

We’ve got much more to offer… www. cantonigroup. com Thank you for your attention
