ARCS Data Fabric Pauline Mak pauline. mak@arcs. org. au ARCS Data Services Pauline Mak

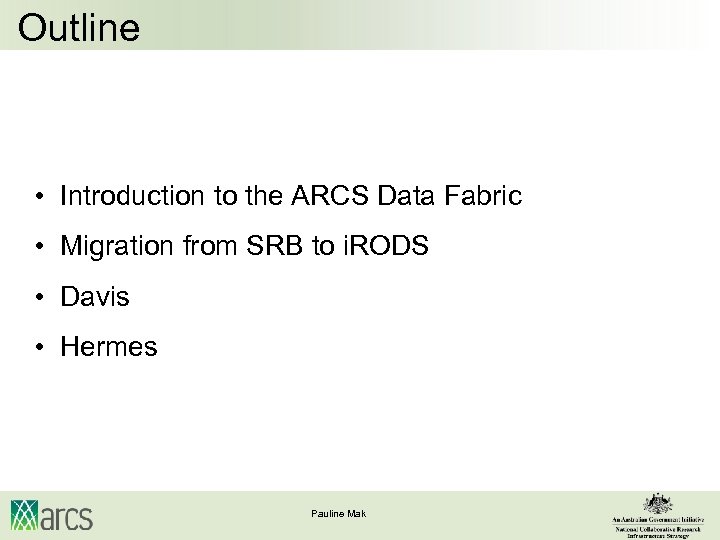

Outline • Introduction to the ARCS Data Fabric • Migration from SRB to i. RODS • Davis • Hermes Pauline Mak

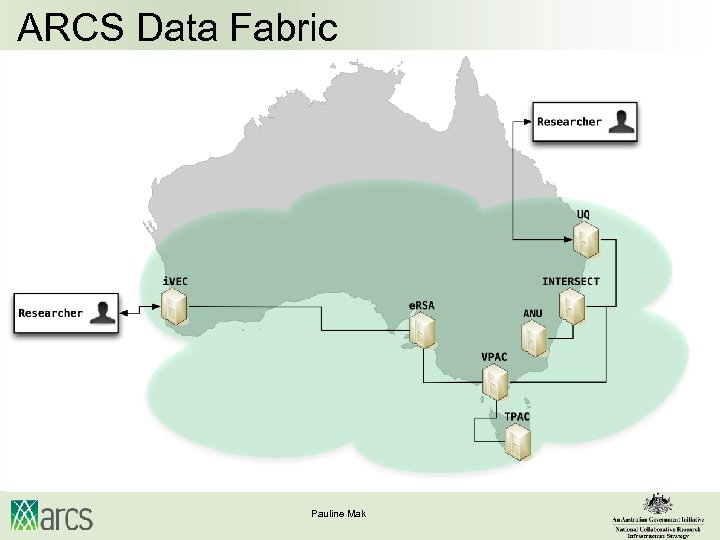

ARCS Data Fabric Pauline Mak

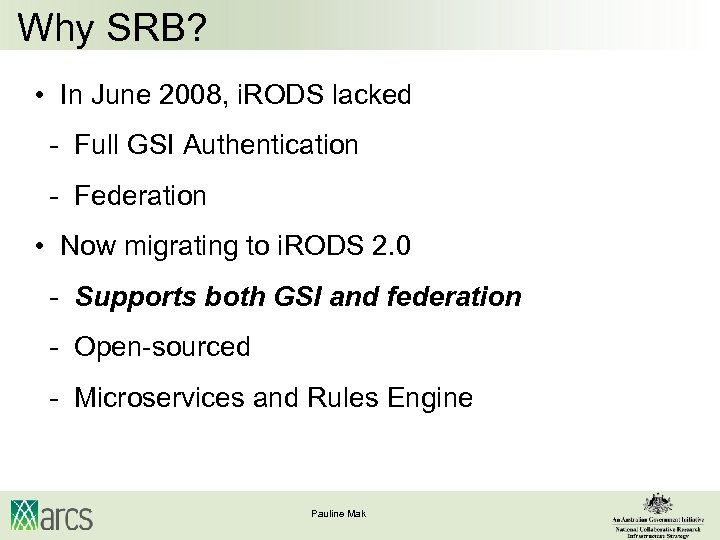

Why SRB? • In June 2008, i. RODS lacked - Full GSI Authentication - Federation • Now migrating to i. RODS 2. 0 - Supports both GSI and federation - Open-sourced - Microservices and Rules Engine Pauline Mak

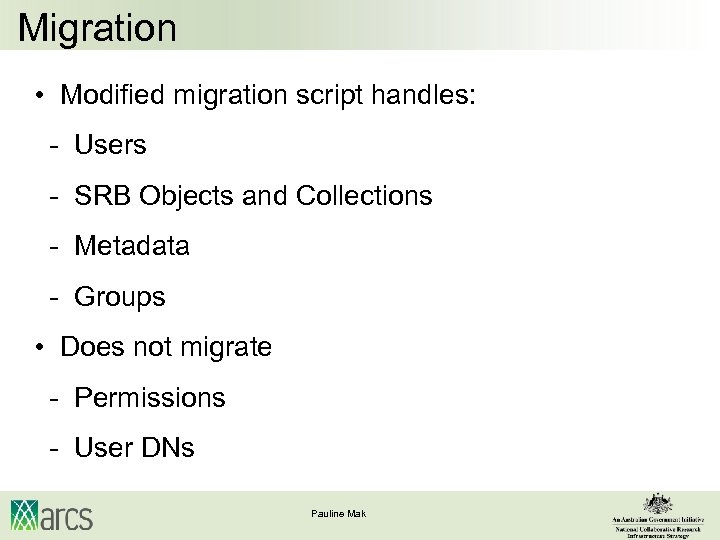

Migration • Modified migration script handles: - Users - SRB Objects and Collections - Metadata - Groups • Does not migrate - Permissions - User DNs Pauline Mak
Migration • Moving other processes from SRB to i. RODS - Automatic account creation - Usage statistics - User sync Pauline Mak

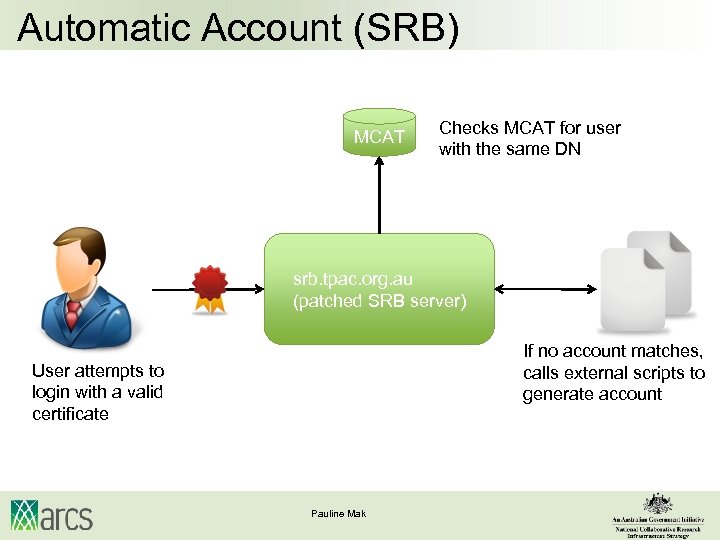

Automatic Account (SRB) MCAT Checks MCAT for user with the same DN srb. tpac. org. au (patched SRB server) If no account matches, calls external scripts to generate account User attempts to login with a valid certificate Pauline Mak
Automatic Accounts (i. RODS) 5. The server retrieves new username from script output (or query ICAT by DN) and logs in i. RODS Server 1. Client connects using a certificate 2. Fires the rule if the DN is unknown ac. Get. User. By. DN 3. Executes external script (Create. User) Pauline Mak ICAT 4. Create. User generates a new account

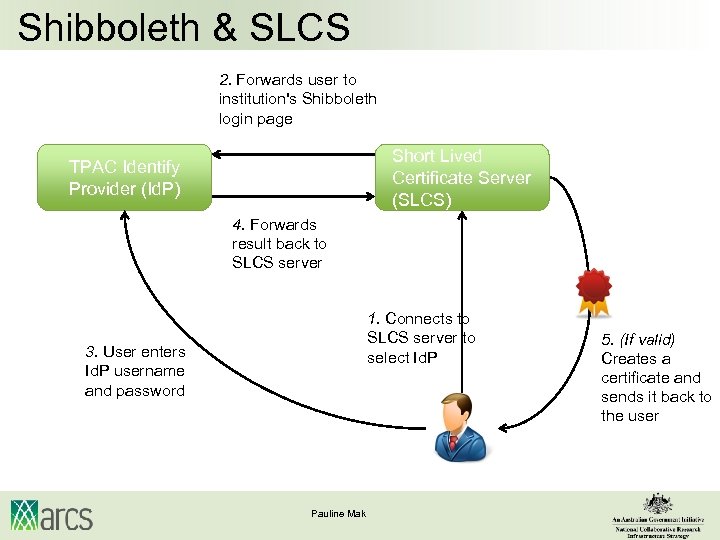

Shibboleth & SLCS 2. Forwards user to institution's Shibboleth login page Short Lived Certificate Server (SLCS) TPAC Identify Provider (Id. P) 4. Forwards result back to SLCS server 1. Connects to SLCS server to select Id. P 3. User enters Id. P username and password Pauline Mak 5. (If valid) Creates a certificate and sends it back to the user

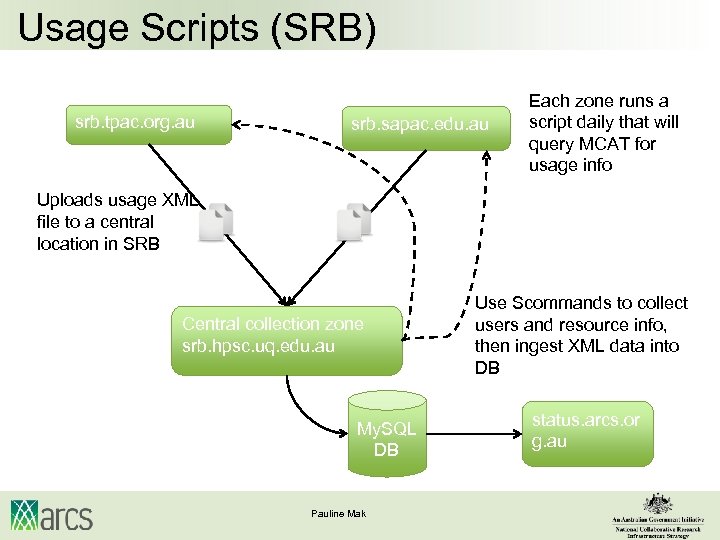

Usage Scripts (SRB) srb. tpac. org. au srb. sapac. edu. au Each zone runs a script daily that will query MCAT for usage info Uploads usage XML file to a central location in SRB Central collection zone srb. hpsc. uq. edu. au My. SQL DB Pauline Mak Use Scommands to collect users and resource info, then ingest XML data into DB status. arcs. or g. au

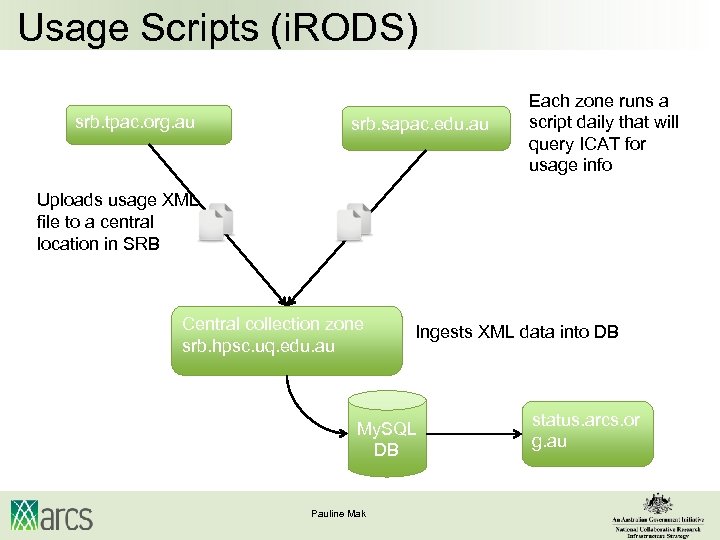

Usage Scripts (i. RODS) srb. tpac. org. au srb. sapac. edu. au Each zone runs a script daily that will query ICAT for usage info Uploads usage XML file to a central location in SRB Central collection zone srb. hpsc. uq. edu. au Ingests XML data into DB My. SQL DB Pauline Mak status. arcs. or g. au

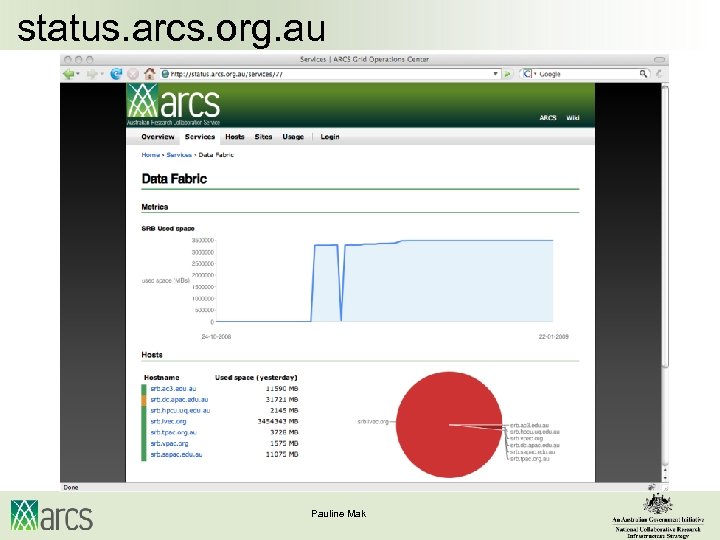

status. arcs. org. au Pauline Mak
Migration – Zone sync • We only sync users • SRB - Szonesync: executed hourly - Federation can lag for up to an hour • i. RODS - Executing rules immediately when a user is added Pauline Mak

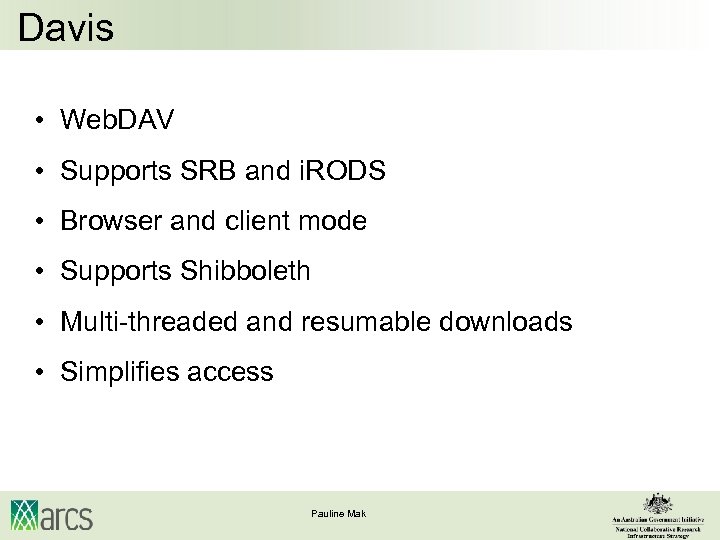

Davis • Web. DAV • Supports SRB and i. RODS • Browser and client mode • Supports Shibboleth • Multi-threaded and resumable downloads • Simplifies access Pauline Mak

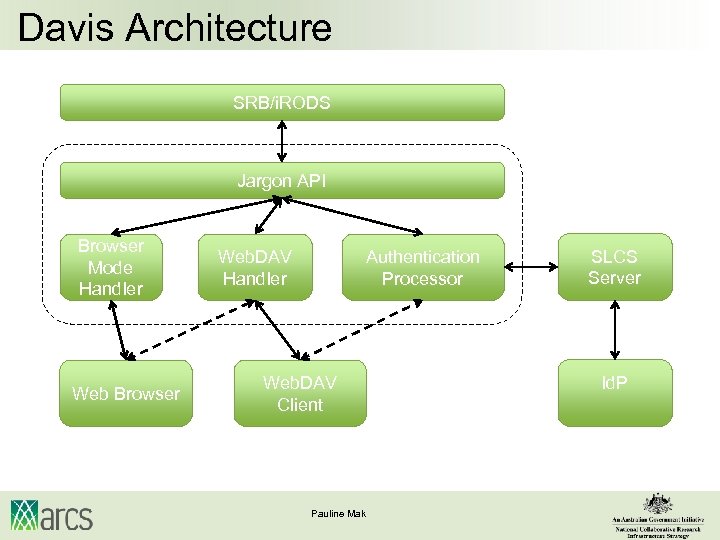

Davis Architecture SRB/i. RODS Jargon API Browser Mode Handler Web Browser Authentication Processor Web. DAV Handler Web. DAV Client Pauline Mak SLCS Server Id. P

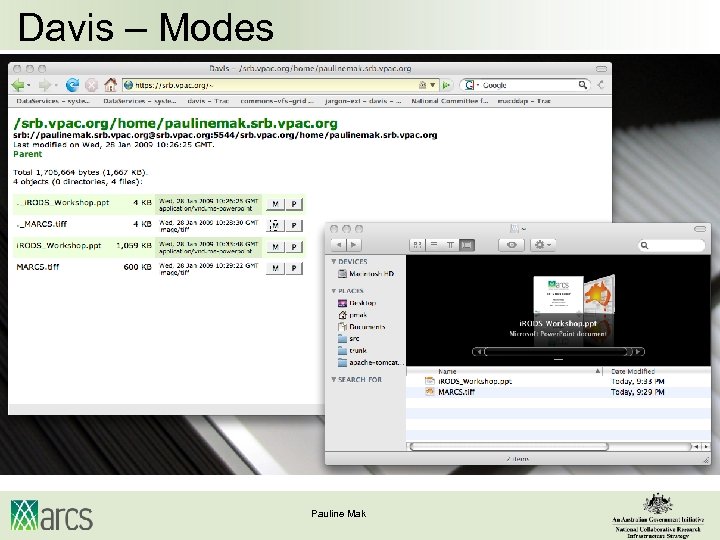

Davis – Modes Pauline Mak

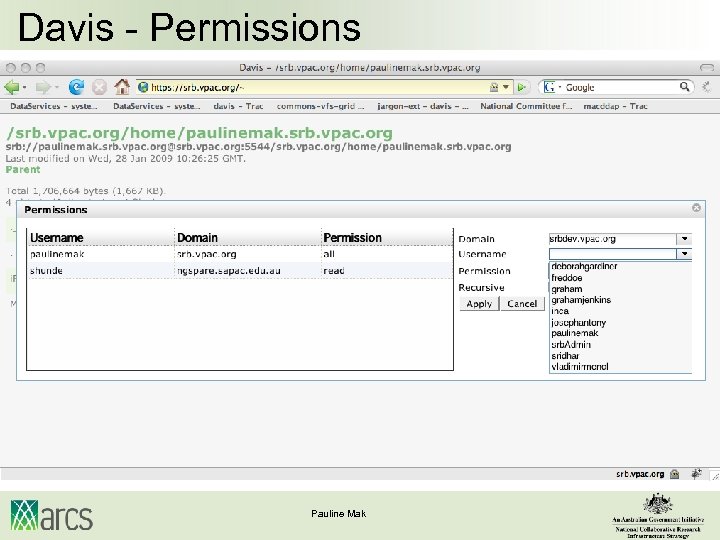

Davis - Permissions Pauline Mak

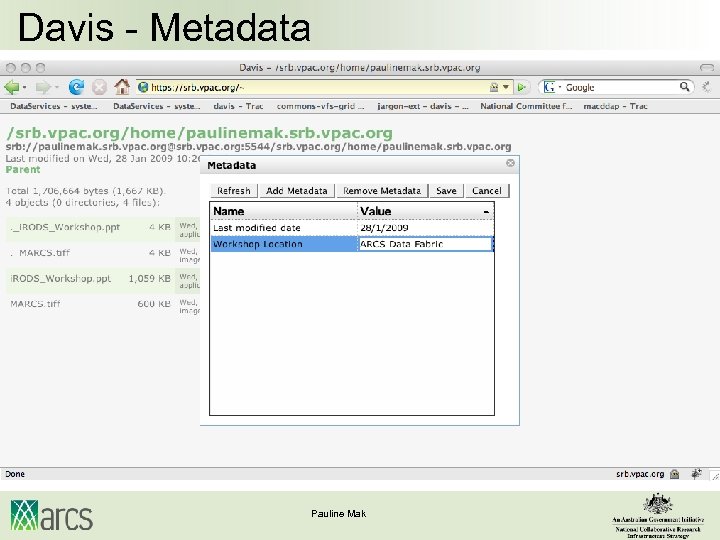

Davis - Metadata Pauline Mak

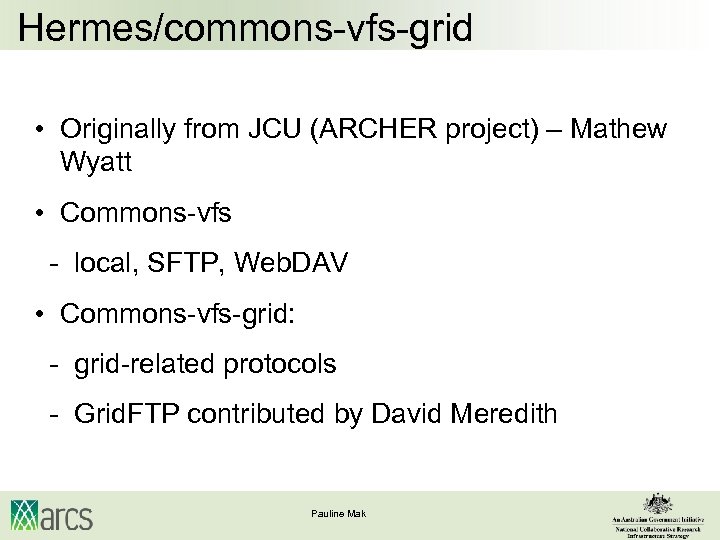

Hermes/commons-vfs-grid • Originally from JCU (ARCHER project) – Mathew Wyatt • Commons-vfs - local, SFTP, Web. DAV • Commons-vfs-grid: - grid-related protocols - Grid. FTP contributed by David Meredith Pauline Mak

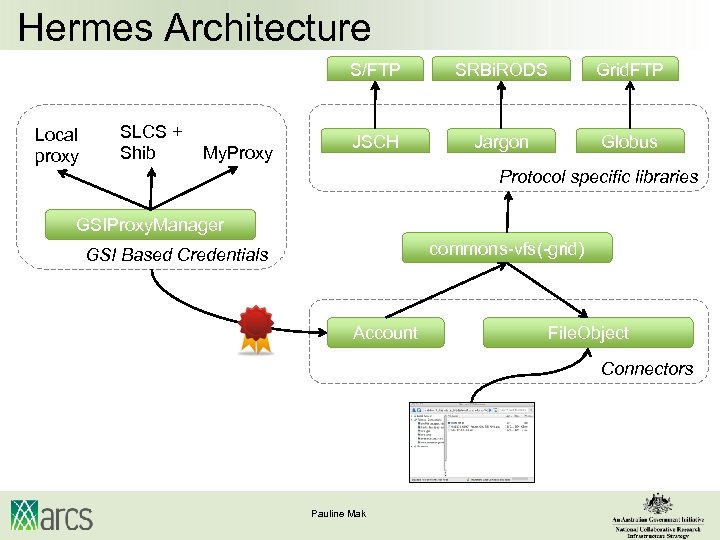

Hermes Architecture S/FTP Local proxy SLCS + Shib My. Proxy SRBi. RODS Grid. FTP JSCH Jargon Globus Protocol specific libraries GSIProxy. Manager commons-vfs(-grid) GSI Based Credentials Account File. Object Connectors Pauline Mak

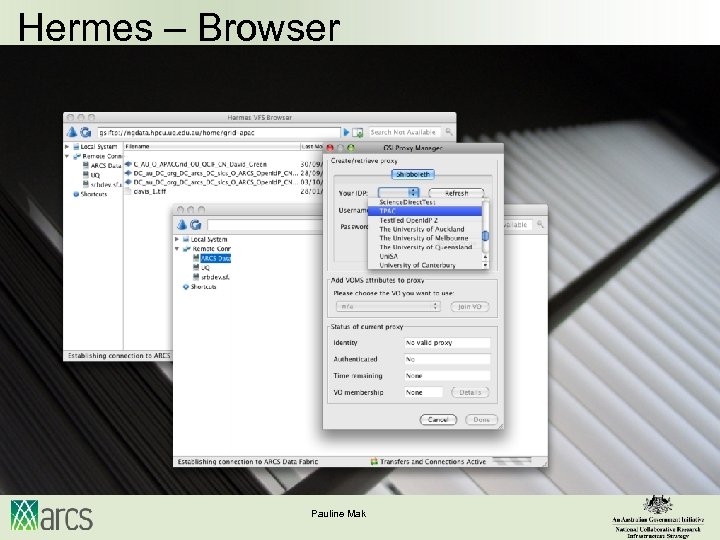

Hermes – Browser Pauline Mak
Hermes - Permission Pauline Mak

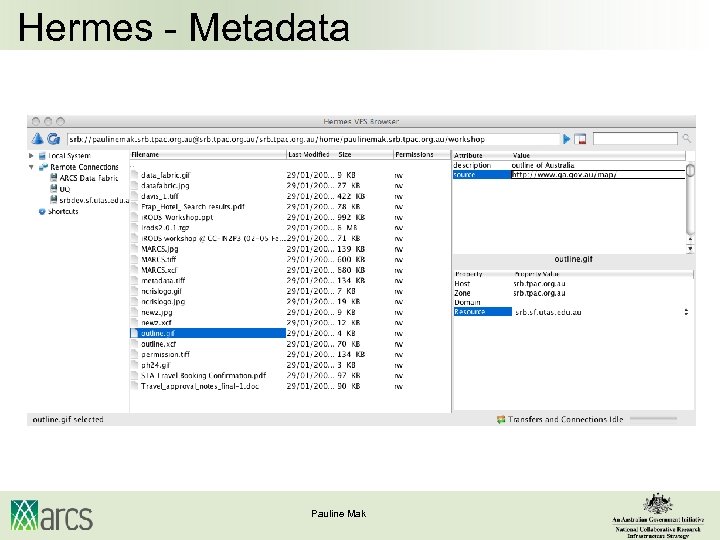

Hermes - Metadata Pauline Mak

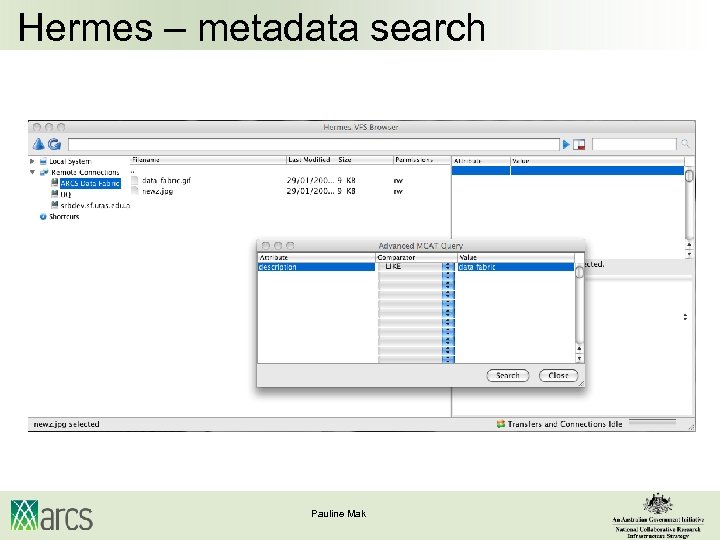

Hermes – metadata search Pauline Mak
Questions? Pauline Mak

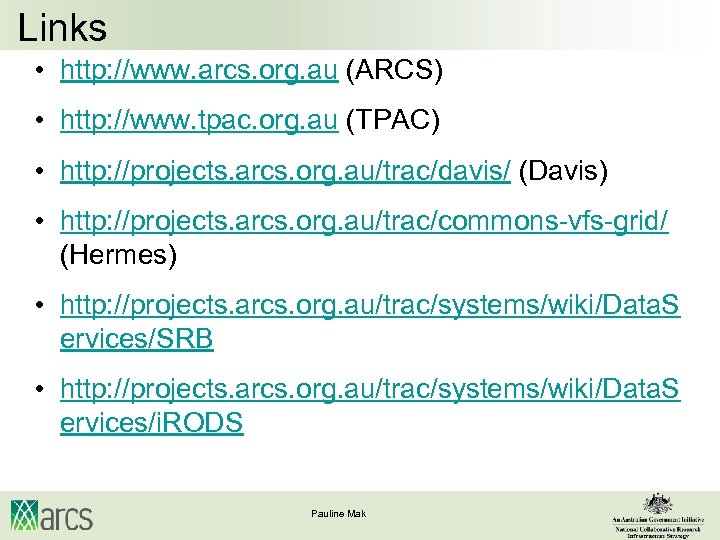

Links • http: //www. arcs. org. au (ARCS) • http: //www. tpac. org. au (TPAC) • http: //projects. arcs. org. au/trac/davis/ (Davis) • http: //projects. arcs. org. au/trac/commons-vfs-grid/ (Hermes) • http: //projects. arcs. org. au/trac/systems/wiki/Data. S ervices/SRB • http: //projects. arcs. org. au/trac/systems/wiki/Data. S ervices/i. RODS Pauline Mak
