Difference between Backup & Archive • Backups are created to recover from errors > Cost effective data protection > Off-site storage > Backup is important – Restore is Critical • Archiving for Information Lifecycle Management > Storing data on different media based on policy > “Right Data, Right Place, Right Price” 4

Data Protection Techniques • • • Disk Mirroring / Replication Disk to Disk Backup Disk to Tape Backup Virtual Tape Libraries Continuous Data Protection Disk to Tape 5

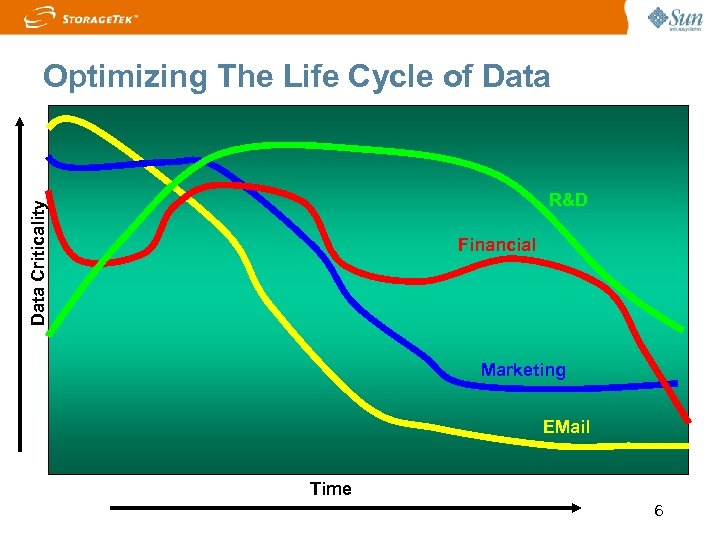

Optimizing The Life Cycle of Data Criticality R&D Financial Marketing EMail Time 6

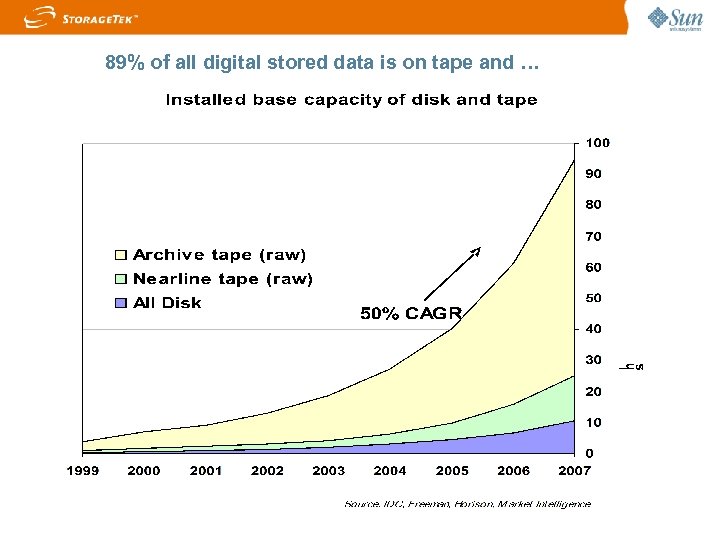

89% of all digital stored data is on tape and … 7

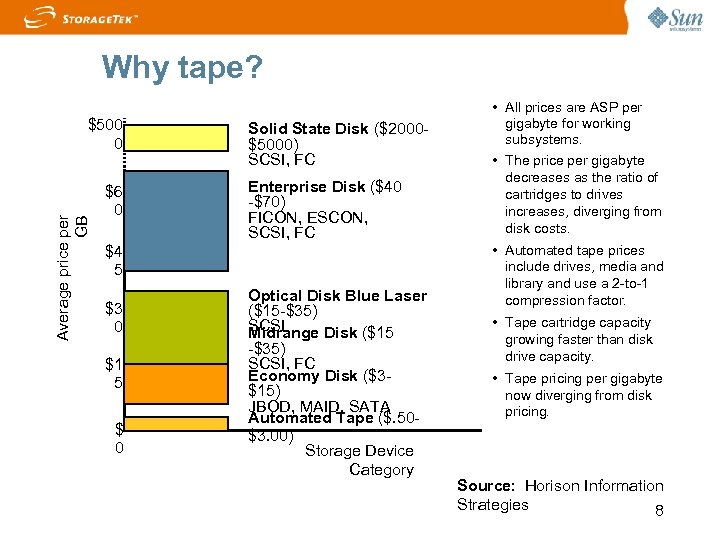

Why tape? Average price per GB $500 0 $6 0 Solid State Disk ($2000$5000) SCSI, FC Enterprise Disk ($40 -$70) FICON, ESCON, SCSI, FC $4 5 $3 0 $1 5 $ 0 Optical Disk Blue Laser ($15 -$35) SCSI Midrange Disk ($15 -$35) SCSI, FC Economy Disk ($3$15) JBOD, MAID, SATA Automated Tape ($. 50$3. 00) Storage Device Category • All prices are ASP per gigabyte for working subsystems. • The price per gigabyte decreases as the ratio of cartridges to drives increases, diverging from disk costs. • Automated tape prices include drives, media and library and use a 2 -to-1 compression factor. • Tape cartridge capacity growing faster than disk drive capacity. • Tape pricing per gigabyte now diverging from disk pricing. Source: Horison Information Strategies 8

Agenda Introduction Data Protection Techniques Data Archiving Techniques Tools 9

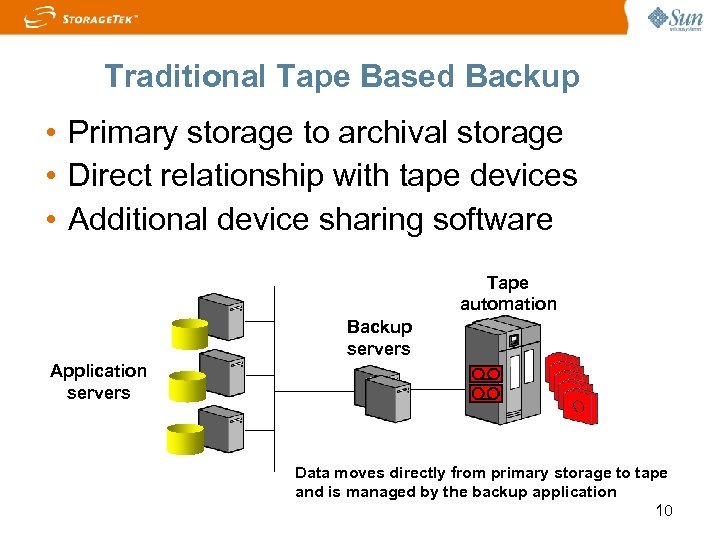

Traditional Tape Based Backup • Primary storage to archival storage • Direct relationship with tape devices • Additional device sharing software Tape automation Backup servers Application servers Data moves directly from primary storage to tape and is managed by the backup application 10

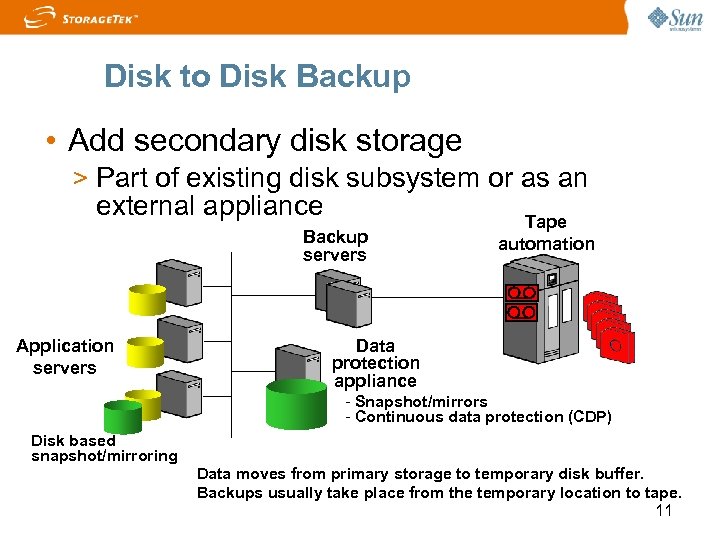

Disk to Disk Backup • Add secondary disk storage > Part of existing disk subsystem or as an external appliance Backup servers Application servers Tape automation Data protection appliance - Snapshot/mirrors - Continuous data protection (CDP) Disk based snapshot/mirroring Data moves from primary storage to temporary disk buffer. Backups usually take place from the temporary location to tape. 11

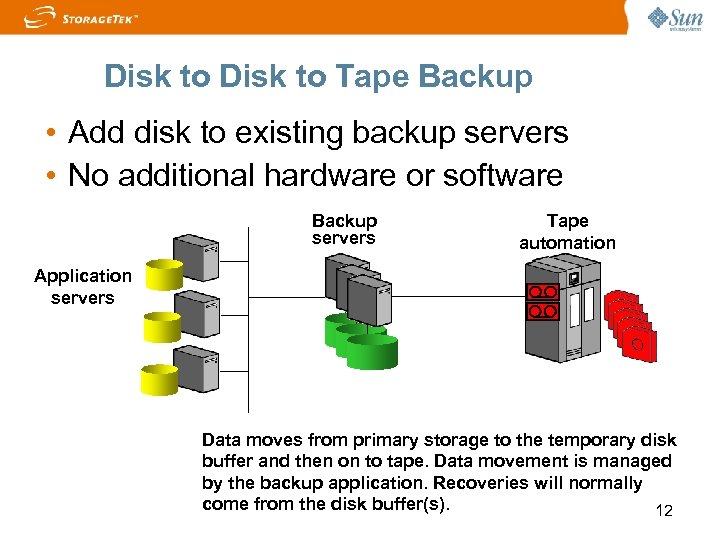

Disk to Tape Backup • Add disk to existing backup servers • No additional hardware or software Backup servers Tape automation Application servers Data moves from primary storage to the temporary disk buffer and then on to tape. Data movement is managed by the backup application. Recoveries will normally come from the disk buffer(s). 12

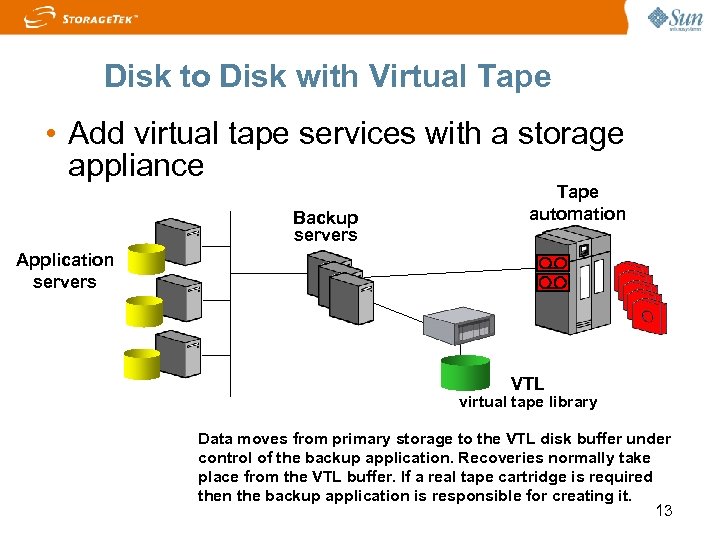

Disk to Disk with Virtual Tape • Add virtual tape services with a storage appliance Backup servers Tape automation Application servers VTL virtual tape library Data moves from primary storage to the VTL disk buffer under control of the backup application. Recoveries normally take place from the VTL buffer. If a real tape cartridge is required then the backup application is responsible for creating it. 13

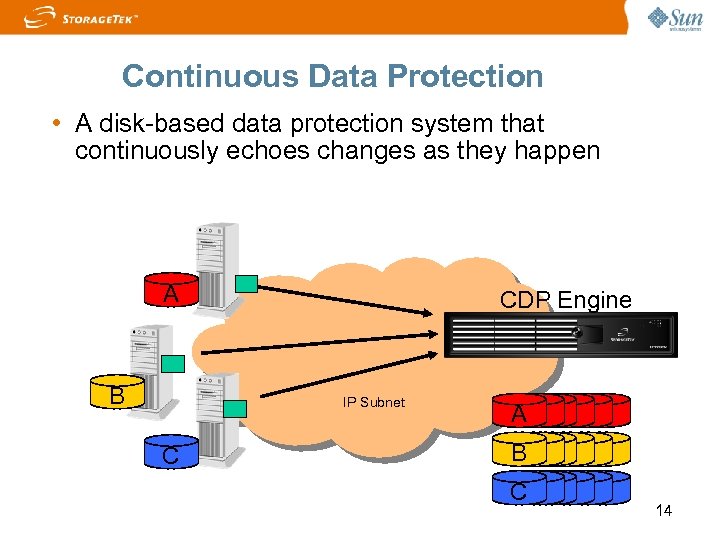

Continuous Data Protection • A disk-based data protection system that continuously echoes changes as they happen A B CDP Engine IP Subnet C A AA A B BB B CC C 14

Agenda Introduction Data Protection Techniques Data Archiving Techniques Tools 15

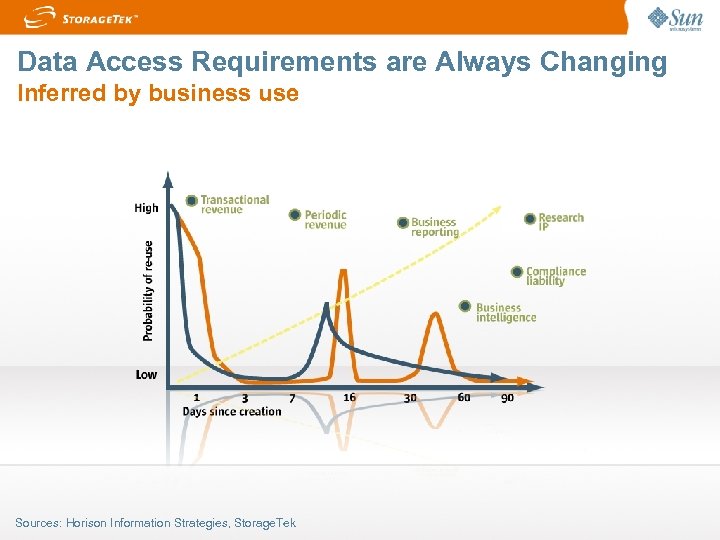

Data Access Requirements are Always Changing Inferred by business use Sources: Horison Information Strategies, Storage. Tek 16

New Data “Lifecycle” Journey Challenge is Inclusive Mgt. , Access & Cost of 'new' Archive Data Consumers NEW ACCESS Security & ID Mgt. Envelope Eternal Data Offsite Tape Vault Data Archive Creation Ephemeral p u ck Ba Data In Use Data Disposal Retention @Date Data Management 17

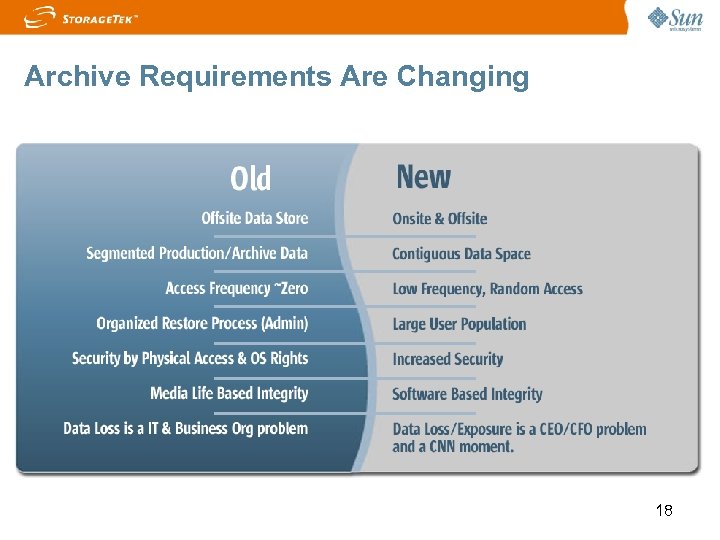

Archive Requirements Are Changing 18

Agenda Introduction (UK Edition) Most Valuable Product Award 2004 Storage. Tek L 700 Data Protection Techniques Data Archiving Techniques Tools Storage Product of the Year 2005 Storage. Tek L 1400 Product of the Year Enterprise Server 2005 Stream. Line™ SL 500 (UK Edition) Backup Hardware Product of the Year Stream. Line™ SL 500 MVP Award 2005 Backup Hardware Stream. Line™ SL 500 19

Tools of the Trade • • • SATA disk arrays Virtual Tape libraries Nearline Robotic Libraries Tape Drives Software 20

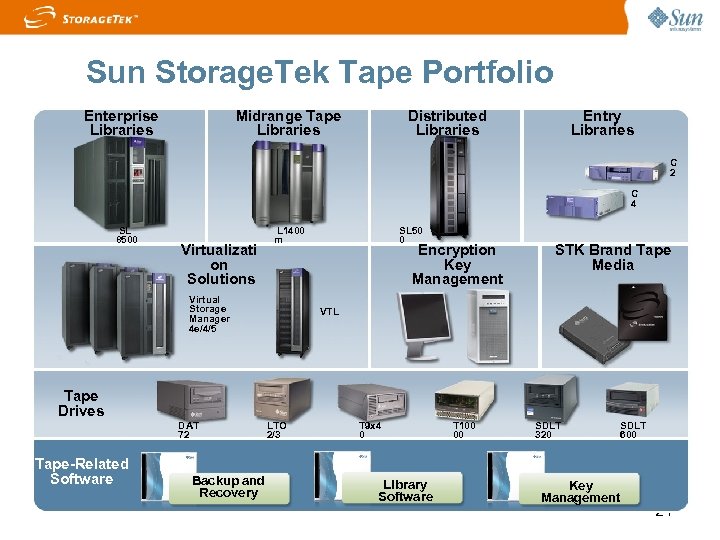

Sun Storage. Tek Tape Portfolio Enterprise Libraries Midrange Tape Libraries Distributed Libraries Entry Libraries C 2 C 4 SL 8500 Virtualizati on Solutions SL 50 0 L 1400 m Virtual Storage Manager 4 e/4/5 Encryption Key Management STK Brand Tape Media VTL Tape Drives DAT 72 Tape-Related Software Backup and Recovery LTO 2/3 T 9 x 4 0 Library Software T 100 00 SDLT 320 SDLT 600 Key Management 21

Tape Technologies 22

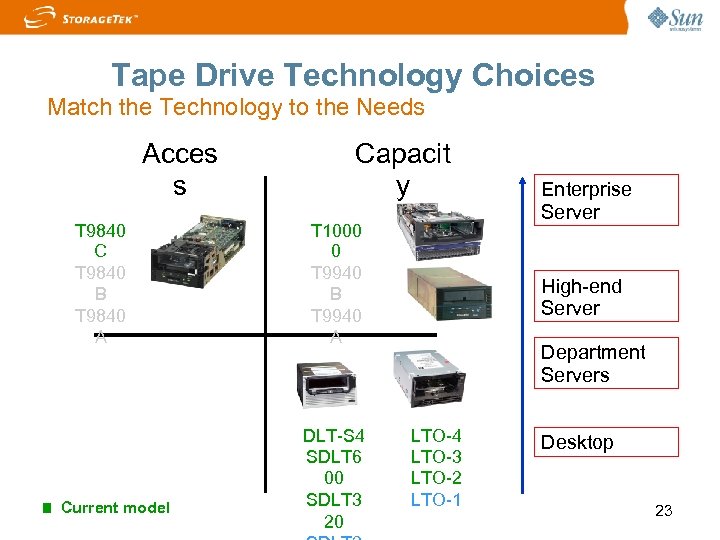

Tape Drive Technology Choices Match the Technology to the Needs Acces s T 9840 C T 9840 B T 9840 A Current model Capacit y T 1000 0 T 9940 B T 9940 A DLT-S 4 SDLT 6 00 SDLT 3 20 Enterprise Server High-end Server Department Servers LTO-4 LTO-3 LTO-2 LTO-1 Desktop 23

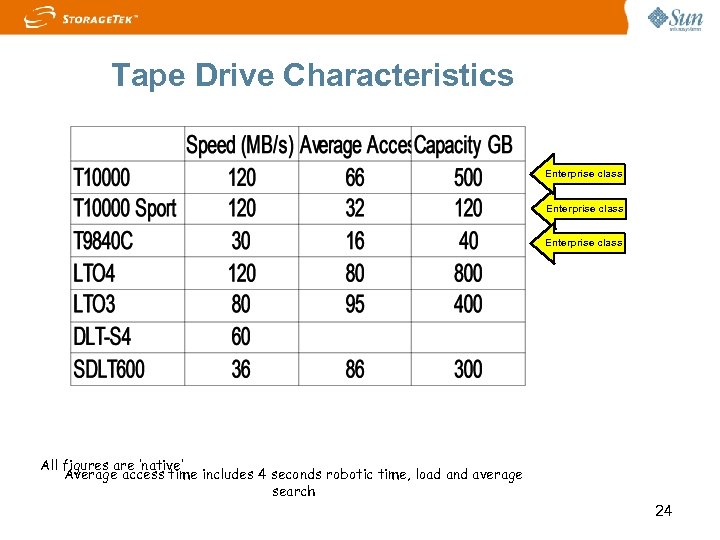

Tape Drive Characteristics Enterprise class All figures are ‘native’ Average access time includes 4 seconds robotic time, load and average search 24

Let’s see the difference for archive! • Components of recall time > > > > Mount tape (by robot) Load tape Find block Transfer data Rewind Unload Dismount tape (by robot) It doesn’t help if this component is fast when the rest are slow. 25

Choose the Right Tape Technology • Capacity > Important for backup > Very important for most archive requirements > Not so important for HSM functionality • Throughput > Important for backup and archive > Backup must write several stripes because of the speed • Loadtime > Important for HSM functionality • Reliabilty 26

Nearline Technologies 27

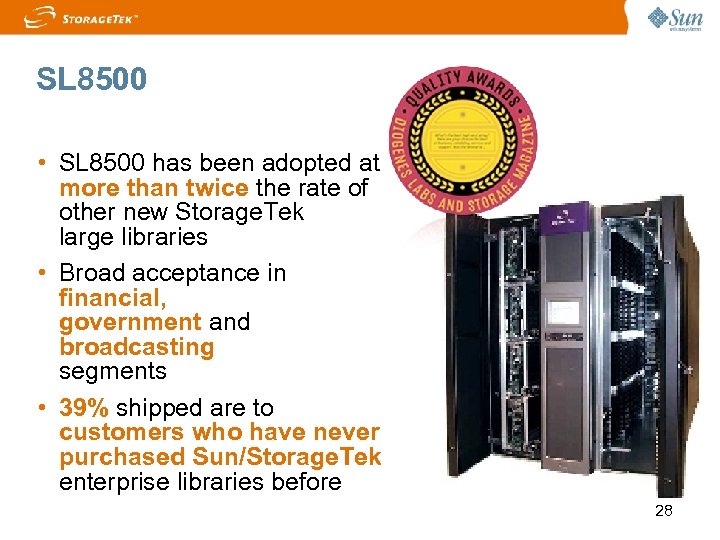

SL 8500 • SL 8500 has been adopted at more than twice the rate of other new Storage. Tek large libraries • Broad acceptance in financial, government and broadcasting segments • 39% shipped are to customers who have never purchased Sun/Storage. Tek enterprise libraries before 28

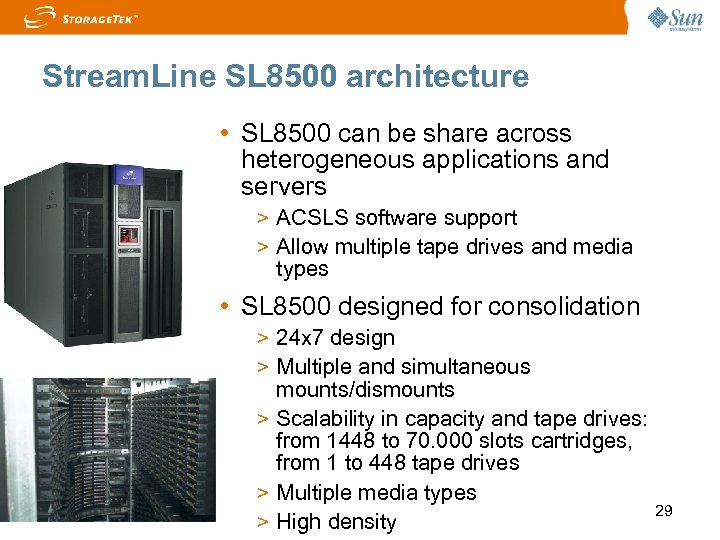

Stream. Line SL 8500 architecture • SL 8500 can be share across heterogeneous applications and servers > ACSLS software support > Allow multiple tape drives and media types • SL 8500 designed for consolidation > 24 x 7 design > Multiple and simultaneous mounts/dismounts > Scalability in capacity and tape drives: from 1448 to 70. 000 slots cartridges, from 1 to 448 tape drives > Multiple media types > High density 29

Stream. Line. TM SL 8500 Outside cartridge storage walls Inside cartridge storage walls Tape drives Z elevators Robot service area Touch Screen Operator panel Performan ce Robots CAPs 30

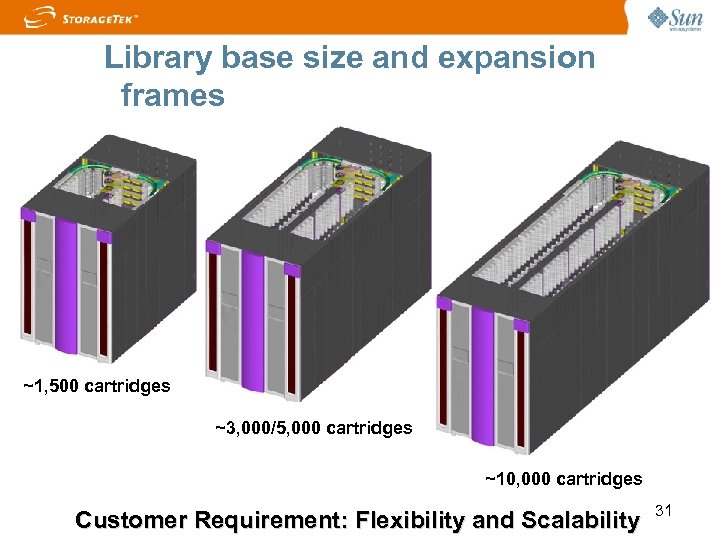

Library base size and expansion frames ~1, 500 cartridges ~3, 000/5, 000 cartridges ~10, 000 cartridges Customer Requirement: Flexibility and Scalability 31

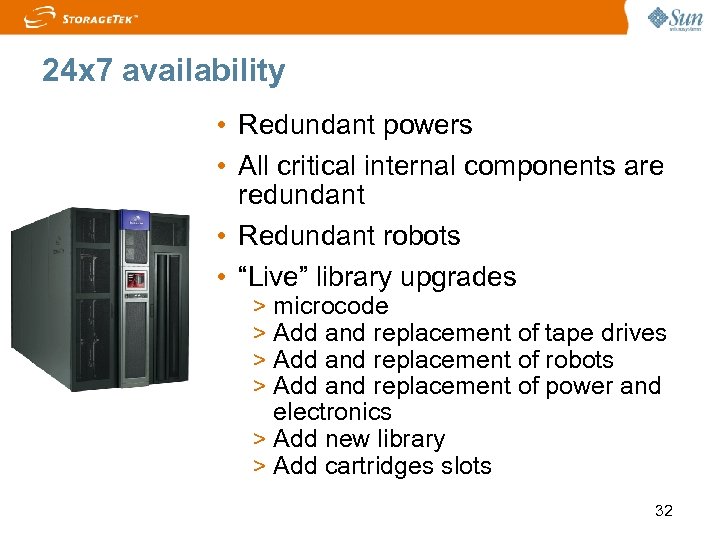

24 x 7 availability • Redundant powers • All critical internal components are redundant • Redundant robots • “Live” library upgrades > microcode > Add and replacement of tape drives > Add and replacement of robots > Add and replacement of power and electronics > Add new library > Add cartridges slots 32

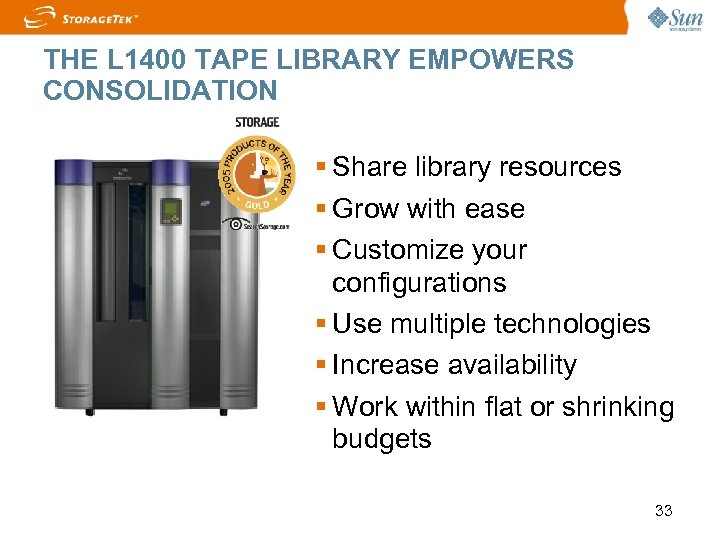

THE L 1400 TAPE LIBRARY EMPOWERS CONSOLIDATION Share library resources Grow with ease Customize your configurations Use multiple technologies Increase availability Work within flat or shrinking budgets 33

KEY L 1400 LIBRARY FEATURES TM • Continuous Capacity technology > Superior scalability - grow easily when you need to • Partitioning > Share the L 1400 tape libraries without additional components • High Performance > Reduce backup times with high robotic and throughput performance TM • Any Cartridge Any Slot technology > Configuration flexibility and investment protection • Sun Services > Experience and coverage to support your consolidated data 34

The Judges Reach Their Decision - Sun Storage. Tek L 1400 M Product of the Year • As one of our judges put it, it may be "somewhat contrarian" to give the gold to a tape library in 2006, but Sun Microsystems Inc. 's L 1400 M solves a top problem in tape: > The ability to use four different tape formats within a single library 35 • “It's a solution that's

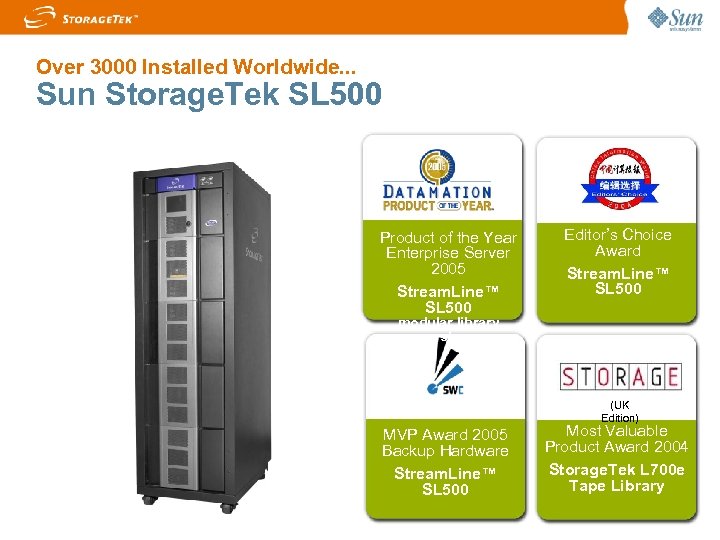

Over 3000 Installed Worldwide. . . Sun Storage. Tek SL 500 2 200 3 2004 2005 25 Best Plants 2004 Puerto Rico Manufacturing Operations Product of the Year Enterprise Server 2005 Stream. Line™ SL 500 Editor’s Choice Award Stream. Line™ SL 500 modular library system (UK Edition) MVP Award 2005 Backup Hardware Stream. Line™ SL 500 Most Valuable Product Award 2004 Storage. Tek L 700 e Tape Library 36

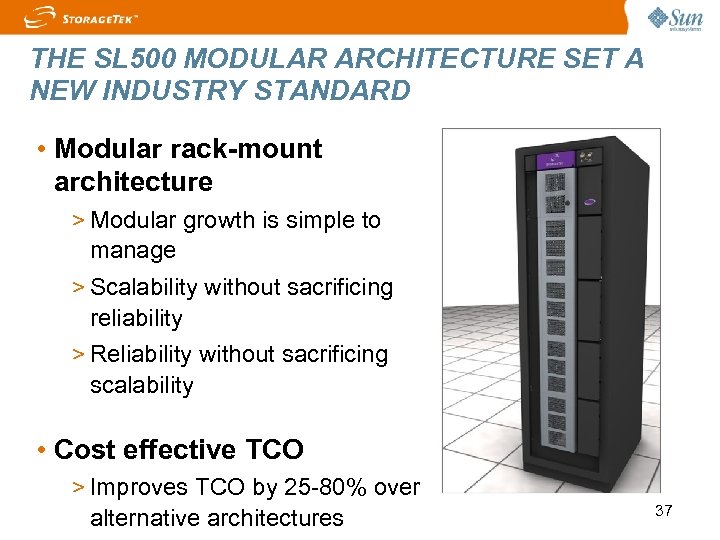

THE SL 500 MODULAR ARCHITECTURE SET A NEW INDUSTRY STANDARD • Modular rack-mount architecture > Modular growth is simple to manage > Scalability without sacrificing reliability > Reliability without sacrificing scalability • Cost effective TCO > Improves TCO by 25 -80% over alternative architectures 37

SL 500 Modular Library Protect your growing data without buying more and more libraries. . 30 or 50 LTO slots 2 tape drive bays Base 5 CAP slots Module 38

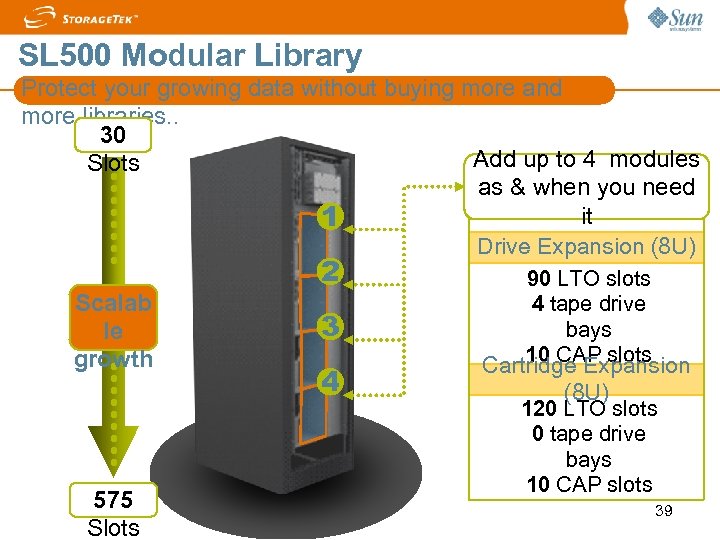

SL 500 Modular Library Protect your growing data without buying more and more libraries. . 30 Add up to 4 modules Slots as & when you need it 1 Drive Expansion (8 U) Scalab le growth 575 Slots 2 3 4 90 LTO slots 4 tape drive bays 10 CAP slots Cartridge Expansion (8 U) 120 LTO slots 0 tape drive bays 10 CAP slots 39

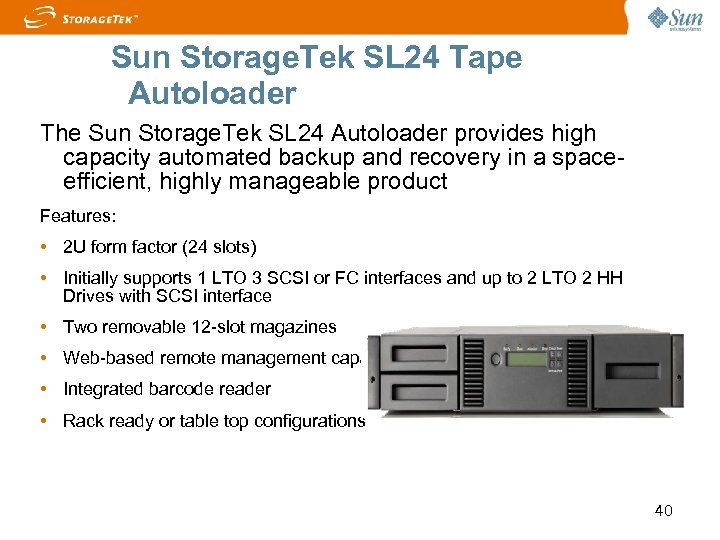

Sun Storage. Tek SL 24 Tape Autoloader The Sun Storage. Tek SL 24 Autoloader provides high capacity automated backup and recovery in a spaceefficient, highly manageable product Features: • 2 U form factor (24 slots) • Initially supports 1 LTO 3 SCSI or FC interfaces and up to 2 LTO 2 HH Drives with SCSI interface • Two removable 12 -slot magazines • Web-based remote management capability • Integrated barcode reader • Rack ready or table top configurations 40

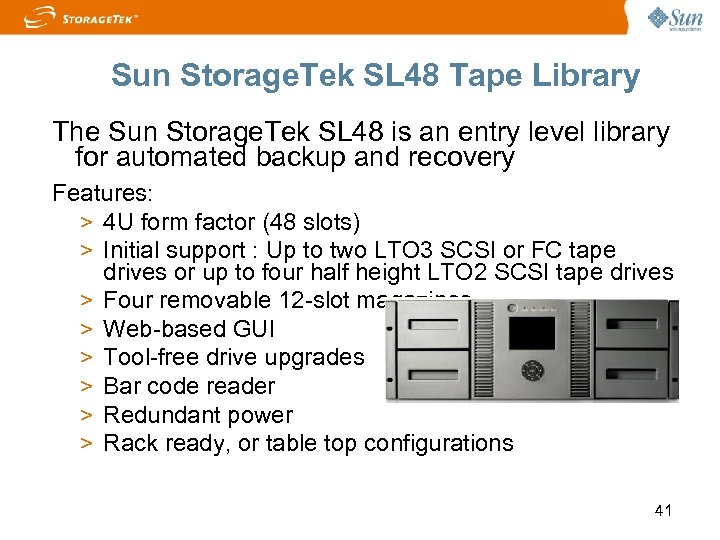

Sun Storage. Tek SL 48 Tape Library The Sun Storage. Tek SL 48 is an entry level library for automated backup and recovery Features: > 4 U form factor (48 slots) > Initial support : Up to two LTO 3 SCSI or FC tape drives or up to four half height LTO 2 SCSI tape drives > Four removable 12 -slot magazines > Web-based GUI > Tool-free drive upgrades > Bar code reader > Redundant power > Rack ready, or table top configurations 41

Choose the Right Tape Library • Robotic speed > Unimportant for backup > Very important for most archive requirements • Mixed media > Support for different drive types > Different drives for different requirements • Size/Scalability > Initially just a sizing exercise > Growth is good – plan for it! 42

Archive Software 43

‘Infinite Disk’ Technology SAM-FS creates a virtualized or “infinite disk” that extends primary or secondary storage onto any number of additional media and devices. Virtualization optimizes storage capacity – automatically migrating inactive data to near-line secondary media – while also giving users immediate access to ALL of their data, regardless of where it is stored. Free Space Active Data (Frequently-Used Files) Pointers to Inactive Data on Secondary Media 44

SAM-FS Function: Archive Populate all tiers of storage based on data policy File Servers Users On-line Secondary Storage Data copied to media by policy Documents Spreadsheets Presentations Images Printstreams Automatically populate all desired tiers of storage Databases Video/Audio Messaging LAN/SAN Clients Generate up to 4 copies concurrently Data written in TAR format Optimized writes based on file size Shell command for immediate response Off-Site Storage 45

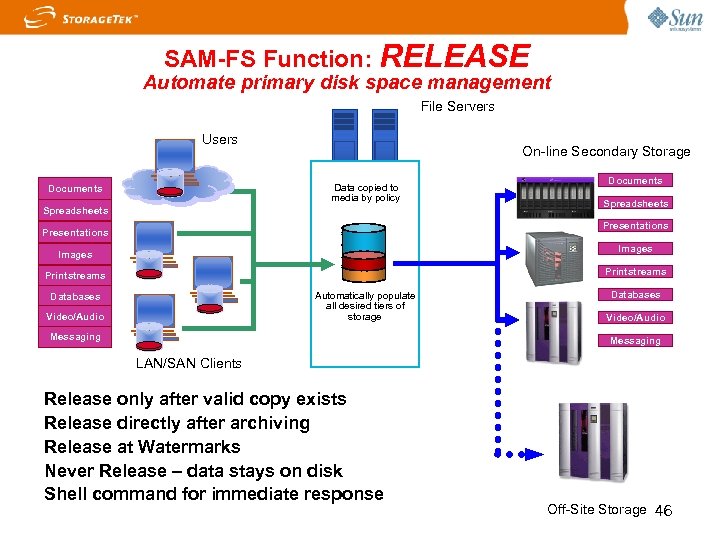

SAM-FS Function: RELEASE Automate primary disk space management File Servers Users On-line Secondary Storage Data copied to media by policy Documents Spreadsheets Presentations Images Printstreams Automatically populate all desired tiers of storage Databases Video/Audio Messaging LAN/SAN Clients Release only after valid copy exists Release directly after archiving Release at Watermarks Never Release – data stays on disk Shell command for immediate response Off-Site Storage 46

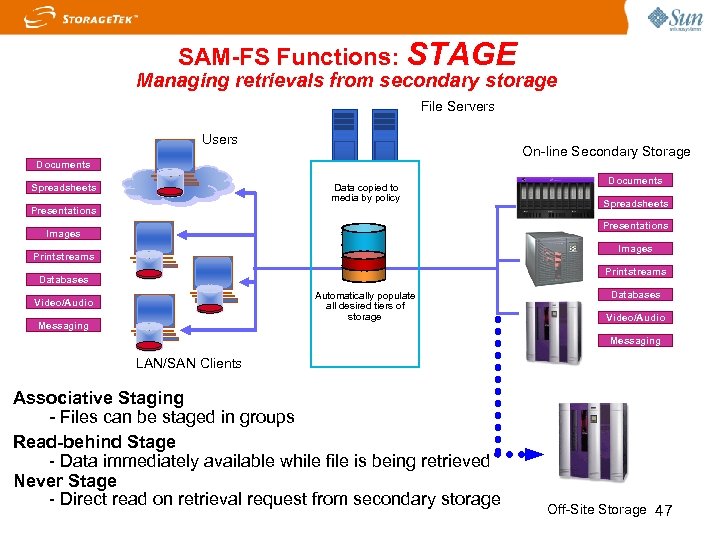

SAM-FS Functions: STAGE Managing retrievals from secondary storage File Servers Users On-line Secondary Storage Documents Data copied to media by policy Spreadsheets Presentations Documents Spreadsheets Presentations Images Printstreams Databases Automatically populate all desired tiers of storage Video/Audio Messaging Databases Video/Audio Messaging LAN/SAN Clients Associative Staging - Files can be staged in groups Read-behind Stage - Data immediately available while file is being retrieved Never Stage - Direct read on retrieval request from secondary storage Off-Site Storage 47
