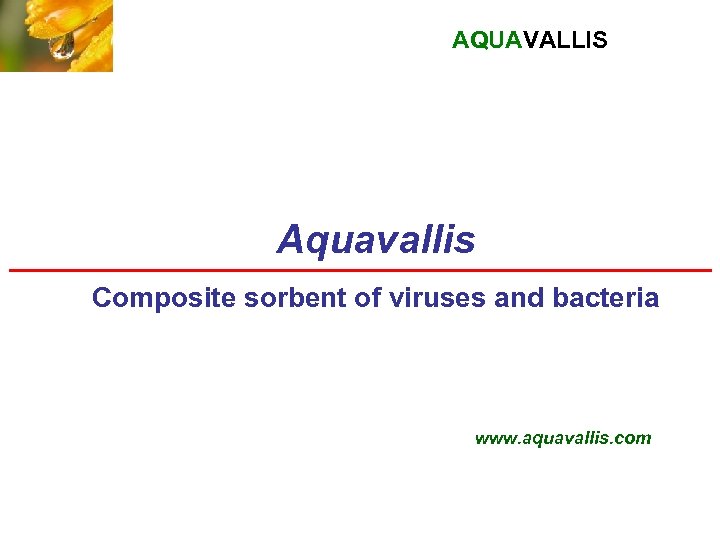

AQUAVALLIS Aquavallis Composite sorbent of viruses and bacteria www. aquavallis. com

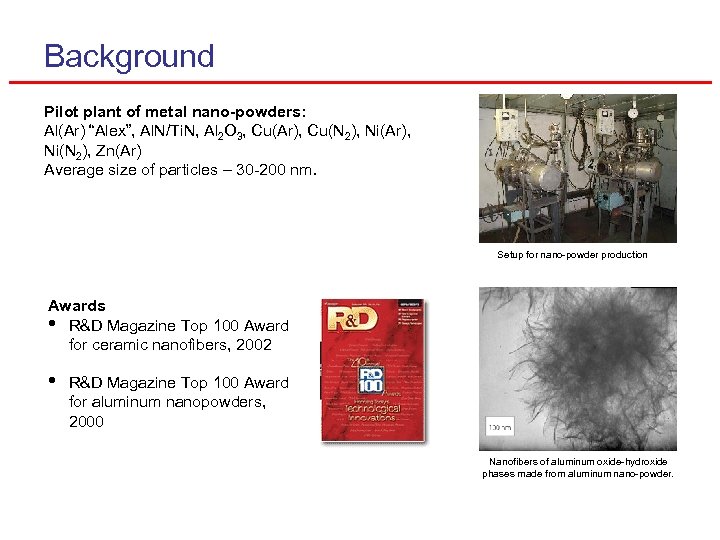

Background Pilot plant of metal nano-powders: Al(Ar) “Alex”, Al. N/Ti. N, Al 2 O 3, Cu(Ar), Cu(N 2), Ni(Ar), Ni(N 2), Zn(Ar) Average size of particles – 30 -200 nm. Setup for nano-powder production Awards • R&D Magazine Top 100 Award for ceramic nanofibers, 2002 • R&D Magazine Top 100 Award for aluminum nanopowders, 2000 Nanofibers of aluminum oxide-hydroxide phases made from aluminum nano-powder.

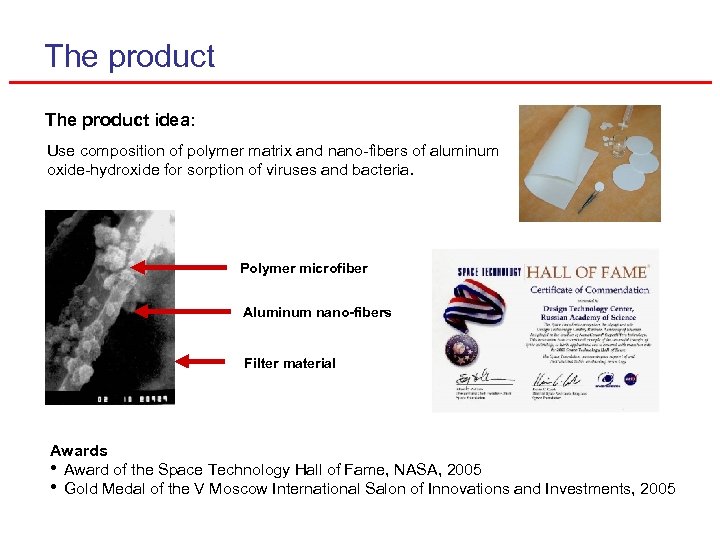

The product idea: Use composition of polymer matrix and nano-fibers of aluminum oxide-hydroxide for sorption of viruses and bacteria. Polymer microfiber Aluminum nano-fibers Filter material Awards • Award of the Space Technology Hall of Fame, NASA, 2005 • Gold Medal of the V Moscow International Salon of Innovations and Investments, 2005

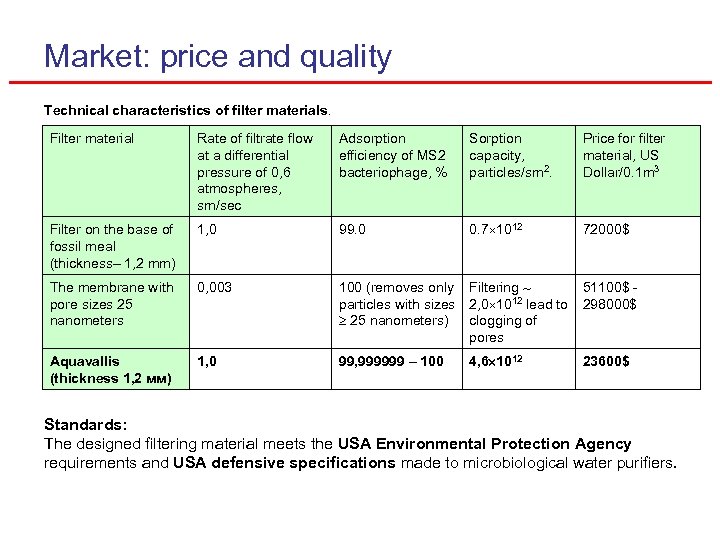

Market: price and quality Technical characteristics of filter materials. Filter material Rate of filtrate flow at a differential pressure of 0, 6 atmospheres, sm/sec Adsorption efficiency of MS 2 bacteriophage, % Sorption capacity, particles/sm 2. Price for filter material, US Dollar/0. 1 m 3 Filter on the base of fossil meal (thickness– 1, 2 mm) 1, 0 99. 0 0. 7 1012 72000$ The membrane with pore sizes 25 nanometers 0, 003 100 (removes only Filtering particles with sizes 2, 0 1012 lead to 25 nanometers) clogging of pores 51100$ 298000$ Aquavallis (thickness 1, 2 мм) 1, 0 99, 999999 – 100 23600$ 4, 6 1012 Standards: The designed filtering material meets the USA Environmental Protection Agency requirements and USA defensive specifications made to microbiological water purifiers.
Fields of application • Clearing microbiological contaminations of water in the household purposes and in extreme situations (flood of the rivers, a underflooding of sewage treatment plants, a weep in water pipes, etc. ). • The microbiological analysis of potable water and day waters, alcoholic and soft drinks, the sanitary surfaces check of microbial dirtiness of buildings, inventories, etc. • The microbiological air check. • Systems with varied productivity for deriving water with laboratory, analytical and reagent level of purity - state-of-the-art alternative to finestillers and redistillators. • For a sterilizing filtering of the injection and other solutions in medical institutions. • Systems for biomolecules concentrating in physiological fluids before an electrophoresis or an immunoelectrophoresis in clinical laboratories for early diagnostic of diseases. • Ultrafiltration systems for concentrating and extraction of viruses. • Filtration systems for a probe-preparation. • A microstraining for the pharmaceutical, perfumery, edible, microelectronic and chemical industries. • Biotechnological applications (classification of macromolecules, immobilization of enzymes and celllike crops in biocatalytic membrane reactors). • The tanning, textile, paper industry - removal of tallows, manufacture of fibrous materials from less valuable raw materials, preparation of catalytic agents for potching.

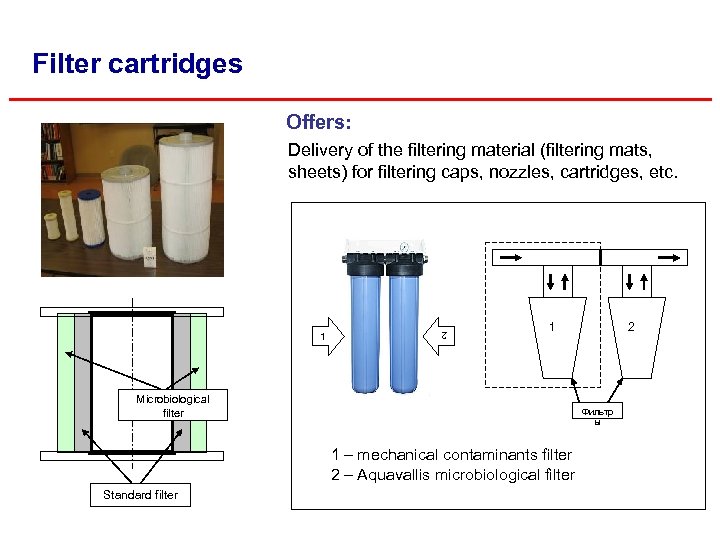

Filter cartridges Offers: Delivery of the filtering material (filtering mats, sheets) for filtering caps, nozzles, cartridges, etc. 2 1 1 Microbiological filter Фильтр ы 1 – mechanical contaminants filter 2 – Aquavallis microbiological filter Standard filter 2

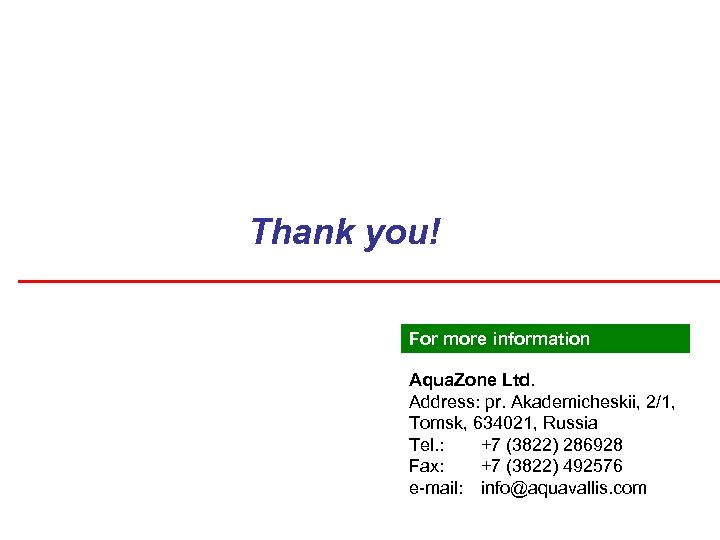

Thank you! For more information Aqua. Zone Ltd. Address: pr. Akademicheskii, 2/1, Tomsk, 634021, Russia Tel. : +7 (3822) 286928 Fax: +7 (3822) 492576 e-mail: info@aquavallis. com
