Aqua~Flo. Pac. TM Flo-Pak, Inc. a business unit of Patterson Pump Company FORD FIELD Aqua~Flo. Pac. TM Flo-Pak, Inc. a business unit of Patterson Pump Company FORD FIELD BOOSTER Derek J. Guminik Energy Solutions Associate

Aqua~Flo. Pac Supply The Demand Aqua. Flo. Control™ Plumbing Systems offer proven quality and Aqua~Flo. Pac Supply The Demand Aqua. Flo. Control™ Plumbing Systems offer proven quality and reliability when it comes to delivering clean water at controlled volume and pressure to high-density residential, light industrial, independent water systems, dormitories and office buildings. These booster pumping systems eliminate the need for job-by-job system engineering involving individual pumps, accessories and controls. They are an excellent, cost-effective technical solution for supplying high demands. Many configurations are available, along with the technical support to implement custom installations for complete customer satisfaction.

Aqua~Flo. Pac l UL-QCZJ listed on the Panels l UL-QRNZ listed on Enclosures l Aqua~Flo. Pac l UL-QCZJ listed on the Panels l UL-QRNZ listed on Enclosures l NSF-61 Annex G Lead contaminates l ETL- CAT. 225 l UL/ETL-508 Electrical Standards l Seismic Calculations available

Aqua~Flo. Pac • Variable Speed Models • NSF-61 Complaint • Patterson End Suction Pumps Aqua~Flo. Pac • Variable Speed Models • NSF-61 Complaint • Patterson End Suction Pumps Systems for Low Flow / High Head Models (up to 555’ TDH)

Aqua~Flo. Pac Heart of Our System • Schneider LCD Touch-Screen Controller • Operator Interfaces Aqua~Flo. Pac Heart of Our System • Schneider LCD Touch-Screen Controller • Operator Interfaces with all BAS Systems • Easier Start-Up • Easier System Adjustments by maintenance • Housed in NEMA I 2 (other Ratings or Request Enclosures)

Aqua~Flo. Pac Different Configuration to Solve Our Customer’s Requirements Vertical Mount Unit Aqua~Flo. Pac Different Configuration to Solve Our Customer’s Requirements Vertical Mount Unit

Aqua~Flo. Pac Split Base option to fit through existing 36” door. Aqua~Flo. Pac Split Base option to fit through existing 36” door.

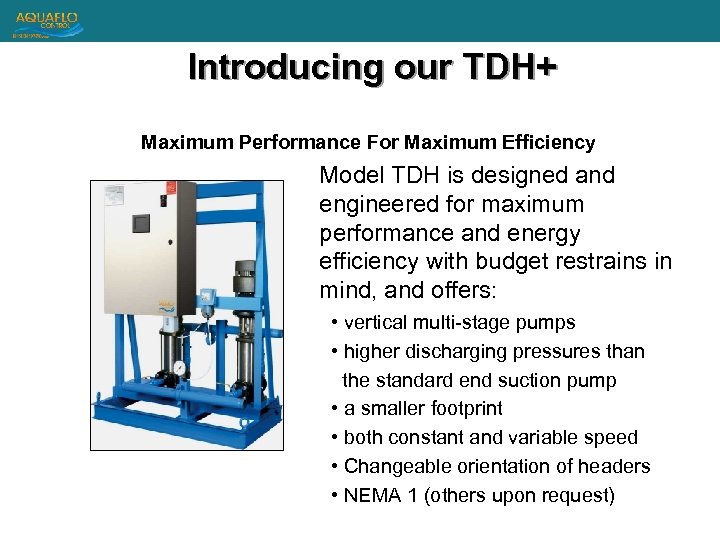

Introducing our TDH+ Maximum Performance For Maximum Efficiency Model TDH is designed and engineered Introducing our TDH+ Maximum Performance For Maximum Efficiency Model TDH is designed and engineered for maximum performance and energy efficiency with budget restrains in mind, and offers: • vertical multi-stage pumps • higher discharging pressures than the standard end suction pump • a smaller footprint • both constant and variable speed • Changeable orientation of headers • NEMA 1 (others upon request)

TDH+ Pump Selection Data and Pump Curves Vertical Multi-Stage Pumps TDH+ Pump Selection Data and Pump Curves Vertical Multi-Stage Pumps

Aqua~Flo. Pac Selection Program @ www. pattersonpumps. com • Click on (Red Pump) Pump Aqua~Flo. Pac Selection Program @ www. pattersonpumps. com • Click on (Red Pump) Pump Finder • Click on (Green Letter) AFP Selection Program • Click on Register for First Time Users and fill in registration information, a confirmation email will be sent.

Aqua~Flo. Pac • Every Unit is Flow tested and run to actual customer’s conditions Aqua~Flo. Pac • Every Unit is Flow tested and run to actual customer’s conditions at factory before shipment. • All Set Points set at the factory but can be easily adjusted in field • All units are UL-QCZJ listed; ISO 9001, ISO 14001 as well as Six Sigma Quality reviewed. • NSF-61 compliant. This Aqua-Flo. Pac package VFD package serves a 3 -story office building • VFD’s mounted in Control Panel for added protection and increase of life span. • Touch Screen Controller for easy operation and maintenance adjustments in Field. • Single source responsibility achieved by Patterson making pumps. • Factory Trained Field Technician in every State for Support thru-out USA. This TDH Model meets the constant demands of a university dorm.

Duplex with Tank on Skid Duplex with Tank on Skid

Quadplex Aqua~Flo. Pac Booster Quadplex Aqua~Flo. Pac Booster

 Quadplex TDH+ Booster Quadplex TDH+ Booster

Simplex TDH+ Simplex TDH+

Simplex Aqua~Flo. Pac Simplex Aqua~Flo. Pac

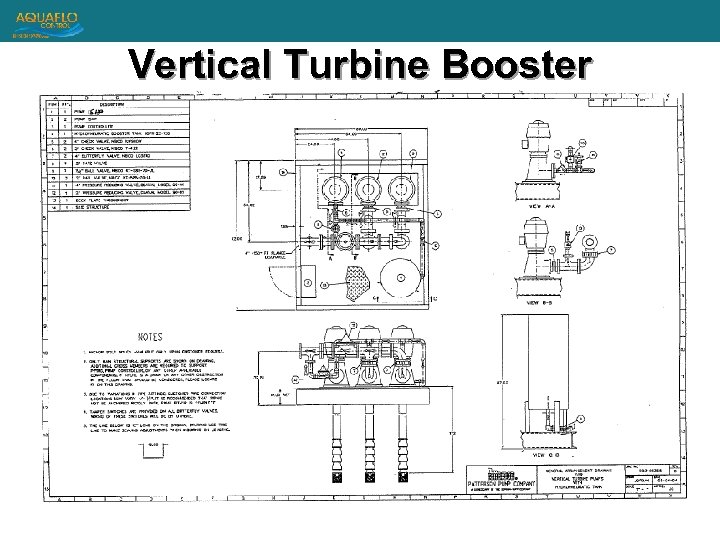

Vertical Turbine Booster Vertical Turbine Booster

Vertical Turbine Booster Vertical Turbine Booster

Fiberglass Enclosure with Booster Fiberglass Enclosure with Booster

 Fiberglass Enclosure Fiberglass Enclosure

Aqua~Flo. Pac. TM Trust the Company that is not only builds the Plumbing Booster Aqua~Flo. Pac. TM Trust the Company that is not only builds the Plumbing Booster but builds the Pump as well.

Kansas City Stadium Boosters Kansas City Stadium Boosters

Arrowhead Stadium Arrowhead Stadium

Kauffman Stadium Kauffman Stadium

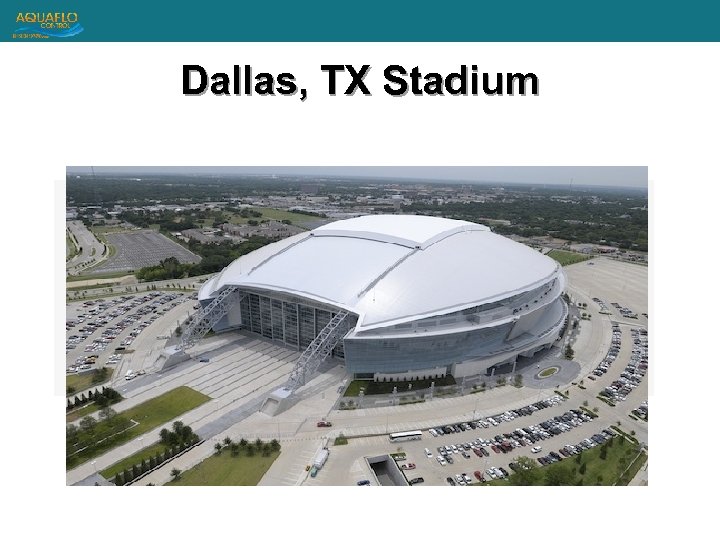

Dallas, TX Stadium Dallas, TX Stadium

Cowboys Stadium-2 Boosters Cowboys Stadium-2 Boosters

GA. Dome- ATL GA. Dome- ATL

UGA Sanford Stadium UGA Sanford Stadium

UGA Sanford Stadium UGA Sanford Stadium

Modbus Protocol Modbus Protocol

· Fabricated Welded Steel Base Assembly · Butter. Fly Shutoff Valve on Each Pump · Fabricated Welded Steel Base Assembly · Butter. Fly Shutoff Valve on Each Pump Suction and Discharge · Suction Header Pressure Gauge · Discharge Header Pressure Gauge · Low Suction Pressure Switch, Time Delay With Auto Reset · Non-Electric Thermal Protection Valve for Each Pump · Control Panel, UL 508 A/ETL Listed · Low Discharge Pressure Alarm, Time Delay With Auto Reset · High Discharge Pressure Shutdown Alarm, Time Delay With Auto Reset · Automatic Alternation of Pumps (Duty Cycle Type with 24 Hour Override) · Common Alarm Dry Relay Contacts, 1 -NO (A-Form) · Real-Time Clock for System Enable/Disable · Operator Interface on Control Panel Door · Timers & Pressure Values Adjustable via Operator Interface · Main Power Disconnect 400 Amp · Single Point Power Connection · PLC Controller · HOA Switch for Each Pump in Operator Interface · Run Light for Each Pump in Operator Interface · Control Power Transformer · Lead Pump Shut Down · Terminal Strip · Digital Pressure Display · Factory Startup Included · ** NSF 61 · Graphic Operator Interface Terminal · Discharge Pressure Transducer Cloud operating system OPTION A: CURRENTLY UNDER NSF APPROVAL AVAIALBLE IN APPROX 90 DAYS Model: CUSTOM TAP-XX-7575 -CC-12 460 V 3 Phase 60 HZ VARIABLE SPEED Triplex System Total System Flow: 3600 GPM System Discharge: 65 PSI Suction Pressure between 35 -50 PSI System Boost: 63 PSI Pump #1 1200 GPM 150 TDH 75 HP 33% of Sys Flow Model: E 4 JA 13 A-CC Pump #2 1200 GPM 150 TDH 75 HP 33% of Sys Flow Model: E 4 JA 13 A-CC Pump #3 1200 GPM 150 TDH 75 HP 33% of Sys Flow Model: E 4 JA 13 A-CC

· Fabricated Welded Steel Base Assembly · Butter. Fly Shutoff Valve on Each Pump · Fabricated Welded Steel Base Assembly · Butter. Fly Shutoff Valve on Each Pump Suction and Discharge · Suction Header Pressure Gauge · Discharge Header Pressure Gauge · Low Suction Pressure Switch, Time Delay With Auto Reset · Non-Electric Thermal Protection Valve for Each Pump · Control Panel, UL 508 A/ETL Listed · Low Discharge Pressure Alarm, Time Delay With Auto Reset · High Discharge Pressure Shutdown Alarm, Time Delay With Auto Reset · Automatic Alternation of Pumps (Duty Cycle Type with 24 Hour Override) · Common Alarm Dry Relay Contacts, 1 -NO (A-Form) · Real-Time Clock for System Enable/Disable · Operator Interface on Control Panel Door · Timers & Pressure Values Adjustable via Operator Interface · Main Power Disconnect 400 Amp · Single Point Power Connection · PLC Controller · HOA Switch for Each Pump in Operator Interface · Run Light for Each Pump in Operator Interface · Control Power Transformer · Lead Pump Shut Down · Terminal Strip · Digital Pressure Display · Factory Startup Included · ** NSF 61 · Graphic Operator Interface Terminal · Discharge Pressure Transducer Cloud operating system OPTION B: Model: CUSTOM TAP-XX-5050 -CC-12 460 V 3 Phase 60 HZ VARIABLE SPEED FIVE (5) PUMP System Total System Flow: 3600 GPM System Discharge: 65 PSI Suction Pressure between 35 -50 PSI System Boost: 63 PSI Pump #1, #2, #3, #4, #5 750 GPM 150 TDH 50 HP 33% of Sys Flow Model: CR 150 -2 -1 8 WEEKS after approved submittals received
