APPLICATION PERFORMANCE PROFILING AND PREDICTION IN GRID ENVIRONMENT

APPLICATION PERFORMANCE PROFILING AND PREDICTION IN GRID ENVIRONMENT Presented by: Marlon Bright 14 July 2008 Advisor: Masoud Sadjadi, Ph. D. REU – Florida International University

Outline Grid Enablement of Weather Research and Forecasting Code (WRF) Profiling and Prediction Tools Research Goals Project Timeline Current Progress Challenges Remaining Work REU - Florida International University 2

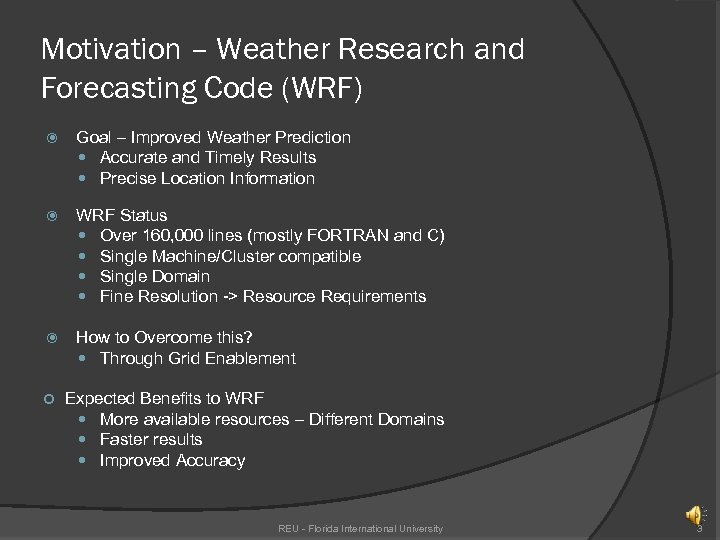

Motivation – Weather Research and Forecasting Code (WRF) Goal – Improved Weather Prediction Accurate and Timely Results Precise Location Information WRF Status Over 160, 000 lines (mostly FORTRAN and C) Single Machine/Cluster compatible Single Domain Fine Resolution -> Resource Requirements How to Overcome this? Through Grid Enablement Expected Benefits to WRF More available resources – Different Domains Faster results Improved Accuracy REU - Florida International University 3

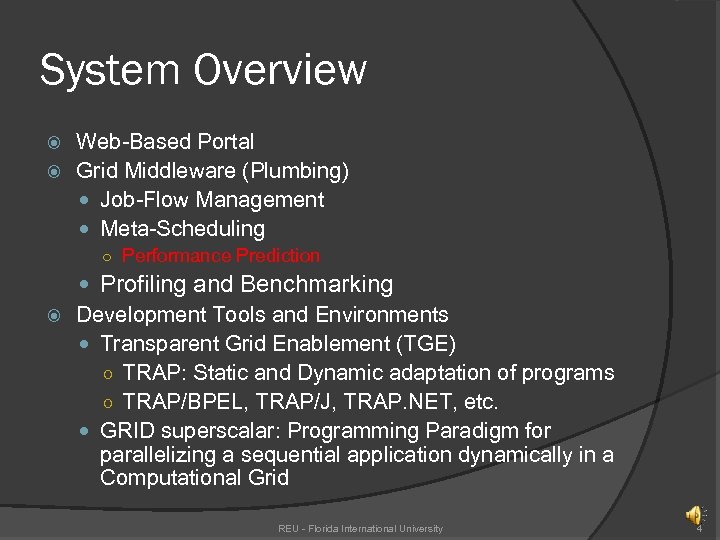

System Overview Web-Based Portal Grid Middleware (Plumbing) Job-Flow Management Meta-Scheduling ○ Performance Prediction Profiling and Benchmarking Development Tools and Environments Transparent Grid Enablement (TGE) ○ TRAP: Static and Dynamic adaptation of programs ○ TRAP/BPEL, TRAP/J, TRAP. NET, etc. GRID superscalar: Programming Paradigm for parallelizing a sequential application dynamically in a Computational Grid REU - Florida International University 4

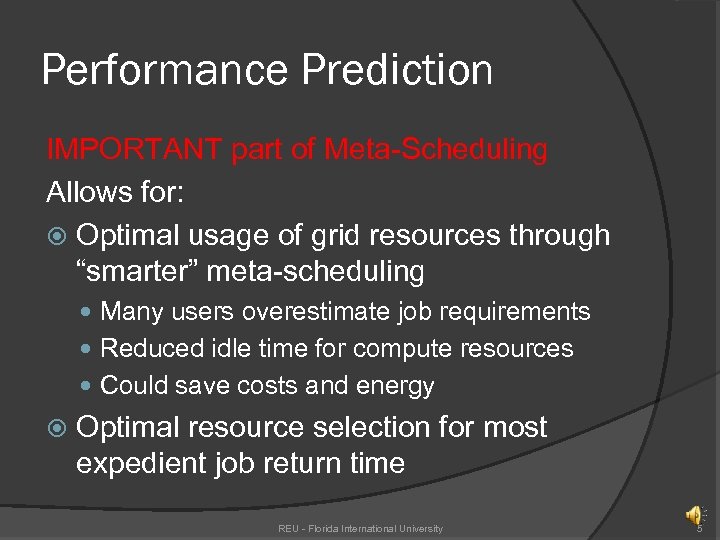

Performance Prediction IMPORTANT part of Meta-Scheduling Allows for: Optimal usage of grid resources through “smarter” meta-scheduling Many users overestimate job requirements Reduced idle time for compute resources Could save costs and energy Optimal resource selection for most expedient job return time REU - Florida International University 5

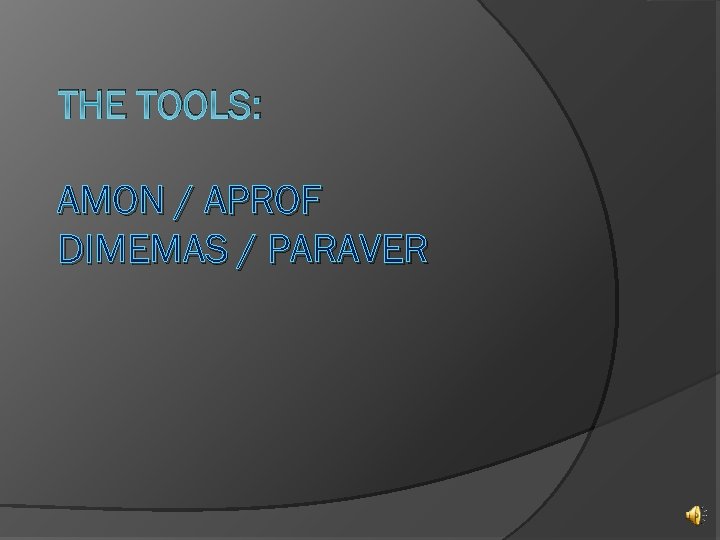

THE TOOLS: AMON / APROF DIMEMAS / PARAVER

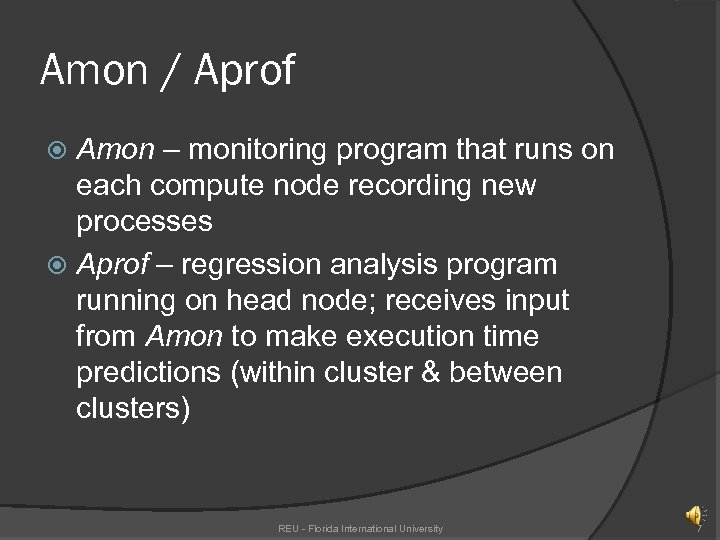

Amon / Aprof Amon – monitoring program that runs on each compute node recording new processes Aprof – regression analysis program running on head node; receives input from Amon to make execution time predictions (within cluster & between clusters) REU - Florida International University 7

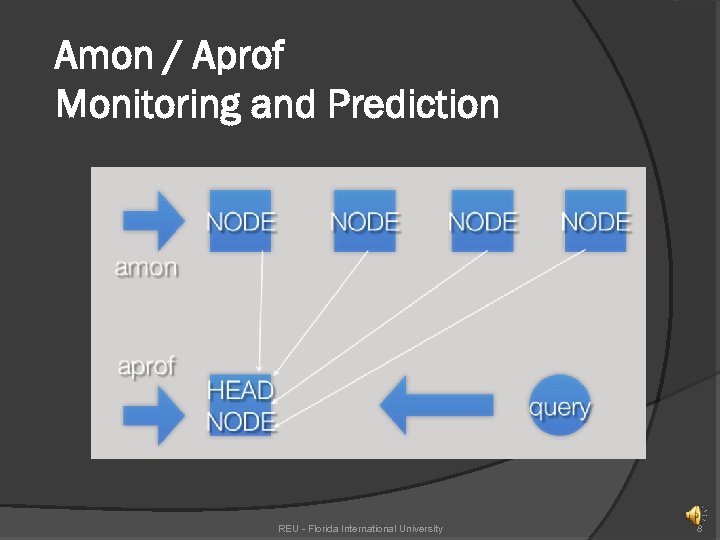

Amon / Aprof Monitoring and Prediction REU - Florida International University 8

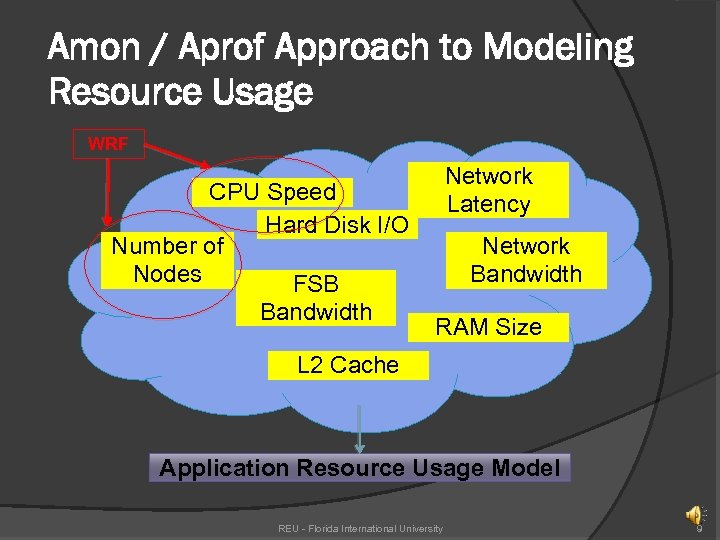

Amon / Aprof Approach to Modeling Resource Usage WRF Network Latency CPU Speed Hard Disk I/O Number of Nodes FSB Bandwidth Network Bandwidth RAM Size L 2 Cache Application Resource Usage Model REU - Florida International University 9

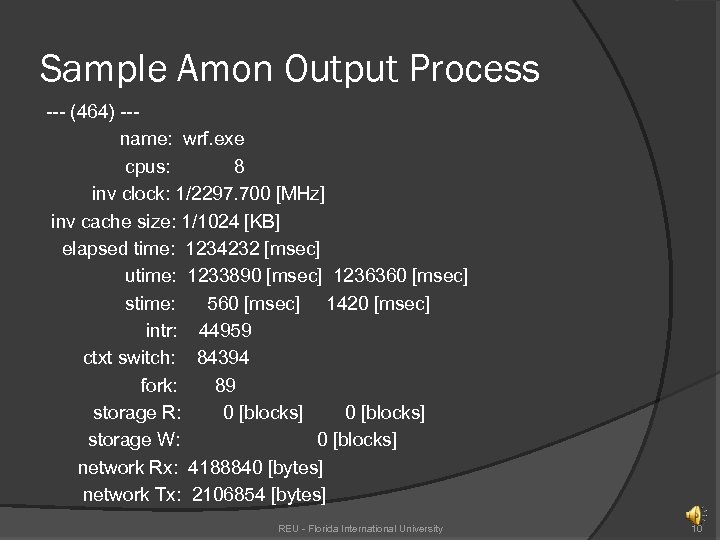

Sample Amon Output Process --- (464) --name: wrf. exe cpus: 8 inv clock: 1/2297. 700 [MHz] inv cache size: 1/1024 [KB] elapsed time: 1234232 [msec] utime: 1233890 [msec] 1236360 [msec] stime: 560 [msec] 1420 [msec] intr: 44959 ctxt switch: 84394 fork: 89 storage R: 0 [blocks] storage W: 0 [blocks] network Rx: 4188840 [bytes] network Tx: 2106854 [bytes] REU - Florida International University 10

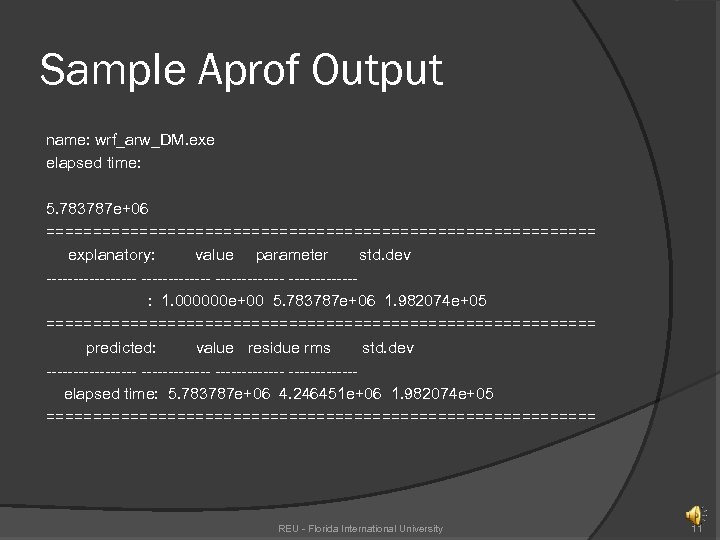

Sample Aprof Output name: wrf_arw_DM. exe elapsed time: 5. 783787 e+06 ============================== explanatory: value parameter std. dev ---------------: 1. 000000 e+00 5. 783787 e+06 1. 982074 e+05 ============================== predicted: value residue rms std. dev ---------------elapsed time: 5. 783787 e+06 4. 246451 e+06 1. 982074 e+05 ============================== REU - Florida International University 11

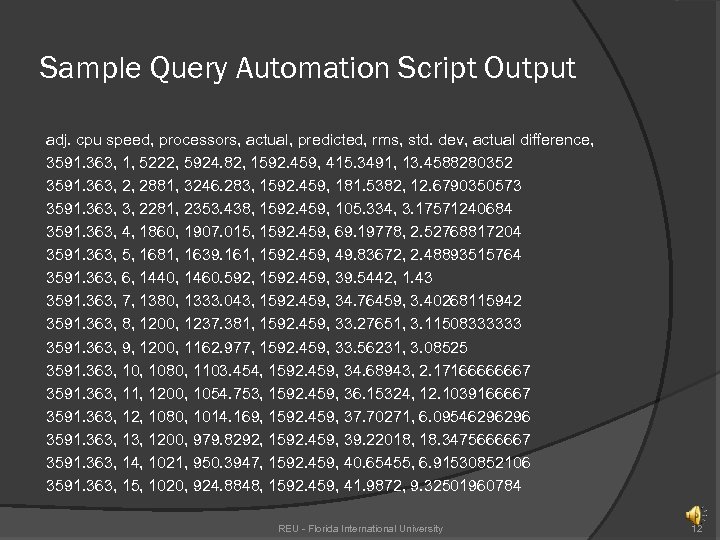

Sample Query Automation Script Output adj. cpu speed, processors, actual, predicted, rms, std. dev, actual difference, 3591. 363, 1, 5222, 5924. 82, 1592. 459, 415. 3491, 13. 4588280352 3591. 363, 2, 2881, 3246. 283, 1592. 459, 181. 5382, 12. 6790350573 3591. 363, 3, 2281, 2353. 438, 1592. 459, 105. 334, 3. 17571240684 3591. 363, 4, 1860, 1907. 015, 1592. 459, 69. 19778, 2. 52768817204 3591. 363, 5, 1681, 1639. 161, 1592. 459, 49. 83672, 2. 48893515764 3591. 363, 6, 1440, 1460. 592, 1592. 459, 39. 5442, 1. 43 3591. 363, 7, 1380, 1333. 043, 1592. 459, 34. 76459, 3. 40268115942 3591. 363, 8, 1200, 1237. 381, 1592. 459, 33. 27651, 3. 11508333333 3591. 363, 9, 1200, 1162. 977, 1592. 459, 33. 56231, 3. 08525 3591. 363, 1080, 1103. 454, 1592. 459, 34. 68943, 2. 17166666667 3591. 363, 11, 1200, 1054. 753, 1592. 459, 36. 15324, 12. 1039166667 3591. 363, 12, 1080, 1014. 169, 1592. 459, 37. 70271, 6. 09546296296 3591. 363, 1200, 979. 8292, 1592. 459, 39. 22018, 18. 3475666667 3591. 363, 14, 1021, 950. 3947, 1592. 459, 40. 65455, 6. 91530852106 3591. 363, 15, 1020, 924. 8848, 1592. 459, 41. 9872, 9. 32501960784 REU - Florida International University 12

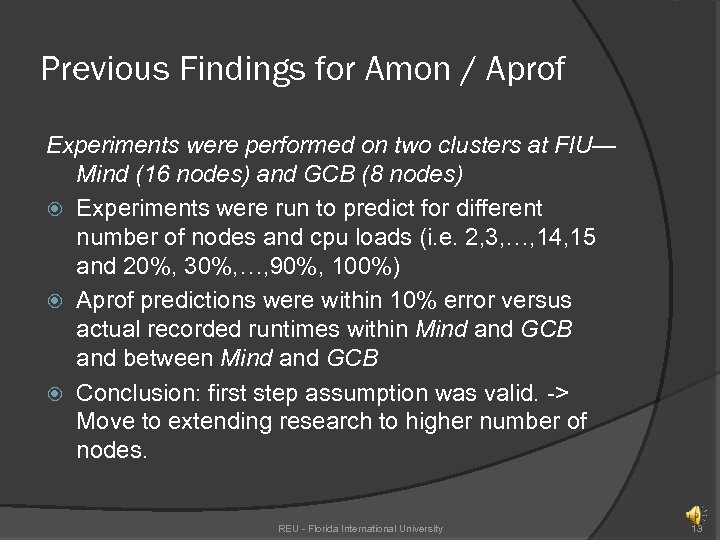

Previous Findings for Amon / Aprof Experiments were performed on two clusters at FIU— Mind (16 nodes) and GCB (8 nodes) Experiments were run to predict for different number of nodes and cpu loads (i. e. 2, 3, …, 14, 15 and 20%, 30%, …, 90%, 100%) Aprof predictions were within 10% error versus actual recorded runtimes within Mind and GCB and between Mind and GCB Conclusion: first step assumption was valid. -> Move to extending research to higher number of nodes. REU - Florida International University 13

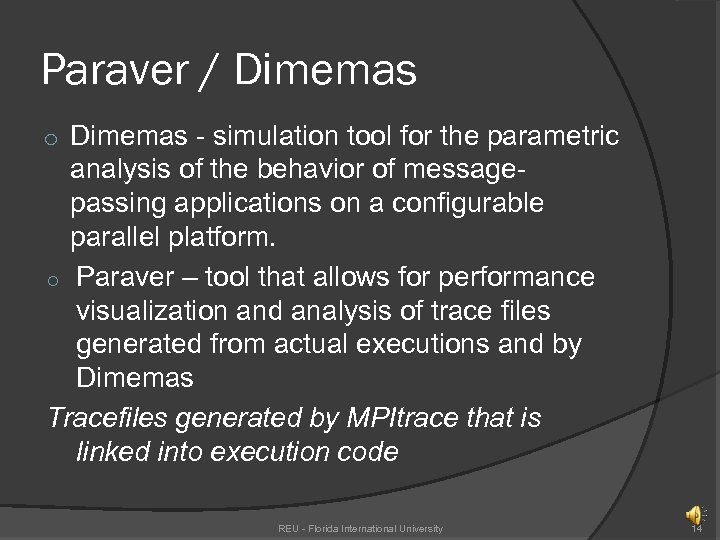

Paraver / Dimemas o Dimemas - simulation tool for the parametric analysis of the behavior of messagepassing applications on a configurable parallel platform. o Paraver – tool that allows for performance visualization and analysis of trace files generated from actual executions and by Dimemas Tracefiles generated by MPItrace that is linked into execution code REU - Florida International University 14

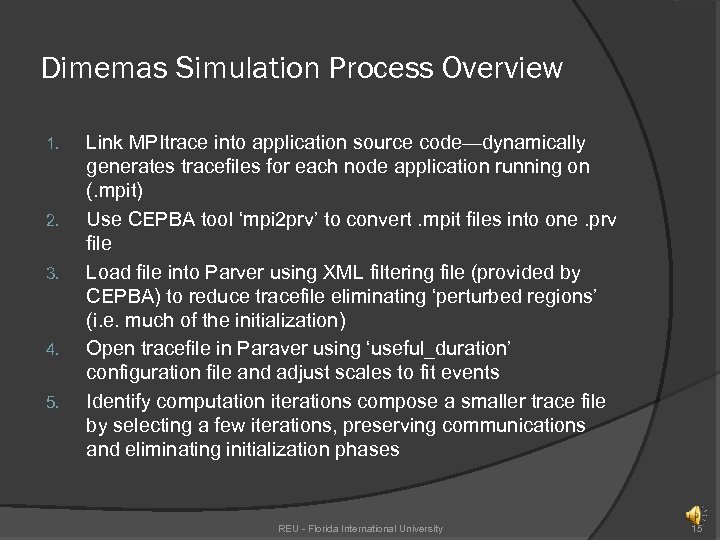

Dimemas Simulation Process Overview 1. 2. 3. 4. 5. Link MPItrace into application source code—dynamically generates tracefiles for each node application running on (. mpit) Use CEPBA tool ‘mpi 2 prv’ to convert. mpit files into one. prv file Load file into Parver using XML filtering file (provided by CEPBA) to reduce tracefile eliminating ‘perturbed regions’ (i. e. much of the initialization) Open tracefile in Paraver using ‘useful_duration’ configuration file and adjust scales to fit events Identify computation iterations compose a smaller trace file by selecting a few iterations, preserving communications and eliminating initialization phases REU - Florida International University 15

Paraver tracefile with iterations selected, cut, and ready for Dimemas conversion. REU - Florida International University 16

Simulation Process (cont’d) 6. 7. 8. Convert the new tracefile to Dimemas format (. trf) using CEPBA provided ‘prv 2 trf’ tool Load tracefile into Dimemas simulator, configure target machine, and with information generate Dimemas configuration file Call simulator without option of generating a Paraver (. prv) tracefile for viewing. Great News: You only have to go through this process once if done for the maximum amount of nodes you will simulate for! Once configuration file is generated, different numbers of nodes can be simulated for through alterations to the file. REU - Florida International University 17

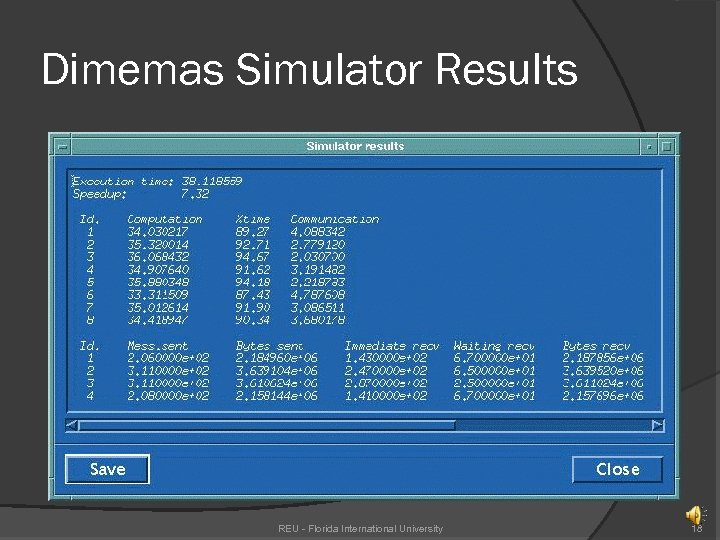

Dimemas Simulator Results REU - Florida International University 18

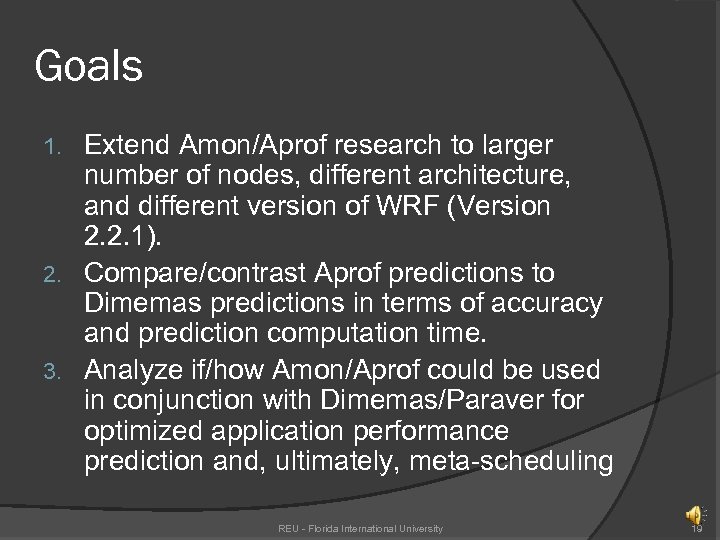

Goals Extend Amon/Aprof research to larger number of nodes, different architecture, and different version of WRF (Version 2. 2. 1). 2. Compare/contrast Aprof predictions to Dimemas predictions in terms of accuracy and prediction computation time. 3. Analyze if/how Amon/Aprof could be used in conjunction with Dimemas/Paraver for optimized application performance prediction and, ultimately, meta-scheduling 1. REU - Florida International University 19

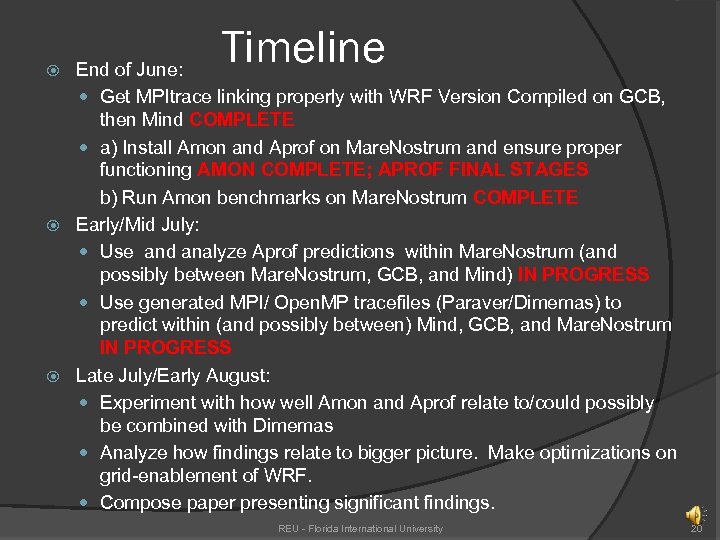

Timeline End of June: Get MPItrace linking properly with WRF Version Compiled on GCB, then Mind COMPLETE a) Install Amon and Aprof on Mare. Nostrum and ensure proper functioning AMON COMPLETE; APROF FINAL STAGES b) Run Amon benchmarks on Mare. Nostrum COMPLETE Early/Mid July: Use and analyze Aprof predictions within Mare. Nostrum (and possibly between Mare. Nostrum, GCB, and Mind) IN PROGRESS Use generated MPI/ Open. MP tracefiles (Paraver/Dimemas) to predict within (and possibly between) Mind, GCB, and Mare. Nostrum IN PROGRESS Late July/Early August: Experiment with how well Amon and Aprof relate to/could possibly be combined with Dimemas Analyze how findings relate to bigger picture. Make optimizations on grid-enablement of WRF. Compose paper presenting significant findings. REU - Florida International University 20

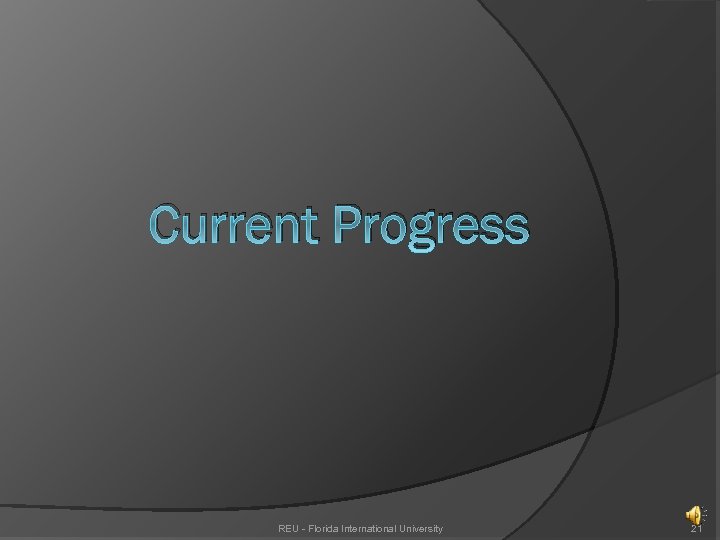

Current Progress REU - Florida International University 21

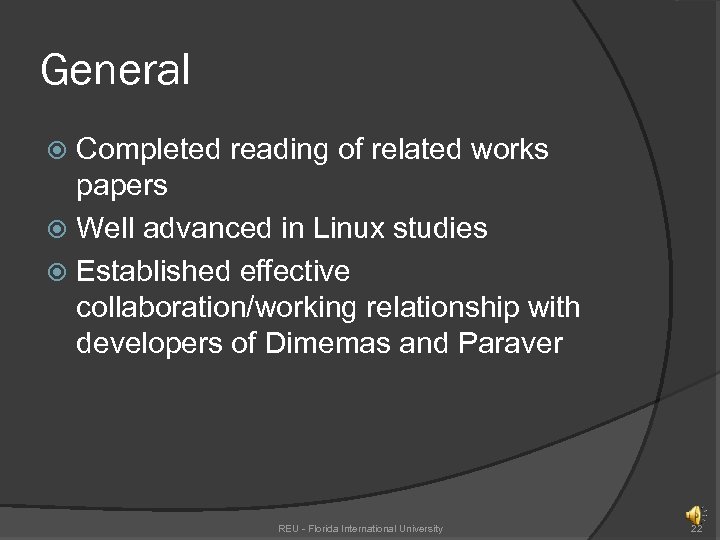

General Completed reading of related works papers Well advanced in Linux studies Established effective collaboration/working relationship with developers of Dimemas and Paraver REU - Florida International University 22

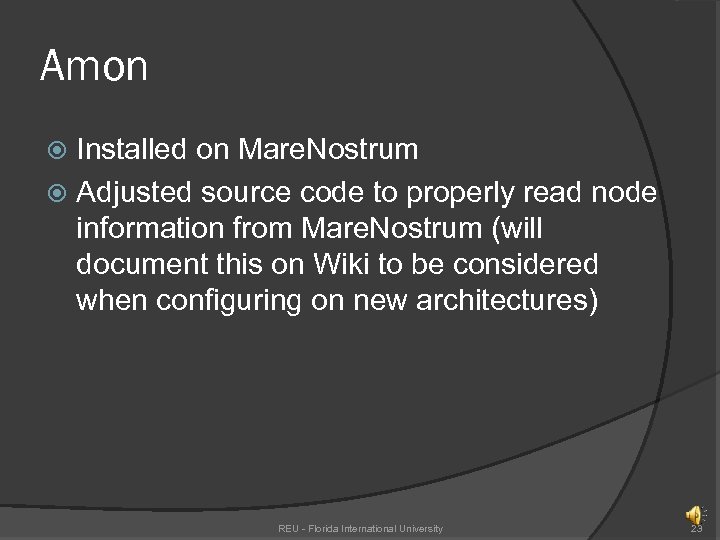

Amon Installed on Mare. Nostrum Adjusted source code to properly read node information from Mare. Nostrum (will document this on Wiki to be considered when configuring on new architectures) REU - Florida International University 23

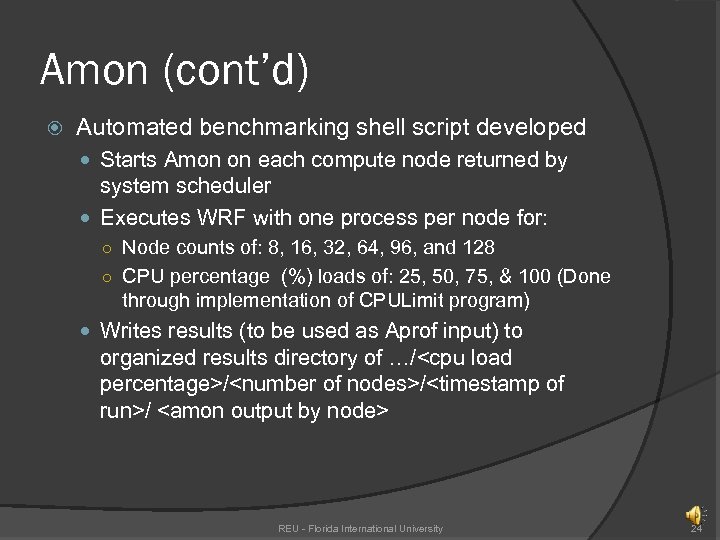

Amon (cont’d) Automated benchmarking shell script developed Starts Amon on each compute node returned by system scheduler Executes WRF with one process per node for: ○ Node counts of: 8, 16, 32, 64, 96, and 128 ○ CPU percentage (%) loads of: 25, 50, 75, & 100 (Done through implementation of CPULimit program) Writes results (to be used as Aprof input) to organized results directory of …//// REU - Florida International University 24

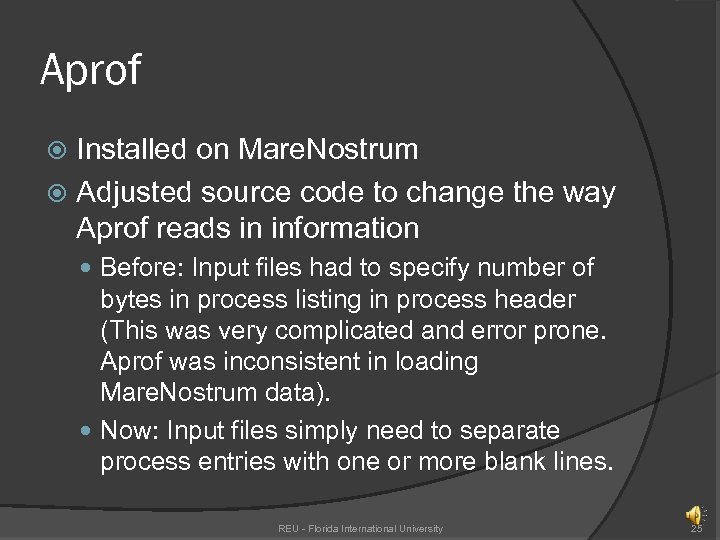

Aprof Installed on Mare. Nostrum Adjusted source code to change the way Aprof reads in information Before: Input files had to specify number of bytes in process listing in process header (This was very complicated and error prone. Aprof was inconsistent in loading Mare. Nostrum data). Now: Input files simply need to separate process entries with one or more blank lines. REU - Florida International University 25

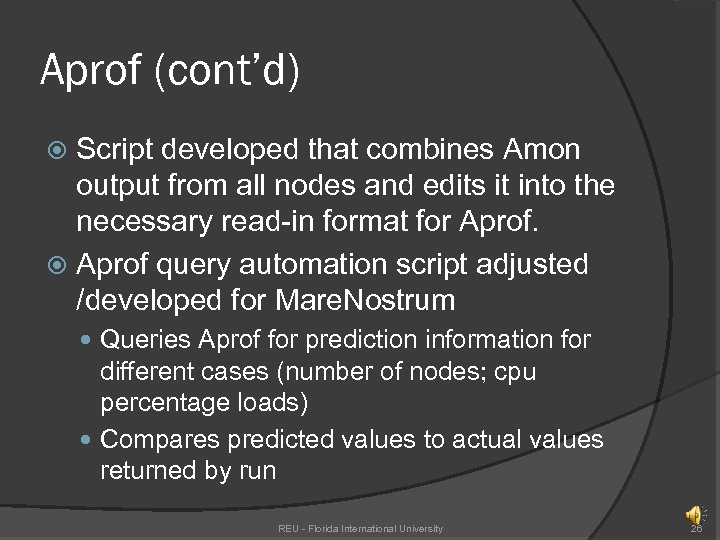

Aprof (cont’d) Script developed that combines Amon output from all nodes and edits it into the necessary read-in format for Aprof query automation script adjusted /developed for Mare. Nostrum Queries Aprof for prediction information for different cases (number of nodes; cpu percentage loads) Compares predicted values to actual values returned by run REU - Florida International University 26

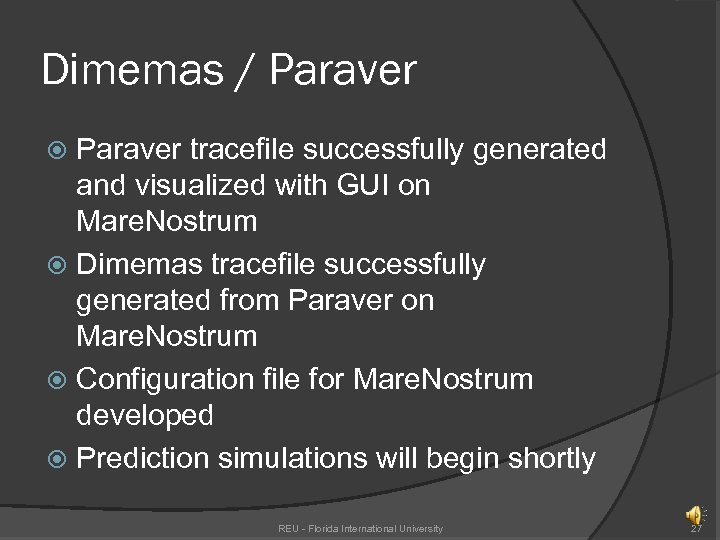

Dimemas / Paraver tracefile successfully generated and visualized with GUI on Mare. Nostrum Dimemas tracefile successfully generated from Paraver on Mare. Nostrum Configuration file for Mare. Nostrum developed Prediction simulations will begin shortly REU - Florida International University 27

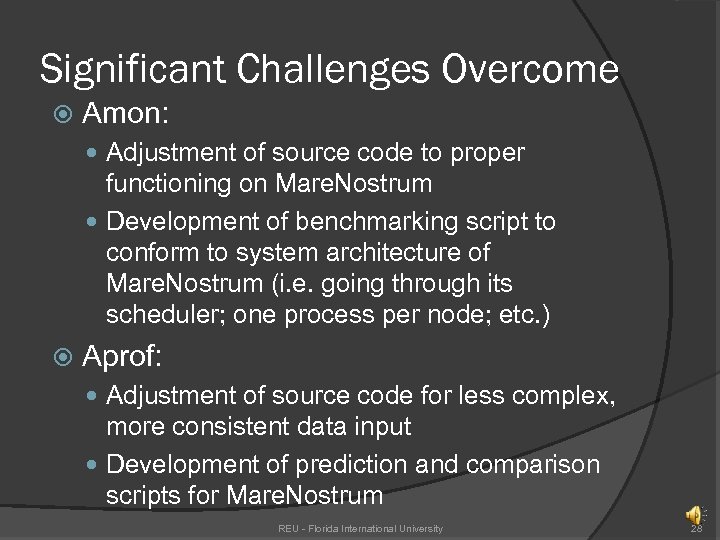

Significant Challenges Overcome Amon: Adjustment of source code to proper functioning on Mare. Nostrum Development of benchmarking script to conform to system architecture of Mare. Nostrum (i. e. going through its scheduler; one process per node; etc. ) Aprof: Adjustment of source code for less complex, more consistent data input Development of prediction and comparison scripts for Mare. Nostrum REU - Florida International University 28

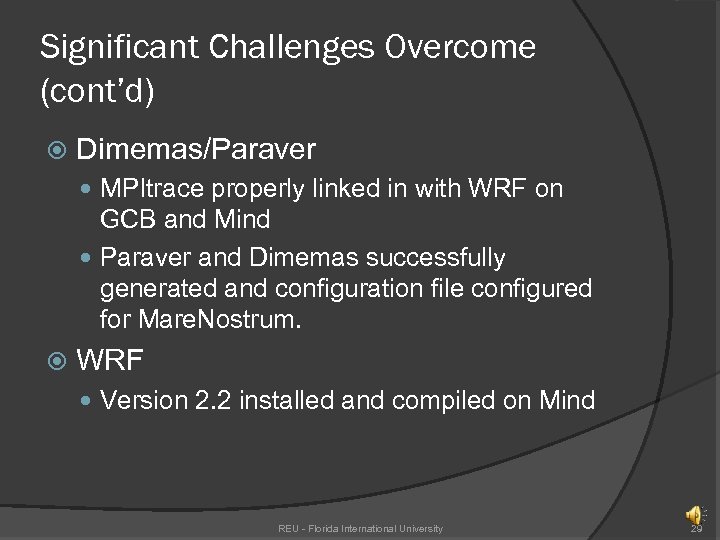

Significant Challenges Overcome (cont’d) Dimemas/Paraver MPItrace properly linked in with WRF on GCB and Mind Paraver and Dimemas successfully generated and configuration file configured for Mare. Nostrum. WRF Version 2. 2 installed and compiled on Mind REU - Florida International University 29

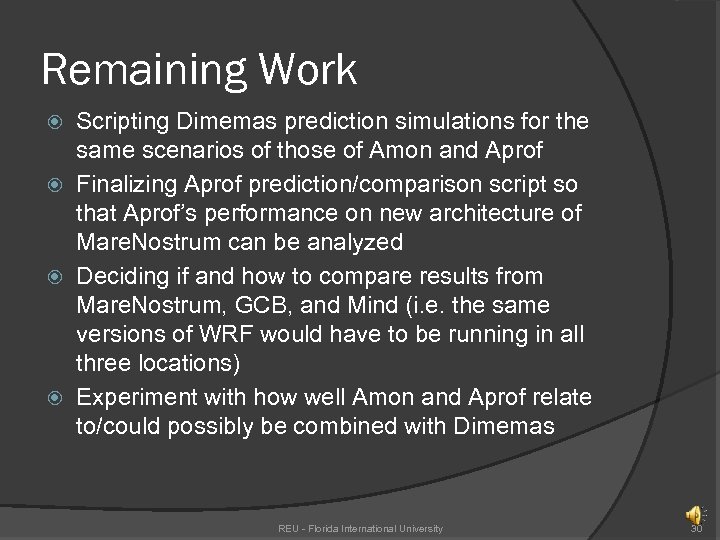

Remaining Work Scripting Dimemas prediction simulations for the same scenarios of those of Amon and Aprof Finalizing Aprof prediction/comparison script so that Aprof’s performance on new architecture of Mare. Nostrum can be analyzed Deciding if and how to compare results from Mare. Nostrum, GCB, and Mind (i. e. the same versions of WRF would have to be running in all three locations) Experiment with how well Amon and Aprof relate to/could possibly be combined with Dimemas REU - Florida International University 30

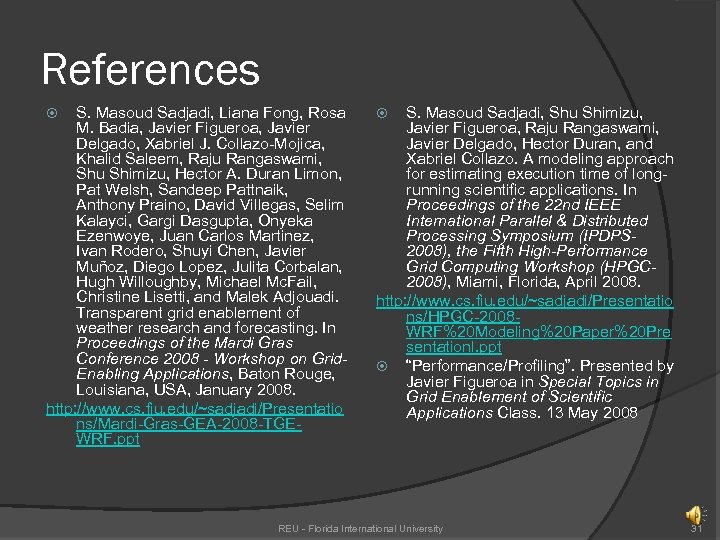

References S. Masoud Sadjadi, Liana Fong, Rosa M. Badia, Javier Figueroa, Javier Delgado, Xabriel J. Collazo-Mojica, Khalid Saleem, Raju Rangaswami, Shu Shimizu, Hector A. Duran Limon, Pat Welsh, Sandeep Pattnaik, Anthony Praino, David Villegas, Selim Kalayci, Gargi Dasgupta, Onyeka Ezenwoye, Juan Carlos Martinez, Ivan Rodero, Shuyi Chen, Javier Muñoz, Diego Lopez, Julita Corbalan, Hugh Willoughby, Michael Mc. Fail, Christine Lisetti, and Malek Adjouadi. Transparent grid enablement of weather research and forecasting. In Proceedings of the Mardi Gras Conference 2008 - Workshop on Grid. Enabling Applications, Baton Rouge, Louisiana, USA, January 2008. http: //www. cs. fiu. edu/~sadjadi/Presentatio ns/Mardi-Gras-GEA-2008 -TGEWRF. ppt S. Masoud Sadjadi, Shu Shimizu, Javier Figueroa, Raju Rangaswami, Javier Delgado, Hector Duran, and Xabriel Collazo. A modeling approach for estimating execution time of longrunning scientific applications. In Proceedings of the 22 nd IEEE International Parallel & Distributed Processing Symposium (IPDPS 2008), the Fifth High-Performance Grid Computing Workshop (HPGC 2008), Miami, Florida, April 2008. http: //www. cs. fiu. edu/~sadjadi/Presentatio ns/HPGC-2008 WRF%20 Modeling%20 Paper%20 Pre sentationl. ppt “Performance/Profiling”. Presented by Javier Figueroa in Special Topics in Grid Enablement of Scientific Applications Class. 13 May 2008 REU - Florida International University 31
