AP 900 Automated Programming System Introduction of System

AP 900 Automated Programming System Introduction of System General AP 900 Desktop Automated Programming System General Corp.

AP 900 Automated Programming System Contents q Target Customers q Why Automation q The Equipment –AP 900 q q q q What you can do with AP 900 The programmer inside: H 9800 Advantages of AP 900 Throughput of AP 900 Intelligent control of AP 900 Optional subsystems Comparison With Competitions q Strategic level customer services System General Corp.

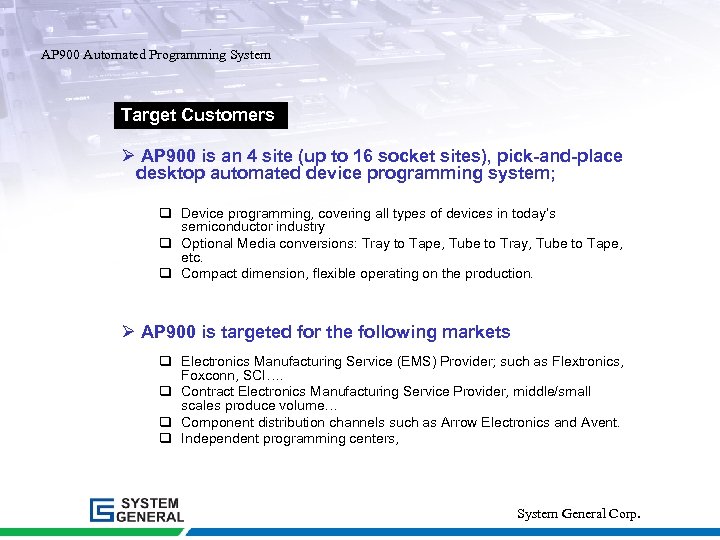

AP 900 Automated Programming System Target Customers Ø AP 900 is an 4 site (up to 16 socket sites), pick-and-place desktop automated device programming system; q Device programming, covering all types of devices in today’s semiconductor industry q Optional Media conversions: Tray to Tape, Tube to Tray, Tube to Tape, etc. q Compact dimension, flexible operating on the production. Ø AP 900 is targeted for the following markets q Electronics Manufacturing Service (EMS) Provider; such as Flextronics, Foxconn, SCI…. q Contract Electronics Manufacturing Service Provider, middle/small scales produce volume… q Component distribution channels such as Arrow Electronics and Avent. q Independent programming centers, System General Corp.

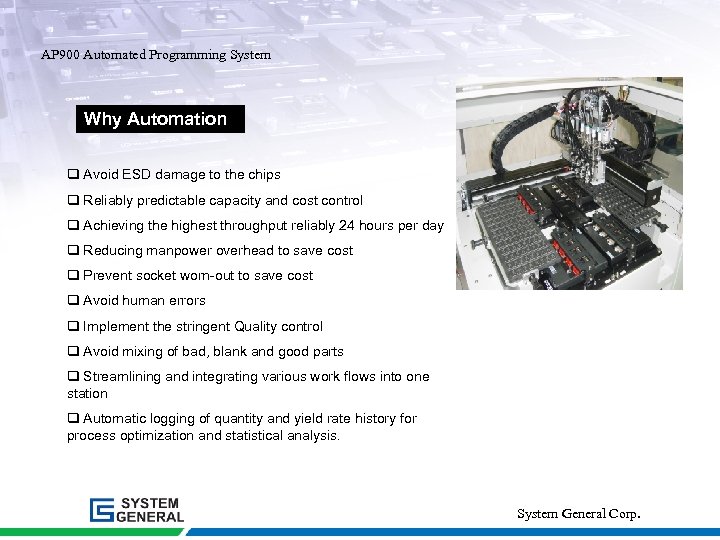

AP 900 Automated Programming System Why Automation q Avoid ESD damage to the chips q Reliably predictable capacity and cost control q Achieving the highest throughput reliably 24 hours per day q Reducing manpower overhead to save cost q Prevent socket worn-out to save cost q Avoid human errors q Implement the stringent Quality control q Avoid mixing of bad, blank and good parts q Streamlining and integrating various work flows into one station q Automatic logging of quantity and yield rate history for process optimization and statistical analysis. System General Corp.

AP 900 Automated Programming System The Features of AP 900 Achieving the highest throughput … With the least operator intervention ! q Up to 4 programming site (16 sockets) pick-andplace Automated programming Workstation, up to 16 sockets accommodated ! q An Media Conversion Workstation to automate device media change between any two among Tray, tube and tape & Reel. q 600 UPH under 60 seconds operating cycle period, q Powerful SG H 9800 universal programmer, supports over 16, 000 devices in the current market, q Friendly Windows OS, Task/Job control and realtime statistical display, q Compact design for cost-effective operations, System General Corp.

AP 900 Automated Programming System The Programmer inside – Model 9800 – Key Features q Universal device programmer for EPROM, NOR- and NAND- type Flash memory, MCU and logic devices. q Multi-linkable various programming modules through USB q Synchronous and asynchronous operation modes available q 112 pin truly universal and state-of-the-art pin drivers, expandable to 448 pins. q Universal adapter of most device packages up to 112 pins. q Gang 4 socket adaptor available for memory and dedicate MCU devices q High speed programming - 64 Mbits Flash in 26 seconds ! q High speed data download through USB interface – download 128 Mbits in less than 6 seconds from PC. q 8 Gigabits RAM buffer standard, expandable to 16 Gigabits. q Low voltage device support down to 1. 2 V q Fully configurable programming parameters for engineers System General Corp.

AP 900 Automated Programming System The Programmer inside – Model 9800 – How Fast ? ! • All time represented in seconds • Benchmarks based on the Intel EFP/BEFP algorithms. • Verify has been included as a part of the program cycle. System General Corp.

AP 900 Automated Programming System The Programmer inside – Model 9800 – Functions Vector Test ID Checking Margin Test Insertion Check Voh / Vol Test Pin Continuity Check EPROM Auto Identify Serial Code Programming Block Erase/Programming Memory Edit Split/Set Programming Special Bit Edit Range Programming Program Parameter Edit Verify with List Anti-Fuse Programming Auto-Sensing NAND Flash programming Sync and Asyn operation Job Engr/Operator Mode System General Corp.

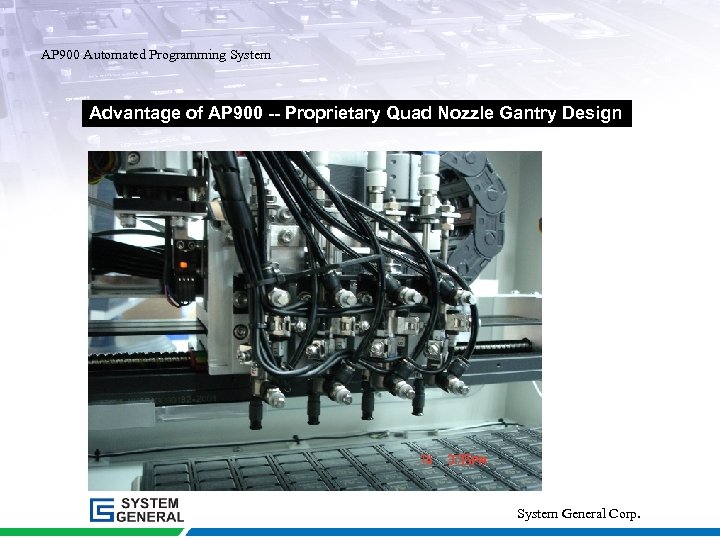

AP 900 Automated Programming System Advantage of AP 900 -- Proprietary Quad Nozzle Gantry Design System General Corp.

AP 900 Automated Programming System Advantages of AP 900 – Tray input & output inside Advantages of AP 900 – Precisor Positioning System Optional On-the-fly CCD image processing ! System General Corp.

AP 900 Automated Programming System Advantages of AP 900 – Automatic Teaching with 2 CCD Easy to do a changeover in package ! System General Corp.

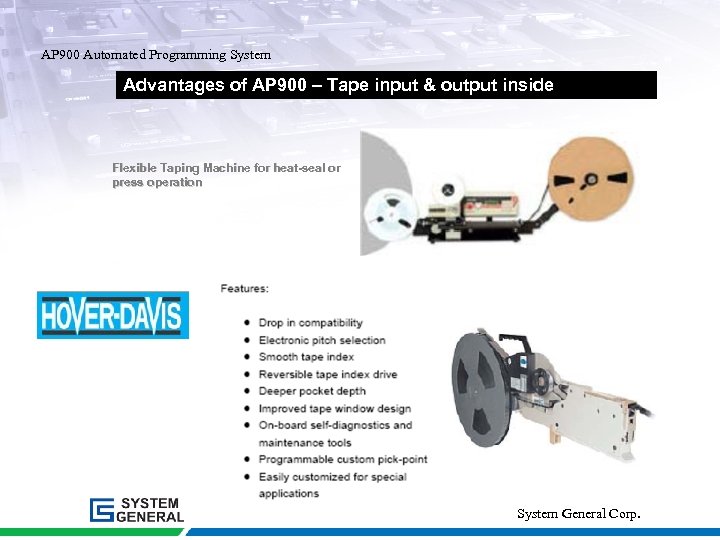

AP 900 Automated Programming System Advantages of AP 900 – Tape input & output inside Flexible Taping Machine for heat-seal or press operation System General Corp.

AP 900 Automated Programming System Advantages of AP 900 – Tube input & output inside System General Corp.

AP 900 Automated Programming System Throughput of AP 900 System General Corp.

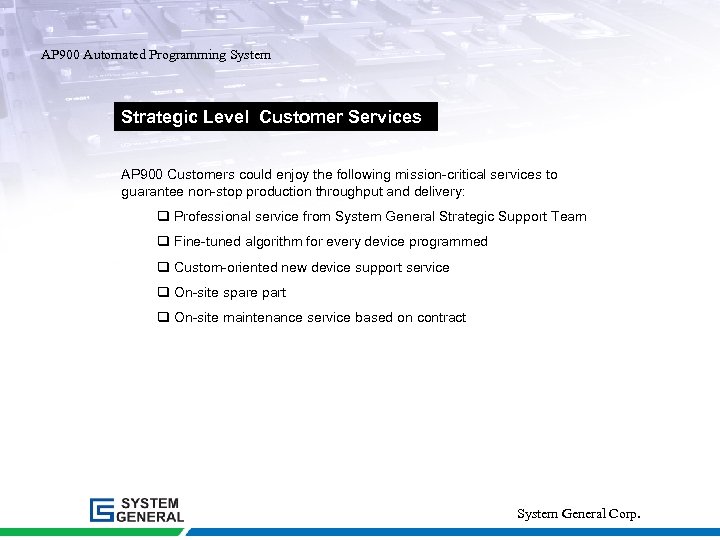

AP 900 Automated Programming System Strategic Level Customer Services AP 900 Customers could enjoy the following mission-critical services to guarantee non-stop production throughput and delivery: q Professional service from System General Strategic Support Team q Fine-tuned algorithm for every device programmed q Custom-oriented new device support service q On-site spare part q On-site maintenance service based on contract System General Corp.

AP 900 Automated Programming System Regional Maintain Services Suzhou-SG TPE-SG Philippines-APP System Shenzhen-SG System General Corp.

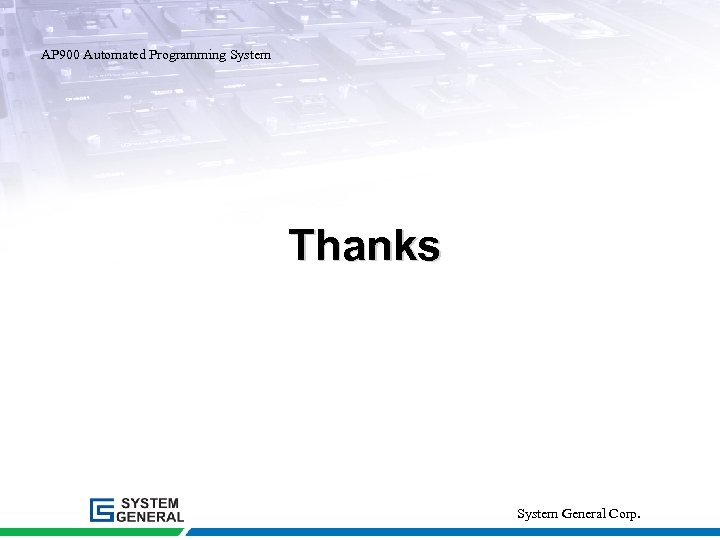

AP 900 Automated Programming System Thanks System General Corp.
