ANSI/ASHRAE /USGBC/IES/ Standard 189. 1 -2011 AND ITS REQUIREMENTS COMPARED TO LEED V 3 ANSI/ASHRAE /USGBC/IES/ Standard 189. 1 -2011 AND ITS REQUIREMENTS COMPARED TO LEED V 3 Presented by: Rachael Green Huitt-Zollars; USGBC North Texas Chapter [email protected] com 214 -871 -3311 x 10127

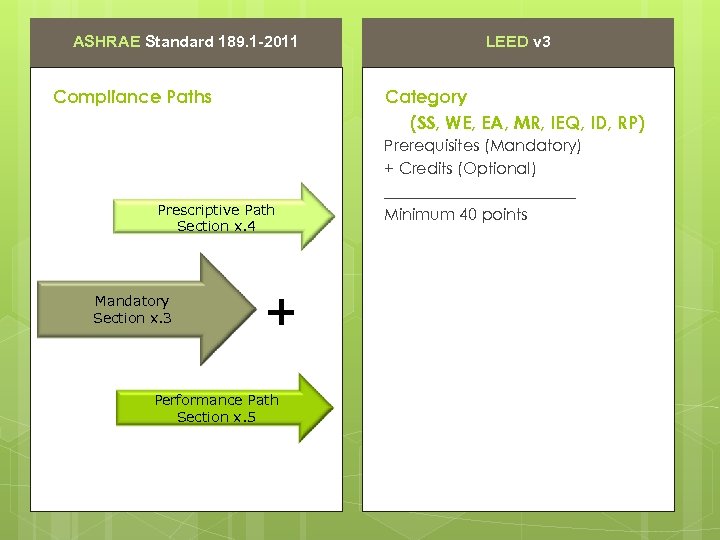

ASHRAE Standard 189. 1 -2011 Compliance Paths Category (SS, WE, EA, MR, IEQ, ID, ASHRAE Standard 189. 1 -2011 Compliance Paths Category (SS, WE, EA, MR, IEQ, ID, RP) Prescriptive Path Section x. 4 Mandatory Section x. 3 LEED v 3 + Performance Path Section x. 5 Prerequisites (Mandatory) + Credits (Optional) ____________ Minimum 40 points

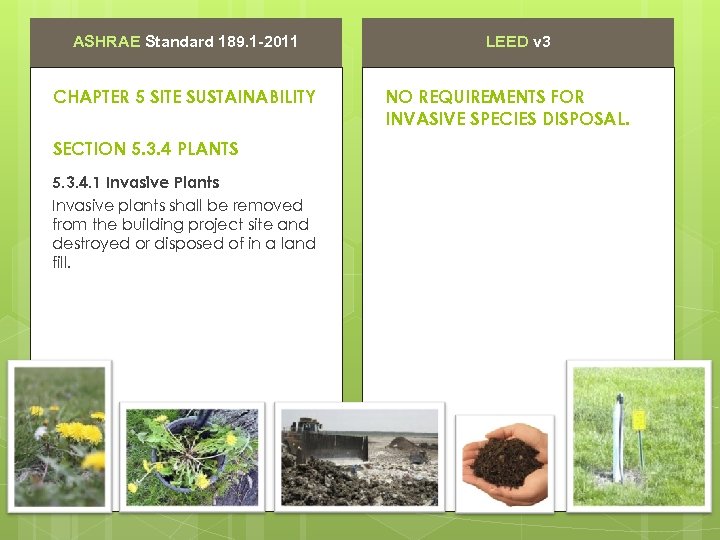

ASHRAE Standard 189. 1 -2011 CHAPTER 5 SITE SUSTAINABILITY SECTION 5. 3. 4 PLANTS ASHRAE Standard 189. 1 -2011 CHAPTER 5 SITE SUSTAINABILITY SECTION 5. 3. 4 PLANTS 5. 3. 4. 1 Invasive Plants Invasive plants shall be removed from the building project site and destroyed or disposed of in a land fill. LEED v 3 NO REQUIREMENTS FOR INVASIVE SPECIES DISPOSAL.

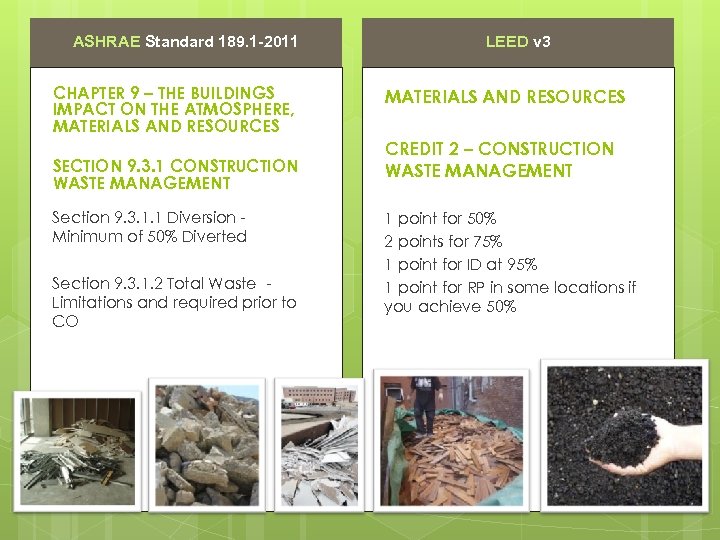

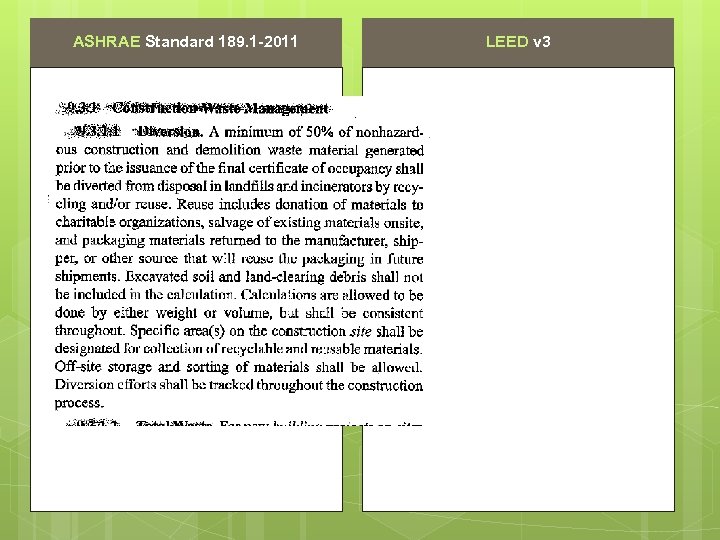

ASHRAE Standard 189. 1 -2011 CHAPTER 9 – THE BUILDINGS IMPACT ON THE ATMOSPHERE, ASHRAE Standard 189. 1 -2011 CHAPTER 9 – THE BUILDINGS IMPACT ON THE ATMOSPHERE, MATERIALS AND RESOURCES SECTION 9. 3. 1 CONSTRUCTION WASTE MANAGEMENT Section 9. 3. 1. 1 Diversion Minimum of 50% Diverted Section 9. 3. 1. 2 Total Waste Limitations and required prior to CO LEED v 3 MATERIALS AND RESOURCES CREDIT 2 – CONSTRUCTION WASTE MANAGEMENT 1 point for 50% 2 points for 75% 1 point for ID at 95% 1 point for RP in some locations if you achieve 50%

ASHRAE Standard 189. 1 -2011 LEED v 3 ASHRAE Standard 189. 1 -2011 LEED v 3

ASHRAE Standard 189. 1 -2011 LEED v 3 ASHRAE Standard 189. 1 -2011 LEED v 3

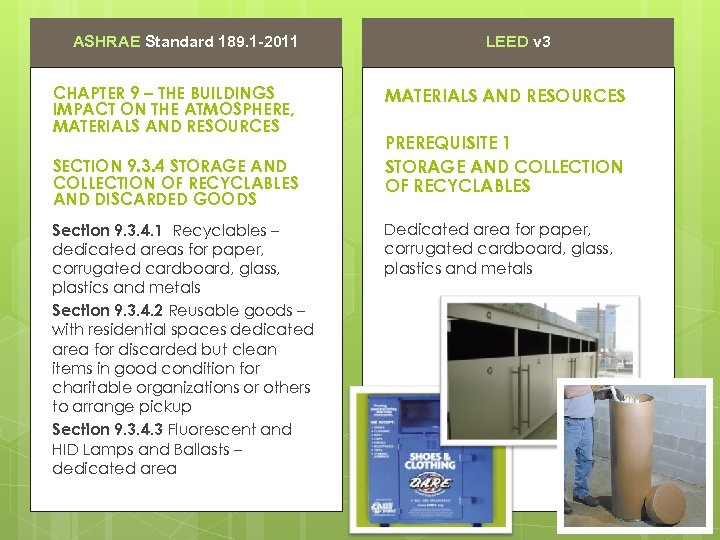

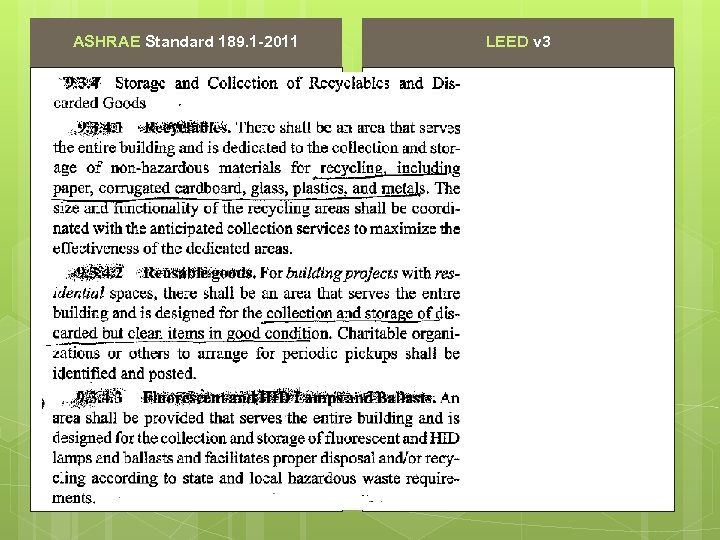

ASHRAE Standard 189. 1 -2011 CHAPTER 9 – THE BUILDINGS IMPACT ON THE ATMOSPHERE, ASHRAE Standard 189. 1 -2011 CHAPTER 9 – THE BUILDINGS IMPACT ON THE ATMOSPHERE, MATERIALS AND RESOURCES SECTION 9. 3. 4 STORAGE AND COLLECTION OF RECYCLABLES AND DISCARDED GOODS Section 9. 3. 4. 1 Recyclables – dedicated areas for paper, corrugated cardboard, glass, plastics and metals Section 9. 3. 4. 2 Reusable goods – with residential spaces dedicated area for discarded but clean items in good condition for charitable organizations or others to arrange pickup Section 9. 3. 4. 3 Fluorescent and HID Lamps and Ballasts – dedicated area LEED v 3 MATERIALS AND RESOURCES PREREQUISITE 1 STORAGE AND COLLECTION OF RECYCLABLES Dedicated area for paper, corrugated cardboard, glass, plastics and metals

ASHRAE Standard 189. 1 -2011 LEED v 3 ASHRAE Standard 189. 1 -2011 LEED v 3

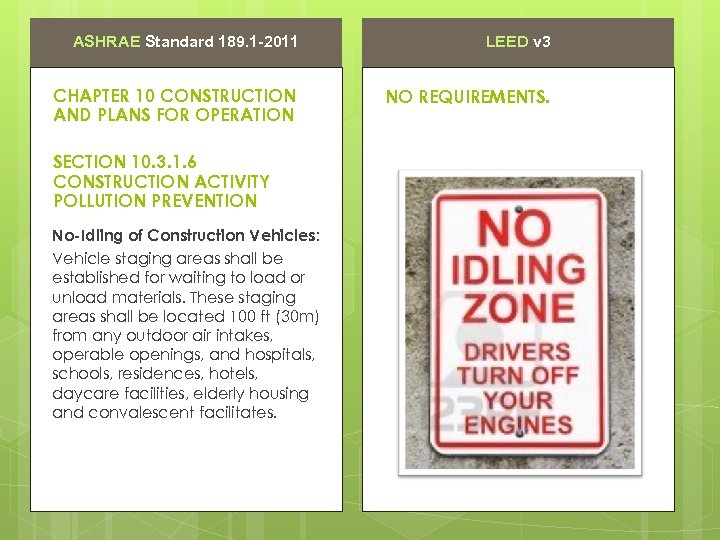

ASHRAE Standard 189. 1 -2011 LEED v 3 CHAPTER 10 CONSTRUCTION AND PLANS FOR ASHRAE Standard 189. 1 -2011 LEED v 3 CHAPTER 10 CONSTRUCTION AND PLANS FOR OPERATION NO REQUIREMENTS. SECTION 10. 3. 1. 6 CONSTRUCTION ACTIVITY POLLUTION PREVENTION No-Idling of Construction Vehicles: Vehicle staging areas shall be established for waiting to load or unload materials. These staging areas shall be located 100 ft (30 m) from any outdoor air intakes, operable openings, and hospitals, schools, residences, hotels, daycare facilities, elderly housing and convalescent facilitates.

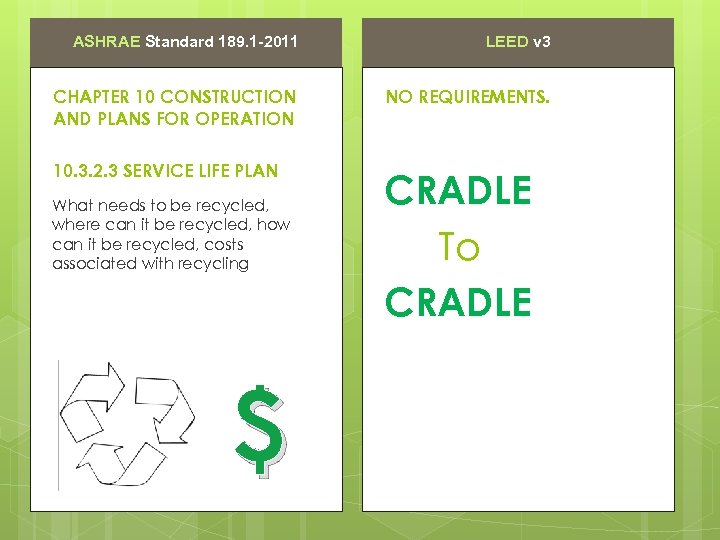

ASHRAE Standard 189. 1 -2011 LEED v 3 CHAPTER 10 CONSTRUCTION AND PLANS FOR ASHRAE Standard 189. 1 -2011 LEED v 3 CHAPTER 10 CONSTRUCTION AND PLANS FOR OPERATION NO REQUIREMENTS. 10. 3. 2. 3 SERVICE LIFE PLAN CRADLE To CRADLE What needs to be recycled, where can it be recycled, how can it be recycled, costs associated with recycling $

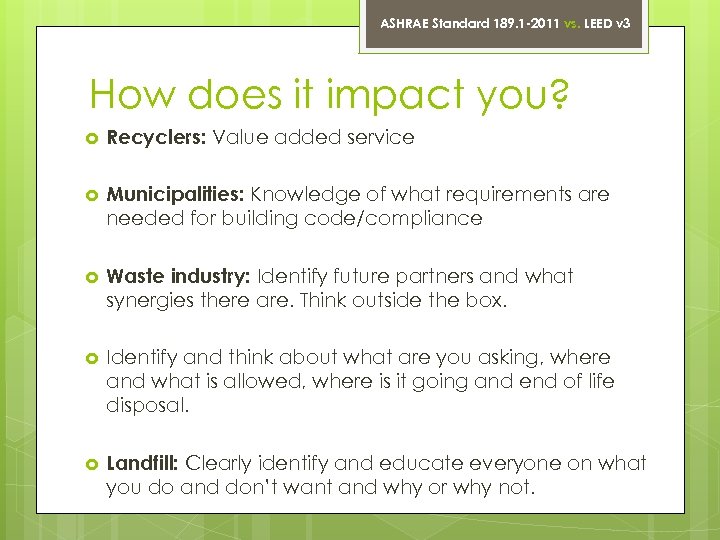

ASHRAE Standard 189. 1 -2011 vs. LEED v 3 How does it impact you? ASHRAE Standard 189. 1 -2011 vs. LEED v 3 How does it impact you? Recyclers: Value added service Municipalities: Knowledge of what requirements are needed for building code/compliance Waste industry: Identify future partners and what synergies there are. Think outside the box. Identify and think about what are you asking, where and what is allowed, where is it going and end of life disposal. Landfill: Clearly identify and educate everyone on what you do and don’t want and why or why not.
