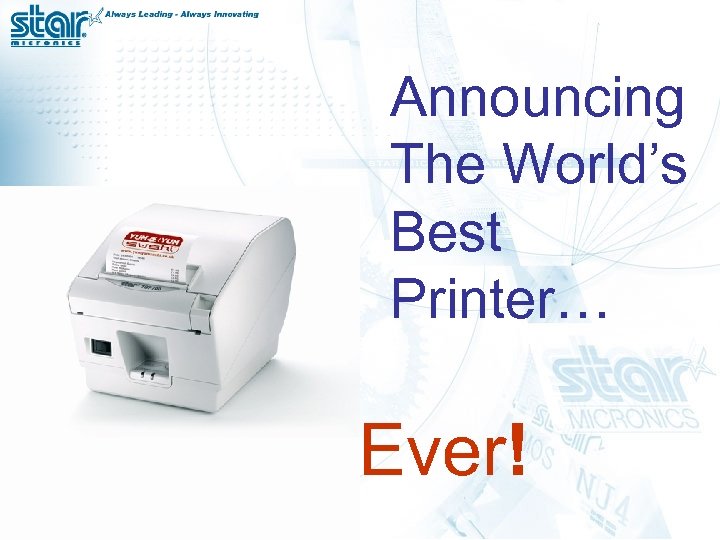

Announcing The World’s Best Printer… Ever!

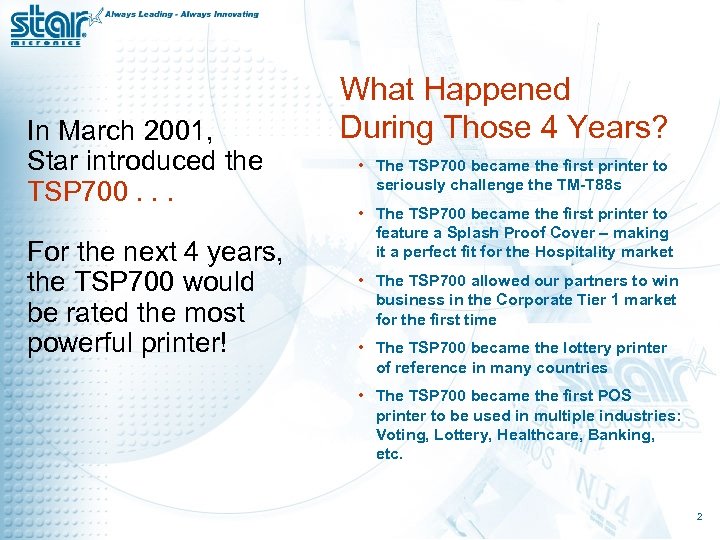

In March 2001, Star introduced the TSP 700. . . For the next 4 years, the TSP 700 would be rated the most powerful printer! What Happened During Those 4 Years? • The TSP 700 became the first printer to seriously challenge the TM-T 88 s • The TSP 700 became the first printer to feature a Splash Proof Cover – making it a perfect fit for the Hospitality market • The TSP 700 allowed our partners to win business in the Corporate Tier 1 market for the first time • The TSP 700 became the lottery printer of reference in many countries • The TSP 700 became the first POS printer to be used in multiple industries: Voting, Lottery, Healthcare, Banking, etc. 2

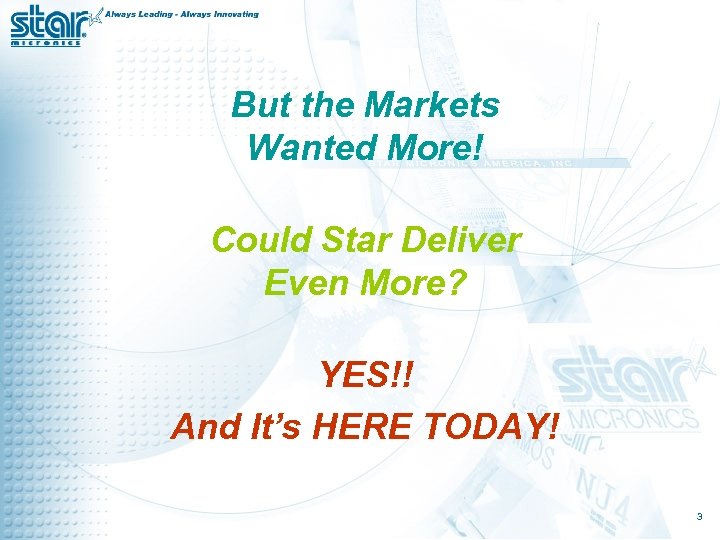

But the Markets Wanted More! Could Star Deliver Even More? YES!! And It’s HERE TODAY! 3

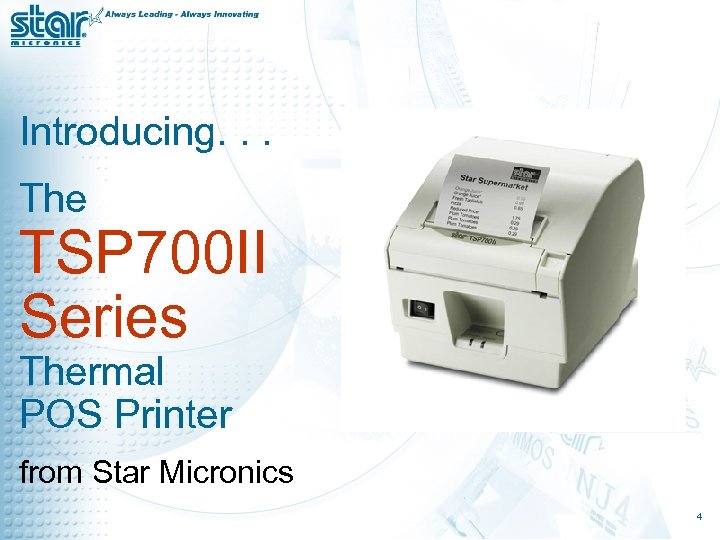

Introducing. . . The TSP 700 II Series Thermal POS Printer from Star Micronics 4

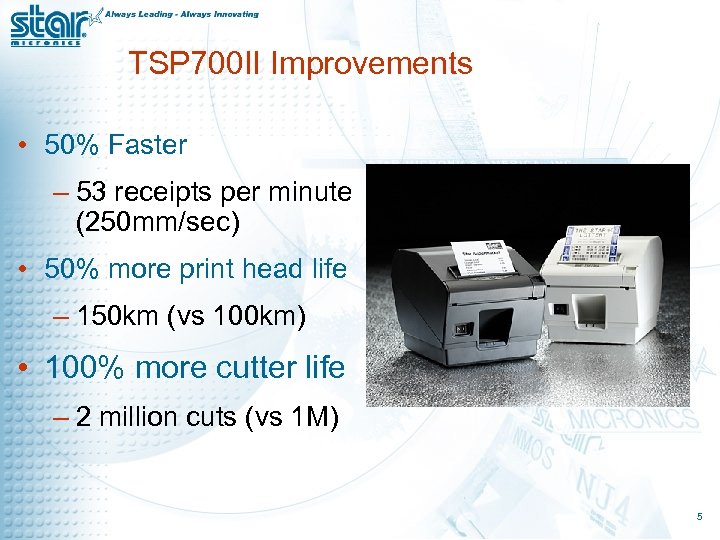

TSP 700 II Improvements • 50% Faster – 53 receipts per minute (250 mm/sec) • 50% more print head life – 150 km (vs 100 km) • 100% more cutter life – 2 million cuts (vs 1 M) 5

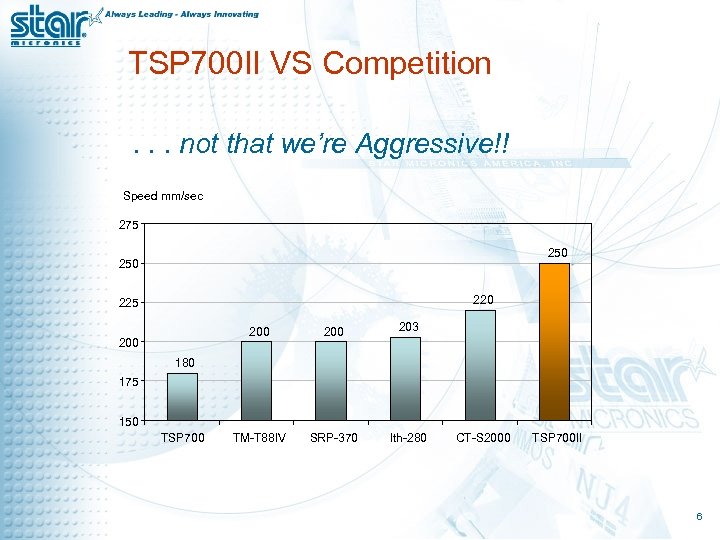

TSP 700 II VS Competition. . . not that we’re Aggressive!! Speed mm/sec 275 250 220 225 200 200 203 TM-T 88 IV SRP-370 Ith-280 175 150 TSP 700 CT-S 2000 TSP 700 II 6

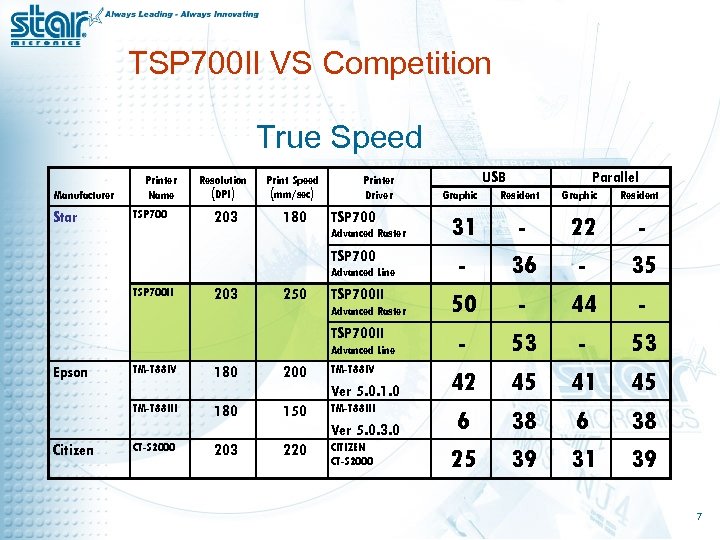

TSP 700 II VS Competition True Speed Manufacturer Star Printer Name TSP 700 Resolution (DPI) Print Speed (mm/sec) 203 180 Printer Driver TSP 700 Advanced Raster TSP 700 Advanced Line TSP 700 II 203 250 TSP 700 II Advanced Raster TSP 700 II Advanced Line Epson TM-T 88 IV 180 200 TM-T 88 IV Ver 5. 0. 1. 0 TM-T 88 III 180 150 TM-T 88 III Ver 5. 0. 3. 0 Citizen CT-S 2000 203 220 CITIZEN CT-S 2000 USB Parallel Graphic Resident 31 50 42 6 25 36 53 45 38 39 22 44 41 6 31 35 53 45 38 39 7

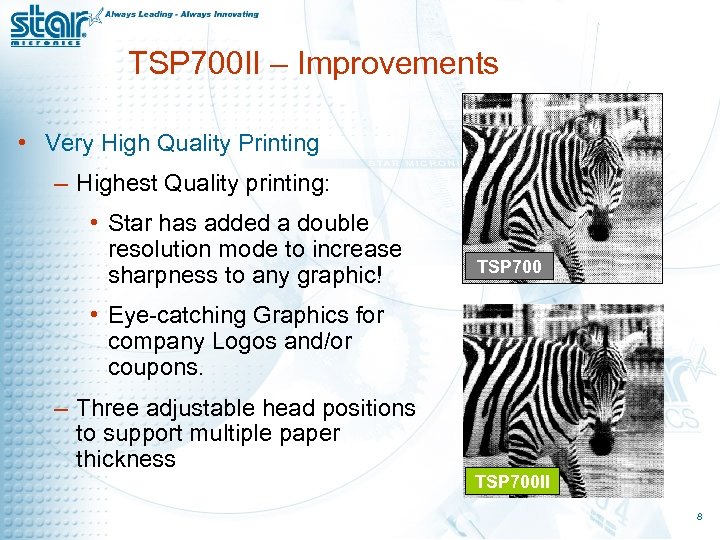

TSP 700 II – Improvements • Very High Quality Printing – Highest Quality printing: • Star has added a double resolution mode to increase sharpness to any graphic! TSP 700 • Eye-catching Graphics for company Logos and/or coupons. – Three adjustable head positions to support multiple paper thickness TSP 700 II 8

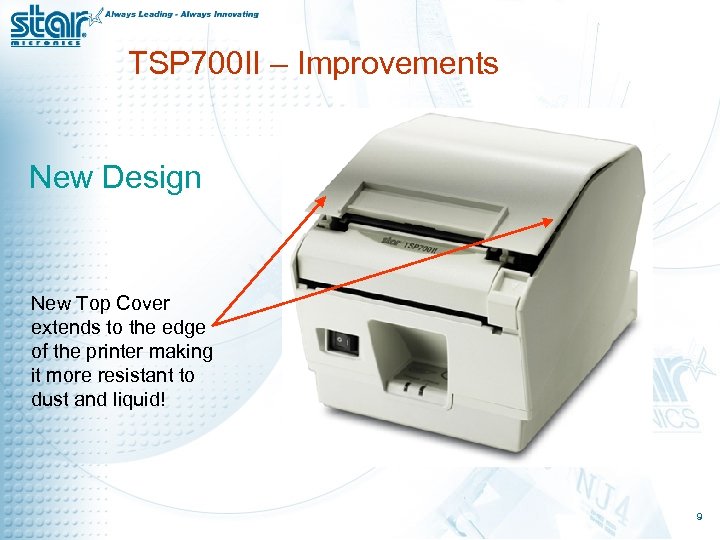

TSP 700 II – Improvements New Design New Top Cover extends to the edge of the printer making it more resistant to dust and liquid! 9

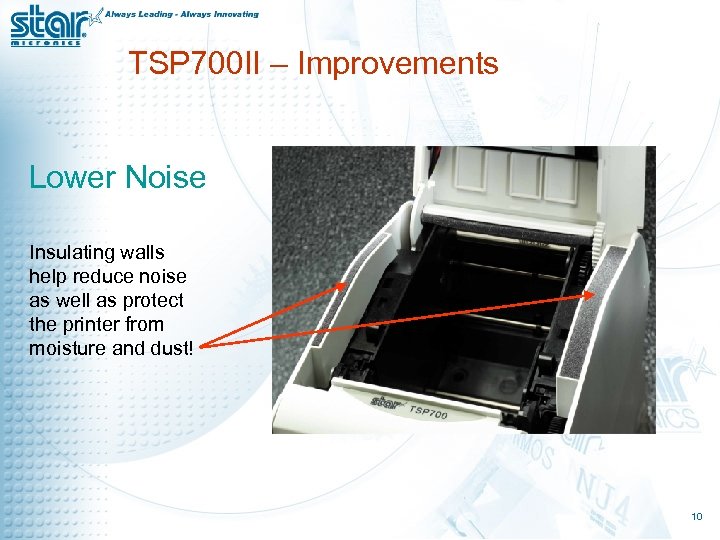

TSP 700 II – Improvements Lower Noise Insulating walls help reduce noise as well as protect the printer from moisture and dust! 10

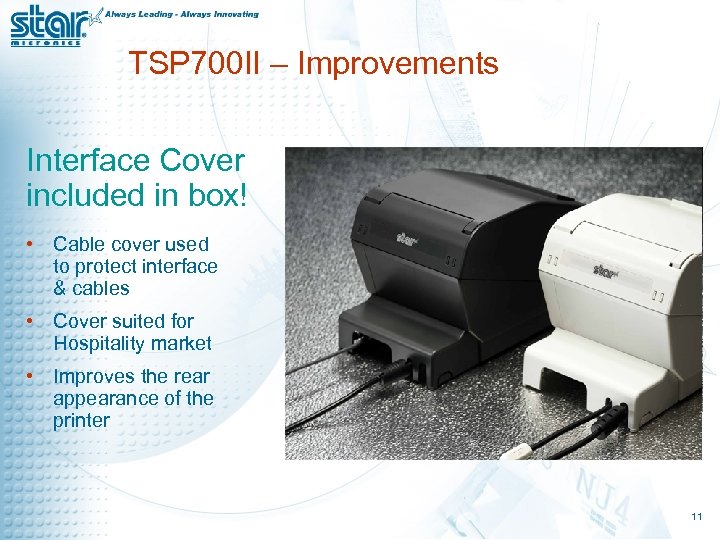

TSP 700 II – Improvements Interface Cover included in box! • Cable cover used to protect interface & cables • Cover suited for Hospitality market • Improves the rear appearance of the printer 11
TSP 700 II – Improvements Simple Wall bracket included in box! • Similar to the TSP 100, the TSP 700 II now includes a simple wall bracket as a standard • It can be used with the WB-T 700 kit in the same manner as the TSP 700 12
TSP 700 II – Improvements Simpler Kiosk Integration • Vertical Roller and paper support pads included as standard • Two paper-low sensors included as a standard, one for Horizontal and the other for Vertical use 13

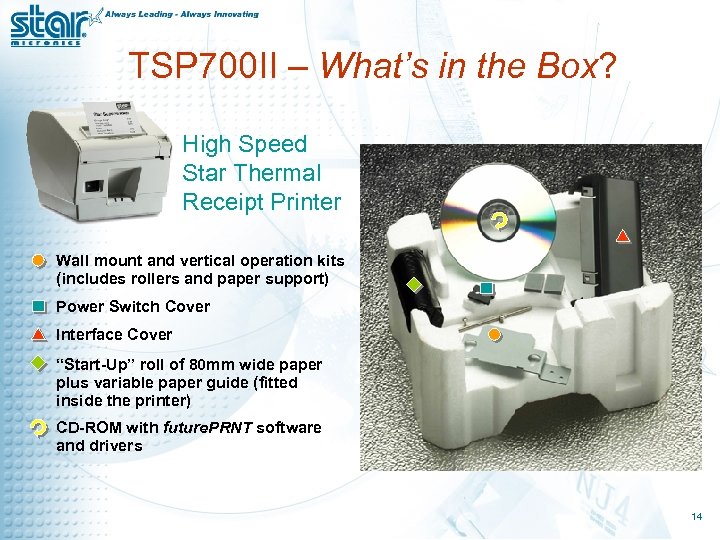

TSP 700 II – What’s in the Box? High Speed Star Thermal Receipt Printer Wall mount and vertical operation kits (includes rollers and paper support) Power Switch Cover Interface Cover “Start-Up” roll of 80 mm wide paper plus variable paper guide (fitted inside the printer) CD-ROM with future. PRNT software and drivers 14

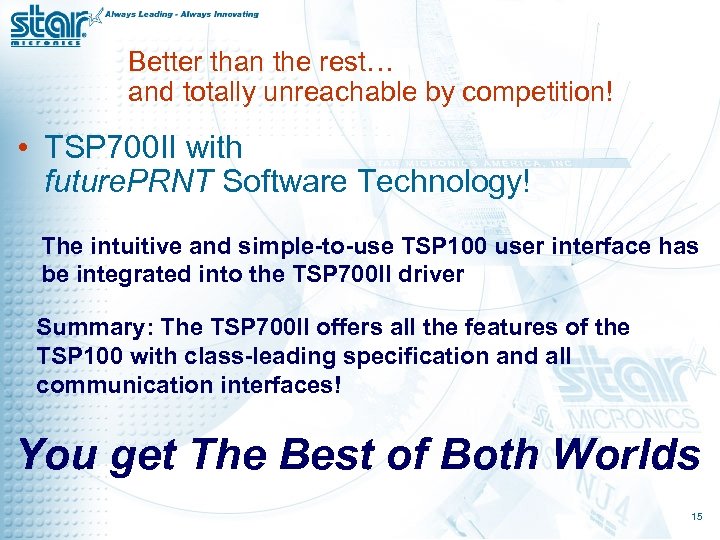

Better than the rest… and totally unreachable by competition! • TSP 700 II with future. PRNT Software Technology! The intuitive and simple-to-use TSP 100 user interface has be integrated into the TSP 700 II driver Summary: The TSP 700 II offers all the features of the TSP 100 with class-leading specification and all communication interfaces! You get The Best of Both Worlds 15

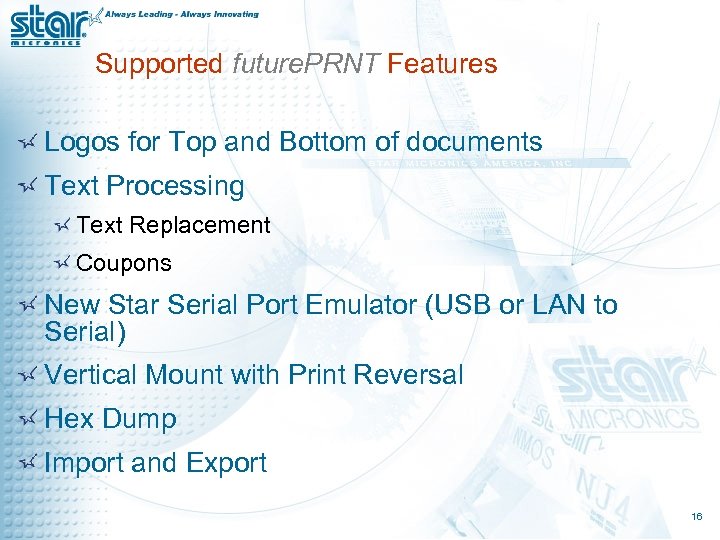

Supported future. PRNT Features Logos for Top and Bottom of documents Text Processing Text Replacement Coupons New Star Serial Port Emulator (USB or LAN to Serial) Vertical Mount with Print Reversal Hex Dump Import and Export 16

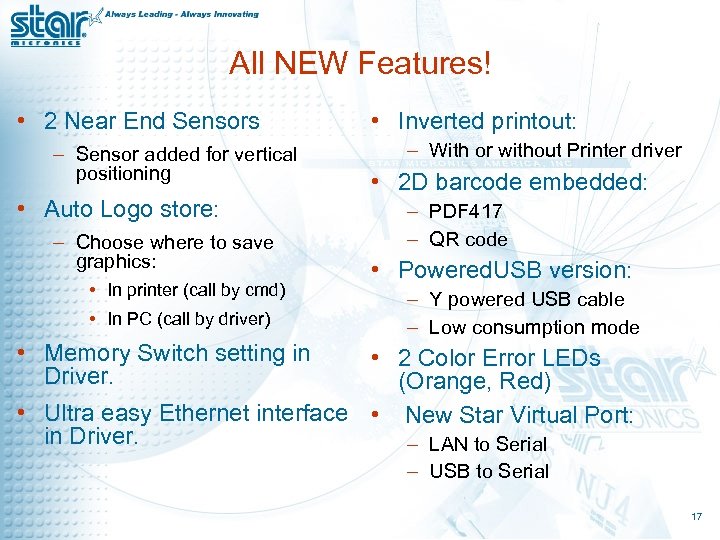

All NEW Features! • 2 Near End Sensors – Sensor added for vertical positioning • Auto Logo store: – Choose where to save graphics: • In printer (call by cmd) • In PC (call by driver) • Inverted printout: – With or without Printer driver • 2 D barcode embedded: – PDF 417 – QR code • Powered. USB version: – Y powered USB cable – Low consumption mode • Memory Switch setting in Driver. • 2 Color Error LEDs (Orange, Red) • Ultra easy Ethernet interface • New Star Virtual Port: in Driver. – LAN to Serial – USB to Serial 17

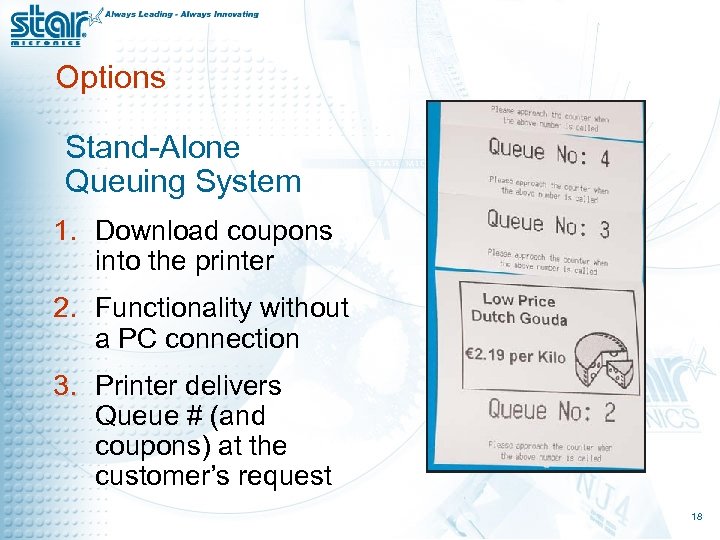

Options Stand-Alone Queuing System 1. Download coupons into the printer 2. Functionality without a PC connection 3. Printer delivers Queue # (and coupons) at the customer’s request 18
Options Further protect your printer with the innovative Splash Proof Cover! 19

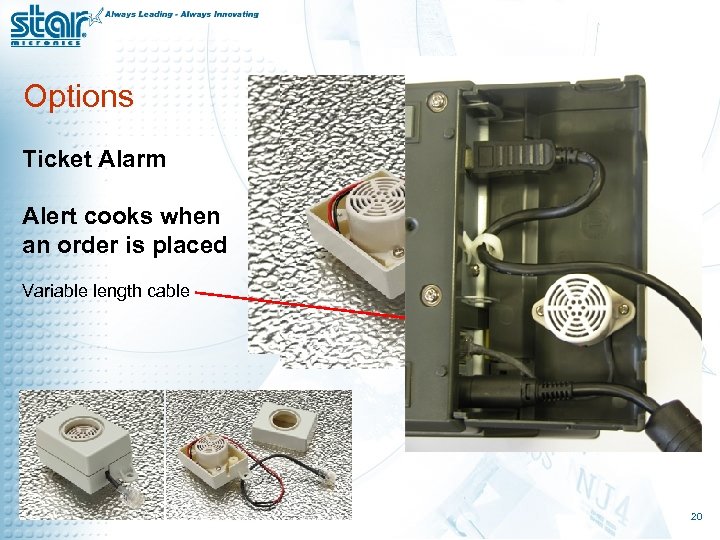

Options Ticket Alarm Alert cooks when an order is placed Variable length cable 20

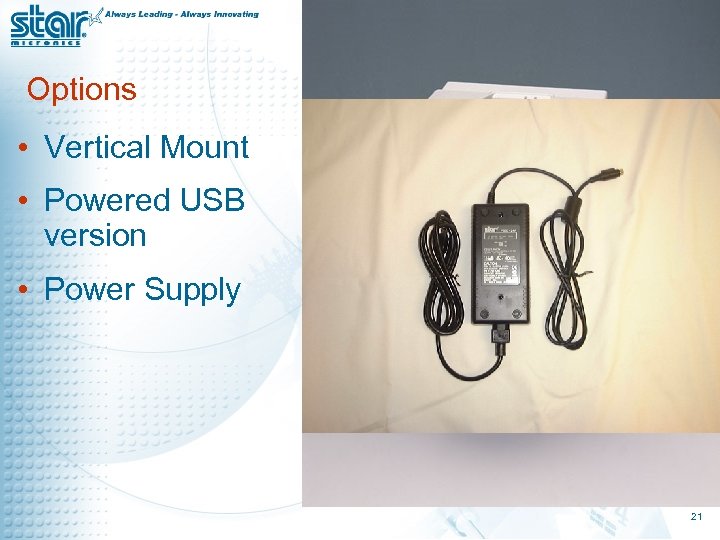

Options • Vertical Mount • Powered USB version • Power Supply 21
• Applications: – Kitchen – Dry Cleaner – Retail – Hospitality TSP 700 – Point of Sale – Supermarkets – Lottery – Healthcare 22
TSP 700 II Print Speed TSP 100 53 RPM 25 RPM Power Supply Embedded No Yes CD Included Yes Paper Guide Included Yes Power Switch Yes Test Paper Roll Yes Vertical Mount Included No Yes Wall Mount Included Yes Cable Included No Yes ESC/POS Emulation Yes (by dip switch) Yes (by future. PRNT) Configuration Utility: Logo Store in printer or on PC Watermark Yes Yes (USB, LAN) Yes (USB) Memory Switch Setting Yes no LAN Utillity Yes no Text Processing Yes Java. POS Yes With or without driver Yes Yes Virtual Serial Port Vertical Mount Test Print 23

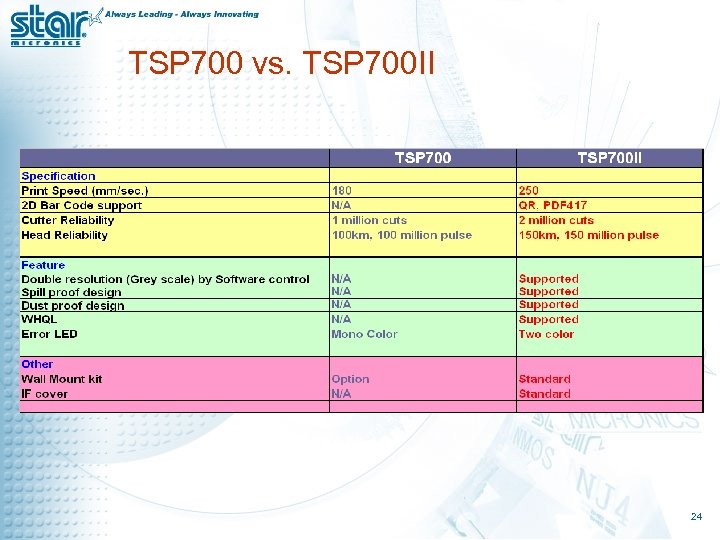

TSP 700 vs. TSP 700 II 24

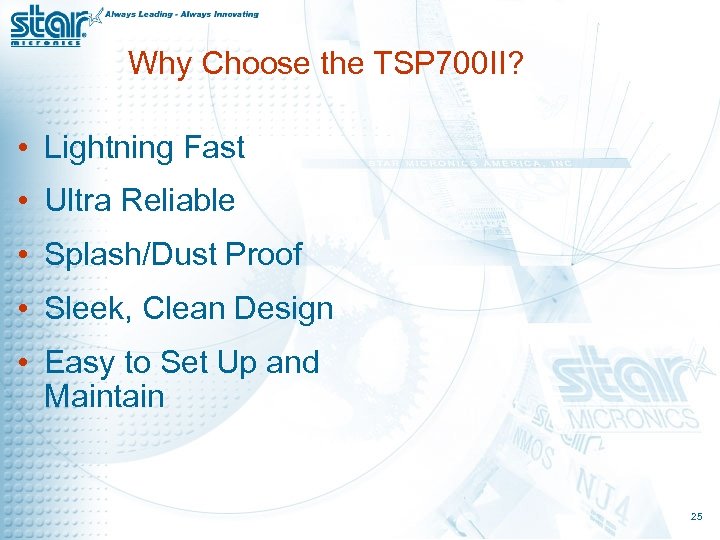

Why Choose the TSP 700 II? • Lightning Fast • Ultra Reliable • Splash/Dust Proof • Sleek, Clean Design • Easy to Set Up and Maintain 25
In short… The TSP 700 II is the ULTIMATE Printing Solution!! 26
Thank You! 27
