Android Action Architecture Тайчинов Марат 2017 Немного

Android Action Architecture Тайчинов Марат 2017

Немного истории

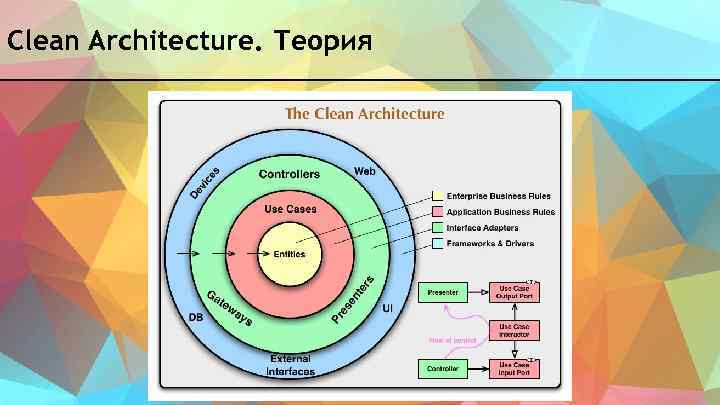

Clean Architecture. Теория

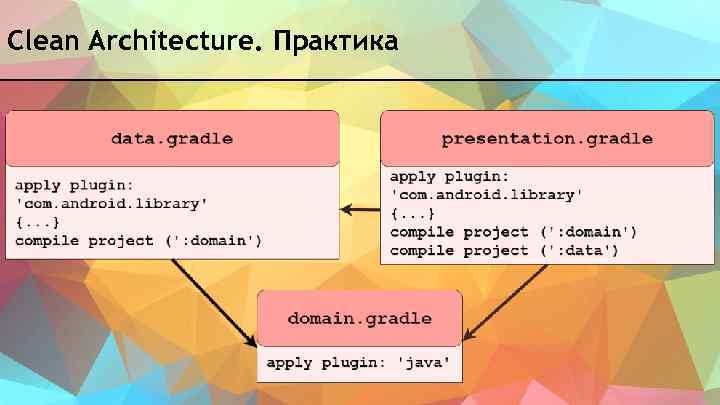

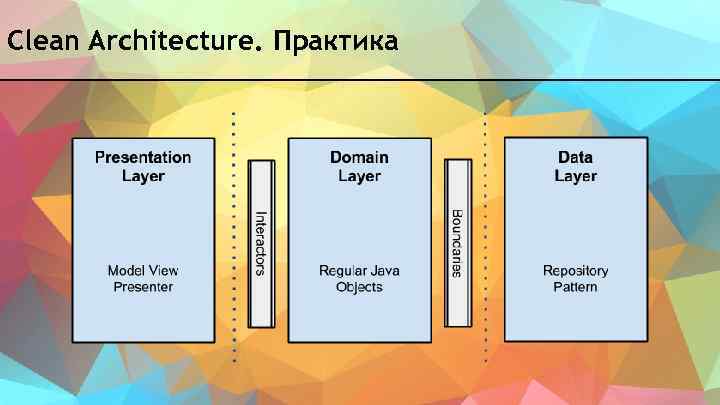

Clean Architecture. Практика

Clean Architecture. Практика

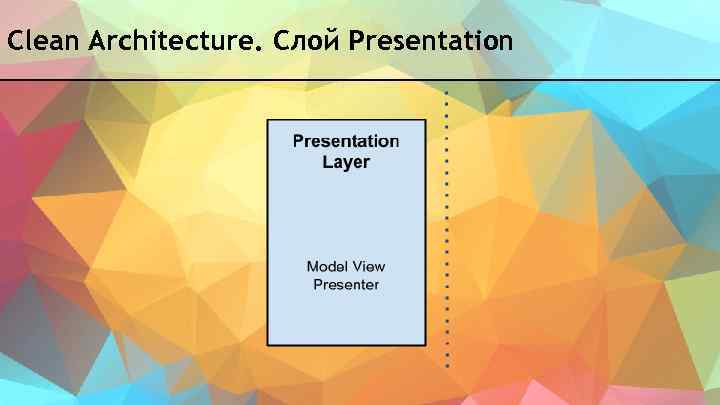

Clean Architecture. Слой Presentation

Clean Architecture. Слой Domain

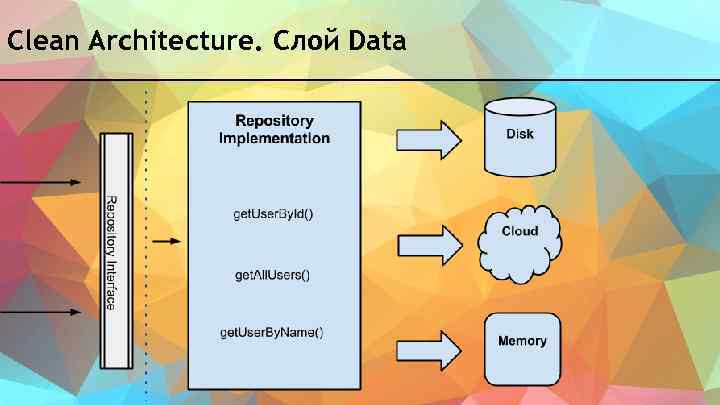

Clean Architecture. Слой Data

Action. Views

Clean Architecture. Схема работы данных

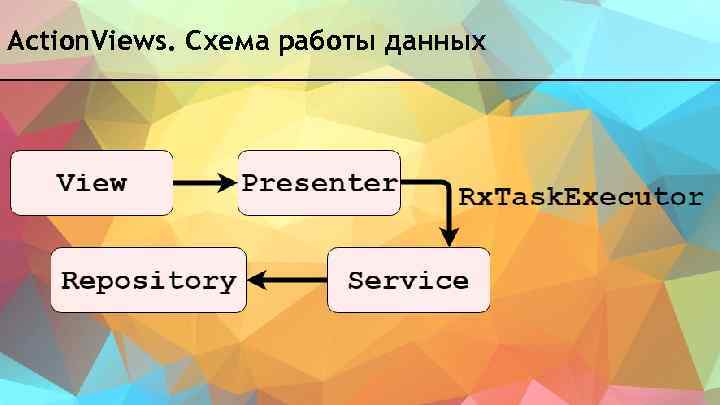

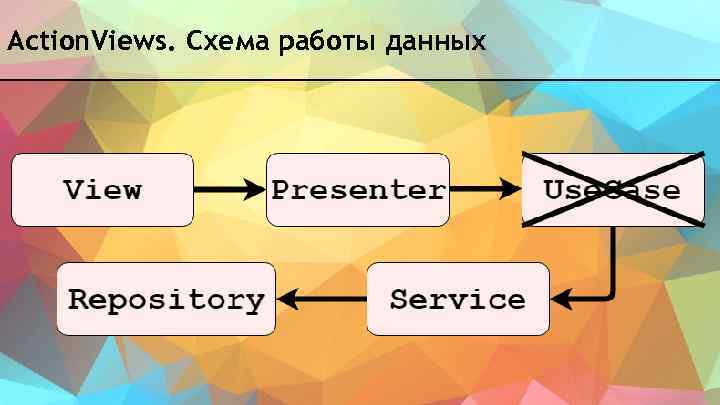

Action. Views. Схема работы данных

Action. Views. Схема работы данных

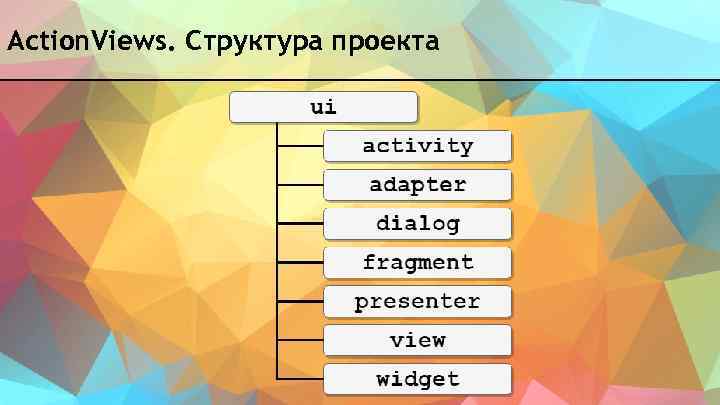

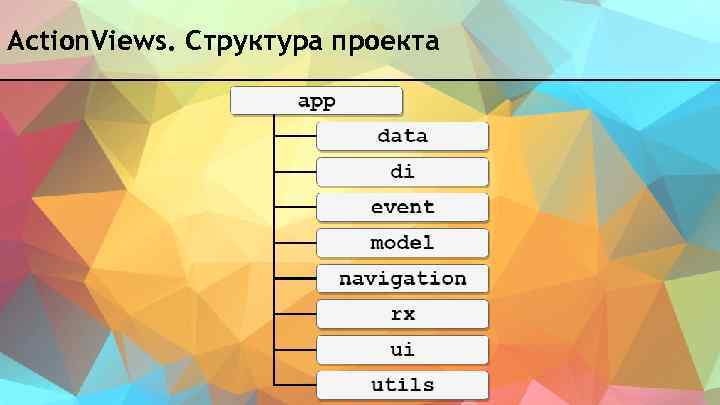

Action. Views. Структура проекта

Action. Views. Структура проекта

Action. Views. Структура проекта

Clean Architecture. Use. Case public interface Use. Case { interface Callback { void on. Success(R object); void on. Error(Throwable throwable); } void execute(P parameter, Callback callback); }

Clean Architecture. Use. Case @Override public void execute(final Integer feed. Id, final Callback> callback) { try { callback. on. Success( feed. Repository. get. Feed. Articles(feed. Id)); } catch (final Throwable throwable) { callback. on. Error(throwable); } }

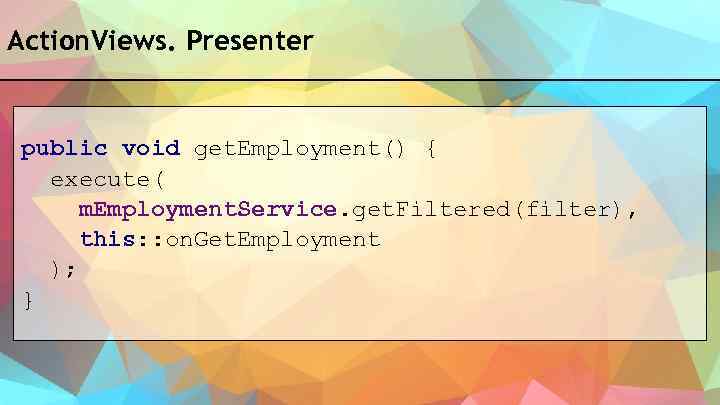

Action. Views. Presenter public void get. Employment() { execute( m. Employment. Service. get. Filtered(filter), this: : on. Get. Employment ); }

Action. Views. Service @Override public Observable get. Filtered(Filter filter) { return m. Repository. get. Filtered(filter). map(employment -> { //. . . some work }); }

Action. Views. Presenter public void get. Employment() { execute( m. Employment. Service. get. Filtered(filter), this: : on. Get. Employment ); }

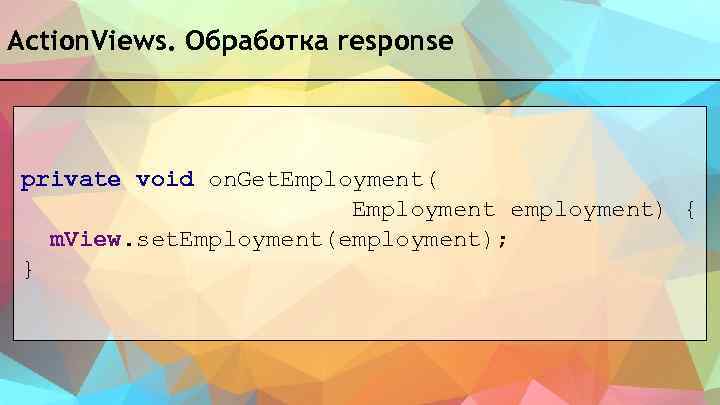

Action. Views. Обработка response private void on. Get. Employment( Employment employment) { m. View. set. Employment(employment); }

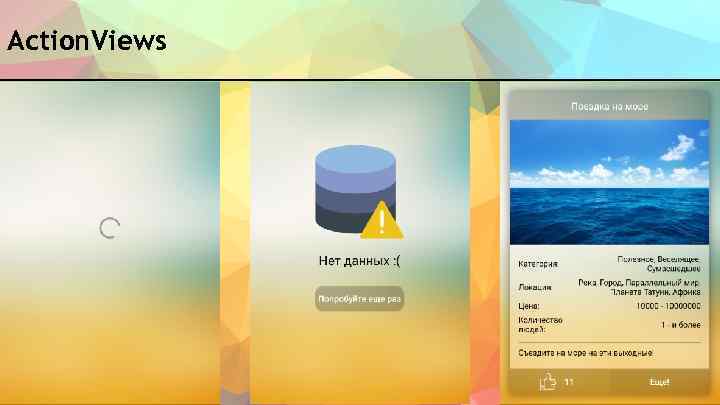

Action. Views

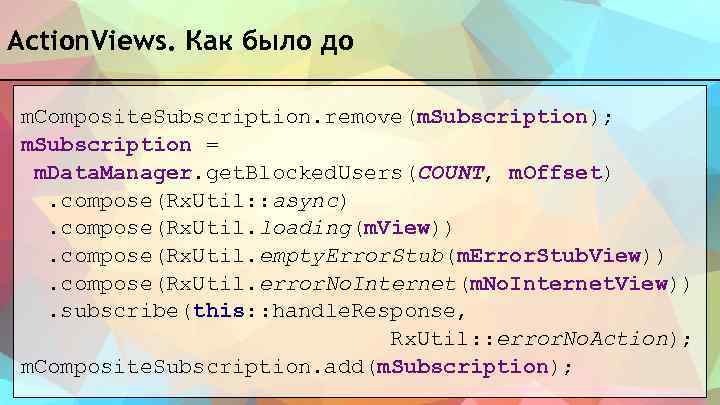

Action. Views. Как было до m. Composite. Subscription. remove(m. Subscription); m. Subscription = m. Data. Manager. get. Blocked. Users(COUNT, m. Offset). compose(Rx. Util: : async). compose(Rx. Util. loading(m. View)). compose(Rx. Util. empty. Error. Stub(m. Error. Stub. View)). compose(Rx. Util. error. No. Internet(m. No. Internet. View)). subscribe(this: : handle. Response, Rx. Util: : error. No. Action); m. Composite. Subscription. add(m. Subscription);

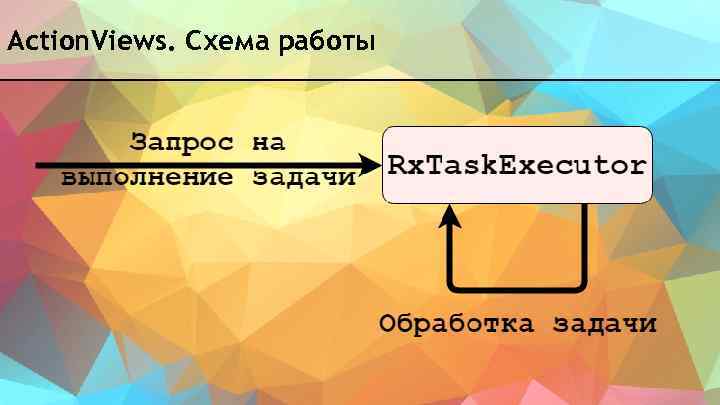

Action. Views. Схема работы

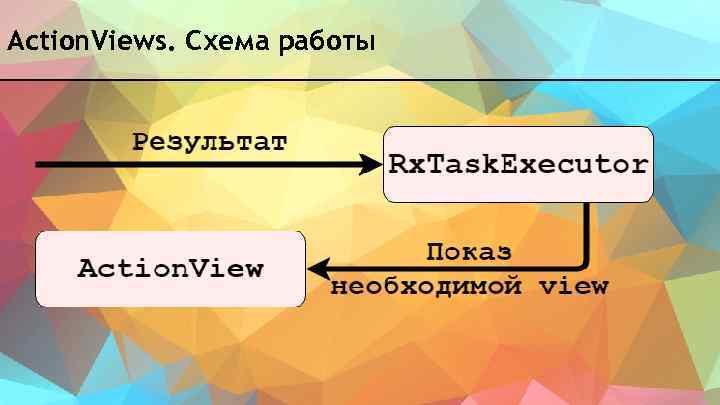

Action. Views. Схема работы

" src="https://present5.com/presentation/5205167_452203652/image-26.jpg" alt="Подключаем Action. View. XML " /> Подключаем Action. View. XML

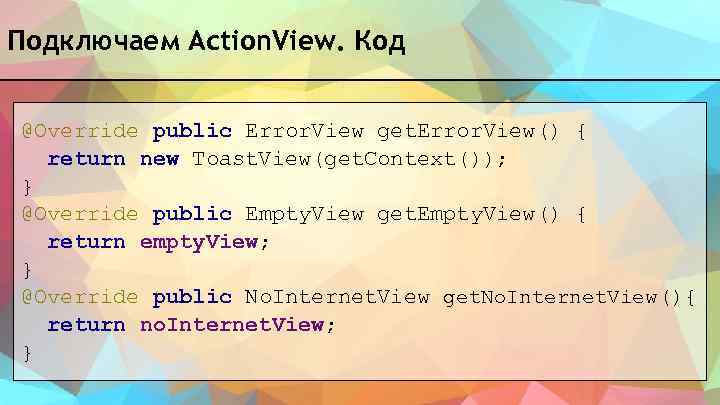

Подключаем Action. View. Код @Override public Error. View get. Error. View() { return new Toast. View(get. Context()); } @Override public Empty. View get. Empty. View() { return empty. View; } @Override public No. Internet. View get. No. Internet. View(){ return no. Internet. View; }

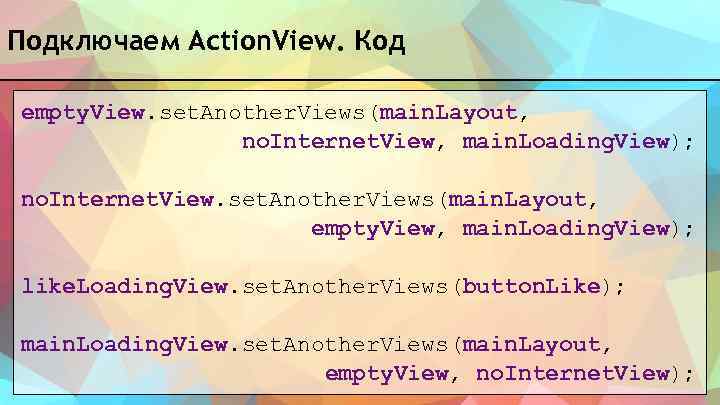

Подключаем Action. View. Код empty. View. set. Another. Views(main. Layout, no. Internet. View, main. Loading. View); no. Internet. View. set. Another. Views(main. Layout, empty. View, main. Loading. View); like. Loading. View. set. Another. Views(button. Like); main. Loading. View. set. Another. Views(main. Layout, empty. View, no. Internet. View);

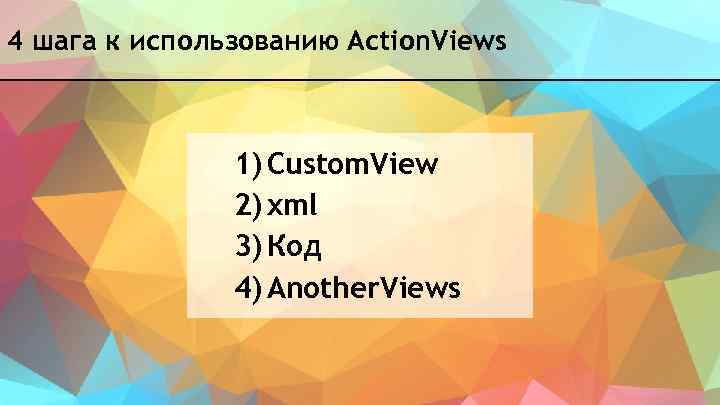

4 шага к использованию Action. Views 1) Custom. View 2) xml 3) Код 4) Another. Views

Action. Views. Плюсы 1) Нет boilerplate 2) Многопоточность уже реализована 3) Механизм Action. View 4) Своя реализация обработки ошибок 5) Удобные, готовые базовые классы 6) Простота и скорость 7) Кастомизация 8) Поддержка и доработка

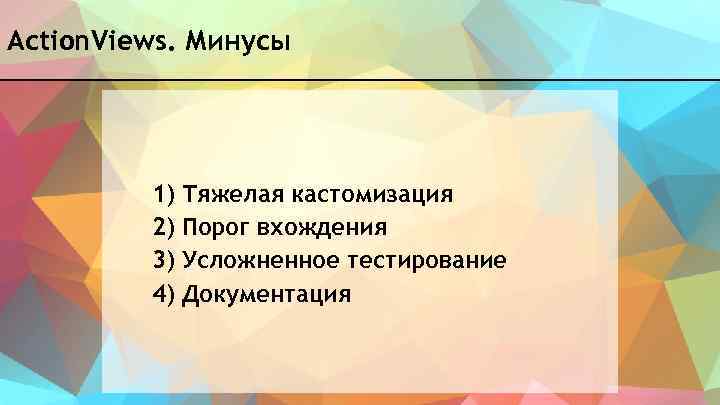

Action. Views. Минусы 1) Тяжелая кастомизация 2) Порог вхождения 3) Усложненное тестирование 4) Документация

Action Architecture СПАСИБО ЗА ВНИМАНИЕ!
