and the National BIM Standard Overview Dana K

and the National BIM Standard Overview Dana K. Smith, FAIA Executive Director, building. SMART alliance September 9, 2008 2: 45 -3: 30 National Institute of Building Sciences

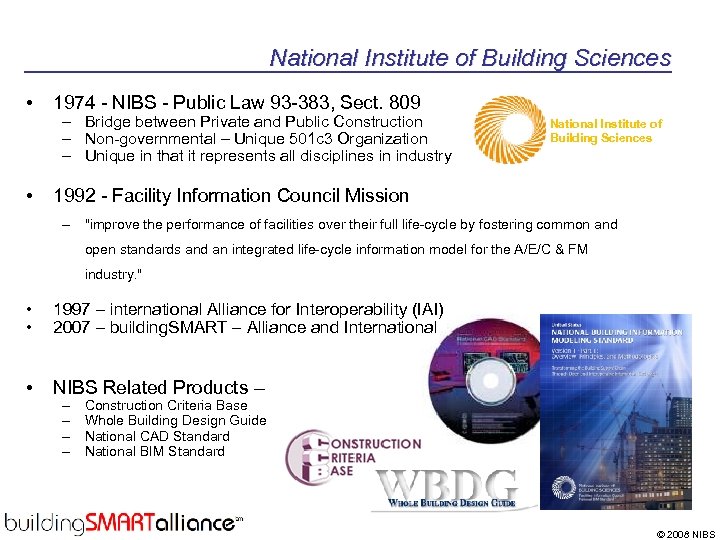

National Institute of Building Sciences • • 1974 - NIBS - Public Law 93 -383, Sect. 809 – Bridge between Private and Public Construction – Non-governmental – Unique 501 c 3 Organization – Unique in that it represents all disciplines in industry National Institute of Building Sciences 1992 - Facility Information Council Mission – "improve the performance of facilities over their full life-cycle by fostering common and open standards and an integrated life-cycle information model for the A/E/C & FM industry. " • • 1997 – international Alliance for Interoperability (IAI) 2007 – building. SMART – Alliance and International • NIBS Related Products – – – Construction Criteria Base Whole Building Design Guide National CAD Standard National BIM Standard © 2008 NIBS

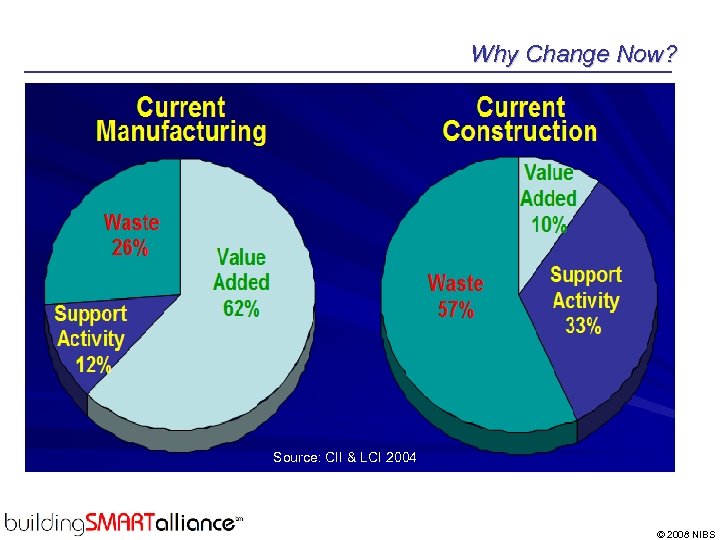

Why Change Now? • NIST in 2004 identified $15. 8 B lost to lack of interoperability $4. 8 trillion 2008 ✗ • $3 trillion industry with possible 30% waste • 40% of global raw materials are consumed by buildings • Facilities consume 40% of our energy • 65. 2% of total U. S. electricity consumption • Facilities contribute 40% of the emissions • Facilities contribute 20% of land fills • U. S. is no longer the worlds largest Source: CII & LCI 2004 consumer…but we did not slow down © 2008 NIBS

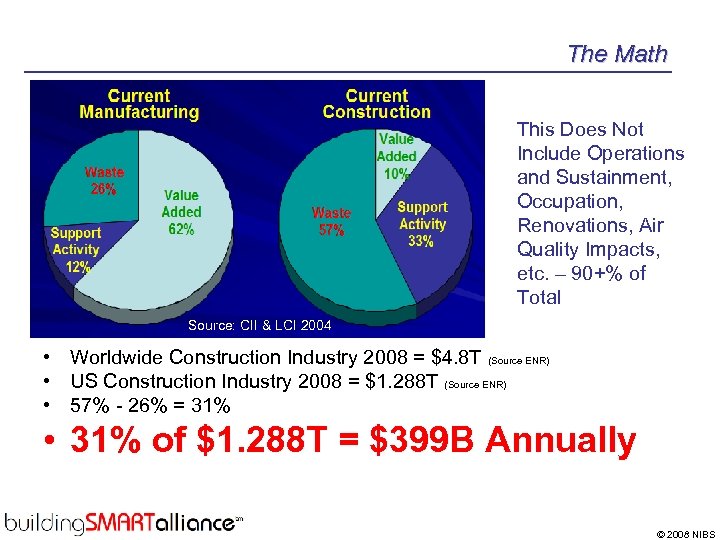

The Math This Does Not Include Operations and Sustainment, Occupation, Renovations, Air Quality Impacts, etc. – 90+% of Total Source: CII & LCI 2004 • Worldwide Construction Industry 2008 = $4. 8 T (Source ENR) • US Construction Industry 2008 = $1. 288 T (Source ENR) • 57% - 26% = 31% • 31% of $1. 288 T = $399 B Annually © 2008 NIBS

The Owners View • Our industry is an impediment to the owner attaining product delivery • We don’t communicate well – 90% can’t read drawings – Typically includes owner • Any time we spend is taking away from their bottom line / profit © 2008 NIBS

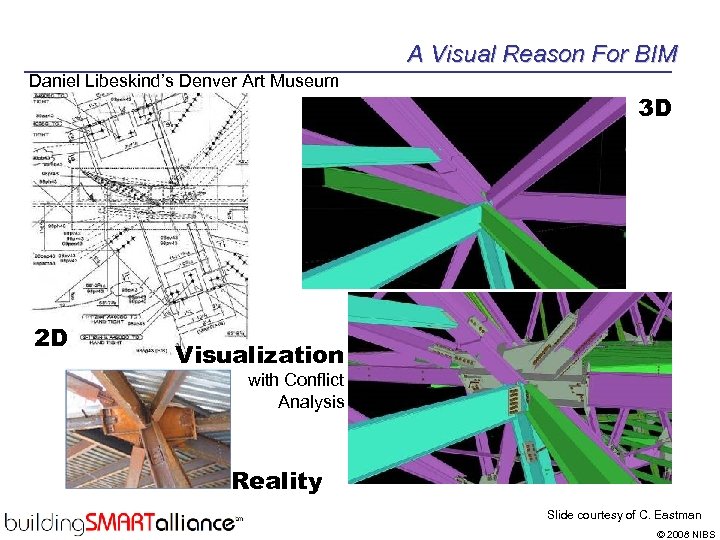

A Visual Reason For BIM Daniel Libeskind’s Denver Art Museum 2 D 3 D

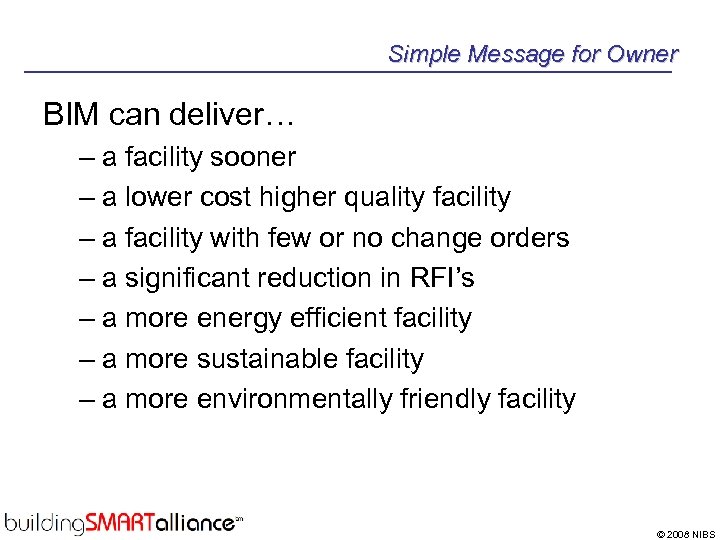

Simple Message for Owner BIM can deliver… – a facility sooner – a lower cost higher quality facility – a facility with few or no change orders – a significant reduction in RFI’s – a more energy efficient facility – a more sustainable facility – a more environmentally friendly facility © 2008 NIBS

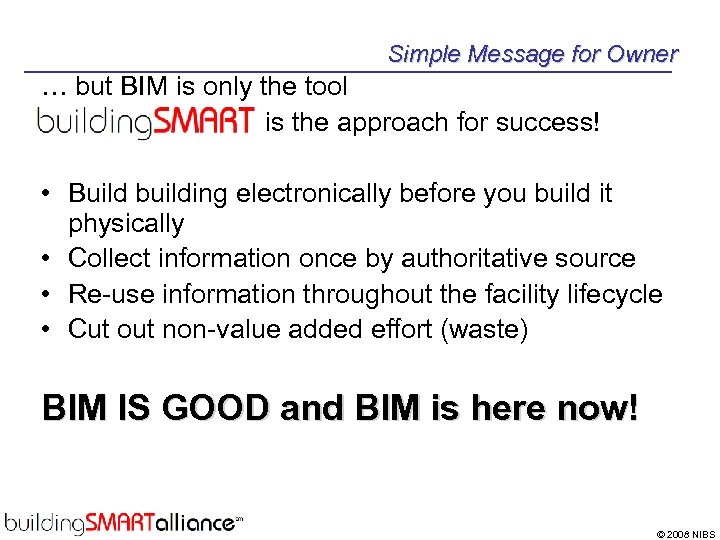

Simple Message for Owner … but BIM is only the tool is the approach for success! • Build building electronically before you build it physically • Collect information once by authoritative source • Re-use information throughout the facility lifecycle • Cut out non-value added effort (waste) BIM IS GOOD and BIM is here now! © 2008 NIBS

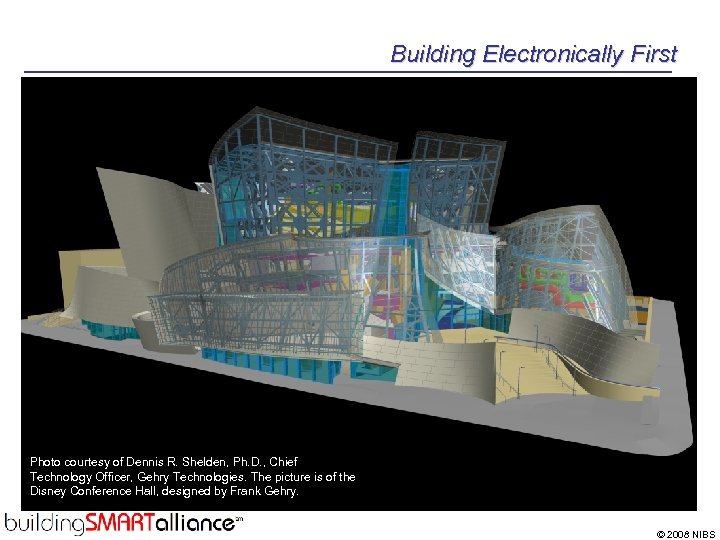

Building Electronically First Photo courtesy of Dennis R. Shelden, Ph. D. , Chief Technology Officer, Gehry Technologies. The picture is of the Disney Conference Hall, designed by Frank Gehry. © 2008 NIBS

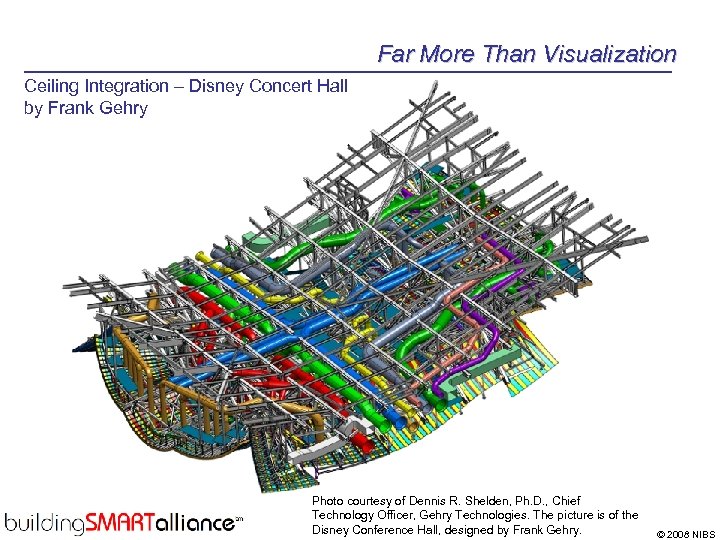

Far More Than Visualization Ceiling Integration – Disney Concert Hall by Frank Gehry Photo courtesy of Dennis R. Shelden, Ph. D. , Chief Technology Officer, Gehry Technologies. The picture is of the Disney Conference Hall, designed by Frank Gehry. © 2008 NIBS

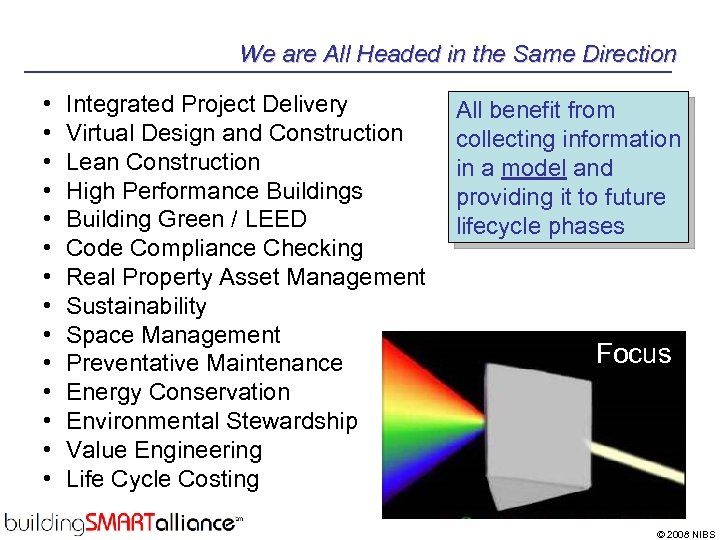

We are All Headed in the Same Direction • • • • Integrated Project Delivery Virtual Design and Construction Lean Construction High Performance Buildings Building Green / LEED Code Compliance Checking Real Property Asset Management Sustainability Space Management Preventative Maintenance Energy Conservation Environmental Stewardship Value Engineering Life Cycle Costing All benefit from collecting information in a model and providing it to future lifecycle phases Focus © 2008 NIBS

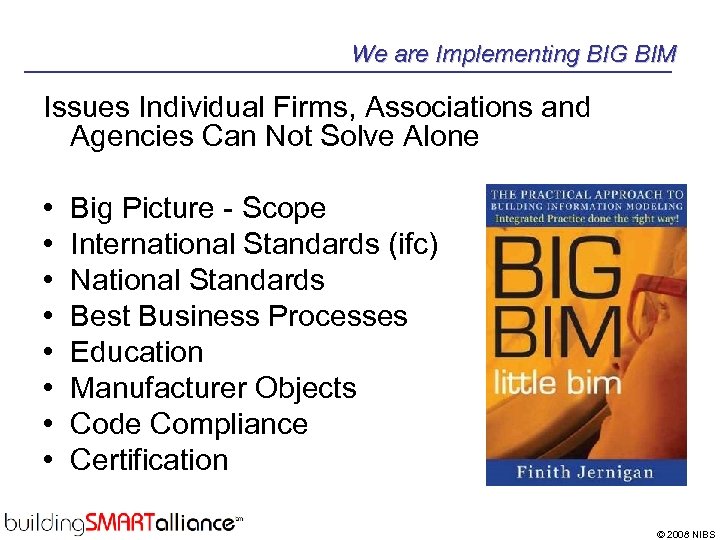

We are Implementing BIG BIM Issues Individual Firms, Associations and Agencies Can Not Solve Alone • • Big Picture - Scope International Standards (ifc) National Standards Best Business Processes Education Manufacturer Objects Code Compliance Certification © 2008 NIBS

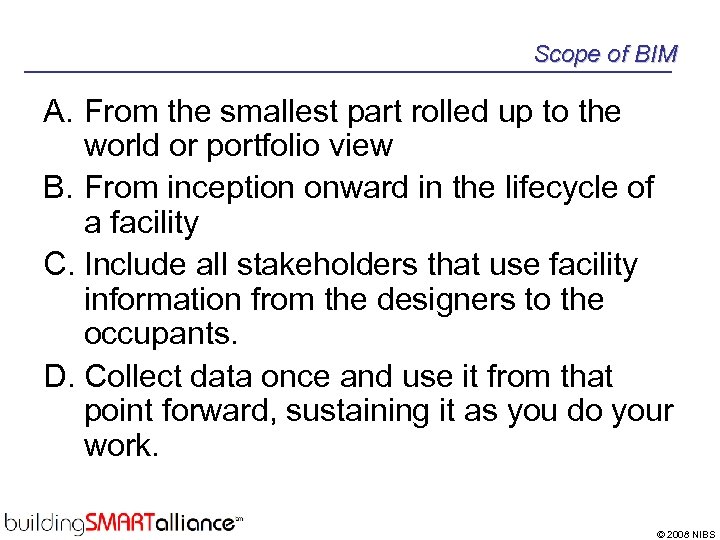

Scope of BIM A. From the smallest part rolled up to the world or portfolio view B. From inception onward in the lifecycle of a facility C. Include all stakeholders that use facility information from the designers to the occupants. D. Collect data once and use it from that point forward, sustaining it as you do your work. © 2008 NIBS

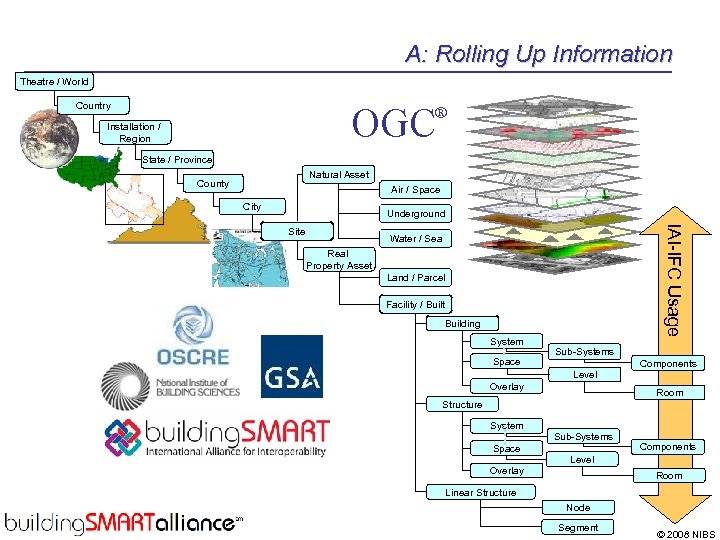

A: Rolling Up Information Theatre / World Country OGC Installation / Region ® State / Province Natural Asset County Air / Space City Underground IAI-IFC Usage Site Water / Sea Real Property Asset Land / Parcel Facility / Built Building System Space Sub-Systems Components Level Overlay Room Structure System Space Sub-Systems Components Level Overlay Room Linear Structure Node Segment © 2008 NIBS

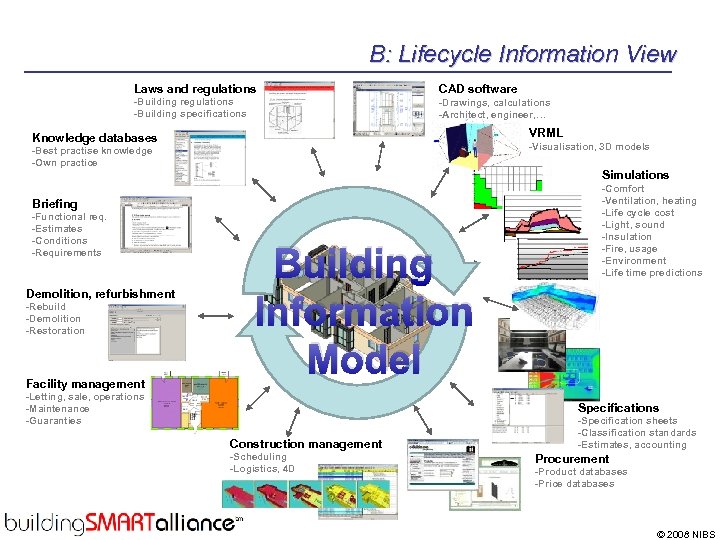

B: Lifecycle Information View Laws and regulations CAD software -Building regulations -Building specifications -Drawings, calculations -Architect, engineer, … VRML Knowledge databases -Visualisation, 3 D models -Best practise knowledge -Own practice Simulations Briefing -Functional req. -Estimates -Conditions -Requirements Demolition, refurbishment -Rebuild -Demolition -Restoration Facility management Building Information Model -Letting, sale, operations -Maintenance -Guaranties -Comfort -Ventilation, heating -Life cycle cost -Light, sound -Insulation -Fire, usage -Environment -Life time predictions Specifications Construction management -Scheduling -Logistics, 4 D -Specification sheets -Classification standards -Estimates, accounting Procurement -Product databases -Price databases © 2008 NIBS

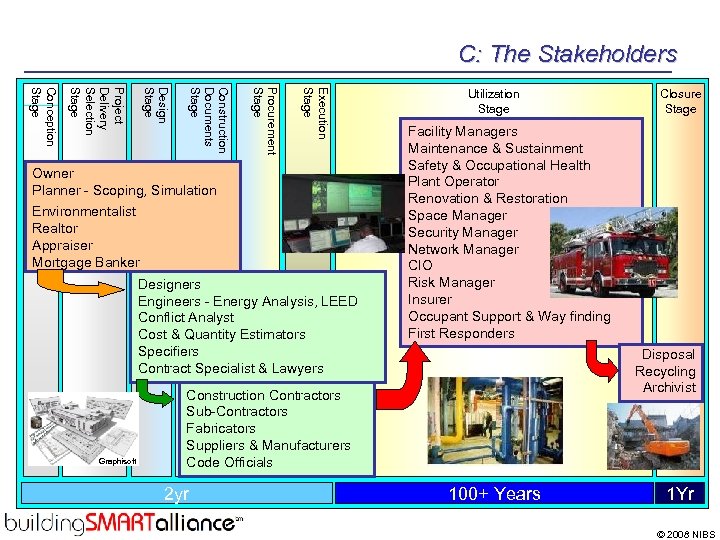

C: The Stakeholders Execution Stage Procurement Stage Construction Documents Stage Design Stage Project Delivery Selection Stage Conception Stage Owner Planner - Scoping, Simulation Environmentalist Realtor Appraiser Mortgage Banker Designers Engineers - Energy Analysis, LEED Conflict Analyst Cost & Quantity Estimators Specifiers Contract Specialist & Lawyers Graphisoft Utilization Stage Facility Managers Maintenance & Sustainment Safety & Occupational Health Plant Operator Renovation & Restoration Space Manager Security Manager Network Manager CIO Risk Manager Insurer Occupant Support & Way finding First Responders Disposal Recycling Archivist Construction Contractors Sub-Contractors Fabricators Suppliers & Manufacturers Code Officials 2 yr Closure Stage 100+ Years 1 Yr © 2008 NIBS

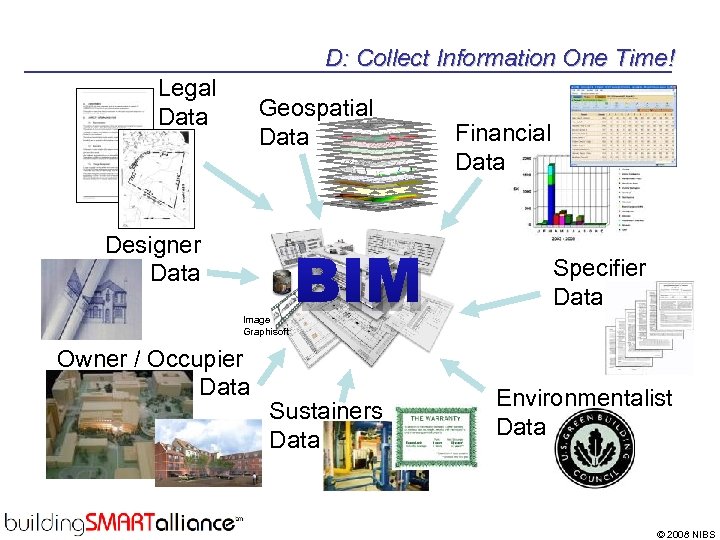

D: Collect Information One Time! Legal Data Geospatial Data Designer Data Image Graphisoft Owner

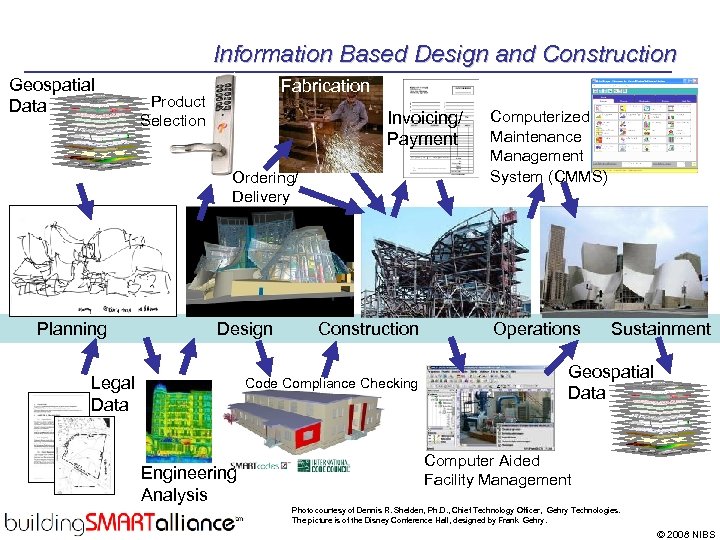

Information Based Design and Construction Geospatial Data Fabrication Product Selection Invoicing/ Payment Ordering/ Delivery Computerized Maintenance Management System (CMMS) Planning Design Construction Operations Sustainment Legal Data Code Compliance Checking Engineering Analysis Geospatial Data Computer Aided Facility Management Photo courtesy of Dennis R. Shelden, Ph. D. , Chief Technology Officer, Gehry Technologies. The picture is of the Disney Conference Hall, designed by Frank Gehry. © 2008 NIBS

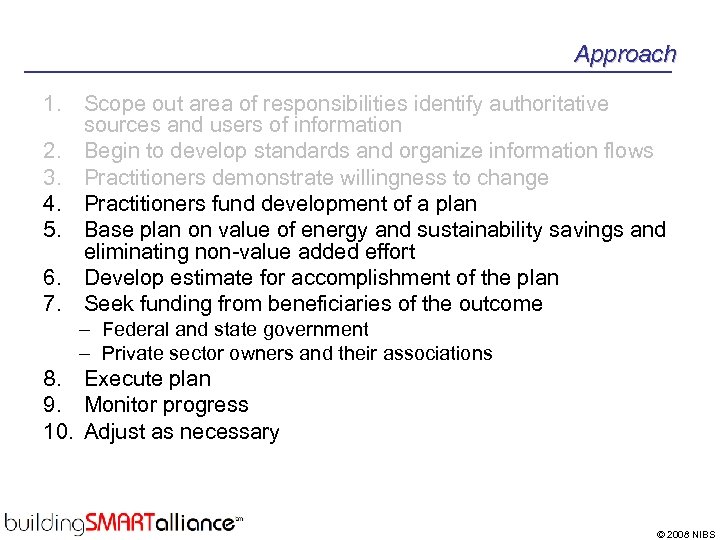

Approach 1. Scope out area of responsibilities identify authoritative sources and users of information 2. Begin to develop standards and organize information flows 3. Practitioners demonstrate willingness to change 4. Practitioners fund development of a plan 5. Base plan on value of energy and sustainability savings and eliminating non-value added effort 6. Develop estimate for accomplishment of the plan 7. Seek funding from beneficiaries of the outcome – Federal and state government – Private sector owners and their associations 8. Execute plan 9. Monitor progress 10. Adjust as necessary © 2008 NIBS

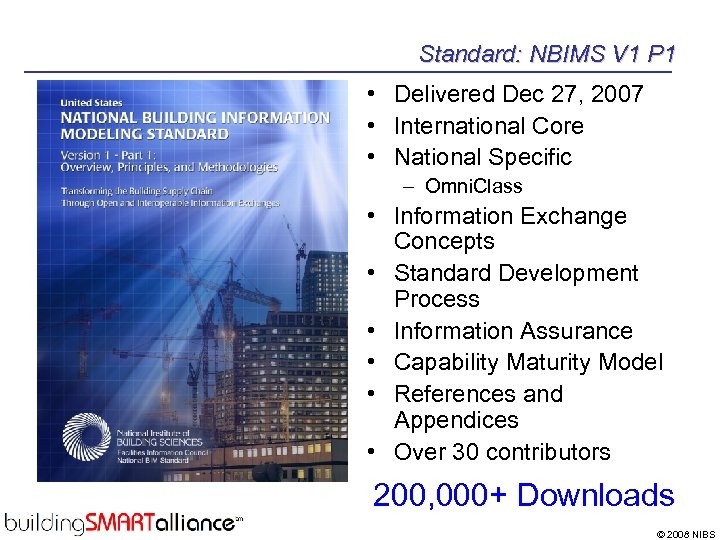

Standard: NBIMS V 1 P 1 • Delivered Dec 27, 2007 • International Core • National Specific – Omni. Class • Information Exchange Concepts • Standard Development Process • Information Assurance • Capability Maturity Model • References and Appendices • Over 30 contributors 200, 000+ Downloads © 2008 NIBS

Source of Confusion • As a noun: Building Information Model – An instance of a populated data model of buildings that contains multi-disciplinary data specific to a particular building which they describe unambiguously • As a verb: Building Information Modeling – The act/process of creating a Building Information Model (BIM – a noun) • Building information modeling is a process that requires the availability of – A data model of buildings – Information about a (specific) building – Software to populate the data model with that information © 2008 NIBS

Not The First To Experience Confusion © 2008 NIBS

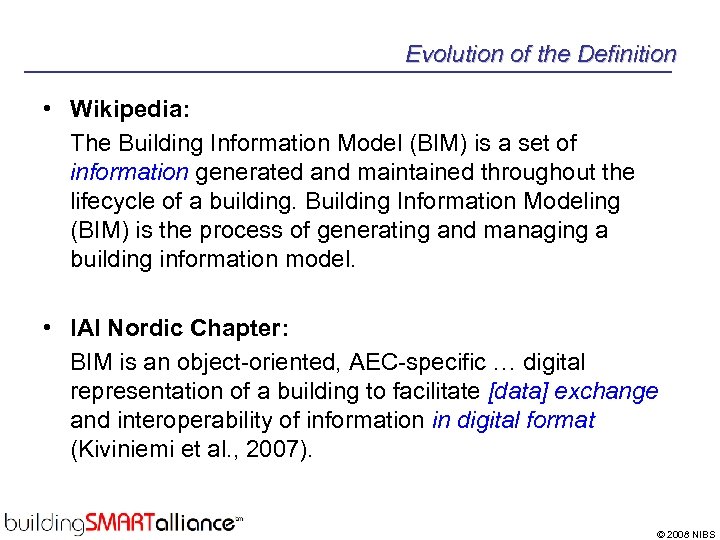

Evolution of the Definition • Wikipedia: The Building Information Model (BIM) is a set of information generated and maintained throughout the lifecycle of a building. Building Information Modeling (BIM) is the process of generating and managing a building information model. • IAI Nordic Chapter: BIM is an object-oriented, AEC-specific … digital representation of a building to facilitate [data] exchange and interoperability of information in digital format (Kiviniemi et al. , 2007). © 2008 NIBS

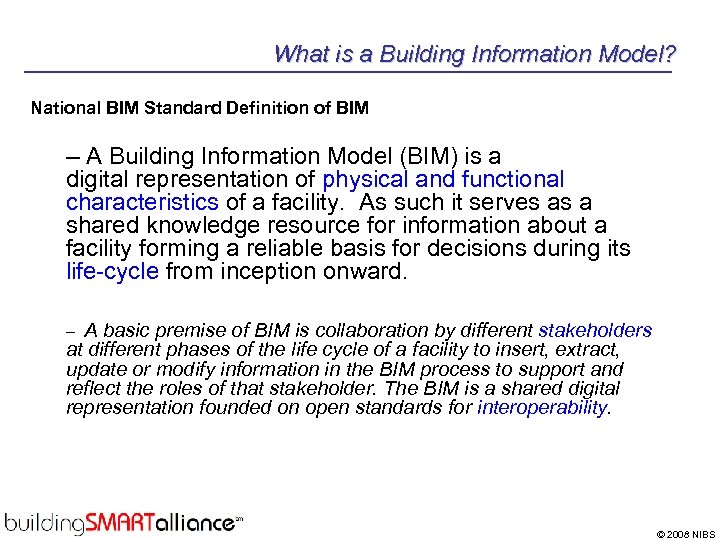

What is a Building Information Model? National BIM Standard Definition of BIM – A Building Information Model (BIM) is a digital representation of physical and functional characteristics of a facility. As such it serves as a shared knowledge resource for information about a facility forming a reliable basis for decisions during its life-cycle from inception onward. – A basic premise of BIM is collaboration by different stakeholders at different phases of the life cycle of a facility to insert, extract, update or modify information in the BIM process to support and reflect the roles of that stakeholder. The BIM is a shared digital representation founded on open standards for interoperability. © 2008 NIBS

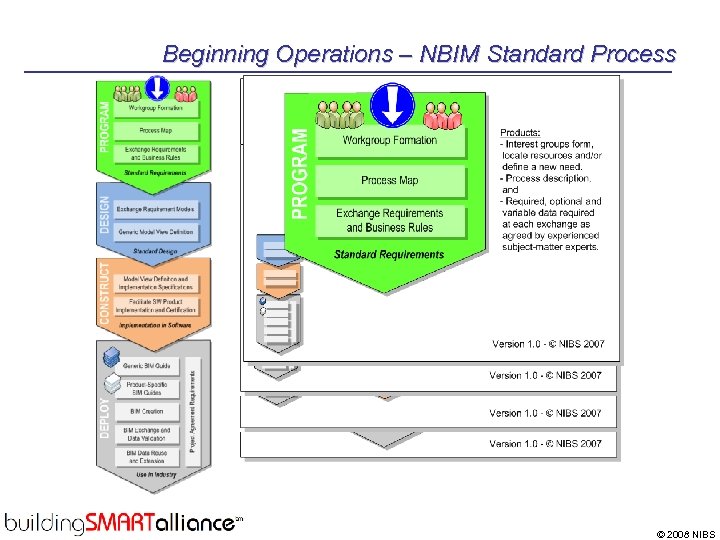

Beginning Operations – NBIM Standard Process © 2008 NIBS

Technical Basis for NBIMS Purpose Owner Documentation IDM, v 2 Building. SMART Intl. IDM 2 Methodology, building. SMART Norway Generic & Schema-specific Model-View Definition MVD Building. SMART Intl. NBIMS V 1 -P 1, NIBS Information, Modeling and Validation Framework IMV Business Process and Information Requirements Virtual Building Objects, Properties and Associations Data Model Norm Std IFC, v 2 x 3, Building. SMART Intl. V 2 x 4 ISO 16739 Building Process & Component Omni. Class CSI & CSC Classification Building & Construction Terminology Reference Library NBIMS V 1 -P 1, NIBS ifc. buildingsmart. com/ www. omniclass. org/ IFD Library CSI, CSC, www. ifd-library. org building. SMART Norway, STABU Foundation © 2008 NIBS

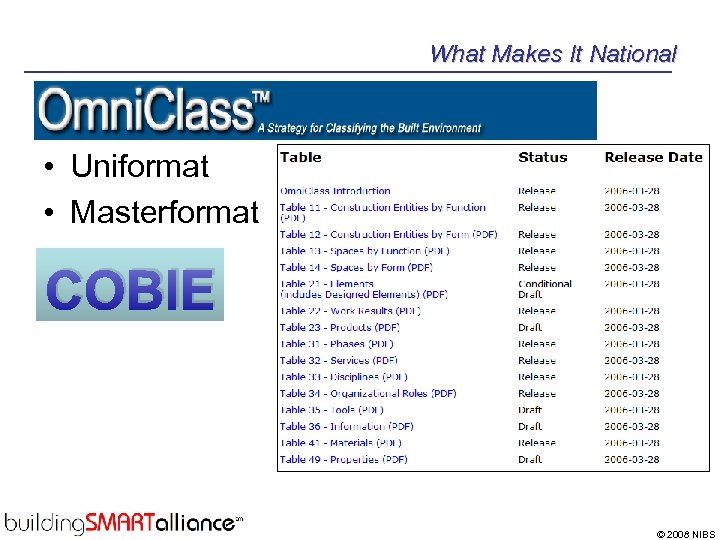

What Makes It National • Uniformat • Masterformat COBIE © 2008 NIBS

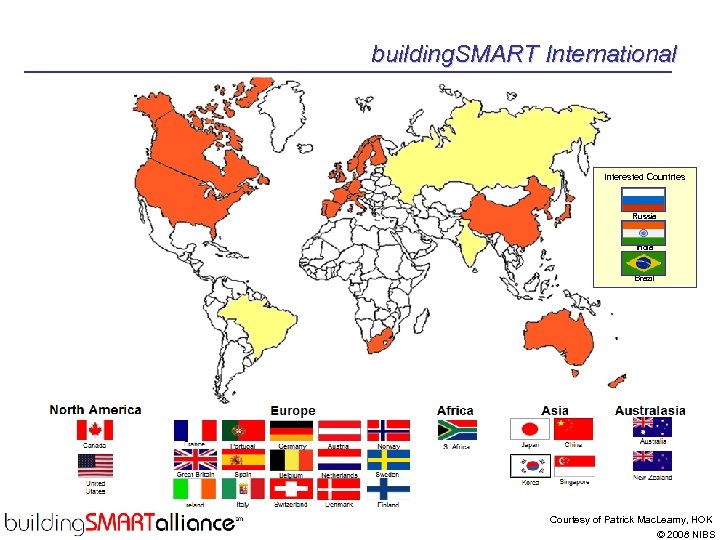

building. SMART International Interested Countries Russia India Brazil Courtesy of Patrick Mac. Leamy, HOK

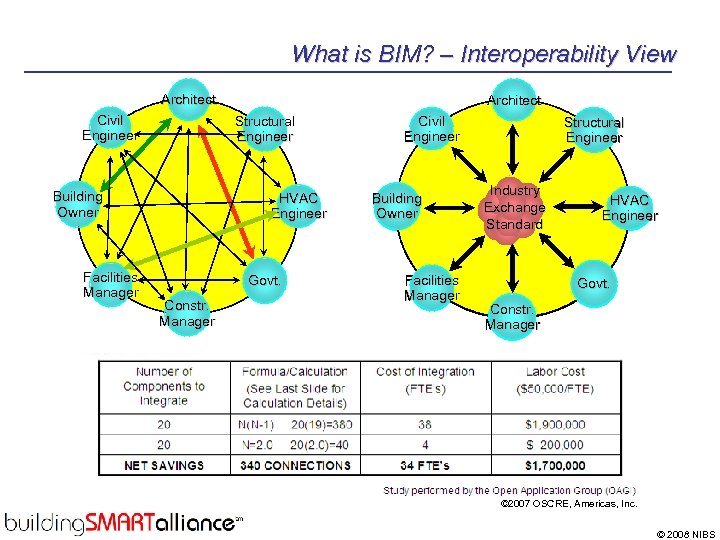

What is BIM? – Interoperability View Architect Civil Engineer Structural Engineer Building Owner Facilities Manager Architect HVAC Engineer Govt. Constr. Manager Civil Engineer Building Owner Facilities Manager Structural Engineer Industry Exchange Standard HVAC Engineer Govt. City Constr. Manager © 2007 OSCRE, Americas, Inc. © 2008 NIBS

building. SMART International Core Technologies Communications Definition Requestor Provider Architect Civil Engineer Information Request & Delivery of BIM Data Structural Engineer North American Data Standards Industry Exchange Standard Building Owner Facilities Manager Building_part Used in the exchange of Information between team members HVAC Engineer Omni. Class™, IFDLibrary™, IFC Information Delivery Manual (IDM) Scale sensitive plan symbols Govt. City Constr. Manager 4 2 6 Door Parametric 3 D information Window_frame Window 7 Glass glass S[1: ? ] door windows S[0: ? ] 9 relating 8 Room_connection related identification Object Definition Sectional information 3 Room_id Manufacturers Specifications, Finish, Price Parametric Elevation information Industry Foundation Class (ifc) © 2008 NIBS

building. SMART International Core Technologies Legal View Geospatial View Designer View Image Graphisoft Financial View Definition BIM Specifier View One concept carries the same unique identification in every language Owner / Occupier View Sustainers View Environmentalist View In a briefing document 78 AF 4 E 98 C 8 D 4406 B 873 DBB 85 E 1 FE 7 DB In a CAD system Properties BARBi - Norway In product catalogues Properties Lexi. Con - Nederland Propertie NBS - England s Propertie SDC - France s Propertie NBIMS – North America s Propertie In a calculation system Properties s Propertie s Model View Definition (MVD) In classification systems Properties Language Definition In building specifications Properties In a Facility management system Properties For demolition and reconstruction Properties International Framework Dictionary (IFD) © 2008 NIBS

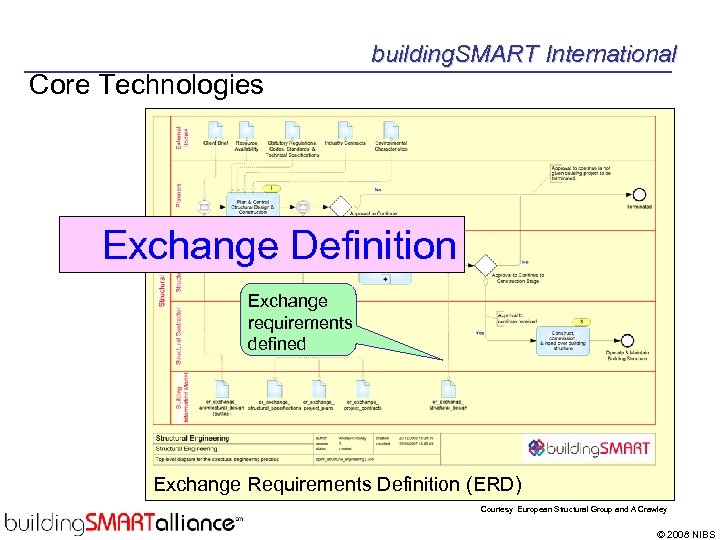

building. SMART International Core Technologies Exchange Definition Exchange requirements defined Exchange Requirements Definition (ERD)

Growing The Product GSA Space Management IFC 2 x 3 ISO/PAS 16739 IFC 2 x 4 NWI ISO 16739 MVD Model View Definition IFD Library International Framework Dictionary Industry Wide Execution IDM Information Delivery Manual OGC AECOO Test Bed COE/NASA COBIE Pankow Precast Concrete ICC SMART Codes AACE Quantity Take Off © 2008 NIBS

Business Process Change: Requirements Definition OGC Testbed Precast Vendor delivered product © 2008 NIBS

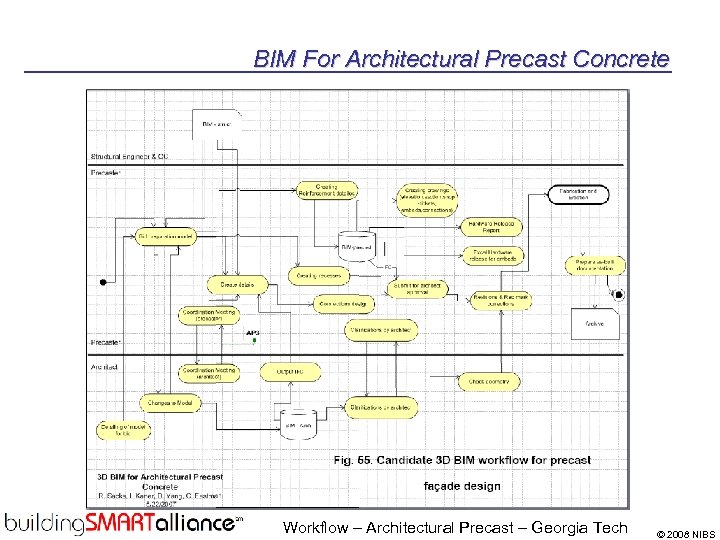

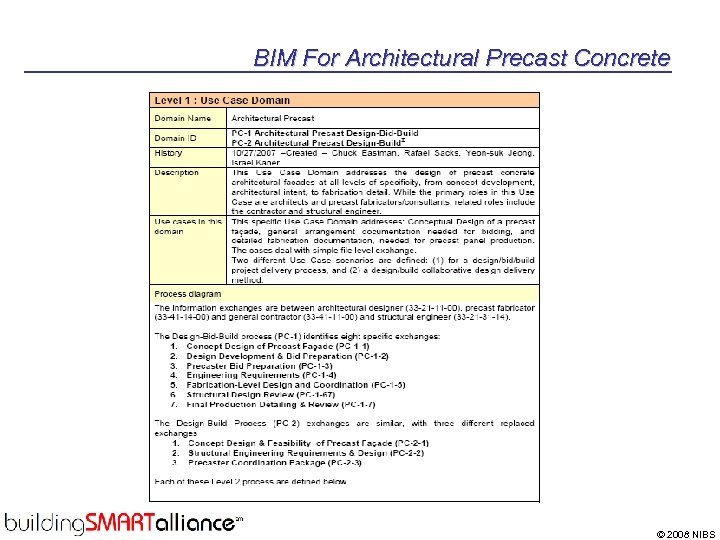

BIM For Architectural Precast Concrete Workflow – Architectural Precast – Georgia Tech © 2008

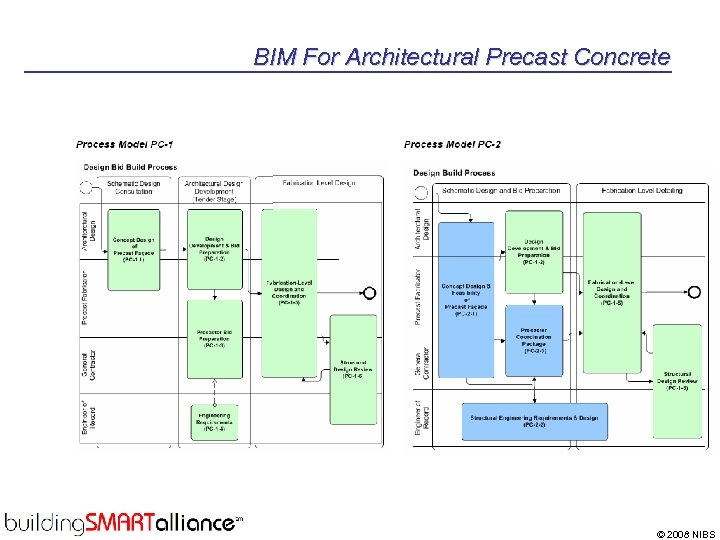

BIM For Architectural Precast Concrete © 2008 NIBS

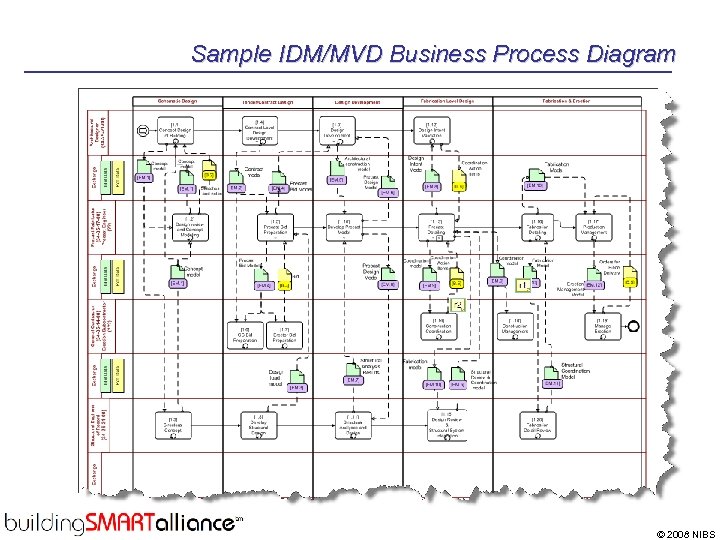

Sample IDM/MVD Business Process Diagram © 2008 NIBS

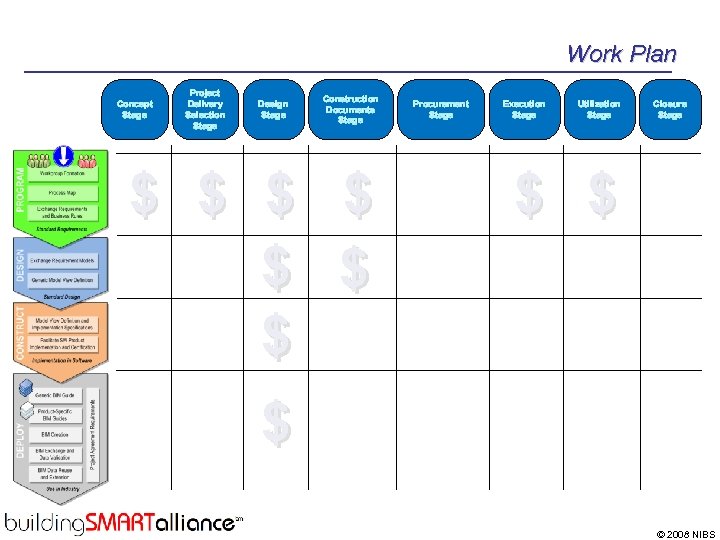

Work Plan Concept Stage Project Delivery Selection Stage Design Stage Construction Documents Stage $

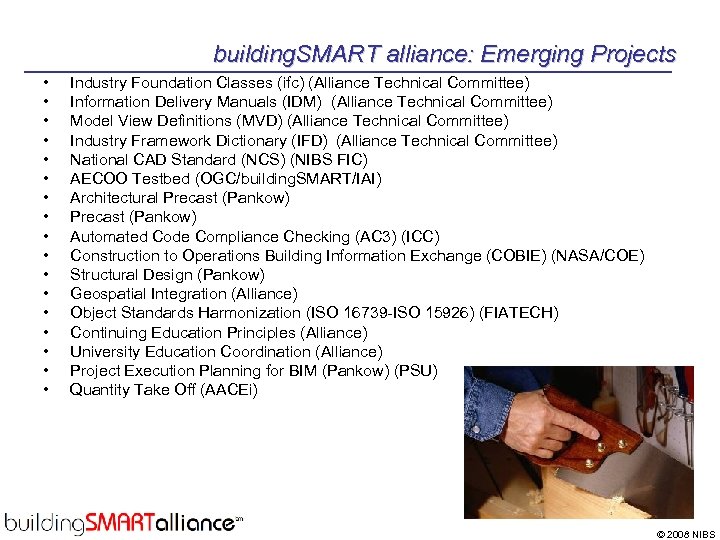

building. SMART alliance: Emerging Projects • • • • • Industry Foundation Classes (ifc) (Alliance Technical Committee) Information Delivery Manuals (IDM) (Alliance Technical Committee) Model View Definitions (MVD) (Alliance Technical Committee) Industry Framework Dictionary (IFD) (Alliance Technical Committee) National CAD Standard (NCS) (NIBS FIC) AECOO Testbed (OGC/building. SMART/IAI) Architectural Precast (Pankow) Automated Code Compliance Checking (AC 3) (ICC) Construction to Operations Building Information Exchange (COBIE) (NASA/COE) Structural Design (Pankow) Geospatial Integration (Alliance) Object Standards Harmonization (ISO 16739 -ISO 15926) (FIATECH) Continuing Education Principles (Alliance) University Education Coordination (Alliance) Project Execution Planning for BIM (Pankow) (PSU) Quantity Take Off (AACEi) © 2008 NIBS

Simplified Relationships NIBS Board of Directors building. SMART International NIBS President Board of Direction building. SMART alliance™ Staff Alliance Programs External and Internal Projects From all members of the Alliance External and Internal Projects Sponsors and Members © 2008 NIBS

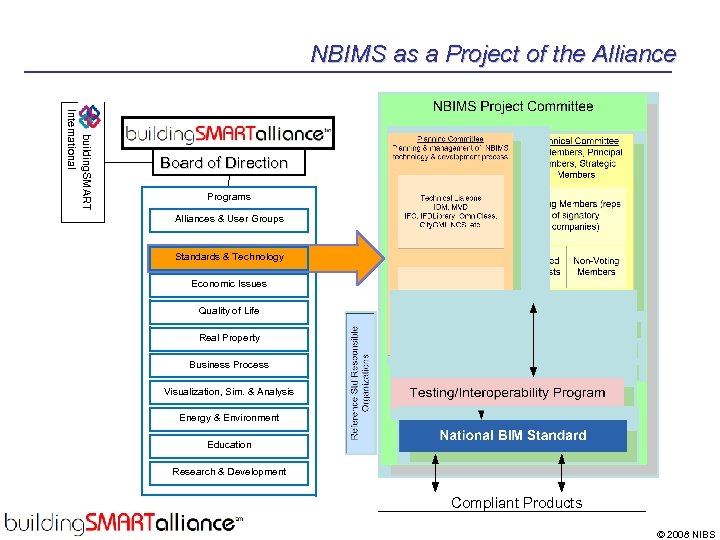

NBIMS as a Project of the Alliance building. SMART International Board of Direction Programs Alliances & User Groups Standards & Technology Economic Issues Quality of Life Real Property Business Process Visualization, Sim. & Analysis Energy & Environment Education Research & Development Compliant Products © 2008 NIBS

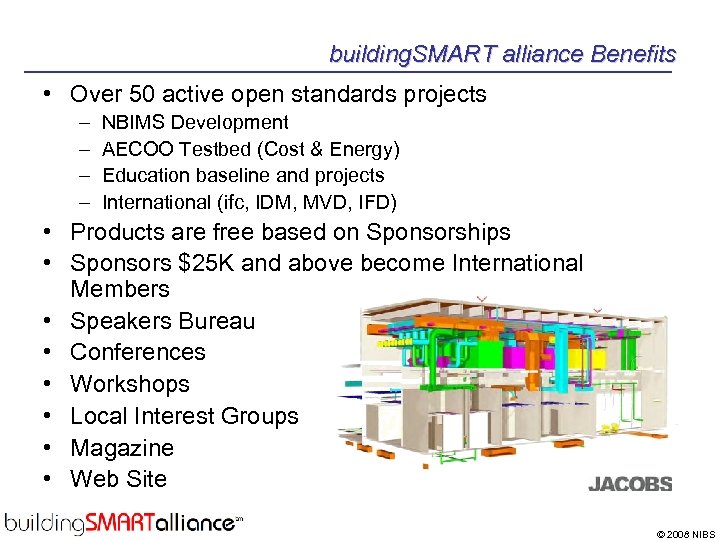

building. SMART alliance Benefits • Over 50 active open standards projects – – NBIMS Development AECOO Testbed (Cost & Energy) Education baseline and projects International (ifc, IDM, MVD, IFD) • Products are free based on Sponsorships • Sponsors $25 K and above become International Members • Speakers Bureau • Conferences • Workshops • Local Interest Groups • Magazine • Web Site © 2008 NIBS

Sample Products of the Alliance Products coordinated by the Alliance www. buildingsmartalliance. org ©

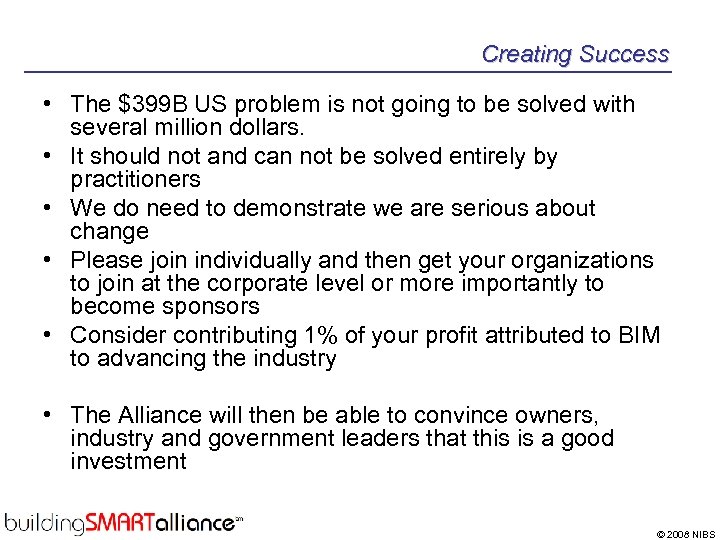

Creating Success • The $399 B US problem is not going to be solved with several million dollars. • It should not and can not be solved entirely by practitioners • We do need to demonstrate we are serious about change • Please join individually and then get your organizations to join at the corporate level or more importantly to become sponsors • Consider contributing 1% of your profit attributed to BIM to advancing the industry • The Alliance will then be able to convince owners, industry and government leaders that this is a good investment © 2008 NIBS

Questions? Deke Smith dsmith@nibs. org (202) 289 -7800 © 2008 NIBS

Thank You Deke Smith dsmith@nibs. org (202) 289 -7800 © 2008 NIBS

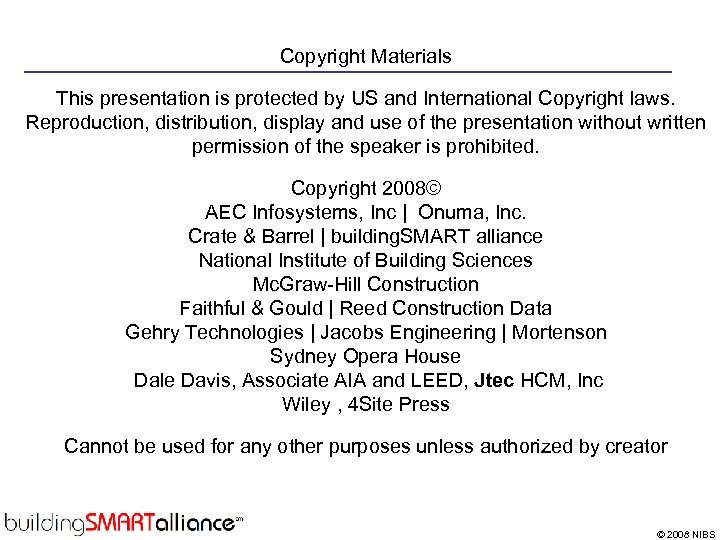

Copyright Materials This presentation is protected by US and International Copyright laws. Reproduction, distribution, display and use of the presentation without written permission of the speaker is prohibited. Copyright 2008© AEC Infosystems, Inc | Onuma, Inc. Crate & Barrel | building. SMART alliance National Institute of Building Sciences Mc. Graw-Hill Construction Faithful & Gould | Reed Construction Data Gehry Technologies | Jacobs Engineering | Mortenson Sydney Opera House Dale Davis, Associate AIA and LEED, Jtec HCM, Inc Wiley , 4 Site Press Cannot be used for any other purposes unless authorized by creator © 2008 NIBS
