Anatomy for Neuroimaging J. Keith Smith, M. D. , Ph. D. Neuroradiology Anatomy for Neuroimaging J. Keith Smith, M. D. , Ph. D. Neuroradiology

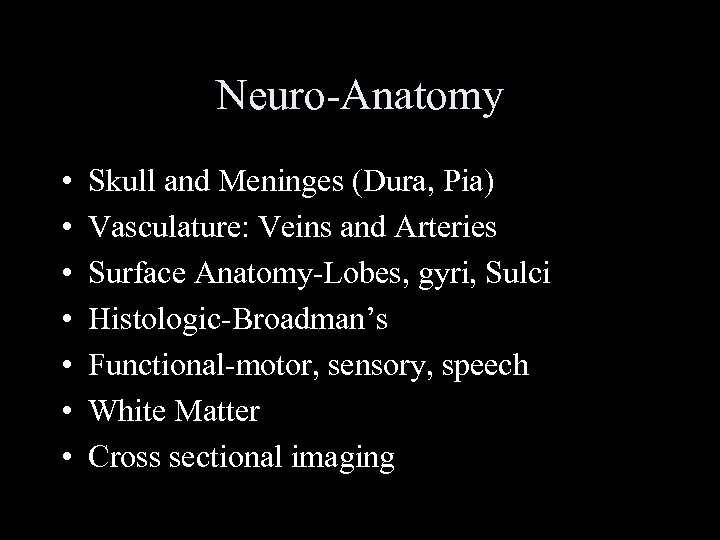

Neuro-Anatomy • • Skull and Meninges (Dura, Pia) Vasculature: Veins and Arteries Surface Anatomy-Lobes, Neuro-Anatomy • • Skull and Meninges (Dura, Pia) Vasculature: Veins and Arteries Surface Anatomy-Lobes, gyri, Sulci Histologic-Broadman’s Functional-motor, sensory, speech White Matter Cross sectional imaging

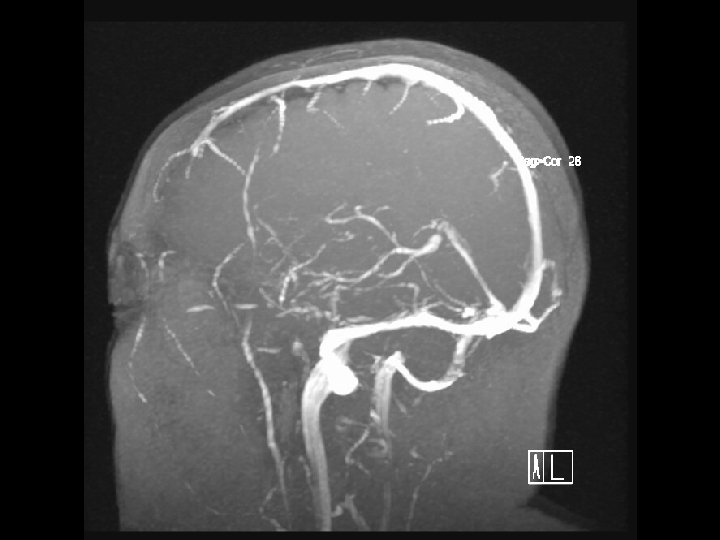

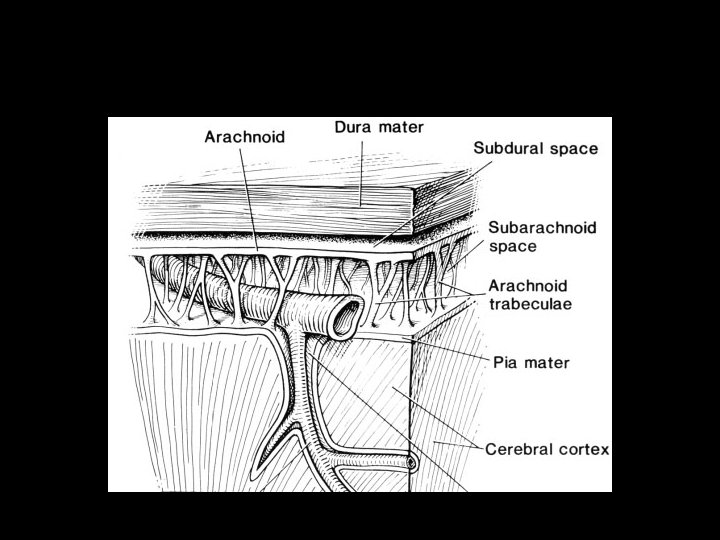

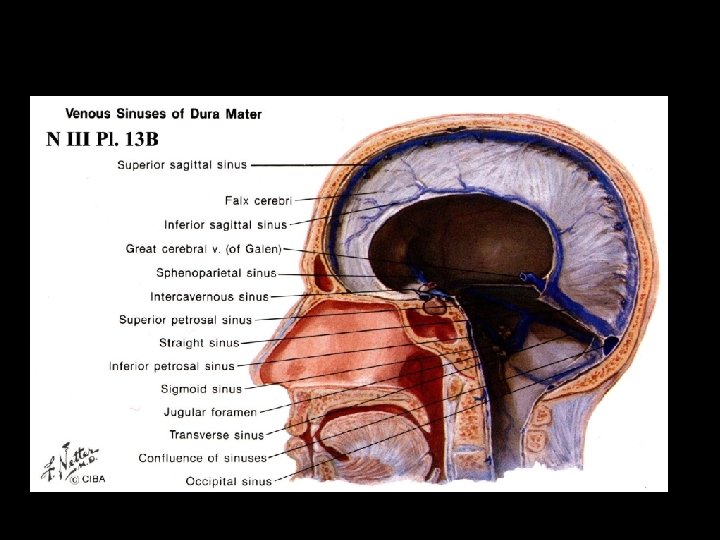

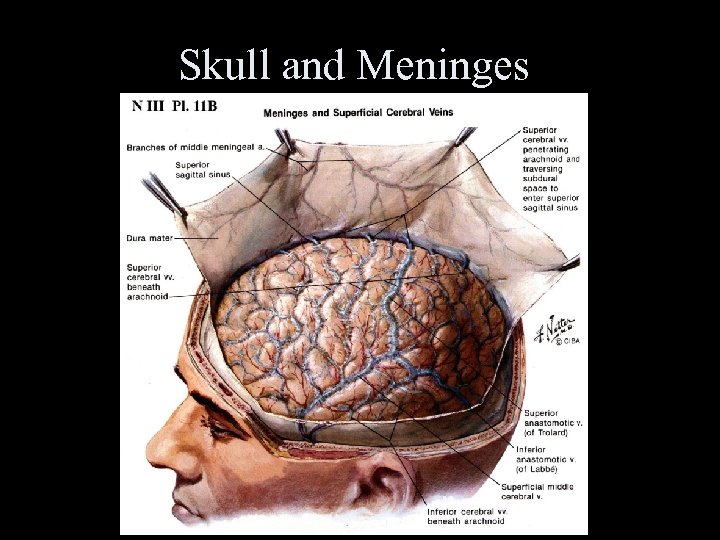

Skull and Meninges Skull and Meninges

Intracranial Hemorrhage Intracranial Hemorrhage

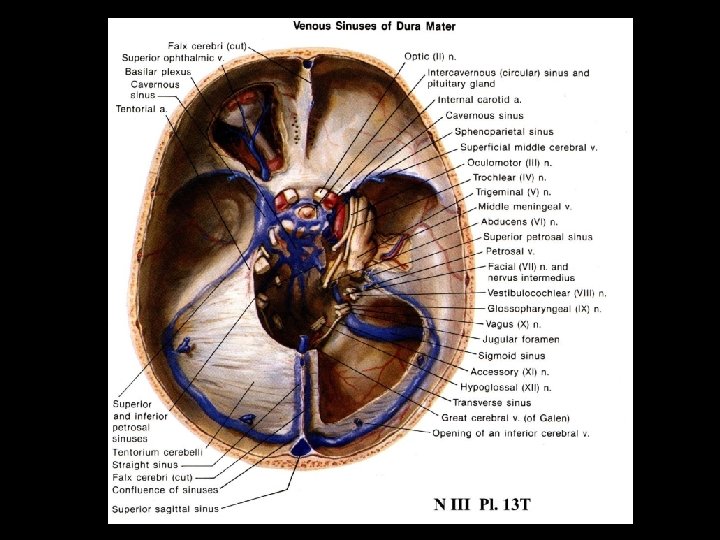

Cranial nerves http: //www. teachingbiomed. man. ac. uk/resources/wwwcal/ cranial_nerves/page 1. asp Cranial nerves http: //www. teachingbiomed. man. ac. uk/resources/wwwcal/ cranial_nerves/page 1. asp

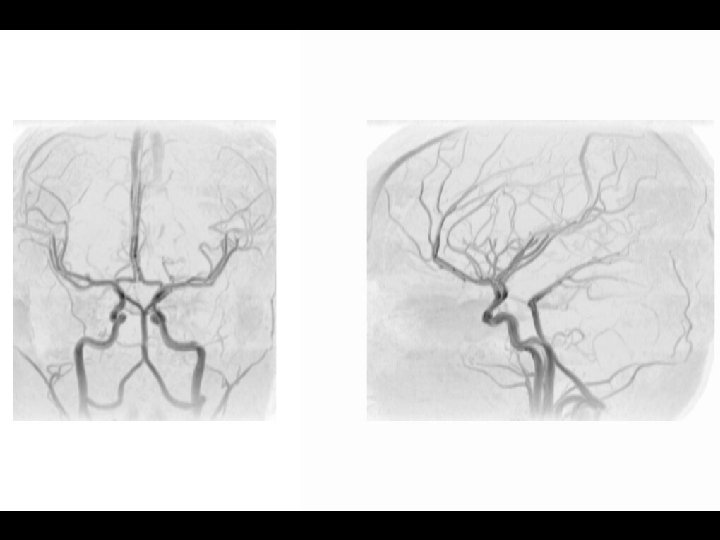

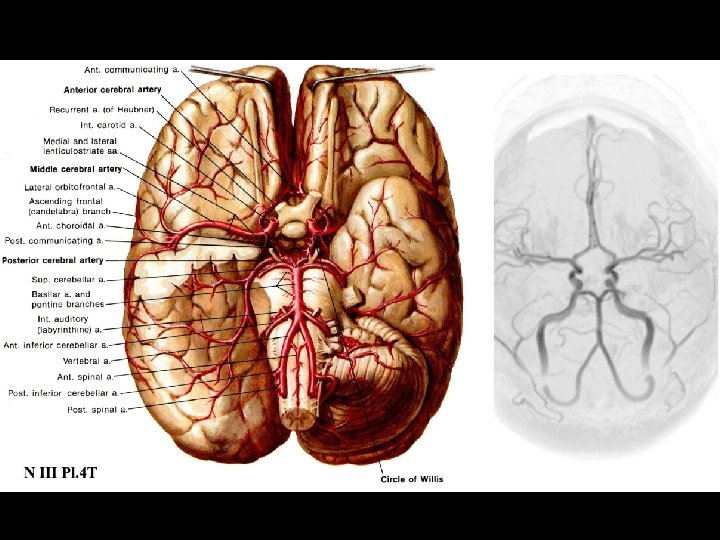

Arterial Blood Supply Arterial Blood Supply

Anterior circulation Internal carotid arteries Posterior circulation Vertebral arteries Anterior circulation Internal carotid arteries Posterior circulation Vertebral arteries

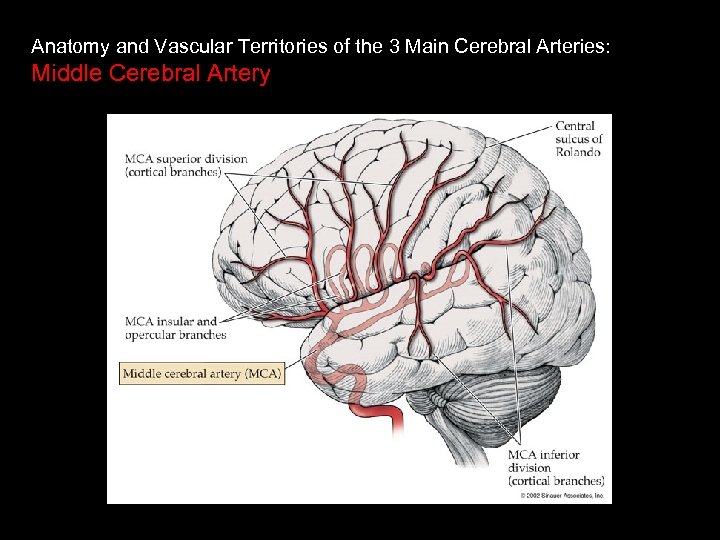

Anatomy and Vascular Territories of the 3 Main Cerebral Arteries: Middle Cerebral Artery Anatomy and Vascular Territories of the 3 Main Cerebral Arteries: Middle Cerebral Artery

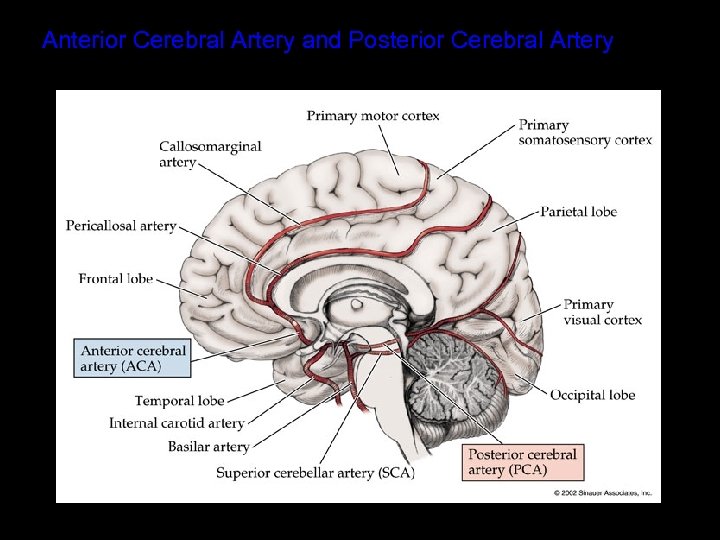

Anterior Cerebral Artery and Posterior Cerebral Artery Anterior Cerebral Artery and Posterior Cerebral Artery

Cortical Areas Supplied by the MCA, ACA and PCA Cortical Areas Supplied by the MCA, ACA and PCA

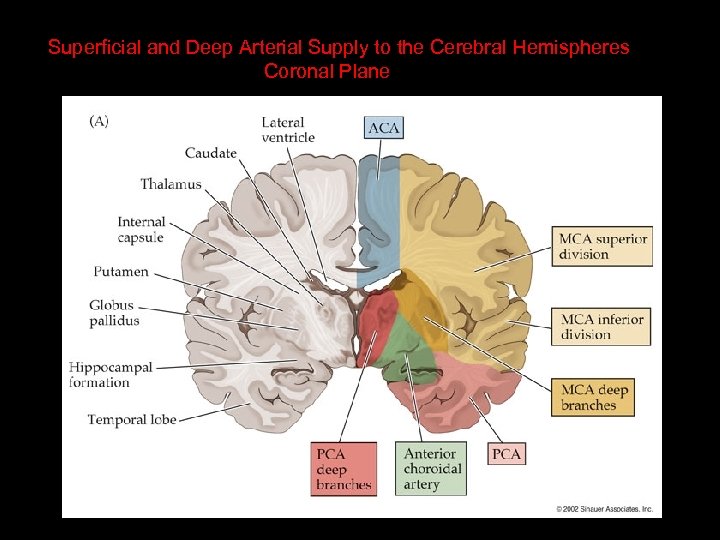

Superficial and Deep Arterial Supply to the Cerebral Hemispheres Coronal Plane Superficial and Deep Arterial Supply to the Cerebral Hemispheres Coronal Plane

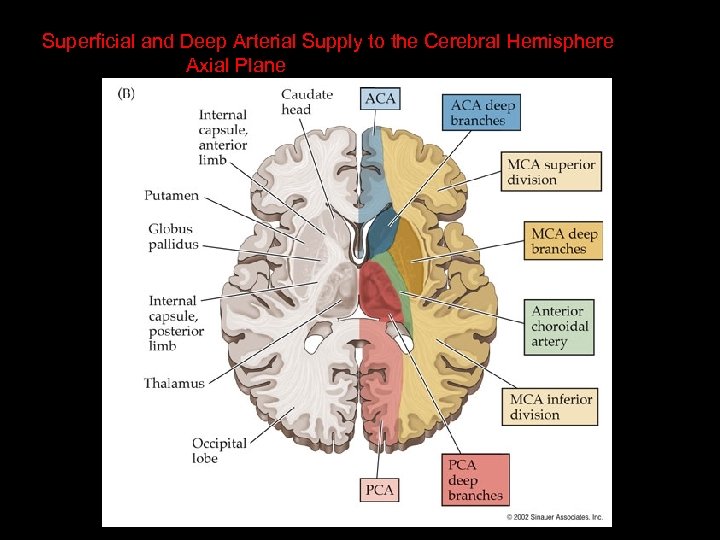

Superficial and Deep Arterial Supply to the Cerebral Hemisphere Axial Plane Superficial and Deep Arterial Supply to the Cerebral Hemisphere Axial Plane

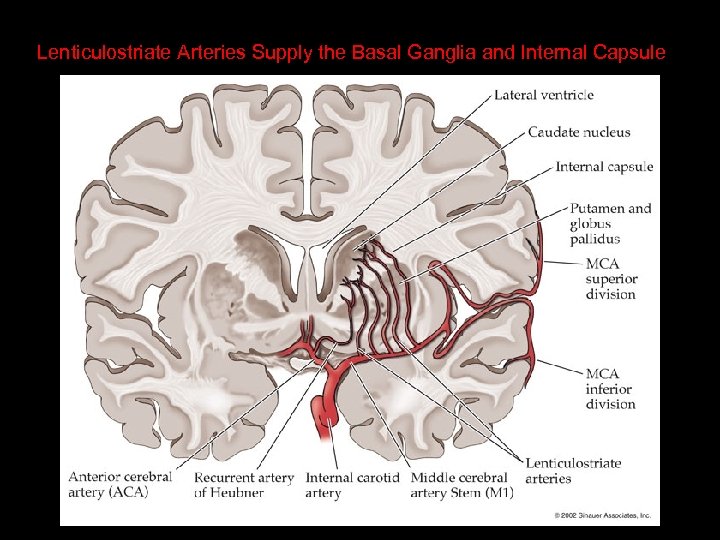

Lenticulostriate Arteries Supply the Basal Ganglia and Internal Capsule Lenticulostriate Arteries Supply the Basal Ganglia and Internal Capsule

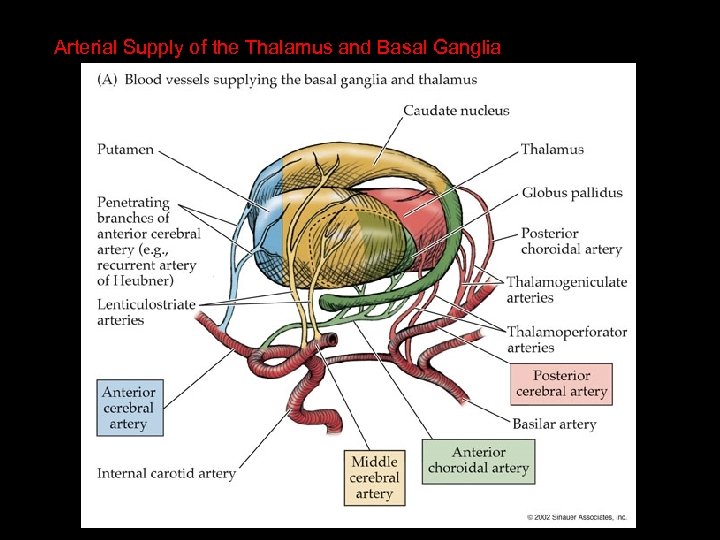

Arterial Supply of the Thalamus and Basal Ganglia Arterial Supply of the Thalamus and Basal Ganglia

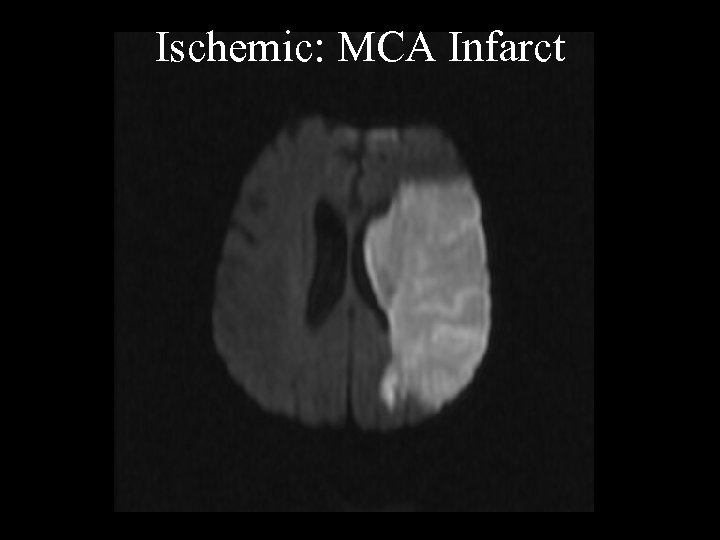

Ischemic: MCA Infarct Ischemic: MCA Infarct

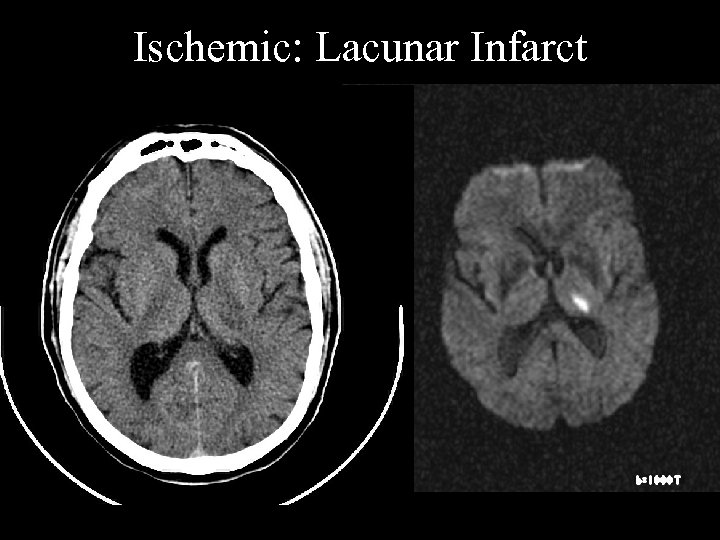

Ischemic: Lacunar Infarct Ischemic: Lacunar Infarct

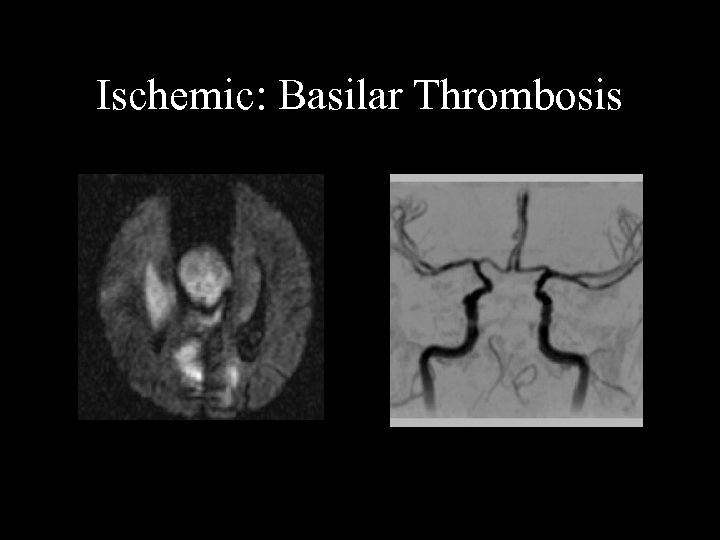

Ischemic: Basilar Thrombosis Ischemic: Basilar Thrombosis

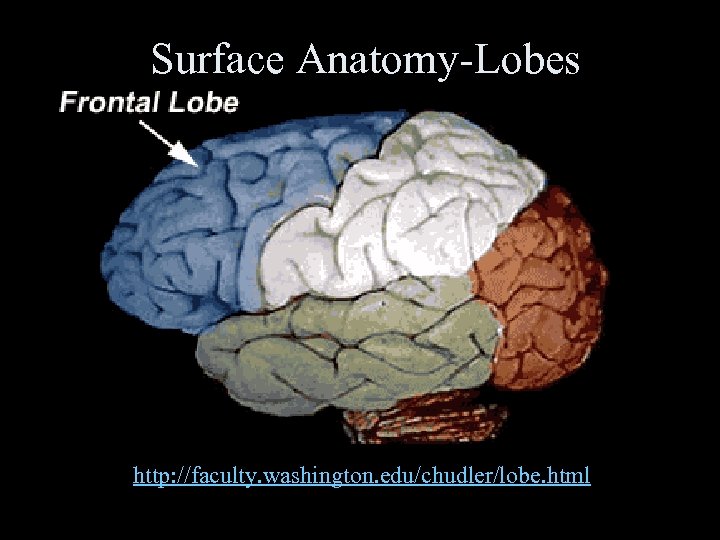

Surface Anatomy-Lobes http: //faculty. washington. edu/chudler/lobe. html Surface Anatomy-Lobes http: //faculty. washington. edu/chudler/lobe. html

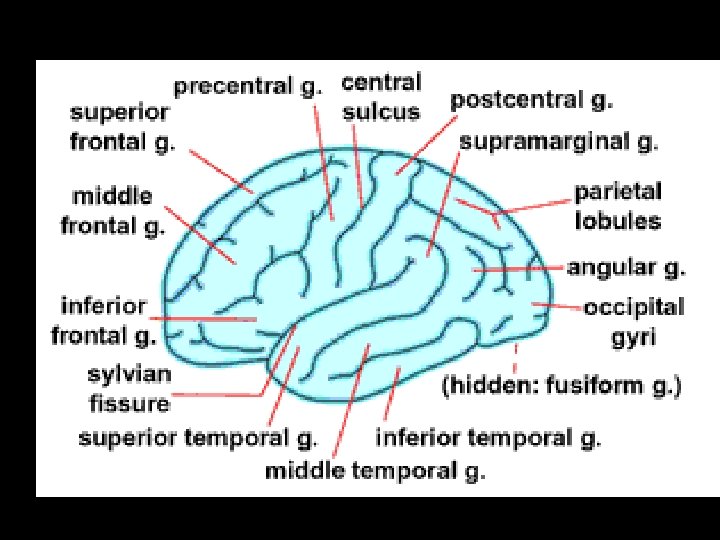

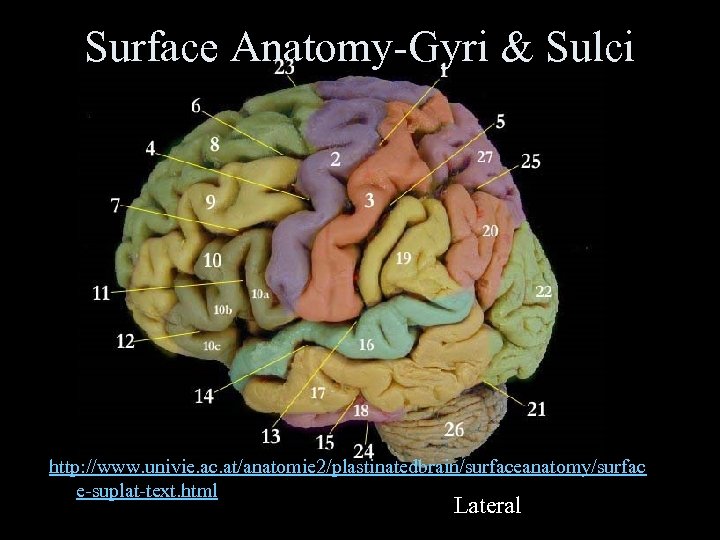

Surface Anatomy-Gyri & Sulci http: //www. univie. ac. at/anatomie 2/plastinatedbrain/surfaceanatomy/surfac e-suplat-text. html Lateral Surface Anatomy-Gyri & Sulci http: //www. univie. ac. at/anatomie 2/plastinatedbrain/surfaceanatomy/surfac e-suplat-text. html Lateral

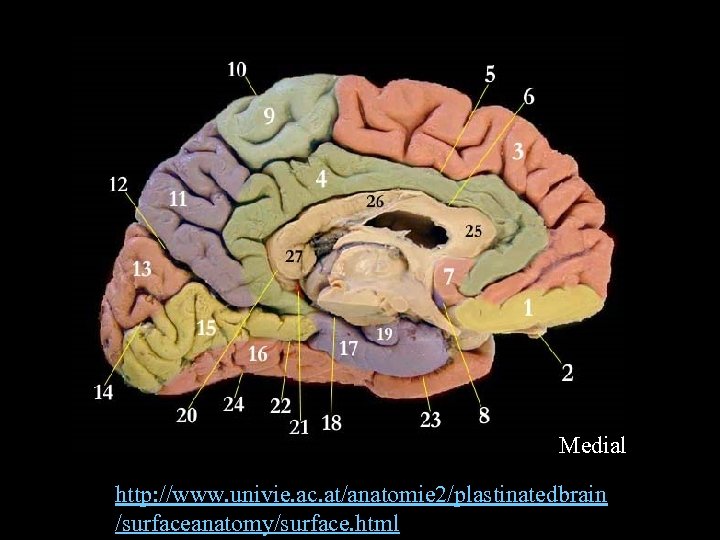

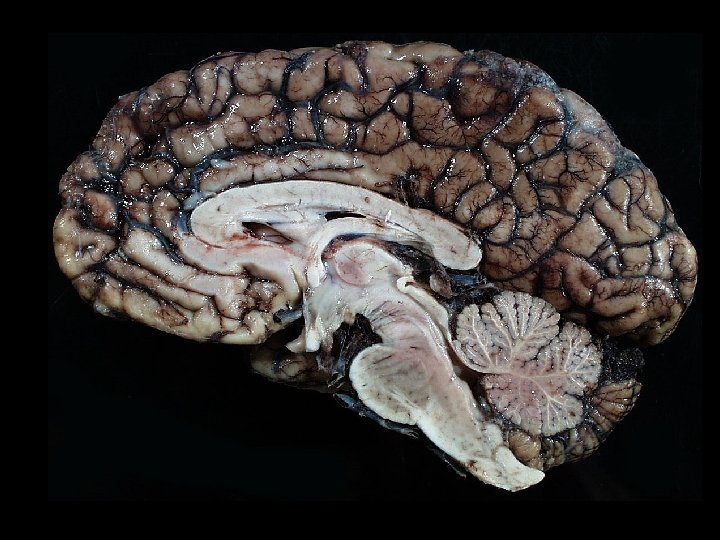

Medial http: //www. univie. ac. at/anatomie 2/plastinatedbrain /surfaceanatomy/surface. html Medial http: //www. univie. ac. at/anatomie 2/plastinatedbrain /surfaceanatomy/surface. html

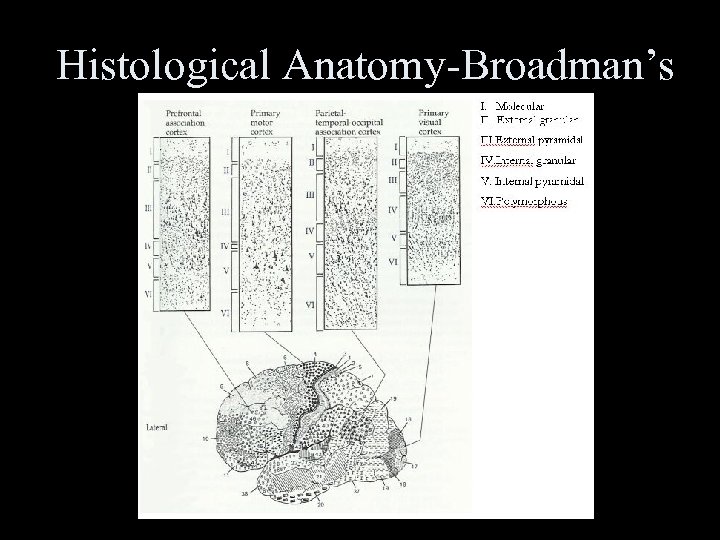

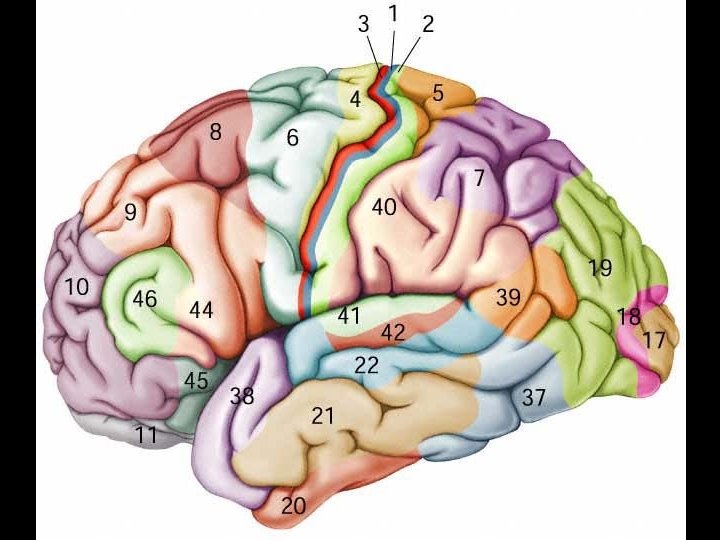

Histological Anatomy-Broadman’s Histological Anatomy-Broadman’s

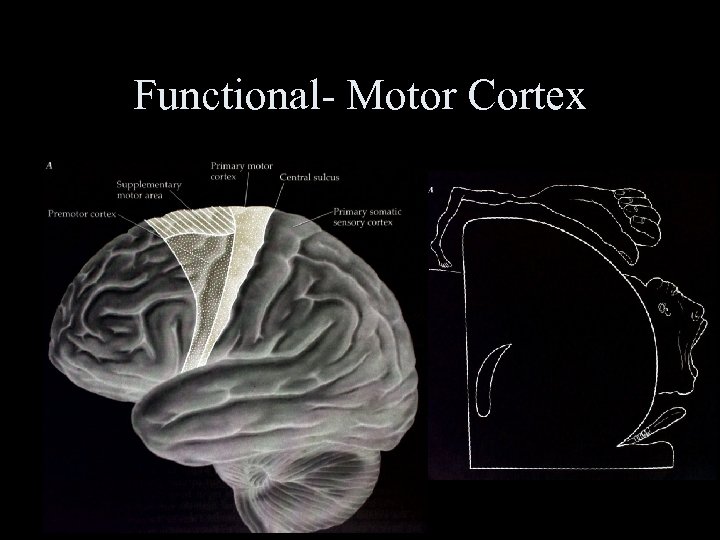

Functional- Motor Cortex Functional- Motor Cortex

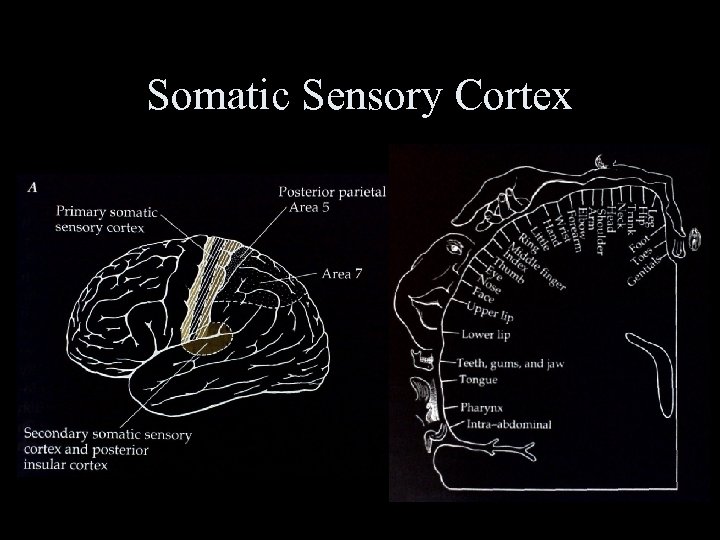

Somatic Sensory Cortex Somatic Sensory Cortex

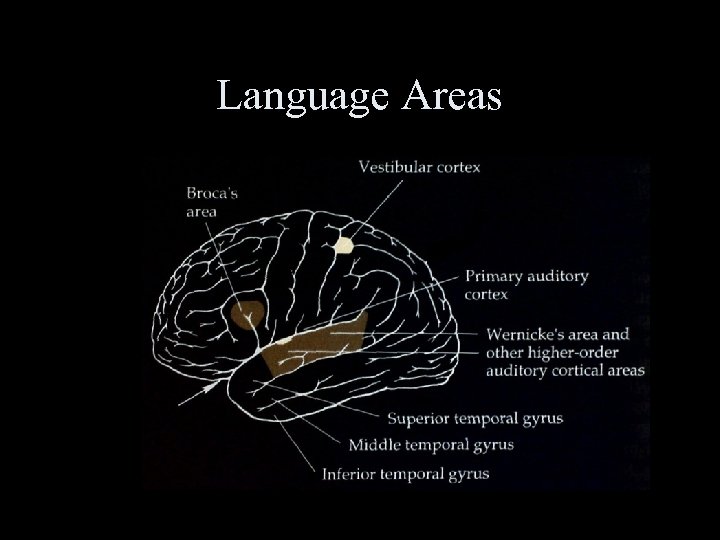

Language Areas Language Areas

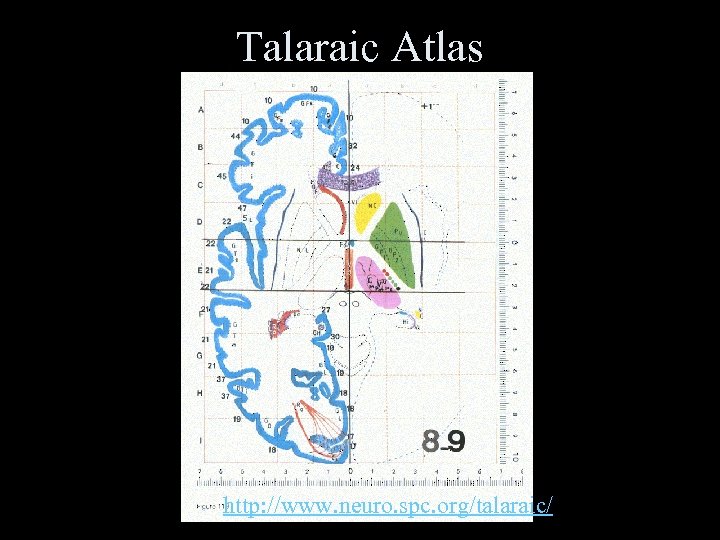

Talaraic Atlas http: //www. neuro. spc. org/talaraic/ Talaraic Atlas http: //www. neuro. spc. org/talaraic/

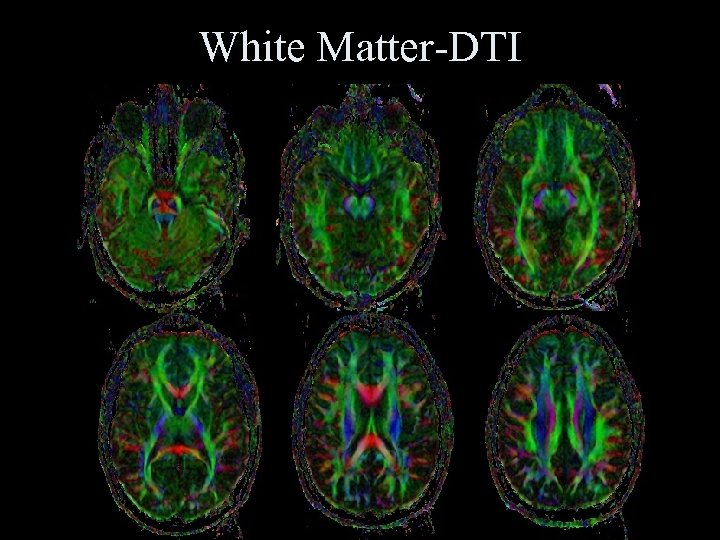

White Matter-DTI White Matter-DTI

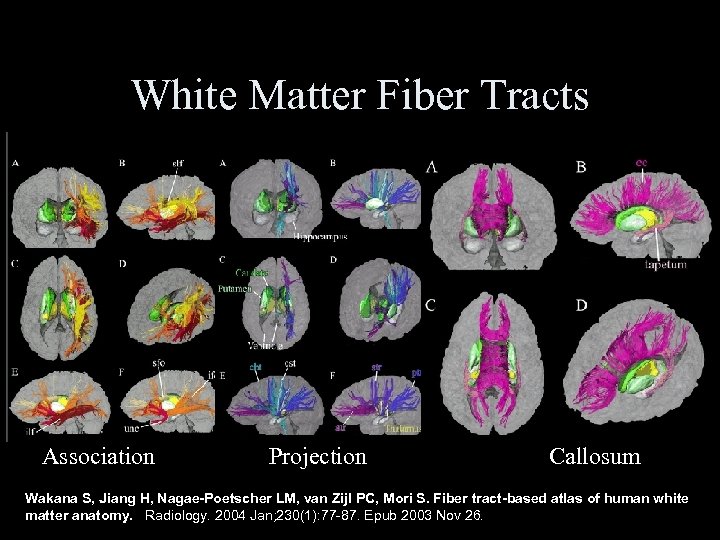

White Matter Fiber Tracts Association Projection Callosum Wakana S, Jiang H, Nagae-Poetscher LM, van White Matter Fiber Tracts Association Projection Callosum Wakana S, Jiang H, Nagae-Poetscher LM, van Zijl PC, Mori S. Fiber tract-based atlas of human white matter anatomy. Radiology. 2004 Jan; 230(1): 77 -87. Epub 2003 Nov 26.

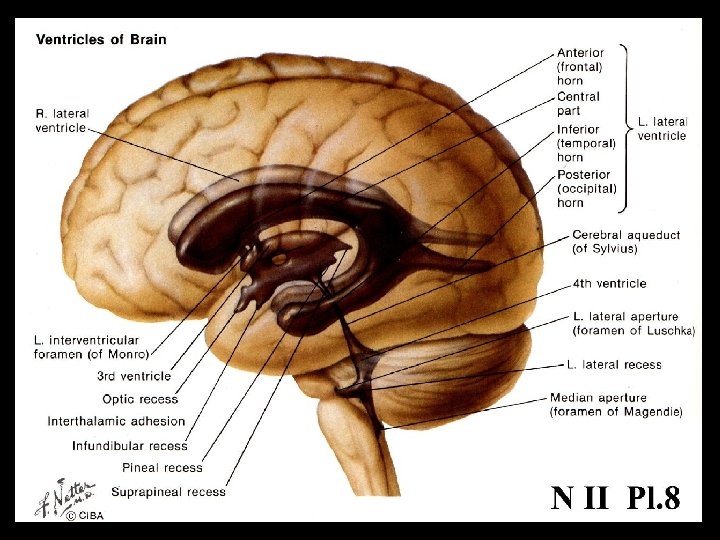

Ventricles http: //faculty. washington. edu/chudler/vent. html Ventricles http: //faculty. washington. edu/chudler/vent. html

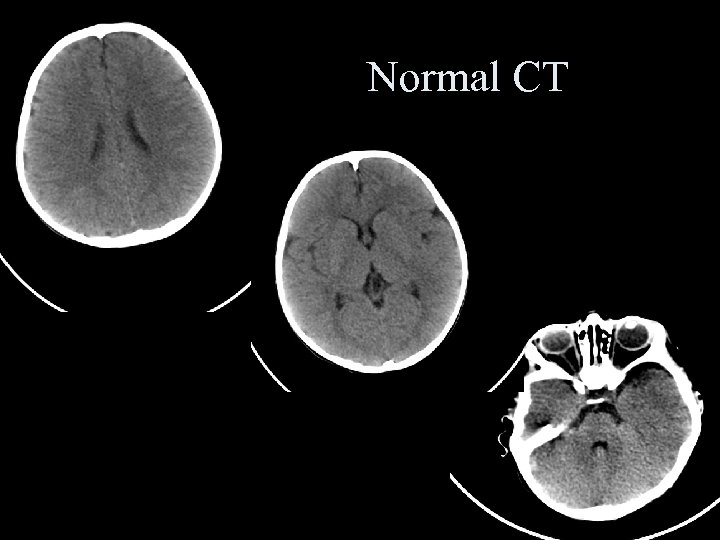

Normal CT Normal CT

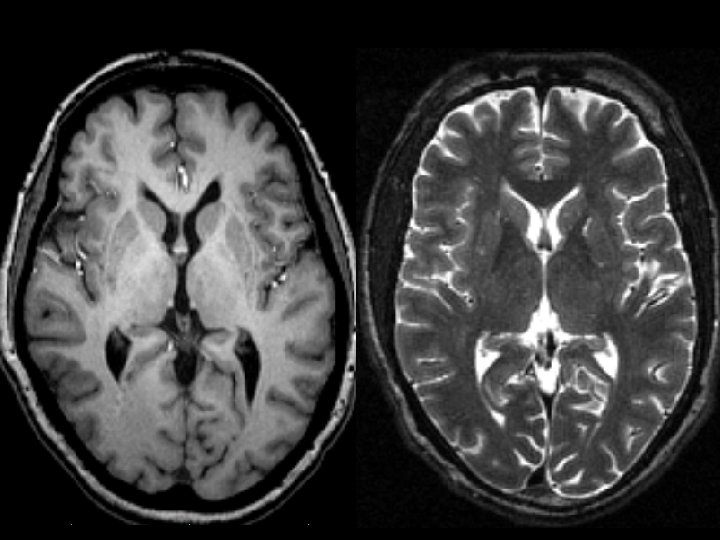

Normal MRI T 1 Weighted Normal MRI T 1 Weighted

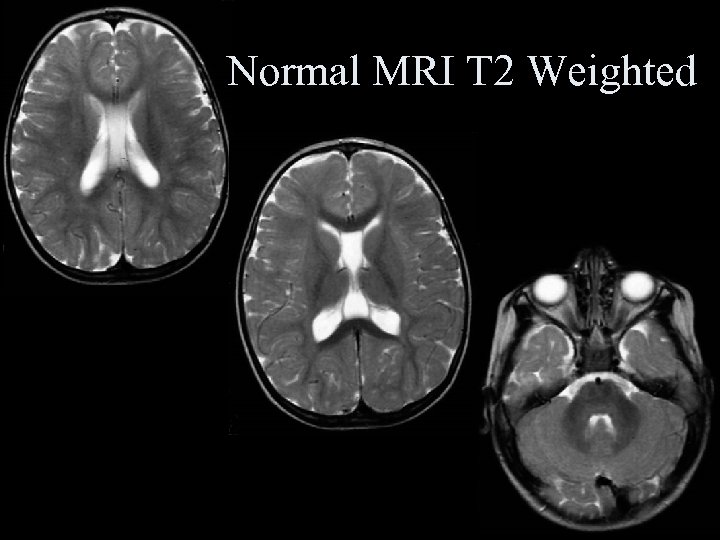

Normal MRI T 2 Weighted Normal MRI T 2 Weighted

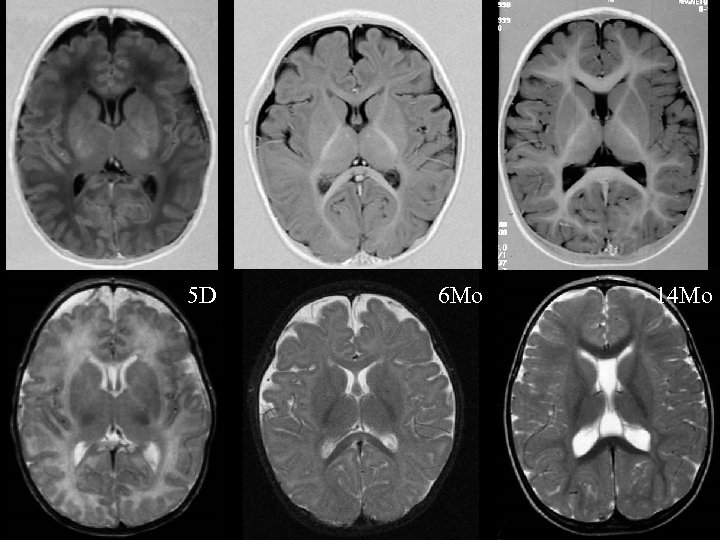

5 D 6 Mo 14 Mo 5 D 6 Mo 14 Mo

Misc Web resources http: //www. neuropat. dote. hu/anatomy. htm http: //www. temple. edu/acb/aker/Gross Brain Misc Web resources http: //www. neuropat. dote. hu/anatomy. htm http: //www. temple. edu/acb/aker/Gross Brain Show/slide 2. htm
