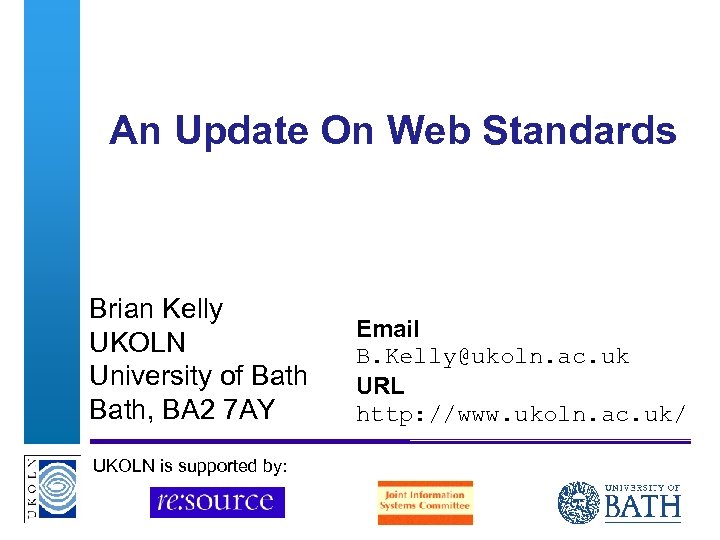

An Update On Web Standards Brian Kelly UKOLN University of Bath, BA 2 7 AY Email B. Kelly@ukoln. ac. uk URL http: //www. ukoln. ac. uk/ UKOLN is supported by: A centre of expertise in digital information management www. ukoln. ac. uk

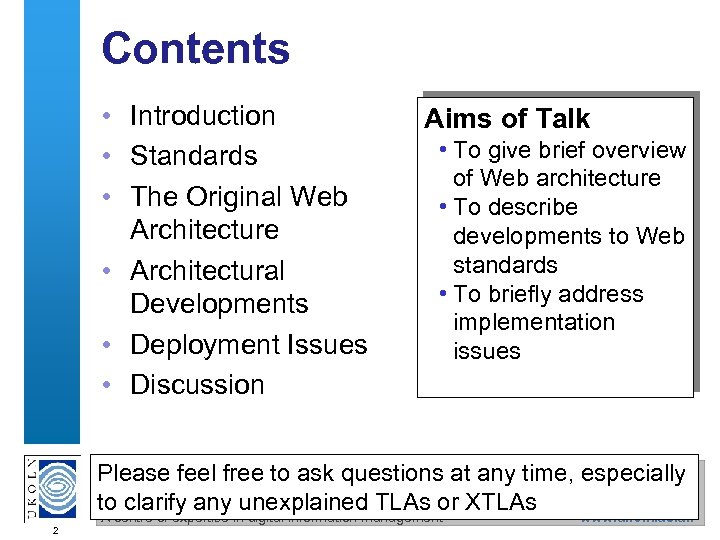

Contents • Introduction • Standards • The Original Web Architecture • Architectural Developments • Deployment Issues • Discussion Aims of Talk • To give brief overview of Web architecture • To describe developments to Web standards • To briefly address implementation issues Please feel free to ask questions at any time, especially tocentre of expertise in digital information management XTLAs clarify any unexplained TLAs or A www. ukoln. ac. uk 2

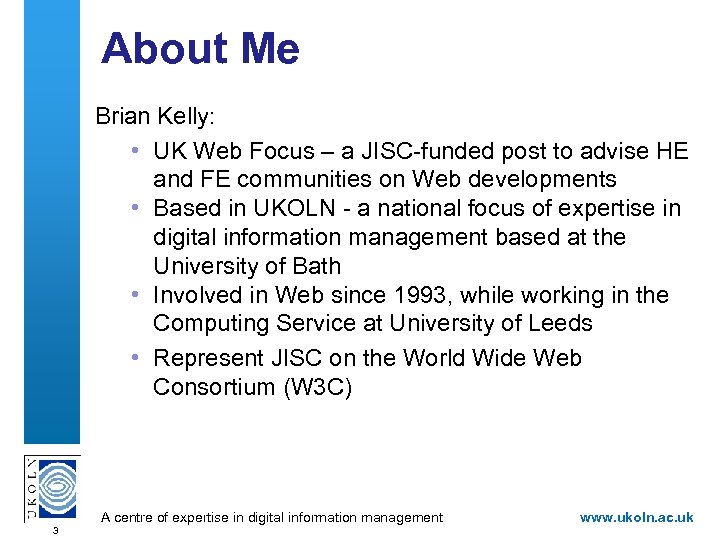

About Me Brian Kelly: • UK Web Focus – a JISC-funded post to advise HE and FE communities on Web developments • Based in UKOLN - a national focus of expertise in digital information management based at the University of Bath • Involved in Web since 1993, while working in the Computing Service at University of Leeds • Represent JISC on the World Wide Web Consortium (W 3 C) A centre of expertise in digital information management 3 www. ukoln. ac. uk
Standards in HE/FE Context Standards are important in the HE and FE sector to: • • • Ensure widespread access to resources Enables resources to be reused and repurposed Ensure scholarly resources can be preserved Address accountability of public funding Minimise resource costs for upgrading systems Provide universal access to resources (cf disability legislation) A centre of expertise in digital information management 4 www. ukoln. ac. uk

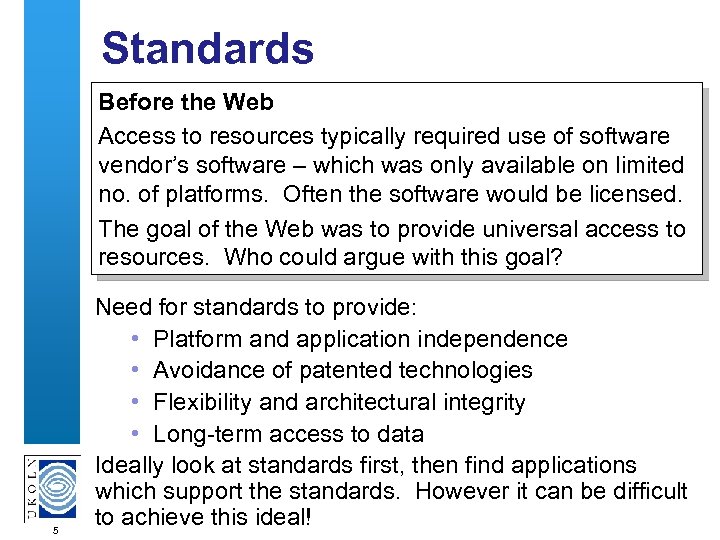

Standards Before the Web Access to resources typically required use of software vendor’s software – which was only available on limited no. of platforms. Often the software would be licensed. The goal of the Web was to provide universal access to resources. Who could argue with this goal? 5 Need for standards to provide: • Platform and application independence • Avoidance of patented technologies • Flexibility and architectural integrity • Long-term access to data Ideally look at standards first, then find applications which support the standards. However it can be difficult A achieve this ideal! www. ukoln. ac. uk tocentre of expertise in digital information management

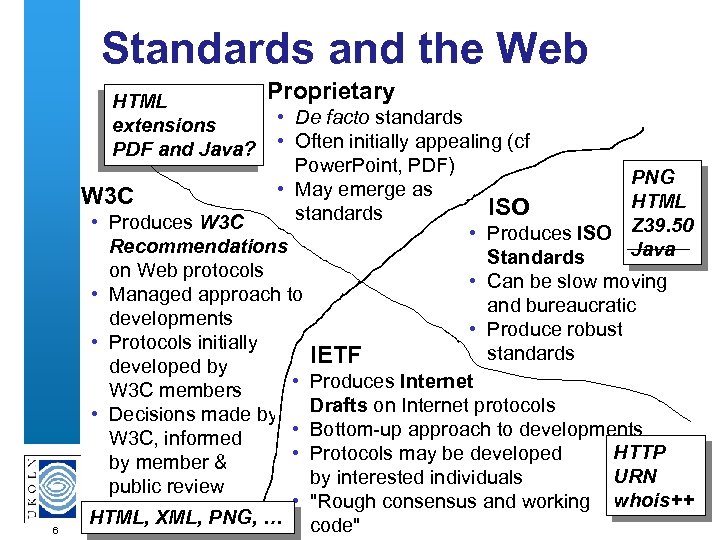

Standards and the Web HTML extensions PDF and Java? 6 Proprietary • De facto standards • Often initially appealing (cf Power. Point, PDF) PNG • May emerge as W 3 C HTML ISO standards • Produces W 3 C • Produces ISO Z 39. 50 Recommendations Java Standards on Web protocols • Can be slow moving • Managed approach to and bureaucratic developments • Produce robust • Protocols initially standards IETF developed by • Produces Internet W 3 C members Drafts on Internet protocols • Decisions made by • Bottom-up approach to developments W 3 C, informed HTTP • Protocols may be developed by member & URN by interested individuals public review • "Rough consensus and working whois++ A centre of expertise in digital www. ukoln. ac. uk HTML, XML, PNG, … information management code"
The Case For W 3 C Standards Why use open standards developed by the W 3 C? Why not leave it to the marketplace? J W 3 C’s open standards have been developed in an open environment, with the aim of achieving platform and application independency L Commercial companies develop proprietary formats in order to maximise their profits and dividends to shareholders J W 3 C’s open standards have been developed to interoperate with each other according to W 3 C’s design vision L Commercial companies typically develop proprietary formats in isolation, or along the lines of a company vision A centre of expertise in digital information management 7 www. ukoln. ac. uk

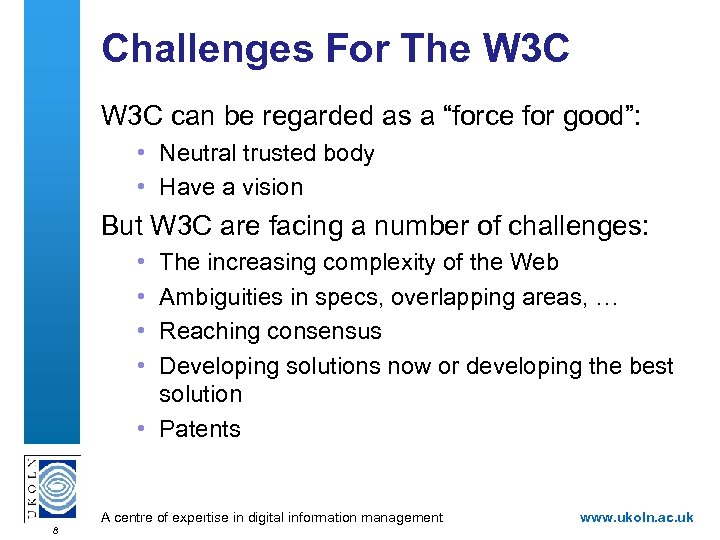

Challenges For The W 3 C can be regarded as a “force for good”: • Neutral trusted body • Have a vision But W 3 C are facing a number of challenges: • • The increasing complexity of the Web Ambiguities in specs, overlapping areas, … Reaching consensus Developing solutions now or developing the best solution • Patents A centre of expertise in digital information management 8 www. ukoln. ac. uk

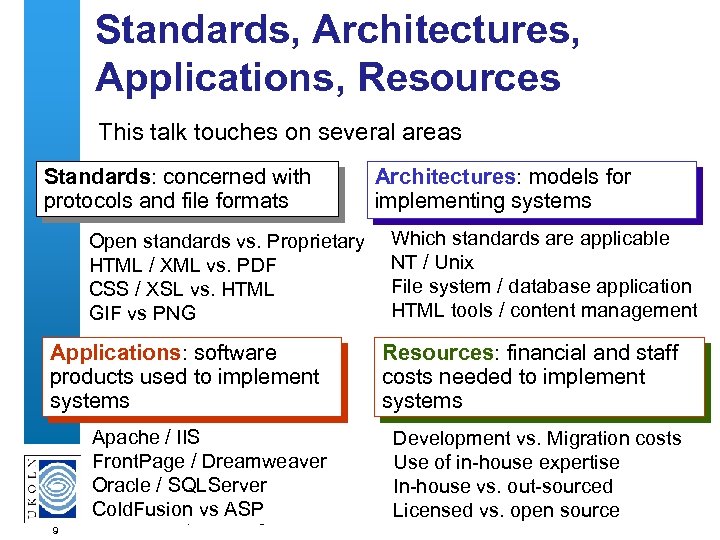

Standards, Architectures, Applications, Resources This talk touches on several areas Standards: concerned with protocols and file formats Open standards vs. Proprietary HTML / XML vs. PDF CSS / XSL vs. HTML GIF vs PNG Applications: software products used to implement systems Architectures: models for implementing systems Which standards are applicable NT / Unix File system / database application HTML tools / content management Resources: financial and staff costs needed to implement systems Apache / IIS Development vs. Migration costs Front. Page / Dreamweaver Use of in-house expertise Oracle / SQLServer In-house vs. out-sourced Cold. Fusion vs ASP information management Licensed vs. open source A centre of expertise in digital www. ukoln. ac. uk 9

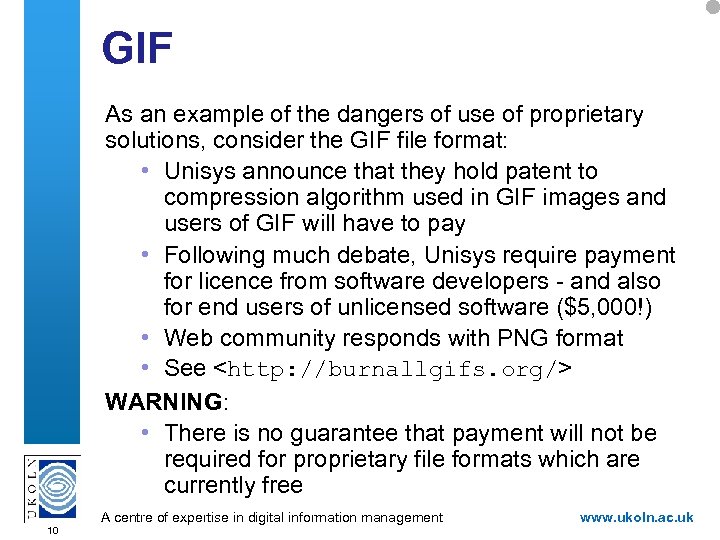

GIF As an example of the dangers of use of proprietary solutions, consider the GIF file format: • Unisys announce that they hold patent to compression algorithm used in GIF images and users of GIF will have to pay • Following much debate, Unisys require payment for licence from software developers - and also for end users of unlicensed software ($5, 000!) • Web community responds with PNG format • See <http: //burnallgifs. org/> WARNING: • There is no guarantee that payment will not be required for proprietary file formats which are currently free A centre of expertise in digital information management 10 www. ukoln. ac. uk

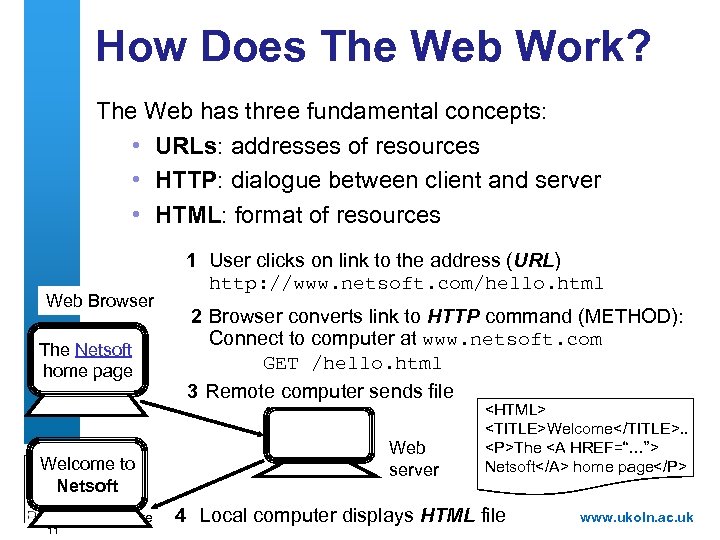

How Does The Web Work? The Web has three fundamental concepts: • URLs: addresses of resources • HTTP: dialogue between client and server • HTML: format of resources Web Browser The Netsoft home page Welcome to Netsoft 11 1 User clicks on link to the address (URL) http: //www. netsoft. com/hello. html 2 Browser converts link to HTTP command (METHOD): Connect to computer at www. netsoft. com GET /hello. html 3 Remote computer sends file Web server A centre of expertise in digital information management 4 Local computer displays HTML <HTML> <TITLE>Welcome</TITLE>. . <P>The <A HREF=“…”> Netsoft</A> home page</P> file www. ukoln. ac. uk

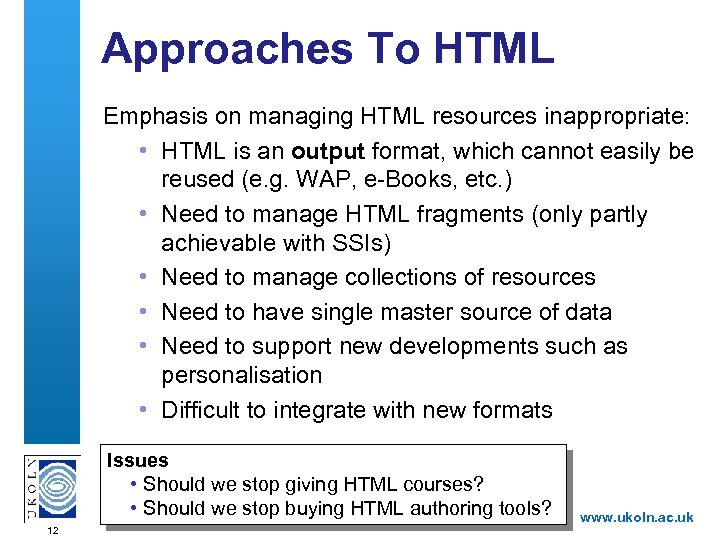

Approaches To HTML Emphasis on managing HTML resources inappropriate: • HTML is an output format, which cannot easily be reused (e. g. WAP, e-Books, etc. ) • Need to manage HTML fragments (only partly achievable with SSIs) • Need to manage collections of resources • Need to have single master source of data • Need to support new developments such as personalisation • Difficult to integrate with new formats Issues • Should we stop giving HTML courses? • Should we digital information management A centre of expertise instop buying HTML authoring tools? 12 www. ukoln. ac. uk

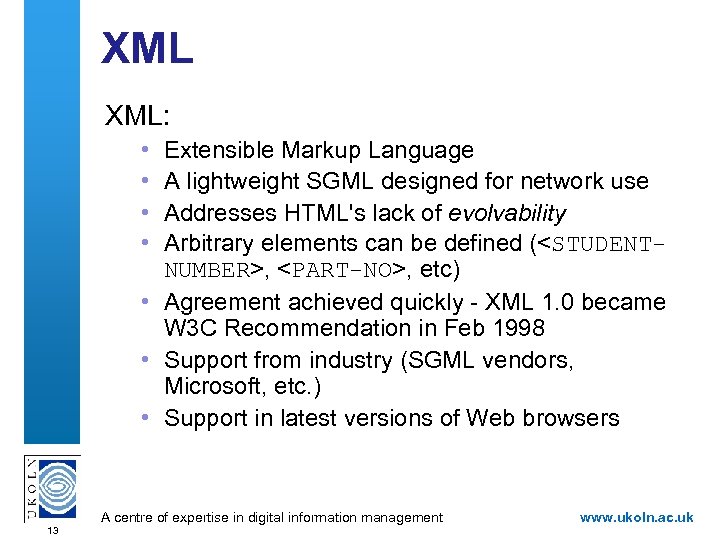

XML XML: • • Extensible Markup Language A lightweight SGML designed for network use Addresses HTML's lack of evolvability Arbitrary elements can be defined (<STUDENTNUMBER>, <PART-NO>, etc) • Agreement achieved quickly - XML 1. 0 became W 3 C Recommendation in Feb 1998 • Support from industry (SGML vendors, Microsoft, etc. ) • Support in latest versions of Web browsers A centre of expertise in digital information management 13 www. ukoln. ac. uk

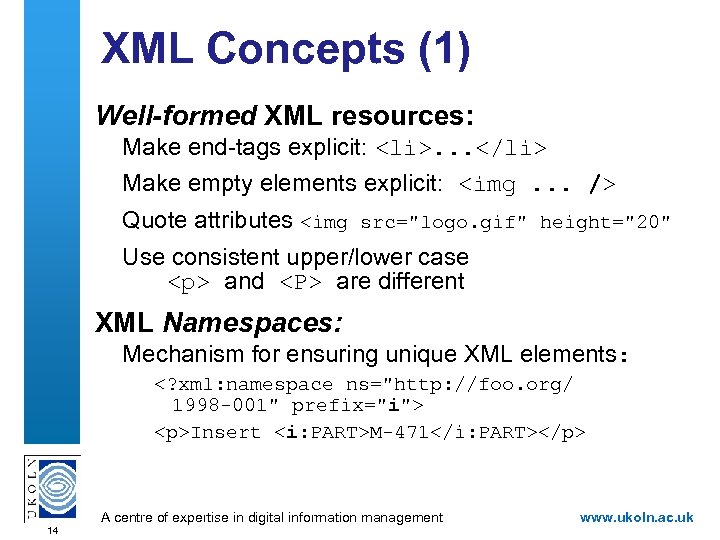

XML Concepts (1) Well-formed XML resources: Make end-tags explicit: <li>. . . </li> Make empty elements explicit: <img. . . /> Quote attributes <img src="logo. gif" height="20" Use consistent upper/lower case <p> and <P> are different XML Namespaces: Mechanism for ensuring unique XML elements: <? xml: namespace ns="http: //foo. org/ 1998 -001" prefix="i"> <p>Insert <i: PART>M-471</i: PART></p> A centre of expertise in digital information management 14 www. ukoln. ac. uk

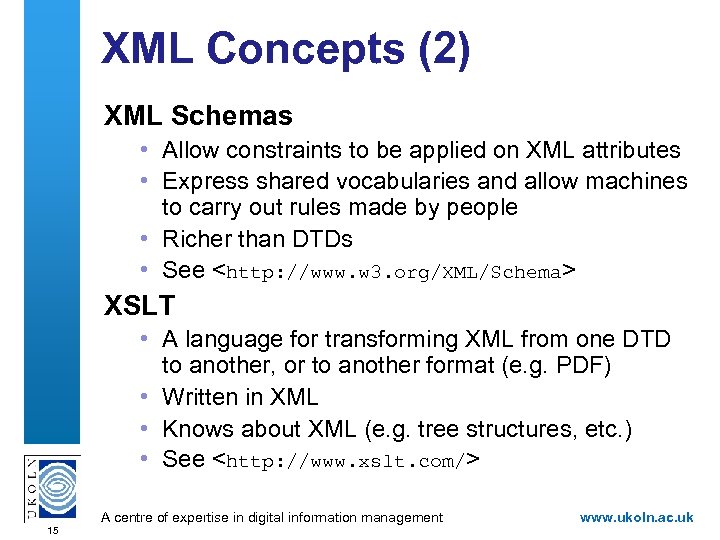

XML Concepts (2) XML Schemas • Allow constraints to be applied on XML attributes • Express shared vocabularies and allow machines to carry out rules made by people • Richer than DTDs • See <http: //www. w 3. org/XML/Schema> XSLT • A language for transforming XML from one DTD to another, or to another format (e. g. PDF) • Written in XML • Knows about XML (e. g. tree structures, etc. ) • See <http: //www. xslt. com/> A centre of expertise in digital information management 15 www. ukoln. ac. uk

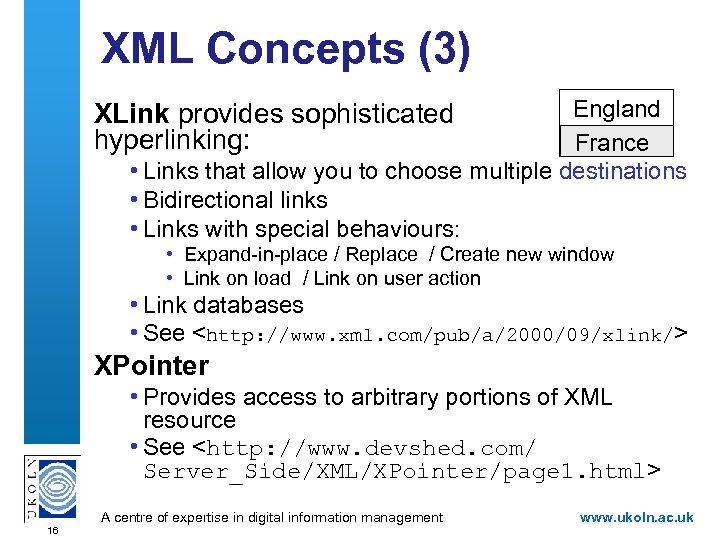

XML Concepts (3) England France • Links that allow you to choose multiple destinations • Bidirectional links • Links with special behaviours: XLink provides sophisticated hyperlinking: • Expand-in-place / Replace / Create new window • Link on load / Link on user action • Link databases • See <http: //www. xml. com/pub/a/2000/09/xlink/> XPointer • Provides access to arbitrary portions of XML resource • See <http: //www. devshed. com/ Server_Side/XML/XPointer/page 1. html> A centre of expertise in digital information management 16 www. ukoln. ac. uk

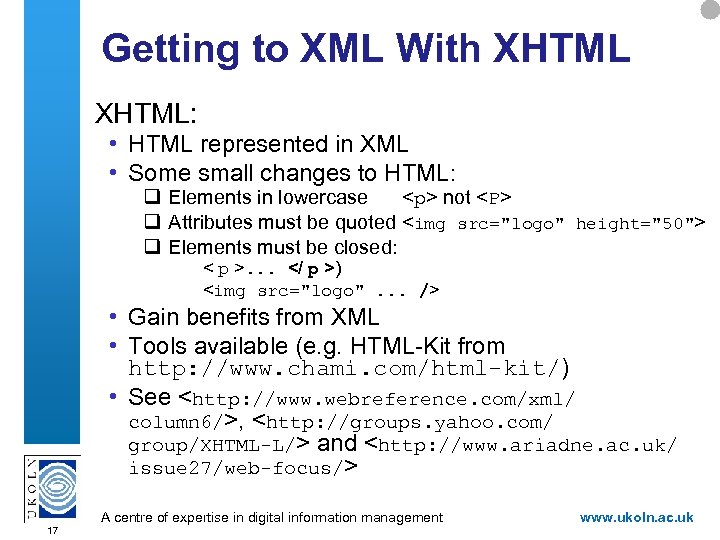

Getting to XML With XHTML: • HTML represented in XML • Some small changes to HTML: Elements in lowercase <p> not <P> Attributes must be quoted <img src="logo" height="50"> Elements must be closed: < p >. . . </ p >) <img src="logo". . . /> • Gain benefits from XML • Tools available (e. g. HTML-Kit from http: //www. chami. com/html-kit/) • See <http: //www. webreference. com/xml/ column 6/>, <http: //groups. yahoo. com/ group/XHTML-L/> and <http: //www. ariadne. ac. uk/ issue 27/web-focus/> A centre of expertise in digital information management 17 www. ukoln. ac. uk

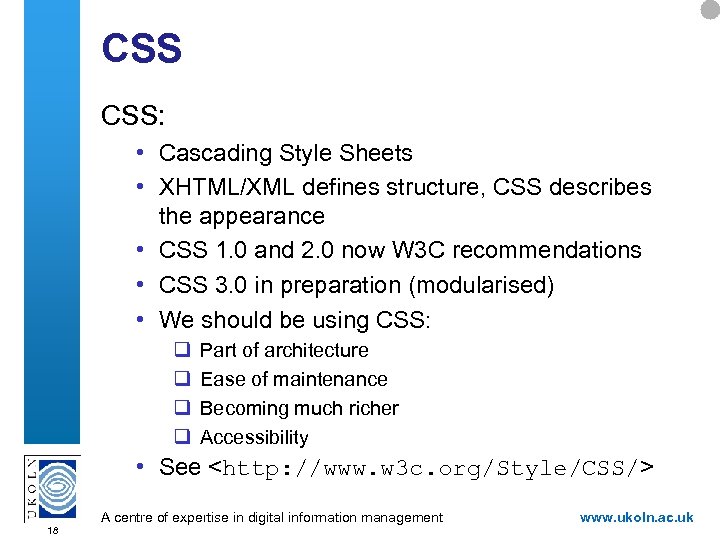

CSS CSS: • Cascading Style Sheets • XHTML/XML defines structure, CSS describes the appearance • CSS 1. 0 and 2. 0 now W 3 C recommendations • CSS 3. 0 in preparation (modularised) • We should be using CSS: Part of architecture Ease of maintenance Becoming much richer Accessibility • See <http: //www. w 3 c. org/Style/CSS/> A centre of expertise in digital information management 18 www. ukoln. ac. uk
SVG SVG: • Scalable Vector Graphics • A language for describing two-dimensional graphics in XML • See <http: //www. w 3. org/Graphics/SVG/ Overview. htm 8> • Also see presentation on XML written in SVG at <http: //www. w 3 c. org/Talks/2001/12/ IH-Euroweb/W 3 CIn. The. Worldslide. svgz> • WWW 2002 talk at <http: //www. w 3 c. org/2002/Talks/ www 2002 -SVG/> A centre of expertise in digital information management 19 www. ukoln. ac. uk
A centre of expertise in digital information management 20 www. ukoln. ac. uk
SVG Example http: //www. karto. ethz. ch/neumann/cartography/vienna/ www. ukoln. ac. uk A centre of expertise in digital information management 21

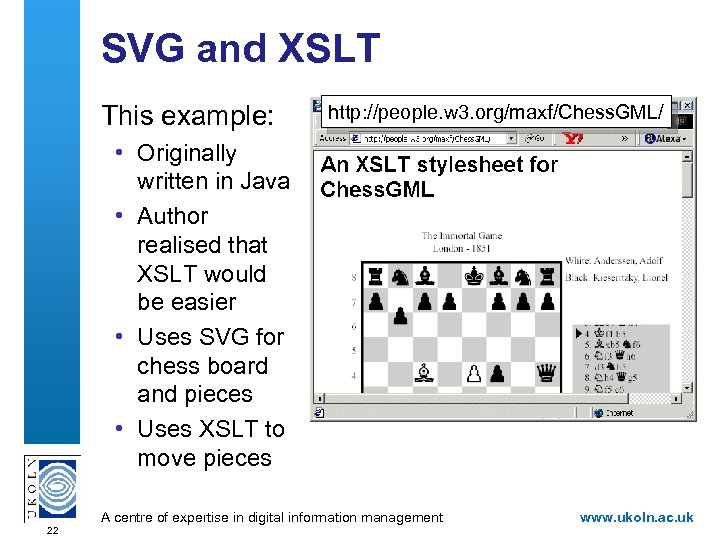

SVG and XSLT This example: http: //people. w 3. org/maxf/Chess. GML/ • Originally written in Java • Author realised that XSLT would be easier • Uses SVG for chess board and pieces • Uses XSLT to move pieces A centre of expertise in digital information management 22 www. ukoln. ac. uk

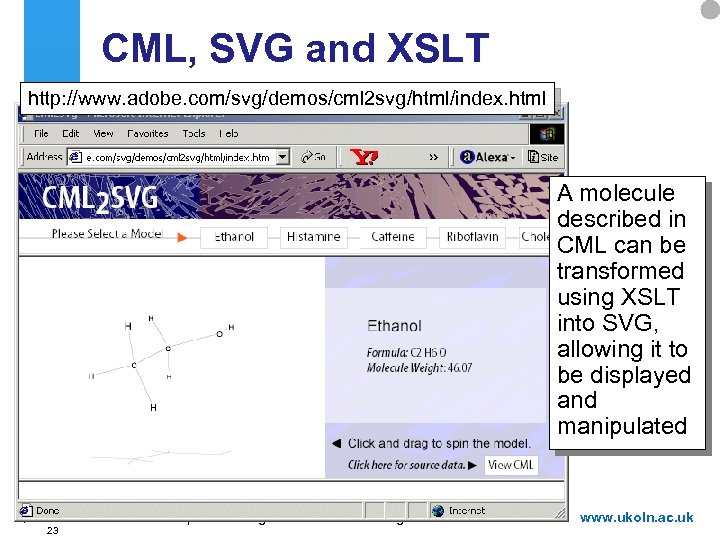

CML, SVG and XSLT http: //www. adobe. com/svg/demos/cml 2 svg/html/index. html A molecule described in CML can be transformed using XSLT into SVG, allowing it to be displayed and manipulated A centre of expertise in digital information management 23 www. ukoln. ac. uk

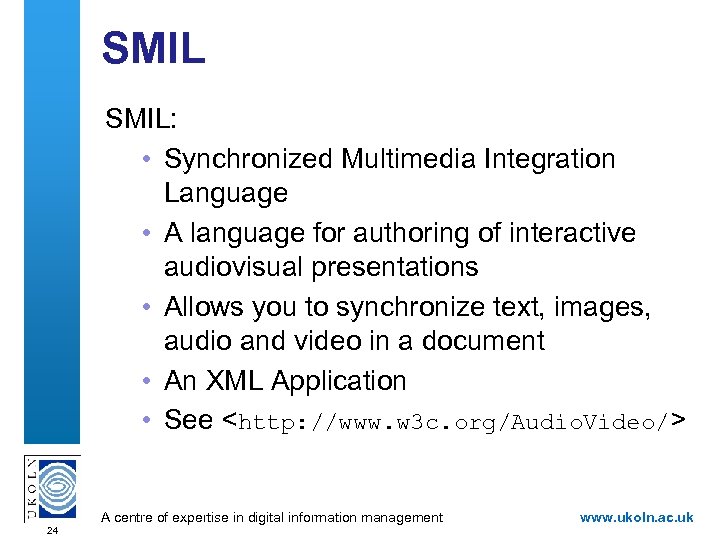

SMIL: • Synchronized Multimedia Integration Language • A language for authoring of interactive audiovisual presentations • Allows you to synchronize text, images, audio and video in a document • An XML Application • See <http: //www. w 3 c. org/Audio. Video/> A centre of expertise in digital information management 24 www. ukoln. ac. uk

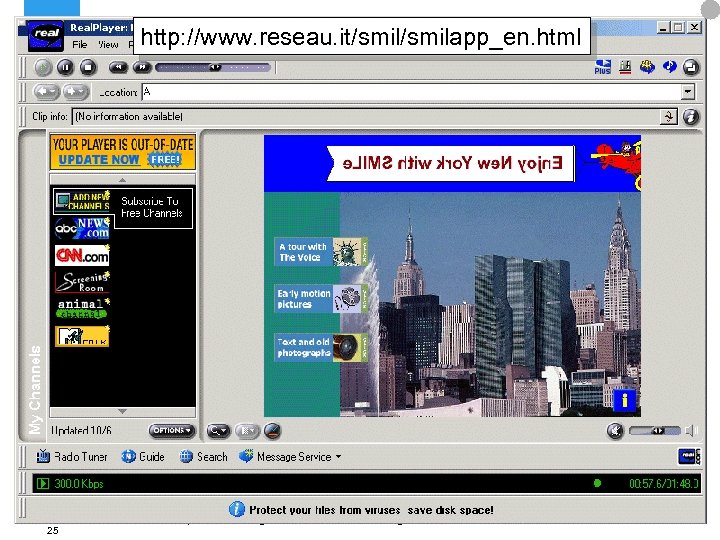

http: //www. reseau. it/smilapp_en. html SMIL Example http: //www. kevlindev. com/tutorials/ basics/animation/svg_smil/index. htm A centre of expertise in digital information management 25 www. ukoln. ac. uk

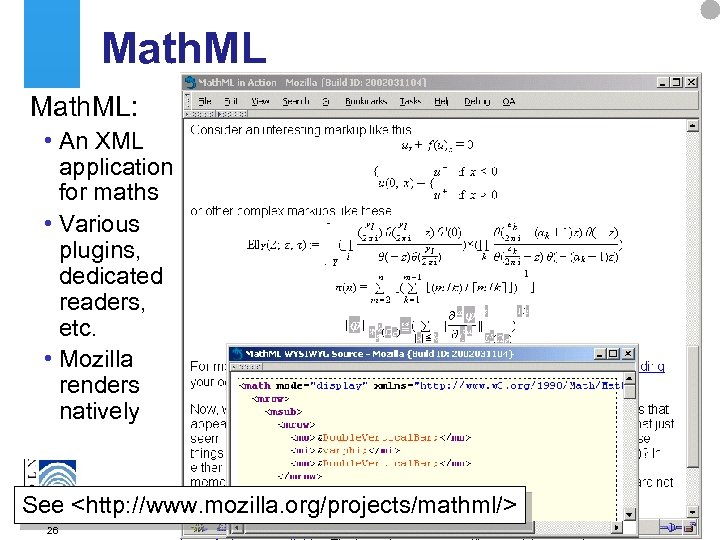

Math. ML: • An XML application for maths • Various plugins, dedicated readers, etc. • Mozilla renders natively See <http: //www. mozilla. org/projects/mathml/> A centre of expertise in digital information management 26 www. ukoln. ac. uk

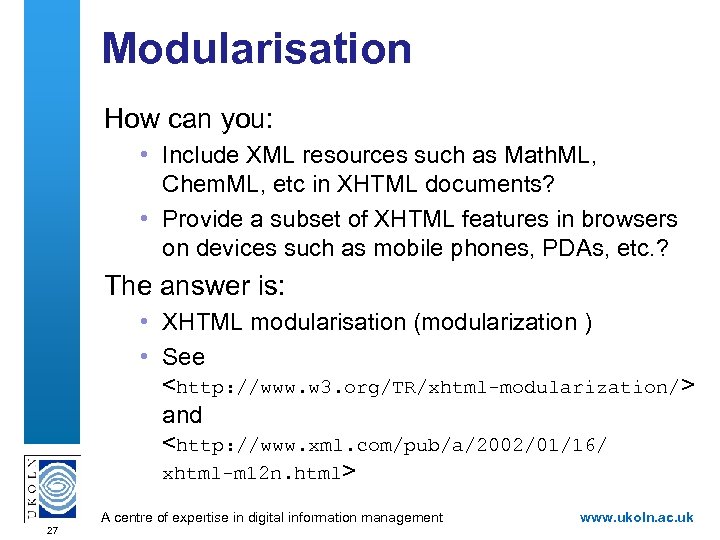

Modularisation How can you: • Include XML resources such as Math. ML, Chem. ML, etc in XHTML documents? • Provide a subset of XHTML features in browsers on devices such as mobile phones, PDAs, etc. ? The answer is: • XHTML modularisation (modularization ) • See <http: //www. w 3. org/TR/xhtml-modularization/> and <http: //www. xml. com/pub/a/2002/01/16/ xhtml-m 12 n. html> A centre of expertise in digital information management 27 www. ukoln. ac. uk

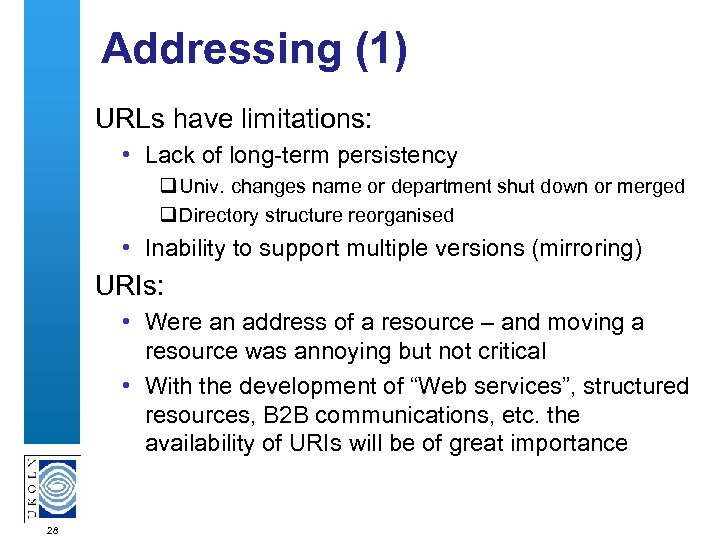

Addressing (1) URLs have limitations: • Lack of long-term persistency Univ. changes name or department shut down or merged Directory structure reorganised • Inability to support multiple versions (mirroring) URIs: • Were an address of a resource – and moving a resource was annoying but not critical • With the development of “Web services”, structured resources, B 2 B communications, etc. the availability of URIs will be of great importance A centre of expertise in digital information management 28 www. ukoln. ac. uk

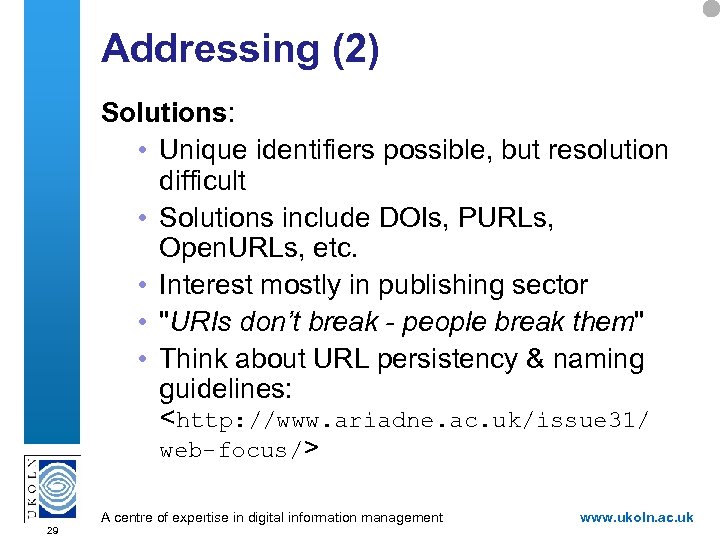

Addressing (2) Solutions: • Unique identifiers possible, but resolution difficult • Solutions include DOIs, PURLs, Open. URLs, etc. • Interest mostly in publishing sector • "URIs don’t break - people break them" • Think about URL persistency & naming guidelines: <http: //www. ariadne. ac. uk/issue 31/ web-focus/> A centre of expertise in digital information management 29 www. ukoln. ac. uk
Transport - The Original Roadmap HTTP/0. 9 and HTTP/1. 0: L Design flaws and implementation problems HTTP/1. 1: J Addresses some of these problems J 60% server support J Performance benefits! (60% packet traffic reduction) K Is acting as fire-fighter L Not sufficiently flexible or extensible HTTP/NG: J Radical redesign using object-oriented technologies J Undergoing trials J Gradual transition (using proxies) A centre of expertise in digital information management 30 www. ukoln. ac. uk

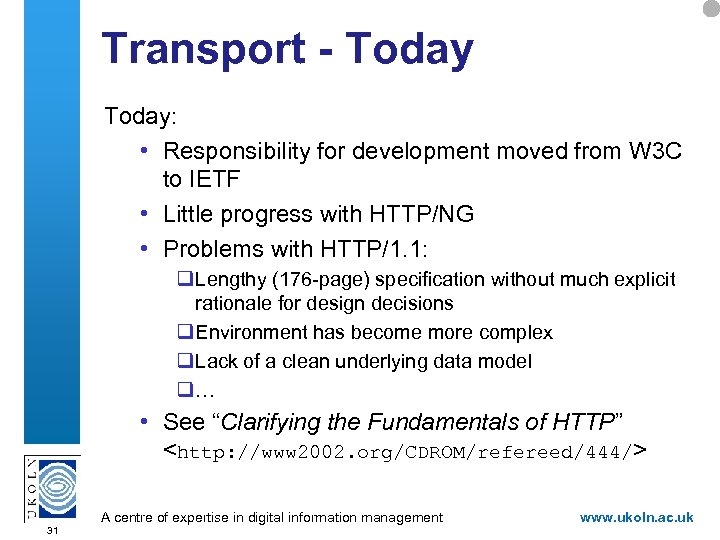

Transport - Today: • Responsibility for development moved from W 3 C to IETF • Little progress with HTTP/NG • Problems with HTTP/1. 1: Lengthy (176 -page) specification without much explicit rationale for design decisions Environment has become more complex Lack of a clean underlying data model … • See “Clarifying the Fundamentals of HTTP” <http: //www 2002. org/CDROM/refereed/444/> A centre of expertise in digital information management 31 www. ukoln. ac. uk

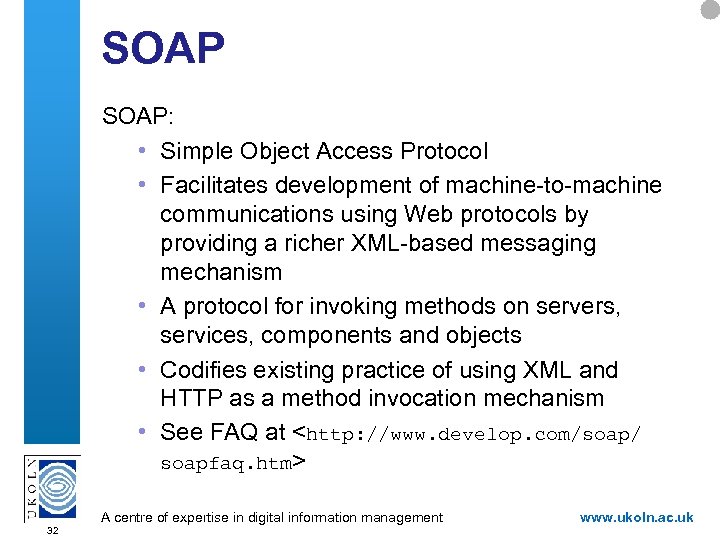

SOAP: • Simple Object Access Protocol • Facilitates development of machine-to-machine communications using Web protocols by providing a richer XML-based messaging mechanism • A protocol for invoking methods on servers, services, components and objects • Codifies existing practice of using XML and HTTP as a method invocation mechanism • See FAQ at <http: //www. develop. com/soap/ soapfaq. htm> A centre of expertise in digital information management 32 www. ukoln. ac. uk

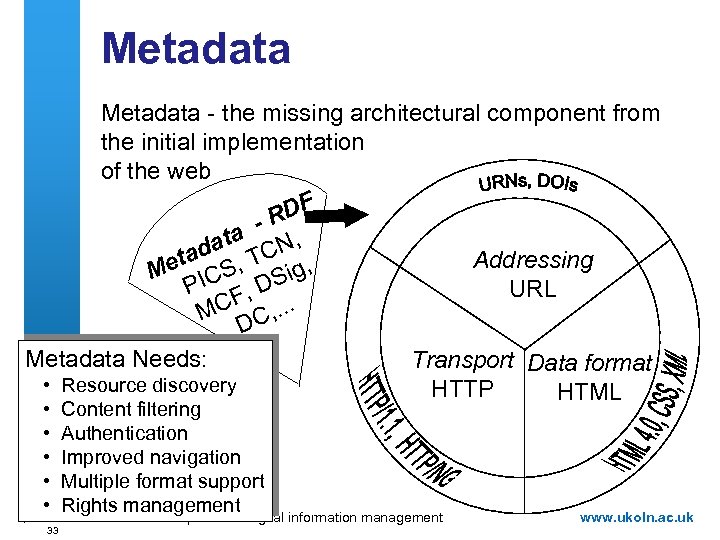

Metadata - the missing architectural component from the initial implementation of the web F RD ta N, ada , TC , t Addressing Me ICS ig P F, DS URL MC C, . . . D Metadata Needs: Transport Data format • Resource discovery HTTP HTML • • • 33 Content filtering Authentication Improved navigation Multiple format support Rightscentre of expertise in digital information management A www. ukoln. ac. uk

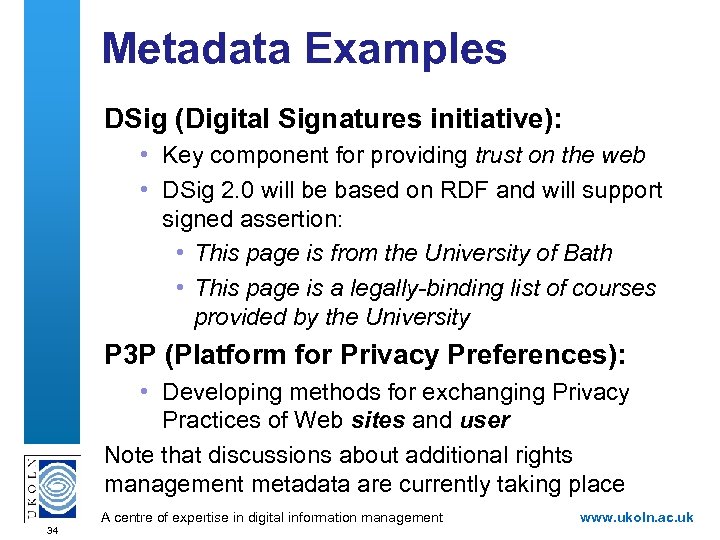

Metadata Examples DSig (Digital Signatures initiative): • Key component for providing trust on the web • DSig 2. 0 will be based on RDF and will support signed assertion: • This page is from the University of Bath • This page is a legally-binding list of courses provided by the University P 3 P (Platform for Privacy Preferences): • Developing methods for exchanging Privacy Practices of Web sites and user Note that discussions about additional rights management metadata are currently taking place A centre of expertise in digital information management 34 www. ukoln. ac. uk
RDF (Resource Description Framework): • Highlight of WWW 7 conference • Provides a metadata framework ("machine understandable metadata for the web") • Based on ideas from content rating (PICS), resource discovery (Dublin Core) and site mapping (MCF) • Applications include: cataloging resources resource discovery electronic commerce intelligent agents digital signatures content rating intellectual property rights privacy • See <URL: http: //www. w 3. org/ Talks/1998/0417 -WWW 7 -RDF> A centre of expertise in digital information management 35 www. ukoln. ac. uk

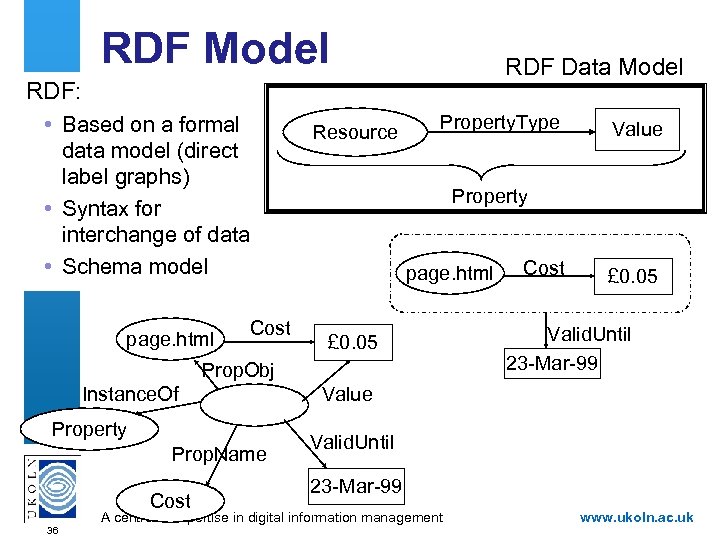

RDF Model RDF Data Model RDF: • Based on a formal data model (direct label graphs) • Syntax for interchange of data • Schema model page. html Cost Resource Property. Type Property page. html £ 0. 05 Prop. Obj Instance. Of Property Prop. Name Cost £ 0. 05 Valid. Until 23 -Mar-99 Value Valid. Until 23 -Mar-99 A centre of expertise in digital information management 36 Value www. ukoln. ac. uk

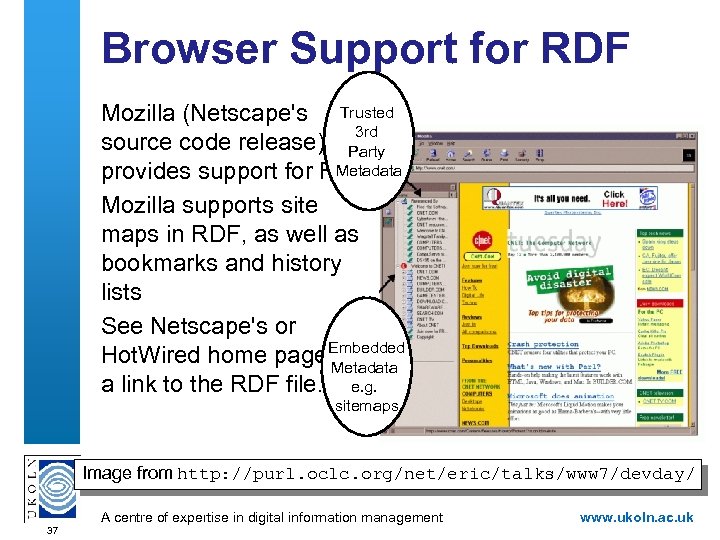

Browser Support for RDF Mozilla (Netscape's Trusted 3 rd source code release) Party Metadata provides support for RDF. Mozilla supports site maps in RDF, as well as bookmarks and history lists See Netscape's or Hot. Wired home page. Embedded for Metadata a link to the RDF file. e. g. sitemaps Image from http: //purl. oclc. org/net/eric/talks/www 7/devday/ A centre of expertise in digital information management 37 www. ukoln. ac. uk

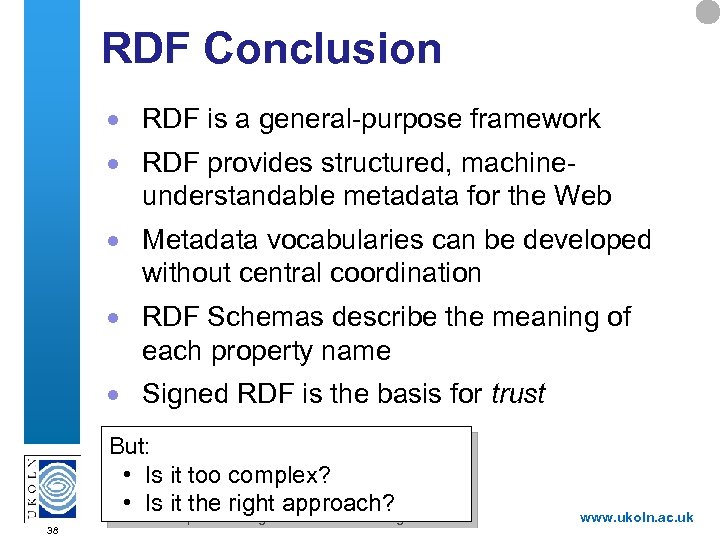

RDF Conclusion · RDF is a general-purpose framework · RDF provides structured, machineunderstandable metadata for the Web · Metadata vocabularies can be developed without central coordination · RDF Schemas describe the meaning of each property name · Signed RDF is the basis for trust But: • Is it too complex? • Is it the right approach? A centre of expertise in digital information management 38 www. ukoln. ac. uk
RSS – An XML/RDF Application RSS (Rich / RDF Site Summary): • Initially XML, now an RDF application • Used for news feeds • Lightweight approach that we should be investigating (e. g. see news page on IWMW 2002 Web site) See example of an RSS authoring tool and parser at <http: //rssxpress. ukoln. ac. uk/> A centre of expertise in digital information management 39 www. ukoln. ac. uk

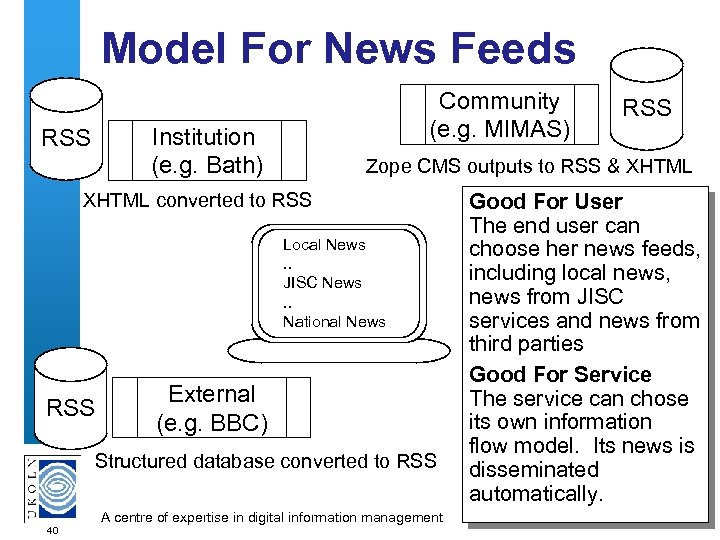

Model For News Feeds Community (e. g. MIMAS) Institution (e. g. Bath) RSS Zope CMS outputs to RSS & XHTML converted to RSS Local News. . JISC News. . National News RSS External (e. g. BBC) Structured database converted to RSS A centre of expertise in digital information management 40 RSS Good For User The end user can choose her news feeds, including local news, news from JISC services and news from third parties Good For Service The service can chose its own information flow model. Its news is disseminated automatically. www. ukoln. ac. uk

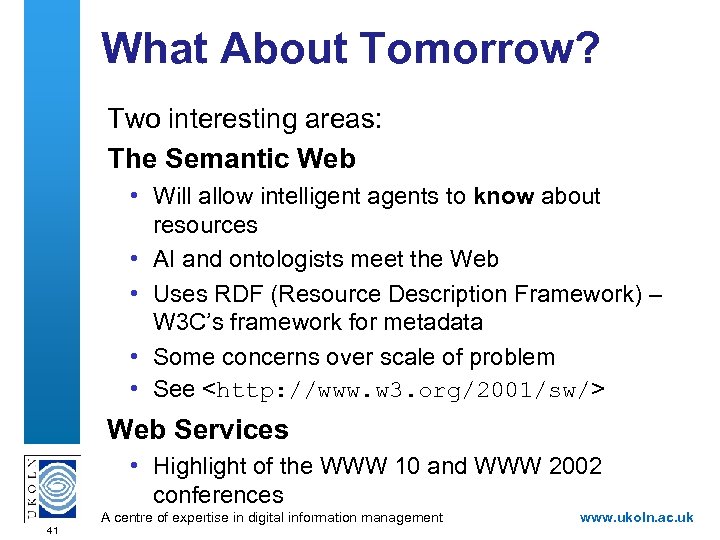

What About Tomorrow? Two interesting areas: The Semantic Web • Will allow intelligent agents to know about resources • AI and ontologists meet the Web • Uses RDF (Resource Description Framework) – W 3 C’s framework for metadata • Some concerns over scale of problem • See <http: //www. w 3. org/2001/sw/> Web Services • Highlight of the WWW 10 and WWW 2002 conferences A centre of expertise in digital information management 41 www. ukoln. ac. uk

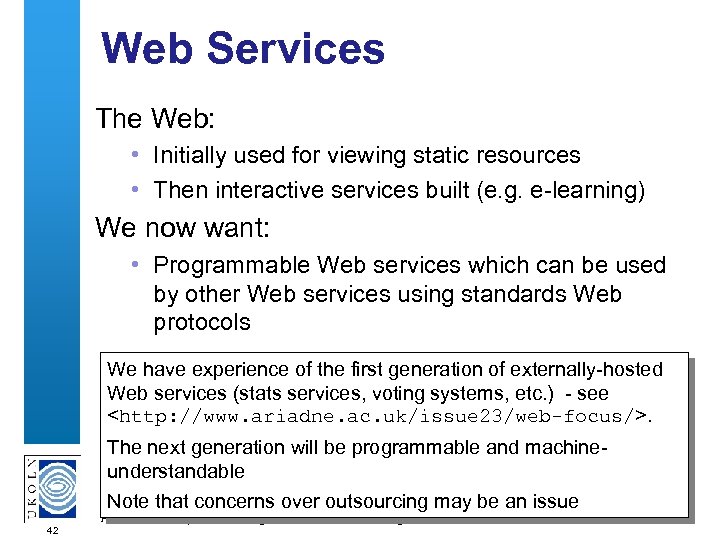

Web Services The Web: • Initially used for viewing static resources • Then interactive services built (e. g. e-learning) We now want: • Programmable Web services which can be used by other Web services using standards Web protocols We have experience of the first generation of externally-hosted Web services (stats services, voting systems, etc. ) - see <http: //www. ariadne. ac. uk/issue 23/web-focus/>. The next generation will be programmable and machineunderstandable Note that concerns over outsourcing may be an issue A centre of expertise in digital information management 42 www. ukoln. ac. uk

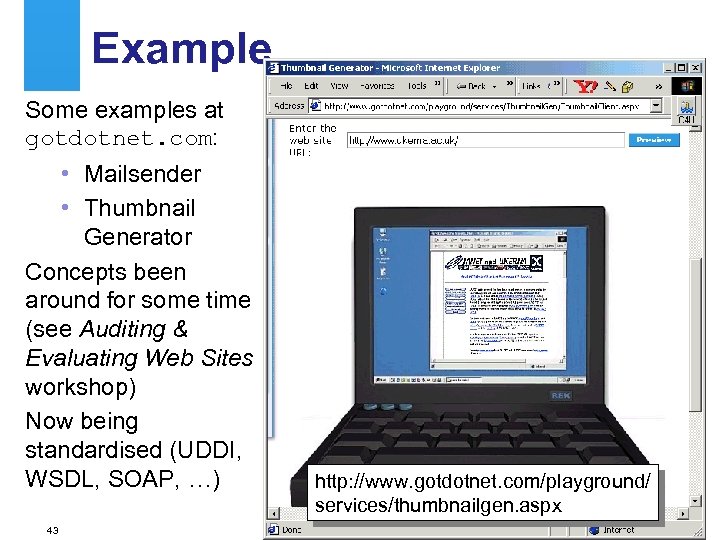

Example Some examples at gotdotnet. com: • Mailsender • Thumbnail Generator Concepts been around for some time (see Auditing & Evaluating Web Sites workshop) Now being standardised (UDDI, WSDL, SOAP, …) http: //www. gotdotnet. com/playground/ services/thumbnailgen. aspx A centre of expertise in digital information management 43 www. ukoln. ac. uk
We’ve Been Here Before Reusable components available on the network: • Sounds like COM/DCOM, CORBA, etc. for reusable program components Network services for use within a community: • Sounds like JISCmail, RDN, EDINA, MIMAS, BIDS, Mirror Service and other JISC Services • It’s outsourcing – but it’s OK! Web Services And UK HE / FE Communities Sounds like a great idea: • We’ve the organisational framework to develop national services (JISC, etc. ) • We’ve got the network • We’ve a community which is willing to exploit centrally-provided services and wants to avoid reinventing the wheel (haven’t we? ) A centre of expertise in digital information management 44 www. ukoln. ac. uk

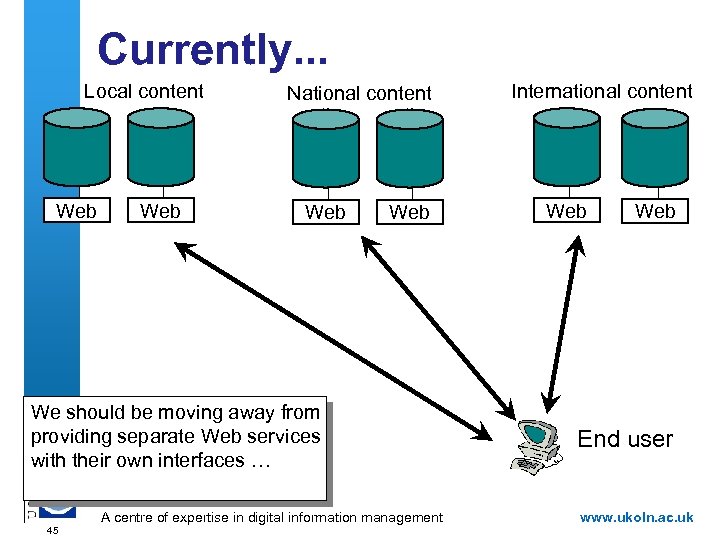

Currently. . . Local content Web National content Web We should be moving away from providing separate Web services with their own interfaces … A centre of expertise in digital information management 45 International content Web End user www. ukoln. ac. uk

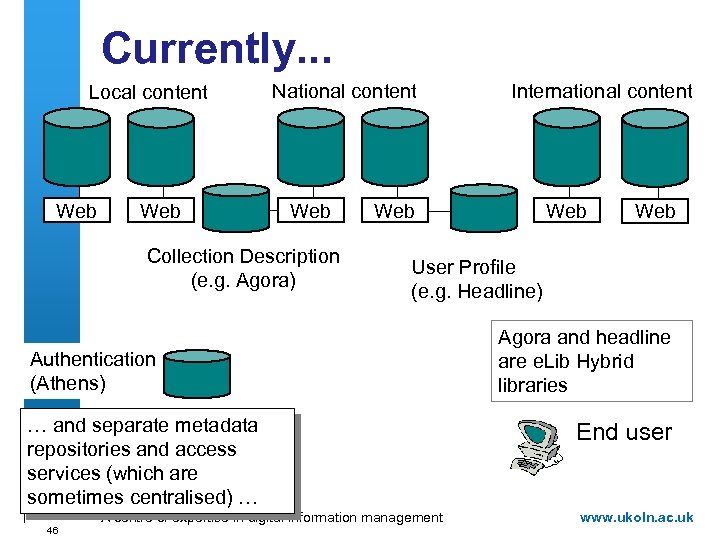

Currently. . . Local content Web National content Web Collection Description (e. g. Agora) Web Web User Profile (e. g. Headline) Authentication (Athens) … and separate metadata repositories and access services (which are sometimes centralised) … A centre of expertise in digital information management 46 International content Agora and headline are e. Lib Hybrid libraries End user www. ukoln. ac. uk
Future. . . Metadata Services / Access (Web) Services Content Application Services? Collection description User profile Authentication Brokered access provide by institutional portal (MLE, …) . . and move to Web-accessible, machine-understandable Web services as well as seamless access tocentre of expertise in digital information management content A 47 Bookmarks Spellchecker End user www. ukoln. ac. uk
Other W 3 C Areas See • W 3 C site map at <http: //www. w 3 c. org/Help/siteindex> • Tim. BL’s Web Design Issues at <http: //www. w 3 c. org/Design. Issues> • Web Architecture from 50, 000 feet at <http: //www. w 3. org/Design. Issues/Architecture. html> A centre of expertise in digital information management 48 www. ukoln. ac. uk

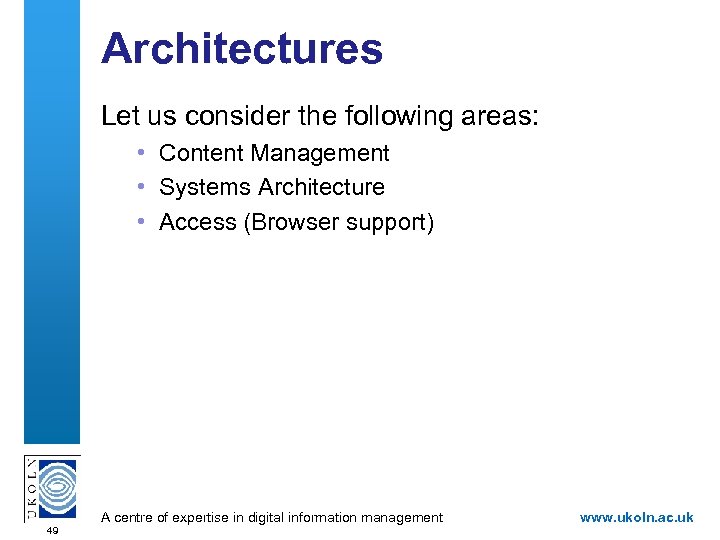

Architectures Let us consider the following areas: • Content Management • Systems Architecture • Access (Browser support) A centre of expertise in digital information management 49 www. ukoln. ac. uk

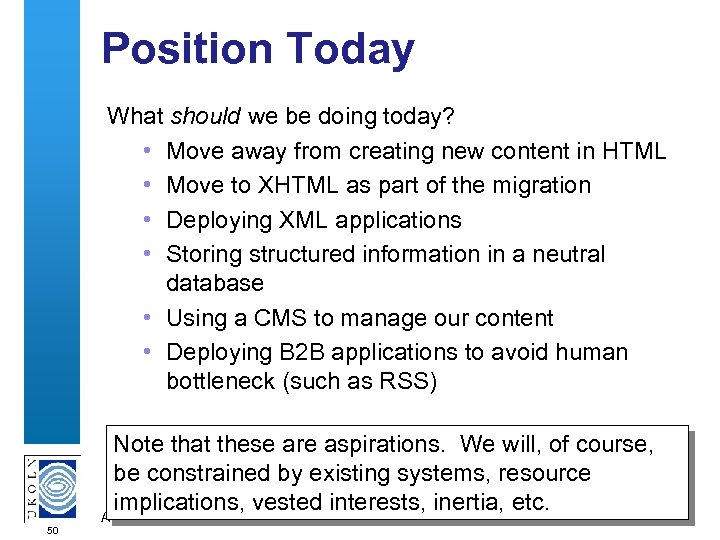

Position Today What should we be doing today? • Move away from creating new content in HTML • Move to XHTML as part of the migration • Deploying XML applications • Storing structured information in a neutral database • Using a CMS to manage our content • Deploying B 2 B applications to avoid human bottleneck (such as RSS) Note that these are aspirations. We will, of course, be constrained by existing systems, resource implications, vested interests, inertia, etc. www. ukoln. ac. uk A centre of expertise in digital information management 50

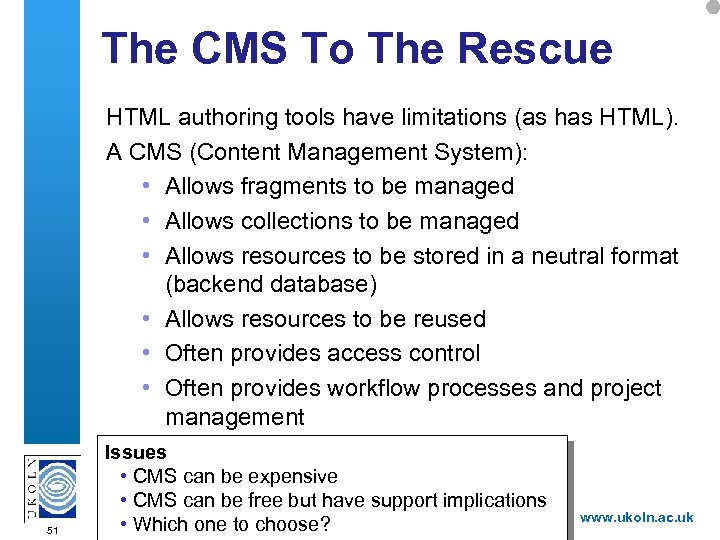

The CMS To The Rescue HTML authoring tools have limitations (as has HTML). A CMS (Content Management System): • Allows fragments to be managed • Allows collections to be managed • Allows resources to be stored in a neutral format (backend database) • Allows resources to be reused • Often provides access control • Often provides workflow processes and project management 51 Issues • CMS can be expensive • CMS can be free but have support implications A centre of expertise in digital information management • Which one to choose? www. ukoln. ac. uk

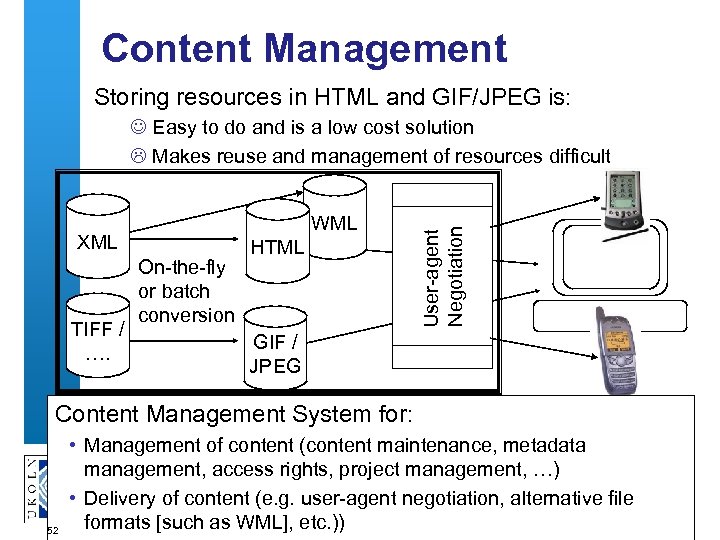

Content Management Storing resources in HTML and GIF/JPEG is: WML XML TIFF / …. On-the-fly or batch conversion HTML User-agent Negotiation J Easy to do and is a low cost solution L Makes reuse and management of resources difficult GIF / JPEG Content Management System for: 52 • Management of content (content maintenance, metadata management, access rights, project management, …) • Delivery of content (e. g. user-agent negotiation, alternative file A centre of expertise www. ukoln. ac. uk formats [such as in digital information management WML], etc. ))

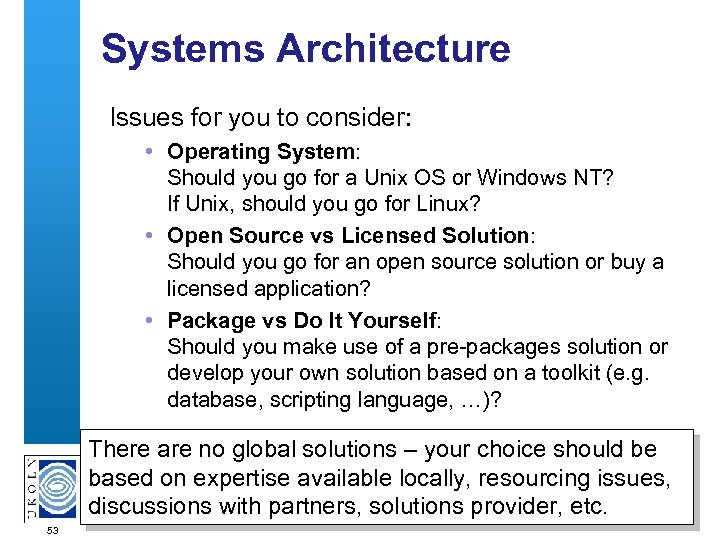

Systems Architecture Issues for you to consider: • Operating System: Should you go for a Unix OS or Windows NT? If Unix, should you go for Linux? • Open Source vs Licensed Solution: Should you go for an open source solution or buy a licensed application? • Package vs Do It Yourself: Should you make use of a pre-packages solution or develop your own solution based on a toolkit (e. g. database, scripting language, …)? There are no global solutions – your choice should be based on expertise available locally, resourcing issues, discussions with partners, management provider, etc. solutions A centre of expertise in digital information www. ukoln. ac. uk 53

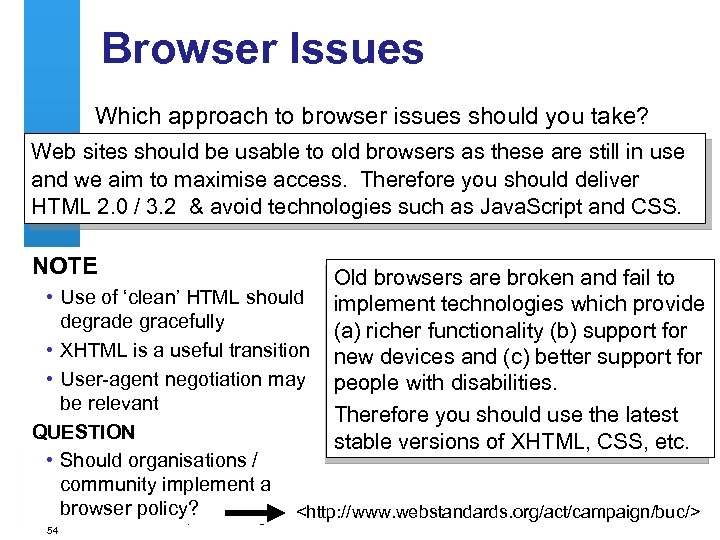

Browser Issues Which approach to browser issues should you take? Web sites should be usable to old browsers as these are still in use and we aim to maximise access. Therefore you should deliver HTML 2. 0 / 3. 2 & avoid technologies such as Java. Script and CSS. NOTE Old browsers are broken and fail to implement technologies which provide (a) richer functionality (b) support for new devices and (c) better support for people with disabilities. Therefore you should use the latest stable versions of XHTML, CSS, etc. • Use of ‘clean’ HTML should degrade gracefully • XHTML is a useful transition • User-agent negotiation may be relevant QUESTION • Should organisations / community implement a browser policy? <http: //www. webstandards. org/act/campaign/buc/> A centre of expertise in digital information management www. ukoln. ac. uk 54

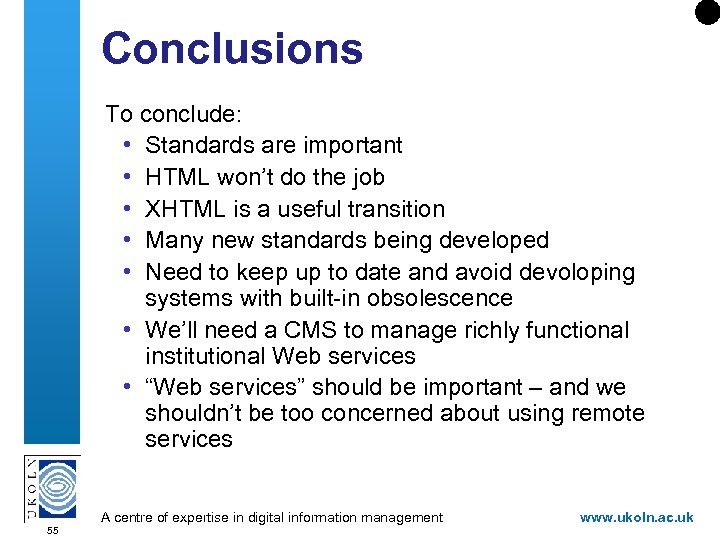

Conclusions To conclude: • Standards are important • HTML won’t do the job • XHTML is a useful transition • Many new standards being developed • Need to keep up to date and avoid devoloping systems with built-in obsolescence • We’ll need a CMS to manage richly functional institutional Web services • “Web services” should be important – and we shouldn’t be too concerned about using remote services A centre of expertise in digital information management 55 www. ukoln. ac. uk

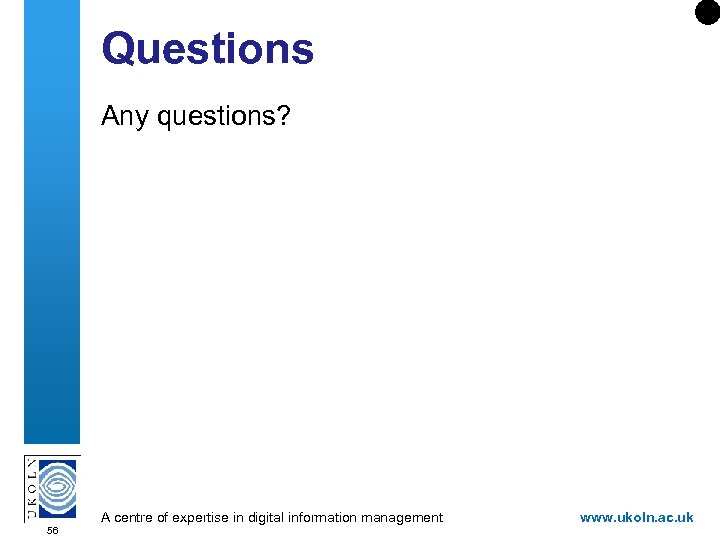

Questions Any questions? A centre of expertise in digital information management 56 www. ukoln. ac. uk
