An Accurate Assessment of the Situation Determining a

An Accurate Assessment of the Situation Determining a Community’s Wastewater Needs Nick Haig- University of Minnesota Onsite Sewage Treatment Program haigx 003@umn. edu - 612 -625 -9797

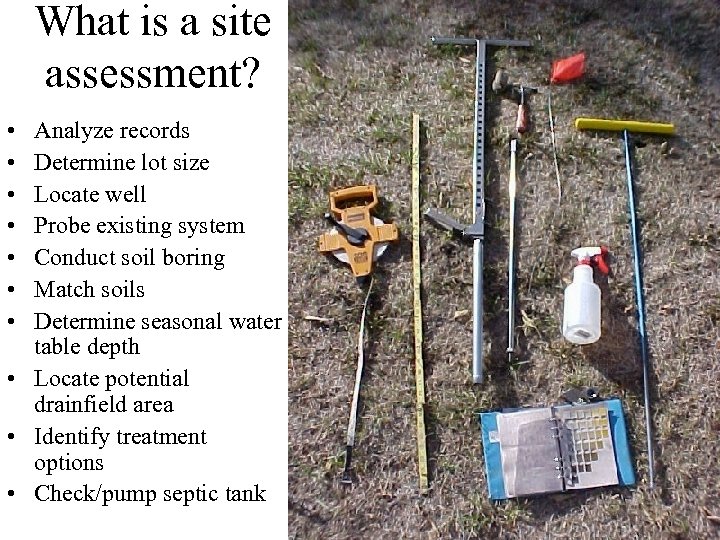

What is a site assessment? • • Analyze records Determine lot size Locate well Probe existing system Conduct soil boring Match soils Determine seasonal water table depth • Locate potential drainfield area • Identify treatment options • Check/pump septic tank

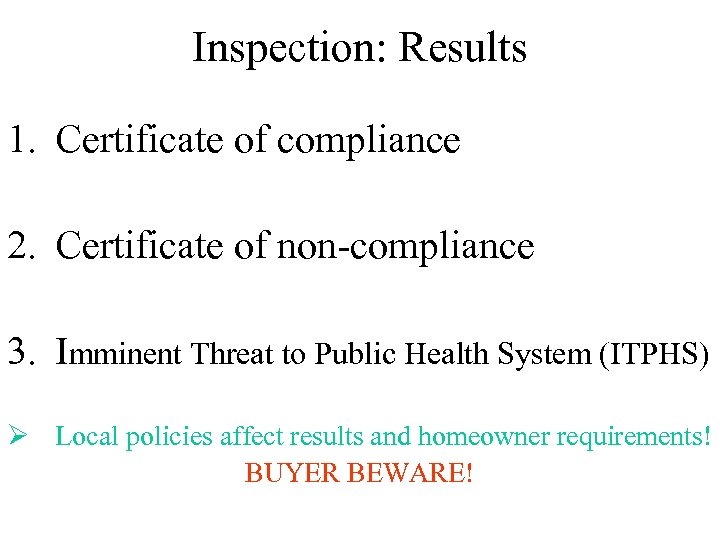

Inspection: Results 1. Certificate of compliance 2. Certificate of non-compliance 3. Imminent Threat to Public Health System (ITPHS) Ø Local policies affect results and homeowner requirements! BUYER BEWARE!

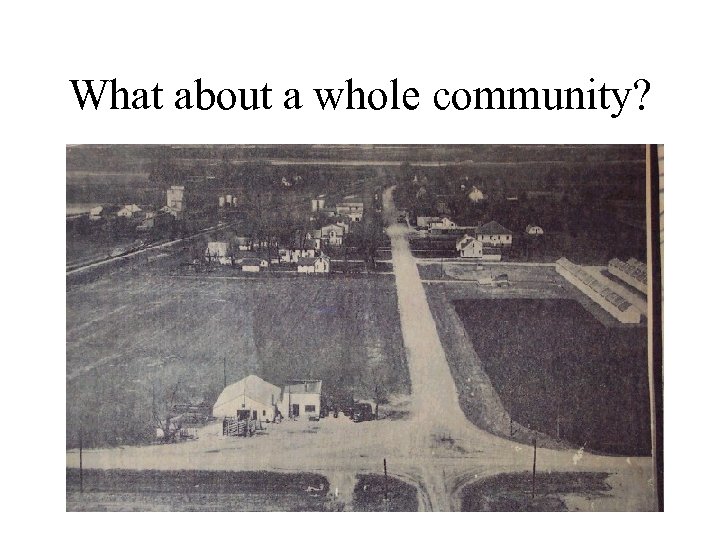

What about a whole community?

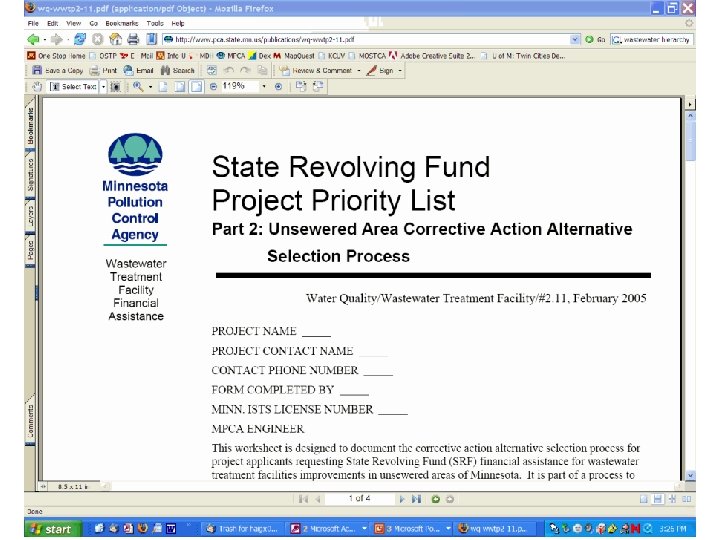

MPCA Unsewered Area Alternative Analysis 1. 2. 3. 4. Replace failed ISTS with new ISTS. Decentralized cluster system. Connect to existing facility. Connect to a facility, which requires an expansion. 5. Construct a new wastewater and treatment facility. Note: Solution may be a combination of approaches

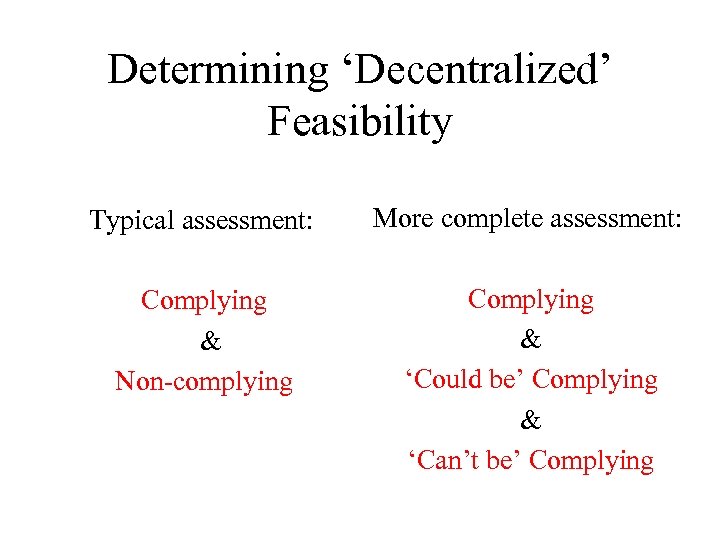

Determining ‘Decentralized’ Feasibility Typical assessment: More complete assessment: Complying & Non-complying Complying & ‘Could be’ Complying & ‘Can’t be’ Complying

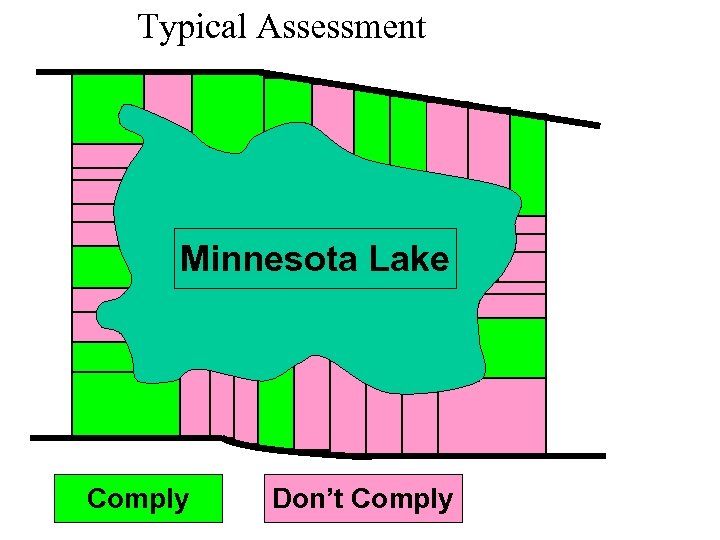

Typical Assessment Minnesota Lake Comply Don’t Comply

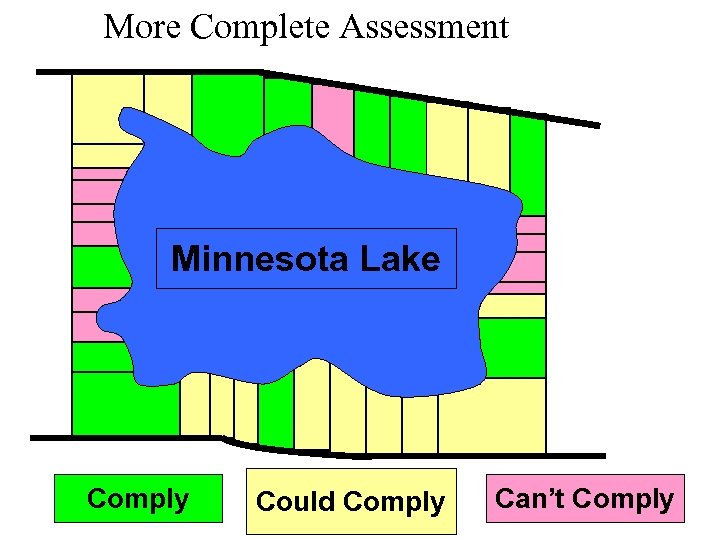

More Complete Assessment Minnesota Lake Comply Could Comply Can’t Comply

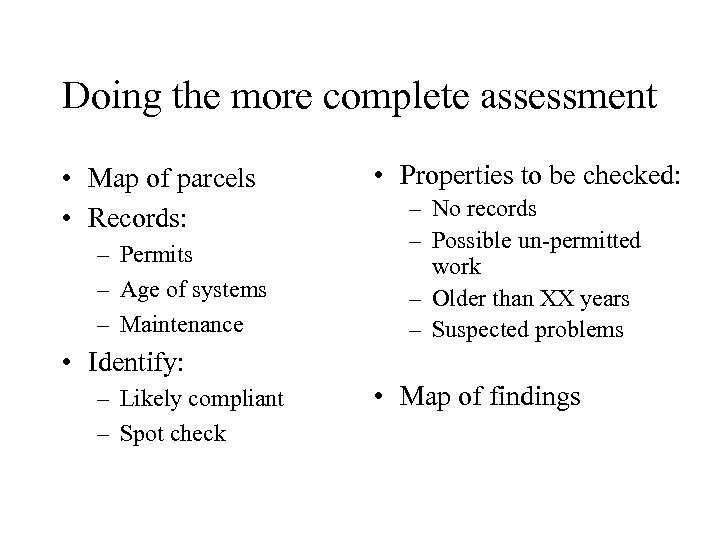

Doing the more complete assessment • Map of parcels • Records: – Permits – Age of systems – Maintenance • Properties to be checked: – No records – Possible un-permitted work – Older than XX years – Suspected problems • Identify: – Likely compliant – Spot check • Map of findings

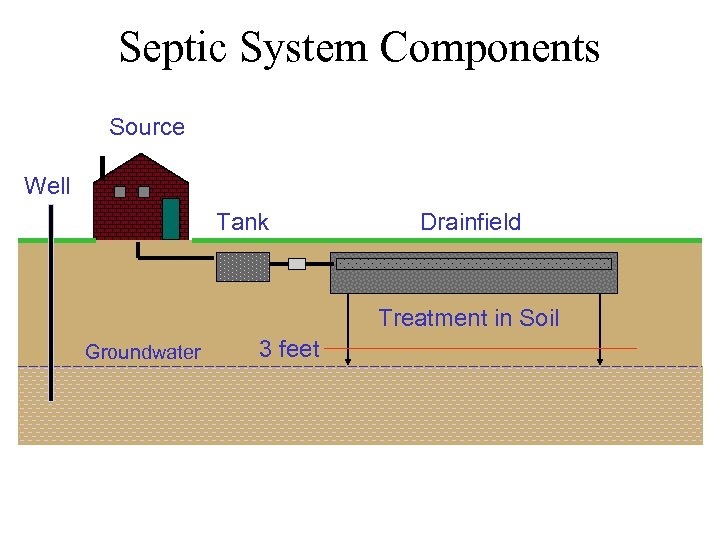

Septic System Components Source Well Tank Drainfield Treatment in Soil Groundwater 3 feet

Site Assessments: Soil Analysis

Inadequate Vertical Separation Source Well Tank Groundwater 3 feet Drainfield Inadequate Treatment Pathogens Nutrients

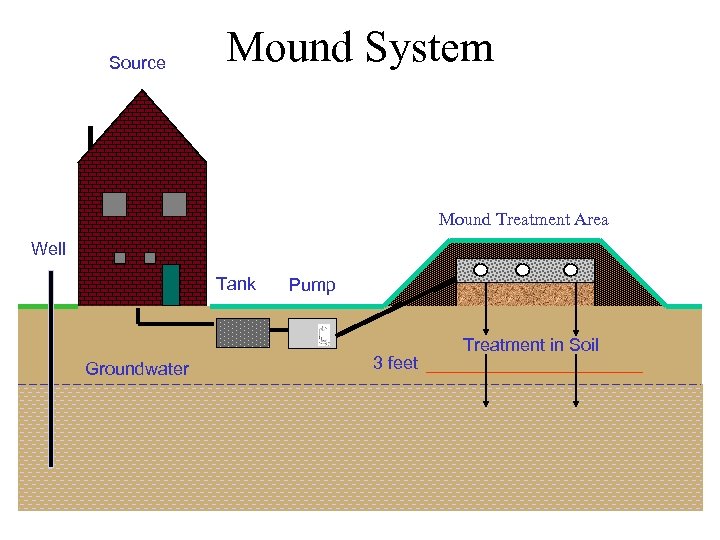

Source Mound System Mound Treatment Area Well Tank Groundwater Pump 3 feet Treatment in Soil

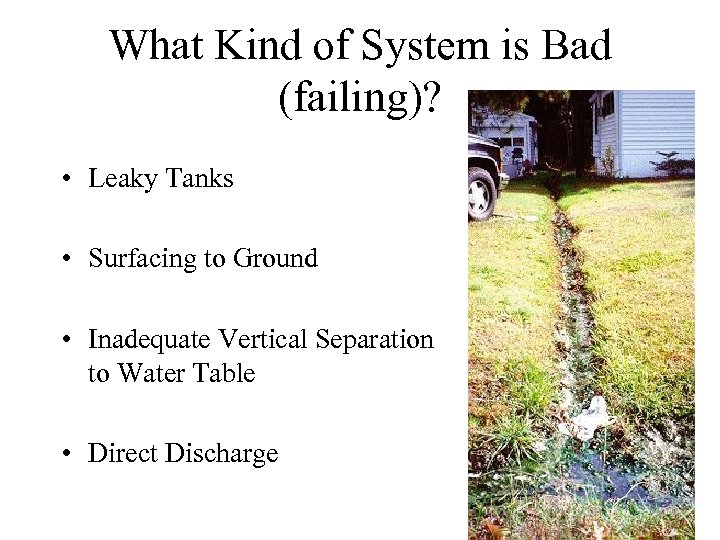

What Kind of System is Bad (failing)? • Leaky Tanks • Surfacing to Ground • Inadequate Vertical Separation to Water Table • Direct Discharge

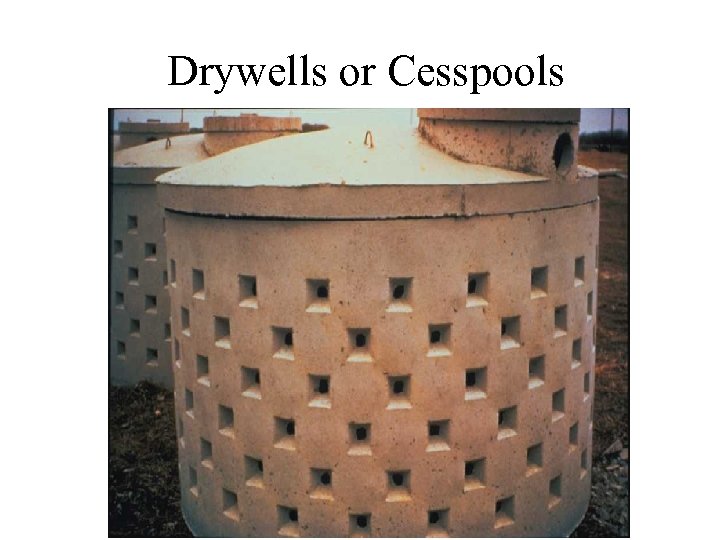

Drywells or Cesspools

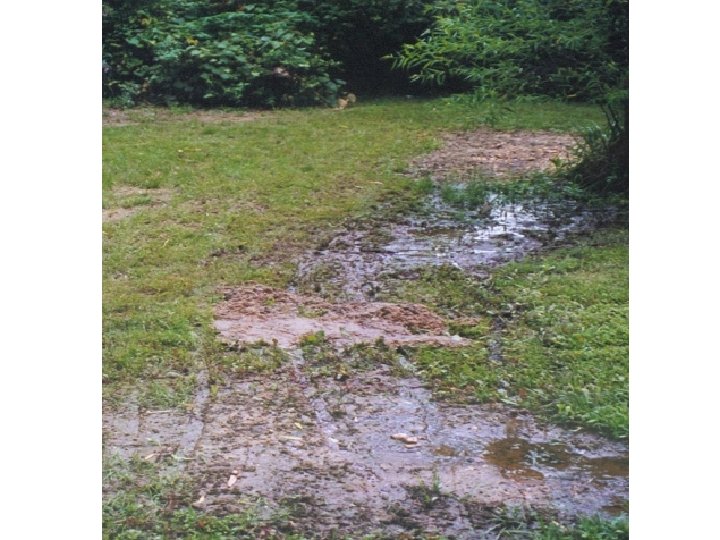

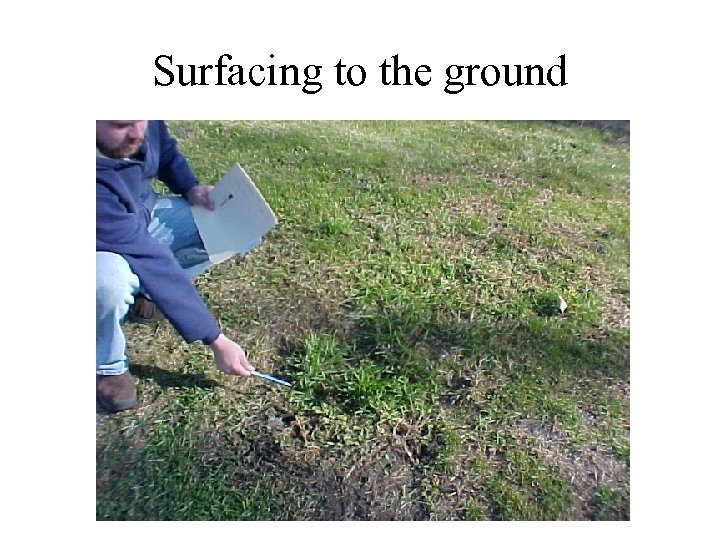

Surfacing to the ground

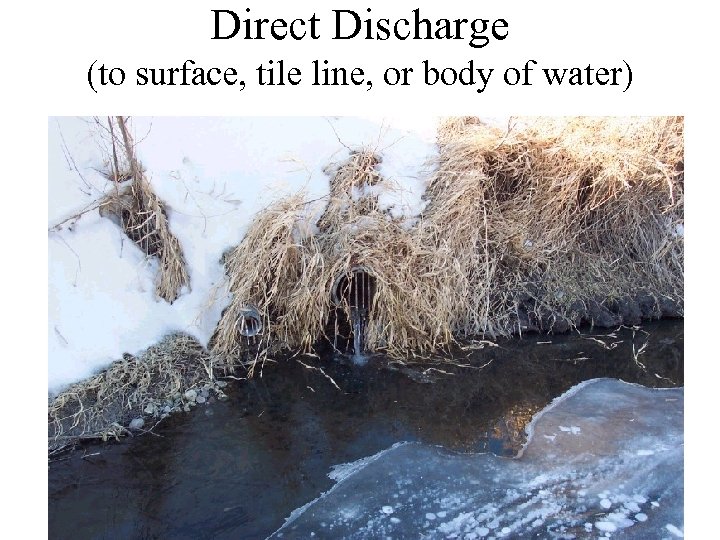

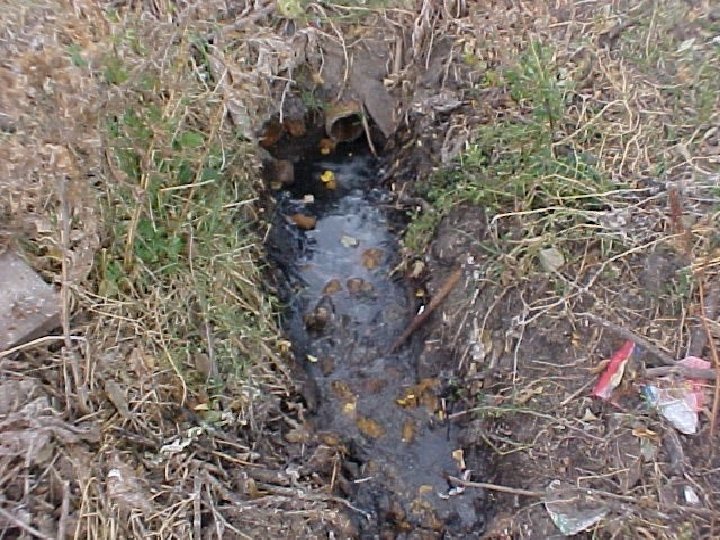

Direct Discharge (to surface, tile line, or body of water)

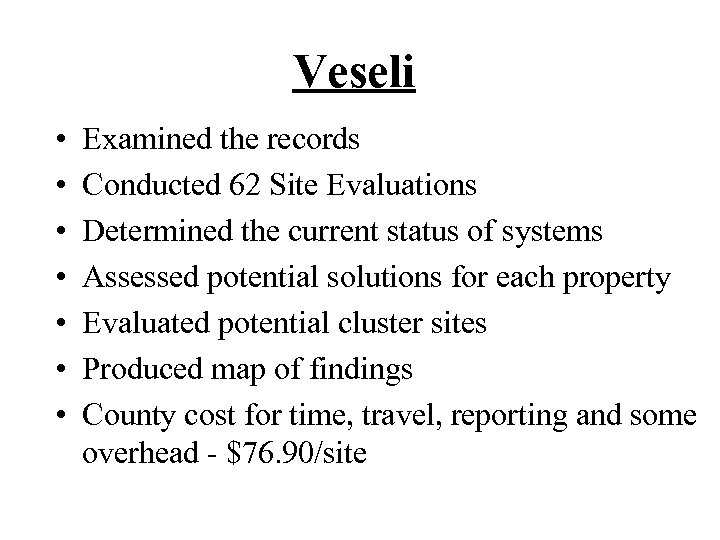

Veseli • • Examined the records Conducted 62 Site Evaluations Determined the current status of systems Assessed potential solutions for each property Evaluated potential cluster sites Produced map of findings County cost for time, travel, reporting and some overhead - $76. 90/site

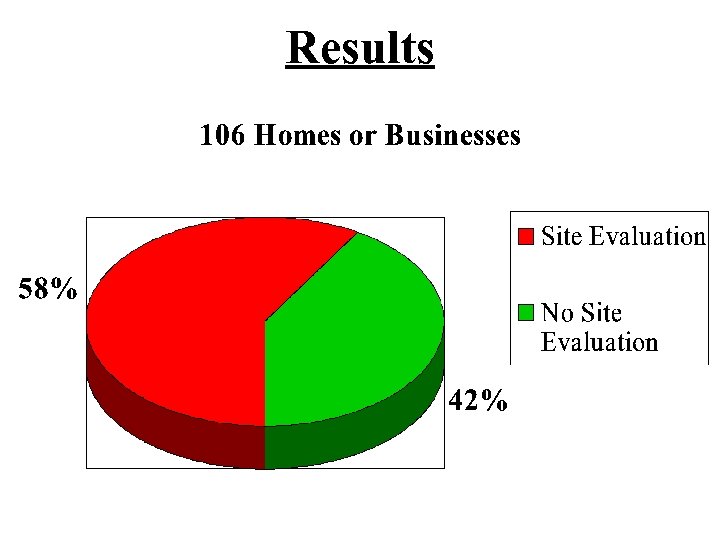

Results

Possible Results • “In Compliance”- Meets current Rice Co. Ordinance • “Not In Compliance”- Does not meet current Rice County Ordinance, may need to be upgraded in the future • “Imminent Threat to Public Health System”ground surface or surface water discharge, sewage backup into dwelling, drywell or cesspool.

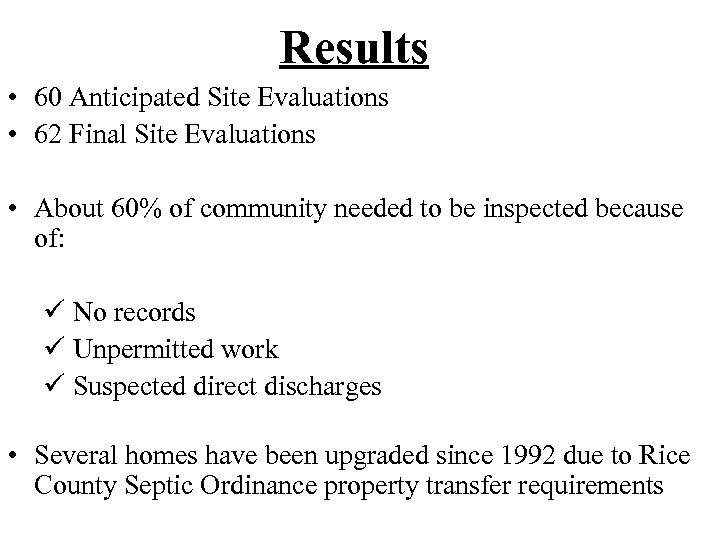

Results • 60 Anticipated Site Evaluations • 62 Final Site Evaluations • About 60% of community needed to be inspected because of: ü No records ü Unpermitted work ü Suspected direct discharges • Several homes have been upgraded since 1992 due to Rice County Septic Ordinance property transfer requirements

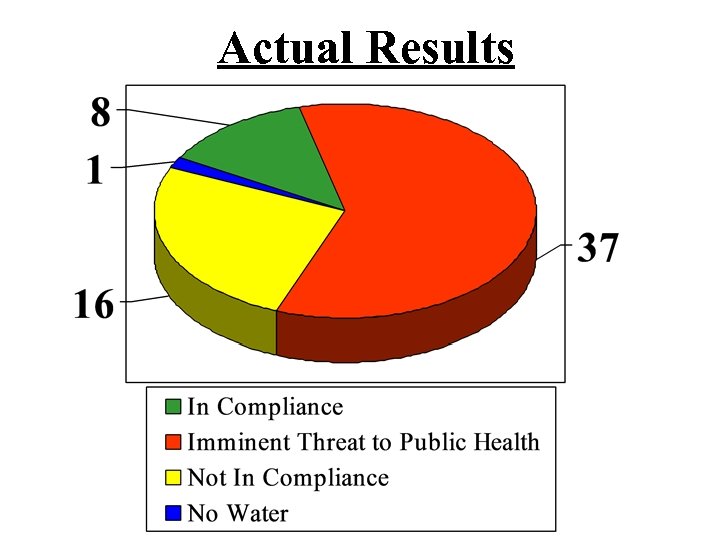

Actual Results

Public Health Threats- Stacked Up

Veseli- Overall Septic Situation 106 Buildings

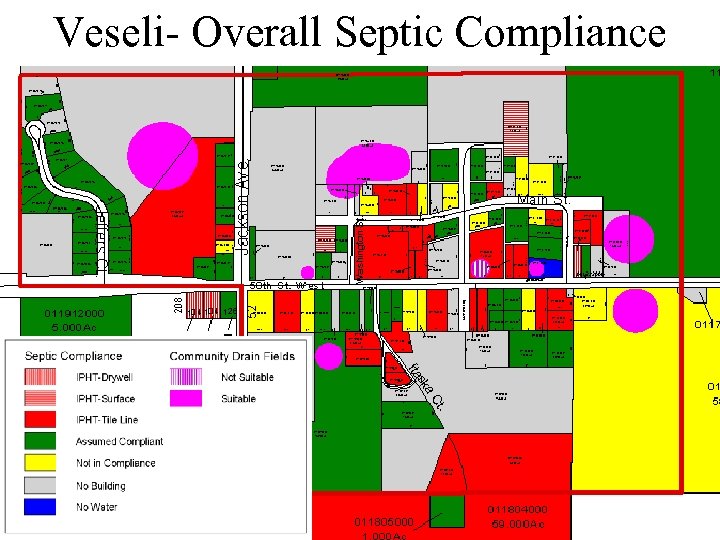

Veseli- Overall Septic Compliance

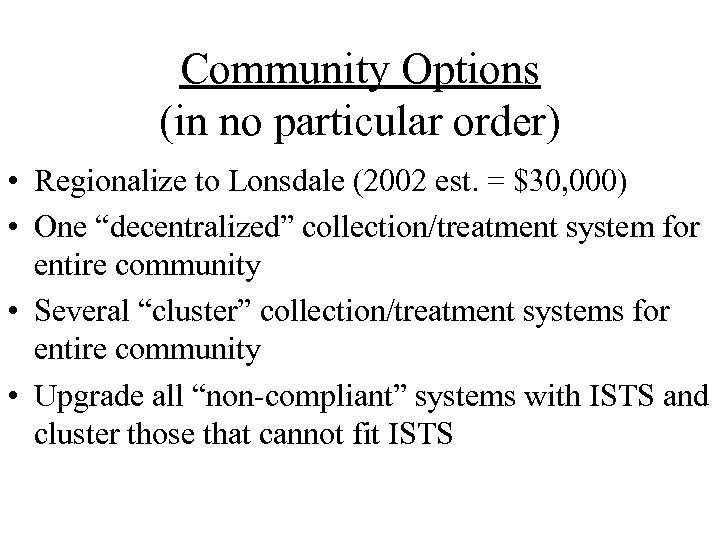

Community Options (in no particular order) • Regionalize to Lonsdale (2002 est. = $30, 000) • One “decentralized” collection/treatment system for entire community • Several “cluster” collection/treatment systems for entire community • Upgrade all “non-compliant” systems with ISTS and cluster those that cannot fit ISTS

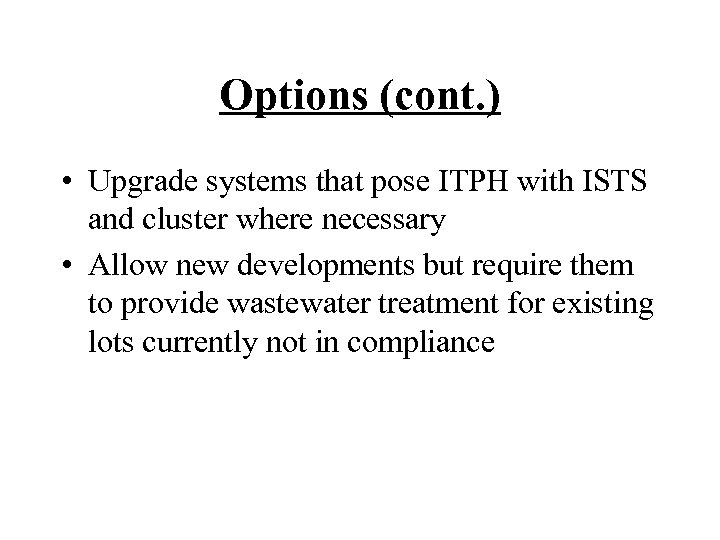

Options (cont. ) • Upgrade systems that pose ITPH with ISTS and cluster where necessary • Allow new developments but require them to provide wastewater treatment for existing lots currently not in compliance

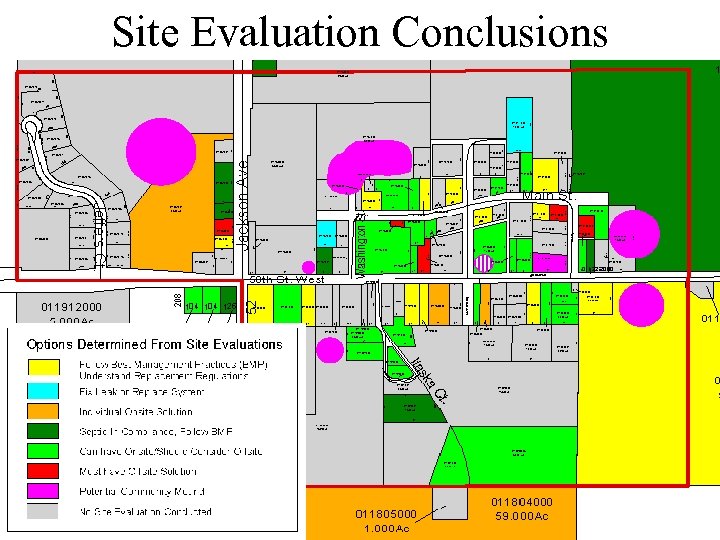

Site Evaluation Conclusions

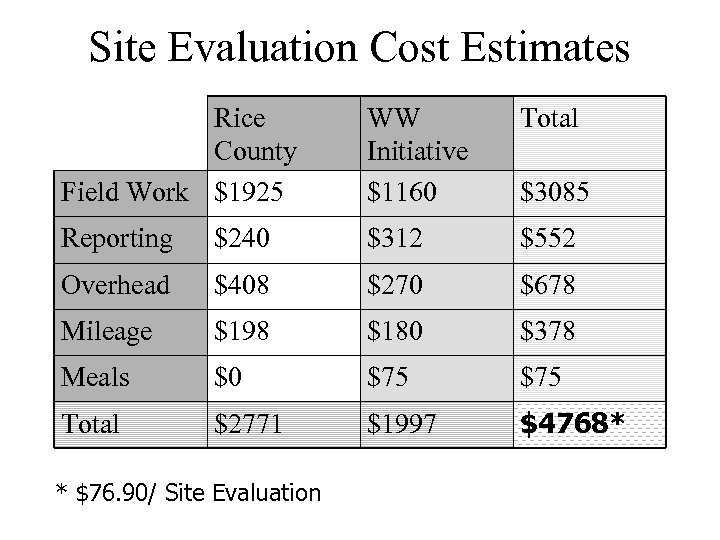

Site Evaluation Cost Estimates Rice County Field Work $1925 WW Initiative $1160 Total Reporting $240 $312 $552 Overhead $408 $270 $678 Mileage $198 $180 $378 Meals $0 $75 Total $2771 $1997 $4768* * $76. 90/ Site Evaluation $3085

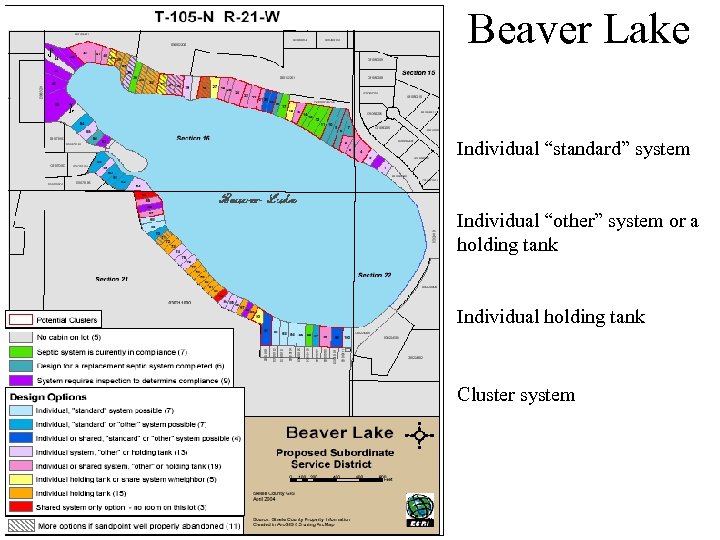

Beaver Lake Individual “standard” system Individual “other” system or a holding tank Individual holding tank Cluster system

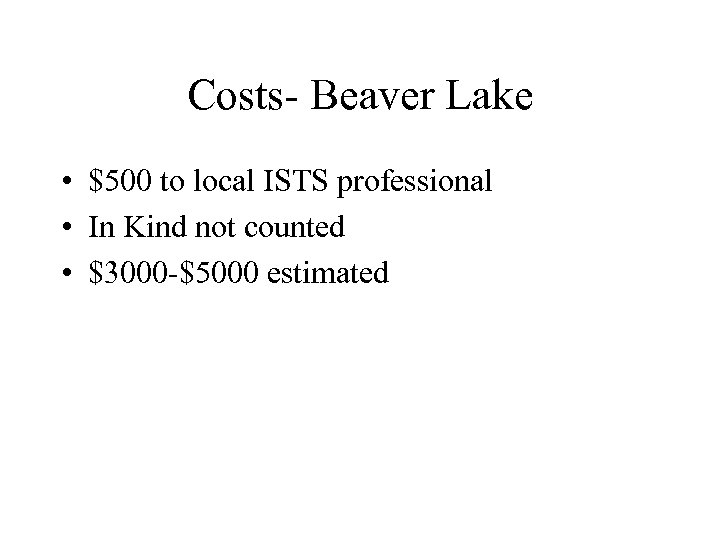

Costs- Beaver Lake • $500 to local ISTS professional • In Kind not counted • $3000 -$5000 estimated

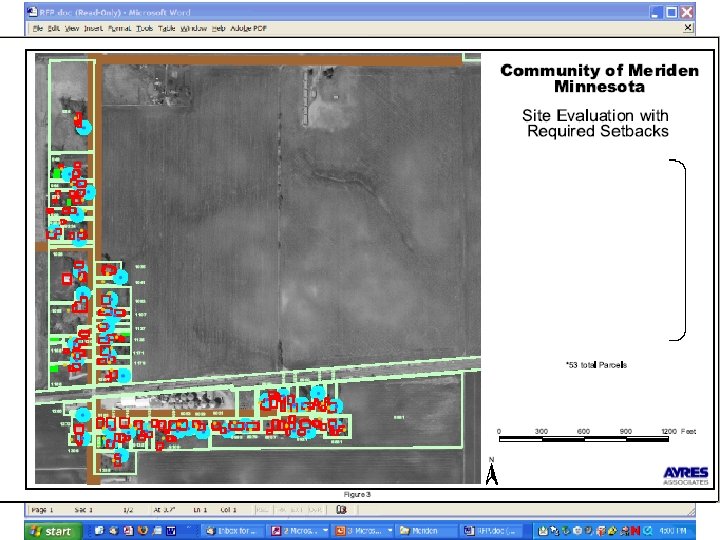

Meriden

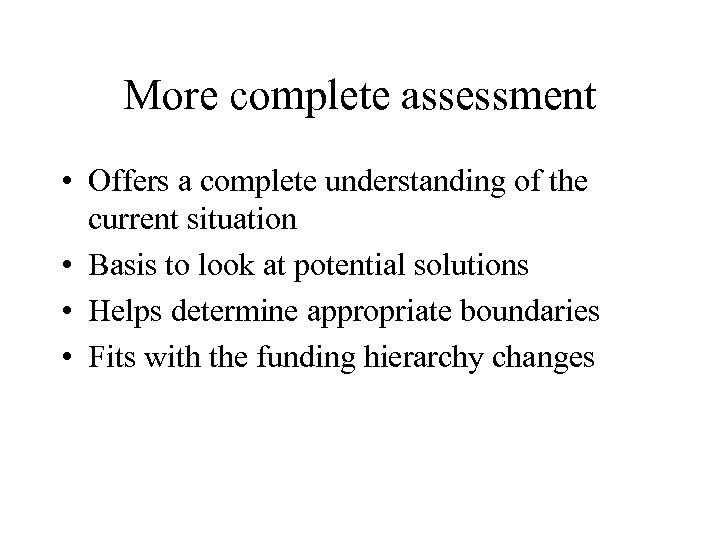

More complete assessment • Offers a complete understanding of the current situation • Basis to look at potential solutions • Helps determine appropriate boundaries • Fits with the funding hierarchy changes
