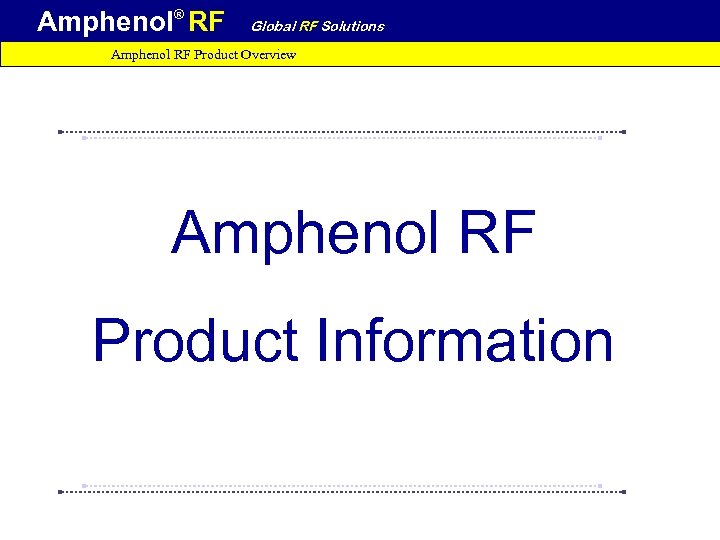

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Amphenol RF Product Information

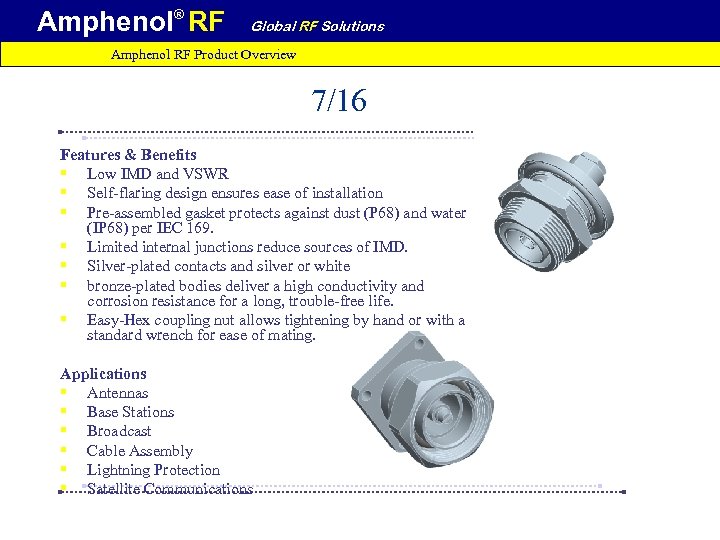

Amphenol® RF Global RF Solutions Amphenol RF Product Overview 7/16 Features & Benefits § Low IMD and VSWR § Self-flaring design ensures ease of installation § Pre-assembled gasket protects against dust (P 68) and water (IP 68) per IEC 169. § Limited internal junctions reduce sources of IMD. § Silver-plated contacts and silver or white § bronze-plated bodies deliver a high conductivity and corrosion resistance for a long, trouble-free life. § Easy-Hex coupling nut allows tightening by hand or with a standard wrench for ease of mating. Applications § Antennas § Base Stations § Broadcast § Cable Assembly § Lightning Protection § Satellite Communications
Amphenol® RF Global RF Solutions Amphenol RF Product Overview 1. 0/2. 3 Features & Benefits § Push-pull coupling with patented locking mechanism allows quick installation § Push-pull offers safe coupling. § Locking mechanism will not vibrate loose as threaded connectors are prone to do. § Push-pull connectors can be more densely packed saving panel space in components that are shrinking in size. Applications § Base Stations § Cable Assemblies § Components (Filters) § Routers § Switching Equipment § Telecom

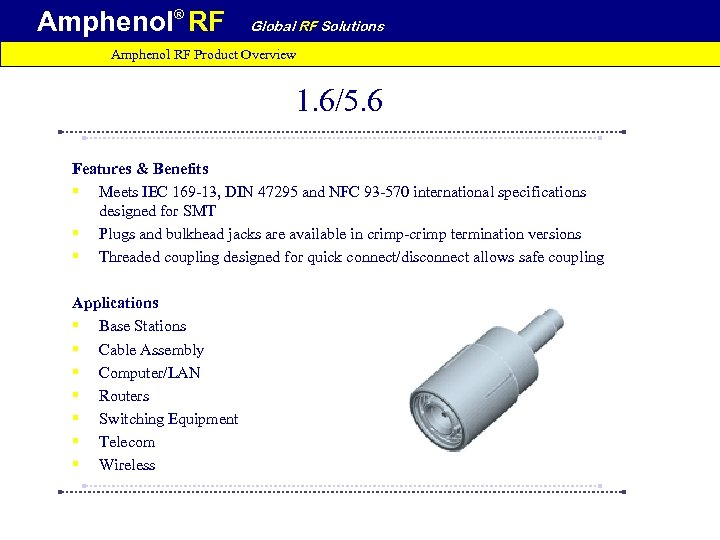

Amphenol® RF Global RF Solutions Amphenol RF Product Overview 1. 6/5. 6 Features & Benefits § Meets IEC 169 -13, DIN 47295 and NFC 93 -570 international specifications designed for SMT § Plugs and bulkhead jacks are available in crimp-crimp termination versions § Threaded coupling designed for quick connect/disconnect allows safe coupling Applications § Base Stations § Cable Assembly § Computer/LAN § Routers § Switching Equipment § Telecom § Wireless

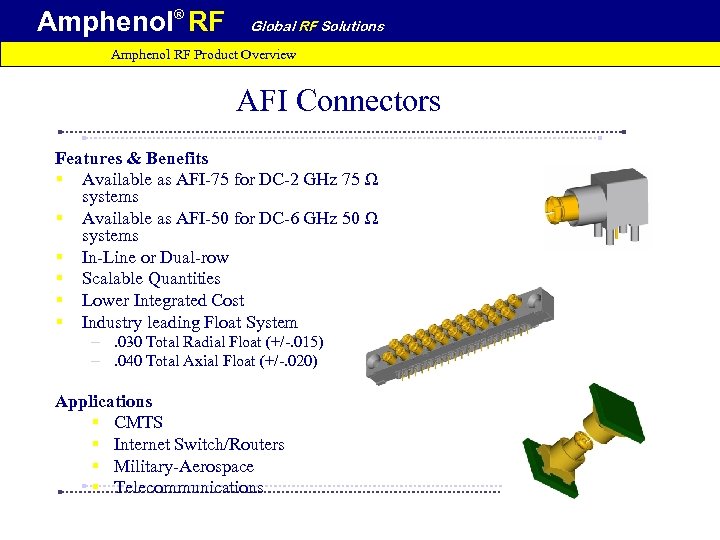

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AFI Connectors Features & Benefits § Available as AFI-75 for DC-2 GHz 75 Ω systems § Available as AFI-50 for DC-6 GHz 50 Ω systems § In-Line or Dual-row § Scalable Quantities § Lower Integrated Cost § Industry leading Float System –. 030 Total Radial Float (+/-. 015) –. 040 Total Axial Float (+/-. 020) Applications § CMTS § Internet Switch/Routers § Military-Aerospace § Telecommunications

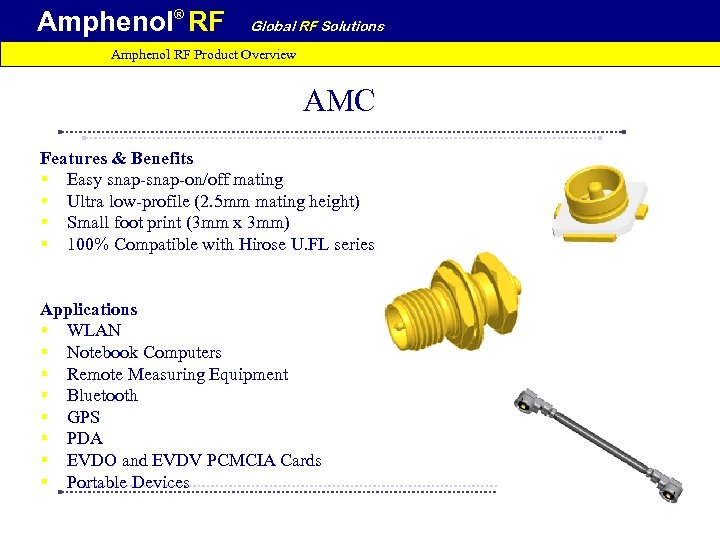

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AMC Features & Benefits § Easy snap-on/off mating § Ultra low-profile (2. 5 mm mating height) § Small foot print (3 mm x 3 mm) § 100% Compatible with Hirose U. FL series Applications § WLAN § Notebook Computers § Remote Measuring Equipment § Bluetooth § GPS § PDA § EVDO and EVDV PCMCIA Cards § Portable Devices

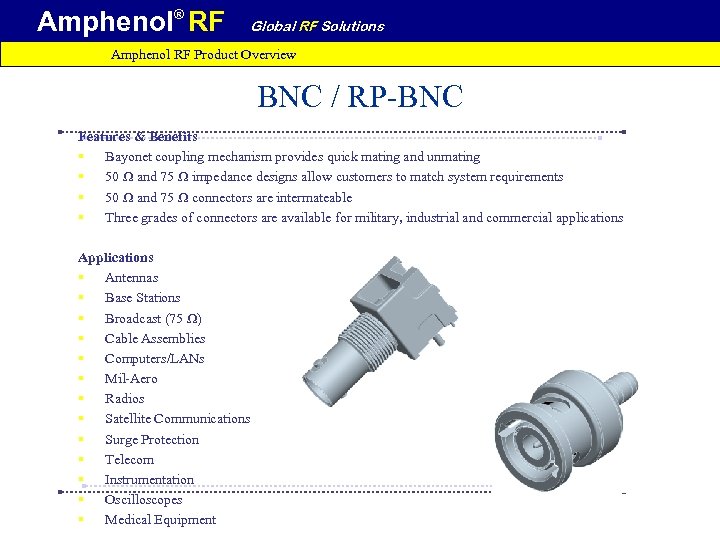

Amphenol® RF Global RF Solutions Amphenol RF Product Overview BNC / RP-BNC Features & Benefits § Bayonet coupling mechanism provides quick mating and unmating § 50 Ω and 75 Ω impedance designs allow customers to match system requirements § 50 Ω and 75 Ω connectors are intermateable § Three grades of connectors are available for military, industrial and commercial applications Applications § Antennas § Base Stations § Broadcast (75 Ω) § Cable Assemblies § Computers/LANs § Mil-Aero § Radios § Satellite Communications § Surge Protection § Telecom § Instrumentation § Oscilloscopes § Medical Equipment

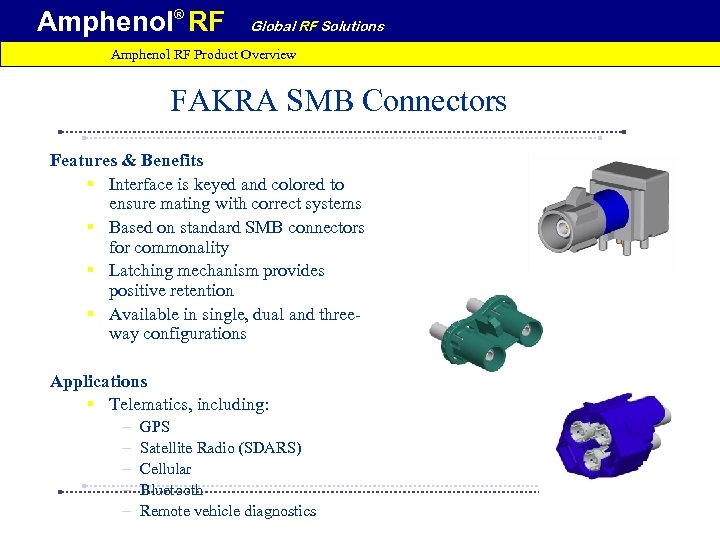

Amphenol® RF Global RF Solutions Amphenol RF Product Overview FAKRA SMB Connectors Features & Benefits § Interface is keyed and colored to ensure mating with correct systems § Based on standard SMB connectors for commonality § Latching mechanism provides positive retention § Available in single, dual and threeway configurations Applications § Telematics, including: - GPS Satellite Radio (SDARS) Cellular Bluetooth Remote vehicle diagnostics
Amphenol® RF Global RF Solutions Amphenol RF Product Overview FME Features & Benefits § Crimp assembly providing easy installation § Between Series adapters available for ease of adaptability Applications § Telecommunications § Wireless

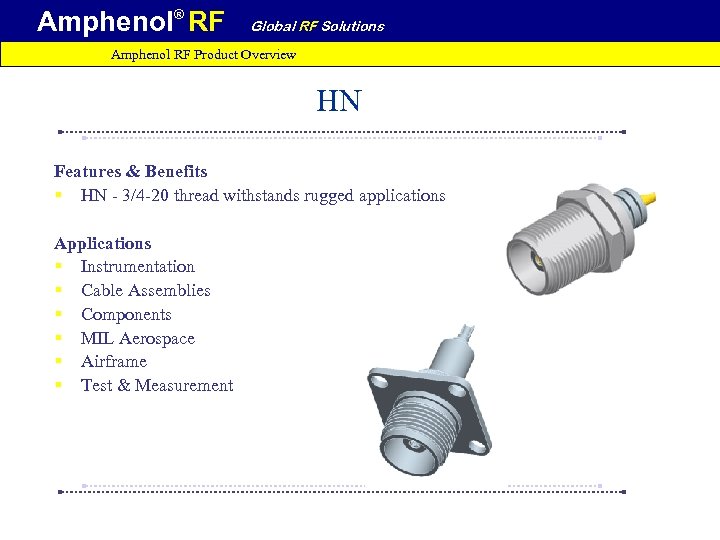

Amphenol® RF Global RF Solutions Amphenol RF Product Overview HN Features & Benefits § HN - 3/4 -20 thread withstands rugged applications Applications § Instrumentation § Cable Assemblies § Components § MIL Aerospace § Airframe § Test & Measurement

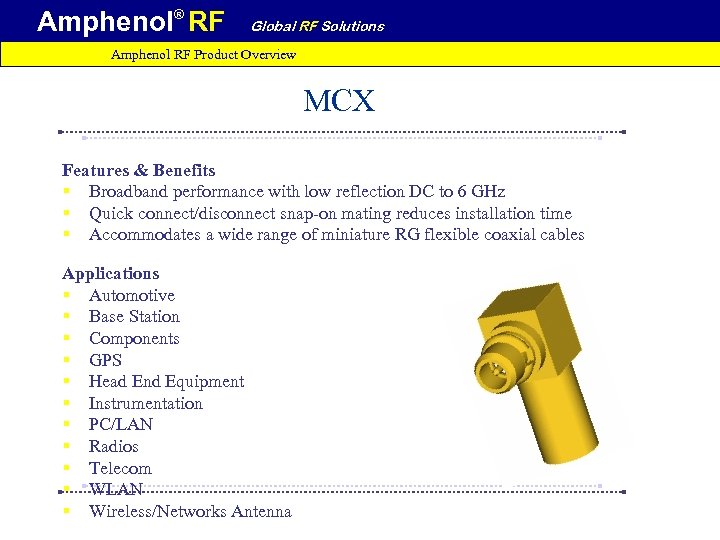

Amphenol® RF Global RF Solutions Amphenol RF Product Overview MCX Features & Benefits § Broadband performance with low reflection DC to 6 GHz § Quick connect/disconnect snap-on mating reduces installation time § Accommodates a wide range of miniature RG flexible coaxial cables Applications § Automotive § Base Station § Components § GPS § Head End Equipment § Instrumentation § PC/LAN § Radios § Telecom § WLAN § Wireless/Networks Antenna

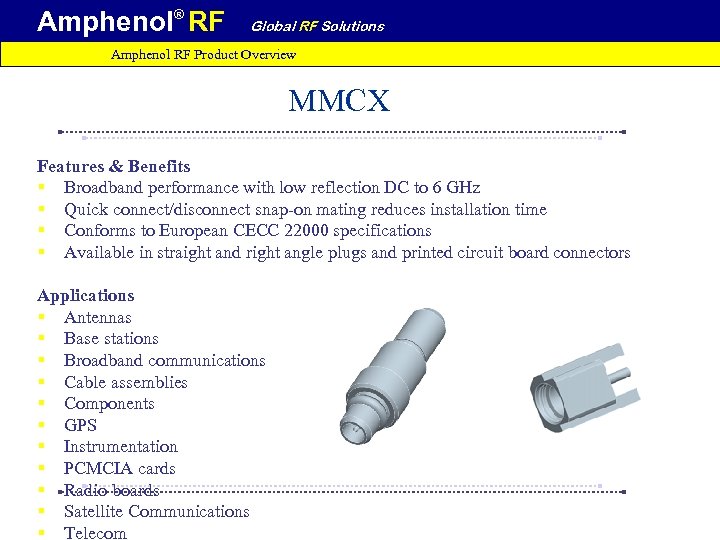

Amphenol® RF Global RF Solutions Amphenol RF Product Overview MMCX Features & Benefits § Broadband performance with low reflection DC to 6 GHz § Quick connect/disconnect snap-on mating reduces installation time § Conforms to European CECC 22000 specifications § Available in straight and right angle plugs and printed circuit board connectors Applications § Antennas § Base stations § Broadband communications § Cable assemblies § Components § GPS § Instrumentation § PCMCIA cards § Radio boards § Satellite Communications § Telecom

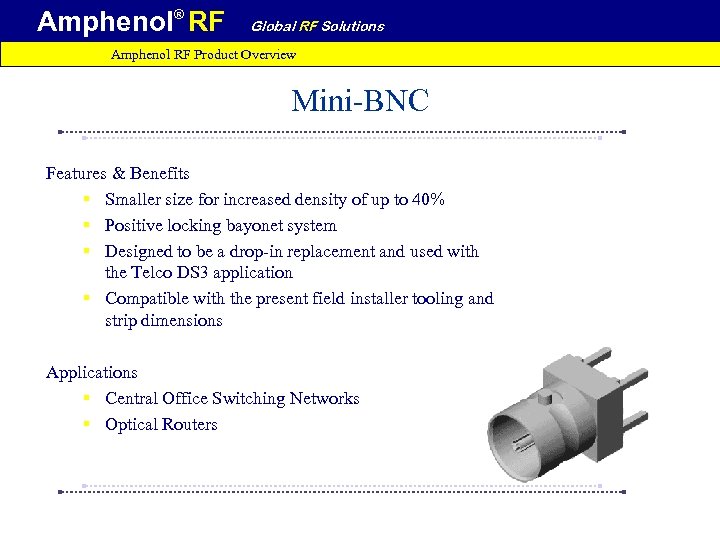

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Mini-BNC Features & Benefits § Smaller size for increased density of up to 40% § Positive locking bayonet system § Designed to be a drop-in replacement and used with the Telco DS 3 application § Compatible with the present field installer tooling and strip dimensions Applications § Central Office Switching Networks § Optical Routers

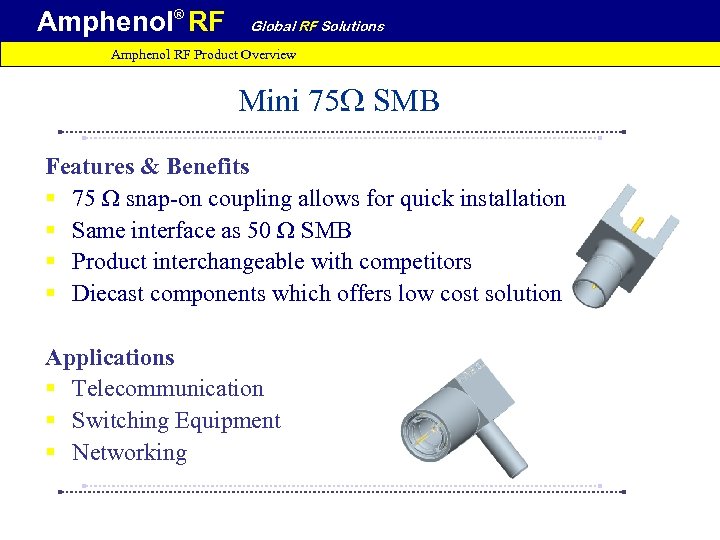

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Mini 75 W SMB Features & Benefits § 75 Ω snap-on coupling allows for quick installation § Same interface as 50 Ω SMB § Product interchangeable with competitors § Diecast components which offers low cost solution Applications § Telecommunication § Switching Equipment § Networking

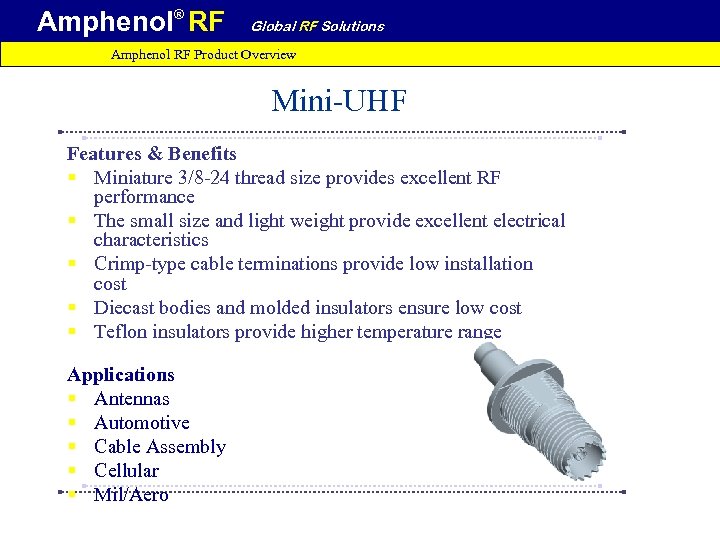

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Mini-UHF Features & Benefits § Miniature 3/8 -24 thread size provides excellent RF performance § The small size and light weight provide excellent electrical characteristics § Crimp-type cable terminations provide low installation cost § Diecast bodies and molded insulators ensure low cost § Teflon insulators provide higher temperature range Applications § Antennas § Automotive § Cable Assembly § Cellular § Mil/Aero

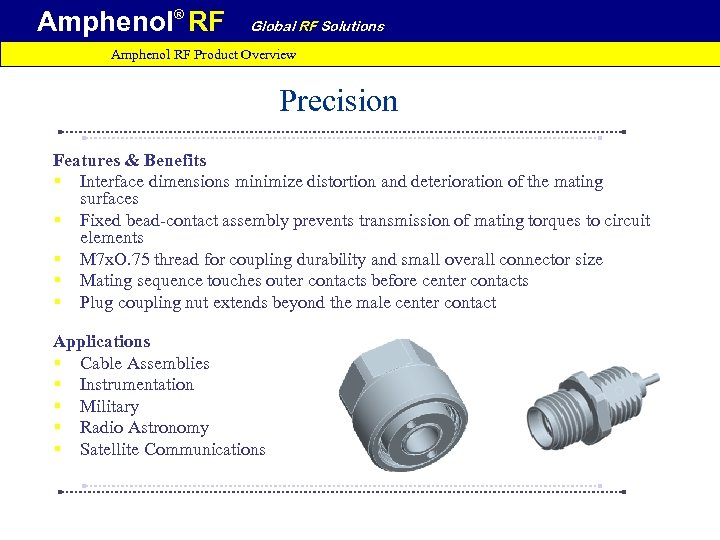

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Precision Features & Benefits § Interface dimensions minimize distortion and deterioration of the mating surfaces § Fixed bead-contact assembly prevents transmission of mating torques to circuit elements § M 7 x. O. 75 thread for coupling durability and small overall connector size § Mating sequence touches outer contacts before center contacts § Plug coupling nut extends beyond the male center contact Applications § Cable Assemblies § Instrumentation § Military § Radio Astronomy § Satellite Communications

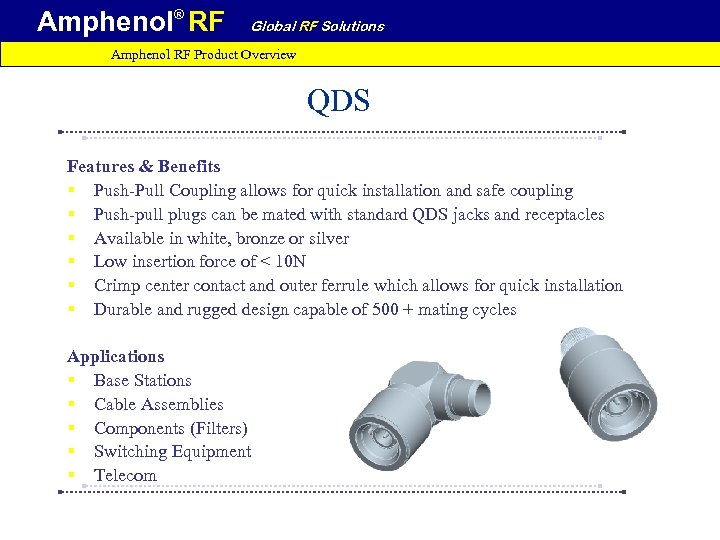

Amphenol® RF Global RF Solutions Amphenol RF Product Overview QDS Features & Benefits § Push-Pull Coupling allows for quick installation and safe coupling § Push-pull plugs can be mated with standard QDS jacks and receptacles § Available in white, bronze or silver § Low insertion force of < 10 N § Crimp center contact and outer ferrule which allows for quick installation § Durable and rugged design capable of 500 + mating cycles Applications § Base Stations § Cable Assemblies § Components (Filters) § Switching Equipment § Telecom

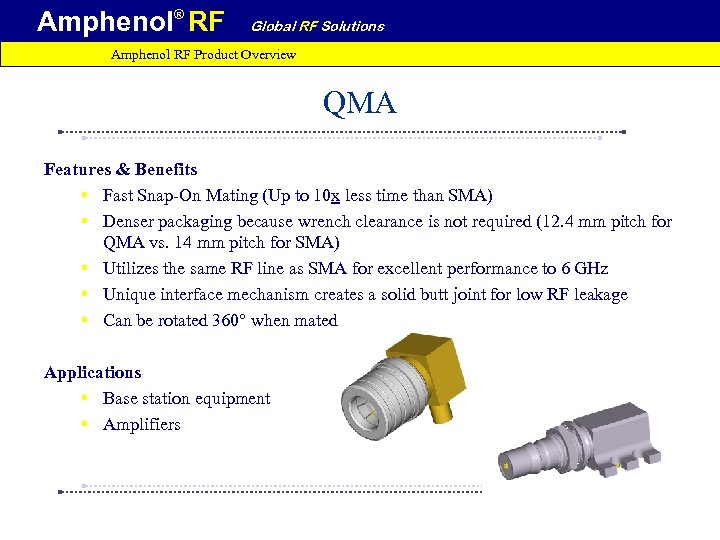

Amphenol® RF Global RF Solutions Amphenol RF Product Overview QMA Features & Benefits § Fast Snap-On Mating (Up to 10 x less time than SMA) § Denser packaging because wrench clearance is not required (12. 4 mm pitch for QMA vs. 14 mm pitch for SMA) § Utilizes the same RF line as SMA for excellent performance to 6 GHz § Unique interface mechanism creates a solid butt joint for low RF leakage § Can be rotated 360° when mated Applications § Base station equipment § Amplifiers
Amphenol® RF Global RF Solutions Amphenol RF Product Overview QWS Features & Benefits § No active components which reduces need for maintenance § Absorbs multiple lightning strikes which eliminates the need to replace components § Multiple designs for all major frequency ranges § Cable attachment unique gasket system which eliminates water intrusion § Cable attachment versions lower total installed cost, need for cable plug is eliminated Applications § Antenna § LAN § Base Stations § Test Equipment § Broadcast

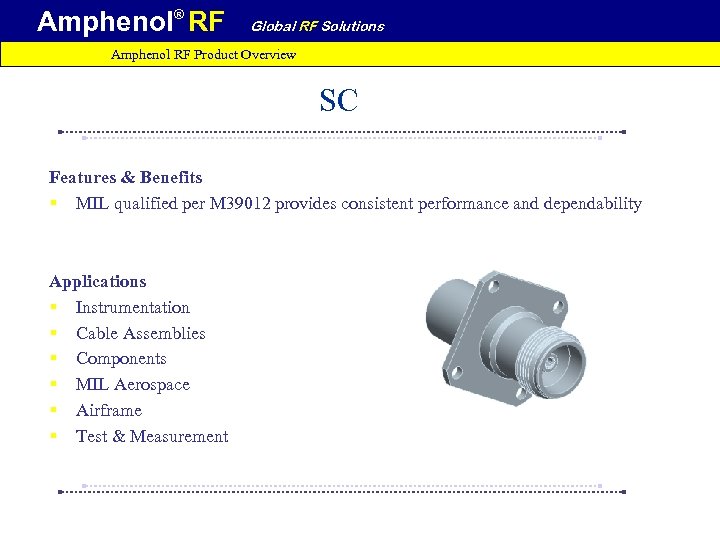

Amphenol® RF Global RF Solutions Amphenol RF Product Overview SC Features & Benefits § MIL qualified per M 39012 provides consistent performance and dependability Applications § Instrumentation § Cable Assemblies § Components § MIL Aerospace § Airframe § Test & Measurement

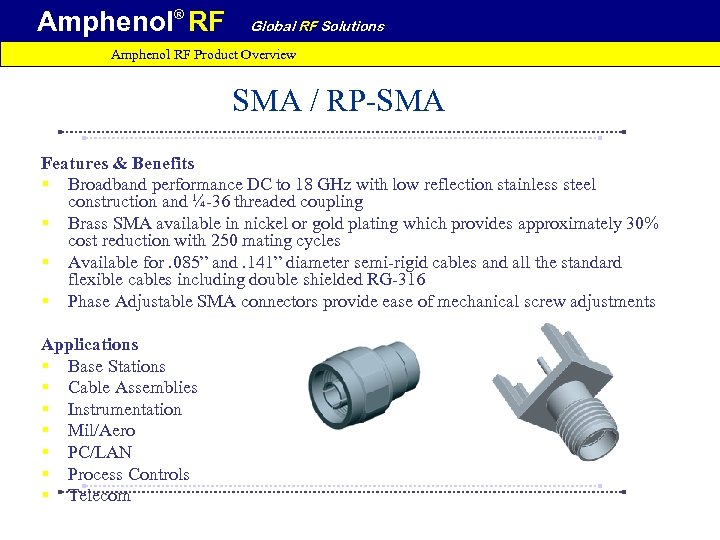

Amphenol® RF Global RF Solutions Amphenol RF Product Overview SMA / RP-SMA Features & Benefits § Broadband performance DC to 18 GHz with low reflection stainless steel construction and ¼-36 threaded coupling § Brass SMA available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles § Available for. 085” and. 141” diameter semi-rigid cables and all the standard flexible cables including double shielded RG-316 § Phase Adjustable SMA connectors provide ease of mechanical screw adjustments Applications § Base Stations § Cable Assemblies § Instrumentation § Mil/Aero § PC/LAN § Process Controls § Telecom
Amphenol® RF Global RF Solutions Amphenol RF Product Overview SMB Features & Benefits § Broadband performance with low reflection DC to 4 GHz § § § Quick connect/disconnect snap-on mating reduces installation time. Various plating options in nickel, gold, and tin lead. SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force Applications § Automotive § Base Stations § Cable Assemblies § Components § Instrumentation § Video Systems § PC/LAN § Process Controls § Radio Boards § Surge Protection § Telecom § Test and Measurement

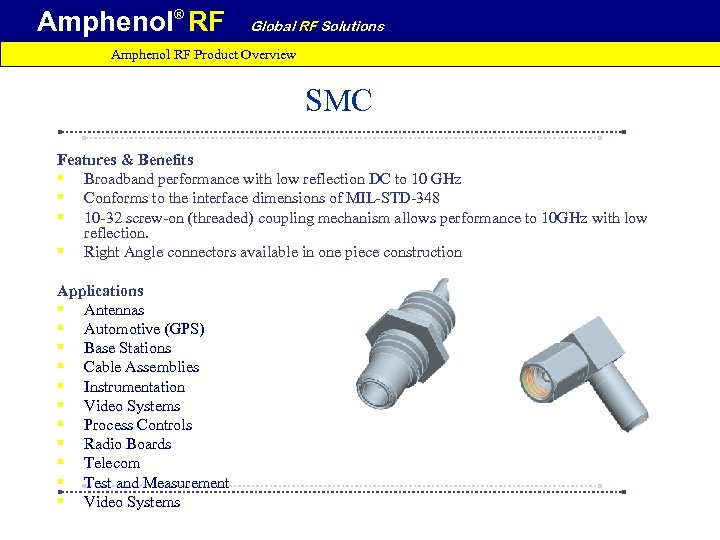

Amphenol® RF Global RF Solutions Amphenol RF Product Overview SMC Features & Benefits § Broadband performance with low reflection DC to 10 GHz § Conforms to the interface dimensions of MIL-STD-348 § 10 -32 screw-on (threaded) coupling mechanism allows performance to 10 GHz with low reflection. § Right Angle connectors available in one piece construction Applications § Antennas § Automotive (GPS) § Base Stations § Cable Assemblies § Instrumentation § Video Systems § Process Controls § Radio Boards § Telecom § Test and Measurement § Video Systems

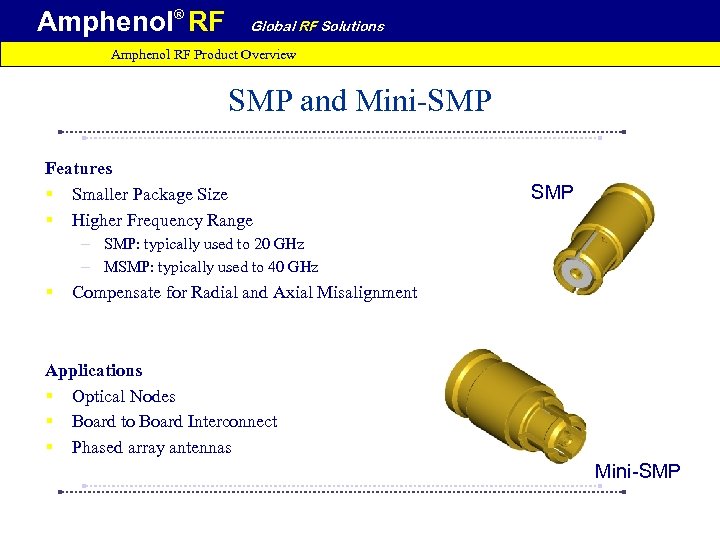

Amphenol® RF Global RF Solutions Amphenol RF Product Overview SMP and Mini-SMP Features § Smaller Package Size § Higher Frequency Range SMP – SMP: typically used to 20 GHz – MSMP: typically used to 40 GHz § Compensate for Radial and Axial Misalignment Applications § Optical Nodes § Board to Board Interconnect § Phased array antennas Mini-SMP
Amphenol® RF Global RF Solutions Amphenol RF Product Overview SSMB Features & Benefits § Lightweight § Snap-on interface for quick and easy installation § Small size § Excellent performance in devices up to 4 GHz Applications § Base Stations § Satellite Radio Receivers § Mil/Aero § Instrumentation § Telecom § Process Controls § Cable Assemblies § PC/LAN

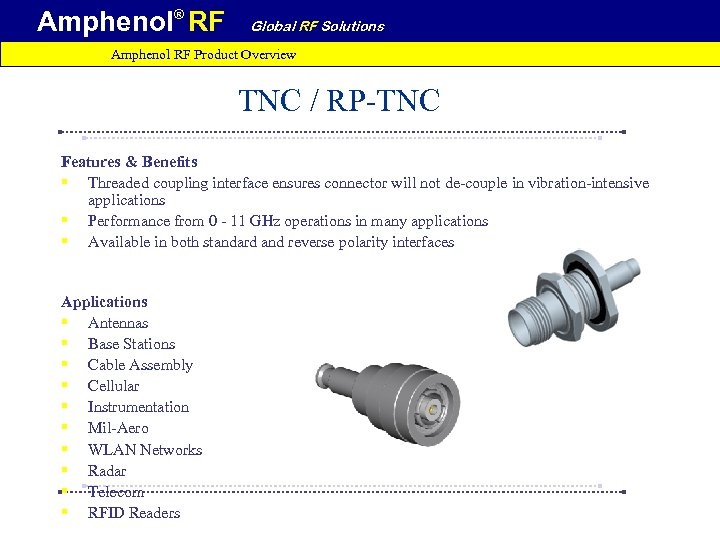

Amphenol® RF Global RF Solutions Amphenol RF Product Overview TNC / RP-TNC Features & Benefits § Threaded coupling interface ensures connector will not de-couple in vibration-intensive applications § Performance from 0 - 11 GHz operations in many applications § Available in both standard and reverse polarity interfaces Applications § Antennas § Base Stations § Cable Assembly § Cellular § Instrumentation § Mil-Aero § WLAN Networks § Radar § Telecom § RFID Readers

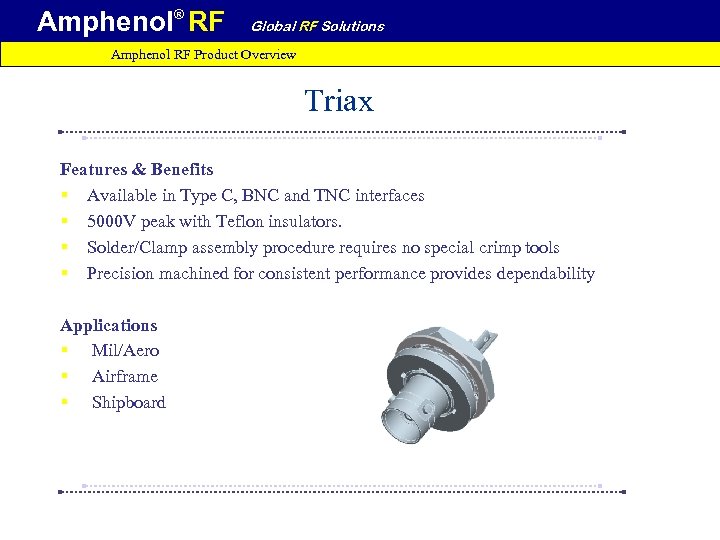

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Triax Features & Benefits § Available in Type C, BNC and TNC interfaces § 5000 V peak with Teflon insulators. § Solder/Clamp assembly procedure requires no special crimp tools § Precision machined for consistent performance provides dependability Applications § Mil/Aero § Airframe § Shipboard
Amphenol® RF Global RF Solutions Amphenol RF Product Overview Twinax Features & Benefits § Polarized key and keyway construction guarantees correct dual contact mate § Large threaded connectors designed for rugged use § Crimp contacts ensures lower cost of installation § Clamp assembly allows quick assembly without requiring special tools § 2 Stud bayonet design allows quick and easy coupling Applications § Mil/Aero § Computer Networks/LAN § Process Equipment § Cable Assembly
Amphenol® RF Global RF Solutions Amphenol RF Product Overview Twin BNC Features & Benefits § Polarized key and keyway construction guarantees correct dual contact mate § Large threaded connectors designed for rugged use § Crimp contacts ensures lower cost of installation § Clamp assembly allows quick assembly without requiring special tools § 2 Stud bayonet design allows quick and easy coupling Applications § Cable Assembly § MIL-Aerospace § Computer Networks/LAN § Process Equipment
Amphenol® RF Global RF Solutions Amphenol RF Product Overview Type F Features & Benefits § Patent pending contact design provides a truly cylindrical coaxial contact and provides superior RF performance and excellent insertion/withdrawal characteristics § 30 d. B return loss to 1 GHz ensures a high performance specification that outperforms competition § Multiple PCB mount packages: surface mount, edge mount, right angle and straight § Accommodates. 022 -. 042 inch center conductor sizes Applications § Cable Assemblies § CATV § CIMs § Head End Equipment § High Speed Cable Modems § Hybrid Fiber Coax Networks § Set Top Boxes

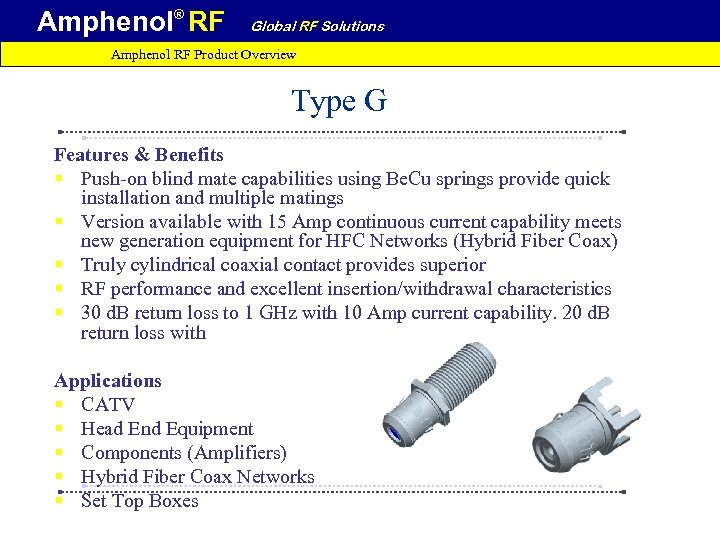

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Type G Features & Benefits § Push-on blind mate capabilities using Be. Cu springs provide quick installation and multiple matings § Version available with 15 Amp continuous current capability meets new generation equipment for HFC Networks (Hybrid Fiber Coax) § Truly cylindrical coaxial contact provides superior § RF performance and excellent insertion/withdrawal characteristics § 30 d. B return loss to 1 GHz with 10 Amp current capability. 20 d. B return loss with Applications § CATV § Head End Equipment § Components (Amplifiers) § Hybrid Fiber Coax Networks § Set Top Boxes

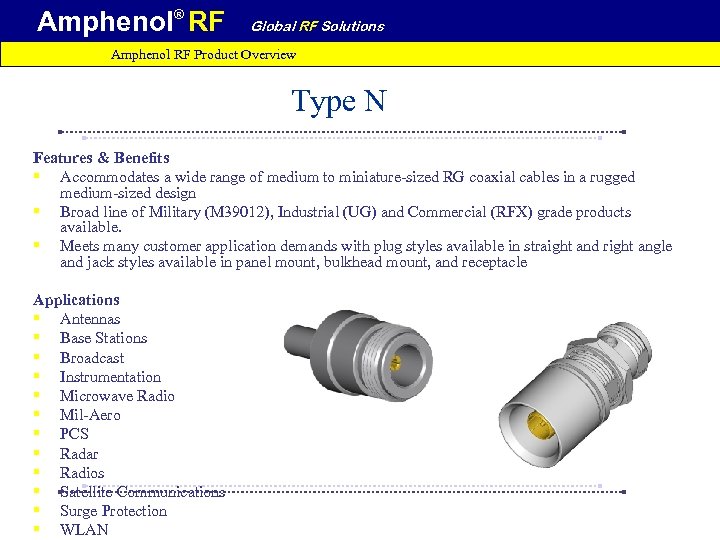

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Type N Features & Benefits § Accommodates a wide range of medium to miniature-sized RG coaxial cables in a rugged medium-sized design § Broad line of Military (M 39012), Industrial (UG) and Commercial (RFX) grade products available. § Meets many customer application demands with plug styles available in straight and right angle and jack styles available in panel mount, bulkhead mount, and receptacle Applications § Antennas § Base Stations § Broadcast § Instrumentation § Microwave Radio § Mil-Aero § PCS § Radar § Radios § Satellite Communications § Surge Protection § WLAN

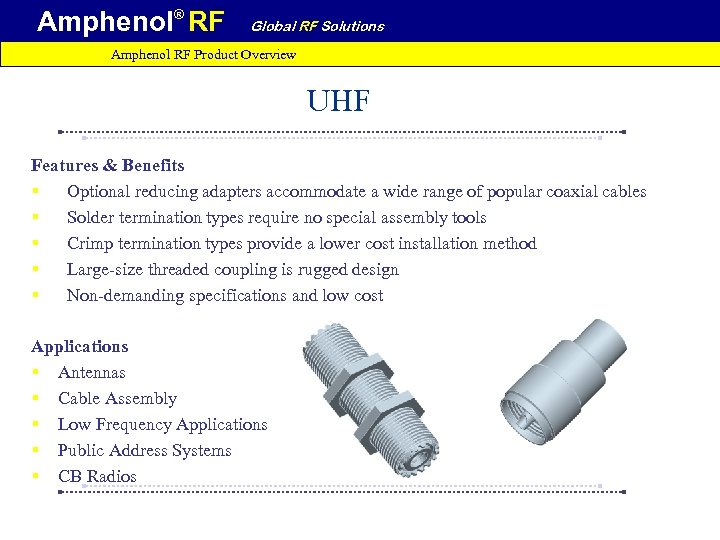

Amphenol® RF Global RF Solutions Amphenol RF Product Overview UHF Features & Benefits § Optional reducing adapters accommodate a wide range of popular coaxial cables § Solder termination types require no special assembly tools § Crimp termination types provide a lower cost installation method § Large-size threaded coupling is rugged design § Non-demanding specifications and low cost Applications § Antennas § Cable Assembly § Low Frequency Applications § Public Address Systems § CB Radios

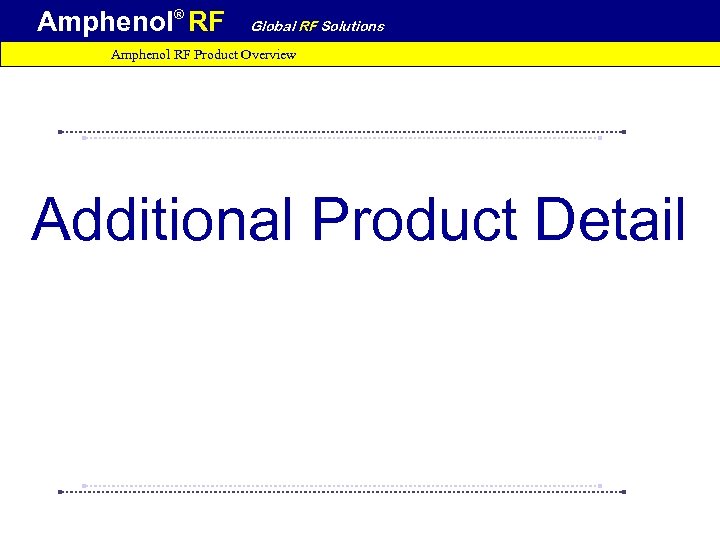

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Additional Product Detail

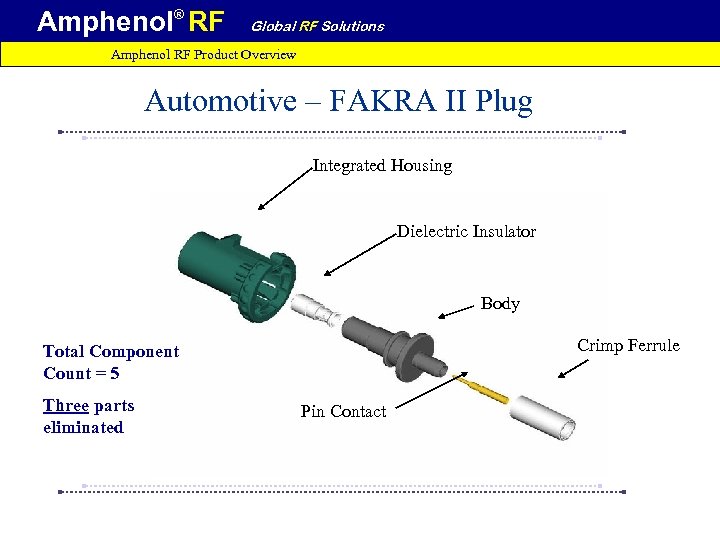

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Automotive – FAKRA II Plug Integrated Housing Dielectric Insulator Body Crimp Ferrule Total Component Count = 5 Three parts eliminated Pin Contact
Amphenol® RF Global RF Solutions Amphenol RF Product Overview Automotive – FAKRA II Jack Housing Insulator Spring Ring Body Total Component Count = 6 Three parts eliminated Socket Contact Crimp Ferrule

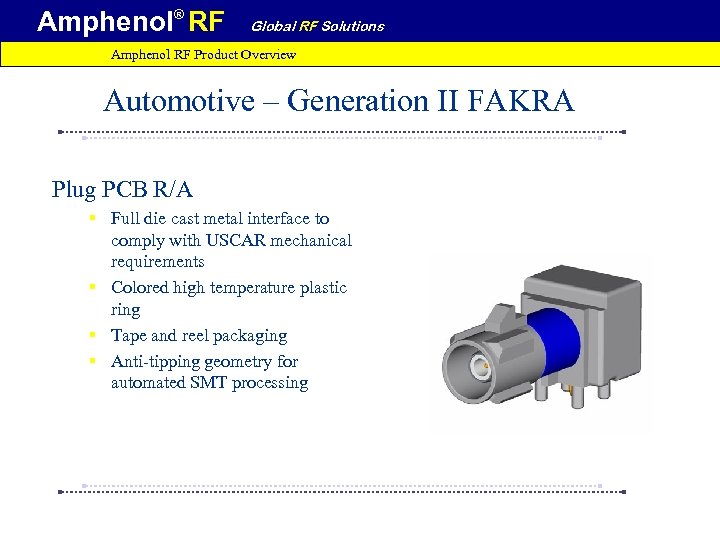

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Automotive – Generation II FAKRA Plug PCB R/A § Full die cast metal interface to comply with USCAR mechanical requirements § Colored high temperature plastic ring § Tape and reel packaging § Anti-tipping geometry for automated SMT processing

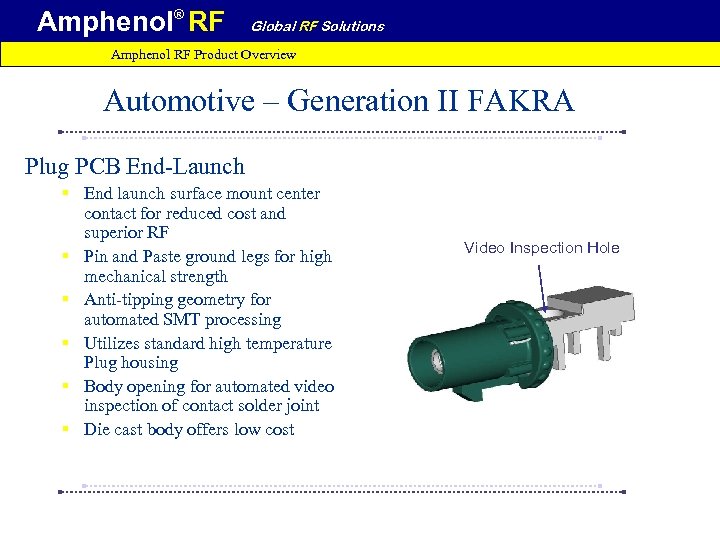

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Automotive – Generation II FAKRA Plug PCB End-Launch § End launch surface mount center contact for reduced cost and superior RF § Pin and Paste ground legs for high mechanical strength § Anti-tipping geometry for automated SMT processing § Utilizes standard high temperature Plug housing § Body opening for automated video inspection of contact solder joint § Die cast body offers low cost Video Inspection Hole
Amphenol® RF Global RF Solutions Amphenol RF Product Overview Automotive – Triple FAKRA § New three position FAKRA connector to meet expanding Automotive RF requirements § Ultra-compact profile to meet tight space requirements § Design win based on Amphenol being the only supplier to meet all of GM’s design requirements § Integrates standard Delphi clip provision § Utilizes FAKRA II components for commonality and economy of scale

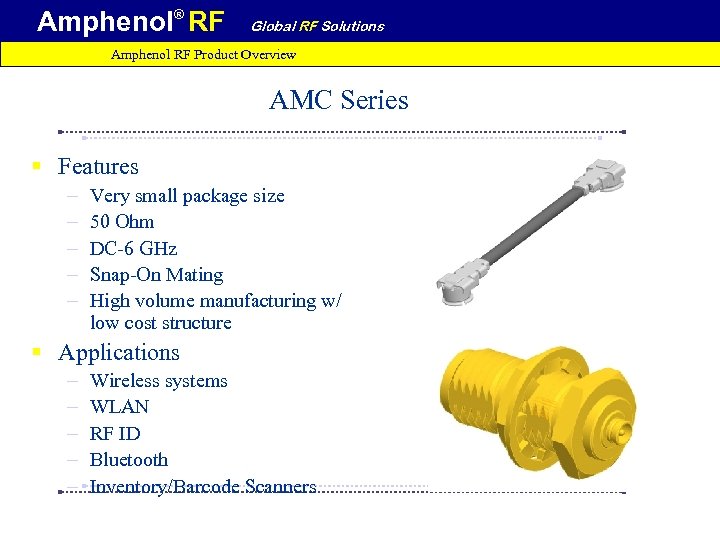

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AMC Series § Features – – – Very small package size 50 Ohm DC-6 GHz Snap-On Mating High volume manufacturing w/ low cost structure § Applications – – – Wireless systems WLAN RF ID Bluetooth Inventory/Barcode Scanners

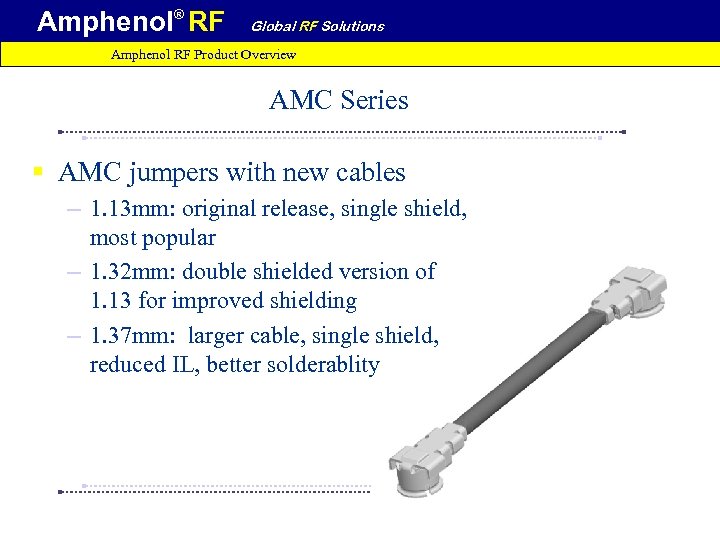

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AMC Series § AMC jumpers with new cables – 1. 13 mm: original release, single shield, most popular – 1. 32 mm: double shielded version of 1. 13 for improved shielding – 1. 37 mm: larger cable, single shield, reduced IL, better solderablity

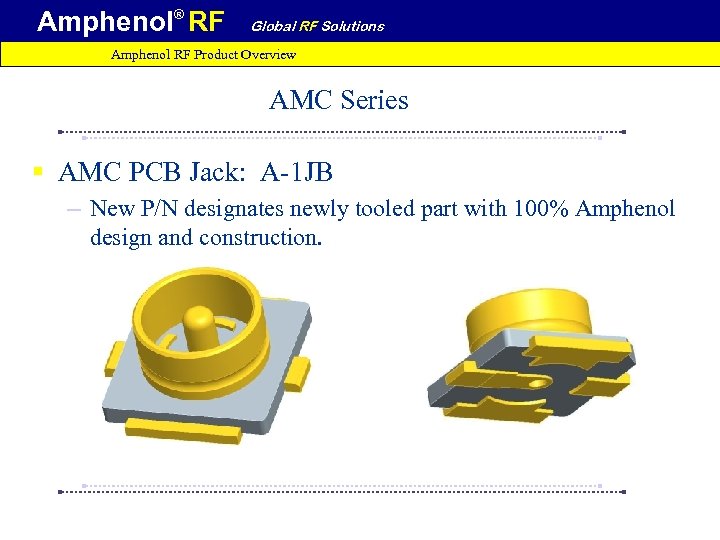

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AMC Series § AMC PCB Jack: A-1 JB – New P/N designates newly tooled part with 100% Amphenol design and construction.

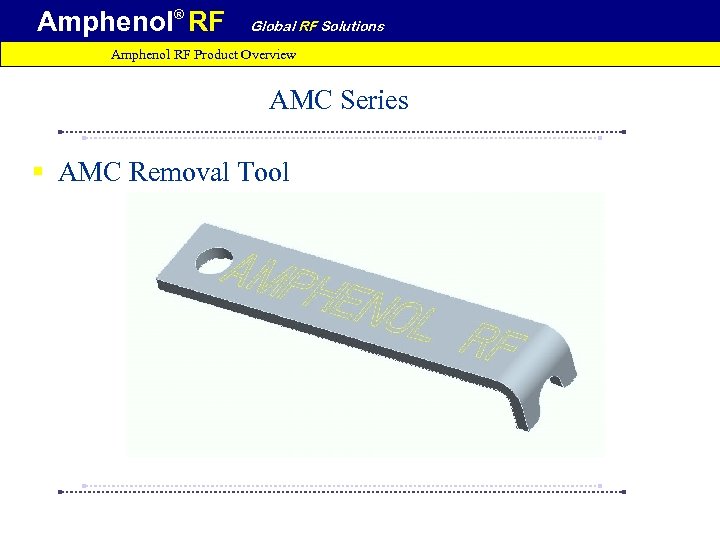

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AMC Series § AMC Removal Tool

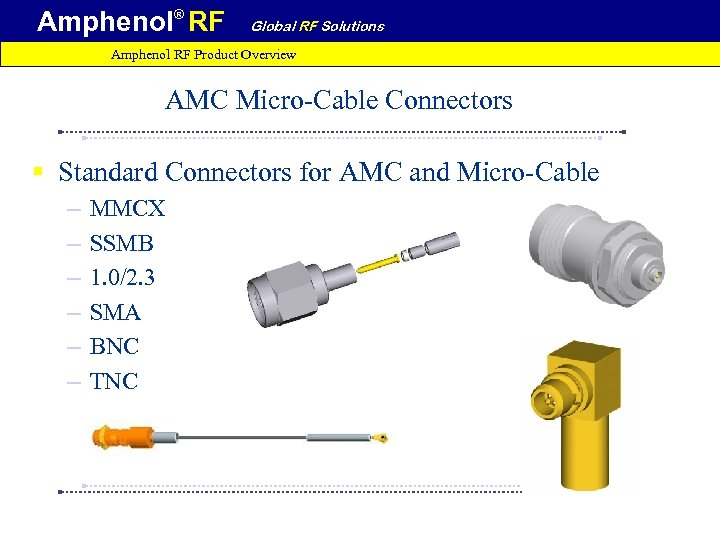

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AMC Micro-Cable Connectors § Standard Connectors for AMC and Micro-Cable – – – MMCX SSMB 1. 0/2. 3 SMA BNC TNC

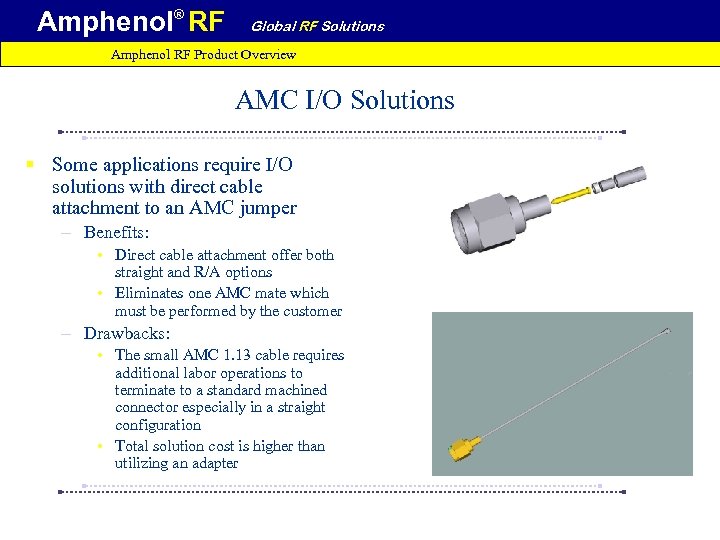

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AMC I/O Solutions § Some applications require I/O solutions with direct cable attachment to an AMC jumper – Benefits: • Direct cable attachment offer both straight and R/A options • Eliminates one AMC mate which must be performed by the customer – Drawbacks: • The small AMC 1. 13 cable requires additional labor operations to terminate to a standard machined connector especially in a straight configuration • Total solution cost is higher than utilizing an adapter

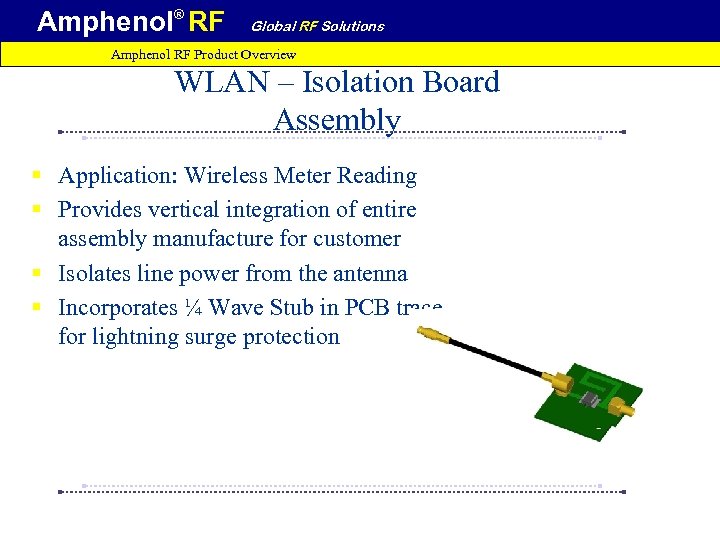

Amphenol® RF Global RF Solutions Amphenol RF Product Overview WLAN – Isolation Board Assembly § Application: Wireless Meter Reading § Provides vertical integration of entire assembly manufacture for customer § Isolates line power from the antenna § Incorporates ¼ Wave Stub in PCB trace for lightning surge protection

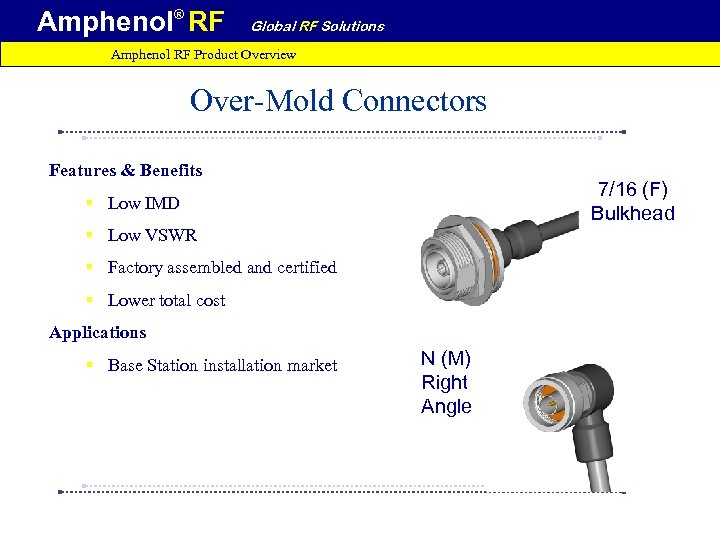

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Over-Mold Connectors Features & Benefits 7/16 (F) Bulkhead § Low IMD § Low VSWR § Factory assembled and certified § Lower total cost Applications § Base Station installation market N (M) Right Angle

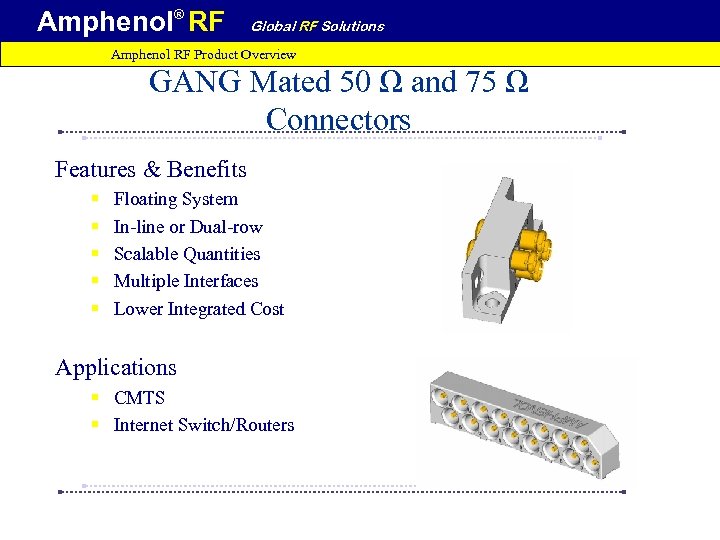

Amphenol® RF Global RF Solutions Amphenol RF Product Overview GANG Mated 50 Ω and 75 Ω Connectors Features & Benefits § § § Floating System In-line or Dual-row Scalable Quantities Multiple Interfaces Lower Integrated Cost Applications § CMTS § Internet Switch/Routers
Amphenol® RF Global RF Solutions Amphenol RF Product Overview MCX Gang-Mate § Features: – – 75 or 50 Ohm Typically DC-3 GHz Isolation better than 76 d. B to 1 GHz High float version for axial misalignment of up to. 070” – Scalable § Applications – – CMTS Aerospace Board to board Input/Output

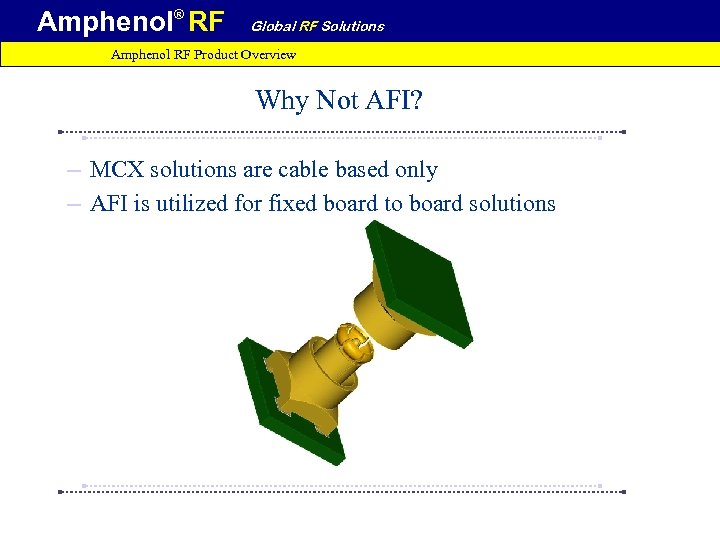

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Why Not AFI? – MCX solutions are cable based only – AFI is utilized for fixed board to board solutions
Amphenol® RF Global RF Solutions Amphenol RF Product Overview Metal MMCX SMT Features & Benefits § § § Metal body for strength Large Footprint for strong SMT joint R/A contact for inspection Applications § Low Profile Machined Body for Strength R/A Contact for Exposed SMT Joint

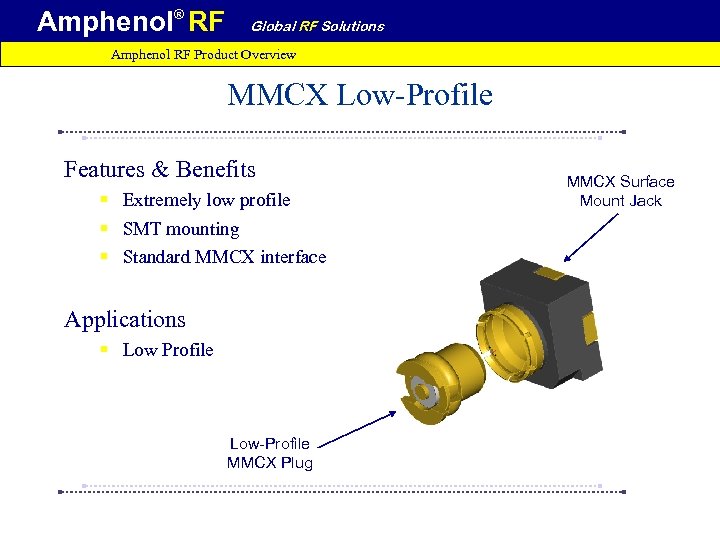

Amphenol® RF Global RF Solutions Amphenol RF Product Overview MMCX Low-Profile Features & Benefits § Extremely low profile § SMT mounting § Standard MMCX interface Applications § Low Profile Low-Profile MMCX Plug MMCX Surface Mount Jack

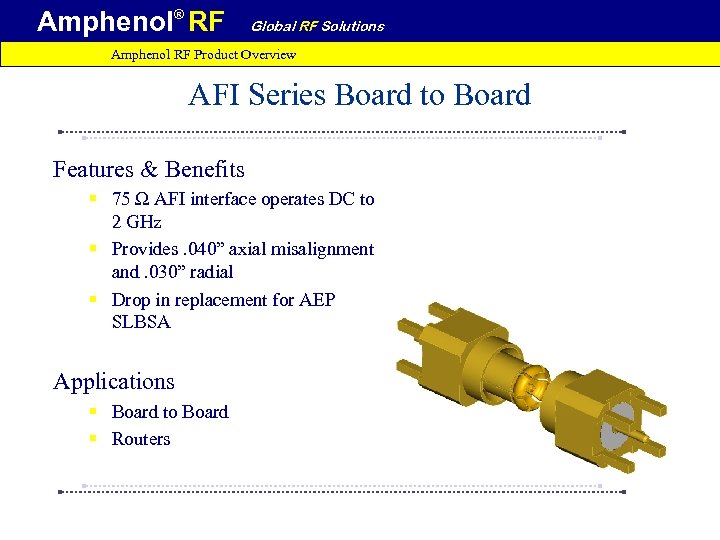

Amphenol® RF Global RF Solutions Amphenol RF Product Overview AFI Series Board to Board Features & Benefits § 75 Ω AFI interface operates DC to 2 GHz § Provides. 040” axial misalignment and. 030” radial § Drop in replacement for AEP SLBSA Applications § Board to Board § Routers

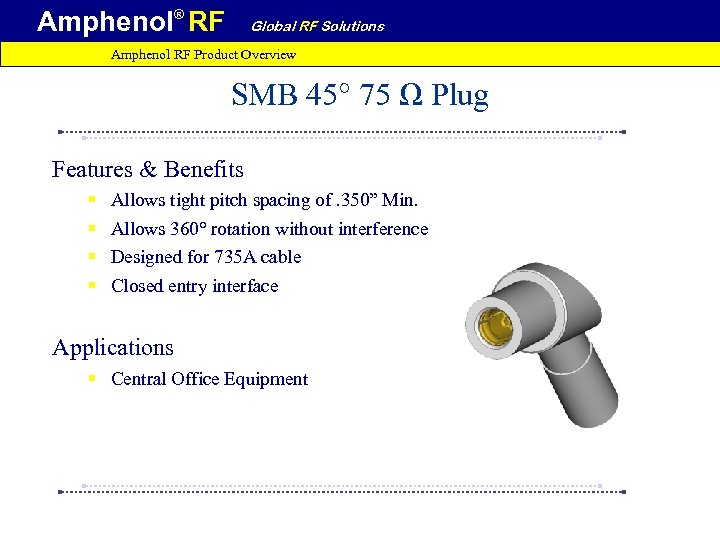

Amphenol® RF Global RF Solutions Amphenol RF Product Overview SMB 45° 75 Ω Plug Features & Benefits § § Allows tight pitch spacing of. 350” Min. Allows 360° rotation without interference Designed for 735 A cable Closed entry interface Applications § Central Office Equipment

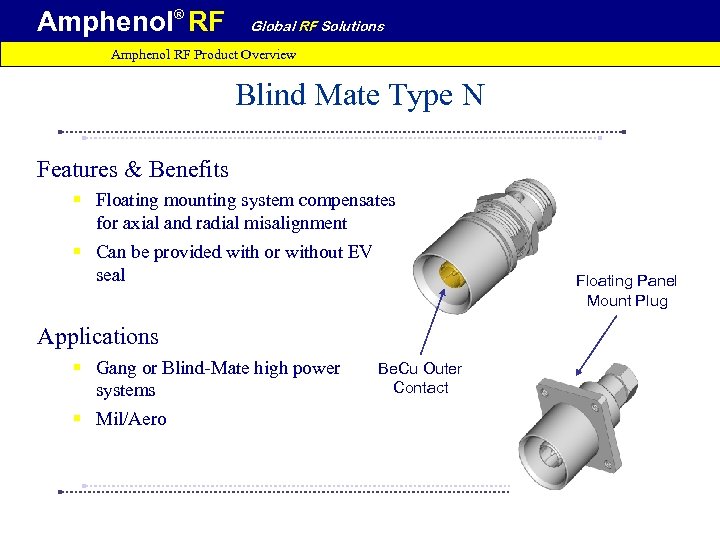

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Blind Mate Type N Features & Benefits § Floating mounting system compensates for axial and radial misalignment § Can be provided with or without EV seal Applications § Gang or Blind-Mate high power systems § Mil/Aero Be. Cu Outer Contact Floating Panel Mount Plug

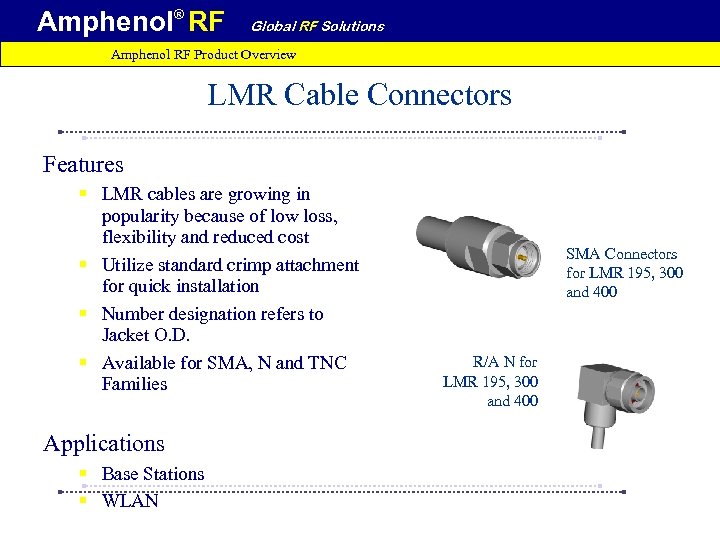

Amphenol® RF Global RF Solutions Amphenol RF Product Overview LMR Cable Connectors Features § LMR cables are growing in popularity because of low loss, flexibility and reduced cost § Utilize standard crimp attachment for quick installation § Number designation refers to Jacket O. D. § Available for SMA, N and TNC Families Applications § Base Stations § WLAN SMA Connectors for LMR 195, 300 and 400 R/A N for LMR 195, 300 and 400

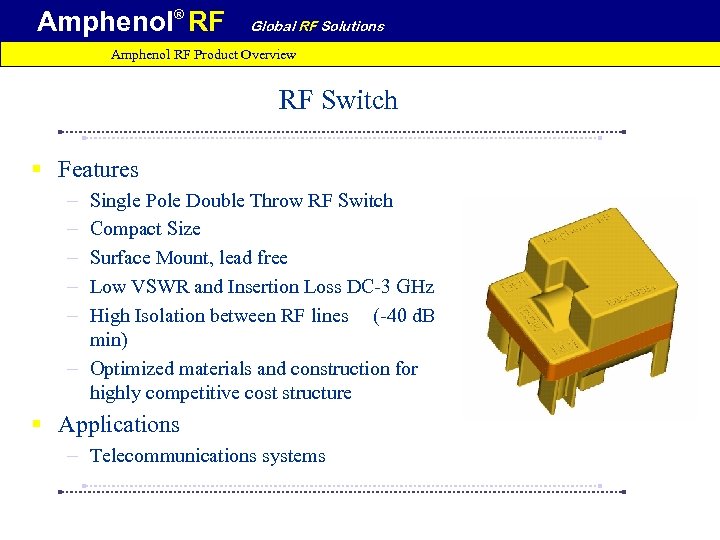

Amphenol® RF Global RF Solutions Amphenol RF Product Overview RF Switch § Features – – – Single Pole Double Throw RF Switch Compact Size Surface Mount, lead free Low VSWR and Insertion Loss DC-3 GHz High Isolation between RF lines (-40 d. B min) – Optimized materials and construction for highly competitive cost structure § Applications – Telecommunications systems

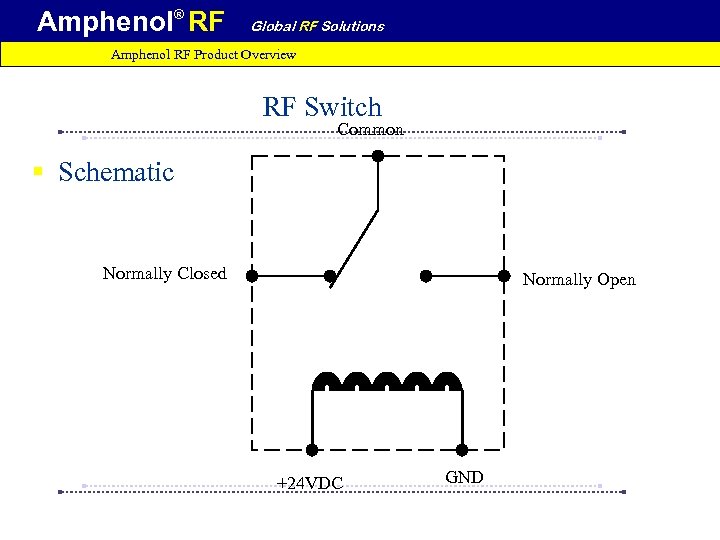

Amphenol® RF Global RF Solutions Amphenol RF Product Overview RF Switch Common § Schematic Normally Closed Normally Open +24 VDC GND
Amphenol® RF Global RF Solutions Amphenol RF Product Overview RF Switch Solenoid Plunger Solenoid Coil Solenoid Body Actuator Lower Body Spring RF Contacts PCB Insulators PCB Contacts

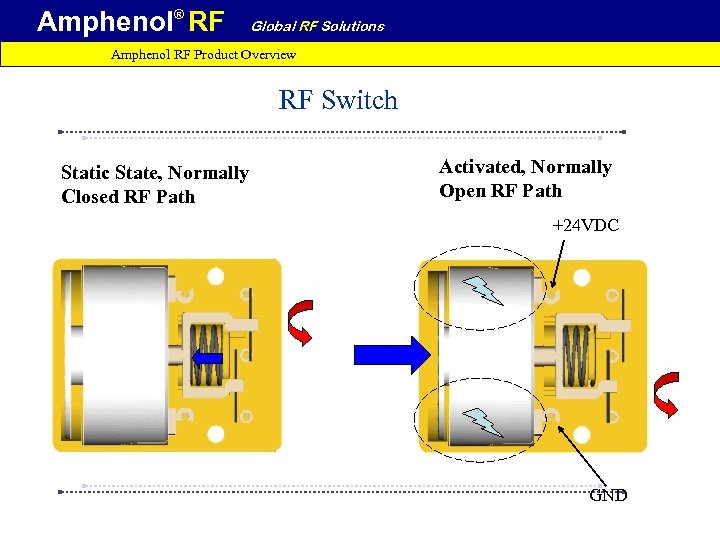

Amphenol® RF Global RF Solutions Amphenol RF Product Overview RF Switch Static State, Normally Closed RF Path Activated, Normally Open RF Path +24 VDC GND

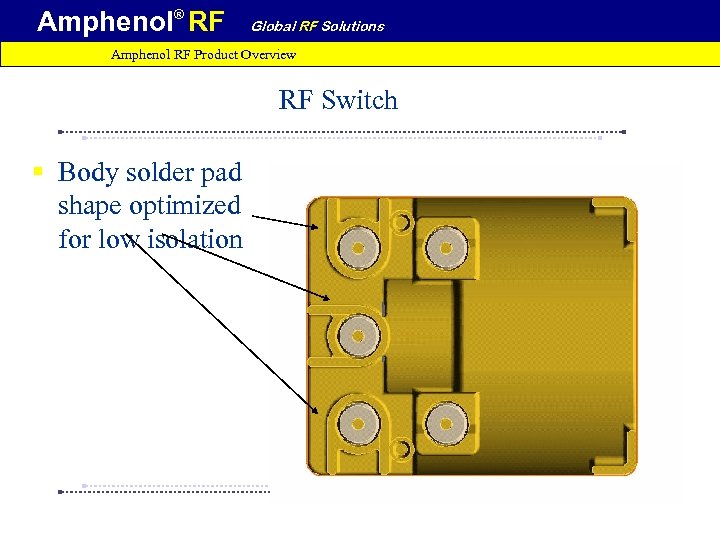

Amphenol® RF Global RF Solutions Amphenol RF Product Overview RF Switch § Body solder pad shape optimized for low isolation

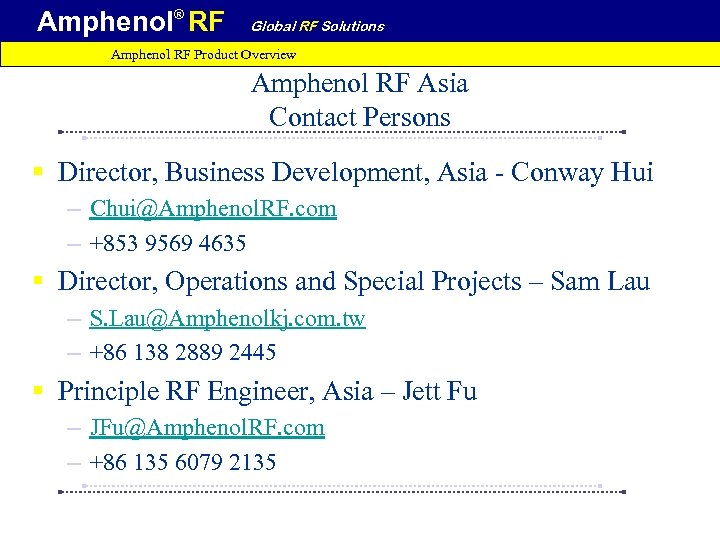

Amphenol® RF Global RF Solutions Amphenol RF Product Overview Amphenol RF Asia Contact Persons § Director, Business Development, Asia - Conway Hui – Chui@Amphenol. RF. com – +853 9569 4635 § Director, Operations and Special Projects – Sam Lau – S. Lau@Amphenolkj. com. tw – +86 138 2889 2445 § Principle RF Engineer, Asia – Jett Fu – JFu@Amphenol. RF. com – +86 135 6079 2135
