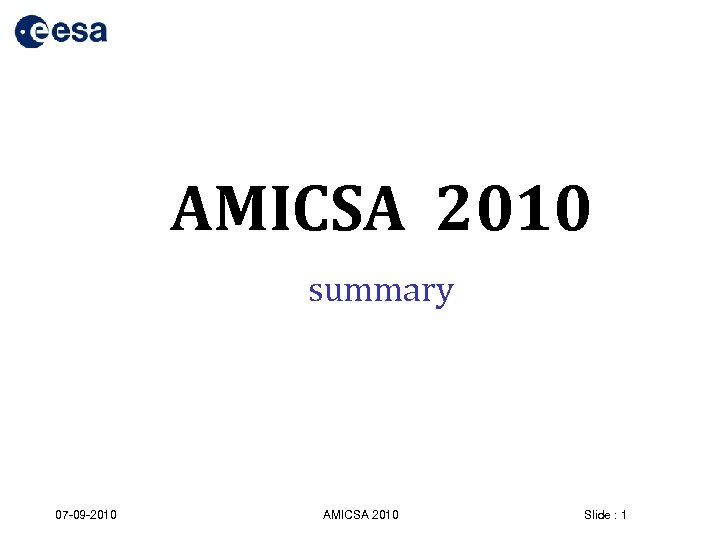

AMICSA 2010 summary 07 -09 -2010 AMICSA 2010

AMICSA 2010 summary 07 -09 -2010 AMICSA 2010 Slide : 1

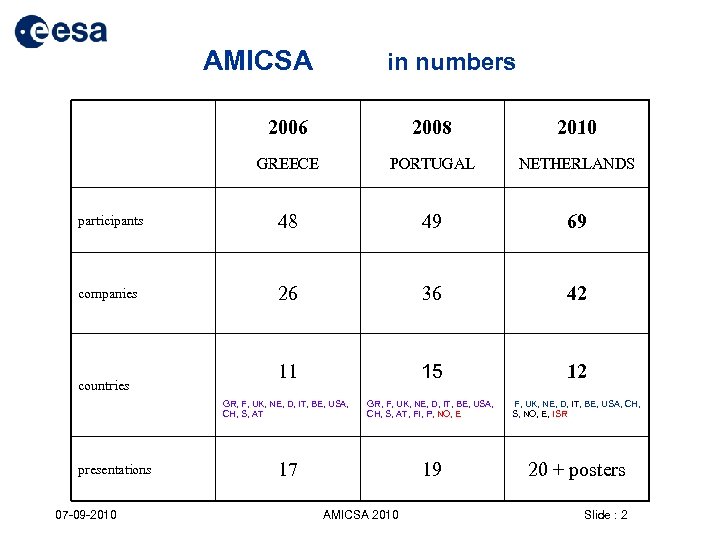

AMICSA in numbers 2006 2008 2010 GREECE PORTUGAL NETHERLANDS participants 48 49 69 companies 26 36 42 11 15 12 GR, F, UK, NE, D, IT, BE, USA, CH, S, AT, FI, P, NO, E F, UK, NE, D, IT, BE, USA, CH, S, NO, E, ISR 17 19 20 + posters countries presentations 07 -09 -2010 AMICSA 2010 Slide : 2

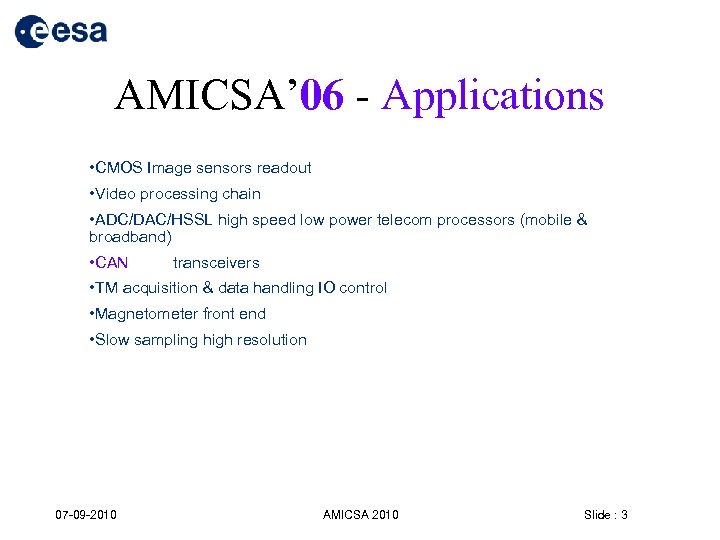

AMICSA’ 06 - Applications • CMOS Image sensors readout • Video processing chain • ADC/DAC/HSSL high speed low power telecom processors (mobile & broadband) • CAN 1553 transceivers • TM acquisition & data handling IO control • Magnetometer front end • Slow sampling high resolution • Power converters • LASER interferometer • AOCS • Environmental monitoring • X, Gamma ray spectroscopy • GNSS receivers Front End 07 -09 -2010 AMICSA 2010 Slide : 3

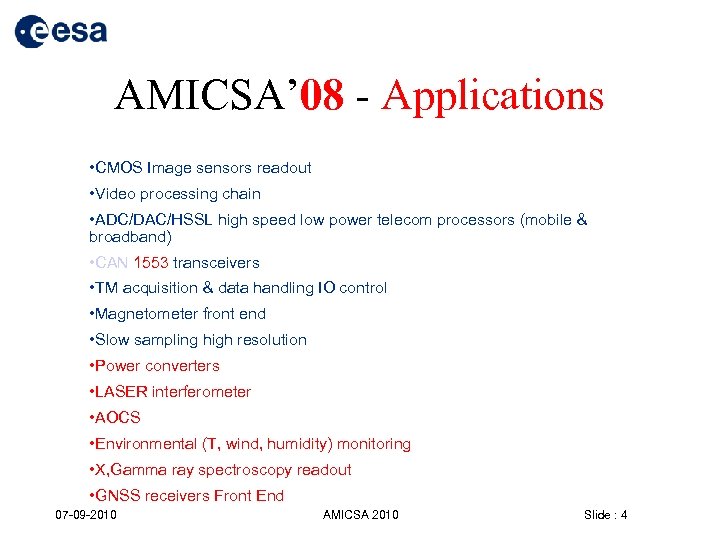

AMICSA’ 08 - Applications • CMOS Image sensors readout • Video processing chain • ADC/DAC/HSSL high speed low power telecom processors (mobile & broadband) • CAN 1553 transceivers • TM acquisition & data handling IO control • Magnetometer front end • Slow sampling high resolution • Power converters • LASER interferometer • AOCS • Environmental (T, wind, humidity) monitoring • X, Gamma ray spectroscopy readout • GNSS receivers Front End 07 -09 -2010 AMICSA 2010 Slide : 4

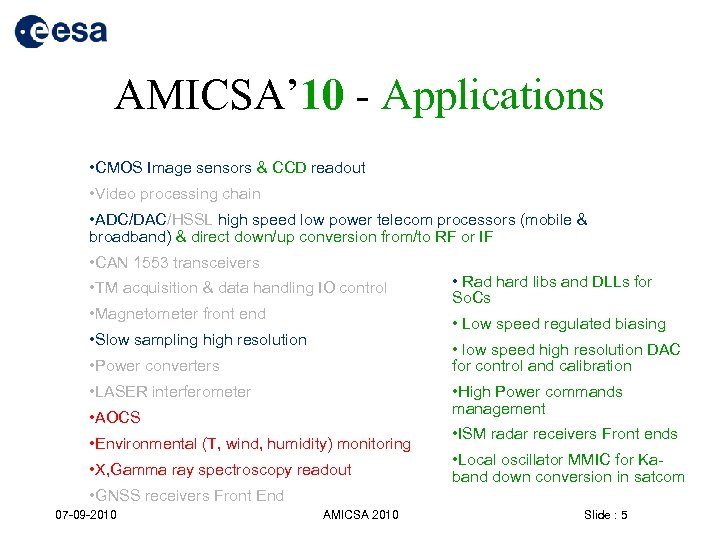

AMICSA’ 10 - Applications • CMOS Image sensors & CCD readout • Video processing chain • ADC/DAC/HSSL high speed low power telecom processors (mobile & broadband) & direct down/up conversion from/to RF or IF • CAN 1553 transceivers • TM acquisition & data handling IO control • Magnetometer front end • Rad hard libs and DLLs for So. Cs • Low speed regulated biasing • Slow sampling high resolution • Power converters • low speed high resolution DAC for control and calibration • LASER interferometer • High Power commands management • AOCS • Environmental (T, wind, humidity) monitoring • X, Gamma ray spectroscopy readout • ISM radar receivers Front ends • Local oscillator MMIC for Kaband down conversion in satcom • GNSS receivers Front End 07 -09 -2010 AMICSA 2010 Slide : 5

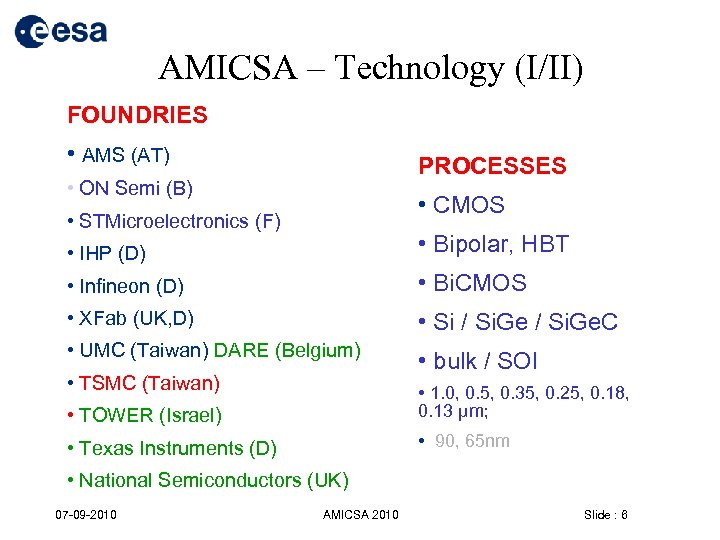

AMICSA – Technology (I/II) FOUNDRIES • AMS (AT) PROCESSES • ON Semi (B) • CMOS • STMicroelectronics (F) • IHP (D) • Bipolar, HBT • Infineon (D) • Bi. CMOS • XFab (UK, D) • Si / Si. Ge. C • UMC (Taiwan) DARE (Belgium) • bulk / SOI • TSMC (Taiwan) • TOWER (Israel) • 1. 0, 0. 5, 0. 35, 0. 25, 0. 18, 0. 13 µm; • Texas Instruments (D) • 90, 65 nm • National Semiconductors (UK) 07 -09 -2010 AMICSA 2010 Slide : 6

NS Foundries used for space mixed-signal ASICs XFab ON MHS IHP Infineon AMS Taiwan LFoundry STM 07 -09 -2010 TI AMICSA 2010 UMC TSMC Slide : 7 Israel Tower

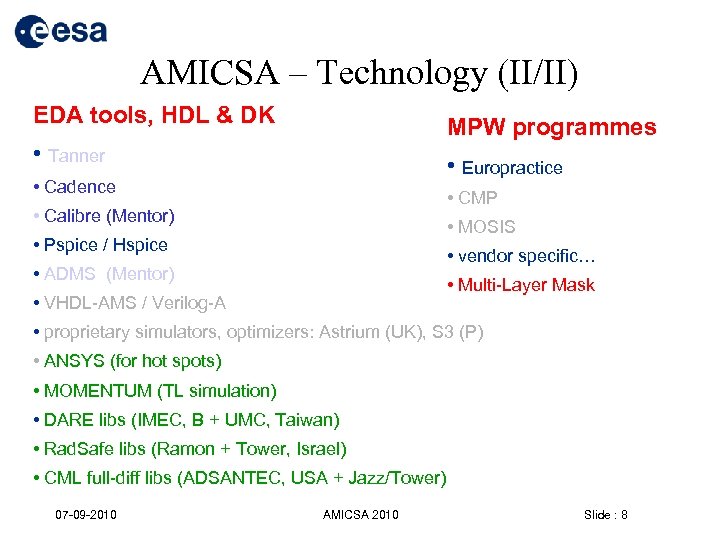

AMICSA – Technology (II/II) EDA tools, HDL & DK MPW programmes • Tanner • Europractice • Cadence • CMP • Calibre (Mentor) • MOSIS • Pspice / Hspice • vendor specific… • ADMS (Mentor) • Multi-Layer Mask • VHDL-AMS / Verilog-A • proprietary simulators, optimizers: Astrium (UK), S 3 (P) • ANSYS (for hot spots) • MOMENTUM (TL simulation) • DARE libs (IMEC, B + UMC, Taiwan) • Rad. Safe libs (Ramon + Tower, Israel) • CML full-diff libs (ADSANTEC, USA + Jazz/Tower) 07 -09 -2010 AMICSA 2010 Slide : 8

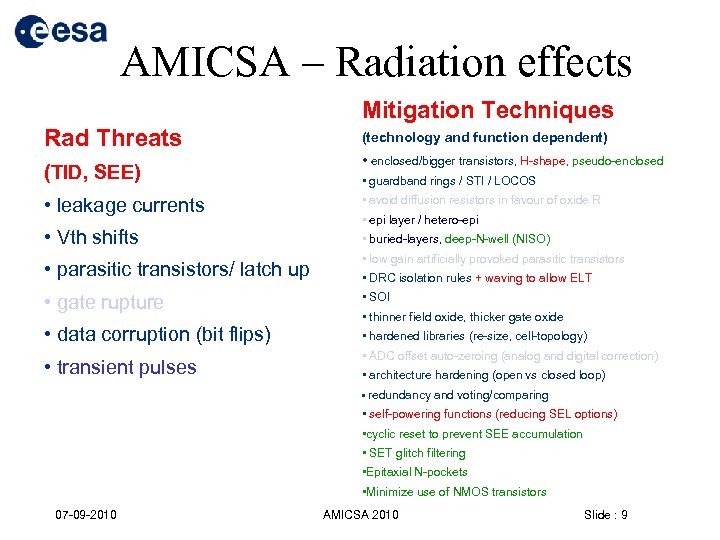

AMICSA – Radiation effects Mitigation Techniques Rad Threats (TID, SEE) (technology and function dependent) • enclosed/bigger transistors, H-shape, pseudo-enclosed • guardband rings / STI / LOCOS • leakage currents • avoid diffusion resistors in favour of oxide R • Vth shifts • buried-layers, deep-N-well (NISO) • parasitic transistors/ latch up • epi layer / hetero-epi • low gain artificially provoked parasitic transistors • DRC isolation rules + waving to allow ELT • gate rupture • SOI • data corruption (bit flips) • hardened libraries (re-size, cell-topology) • transient pulses • thinner field oxide, thicker gate oxide • ADC offset auto-zeroing (analog and digital correction) • architecture hardening (open vs closed loop) • redundancy and voting/comparing • self-powering functions (reducing SEL options) • cyclic reset to prevent SEE accumulation • SET glitch filtering • Epitaxial N-pockets • Minimize use of NMOS transistors 07 -09 -2010 AMICSA 2010 Slide : 9

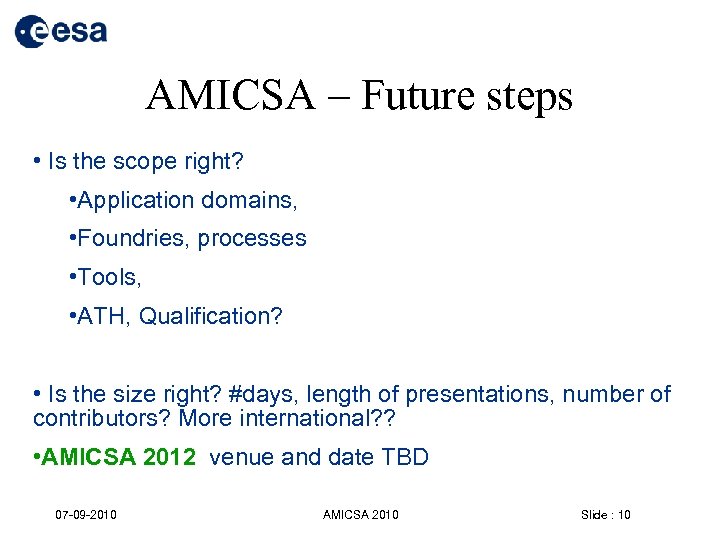

AMICSA – Future steps • Is the scope right? • Application domains, • Foundries, processes • Tools, • ATH, Qualification? • Is the size right? #days, length of presentations, number of contributors? More international? ? • AMICSA 2012 venue and date TBD 07 -09 -2010 AMICSA 2010 Slide : 10

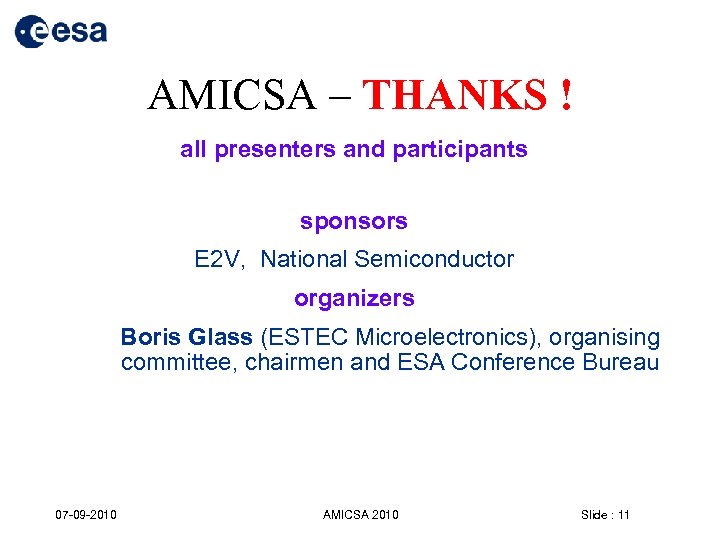

AMICSA – THANKS ! all presenters and participants sponsors E 2 V, National Semiconductor organizers Boris Glass (ESTEC Microelectronics), organising committee, chairmen and ESA Conference Bureau 07 -09 -2010 AMICSA 2010 Slide : 11
