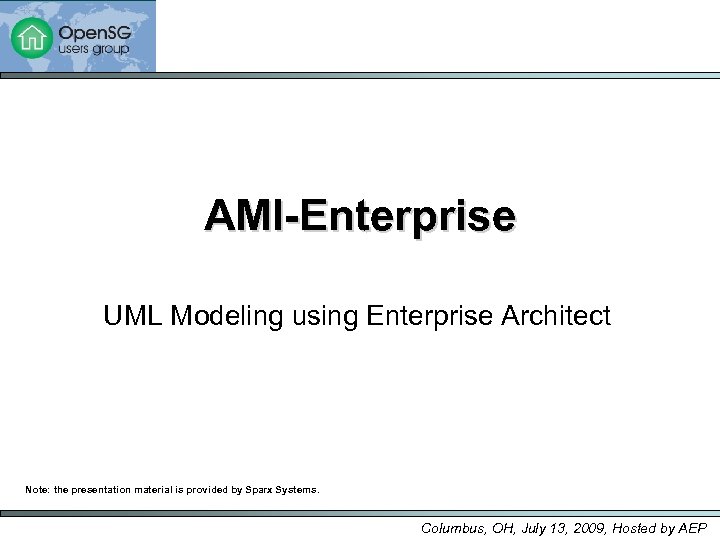

AMI-Enterprise UML Modeling using Enterprise Architect Note: the presentation material is provided by Sparx Systems. Columbus, OH, July 13, 2009, Hosted by AEP

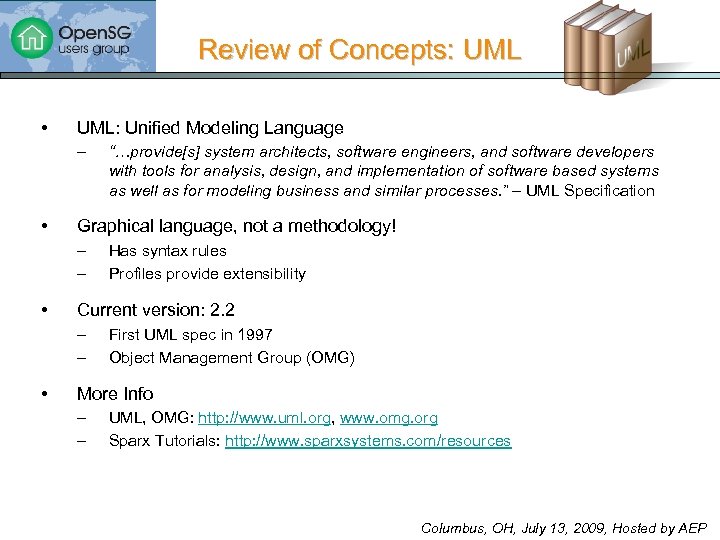

Review of Concepts: UML • UML: Unified Modeling Language – • Graphical language, not a methodology! – – • Has syntax rules Profiles provide extensibility Current version: 2. 2 – – • “…provide[s] system architects, software engineers, and software developers with tools for analysis, design, and implementation of software based systems as well as for modeling business and similar processes. ” – UML Specification First UML spec in 1997 Object Management Group (OMG) More Info – – UML, OMG: http: //www. uml. org, www. omg. org Sparx Tutorials: http: //www. sparxsystems. com/resources Columbus, OH, July 13, 2009, Hosted by AEP

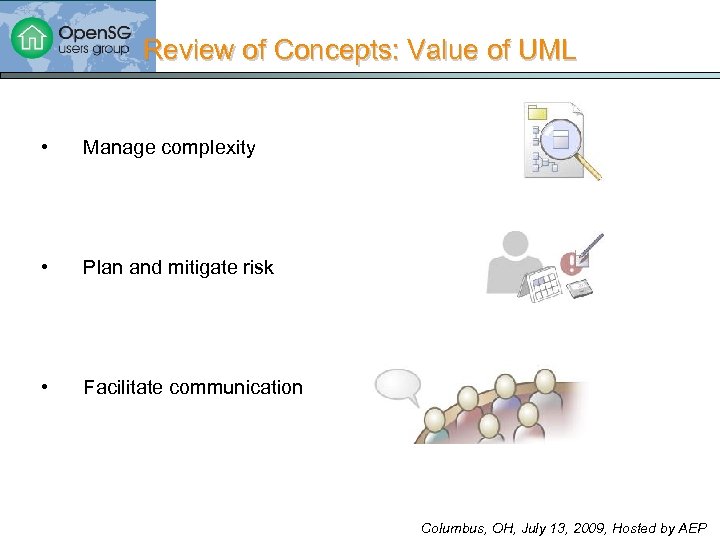

Review of Concepts: Value of UML • Manage complexity • Plan and mitigate risk • Facilitate communication Columbus, OH, July 13, 2009, Hosted by AEP

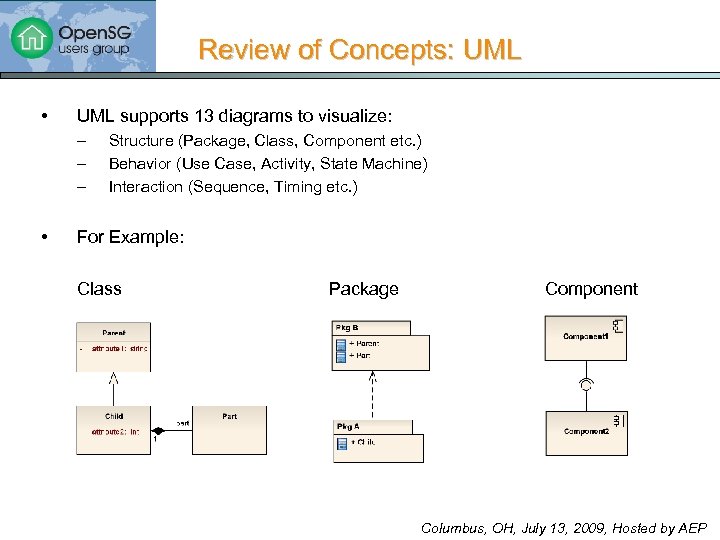

Review of Concepts: UML • UML supports 13 diagrams to visualize: – – – • Structure (Package, Class, Component etc. ) Behavior (Use Case, Activity, State Machine) Interaction (Sequence, Timing etc. ) For Example: Class Package Component Columbus, OH, July 13, 2009, Hosted by AEP

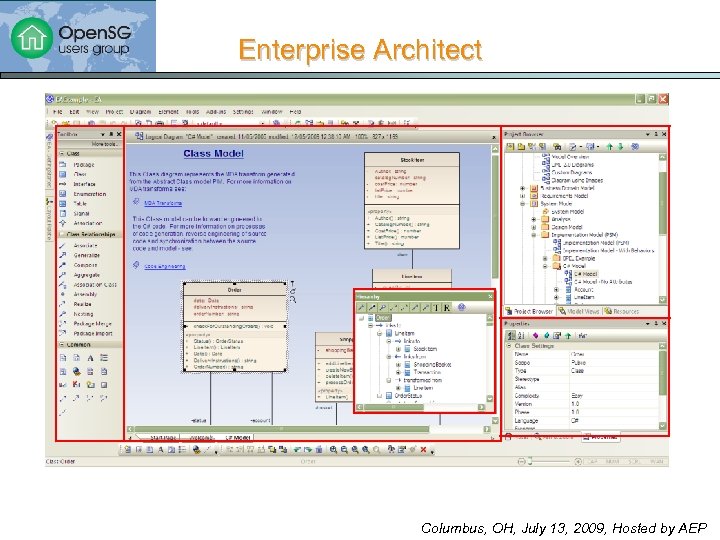

Enterprise Architect Columbus, OH, July 13, 2009, Hosted by AEP

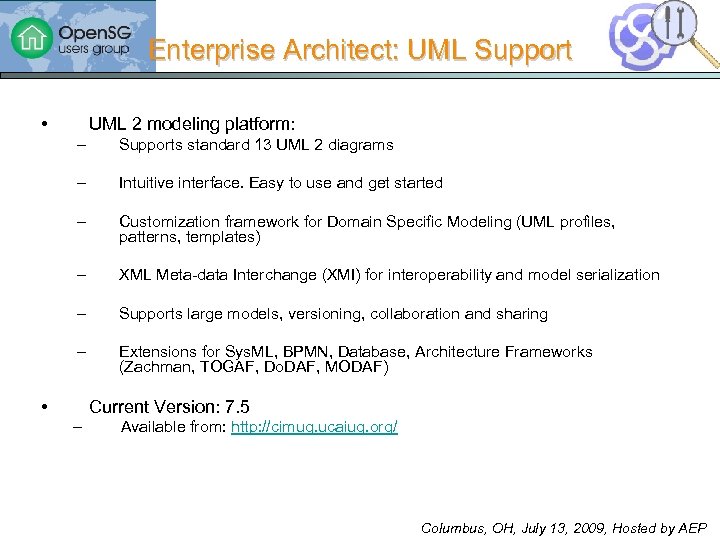

Enterprise Architect: UML Support • UML 2 modeling platform: – Supports standard 13 UML 2 diagrams – Intuitive interface. Easy to use and get started – Customization framework for Domain Specific Modeling (UML profiles, patterns, templates) – XML Meta-data Interchange (XMI) for interoperability and model serialization – Supports large models, versioning, collaboration and sharing – Extensions for Sys. ML, BPMN, Database, Architecture Frameworks (Zachman, TOGAF, Do. DAF, MODAF) • Current Version: 7. 5 – Available from: http: //cimug. ucaiug. org/ Columbus, OH, July 13, 2009, Hosted by AEP

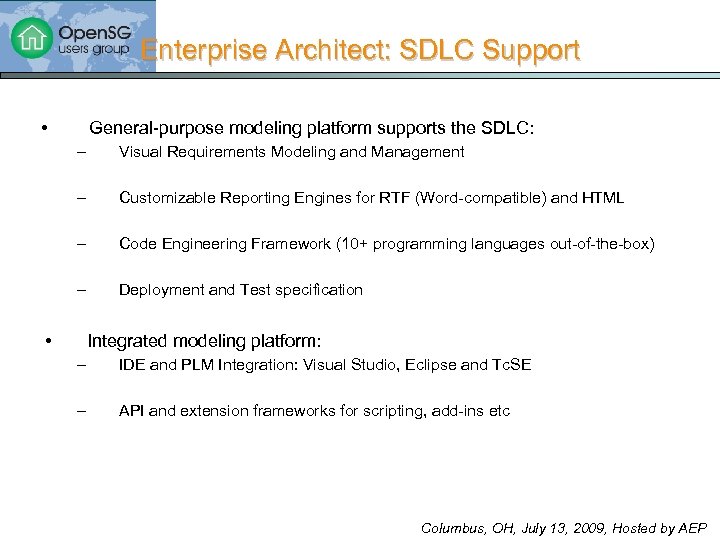

Enterprise Architect: SDLC Support • General-purpose modeling platform supports the SDLC: – Visual Requirements Modeling and Management – Customizable Reporting Engines for RTF (Word-compatible) and HTML – Code Engineering Framework (10+ programming languages out-of-the-box) – Deployment and Test specification • Integrated modeling platform: – IDE and PLM Integration: Visual Studio, Eclipse and Tc. SE – API and extension frameworks for scripting, add-ins etc Columbus, OH, July 13, 2009, Hosted by AEP

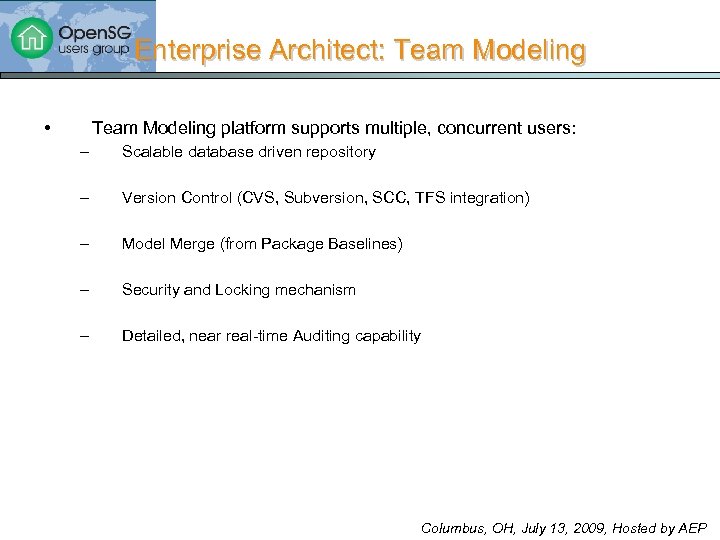

Enterprise Architect: Team Modeling • Team Modeling platform supports multiple, concurrent users: – Scalable database driven repository – Version Control (CVS, Subversion, SCC, TFS integration) – Model Merge (from Package Baselines) – Security and Locking mechanism – Detailed, near real-time Auditing capability Columbus, OH, July 13, 2009, Hosted by AEP

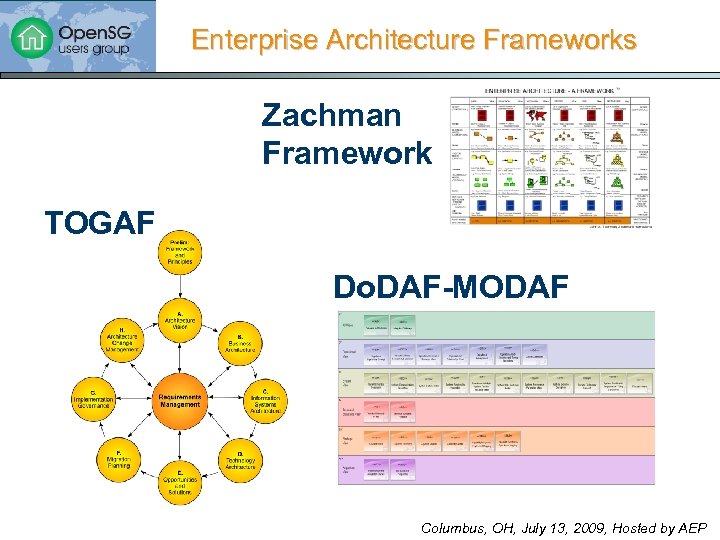

Enterprise Architecture Frameworks Zachman Framework TOGAF Do. DAF-MODAF Columbus, OH, July 13, 2009, Hosted by AEP

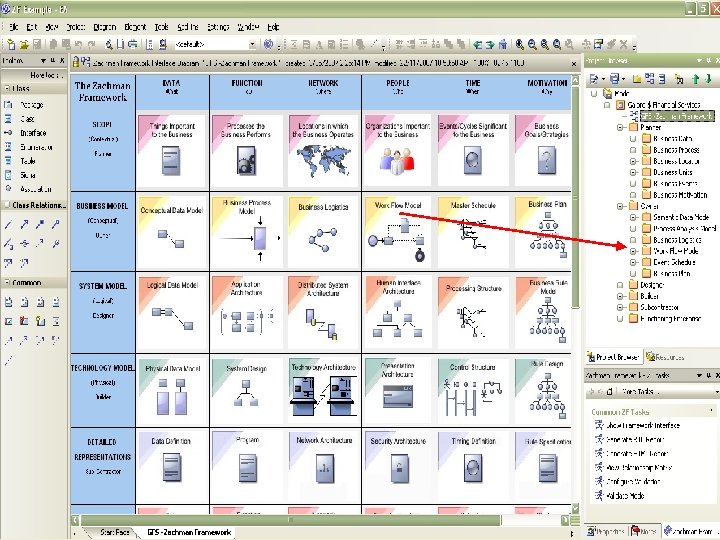

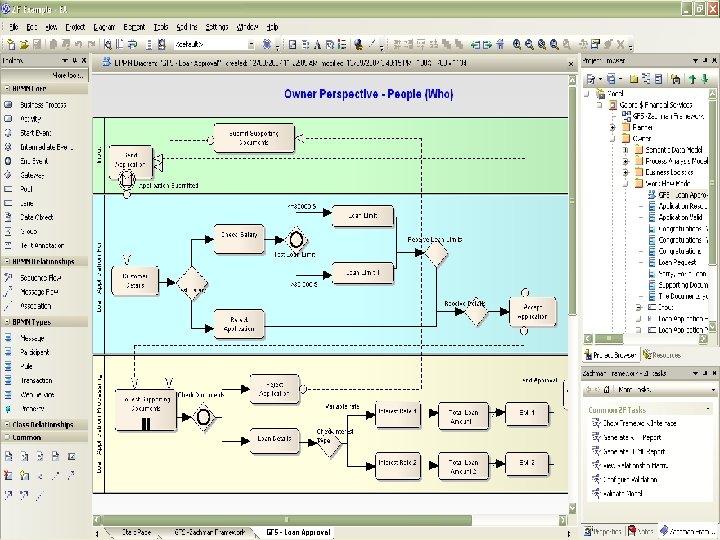

The Zachman Framework Columbus, OH, July 13, 2009, Hosted by AEP

Columbus, OH, July 13, 2009, Hosted by AEP

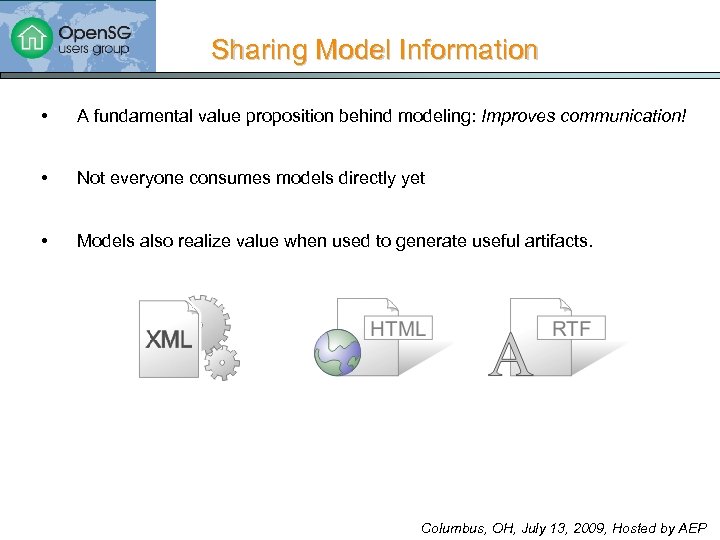

Sharing Model Information • A fundamental value proposition behind modeling: Improves communication! • Not everyone consumes models directly yet • Models also realize value when used to generate useful artifacts. Columbus, OH, July 13, 2009, Hosted by AEP

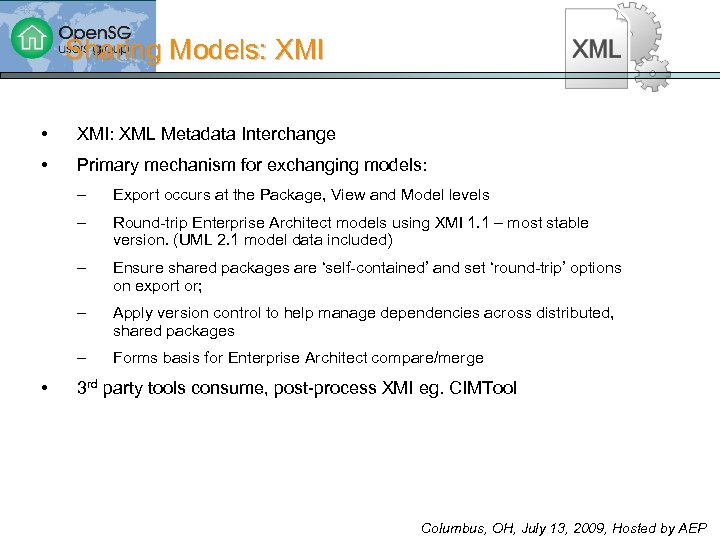

Sharing Models: XMI • XMI: XML Metadata Interchange • Primary mechanism for exchanging models: – – Round-trip Enterprise Architect models using XMI 1. 1 – most stable version. (UML 2. 1 model data included) – Ensure shared packages are ‘self-contained’ and set ‘round-trip’ options on export or; – Apply version control to help manage dependencies across distributed, shared packages – • Export occurs at the Package, View and Model levels Forms basis for Enterprise Architect compare/merge 3 rd party tools consume, post-process XMI eg. CIMTool Columbus, OH, July 13, 2009, Hosted by AEP

Sharing Models: HTML • Enterprise Architect HTML generation replicates model structure, diagrams and project info for online distribution (internet or secured intranet) • Model navigation via project explorer frame and diagram hot-spots • Doesn’t require Enterprise Architect client, browser only • Generation process can be automated using API to update online doco regularly (HTML model data not synched real-time) • Numerous orgs publish standards models in HTML form: – ISO/TC 211: http: //www. isotc 211. org/hmmg/HTML – GIEM/Govdex: https: //www. govdex. gov. au/pub/ – DMV: http: //www. dmv. virginia. gov/csi/eahtml/index. htm – Datex II: http: //www. datex 2. eu/? q=node/23 Columbus, OH, July 13, 2009, Hosted by AEP

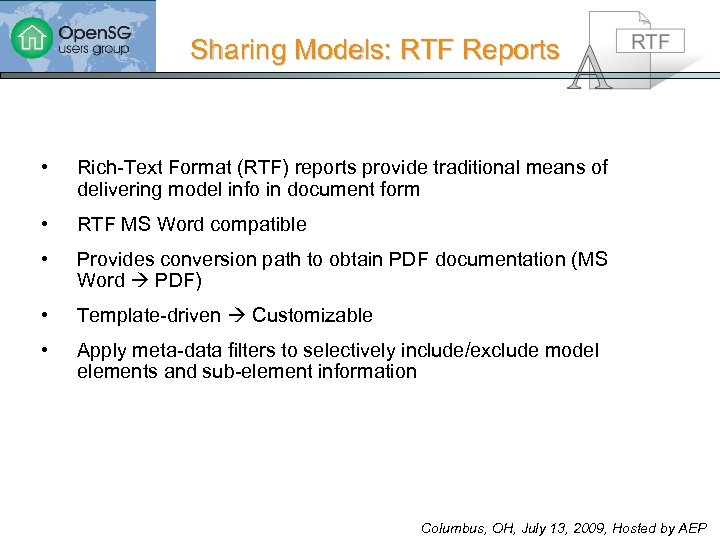

Sharing Models: RTF Reports • Rich-Text Format (RTF) reports provide traditional means of delivering model info in document form • RTF MS Word compatible • Provides conversion path to obtain PDF documentation (MS Word PDF) • Template-driven Customizable • Apply meta-data filters to selectively include/exclude model elements and sub-element information Columbus, OH, July 13, 2009, Hosted by AEP

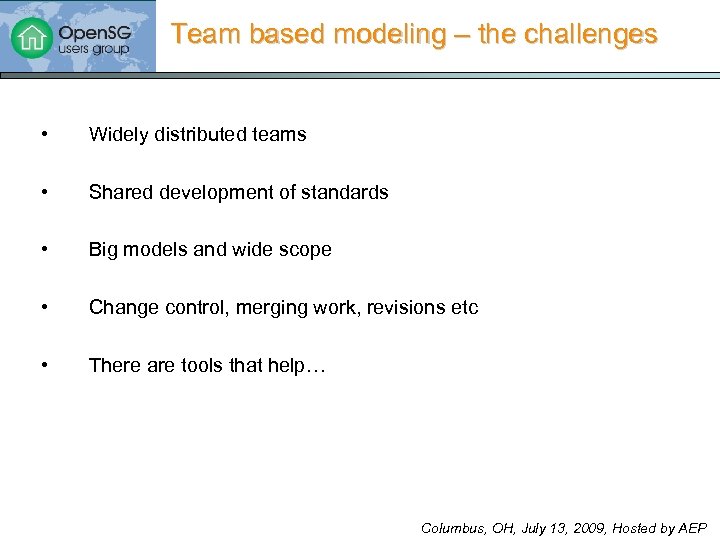

Team based modeling – the challenges • Widely distributed teams • Shared development of standards • Big models and wide scope • Change control, merging work, revisions etc • There are tools that help… Columbus, OH, July 13, 2009, Hosted by AEP

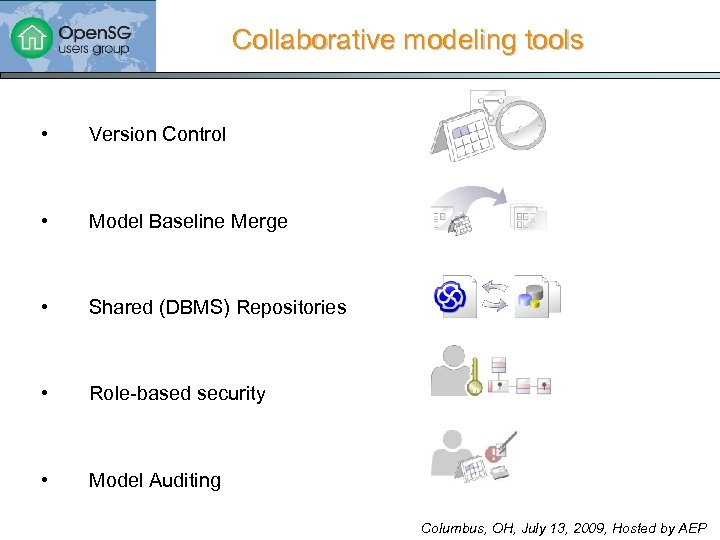

Collaborative modeling tools • Version Control • Model Baseline Merge • Shared (DBMS) Repositories • Role-based security • Model Auditing Columbus, OH, July 13, 2009, Hosted by AEP

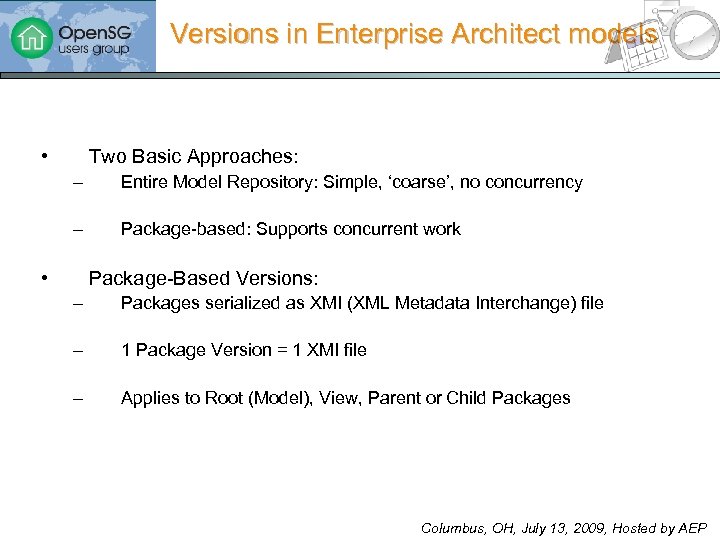

Versions in Enterprise Architect models • Two Basic Approaches: – Entire Model Repository: Simple, ‘coarse’, no concurrency – Package-based: Supports concurrent work • Package-Based Versions: – Packages serialized as XMI (XML Metadata Interchange) file – 1 Package Version = 1 XMI file – Applies to Root (Model), View, Parent or Child Packages Columbus, OH, July 13, 2009, Hosted by AEP

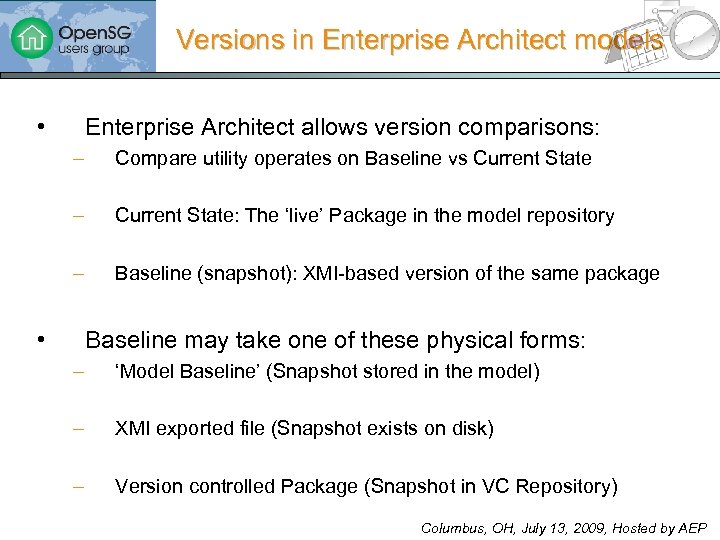

Versions in Enterprise Architect models • Enterprise Architect allows version comparisons: – Compare utility operates on Baseline vs Current State – Current State: The ‘live’ Package in the model repository – Baseline (snapshot): XMI-based version of the same package • Baseline may take one of these physical forms: – ‘Model Baseline’ (Snapshot stored in the model) – XMI exported file (Snapshot exists on disk) – Version controlled Package (Snapshot in VC Repository) Columbus, OH, July 13, 2009, Hosted by AEP

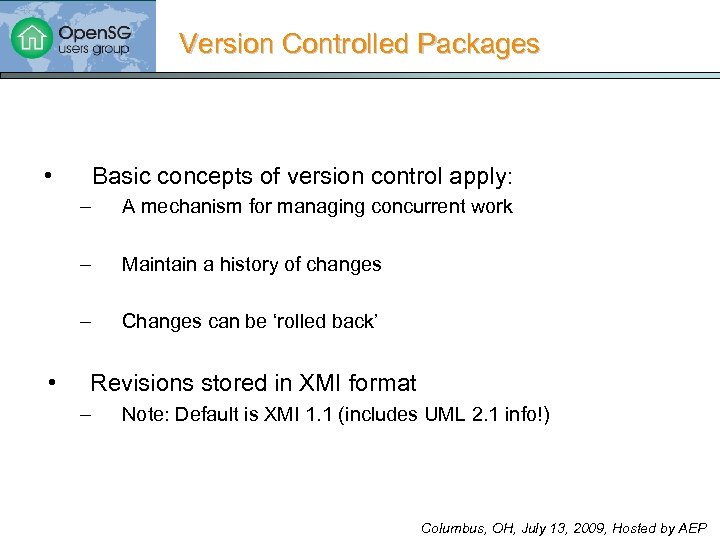

Version Controlled Packages • Basic concepts of version control apply: – – Maintain a history of changes – • A mechanism for managing concurrent work Changes can be ‘rolled back’ Revisions stored in XMI format – Note: Default is XMI 1. 1 (includes UML 2. 1 info!) Columbus, OH, July 13, 2009, Hosted by AEP

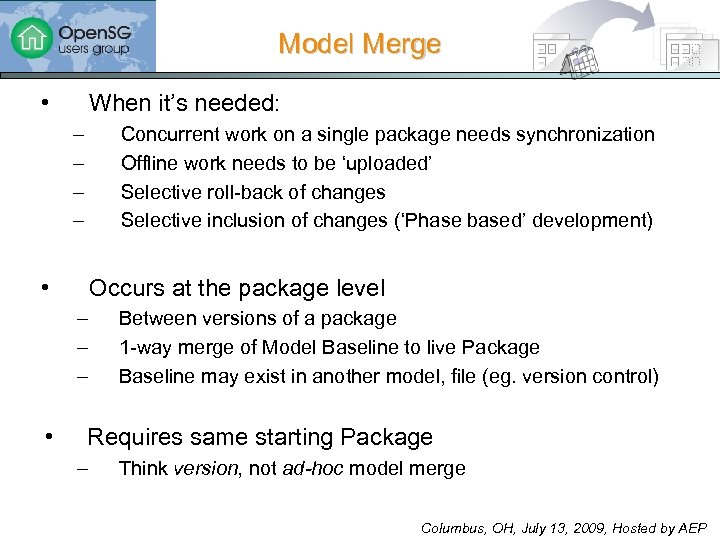

Model Merge • When it’s needed: – – Concurrent work on a single package needs synchronization Offline work needs to be ‘uploaded’ Selective roll-back of changes Selective inclusion of changes (‘Phase based’ development) • Occurs at the package level – – – • Between versions of a package 1 -way merge of Model Baseline to live Package Baseline may exist in another model, file (eg. version control) Requires same starting Package – Think version, not ad-hoc model merge Columbus, OH, July 13, 2009, Hosted by AEP

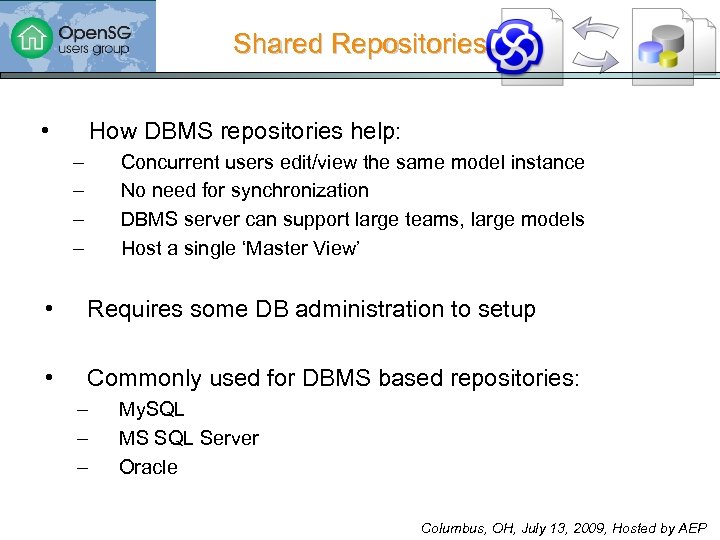

Shared Repositories • How DBMS repositories help: – – Concurrent users edit/view the same model instance No need for synchronization DBMS server can support large teams, large models Host a single ‘Master View’ • Requires some DB administration to setup • Commonly used for DBMS based repositories: – – – My. SQL MS SQL Server Oracle Columbus, OH, July 13, 2009, Hosted by AEP

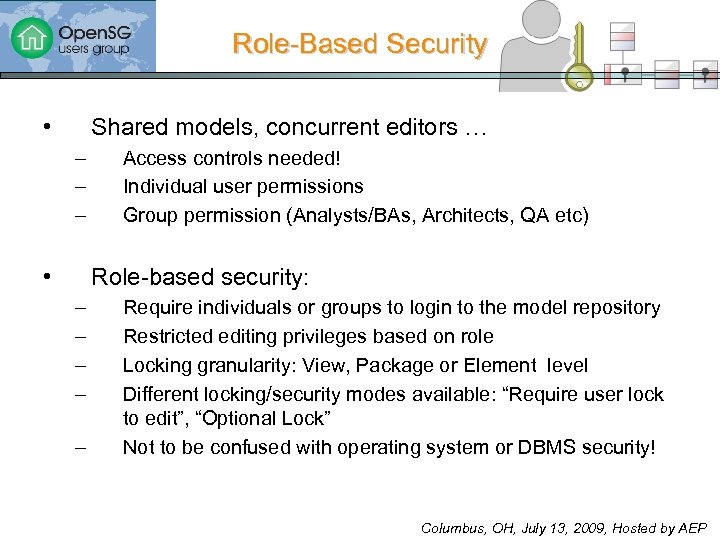

Role-Based Security • Shared models, concurrent editors … – – – • Access controls needed! Individual user permissions Group permission (Analysts/BAs, Architects, QA etc) Role-based security: – – – Require individuals or groups to login to the model repository Restricted editing privileges based on role Locking granularity: View, Package or Element level Different locking/security modes available: “Require user lock to edit”, “Optional Lock” Not to be confused with operating system or DBMS security! Columbus, OH, July 13, 2009, Hosted by AEP

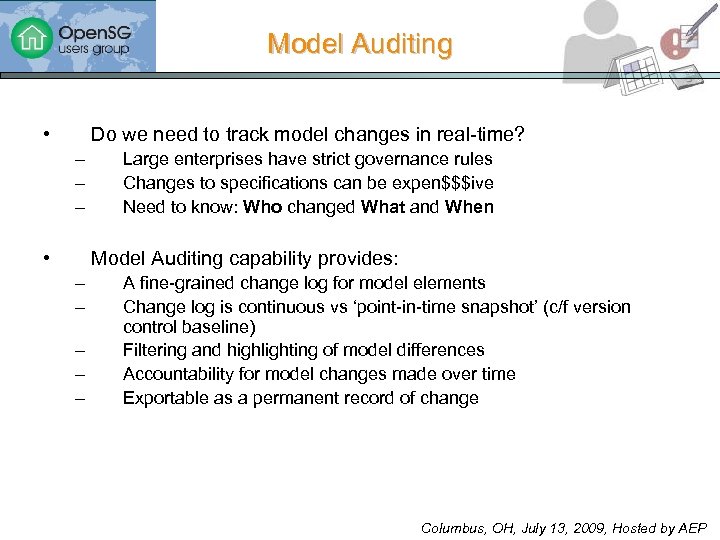

Model Auditing • Do we need to track model changes in real-time? – – – • Large enterprises have strict governance rules Changes to specifications can be expen$$$ive Need to know: Who changed What and When Model Auditing capability provides: – – – A fine-grained change log for model elements Change log is continuous vs ‘point-in-time snapshot’ (c/f version control baseline) Filtering and highlighting of model differences Accountability for model changes made over time Exportable as a permanent record of change Columbus, OH, July 13, 2009, Hosted by AEP

AMI-ENT Modeling & Design Approach Use Case Diagram, Activity Diagram Requirements List, Sequence Diagram Class Diagram Columbus, OH, July 13, 2009, Hosted by AEP
