Net. Reality overview Net. Reality controls the assignment of bandwidth, ensuring delivery of critical applications Dedicated monitoring and traffic shaping device with central management software Integrated software & hardware solution WAN based or LAN based multi service platform – one device, multiple functions: 7 -layer real time and historical monitoring, traffic shaping, SLM, CSU/DSU functionality, Accounting, Security, Vo. IP management 2

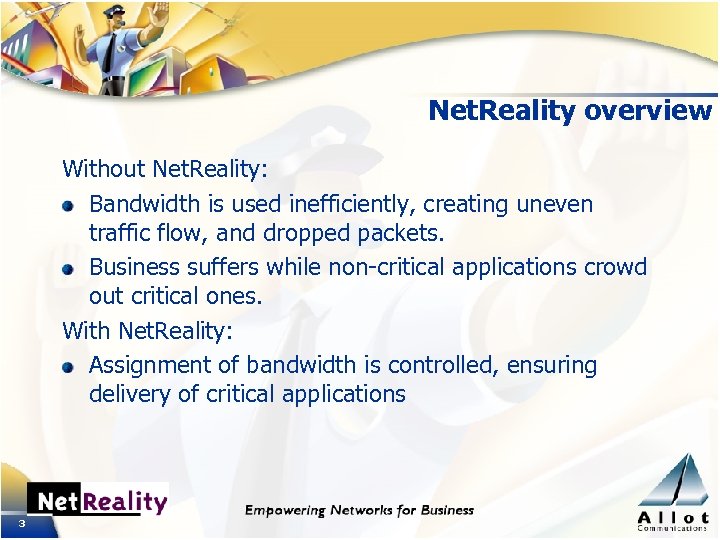

Net. Reality overview Without Net. Reality: Bandwidth is used inefficiently, creating uneven traffic flow, and dropped packets. Business suffers while non-critical applications crowd out critical ones. With Net. Reality: Assignment of bandwidth is controlled, ensuring delivery of critical applications 3

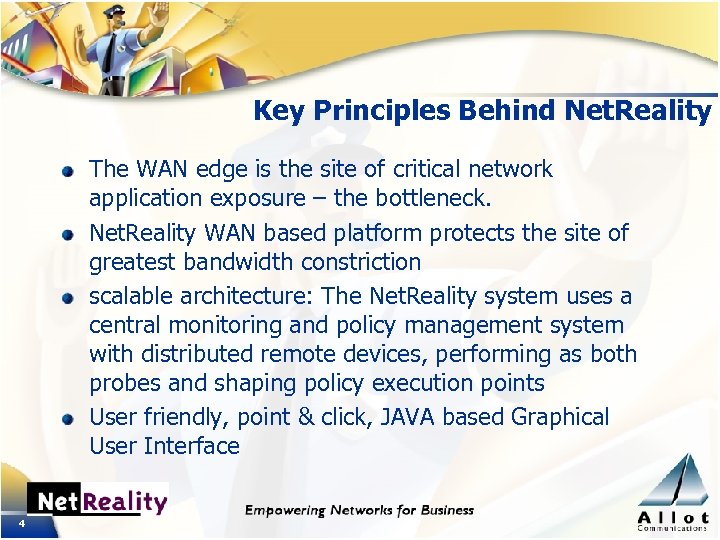

Key Principles Behind Net. Reality The WAN edge is the site of critical network application exposure – the bottleneck. Net. Reality WAN based platform protects the site of greatest bandwidth constriction scalable architecture: The Net. Reality system uses a central monitoring and policy management system with distributed remote devices, performing as both probes and shaping policy execution points User friendly, point & click, JAVA based Graphical User Interface 4

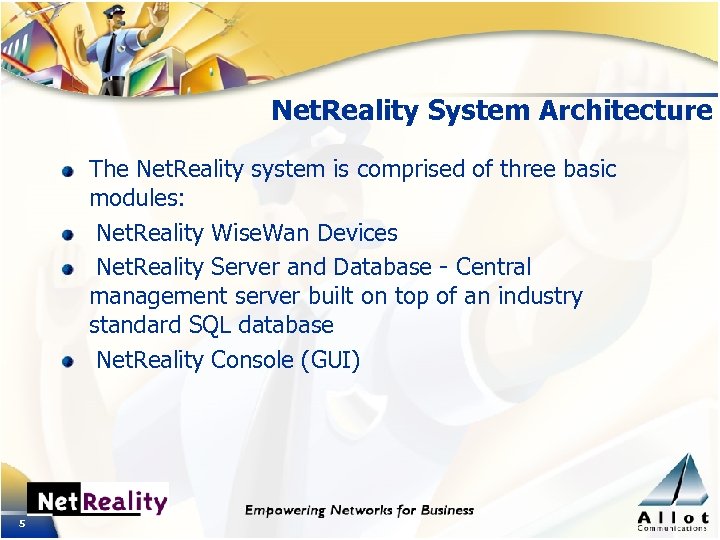

Net. Reality System Architecture The Net. Reality system is comprised of three basic modules: Net. Reality Wise. Wan Devices Net. Reality Server and Database - Central management server built on top of an industry standard SQL database Net. Reality Console (GUI) 5

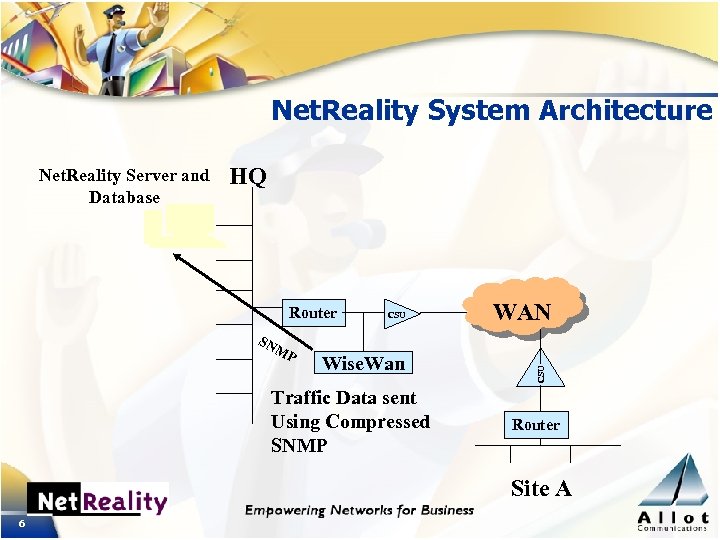

Net. Reality System Architecture HQ Router SN MP CSU Wise. Wan Traffic Data sent Using Compressed SNMP WAN CSU Net. Reality Server and Database Router Site A 6

Net. Reality System Architecture TCP/IP SQL Queries HQ p D U ial Router Console CSU Wise. Wan Reports Generated in Console WAN CSU Net. Reality Server and Database Router Console Site A 7

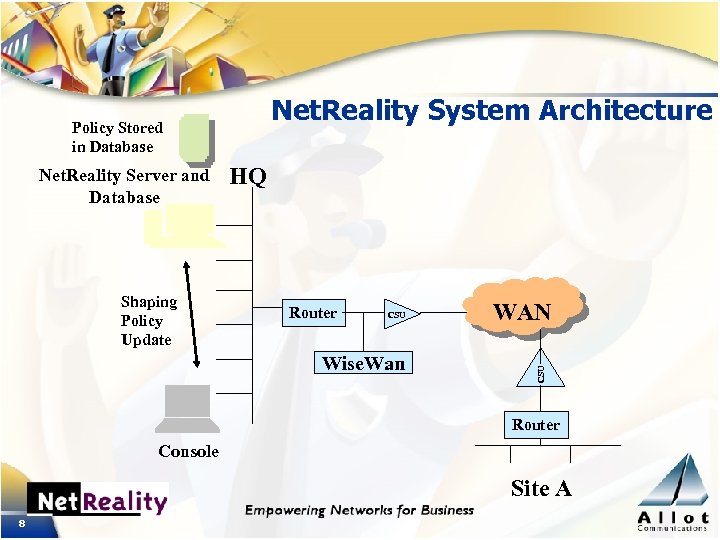

Net. Reality System Architecture Policy Stored in Database Shaping Policy Update HQ Router CSU Wise. Wan WAN CSU Net. Reality Server and Database Router Console Site A 8

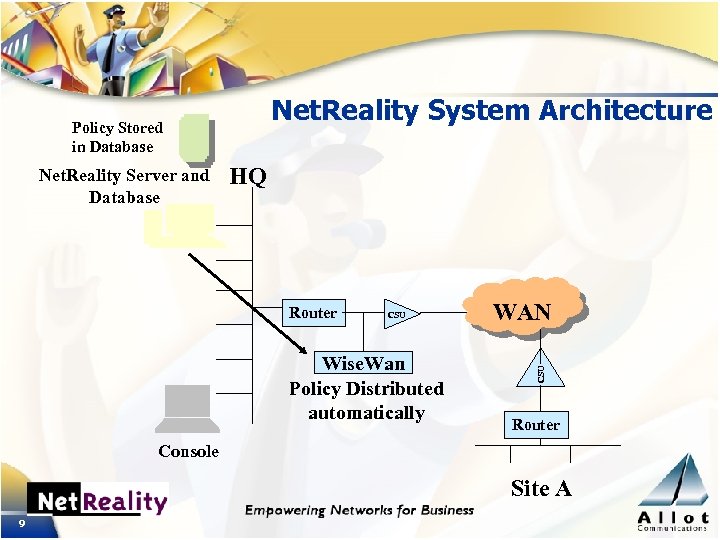

Net. Reality System Architecture Policy Stored in Database HQ Router CSU Wise. Wan Policy Distributed automatically WAN CSU Net. Reality Server and Database Router Console Site A 9

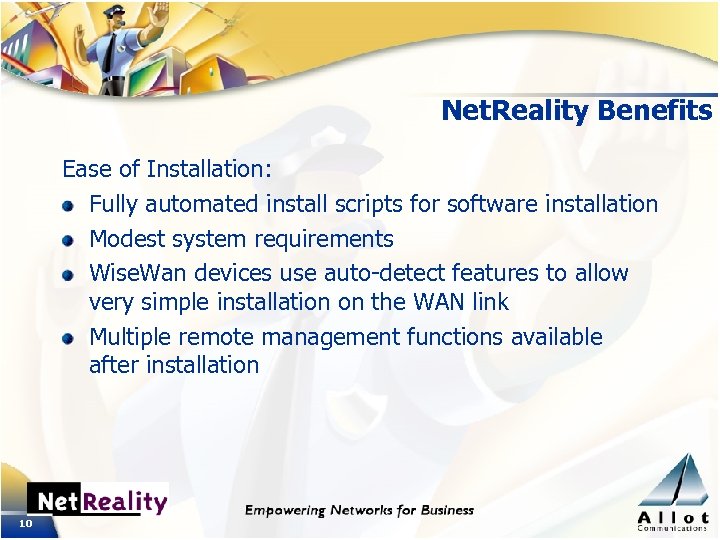

Net. Reality Benefits Ease of Installation: Fully automated install scripts for software installation Modest system requirements Wise. Wan devices use auto-detect features to allow very simple installation on the WAN link Multiple remote management functions available after installation 10

Net. Reality Wise. Wan The Wise. Wan is a dedicated hardware device located on the WAN edge. It functions as a Qo. S Policy Execution Point, manipulating the traffic on the link to conform to the corporate policies In addition the Wise. Wan functions as a remote probe monitoring traffic at all 7 layers The Wise. Wan Classifies more than 700 applications and protocols and performs deep packet inspection classification based on content 11

Net. Reality Wise. Wan The Wise. Wan is a powerful network device, with multiple CPU architecture Based on an industry standard real time operating system - VXworks Remote management of the unit is done through the standard Wan. Xplorer console Supports telnet, SNMP and FTP version download for maintenance 12

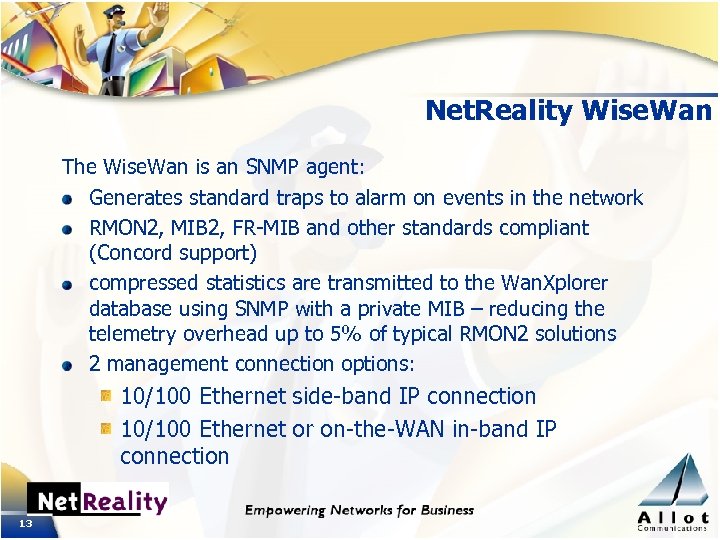

Net. Reality Wise. Wan The Wise. Wan is an SNMP agent: Generates standard traps to alarm on events in the network RMON 2, MIB 2, FR-MIB and other standards compliant (Concord support) compressed statistics are transmitted to the Wan. Xplorer database using SNMP with a private MIB – reducing the telemetry overhead up to 5% of typical RMON 2 solutions 2 management connection options: 10/100 Ethernet side-band IP connection 10/100 Ethernet or on-the-WAN in-band IP connection 13

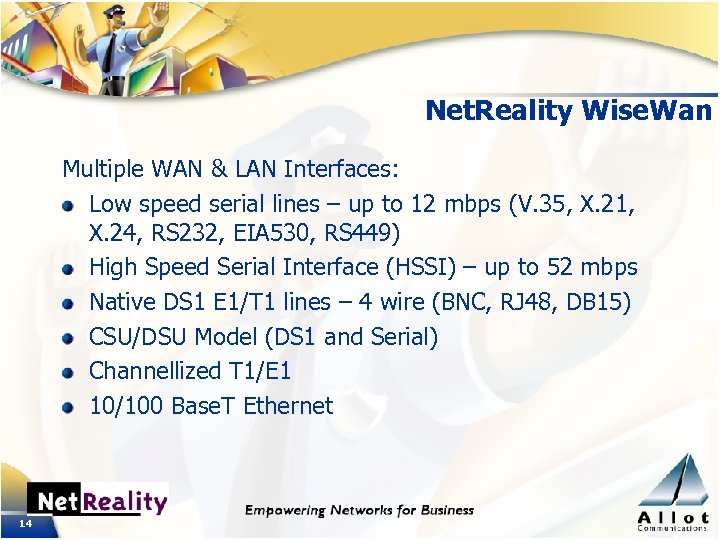

Net. Reality Wise. Wan Multiple WAN & LAN Interfaces: Low speed serial lines – up to 12 mbps (V. 35, X. 21, X. 24, RS 232, EIA 530, RS 449) High Speed Serial Interface (HSSI) – up to 52 mbps Native DS 1 E 1/T 1 lines – 4 wire (BNC, RJ 48, DB 15) CSU/DSU Model (DS 1 and Serial) Channellized T 1/E 1 10/100 Base. T Ethernet 14

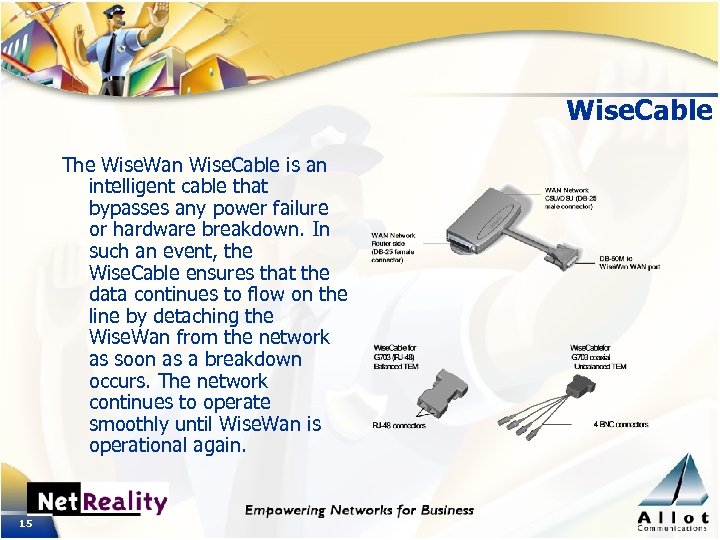

Wise. Cable The Wise. Wan Wise. Cable is an intelligent cable that bypasses any power failure or hardware breakdown. In such an event, the Wise. Cable ensures that the data continues to flow on the line by detaching the Wise. Wan from the network as soon as a breakdown occurs. The network continues to operate smoothly until Wise. Wan is operational again. 15

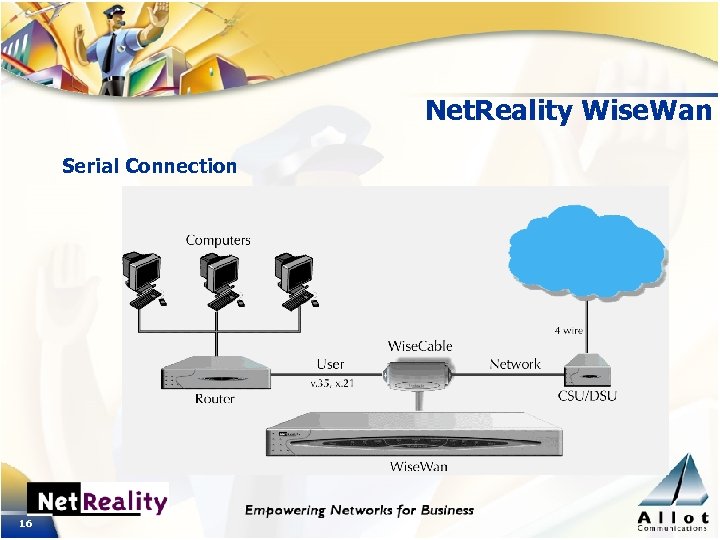

Net. Reality Wise. Wan Serial Connection 16

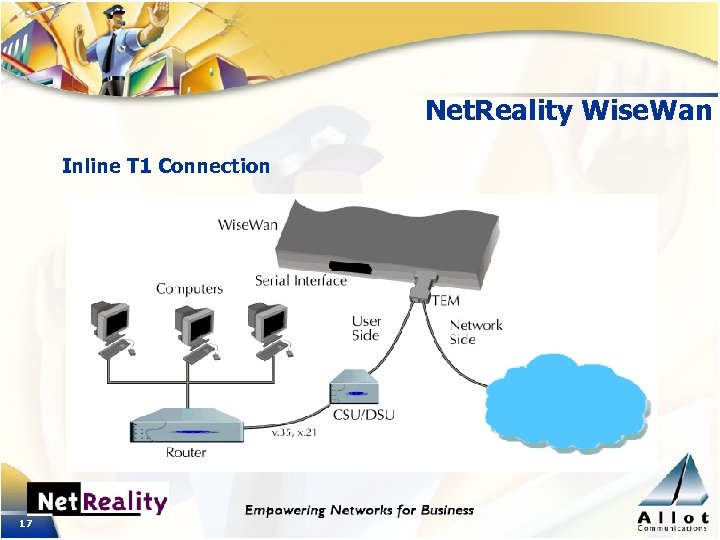

Net. Reality Wise. Wan Inline T 1 Connection 17

Net. Reality Wise. Wan CSU DSU Connection 18

Net. Reality Wise. Wan On The WAN Solution 19

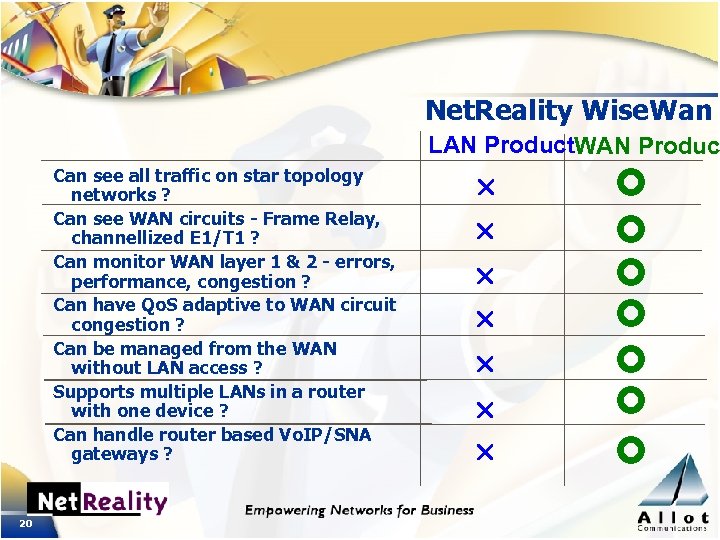

Net. Reality Wise. Wan LAN Product. WAN Produc Can see all traffic on star topology networks ? Can see WAN circuits - Frame Relay, channellized E 1/T 1 ? Can monitor WAN layer 1 & 2 - errors, performance, congestion ? Can have Qo. S adaptive to WAN circuit congestion ? Can be managed from the WAN without LAN access ? Supports multiple LANs in a router with one device ? Can handle router based Vo. IP/SNA gateways ? 20 r r r r

Net. Reality Wise. Wan PBX The Vo. IP Advantage Wise. Wan Vo. IP Traffic Router LAN Shapers LAN 21 Serial V. 35, X. 21 DSU WAN

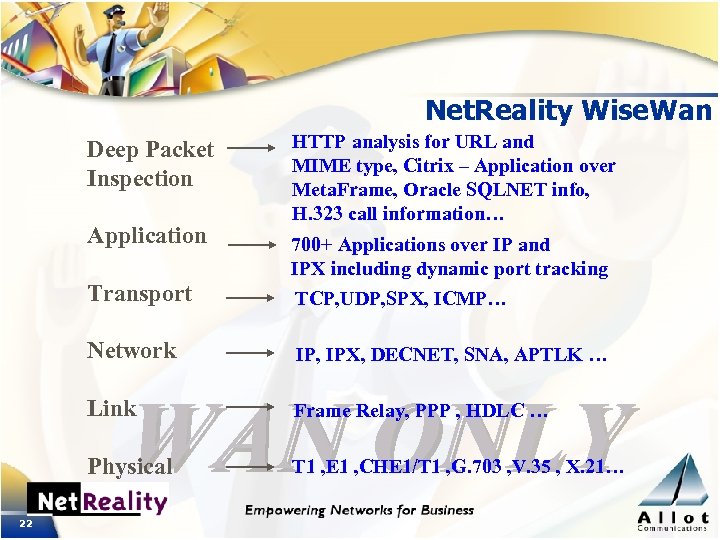

Net. Reality Wise. Wan Deep Packet Inspection Application HTTP analysis for URL and MIME type, Citrix – Application over Meta. Frame, Oracle SQLNET info, H. 323 call information… 700+ Applications over IP and IPX including dynamic port tracking Transport TCP, UDP, SPX, ICMP… Network IP, IPX, DECNET, SNA, APTLK … WAN ONLY Link Physical 22 Frame Relay, PPP , HDLC … T 1 , E 1 , CHE 1/T 1 , G. 703 , V. 35 , X. 21…

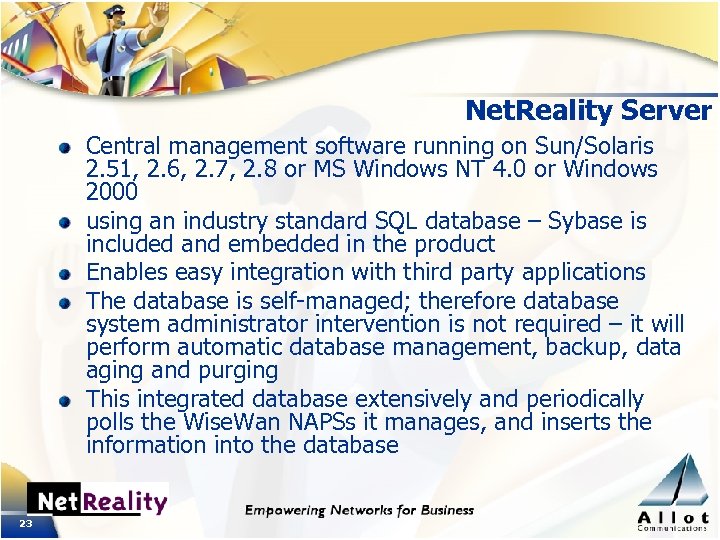

Net. Reality Server Central management software running on Sun/Solaris 2. 51, 2. 6, 2. 7, 2. 8 or MS Windows NT 4. 0 or Windows 2000 using an industry standard SQL database – Sybase is included and embedded in the product Enables easy integration with third party applications The database is self-managed; therefore database system administrator intervention is not required – it will perform automatic database management, backup, data aging and purging This integrated database extensively and periodically polls the Wise. Wan NAPSs it manages, and inserts the information into the database 23

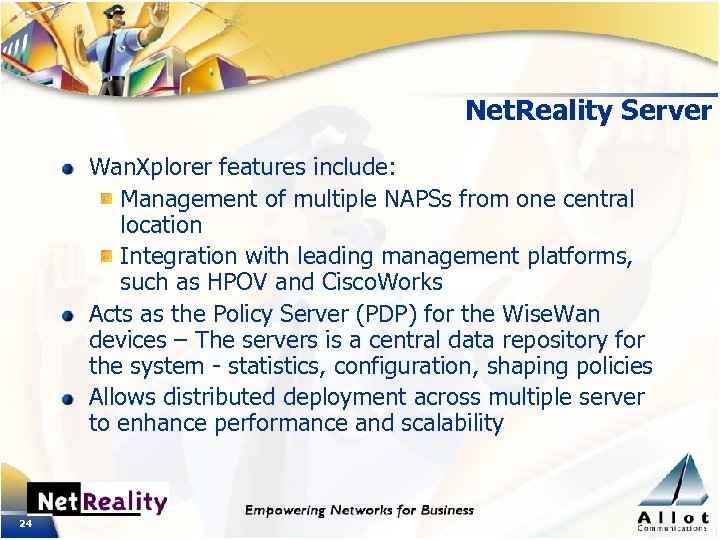

Net. Reality Server Wan. Xplorer features include: Management of multiple NAPSs from one central location Integration with leading management platforms, such as HPOV and Cisco. Works Acts as the Policy Server (PDP) for the Wise. Wan devices – The servers is a central data repository for the system - statistics, configuration, shaping policies Allows distributed deployment across multiple server to enhance performance and scalability 24

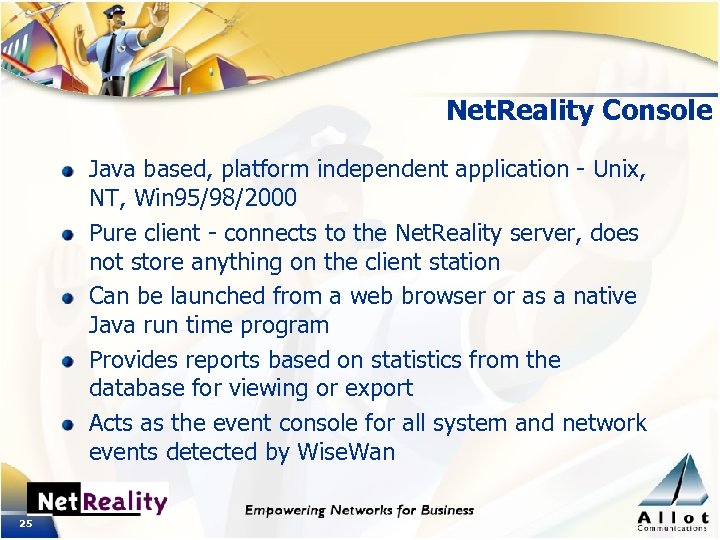

Net. Reality Console Java based, platform independent application - Unix, NT, Win 95/98/2000 Pure client - connects to the Net. Reality server, does not store anything on the client station Can be launched from a web browser or as a native Java run time program Provides reports based on statistics from the database for viewing or export Acts as the event console for all system and network events detected by Wise. Wan 25

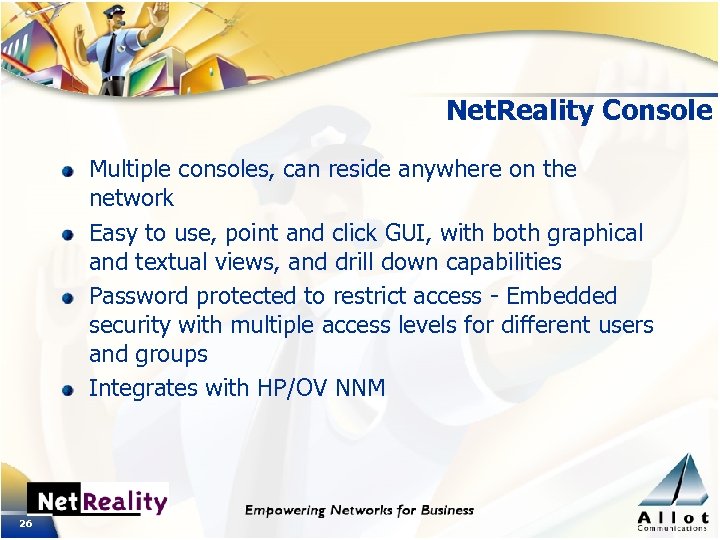

Net. Reality Console Multiple consoles, can reside anywhere on the network Easy to use, point and click GUI, with both graphical and textual views, and drill down capabilities Password protected to restrict access - Embedded security with multiple access levels for different users and groups Integrates with HP/OV NNM 26

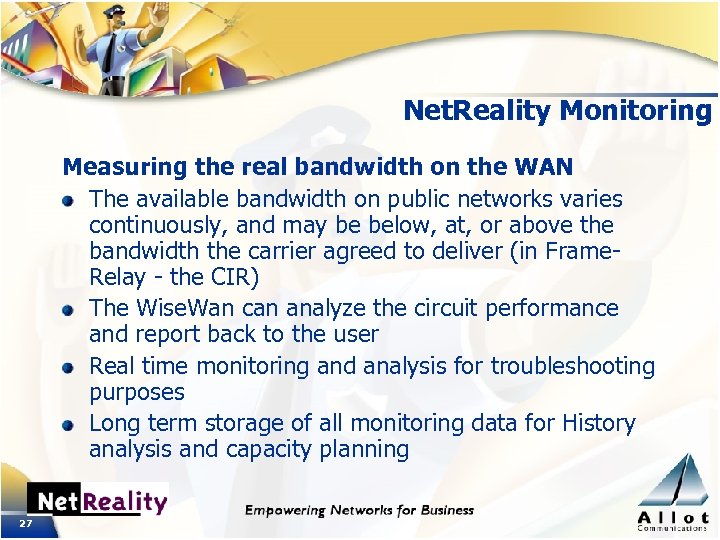

Net. Reality Monitoring Measuring the real bandwidth on the WAN The available bandwidth on public networks varies continuously, and may be below, at, or above the bandwidth the carrier agreed to deliver (in Frame. Relay - the CIR) The Wise. Wan can analyze the circuit performance and report back to the user Real time monitoring and analysis for troubleshooting purposes Long term storage of all monitoring data for History analysis and capacity planning 27

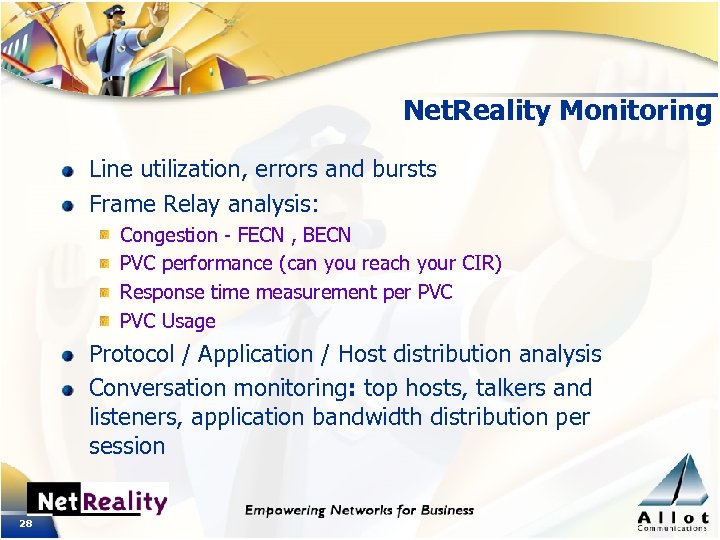

Net. Reality Monitoring Line utilization, errors and bursts Frame Relay analysis: Congestion - FECN , BECN PVC performance (can you reach your CIR) Response time measurement per PVC Usage Protocol / Application / Host distribution analysis Conversation monitoring: top hosts, talkers and listeners, application bandwidth distribution per session 28

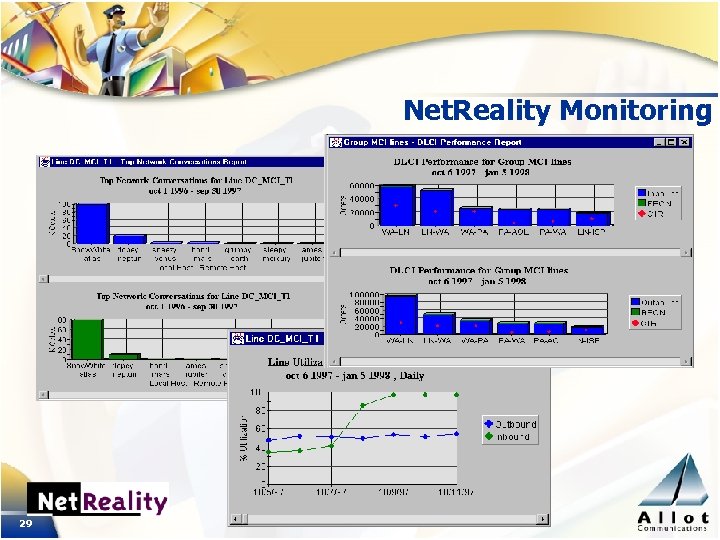

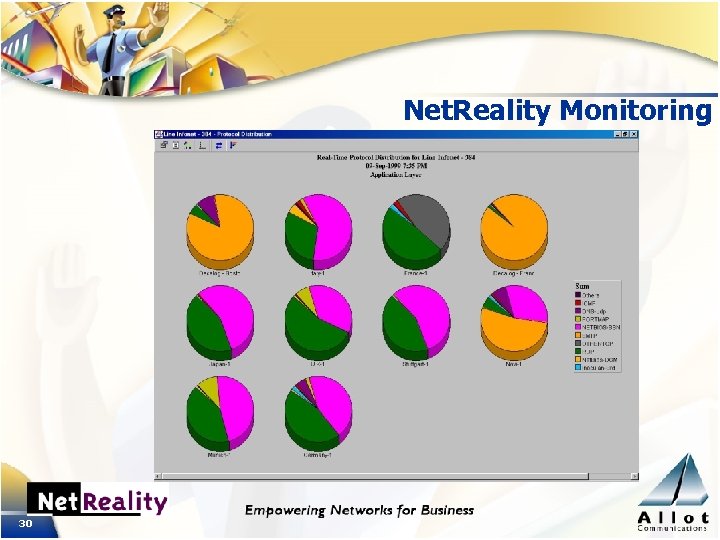

Net. Reality Monitoring 29

Net. Reality Monitoring 30

Net. Reality Monitoring 31

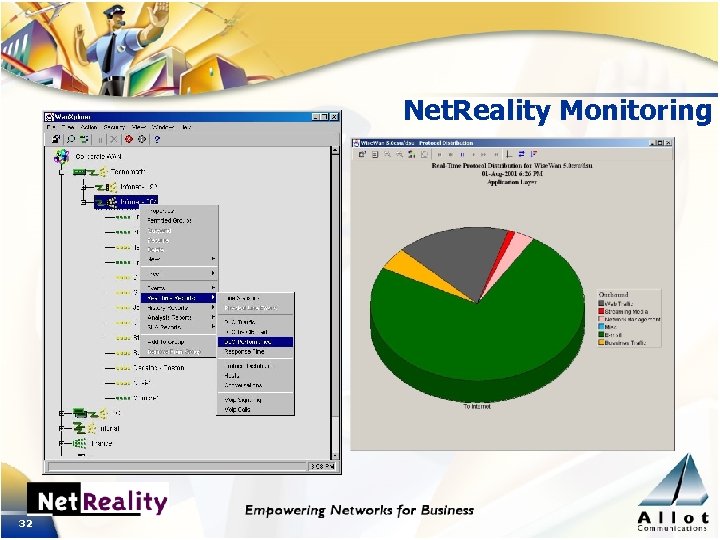

Net. Reality Monitoring 32

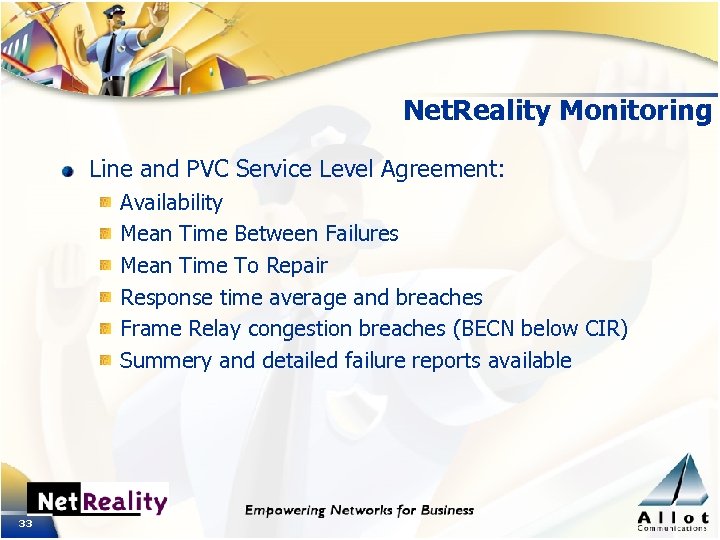

Net. Reality Monitoring Line and PVC Service Level Agreement: Availability Mean Time Between Failures Mean Time To Repair Response time average and breaches Frame Relay congestion breaches (BECN below CIR) Summery and detailed failure reports available 33

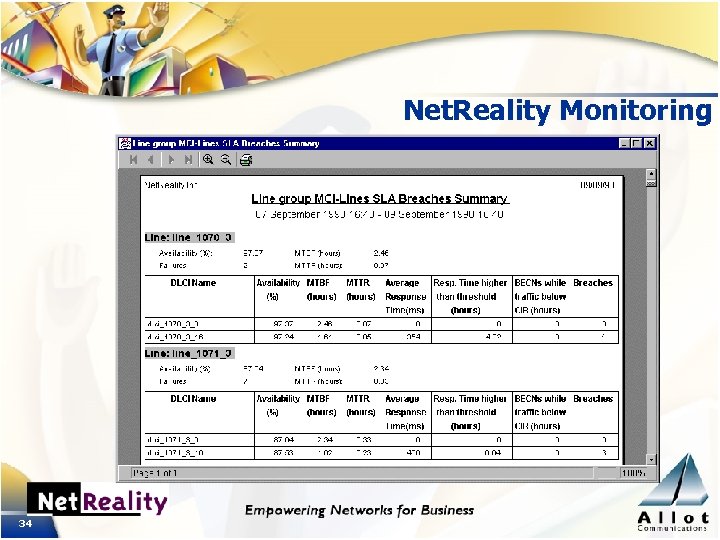

Net. Reality Monitoring 34

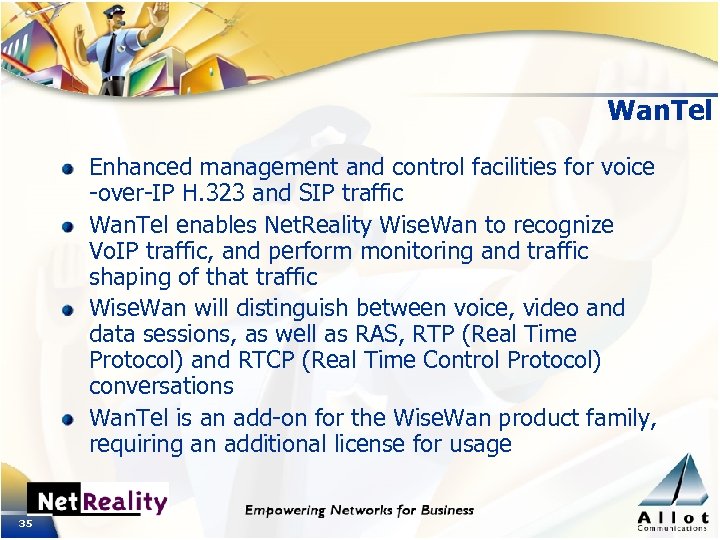

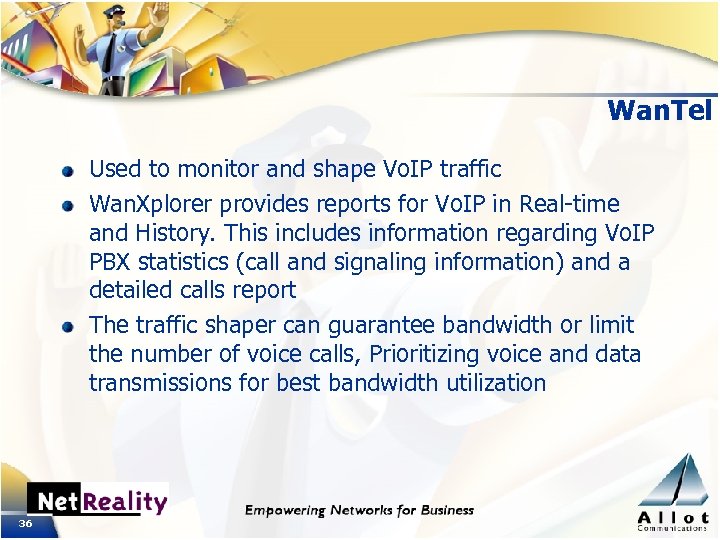

Wan. Tel Enhanced management and control facilities for voice -over-IP H. 323 and SIP traffic Wan. Tel enables Net. Reality Wise. Wan to recognize Vo. IP traffic, and perform monitoring and traffic shaping of that traffic Wise. Wan will distinguish between voice, video and data sessions, as well as RAS, RTP (Real Time Protocol) and RTCP (Real Time Control Protocol) conversations Wan. Tel is an add-on for the Wise. Wan product family, requiring an additional license for usage 35

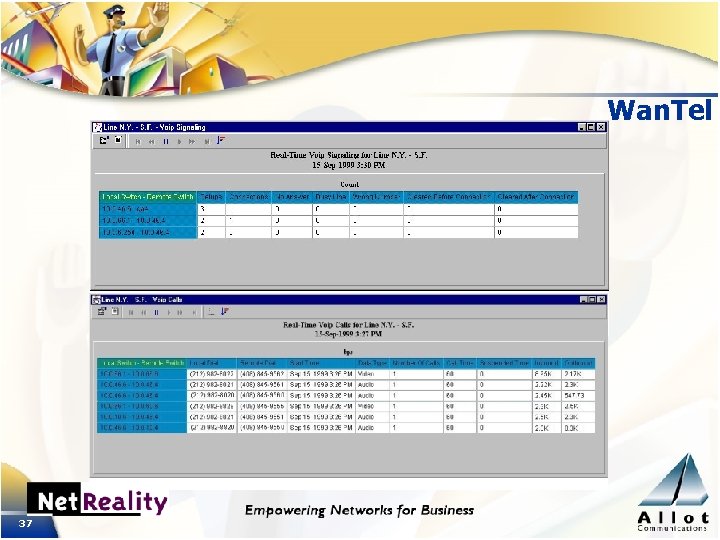

Wan. Tel Used to monitor and shape Vo. IP traffic Wan. Xplorer provides reports for Vo. IP in Real-time and History. This includes information regarding Vo. IP PBX statistics (call and signaling information) and a detailed calls report The traffic shaper can guarantee bandwidth or limit the number of voice calls, Prioritizing voice and data transmissions for best bandwidth utilization 36

Wan. Tel 37

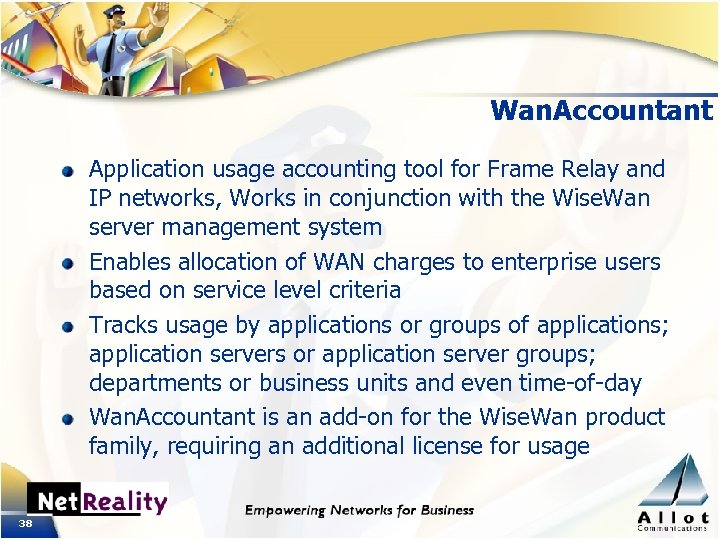

Wan. Accountant Application usage accounting tool for Frame Relay and IP networks, Works in conjunction with the Wise. Wan server management system Enables allocation of WAN charges to enterprise users based on service level criteria Tracks usage by applications or groups of applications; application servers or application server groups; departments or business units and even time-of-day Wan. Accountant is an add-on for the Wise. Wan product family, requiring an additional license for usage 38

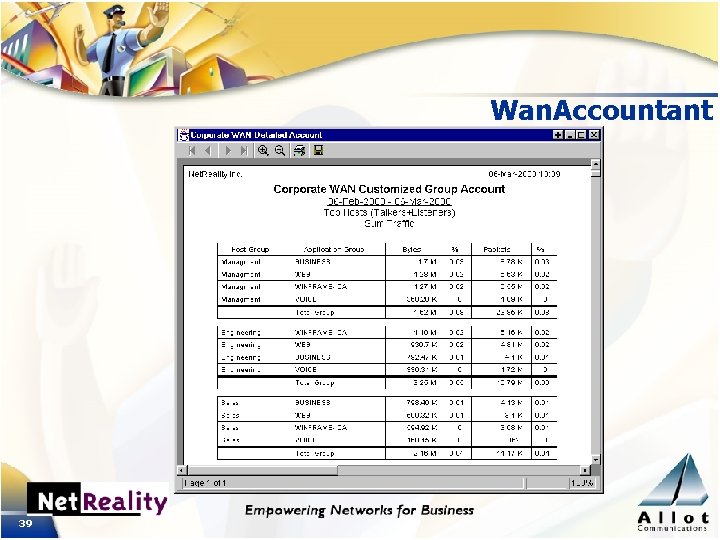

Wan. Accountant 39

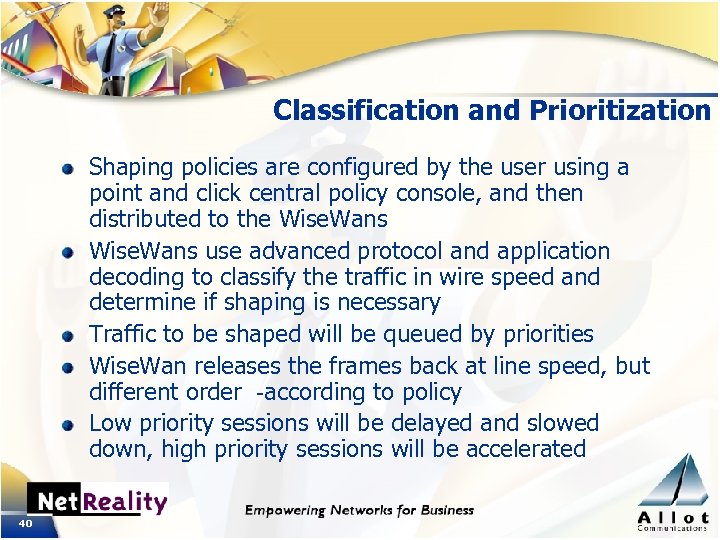

Classification and Prioritization Shaping policies are configured by the user using a point and click central policy console, and then distributed to the Wise. Wans use advanced protocol and application decoding to classify the traffic in wire speed and determine if shaping is necessary Traffic to be shaped will be queued by priorities Wise. Wan releases the frames back at line speed, but different order -according to policy Low priority sessions will be delayed and slowed down, high priority sessions will be accelerated 40

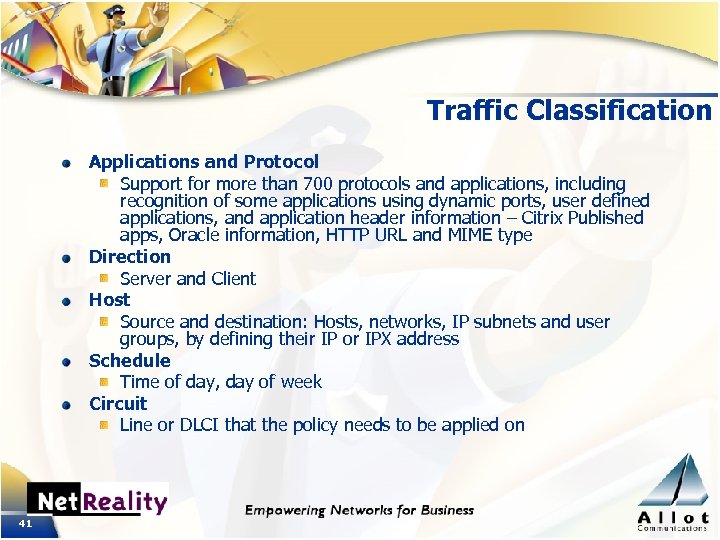

Traffic Classification Applications and Protocol Support for more than 700 protocols and applications, including recognition of some applications using dynamic ports, user defined applications, and application header information – Citrix Published apps, Oracle information, HTTP URL and MIME type Direction Server and Client Host Source and destination: Hosts, networks, IP subnets and user groups, by defining their IP or IPX address Schedule Time of day, day of week Circuit Line or DLCI that the policy needs to be applied on 41

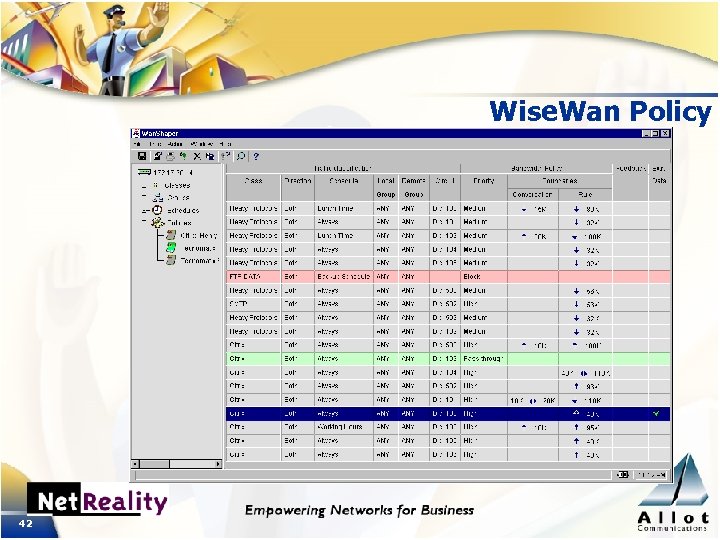

Wise. Wan Policy 42

Traffic Shaping Traffic shaping actions: Prioritization - the priority level of the rule by using the 6 level slider. The range is: Pass through, High, Medium, Low, and Block. Pass through allows data to be transmitted with highest priority with no constraints. Block prevents all data from being transmitted Bandwidth guarantee - minimum amount of bandwidth that this conversation/class should be guaranteed to Bandwidth limit - maximum amount of bandwidth consumption that you want this conversation/class to consume Diff. Serv Tagging – overwrite the Diff. Serv tag with a custom tag based on it’s calssification 43

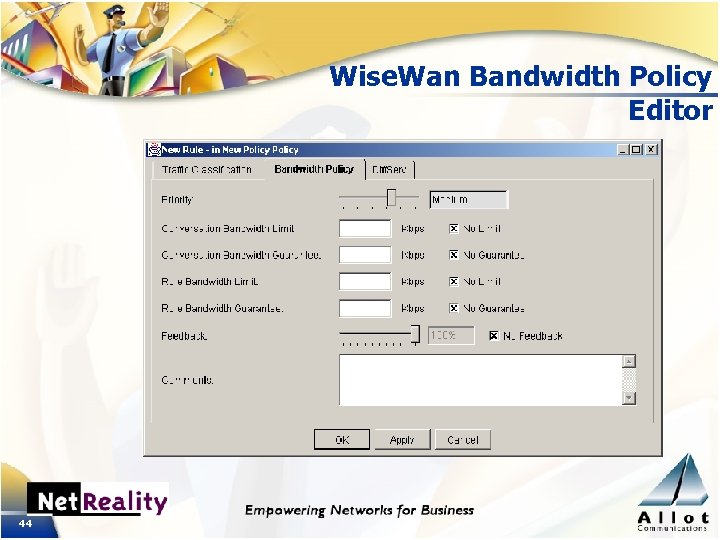

Wise. Wan Bandwidth Policy Editor 44

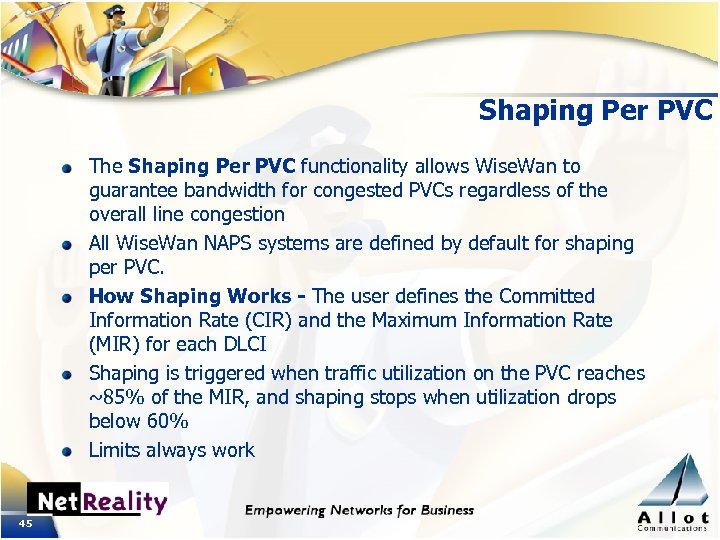

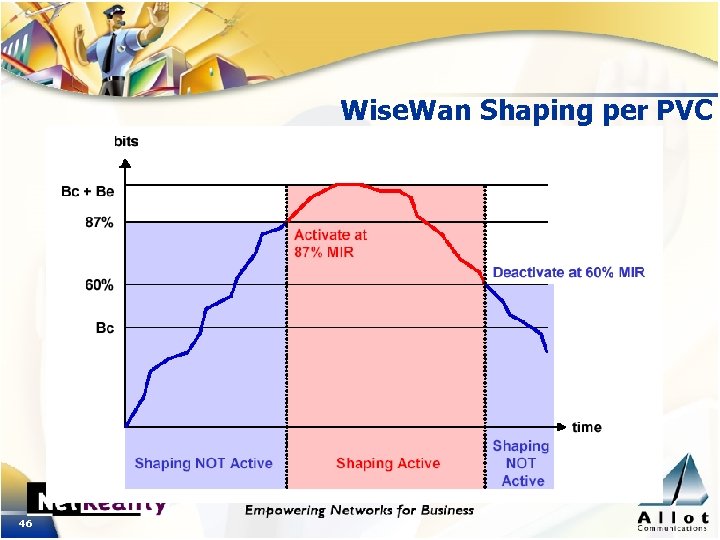

Shaping Per PVC The Shaping Per PVC functionality allows Wise. Wan to guarantee bandwidth for congested PVCs regardless of the overall line congestion All Wise. Wan NAPS systems are defined by default for shaping per PVC. How Shaping Works - The user defines the Committed Information Rate (CIR) and the Maximum Information Rate (MIR) for each DLCI Shaping is triggered when traffic utilization on the PVC reaches ~85% of the MIR, and shaping stops when utilization drops below 60% Limits always work 45

Wise. Wan Shaping per PVC 46

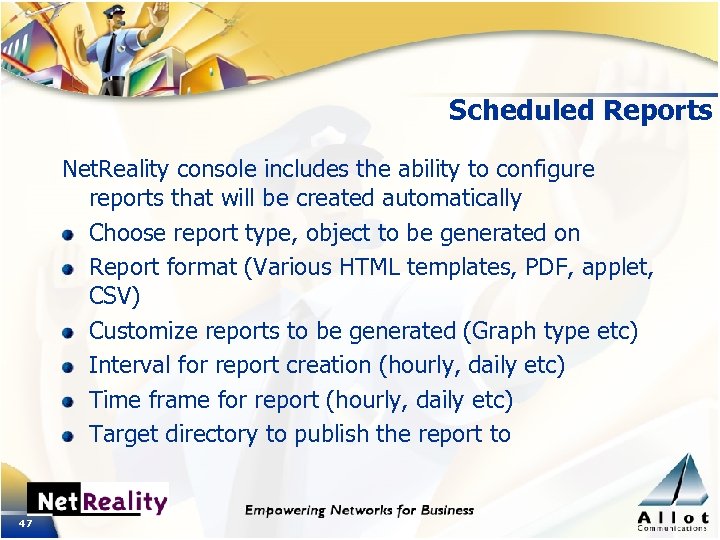

Scheduled Reports Net. Reality console includes the ability to configure reports that will be created automatically Choose report type, object to be generated on Report format (Various HTML templates, PDF, applet, CSV) Customize reports to be generated (Graph type etc) Interval for report creation (hourly, daily etc) Time frame for report (hourly, daily etc) Target directory to publish the report to 47

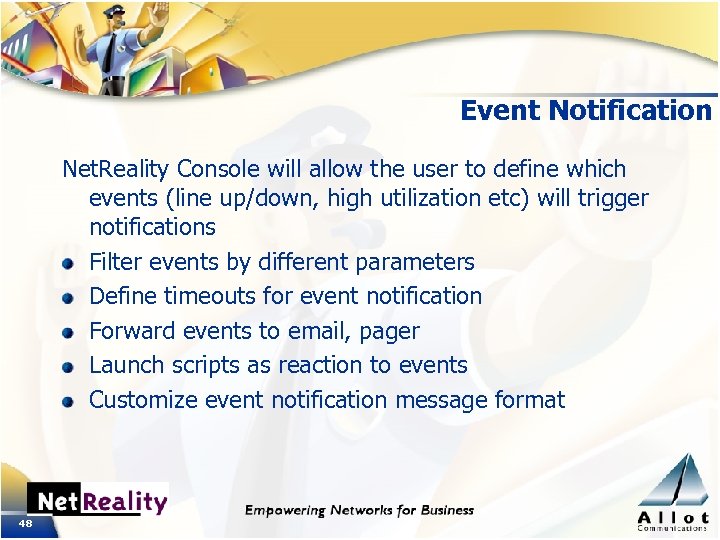

Event Notification Net. Reality Console will allow the user to define which events (line up/down, high utilization etc) will trigger notifications Filter events by different parameters Define timeouts for event notification Forward events to email, pager Launch scripts as reaction to events Customize event notification message format 48

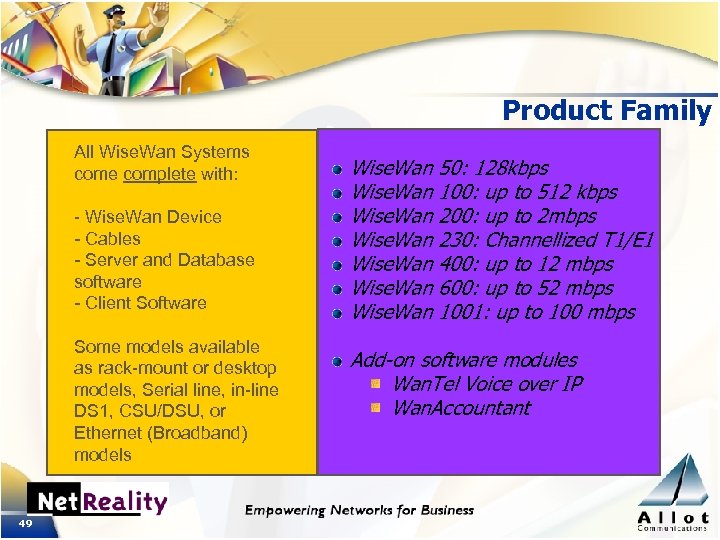

Product Family All Wise. Wan Systems come complete with: - Wise. Wan Device - Cables - Server and Database software - Client Software Some models available as rack-mount or desktop models, Serial line, in-line DS 1, CSU/DSU, or Ethernet (Broadband) models 49 Wise. Wan 50: 128 kbps Wise. Wan 100: up to 512 kbps Wise. Wan 200: up to 2 mbps Wise. Wan 230: Channellized T 1/E 1 Wise. Wan 400: up to 12 mbps Wise. Wan 600: up to 52 mbps Wise. Wan 1001: up to 100 mbps Add-on software modules Wan. Tel Voice over IP Wan. Accountant

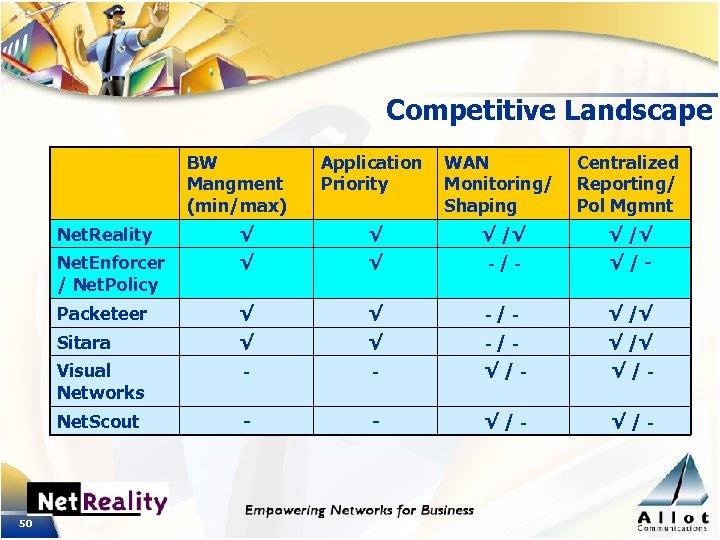

Competitive Landscape BW Mangment (min/max) Application Priority WAN Monitoring/ Shaping Centralized Reporting/ Pol Mgmnt Net. Reality √ √ /√ Net. Enforcer / Net. Policy √ √ -/- √/- Packeteer √ √ -/- √ /√ Sitara √ √ -/- √ /√ Visual Networks - - √/- Net. Scout 50 √ - - √/-

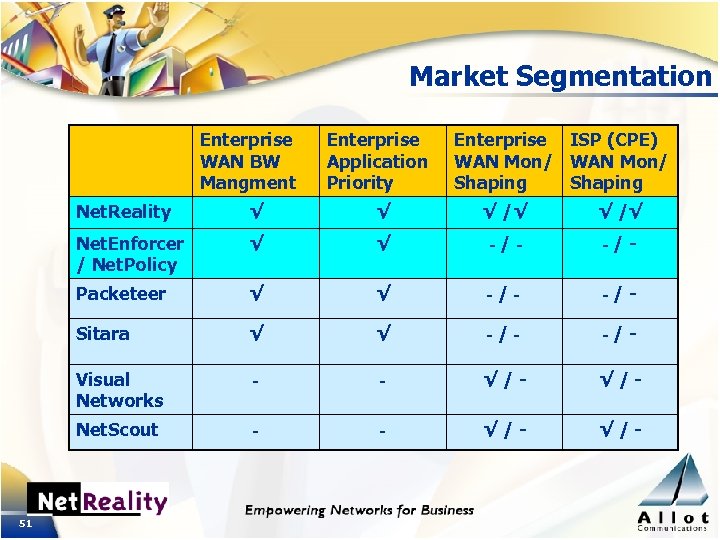

Market Segmentation Enterprise WAN BW Mangment Enterprise Application Priority Enterprise ISP (CPE) WAN Mon/ Shaping Net. Reality √ √ /√ Net. Enforcer / Net. Policy √ √ -/- Packeteer √ √ -/- Sitara √ √ -/- Visual Networks - - √/- Net. Scout 51 √ - - √/-

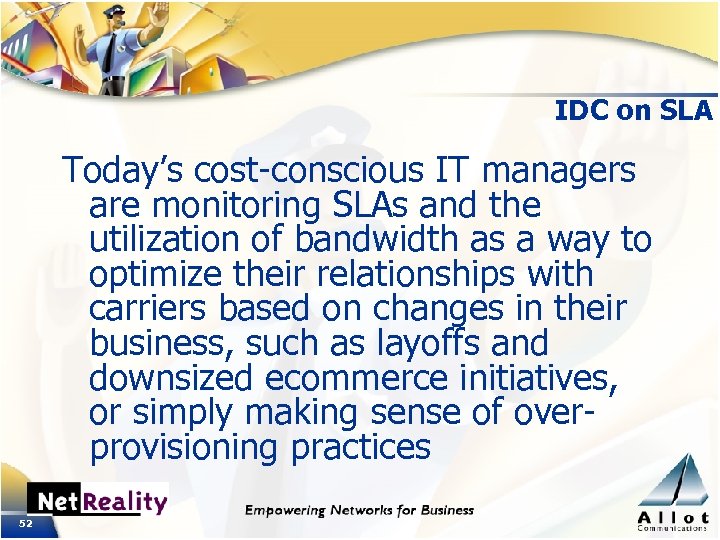

IDC on SLA Today’s cost-conscious IT managers are monitoring SLAs and the utilization of bandwidth as a way to optimize their relationships with carriers based on changes in their business, such as layoffs and downsized ecommerce initiatives, or simply making sense of overprovisioning practices 52

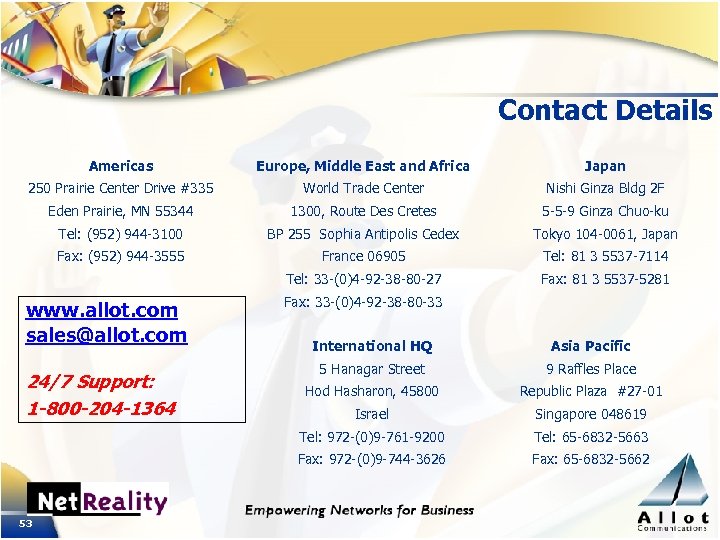

Contact Details Americas Europe, Middle East and Africa Japan 250 Prairie Center Drive #335 World Trade Center Nishi Ginza Bldg 2 F Eden Prairie, MN 55344 1300, Route Des Cretes 5 -5 -9 Ginza Chuo-ku Tel: (952) 944 -3100 BP 255 Sophia Antipolis Cedex Tokyo 104 -0061, Japan Fax: (952) 944 -3555 France 06905 Tel: 81 3 5537 -7114 Tel: 33 -(0)4 -92 -38 -80 -27 Fax: 81 3 5537 -5281 www. allot. com sales@allot. com Fax: 33 -(0)4 -92 -38 -80 -33 5 Hanagar Street 9 Raffles Place Hod Hasharon, 45800 Republic Plaza #27 -01 Israel Singapore 048619 Tel: 65 -6832 -5663 Fax: 972 -(0)9 -744 -3626 53 Asia Pacific Tel: 972 -(0)9 -761 -9200 24/7 Support: 1 -800 -204 -1364 International HQ Fax: 65 -6832 -5662
