Allied Flow Controls Incorporated in the state of

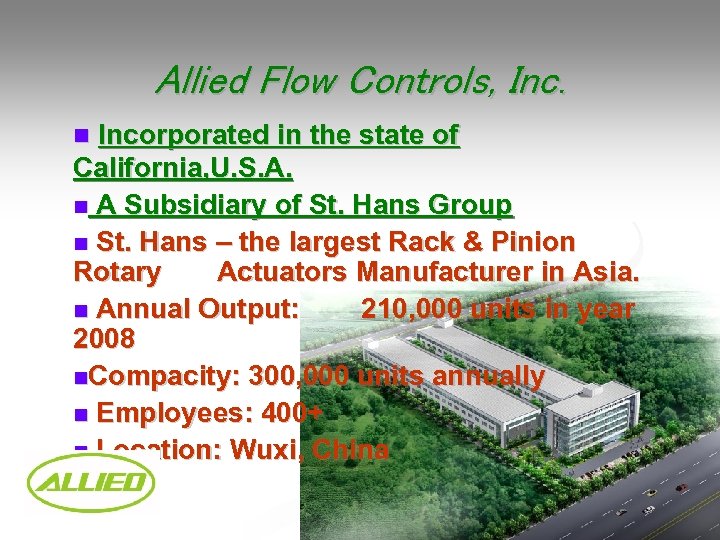

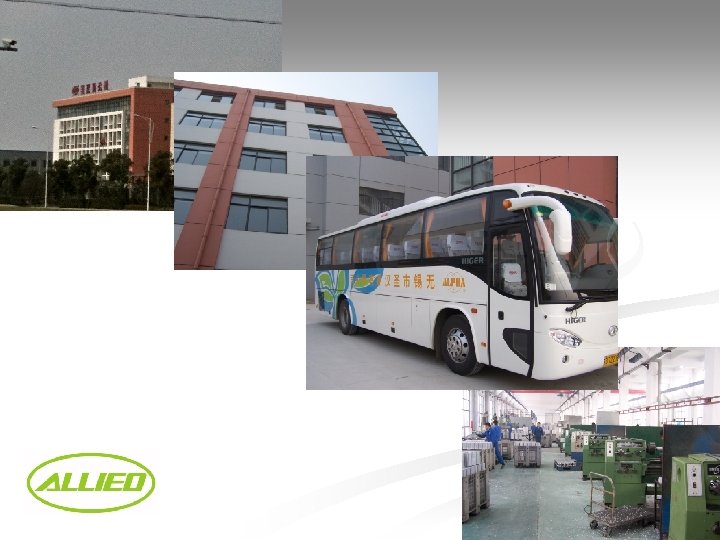

Allied Flow Controls, Incorporated in the state of California, U. S. A. n A Subsidiary of St. Hans Group n St. Hans – the largest Rack & Pinion Rotary Actuators Manufacturer in Asia. n Annual Output: 210, 000 units in year 2008 n. Compacity: 300, 000 units annually n Employees: 400+ n Location: Wuxi, China n

Main Products Pneumatic Actuators n Limit Switch Boxes n Valve Positioners n Solenoid Valves n Gear Operators n Mounting Hardware n

Pneumatic Rack & Pinion Rotary Actuators Double Acting and Spring Return n Different Colors Body and Ends Selection. n Three Main Series of Actuators n Special Stroke and 3 -Position Actuators n

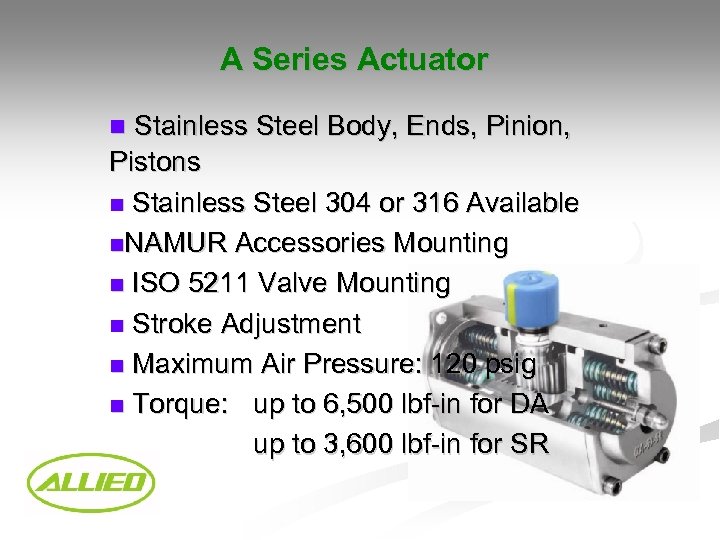

A Series Actuator Stainless Steel Body, Ends, Pinion, Pistons n Stainless Steel 304 or 316 Available n. NAMUR Accessories Mounting n ISO 5211 Valve Mounting n Stroke Adjustment n Maximum Air Pressure: 120 psig n Torque: up to 6, 500 lbf-in for DA up to 3, 600 lbf-in for SR n

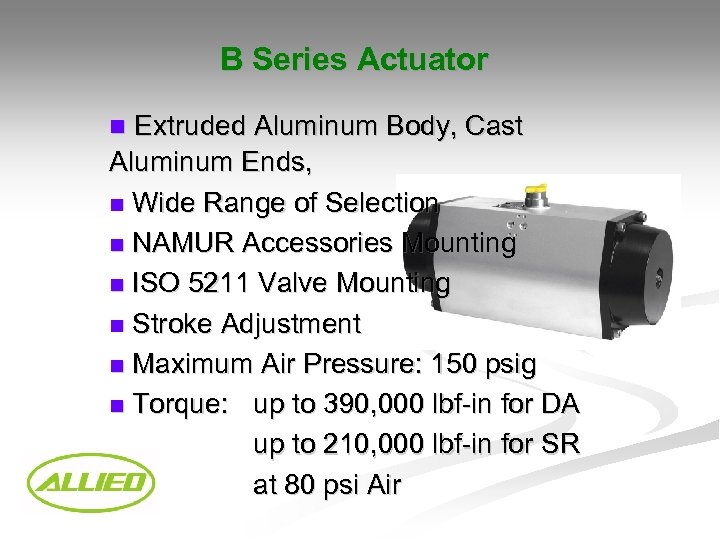

B Series Actuator Extruded Aluminum Body, Cast Aluminum Ends, n Wide Range of Selection n NAMUR Accessories Mounting n ISO 5211 Valve Mounting n Stroke Adjustment n Maximum Air Pressure: 150 psig n Torque: up to 390, 000 lbf-in for DA up to 210, 000 lbf-in for SR at 80 psi Air n

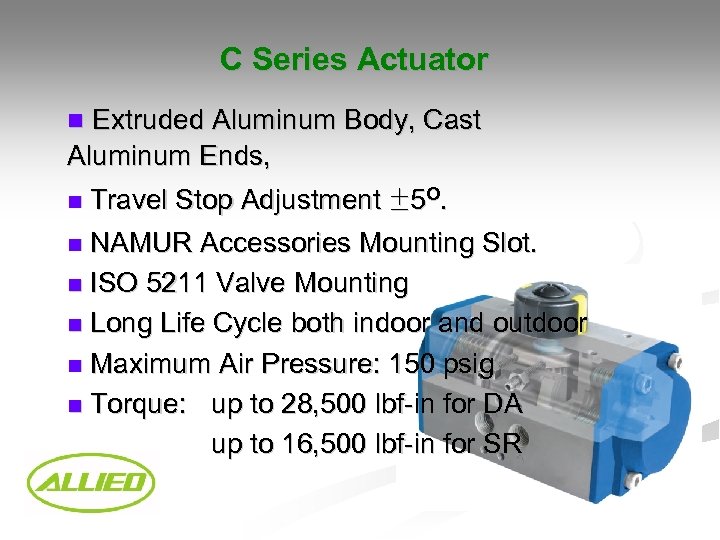

C Series Actuator Extruded Aluminum Body, Cast Aluminum Ends, n Travel Stop Adjustment ± 5 O. n NAMUR Accessories Mounting Slot. n ISO 5211 Valve Mounting n Long Life Cycle both indoor and outdoor n Maximum Air Pressure: 150 psig n Torque: up to 28, 500 lbf-in for DA up to 16, 500 lbf-in for SR n

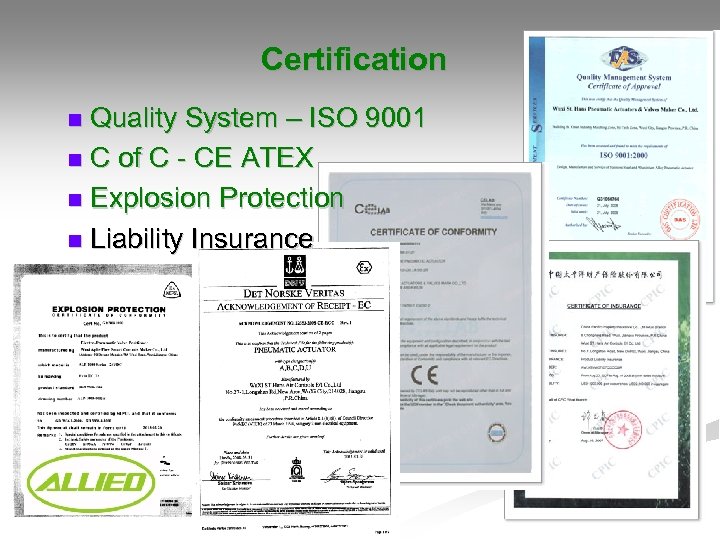

Certification Quality System – ISO 9001 n C of C - CE ATEX n Explosion Protection n Liability Insurance n

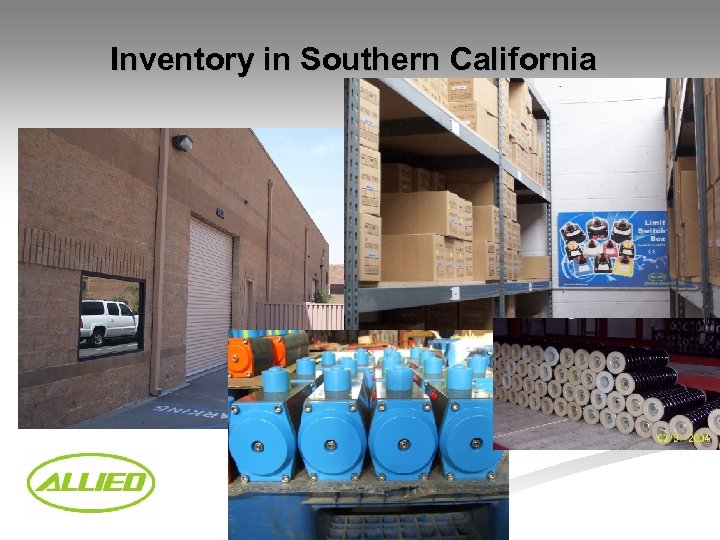

Inventory in Southern California

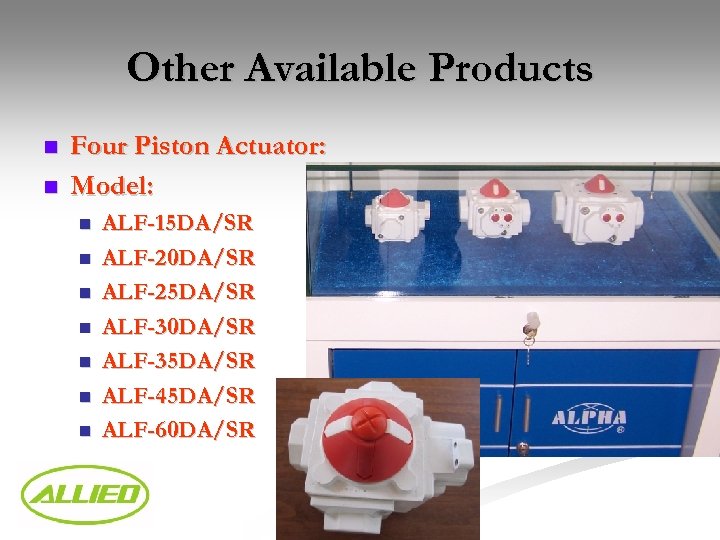

Other Available Products n n Four Piston Actuator: Model: n n n n ALF-15 DA/SR ALF-20 DA/SR ALF-25 DA/SR ALF-30 DA/SR ALF-35 DA/SR ALF-45 DA/SR ALF-60 DA/SR

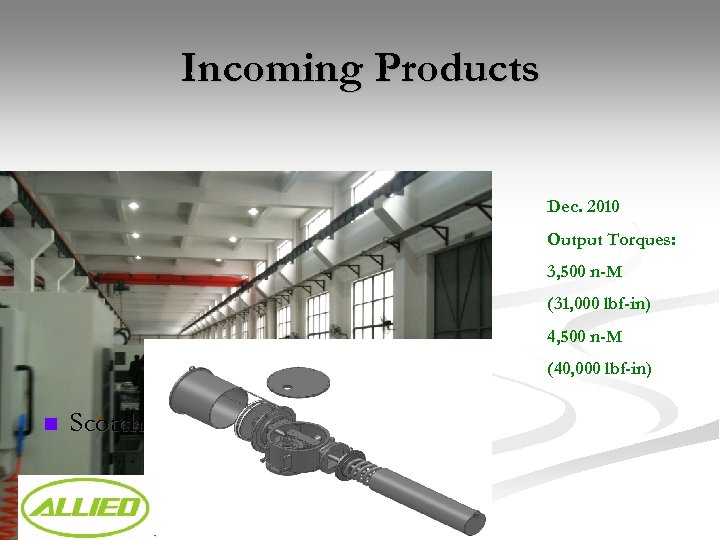

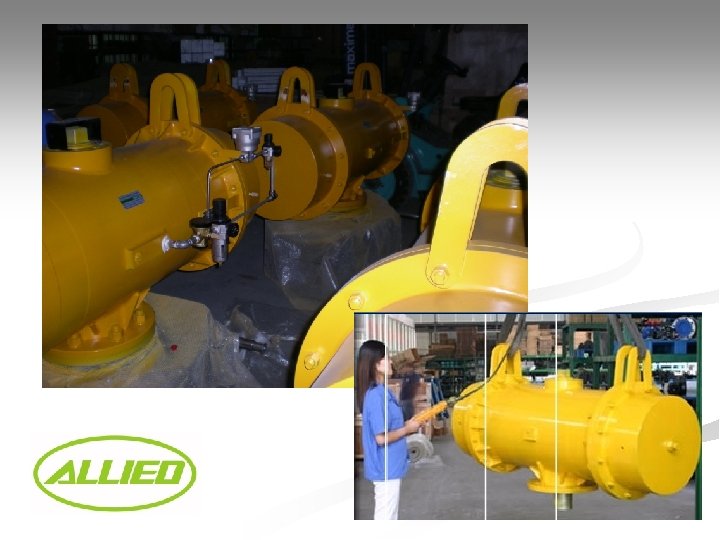

Incoming Products Dec. 2010 Output Torques: 3, 500 n-M (31, 000 lbf-in) 4, 500 n-M (40, 000 lbf-in) n Scotch Yoke Actuators

Limit Switches
