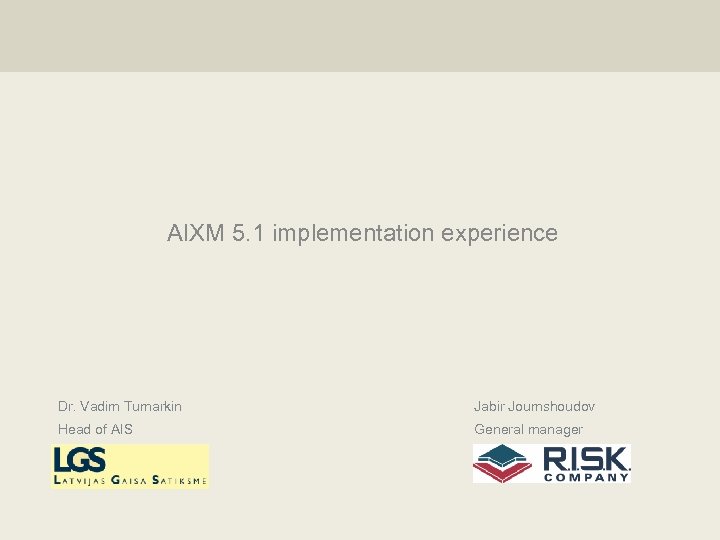

AIXM 5. 1 implementation experience Dr. Vadim Tumarkin Jabir Joumshoudov Head of AIS General manager

The presentation purpose § To refer to the AIXM continious evolution § To give a reference to the AIXM tenets that support transition from AIS to AIM § To provide an information related to LGS-R. I. S. K. Company approach to support AIM § To focus on Data Management presented in AIXM § To demonstrate LGS-R. I. S. K. Company AIXM implementation experience AIXM 5. 1 Seminar

The major tenets of AIXM 5. 1 § § An exhaustive temporality model, including support for the temporary information contained in NOTAM Alignment with ISO standards for geospatial information, including the use of the Geography Markup Language (GML) Support for the latest ICAO and user requirements for aeronautical data including obstacles, terminal procedures and airport mapping databases Modularity and extensibility to support current and future aeronautical information messaging requirements and additional data attributing requirements AIXM 5. 1 Seminar

AICM/AIXM as a driver towards AIM § One of the mechanisms for ensuring data quality throughout the Aeronautical Data Process is using of the standardized formats for data presentation and exchange (AICM/AIXM) § This is explained by the fact that once "properly organized" data continue to be suitable for use in the future in various aeronautical applications § During today's presentation will be demonstrated the AIXM 4. 5 /5. 1 benefits for AIS/AIM process automation and data quality monitoring AIXM 5. 1 Seminar

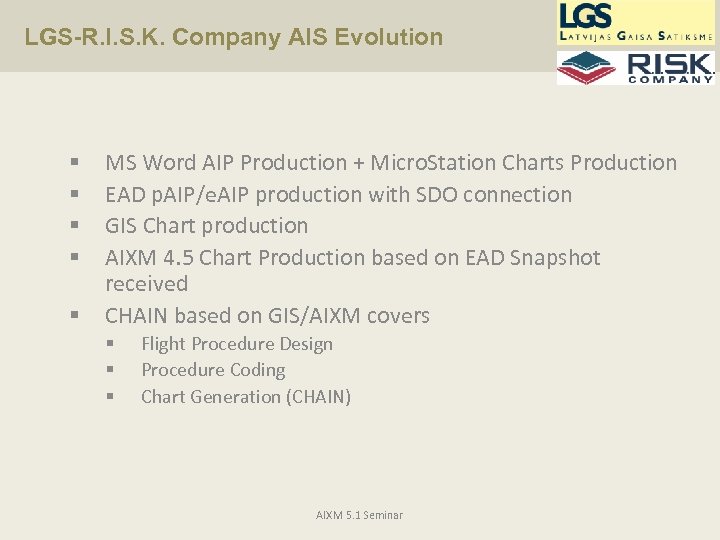

LGS-R. I. S. K. Company AIS Evolution § § § MS Word AIP Production + Micro. Station Charts Production EAD p. AIP/e. AIP production with SDO connection GIS Chart production AIXM 4. 5 Chart Production based on EAD Snapshot received CHAIN based on GIS/AIXM covers § § § Flight Procedure Design Procedure Coding Chart Generation (CHAIN) AIXM 5. 1 Seminar

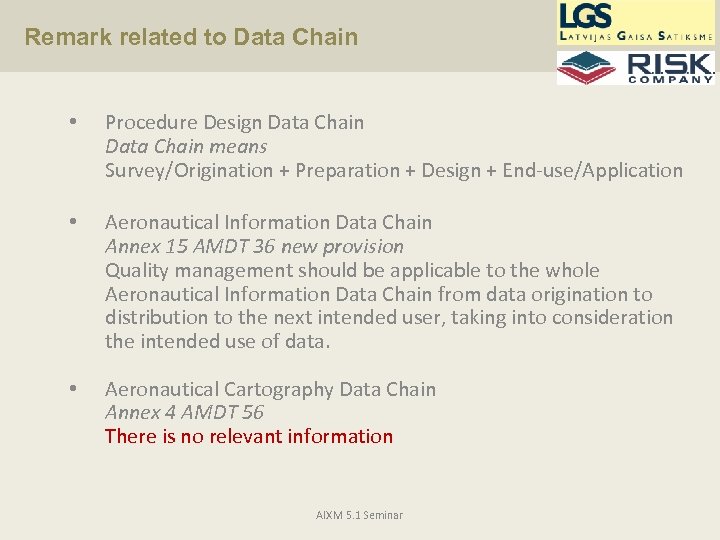

Remark related to Data Chain • Procedure Design Data Chain means Survey/Origination + Preparation + Design + End-use/Application • Aeronautical Information Data Chain Annex 15 AMDT 36 new provision Quality management should be applicable to the whole Aeronautical Information Data Chain from data origination to distribution to the next intended user, taking into consideration the intended use of data. • Aeronautical Cartography Data Chain Annex 4 AMDT 56 There is no relevant information AIXM 5. 1 Seminar

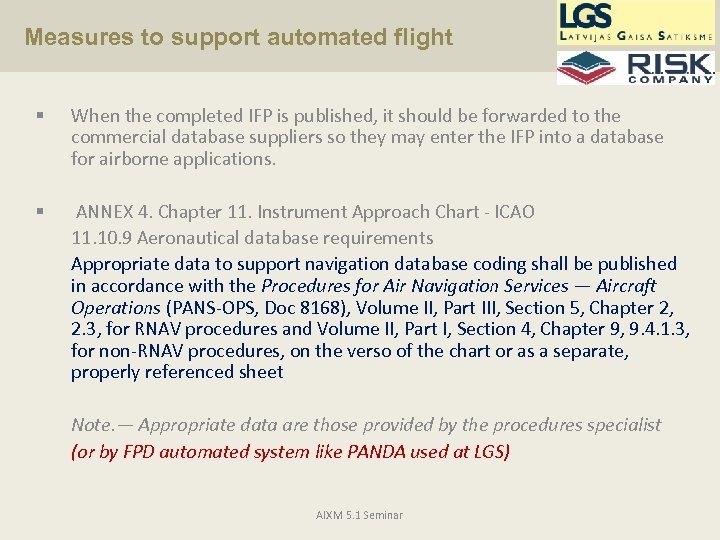

Measures to support automated flight § § When the completed IFP is published, it should be forwarded to the commercial database suppliers so they may enter the IFP into a database for airborne applications. ANNEX 4. Chapter 11. Instrument Approach Chart - ICAO 11. 10. 9 Aeronautical database requirements Appropriate data to support navigation database coding shall be published in accordance with the Procedures for Air Navigation Services — Aircraft Operations (PANS-OPS, Doc 8168), Volume II, Part III, Section 5, Chapter 2, 2. 3, for RNAV procedures and Volume II, Part I, Section 4, Chapter 9, 9. 4. 1. 3, for non-RNAV procedures, on the verso of the chart or as a separate, properly referenced sheet Note. — Appropriate data are those provided by the procedures specialist (or by FPD automated system like PANDA used at LGS) AIXM 5. 1 Seminar

Standards for Aeronautical Information § . § The aviation industry applies a “Path and Terminator Concept” for transforming arrival, departure, and approach procedures into coded flight paths That can be interpreted and used by a computerbased navigation system RTCA DO-201 A AIXM 5. 1 Seminar

PANDA System and coded flight paths PANDA system automatically produces ARINC 424 Procedure description to facilitate the coding of procedure into navigation databases That transforms designed nominal track into ARINC 424 Paths and Terminators FPD/ARINC gradients and speeds may differ AIXM 5. 1 Seminar

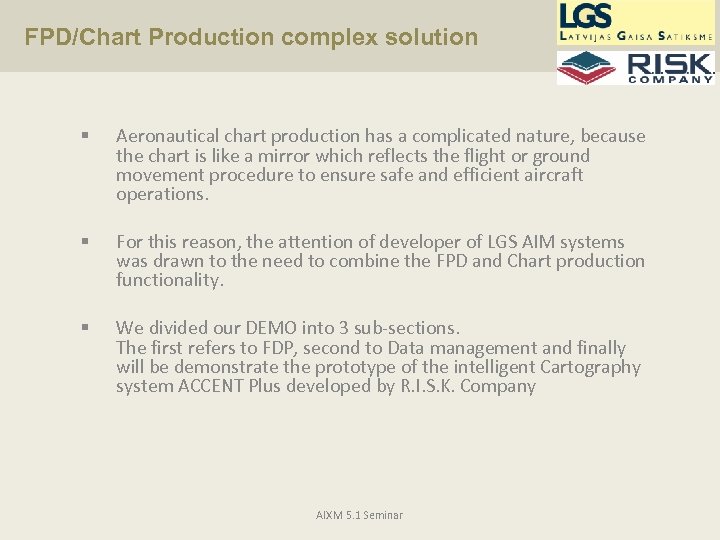

FPD/Chart Production complex solution § Aeronautical chart production has a complicated nature, because the chart is like a mirror which reflects the flight or ground movement procedure to ensure safe and efficient aircraft operations. § For this reason, the attention of developer of LGS AIM systems was drawn to the need to combine the FPD and Chart production functionality. § We divided our DEMO into 3 sub-sections. The first refers to FDP, second to Data management and finally will be demonstrate the prototype of the intelligent Cartography system ACCENT Plus developed by R. I. S. K. Company AIXM 5. 1 Seminar

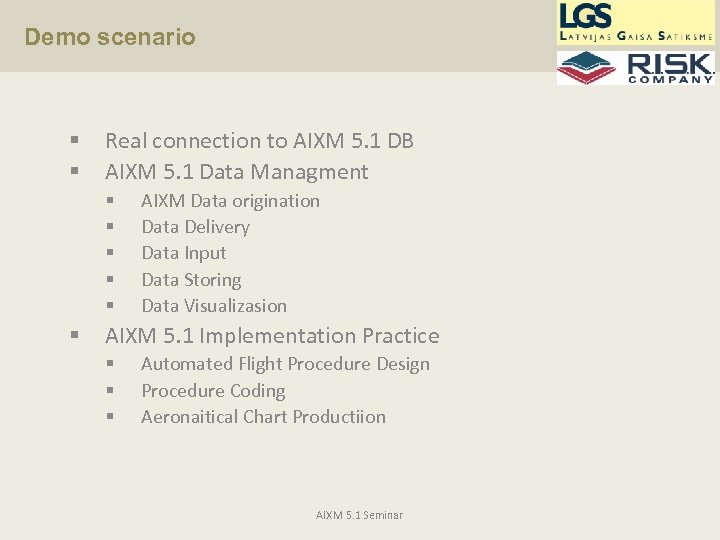

Demo scenario § § Real connection to AIXM 5. 1 DB AIXM 5. 1 Data Managment § § § AIXM Data origination Data Delivery Data Input Data Storing Data Visualizasion AIXM 5. 1 Implementation Practice § § § Automated Flight Procedure Design Procedure Coding Aeronaitical Chart Productiion AIXM 5. 1 Seminar

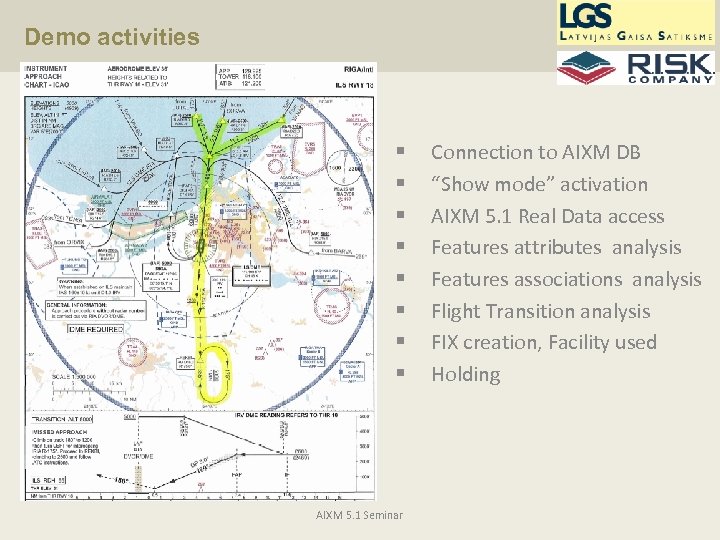

Demo activities § § § § AIXM 5. 1 Seminar Connection to AIXM DB “Show mode” activation AIXM 5. 1 Real Data access Features attributes analysis Features associations analysis Flight Transition analysis FIX creation, Facility used Holding

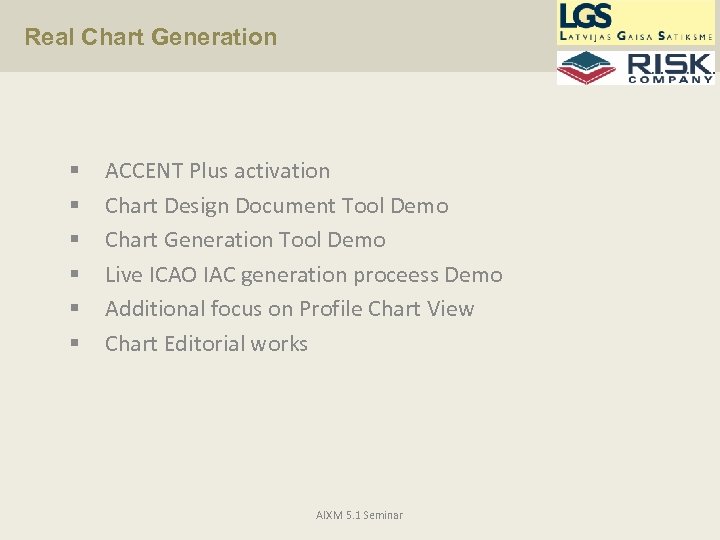

Real Chart Generation § § § ACCENT Plus activation Chart Design Document Tool Demo Chart Generation Tool Demo Live ICAO IAC generation proceess Demo Additional focus on Profile Chart View Chart Editorial works AIXM 5. 1 Seminar

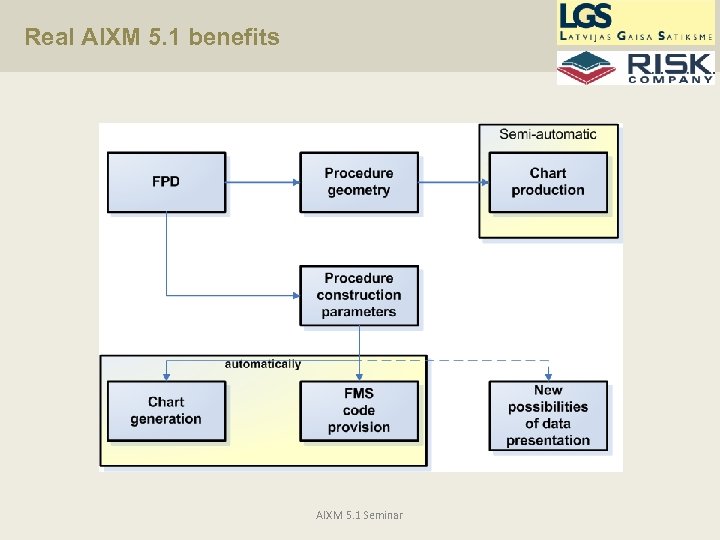

Real AIXM 5. 1 benefits AIXM 5. 1 Seminar

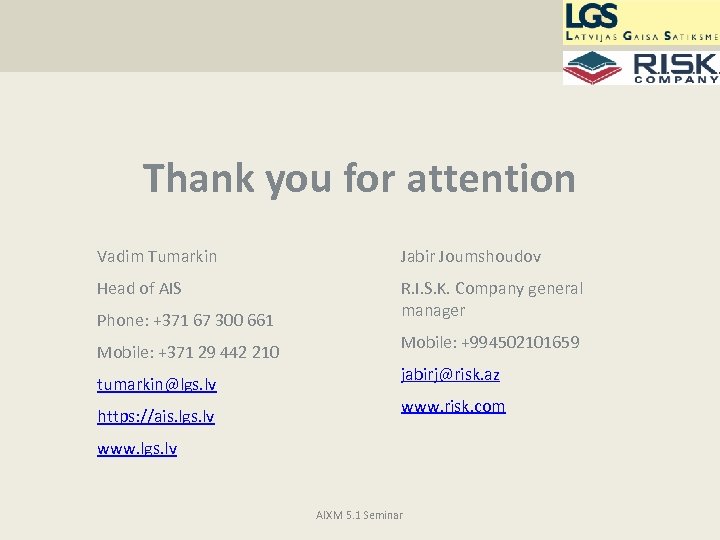

Thank you for attention Vadim Tumarkin Jabir Joumshoudov Head of AIS R. I. S. K. Company general manager Phone: +371 67 300 661 Mobile: +371 29 442 210 tumarkin@lgs. lv https: //ais. lgs. lv Mobile: +994502101659 jabirj@risk. az www. risk. com www. lgs. lv AIXM 5. 1 Seminar
