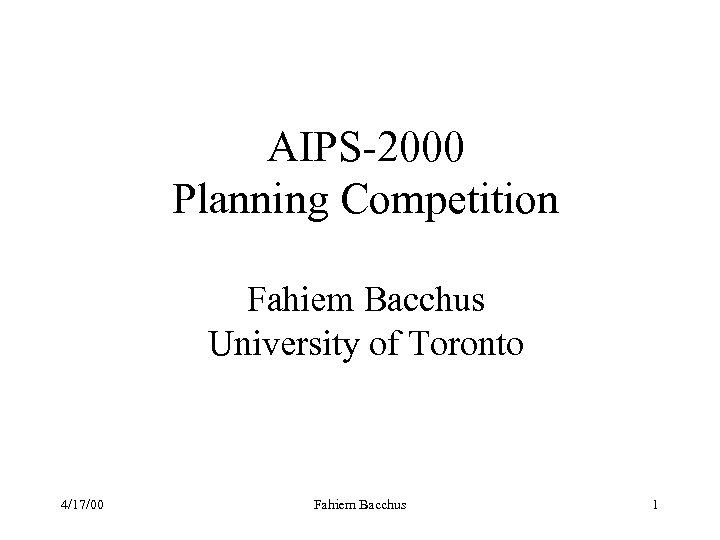

AIPS-2000 Planning Competition Fahiem Bacchus University of Toronto 4/17/00 Fahiem Bacchus 1

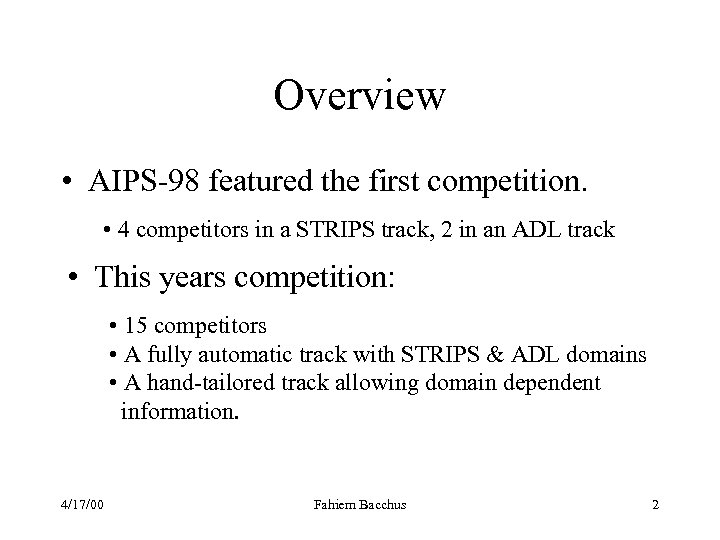

Overview • AIPS-98 featured the first competition. • 4 competitors in a STRIPS track, 2 in an ADL track • This years competition: • 15 competitors • A fully automatic track with STRIPS & ADL domains • A hand-tailored track allowing domain dependent information. 4/17/00 Fahiem Bacchus 2

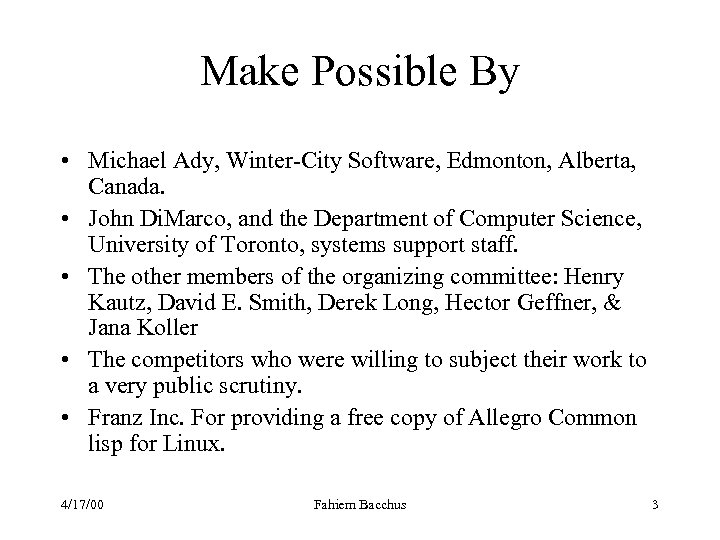

Make Possible By • Michael Ady, Winter-City Software, Edmonton, Alberta, Canada. • John Di. Marco, and the Department of Computer Science, University of Toronto, systems support staff. • The other members of the organizing committee: Henry Kautz, David E. Smith, Derek Long, Hector Geffner, & Jana Koller • The competitors who were willing to subject their work to a very public scrutiny. • Franz Inc. For providing a free copy of Allegro Common lisp for Linux. 4/17/00 Fahiem Bacchus 3

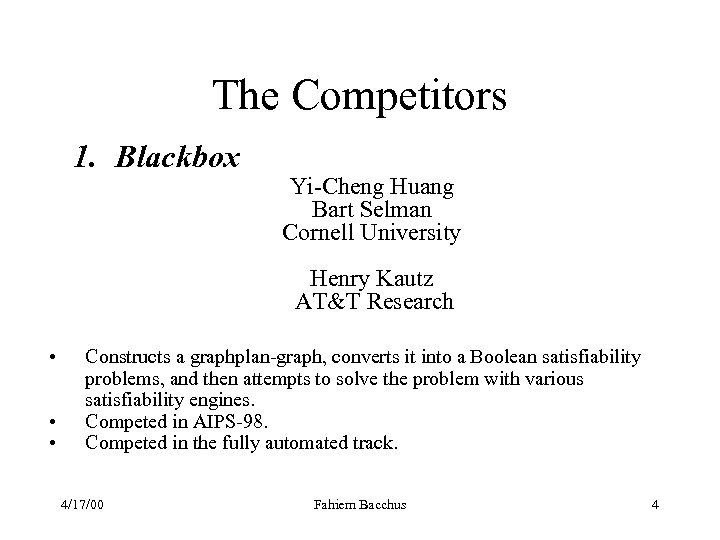

The Competitors 1. Blackbox Yi-Cheng Huang Bart Selman Cornell University Henry Kautz AT&T Research • • • Constructs a graphplan-graph, converts it into a Boolean satisfiability problems, and then attempts to solve the problem with various satisfiability engines. Competed in AIPS-98. Competed in the fully automated track. 4/17/00 Fahiem Bacchus 4

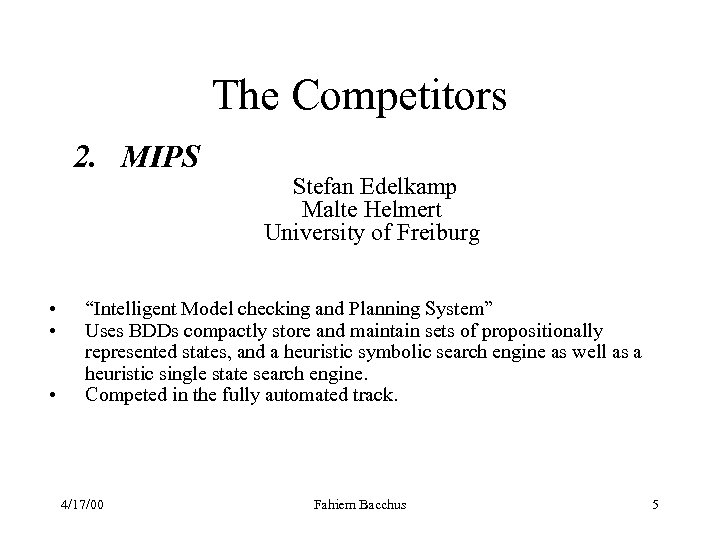

The Competitors 2. MIPS • • • Stefan Edelkamp Malte Helmert University of Freiburg “Intelligent Model checking and Planning System” Uses BDDs compactly store and maintain sets of propositionally represented states, and a heuristic symbolic search engine as well as a heuristic single state search engine. Competed in the fully automated track. 4/17/00 Fahiem Bacchus 5

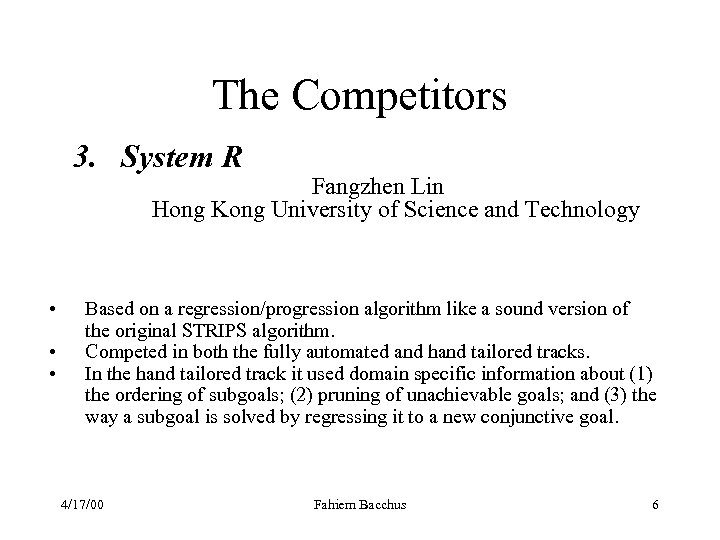

The Competitors 3. System R Fangzhen Lin Hong Kong University of Science and Technology • • • Based on a regression/progression algorithm like a sound version of the original STRIPS algorithm. Competed in both the fully automated and hand tailored tracks. In the hand tailored track it used domain specific information about (1) the ordering of subgoals; (2) pruning of unachievable goals; and (3) the way a subgoal is solved by regressing it to a new conjunctive goal. 4/17/00 Fahiem Bacchus 6
The Competitors 4. FF • • • Joerg Hoffmann Albert Ludwigs University FF (Fast-Forward) employs heuristic search like HSP, but extending the HSP heuristic to include information from GRAPHPLAN's plan extraction phase. Employs a local search strategy that combines Hill-climbing with systematic search. Competed the fully automated track. 4/17/00 Fahiem Bacchus 7

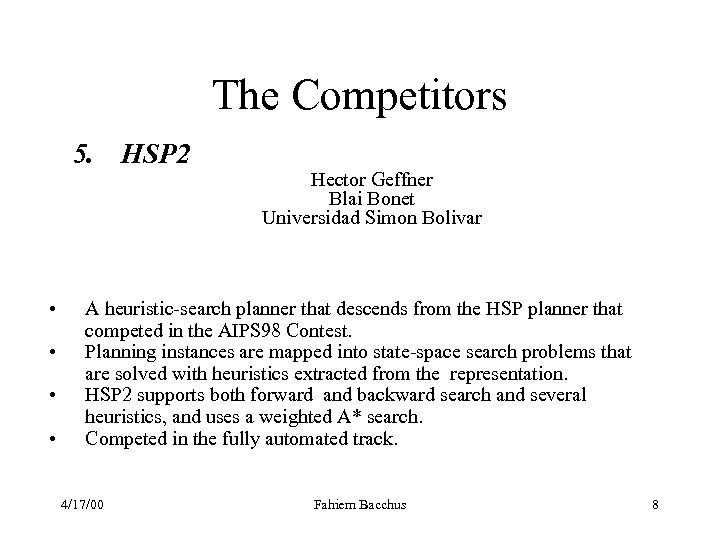

The Competitors 5. HSP 2 • • Hector Geffner Blai Bonet Universidad Simon Bolivar A heuristic-search planner that descends from the HSP planner that competed in the AIPS 98 Contest. Planning instances are mapped into state-space search problems that are solved with heuristics extracted from the representation. HSP 2 supports both forward and backward search and several heuristics, and uses a weighted A* search. Competed in the fully automated track. 4/17/00 Fahiem Bacchus 8

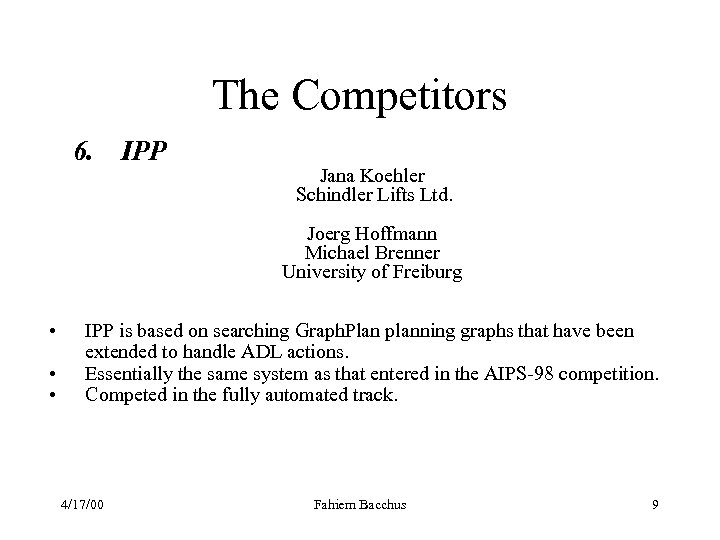

The Competitors 6. IPP Jana Koehler Schindler Lifts Ltd. Joerg Hoffmann Michael Brenner University of Freiburg • • • IPP is based on searching Graph. Plan planning graphs that have been extended to handle ADL actions. Essentially the same system as that entered in the AIPS-98 competition. Competed in the fully automated track. 4/17/00 Fahiem Bacchus 9

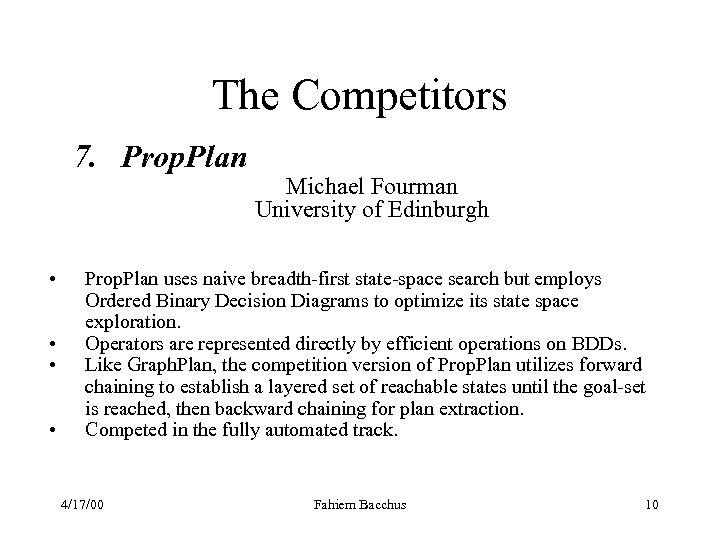

The Competitors 7. Prop. Plan • • Michael Fourman University of Edinburgh Prop. Plan uses naive breadth-first state-space search but employs Ordered Binary Decision Diagrams to optimize its state space exploration. Operators are represented directly by efficient operations on BDDs. Like Graph. Plan, the competition version of Prop. Plan utilizes forward chaining to establish a layered set of reachable states until the goal-set is reached, then backward chaining for plan extraction. Competed in the fully automated track. 4/17/00 Fahiem Bacchus 10

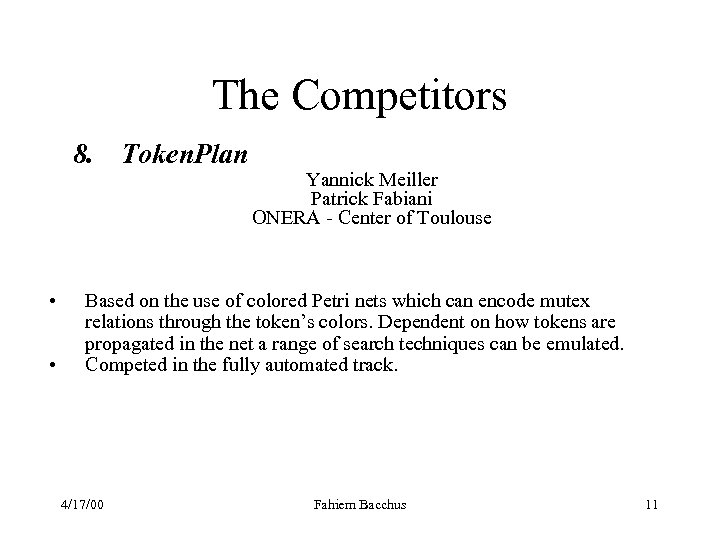

The Competitors 8. Token. Plan • • Yannick Meiller Patrick Fabiani ONERA - Center of Toulouse Based on the use of colored Petri nets which can encode mutex relations through the token’s colors. Dependent on how tokens are propagated in the net a range of search techniques can be emulated. Competed in the fully automated track. 4/17/00 Fahiem Bacchus 11

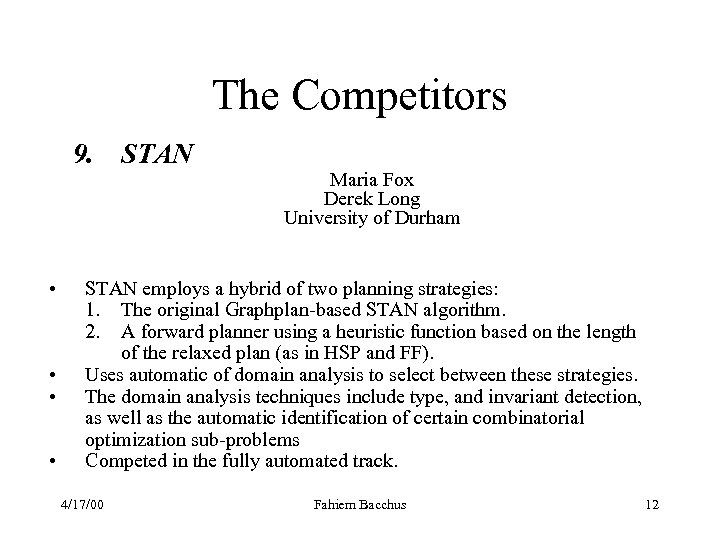

The Competitors 9. STAN • • Maria Fox Derek Long University of Durham STAN employs a hybrid of two planning strategies: 1. The original Graphplan-based STAN algorithm. 2. A forward planner using a heuristic function based on the length of the relaxed plan (as in HSP and FF). Uses automatic of domain analysis to select between these strategies. The domain analysis techniques include type, and invariant detection, as well as the automatic identification of certain combinatorial optimization sub-problems Competed in the fully automated track. 4/17/00 Fahiem Bacchus 12

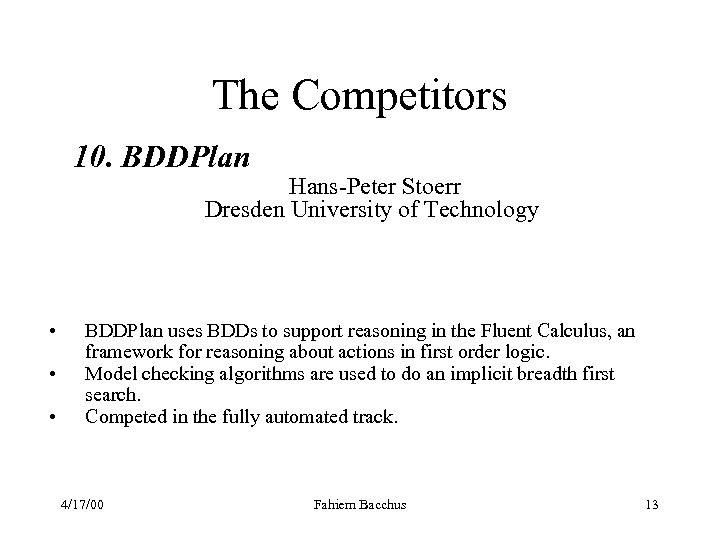

The Competitors 10. BDDPlan Hans-Peter Stoerr Dresden University of Technology • • • BDDPlan uses BDDs to support reasoning in the Fluent Calculus, an framework for reasoning about actions in first order logic. Model checking algorithms are used to do an implicit breadth first search. Competed in the fully automated track. 4/17/00 Fahiem Bacchus 13

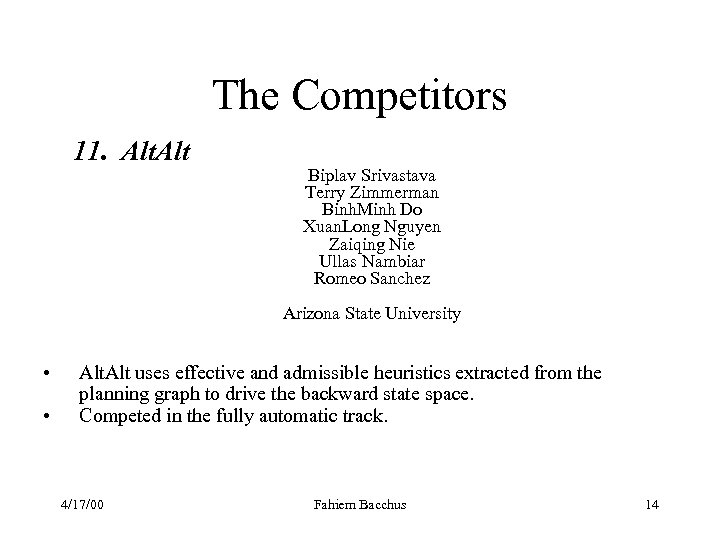

The Competitors 11. Alt Biplav Srivastava Terry Zimmerman Binh. Minh Do Xuan. Long Nguyen Zaiqing Nie Ullas Nambiar Romeo Sanchez Arizona State University • • Alt uses effective and admissible heuristics extracted from the planning graph to drive the backward state space. Competed in the fully automatic track. 4/17/00 Fahiem Bacchus 14
The Competitors 12. GRT Ioannis Refanidis Ioannis Vlahavas Dimitris Vrakas Aristotle University • • GRT (Greedy Regression Table) planner is a heuristic state space planner. Like HSP it employs a best-first search using estimated distances to the goal Competed in the fully automatic track. 4/17/00 Fahiem Bacchus 15

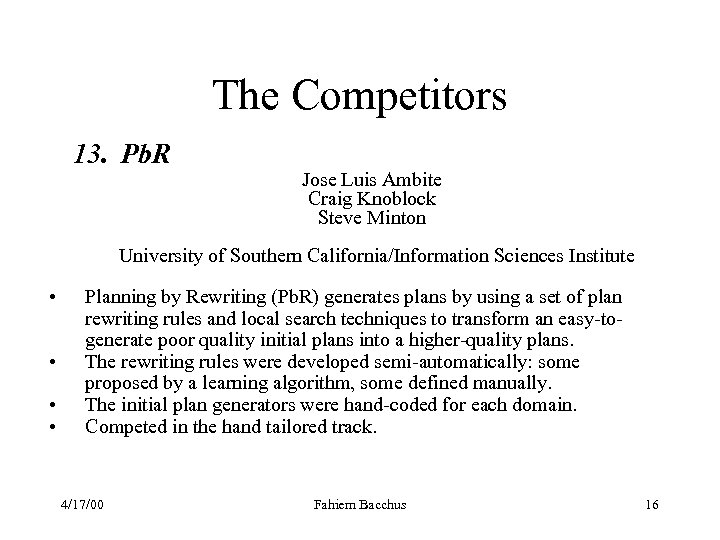

The Competitors 13. Pb. R Jose Luis Ambite Craig Knoblock Steve Minton University of Southern California/Information Sciences Institute • • Planning by Rewriting (Pb. R) generates plans by using a set of plan rewriting rules and local search techniques to transform an easy-togenerate poor quality initial plans into a higher-quality plans. The rewriting rules were developed semi-automatically: some proposed by a learning algorithm, some defined manually. The initial plan generators were hand-coded for each domain. Competed in the hand tailored track. 4/17/00 Fahiem Bacchus 16

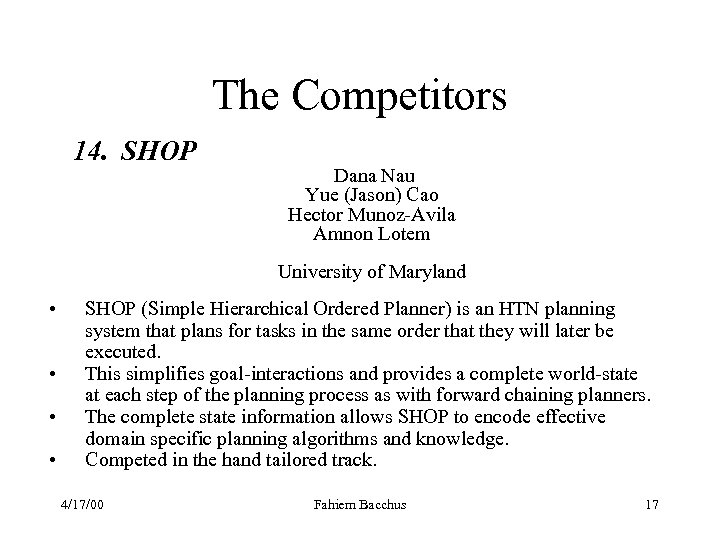

The Competitors 14. SHOP Dana Nau Yue (Jason) Cao Hector Munoz-Avila Amnon Lotem University of Maryland • • SHOP (Simple Hierarchical Ordered Planner) is an HTN planning system that plans for tasks in the same order that they will later be executed. This simplifies goal-interactions and provides a complete world-state at each step of the planning process as with forward chaining planners. The complete state information allows SHOP to encode effective domain specific planning algorithms and knowledge. Competed in the hand tailored track. 4/17/00 Fahiem Bacchus 17

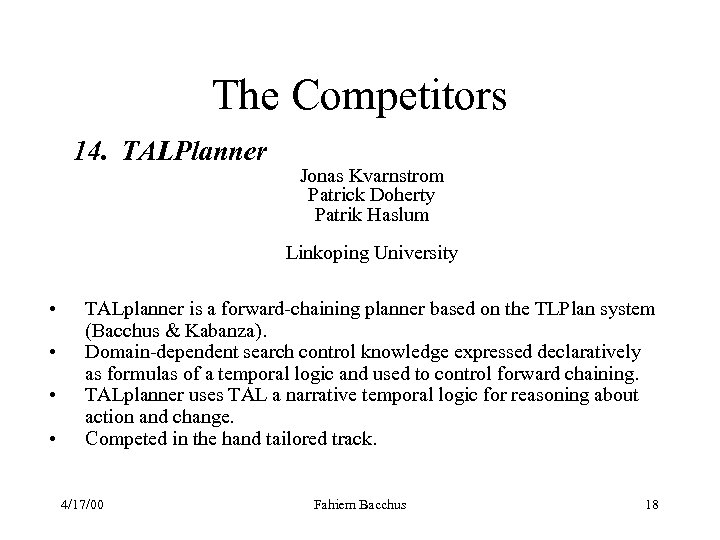

The Competitors 14. TALPlanner Jonas Kvarnstrom Patrick Doherty Patrik Haslum Linkoping University • • TALplanner is a forward-chaining planner based on the TLPlan system (Bacchus & Kabanza). Domain-dependent search control knowledge expressed declaratively as formulas of a temporal logic and used to control forward chaining. TALplanner uses TAL a narrative temporal logic for reasoning about action and change. Competed in the hand tailored track. 4/17/00 Fahiem Bacchus 18

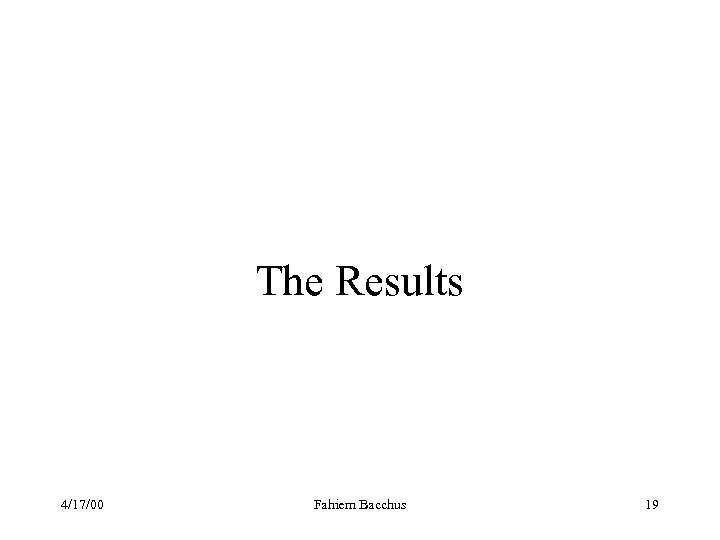

The Results 4/17/00 Fahiem Bacchus 19
Domain 1: Logistics World • Move a set of packages between locations using trucks within the same city and airplanes between cities. • Limited interaction between goals. 4/17/00 Fahiem Bacchus 20
Fully Automated Logistics Time Comparison Black. Box Mips 10000 System R FF HSP 2 100 Seconds IPP Prop. Plan Token. Plan 1 4 4 4 5 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 STAN BDDPlan Alt 0. 01 GRT

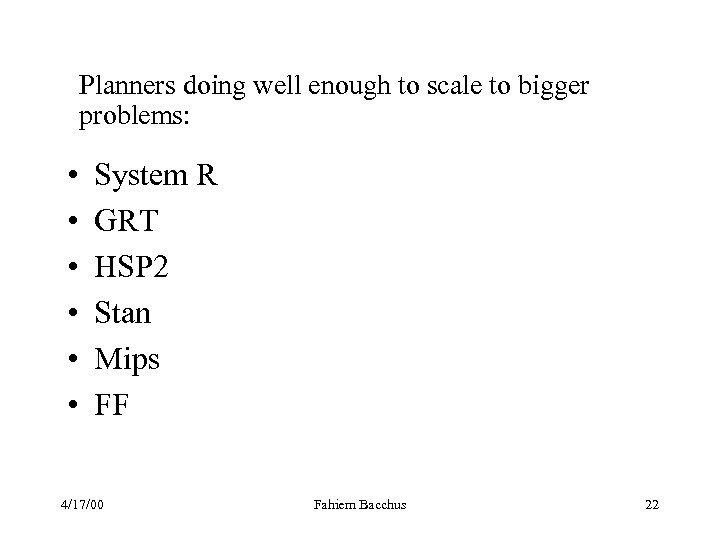

Planners doing well enough to scale to bigger problems: • • • System R GRT HSP 2 Stan Mips FF 4/17/00 Fahiem Bacchus 22

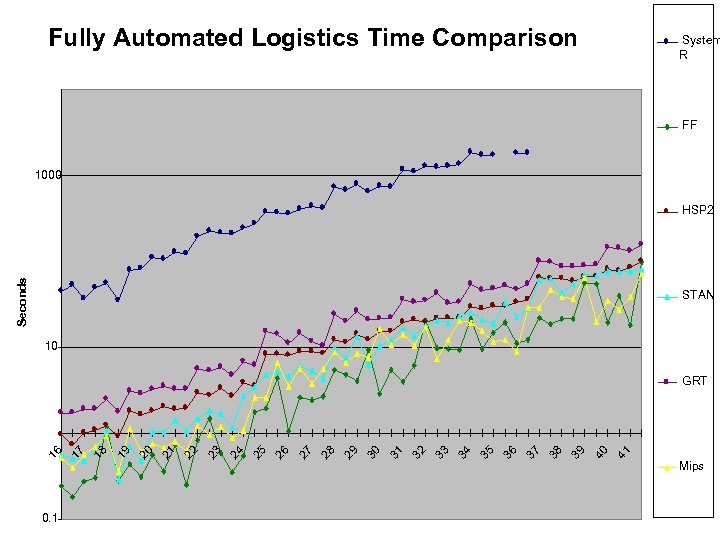

Fully Automated Logistics Time Comparison System R FF 1000 Seconds HSP 2 STAN 10 0. 1 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 GRT Mips

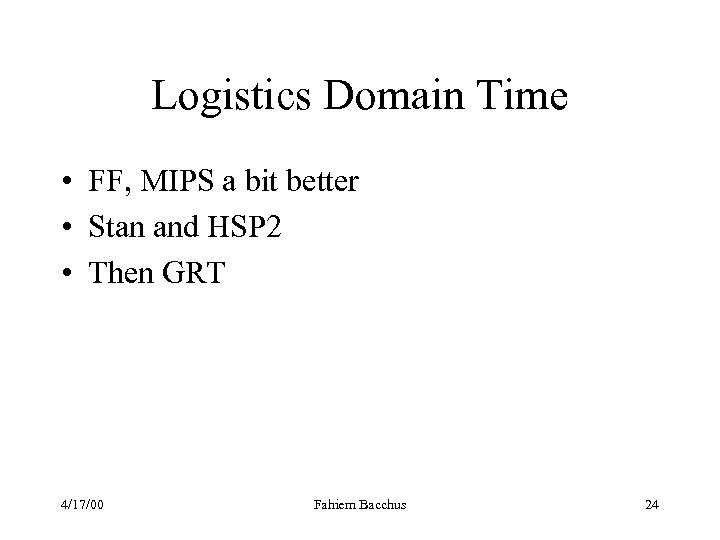

Logistics Domain Time • FF, MIPS a bit better • Stan and HSP 2 • Then GRT 4/17/00 Fahiem Bacchus 24

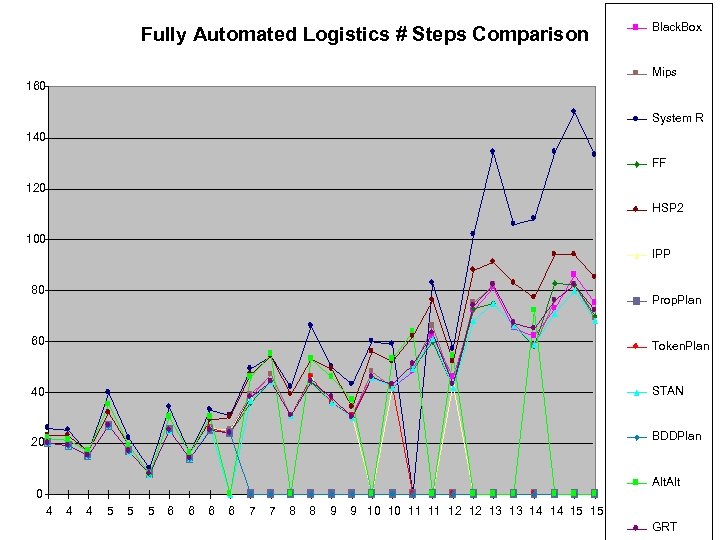

Fully Automated Logistics # Steps Comparison Black. Box Mips 160 System R 140 FF 120 HSP 2 100 IPP 80 Prop. Plan 60 Token. Plan 40 STAN BDDPlan 20 Alt 0 4 4 4 5 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 GRT

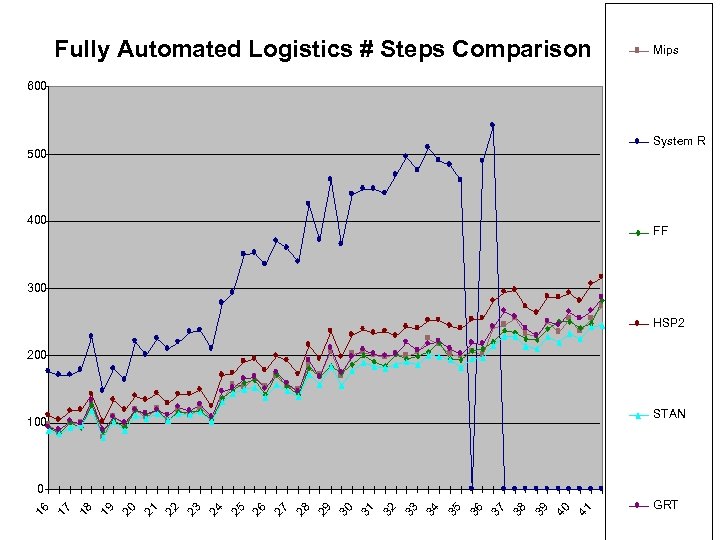

Fully Automated Logistics # Steps Comparison Mips 600 System R 500 400 FF 300 HSP 2 200 STAN 100 40 41 38 39 36 37 34 35 32 33 30 31 28 29 26 27 24 25 22 23 20 21 18 19 16 17 0 GRT

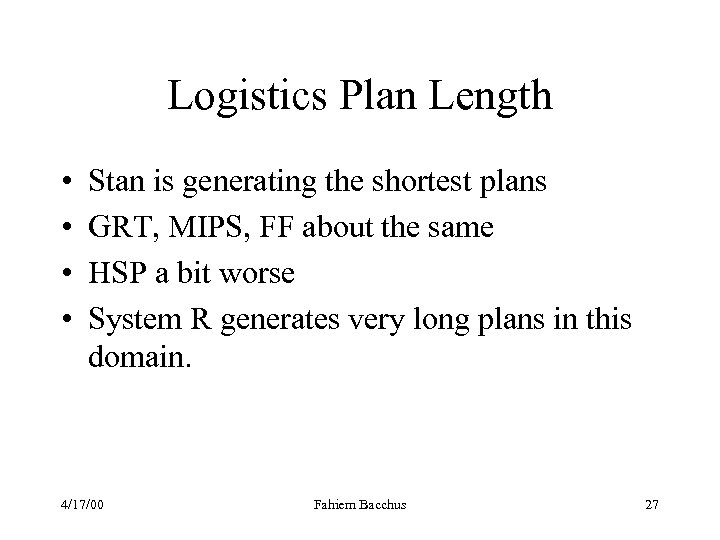

Logistics Plan Length • • Stan is generating the shortest plans GRT, MIPS, FF about the same HSP a bit worse System R generates very long plans in this domain. 4/17/00 Fahiem Bacchus 27

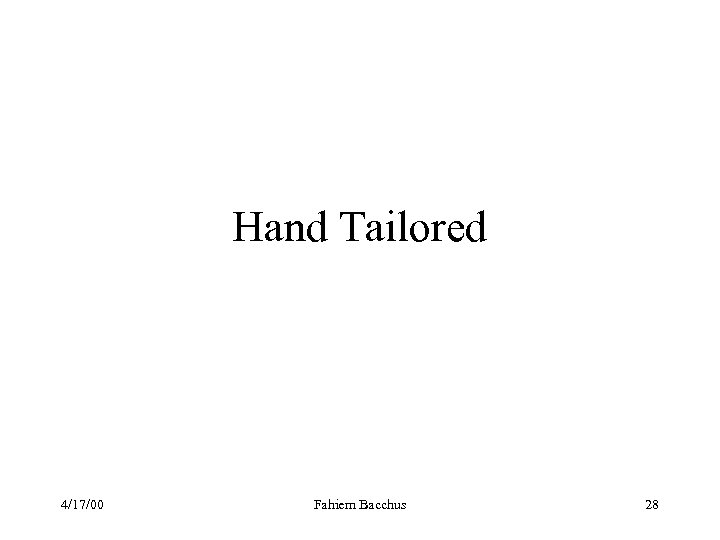

Hand Tailored 4/17/00 Fahiem Bacchus 28

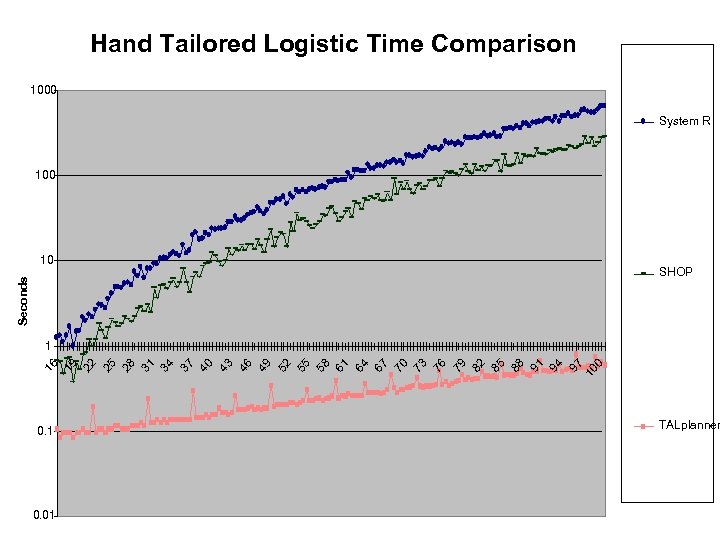

Hand Tailored Logistic Time Comparison 1000 System R 100 10 Seconds SHOP 0. 1 0. 01 97 10 0 94 91 88 85 82 79 76 73 70 67 64 61 58 55 52 49 46 43 40 37 34 31 28 25 22 19 16 1 TALplanner

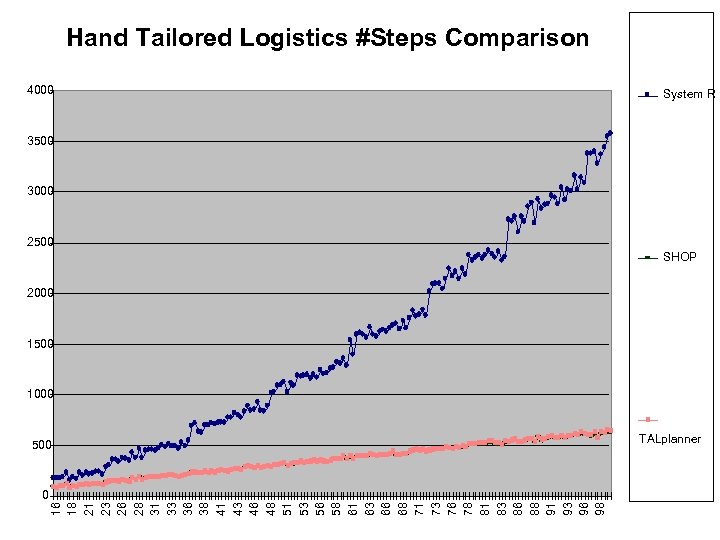

Hand Tailored Logistics #Steps Comparison 4000 System R 3500 3000 2500 SHOP 2000 1500 1000 500 16 18 21 23 26 28 31 33 36 38 41 43 46 48 51 53 56 58 61 63 66 68 71 73 76 78 81 83 86 88 91 93 96 98 0 TALplanner

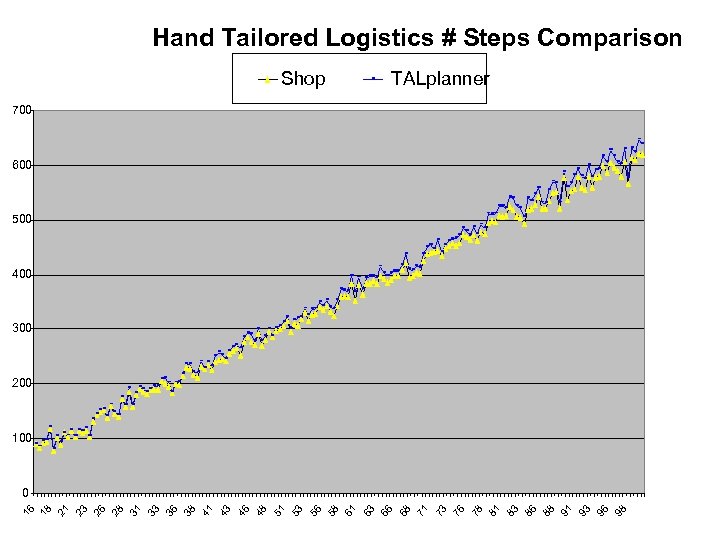

Hand Tailored Logistics # Steps Comparison Shop TALplanner 700 600 500 400 300 200 100 96 98 91 93 88 86 81 83 76 78 71 73 66 68 61 63 56 58 51 53 46 48 41 43 36 38 31 33 26 28 21 23 16 18 0

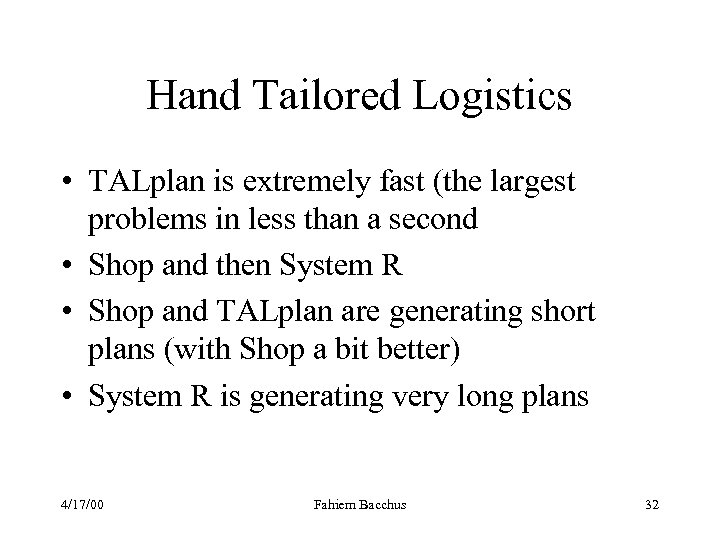

Hand Tailored Logistics • TALplan is extremely fast (the largest problems in less than a second • Shop and then System R • Shop and TALplan are generating short plans (with Shop a bit better) • System R is generating very long plans 4/17/00 Fahiem Bacchus 32

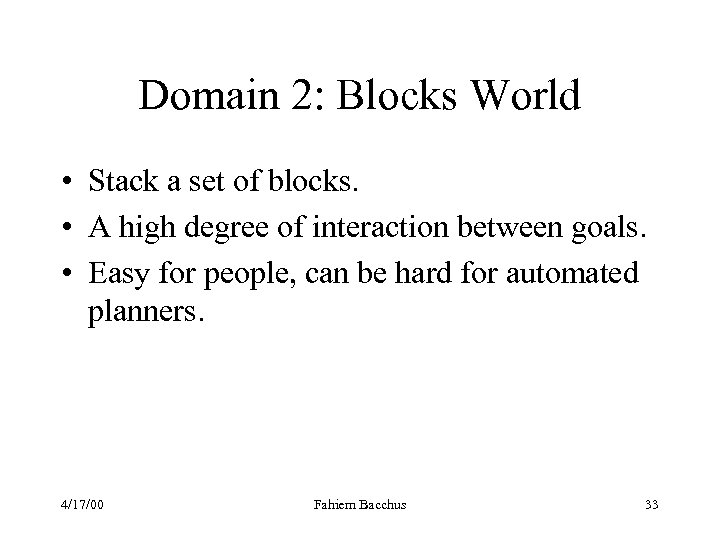

Domain 2: Blocks World • Stack a set of blocks. • A high degree of interaction between goals. • Easy for people, can be hard for automated planners. 4/17/00 Fahiem Bacchus 33

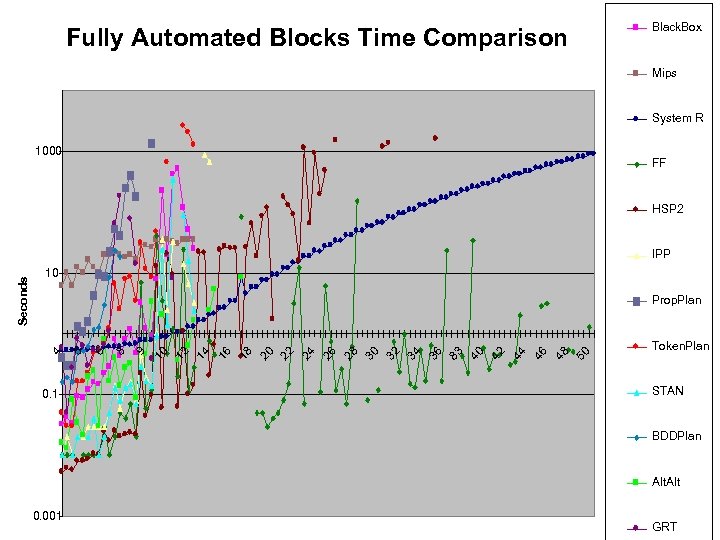

Black. Box Fully Automated Blocks Time Comparison Mips System R 1000 FF HSP 2 10 0. 1 50 48 46 44 42 40 83 36 34 32 30 28 26 24 22 20 18 16 14 12 9 10 8 6 5 Prop. Plan 4 Seconds IPP Token. Plan STAN BDDPlan Alt 0. 001 GRT

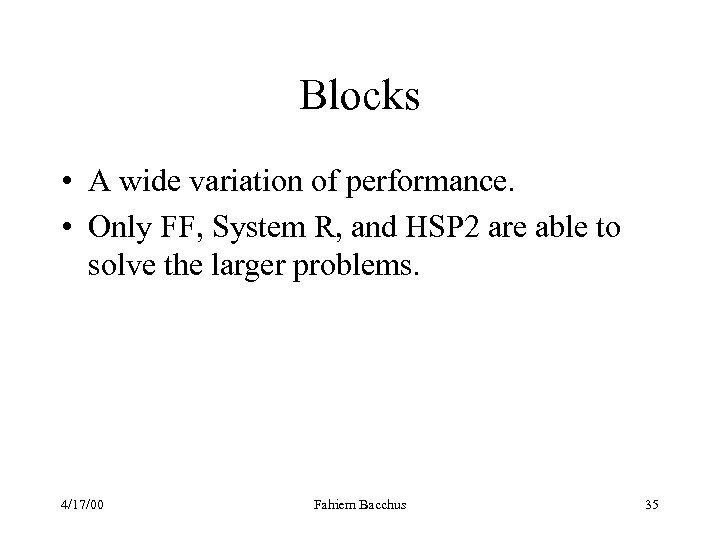

Blocks • A wide variation of performance. • Only FF, System R, and HSP 2 are able to solve the larger problems. 4/17/00 Fahiem Bacchus 35
Fully Automated Blocks Time Comparison 10000 System R 100 Seconds FF 50 48 47 45 44 42 41 39 38 36 35 33 32 30 29 27 26 24 23 21 20 18 17 1 HSP 2 0. 01
Blocks • System R scales very consistently in this domain. • FF can occasionally solve large problems fast, but it has many misses. 4/17/00 Fahiem Bacchus 37

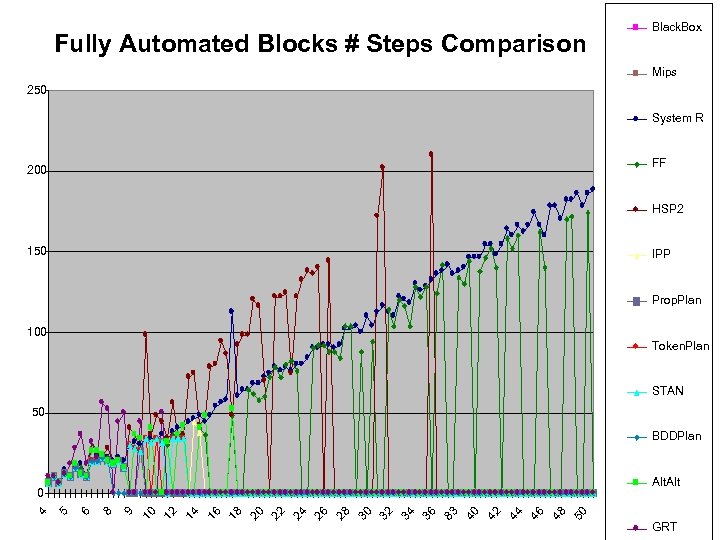

Fully Automated Blocks # Steps Comparison Black. Box Mips 250 System R FF 200 HSP 2 150 IPP Prop. Plan 100 Token. Plan STAN 50 BDDPlan Alt 50 48 46 44 42 40 83 36 34 32 30 28 26 24 22 20 18 16 14 12 10 9 8 6 5 4 0 GRT

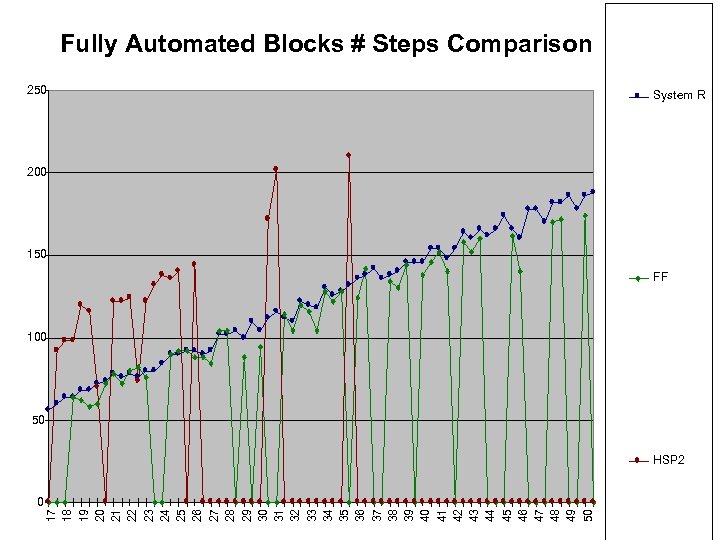

Fully Automated Blocks # Steps Comparison 250 System R 200 150 FF 100 50 HSP 2 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 0

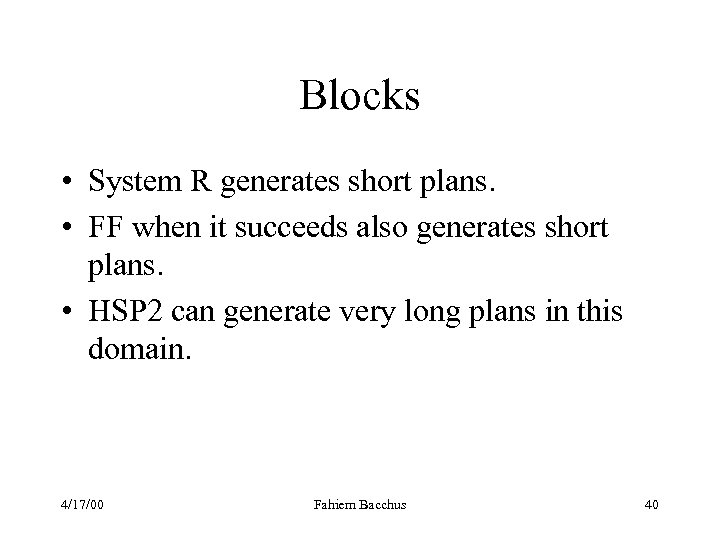

Blocks • System R generates short plans. • FF when it succeeds also generates short plans. • HSP 2 can generate very long plans in this domain. 4/17/00 Fahiem Bacchus 40

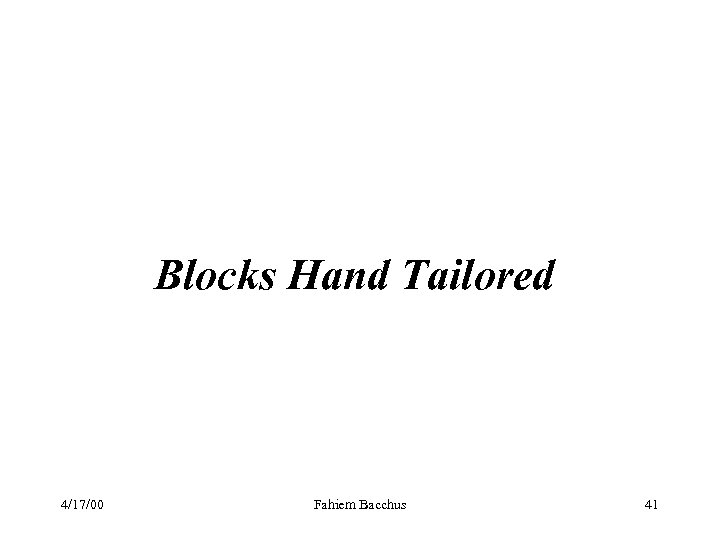

Blocks Hand Tailored 4/17/00 Fahiem Bacchus 41

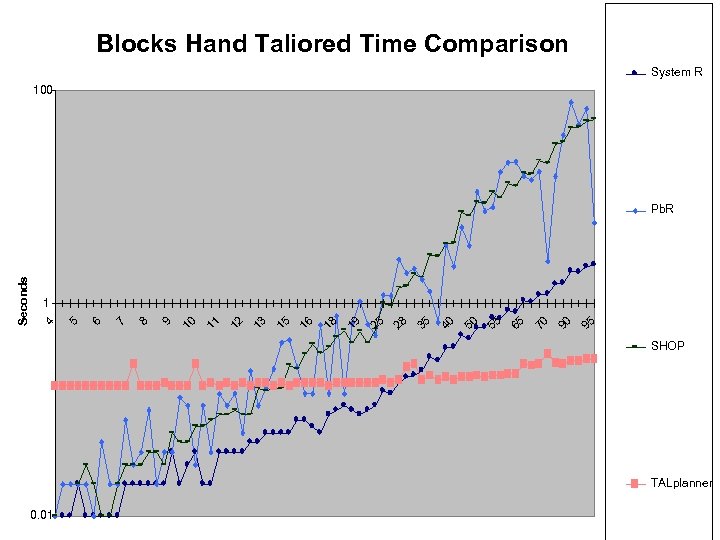

Blocks Hand Taliored Time Comparison System R 100 95 90 70 65 55 50 40 35 28 25 19 18 16 15 13 12 11 10 9 8 7 6 5 1 4 Seconds Pb. R SHOP TALplanner 0. 01

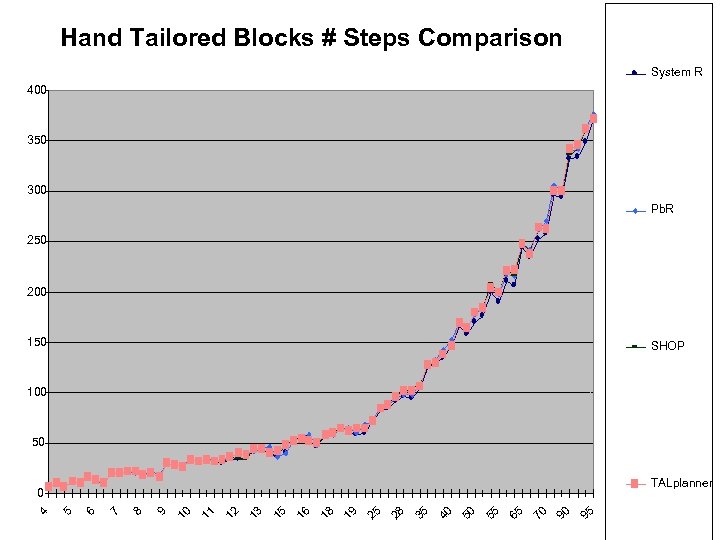

Hand Tailored Blocks # Steps Comparison System R 400 350 300 Pb. R 250 200 150 SHOP 100 50 TALplanner 95 90 70 65 55 50 40 35 28 25 19 18 16 15 13 12 11 10 9 8 7 6 5 4 0

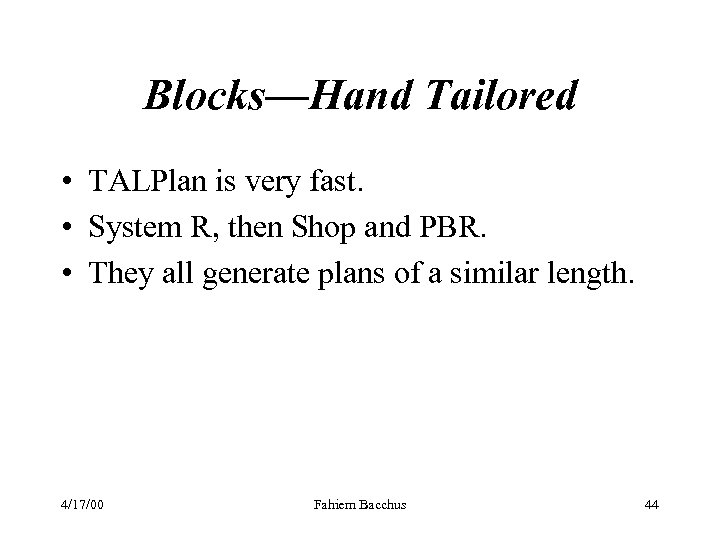

Blocks—Hand Tailored • TALPlan is very fast. • System R, then Shop and PBR. • They all generate plans of a similar length. 4/17/00 Fahiem Bacchus 44

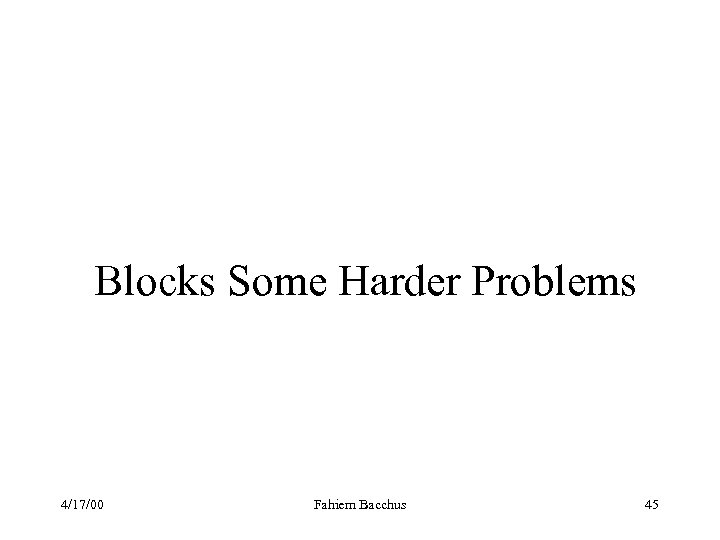

Blocks Some Harder Problems 4/17/00 Fahiem Bacchus 45

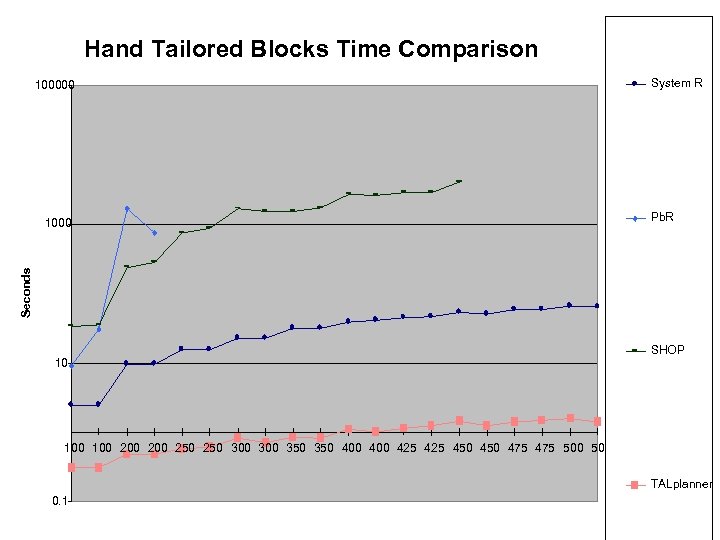

Hand Tailored Blocks Time Comparison 100000 Pb. R Seconds 1000 System R 10 SHOP 100 200 250 300 350 400 425 450 475 500 TALplanner 0. 1

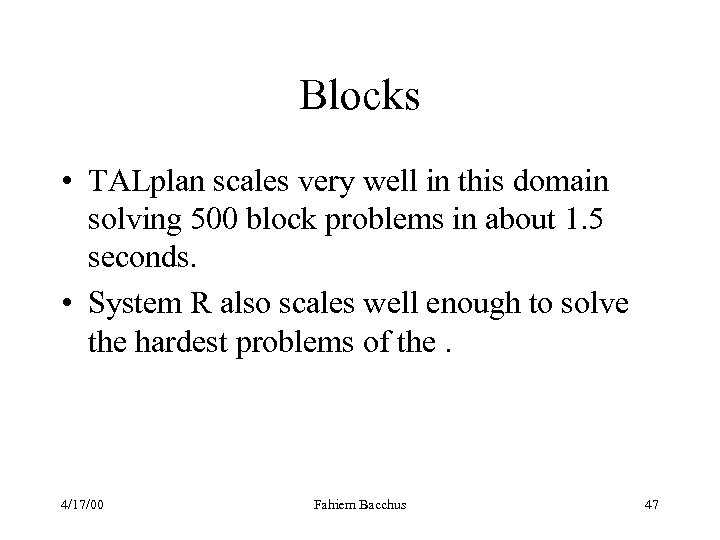

Blocks • TALplan scales very well in this domain solving 500 block problems in about 1. 5 seconds. • System R also scales well enough to solve the hardest problems of the. 4/17/00 Fahiem Bacchus 47

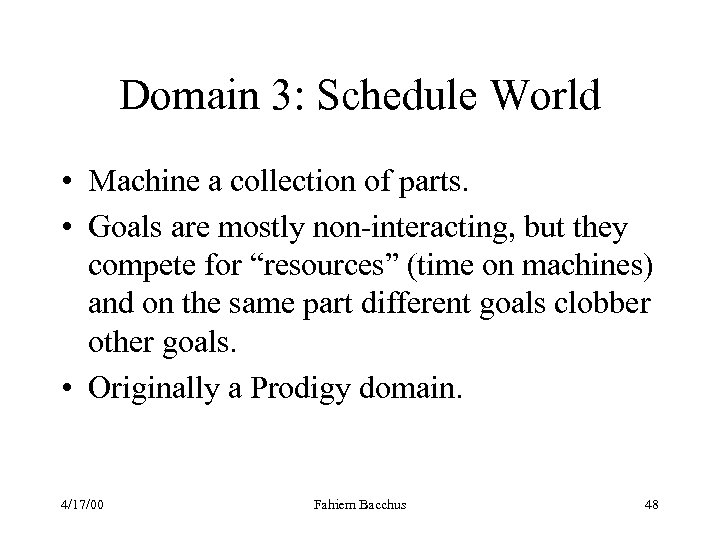

Domain 3: Schedule World • Machine a collection of parts. • Goals are mostly non-interacting, but they compete for “resources” (time on machines) and on the same part different goals clobber other goals. • Originally a Prodigy domain. 4/17/00 Fahiem Bacchus 48

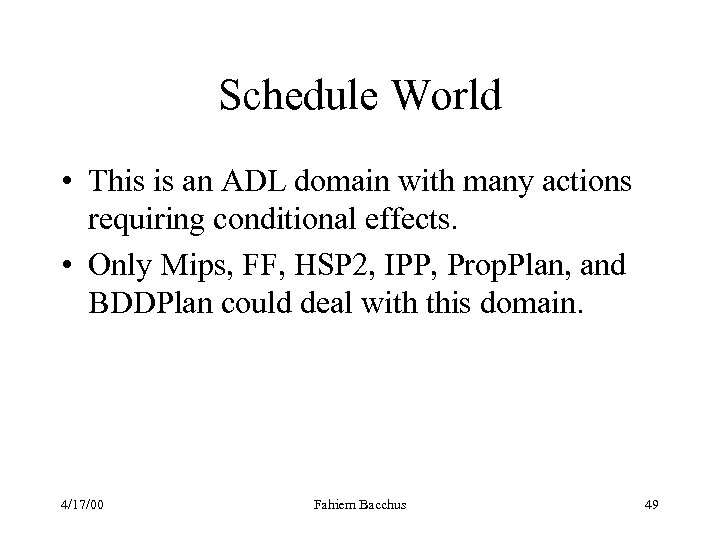

Schedule World • This is an ADL domain with many actions requiring conditional effects. • Only Mips, FF, HSP 2, IPP, Prop. Plan, and BDDPlan could deal with this domain. 4/17/00 Fahiem Bacchus 49

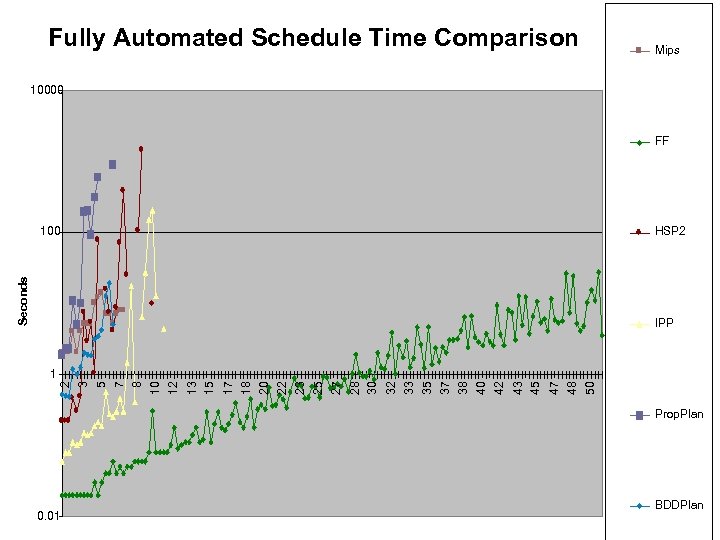

Fully Automated Schedule Time Comparison Mips 10000 FF HSP 2 Seconds 100 IPP 48 50 47 43 45 42 38 40 37 33 35 32 28 30 27 23 25 22 18 20 17 13 15 12 8 10 7 3 5 2 1 Prop. Plan 0. 01 BDDPlan

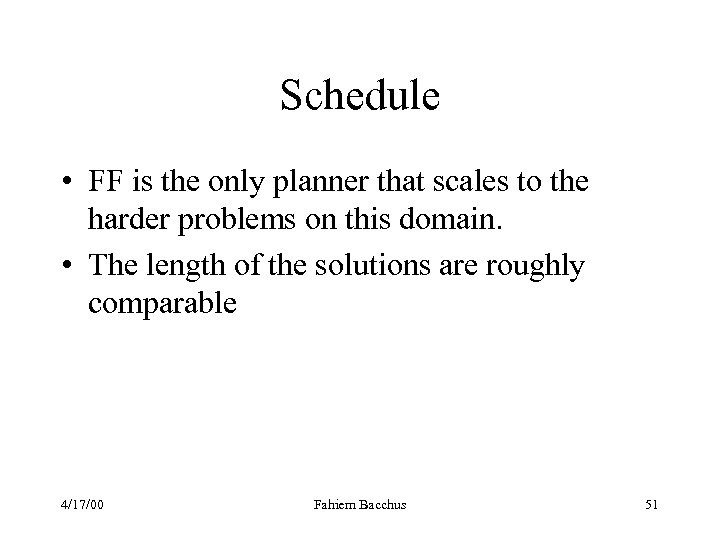

Schedule • FF is the only planner that scales to the harder problems on this domain. • The length of the solutions are roughly comparable 4/17/00 Fahiem Bacchus 51

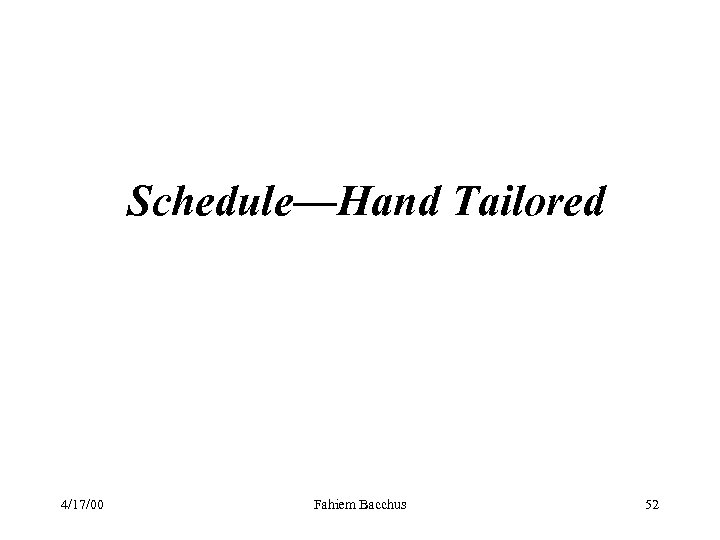

Schedule—Hand Tailored 4/17/00 Fahiem Bacchus 52

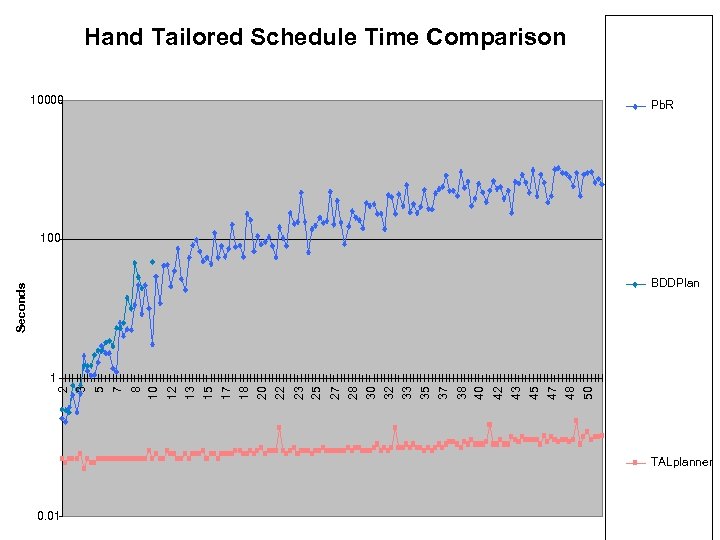

Hand Tailored Schedule Time Comparison 10000 Pb. R 100 Seconds BDDPlan 48 50 47 43 45 42 38 40 37 33 35 32 28 30 27 23 25 22 18 20 17 13 15 12 8 10 7 3 5 2 1 TALplanner 0. 01
Hand Tailored Schedule # Steps Comparison 100 Pb. R 90 80 70 60 BDDPlan 50 40 30 20 10 TALplanner 50 48 47 45 43 42 40 38 37 35 33 32 30 28 27 25 23 22 20 18 17 15 13 8 10 12 7 5 3 2 0

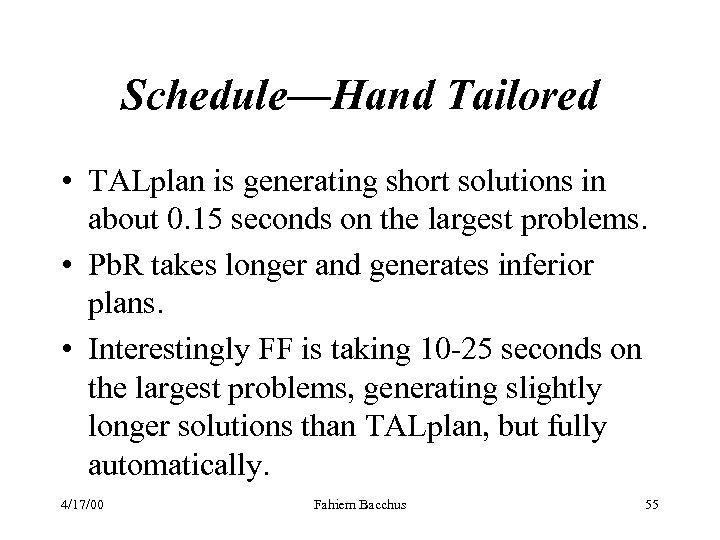

Schedule—Hand Tailored • TALplan is generating short solutions in about 0. 15 seconds on the largest problems. • Pb. R takes longer and generates inferior plans. • Interestingly FF is taking 10 -25 seconds on the largest problems, generating slightly longer solutions than TALplan, but fully automatically. 4/17/00 Fahiem Bacchus 55

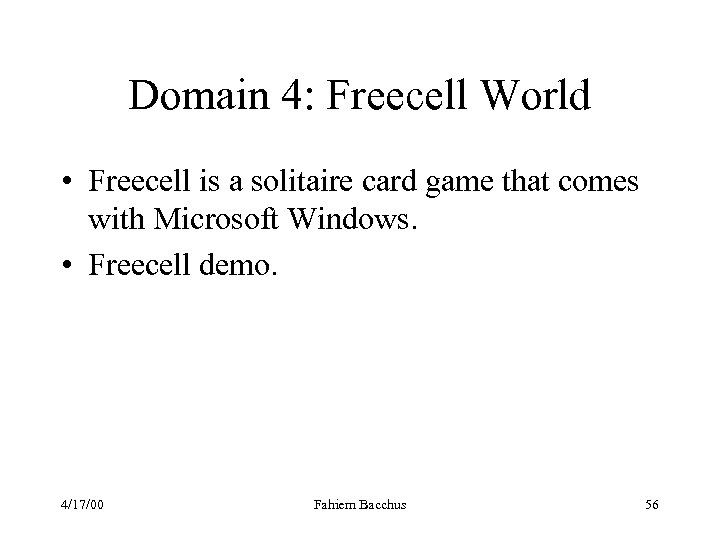

Domain 4: Freecell World • Freecell is a solitaire card game that comes with Microsoft Windows. • Freecell demo. 4/17/00 Fahiem Bacchus 56

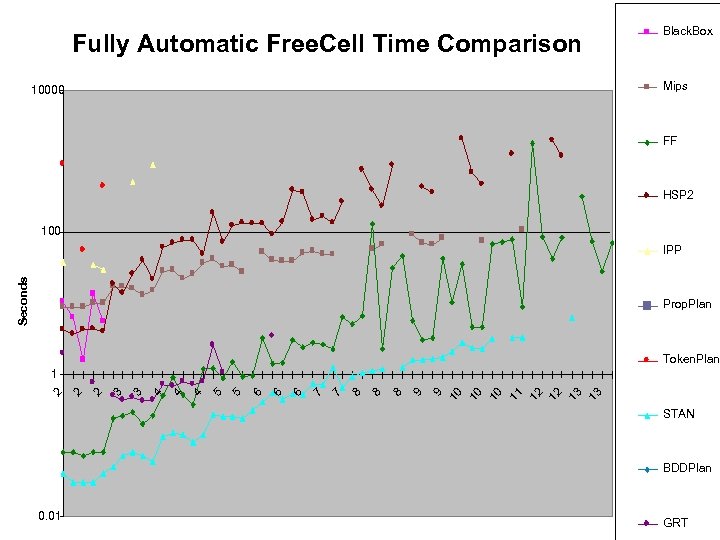

Fully Automatic Free. Cell Time Comparison Black. Box Mips 10000 FF HSP 2 100 Seconds IPP Prop. Plan Token. Plan 13 13 12 12 11 10 10 9 8 8 8 7 7 6 6 6 5 5 4 4 4 3 3 2 2 2 1 STAN BDDPlan 0. 01 GRT

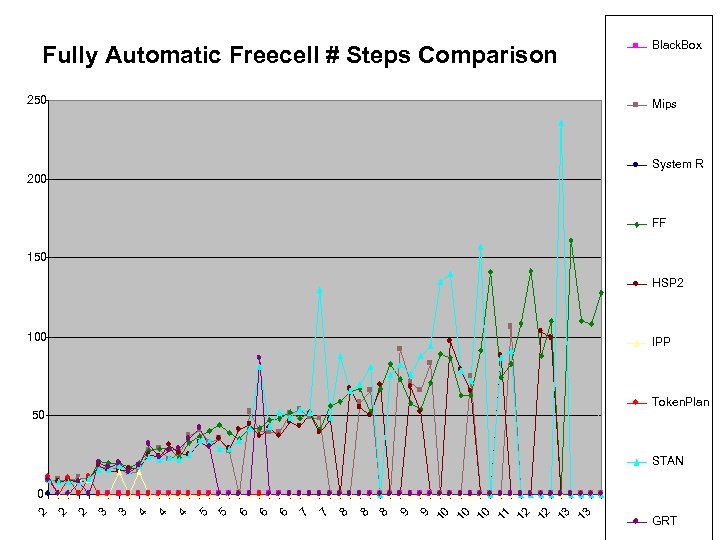

Black. Box Fully Automatic Freecell # Steps Comparison 250 Mips System R 200 FF 150 HSP 2 100 IPP Token. Plan 50 STAN 13 13 12 12 11 10 10 9 8 8 8 7 7 6 6 6 5 5 4 4 4 3 3 2 2 2 0 GRT

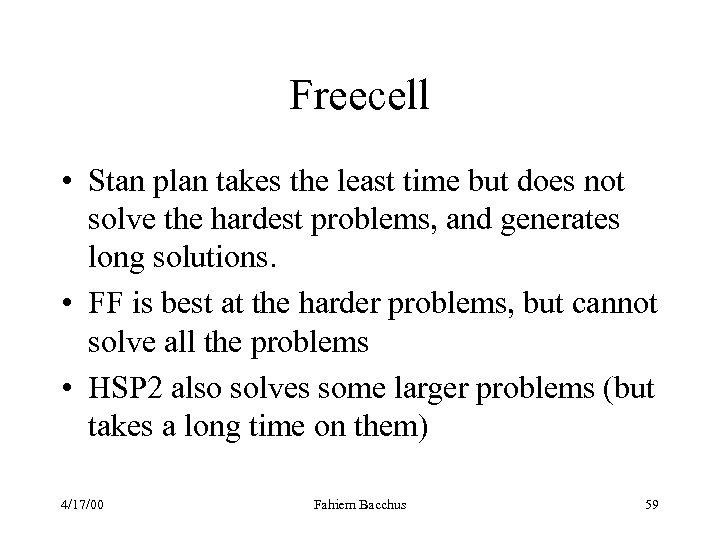

Freecell • Stan plan takes the least time but does not solve the hardest problems, and generates long solutions. • FF is best at the harder problems, but cannot solve all the problems • HSP 2 also solves some larger problems (but takes a long time on them) 4/17/00 Fahiem Bacchus 59

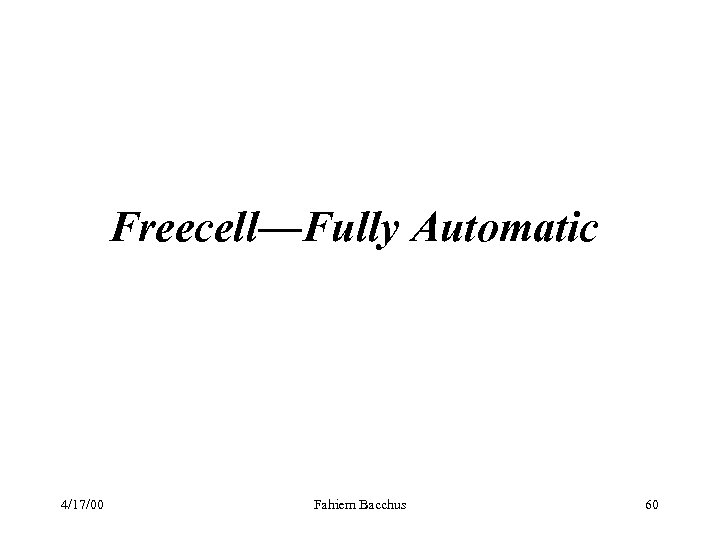

Freecell—Fully Automatic 4/17/00 Fahiem Bacchus 60

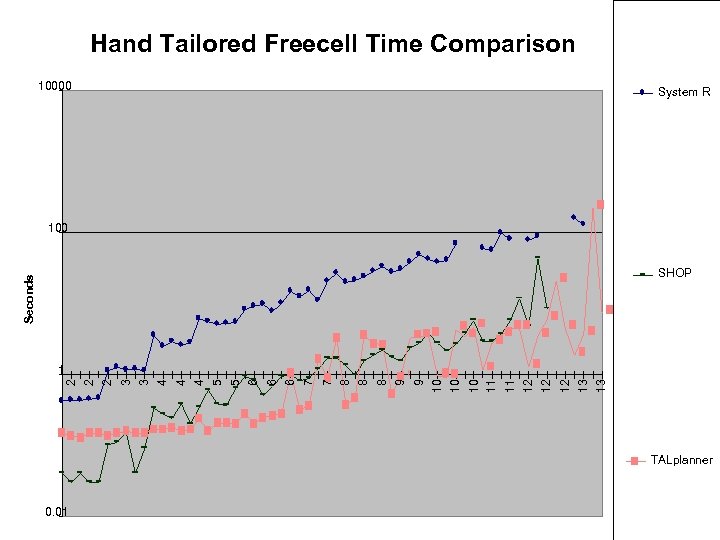

Hand Tailored Freecell Time Comparison 10000 System R 100 Seconds SHOP 13 13 12 12 12 11 10 10 9 9 8 8 8 7 7 6 6 6 5 4 4 3 3 2 2 2 1 TALplanner 0. 01

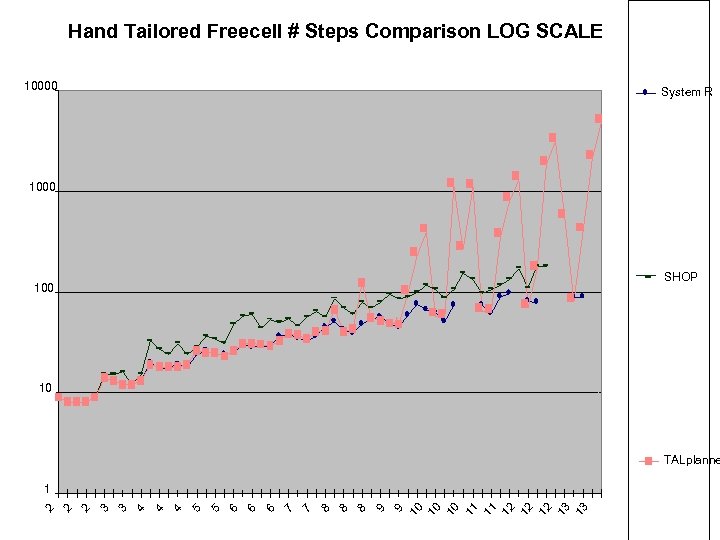

Hand Tailored Freecell # Steps Comparison LOG SCALE 10000 System R 1000 SHOP 100 10 TALplanne 13 13 12 12 12 11 11 10 10 9 8 8 8 7 7 6 6 6 5 5 4 4 4 3 3 2 2 2 1

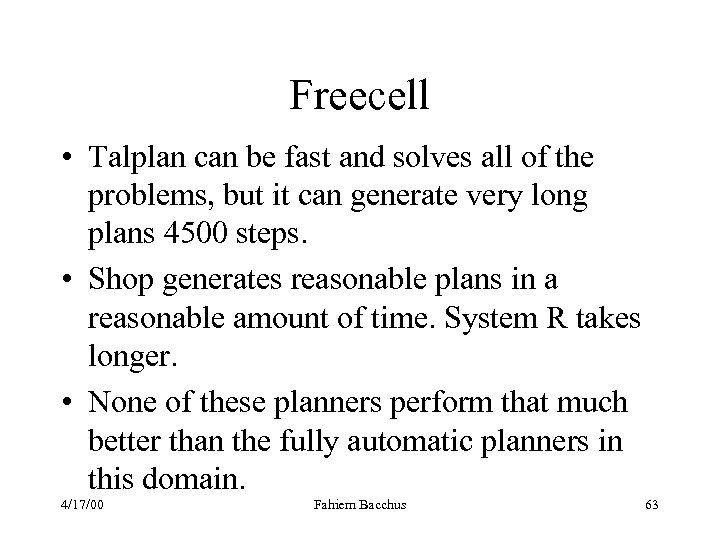

Freecell • Talplan can be fast and solves all of the problems, but it can generate very long plans 4500 steps. • Shop generates reasonable plans in a reasonable amount of time. System R takes longer. • None of these planners perform that much better than the fully automatic planners in this domain. 4/17/00 Fahiem Bacchus 63

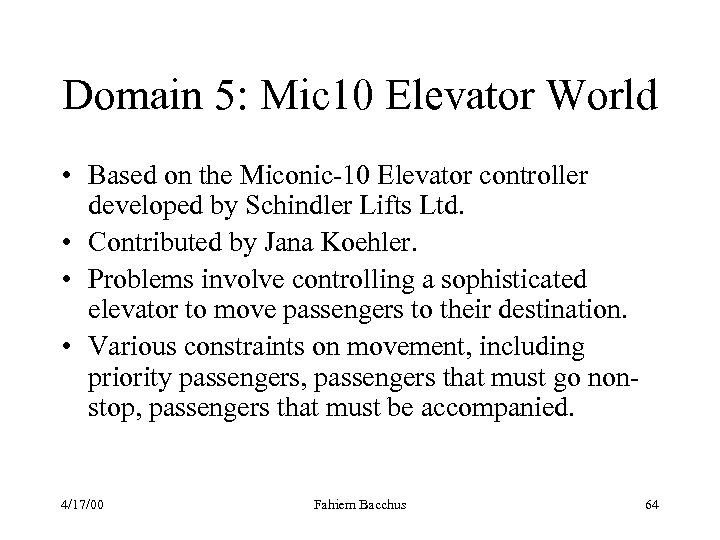

Domain 5: Mic 10 Elevator World • Based on the Miconic-10 Elevator controller developed by Schindler Lifts Ltd. • Contributed by Jana Koehler. • Problems involve controlling a sophisticated elevator to move passengers to their destination. • Various constraints on movement, including priority passengers, passengers that must go nonstop, passengers that must be accompanied. 4/17/00 Fahiem Bacchus 64

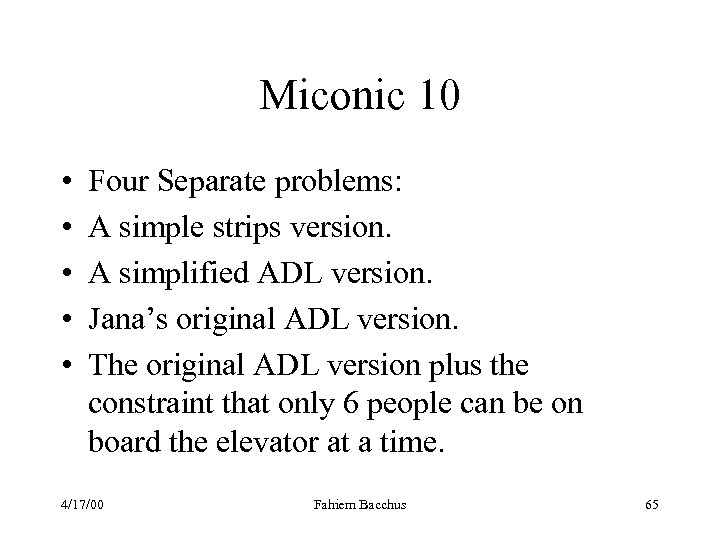

Miconic 10 • • • Four Separate problems: A simple strips version. A simplified ADL version. Jana’s original ADL version. The original ADL version plus the constraint that only 6 people can be on board the elevator at a time. 4/17/00 Fahiem Bacchus 65

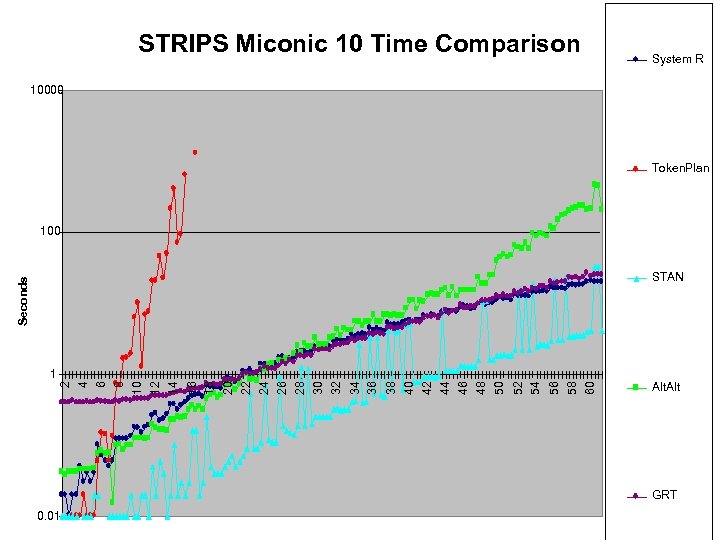

STRIPS Miconic 10 Time Comparison System R 10000 Token. Plan 100 Seconds STAN 58 60 56 52 54 50 46 48 44 40 42 38 34 36 32 28 30 26 22 24 20 16 18 14 10 12 8 4 6 2 1 Alt GRT 0. 01

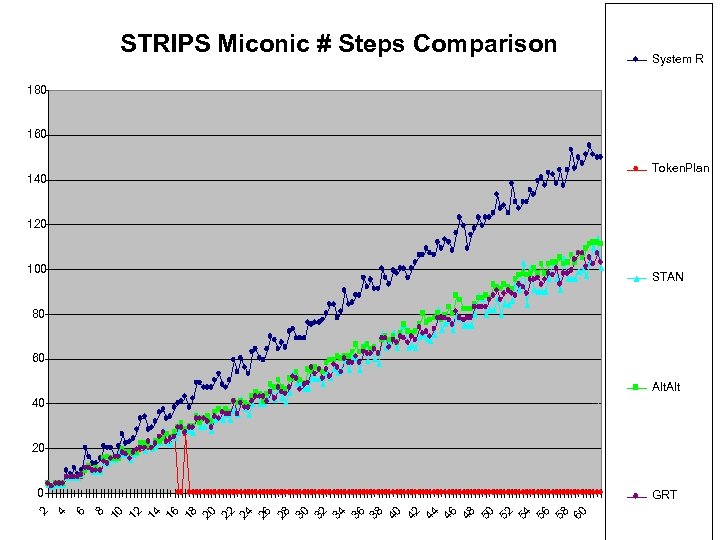

STRIPS Miconic # Steps Comparison System R 180 160 Token. Plan 140 120 100 STAN 80 60 Alt 40 20 60 58 56 54 52 50 48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 8 10 6 GRT 4 2 0

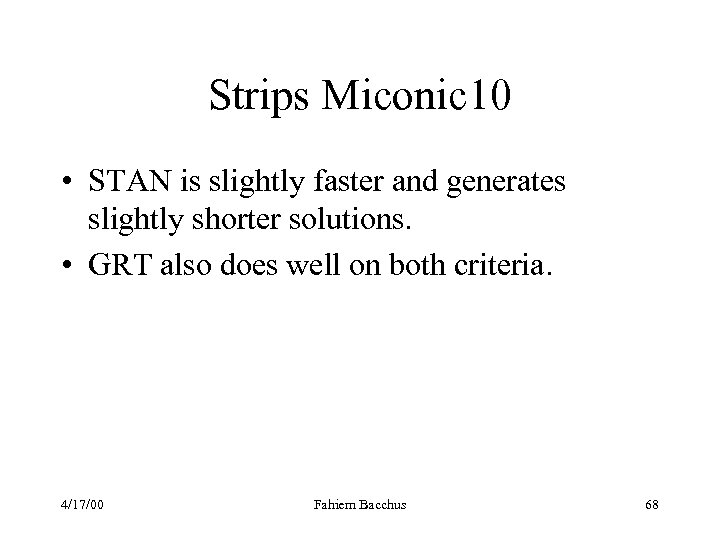

Strips Miconic 10 • STAN is slightly faster and generates slightly shorter solutions. • GRT also does well on both criteria. 4/17/00 Fahiem Bacchus 68

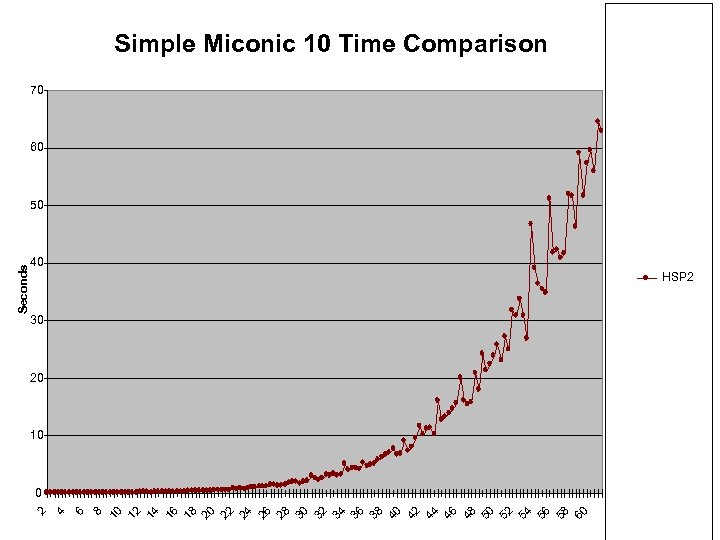

60 58 56 54 52 50 48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 8 10 6 4 2 Seconds Simple Miconic 10 Time Comparison 70 60 50 40 HSP 2 30 20 10 0

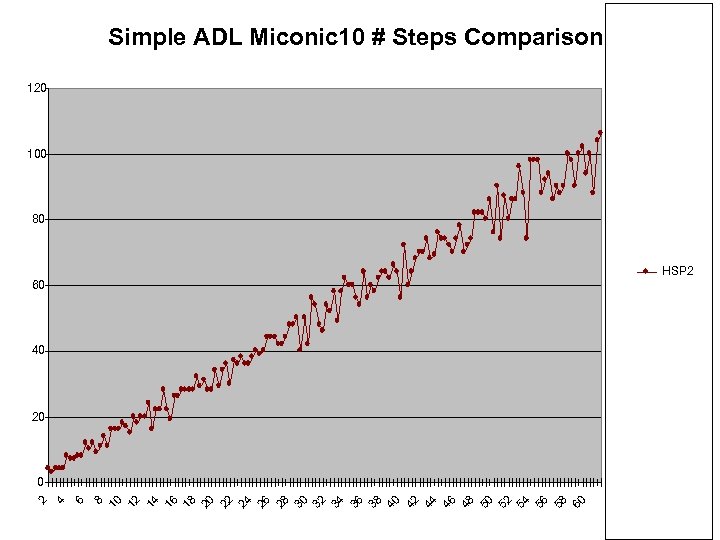

Simple ADL Miconic 10 # Steps Comparison 120 100 80 HSP 2 60 40 20 60 58 56 54 52 50 48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 8 10 6 4 2 0

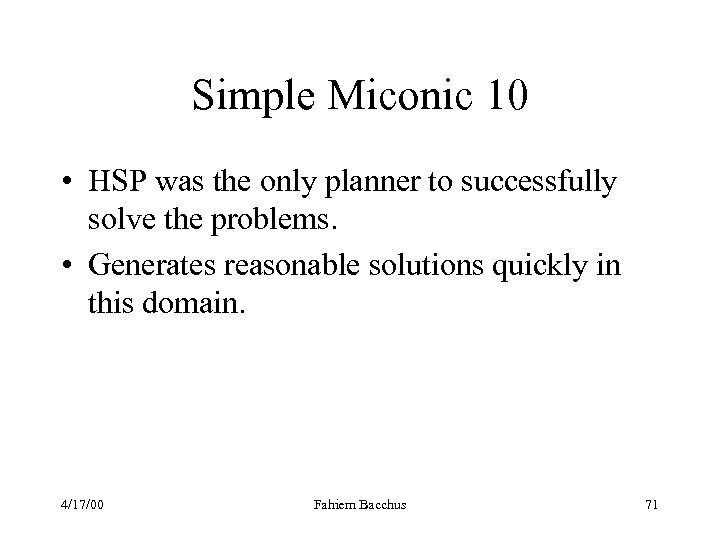

Simple Miconic 10 • HSP was the only planner to successfully solve the problems. • Generates reasonable solutions quickly in this domain. 4/17/00 Fahiem Bacchus 71

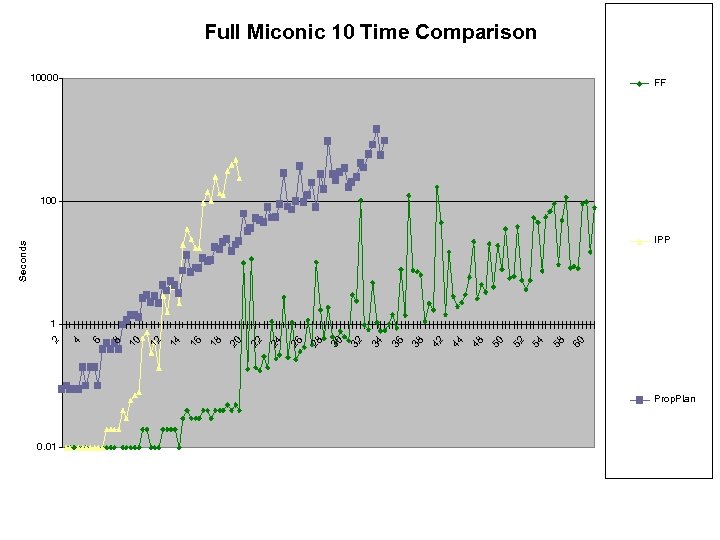

Full Miconic 10 Time Comparison 10000 FF 100 Seconds IPP 60 58 54 52 50 48 44 42 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10 8 6 4 2 1 Prop. Plan 0. 01

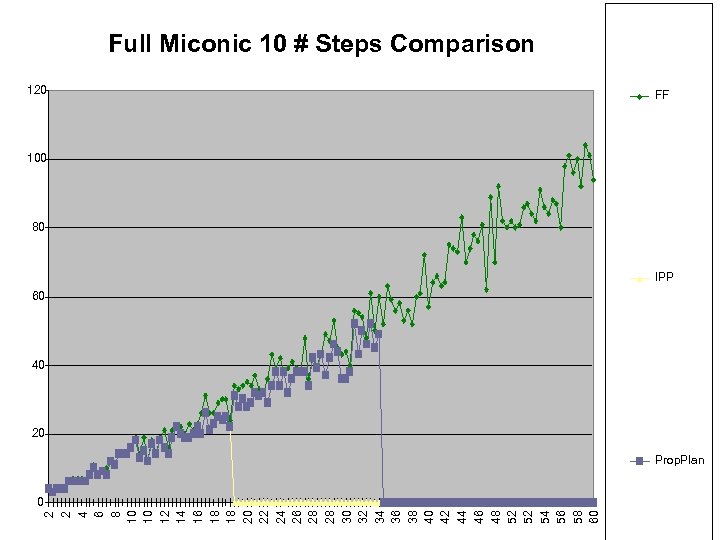

2 2 4 6 8 10 10 12 14 16 18 18 20 22 24 26 28 28 30 32 34 36 38 40 42 44 46 48 52 52 54 56 58 60 Full Miconic 10 # Steps Comparison 120 0 FF 100 80 IPP 60 40 20 Prop. Plan
Full ADL-Miconic 10 • Prop. Plan generates minimal length solutions. • FF is faster. 4/17/00 Fahiem Bacchus 74

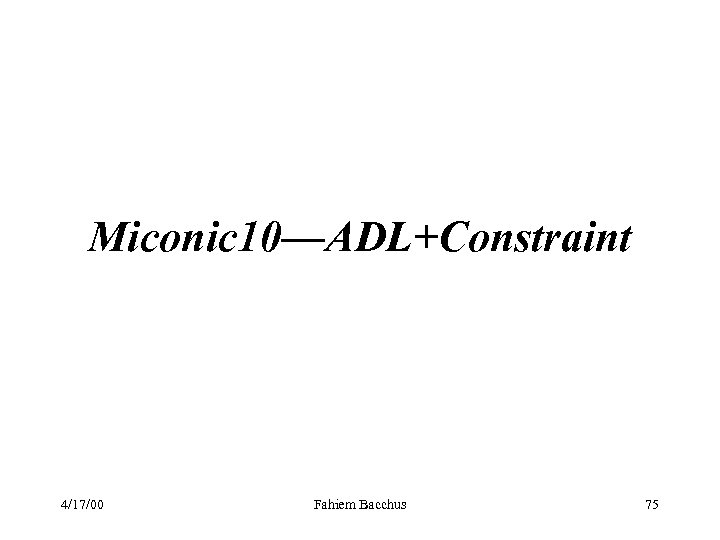

Miconic 10—ADL+Constraint 4/17/00 Fahiem Bacchus 75
Miconic 10 + Constraint Time Comparison 10000 Prop. Plan Seconds 100 60 58 54 52 50 48 46 44 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 8 10 6 4 2 1 TALplanner 0. 01

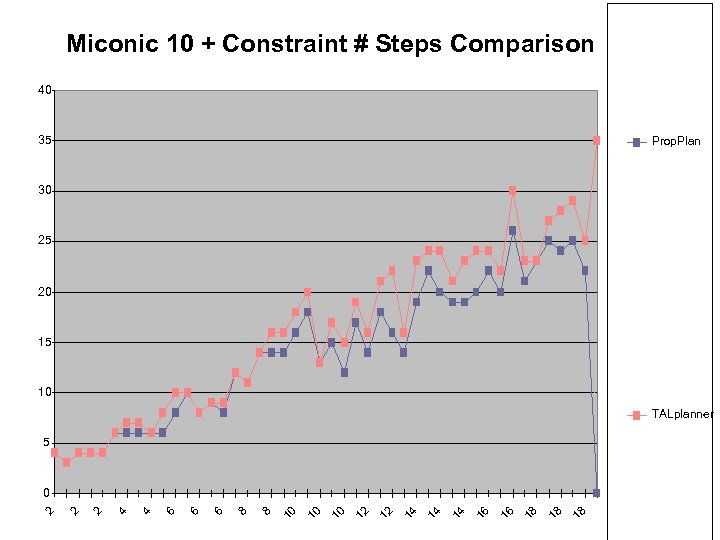

Miconic 10 + Constraint # Steps Comparison 40 35 Prop. Plan 30 25 20 15 10 TALplanner 5 18 18 18 16 16 14 14 14 12 12 10 10 10 8 8 6 6 6 4 4 2 2 2 0

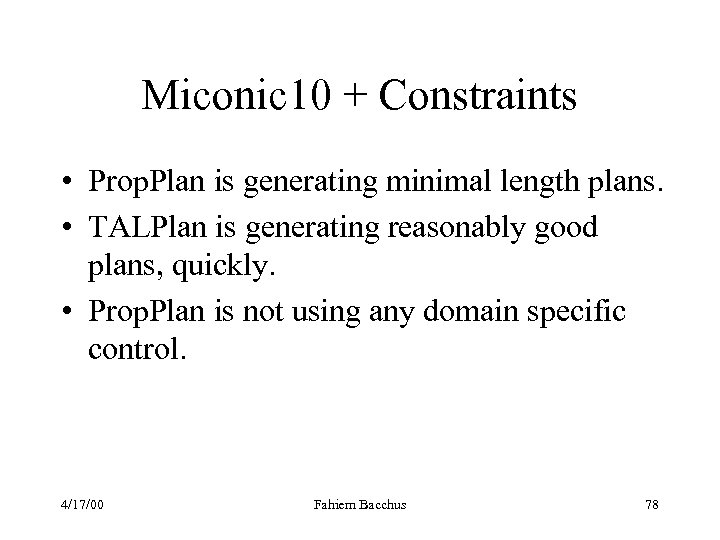

Miconic 10 + Constraints • Prop. Plan is generating minimal length plans. • TALPlan is generating reasonably good plans, quickly. • Prop. Plan is not using any domain specific control. 4/17/00 Fahiem Bacchus 78

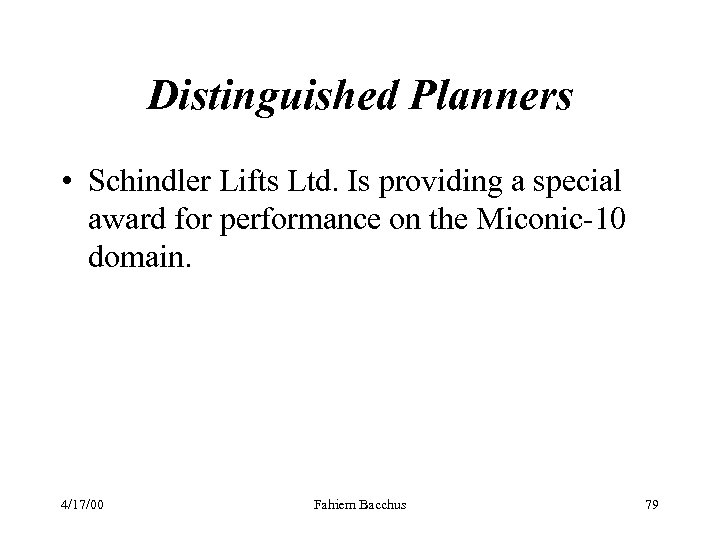

Distinguished Planners • Schindler Lifts Ltd. Is providing a special award for performance on the Miconic-10 domain. 4/17/00 Fahiem Bacchus 79

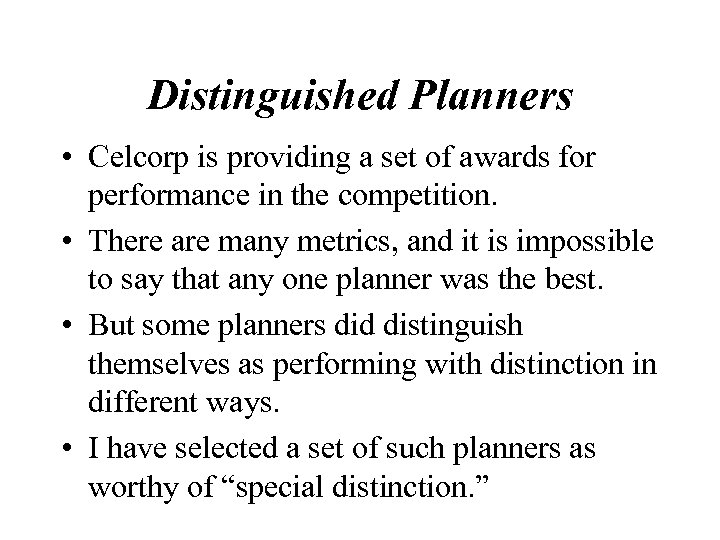

Distinguished Planners • Celcorp is providing a set of awards for performance in the competition. • There are many metrics, and it is impossible to say that any one planner was the best. • But some planners did distinguish themselves as performing with distinction in different ways. • I have selected a set of such planners as worthy of “special distinction. ”
Distinguished Planners Group B • • STAN HSP 2 MIPS System R 4/17/00 Fahiem Bacchus 81

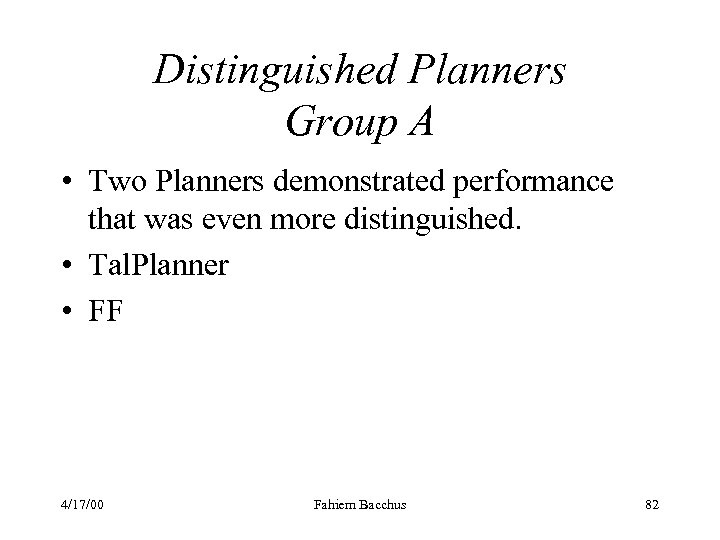

Distinguished Planners Group A • Two Planners demonstrated performance that was even more distinguished. • Tal. Planner • FF 4/17/00 Fahiem Bacchus 82
