AIP Magnet PS and Controls Upgrade BSY Controls Cost Estimate Kristi Luchini 3/15/2018 AIP Magnet PS and Controls Upgrade BSY Controls Cost Estimate Kristi Luchini 3/15/2018

BSY Magnet Controls SCOR to MCOR Upgrade Cost Estimate Summary Total M&S: Total Labor BSY Magnet Controls SCOR to MCOR Upgrade Cost Estimate Summary Total M&S: Total Labor + ED&I: Total Software: without Burden and Contingency Total: Contingency 10% of M&S: Burden 30% of M&S: with Burden and Contingency Total: $ 4600. 00 $ 5700. 00 $ 4200. 00 $14, 500. 00 $ 460. 00 $ 1380. 00 $16340. 00

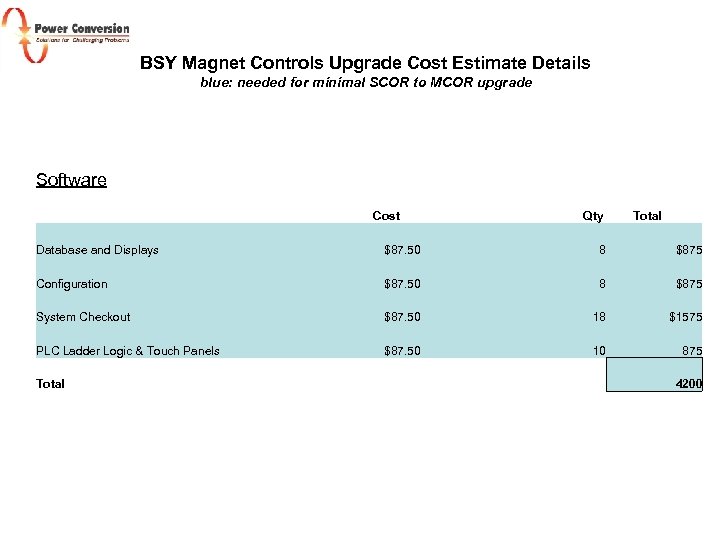

BSY Magnet Controls Upgrade Cost Estimate Details blue: needed for minimal SCOR to MCOR BSY Magnet Controls Upgrade Cost Estimate Details blue: needed for minimal SCOR to MCOR upgrade Software Cost Qty Total Database and Displays $87. 50 8 $875 Configuration $87. 50 8 $875 System Checkout $87. 50 18 $1575 PLC Ladder Logic & Touch Panels $87. 50 10 875 Total 4200

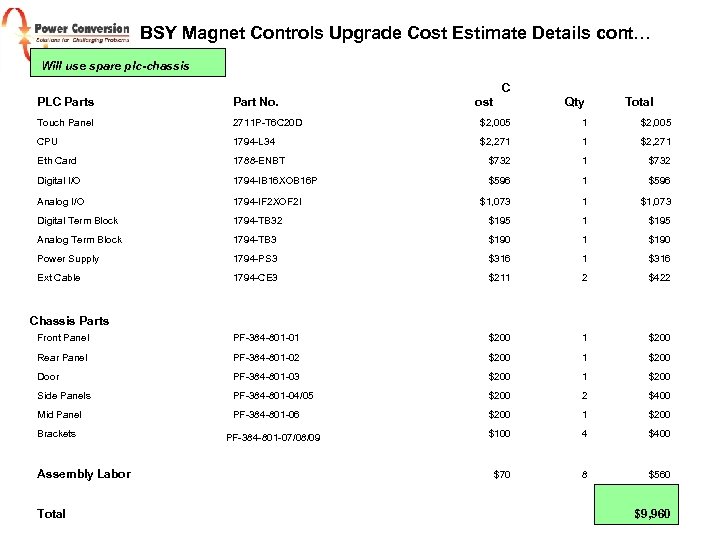

BSY Magnet Controls Upgrade Cost Estimate Details cont… Will use spare plc-chassis C PLC BSY Magnet Controls Upgrade Cost Estimate Details cont… Will use spare plc-chassis C PLC Parts Part No. ost Qty Total Touch Panel 2711 P-T 6 C 20 D $2, 005 1 $2, 005 CPU 1794 -L 34 $2, 271 1 $2, 271 Eth Card 1788 -ENBT $732 1 $732 Digital I/O 1794 -IB 16 XOB 16 P $596 1 $596 Analog I/O 1794 -IF 2 XOF 2 I $1, 073 1 $1, 073 Digital Term Block 1794 -TB 32 $195 1 $195 Analog Term Block 1794 -TB 3 $190 1 $190 Power Supply 1794 -PS 3 $316 1 $316 Ext Cable 1794 -CE 3 $211 2 $422 Front Panel PF-384 -801 -01 $200 Rear Panel PF-384 -801 -02 $200 1 $200 Door PF-384 -801 -03 $200 1 $200 Side Panels PF-384 -801 -04/05 $200 2 $400 Mid Panel PF-384 -801 -06 $200 1 $200 $100 4 $400 $70 8 $560 Chassis Parts Brackets Assembly Labor Total PF-384 -801 -07/08/09 $9, 960

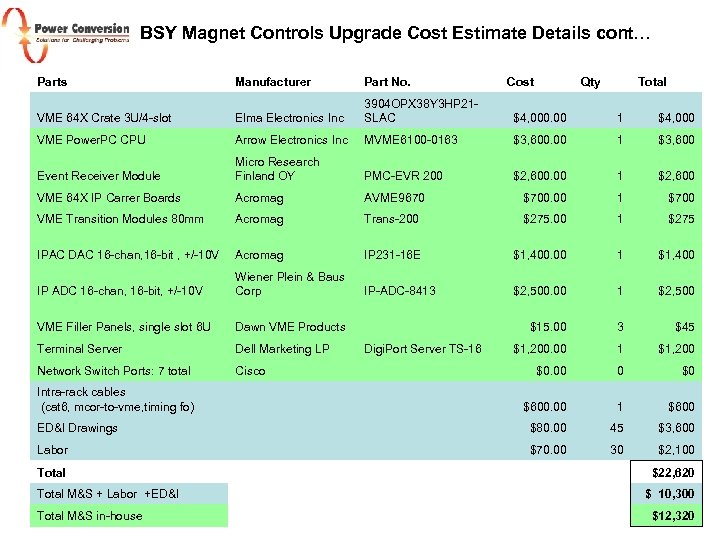

BSY Magnet Controls Upgrade Cost Estimate Details cont… Parts Manufacturer Part No. VME 64 BSY Magnet Controls Upgrade Cost Estimate Details cont… Parts Manufacturer Part No. VME 64 X Crate 3 U/4 -slot Elma Electronics Inc 3904 OPX 38 Y 3 HP 21 SLAC $4, 000. 00 1 $4, 000 VME Power. PC CPU Arrow Electronics Inc MVME 6100 -0163 $3, 600. 00 1 $3, 600 Event Receiver Module Micro Research Finland OY PMC-EVR 200 $2, 600. 00 1 $2, 600 VME 64 X IP Carrer Boards Acromag AVME 9670 $700. 00 1 $700 VME Transition Modules 80 mm Acromag Trans-200 $275. 00 1 $275 IPAC DAC 16 -chan, 16 -bit , +/-10 V Acromag IP 231 -16 E $1, 400. 00 1 $1, 400 IP ADC 16 -chan, 16 -bit, +/-10 V Wiener Plein & Baus Corp IP-ADC-8413 $2, 500. 00 1 $2, 500 VME Filler Panels, single slot 6 U Dawn VME Products $15. 00 3 $45 Terminal Server Dell Marketing LP $1, 200. 00 1 $1, 200 Network Switch Ports: 7 total Cisco $0. 00 0 $0 $600. 00 1 $600 ED&I Drawings $80. 00 45 $3, 600 Labor $70. 00 30 $2, 100 Intra-rack cables (cat 6, mcor-to-vme, timing fo) Total M&S + Labor +ED&I Total M&S in-house Digi. Port Server TS-16 Cost Qty Total $22, 620 $ 10, 300 $12, 320

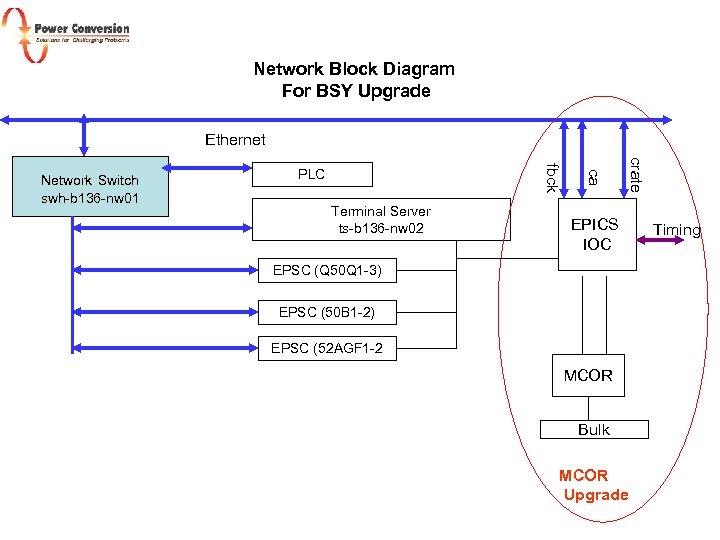

Network Block Diagram For BSY Upgrade Ethernet Terminal Server ts-b 136 -nw 02 crate Network Block Diagram For BSY Upgrade Ethernet Terminal Server ts-b 136 -nw 02 crate PLC ca fbck Network Switch swh-b 136 -nw 01 EPICS IOC EPSC (Q 50 Q 1 -3) EPSC (50 B 1 -2) EPSC (52 AGF 1 -2 MCOR Bulk MCOR Upgrade Timing

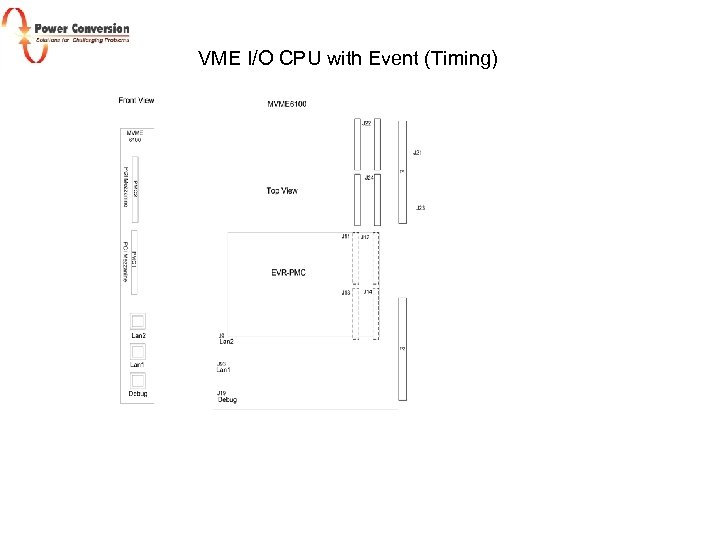

VME I/O CPU with Event (Timing) VME I/O CPU with Event (Timing)

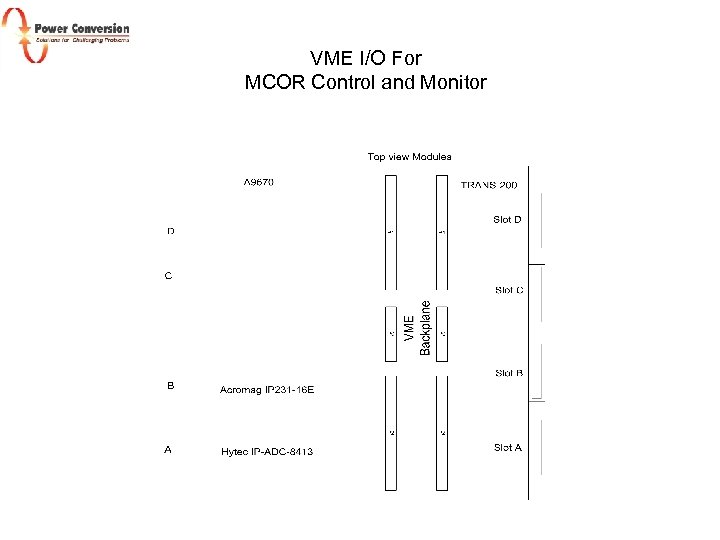

VME I/O For MCOR Control and Monitor VME I/O For MCOR Control and Monitor

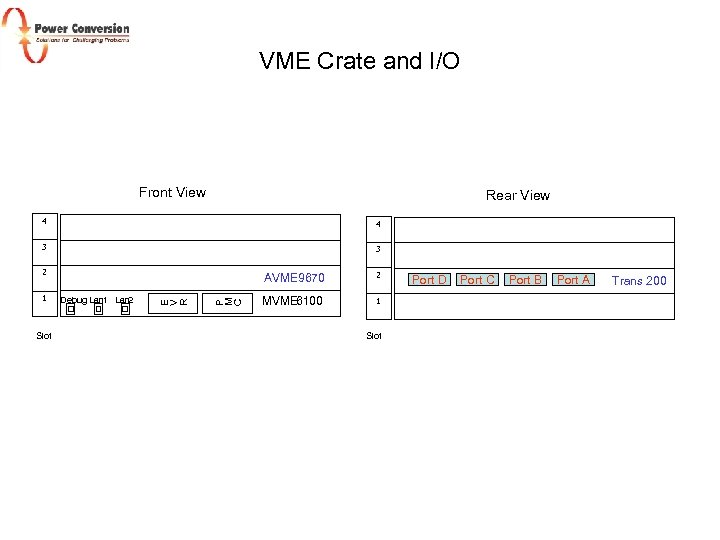

VME Crate and I/O Front View Rear View 4 4 3 3 2 Slot VME Crate and I/O Front View Rear View 4 4 3 3 2 Slot P M C Debug Lan 1 Lan 2 E V R 1 AVME 9670 2 MVME 6100 1 Slot Port D Port C Port B Port A Trans 200
