AGRULINE SUREFIT R TEC CLOSE-FIT-LINER CONTENTS

AGRULINE SUREFIT® / R. TEC® CLOSE-FIT-LINER

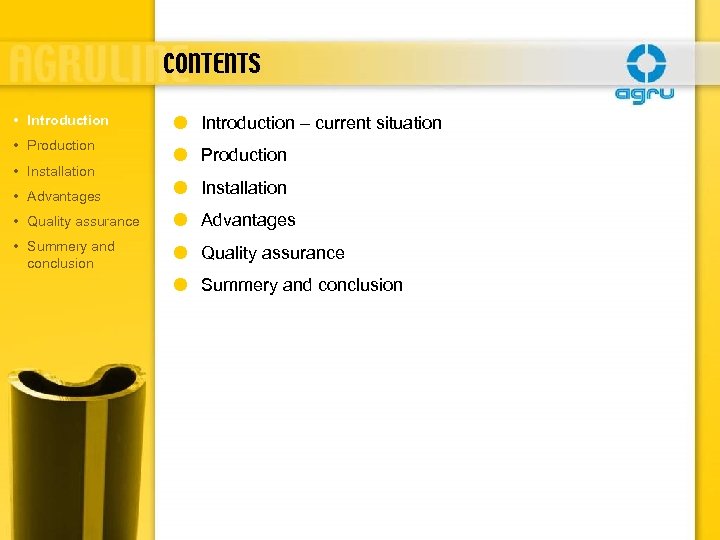

CONTENTS • Introduction • Production • Installation Introduction – current situation Production • Advantages Installation • Quality assurance Advantages • Summery and conclusion Quality assurance Summery and conclusion

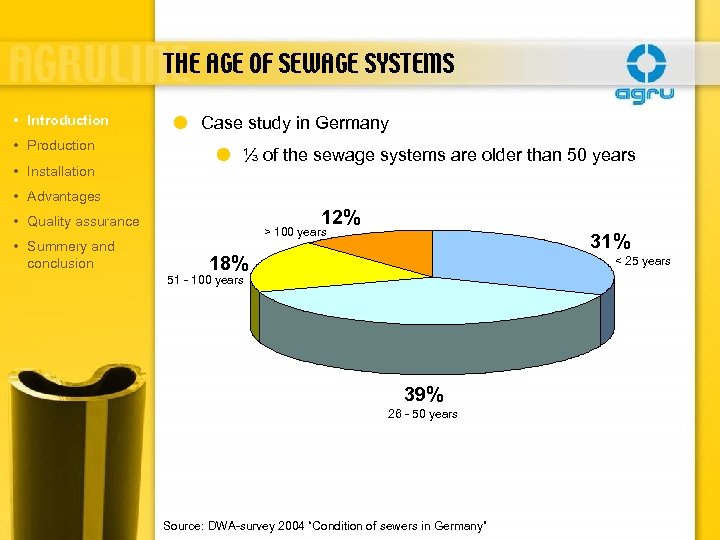

THE AGE OF SEWAGE SYSTEMS • Introduction • Production • Installation Case study in Germany ⅓ of the sewage systems are older than 50 years • Advantages 12% • Quality assurance • Summery and conclusion > 100 years 31% 18% < 25 years 51 - 100 years 39% 26 - 50 years Source: DWA-survey 2004 “Condition of sewers in Germany”

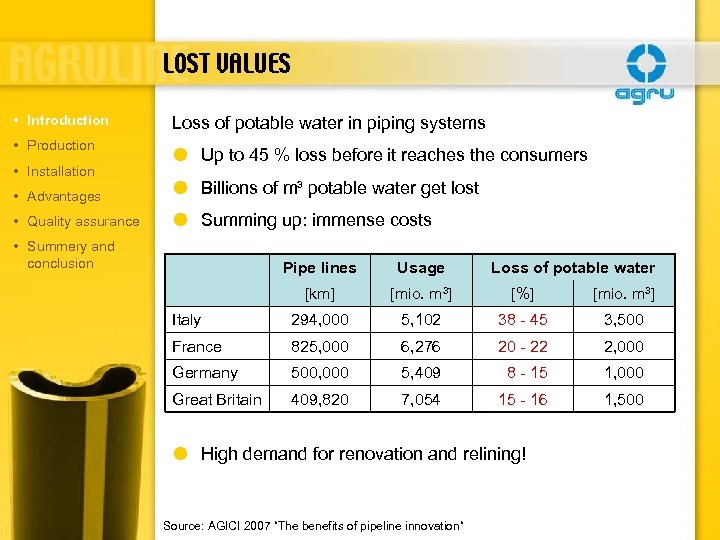

LOST VALUES • Introduction • Production • Installation Loss of potable water in piping systems Up to 45 % loss before it reaches the consumers • Advantages Billions of m³ potable water get lost • Quality assurance Summing up: immense costs • Summery and conclusion Pipe lines Usage Loss of potable water [km] [mio. m³] [%] [mio. m³] Italy 294, 000 5, 102 38 - 45 3, 500 France 825, 000 6, 276 20 - 22 2, 000 Germany 500, 000 5, 409 08 - 15 1, 000 Great Britain 409, 820 7, 054 15 - 16 1, 500 High demand for renovation and relining! Source: AGICI 2007 “The benefits of pipeline innovation“

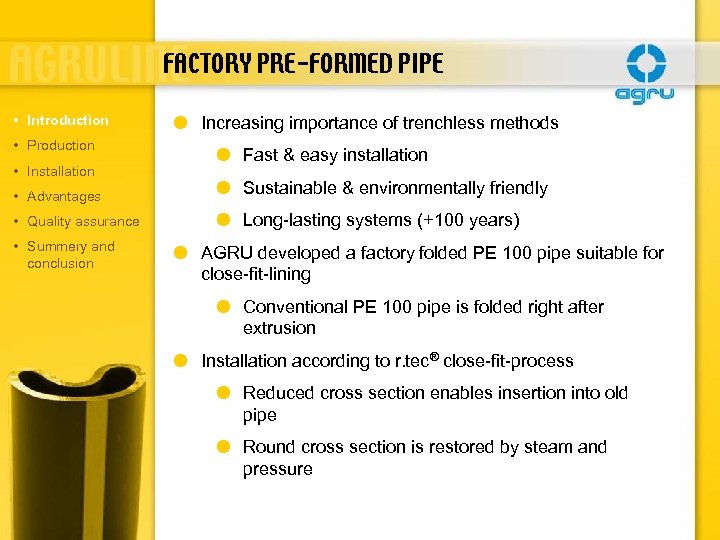

FACTORY PRE-FORMED PIPE • Introduction • Production • Installation Increasing importance of trenchless methods Fast & easy installation • Advantages Sustainable & environmentally friendly • Quality assurance Long-lasting systems (+100 years) • Summery and conclusion AGRU developed a factory folded PE 100 pipe suitable for close-fit-lining Conventional PE 100 pipe is folded right after extrusion Installation according to r. tec® close-fit-process Reduced cross section enables insertion into old pipe Round cross section is restored by steam and pressure

THE CLOSE-FIT-LINER MADE BY AGRU PRODUCTION & MORE

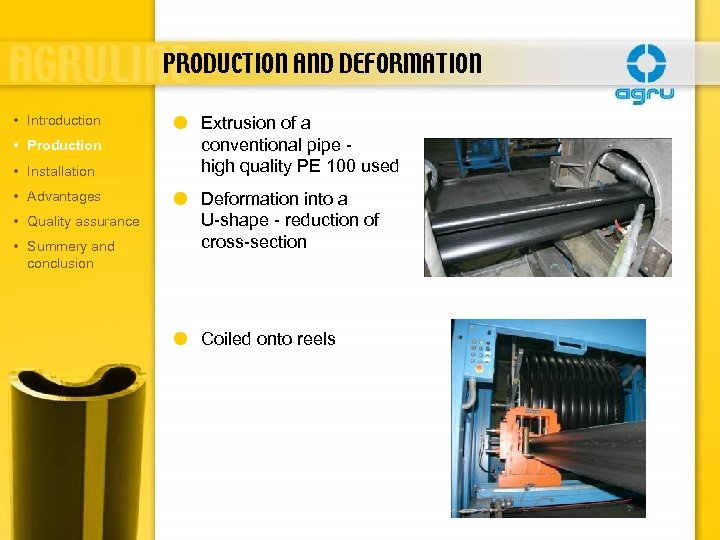

PRODUCTION AND DEFORMATION • Introduction • Production • Installation • Advantages • Quality assurance • Summery and conclusion Extrusion of a conventional pipe high quality PE 100 used Deformation into a U-shape - reduction of cross-section Coiled onto reels

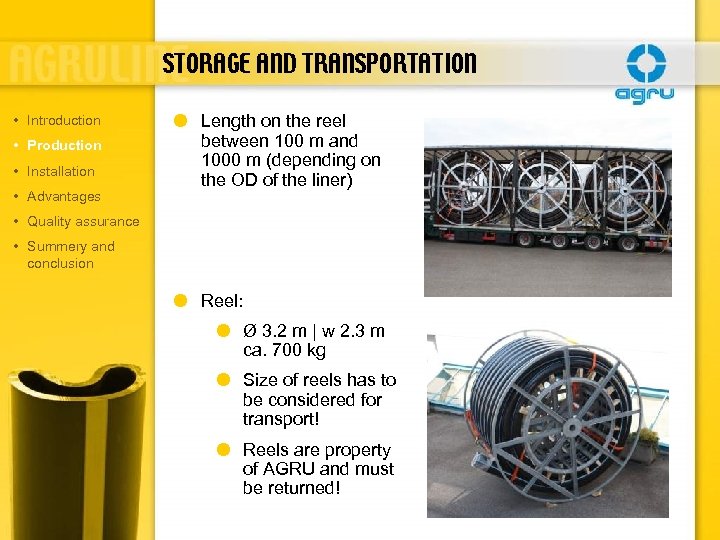

STORAGE AND TRANSPORTATION • Introduction • Production • Installation • Advantages Length on the reel between 100 m and 1000 m (depending on the OD of the liner) • Quality assurance • Summery and conclusion Reel: Ø 3. 2 m | w 2. 3 m ca. 700 kg Size of reels has to be considered for transport! Reels are property of AGRU and must be returned!

FURTHER INFORMATION ON INSTALLATION & MORE

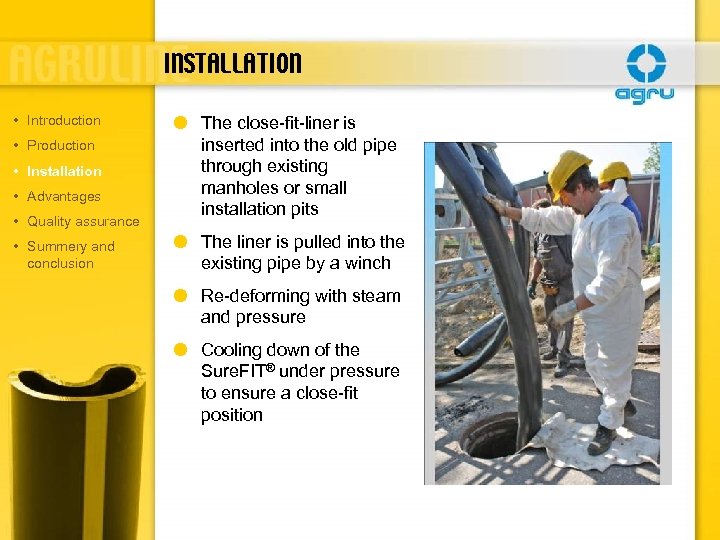

INSTALLATION • Introduction • Production • Installation • Advantages • Quality assurance • Summery and conclusion The close-fit-liner is inserted into the old pipe through existing manholes or small installation pits The liner is pulled into the existing pipe by a winch Re-deforming with steam and pressure Cooling down of the Sure. FIT® under pressure to ensure a close-fit position

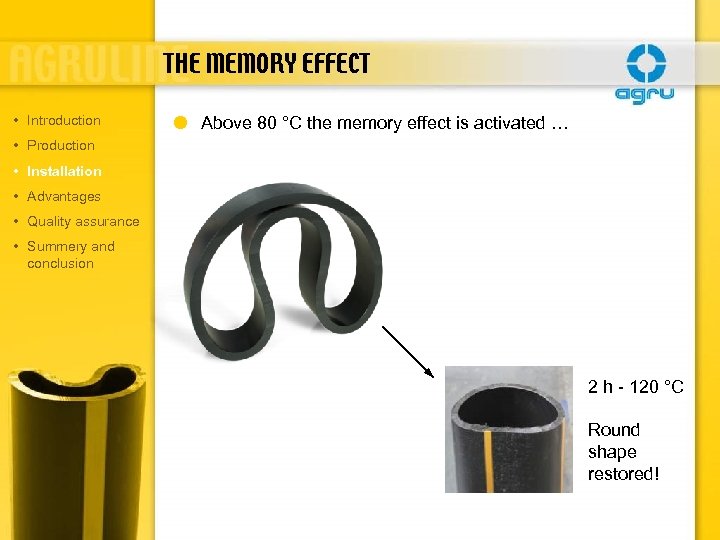

THE MEMORY EFFECT • Introduction Above 80 °C the memory effect is activated … • Production • Installation • Advantages • Quality assurance • Summery and conclusion 2 h - 120 °C Round shape restored!

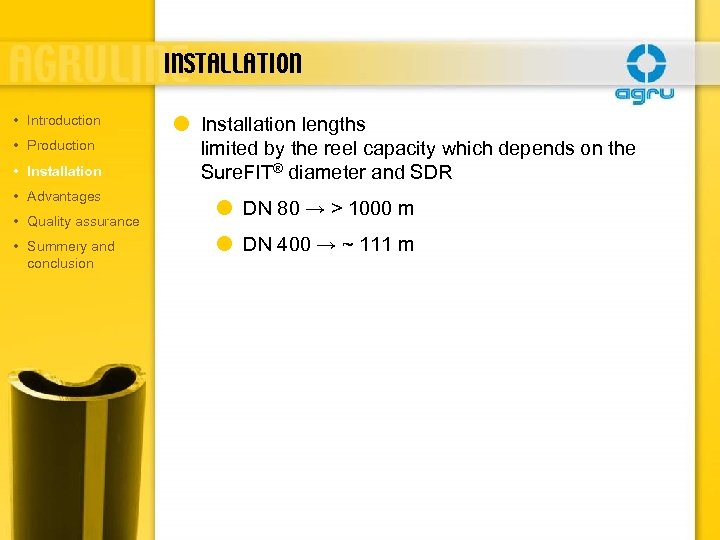

INSTALLATION • Introduction • Production • Installation • Advantages • Quality assurance • Summery and conclusion Installation lengths limited by the reel capacity which depends on the Sure. FIT® diameter and SDR DN 80 → > 1000 m DN 400 → ~ 111 m

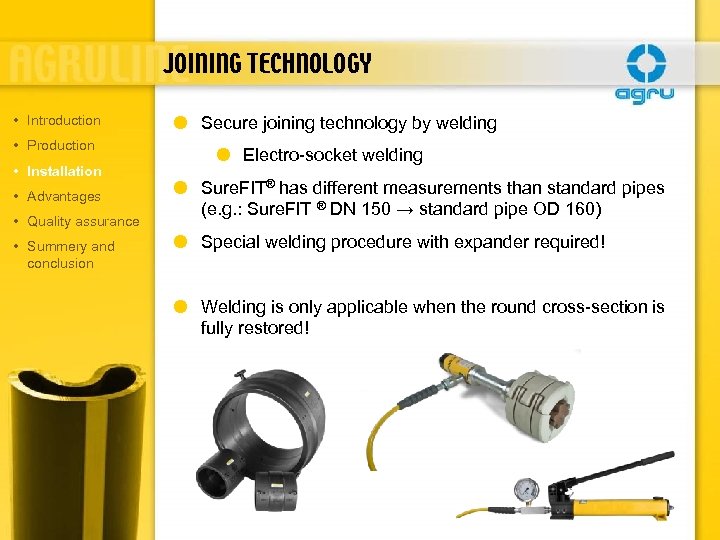

JOINING TECHNOLOGY • Introduction • Production • Installation • Advantages • Quality assurance • Summery and conclusion Secure joining technology by welding Electro-socket welding Sure. FIT® has different measurements than standard pipes (e. g. : Sure. FIT ® DN 150 → standard pipe OD 160) Special welding procedure with expander required! Welding is only applicable when the round cross-section is fully restored!

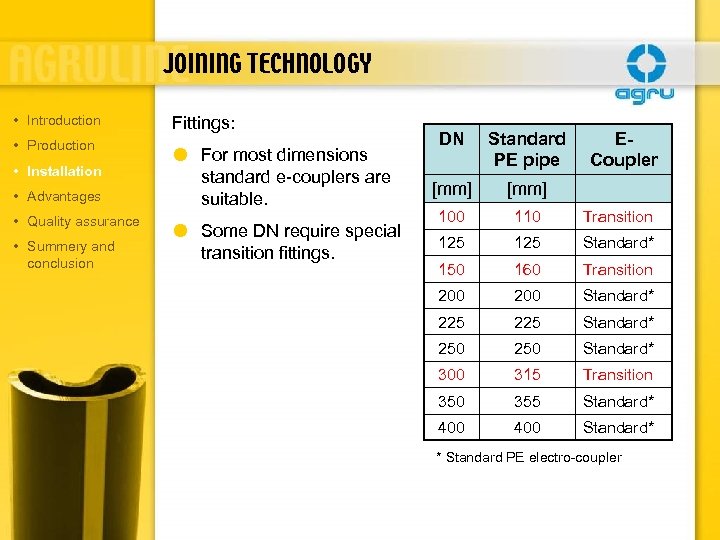

JOINING TECHNOLOGY • Introduction • Production • Installation • Advantages • Quality assurance • Summery and conclusion Fittings: For most dimensions standard e-couplers are suitable. Some DN require special transition fittings. DN Standard PE pipe ECoupler [mm] 100 110 Transition 125 Standard* 150 160 Transition 200 Standard* 225 Standard* 250 Standard* 300 315 Transition 350 355 Standard* 400 Standard* * Standard PE electro-coupler

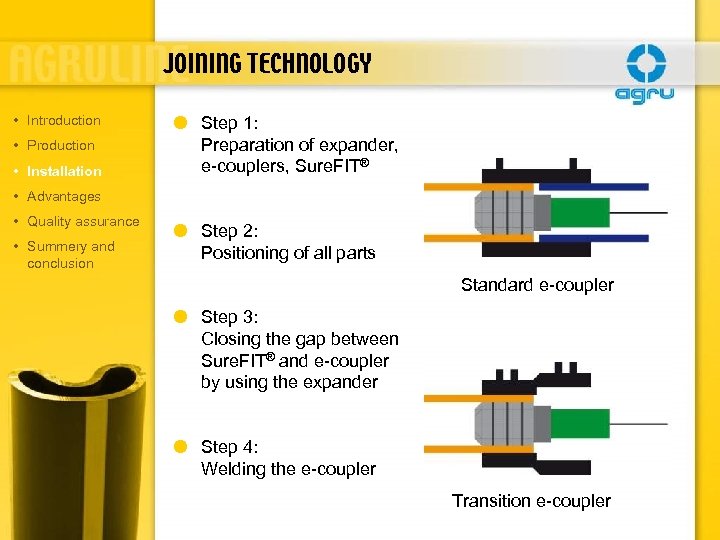

JOINING TECHNOLOGY • Introduction • Production • Installation Step 1: Preparation of expander, e-couplers, Sure. FIT® • Advantages • Quality assurance • Summery and conclusion Step 2: Positioning of all parts Standard e-coupler Step 3: Closing the gap between Sure. FIT® and e-coupler by using the expander Step 4: Welding the e-coupler Transition e-coupler

SUREFIT® OFFERS LOTS OF ADVANTAGES

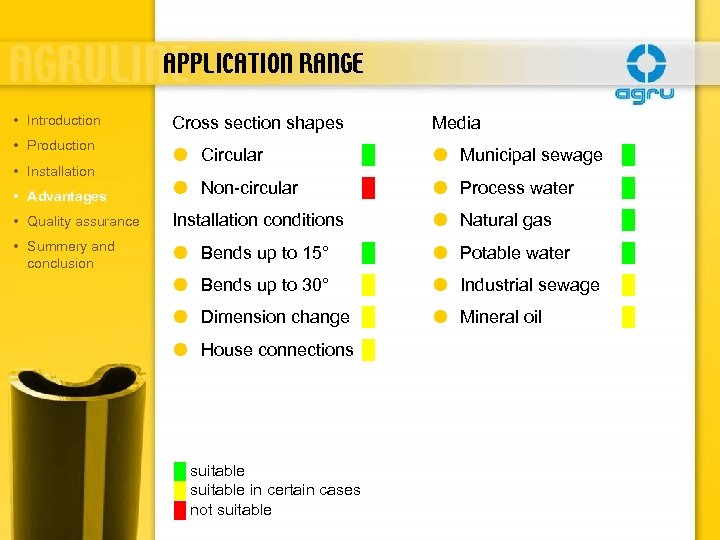

APPLICATION RANGE • Introduction • Production Cross section shapes Media Circular █ Municipal sewage █ • Advantages Non-circular █ Process water █ • Quality assurance Installation conditions Natural gas █ • Summery and conclusion Bends up to 15° █ Potable water █ Bends up to 30° █ Industrial sewage █ Mineral oil █ • Installation Dimension change █ House connections █ █ suitable in certain cases █ not suitable

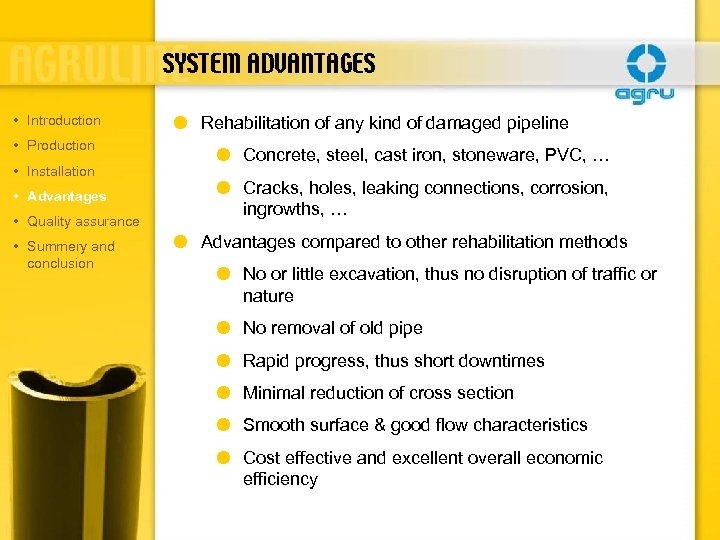

SYSTEM ADVANTAGES • Introduction • Production • Installation • Advantages • Quality assurance • Summery and conclusion Rehabilitation of any kind of damaged pipeline Concrete, steel, cast iron, stoneware, PVC, … Cracks, holes, leaking connections, corrosion, ingrowths, … Advantages compared to other rehabilitation methods No or little excavation, thus no disruption of traffic or nature No removal of old pipe Rapid progress, thus short downtimes Minimal reduction of cross section Smooth surface & good flow characteristics Cost effective and excellent overall economic efficiency

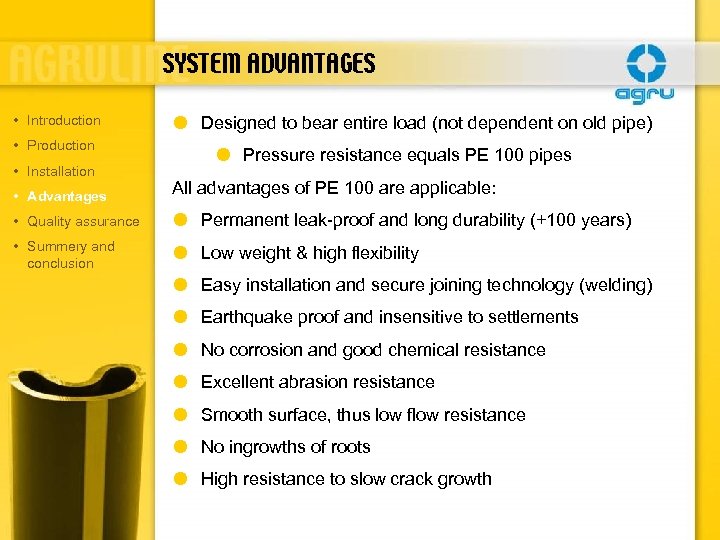

SYSTEM ADVANTAGES • Introduction • Production • Installation Designed to bear entire load (not dependent on old pipe) Pressure resistance equals PE 100 pipes • Advantages All advantages of PE 100 are applicable: • Quality assurance Permanent leak-proof and long durability (+100 years) • Summery and conclusion Low weight & high flexibility Easy installation and secure joining technology (welding) Earthquake proof and insensitive to settlements No corrosion and good chemical resistance Excellent abrasion resistance Smooth surface, thus low flow resistance No ingrowths of roots High resistance to slow crack growth

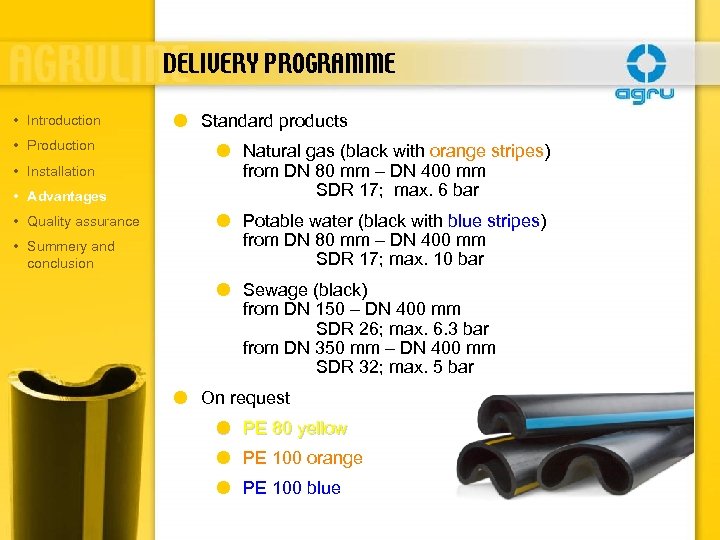

DELIVERY PROGRAMME • Introduction • Production • Installation • Advantages • Quality assurance • Summery and conclusion Standard products Natural gas (black with orange stripes) from DN 80 mm – DN 400 mm SDR 17; max. 6 bar Potable water (black with blue stripes) from DN 80 mm – DN 400 mm SDR 17; max. 10 bar Sewage (black) from DN 150 – DN 400 mm SDR 26; max. 6. 3 bar from DN 350 mm – DN 400 mm SDR 32; max. 5 bar On request PE 80 yellow PE 100 orange PE 100 blue

SUREFIT® PUT TO TEST QUALITY ASSURENCE

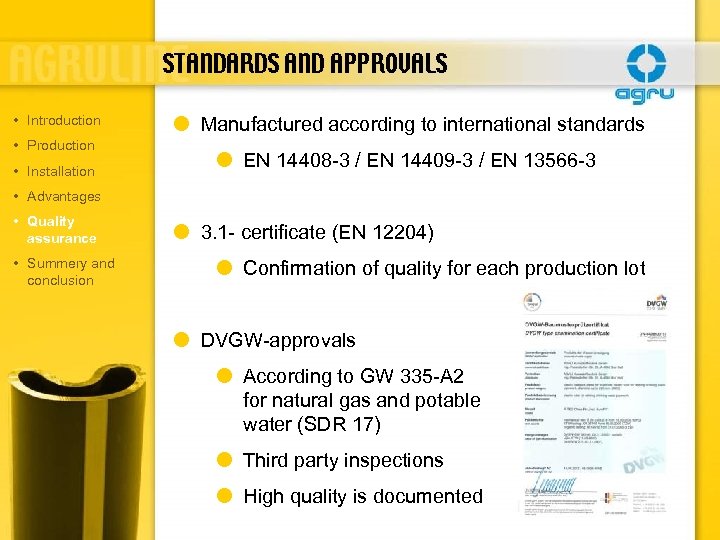

STANDARDS AND APPROVALS • Introduction • Production • Installation Manufactured according to international standards EN 14408 -3 / EN 14409 -3 / EN 13566 -3 • Advantages • Quality assurance • Summery and conclusion 3. 1 - certificate (EN 12204) Confirmation of quality for each production lot DVGW-approvals According to GW 335 -A 2 for natural gas and potable water (SDR 17) Third party inspections High quality is documented

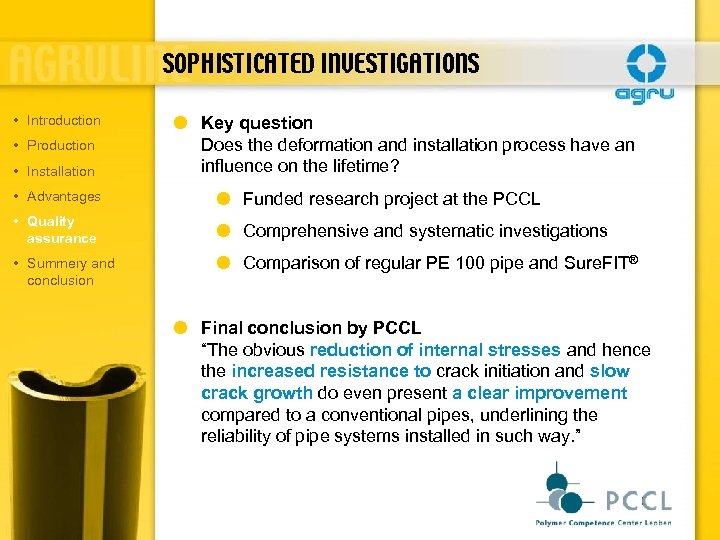

SOPHISTICATED INVESTIGATIONS • Introduction • Production • Installation Key question Does the deformation and installation process have an influence on the lifetime? • Advantages Funded research project at the PCCL • Quality assurance Comprehensive and systematic investigations • Summery and conclusion Comparison of regular PE 100 pipe and Sure. FIT® Final conclusion by PCCL “The obvious reduction of internal stresses and hence the increased resistance to crack initiation and slow crack growth do even present a clear improvement compared to a conventional pipes, underlining the reliability of pipe systems installed in such way. ”

SUMMERY AND CONCLUSIONS

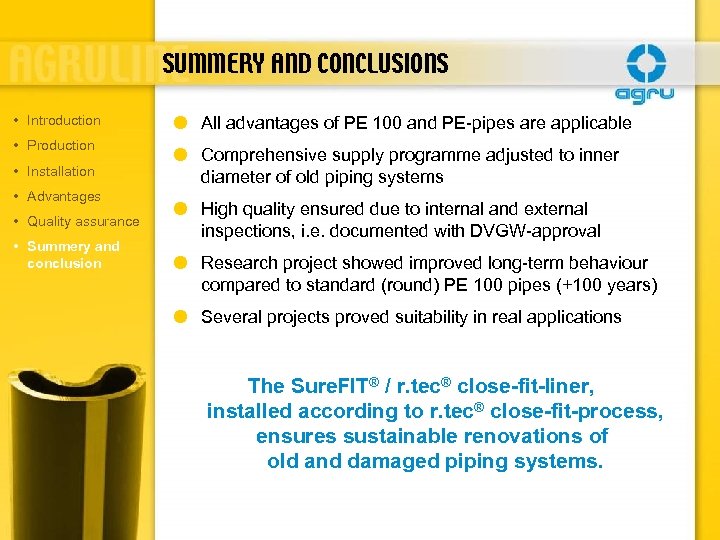

SUMMERY AND CONCLUSIONS • Introduction • Production • Installation • Advantages • Quality assurance • Summery and conclusion All advantages of PE 100 and PE-pipes are applicable Comprehensive supply programme adjusted to inner diameter of old piping systems High quality ensured due to internal and external inspections, i. e. documented with DVGW-approval Research project showed improved long-term behaviour compared to standard (round) PE 100 pipes (+100 years) Several projects proved suitability in real applications The Sure. FIT® / r. tec® close-fit-liner, installed according to r. tec® close-fit-process, ensures sustainable renovations of old and damaged piping systems.

T +43 (0) 7258 790 - 0 F +43 (0) 7258 3863 E office@agru. at AGRU Kunststofftechnik Gmb. H Ing. -Pesendorfer-Str. 31 A-4540 Bad Hall Austria / EU www. agru. at ARE YOU FIT FOR RELINING? SUREFIT – THE RELINER BY AGRU Subject to errors of typesetting, misprints and modifications. Illustrations are generic and for reference only.
