Agilent Technologies N 5416 A Automated USB 2. 0 Pre-Compliance Test Solution Technical Presentation

Today’s Schedule ä USB 2. 0 Overview ä USB 2. 0 Compliance Testing ä Examples of Compliance Tests ä Demo of the Agilent Solution ä Q&A

USB 2. 0 Overview USB Integrators’ Forum ä Created by Compaq, Hewlett. Packard, Intel, Lucent, Microsoft, NEC and Philips ä The USB-IF (www. usb. org) governs the specification and use of USB, and resolves any issues that arise

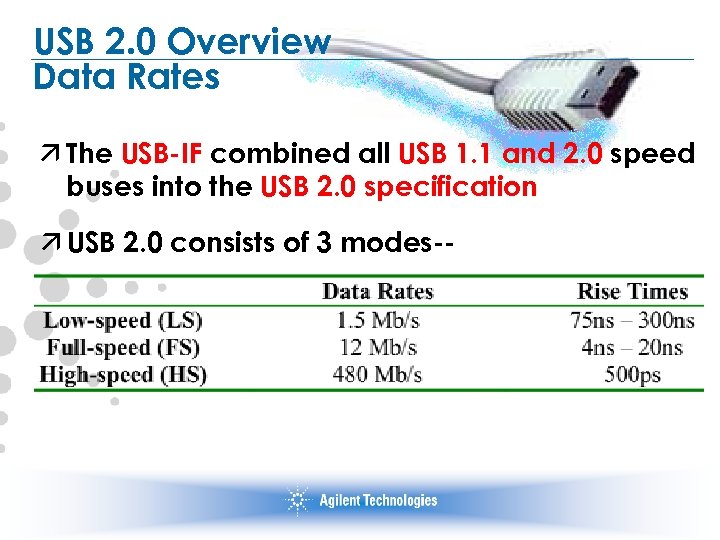

USB 2. 0 Overview Data Rates ä The USB-IF combined all USB 1. 1 and 2. 0 speed buses into the USB 2. 0 specification ä USB 2. 0 consists of 3 modes--

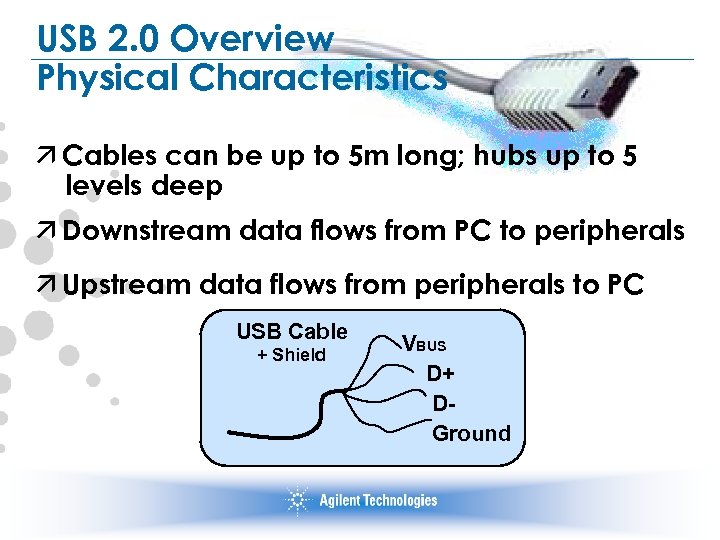

USB 2. 0 Overview Physical Characteristics ä Cables can be up to 5 m long; hubs up to 5 levels deep ä Downstream data flows from PC to peripherals ä Upstream data flows from peripherals to PC USB Cable + Shield VBUS D+ DGround

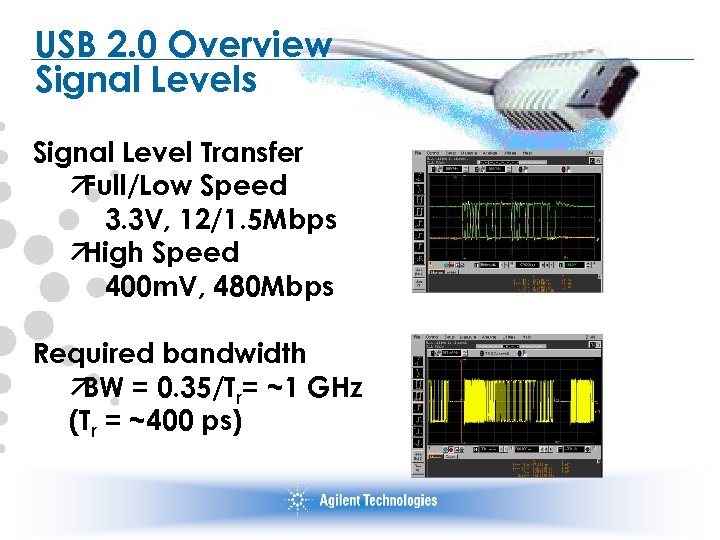

USB 2. 0 Overview Signal Levels Signal Level Transfer ä Full/Low Speed　 3. 3 V, 12/1. 5 Mbps ä High Speed 400 m. V, 480 Mbps Required bandwidth 　　　 ä = 0. 35/Tr= ~1 GHz BW (Tr = ~400 ps)

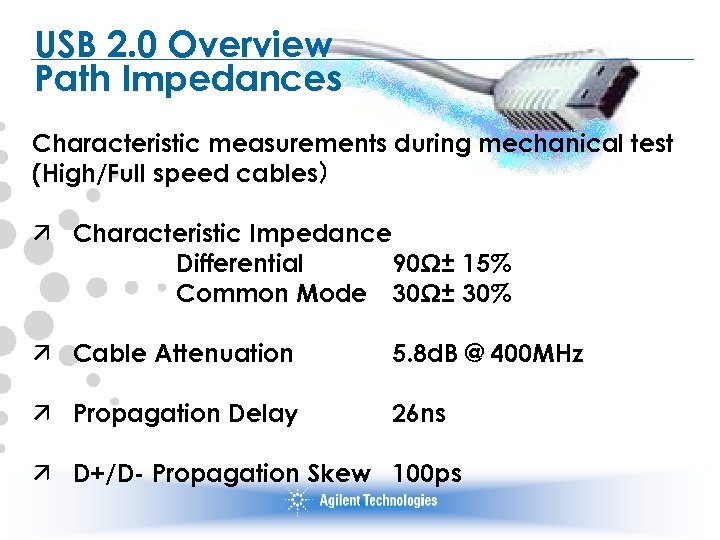

USB 2. 0 Overview Path Impedances Characteristic measurements during mechanical test (High/Full speed cables） ä Characteristic Impedance Differential 90Ω± 15% Common Mode 30Ω± 30% ä Cable Attenuation 5. 8 d. B @ 400 MHz ä Propagation Delay 26 ns ä D+/D- Propagation Skew 100 ps

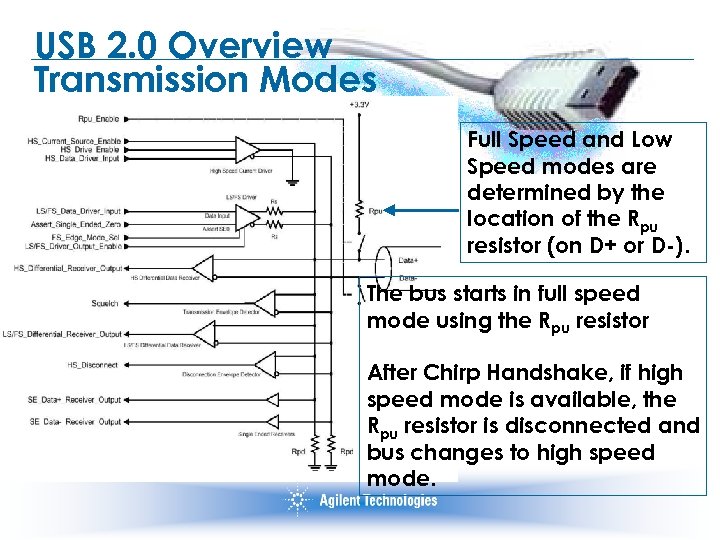

USB 2. 0 Overview Transmission Modes Full Speed and Low Speed modes are determined by the location of the Rpu resistor (on D+ or D-). The bus starts in full speed mode using the Rpu resistor After Chirp Handshake, if high speed mode is available, the Rpu resistor is disconnected and bus changes to high speed mode.

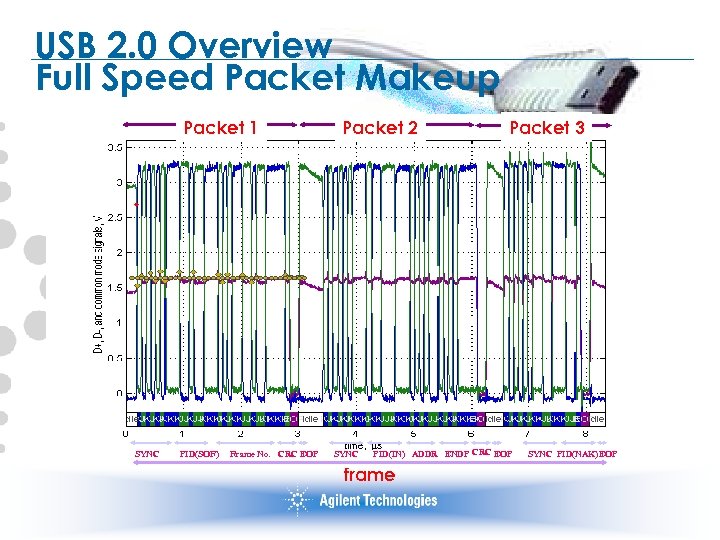

USB 2. 0 Overview Full Speed Packet Makeup Packet 1 SYNC PID(SOF) Frame No. CRC EOP Packet 2 SYNC Packet 3 PID(IN) ADDR ENDP CRC EOP frame SYNC PID(NAK) EOP

USB 2. 0 Overview High Speed Packet Makeup Signal Amplitude 400 m. V SYNC: 32(Minimum 12) bit Idle : SE 0 EOP re-definition: 　 NRZ 01111111 w/o bit stuffing (SOF EOP is 40 bit) SYNC PID(IN) ADDR ENDP CRC EOP

Today’s Schedule ä USB 2. 0 Overview ä USB 2. 0 Compliance Testing ä Examples of Compliance Tests ä Demo of the Agilent Solution ä Conclusion ä Q&A

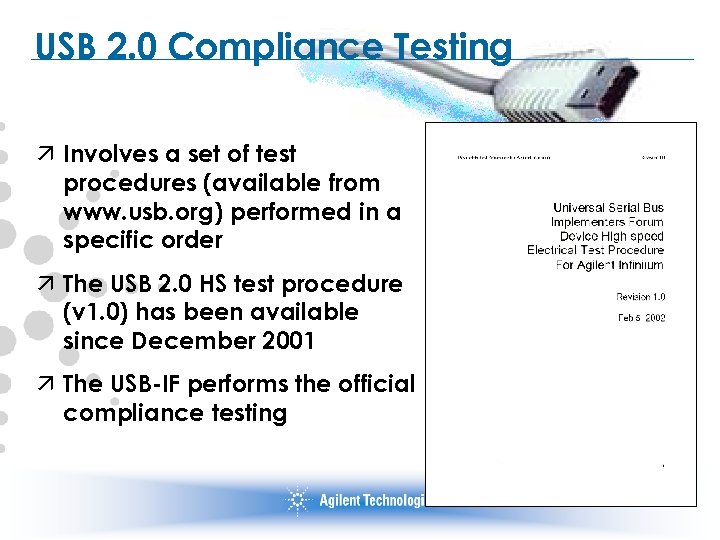

USB 2. 0 Compliance Testing ä Involves a set of test procedures (available from www. usb. org) performed in a specific order ä The USB 2. 0 HS test procedure (v 1. 0) has been available since December 2001 ä The USB-IF performs the official compliance testing

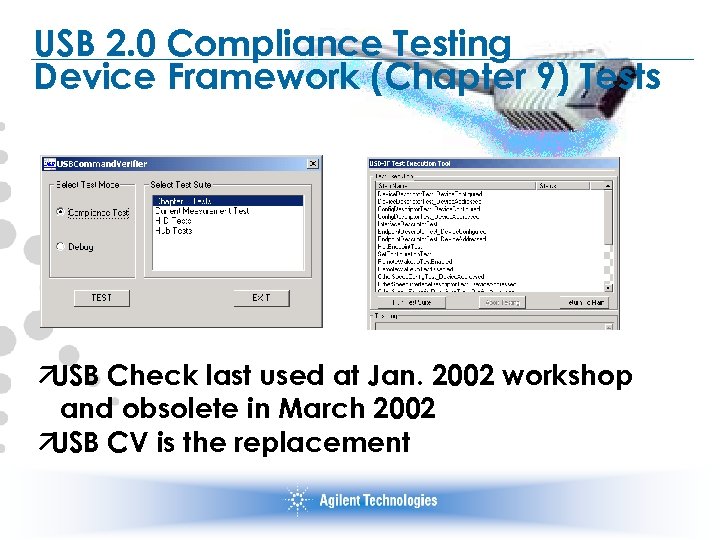

USB 2. 0 Compliance Testing Device Framework (Chapter 9) Tests ä USB Check last used at Jan. 2002 workshop and obsolete in March 2002 ä USB CV is the replacement

USB 2. 0 Compliance Testing Interoperability Test

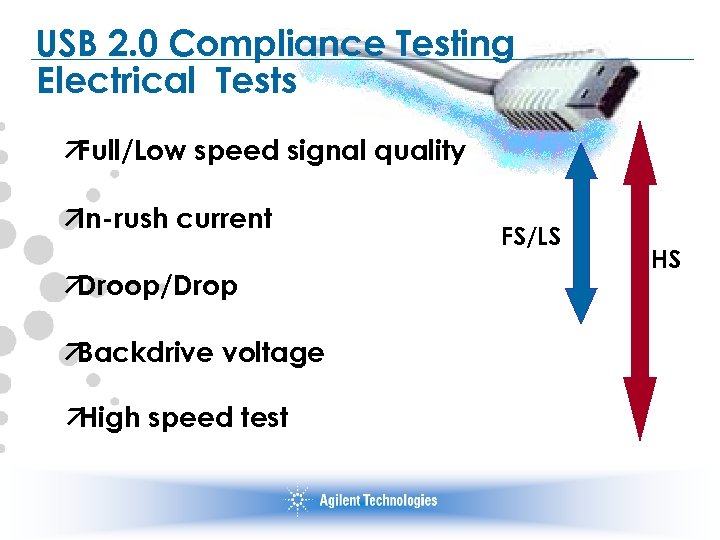

USB 2. 0 Compliance Testing Electrical Tests ä Full/Low speed signal quality ä In-rush current ä Droop/Drop ä Backdrive voltage ä High speed test FS/LS HS

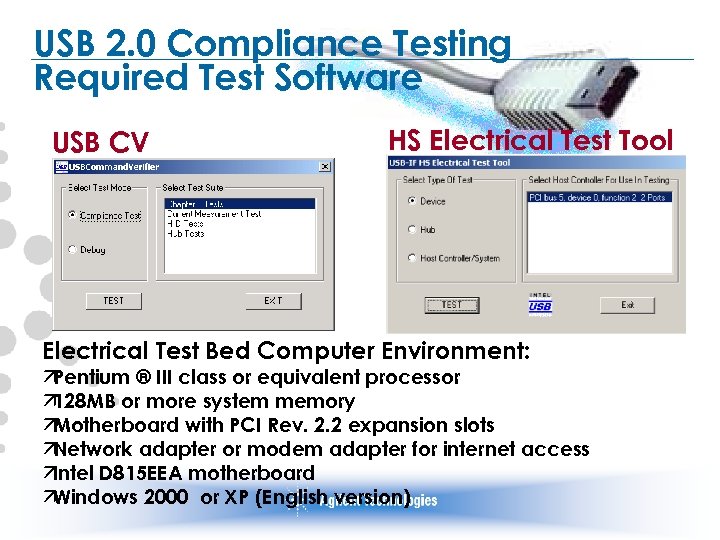

USB 2. 0 Compliance Testing Required Test Software USB CV HS Electrical Test Tool Electrical Test Bed Computer Environment: ä Pentium ® III class or equivalent processor ä 128 MB or more system memory ä Motherboard with PCI Rev. 2. 2 expansion slots ä Network adapter or modem adapter for internet access ä Intel D 815 EEA motherboard ä Windows 2000 or XP (English version)

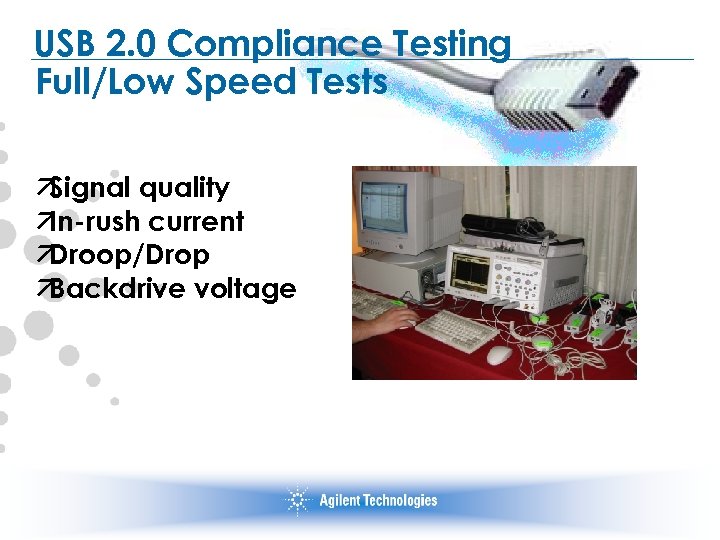

USB 2. 0 Compliance Testing Full/Low Speed Tests ä Signal quality ä In-rush current ä Droop/Drop ä Backdrive voltage

USB 2. 0 Compliance Testing Full/Low Speed Signal Quality USB Test Process 1. Connect Probe to Test Fixture 2. Connect device to Test Fixture 3. Select Proper Test in N 5416 A Script 4. Run Test

USB 2. 0 Compliance Testing Upstream Host / System Up stream Hub USB System (PC) HUB Oscilloscope HUB Adjacent Device HUB Devices ä In FS tests, connect D+ of the adjacent device to scope ch 3 ä Connect D+ to ch 2 ä Connect D- to ch 1 HUB DUT SQi. DD 5 m cable

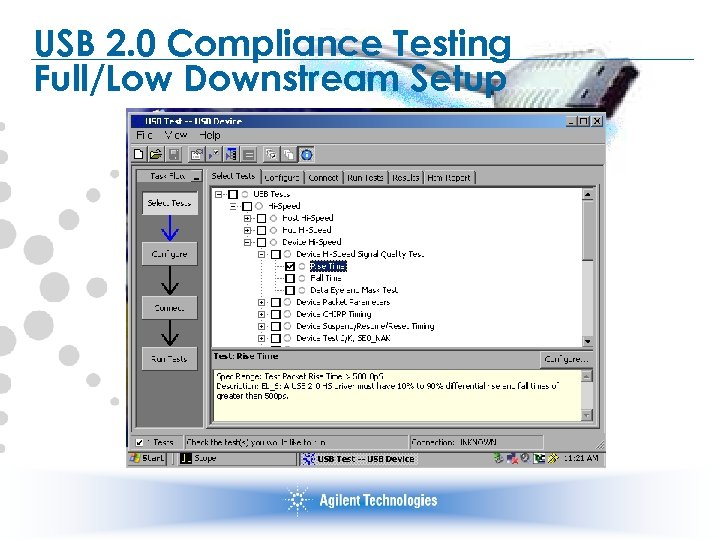

USB 2. 0 Compliance Testing Full/Low Downstream Setup

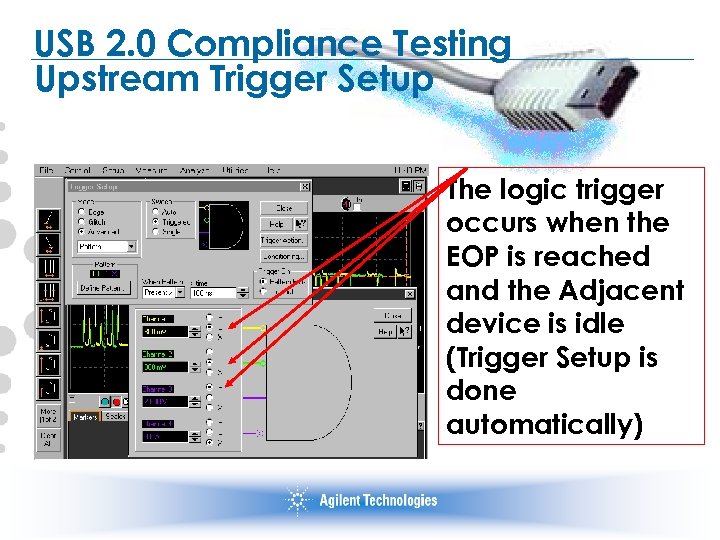

USB 2. 0 Compliance Testing Upstream Trigger Setup The logic trigger occurs when the EOP is reached and the Adjacent device is idle (Trigger Setup is done automatically)

USB 2. 0 Compliance Testing Measurement Data Measurement Setup & Result automatic

USB 2. 0 Compliance Testing Full Speed Test Results Example Signal eye: *** eye failure! (14 data points violate eye) *** waiver granted. *** EOP width: 170. 2029 ns EOP width passes Consecutive jitter range: -1703. 52 ps to 2268. 87 ps RMS jitter 576. 53 ps Paired KJ jitter range: -584. 58 ps to 0. 00 ps, *** jitter failure *** waiver granted ***

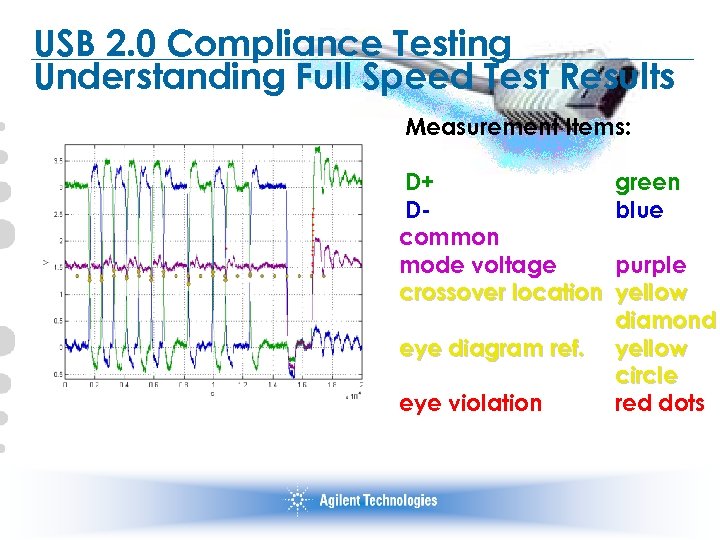

USB 2. 0 Compliance Testing Understanding Full Speed Test Results Measurement Items: D+ Dcommon mode voltage crossover location eye diagram ref. eye violation green blue purple yellow diamond yellow circle red dots

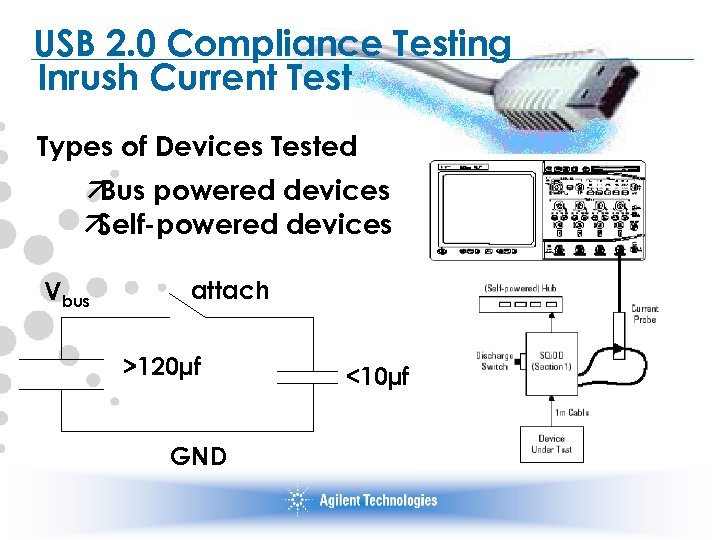

USB 2. 0 Compliance Testing Inrush Current Test Types of Devices Tested ä Bus powered devices ä Self-powered devices Vbus attach >120µf GND <10µf

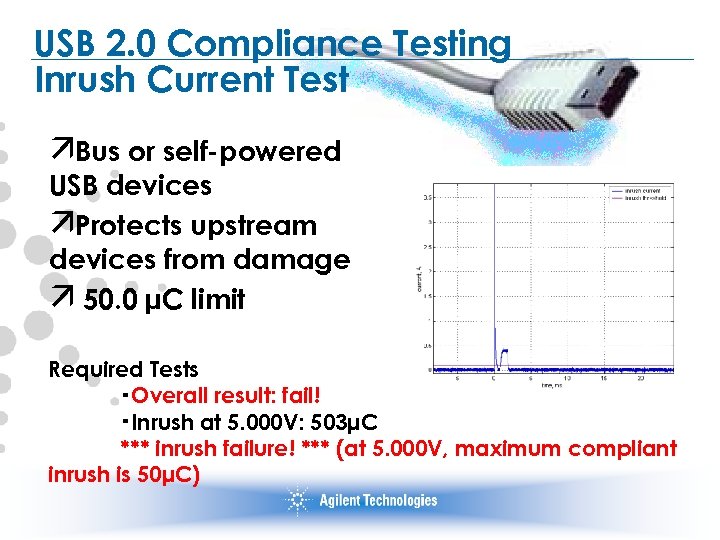

USB 2. 0 Compliance Testing Inrush Current Test äBus or self-powered USB devices äProtects upstream devices from damage ä 50. 0 µC limit Required Tests ・Overall result: fail! ・Inrush at 5. 000 V: 503μC *** inrush failure! *** (at 5. 000 V, maximum compliant inrush is 50μC)

USB 2. 0 Compliance Testing Droop/Drop ä The HUB/Host Test: When a adjacent device is connected, the VBUS droop voltage must be within 330 m. V

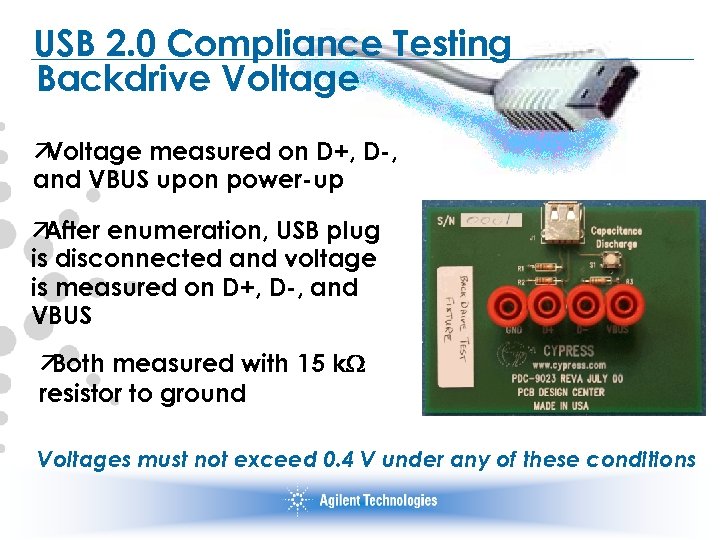

USB 2. 0 Compliance Testing Backdrive Voltage ä Voltage measured on D+, D-, and VBUS upon power-up ä After enumeration, USB plug is disconnected and voltage is measured on D+, D-, and VBUS ä Both measured with 15 k resistor to ground Voltages must not exceed 0. 4 V under any of these conditions

USB 2. 0 Compliance High Speed Testing Required Test Equipment Scope BW >=2 GHz

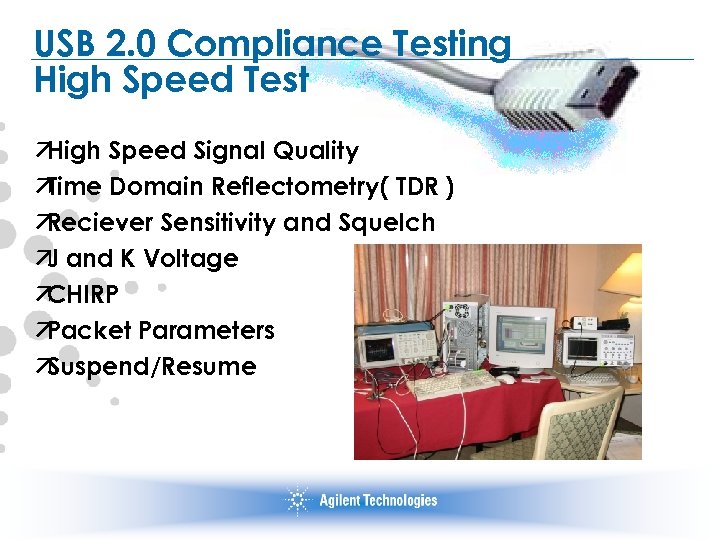

USB 2. 0 Compliance Testing High Speed Test ä High Speed Signal Quality ä Time Domain Reflectometry( TDR ) ä Reciever Sensitivity and Squelch ä and K Voltage J ä CHIRP ä Packet Parameters ä Suspend/Resume

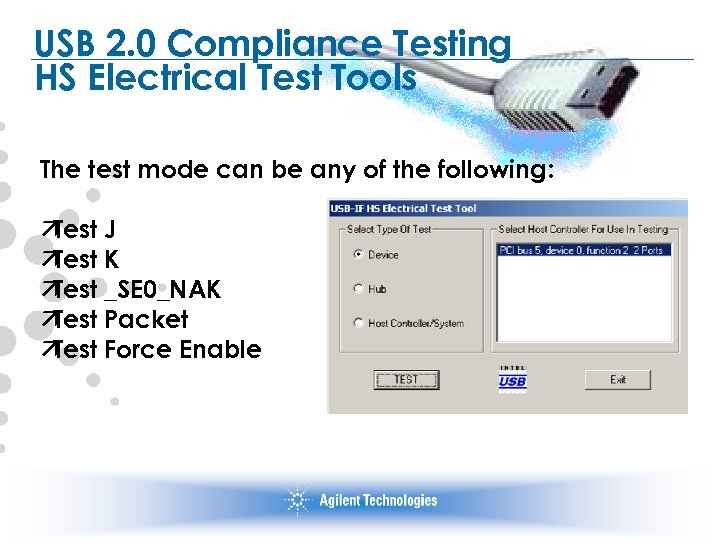

USB 2. 0 Compliance Testing HS Electrical Test Tools The test mode can be any of the following: ä Test J ä Test K ä Test _SE 0_NAK ä Test Packet ä Test Force Enable

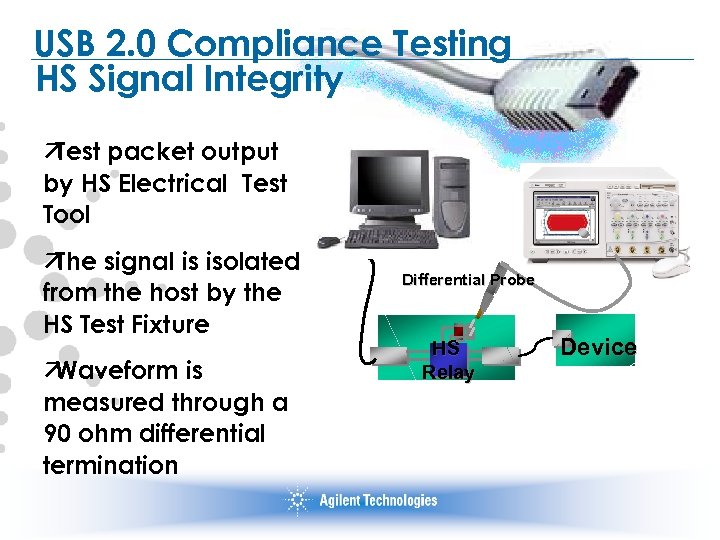

USB 2. 0 Compliance Testing HS Signal Integrity ä Test packet output by HS Electrical Test Tool ä The signal is isolated from the host by the HS Test Fixture ä Waveform is measured through a 90 ohm differential termination Differential Probe 90 HS Relay Device

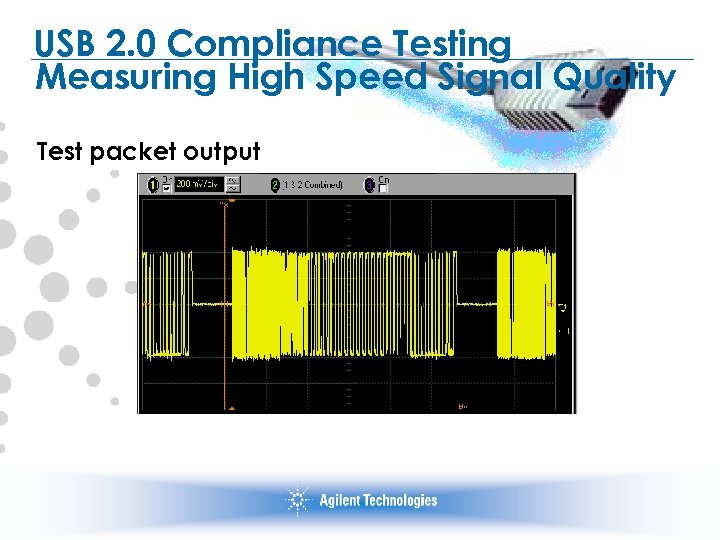

USB 2. 0 Compliance Testing Measuring High Speed Signal Quality Test packet output

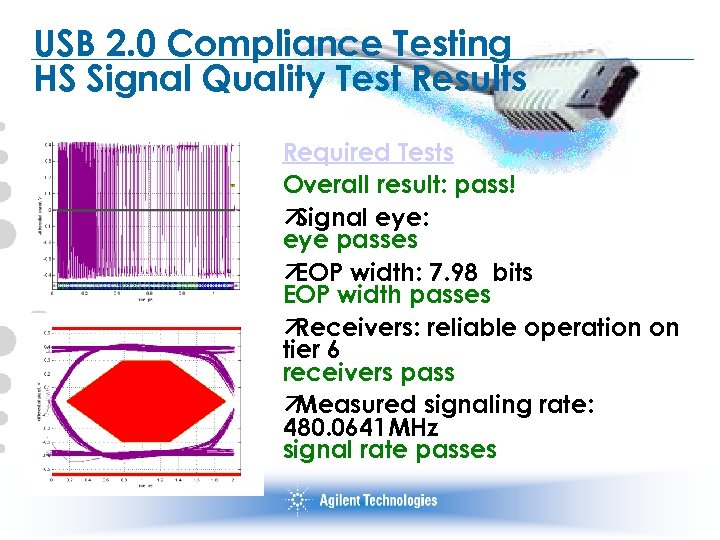

USB 2. 0 Compliance Testing HS Signal Quality Test Results Required Tests Overall result: pass! ä Signal eye: eye passes ä EOP width: 7. 98 bits EOP width passes ä Receivers: reliable operation on tier 6 receivers pass ä Measured signaling rate: 480. 0641 MHz signal rate passes

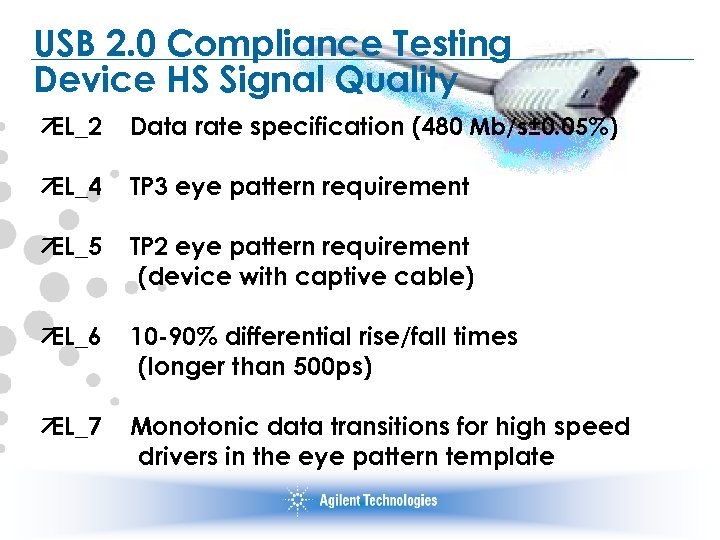

USB 2. 0 Compliance Testing Device HS Signal Quality ä EL_2 Data rate specification (480 Mb/s± 0. 05%) ä EL_4 TP 3 eye pattern requirement ä EL_5 TP 2 eye pattern requirement (device with captive cable) ä EL_6 10 -90% differential rise/fall times (longer than 500 ps) ä EL_7 Monotonic data transitions for high speed drivers in the eye pattern template

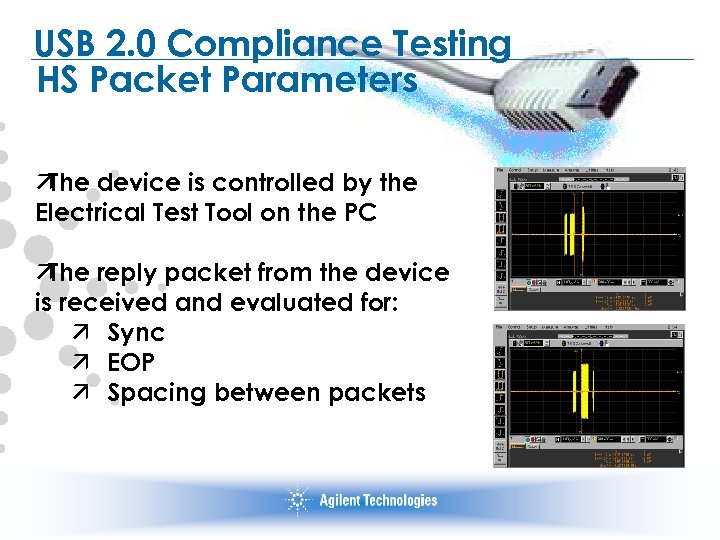

USB 2. 0 Compliance Testing HS Packet Parameters ä The device is controlled by the Electrical Test Tool on the PC ä The reply packet from the device is received and evaluated for: ä Sync ä EOP ä Spacing between packets

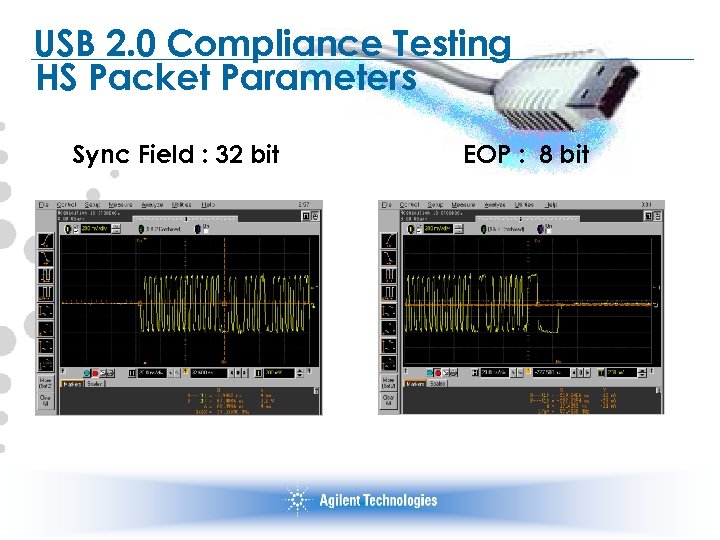

USB 2. 0 Compliance Testing HS Packet Parameters Sync Field : 32 bit EOP : 8 bit

USB 2. 0 Compliance Testing CHIRP, SUSPEND/RESUME/RESET Timing USB Test Fixture Probe 90 Device

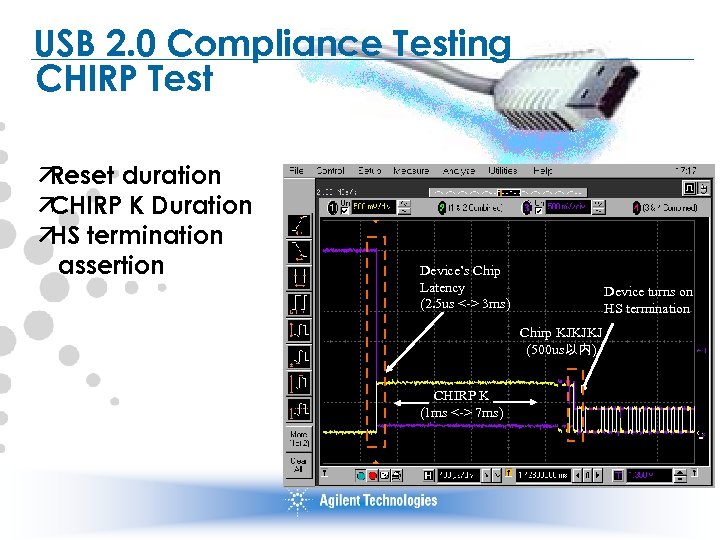

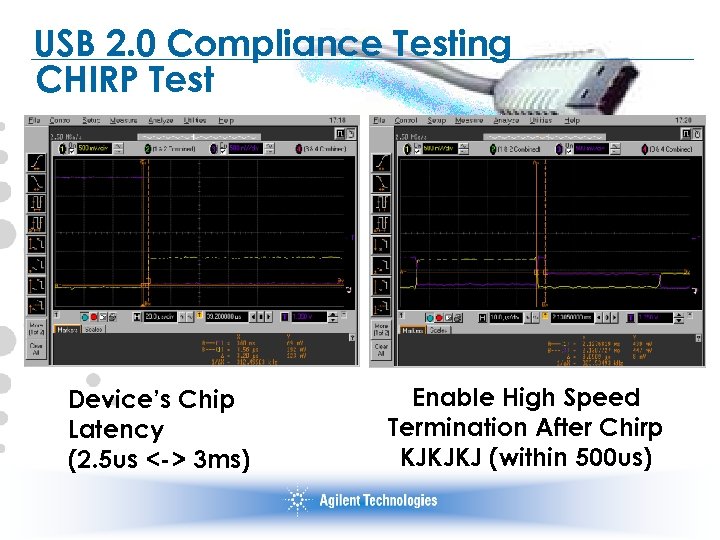

USB 2. 0 Compliance Testing CHIRP Test ä Reset duration ä CHIRP K Duration ä termination HS assertion Device’s Chip Latency (2. 5 us <-> 3 ms) Device turns on HS termination Chirp KJKJKJ (500 us以内) CHIRP K (1 ms <-> 7 ms)

USB 2. 0 Compliance Testing CHIRP Test Device’s Chip Latency (2. 5 us <-> 3 ms) Enable High Speed Termination After Chirp KJKJKJ (within 500 us)

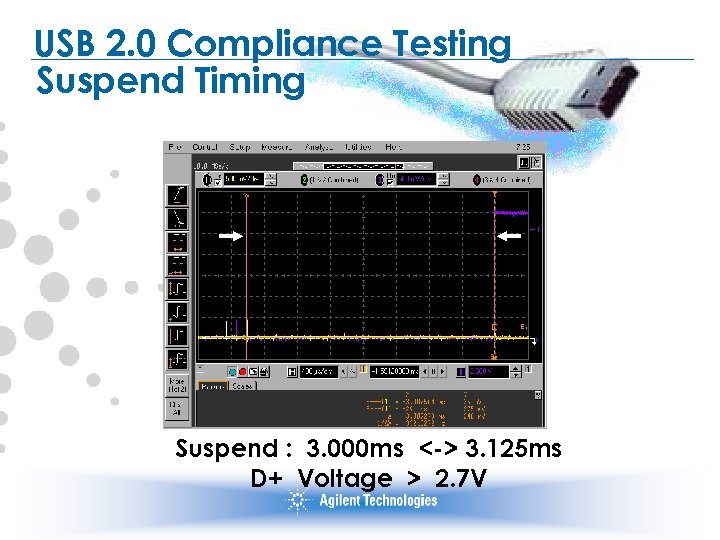

USB 2. 0 Compliance Testing Suspend Timing Suspend : 3. 000 ms <-> 3. 125 ms D+ Voltage > 2. 7 V

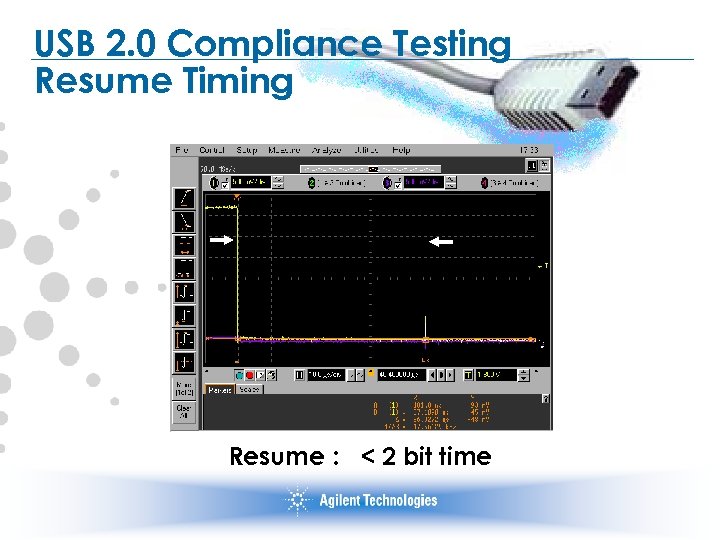

USB 2. 0 Compliance Testing Resume Timing Resume : < 2 bit time

USB 2. 0 Compliance Testing Reset Timing Device CHIRP K Reset : 3. 1 ms <-> 6 ms

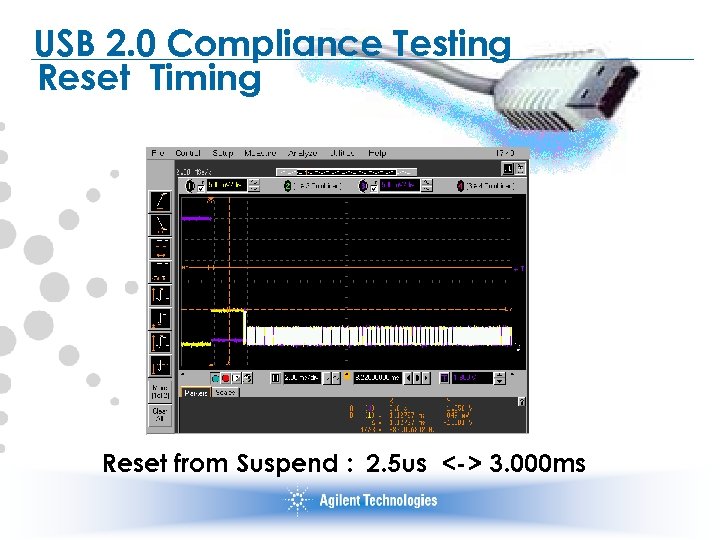

USB 2. 0 Compliance Testing Reset Timing Reset from Suspend : 2. 5 us <-> 3. 000 ms

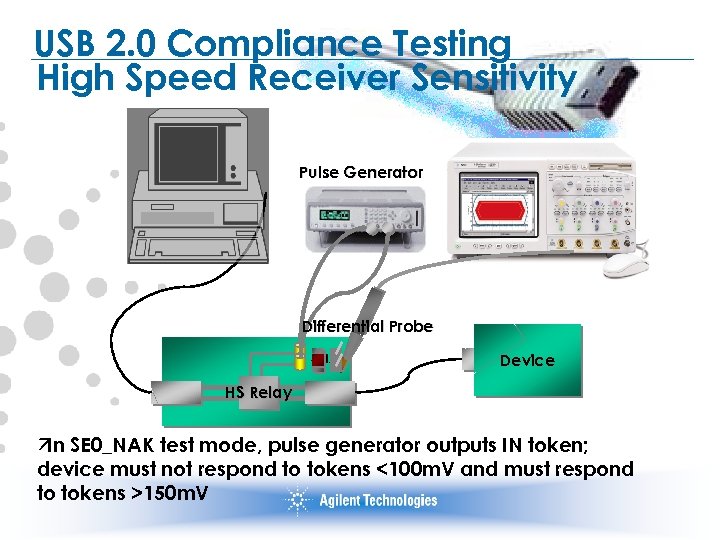

USB 2. 0 Compliance Testing High Speed Receiver Sensitivity Pulse Generator Differential Probe SMA Device HS Relay ä SE 0_NAK test mode, pulse generator outputs IN token; In device must not respond to tokens <100 m. V and must respond to tokens >150 m. V

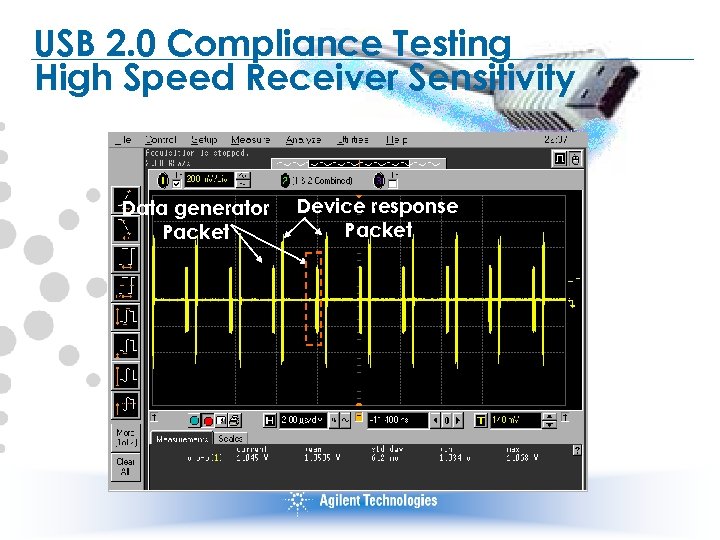

USB 2. 0 Compliance Testing High Speed Receiver Sensitivity Data generator Packet Device response Packet

USB 2. 0 Compliance Testing High Speed Receiver Sensitivity ä Note: A waiver may be granted if the receiver does not indicate squelch at +/ -50 m. V of 150 m. V differential amplitude

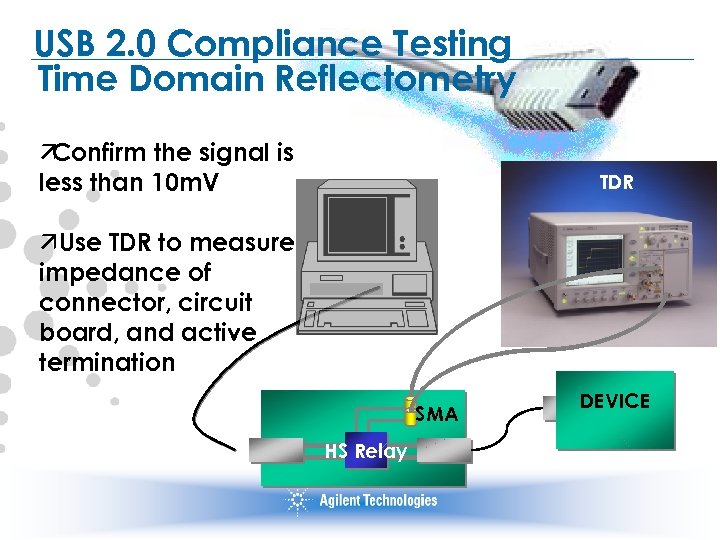

USB 2. 0 Compliance Testing Time Domain Reflectometry ä Confirm the signal is less than 10 m. V TDR äUse TDR to measure impedance of connector, circuit board, and active termination SMA HS Relay DEVICE

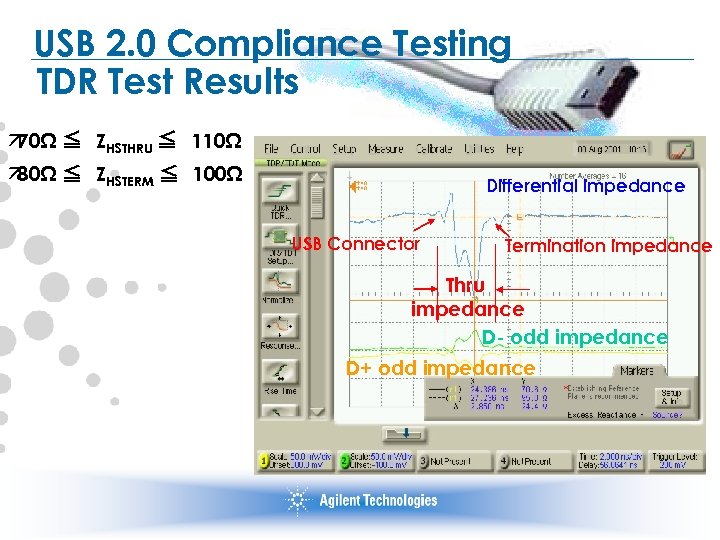

USB 2. 0 Compliance Testing TDR Test Results ä 70Ω ≦　ZHSTHRU ≦　110Ω ä 80Ω ≦　ZHSTERM ≦　100Ω Differential impedance USB Connector Termination impedance Thru impedance D- odd impedance D+ odd impedance

Today’s Schedule ä USB 2. 0 Overview ä USB 2. 0 Compliance Testing ä Examples of Compliance Tests ä Demo of the Agilent Solution ä Conclusion ä Q&A

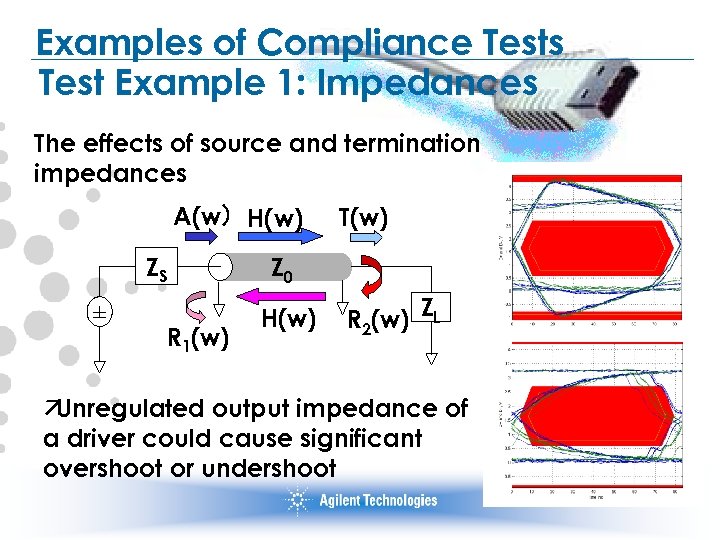

Examples of Compliance Tests Test Example 1: Impedances The effects of source and termination impedances A(w） H(w) ZS ± T(w) Z 0 R 1(w) H(w) R 2(w) ZL ä Unregulated output impedance of a driver could cause significant overshoot or undershoot

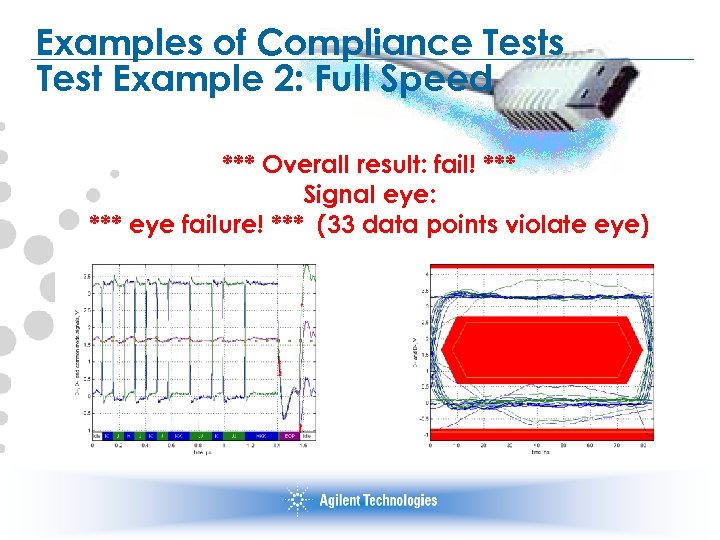

Examples of Compliance Tests Test Example 2: Full Speed *** Overall result: fail! *** Signal eye: *** eye failure! *** (33 data points violate eye)

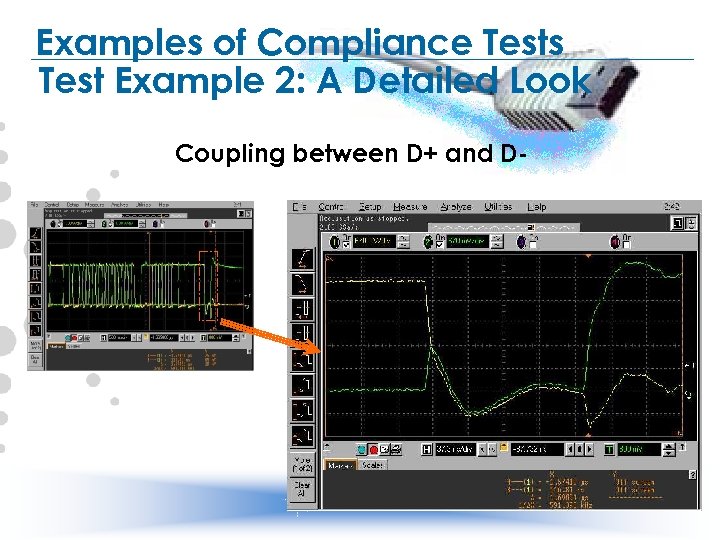

Examples of Compliance Tests Test Example 2: A Detailed Look Coupling between D+ and D-

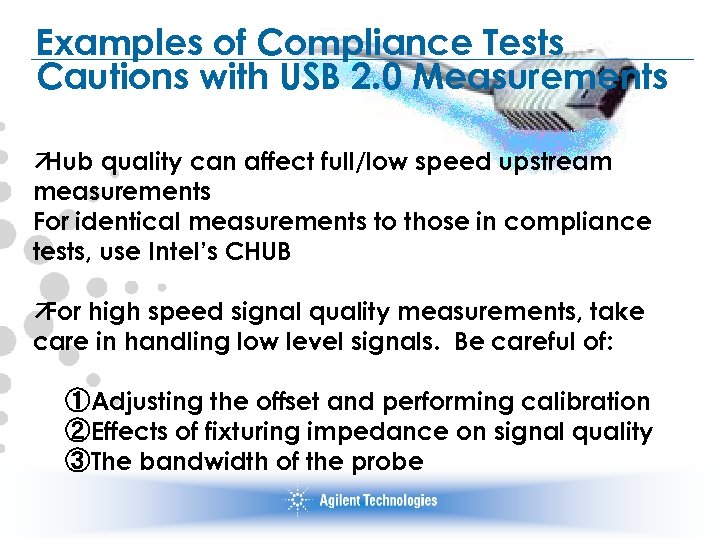

Examples of Compliance Tests Cautions with USB 2. 0 Measurements ä Hub quality can affect full/low speed upstream measurements For identical measurements to those in compliance tests, use Intel’s CHUB ä high speed signal quality measurements, take For care in handling low level signals. Be careful of: 　　①Adjusting the offset and performing calibration 　　②Effects of fixturing impedance on signal quality 　　③The bandwidth of the probe

Today’s Schedule ä USB 2. 0 Overview ä USB 2. 0 Compliance Testing ä Examples of Compliance Tests ä Demo of the Agilent Solution ä Conclusion ä Q&A

Conclusion Summary ä Compliance testing is a requirement ä Compliance testing involves framework layer evaluation and physical layer evaluation ä physical layer evaluation, signal quality is In influenced by components, circuit layout, and driver circuitry 　　 ä easy-to-use oscilloscope is an important factor An in efficiently performing compliance testing

Conclusion Reference Material ä Universal Serial Bus Specification　Rev 2. 0 (USB-IF) ä USB-IF Signal Integrity Test Description (USB-IF) ä USB Design by Example (John Hyde, John Wiley & Sons INC) ä Universal Serial Bus System Architecture (Don Anderson, MINDSHARE INC) ä USB 2. 0 High Speed Electrical Test Procedure v 1. 0
