Agilent Technologies 856 x Migration Customer Presentation August

Agilent Technologies 856 x Migration Customer Presentation August 2008

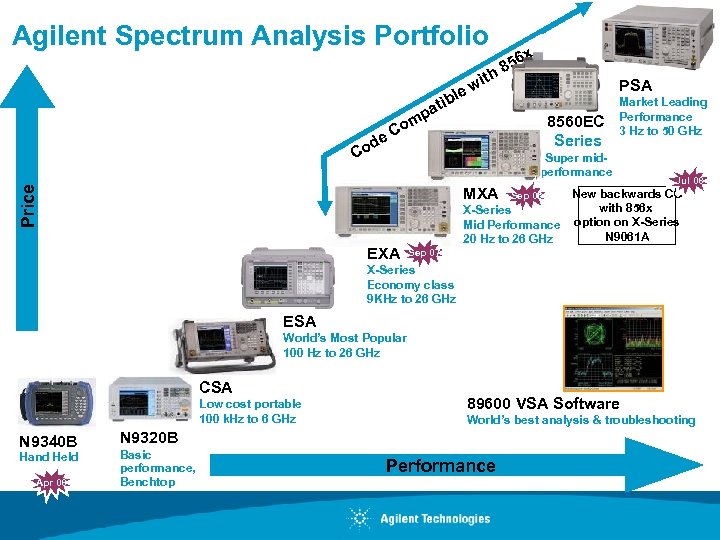

Agilent Spectrum Analysis Portfolio ibl t a mp i ew th x 6 85 PSA 8560 EC Series o e. C d Co Market Leading Performance 3 Hz to 50 GHz Price Super midperformance MXA EXA Jul 08 New backwards CC with 856 x X-Series option on X-Series Mid Performance N 9061 A 20 Hz to 26 GHz Sep 06 Sep 07 X-Series Economy class 9 KHz to 26 GHz ESA World’s Most Popular 100 Hz to 26 GHz CSA Low cost portable 100 k. Hz to 6 GHz N 9340 B Hand Held Apr 08 89600 VSA Software World’s best analysis & troubleshooting N 9320 B Basic performance, Benchtop Performance

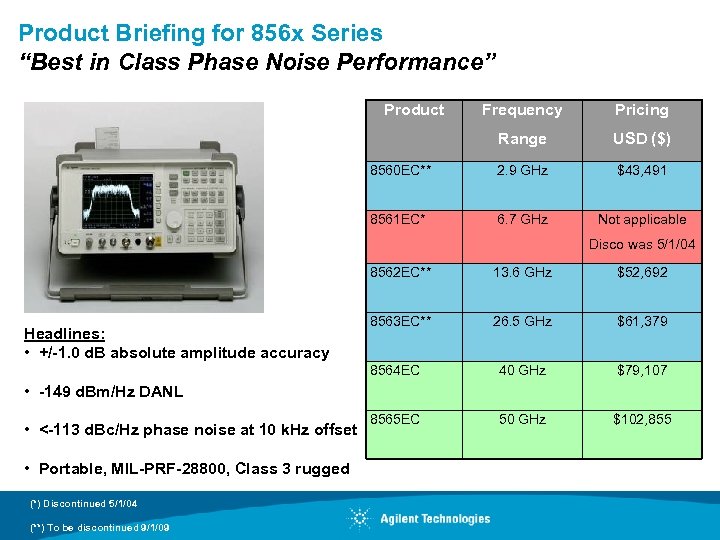

Product Briefing for 856 x Series “Best in Class Phase Noise Performance” Product Frequency Pricing Range USD ($) 8560 EC** 2. 9 GHz $43, 491 8561 EC* 6. 7 GHz Not applicable Disco was 5/1/04 8562 EC** $52, 692 8563 EC** 26. 5 GHz $61, 379 8564 EC Headlines: • +/-1. 0 d. B absolute amplitude accuracy 13. 6 GHz 40 GHz $79, 107 8565 EC 50 GHz $102, 855 • -149 d. Bm/Hz DANL • <-113 d. Bc/Hz phase noise at 10 k. Hz offset • Portable, MIL-PRF-28800, Class 3 rugged (*) Discontinued 5/1/04 (**) To be discontinued 9/1/09

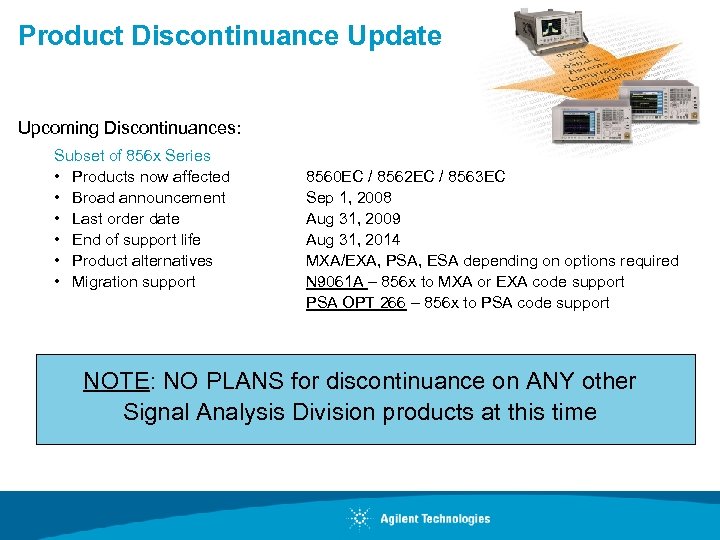

Product Discontinuance Update Upcoming Discontinuances: Subset of 856 x Series • Products now affected • Broad announcement • Last order date • End of support life • Product alternatives • Migration support 8560 EC / 8562 EC / 8563 EC Sep 1, 2008 Aug 31, 2009 Aug 31, 2014 MXA/EXA, PSA, ESA depending on options required N 9061 A – 856 x to MXA or EXA code support PSA OPT 266 – 856 x to PSA code support NOTE: NO PLANS for discontinuance on ANY other Signal Analysis Division products at this time

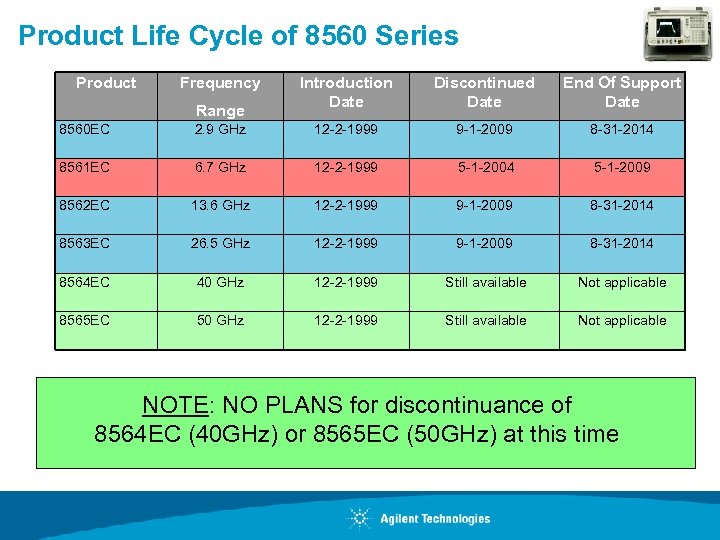

Product Life Cycle of 8560 Series Product Frequency Range Introduction Date Discontinued Date End Of Support Date 8560 EC 2. 9 GHz 12 -2 -1999 9 -1 -2009 8 -31 -2014 8561 EC 6. 7 GHz 12 -2 -1999 5 -1 -2004 5 -1 -2009 8562 EC 13. 6 GHz 12 -2 -1999 9 -1 -2009 8 -31 -2014 8563 EC 26. 5 GHz 12 -2 -1999 9 -1 -2009 8 -31 -2014 8564 EC 40 GHz 12 -2 -1999 Still available Not applicable 8565 EC 50 GHz 12 -2 -1999 Still available Not applicable NOTE: NO PLANS for discontinuance of 8564 EC (40 GHz) or 8565 EC (50 GHz) at this time

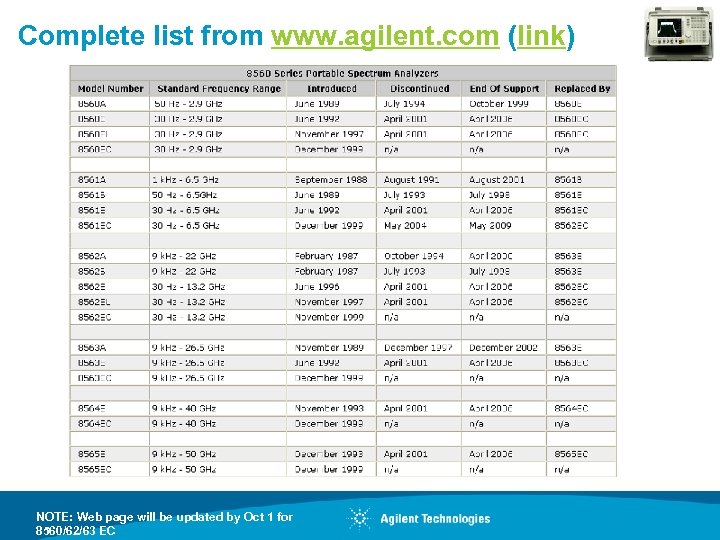

Complete list from www. agilent. com (link) NOTE: Web page will be updated by Oct 1 for 8560/62/63 EC

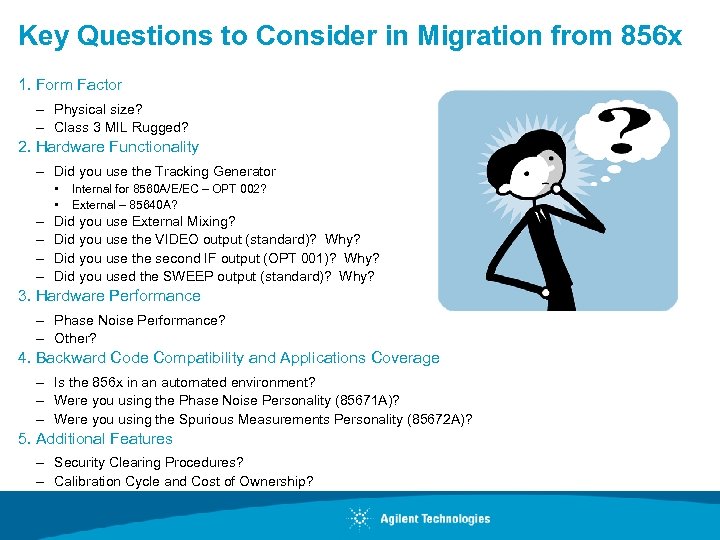

Key Questions to Consider in Migration from 856 x 1. Form Factor – Physical size? – Class 3 MIL Rugged? 2. Hardware Functionality – Did you use the Tracking Generator • • – – Internal for 8560 A/E/EC – OPT 002? External – 85640 A? Did you use External Mixing? Did you use the VIDEO output (standard)? Why? Did you use the second IF output (OPT 001)? Why? Did you used the SWEEP output (standard)? Why? 3. Hardware Performance – Phase Noise Performance? – Other? 4. Backward Code Compatibility and Applications Coverage – Is the 856 x in an automated environment? – Were you using the Phase Noise Personality (85671 A)? – Were you using the Spurious Measurements Personality (85672 A)? 5. Additional Features – Security Clearing Procedures? – Calibration Cycle and Cost of Ownership?

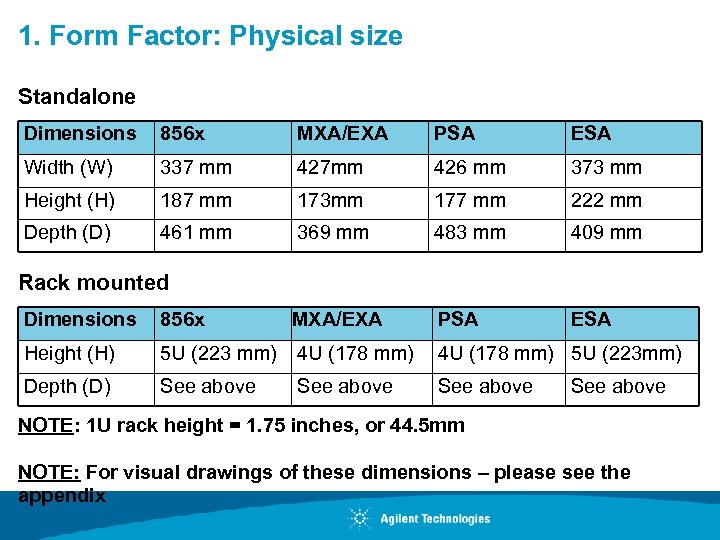

1. Form Factor: Physical size Standalone Dimensions 856 x MXA/EXA PSA ESA Width (W) 337 mm 427 mm 426 mm 373 mm Height (H) 187 mm 173 mm 177 mm 222 mm Depth (D) 461 mm 369 mm 483 mm 409 mm ESA Rack mounted Dimensions 856 x MXA/EXA PSA Height (H) 5 U (223 mm) 4 U (178 mm) 5 U (223 mm) Depth (D) See above NOTE: 1 U rack height = 1. 75 inches, or 44. 5 mm NOTE: For visual drawings of these dimensions – please see the appendix

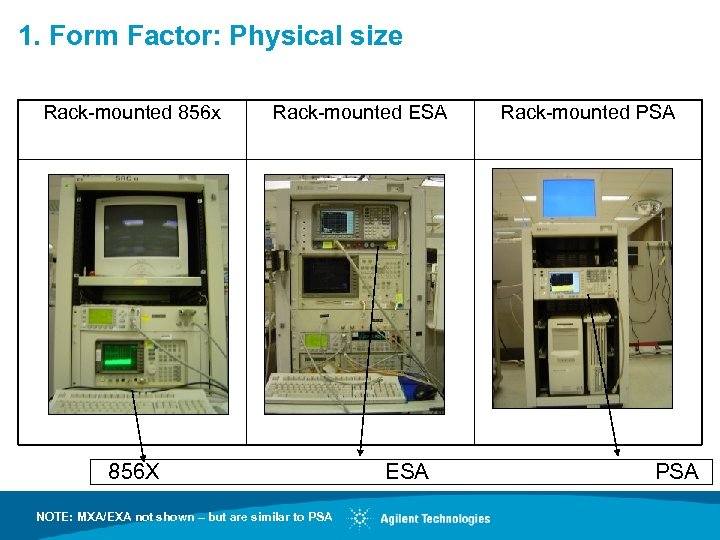

1. Form Factor: Physical size Rack-mounted 856 x Rack-mounted ESA 856 X NOTE: MXA/EXA not shown – but are similar to PSA ESA Rack-mounted PSA

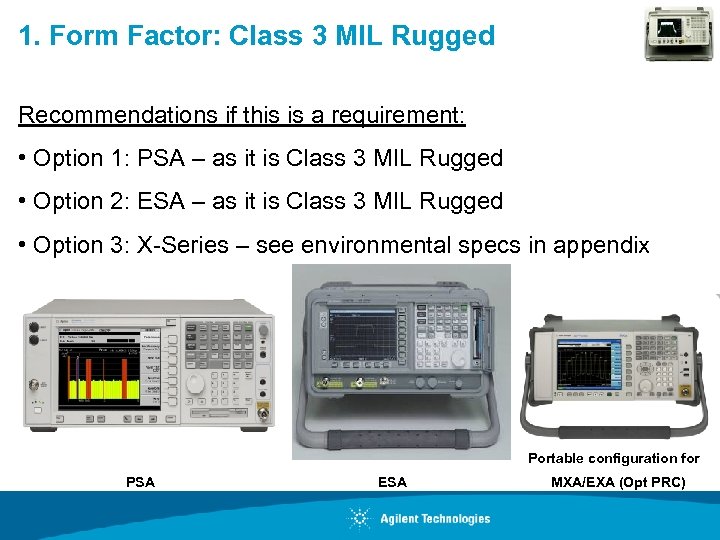

1. Form Factor: Class 3 MIL Rugged Recommendations if this is a requirement: • Option 1: PSA – as it is Class 3 MIL Rugged • Option 2: ESA – as it is Class 3 MIL Rugged • Option 3: X-Series – see environmental specs in appendix Portable configuration for PSA ESA MXA/EXA (Opt PRC)

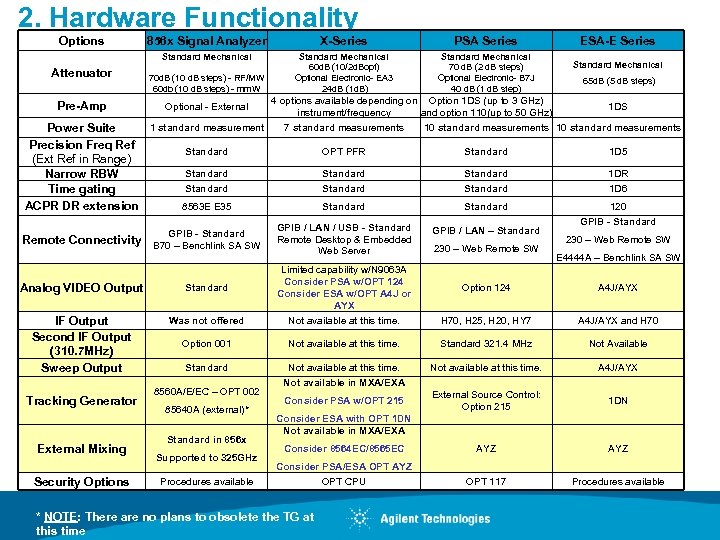

2. Hardware Functionality Options Pre-Amp X-Series PSA Series Standard Mechanical Attenuator 856 x Signal Analyzer Standard Mechanical 60 d. B (10/2 d. Bopt) Optional Electronic- EA 3 24 d. B (1 d. B) Standard Mechanical 70 d. B (2 d. B steps) Optional Electronic- B 7 J 40 d. B (1 d. B step) 70 d. B (10 d. B steps) - RF/MW 60 db (10 d. B steps) - mm. W Optional - External 1 standard measurement Power Suite Precision Freq Ref Standard (Ext Ref in Range) Standard Narrow RBW Standard Time gating 8563 E E 35 ACPR DR extension Remote Connectivity GPIB - Standard B 70 – Benchlink SA SW 4 options available depending on Option 1 DS (up to 3 GHz) instrument/frequency and option 110(up to 50 GHz) 7 standard measurements ESA-E Series Standard Mechanical 65 d. B (5 d. B steps) 1 DS 10 standard measurements OPT PFR Standard 1 D 5 Standard 1 DR Standard 1 D 6 Standard 120 GPIB / LAN / USB - Standard Remote Desktop & Embedded Web Server GPIB / LAN – Standard 230 – Web Remote SW GPIB - Standard 230 – Web Remote SW E 4444 A – Benchlink SA SW Analog VIDEO Output Standard IF Output Second IF Output (310. 7 MHz) Sweep Output Was not offered Limited capability w/N 9063 A Consider PSA w/OPT 124 Consider ESA w/OPT A 4 J or AYX Not available at this time. Option 001 Not available at this time. Standard 321. 4 MHz Not Available Standard Not available at this time. Not available in MXA/EXA Not available at this time. A 4 J/AYX External Source Control: Option 215 1 DN Consider 8564 EC/8565 EC AYZ Consider PSA/ESA OPT AYZ OPT CPU OPT 117 Procedures available Tracking Generator External Mixing Security Options 8560 A/E/EC – OPT 002 85640 A (external)* Standard in 856 x Supported to 325 GHz Procedures available Consider PSA w/OPT 215 Option 124 A 4 J/AYX H 70, H 25, H 20, HY 7 A 4 J/AYX and H 70 Consider ESA with OPT 1 DN Not available in MXA/EXA * NOTE: There are no plans to obsolete the TG at this time

3. Hardware Performance: Key Specifications 856 x MXA PSA ESA TOI <3 GHz DANL @ 13 GHz +11 d. Bm -145 d. Bm/Hz +16 d. Bm -148 d. Bm/Hz +17 d. Bm -150 d. Bm/Hz +12. 5 d. Bm -126 d. Bm/Hz Noise @ 10 k. Hz offset (1 GHz cf) Accuracy (95%) -113 d. Bc/Hz -103 d. Bc/Hz -116 d. Bc/Hz -98 d. Bc/Hz +/- 0. 19 d. B (up to 3 GHz) 1 Hz 10 MHz (40/80 MHz opt) > 50/sec +/- 0. 4 d. B -106 d. Bc/Hz typical +/-1. 3 d. B Min Resolution BW 1 Hz Analysis N/A Measurement BW (No digital Demod) Measurement Rate 7/sec +/- 0. 3 d. B 1 Hz 10 MHz (25 MHz opt) > 90/sec 10 Hz (opt. 1 DR) 10 MHz 40/sec NOTE: The 856 x series has great phase noise performance. This is the #1 specification that you need to qualify to help your customers migrate

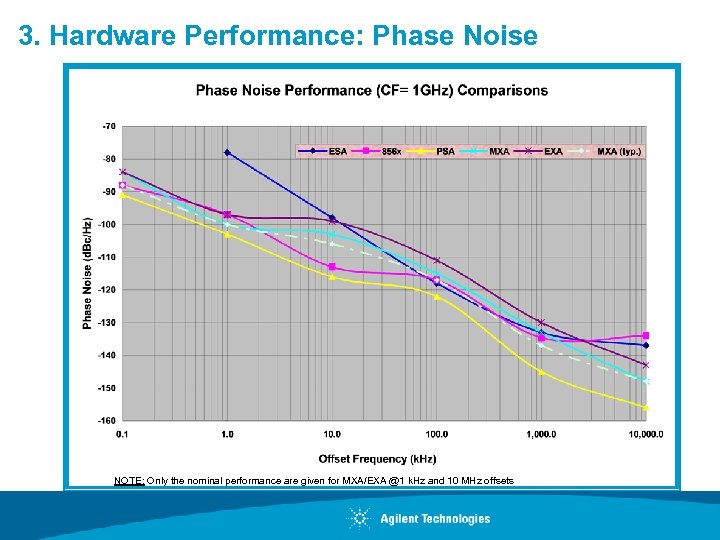

3. Hardware Performance: Phase Noise NOTE: Only the nominal performance are given for MXA/EXA @1 k. Hz and 10 MHz offsets

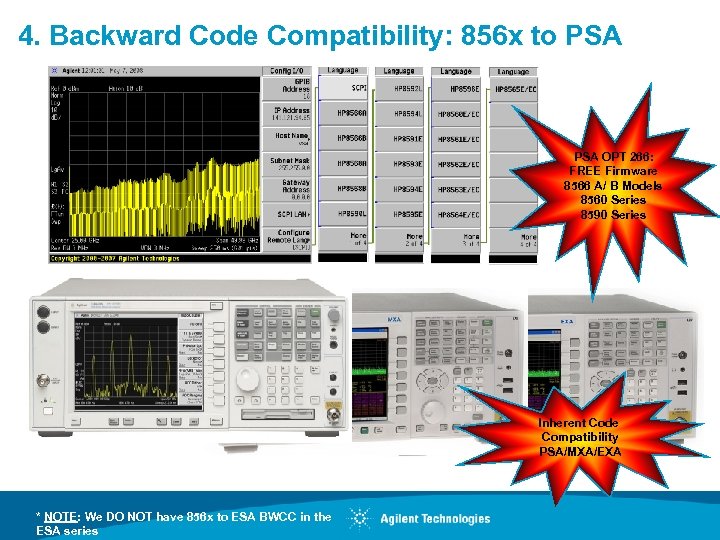

4. Backward Code Compatibility: 856 x to PSA OPT 266: FREE Firmware 8566 A/ B Models 8560 Series 8590 Series Inherent Code Compatibility PSA/MXA/EXA * NOTE: We DO NOT have 856 x to ESA BWCC in the ESA series

4. Backward Code Compatibility: 856 x to X-Series N 9061 A – Remote Language Compatibility Application • Emulates the HP/Agilent 856 x. E/EC remote programming language • Supports the most frequently used 856 x. E/EC commands • Available with new X-Series signal analyzers (MXA/EXA) as a standard feature • Has command error logging Areas of Caution: • Does not cover commands for: • 856 x Phase Noise Utility • 856 x Spurious Utility • The X-Series (MXA/EXA) does not currently have Amplitude Correction and Limit Lines features at this time – but this is under development and will be available soon.

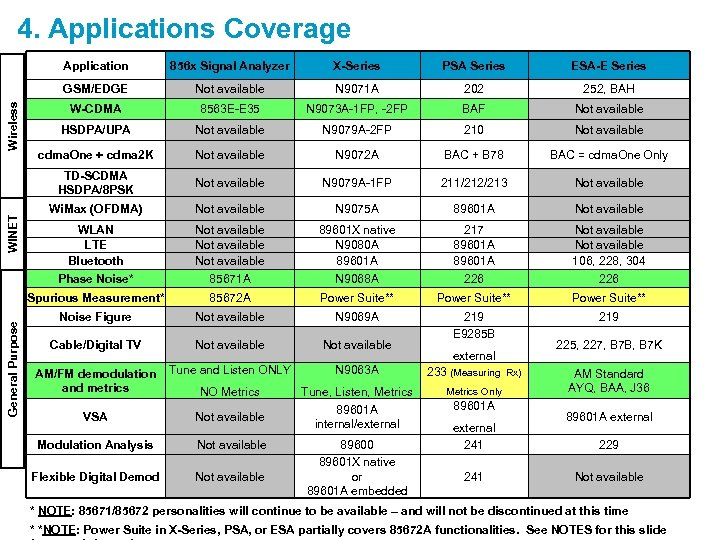

4. Applications Coverage PSA Series ESA-E Series Not available N 9071 A 202 252, BAH W-CDMA 8563 E-E 35 N 9073 A-1 FP, -2 FP BAF Not available HSDPA/UPA Not available N 9079 A-2 FP 210 Not available cdma. One + cdma 2 K Not available N 9072 A BAC + B 78 BAC = cdma. One Only Not available N 9079 A-1 FP 211/212/213 Not available Wi. Max (OFDMA) Not available N 9075 A 89601 A Not available WLAN LTE Bluetooth Phase Noise* Not available 85671 A 89601 X native N 9080 A 89601 A N 9068 A 217 89601 A 226 Not available 106, 228, 304 226 Spurious Measurement* WINET X-Series TD-SCDMA HSDPA/8 PSK General Purpose 856 x Signal Analyzer GSM/EDGE Wireless Application 85672 A Power Suite** Noise Figure Not available N 9069 A 219 Cable/Digital TV Not available 219 E 9285 B AM/FM demodulation and metrics Tune and Listen ONLY N 9063 A 233 (Measuring Rx) NO Metrics Only VSA Not available Tune, Listen, Metrics 89601 A internal/external Modulation Analysis Not available Flexible Digital Demod Not available 89600 89601 X native or 89601 A embedded external 89601 A external 241 225, 227, B 7 B, B 7 K AM Standard AYQ, BAA, J 36 89601 A external 229 Not available * NOTE: 85671/85672 personalities will continue to be available – and will not be discontinued at this time * *NOTE: Power Suite in X-Series, PSA, or ESA partially covers 85672 A functionalities. See NOTES for this slide

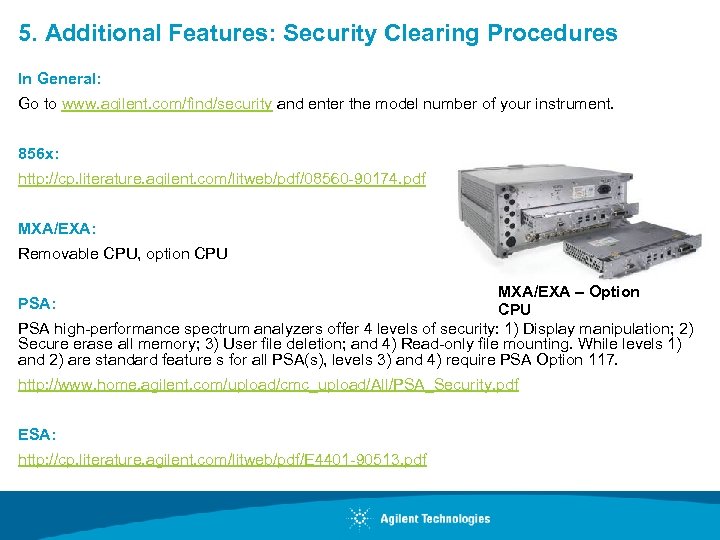

5. Additional Features: Security Clearing Procedures In General: Go to www. agilent. com/find/security and enter the model number of your instrument. 856 x: http: //cp. literature. agilent. com/litweb/pdf/08560 -90174. pdf MXA/EXA: Removable CPU, option CPU MXA/EXA – Option CPU PSA high-performance spectrum analyzers offer 4 levels of security: 1) Display manipulation; 2) Secure erase all memory; 3) User file deletion; and 4) Read-only file mounting. While levels 1) and 2) are standard feature s for all PSA(s), levels 3) and 4) require PSA Option 117. PSA: http: //www. home. agilent. com/upload/cmc_upload/All/PSA_Security. pdf ESA: http: //cp. literature. agilent. com/litweb/pdf/E 4401 -90513. pdf

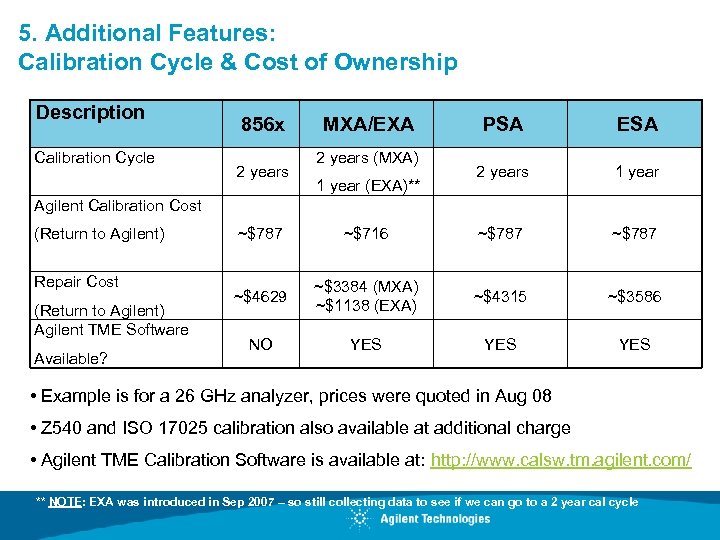

5. Additional Features: Calibration Cycle & Cost of Ownership Description Calibration Cycle 856 x 2 years MXA/EXA 2 years (MXA) 1 year (EXA)** PSA ESA 2 years 1 year Agilent Calibration Cost (Return to Agilent) Repair Cost (Return to Agilent) Agilent TME Software Available? ~$787 ~$716 ~$787 ~$4629 ~$3384 (MXA) ~$1138 (EXA) ~$4315 ~$3586 NO YES YES • Example is for a 26 GHz analyzer, prices were quoted in Aug 08 • Z 540 and ISO 17025 calibration also available at additional charge • Agilent TME Calibration Software is available at: http: //www. calsw. tm. agilent. com/ ** NOTE: EXA was introduced in Sep 2007 – so still collecting data to see if we can go to a 2 year cal cycle

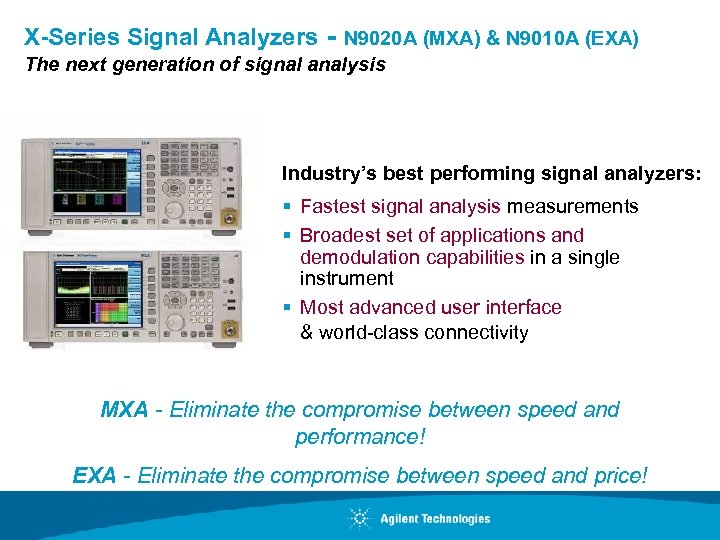

X-Series Signal Analyzers - N 9020 A (MXA) & N 9010 A (EXA) The next generation of signal analysis Industry’s best performing signal analyzers: § Fastest signal analysis measurements § Broadest set of applications and demodulation capabilities in a single instrument § Most advanced user interface & world-class connectivity MXA - Eliminate the compromise between speed and performance! EXA - Eliminate the compromise between speed and price!

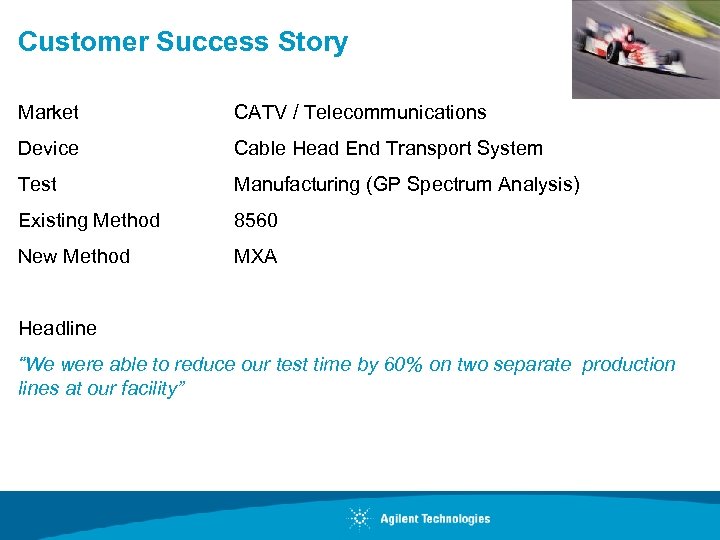

Customer Success Story Market CATV / Telecommunications Device Cable Head End Transport System Test Manufacturing (GP Spectrum Analysis) Existing Method 8560 New Method MXA Headline “We were able to reduce our test time by 60% on two separate production lines at our facility”

50% Trade-In Offer – For a Limited Time! NEW Receive a 50% trade-in credit on any of the eligible products when you trade-in a corresponding, operational product ACT NOW! Promotion Expires: October 15 th, 2008

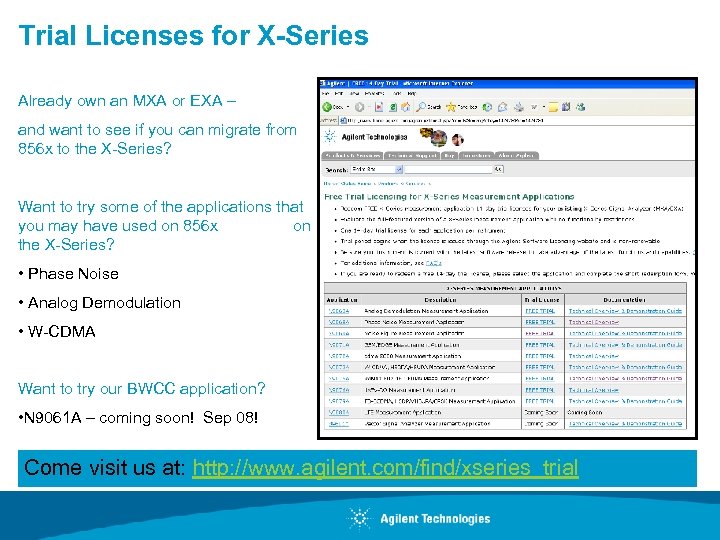

Trial Licenses for X-Series Already own an MXA or EXA – and want to see if you can migrate from 856 x to the X-Series? Want to try some of the applications that you may have used on 856 x on the X-Series? • Phase Noise • Analog Demodulation • W-CDMA Want to try our BWCC application? • N 9061 A – coming soon! Sep 08! Come visit us at: http: //www. agilent. com/find/xseries_trial

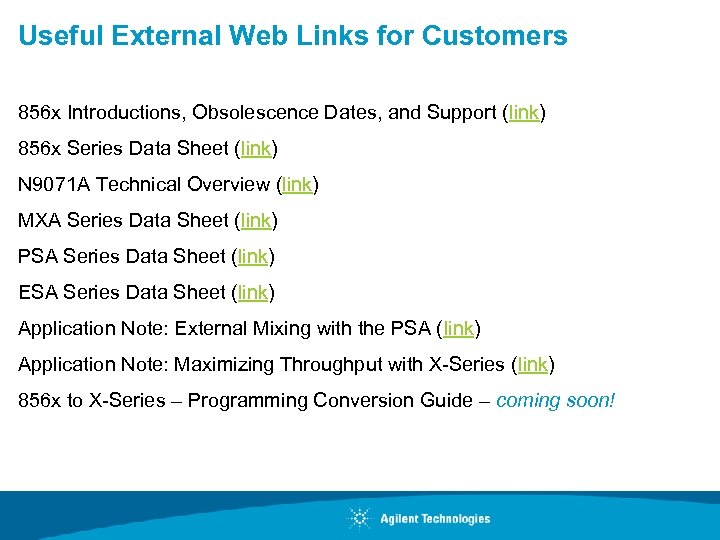

Useful External Web Links for Customers 856 x Introductions, Obsolescence Dates, and Support (link) 856 x Series Data Sheet (link) N 9071 A Technical Overview (link) MXA Series Data Sheet (link) PSA Series Data Sheet (link) ESA Series Data Sheet (link) Application Note: External Mixing with the PSA (link) Application Note: Maximizing Throughput with X-Series (link) 856 x to X-Series – Programming Conversion Guide – coming soon!

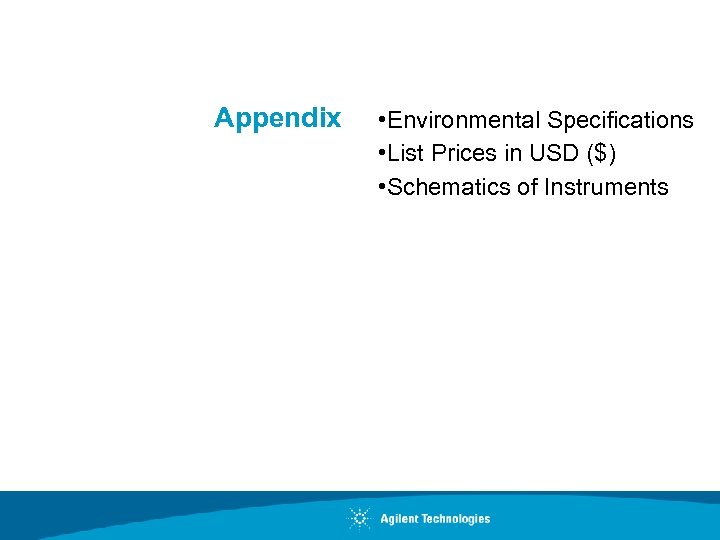

Appendix • Environmental Specifications • List Prices in USD ($) • Schematics of Instruments

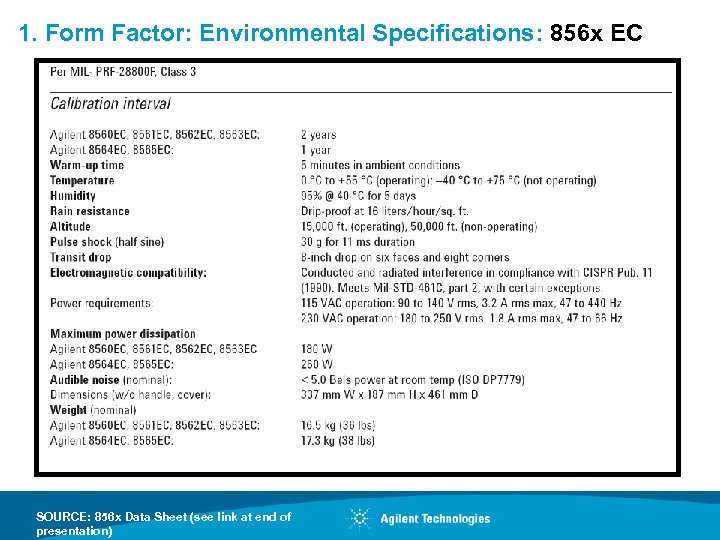

1. Form Factor: Environmental Specifications: 856 x EC SOURCE: 856 x Data Sheet (see link at end of presentation)

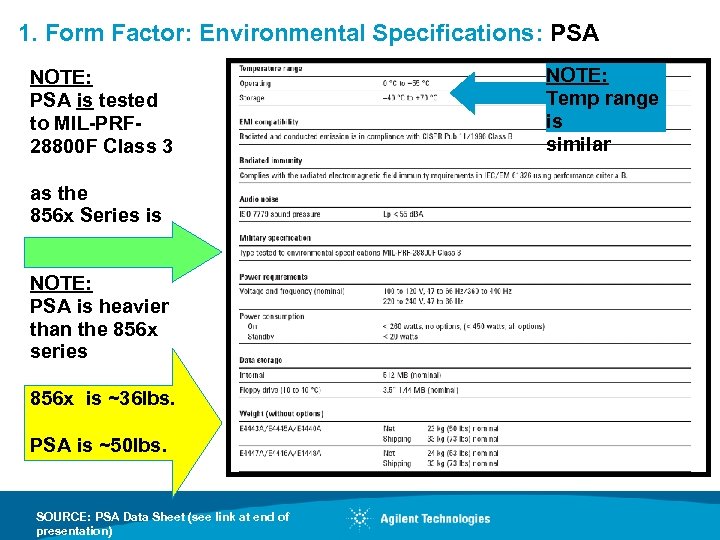

1. Form Factor: Environmental Specifications: PSA NOTE: PSA is tested to MIL-PRF 28800 F Class 3 as the 856 x Series is NOTE: PSA is heavier than the 856 x series 856 x is ~36 lbs. PSA is ~50 lbs. SOURCE: PSA Data Sheet (see link at end of presentation) NOTE: Temp range is similar

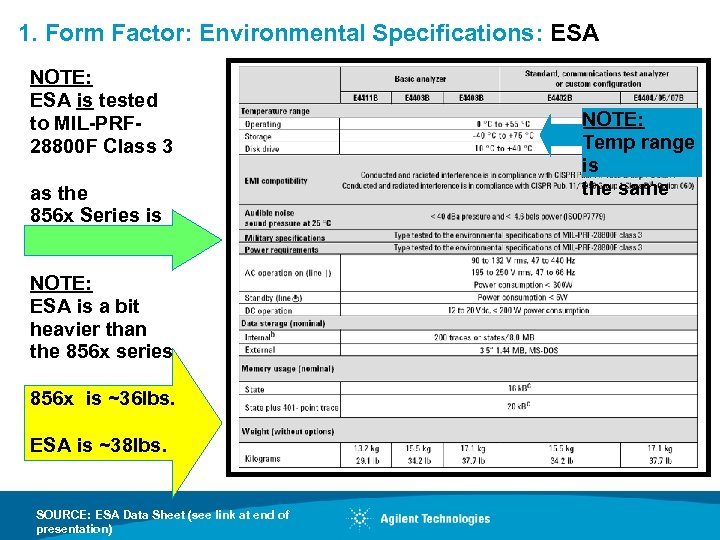

1. Form Factor: Environmental Specifications: ESA NOTE: ESA is tested to MIL-PRF 28800 F Class 3 as the 856 x Series is NOTE: ESA is a bit heavier than the 856 x series 856 x is ~36 lbs. ESA is ~38 lbs. SOURCE: ESA Data Sheet (see link at end of presentation) NOTE: Temp range is the same

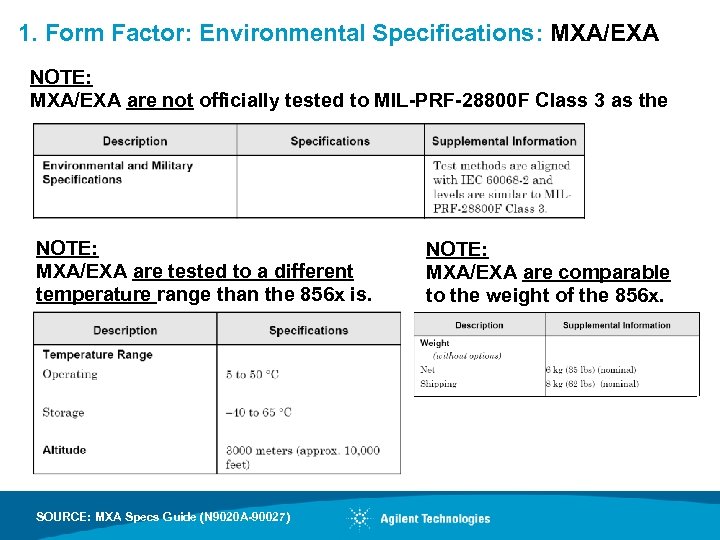

1. Form Factor: Environmental Specifications: MXA/EXA NOTE: MXA/EXA are not officially tested to MIL-PRF-28800 F Class 3 as the 856 x is. NOTE: MXA/EXA are tested to a different temperature range than the 856 x is. SOURCE: MXA Specs Guide (N 9020 A-90027) NOTE: MXA/EXA are comparable to the weight of the 856 x.

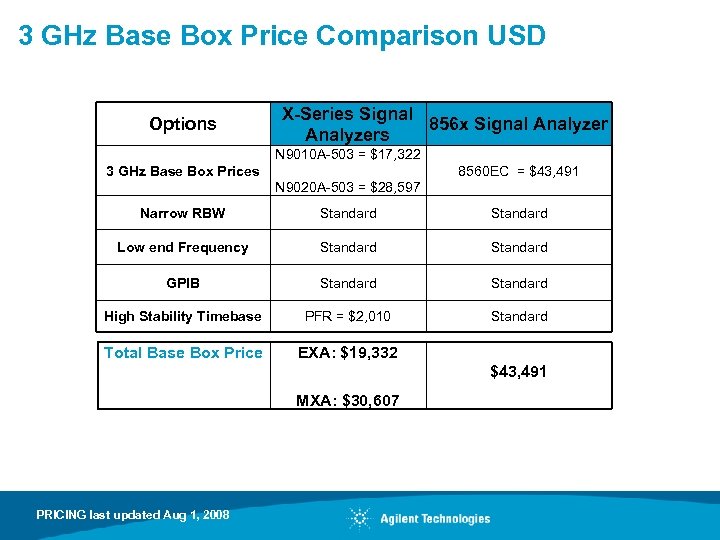

3 GHz Base Box Price Comparison USD Options X-Series Signal 856 x Signal Analyzers N 9010 A-503 = $17, 322 3 GHz Base Box Prices 8560 EC = $43, 491 N 9020 A-503 = $28, 597 Narrow RBW Standard Low end Frequency Standard GPIB Standard High Stability Timebase PFR = $2, 010 Standard Total Base Box Price EXA: $19, 332 $43, 491 MXA: $30, 607 PRICING last updated Aug 1, 2008

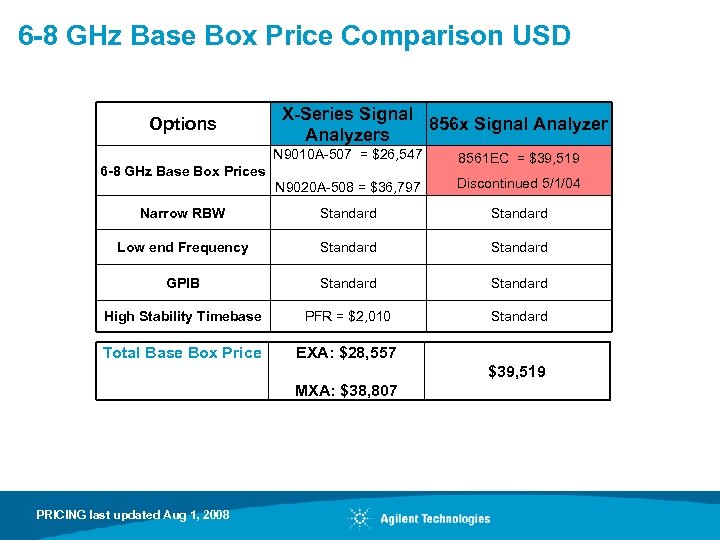

6 -8 GHz Base Box Price Comparison USD Options X-Series Signal 856 x Signal Analyzers N 9010 A-507 = $26, 547 8561 EC = $39, 519 N 9020 A-508 = $36, 797 Discontinued 5/1/04 Narrow RBW Standard Low end Frequency Standard GPIB Standard High Stability Timebase PFR = $2, 010 Standard Total Base Box Price EXA: $28, 557 6 -8 GHz Base Box Prices $39, 519 MXA: $38, 807 PRICING last updated Aug 1, 2008

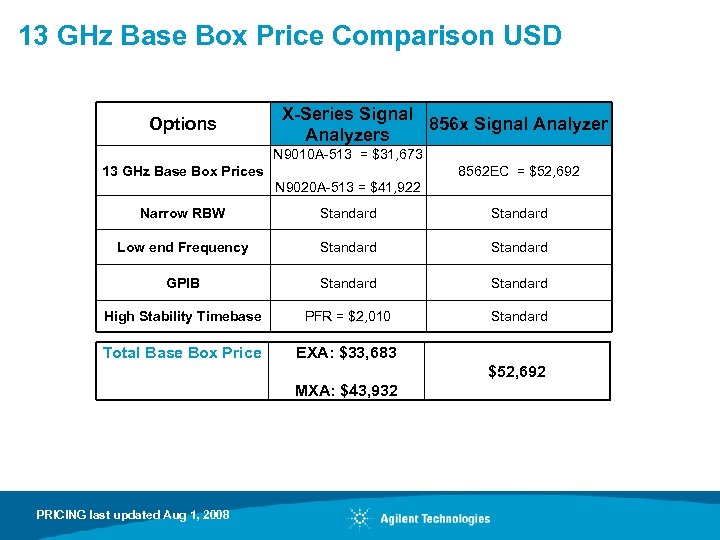

13 GHz Base Box Price Comparison USD Options X-Series Signal 856 x Signal Analyzers N 9010 A-513 = $31, 673 13 GHz Base Box Prices 8562 EC = $52, 692 N 9020 A-513 = $41, 922 Narrow RBW Standard Low end Frequency Standard GPIB Standard High Stability Timebase PFR = $2, 010 Standard Total Base Box Price EXA: $33, 683 $52, 692 MXA: $43, 932 PRICING last updated Aug 1, 2008

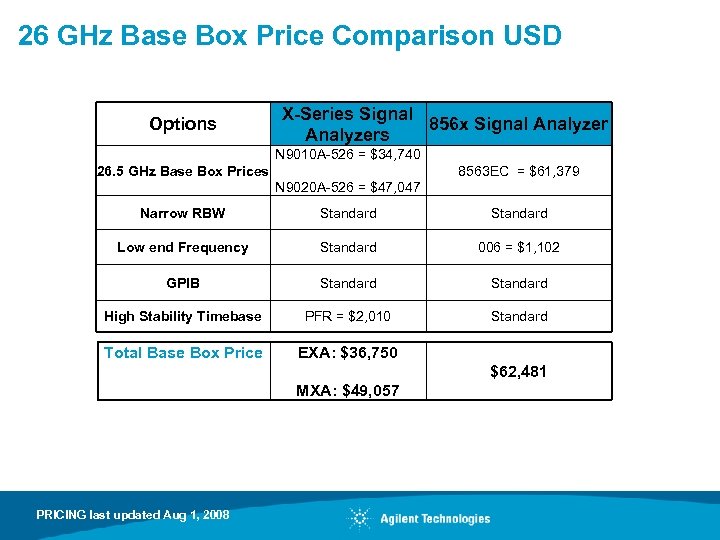

26 GHz Base Box Price Comparison USD Options X-Series Signal 856 x Signal Analyzers N 9010 A-526 = $34, 740 26. 5 GHz Base Box Prices 8563 EC = $61, 379 N 9020 A-526 = $47, 047 Narrow RBW Standard Low end Frequency Standard 006 = $1, 102 GPIB Standard High Stability Timebase PFR = $2, 010 Standard Total Base Box Price EXA: $36, 750 $62, 481 MXA: $49, 057 PRICING last updated Aug 1, 2008

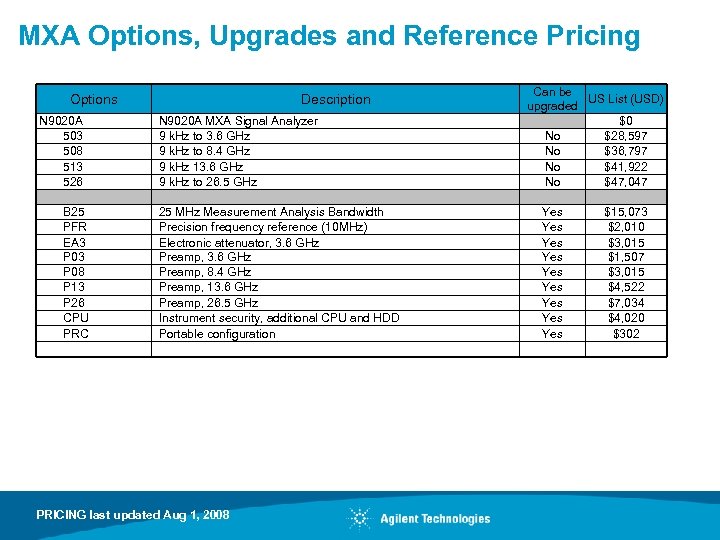

MXA Options, Upgrades and Reference Pricing Options N 9020 A 503 508 513 526 B 25 PFR EA 3 P 08 P 13 P 26 CPU PRC Description N 9020 A MXA Signal Analyzer 9 k. Hz to 3. 6 GHz 9 k. Hz to 8. 4 GHz 9 k. Hz 13. 6 GHz 9 k. Hz to 26. 5 GHz 25 MHz Measurement Analysis Bandwidth Precision frequency reference (10 MHz) Electronic attenuator, 3. 6 GHz Preamp, 8. 4 GHz Preamp, 13. 6 GHz Preamp, 26. 5 GHz Instrument security, additional CPU and HDD Portable configuration PRICING last updated Aug 1, 2008 Can be US List (USD) upgraded $0 No $28, 597 No $36, 797 No $41, 922 No $47, 047 Yes Yes Yes $15, 073 $2, 010 $3, 015 $1, 507 $3, 015 $4, 522 $7, 034 $4, 020 $302

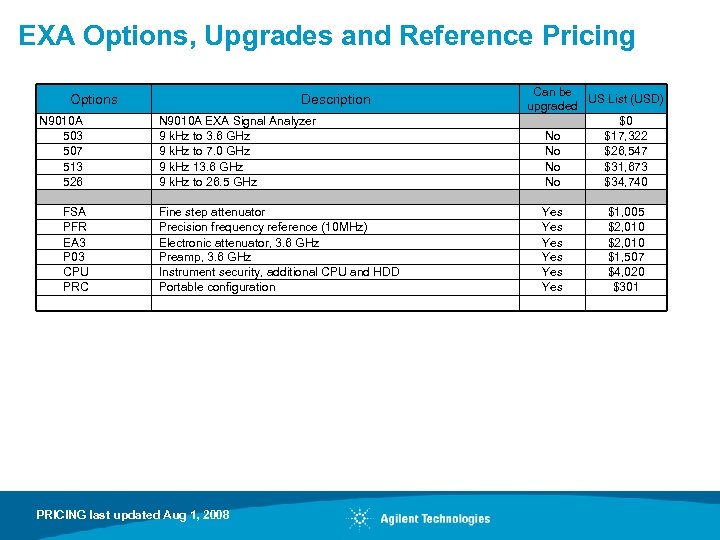

EXA Options, Upgrades and Reference Pricing Options N 9010 A 503 507 513 526 FSA PFR EA 3 P 03 CPU PRC Description N 9010 A EXA Signal Analyzer 9 k. Hz to 3. 6 GHz 9 k. Hz to 7. 0 GHz 9 k. Hz 13. 6 GHz 9 k. Hz to 26. 5 GHz Fine step attenuator Precision frequency reference (10 MHz) Electronic attenuator, 3. 6 GHz Preamp, 3. 6 GHz Instrument security, additional CPU and HDD Portable configuration PRICING last updated Aug 1, 2008 Can be US List (USD) upgraded $0 No $17, 322 No $26, 547 No $31, 673 No $34, 740 Yes Yes Yes $1, 005 $2, 010 $1, 507 $4, 020 $301

X-Series Options, Upgrades and Reference Pricing Options N 9063 A-2 FP N 9068 A-2 FP N 9069 A-1 FP N 9071 A-2 FP N 9072 A-2 FP N 9073 A-1 FP N 9073 A-2 FP N 9075 A-2 FP N 9079 A-1 FP N 9079 A-2 FP 89601 XFP-205 89601 XFP-333 89601 XFP-AYA 89601 XFP-B 7 R Description Analog Demod (AM/FM/PM) Phase Noise measurement application Noise Figure measurement application GSM/EDGE measurement application Cdma 2000 measurement application W-CDMA measurement HSDPA/HSUPA 802. 16 Wi. MAX Mobile OFDMA measurement application TD-SCDMA measurement HSDPA/8 PSK X-Series Analyzer Basic VSA-Lite X-Series Analyzer Connectivity X-Series Analyzer Vector Modulation analysis X-Series Analyzer WLAN Modulation Analysis PRICING last updated Aug 1, 2008 Can be US List (USD) upgraded Yes $3, 075 Yes $4, 818 Yes $7, 175 Yes $6, 150 Yes $ 7, 482 Yes $7, 586 Yes $5, 843 Yes $10, 250 Yes $7, 175 Yes $3, 075 Yes $4, 590 Yes $1, 020 Yes $4, 520 Yes $4, 250

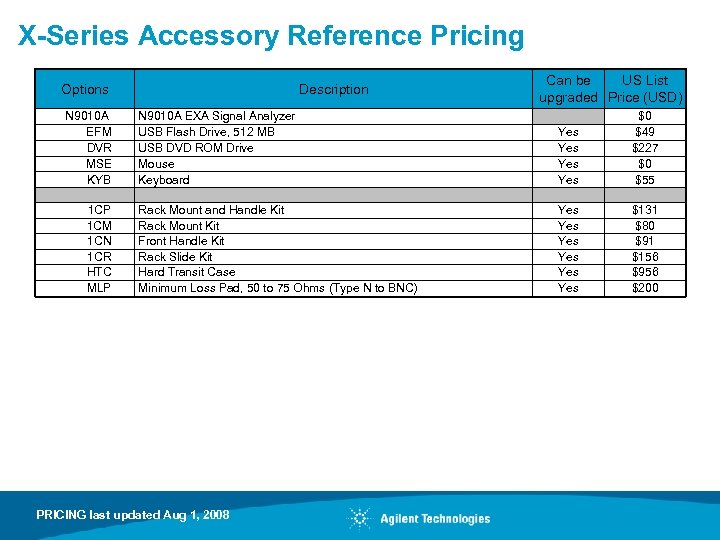

X-Series Accessory Reference Pricing Options N 9010 A EFM DVR MSE KYB 1 CP 1 CM 1 CN 1 CR HTC MLP Description Can be US List upgraded Price (USD) N 9010 A EXA Signal Analyzer USB Flash Drive, 512 MB USB DVD ROM Drive Mouse Keyboard Yes Yes $0 $49 $227 $0 $55 Rack Mount and Handle Kit Rack Mount Kit Front Handle Kit Rack Slide Kit Hard Transit Case Minimum Loss Pad, 50 to 75 Ohms (Type N to BNC) Yes Yes Yes $131 $80 $91 $156 $956 $200 PRICING last updated Aug 1, 2008

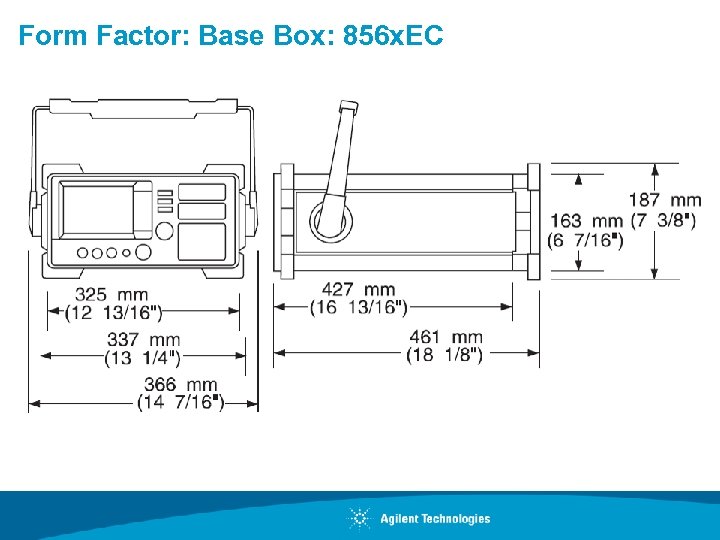

Form Factor: Base Box: 856 x. EC

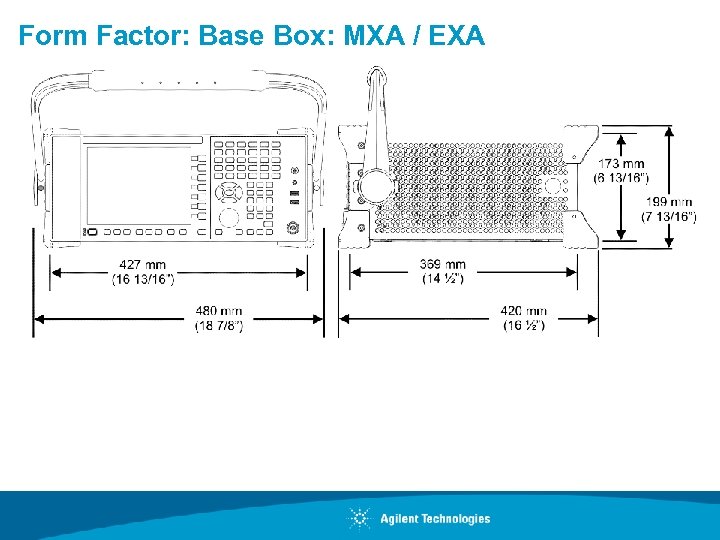

Form Factor: Base Box: MXA / EXA

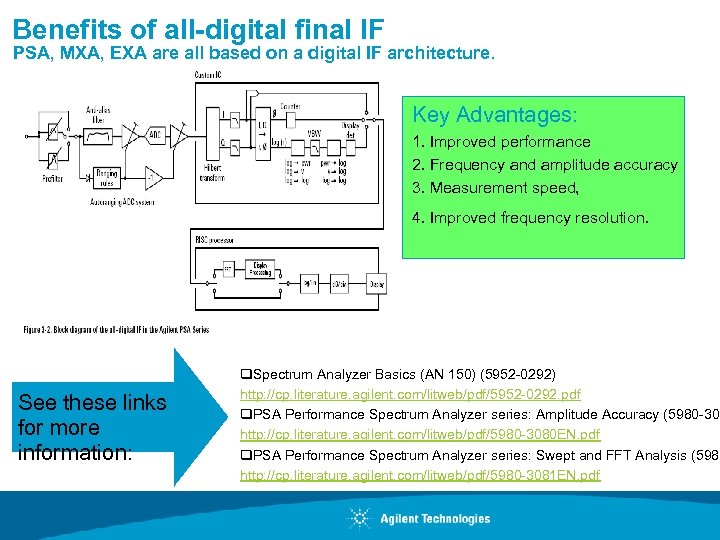

Benefits of all-digital final IF PSA, MXA, EXA are all based on a digital IF architecture. Key Advantages: 1. Improved performance 2. Frequency and amplitude accuracy 3. Measurement speed, 4. Improved frequency resolution. See these links for more information: q. Spectrum Analyzer Basics (AN 150) (5952 -0292) http: //cp. literature. agilent. com/litweb/pdf/5952 -0292. pdf q. PSA Performance Spectrum Analyzer series: Amplitude Accuracy (5980 -308 http: //cp. literature. agilent. com/litweb/pdf/5980 -3080 EN. pdf q. PSA Performance Spectrum Analyzer series: Swept and FFT Analysis (5980 http: //cp. literature. agilent. com/litweb/pdf/5980 -3081 EN. pdf

Tools for Maintenance and Calibration Standard-compliant calibration services available: – E 444 x. A-A 6 J: ANSI Z 540 compliant calibration from Agilent factory – Z 540. 3 -2006 capable E 444 x. A-1 A 7: ISO 17025 compliant calibration from Agilent factory Annual Calibration: Agilent wants you to have a positive support experience TWO YEAR calibration cycle on PSA SG/MY/US 4430 and above with our instruments regardless of whether: – You return them to Agilent … Agilent Calibration Pricing – You perform your own maintenance …TME Calibration and Adjustment Software PSA Overview

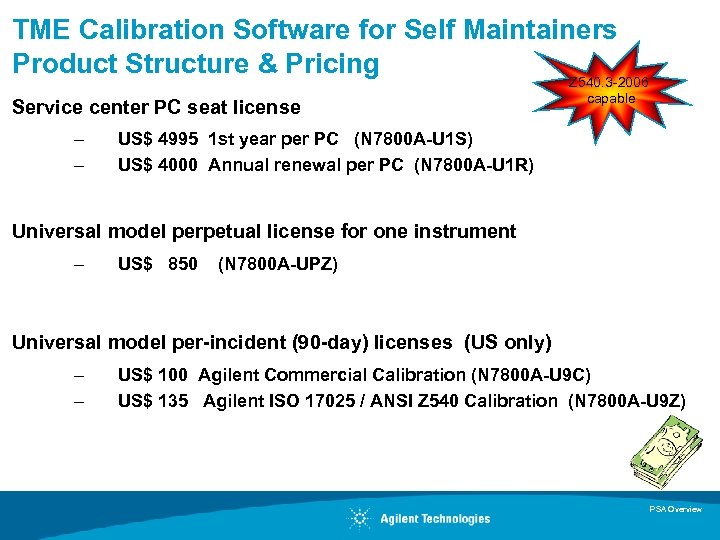

TME Calibration Software for Self Maintainers Product Structure & Pricing Z 540. 3 -2006 Service center PC seat license – – capable US$ 4995 1 st year per PC (N 7800 A-U 1 S) US$ 4000 Annual renewal per PC (N 7800 A-U 1 R) Universal model perpetual license for one instrument – US$ 850 (N 7800 A-UPZ) Universal model per-incident (90 -day) licenses (US only) – – US$ 100 Agilent Commercial Calibration (N 7800 A-U 9 C) US$ 135 Agilent ISO 17025 / ANSI Z 540 Calibration (N 7800 A-U 9 Z) PSA Overview
