Agile Software Engineering Bharath Padmanabhan ∙ University of Kansas ∙ Spring 2014 Agile Software Engineering Bharath Padmanabhan ∙ University of Kansas ∙ Spring 2014

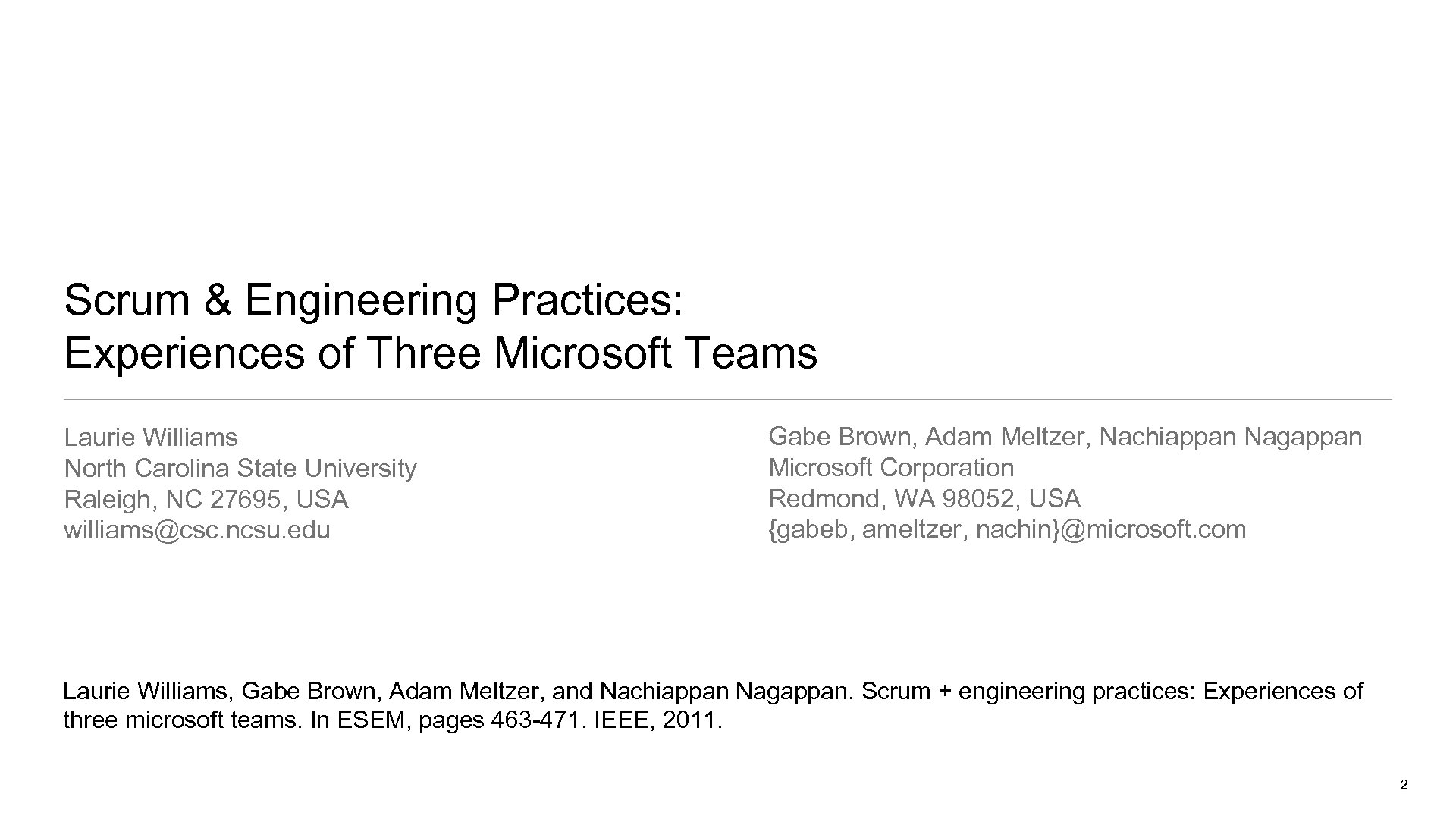

Scrum & Engineering Practices: Experiences of Three Microsoft Teams Laurie Williams North Carolina State Scrum & Engineering Practices: Experiences of Three Microsoft Teams Laurie Williams North Carolina State University Raleigh, NC 27695, USA [email protected] ncsu. edu Gabe Brown, Adam Meltzer, Nachiappan Nagappan Microsoft Corporation Redmond, WA 98052, USA {gabeb, ameltzer, nachin}@microsoft. com Laurie Williams, Gabe Brown, Adam Meltzer, and Nachiappan Nagappan. Scrum + engineering practices: Experiences of three microsoft teams. In ESEM, pages 463 -471. IEEE, 2011. 2

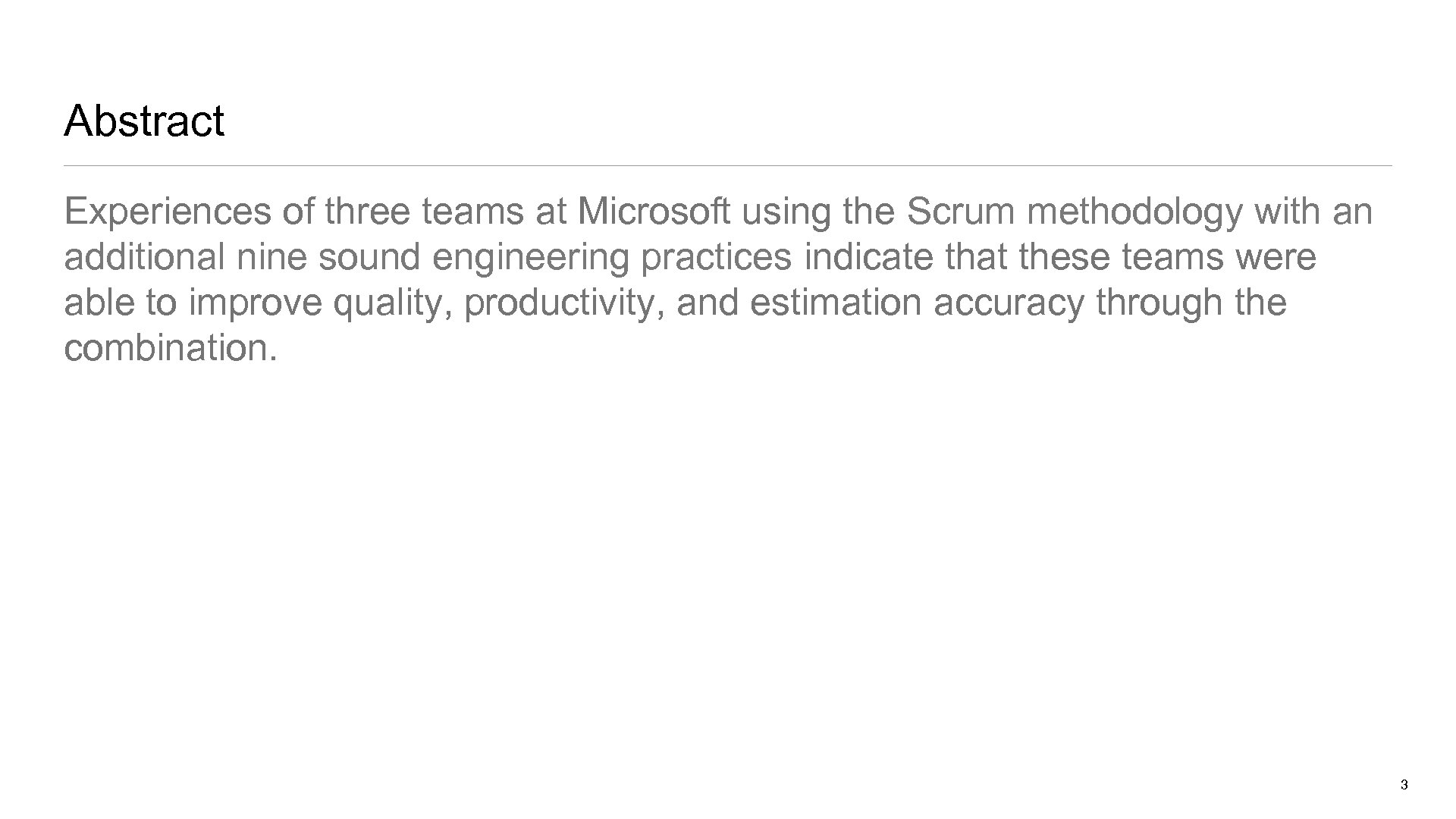

Abstract Experiences of three teams at Microsoft using the Scrum methodology with an additional Abstract Experiences of three teams at Microsoft using the Scrum methodology with an additional nine sound engineering practices indicate that these teams were able to improve quality, productivity, and estimation accuracy through the combination. 3

Sections 1. Introduction 2. Scrum 3. Background and Related Work 4. Microsoft Team and Sections 1. Introduction 2. Scrum 3. Background and Related Work 4. Microsoft Team and Process 5. Results 6. Limitations 7. Lessons Learned 4

INTRODUCTION 5 INTRODUCTION 5

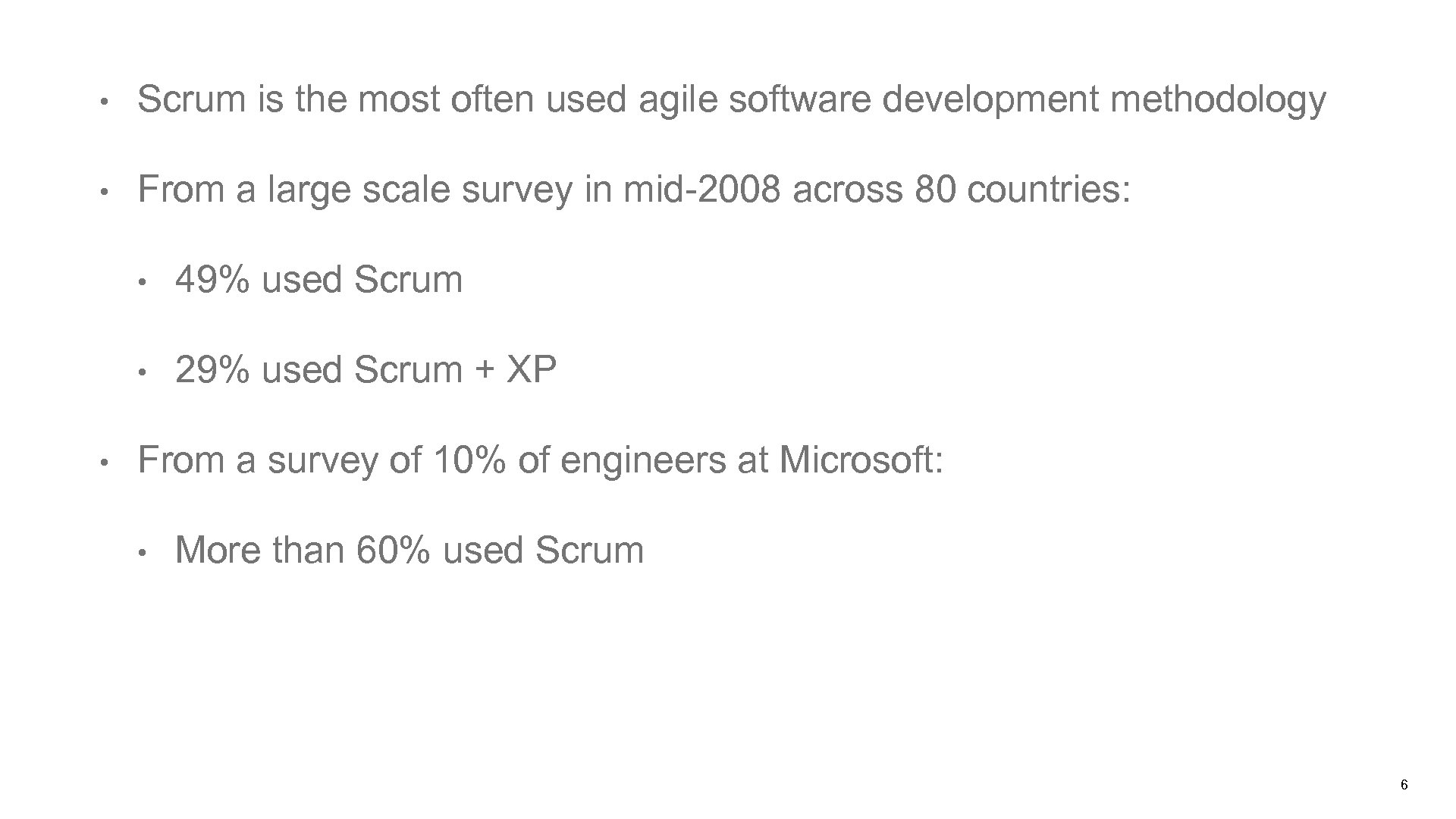

 • Scrum is the most often used agile software development methodology • From • Scrum is the most often used agile software development methodology • From a large scale survey in mid-2008 across 80 countries: • • • 49% used Scrum 29% used Scrum + XP From a survey of 10% of engineers at Microsoft: • More than 60% used Scrum 6

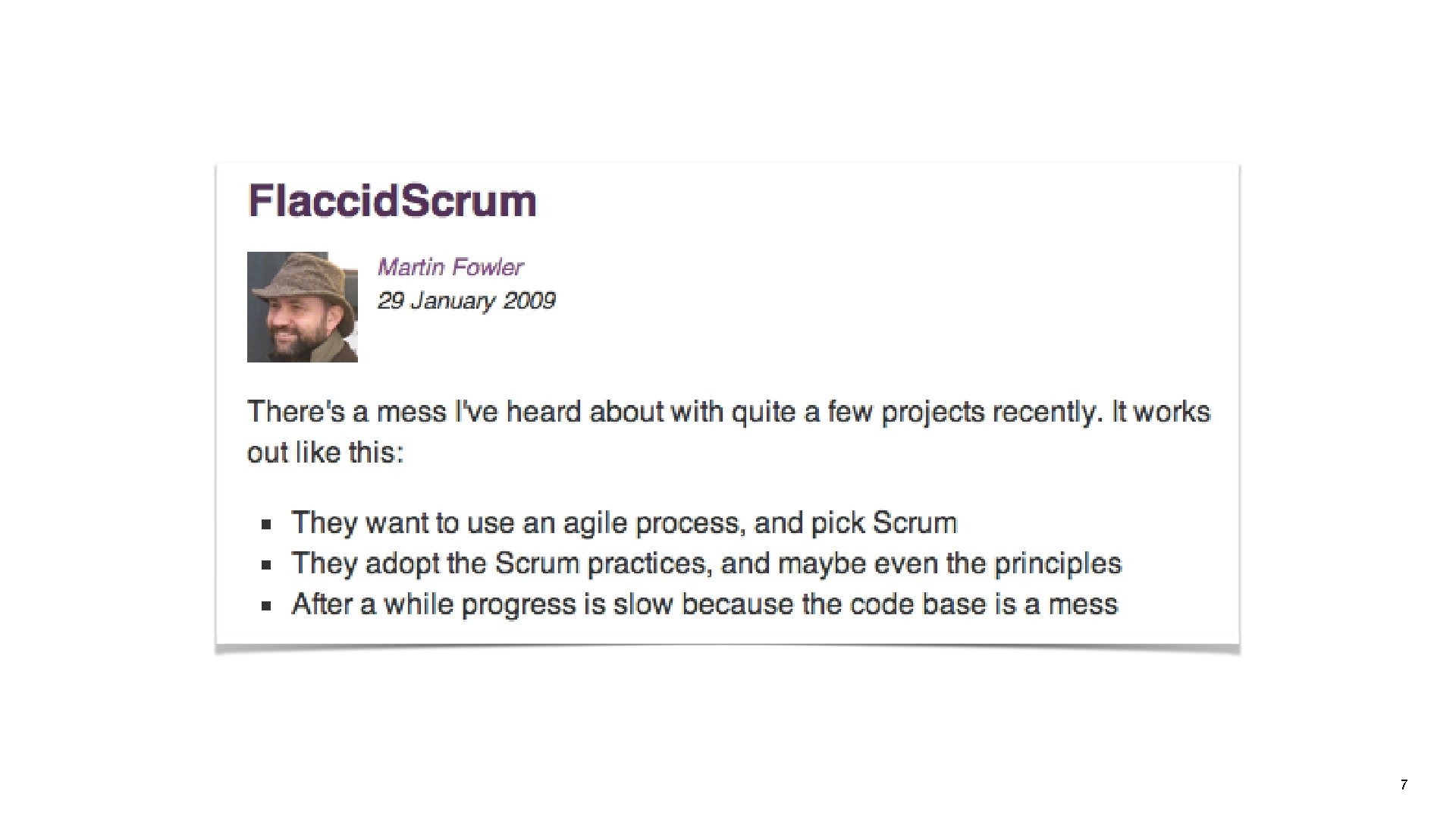

7 7

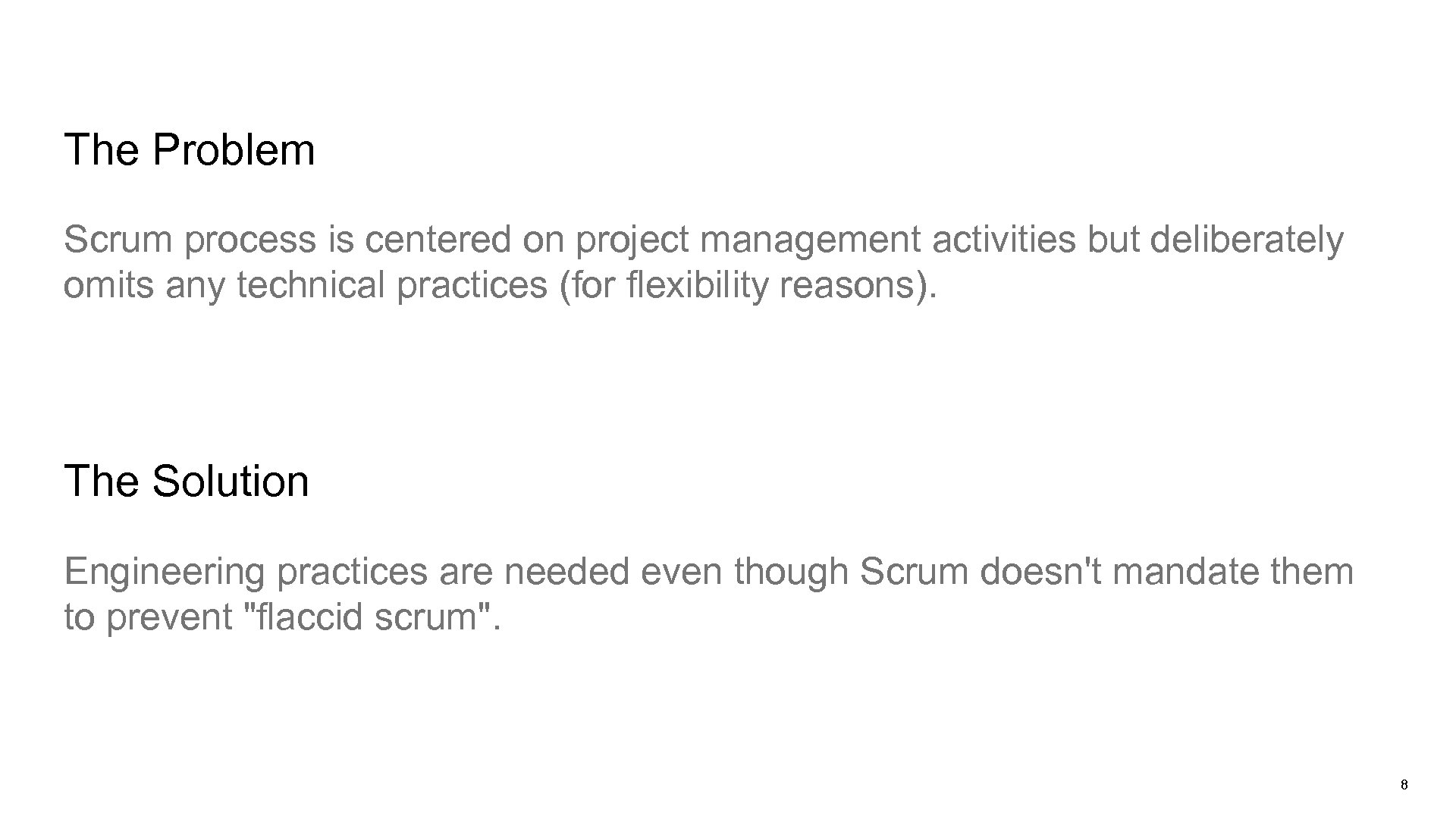

The Problem Scrum process is centered on project management activities but deliberately omits any The Problem Scrum process is centered on project management activities but deliberately omits any technical practices (for flexibility reasons). The Solution Engineering practices are needed even though Scrum doesn't mandate them to prevent "flaccid scrum". 8

SCRUM 9 SCRUM 9

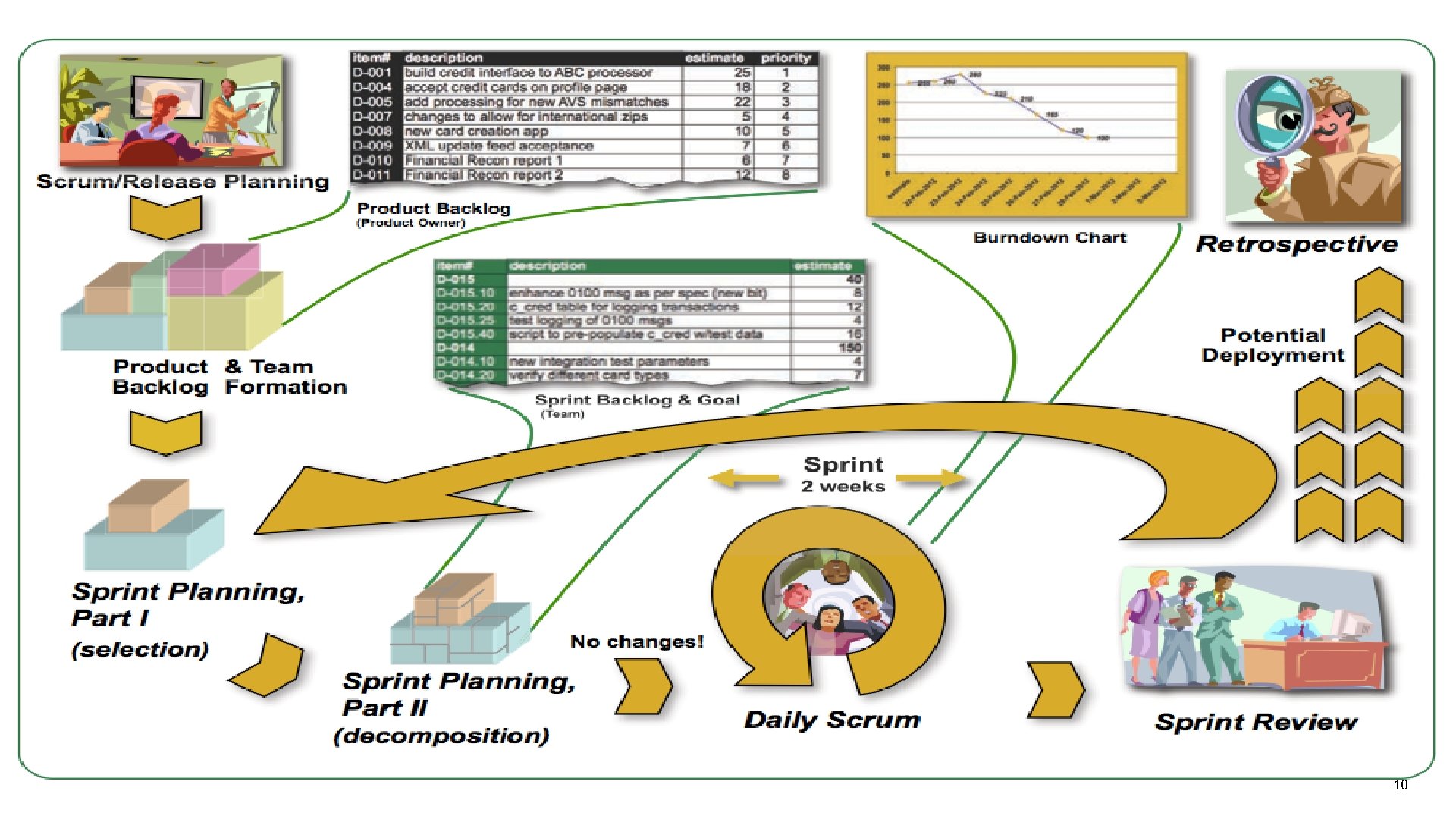

10 10

BACKGROUND AND RELATED WORK 11 BACKGROUND AND RELATED WORK 11

Scrum Research Case Study Research • Quantitative research as opposed to qualitative research of Scrum Research Case Study Research • Quantitative research as opposed to qualitative research of which there is plenty • Experiences shared in this paper can be classified as case study research • Pattern among published studies shows successful Scrum teams also use proven engineering practices • Tests theories and collects data through observation of a project in an unmodified setting • Gaming company, using Scrum and XP, managed to exceed expectations even after team reduced in half • Involve factors that staged experiments generally do not exhibit such as scale, complexity, unpredictability, and dynamism • Dev team for internet portal, who initially ran into cumulative and irreversible problems using just Scrum, managed to implement higher quality product by adopting some engineering practices • Very significant for industrial evaluation of software engineering methods and tools 12

MICROSOFT TEAM AND PROCESS 13 MICROSOFT TEAM AND PROCESS 13

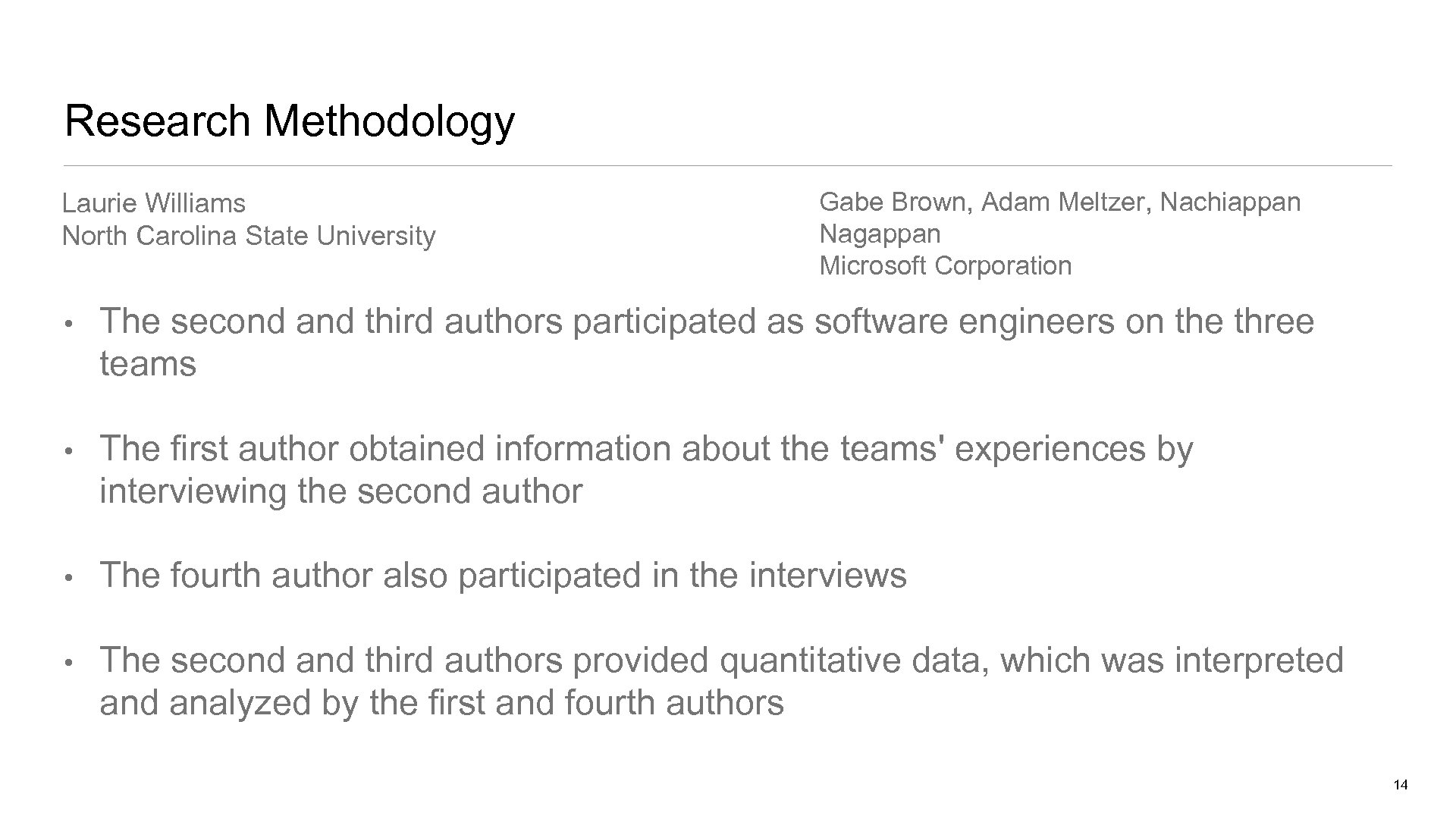

Research Methodology Laurie Williams North Carolina State University Gabe Brown, Adam Meltzer, Nachiappan Nagappan Research Methodology Laurie Williams North Carolina State University Gabe Brown, Adam Meltzer, Nachiappan Nagappan Microsoft Corporation • The second and third authors participated as software engineers on the three teams • The first author obtained information about the teams' experiences by interviewing the second author • The fourth author also participated in the interviews • The second and third authors provided quantitative data, which was interpreted analyzed by the first and fourth authors 14

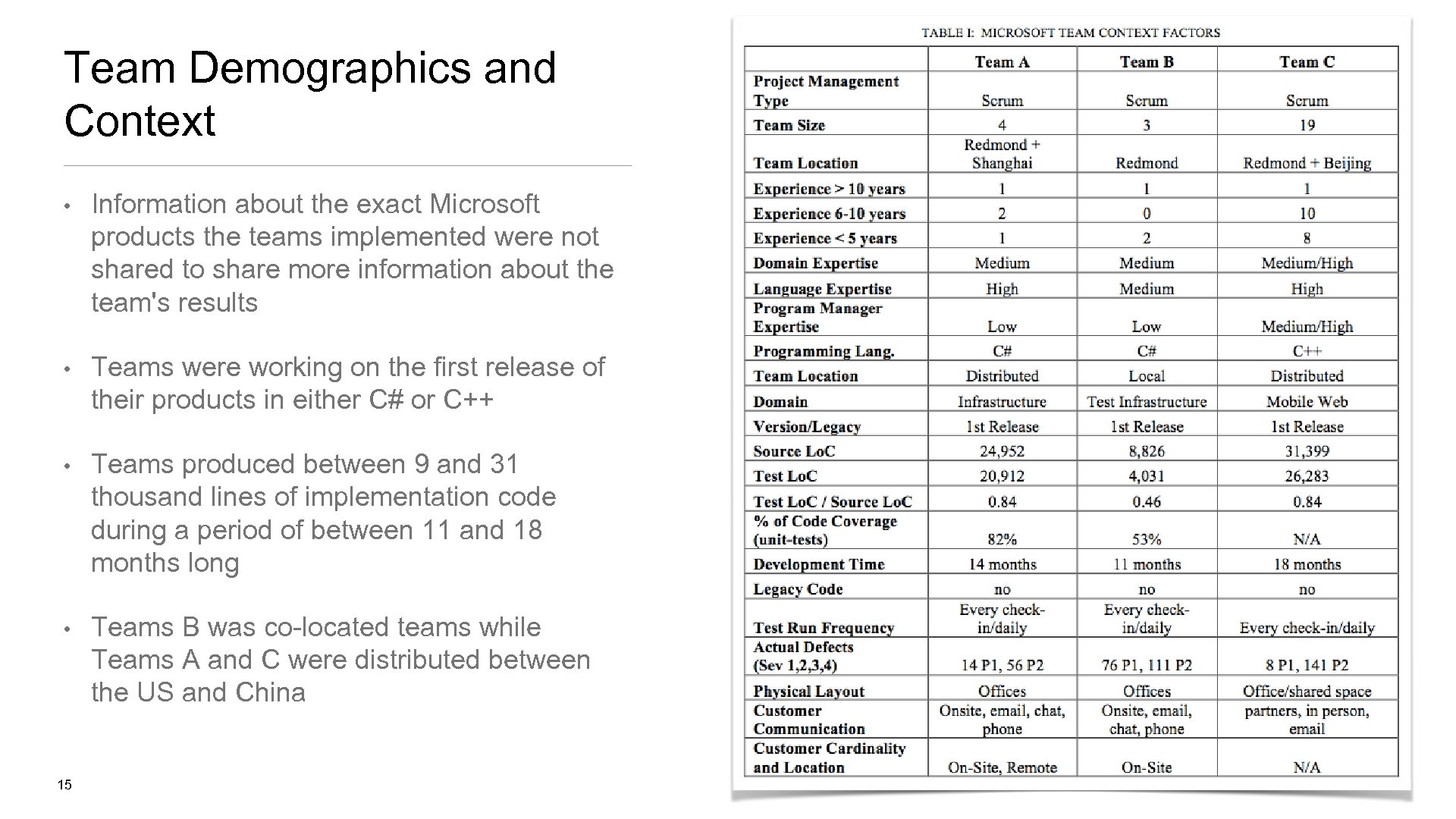

Team Demographics and Context • Information about the exact Microsoft products the teams implemented Team Demographics and Context • Information about the exact Microsoft products the teams implemented were not shared to share more information about the team's results • Teams were working on the first release of their products in either C# or C++ • Teams produced between 9 and 31 thousand lines of implementation code during a period of between 11 and 18 months long • Teams B was co-located teams while Teams A and C were distributed between the US and China 15

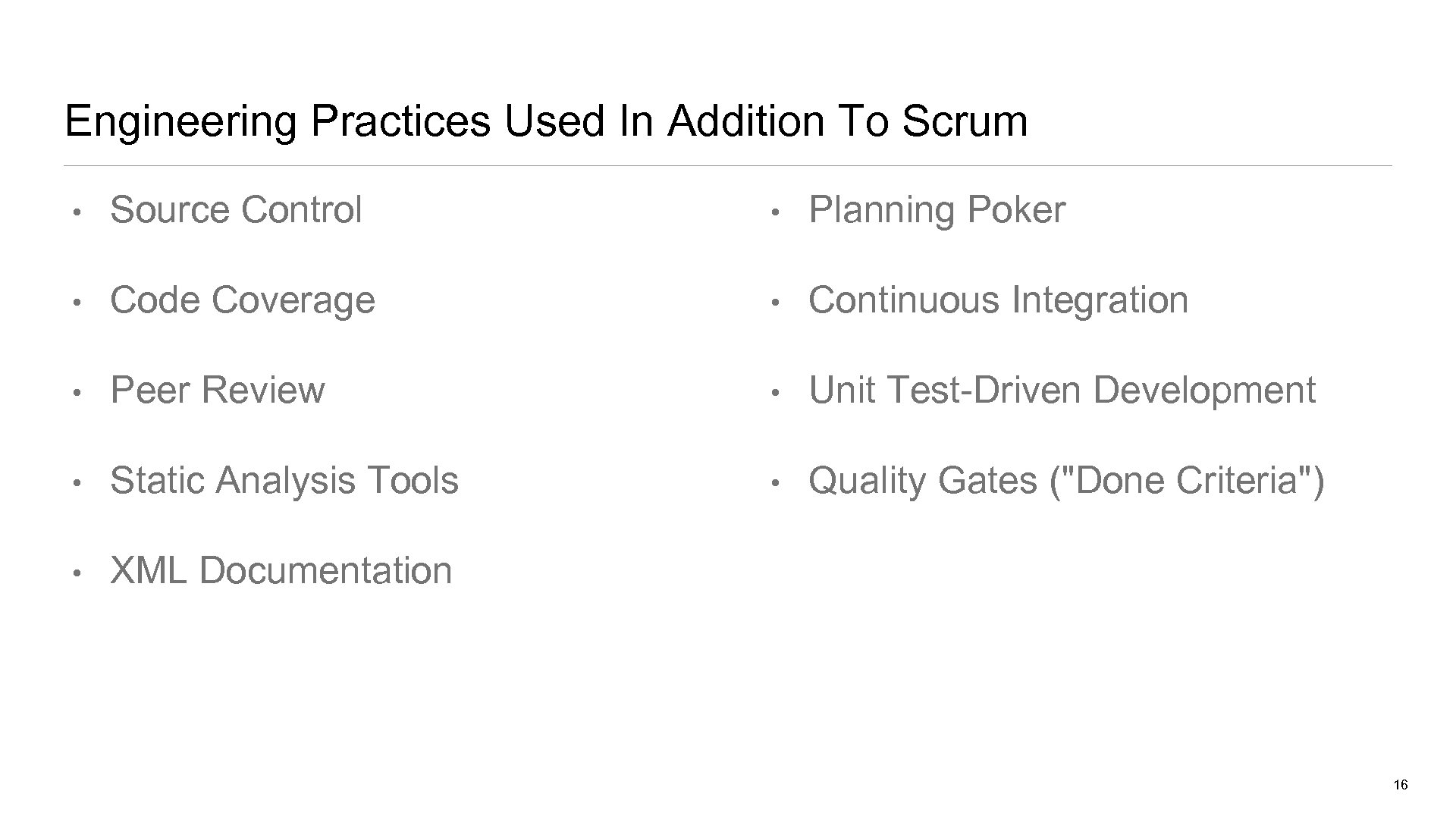

Engineering Practices Used In Addition To Scrum • Source Control • Planning Poker • Engineering Practices Used In Addition To Scrum • Source Control • Planning Poker • Code Coverage • Continuous Integration • Peer Review • Unit Test-Driven Development • Static Analysis Tools • Quality Gates ("Done Criteria") • XML Documentation 16

Planning Poker • Teams used Planning Poker to estimate the person-hours required to complete Planning Poker • Teams used Planning Poker to estimate the person-hours required to complete functionality within an iteration • Played by the team as part of the Sprint Planning meeting • Most often, only one or two Planning Poker rounds are necessary on a particular requirement before consensus is reached 17

Planning Poker • Obtaining a shared understanding • Exposing hidden assumptions of the technical Planning Poker • Obtaining a shared understanding • Exposing hidden assumptions of the technical aspects of implementation and verification • Discussing the implications throughout the system for implementing a requirement • Surfacing and resolving ambiguities realized via divergent perspectives on the requirement • Exposing easy and hard alternatives for achieving desired goals 18

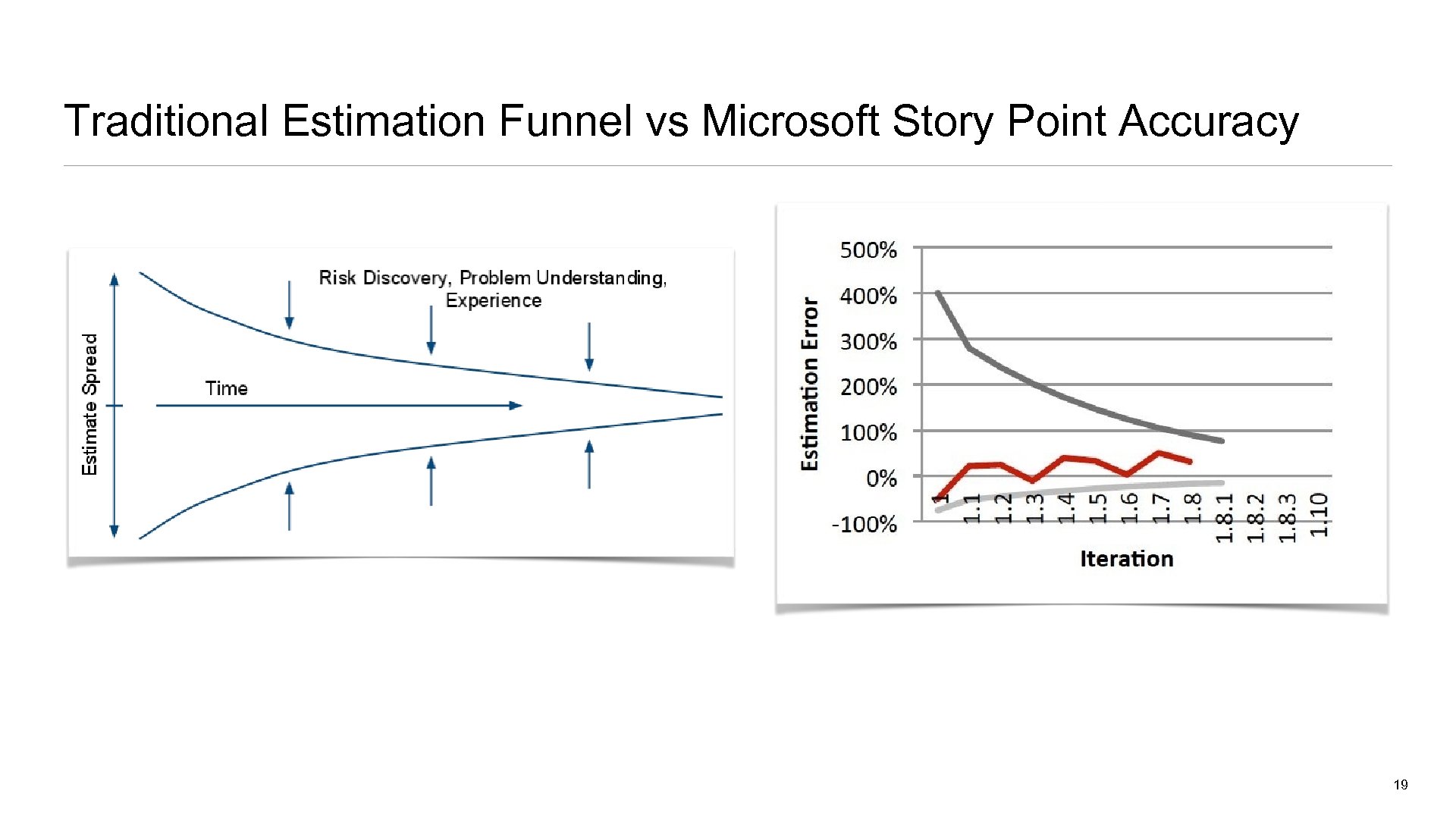

Traditional Estimation Funnel vs Microsoft Story Point Accuracy 19 Traditional Estimation Funnel vs Microsoft Story Point Accuracy 19

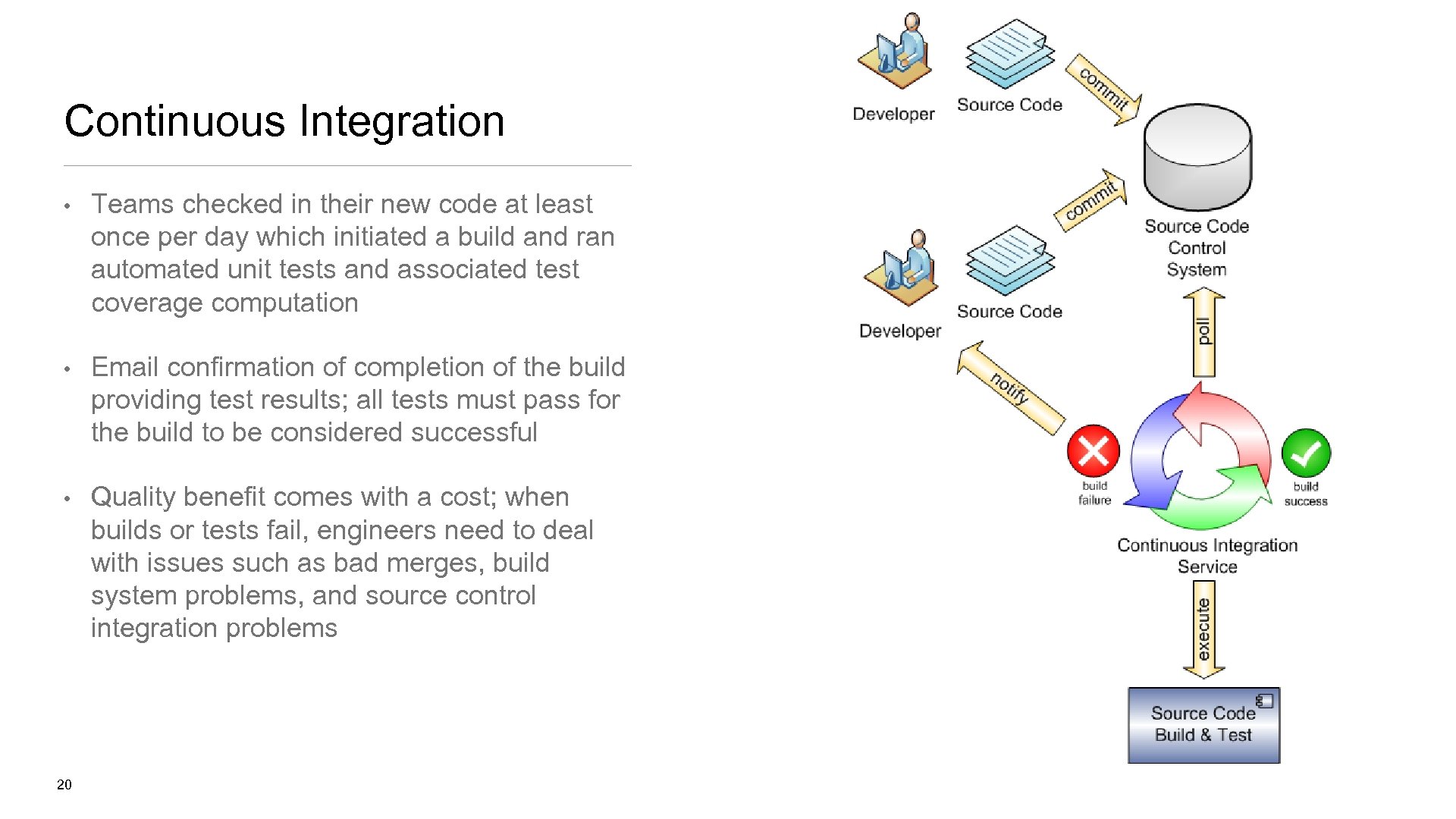

Continuous Integration • Teams checked in their new code at least once per day Continuous Integration • Teams checked in their new code at least once per day which initiated a build and ran automated unit tests and associated test coverage computation • Email confirmation of completion of the build providing test results; all tests must pass for the build to be considered successful • Quality benefit comes with a cost; when builds or tests fail, engineers need to deal with issues such as bad merges, build system problems, and source control integration problems 20

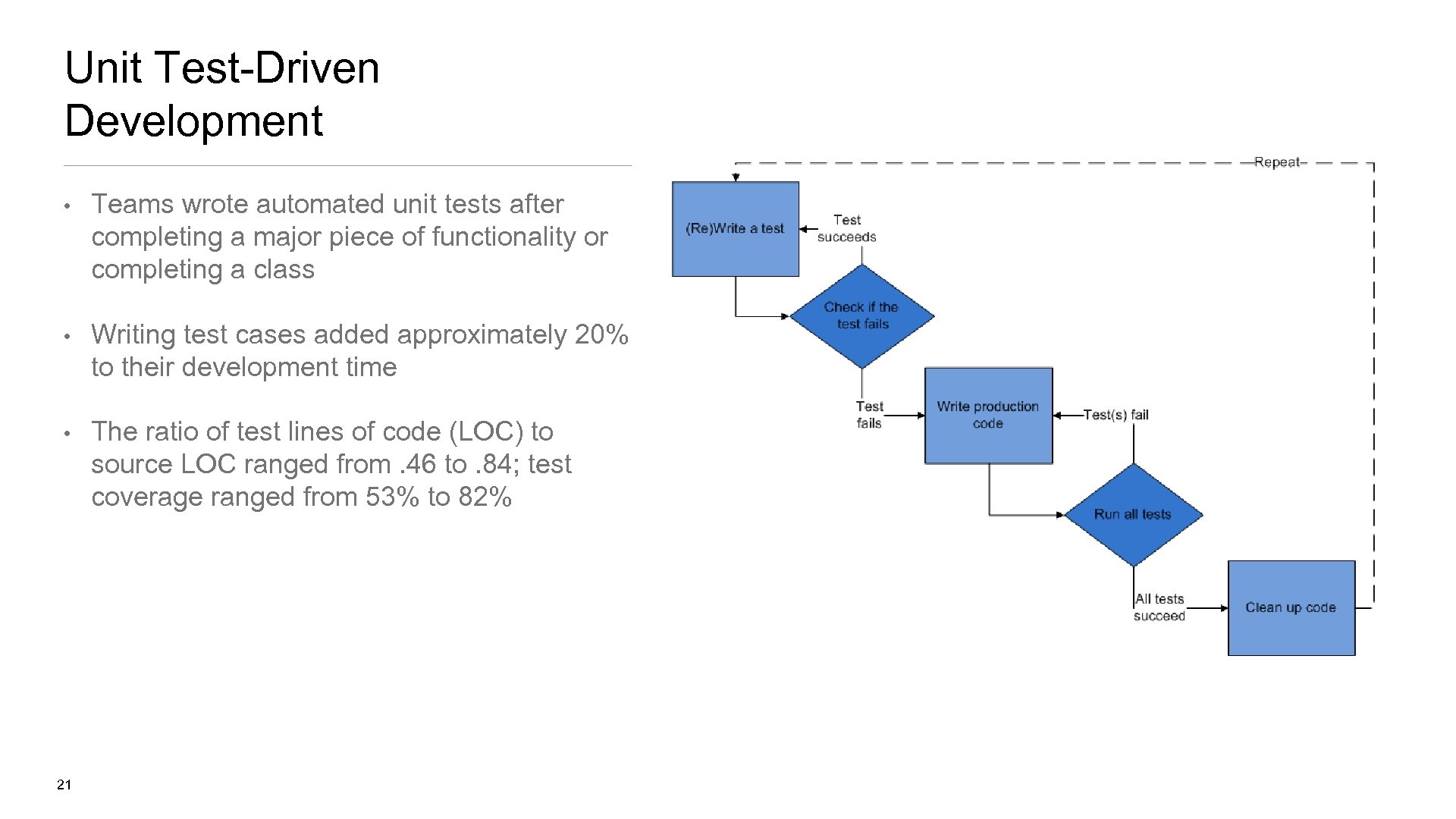

Unit Test-Driven Development • Teams wrote automated unit tests after completing a major piece Unit Test-Driven Development • Teams wrote automated unit tests after completing a major piece of functionality or completing a class • Writing test cases added approximately 20% to their development time • The ratio of test lines of code (LOC) to source LOC ranged from. 46 to. 84; test coverage ranged from 53% to 82% 21

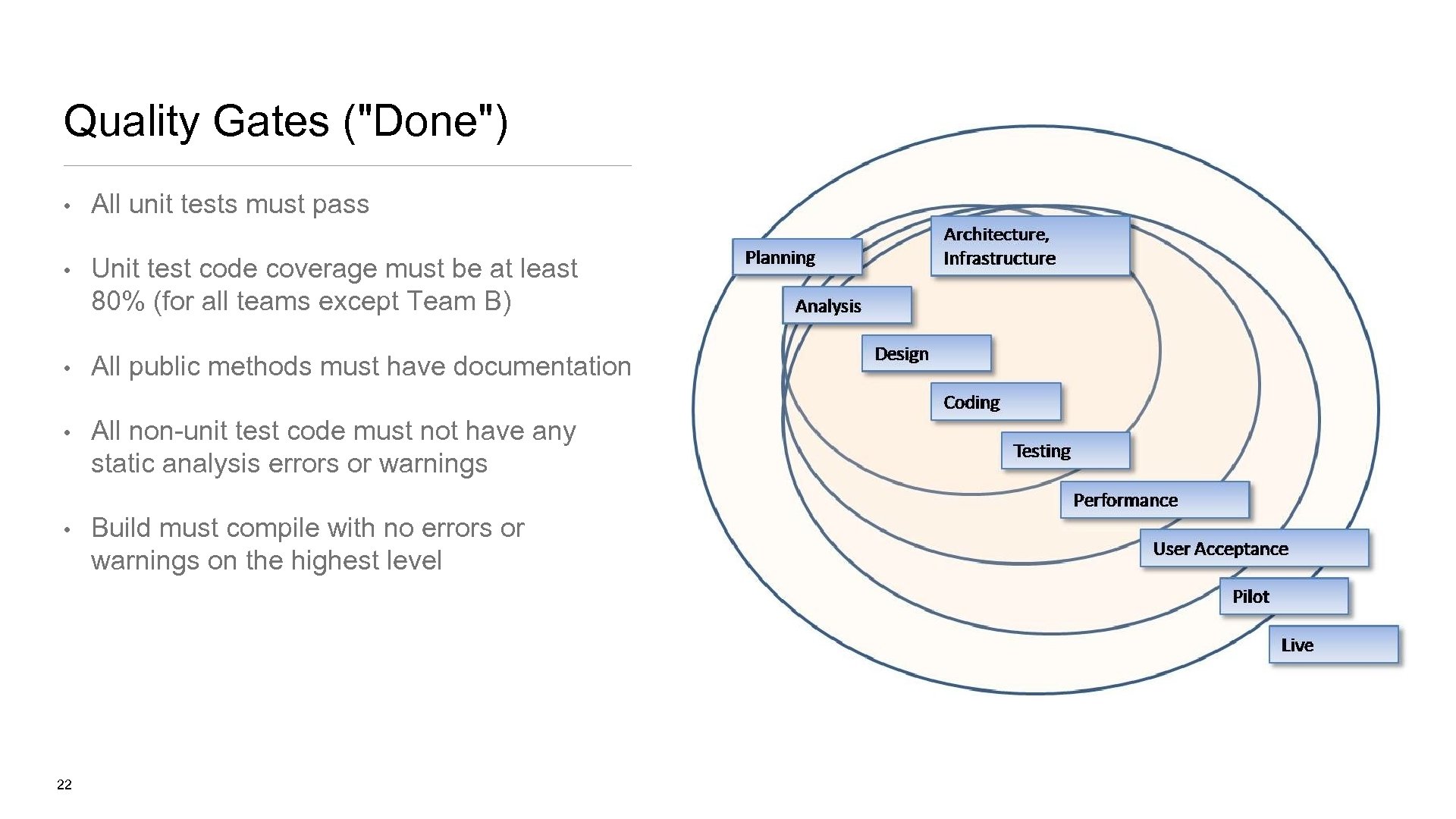

Quality Gates ( Quality Gates ("Done") • All unit tests must pass • Unit test code coverage must be at least 80% (for all teams except Team B) • All public methods must have documentation • All non-unit test code must not have any static analysis errors or warnings • Build must compile with no errors or warnings on the highest level 22

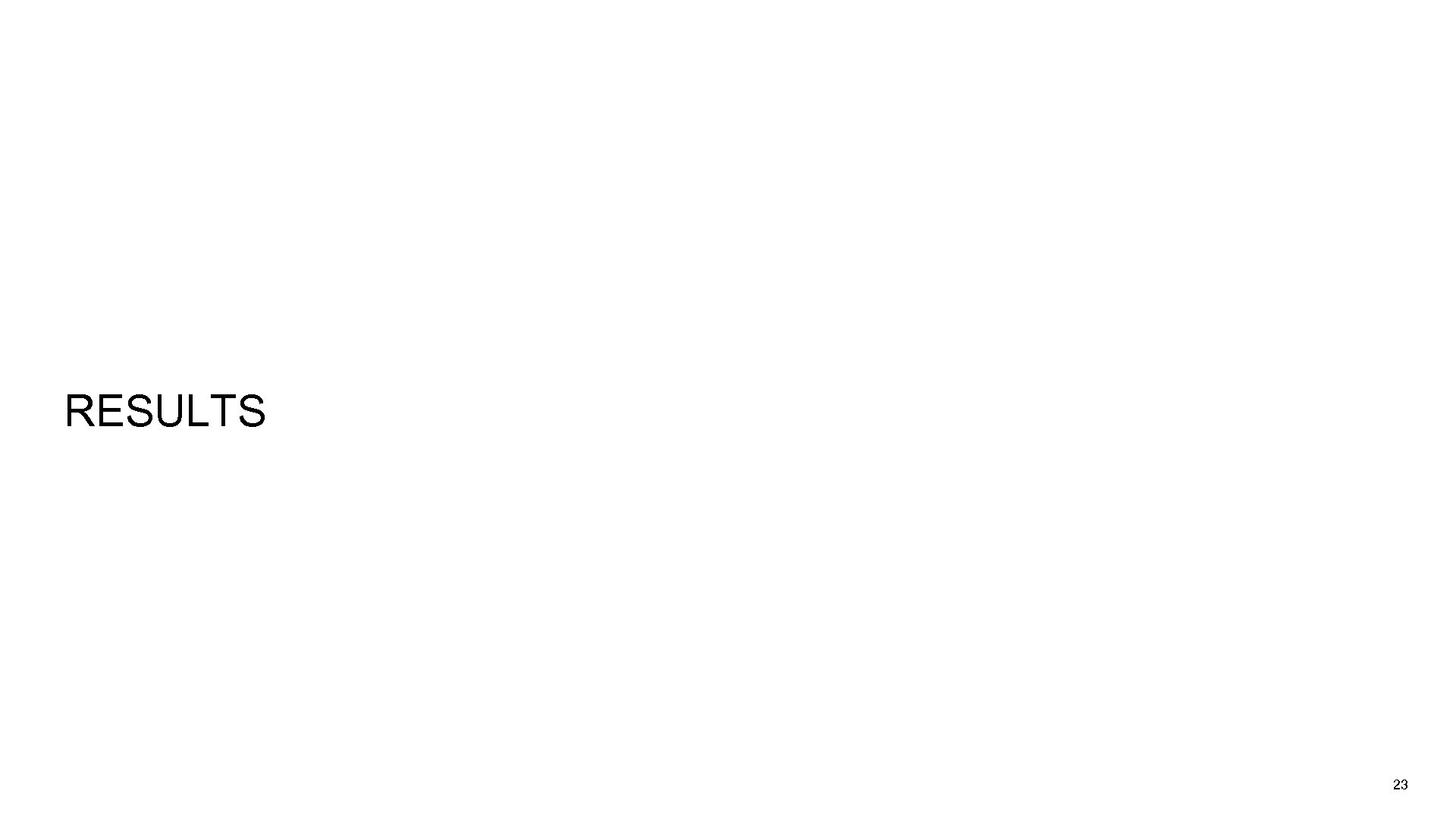

RESULTS 23 RESULTS 23

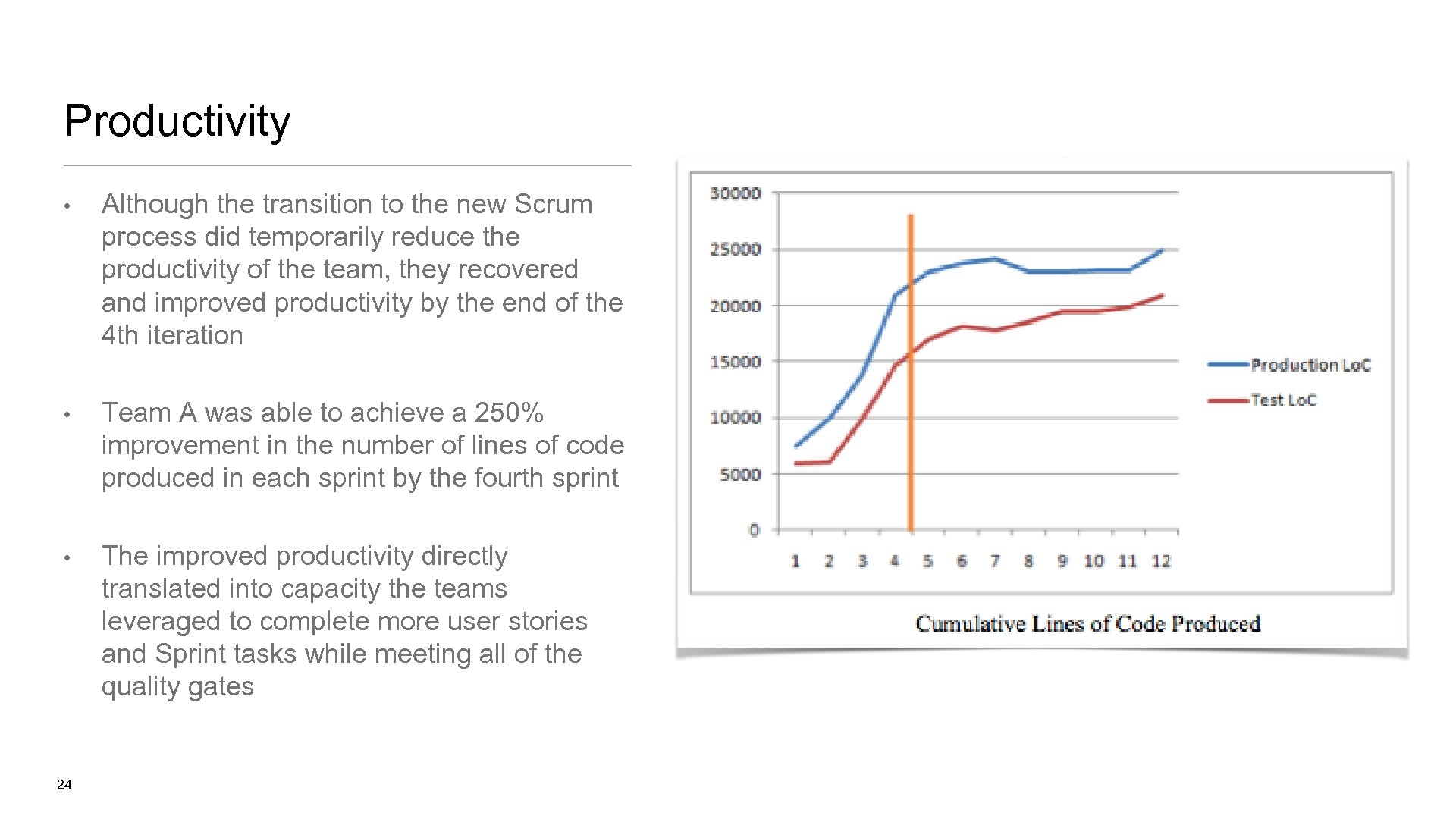

Productivity • Although the transition to the new Scrum process did temporarily reduce the Productivity • Although the transition to the new Scrum process did temporarily reduce the productivity of the team, they recovered and improved productivity by the end of the 4 th iteration • Team A was able to achieve a 250% improvement in the number of lines of code produced in each sprint by the fourth sprint • The improved productivity directly translated into capacity the teams leveraged to complete more user stories and Sprint tasks while meeting all of the quality gates 24

Defect Density • The Scrum projects had lower defect density (defects per line of Defect Density • The Scrum projects had lower defect density (defects per line of code) than the non-Scrum projects except in the case of Team B • Team B's testing effort was relatively low (Source/test LOC ratio is 0. 53) indicating the lowest effort amongst all Scrum projects • To compare and contrast the quality of the software systems produced, a comparison was made against prior published defect density rates of a non-Scrum project at IBM 25

LIMITATIONS 26 LIMITATIONS 26

 • Results are only valid in the context of these three teams and • Results are only valid in the context of these three teams and the results may not generalize beyond these three teams • Comparisons are not on the same projects as the same teams could not repeat the projects in a non-Scrum environment • Since all three Microsoft teams were relatively small teams, this research does not address scalability of Scrum to larger teams • Productivity of teams compared relative to their productivity prior to Scrum wherein other factors may have been involved • Unable to distinguish specifically which of the nine additional engineering practices were the biggest drivers in the productivity and quality results observed 27

LESSONS LEARNED 28 LESSONS LEARNED 28

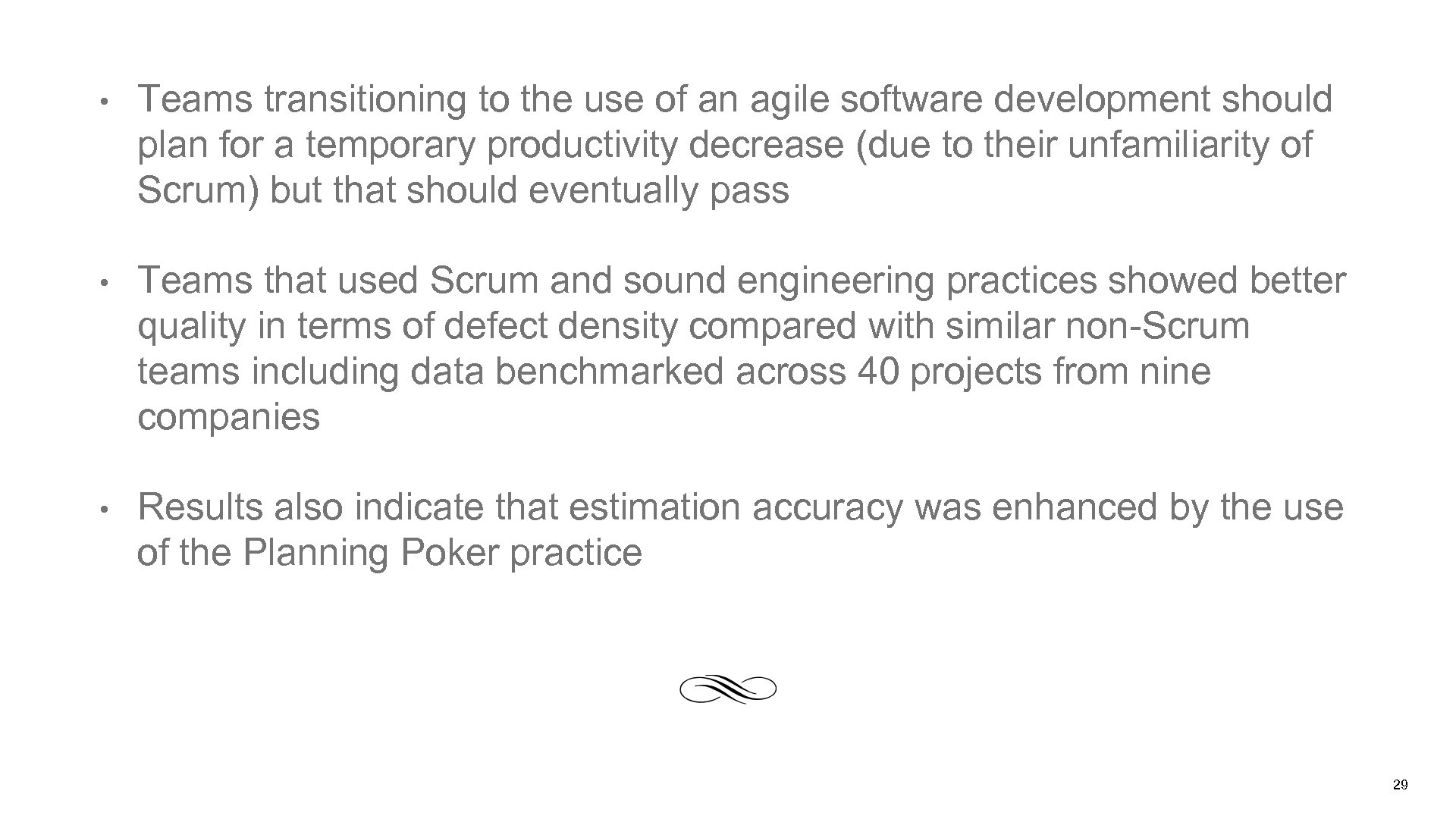

 • Teams transitioning to the use of an agile software development should plan • Teams transitioning to the use of an agile software development should plan for a temporary productivity decrease (due to their unfamiliarity of Scrum) but that should eventually pass • Teams that used Scrum and sound engineering practices showed better quality in terms of defect density compared with similar non-Scrum teams including data benchmarked across 40 projects from nine companies • Results also indicate that estimation accuracy was enhanced by the use of the Planning Poker practice 29
