AGENDA PUBLIC FORUM October 12 2009 1

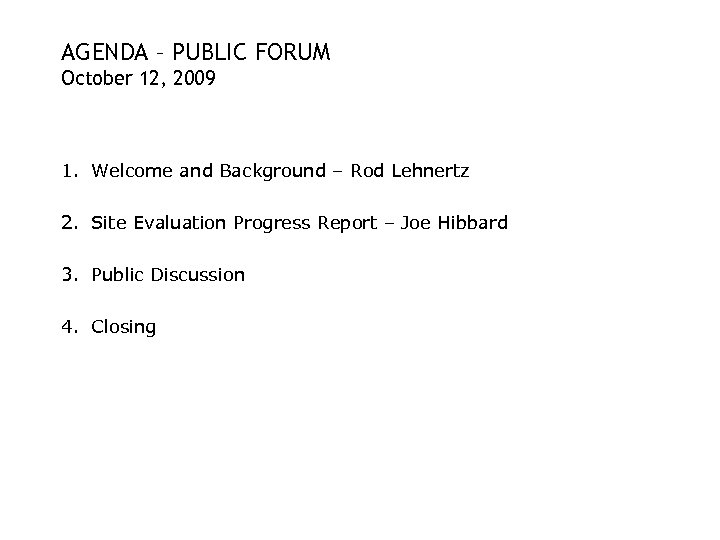

AGENDA – PUBLIC FORUM October 12, 2009 1. Welcome and Background – Rod Lehnertz 2. Site Evaluation Progress Report – Joe Hibbard 3. Public Discussion 4. Closing

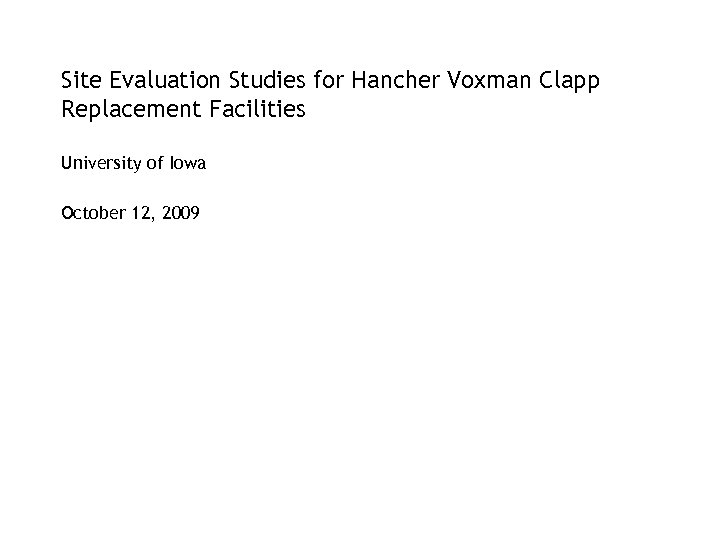

Site Evaluation Studies for Hancher Voxman Clapp Replacement Facilities University of Iowa October 12, 2009

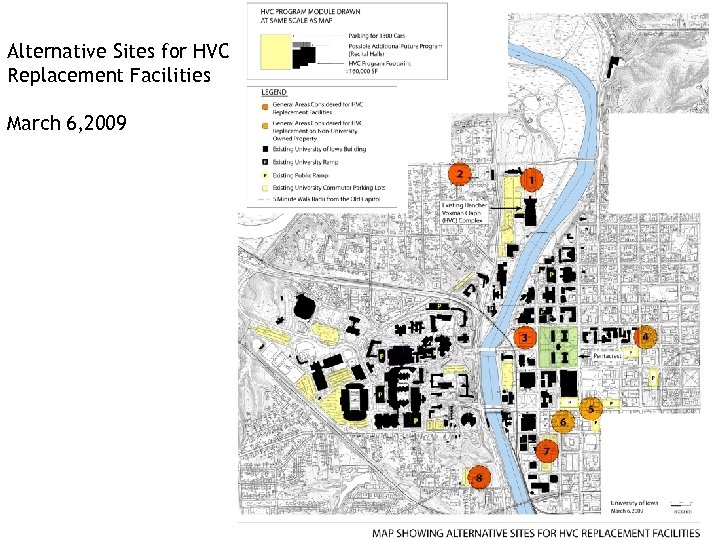

Alternative Sites for HVC Replacement Facilities March 6, 2009

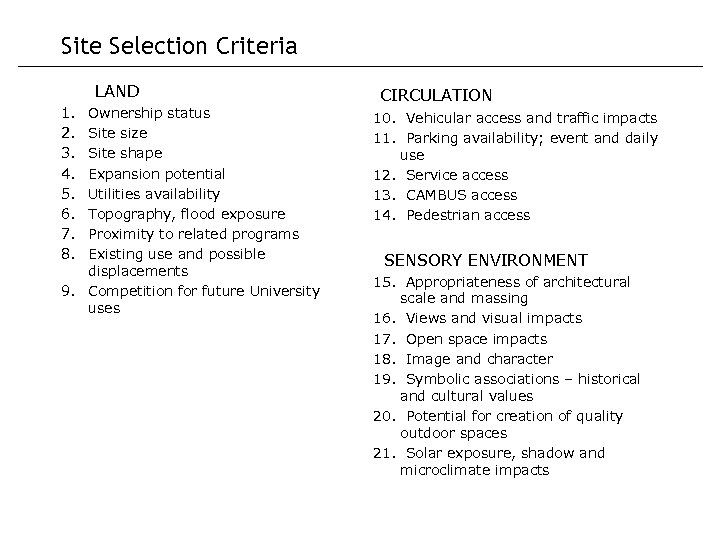

Site Selection Criteria LAND 1. 2. 3. 4. 5. 6. 7. 8. Ownership status Site size Site shape Expansion potential Utilities availability Topography, flood exposure Proximity to related programs Existing use and possible displacements 9. Competition for future University uses CIRCULATION 10. Vehicular access and traffic impacts 11. Parking availability; event and daily use 12. Service access 13. CAMBUS access 14. Pedestrian access SENSORY ENVIRONMENT 15. Appropriateness of architectural scale and massing 16. Views and visual impacts 17. Open space impacts 18. Image and character 19. Symbolic associations – historical and cultural values 20. Potential for creation of quality outdoor spaces 21. Solar exposure, shadow and microclimate impacts

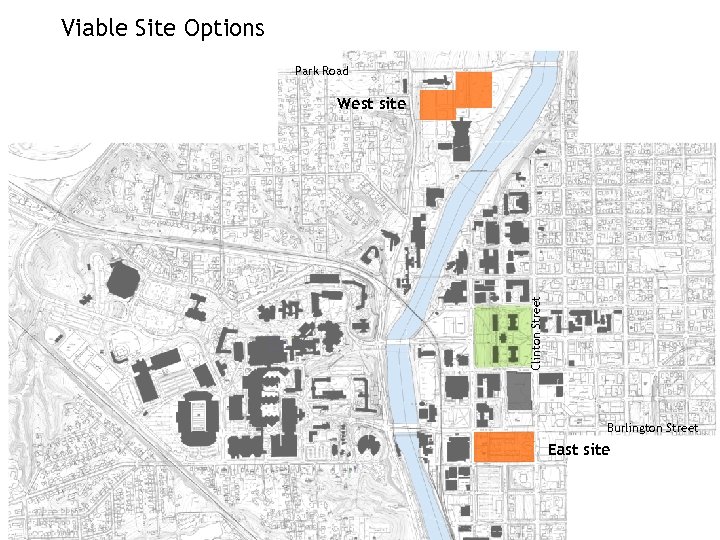

Viable Site Options Park Road Clinton Street West site Burlington Street East site

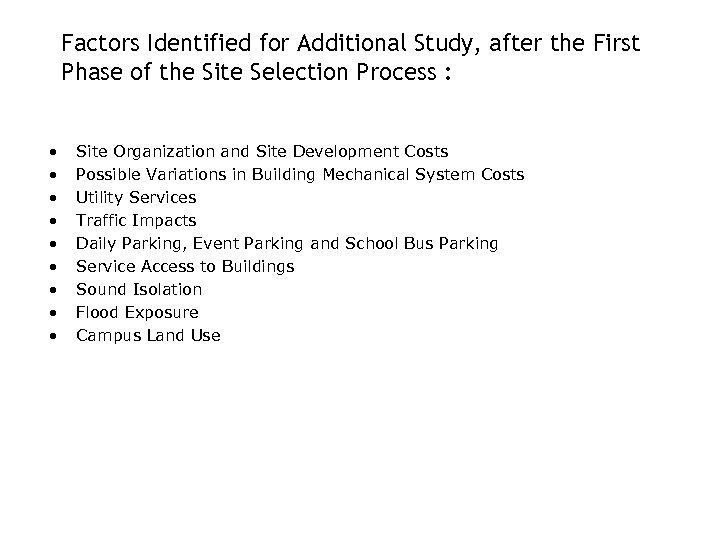

Factors Identified for Additional Study, after the First Phase of the Site Selection Process : • • • Site Organization and Site Development Costs Possible Variations in Building Mechanical System Costs Utility Services Traffic Impacts Daily Parking, Event Parking and School Bus Parking Service Access to Buildings Sound Isolation Flood Exposure Campus Land Use

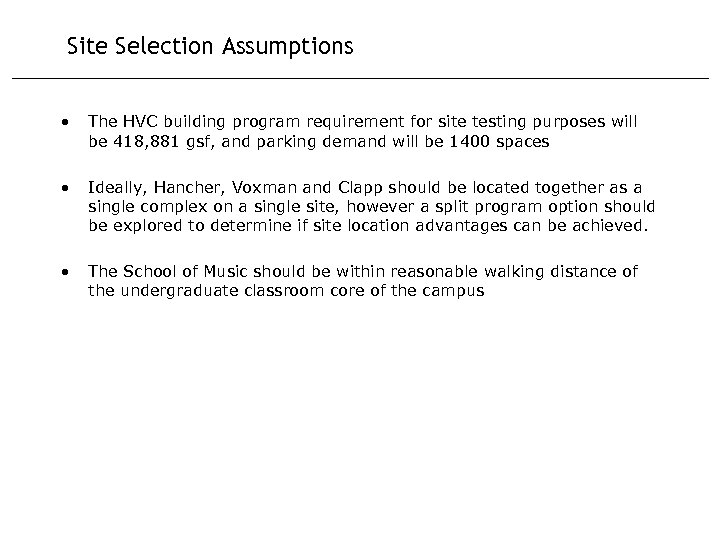

Site Selection Assumptions • The HVC building program requirement for site testing purposes will be 418, 881 gsf, and parking demand will be 1400 spaces • Ideally, Hancher, Voxman and Clapp should be located together as a single complex on a single site, however a split program option should be explored to determine if site location advantages can be achieved. • The School of Music should be within reasonable walking distance of the undergraduate classroom core of the campus

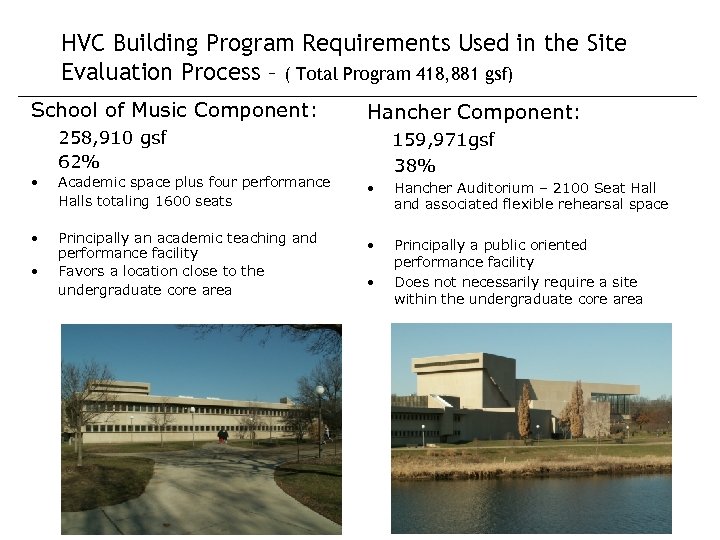

HVC Building Program Requirements Used in the Site Evaluation Process – ( Total Program 418, 881 gsf) School of Music Component: Hancher Component: 258, 910 gsf 62% 159, 971 gsf 38% • Academic space plus four performance Halls totaling 1600 seats • Hancher Auditorium – 2100 Seat Hall and associated flexible rehearsal space • Principally an academic teaching and performance facility Favors a location close to the undergraduate core area • Principally a public oriented performance facility Does not necessarily require a site within the undergraduate core area • •

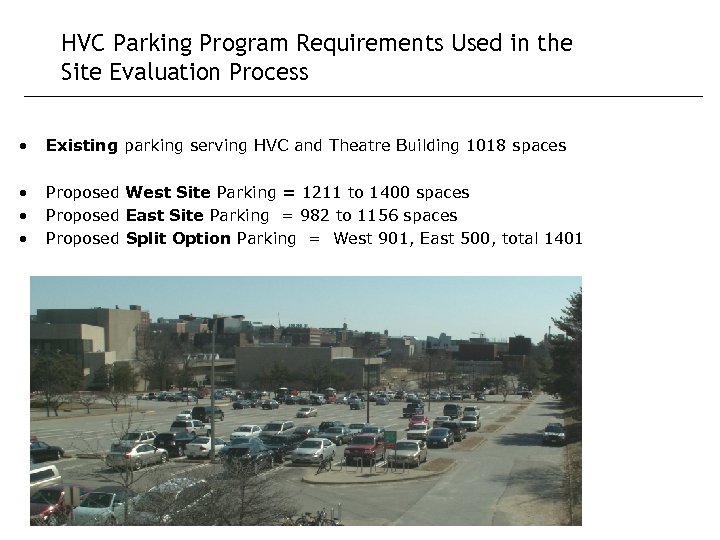

HVC Parking Program Requirements Used in the Site Evaluation Process • Existing parking serving HVC and Theatre Building 1018 spaces • • • Proposed West Site Parking = 1211 to 1400 spaces Proposed East Site Parking = 982 to 1156 spaces Proposed Split Option Parking = West 901, East 500, total 1401

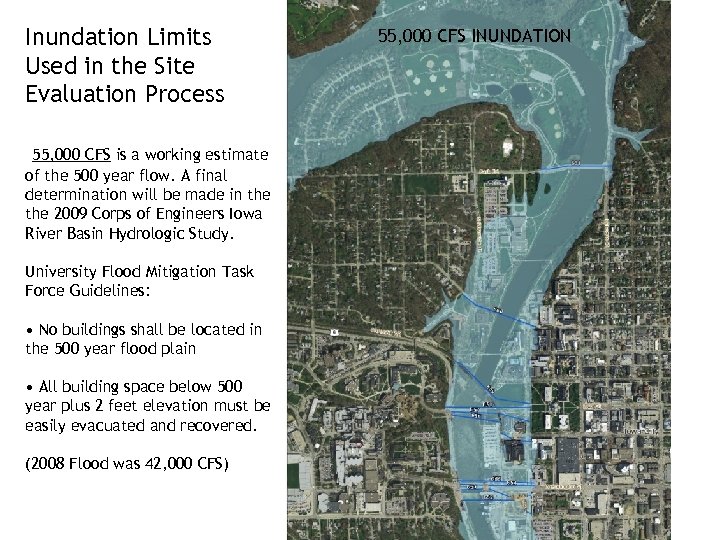

Inundation Limits Used in the Site Evaluation Process 55, 000 CFS is a working estimate of the 500 year flow. A final determination will be made in the 2009 Corps of Engineers Iowa River Basin Hydrologic Study. University Flood Mitigation Task Force Guidelines: • No buildings shall be located in the 500 year flood plain • All building space below 500 year plus 2 feet elevation must be easily evacuated and recovered. (2008 Flood was 42, 000 CFS) 55, 000 CFS INUNDATION

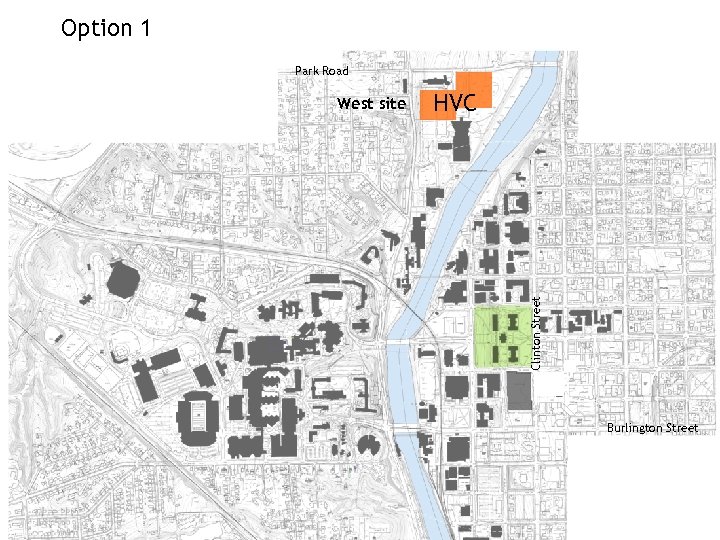

Option 1 Park Road HVC Clinton Street West site Burlington Street

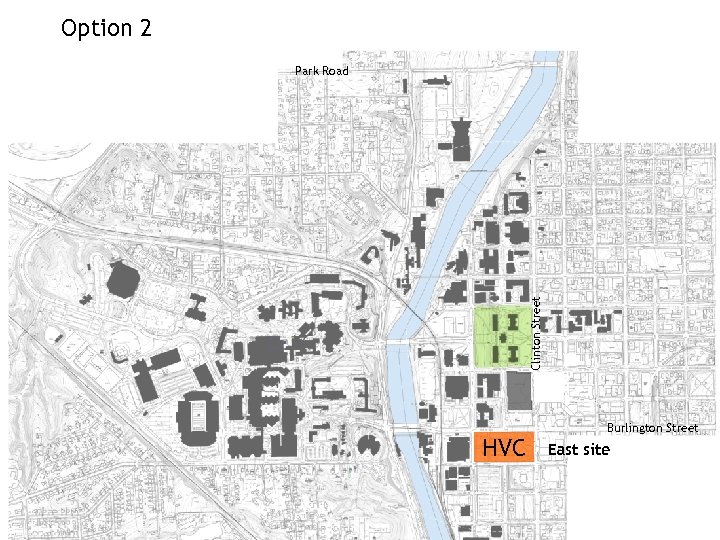

Option 2 Clinton Street Park Road HVC Burlington Street East site

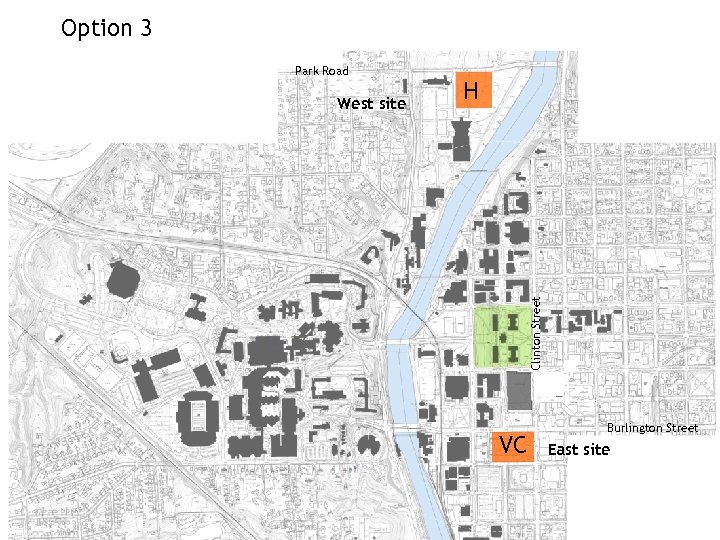

Option 3 West site H Clinton Street Park Road VC Burlington Street East site

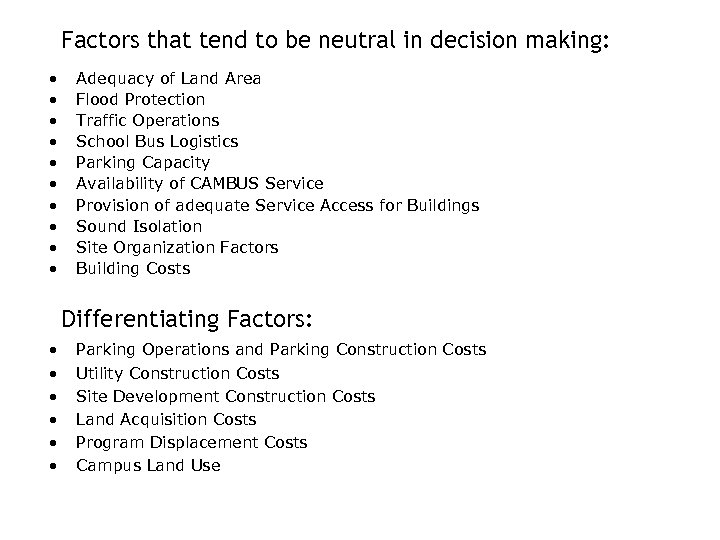

Factors that tend to be neutral in decision making: • • • Adequacy of Land Area Flood Protection Traffic Operations School Bus Logistics Parking Capacity Availability of CAMBUS Service Provision of adequate Service Access for Buildings Sound Isolation Site Organization Factors Building Costs Differentiating Factors: • • • Parking Operations and Parking Construction Costs Utility Construction Costs Site Development Construction Costs Land Acquisition Costs Program Displacement Costs Campus Land Use

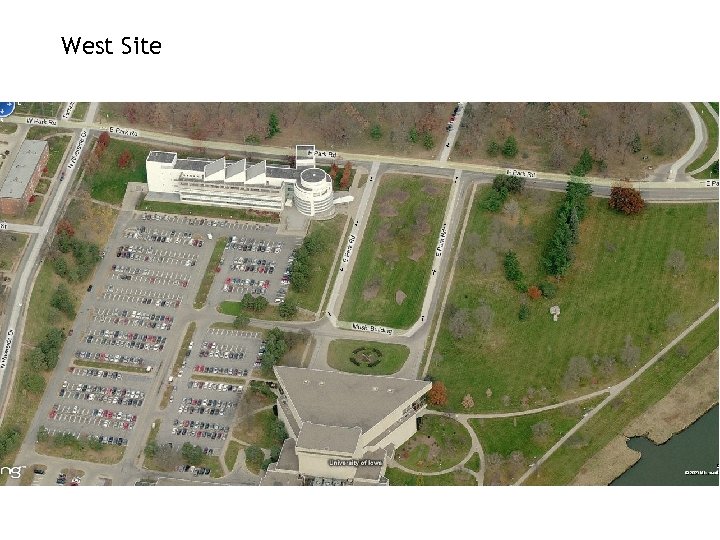

West Site

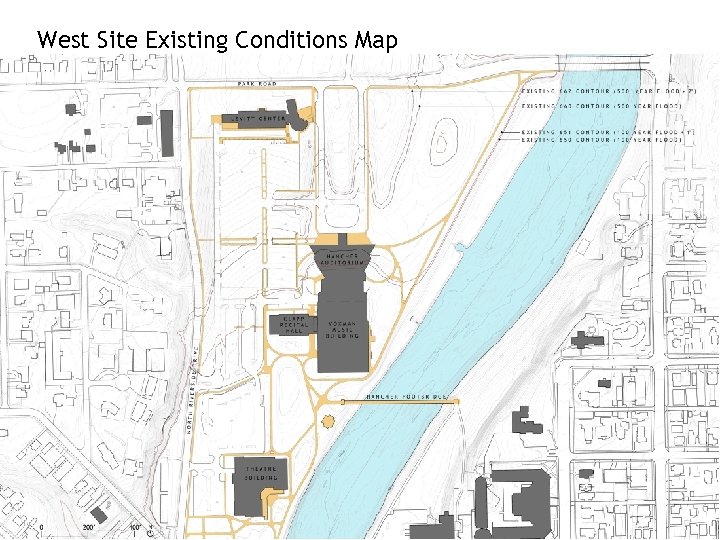

West Site Existing Conditions Map

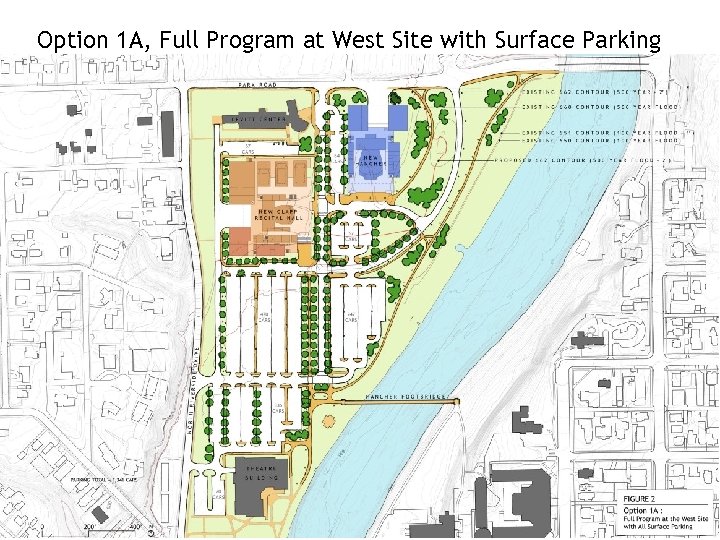

Option 1 A, Full Program at West Site with Surface Parking

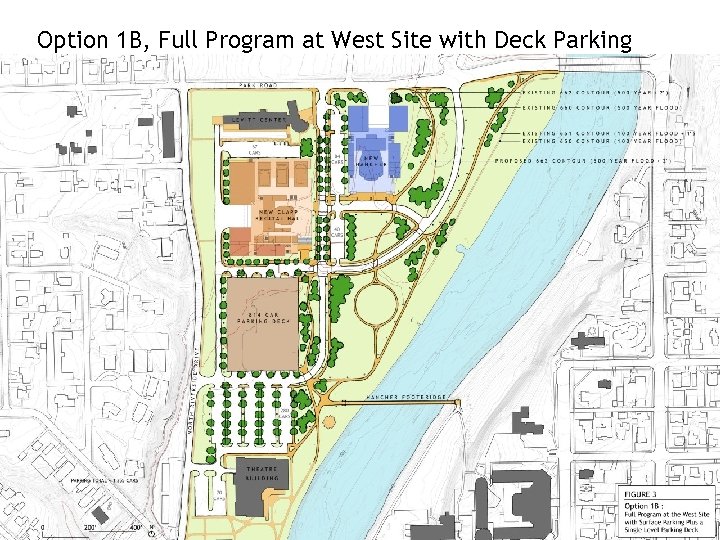

Option 1 B, Full Program at West Site with Deck Parking

Option 1 C, Full Program at West Site with Parking Ramp

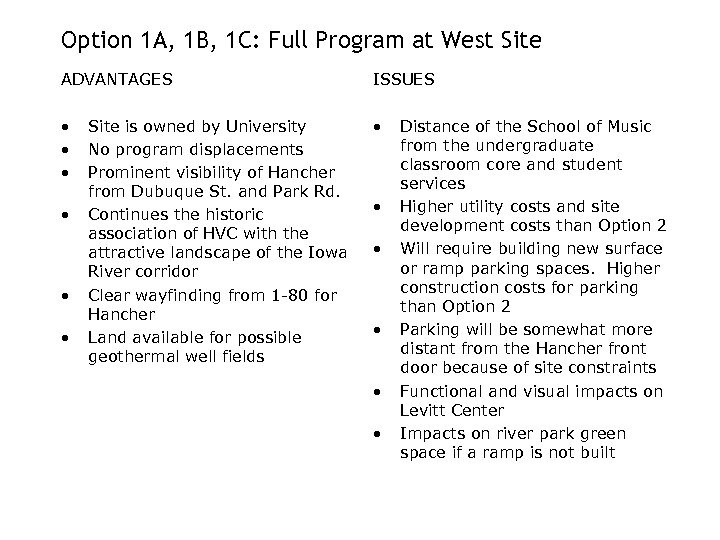

Option 1 A, 1 B, 1 C: Full Program at West Site ADVANTAGES ISSUES • • Site is owned by University No program displacements Prominent visibility of Hancher from Dubuque St. and Park Rd. Continues the historic association of HVC with the attractive landscape of the Iowa River corridor Clear wayfinding from 1 -80 for Hancher Land available for possible geothermal well fields • • • Distance of the School of Music from the undergraduate classroom core and student services Higher utility costs and site development costs than Option 2 Will require building new surface or ramp parking spaces. Higher construction costs for parking than Option 2 Parking will be somewhat more distant from the Hancher front door because of site constraints Functional and visual impacts on Levitt Center Impacts on river park green space if a ramp is not built

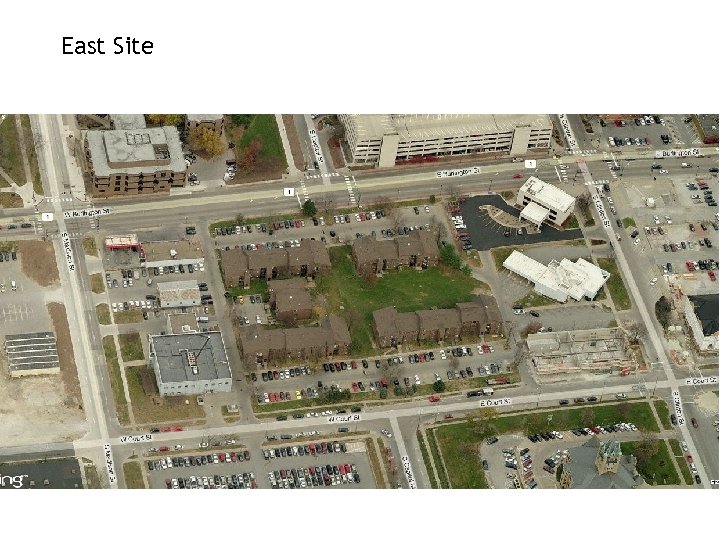

East Site

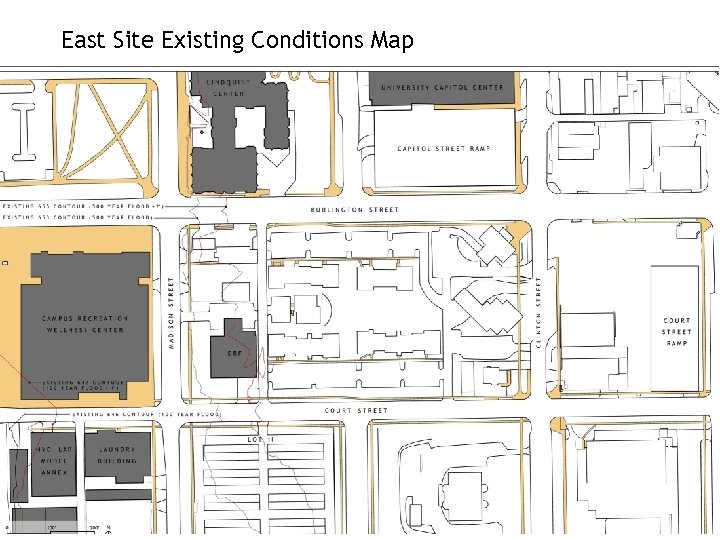

East Site Existing Conditions Map

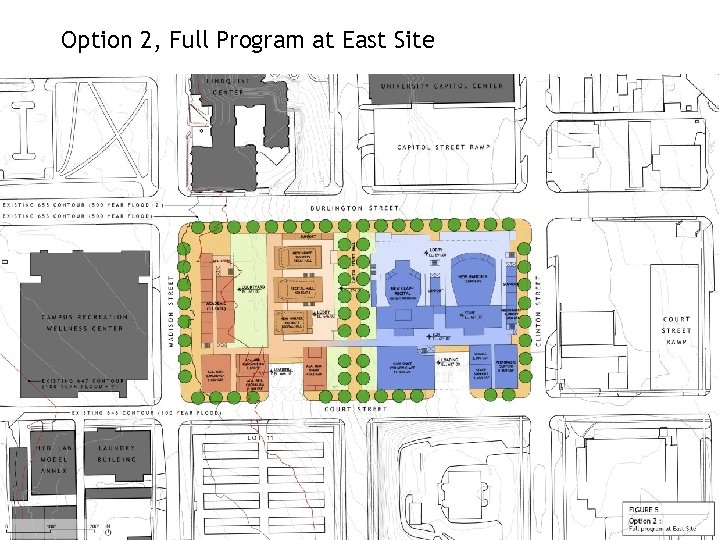

Option 2, Full Program at East Site

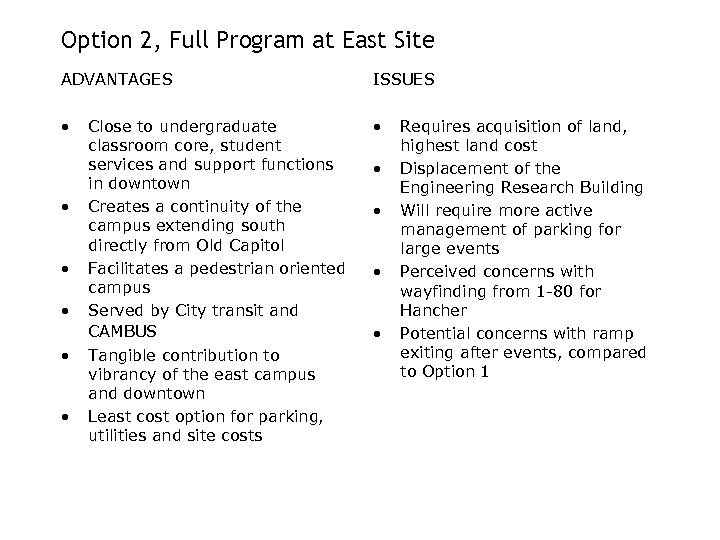

Option 2, Full Program at East Site ADVANTAGES ISSUES • • Close to undergraduate classroom core, student services and support functions in downtown Creates a continuity of the campus extending south directly from Old Capitol Facilitates a pedestrian oriented campus Served by City transit and CAMBUS Tangible contribution to vibrancy of the east campus and downtown Least cost option for parking, utilities and site costs • • Requires acquisition of land, highest land cost Displacement of the Engineering Research Building Will require more active management of parking for large events Perceived concerns with wayfinding from 1 -80 for Hancher Potential concerns with ramp exiting after events, compared to Option 1

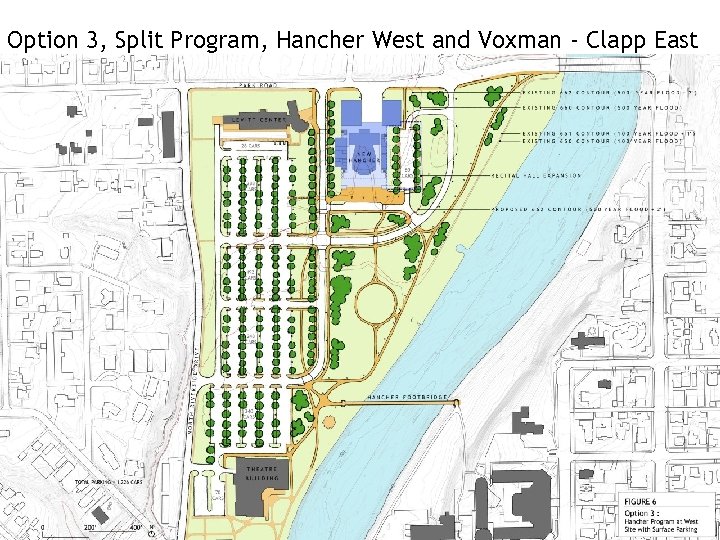

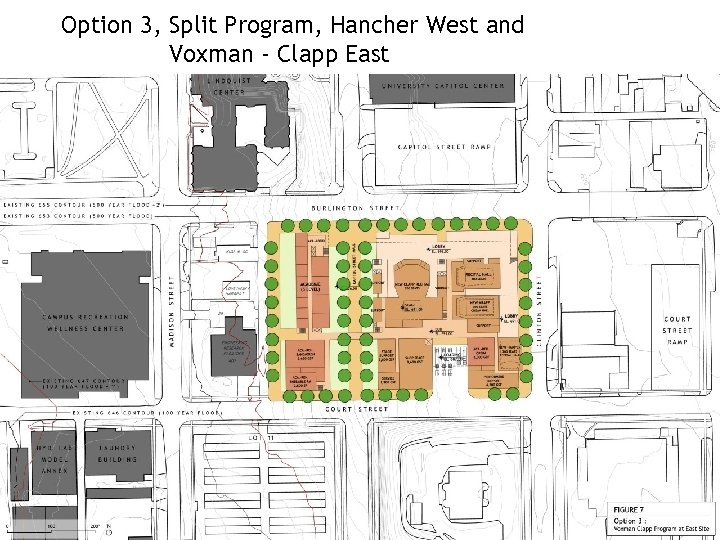

Option 3, Split Program, Hancher West and Voxman - Clapp East

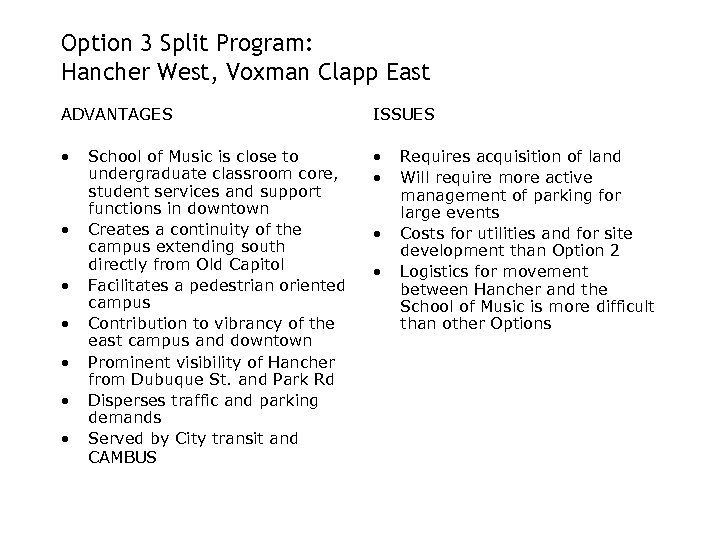

Option 3 Split Program: Hancher West, Voxman Clapp East ADVANTAGES ISSUES • • • School of Music is close to undergraduate classroom core, student services and support functions in downtown Creates a continuity of the campus extending south directly from Old Capitol Facilitates a pedestrian oriented campus Contribution to vibrancy of the east campus and downtown Prominent visibility of Hancher from Dubuque St. and Park Rd Disperses traffic and parking demands Served by City transit and CAMBUS • • Requires acquisition of land Will require more active management of parking for large events Costs for utilities and for site development than Option 2 Logistics for movement between Hancher and the School of Music is more difficult than other Options

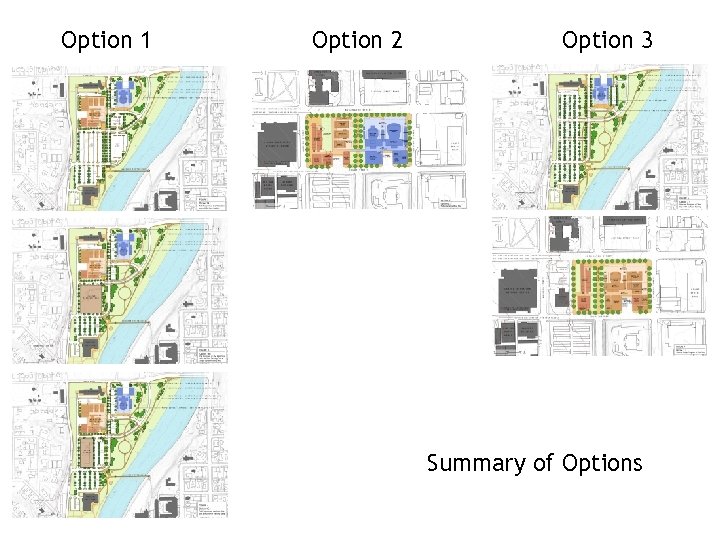

Option 1 Option 2 Option 3 Summary of Options

Option 1 Option 2 Option 3 $3. 2 M $1. 2 M $3. 4 M $3. 2 M UTILITIES

Option 1 Option 2 Option 3 $7 M $0 $12. 5 M $6. 4 M $19. 2 M PARKING

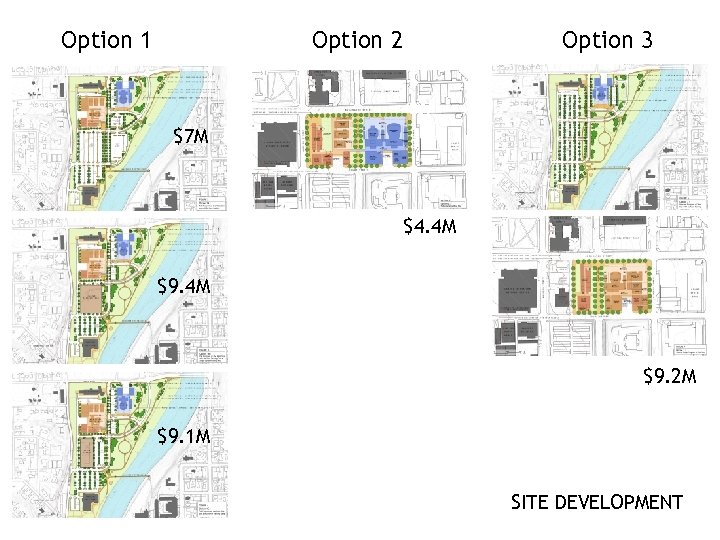

Option 1 Option 2 Option 3 $7 M $4. 4 M $9. 2 M $9. 1 M SITE DEVELOPMENT

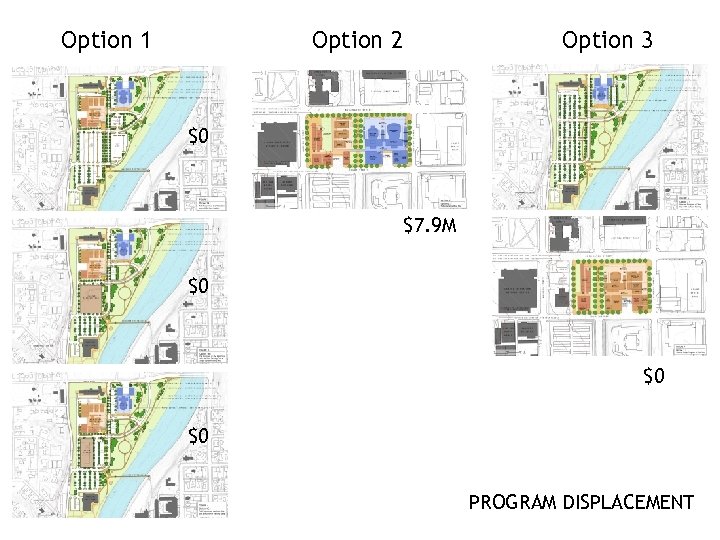

Option 1 Option 2 Option 3 $0 $7. 9 M $0 $0 $0 PROGRAM DISPLACEMENT

Option 1 Option 2 Option 3 $0 6 PARCELS $0 4 PARCELS $0 LAND ACQUISITION

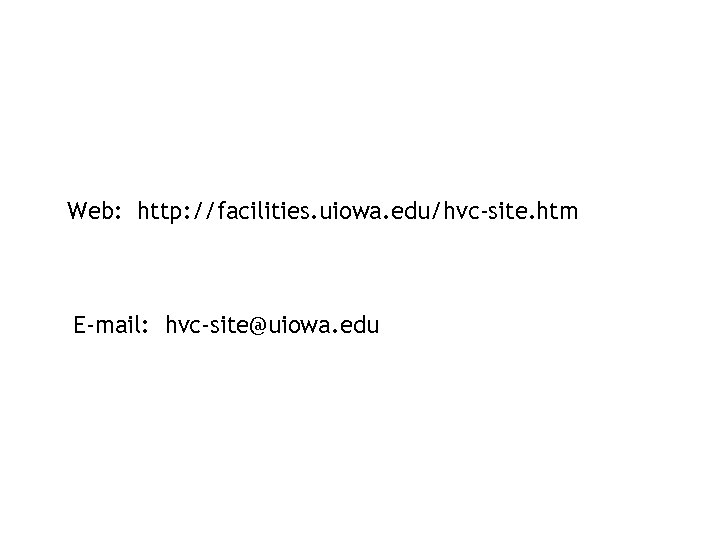

Web: http: //facilities. uiowa. edu/hvc-site. htm E-mail: hvc-site@uiowa. edu
