Agenda Long post-mortem on Kanna Rajan Talk Progression Regression

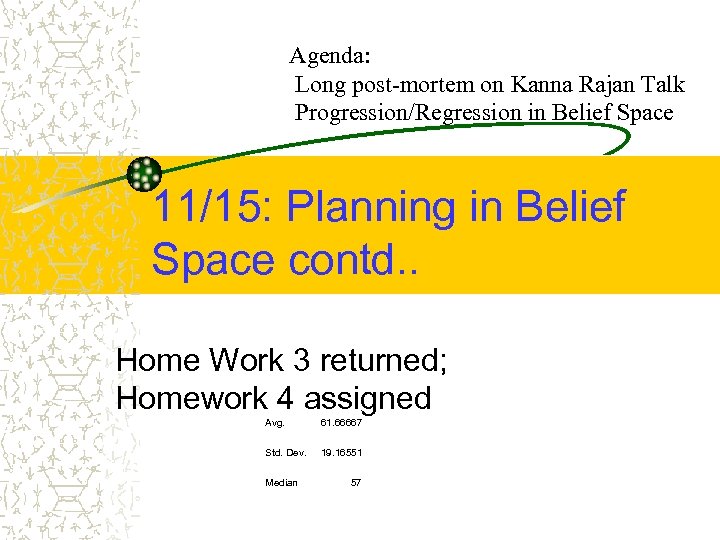

Agenda: Long post-mortem on Kanna Rajan Talk Progression/Regression in Belief Space 11/15: Planning in Belief Space contd. . Home Work 3 returned; Homework 4 assigned Avg. 61. 66667 Std. Dev. 19. 16551 Median 57

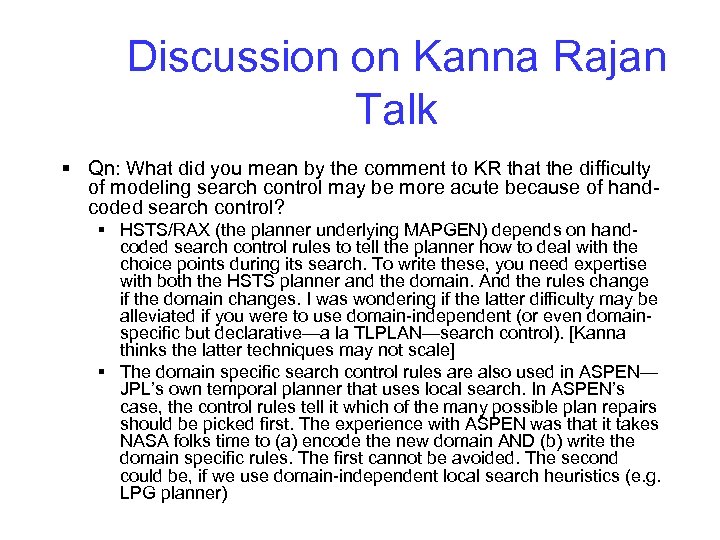

Discussion on Kanna Rajan Talk § Qn: What did you mean by the comment to KR that the difficulty of modeling search control may be more acute because of handcoded search control? § HSTS/RAX (the planner underlying MAPGEN) depends on handcoded search control rules to tell the planner how to deal with the choice points during its search. To write these, you need expertise with both the HSTS planner and the domain. And the rules change if the domain changes. I was wondering if the latter difficulty may be alleviated if you were to use domain-independent (or even domainspecific but declarative—a la TLPLAN—search control). [Kanna thinks the latter techniques may not scale] § The domain specific search control rules are also used in ASPEN— JPL’s own temporal planner that uses local search. In ASPEN’s case, the control rules tell it which of the many possible plan repairs should be picked first. The experience with ASPEN was that it takes NASA folks time to (a) encode the new domain AND (b) write the domain specific rules. The first cannot be avoided. The second could be, if we use domain-independent local search heuristics (e. g. LPG planner)

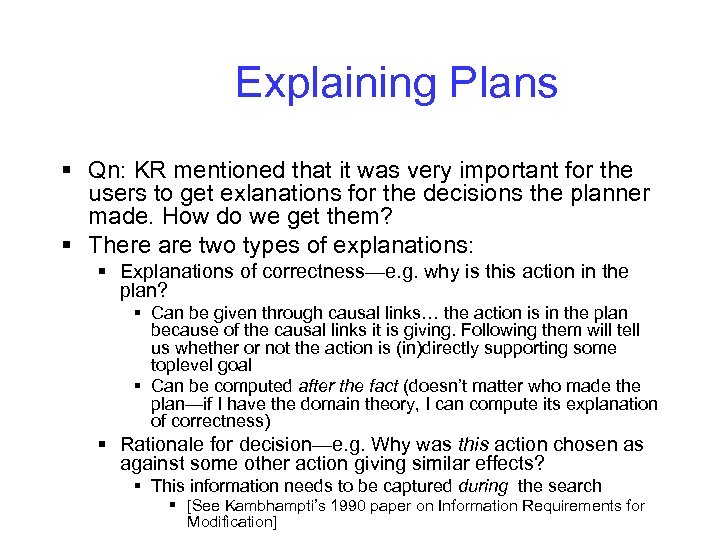

Explaining Plans § Qn: KR mentioned that it was very important for the users to get exlanations for the decisions the planner made. How do we get them? § There are two types of explanations: § Explanations of correctness—e. g. why is this action in the plan? § Can be given through causal links… the action is in the plan because of the causal links it is giving. Following them will tell us whether or not the action is (in)directly supporting some toplevel goal § Can be computed after the fact (doesn’t matter who made the plan—if I have the domain theory, I can compute its explanation of correctness) § Rationale for decision—e. g. Why was this action chosen as against some other action giving similar effects? § This information needs to be captured during the search § [See Kambhampti’s 1990 paper on Information Requirements for Modification]

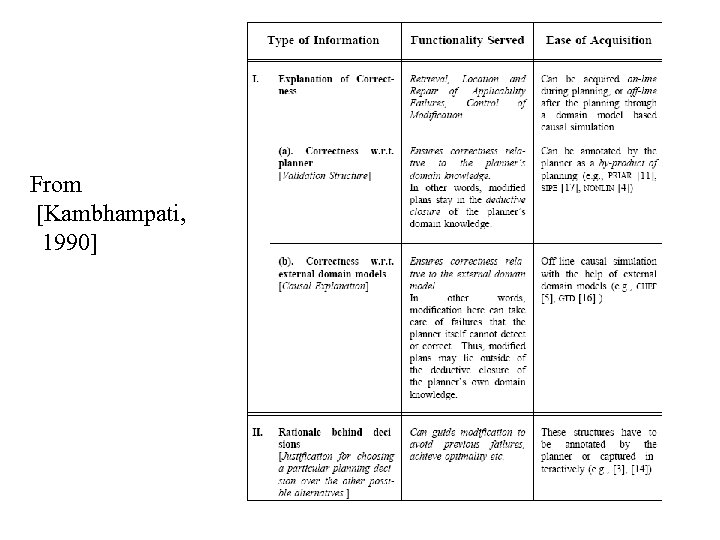

From [Kambhampati, 1990]

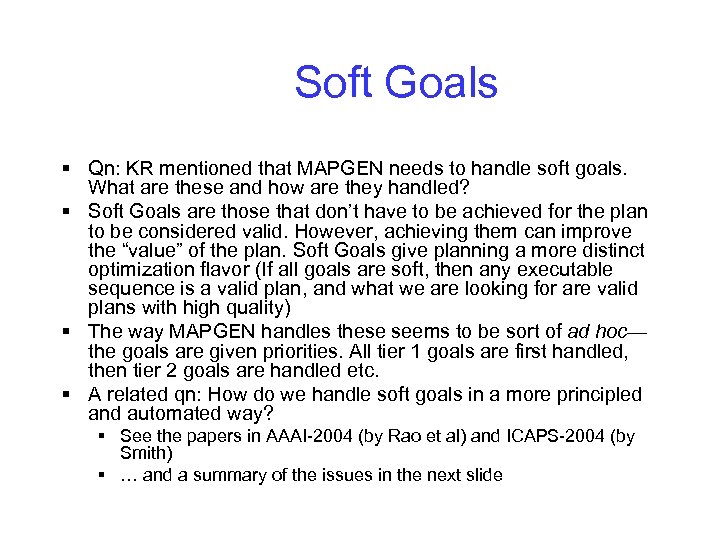

Soft Goals § Qn: KR mentioned that MAPGEN needs to handle soft goals. What are these and how are they handled? § Soft Goals are those that don’t have to be achieved for the plan to be considered valid. However, achieving them can improve the “value” of the plan. Soft Goals give planning a more distinct optimization flavor (If all goals are soft, then any executable sequence is a valid plan, and what we are looking for are valid plans with high quality) § The way MAPGEN handles these seems to be sort of ad hoc— the goals are given priorities. All tier 1 goals are first handled, then tier 2 goals are handled etc. § A related qn: How do we handle soft goals in a more principled and automated way? § See the papers in AAAI-2004 (by Rao et al) and ICAPS-2004 (by Smith) § … and a summary of the issues in the next slide

§ Handling Soft Goals—an approach called PSP Net Consider the variant of classical planning problem Benefit, defined as follows: § There are n goals to be achieved. Each goal g, when achieved gives a reward Rg § Each action a in the domain has a cost Ca (expressed in the same units as the reward) § Objective is to find a plan that has the highest net benefit (which is the difference between cumulative reward of all the goals achieved by the plan, and the cumulative cost of all the actions used in the plan) § How do we solve PSP Net Benefit problem? § Naïve (but guaranteed optimal) idea: Consider all possible subset of the n goals. For each find the least costly plan (using cost-based planning graphs). Among all these, pick the one with the best benefit. § You die because there are 2 n different calls to the planning algorithm § Cheap (but pretty inoptimal idea): Rank the n goals in terms of the expected net benefit of the plans for achieving them. Work just on the subset of goals with +ve net benefit § You can do this by finding a (cost-sensitive) relaxed plan for each of the goals. The net benefit is the reward of the goal minus the cost of the relaxed plan. § Problem: The cost of achieving a goal depends on what other goals we are planning to achieve in conjunction. We need to consider residual cost of achieving a goal gk+1 in the context of goals {g 1. . gk} that have already been selected § A less greedy idea: Generalize the relaxed plan extraction procedure such that it takes the relaxed plan P for achieving {g 1…gk} and attempts to re-use

Belief State Search: An Example Problem § Initial state: M is true and exactly one of P, Q, R are true § Goal: Need G Plan: ? ? DNF good for progression (clauses are partial states) Actions: A 1: M P => K A 2: M Q => K A 3: M R => L A 4: K => G A 5: L => G Init State Formula: [(p & ~q & ~r)V(~p&q&~r)V(~p&~q&r)]&M DNF: [M&p&~q&~r]V[M&~p&~q&r] CNF: (P V Q V R) & (~P V ~Q) &(~P V ~R) &(~Q V ~R) & M CNF good For regression

Progression & Regression § Progression with DNF § The “constituents” (DNF clauses) look like partial states already. Think of applying action to each of these constituents and unioning the result § Action application converts each constituent to a set of new constituents § Termination when each constituent entails the goal formula § Regression with CNF § Very little difference from classical planning (since we already had partial states in classical planning). § THE Main difference is that we cannot split the disjunction into search space § Termination when each (CNF) clause is entailed by the initial state

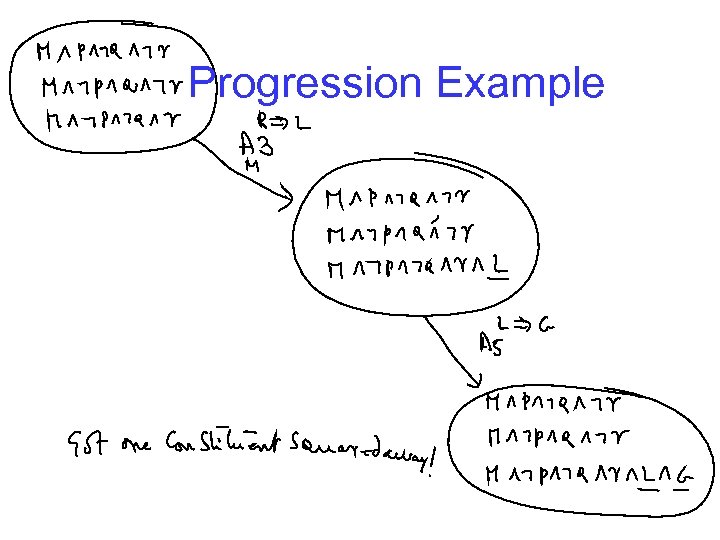

Progression Example

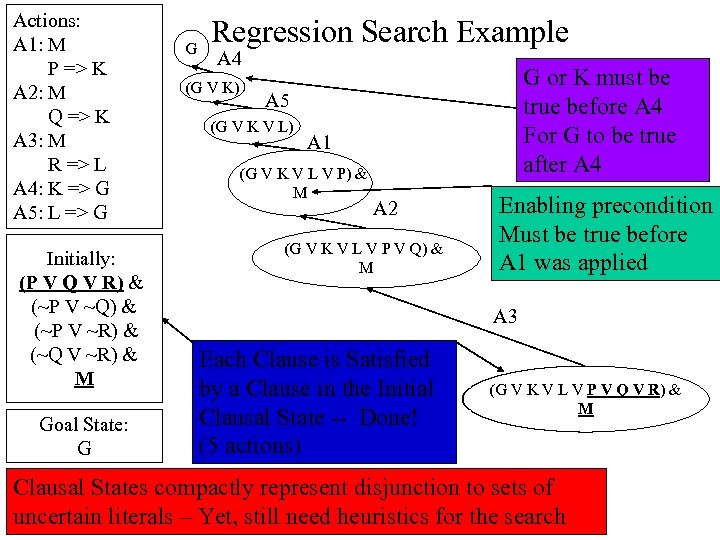

Actions: A 1: M P => K A 2: M Q => K A 3: M R => L A 4: K => G A 5: L => G Initially: (P V Q V R) & (~P V ~Q) & (~P V ~R) & (~Q V ~R) & M Goal State: G G Regression Search Example A 4 (G V K) G or K must be true before A 4 For G to be true after A 4 A 5 (G V K V L) A 1 (G V K V L V P) & M A 2 (G V K V L V P V Q) & M Enabling precondition Must be true before A 1 was applied A 3 Each Clause is Satisfied by a Clause in the Initial Clausal State -- Done! (5 actions) (G V K V L V P V Q V R) & M Clausal States compactly represent disjunction to sets of uncertain literals – Yet, still need heuristics for the search

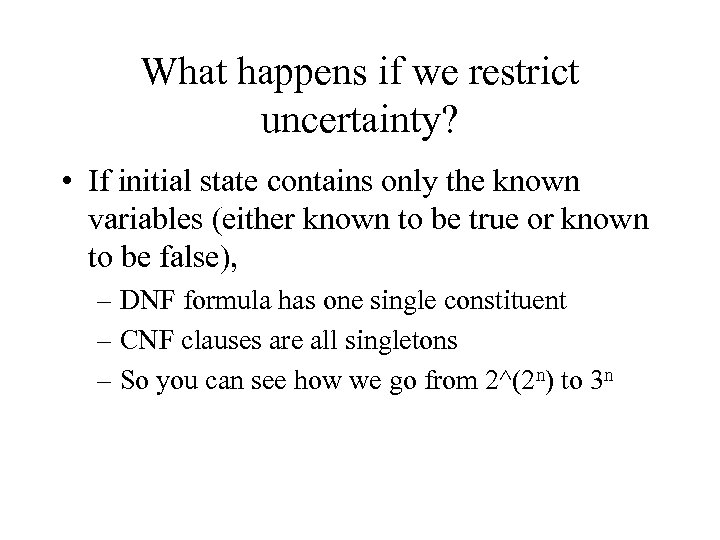

What happens if we restrict uncertainty? • If initial state contains only the known variables (either known to be true or known to be false), – DNF formula has one single constituent – CNF clauses are all singletons – So you can see how we go from 2^(2 n) to 3 n

11/17 … after all the money we spend on wardrobe and cosmetic surgeries

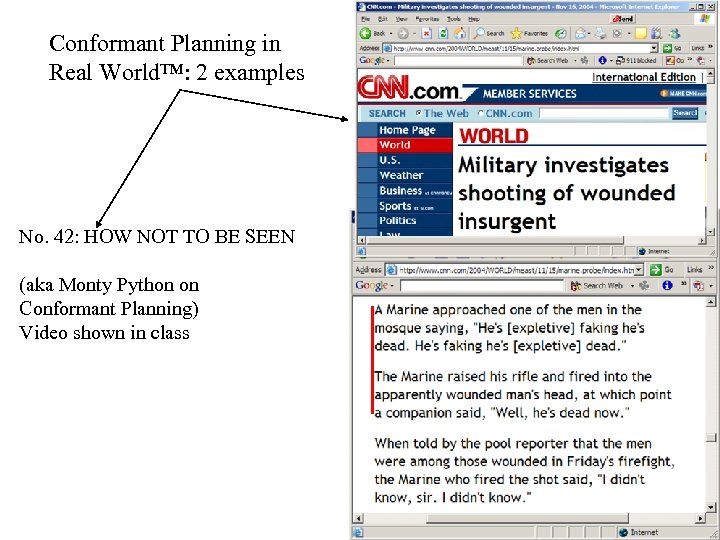

Conformant Planning in Real World™: 2 examples No. 42: HOW NOT TO BE SEEN (aka Monty Python on Conformant Planning) Video shown in class

Heuristics for Conformant Planning • First idea: Notice that “Classical planning” (which assumes full observability) is a “relaxation” of conformant planning – So, the length of the classical planning solution is a lowerbound (admissible heuristic) for conformant planning – Further, the heuristics for classical planning are also heuristics for conformant planning (albeit not very informed probably) • Next idea: Let us get a feel for how estimating distances between belief states differs from estimating those between states

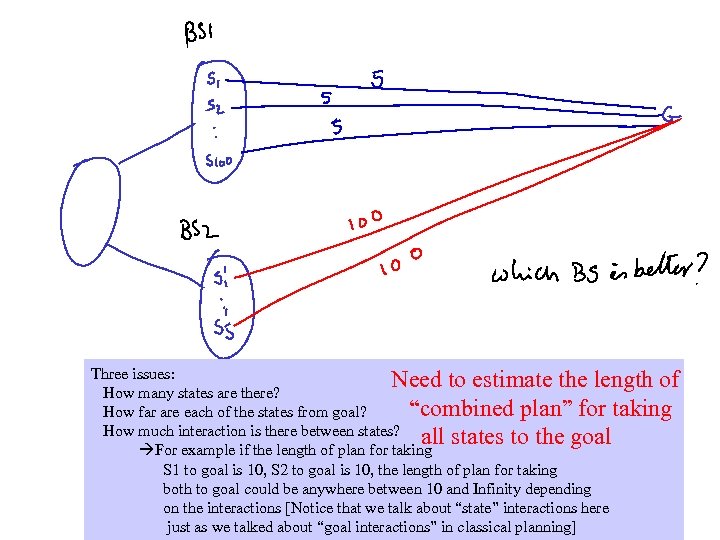

Three issues: Need to estimate the length of How many states are there? “combined plan” for taking How far are each of the states from goal? How much interaction is there between states? all states to the goal For example if the length of plan for taking S 1 to goal is 10, S 2 to goal is 10, the length of plan for taking both to goal could be anywhere between 10 and Infinity depending on the interactions [Notice that we talk about “state” interactions here just as we talked about “goal interactions” in classical planning]

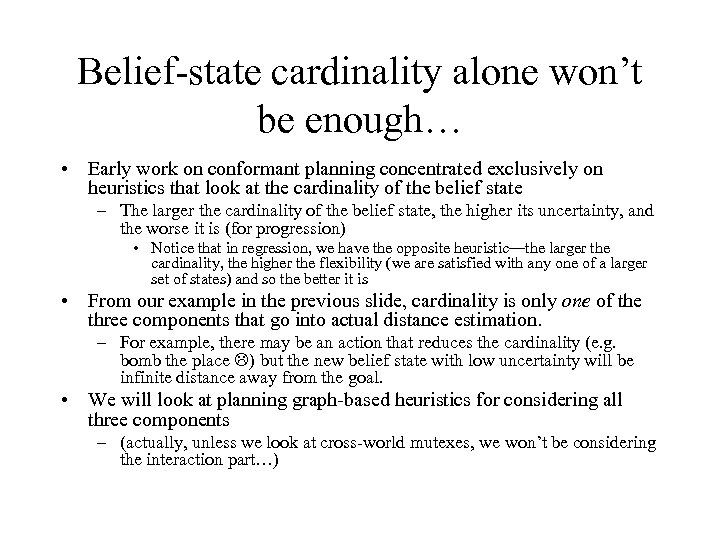

Belief-state cardinality alone won’t be enough… • Early work on conformant planning concentrated exclusively on heuristics that look at the cardinality of the belief state – The larger the cardinality of the belief state, the higher its uncertainty, and the worse it is (for progression) • Notice that in regression, we have the opposite heuristic—the larger the cardinality, the higher the flexibility (we are satisfied with any one of a larger set of states) and so the better it is • From our example in the previous slide, cardinality is only one of the three components that go into actual distance estimation. – For example, there may be an action that reduces the cardinality (e. g. bomb the place ) but the new belief state with low uncertainty will be infinite distance away from the goal. • We will look at planning graph-based heuristics for considering all three components – (actually, unless we look at cross-world mutexes, we won’t be considering the interaction part…)

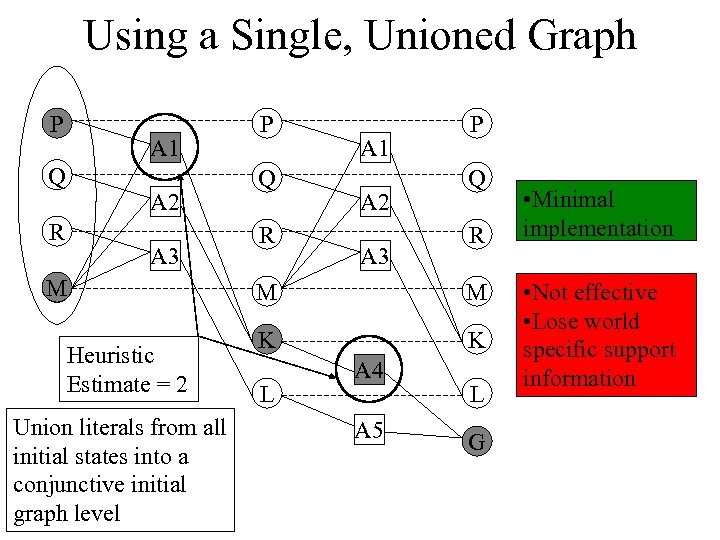

Using a Single, Unioned Graph P P M Q M R R M A 1 A 2 A 3 Heuristic Estimate = 2 Union literals from all initial states into a conjunctive initial graph level P Q R A 1 A 2 A 3 P Q R M M K K L A 4 A 5 L G • Minimal implementation • Not effective • Lose world specific support information

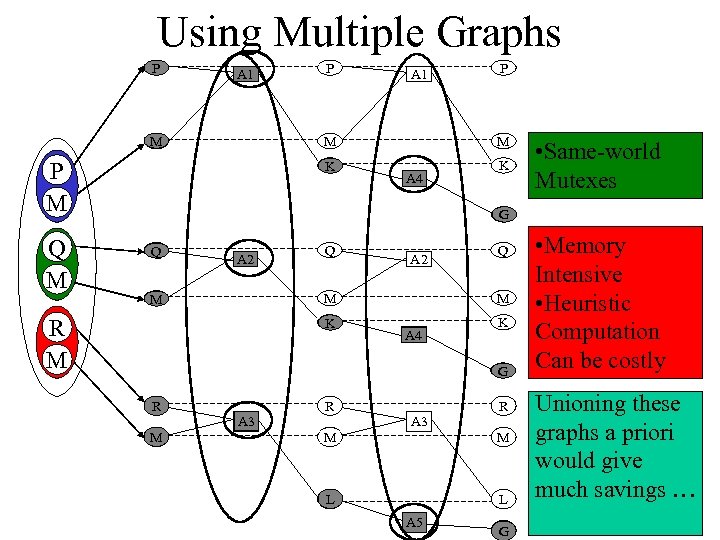

Using Multiple Graphs P A 1 M A 1 P M M K P M Q M P K A 4 • Same-world Mutexes G Q A 2 M M R M K Q A 4 K G R M A 3 R R A 3 M M L L A 5 G • Memory Intensive • Heuristic Computation Can be costly Unioning these graphs a priori would give much savings …

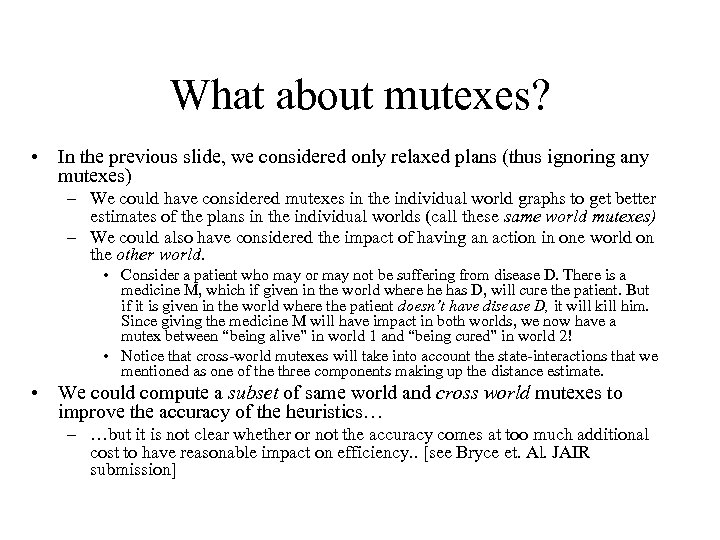

What about mutexes? • In the previous slide, we considered only relaxed plans (thus ignoring any mutexes) – We could have considered mutexes in the individual world graphs to get better estimates of the plans in the individual worlds (call these same world mutexes) – We could also have considered the impact of having an action in one world on the other world. • Consider a patient who may or may not be suffering from disease D. There is a medicine M, which if given in the world where he has D, will cure the patient. But if it is given in the world where the patient doesn’t have disease D, it will kill him. Since giving the medicine M will have impact in both worlds, we now have a mutex between “being alive” in world 1 and “being cured” in world 2! • Notice that cross-world mutexes will take into account the state-interactions that we mentioned as one of the three components making up the distance estimate. • We could compute a subset of same world and cross world mutexes to improve the accuracy of the heuristics… – …but it is not clear whether or not the accuracy comes at too much additional cost to have reasonable impact on efficiency. . [see Bryce et. Al. JAIR submission]

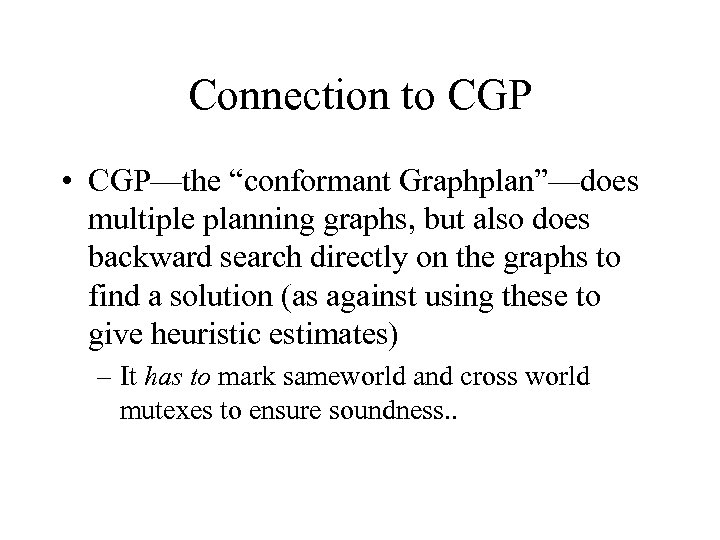

Connection to CGP • CGP—the “conformant Graphplan”—does multiple planning graphs, but also does backward search directly on the graphs to find a solution (as against using these to give heuristic estimates) – It has to mark sameworld and cross world mutexes to ensure soundness. .

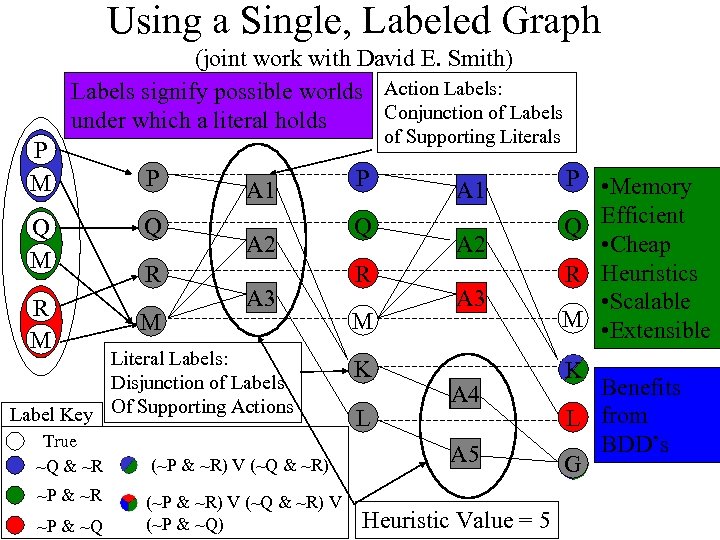

Using a Single, Labeled Graph (joint work with David E. Smith) Labels signify possible worlds Action Labels: Conjunction of Labels under which a literal holds P M Q M R M of Supporting Literals P Q R M A 1 A 2 A 3 Literal Labels: Disjunction of Labels Label Key Of Supporting Actions True ~Q & ~R ~P & ~Q (~P & ~R) V (~Q & ~R) V (~P & ~Q) P Q R M K L A 1 A 2 A 3 A 4 A 5 Heuristic Value = 5 P • Memory Q Efficient • Cheap R Heuristics • Scalable M • Extensible K Benefits L from BDD’s G

Sensing Actions • – 7 As 300 12, 000 Sensing actions in essence “partition” a belief state – – – • Heuristics will have to compare two generalized AND branches – A 11, 000 Sensing a formula f splits a belief state B to B&f; B&~f Both partitions need to be taken to the goal state now Tree plan AO* search – In the figure, the lower branch has an expected cost of 11, 000 The upper branch has a fixed sensing cost of 300 + based on the outcome, a cost of 7 or 12, 000 • • • If we consider worst case cost, we assume the cost is 12, 300 If we consider both to be equally likey, we assume 6303. 5 units cost If we know actual probabilities that the sensing action returns one result as against other, we can use that to get the expected cost…

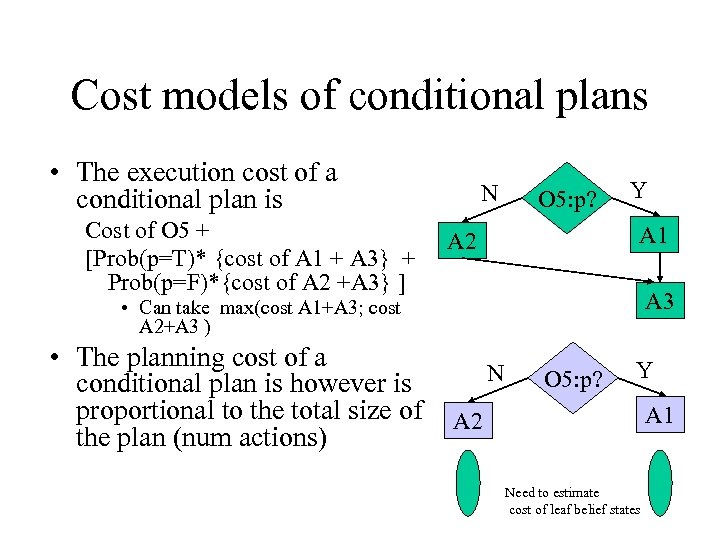

Cost models of conditional plans • The execution cost of a conditional plan is Cost of O 5 + [Prob(p=T)* {cost of A 1 + A 3} + Prob(p=F)*{cost of A 2 +A 3} ] N O 5: p? Y A 1 A 2 A 3 • Can take max(cost A 1+A 3; cost A 2+A 3 ) • The planning cost of a conditional plan is however is proportional to the total size of the plan (num actions) N O 5: p? Y A 1 A 2 Need to estimate cost of leaf belief states

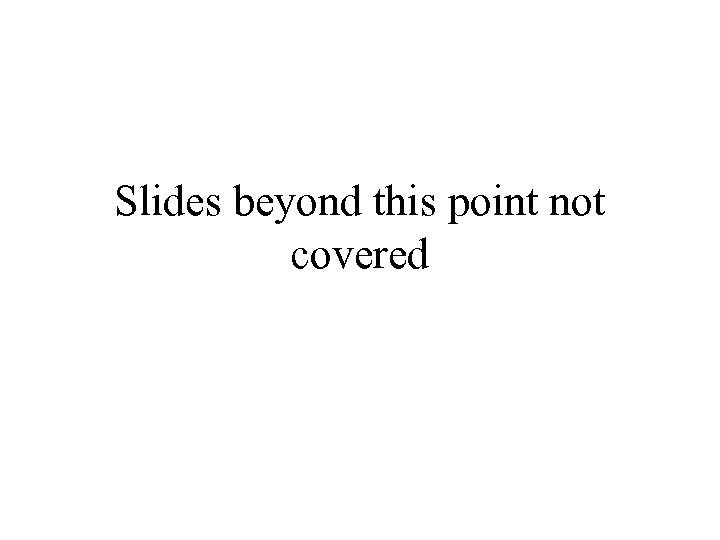

Slides beyond this point not covered

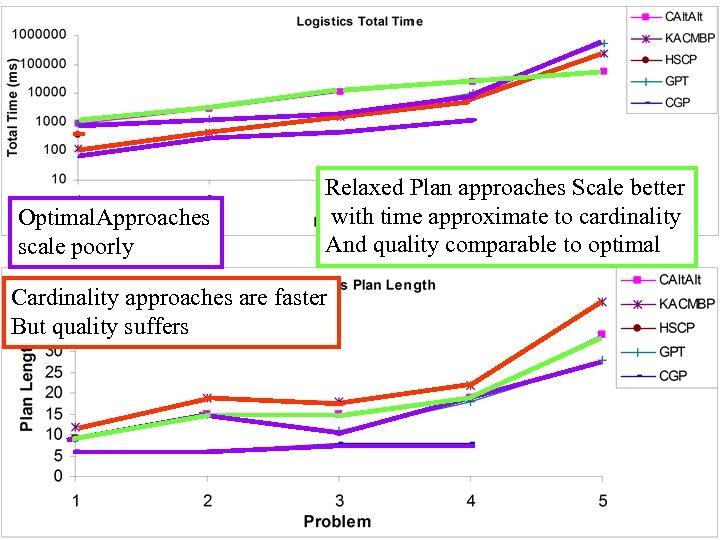

Optimal. Approaches scale poorly Relaxed Plan approaches Scale better with time approximate to cardinality And quality comparable to optimal Cardinality approaches are faster But quality suffers
