After the foundations have been completed the walls are set out and construction commences. wall structures

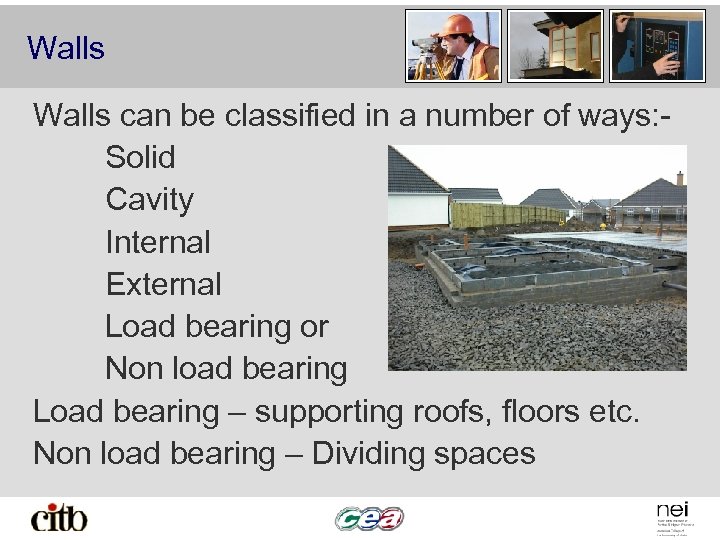

Walls can be classified in a number of ways: Solid Cavity Internal External Load bearing or Non load bearing Load bearing – supporting roofs, floors etc. Non load bearing – Dividing spaces

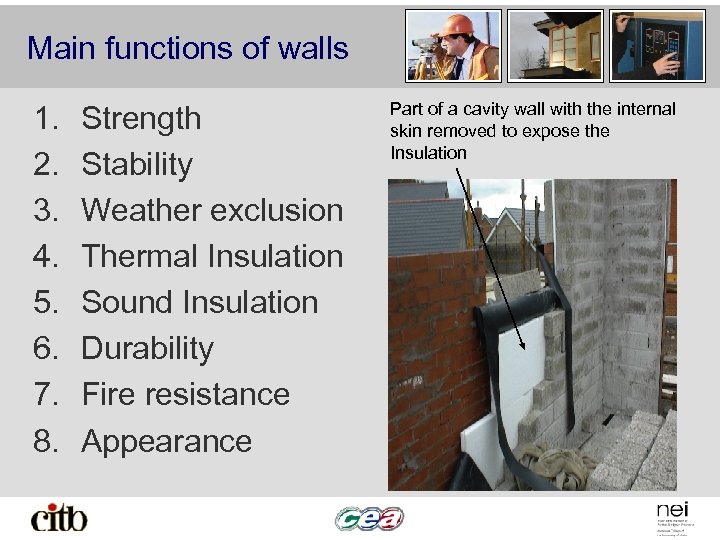

Main functions of walls 1. 2. 3. 4. 5. 6. 7. 8. Strength Stability Weather exclusion Thermal Insulation Sound Insulation Durability Fire resistance Appearance Part of a cavity wall with the internal skin removed to expose the Insulation

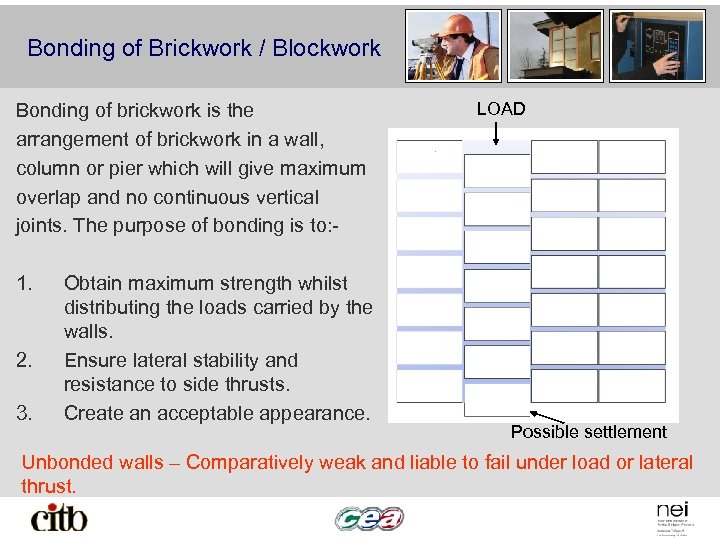

Bonding of Brickwork / Blockwork Bonding of brickwork is the arrangement of brickwork in a wall, column or pier which will give maximum overlap and no continuous vertical joints. The purpose of bonding is to: - 1. 2. 3. Obtain maximum strength whilst distributing the loads carried by the walls. Ensure lateral stability and resistance to side thrusts. Create an acceptable appearance. LOAD Possible settlement Unbonded walls – Comparatively weak and liable to fail under load or lateral thrust.

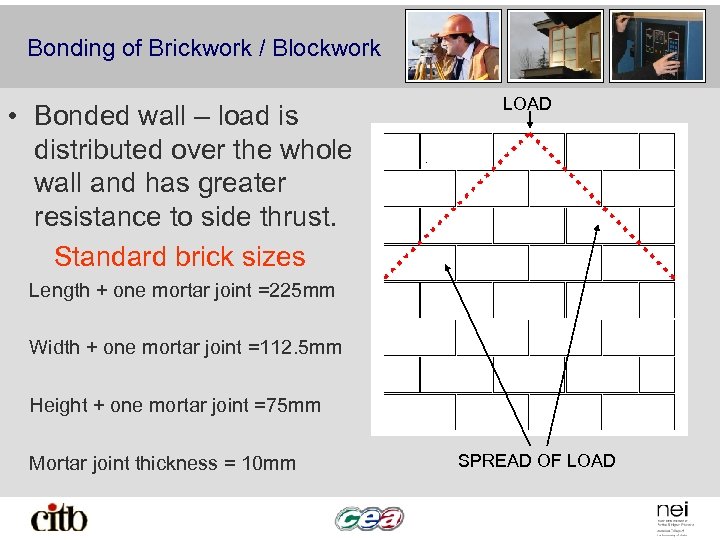

Bonding of Brickwork / Blockwork • Bonded wall – load is distributed over the whole wall and has greater resistance to side thrust. Standard brick sizes LOAD Length + one mortar joint =225 mm Width + one mortar joint =112. 5 mm Height + one mortar joint =75 mm Mortar joint thickness = 10 mm SPREAD OF LOAD

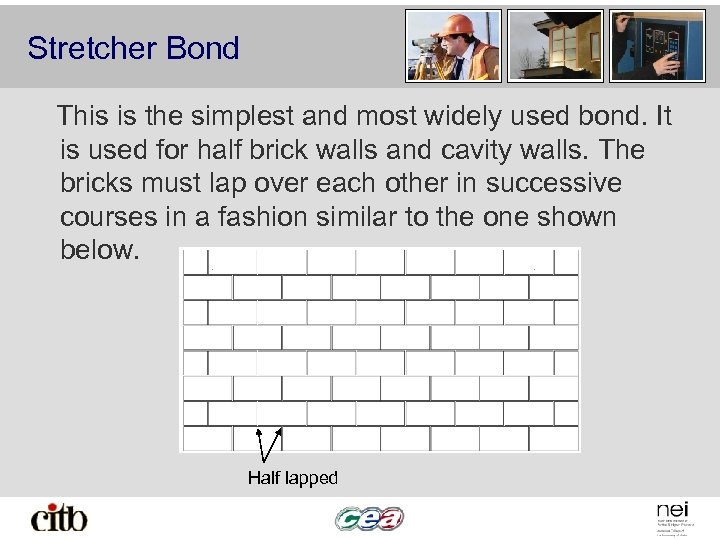

Stretcher Bond This is the simplest and most widely used bond. It is used for half brick walls and cavity walls. The bricks must lap over each other in successive courses in a fashion similar to the one shown below. Half lapped

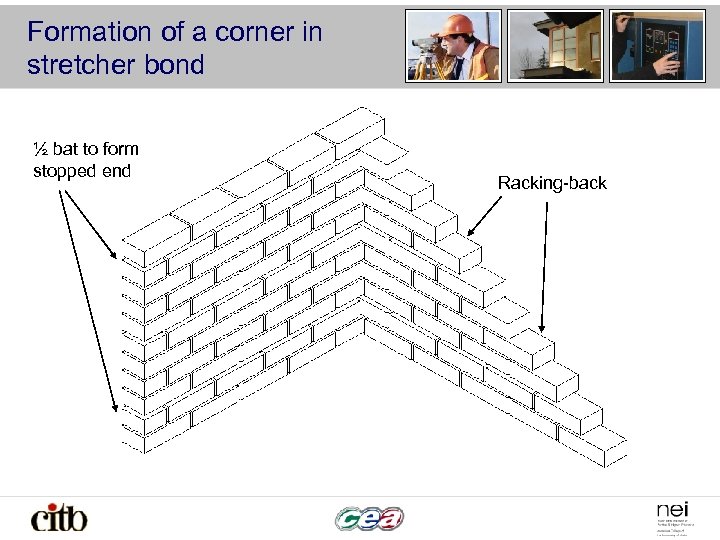

Formation of a corner in stretcher bond ½ bat to form stopped end Racking-back

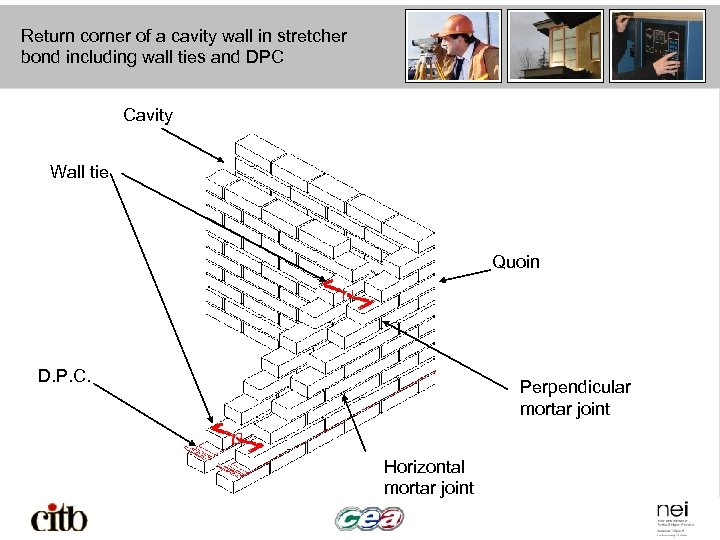

Return corner of a cavity wall in stretcher bond including wall ties and DPC Cavity Wall tie Quoin D. P. C. Perpendicular mortar joint Horizontal mortar joint

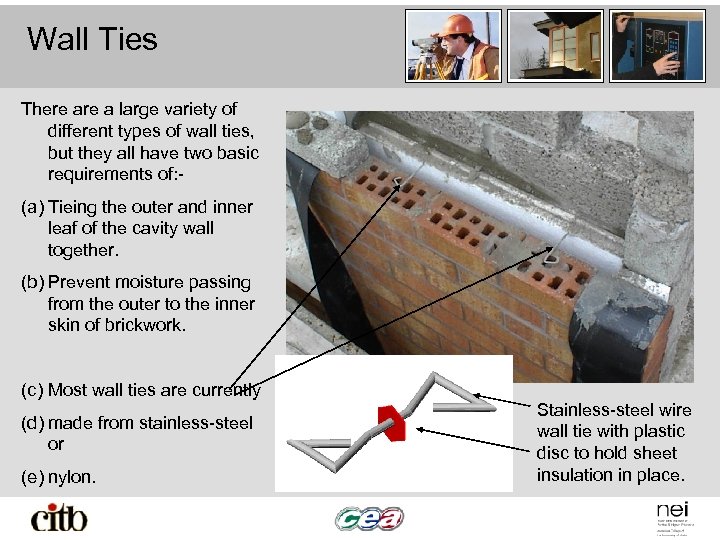

Wall Ties There a large variety of different types of wall ties, but they all have two basic requirements of: - (a) Tieing the outer and inner leaf of the cavity wall together. (b) Prevent moisture passing from the outer to the inner skin of brickwork. (c) Most wall ties are currently (d) made from stainless-steel or (e) nylon. Stainless-steel wire wall tie with plastic disc to hold sheet insulation in place.

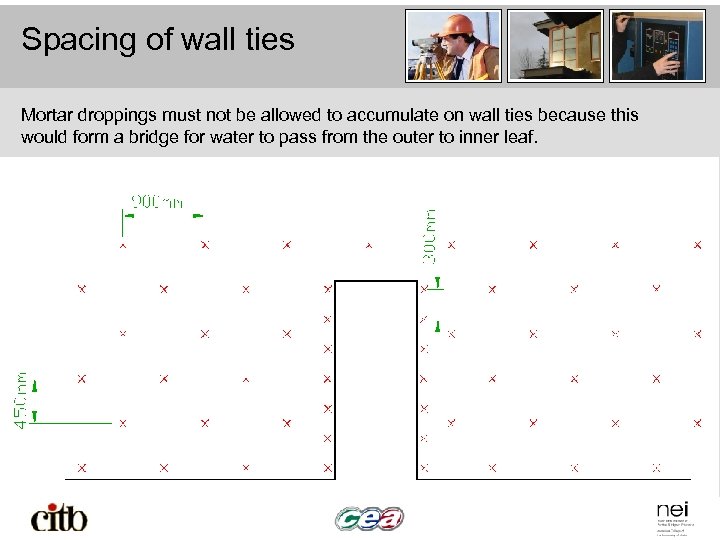

Spacing of wall ties Mortar droppings must not be allowed to accumulate on wall ties because this would form a bridge for water to pass from the outer to inner leaf.

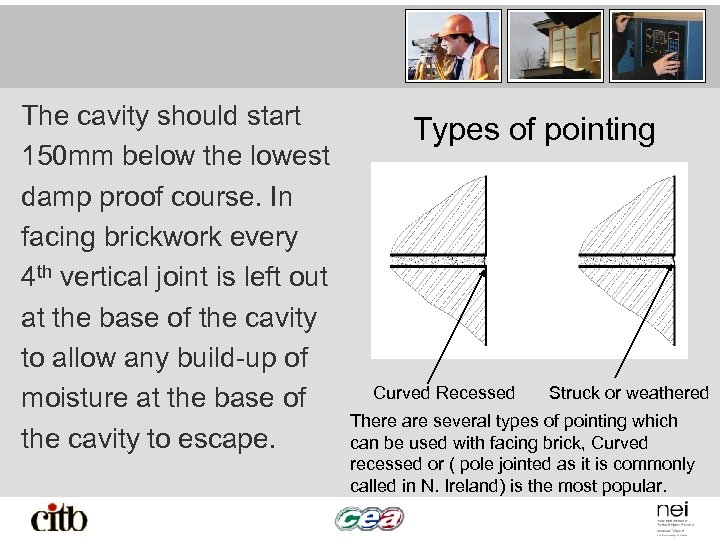

The cavity should start 150 mm below the lowest damp proof course. In facing brickwork every 4 th vertical joint is left out at the base of the cavity to allow any build-up of moisture at the base of the cavity to escape. Types of pointing Curved Recessed Struck or weathered There are several types of pointing which can be used with facing brick, Curved recessed or ( pole jointed as it is commonly called in N. Ireland) is the most popular.

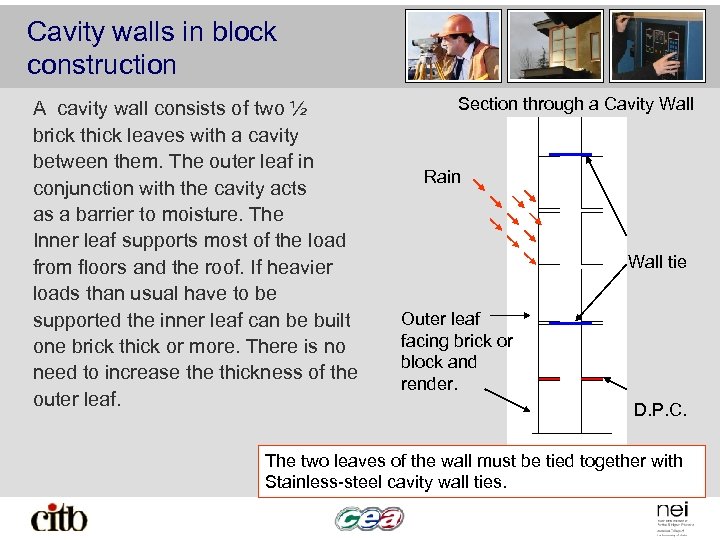

Cavity walls in block construction A cavity wall consists of two ½ brick thick leaves with a cavity between them. The outer leaf in conjunction with the cavity acts as a barrier to moisture. The Inner leaf supports most of the load from floors and the roof. If heavier loads than usual have to be supported the inner leaf can be built one brick thick or more. There is no need to increase thickness of the outer leaf. Section through a Cavity Wall Rain Wall tie Outer leaf facing brick or block and render. D. P. C. The two leaves of the wall must be tied together with Stainless-steel cavity wall ties.
Cavity walls in brick construction with insulation • This wall is similar in construction to the first cavity wall, the only exception being the inclusion of insulation. • Wall ties are manufactured from stainless steel. 60 mm thick insulation Insulation Vertical DPC at window and door jambs Plaster

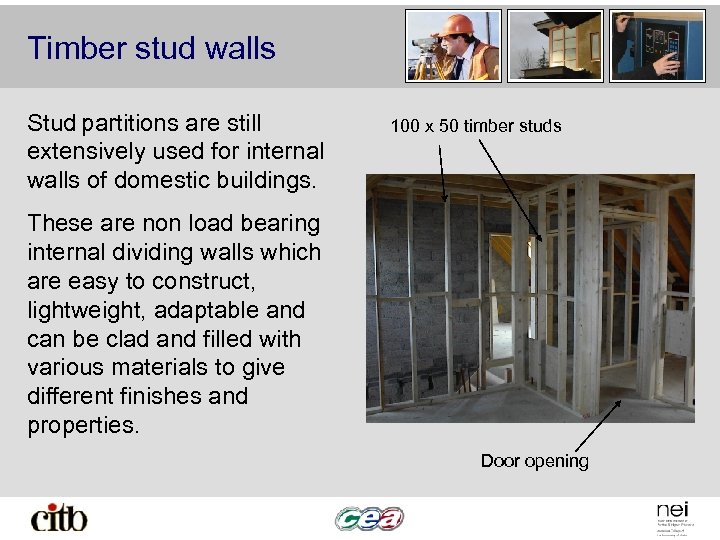

Timber stud walls Stud partitions are still extensively used for internal walls of domestic buildings. 100 x 50 timber studs These are non load bearing internal dividing walls which are easy to construct, lightweight, adaptable and can be clad and filled with various materials to give different finishes and properties. Door opening
Timber stud walls General construction consists of 100 x 50 mm or 100 x 75 mm sole plate and head plate. Vertical members or studs made from 100 x 38 mm or 100 x 50 mm members are nailed in between at 400 mm centres. Section A A 100 x 50 mm stud Architrave The spacing is to suit the plasterboard or other cladding material. Nogging or bridging pieces are inserted between the studs to stiffen the partition. The timber frame is then covered with Plaster Board plasterboard on both sides and finished with a 3 to 5 mm coat of plaster. Door Planted door stop 100 x 50 mm stud

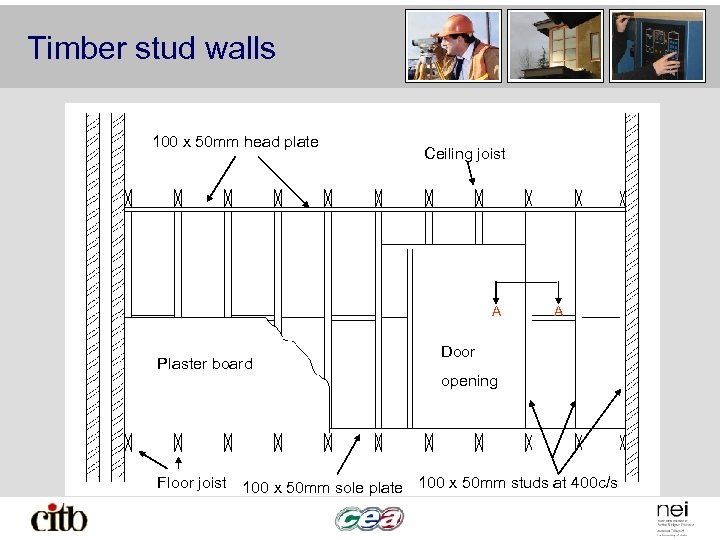

Timber stud walls 100 x 50 mm head plate Ceiling joist A Plaster board A Door opening Floor joist 100 x 50 mm sole plate 100 x 50 mm studs at 400 c/s
