Aeronautical Information Vision and Strategy Executive Briefing Presented to: AIXM Conference By: Office of Airspace and AIM Date: February 2007 Federal Aviation Administration

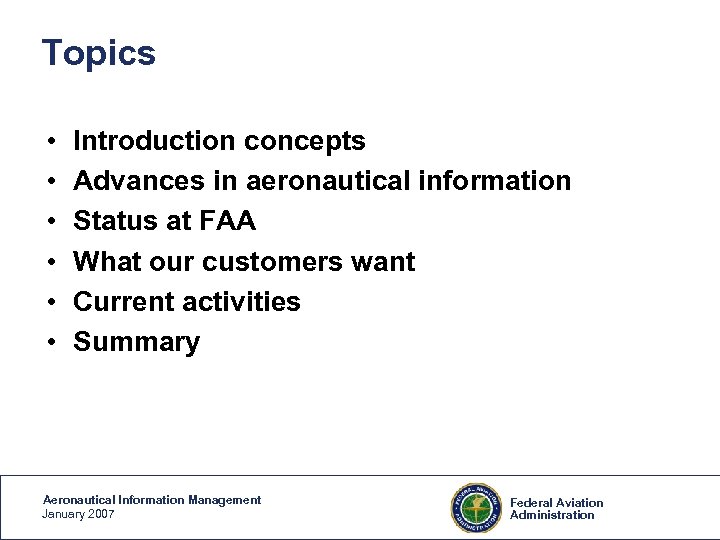

Topics • • • Introduction concepts Advances in aeronautical information Status at FAA What our customers want Current activities Summary Aeronautical Information Management January 2007 Federal Aviation Administration 2 2

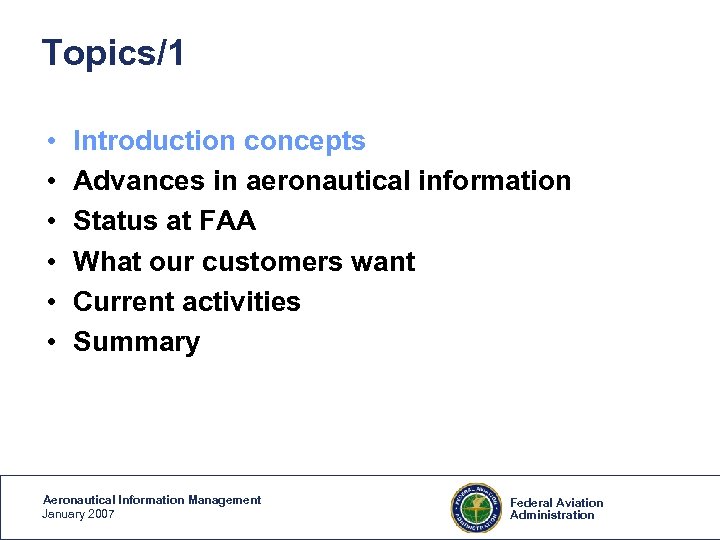

Topics/1 • • • Introduction concepts Advances in aeronautical information Status at FAA What our customers want Current activities Summary Aeronautical Information Management January 2007 Federal Aviation Administration 3 3

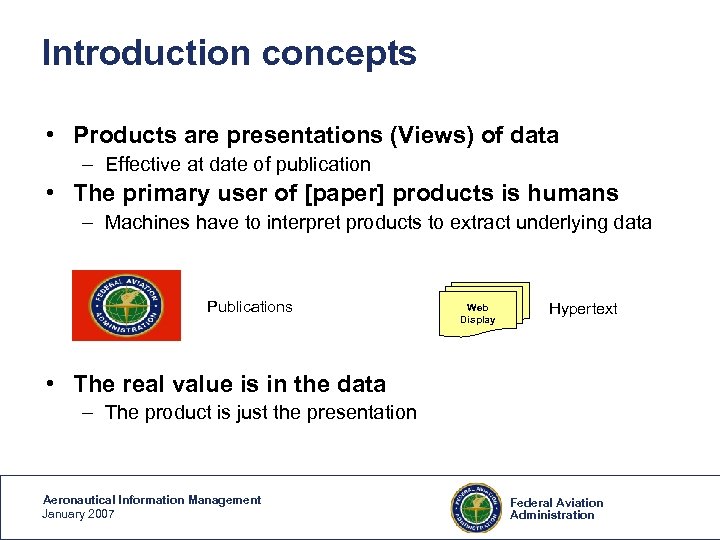

Introduction concepts • Products are presentations (Views) of data – Effective at date of publication • The primary user of [paper] products is humans – Machines have to interpret products to extract underlying data Publications Web Display Hypertext • The real value is in the data – The product is just the presentation Aeronautical Information Management January 2007 Federal Aviation Administration 4 4

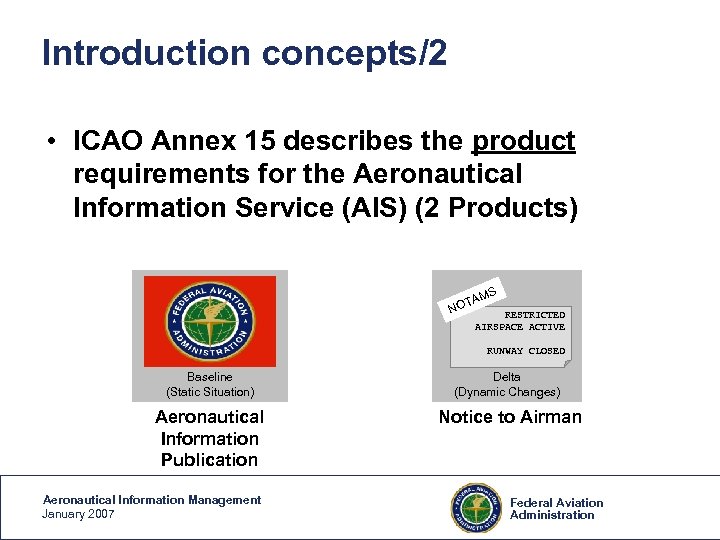

Introduction concepts/2 • ICAO Annex 15 describes the product requirements for the Aeronautical Information Service (AIS) (2 Products) S AM T NO RESTRICTED AIRSPACE ACTIVE RUNWAY CLOSED Baseline (Static Situation) Delta (Dynamic Changes) Aeronautical Information Publication Notice to Airman Aeronautical Information Management January 2007 Federal Aviation Administration 5 5
Introduction concept/3 • Historically we set up stovepipes to create products – Customers are responsible for integrating products into view of the airspace system – We cannot ensure the products are consistent NASR NOTAMs ACES ETMS DAFIF DOF SUA ALTRV TPP NFD … Aeronautical Products Aeronautical Information Management January 2007 Customers Federal Aviation Administration 6 6

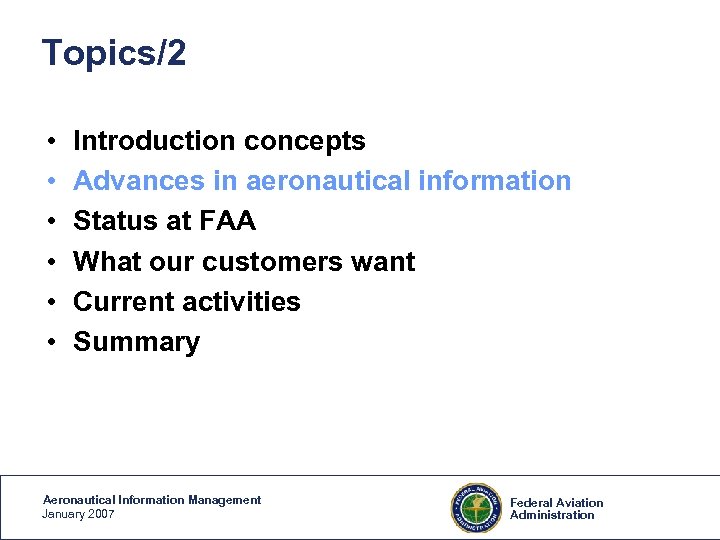

Topics/2 • • • Introduction concepts Advances in aeronautical information Status at FAA What our customers want Current activities Summary Aeronautical Information Management January 2007 Federal Aviation Administration 7 7

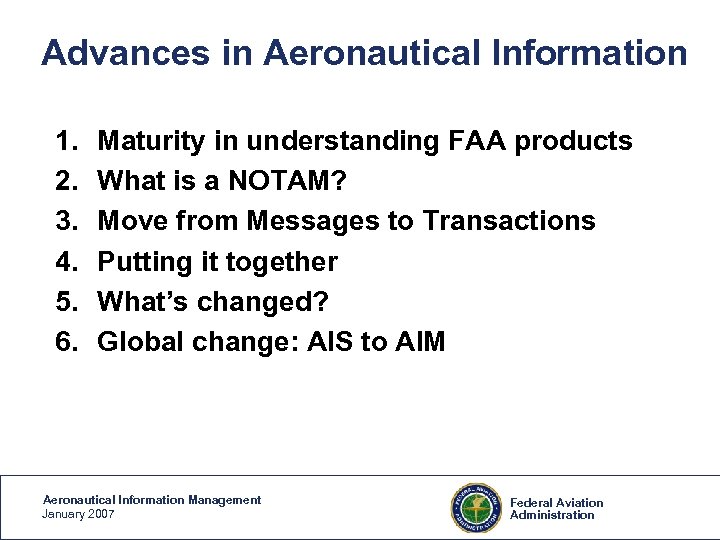

Advances in Aeronautical Information 1. 2. 3. 4. 5. 6. Maturity in understanding FAA products What is a NOTAM? Move from Messages to Transactions Putting it together What’s changed? Global change: AIS to AIM Aeronautical Information Management January 2007 Federal Aviation Administration 8 8

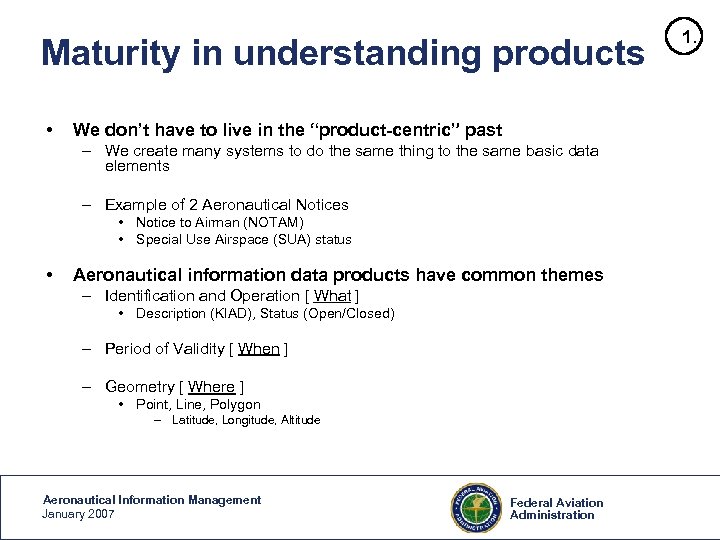

1. Maturity in understanding products • We don’t have to live in the “product-centric” past – We create many systems to do the same thing to the same basic data elements – Example of 2 Aeronautical Notices • Notice to Airman (NOTAM) • Special Use Airspace (SUA) status • Aeronautical information data products have common themes – Identification and Operation [ What ] • Description (KIAD), Status (Open/Closed) – Period of Validity [ When ] – Geometry [ Where ] • Point, Line, Polygon – Latitude, Longitude, Altitude Aeronautical Information Management January 2007 Federal Aviation Administration 9 9

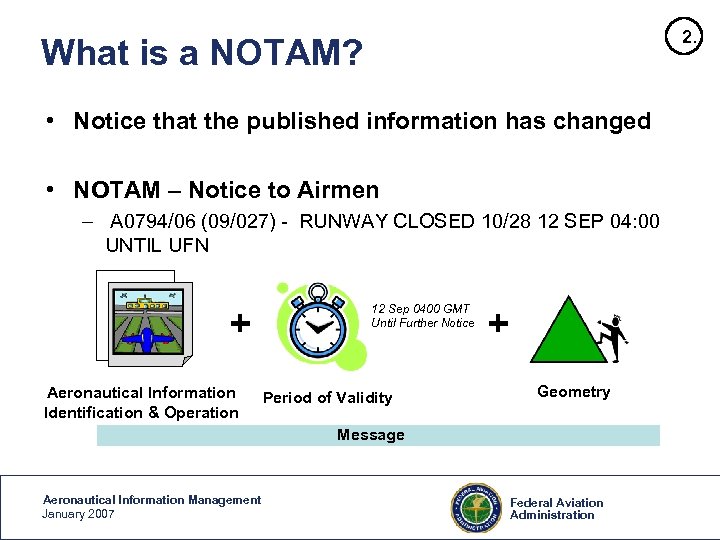

2. What is a NOTAM? • Notice that the published information has changed • NOTAM – Notice to Airmen – A 0794/06 (09/027) - RUNWAY CLOSED 10/28 12 SEP 04: 00 UNTIL UFN + Aeronautical Information Identification & Operation 12 Sep 0400 GMT Until Further Notice Period of Validity + Geometry Message Aeronautical Information Management January 2007 Federal Aviation Administration 10 10

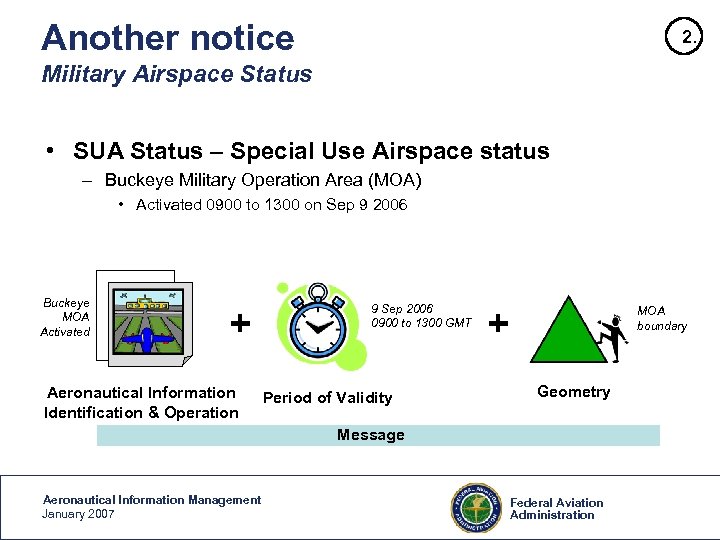

Another notice 2. Military Airspace Status • SUA Status – Special Use Airspace status – Buckeye Military Operation Area (MOA) • Activated 0900 to 1300 on Sep 9 2006 Buckeye MOA Activated + Aeronautical Information Identification & Operation 9 Sep 2006 0900 to 1300 GMT Period of Validity + MOA boundary Geometry Message Aeronautical Information Management January 2007 Federal Aviation Administration 11 11

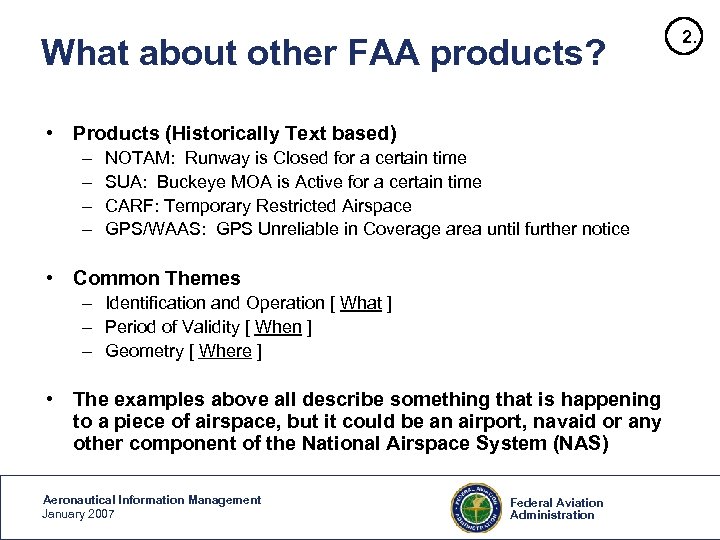

2. What about other FAA products? • Products (Historically Text based) – – NOTAM: Runway is Closed for a certain time SUA: Buckeye MOA is Active for a certain time CARF: Temporary Restricted Airspace GPS/WAAS: GPS Unreliable in Coverage area until further notice • Common Themes – Identification and Operation [ What ] – Period of Validity [ When ] – Geometry [ Where ] • The examples above all describe something that is happening to a piece of airspace, but it could be an airport, navaid or any other component of the National Airspace System (NAS) Aeronautical Information Management January 2007 Federal Aviation Administration 12 12

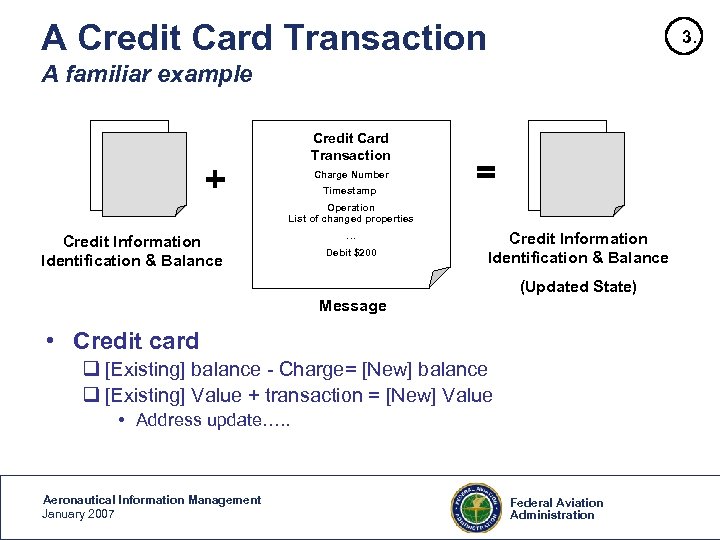

A Credit Card Transaction 3. A familiar example Credit Card Transaction + Charge Number Timestamp = Operation List of changed properties Credit Information Identification & Balance … Debit $200 Credit Information Identification & Balance (Updated State) Message • Credit card q [Existing] balance - Charge= [New] balance q [Existing] Value + transaction = [New] Value • Address update…. . Aeronautical Information Management January 2007 Federal Aviation Administration 13 13
A Transaction 3. Aeronautical data works the same way + Aeronautical Information Identification & Operation (Published) Aeronautical Information Transaction (AI-T) Aeronautical Feature Period of Validity: = Start of Change End of Change Operation List of changed properties Geometry Aeronautical Information Identification & Operation (Updated State) Message (What, When, Where) • Start with published information about an aeronautical feature (runway, airport, airway, fix, airspace…) q Add a request to change a property of a feature (owner, status, availability…) q Result is the updated feature Aeronautical Information Management January 2007 Federal Aviation Administration 14 14
3. Putting it together • Start flight planning with a snapshot of the current airspace – Request updates to the dataset since the snapshot was taken – Result is a common [near-time] view of the NAS • • • Airports Aircraft FMS ATC Automation Traffic Flow Management Partners – International, Military, … • User systems would use or show that data in the form that supports their requirements – Query, Filter, Alert, Transform (text or graphic representation) Aeronautical Information Management January 2007 Federal Aviation Administration 15 15
5. What’s changed? • International Recognition that we need to move from textbased products • There is a global exchange model available – Aeronautical Information Exchange Model (AIXM) • Describes aeronautical information and relationships – Designed for system to system exchange of data • We now understand that existing legacy products can be created from base NAS data – Publications – NOTAMs – Charts (after adaptation for best presentation) • Data Quality starts at the beginning of the process (survey) and must be maintained – Trace-ability of data source and modification – Chain-of-Custody Aeronautical Information Management January 2007 Federal Aviation Administration 16 16

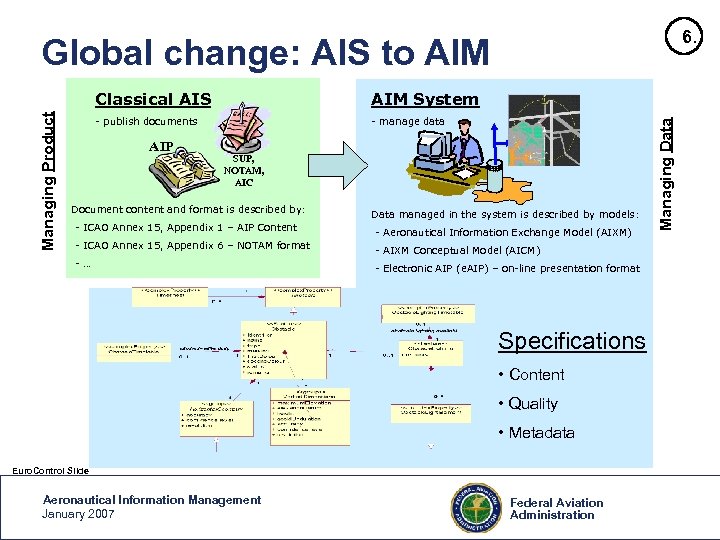

6. Global change: AIS to AIM System - publish documents - manage data AIP Managing Data Managing Product Classical AIS SUP, NOTAM, AIC Document content and format is described by: Data managed in the system is described by models: - ICAO Annex 15, Appendix 1 – AIP Content - Aeronautical Information Exchange Model (AIXM) - ICAO Annex 15, Appendix 6 – NOTAM format - AIXM Conceptual Model (AICM) -… - Electronic AIP (e. AIP) – on-line presentation format Specifications • Content • Quality • Metadata Euro. Control Slide Aeronautical Information Management January 2007 Federal Aviation Administration 17 17
Topics/3 • • • Introduction concepts Advances in aeronautical information Status at FAA What our customers want Current activities Summary Aeronautical Information Management January 2007 Federal Aviation Administration 18 18

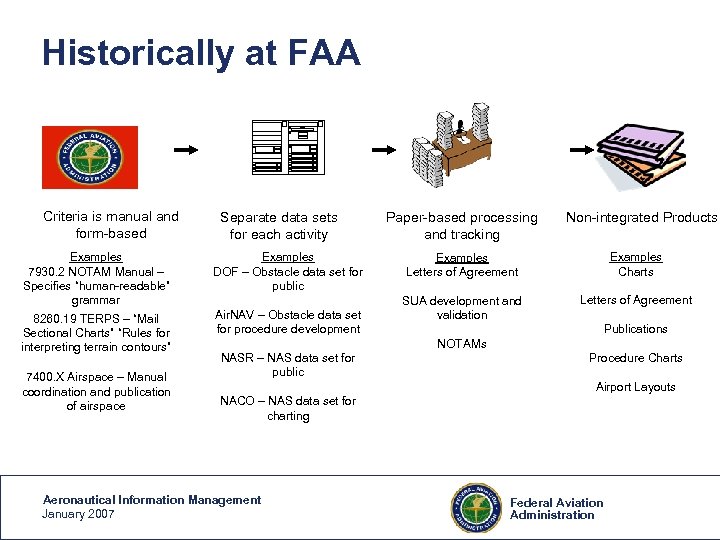

Historically at FAA Criteria is manual and form-based Separate data sets for each activity Examples 7930. 2 NOTAM Manual – Specifies “human-readable” grammar Examples DOF – Obstacle data set for public 8260. 19 TERPS – “Mail Sectional Charts” “Rules for interpreting terrain contours” Air. NAV – Obstacle data set for procedure development 7400. X Airspace – Manual coordination and publication of airspace Paper-based processing and tracking Non-integrated Products Examples Letters of Agreement Examples Charts SUA development and validation Letters of Agreement Publications NOTAMs NASR – NAS data set for public Procedure Charts Airport Layouts NACO – NAS data set for charting Aeronautical Information Management January 2007 Federal Aviation Administration 19 19

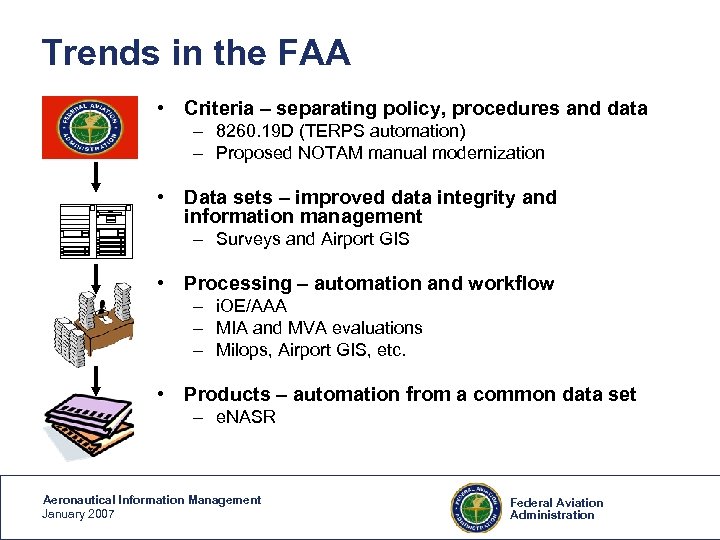

Trends in the FAA • Criteria – separating policy, procedures and data – 8260. 19 D (TERPS automation) – Proposed NOTAM manual modernization • Data sets – improved data integrity and information management – Surveys and Airport GIS • Processing – automation and workflow – i. OE/AAA – MIA and MVA evaluations – Milops, Airport GIS, etc. • Products – automation from a common data set – e. NASR Aeronautical Information Management January 2007 Federal Aviation Administration 20 20

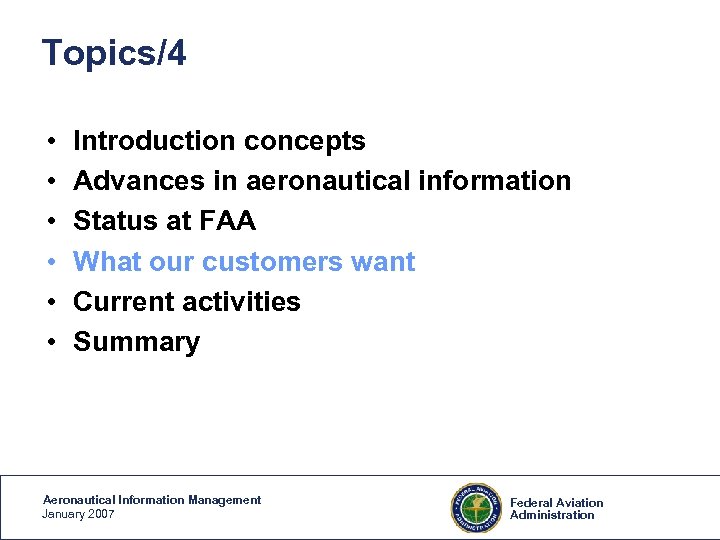

Topics/4 • • • Introduction concepts Advances in aeronautical information Status at FAA What our customers want Current activities Summary Aeronautical Information Management January 2007 Federal Aviation Administration 21 21

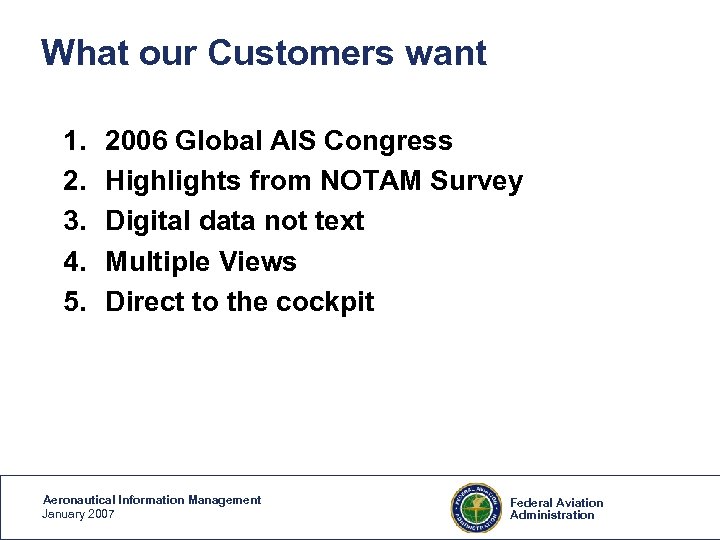

What our Customers want 1. 2. 3. 4. 5. 2006 Global AIS Congress Highlights from NOTAM Survey Digital data not text Multiple Views Direct to the cockpit Aeronautical Information Management January 2007 Federal Aviation Administration 22 22
2006 Global AIS Congress 1. AIS – The key to Interoperability Presentation given to AIS Congress By Capt. Ed Lyons VP Safety & Airworthiness Air Operations for Federal Express Madrid Attendance • Over 500 attendees • Over 80 Countries High Level Representation • FAA ATO VP of System Operations Message: “US NOTAM system is broken” Request: NOTAM (AI) data directly to the cockpit Aeronautical Information Management January 2007 • EUROCONTROL Director General • ICAO Director of Air Navigation Federal Aviation Administration 23 23

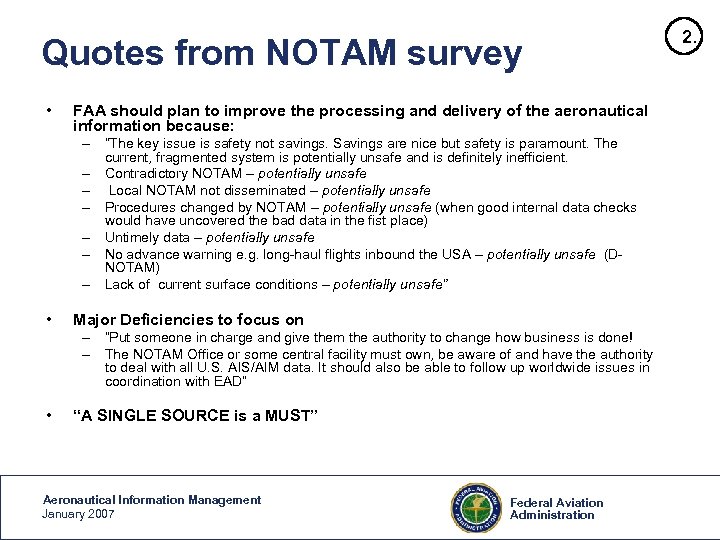

2. Quotes from NOTAM survey • FAA should plan to improve the processing and delivery of the aeronautical information because: – “The key issue is safety not savings. Savings are nice but safety is paramount. The current, fragmented system is potentially unsafe and is definitely inefficient. – Contradictory NOTAM – potentially unsafe – Local NOTAM not disseminated – potentially unsafe – Procedures changed by NOTAM – potentially unsafe (when good internal data checks would have uncovered the bad data in the fist place) – Untimely data – potentially unsafe – No advance warning e. g. long-haul flights inbound the USA – potentially unsafe (DNOTAM) – Lack of current surface conditions – potentially unsafe” • Major Deficiencies to focus on – “Put someone in charge and give them the authority to change how business is done! – The NOTAM Office or some central facility must own, be aware of and have the authority to deal with all U. S. AIS/AIM data. It should also be able to follow up worldwide issues in coordination with EAD” • “A SINGLE SOURCE is a MUST” Aeronautical Information Management January 2007 Federal Aviation Administration 24 24

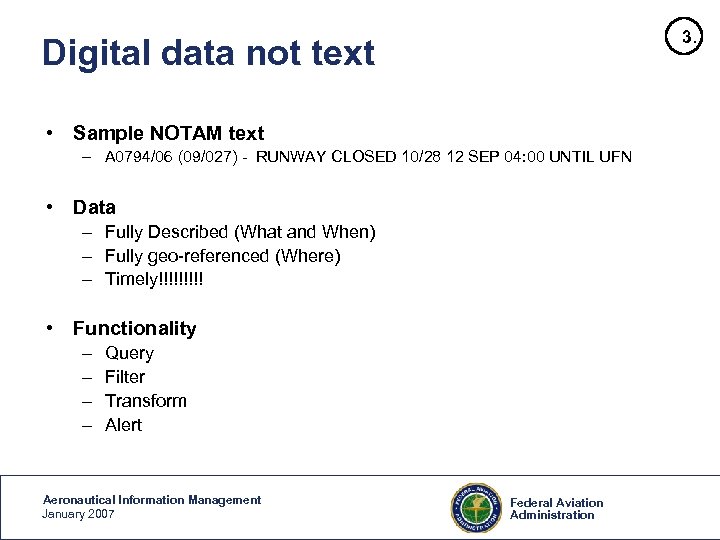

3. Digital data not text • Sample NOTAM text – A 0794/06 (09/027) - RUNWAY CLOSED 10/28 12 SEP 04: 00 UNTIL UFN • Data – Fully Described (What and When) – Fully geo-referenced (Where) – Timely!!!!! • Functionality – – Query Filter Transform Alert Aeronautical Information Management January 2007 Federal Aviation Administration 25 25

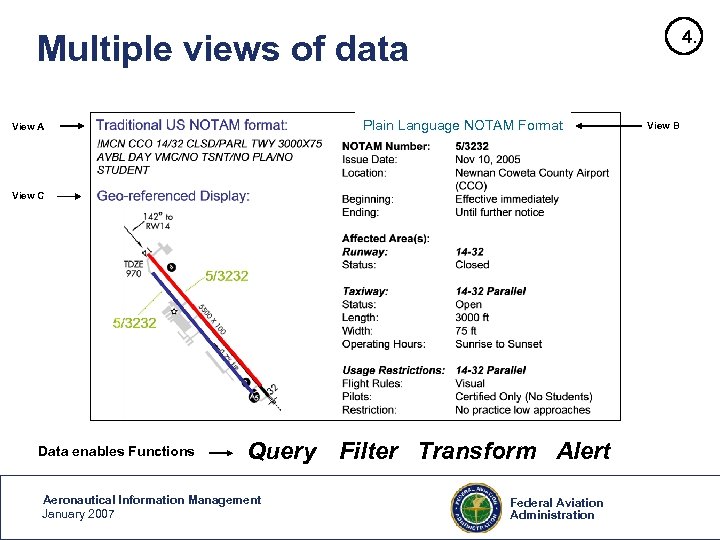

4. Multiple views of data Plain Language NOTAM Format View A View B View C Data enables Functions Query Filter Transform Alert Aeronautical Information Management January 2007 Federal Aviation Administration 26 26
5. Direct to the cockpit x x x x x From Ed Lyons (Fed. Ex) Presentation at 2006 AIS Congress Aeronautical Information Management January 2007 Federal Aviation Administration 27 27

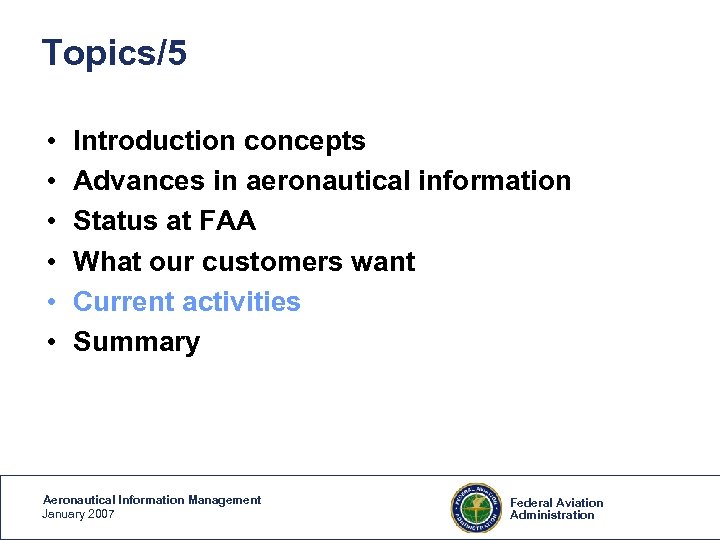

Topics/5 • • • Introduction concepts Advances in aeronautical information Status at FAA What our customers want Current activities Summary Aeronautical Information Management January 2007 Federal Aviation Administration 28 28

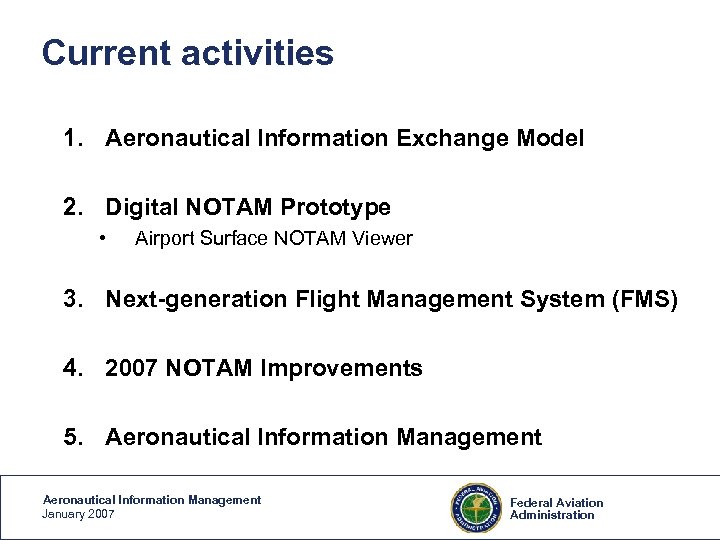

Current activities 1. Aeronautical Information Exchange Model 2. Digital NOTAM Prototype • Airport Surface NOTAM Viewer 3. Next-generation Flight Management System (FMS) 4. 2007 NOTAM Improvements 5. Aeronautical Information Management January 2007 Federal Aviation Administration 29 29
Introduction to AIXM • Standards-based approach for modeling aeronautical data – ICAO* Standards and Recommended Practices (SARPS) – Industry standards – Data concepts from aeronautical information products • • • Originally developed by EUROCONTROL in 1990’s AIXM 5 Developed by collaboration of EUROCONTROL, FAA, NGA and others. Organized into major conceptual areas – – – – Aerodromes Airspace Fixes Procedures Routes Services Obstacles *ICAO: International Civil Aviation Organization Aeronautical Information Management January 2007 Federal Aviation Administration 30 30

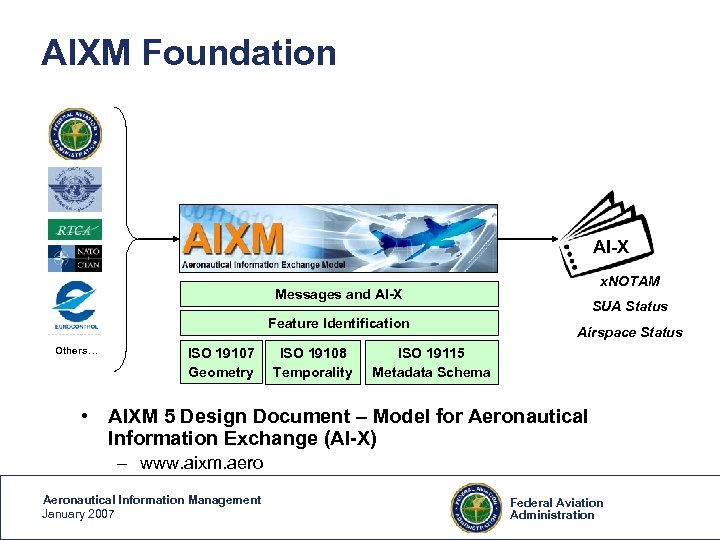

AIXM Foundation AI-X x. NOTAM Messages and AI-X Feature Identification Others… ISO 19107 Geometry ISO 19108 Temporality SUA Status Airspace Status ISO 19115 Metadata Schema • AIXM 5 Design Document – Model for Aeronautical Information Exchange (AI-X) – www. aixm. aero Aeronautical Information Management January 2007 Federal Aviation Administration 31 31

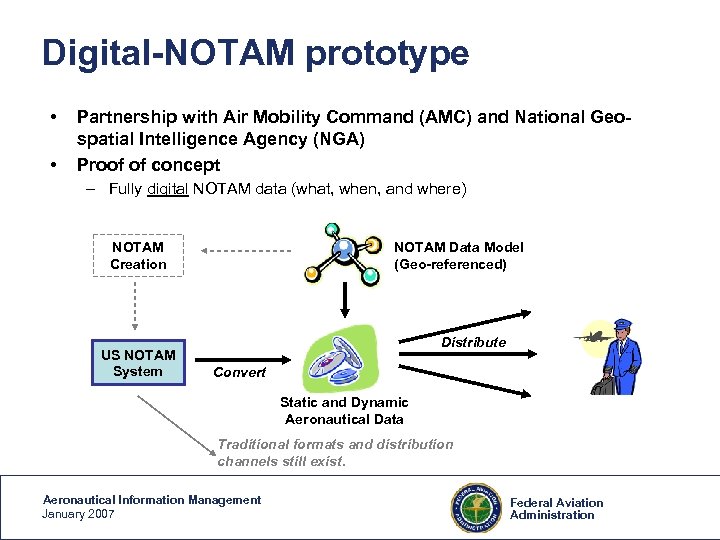

Digital-NOTAM prototype • • Partnership with Air Mobility Command (AMC) and National Geospatial Intelligence Agency (NGA) Proof of concept – Fully digital NOTAM data (what, when, and where) NOTAM Creation US NOTAM System NOTAM Data Model (Geo-referenced) Distribute Convert Static and Dynamic Aeronautical Data Traditional formats and distribution channels still exist. Aeronautical Information Management January 2007 Federal Aviation Administration 32 32
Airport Surface NOTAM Viewer Proof of Concept Digital NOTAM Explorer Filter Airport: ABQ Operation Type VFR (Visual) Select User Type Military operations Plain Language View Civilian, Commercial Civilian, GA IFR Apply Machine readable NOTAM can be accurately filtered and converted to any format on the fly. NOTAM 5/5454 : Beginning 8/1/2006 00 : : 00 Ending: 8/3/2006 12 : 30 Geo-referenced NOTAMs can be plotted on maps and associated with Airport surface features. Visual indicator that there is a NOTAM Taxiway A-8 : Status: Closed Time Range 8/1/2006 16: 00 NOTAM data can be accurately filtered by time. Aeronautical Information Management January 2007 8/1/2006 00: 00 8/2/2006 08: 00 8/2/2006 00: 00 8/4/2006 00: 00 8/3/2006 00: 00 Federal Aviation Administration 33 33
Next Generation Flight Management ARINC Navigation Data Base e. Xchange (NDBX) December 2006 http: //www. arinc. com/aeec/projects/ndbx/index. html • FMS uses proprietary data formats – Limiting options and competition • Equipment Limitations – Equipment and standard capacity limited • • Aeronautical Information Management January 2007 < 10 year life Opportunity to resolve past compromises Federal Aviation Administration 34 34

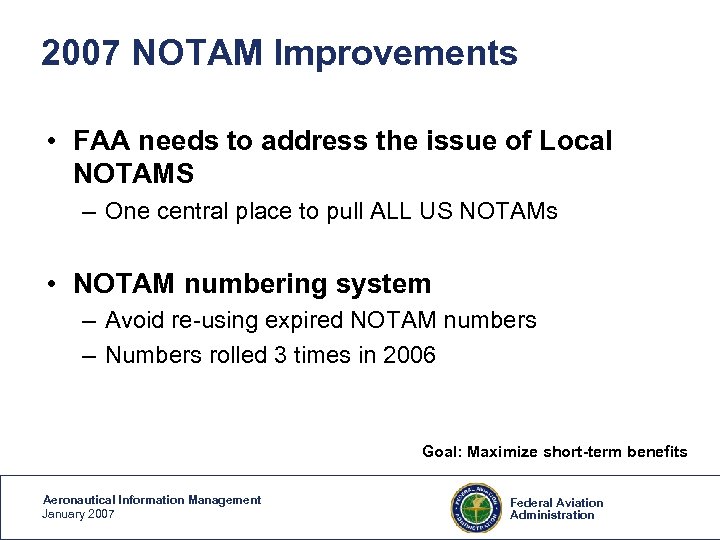

2007 NOTAM Improvements • FAA needs to address the issue of Local NOTAMS – One central place to pull ALL US NOTAMs • NOTAM numbering system – Avoid re-using expired NOTAM numbers – Numbers rolled 3 times in 2006 Goal: Maximize short-term benefits Aeronautical Information Management January 2007 Federal Aviation Administration 35 35

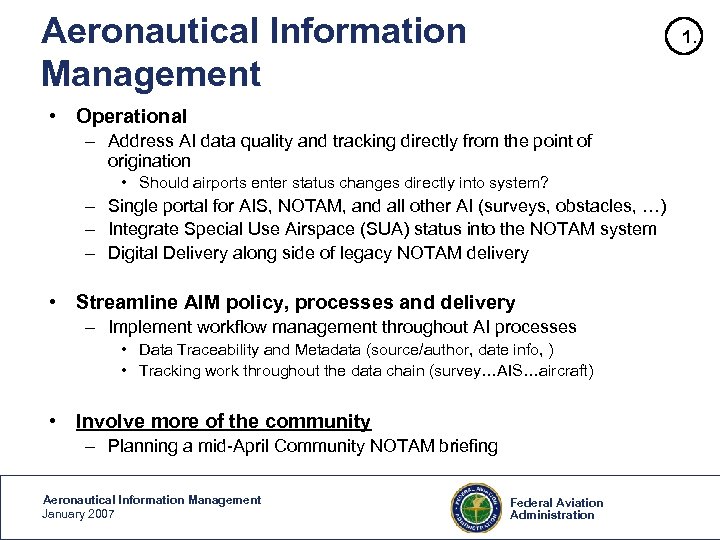

Aeronautical Information Management 1. • Operational – Address AI data quality and tracking directly from the point of origination • Should airports enter status changes directly into system? – Single portal for AIS, NOTAM, and all other AI (surveys, obstacles, …) – Integrate Special Use Airspace (SUA) status into the NOTAM system – Digital Delivery along side of legacy NOTAM delivery • Streamline AIM policy, processes and delivery – Implement workflow management throughout AI processes • Data Traceability and Metadata (source/author, date info, ) • Tracking work throughout the data chain (survey…AIS…aircraft) • Involve more of the community – Planning a mid-April Community NOTAM briefing Aeronautical Information Management January 2007 Federal Aviation Administration 36 36

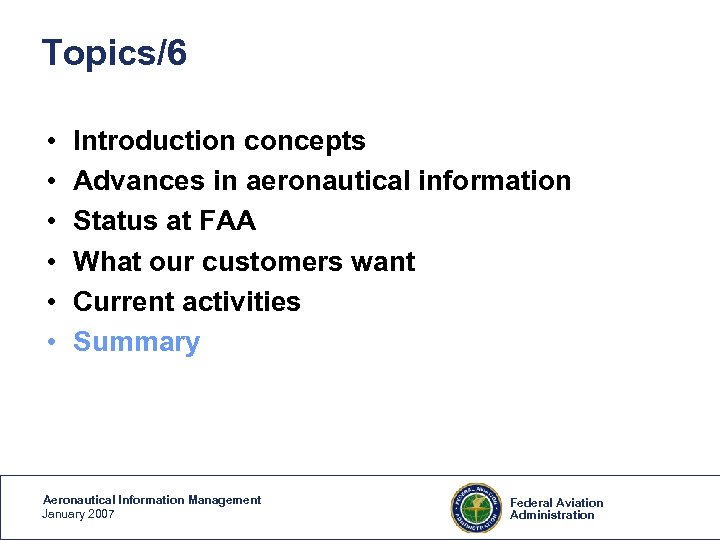

Topics/6 • • • Introduction concepts Advances in aeronautical information Status at FAA What our customers want Current activities Summary Aeronautical Information Management January 2007 Federal Aviation Administration 37 37

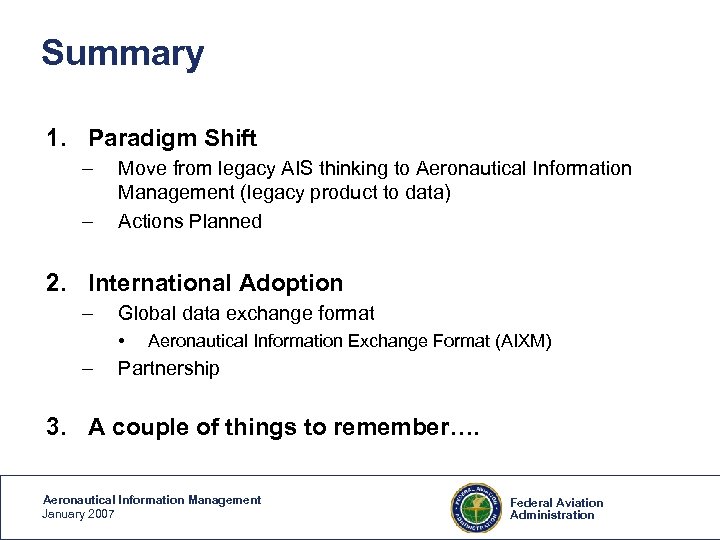

Summary 1. Paradigm Shift – – Move from legacy AIS thinking to Aeronautical Information Management (legacy product to data) Actions Planned 2. International Adoption – Global data exchange format • – Aeronautical Information Exchange Format (AIXM) Partnership 3. A couple of things to remember…. Aeronautical Information Management January 2007 Federal Aviation Administration 38 38

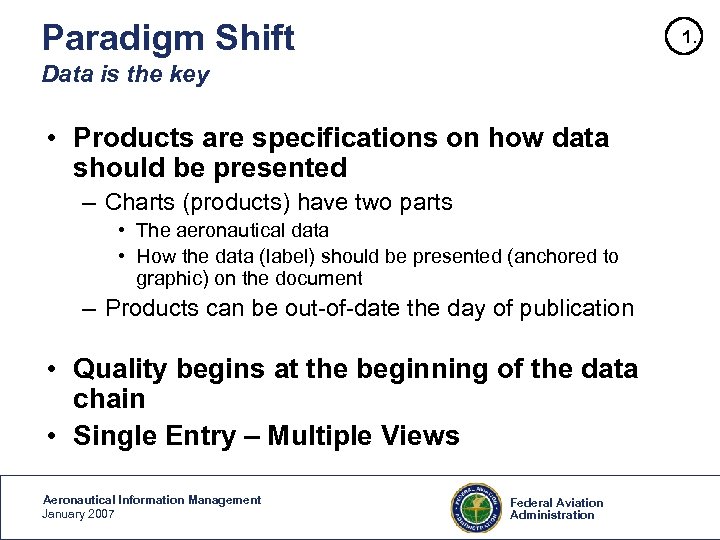

Paradigm Shift 1. Data is the key • Products are specifications on how data should be presented – Charts (products) have two parts • The aeronautical data • How the data (label) should be presented (anchored to graphic) on the document – Products can be out-of-date the day of publication • Quality begins at the beginning of the data chain • Single Entry – Multiple Views Aeronautical Information Management January 2007 Federal Aviation Administration 39 39

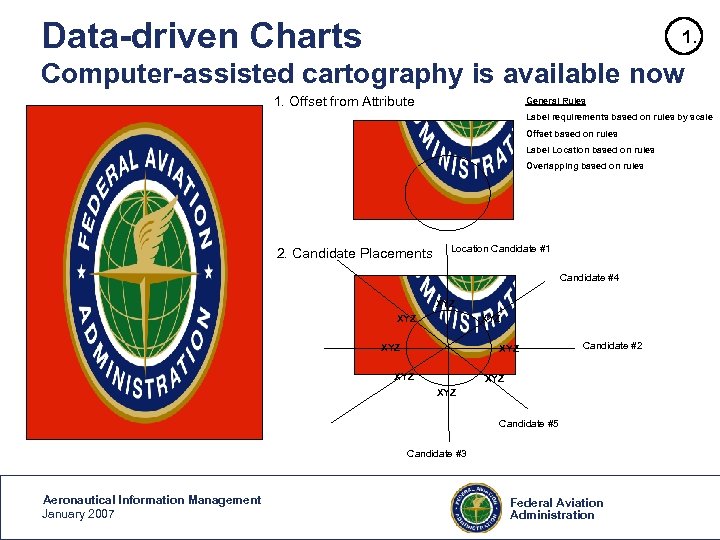

Data-driven Charts 1. Computer-assisted cartography is available now 1. Offset from Attribute General Rules Label requirements based on rules by scale Offset based on rules Label Location based on rules Overlapping based on rules 2. Candidate Placements Location Candidate #1 Candidate #4 XYZ XYZ XYZ Candidate #2 XYZ Candidate #5 Candidate #3 Aeronautical Information Management January 2007 Federal Aviation Administration 40 40

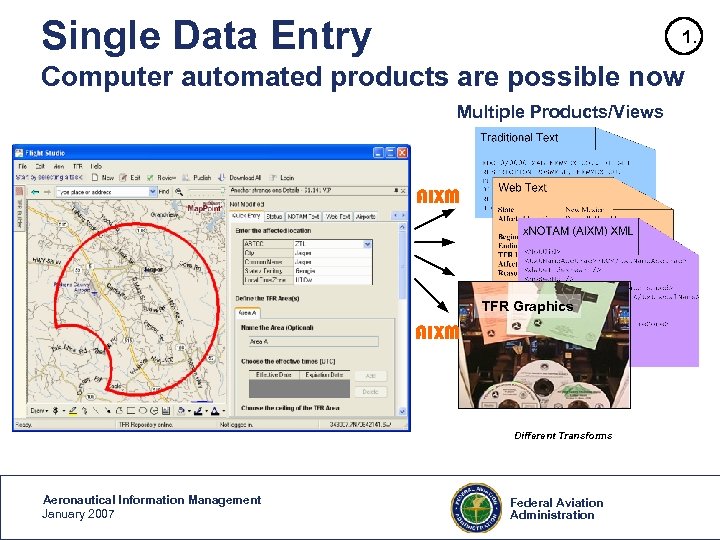

Single Data Entry 1. Computer automated products are possible now Multiple Products/Views AIXM TFR Graphics AIXM Different Transforms Aeronautical Information Management January 2007 Federal Aviation Administration 41 41

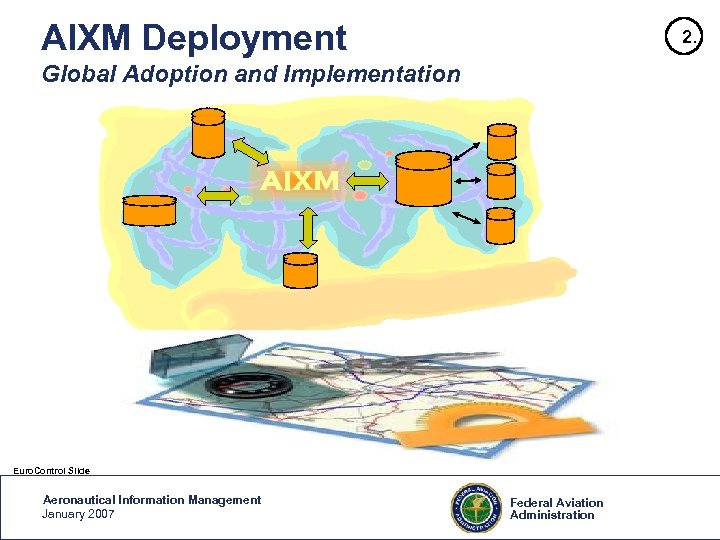

AIXM Deployment 2. Global Adoption and Implementation AIXM Euro. Control Slide Aeronautical Information Management January 2007 Federal Aviation Administration 42 42

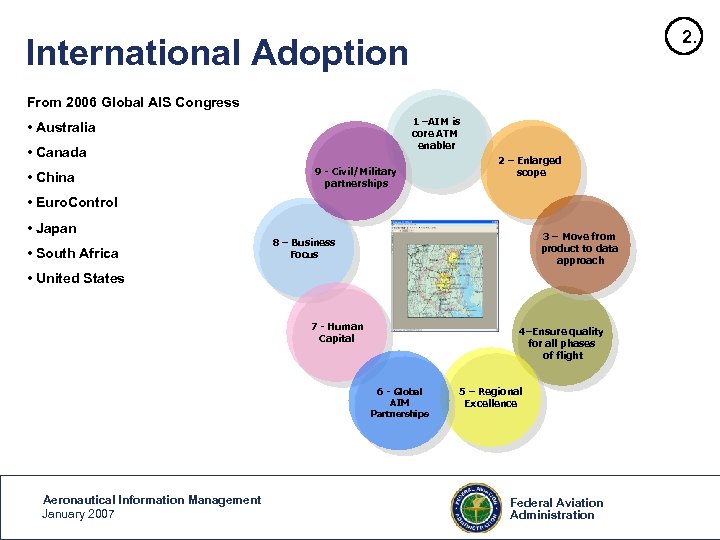

2. International Adoption From 2006 Global AIS Congress 1 –AIM is core ATM enabler • Australia • Canada • China 9 - Civil/Military partnerships 2 – Enlarged scope • Euro. Control • Japan • South Africa 3 – Move from product to data approach 8 – Business Focus • United States 7 - Human Capital 4–Ensure quality for all phases of flight 6 - Global AIM Partnerships Aeronautical Information Management January 2007 5 – Regional Excellence Federal Aviation Administration 43 43

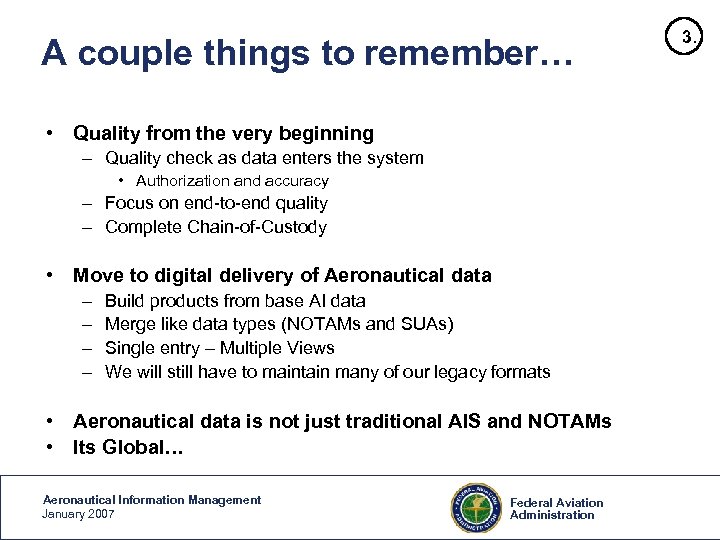

3. A couple things to remember… • Quality from the very beginning – Quality check as data enters the system • Authorization and accuracy – Focus on end-to-end quality – Complete Chain-of-Custody • Move to digital delivery of Aeronautical data – – Build products from base AI data Merge like data types (NOTAMs and SUAs) Single entry – Multiple Views We will still have to maintain many of our legacy formats • Aeronautical data is not just traditional AIS and NOTAMs • Its Global… Aeronautical Information Management January 2007 Federal Aviation Administration 44 44
Thank You ! Aeronautical Information Management January 2007 Federal Aviation Administration 45 45

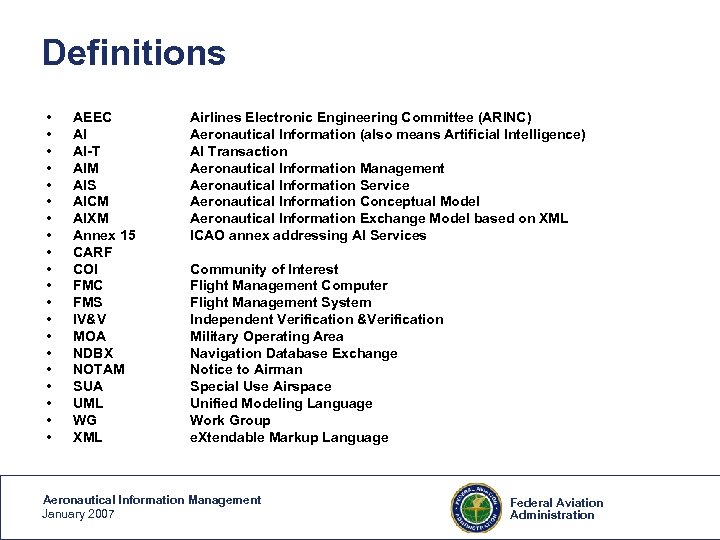

Definitions • • • • • AEEC AI AI-T AIM AIS AICM AIXM Annex 15 CARF COI FMC FMS IV&V MOA NDBX NOTAM SUA UML WG XML Airlines Electronic Engineering Committee (ARINC) Aeronautical Information (also means Artificial Intelligence) AI Transaction Aeronautical Information Management Aeronautical Information Service Aeronautical Information Conceptual Model Aeronautical Information Exchange Model based on XML ICAO annex addressing AI Services Community of Interest Flight Management Computer Flight Management System Independent Verification &Verification Military Operating Area Navigation Database Exchange Notice to Airman Special Use Airspace Unified Modeling Language Work Group e. Xtendable Markup Language Aeronautical Information Management January 2007 Federal Aviation Administration 46 46
